Harness - Fascia - Front (Model Y Standard) (Remove and Replace)
Correction code TBD FRT 0.48 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.
Remove
- Remove the front fascia assembly. See Front Fascia (Remove and Install).
-

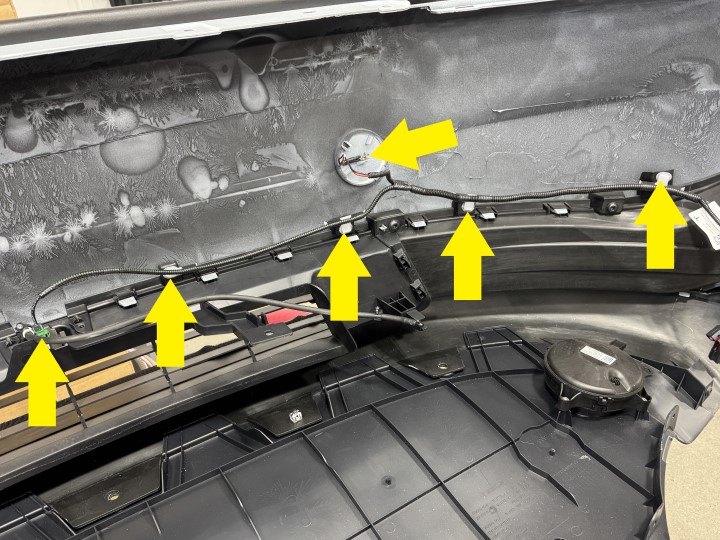

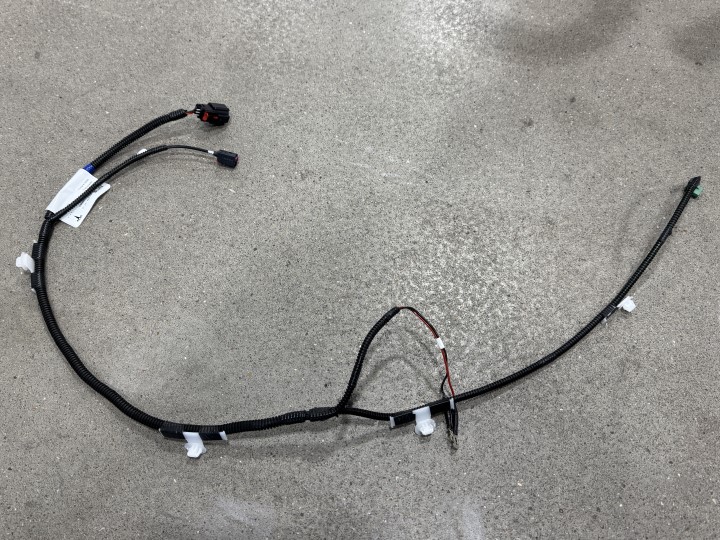

Disconnect the connector, release the clips (x5) that attach the front fascia harness
to the front fascia assembly, then remove the harness from the vehicle.
Install
-
Connect the connector, secure the
clips (x5) that attach the front fascia harness to the front fascia assembly, then
install the harness onto the vehicle.
- Install the front fascia assembly. See Front Fascia (Remove and Install).
