USB Hub Assembly (Model Y Standard) (Remove and Install)

Correction code TBD FRT 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: USB Hub Assembly (Model Y Standard) (Remove and Install)
Description Torque Value Recommended Tools Reuse/Replace Notes
Screws (x2) that attach the USB hub to the USB panel assembly
0.6 Nm (5 lbs-in)
  • Torx T10 bit
  • Digital Torque Screwdriver 0.10Nm - 2.0Nm
 Reuse

Remove

  1. Remove the USB panel assembly. See USB Panel - Center Console (Model Y Standard) (Remove and Replace).

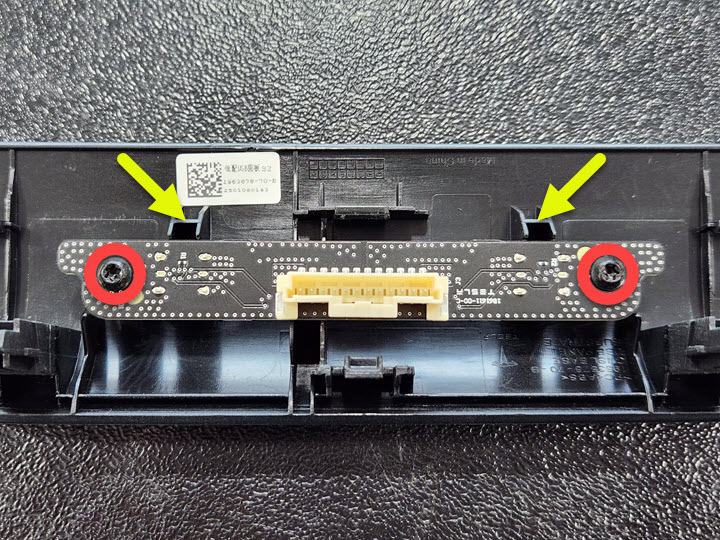

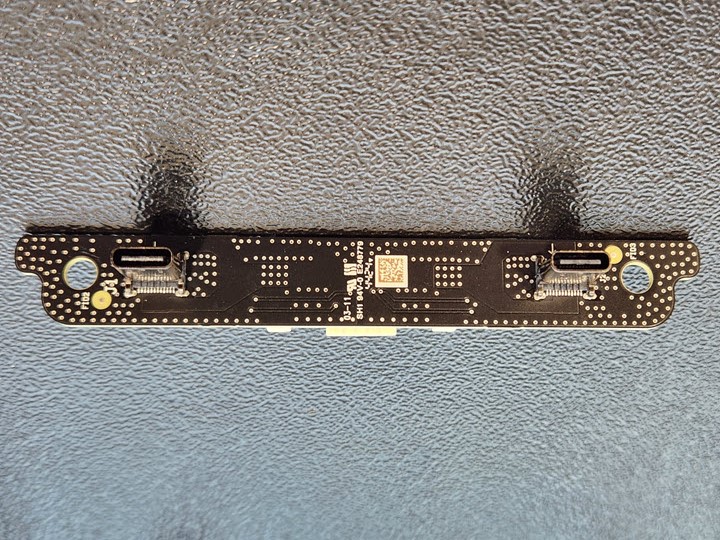

  2. Remove the screws (x2) that attach the USB hub to the USB panel assembly, and then remove the hub from the assembly.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T10 bit
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm

Install

  1. Align the USB hub mounts (x2), and then install the screws (x2) that attach the USB hub to the USB panel assembly.
    0.6 Nm (5 lbs-in)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T10 bit
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm
  2. Install the USB panel assembly. See USB Panel - Center Console (Model Y Standard) (Remove and Replace).
