Phone Dock - Center Console (Remove and Replace)

Correction code 15190302902 FRT 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Torque Specifications

Table 1. Torque Specifications: Phone Dock - Center Console (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes

Screws (x4) that attach the phone dock and charger module assembly to the center console

Screws (x3) that attach the inductive charger module to the phone dock
1.2 Nm (.9 lbs-ft)
  • Torx T20 bit
  • Digital Torque Screwdriver 0.10Nm - 2.0Nm
 Reuse

Remove

  1. Remove the phone dock surround trim. See Surround - Phone Dock - Center Console (Remove and Replace).
  2. Remove the screws (x4) that attach the phone dock and charger module assembly to the center console.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 bit
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm

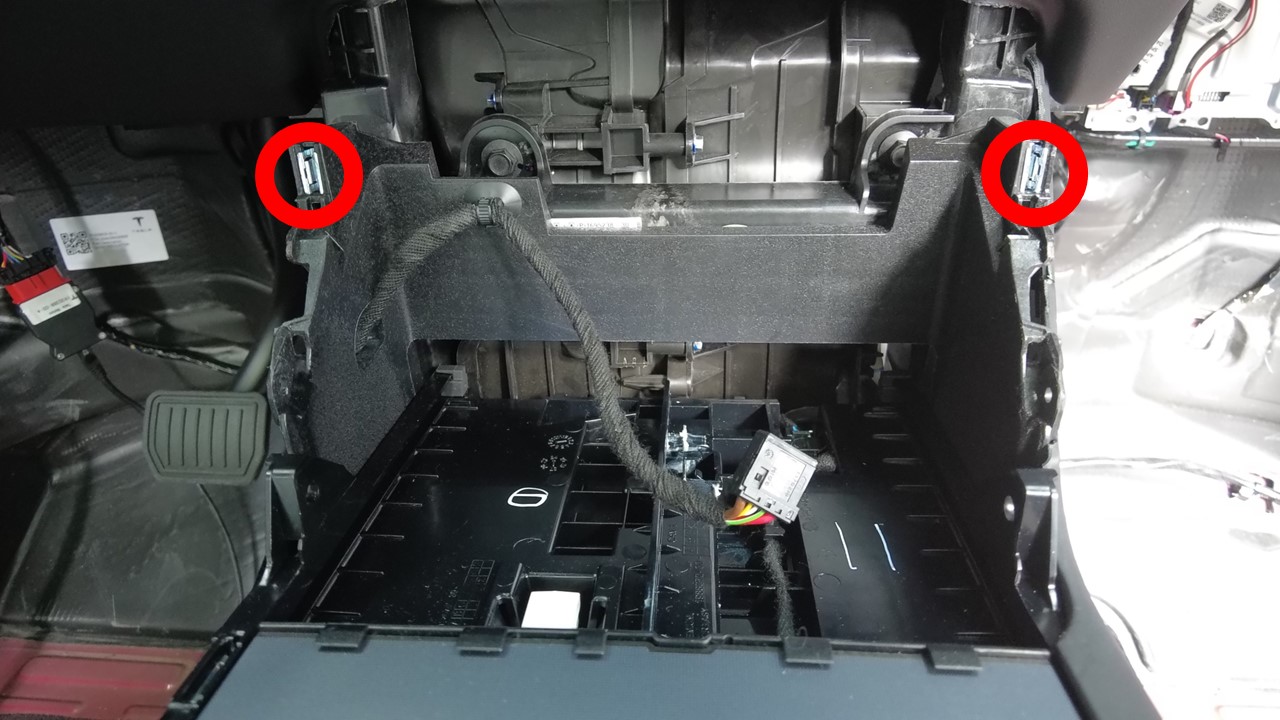

  3. Place a towel on the sliding door cover panel to avoid damage, and then release the tabs (x6) and the clips (x2) that attach the phone dock and charger module assembly to the center console.
    Informational PurposesAn informational icon, calling your attention
    Note
    Do not take the assembly fully away as the harness is still attached.
  4. Disconnect the inductive charger module electrical connector, and then remove the phone dock and charger module assembly from the center console.
  5. Remove the screws (x3) that attach the inductive charger module to the phone dock.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 bit
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm
  6. Release the tabs (x2) at the top of the inductive charger module, and then angle the module up and remove it from the phone dock.

Install

  1. Slide the inductive charger module into the phone dock datums and positioning clips, and then fully engage the tabs (x2) at the top of the module.
  2. Install the screws (x3) that attach the inductive charger module to the phone dock.
    1.2 Nm (.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 bit
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm
  3. Connect the inductive charger module electrical connector.
  4. Secure the tabs (x6) and the clips (x2) that attach the phone dock and charger module assembly to the center console, and then remove the towel.
  5. Install the screws (x4) that attach the phone dock and charger module assembly to the center console.
    1.2 Nm (.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 bit
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm
  6. Install the phone dock surround trim. See Surround - Phone Dock - Center Console (Remove and Replace).
