Underhood Storage Unit (Remove and Replace)

Correction code 1224010202 FRT 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2025-11-20: Added note and image for aero seal position over leading edge of underhood storage unit.
  • 2025-11-20: Updated step for lightbar aero seal positioning.

Torque Specifications

Table 1. Torque Specifications: Underhood Storage Unit (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolts (x4) that secure the underhood storage unit
5 Nm (3.7 lbs-ft)
  • 10 mm socket
  • 4 in extension
  • Ratchet/torque wrench
Reuse

Remove

  1. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  2. Remove the access panel. See Access Panel (Remove and Replace).
  3. Remove the bolts (x4) that secure the underhood storage unit.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
    • 4 in extension
    • Ratchet/torque wrench
  4. Release the clips and tabs that attach the underhood storage unit to the vehicle, and then remove the underhood storage unit from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Replace any clips if broken or missing.

Install

  1. Position the underhood storage unit into the vehcle, and then engage the clips and tabs that attach the underhood storage unit to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure the aero seal is positioned over the underhood storage unit leading edge.
    Informational PurposesAn informational icon, calling your attention
    Note
    Replace any clips if broken or missing.

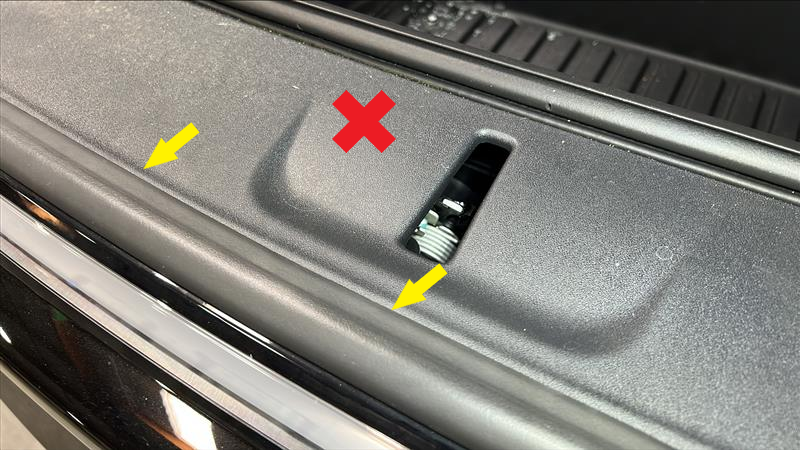

    Figure 1. Aero seal positioned over leading edge
  2. Use a plastic trim tool to position the aero seal of the front lightbar over the leading edge of the underhood storage unit.
  3. Install the bolts (x4) that secure the underhood storage unit.
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
    • 4 in extension
    • Ratchet/torque wrench
  4. Install the access panel. See Access Panel (Remove and Replace).
  5. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
