Brace - Rear Subframe (Remove and Replace)

Correction code 3001021202 FRT 0.30 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Torque Specifications

Table 1. Torque Specifications: Brace - Rear Subframe (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolts (x2) that attach the rear subframe brace to the rear subframe
125 Nm (92.2 lbs-ft)
  • SKTWRNCH-1/2IN-SHORT-HEX-WS21 ZEBRA
 Reuse

Remove

  1. Remove the rear fascia diffuser. See Diffuser - Rear Fascia (Remove and Replace).

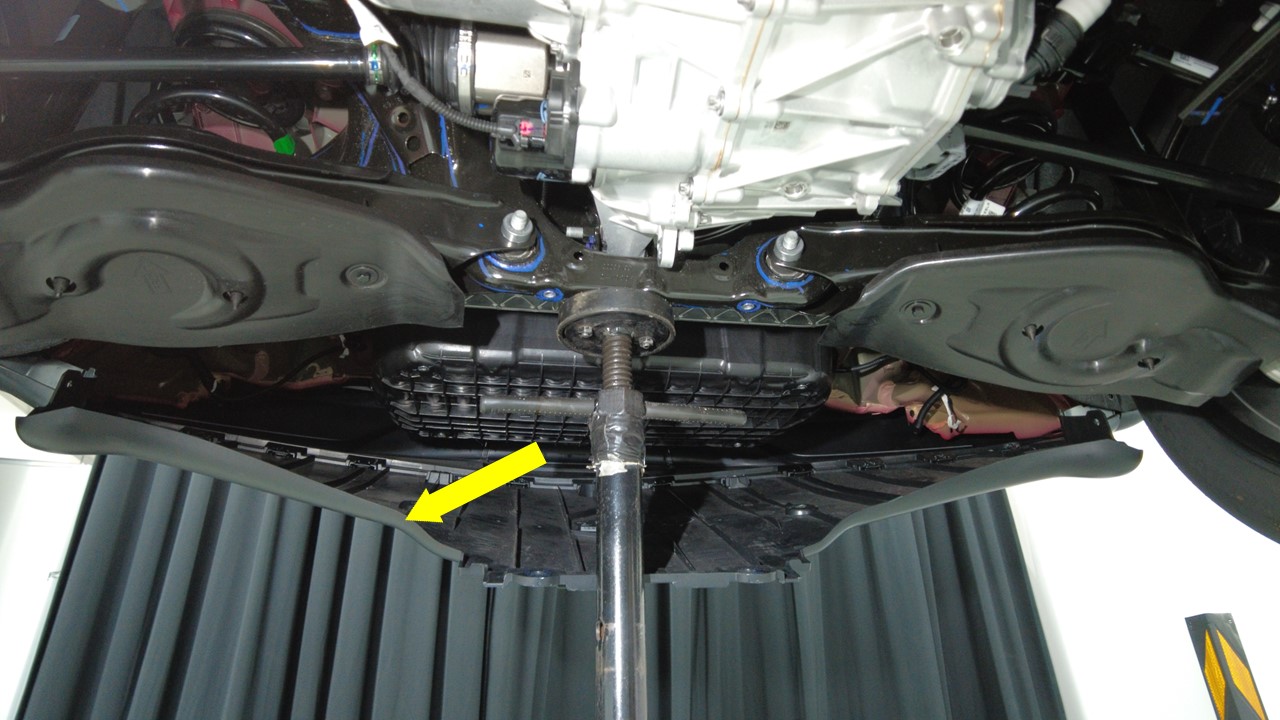

  2. Position the support stand to support the rear portion of the rear subframe.

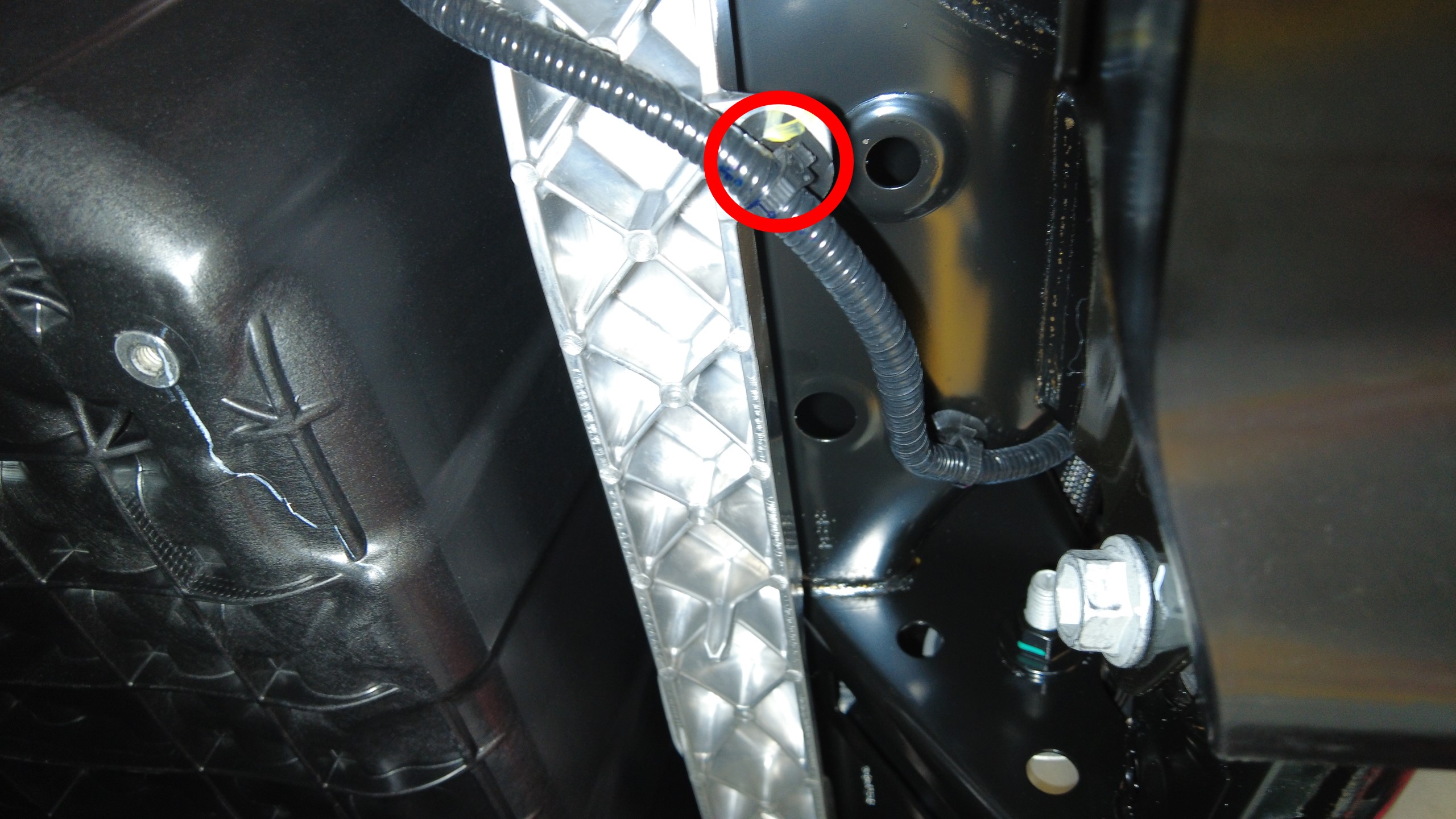

  3. Remove the RH side 12V subframe harness clip from the rear subframe brace.

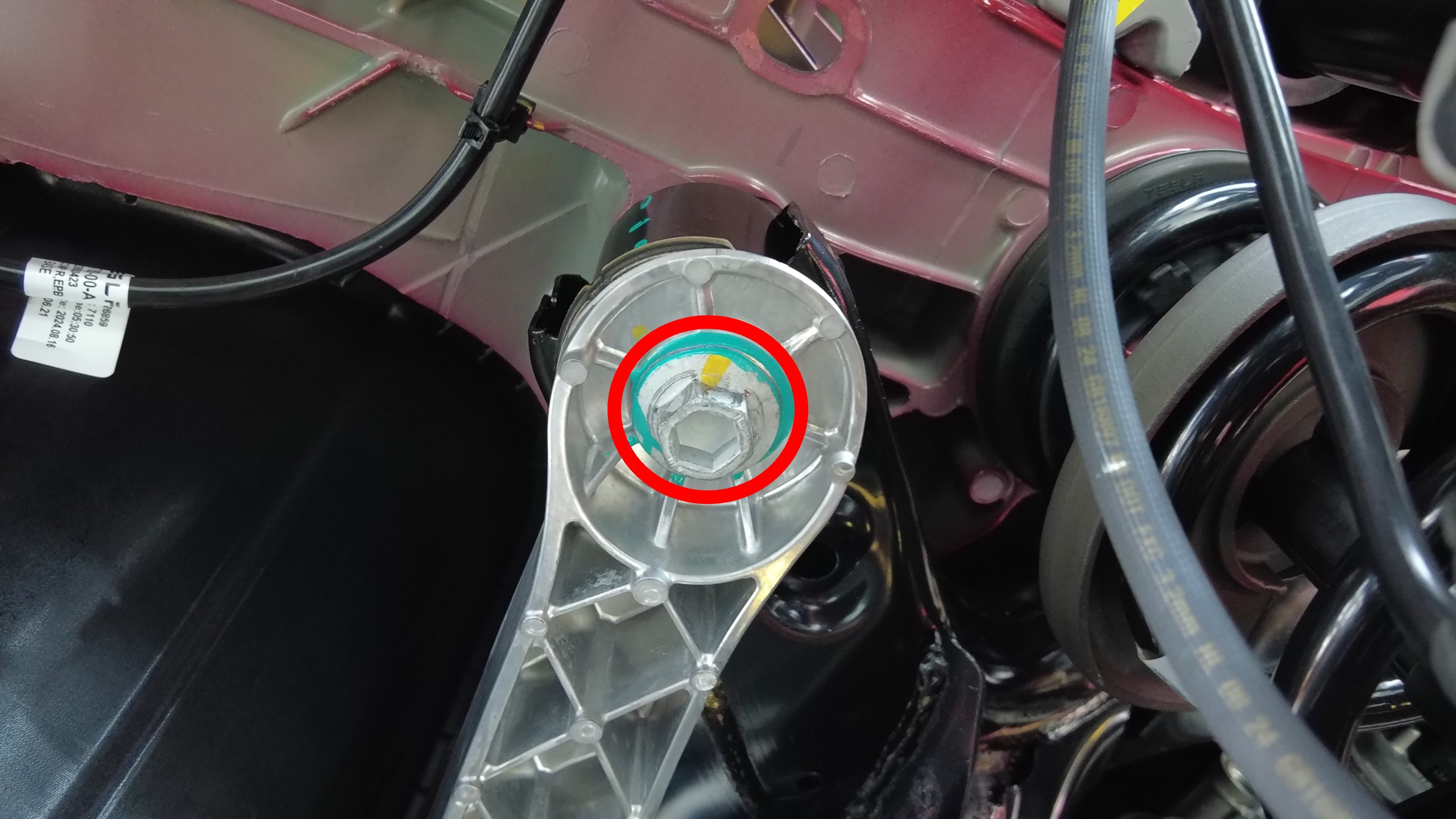

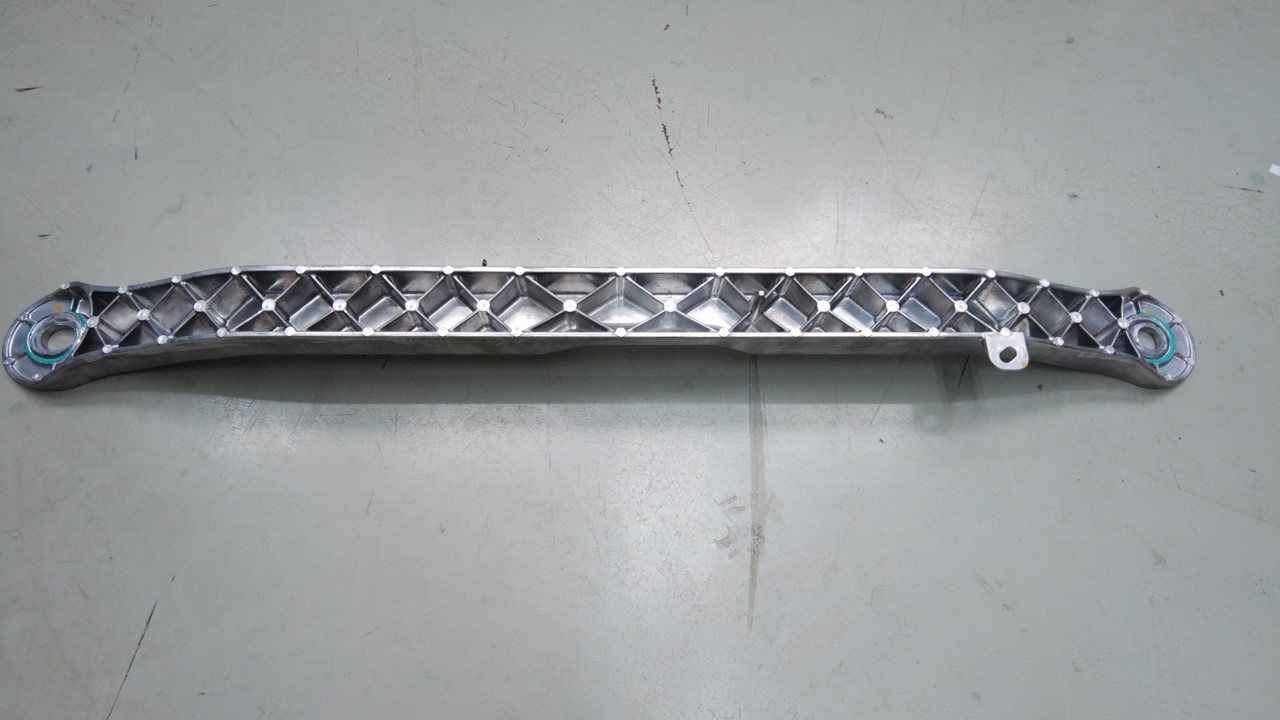

  4. Remove the LH and RH rear bolts (x2) that attach the rear subframe brace to the rear subframe, then carefully remove the brace while holding it firmly with your hands to prevent it from falling.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • SKTWRNCH-1/2IN-SHORT-HEX-WS21 ZEBRA

Replace

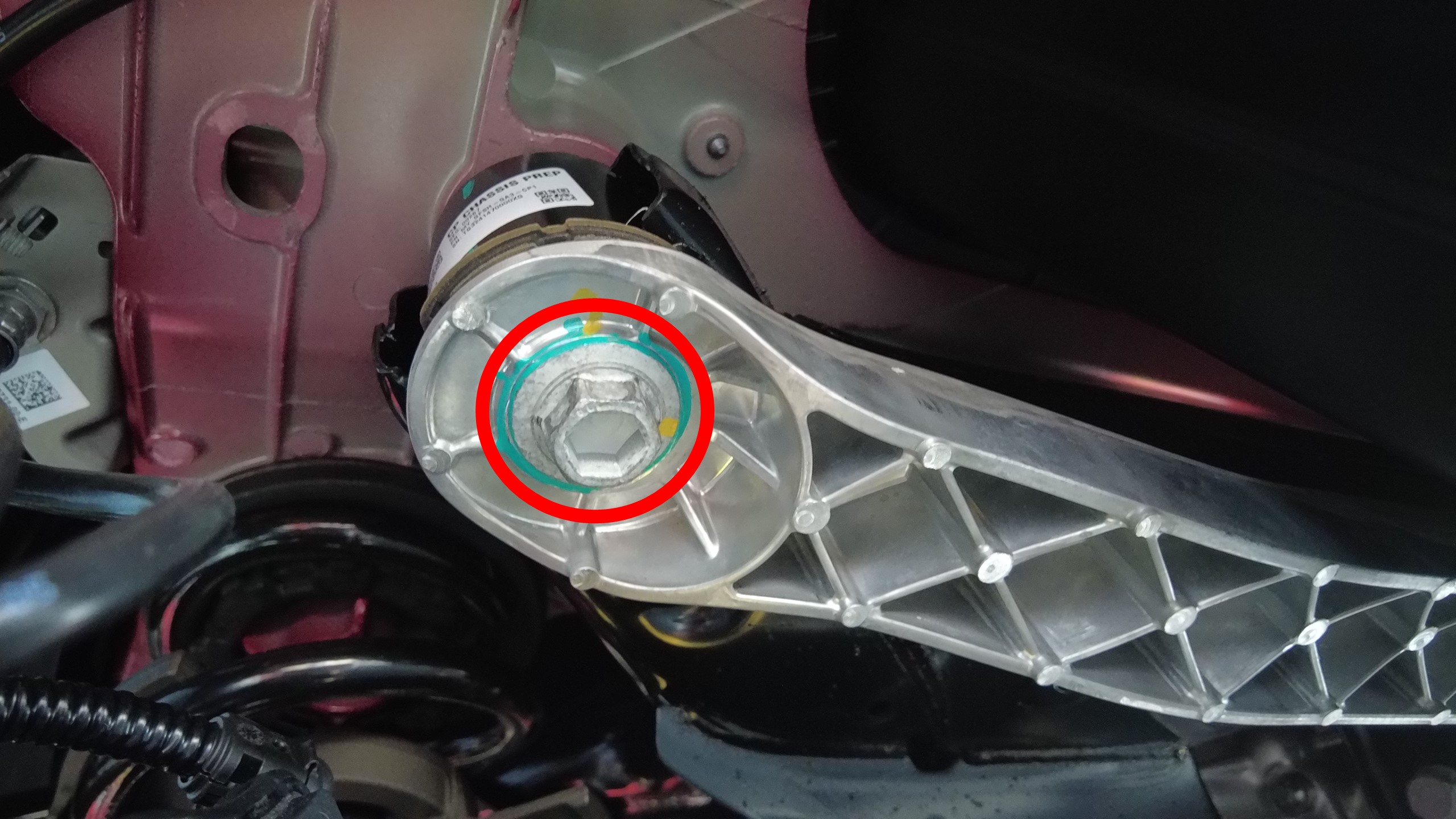

  1. Install the LH and RH rear bolts (x2) that attach the rear subframe brace to the rear subframe, and mark each bolt after torquing.
    125 Nm (92.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • SKTWRNCH-1/2IN-SHORT-HEX-WS21 ZEBRA
  2. Install the RH side 12V subframe harness clip onto the rear subframe brace.

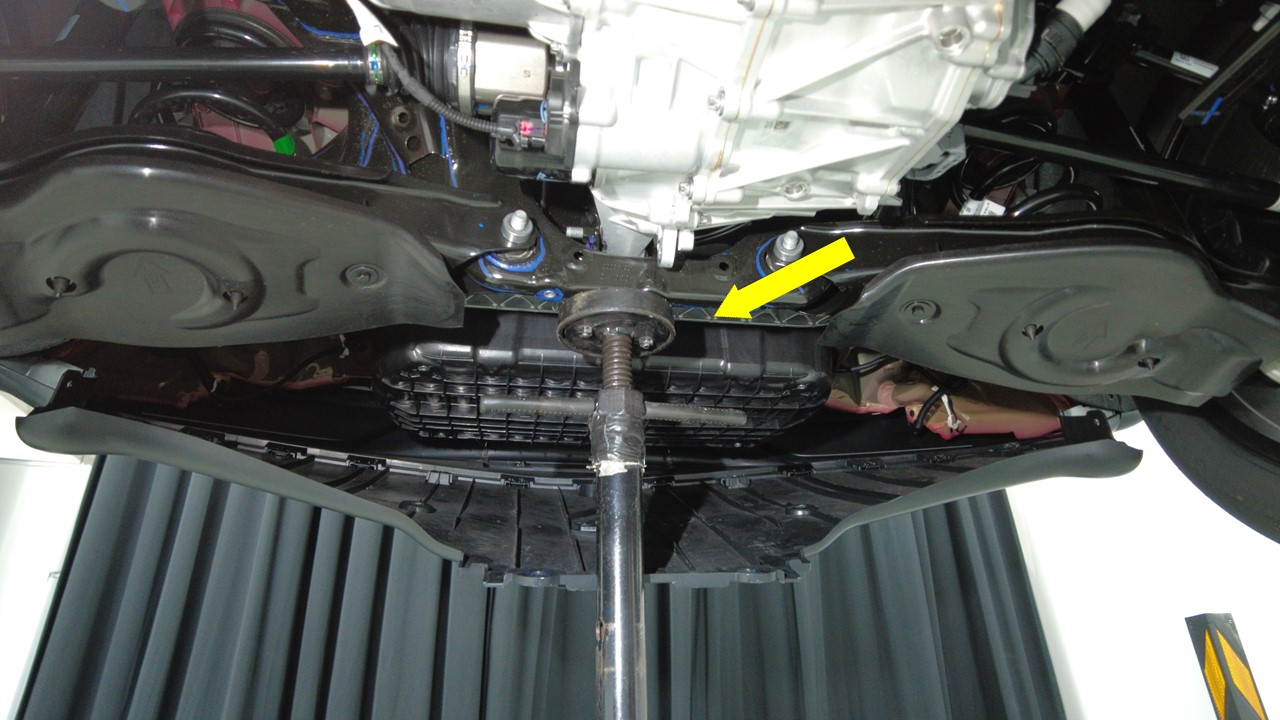

  3. Remove the support stand from underneath the rear portion of the rear subframe.
  4. Install the rear fascia diffuser. See Diffuser - Rear Fascia (Remove and Replace).
