Cup Holder - Center Console (Model Y Standard) (Remove and Replace)

Correction code 15190403502 FRT 0.42 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: Cup Holder - Center Console (Model Y Standard) (Remove and Install)
Description Torque Value Recommended Tools Reuse/Replace Notes
Rear bolts (x2) that attach the center console to the vehicle
7 Nm (5.2 lbs-ft)
  • 10 mm socket
 Reuse
LH and RH side bolts (x4) that attach the center console to the vehicle
7 Nm (5.2 lbs-ft)
  • 10 mm deep socket
 Reuse

Install

  1. With an assistant, install the center console into the vehicle as follows:
    1. Tilt the front of the center console downwards.
    2. Slide the center console towards the front of the vehicle.
    3. Tilt the rear of the center console downwards until it is in place.

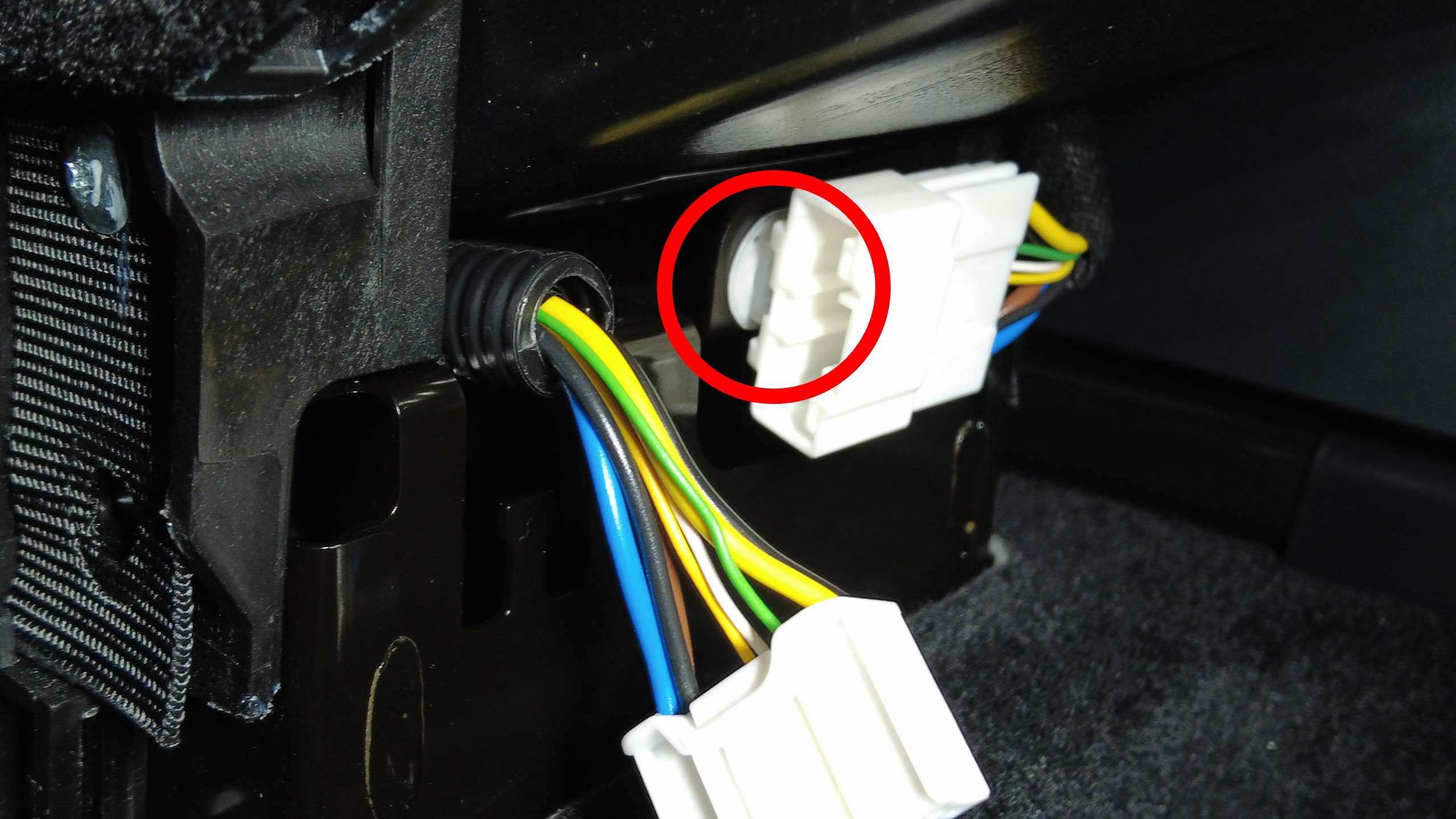

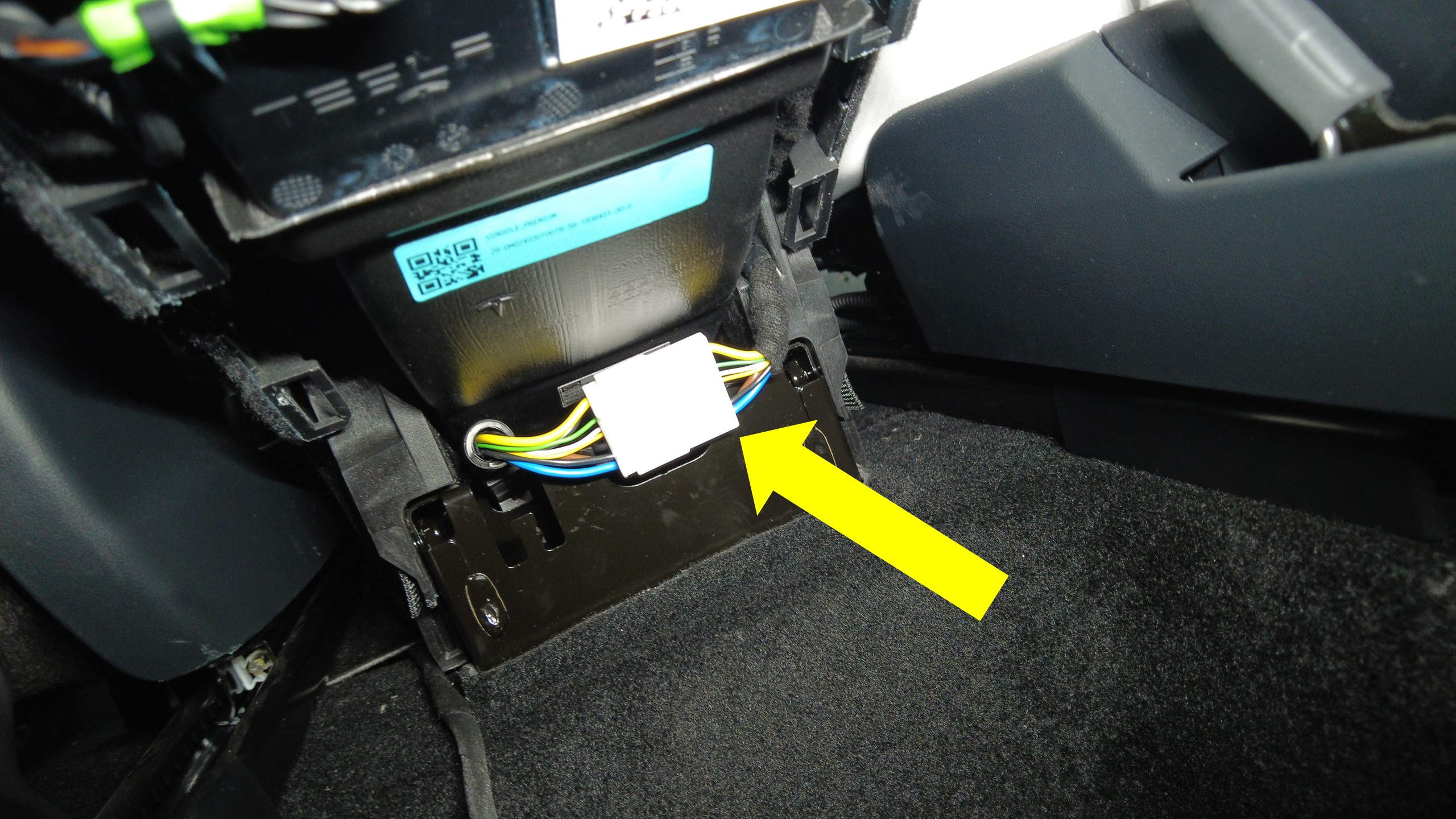

  2. Secure the connector clip and connect the center console connector.
  3. Connect the LV battery power. See LV Power (Disconnect and Connect) (Modify).
  4. Reinstall the vehicle firmware. See Software Reinstall - Touchscreen.

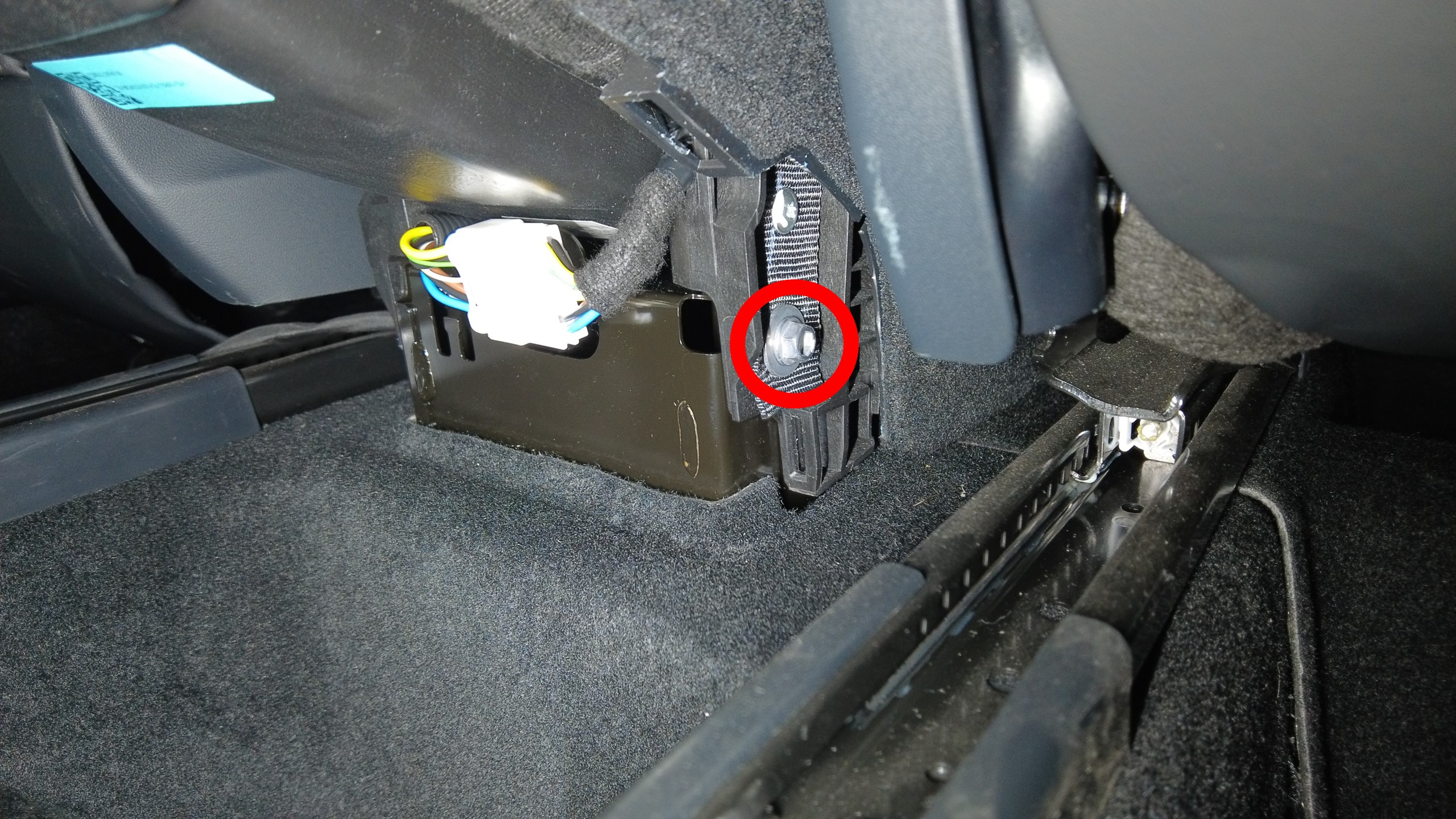

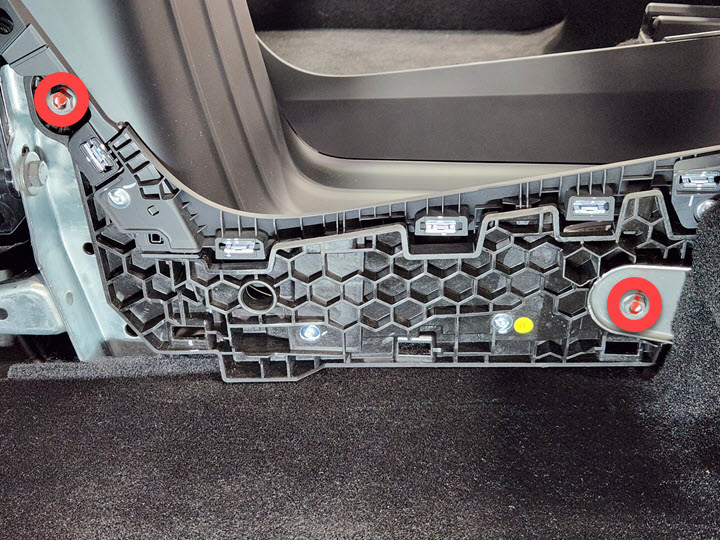

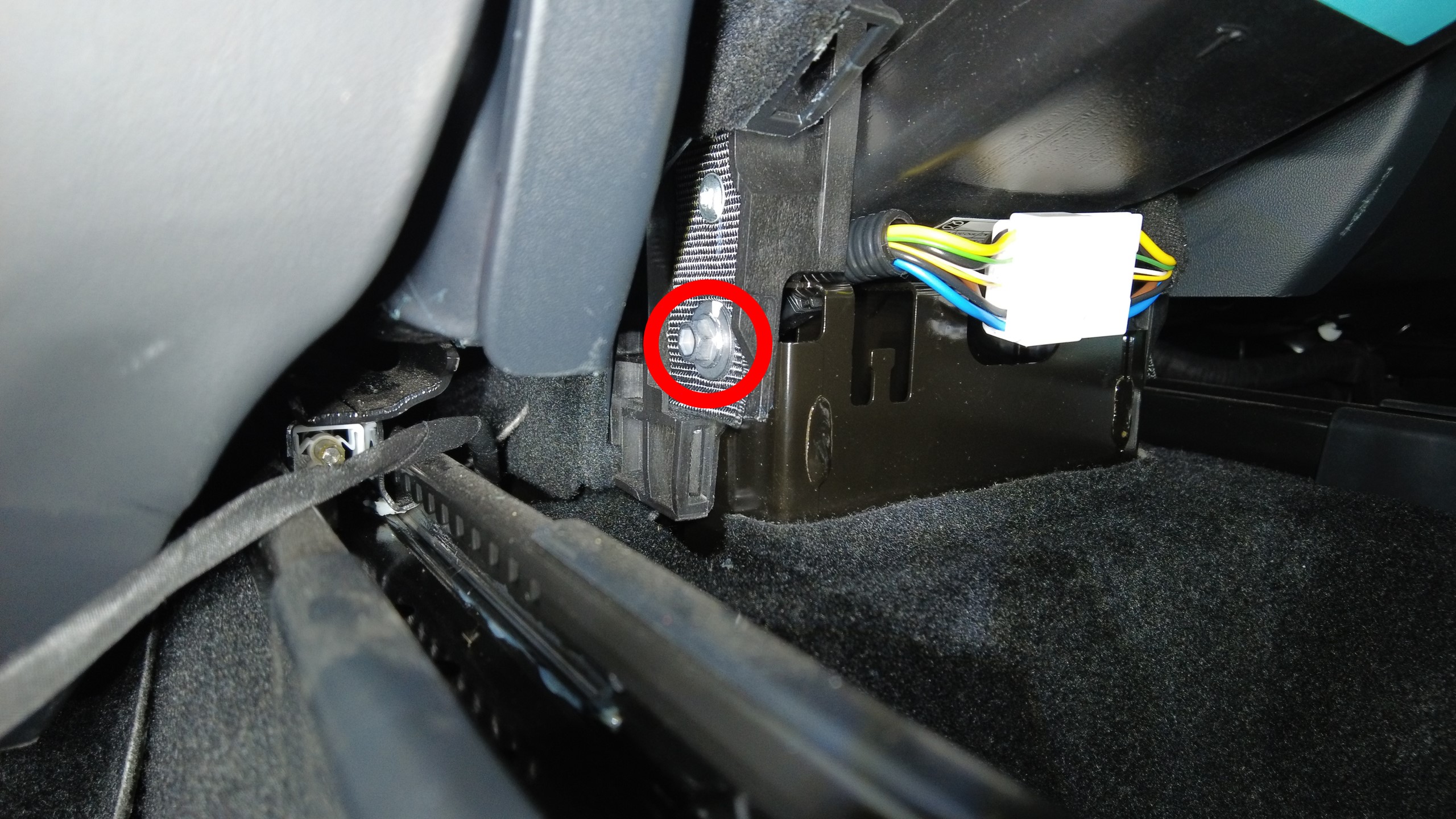

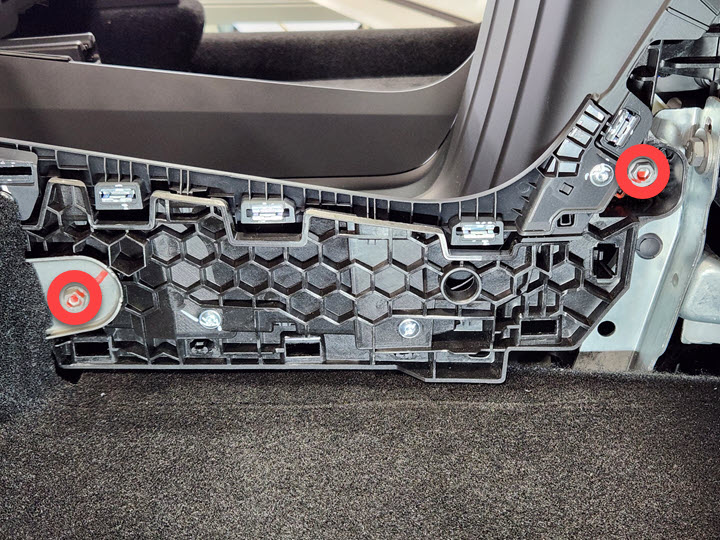

  5. Install the LH and RH side bolts (x4) that attach the center console to the vehicle.
    7 Nm (5.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm deep socket
  6. Install the center console LH and RH front side panels. See Side Panel - Center Console - Front - RH (Model Y Standard) (Remove and Install).
  7. Install the rear bolts (x2) that attach the center console to the vehicle.
    7 Nm (5.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  8. Install the center console rear end panel. See Air Vent Cover - Rear - Center Console (Model Y Standard) (Remove and Install).
