Harness - Driver Seat Harness - LH (Model Y Standard) (Remove and Install)

Correction code NEW NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.
  • 2025-10-01: Released new procedure.

Remove

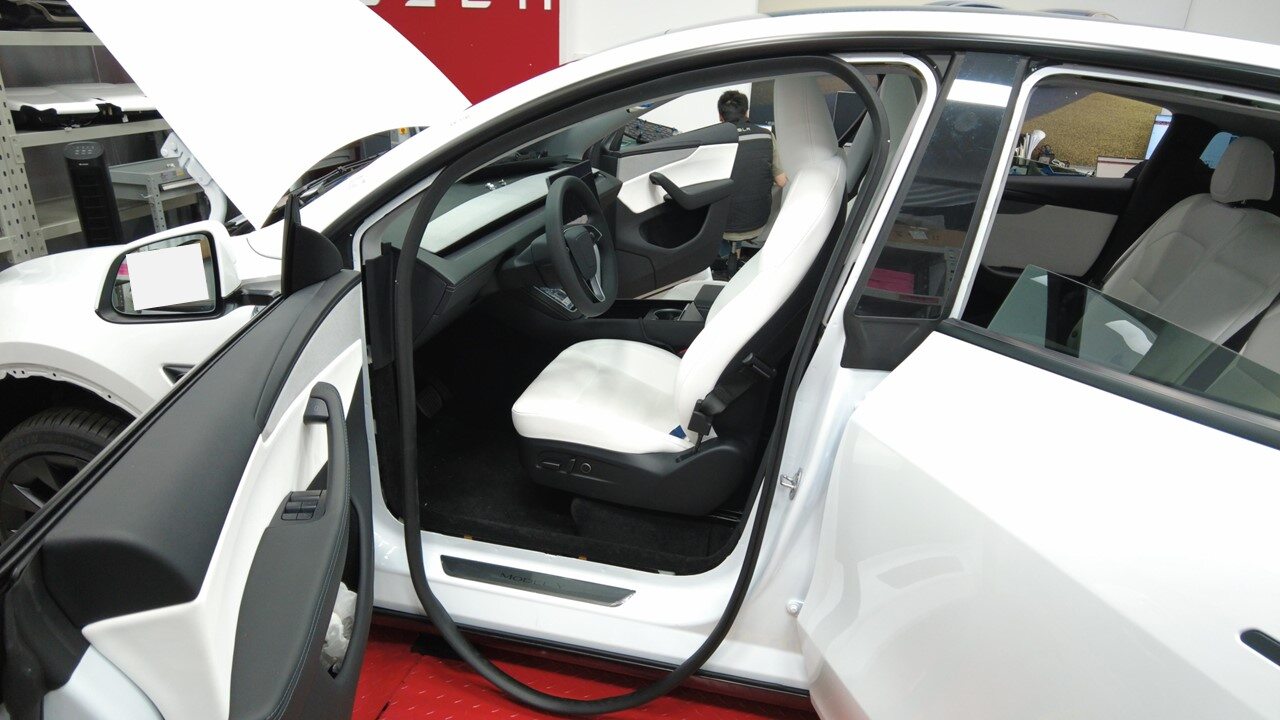

  1. Open LH front door

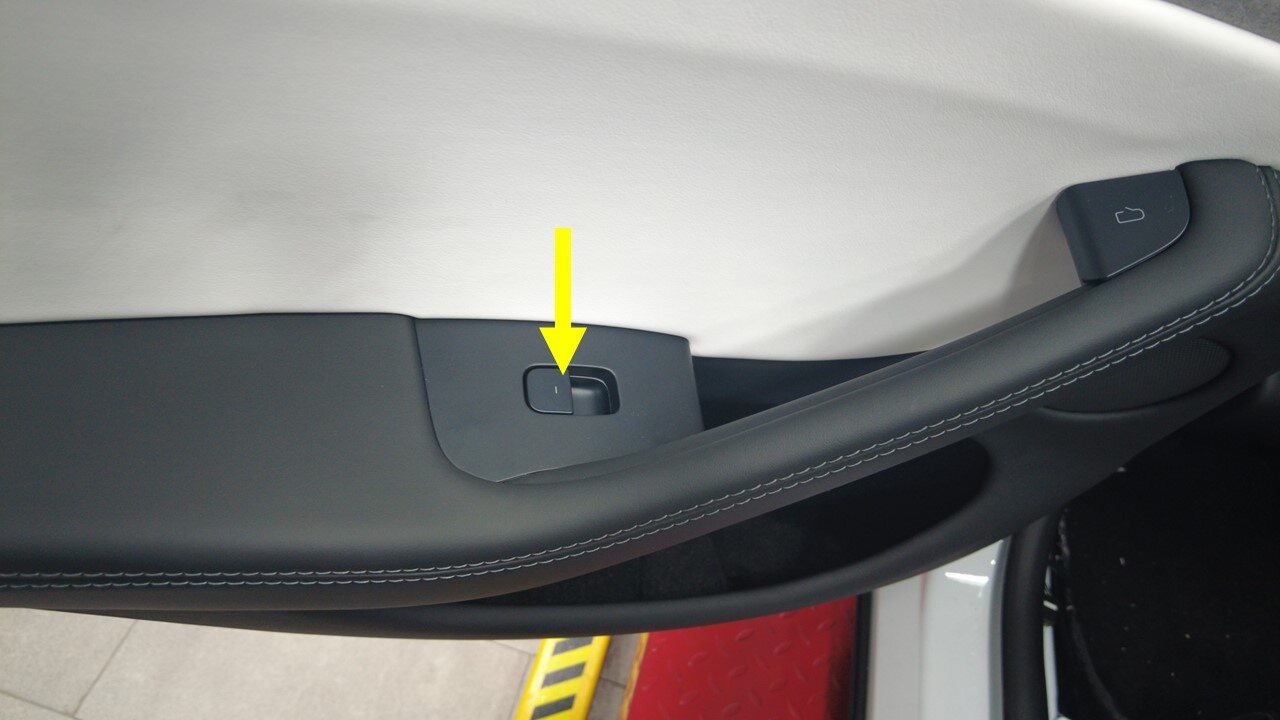

  2. Lower LH front window

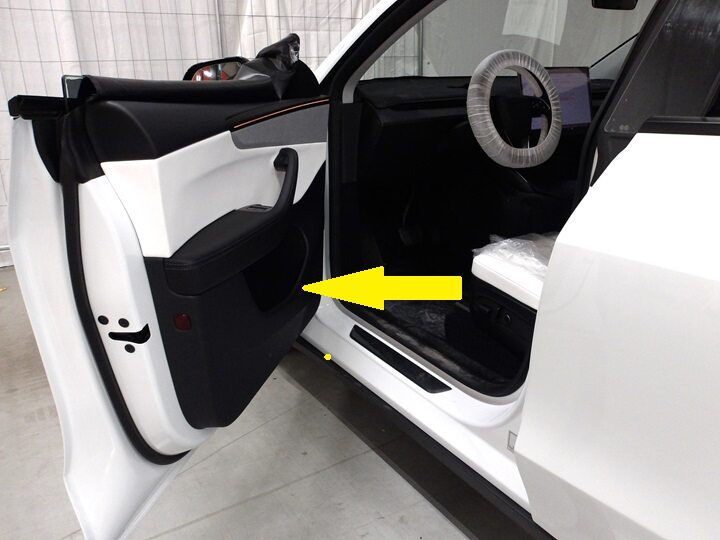

  3. Partially remove LH front primary door seal from body

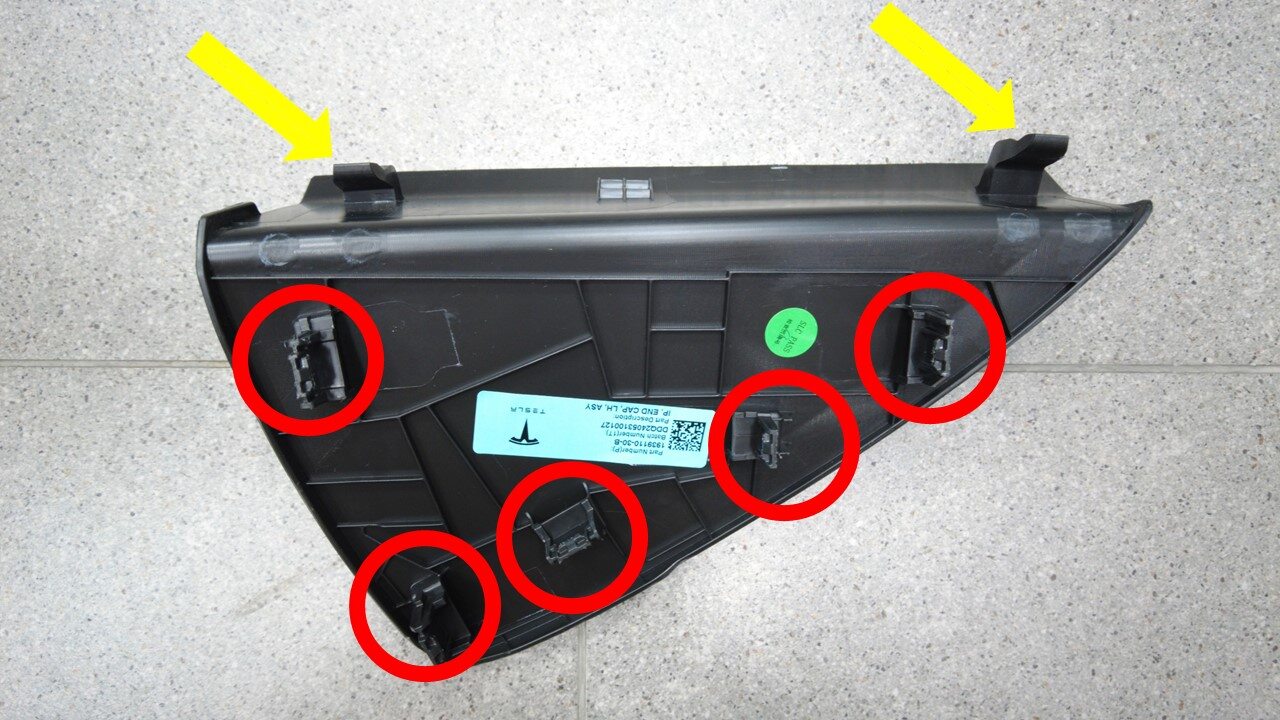

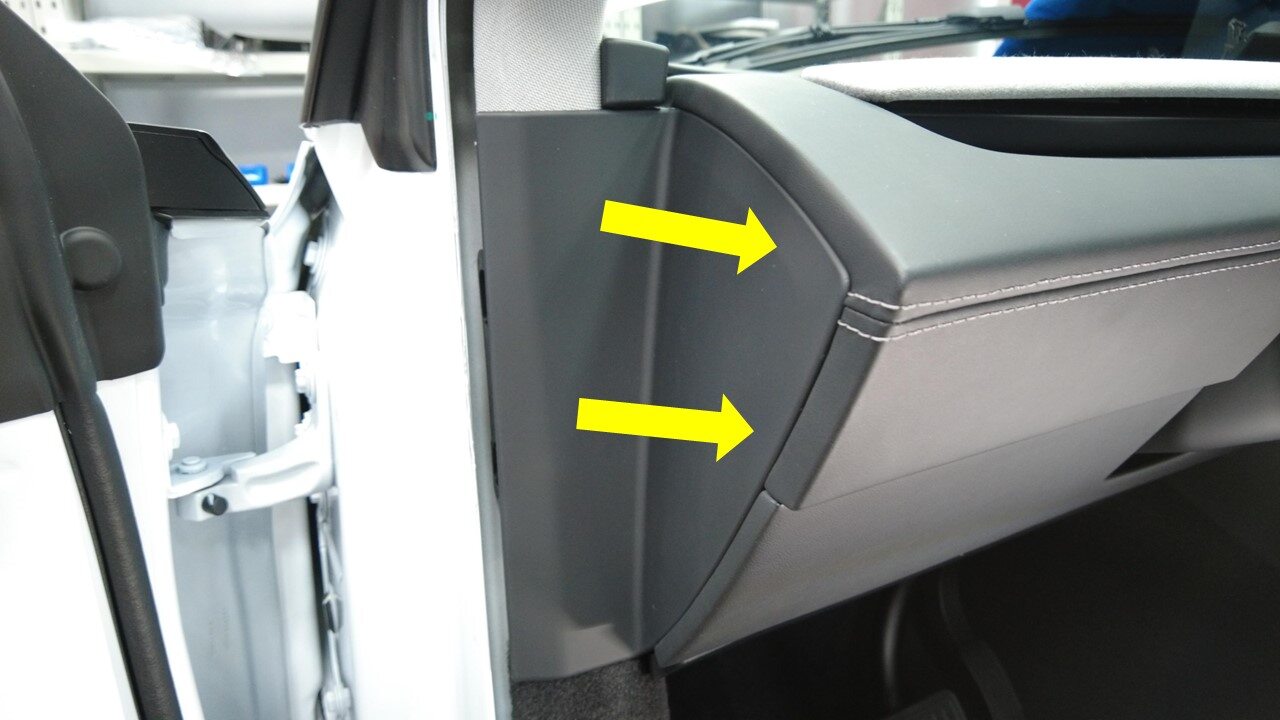

  4. Remove LH IP end cap
    Informational PurposesAn informational icon, calling your attention
    Note
    5x clips, 2x guide tabs

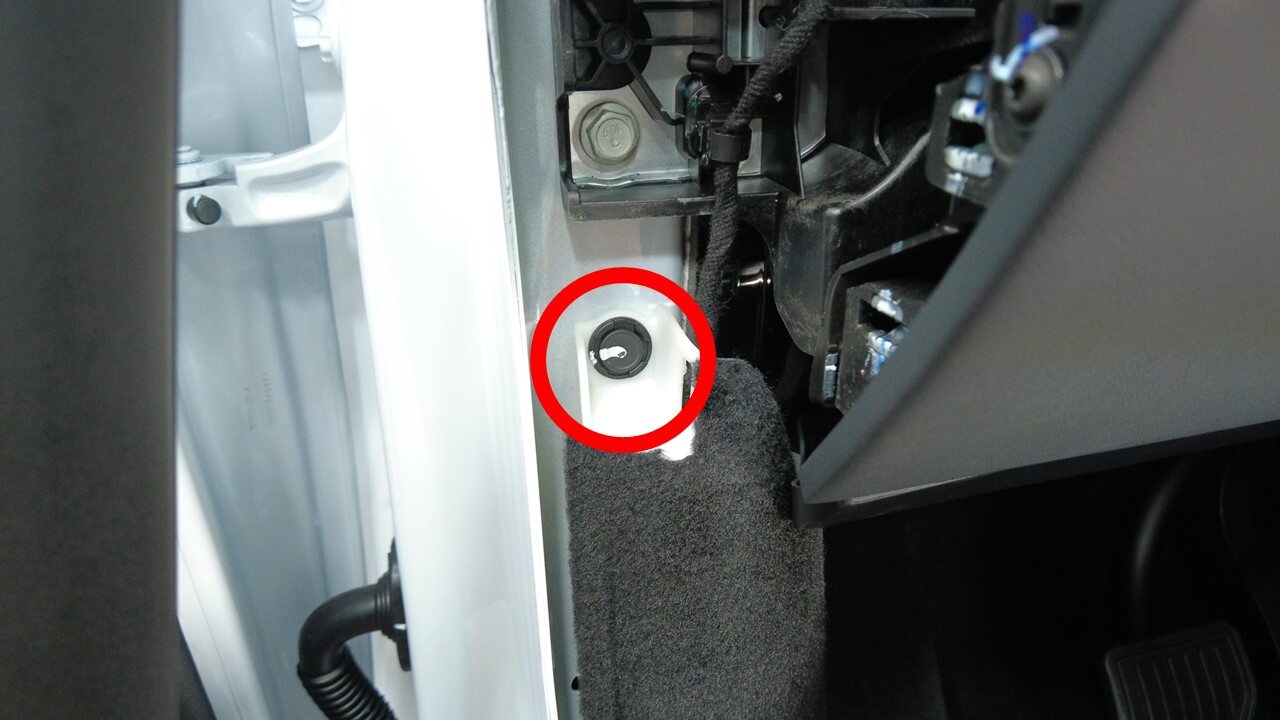

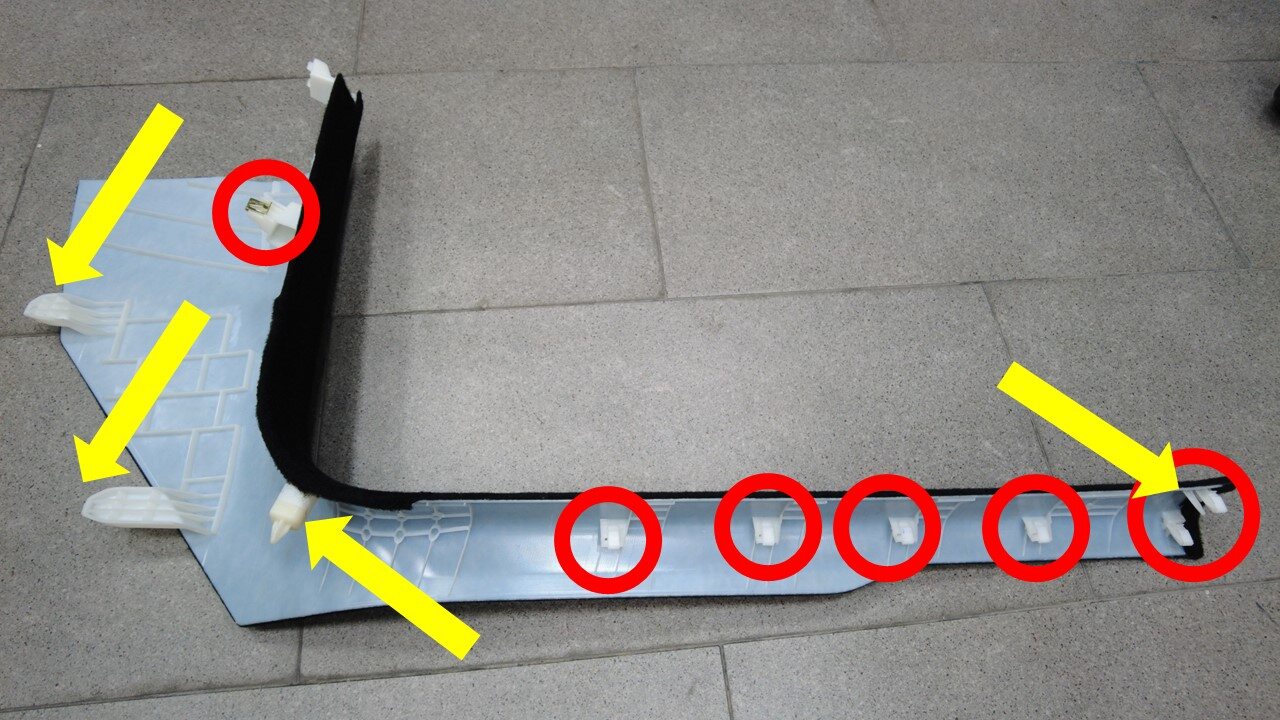

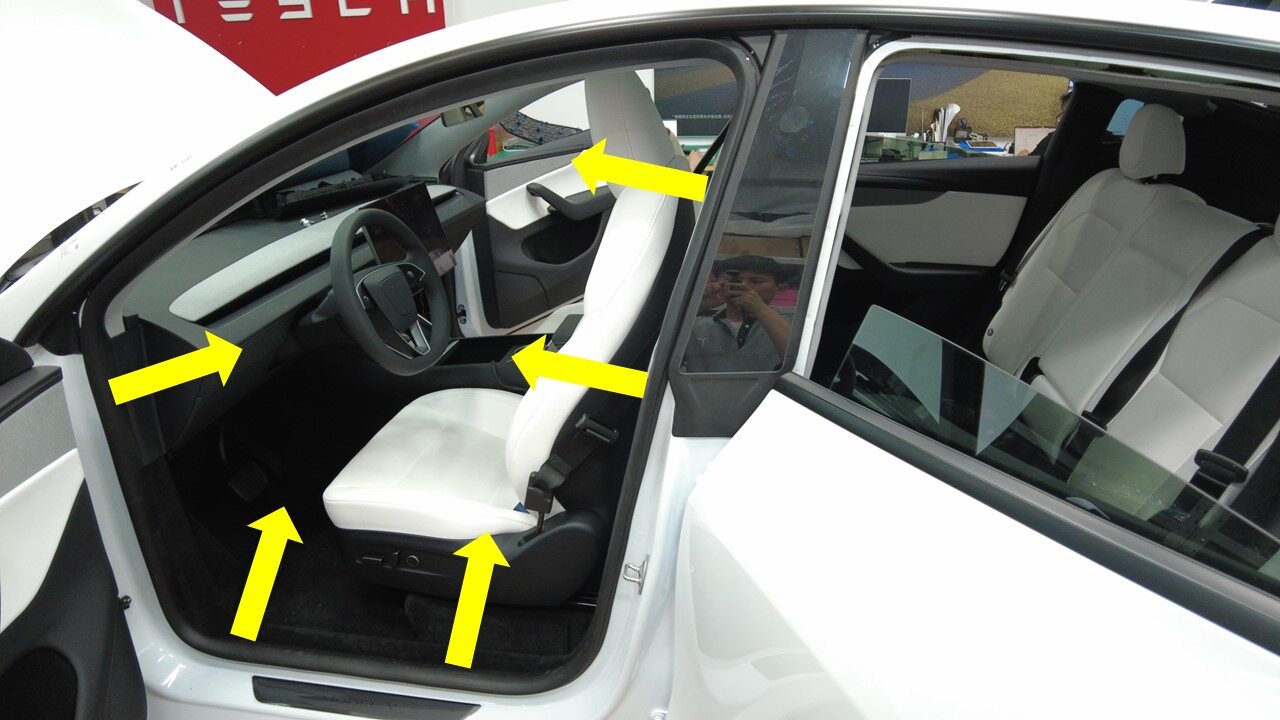

  5. Remove LH lower A pillar trim from body
    Informational PurposesAn informational icon, calling your attention
    Note
    7x clips,4x guide tabs, 1x push clip, Pull rear of lower A-pillar upward to release clip then pull rearward to release front tabs from carpet
  6. Move LH front seat backward
    Informational PurposesAn informational icon, calling your attention
    Note

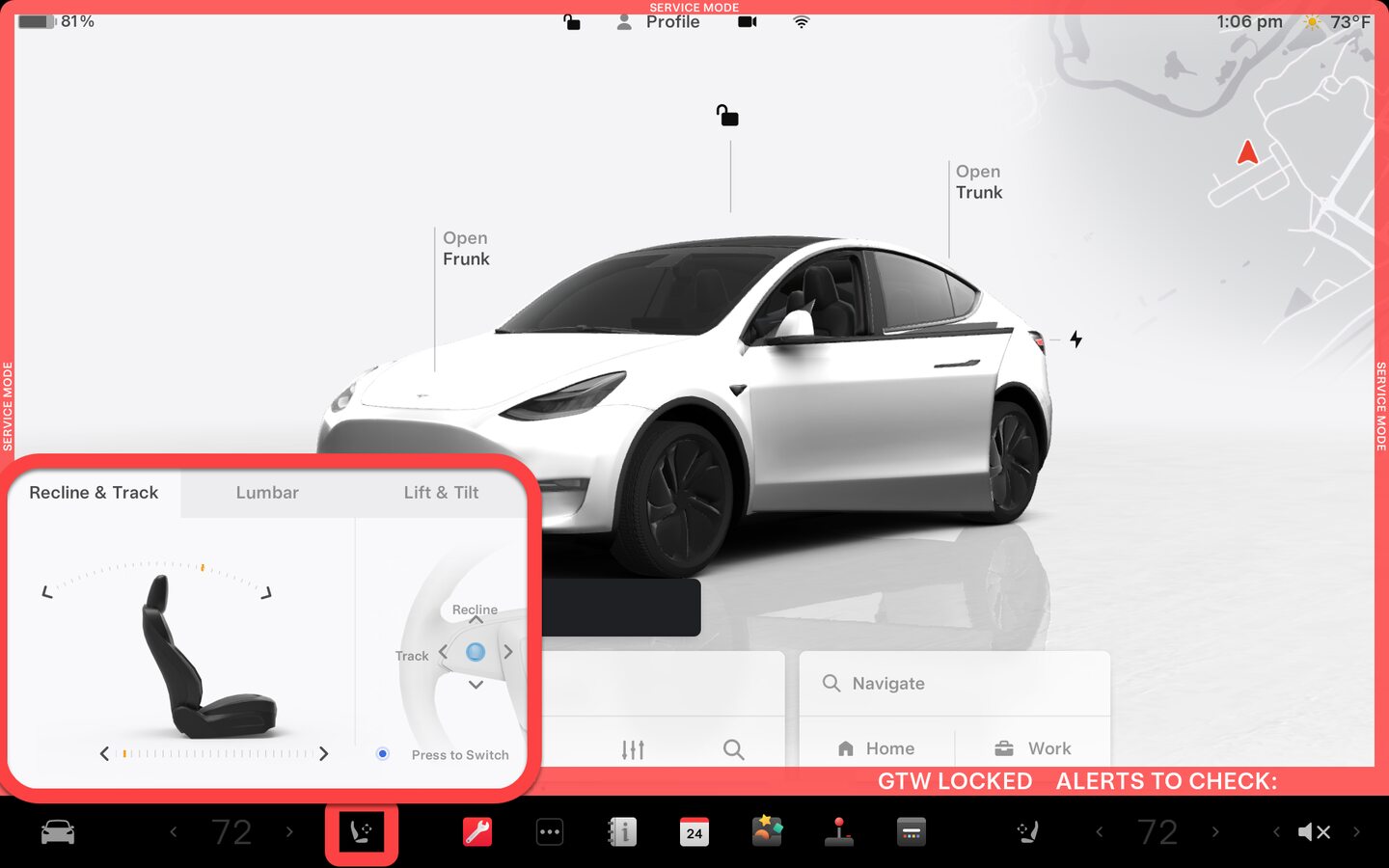

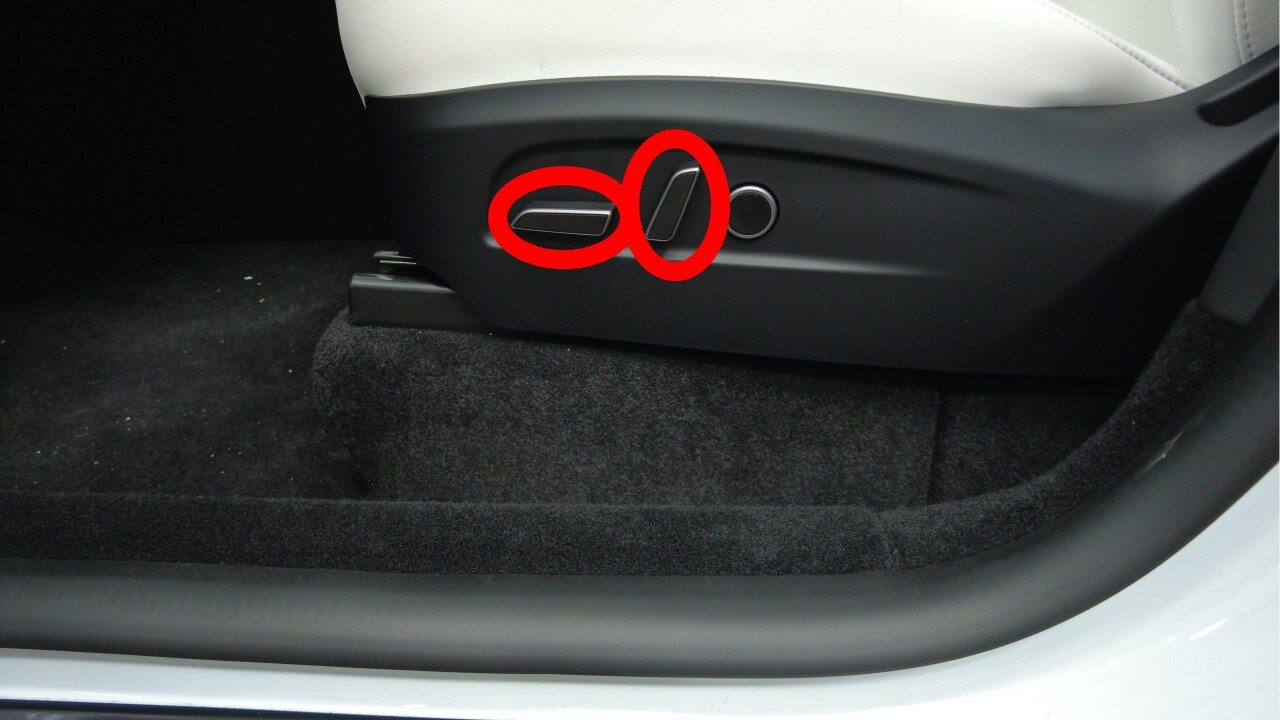

    Via UI > Seat Controls, Use steering wheel scroll wheel as needed
  7. Remove LH front seat front bolts
    Informational PurposesAn informational icon, calling your attention
    Note
    2x patch bolts, TP45, 33.5 Nm, Discard patch bolts after removal

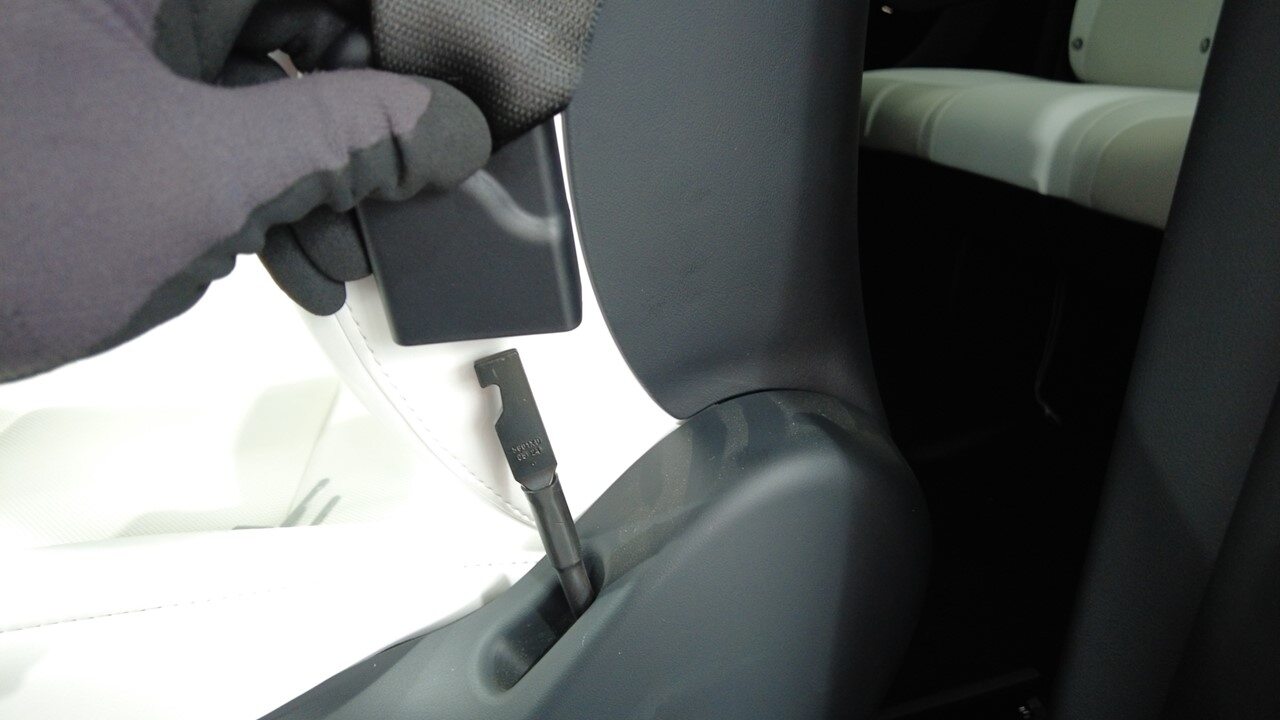

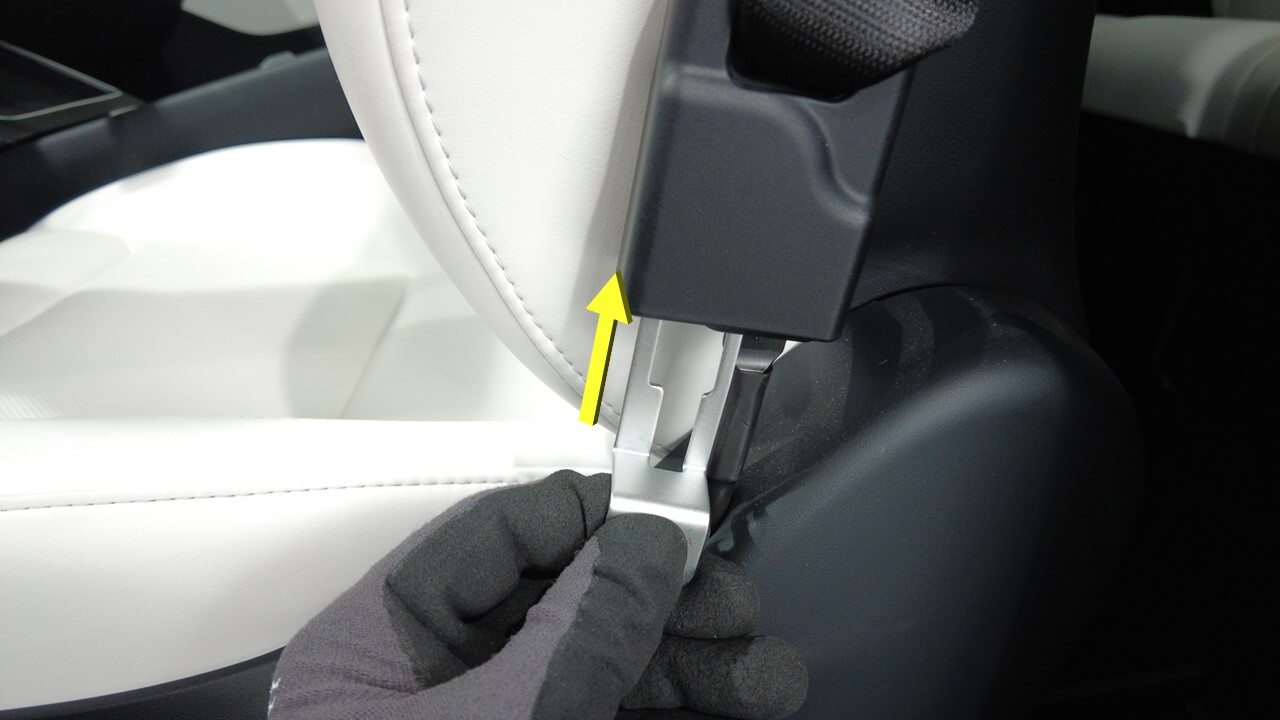

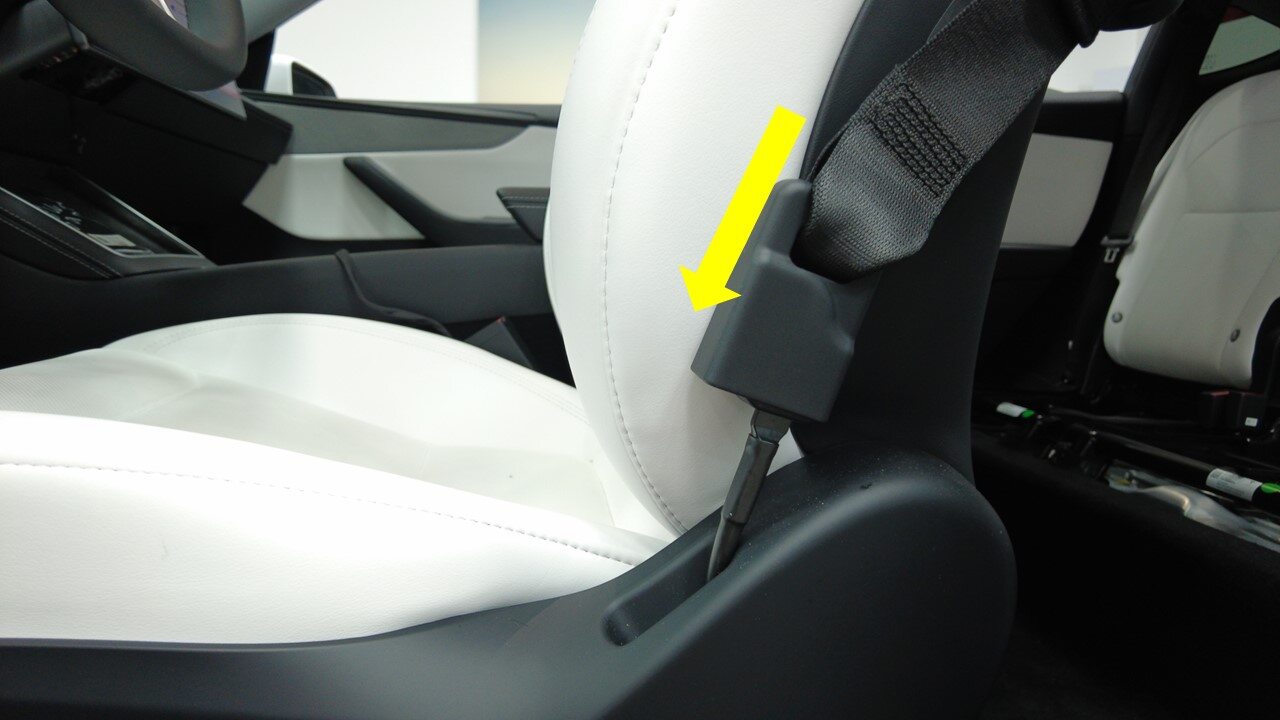

  8. Release seat belt retractor from LH front seat pre tensioner
    Informational PurposesAn informational icon, calling your attention
    Note
    Insert seat belt release tool in bottom of retractor to release

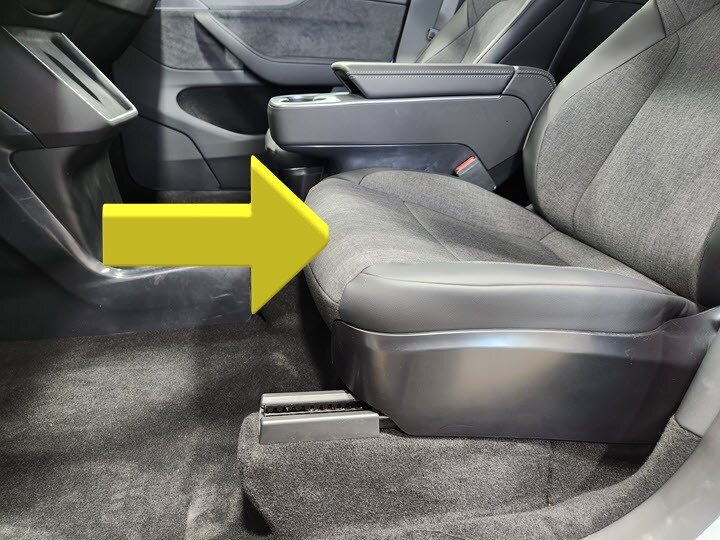

  9. Move LH front seat forward
    Informational PurposesAn informational icon, calling your attention
    Note
    Via UI > Seat Controls, Use steering wheel scroll wheel as needed

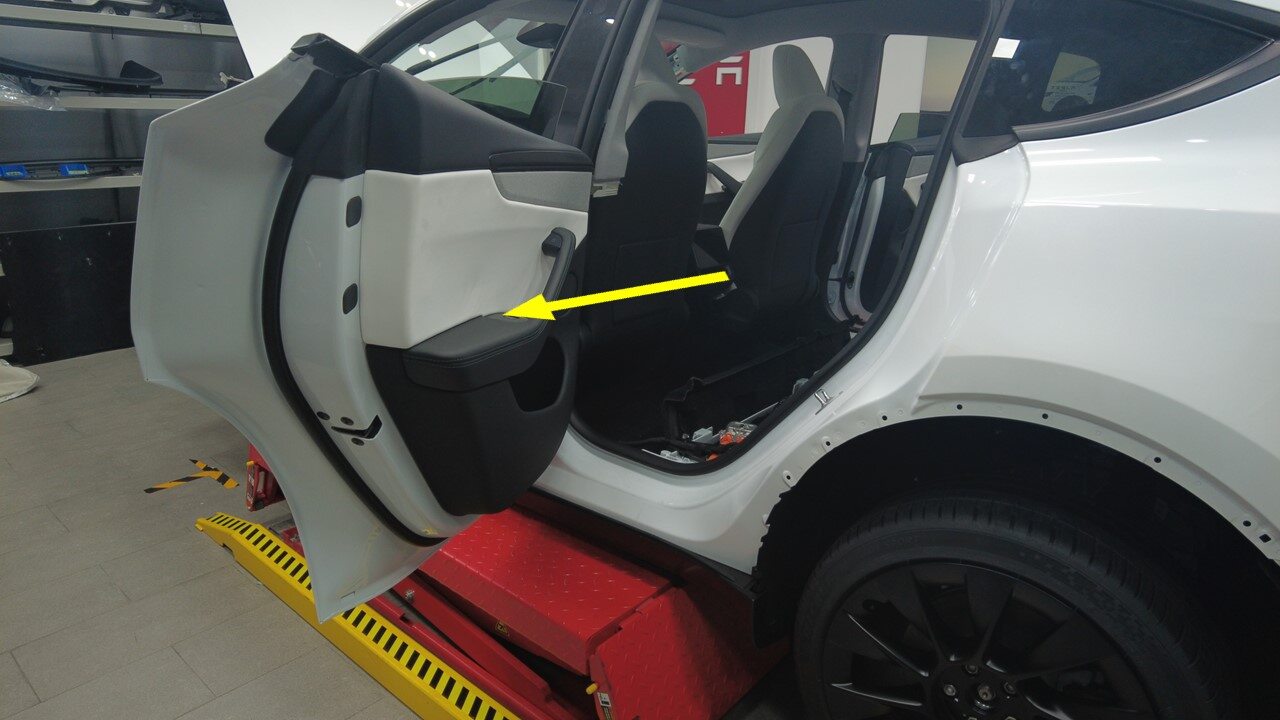

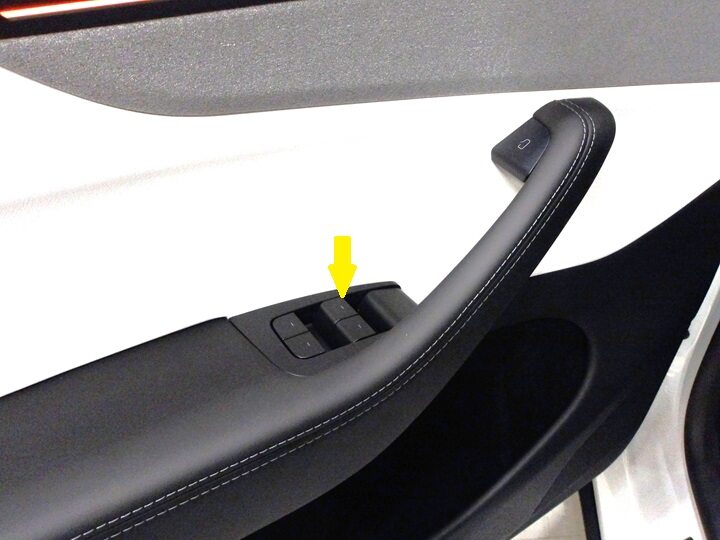

  10. Open LH rear door

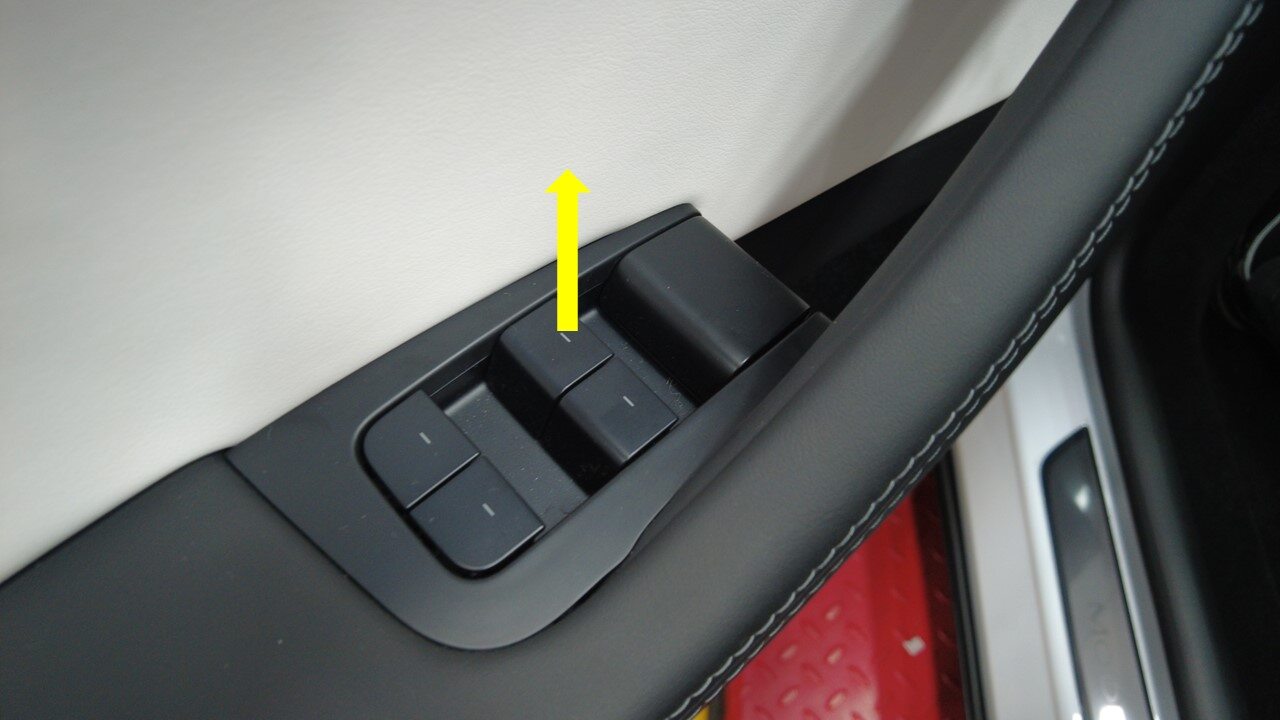

  11. Lower LH rear window

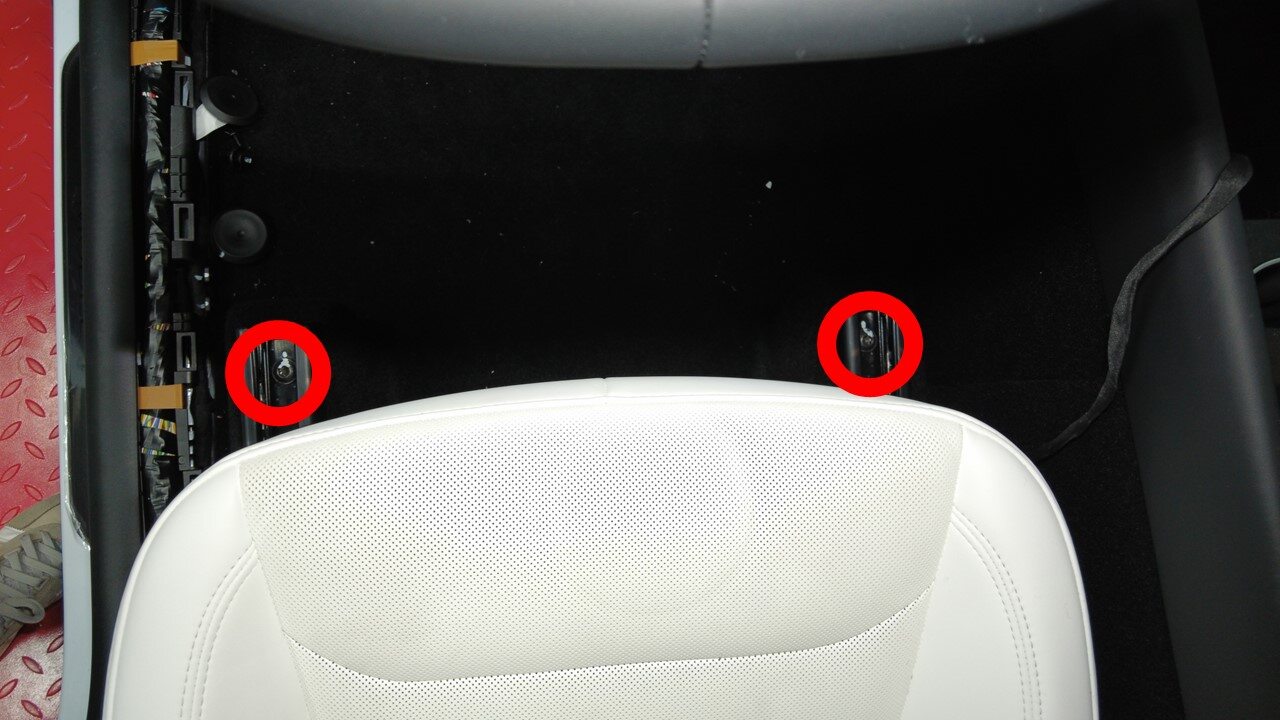

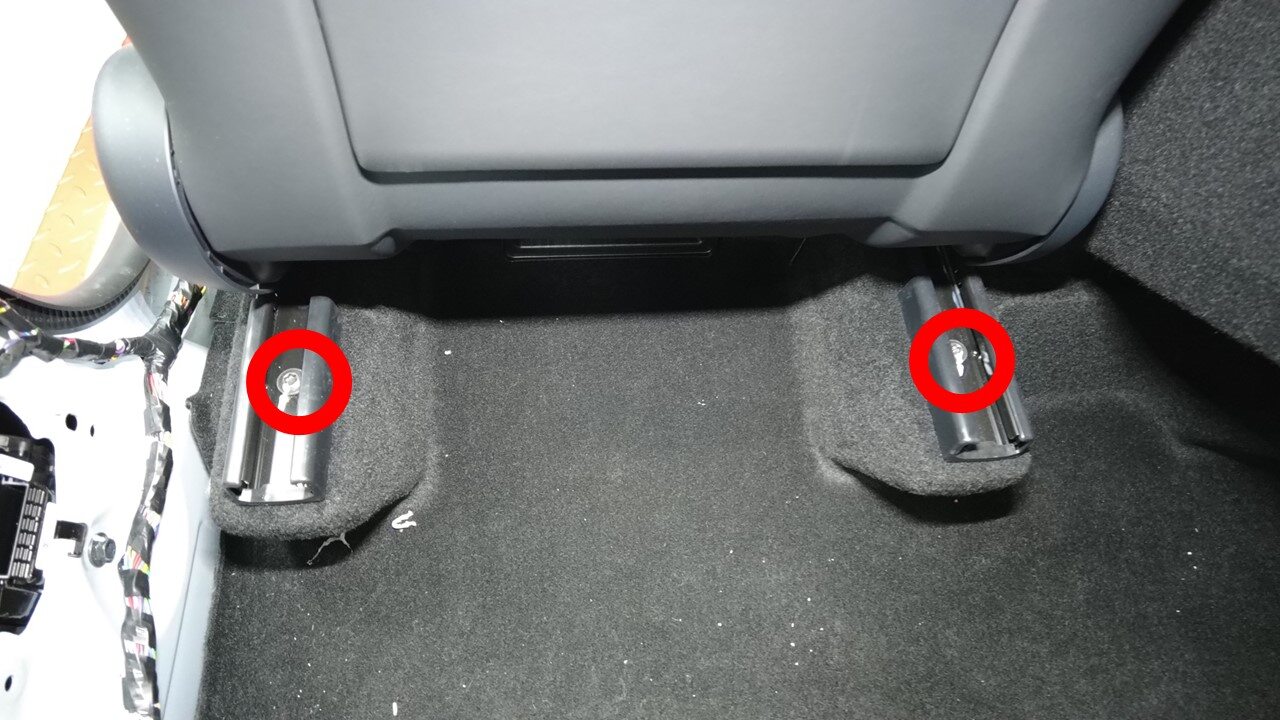

  12. Remove LH front seat rear bolts
    Informational PurposesAn informational icon, calling your attention
    Note
    2x patch bolts, TP45, 33.5 Nm, Discard patch bolts after removal

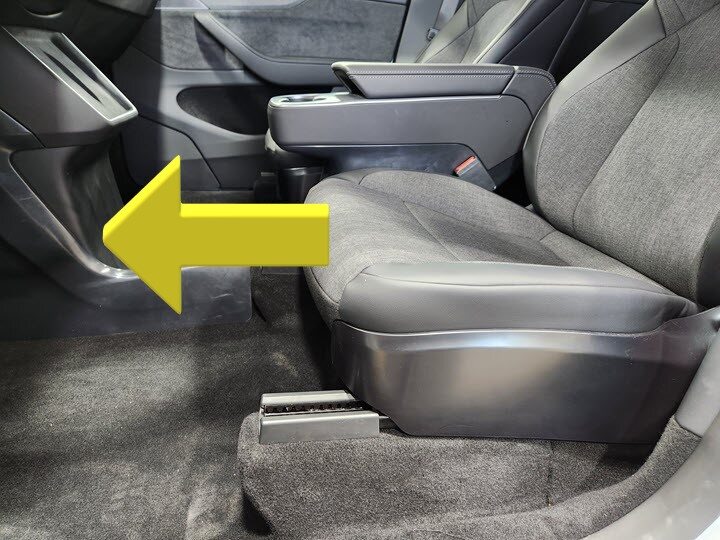

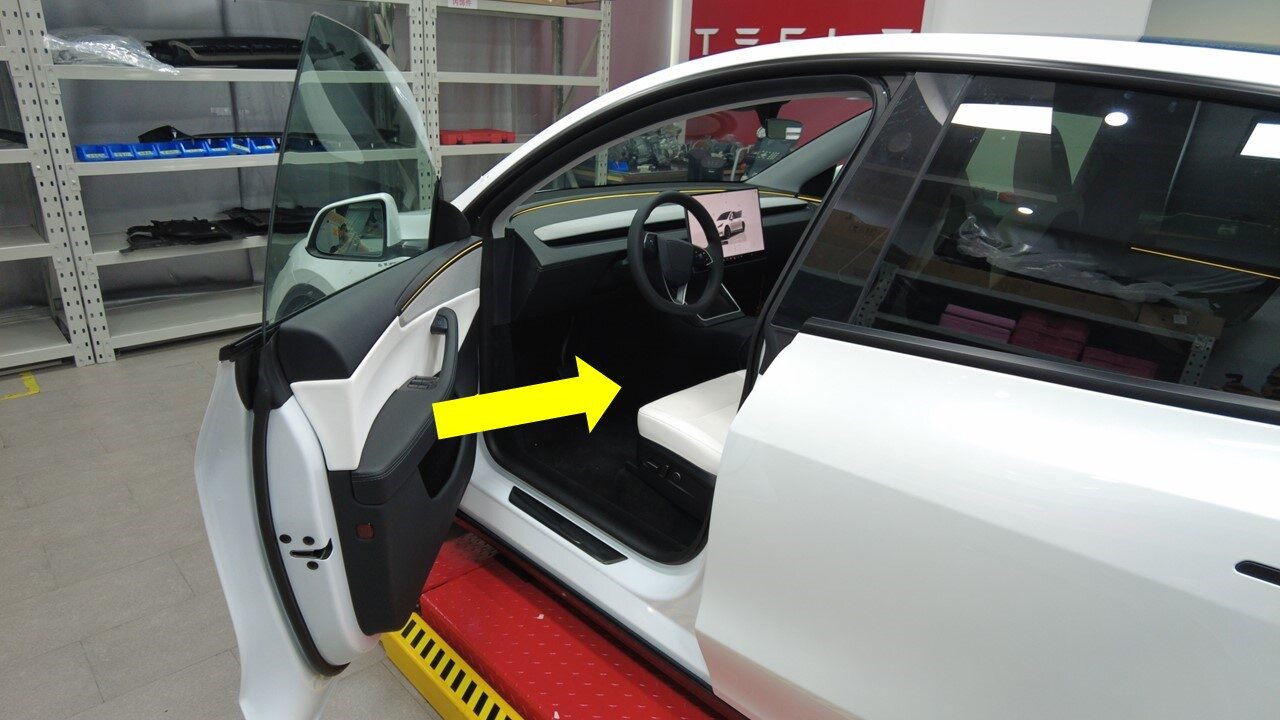

  13. Adjust position of LH front seat for easy removal
    Informational PurposesAn informational icon, calling your attention
    Note
    Move seat to middle of track at most upright position with seat fully up off floor

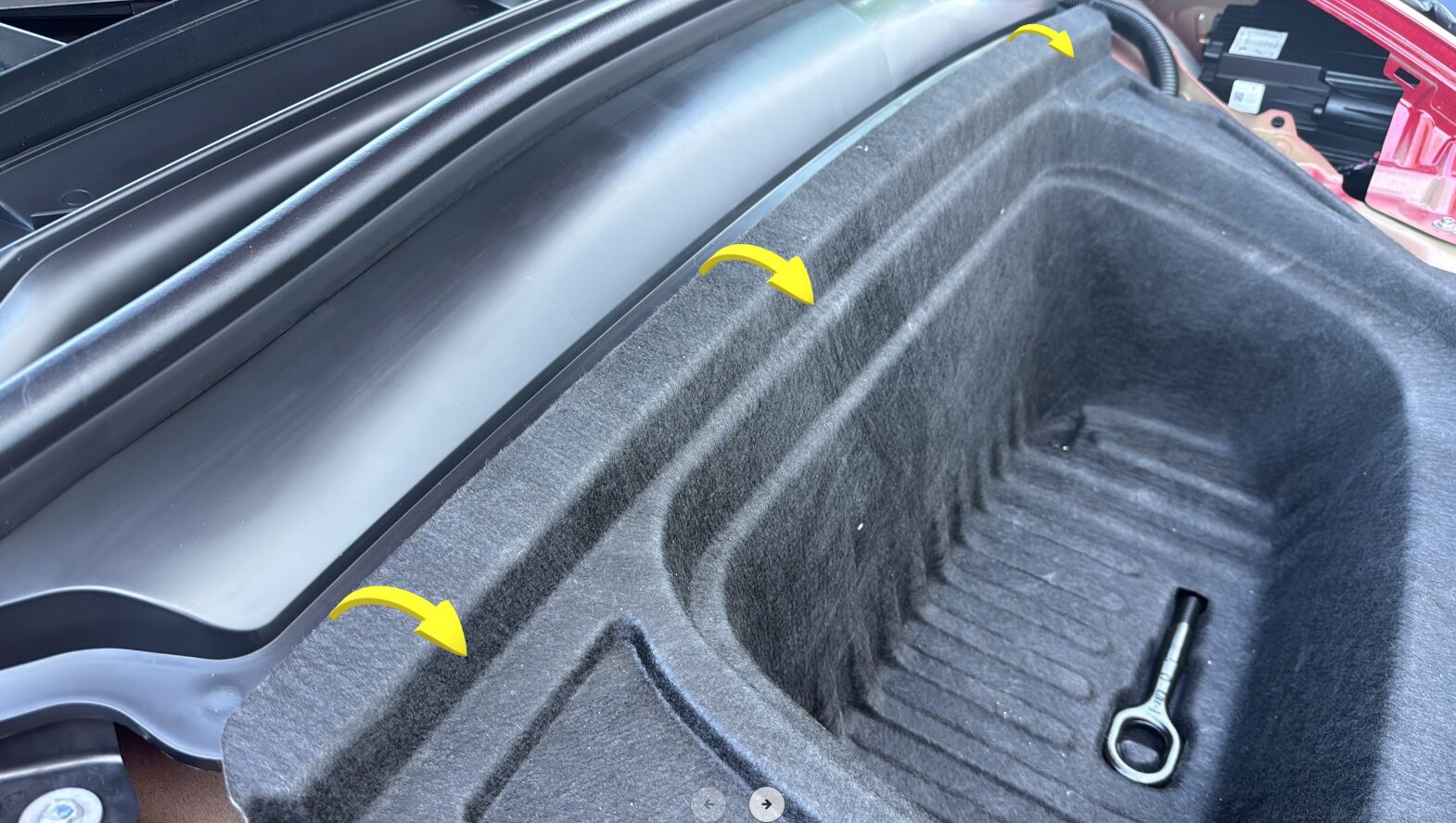

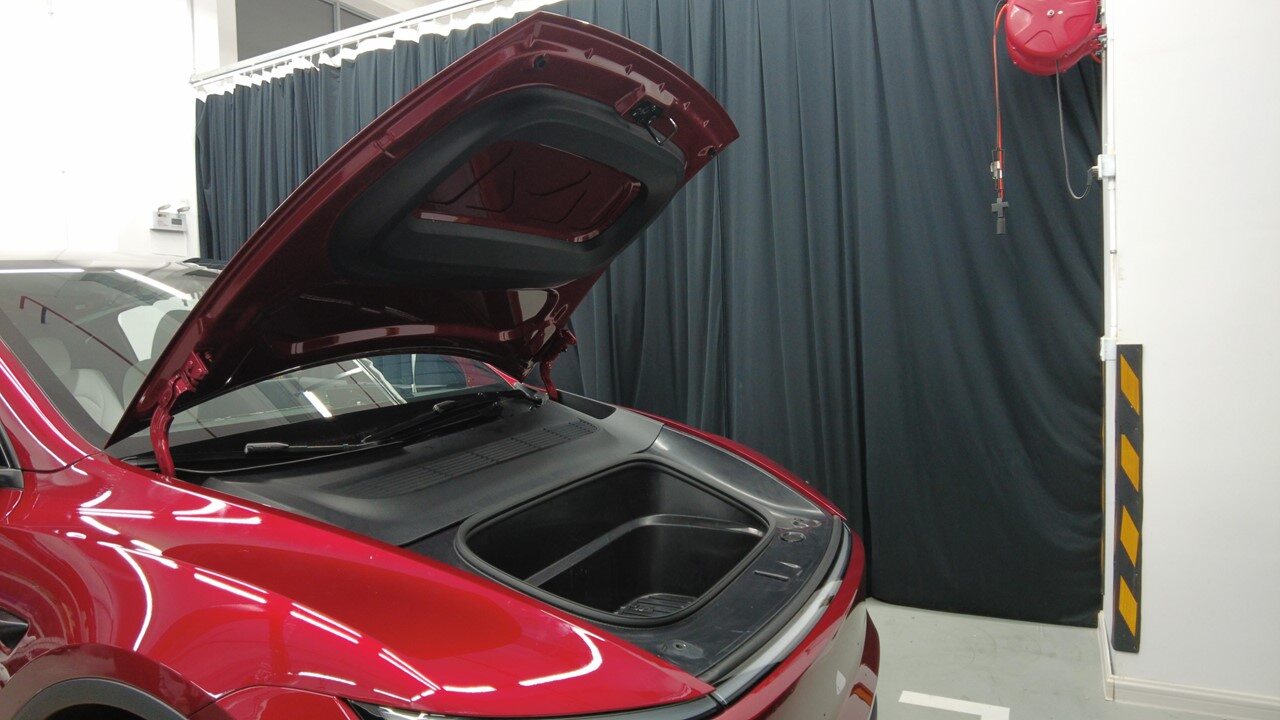

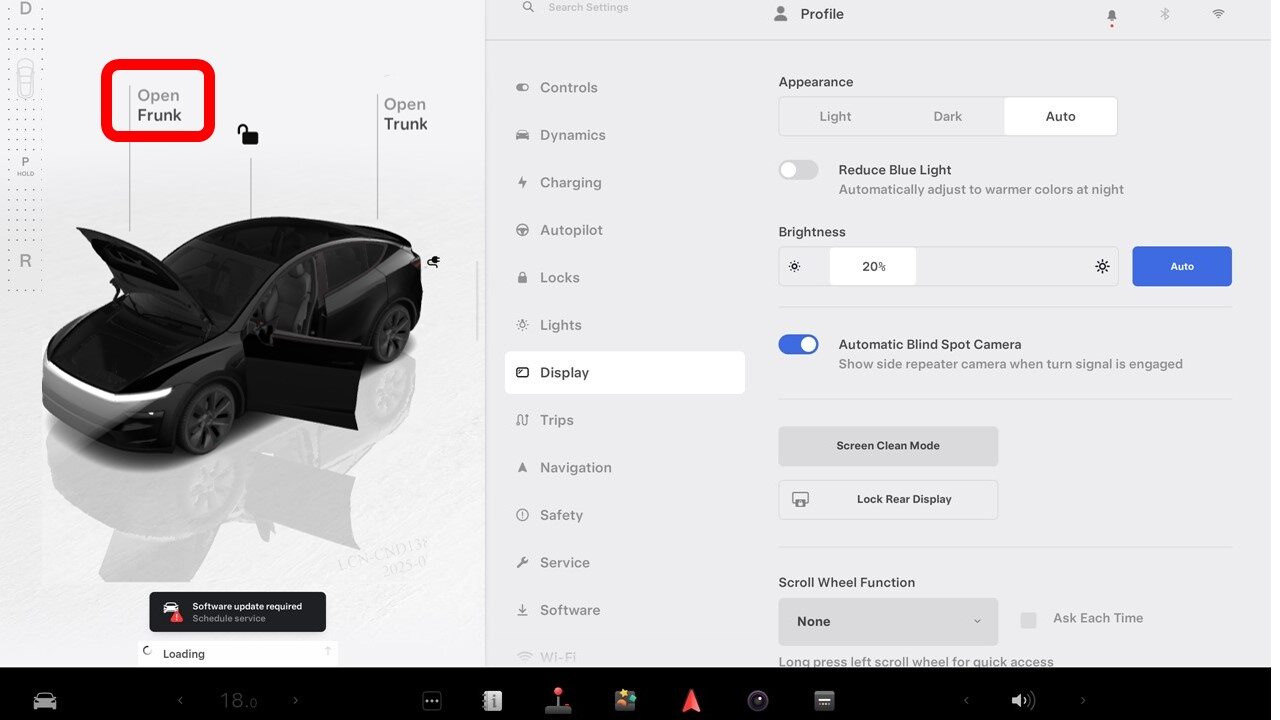

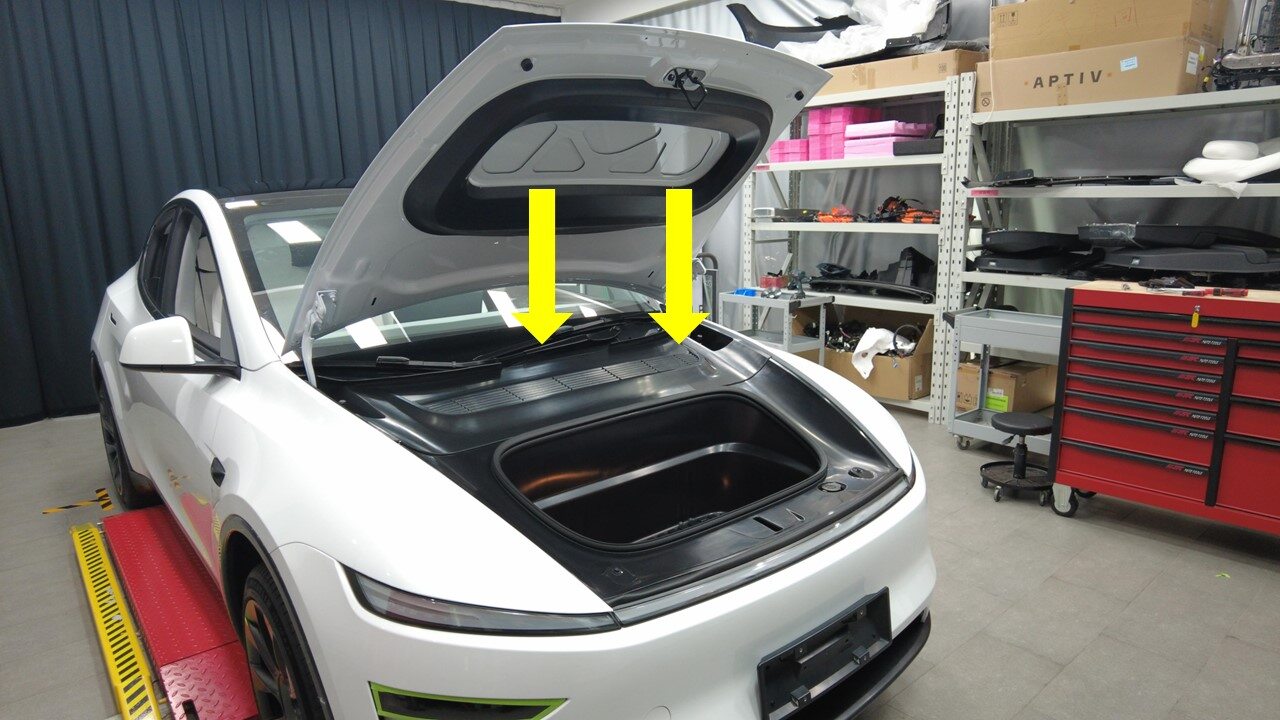

  14. Open hood

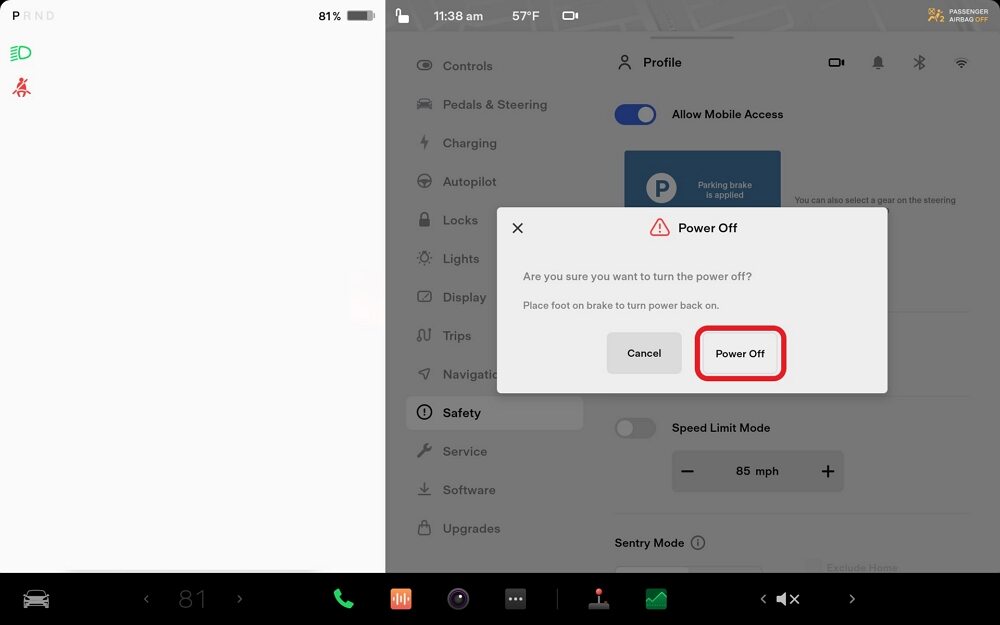

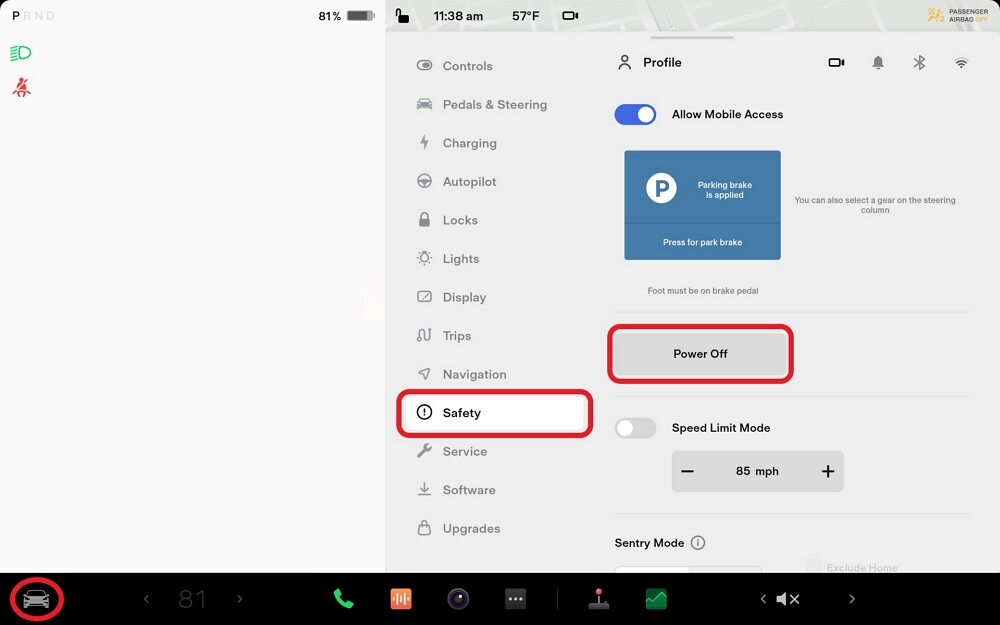

  15. Power off vehicle from center display
    Informational PurposesAn informational icon, calling your attention
    Note
    Via Controls > Safety > Power Off, Select Power Off button at warning dialogue box

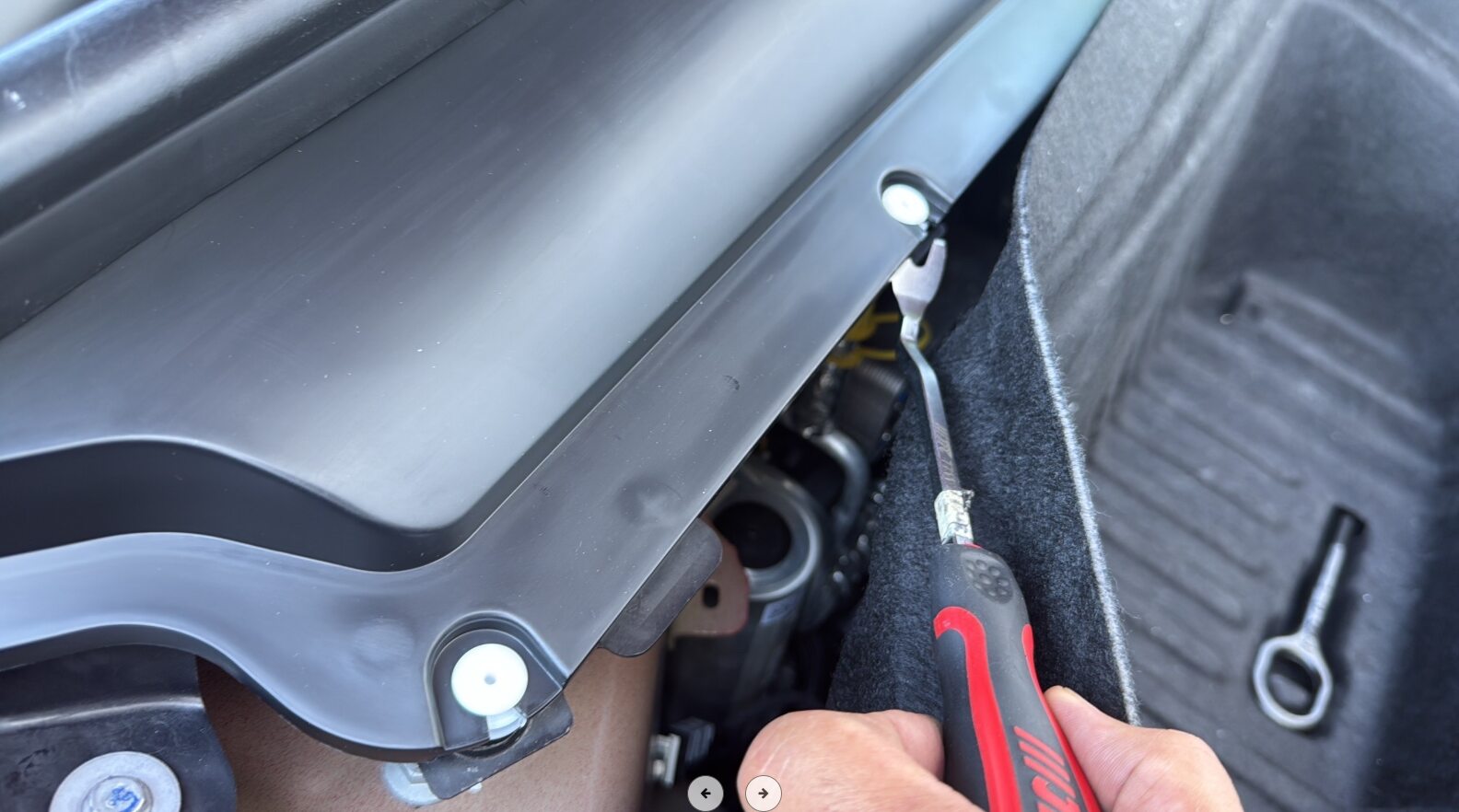

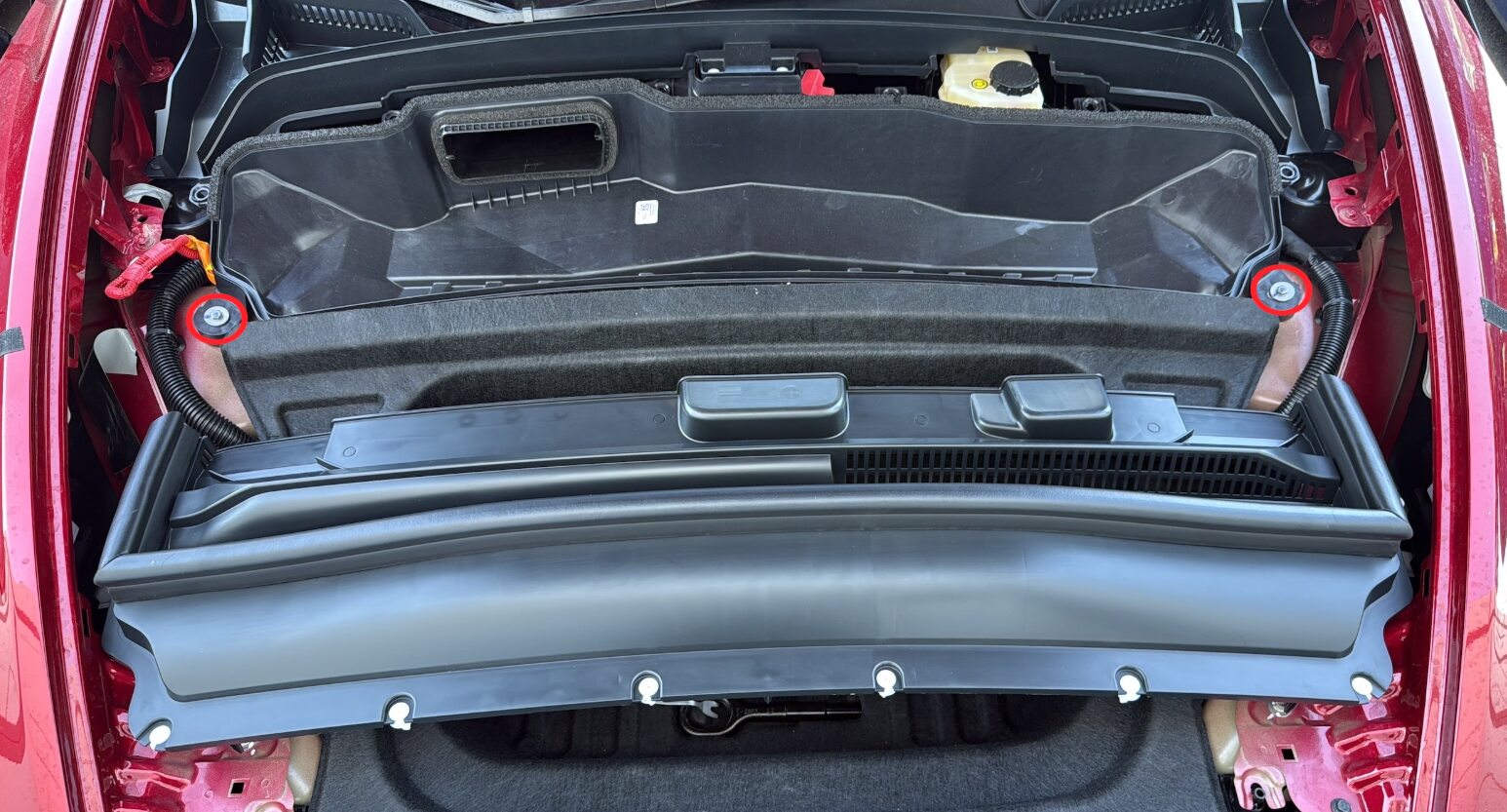

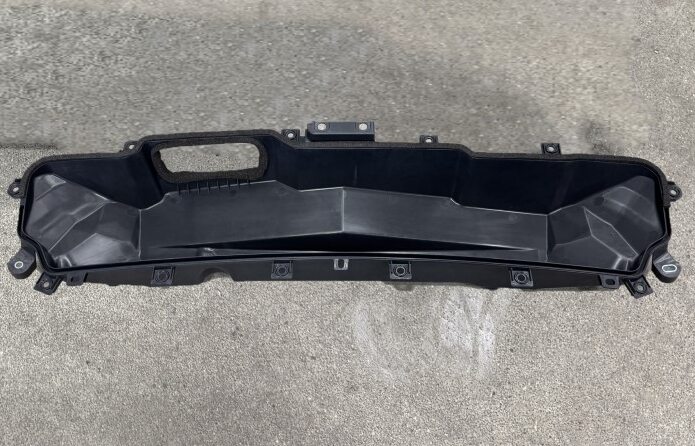

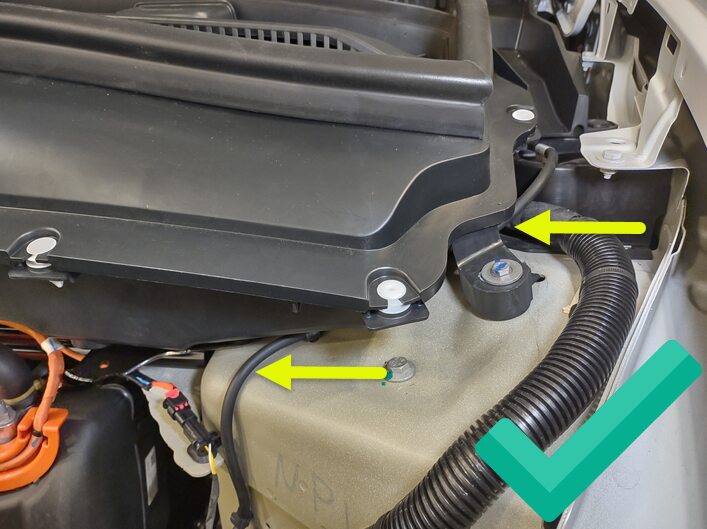

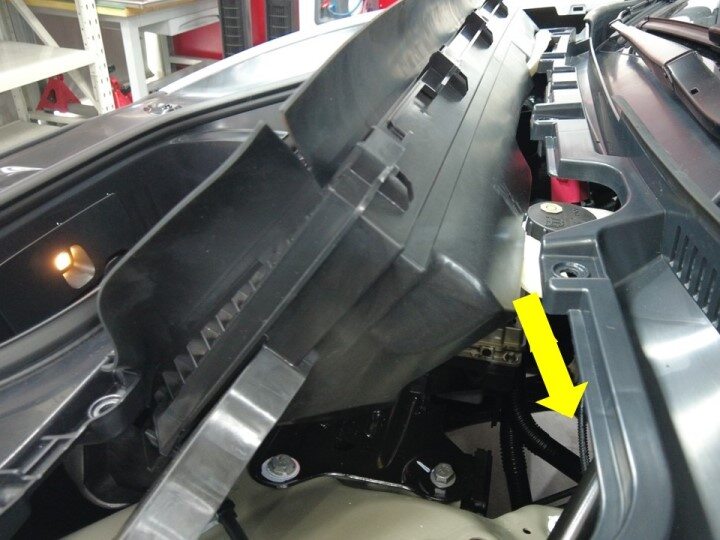

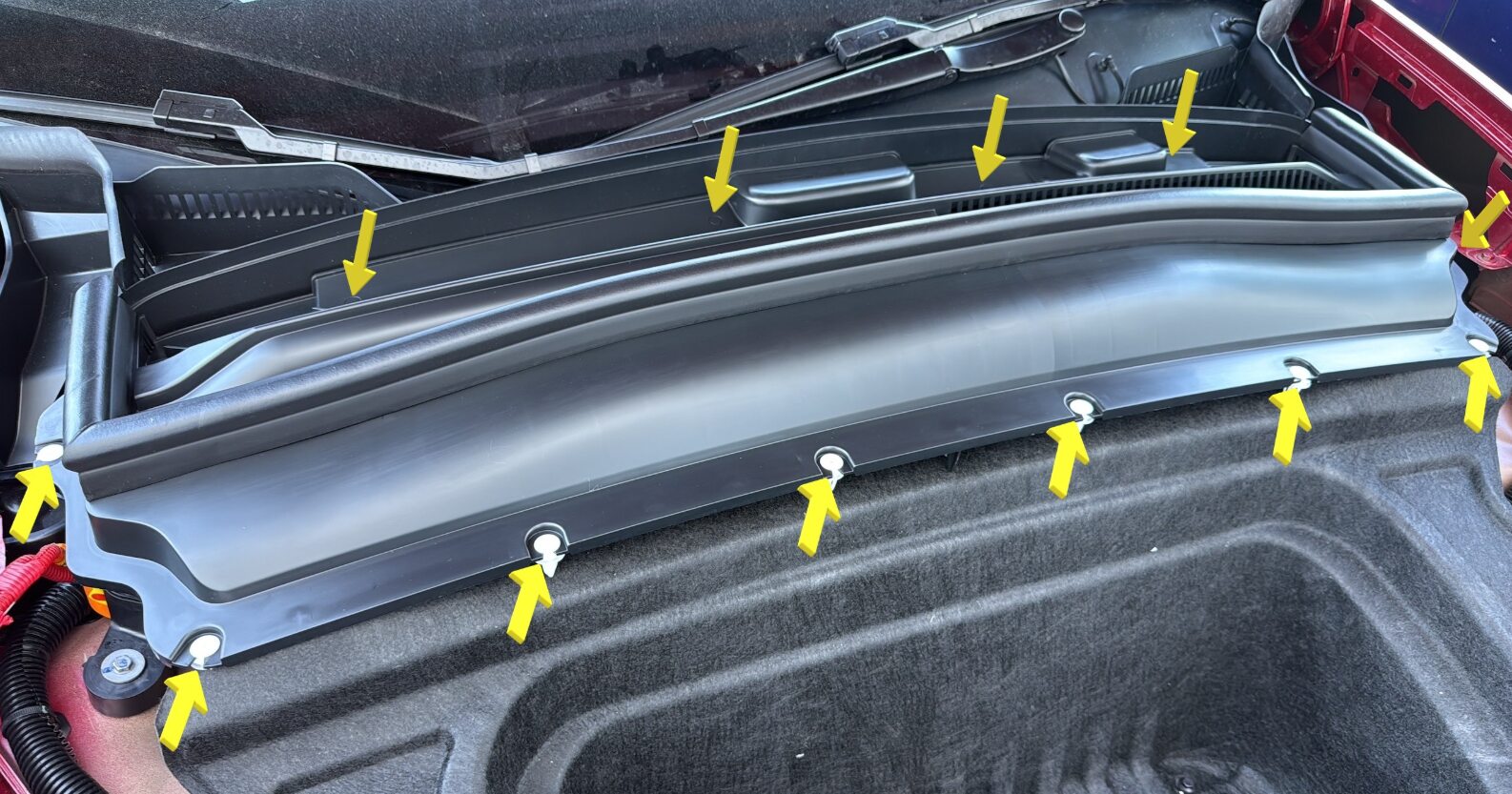

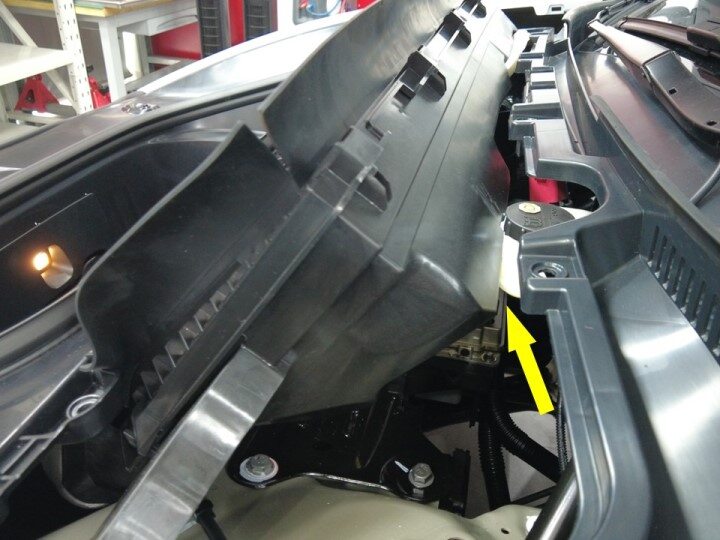

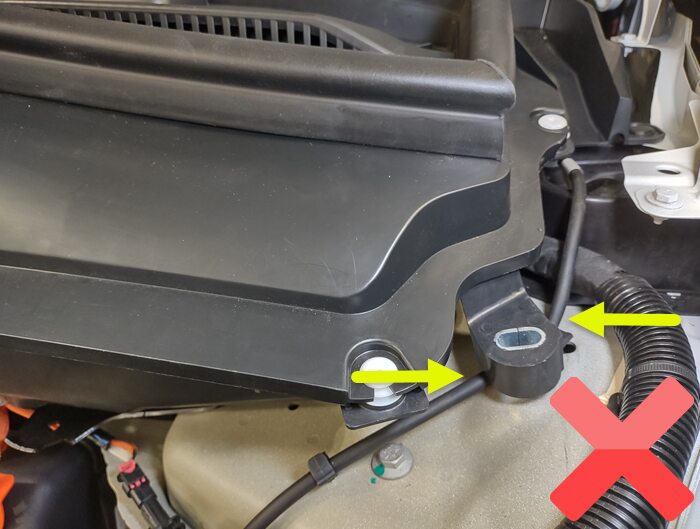

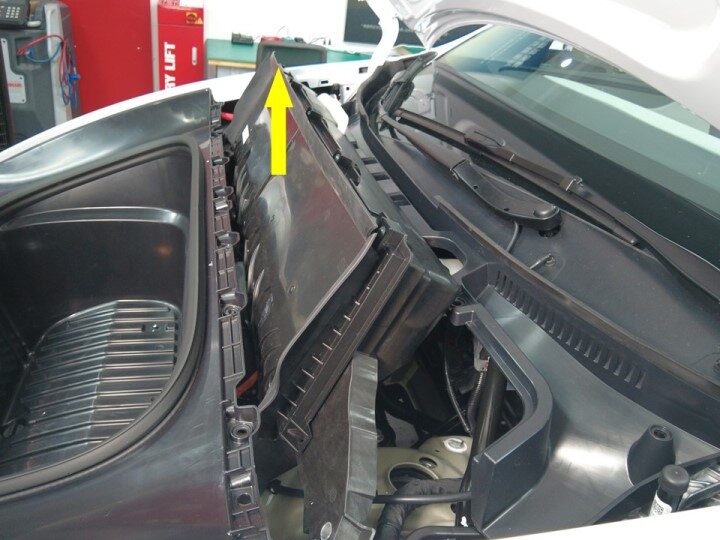

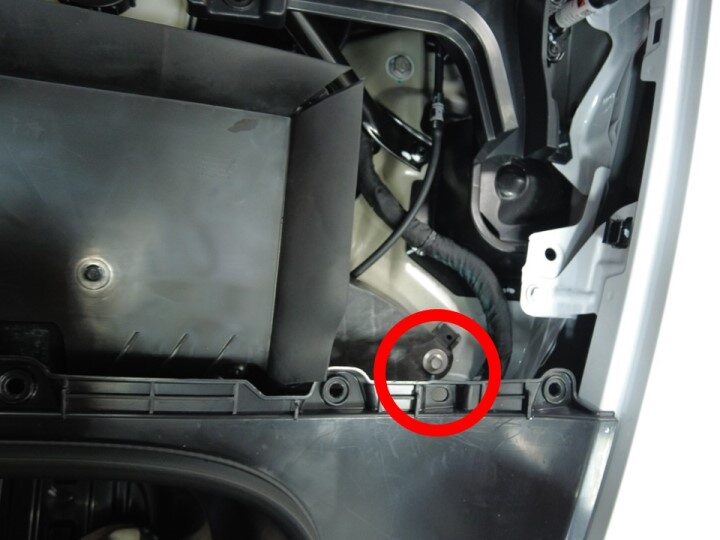

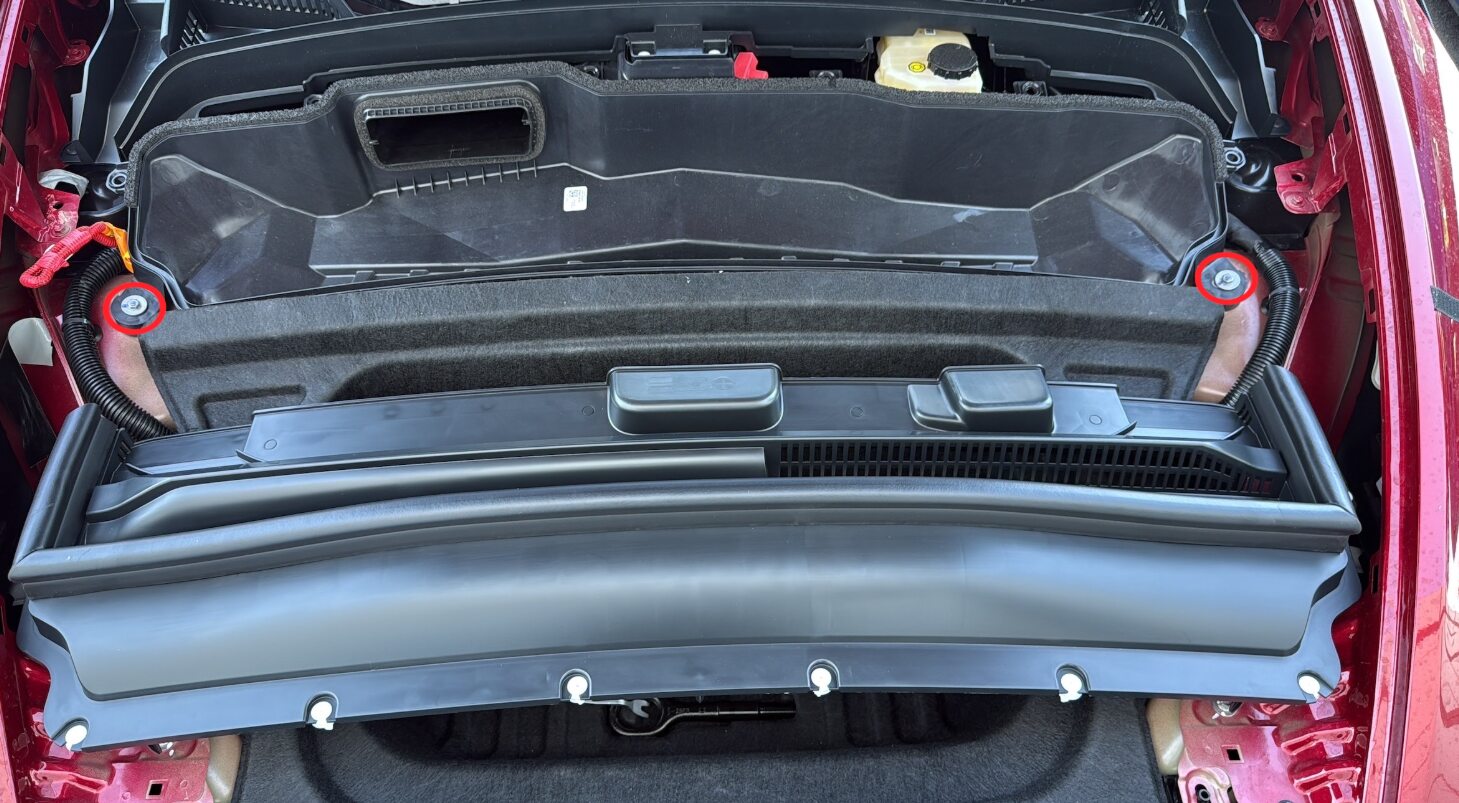

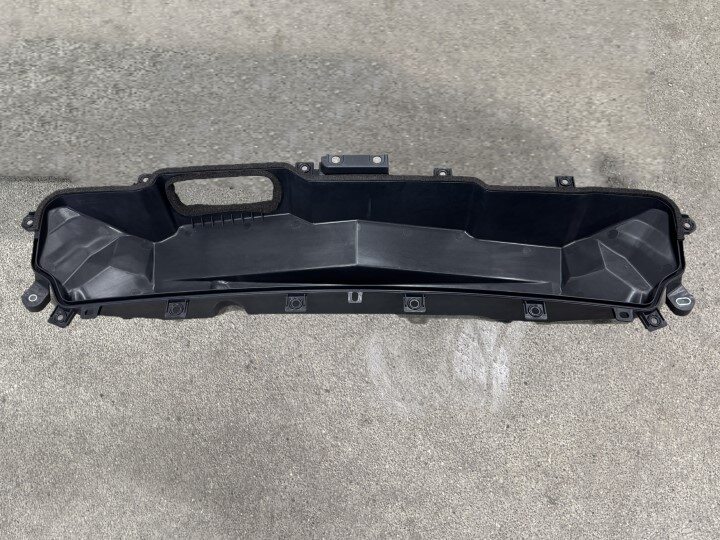

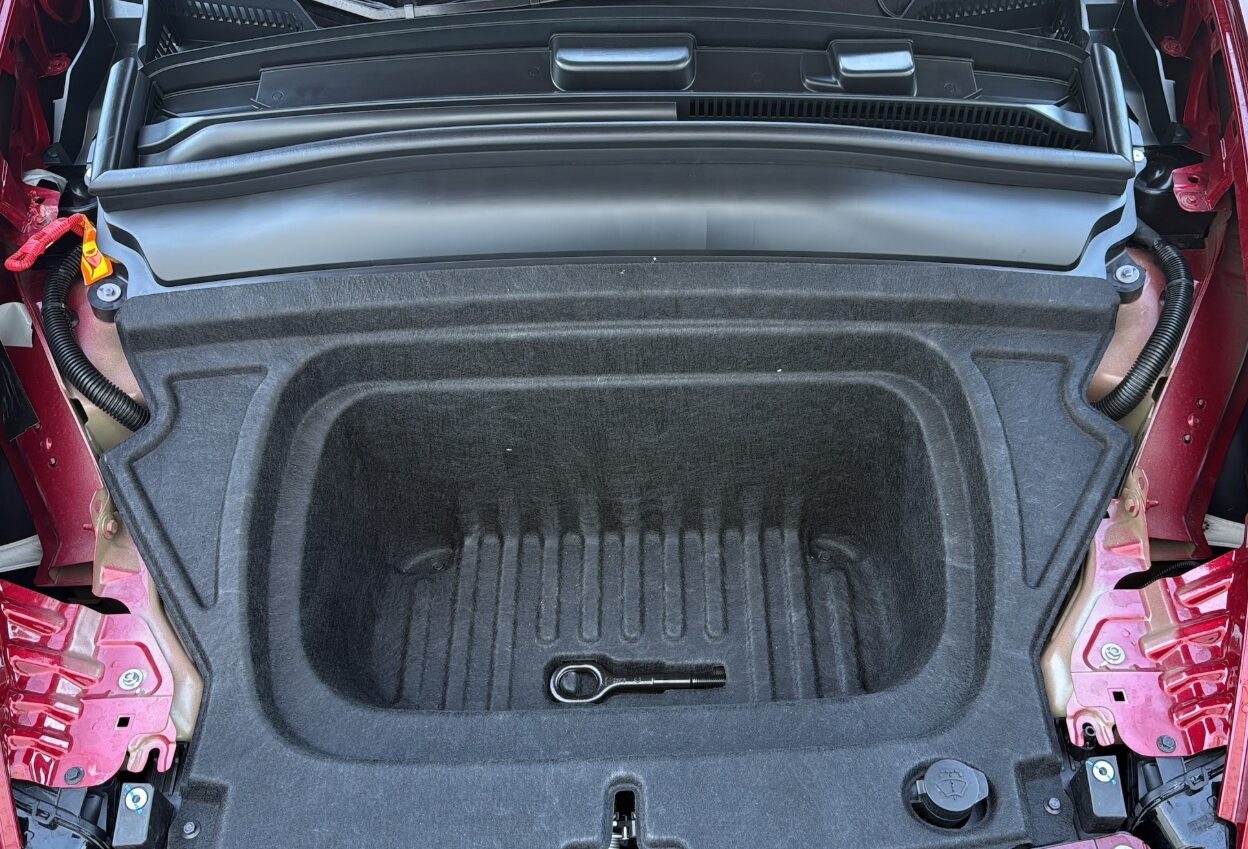

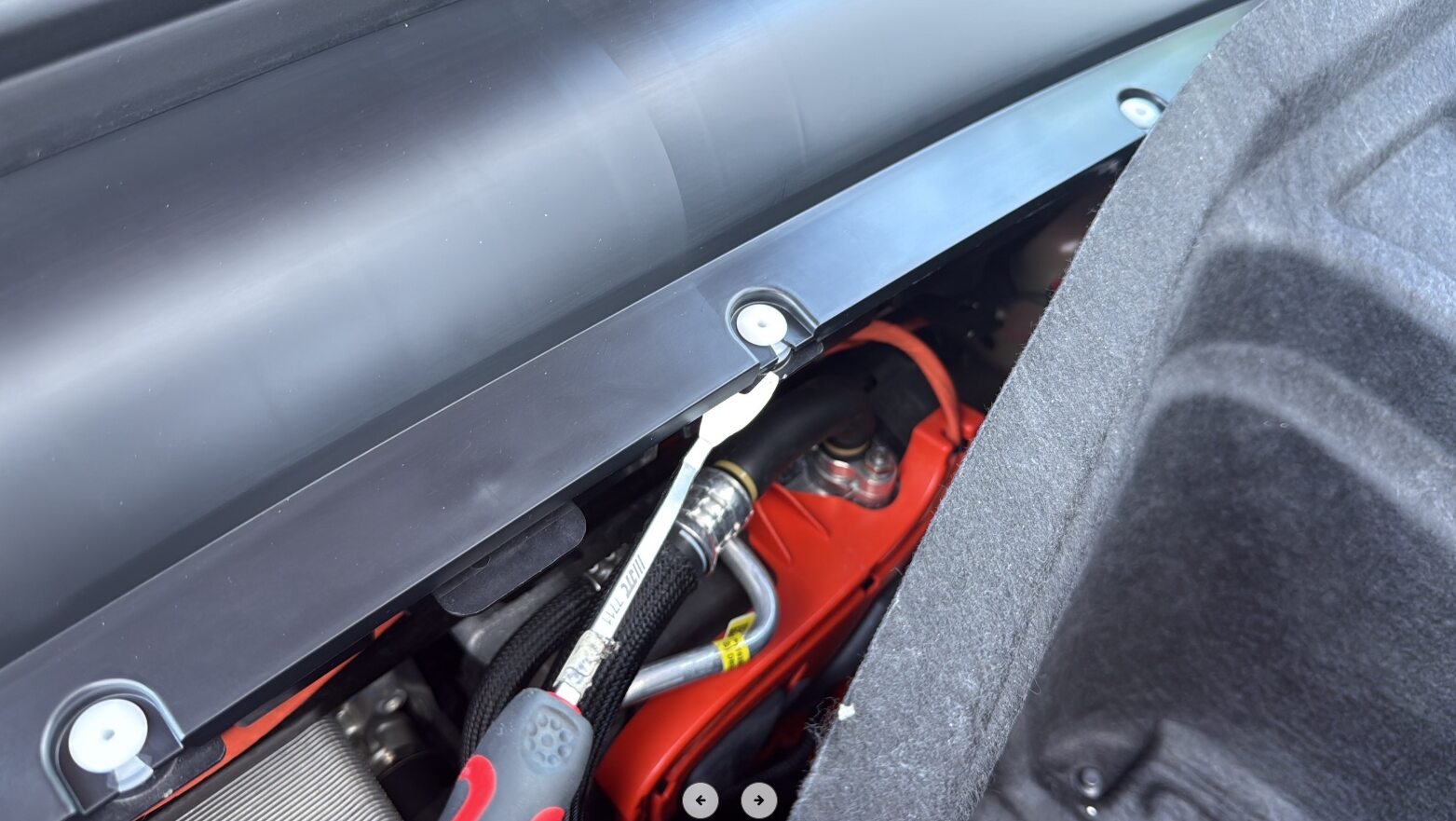

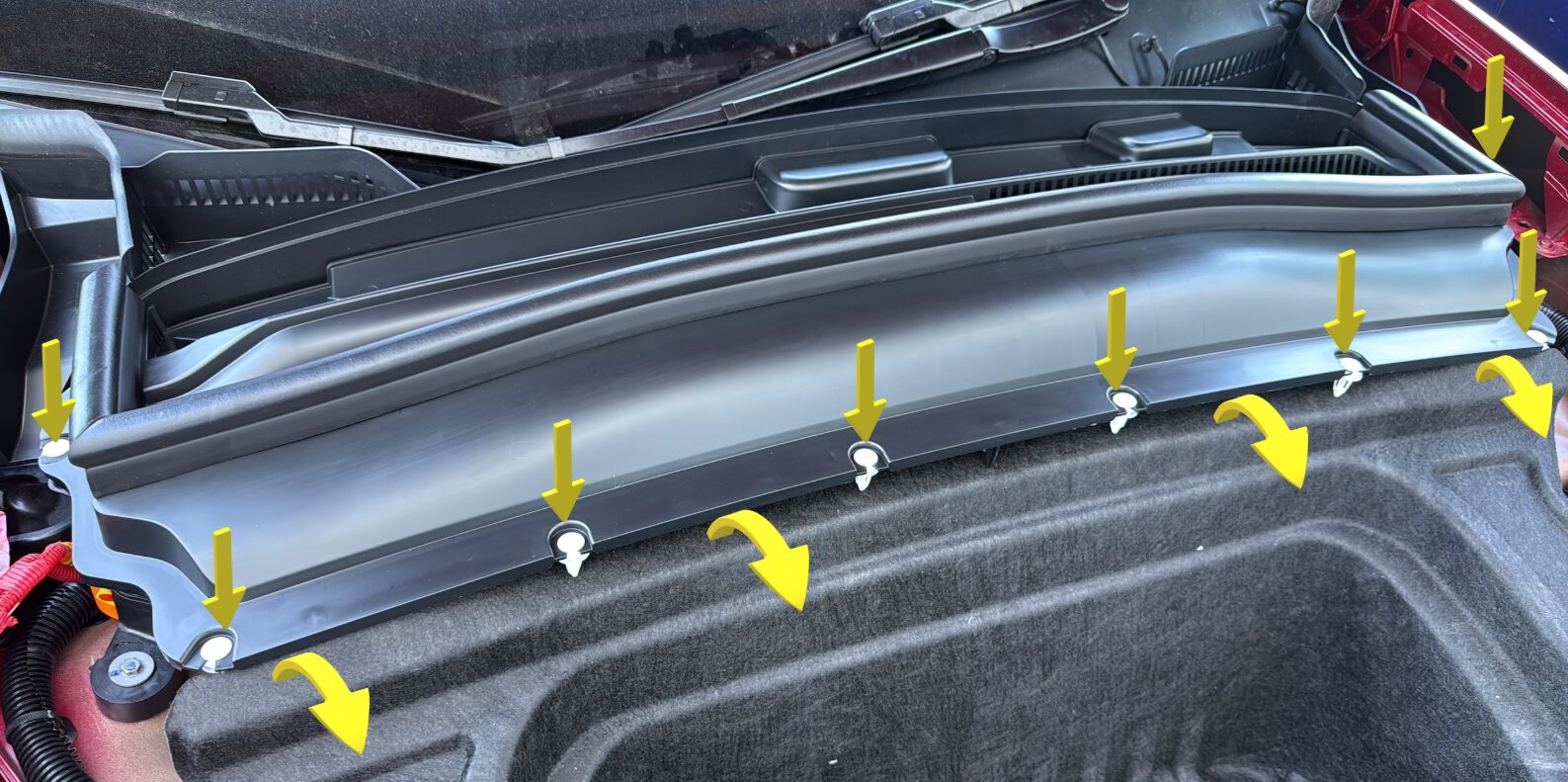

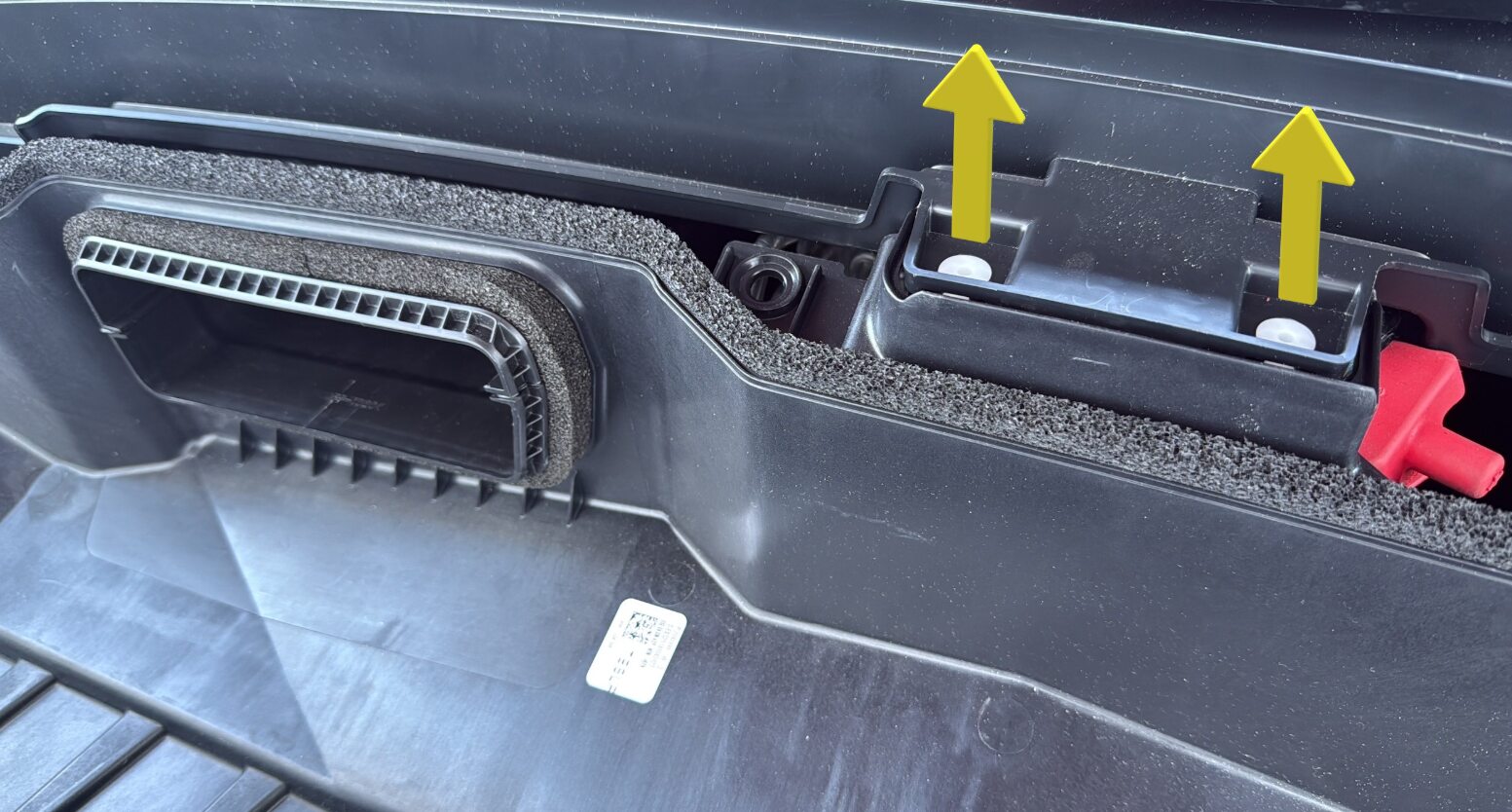

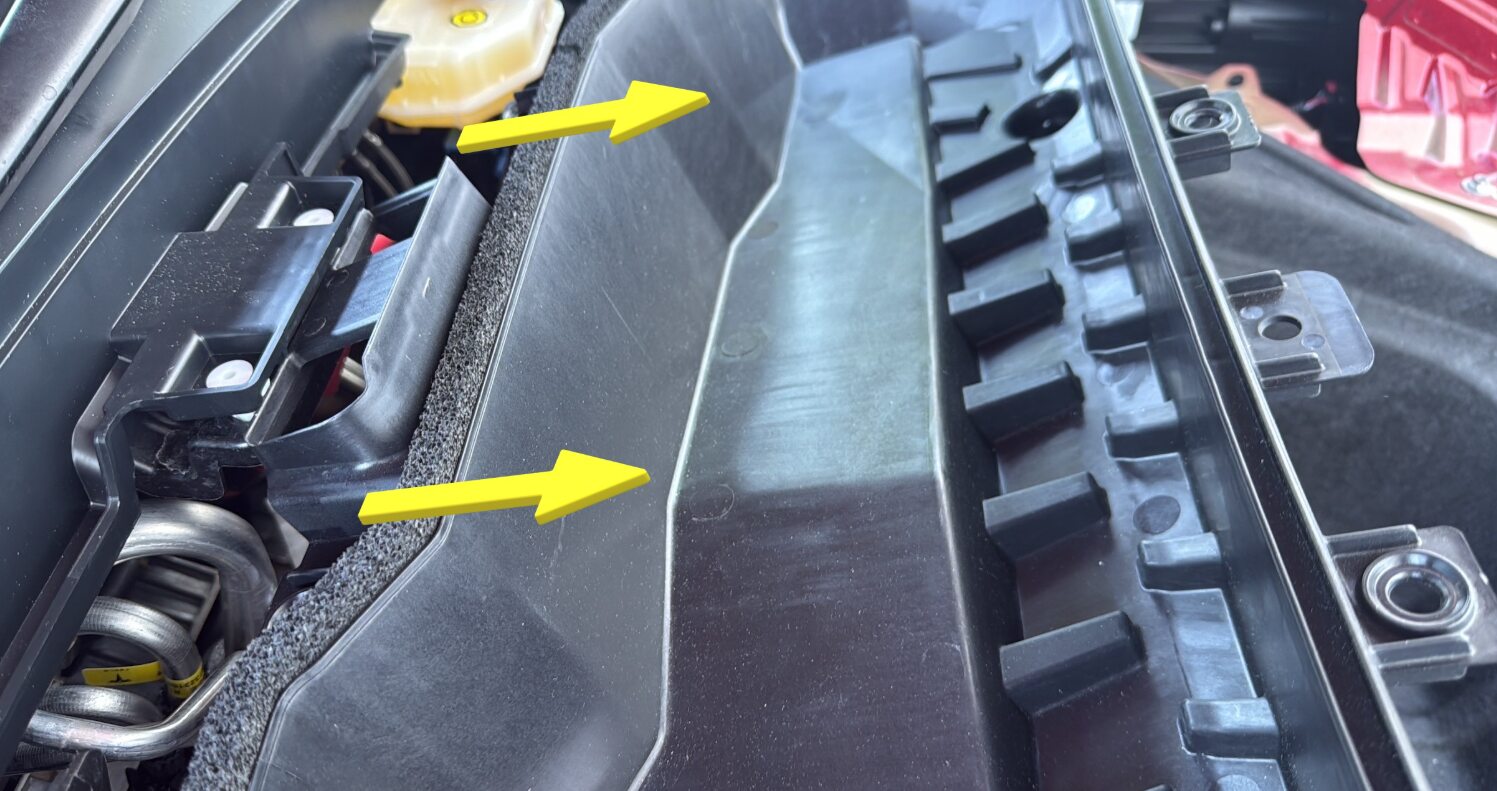

  16. Remove HEPA filter or big basin
    Informational PurposesAn informational icon, calling your attention
    Note

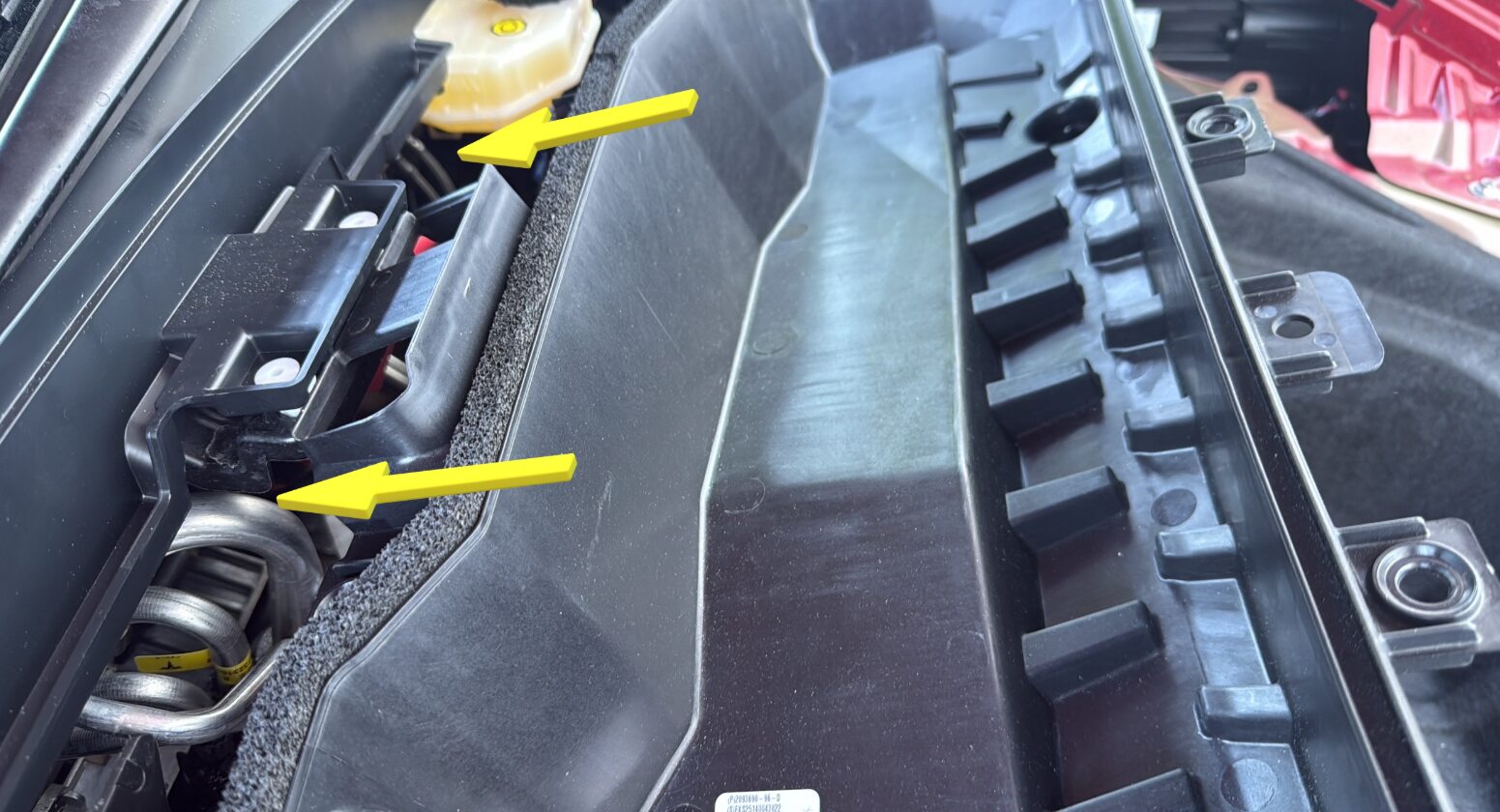

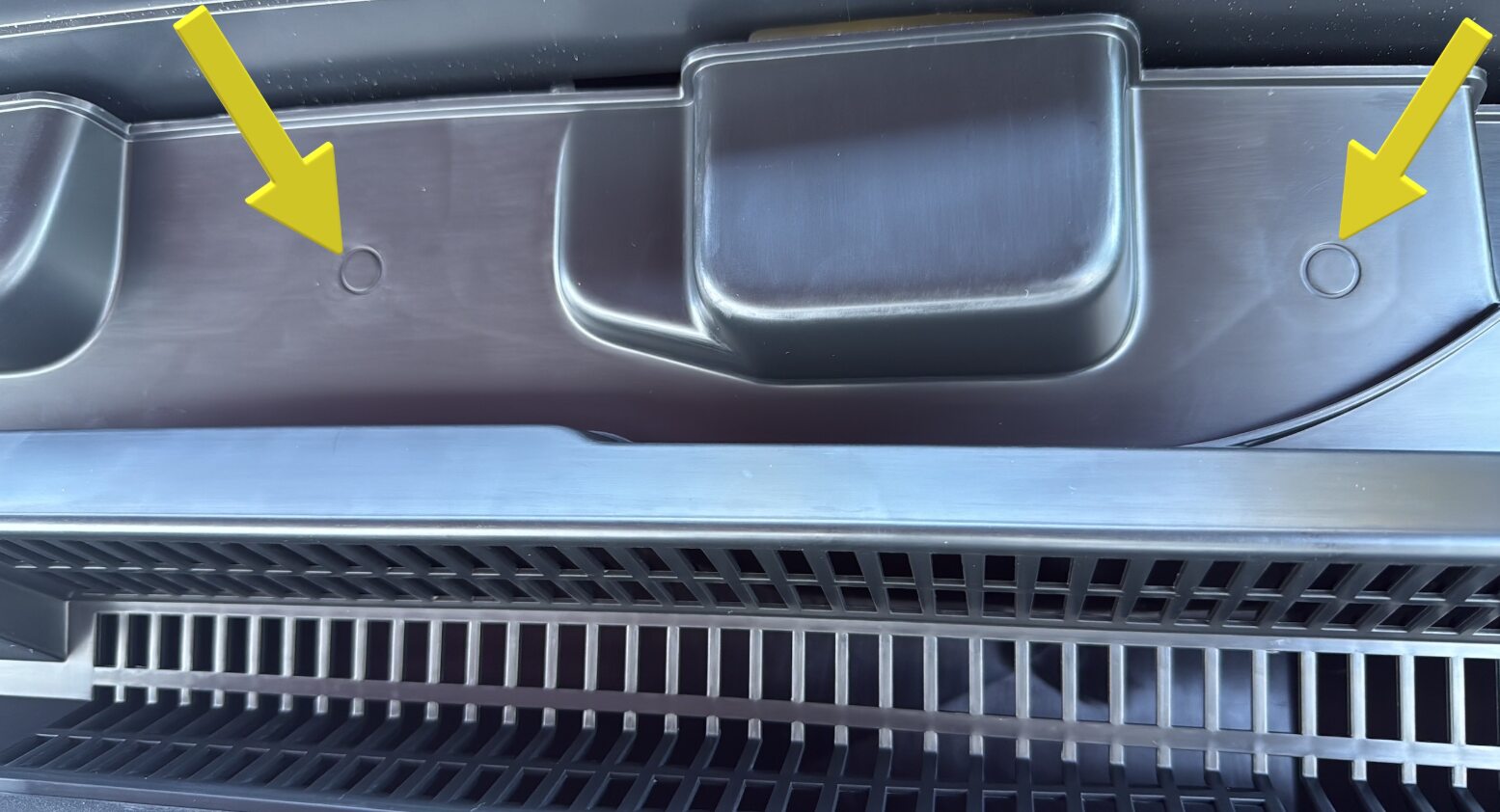

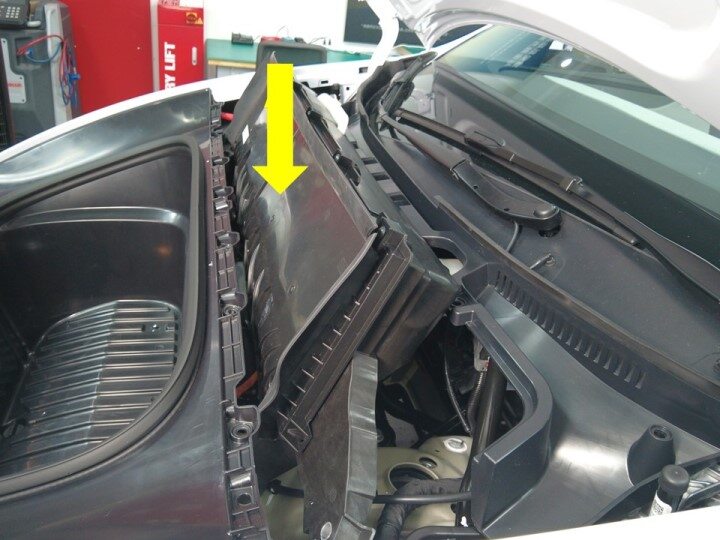

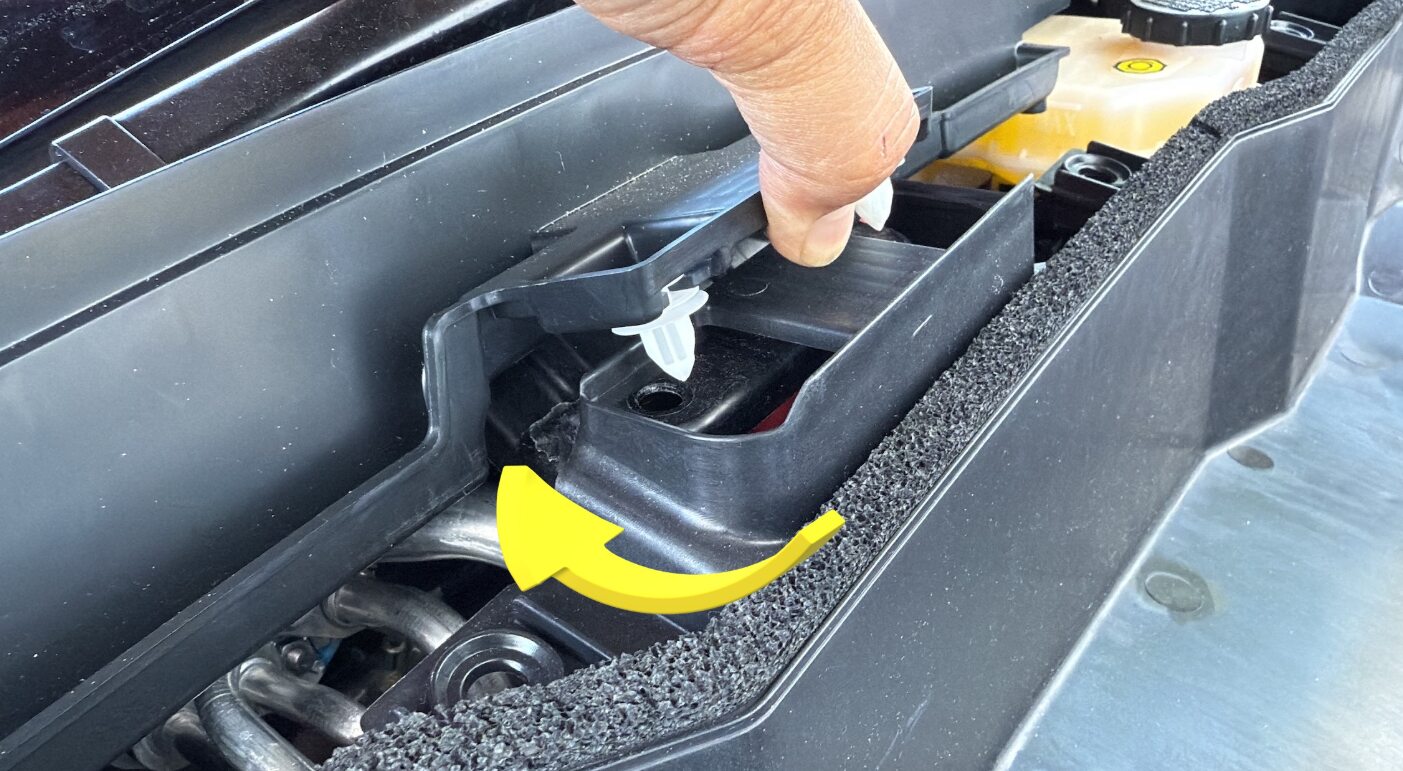

    Vehicle configuration may vary, W/ HEPA: 2x bolts, 10mm, 10 Nm, Pivot rear edge up past brake reservoir then lift up to clear frunk assembly, W/O HEPA: 2x bolts, 10mm, 10 Nm, 14x clips, Fold rear lip of base frunk forward to access forward cowl clips, Lift cowl clips to release basin bracket

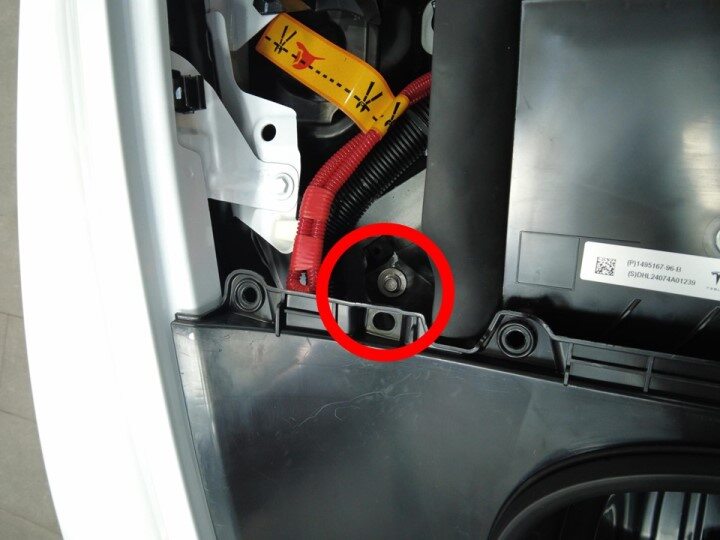

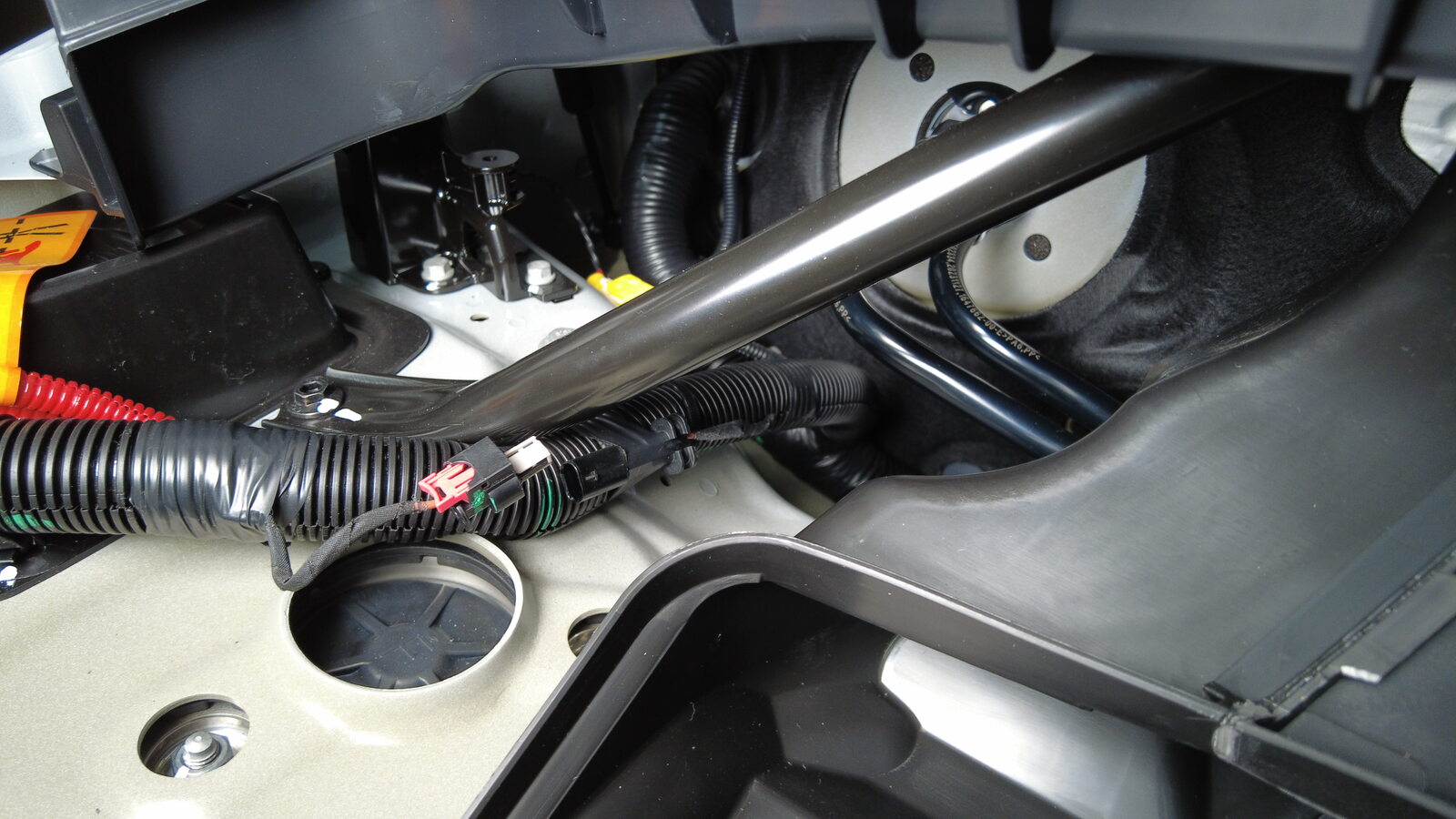

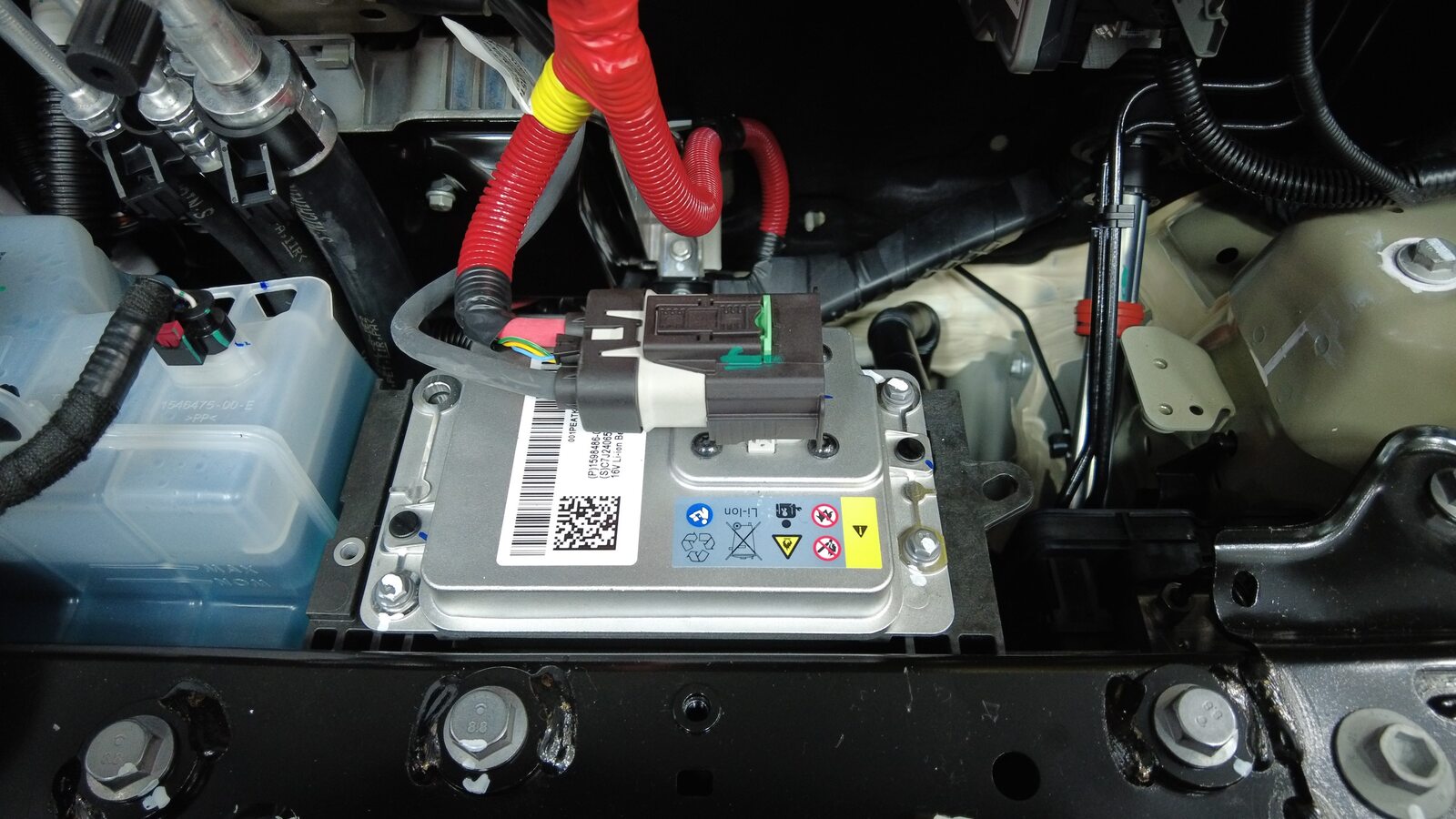

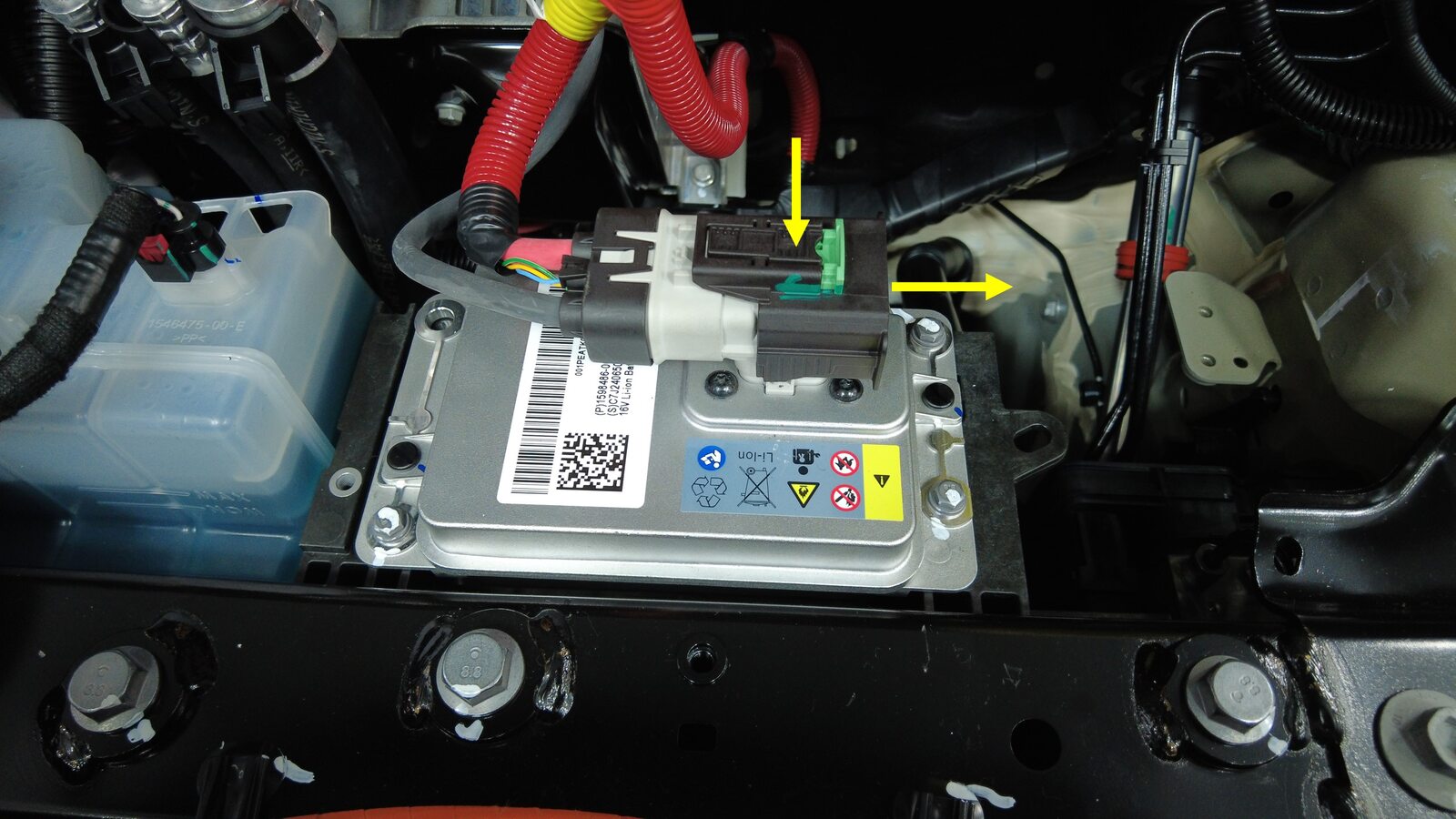

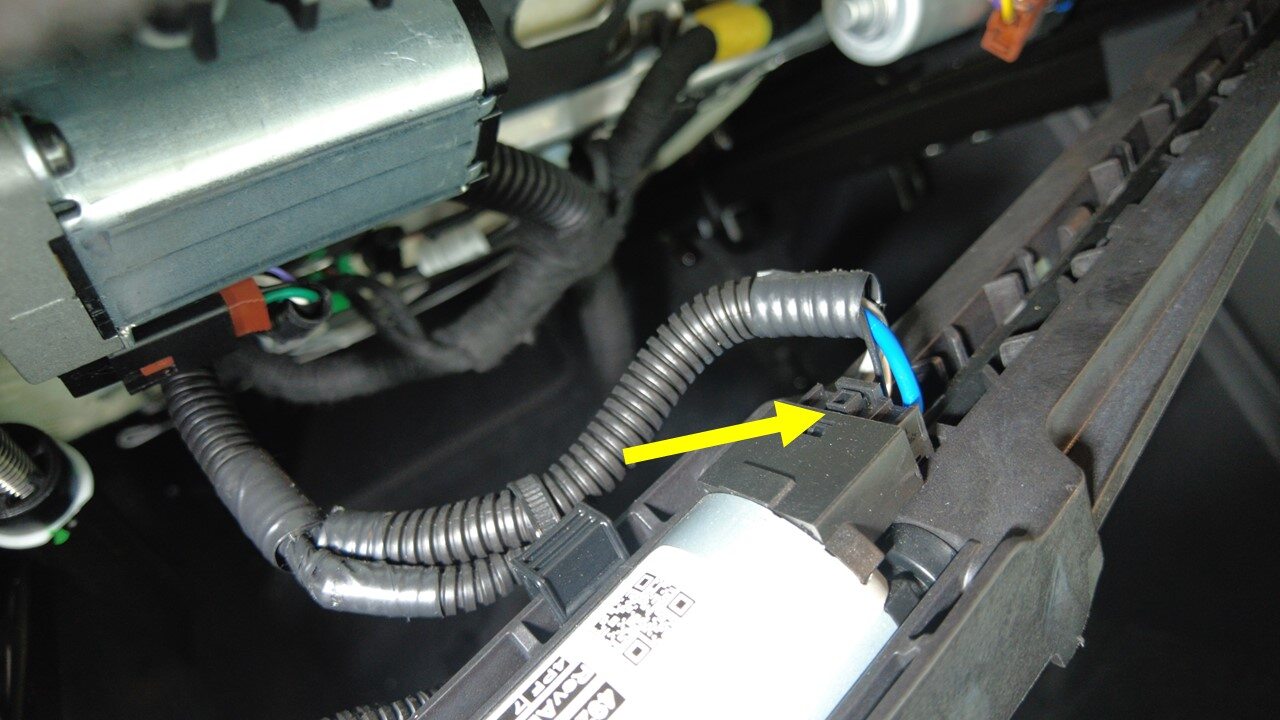

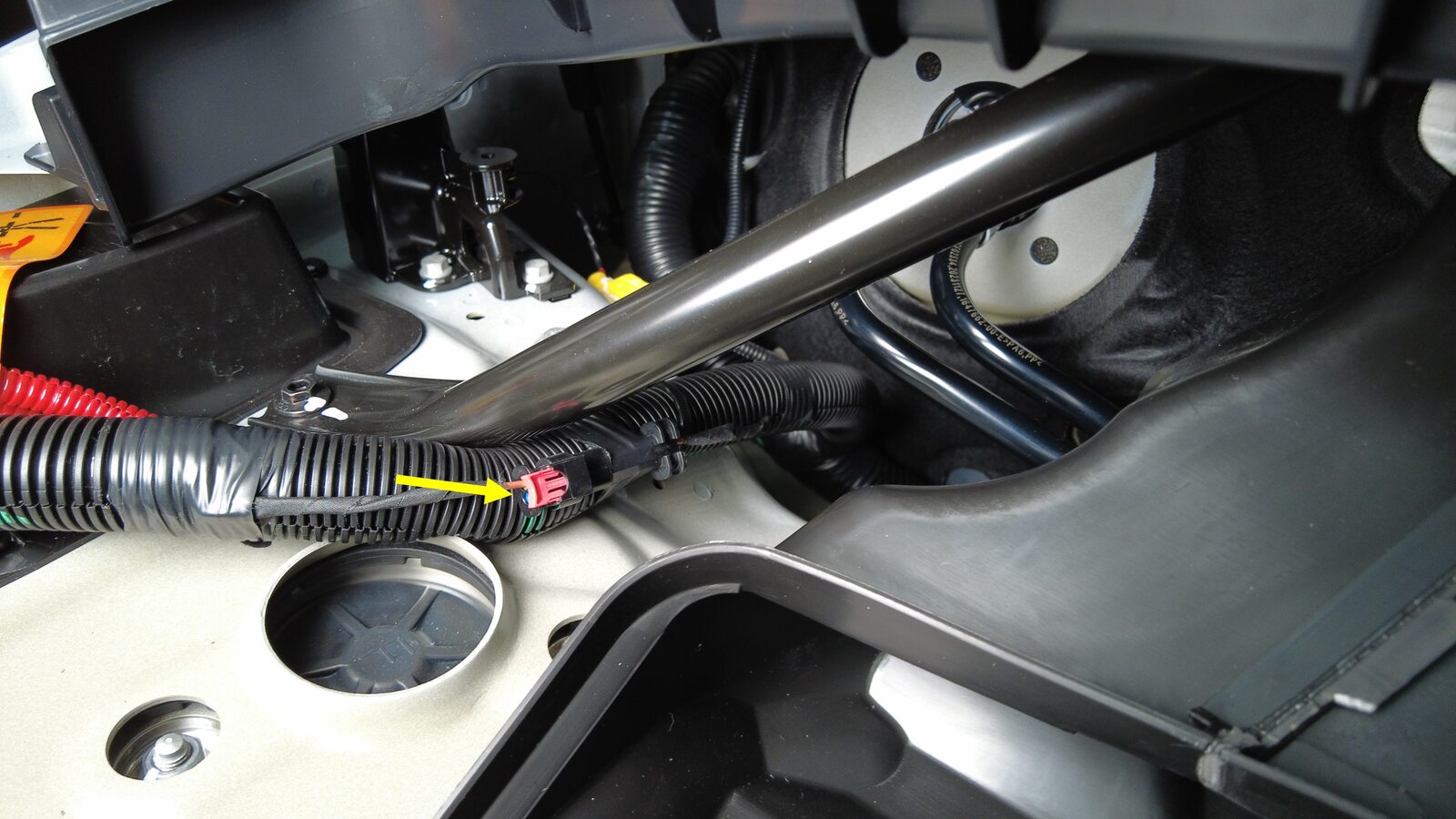

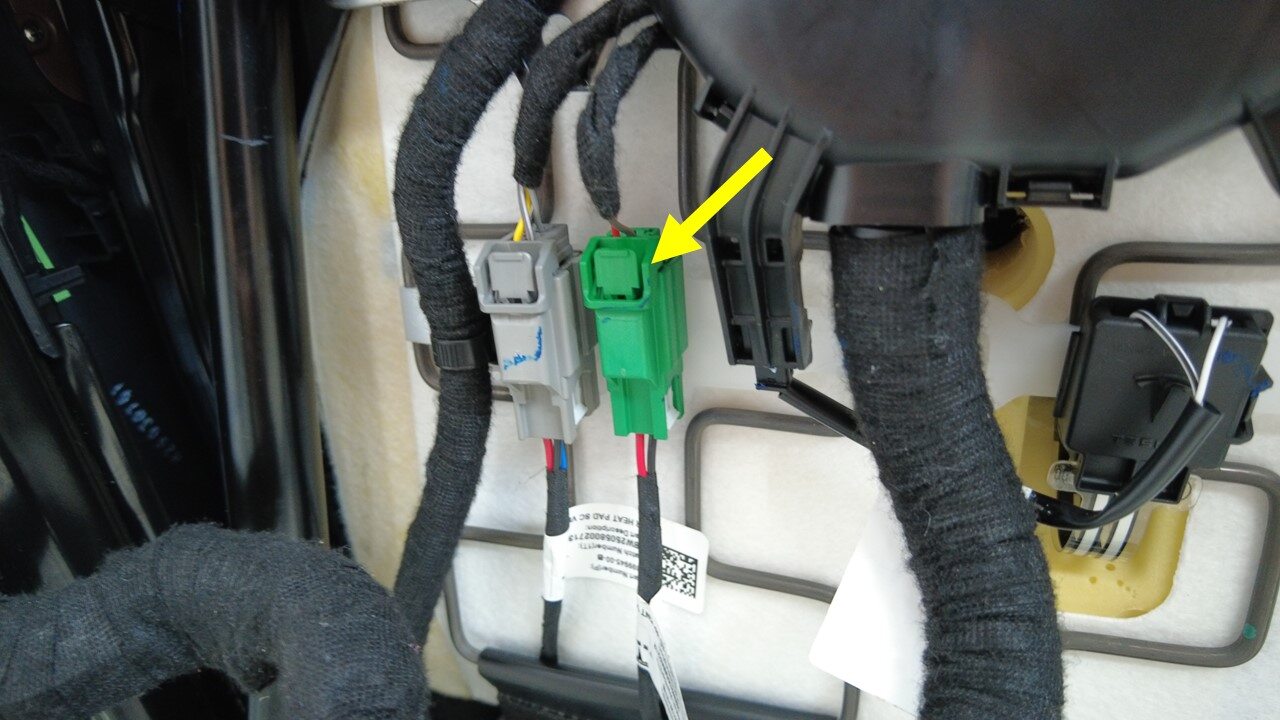

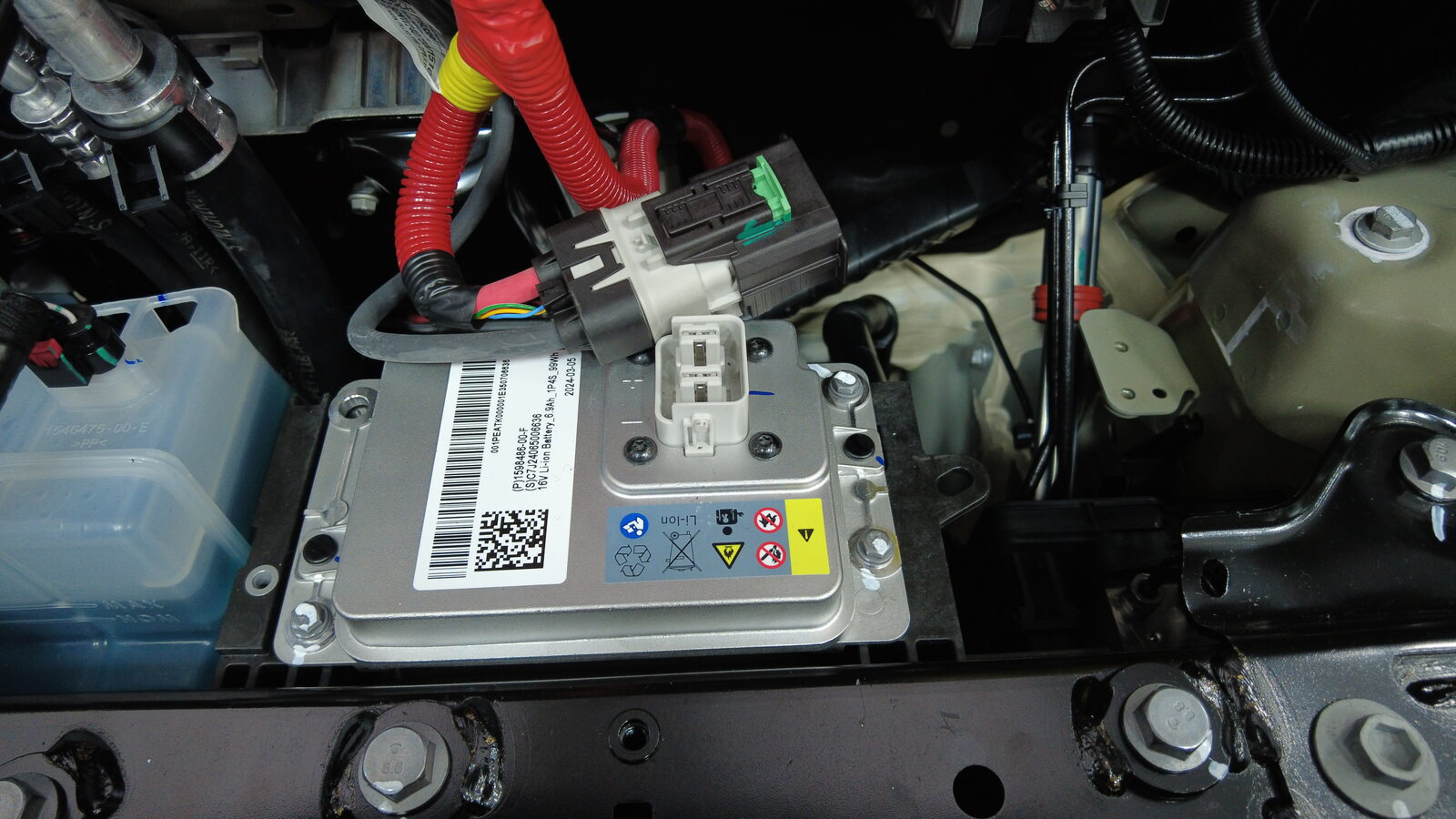

  17. Disconnect LV battery and first responder loop
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, Release green locking tab, Press black tab then pull black connector lock outwards to release connection, Release red lock tab on FRL, Allow 2 minutes for all electrical circuits to fully discharge

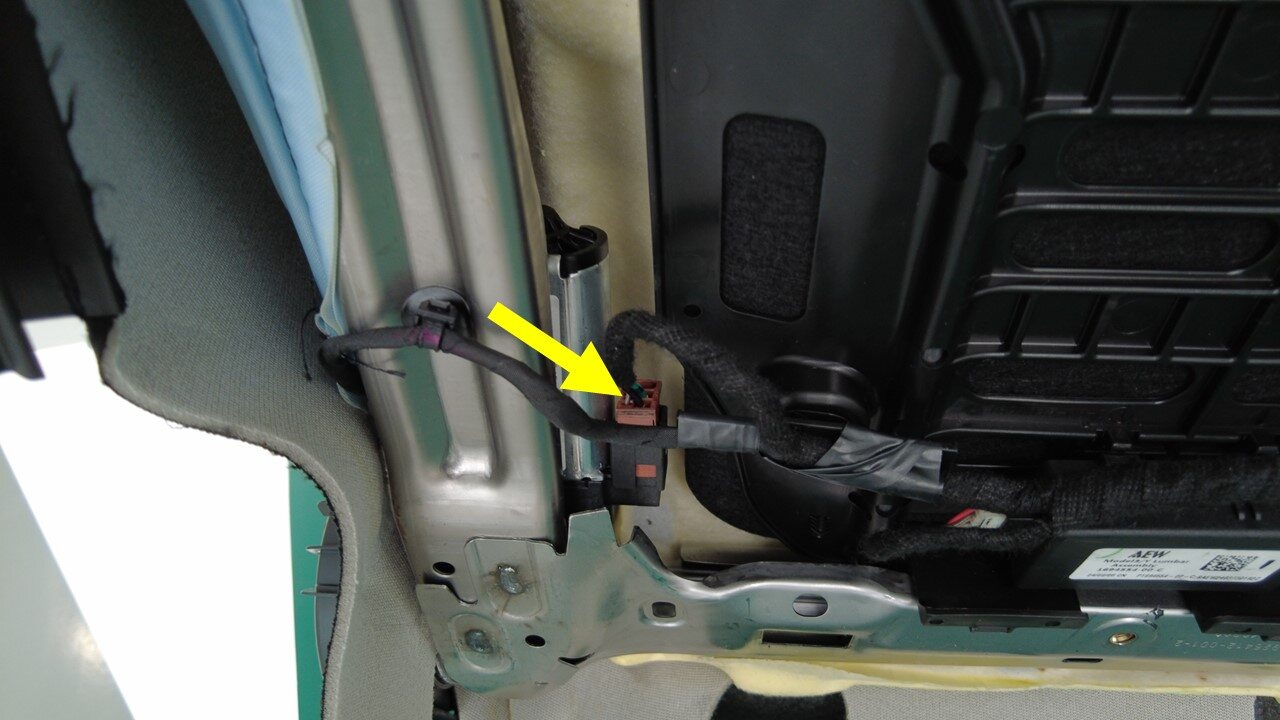

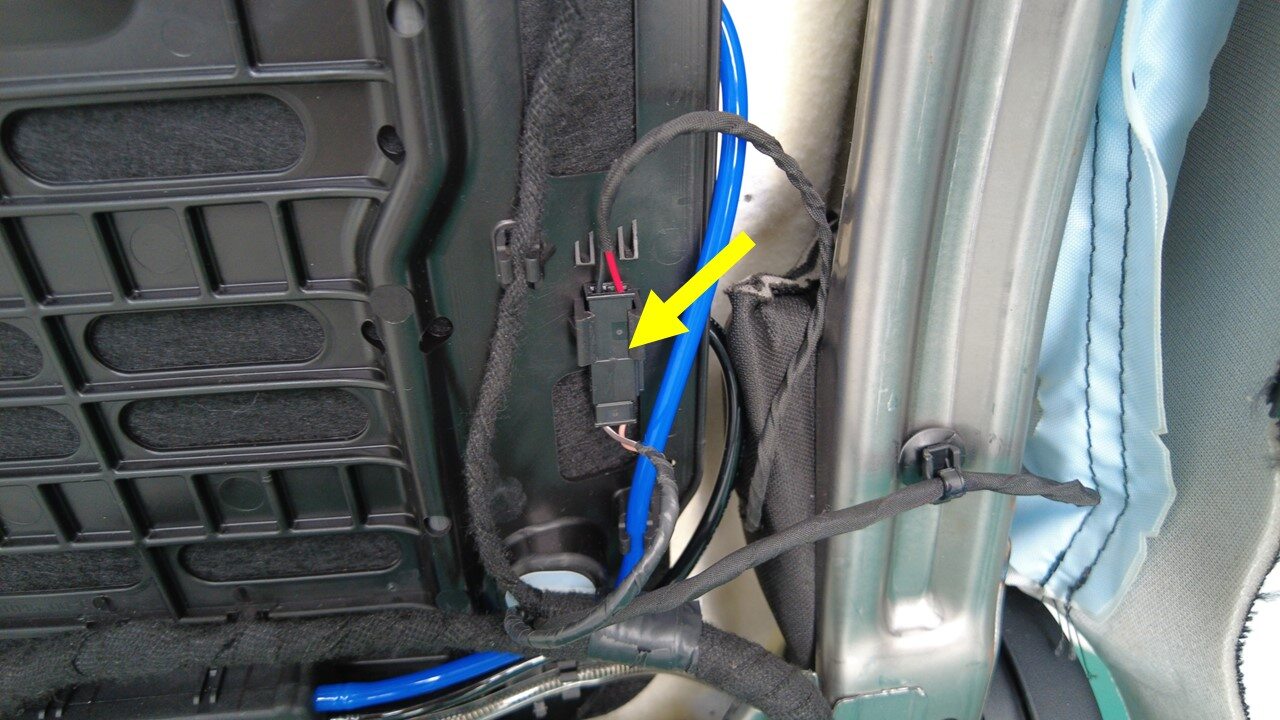

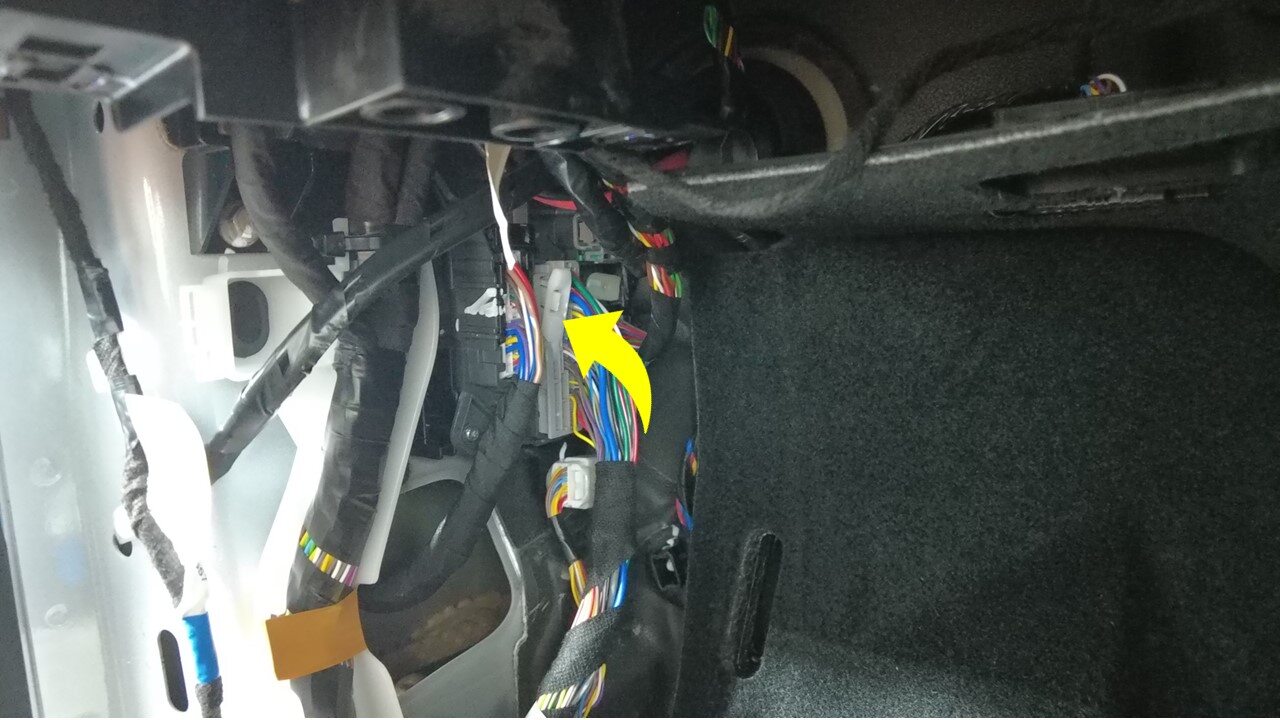

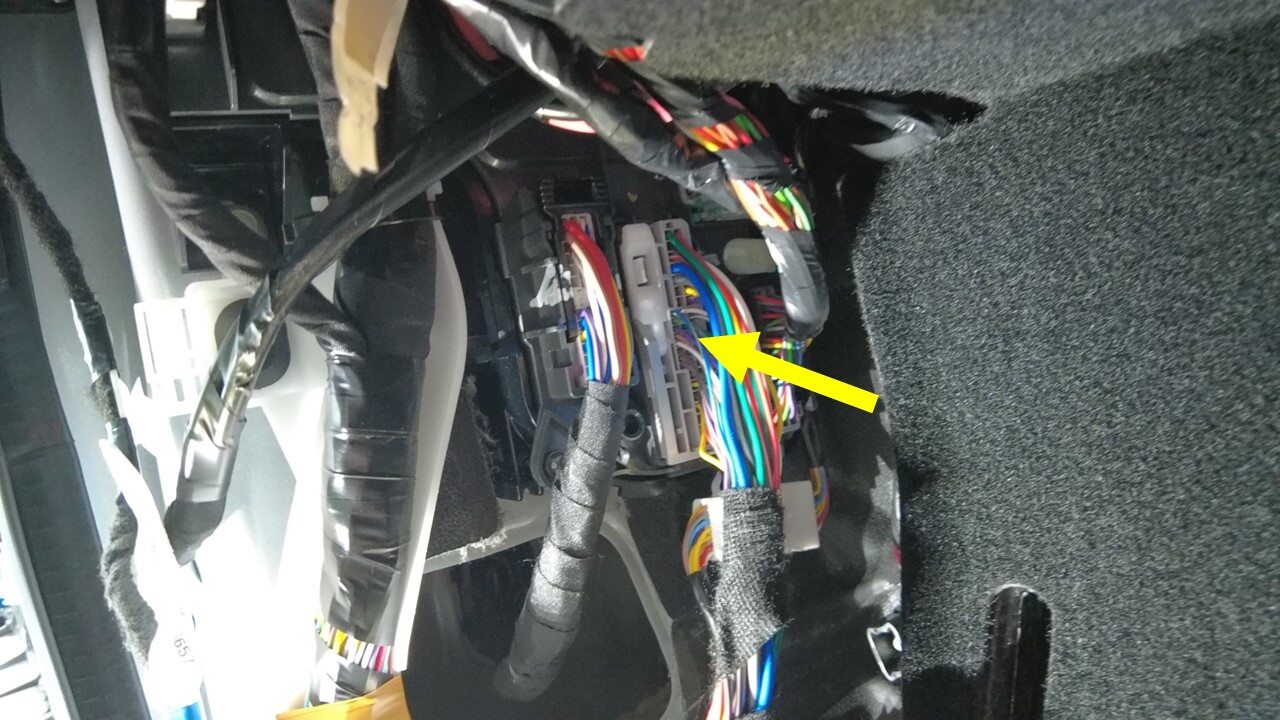

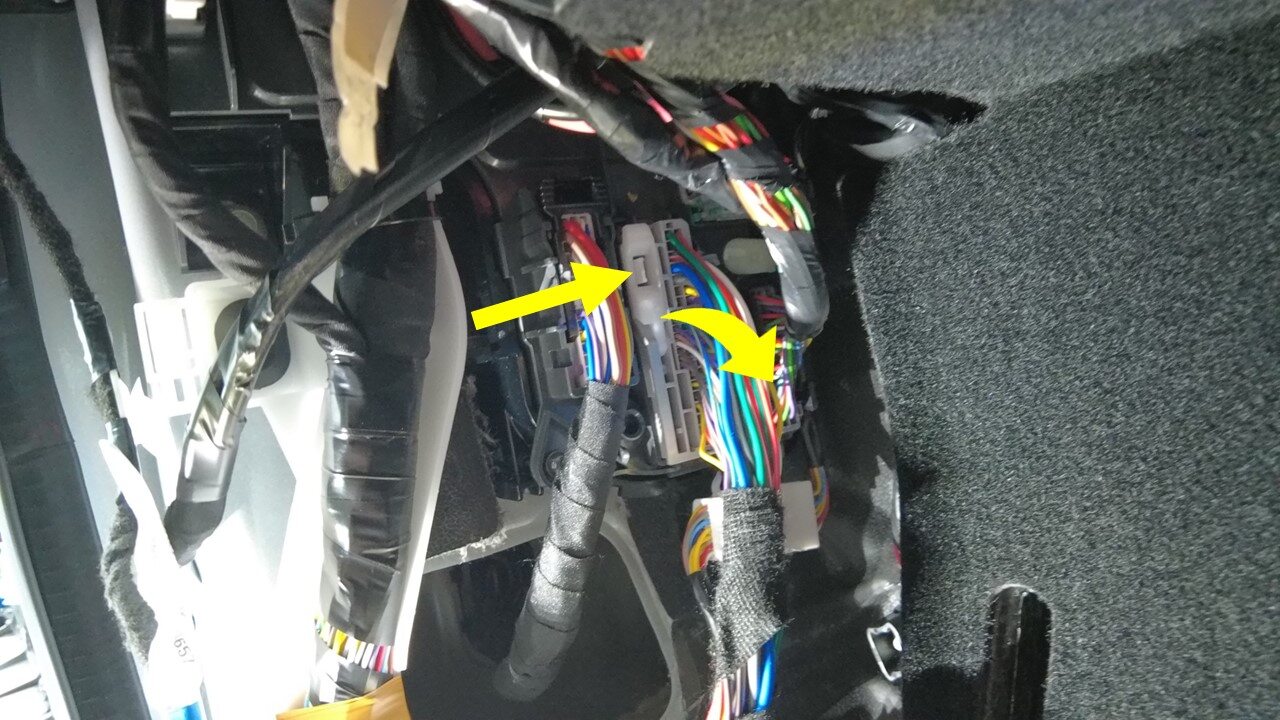

  18. Disconnect LH front seat harness connector from LH controller
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Release locking tab

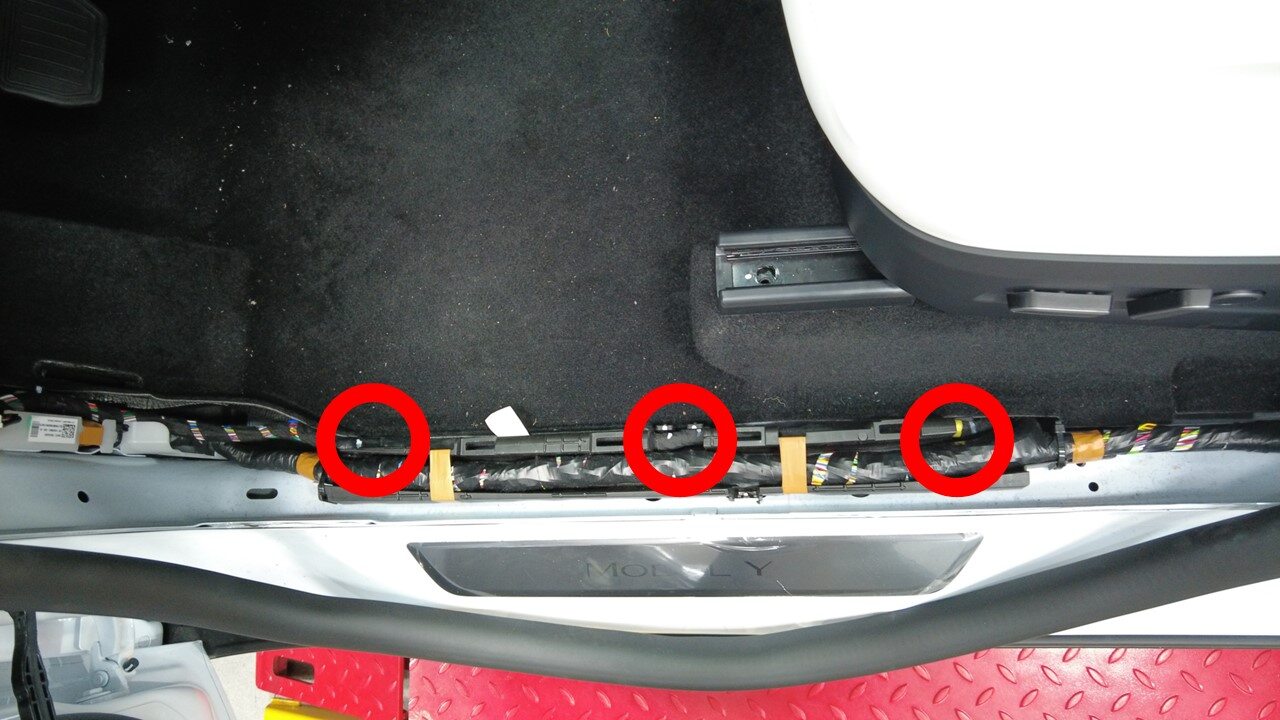

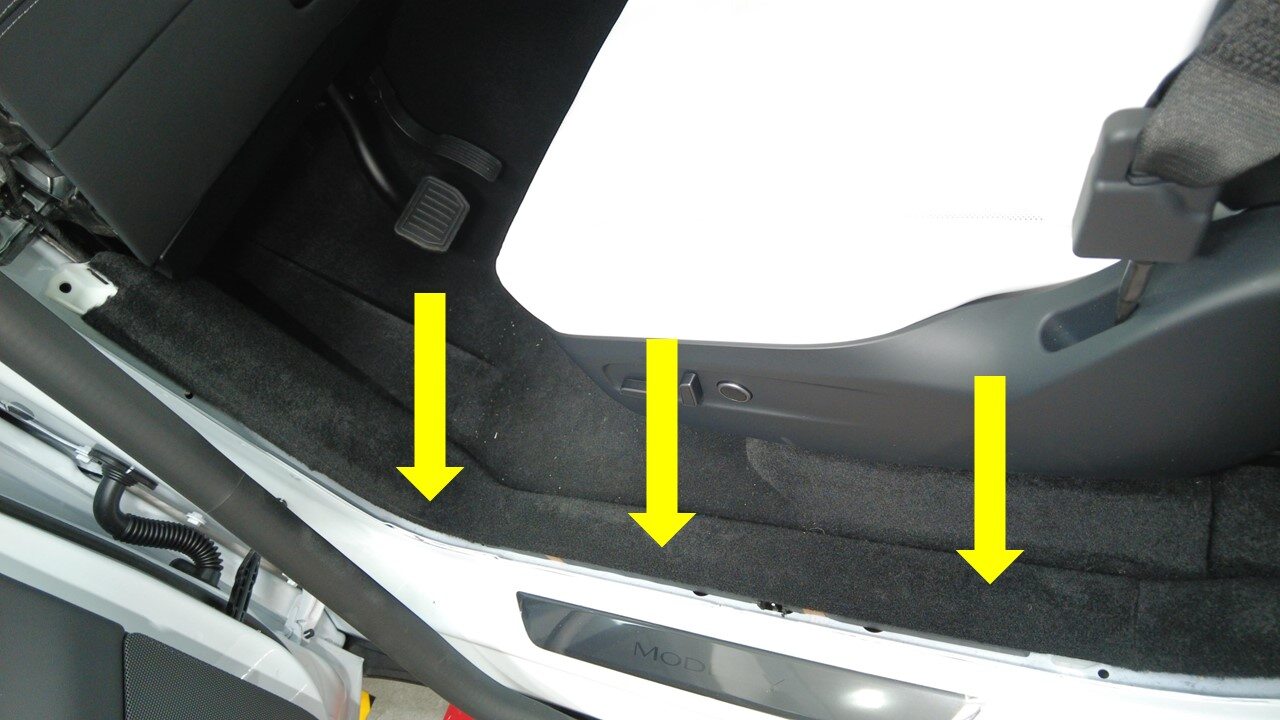

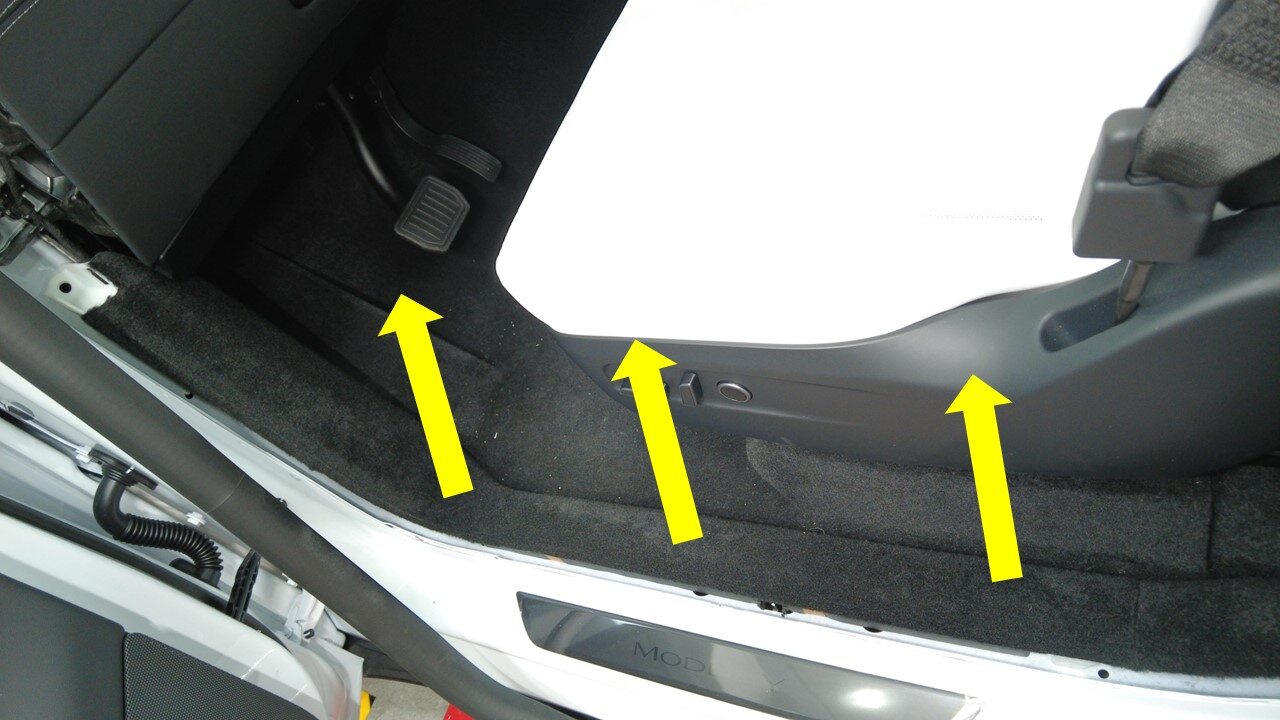

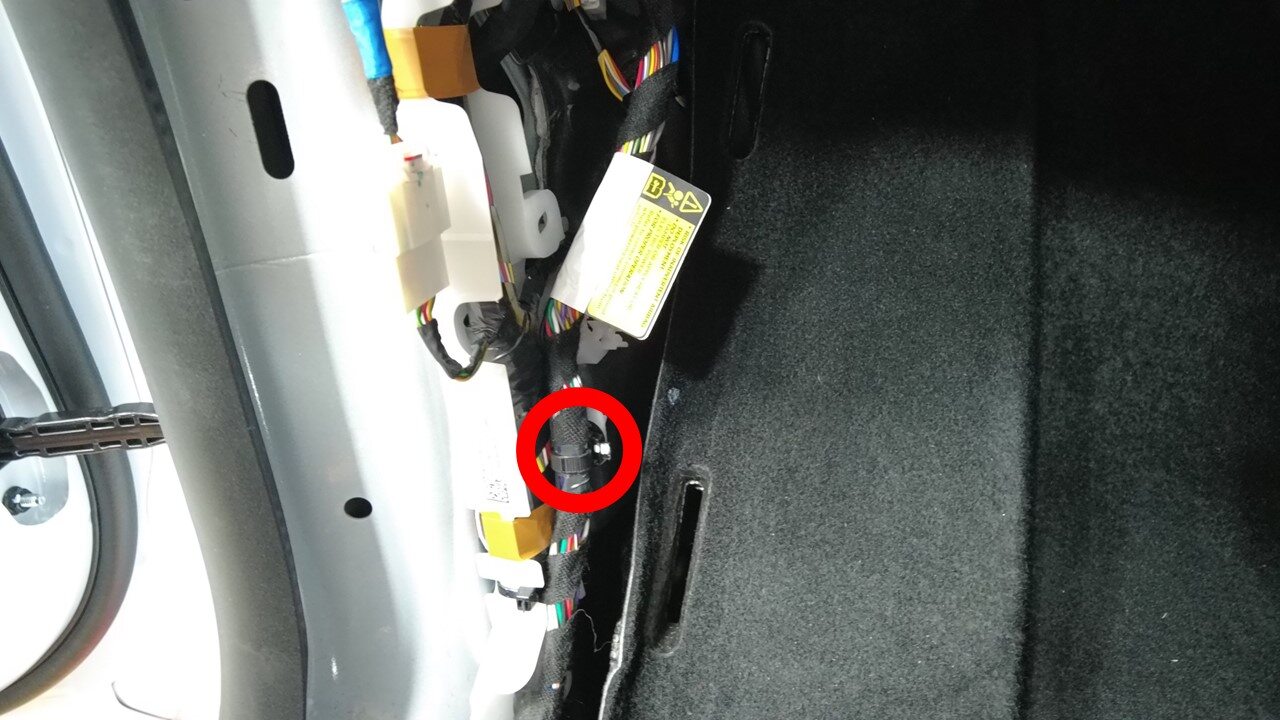

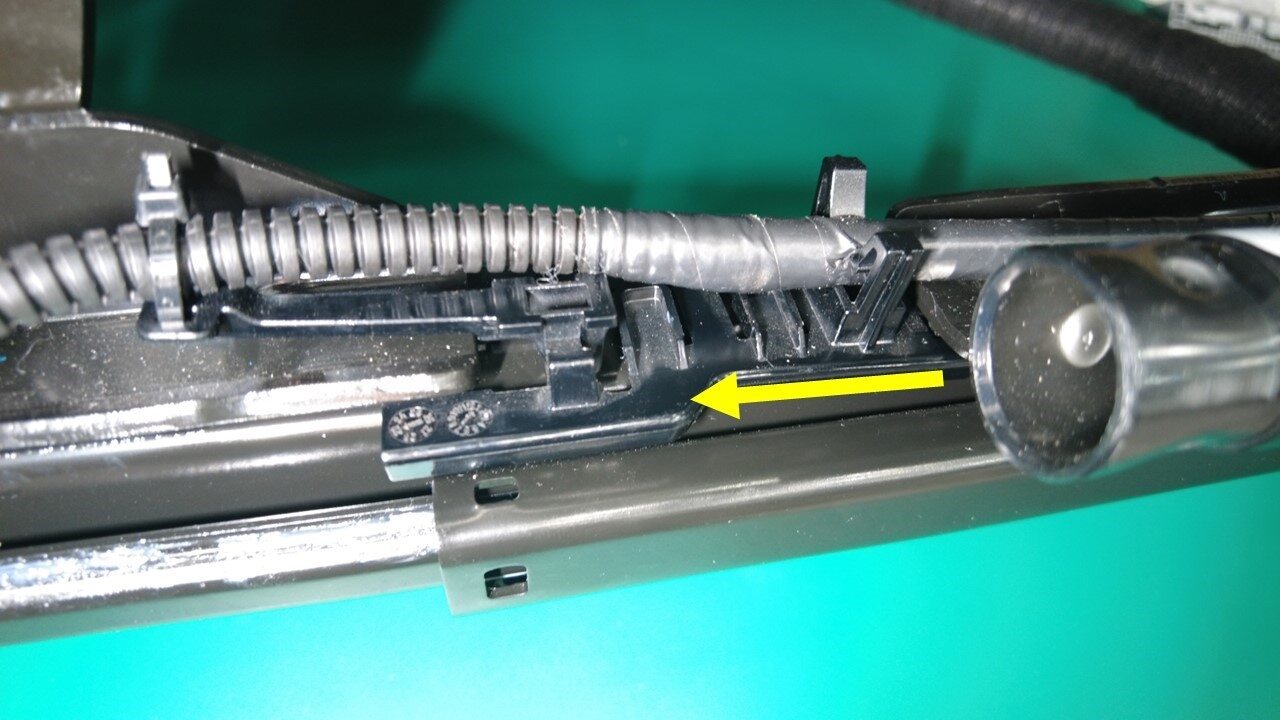

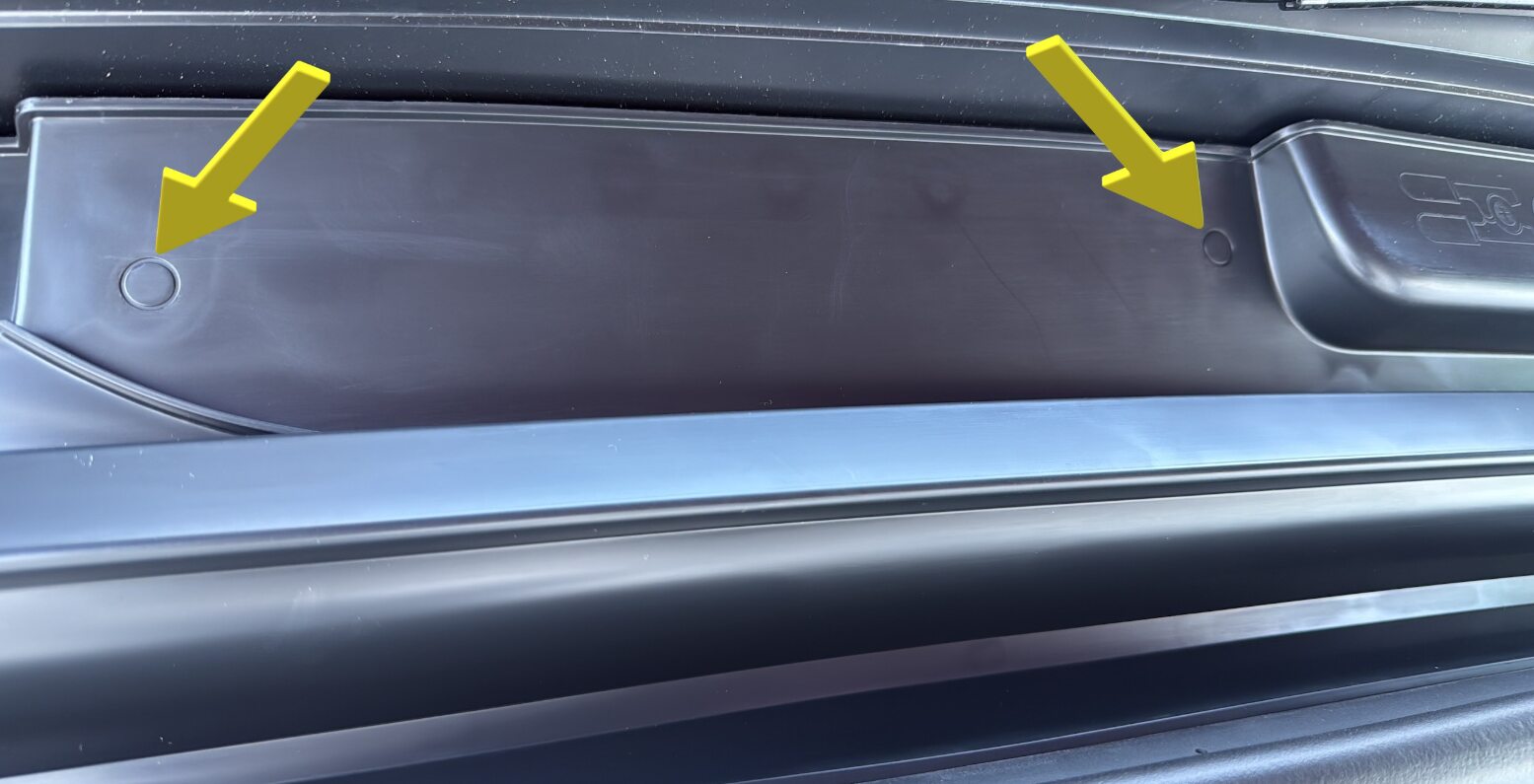

  19. Release LH front seat harness from sill trim clips
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips

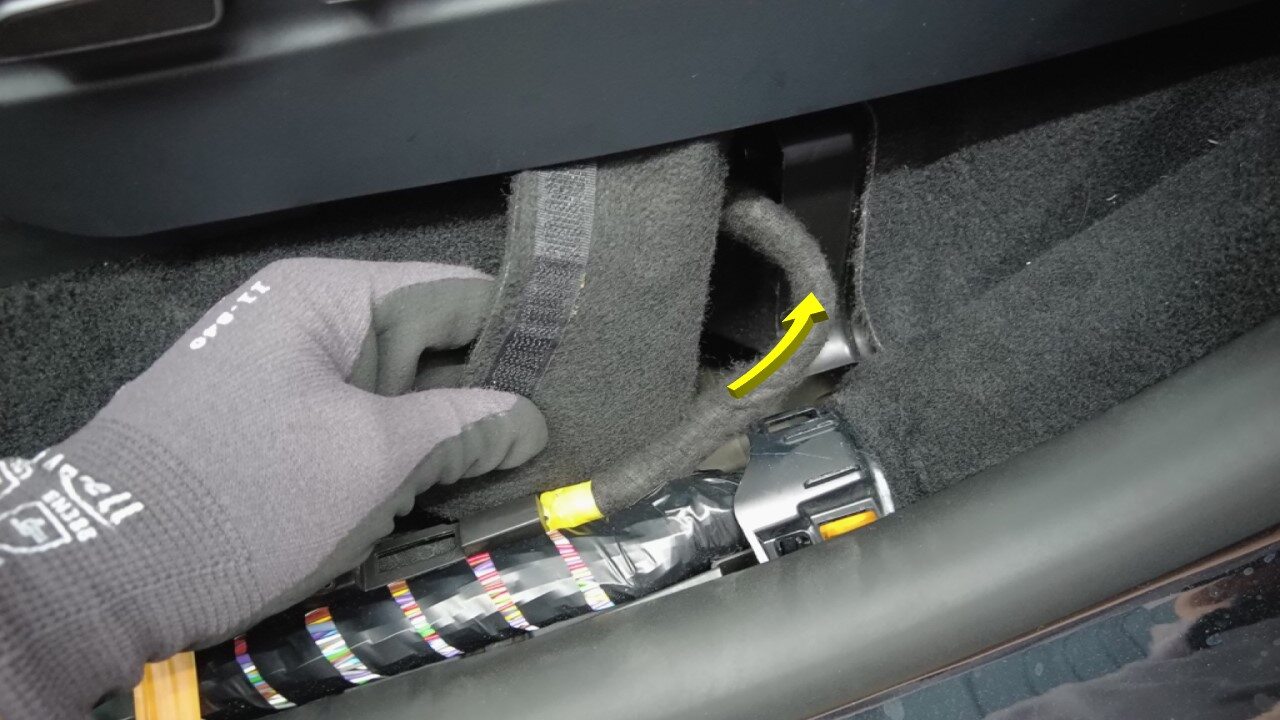

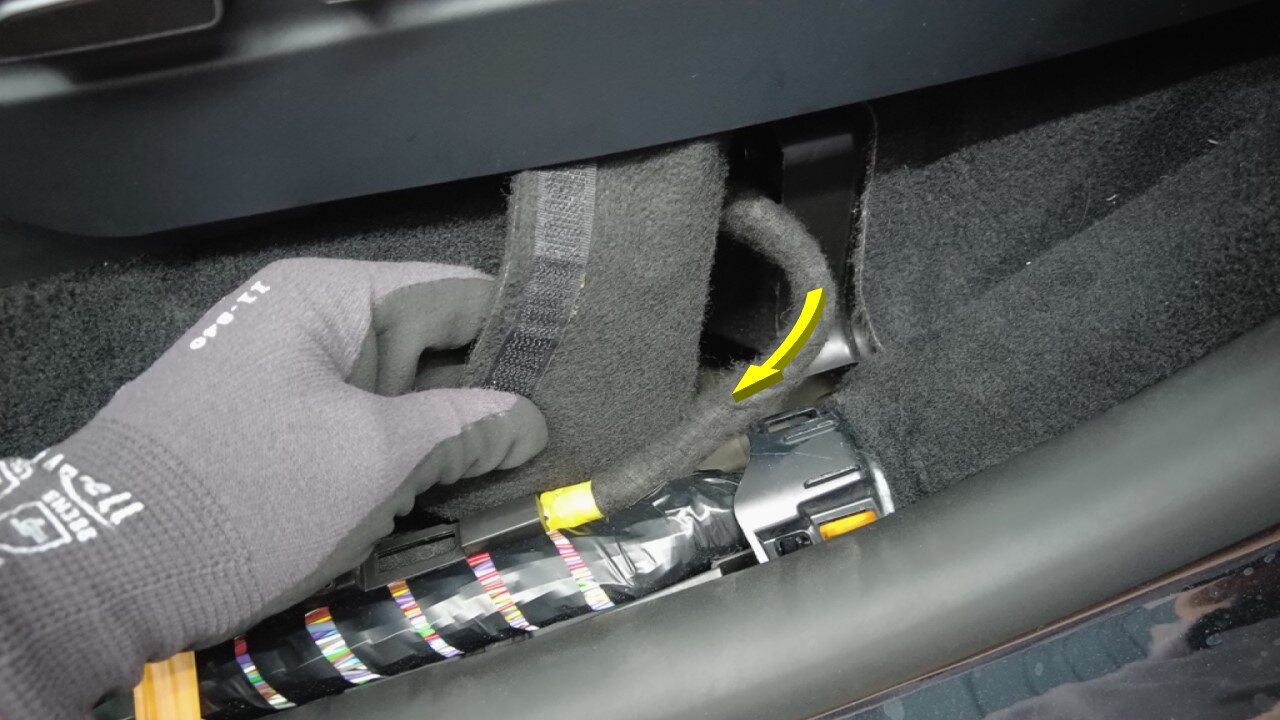

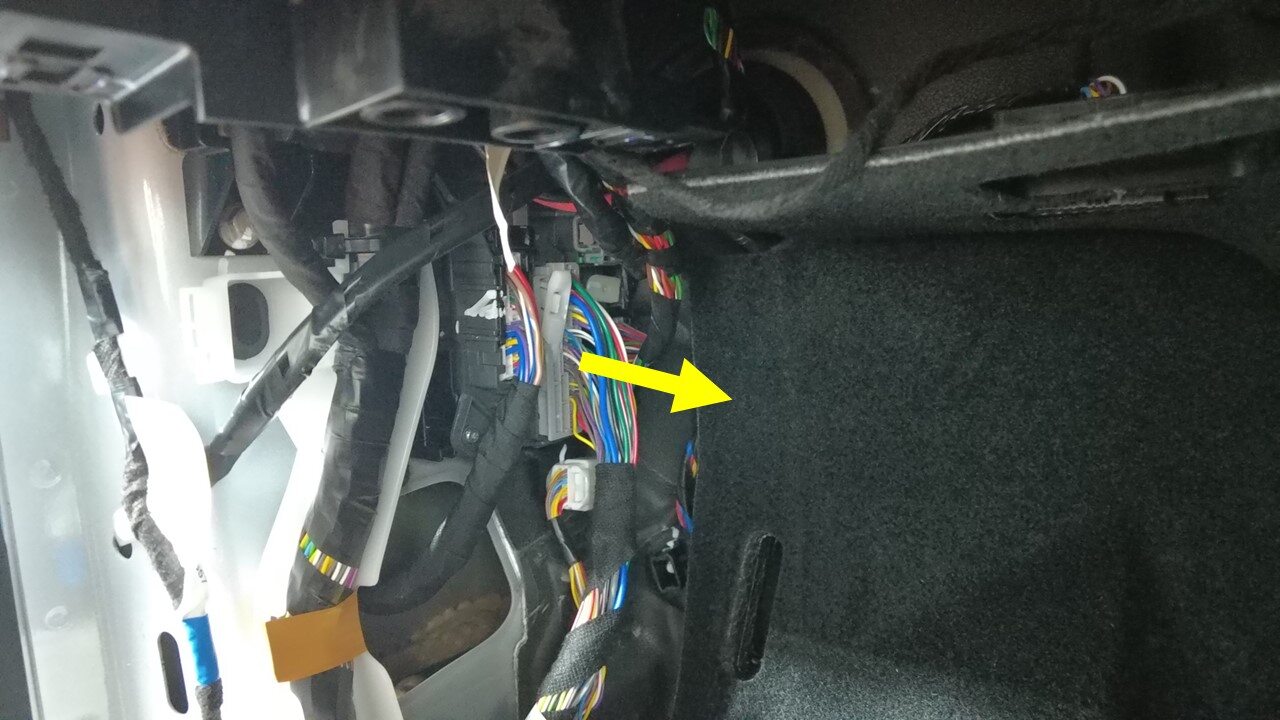

  20. Pull LH front seat harness from under LH front cabin carpet

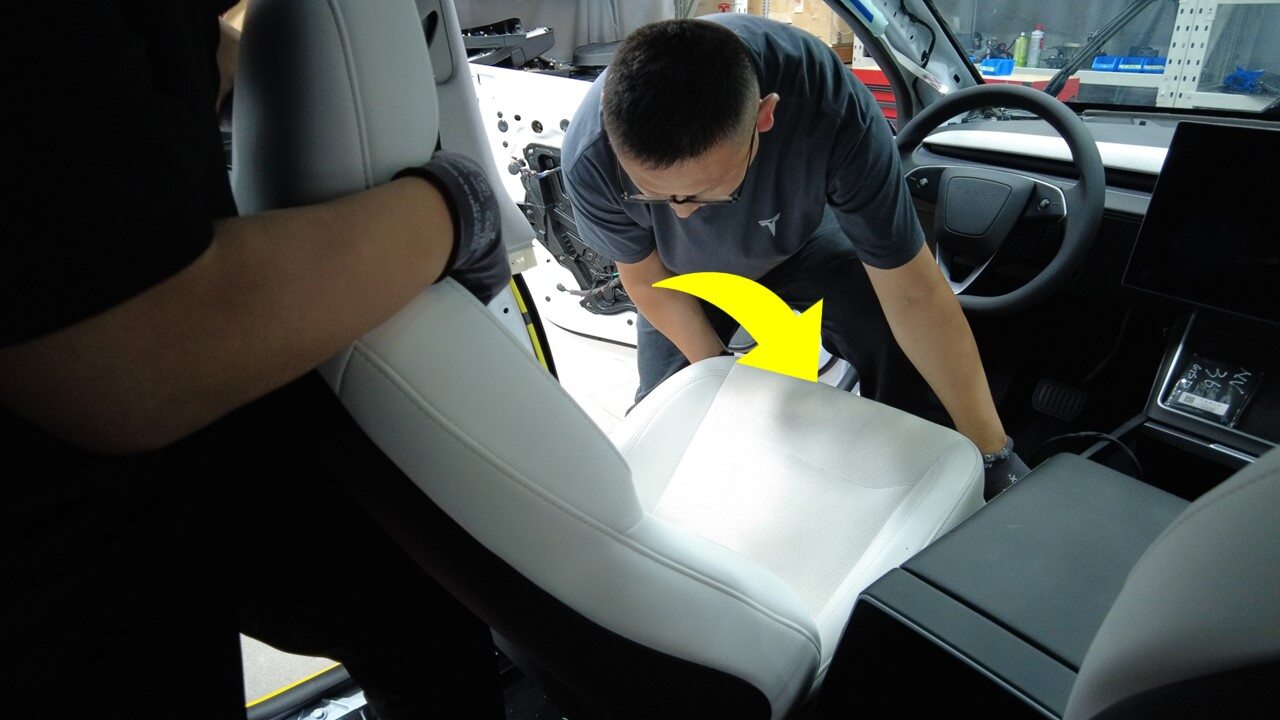

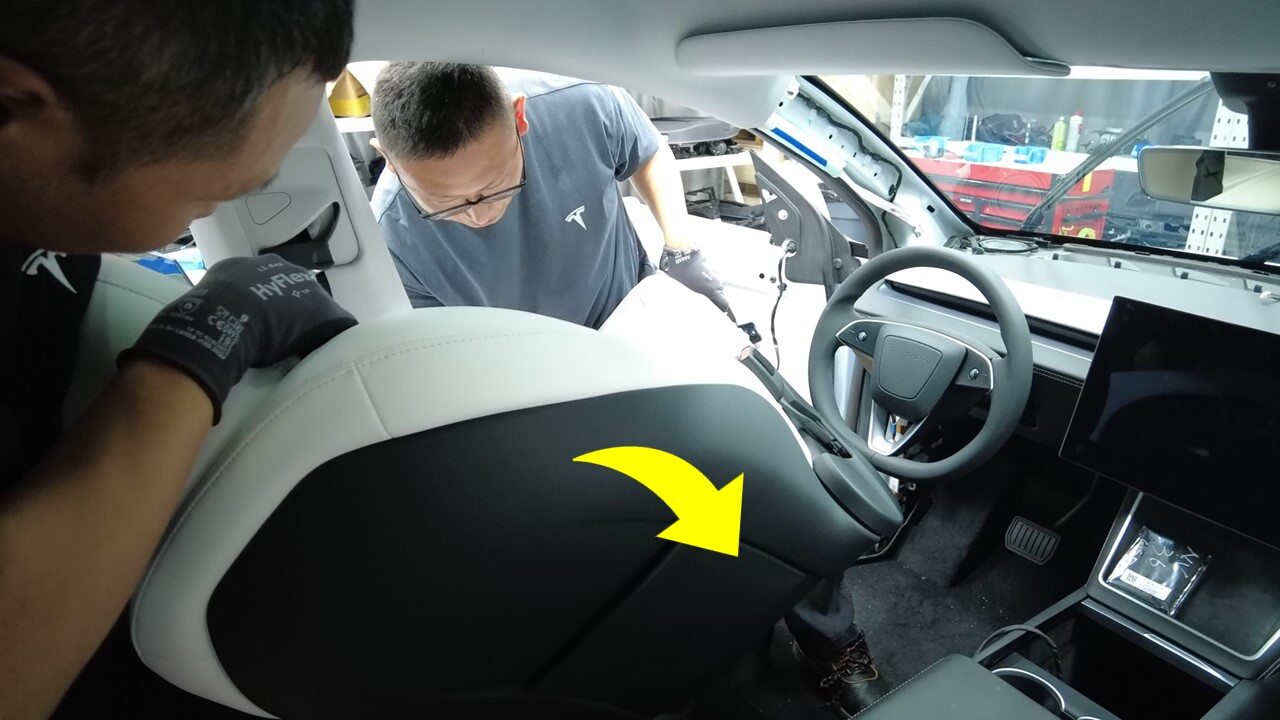

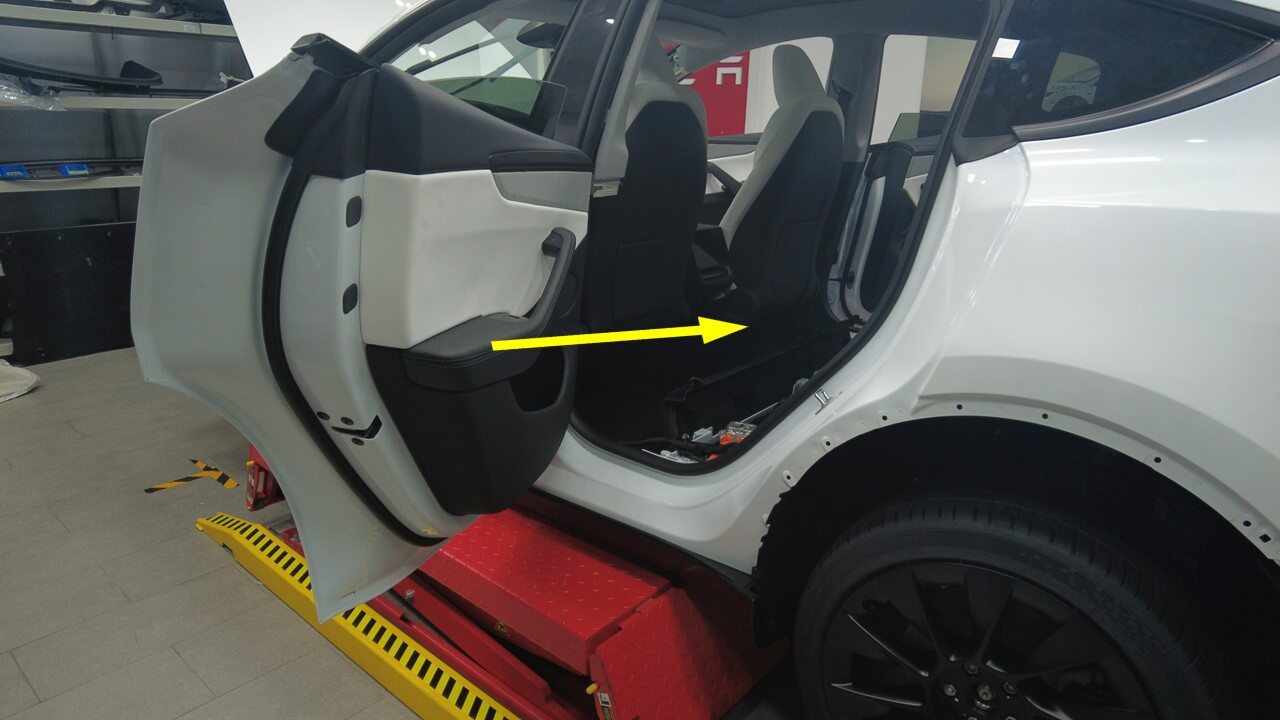

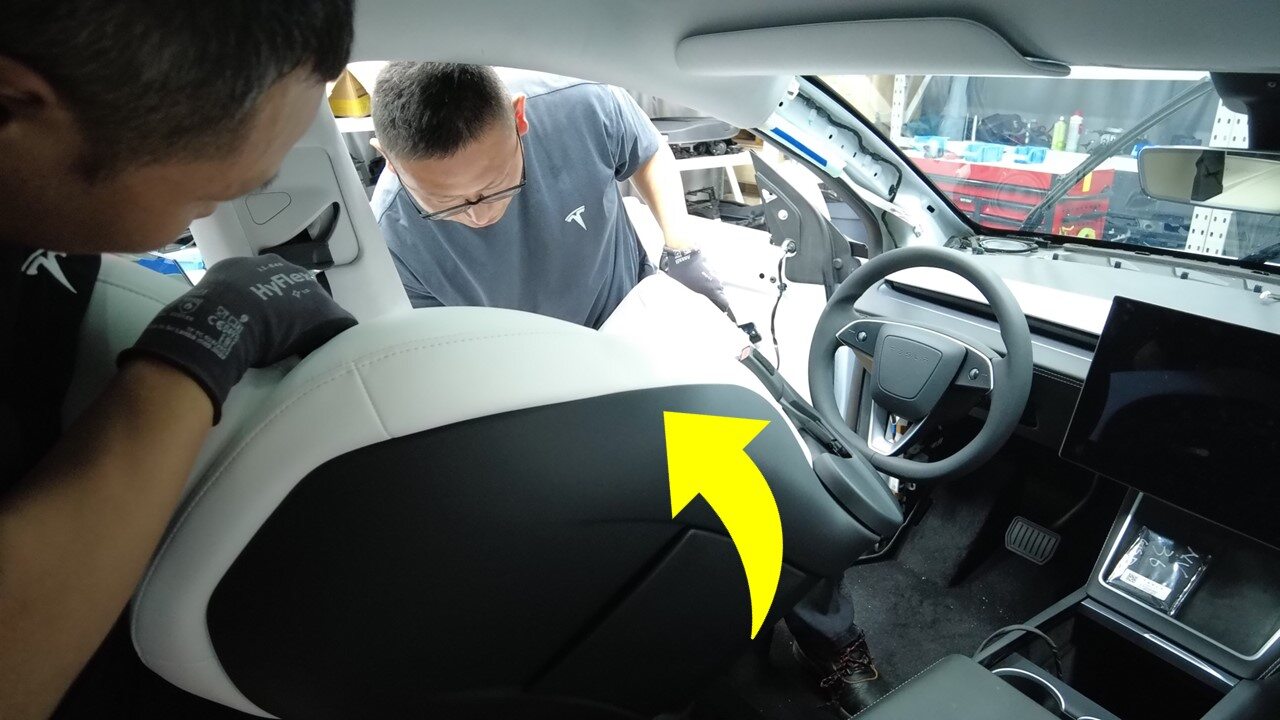

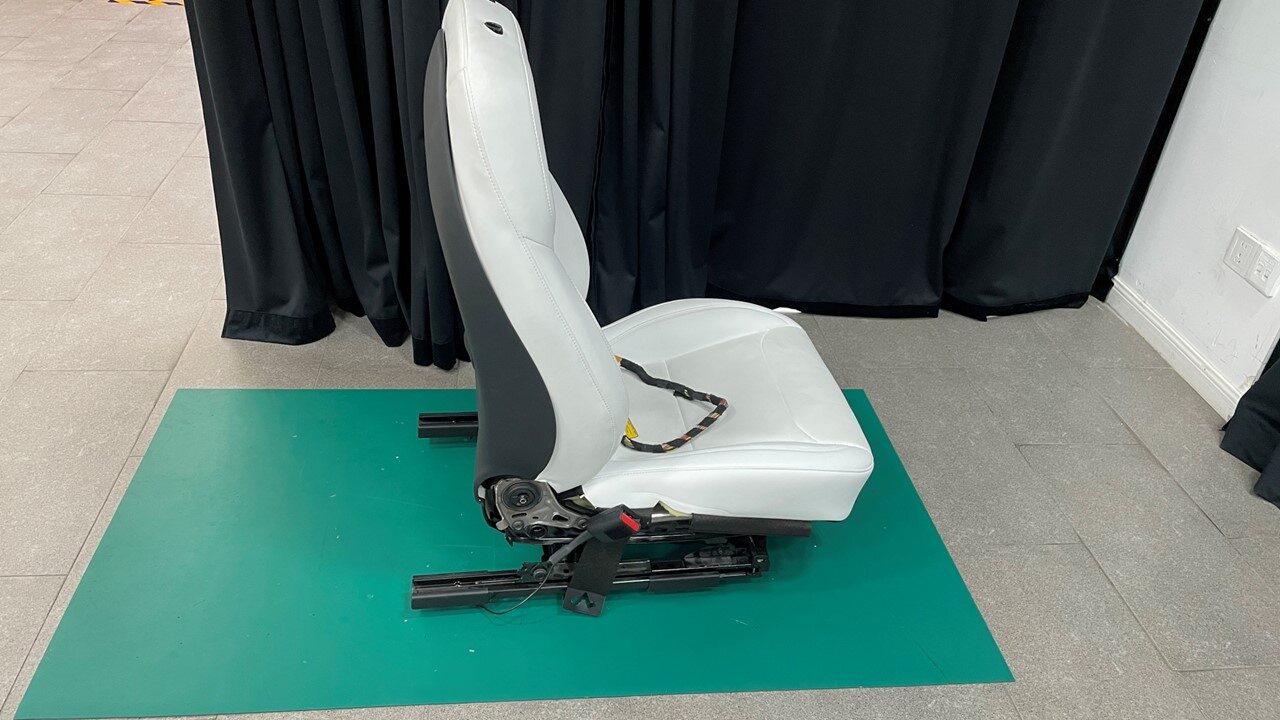

  21. Remove LH front seat from vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    Recommend assistance, With assistant supporting seat back from 2nd row seat, Remove seat from front LH door opening, Caution not to damage any trim, Protect the seat upholstery when the seat is outside of the vehicle

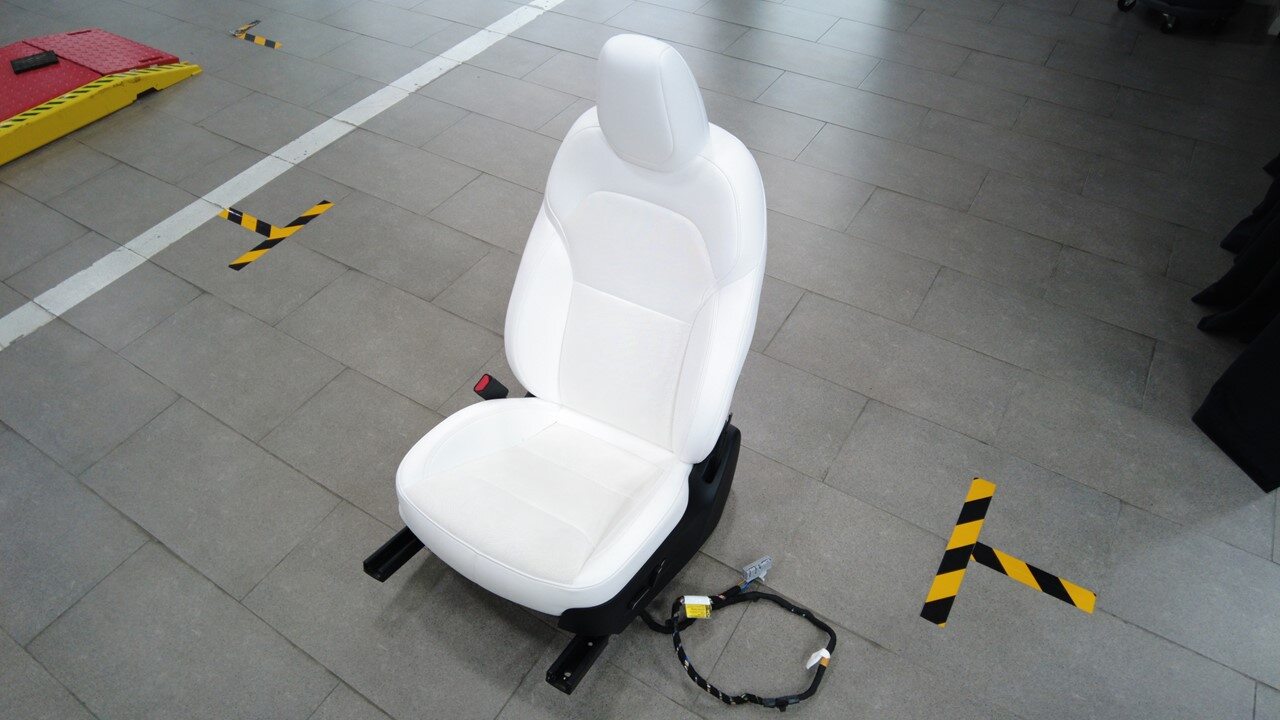

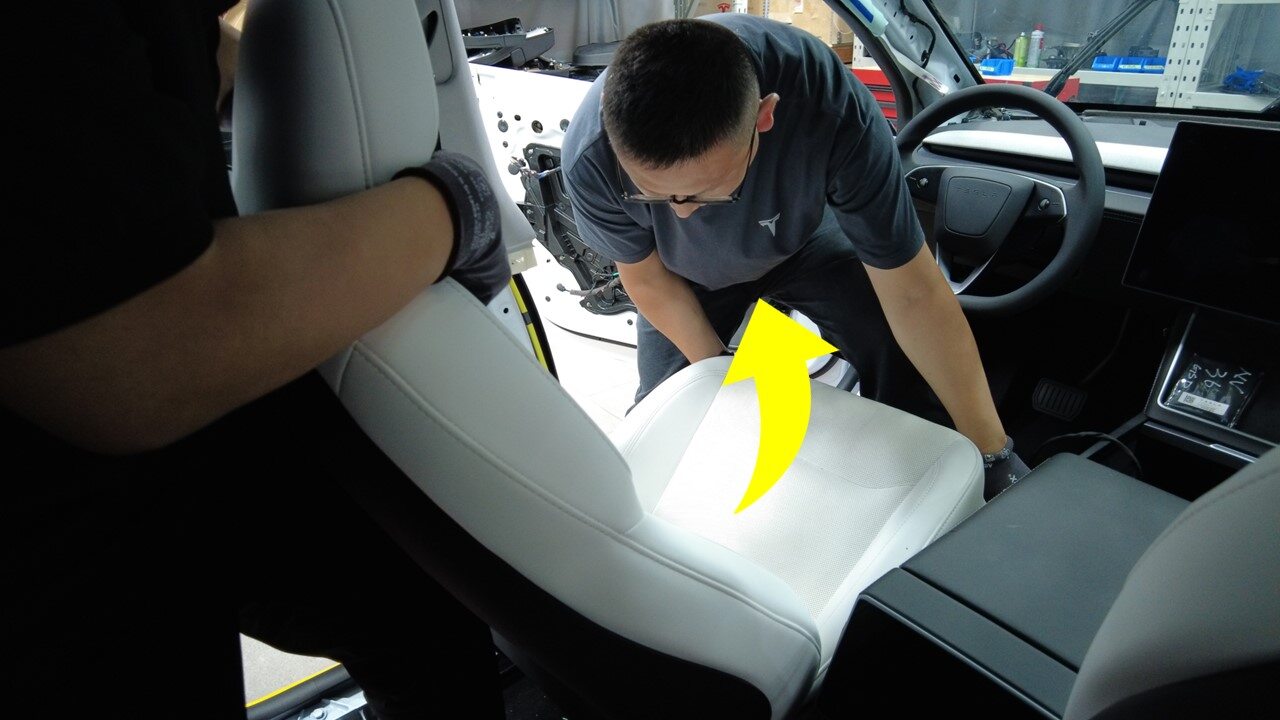

  22. Rotate seat to gain access to underside
    Informational PurposesAn informational icon, calling your attention
    Note
    Protect seat cushion from damage

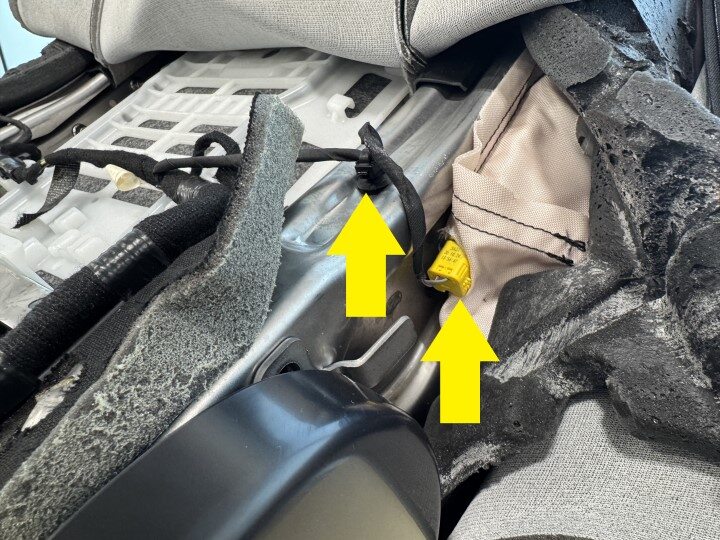

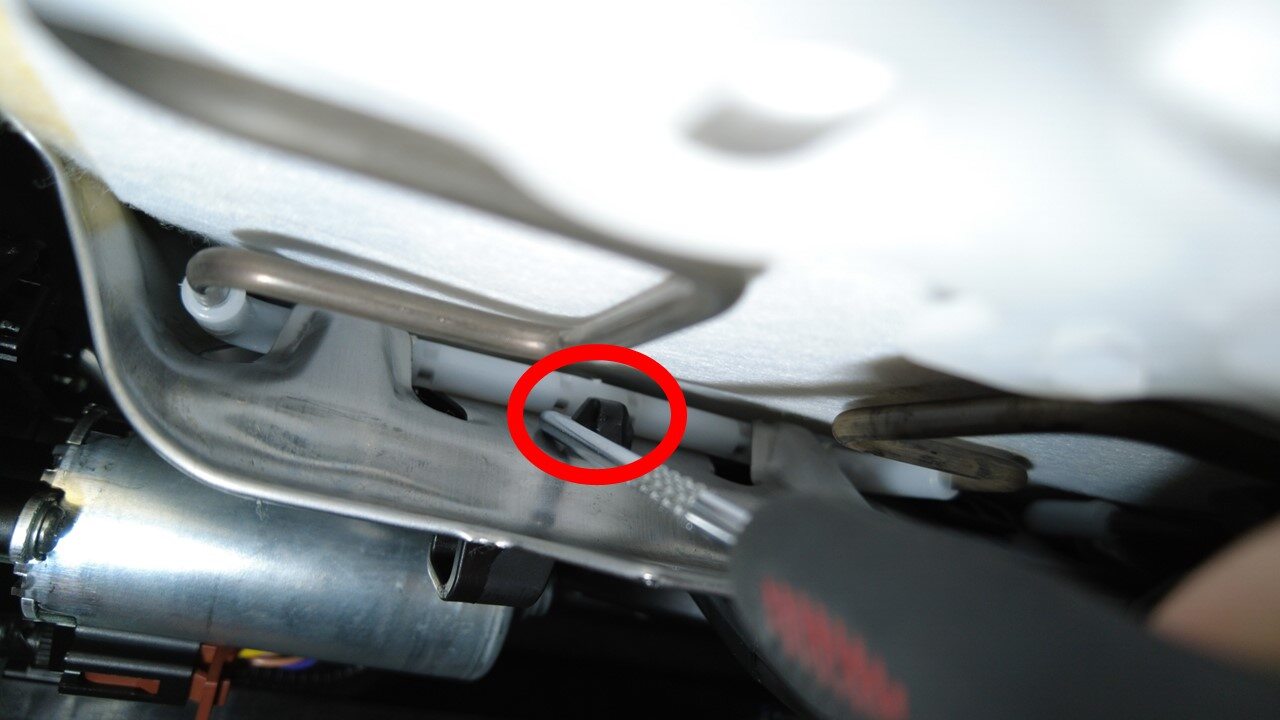

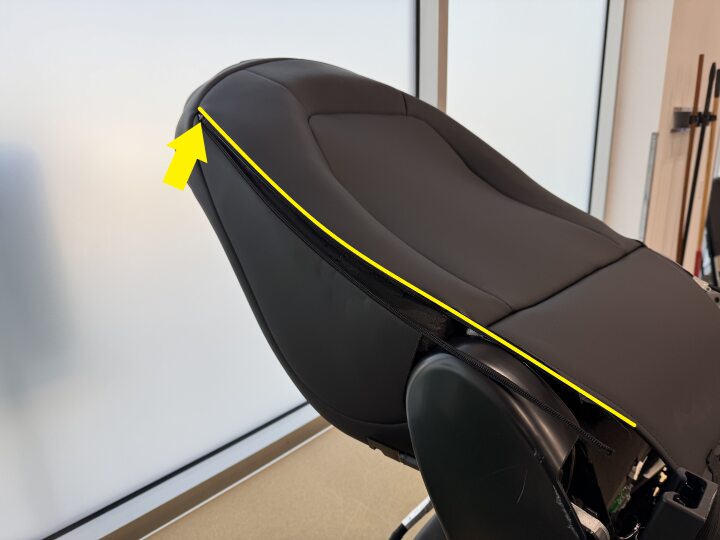

  23. Release rear section of seatback trim
    Informational PurposesAn informational icon, calling your attention
    Note

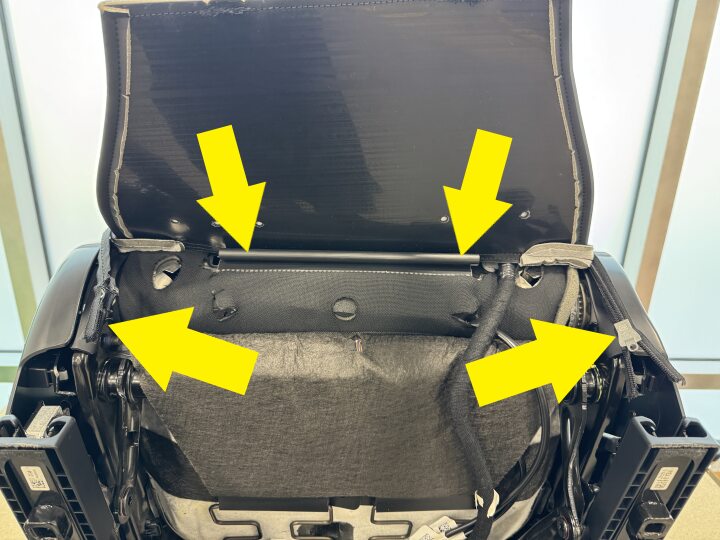

    2x zippers, 2x tabs, 1x hook, Release elastic strap to expose hook and zippers, Use pick tool to move zipper
  24. Return seat to upright position

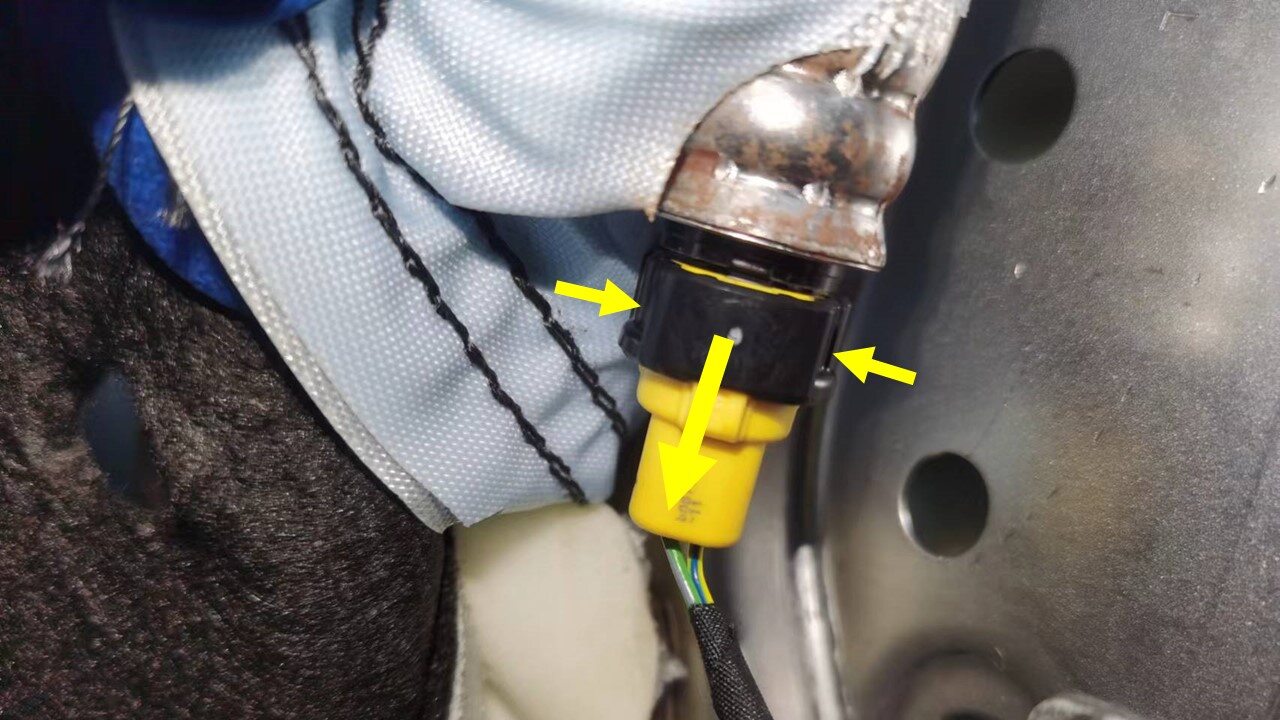

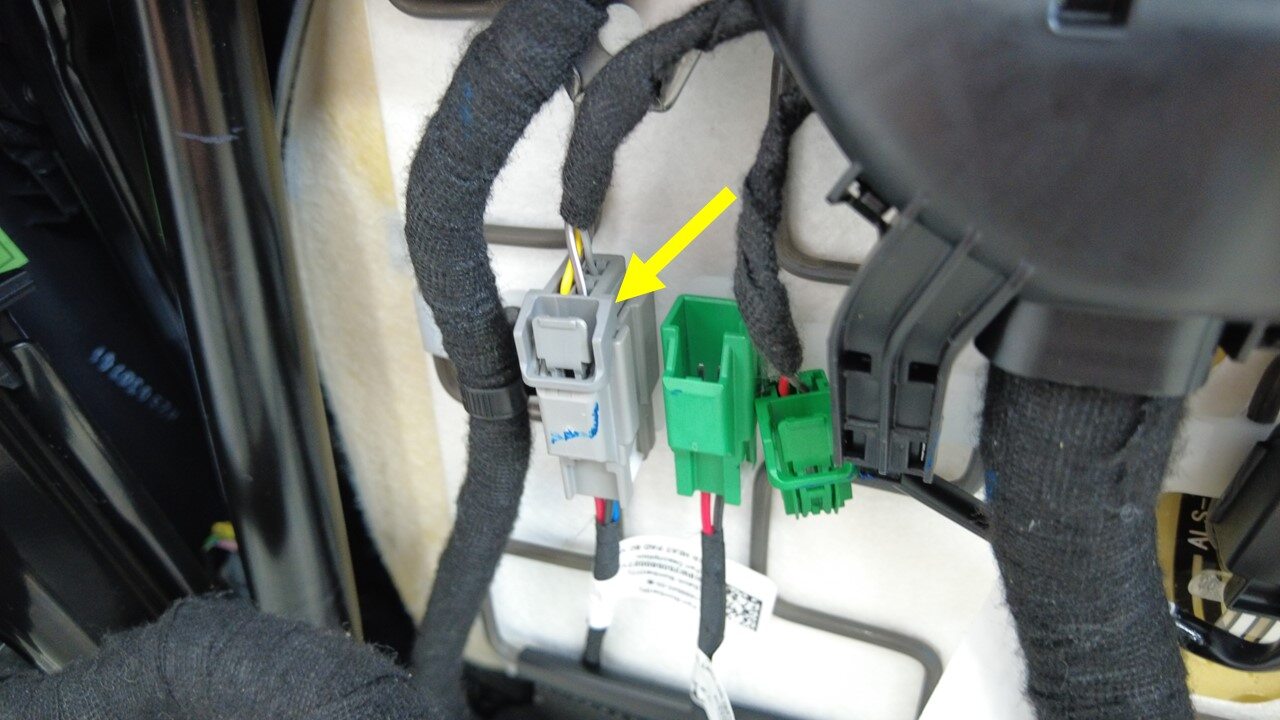

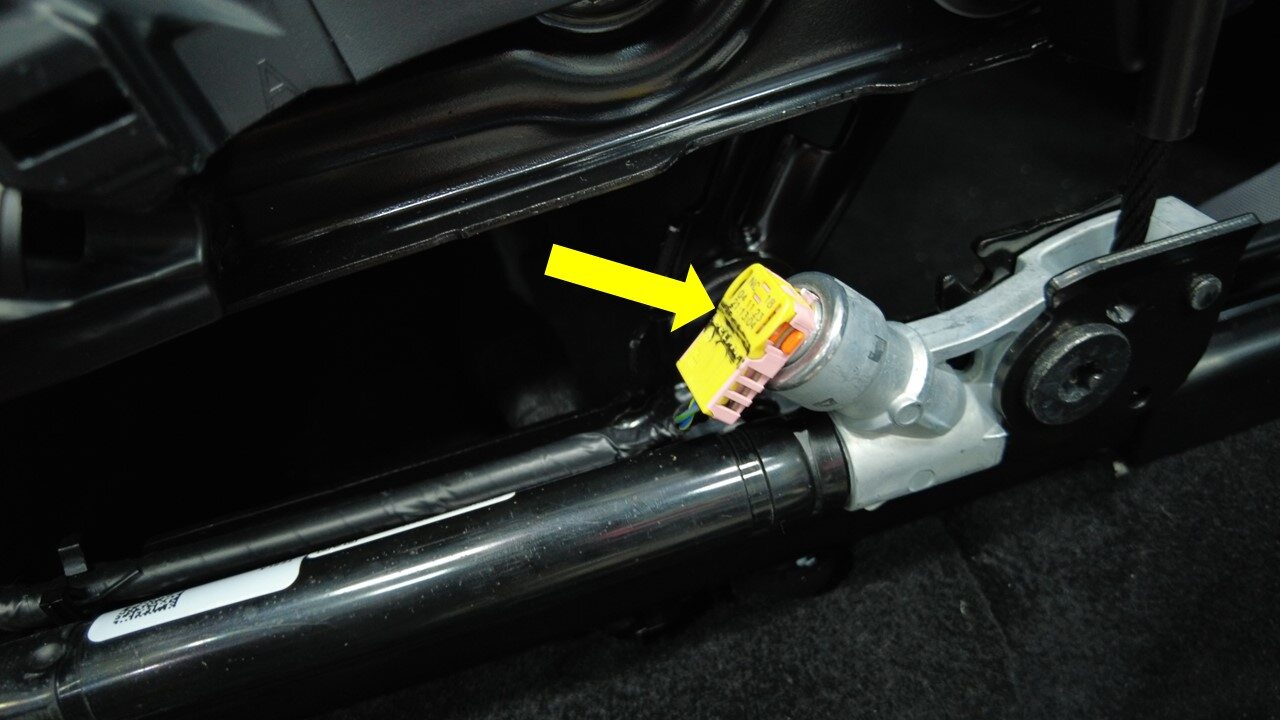

  25. Disconnect outboard air bag connector
    Informational PurposesAn informational icon, calling your attention
    Note

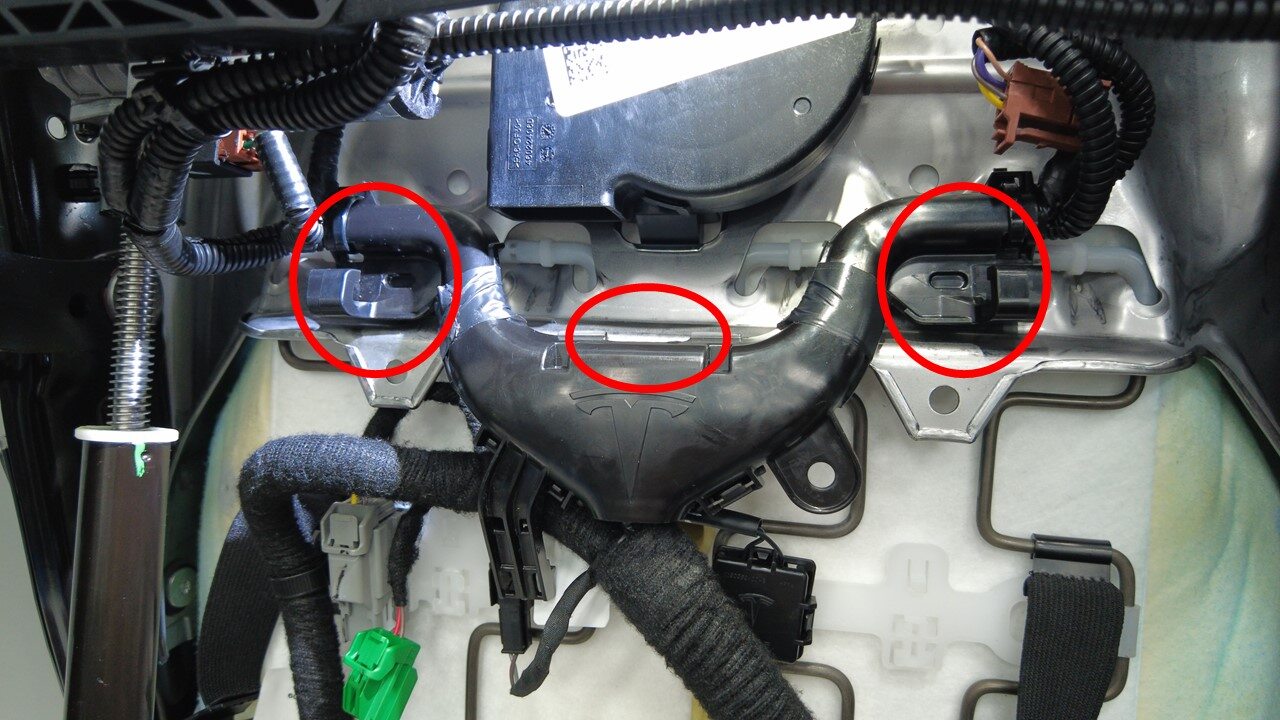

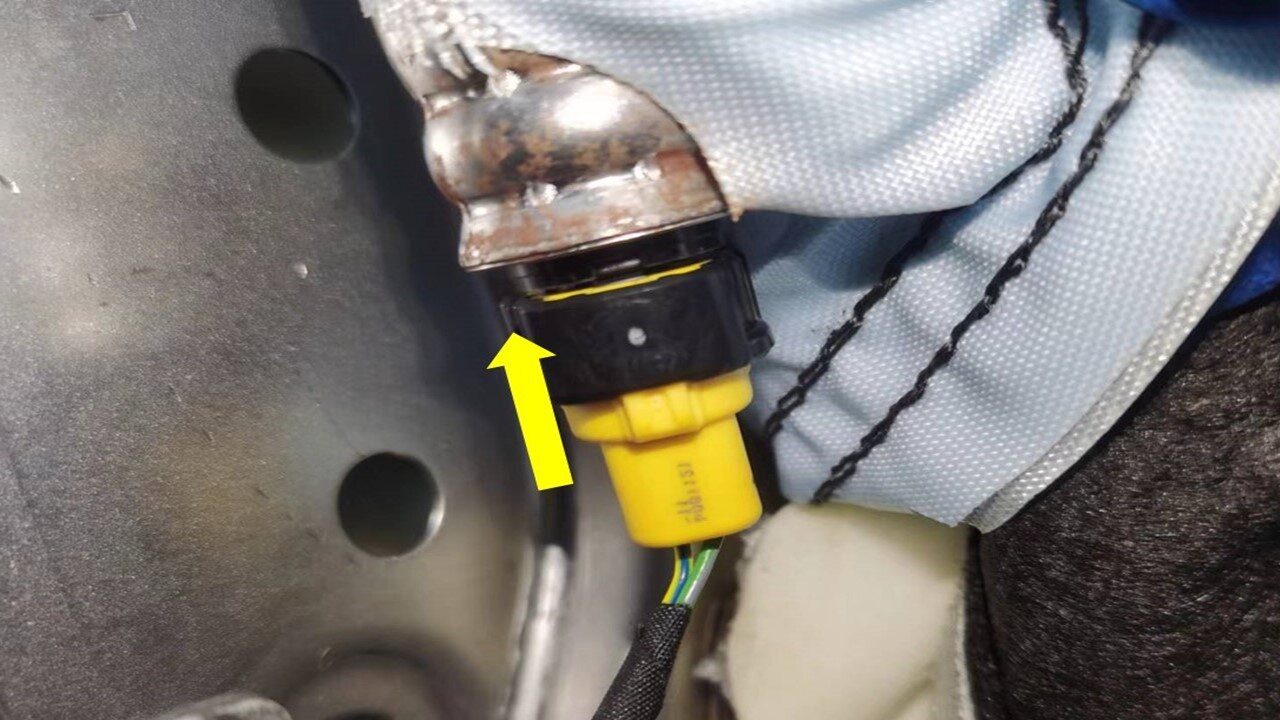

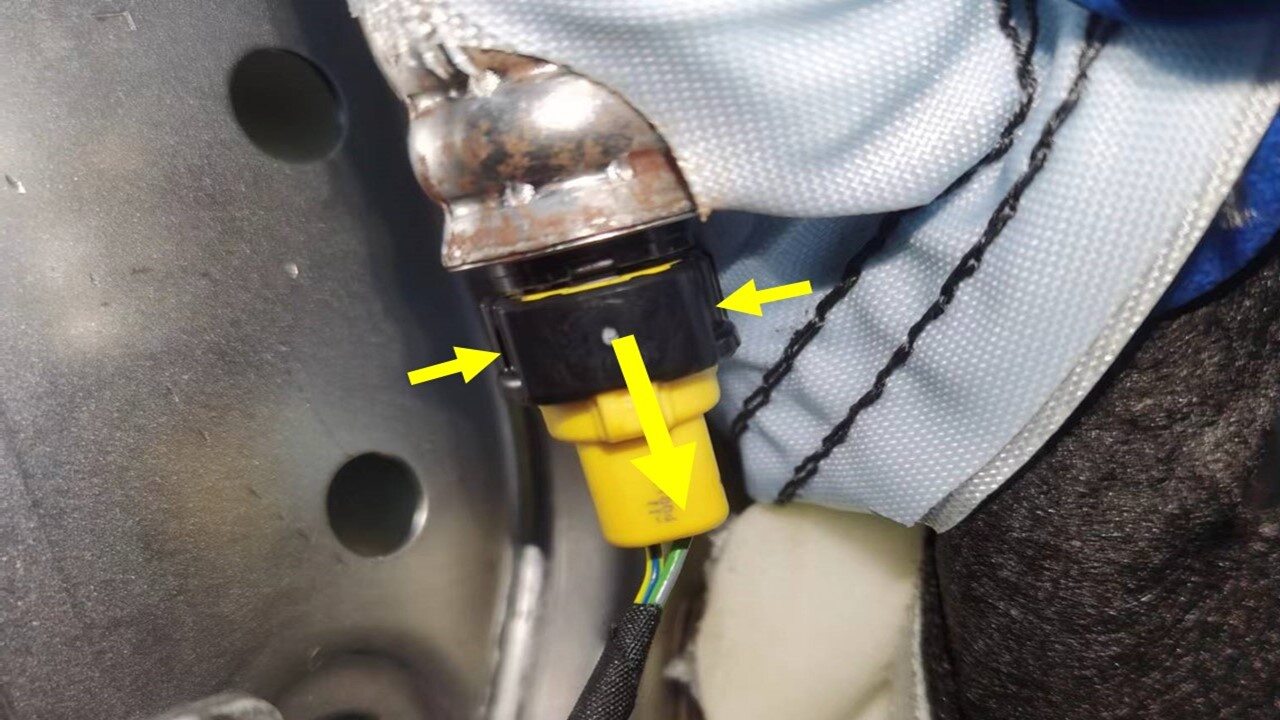

    1x connector, Press and hold the black tabs on both sides and pull down to release the connector, Vehicles may be equipped with different connectors, If square connector present pull down white tabs simultaneously to release
  26. Disconnect inboard air bag connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Press and hold the black tabs on both sides and pull down to release the connector, Vehicles may be equipped with different connectors, If square connector present pull down white tabs simultaneously to release
  27. Disconnect LH front seat back recliner motor connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  28. Disconnect LH front seat back lumbar pump connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector

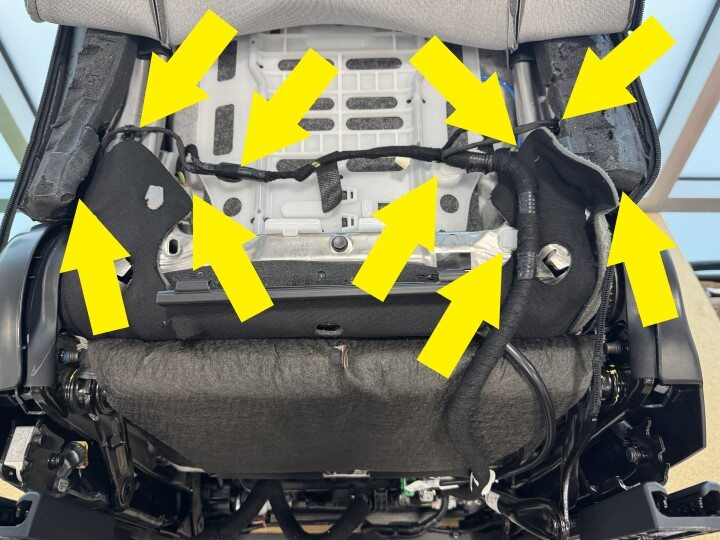

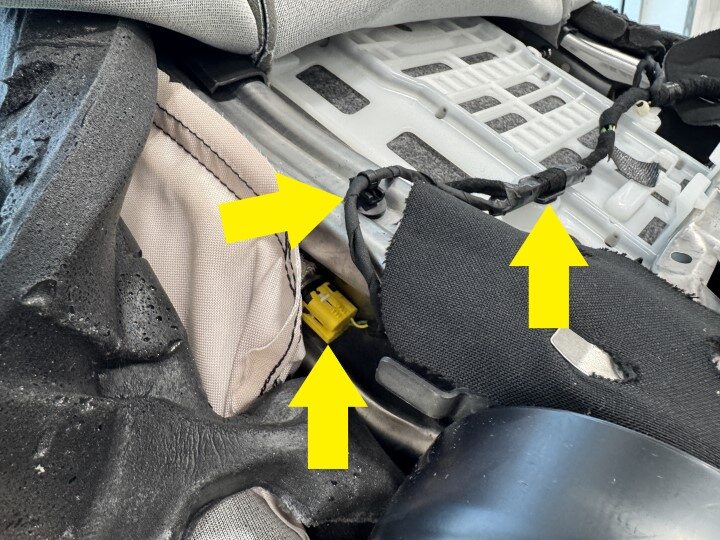

  29. Release seatback section of LH seat harness
    Informational PurposesAn informational icon, calling your attention
    Note
    5x clips
  30. Rotate seat to gain access to underside
    Informational PurposesAn informational icon, calling your attention
    Note
    Protect seat cushion from damage

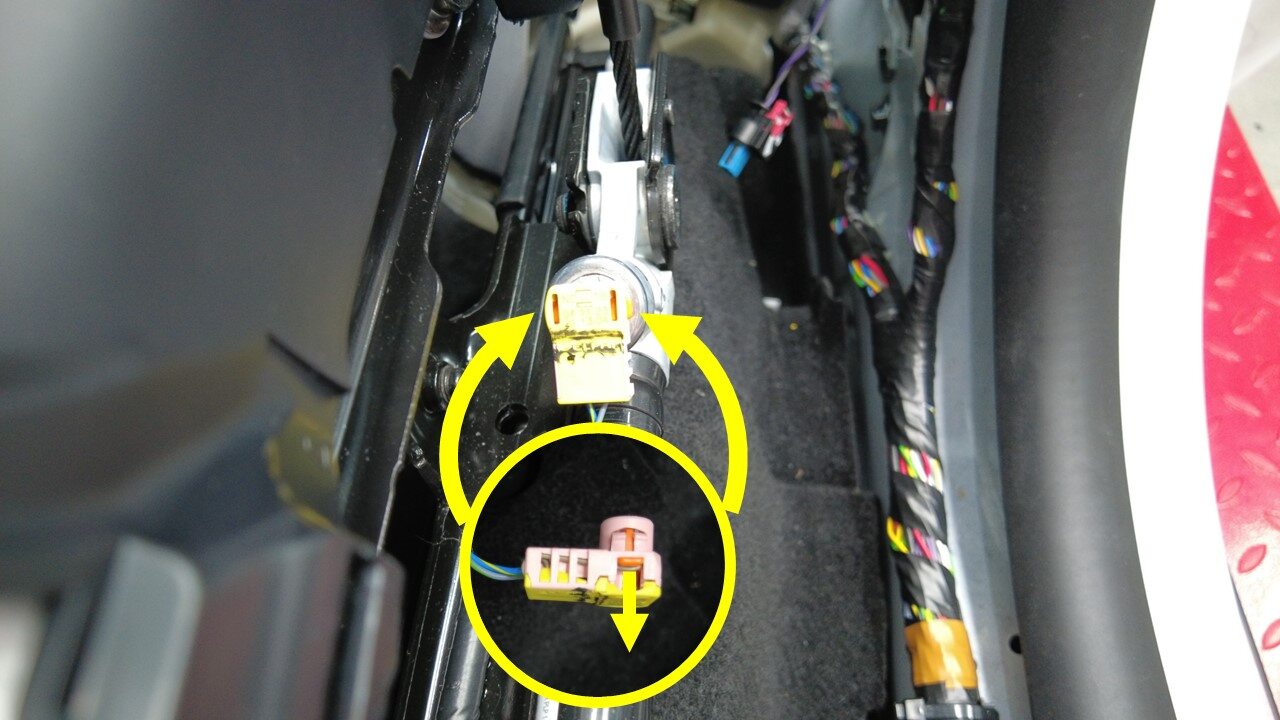

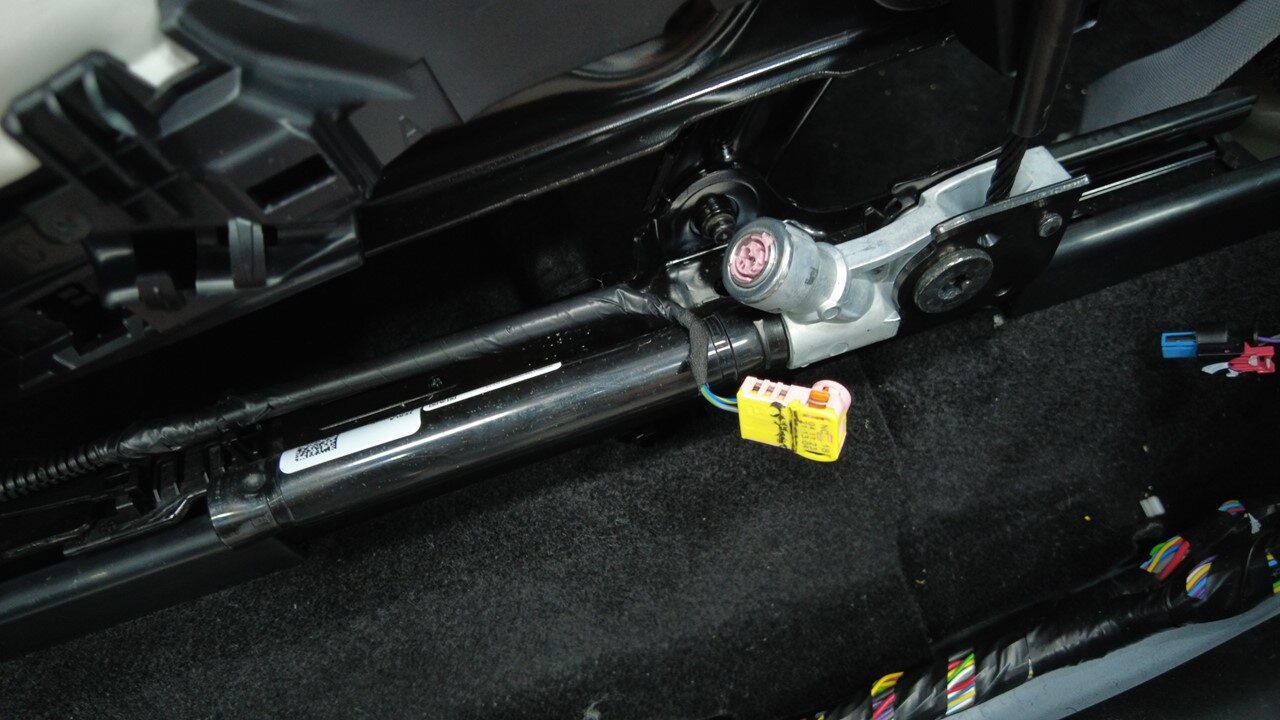

  31. Disconnect LH lap pretensioner connector
    Informational PurposesAn informational icon, calling your attention
    Note

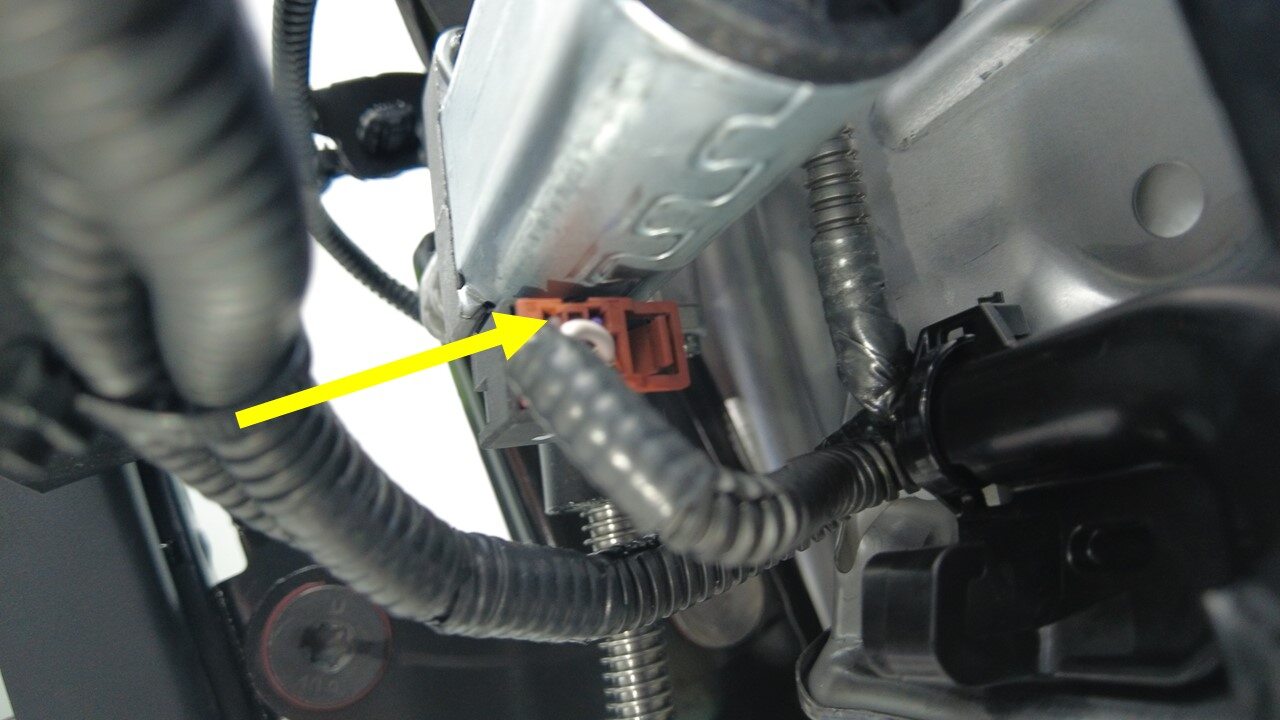

    1x connector, Release safety lock

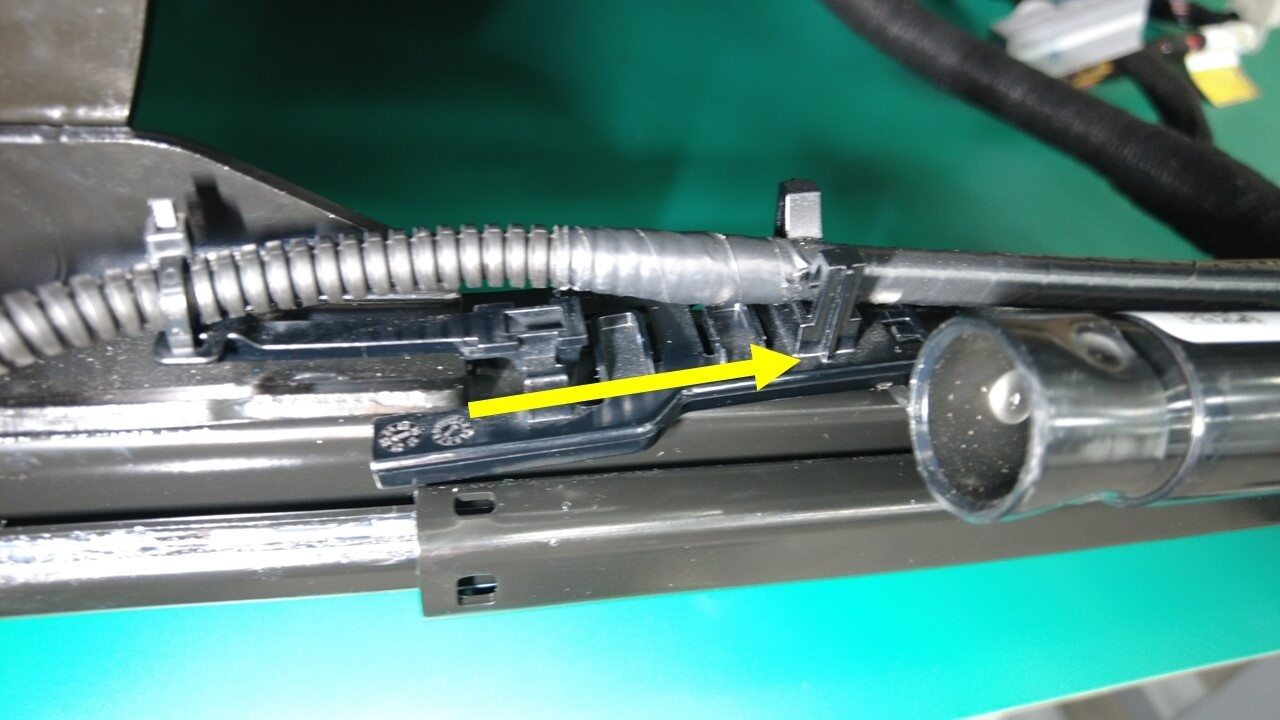

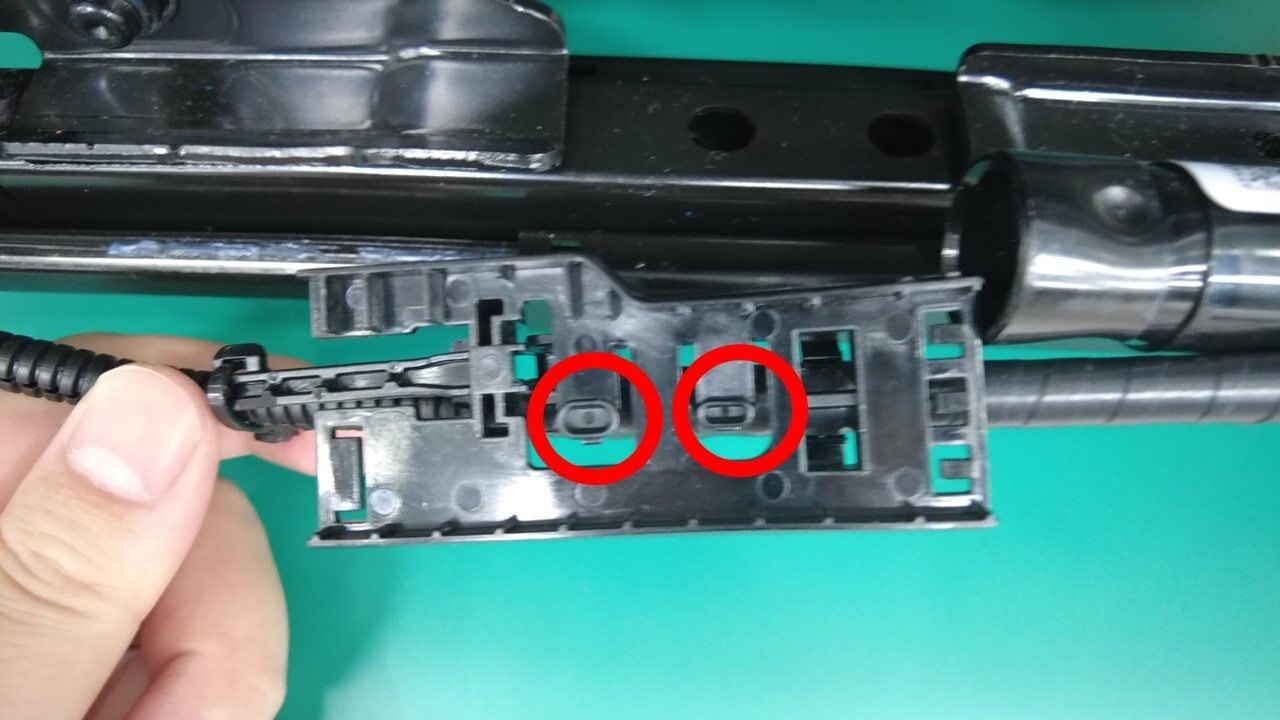

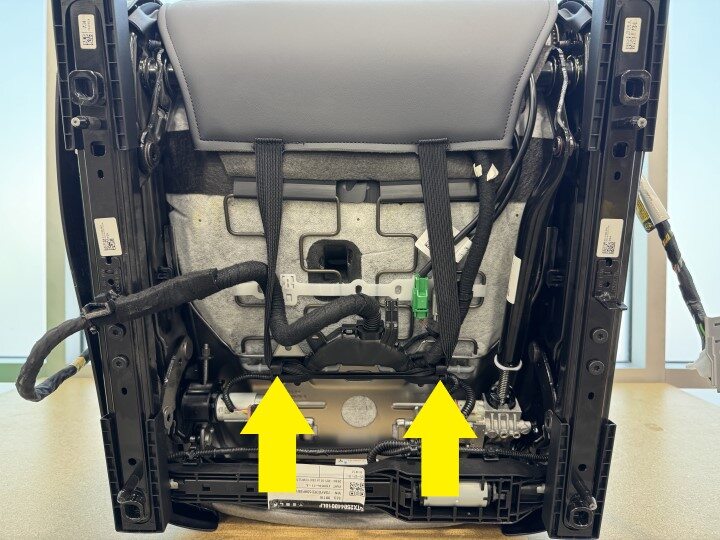

  32. Release seat belt pretensioner harness bracket
    Informational PurposesAn informational icon, calling your attention
    Note

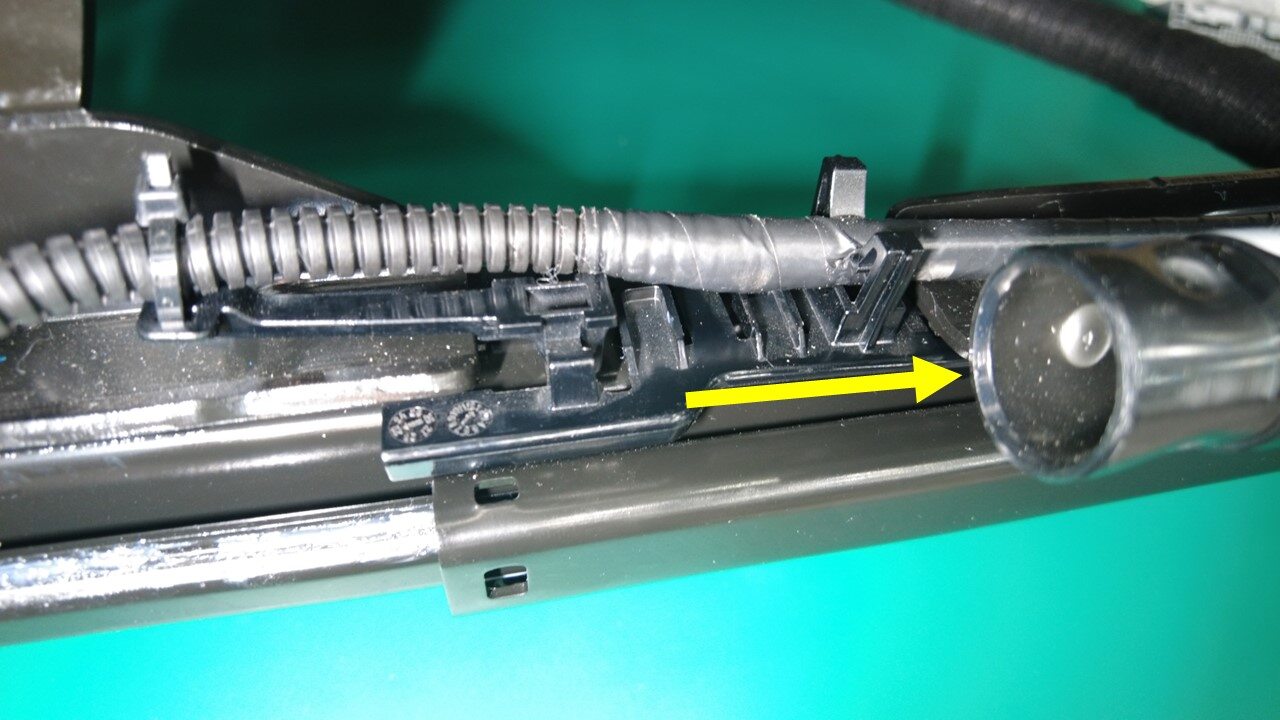

    2x clips, First move the harness bracket forwards, Then remove the harness bracket backwards
  33. Disconnect LH front seat back heater connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  34. Disconnect LH front cushion heater connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector

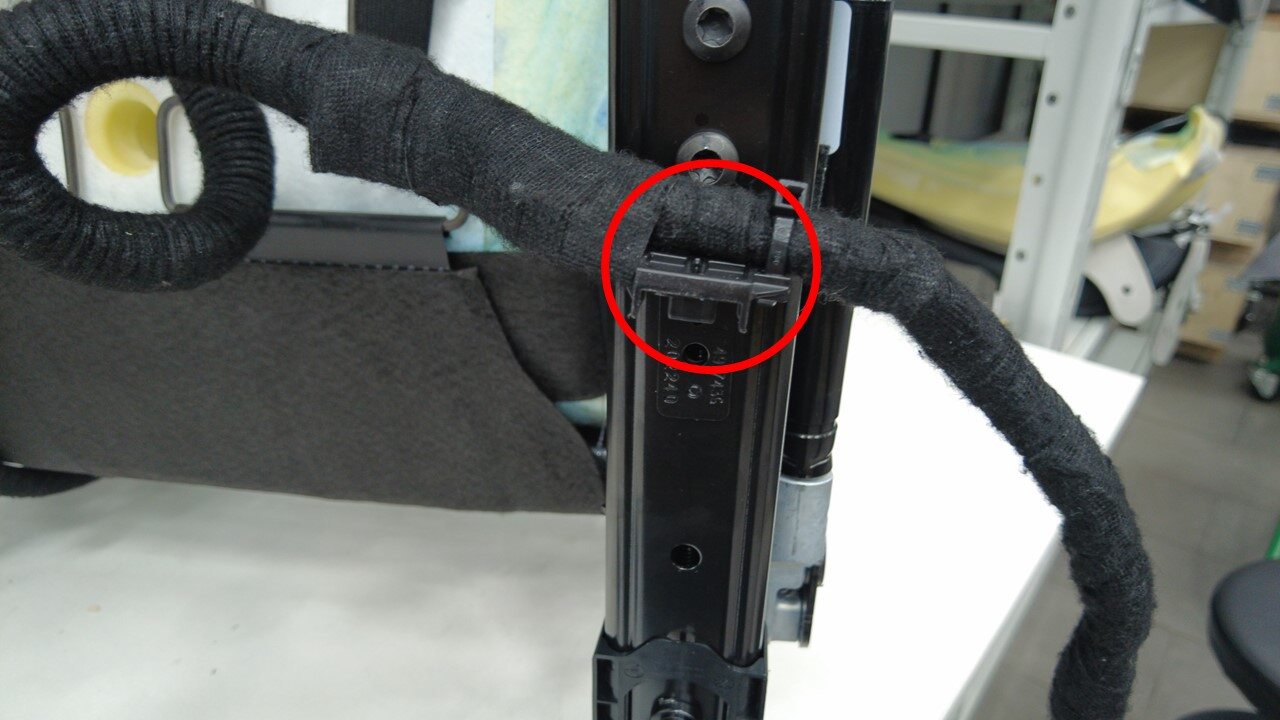

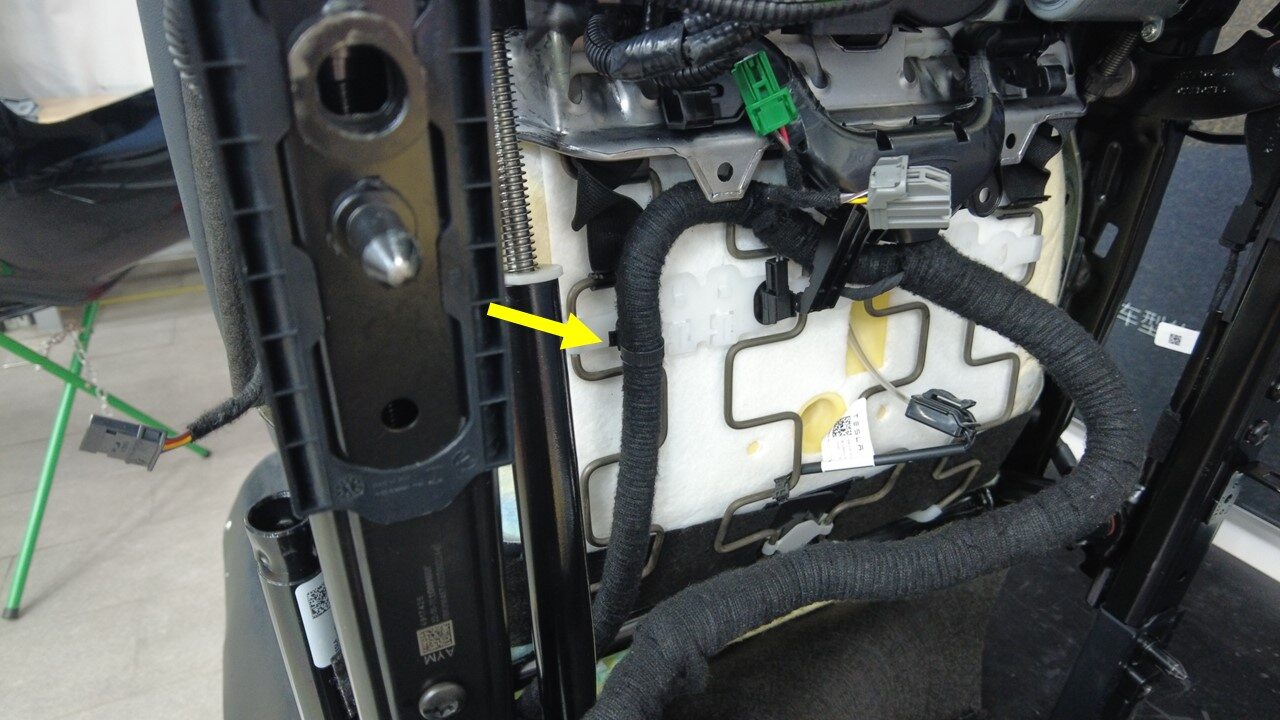

  35. Remove clip securing harness to LH front seat cushion suspension
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip

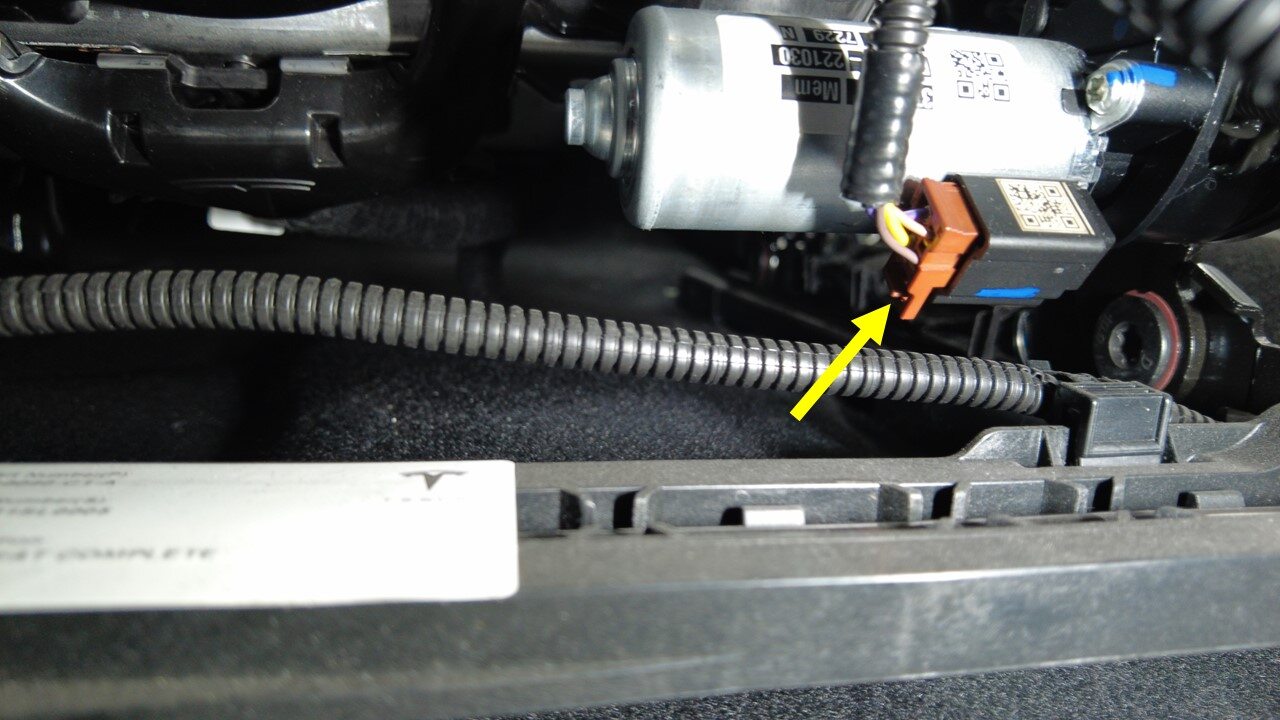

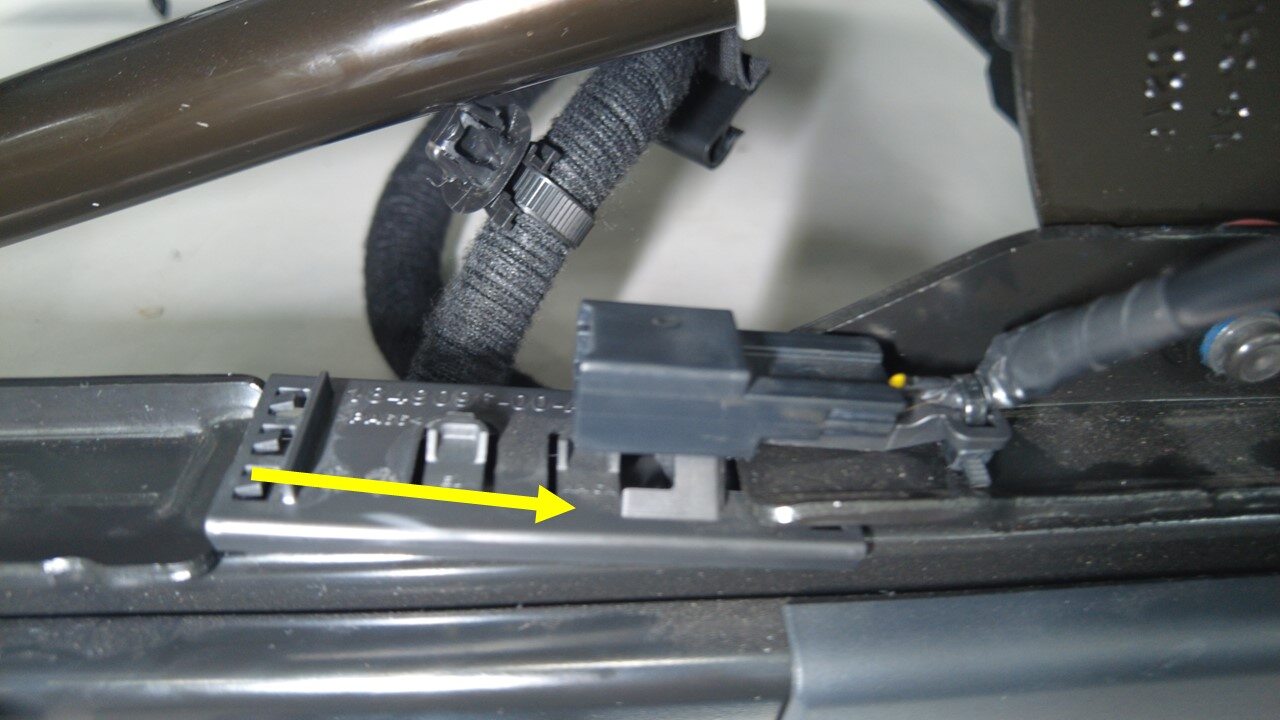

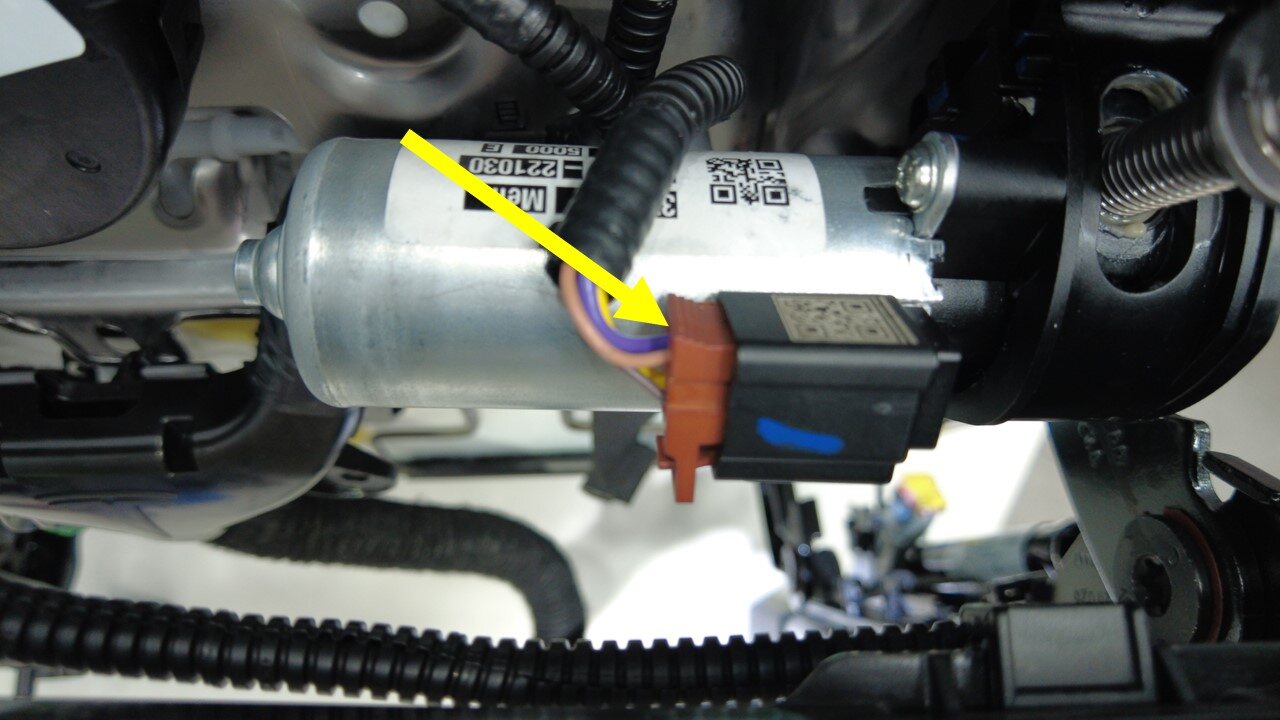

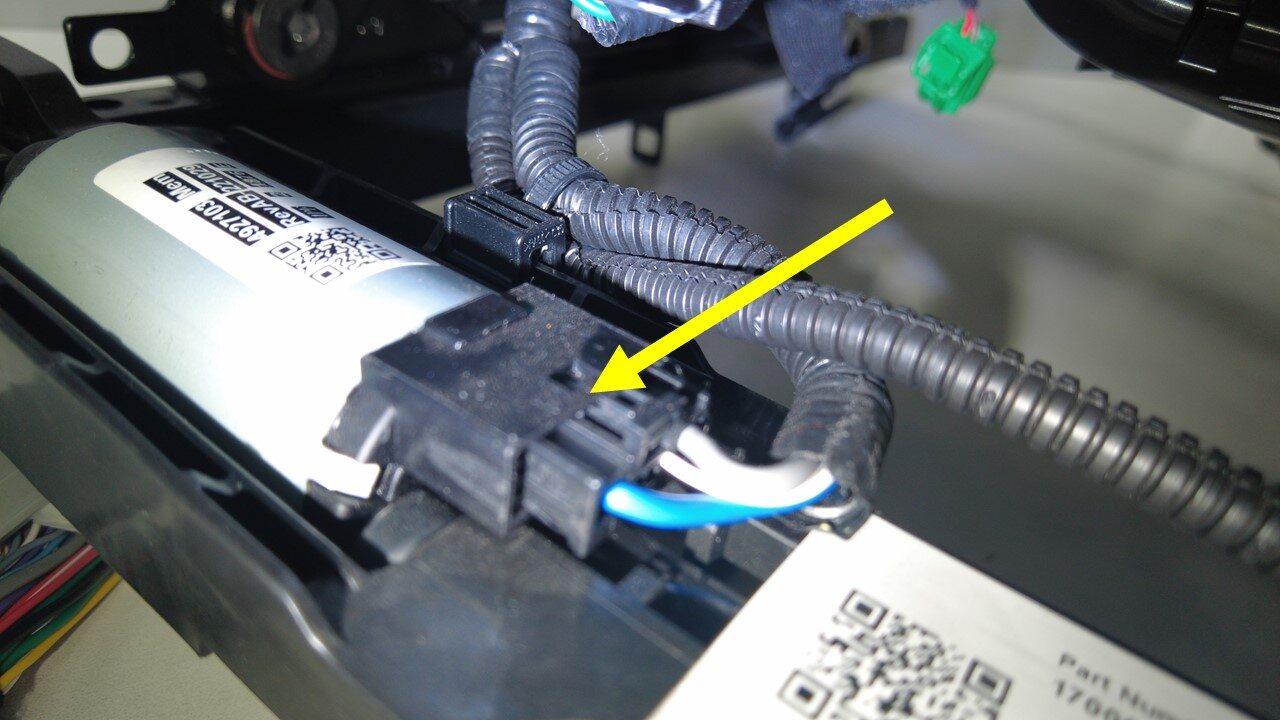

  36. Disconnect LH front seat track motor connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  37. Disconnect LH front seat tilt motor connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  38. Disconnect LH front seat height adjuster motor connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector

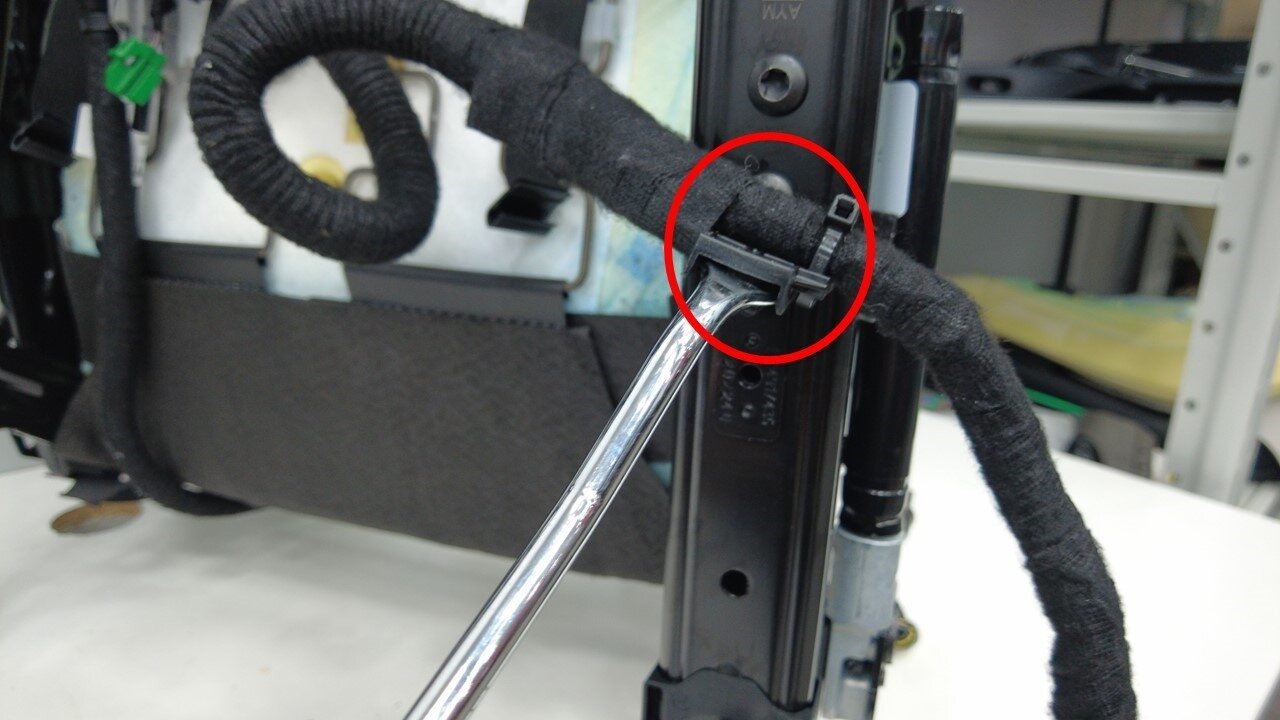

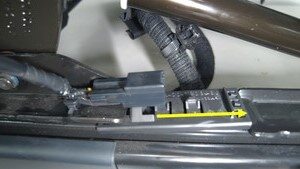

  39. Remove clip securing LH front seat harness to outboard seat track
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip

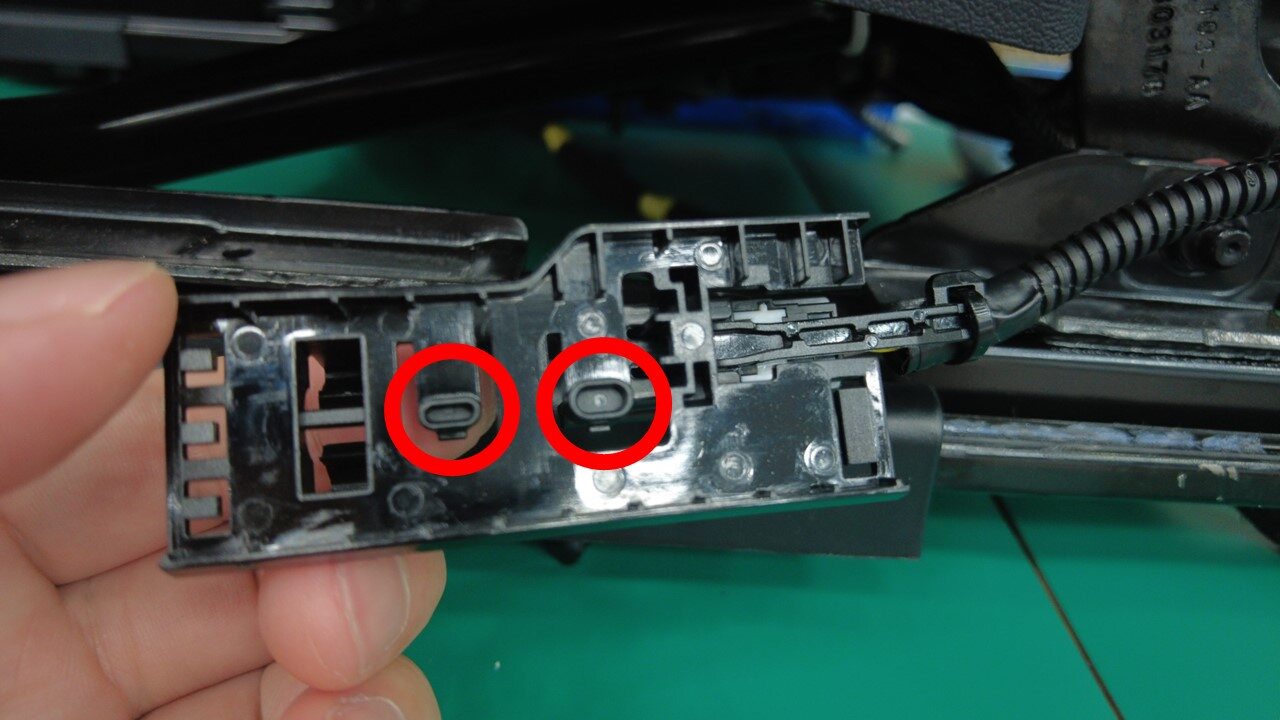

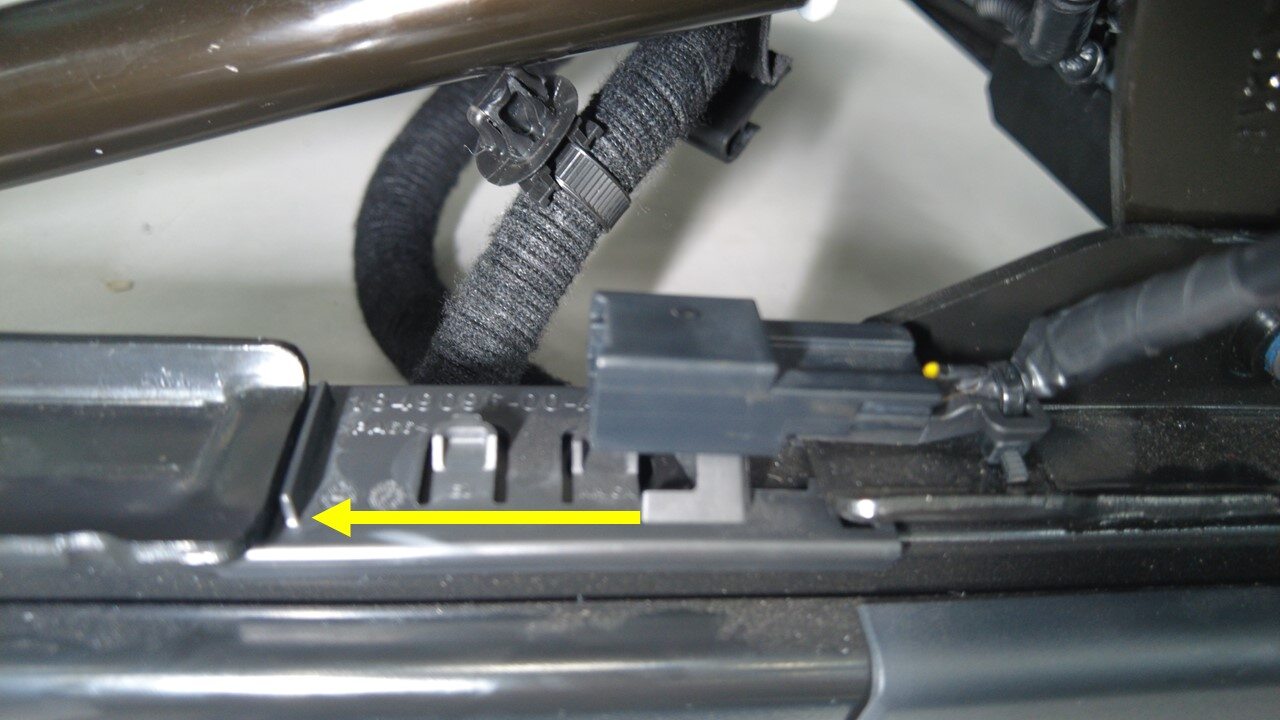

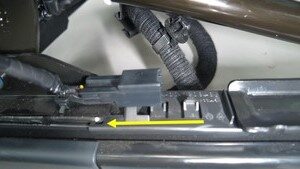

  40. Disconnect seat belt buckle connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, 2x clips, Slide bracket forwards then lift at rear to release tabs

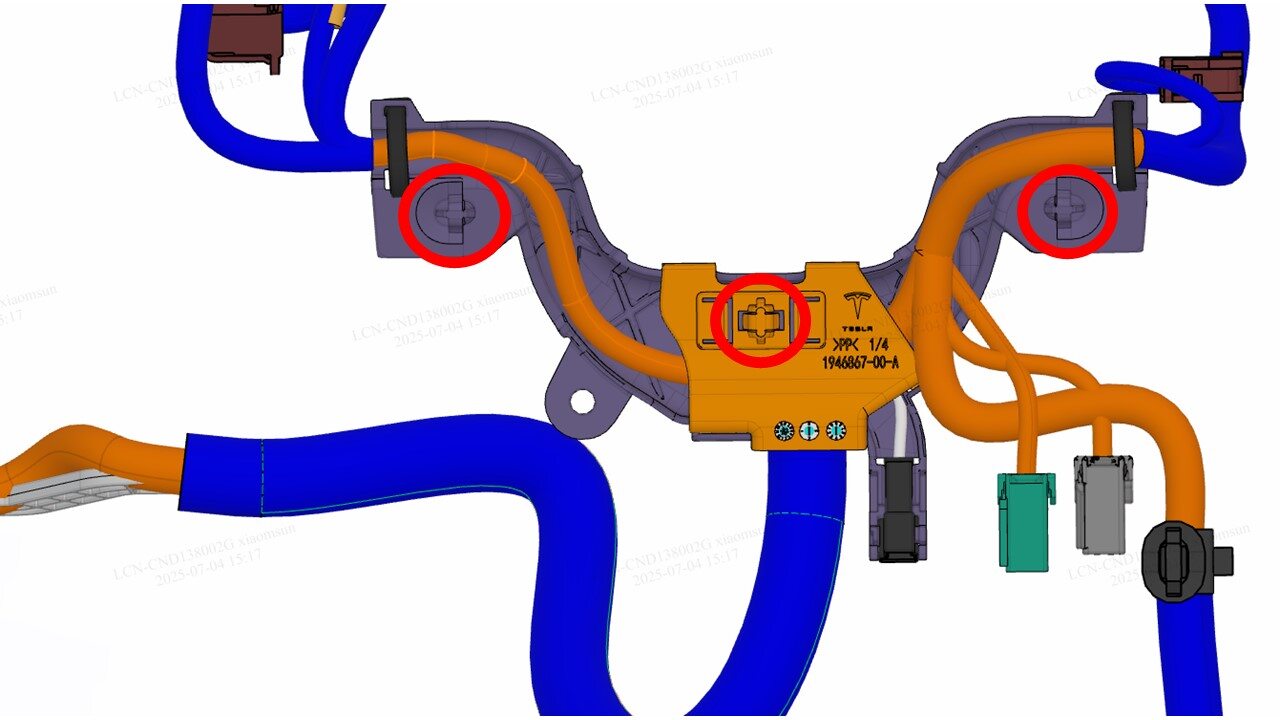

  41. Release seat harness bracket clips from LH front seat cushion frame
    Informational PurposesAn informational icon, calling your attention
    Note

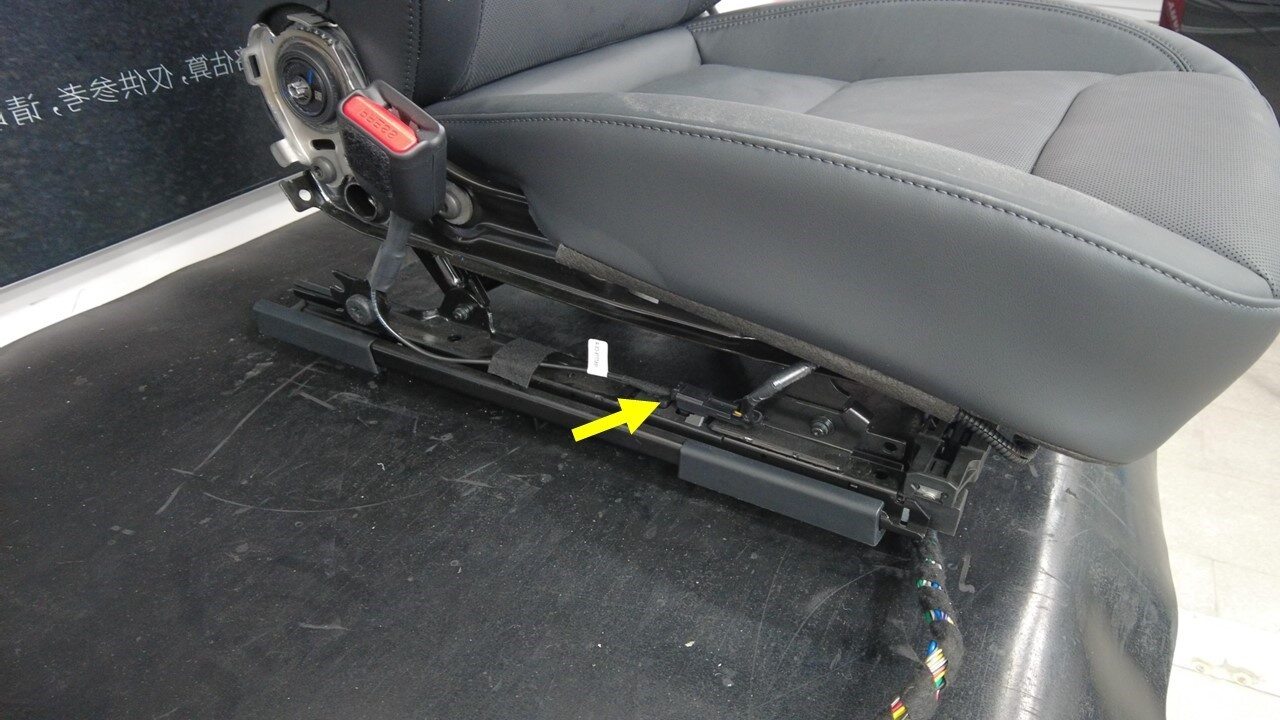

    3x clips, Use 90 degree pick to release clips from back of bracket

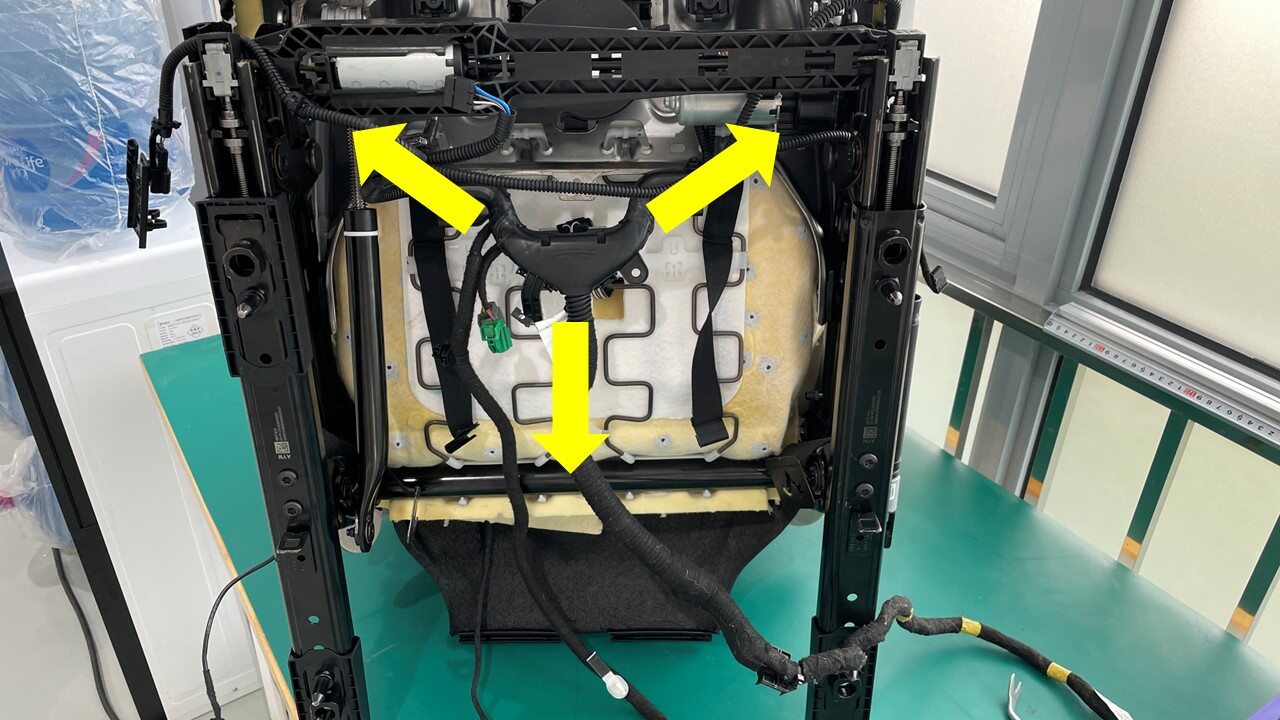

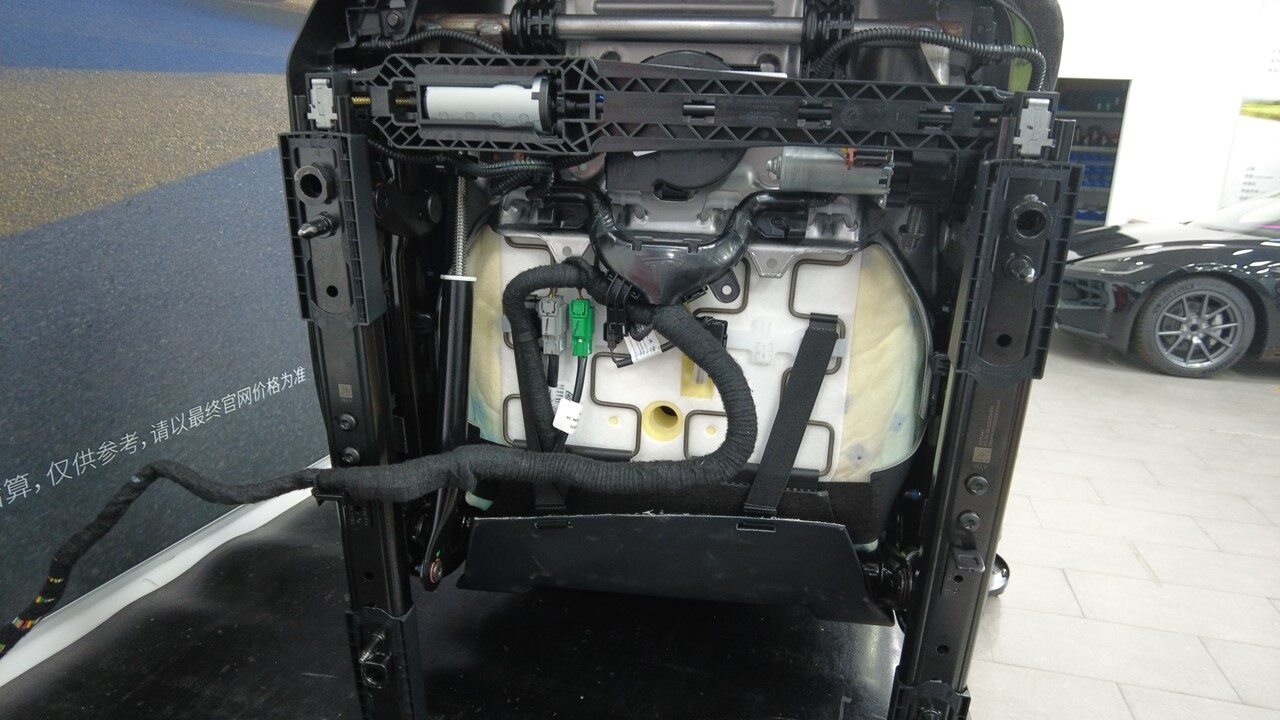

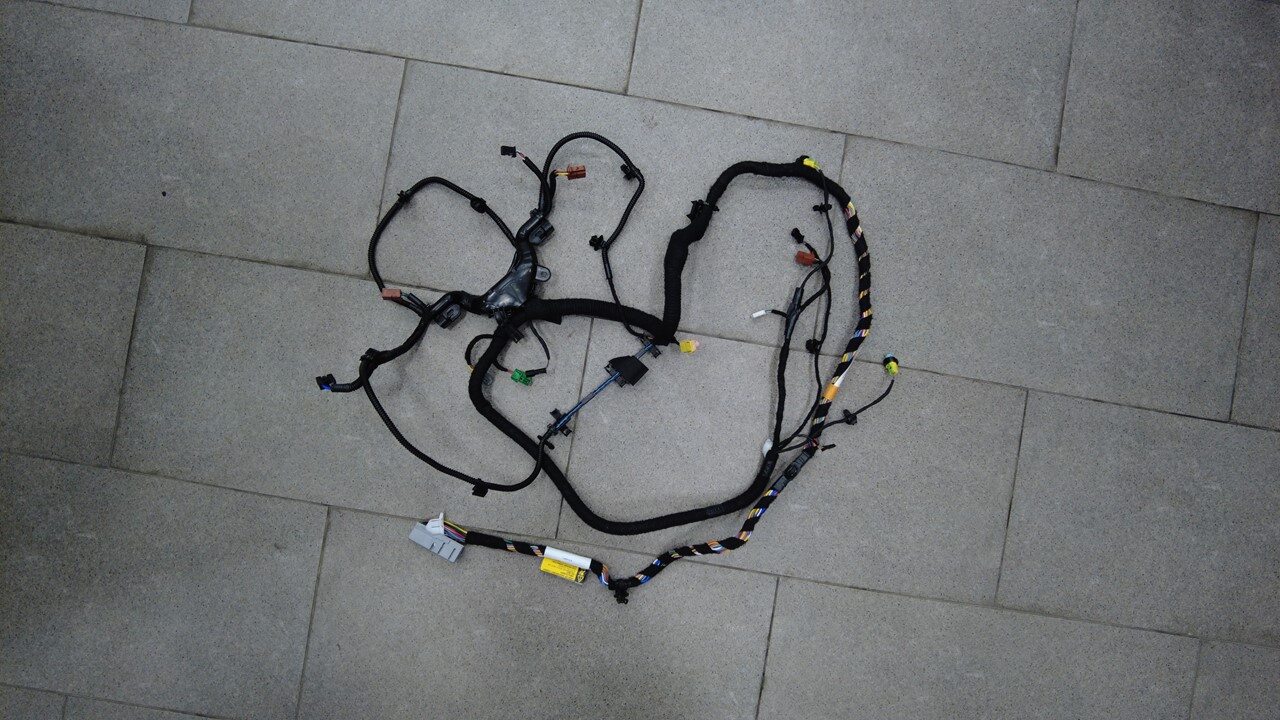

  42. Remove LH front seat harness assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    Ensure no harness branches become snagged

Install

  1. Position LH front seat harness assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    Route harness branches to components
  2. Secure seat harness bracket to LH front seat cushion frame
    Informational PurposesAn informational icon, calling your attention
    Note
    3x clips
  3. Connect seat belt buckle
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Slide front of bracket under frame then pull rearwards to secure tabs
  4. Secure LH front seat harness to outboard seat track
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip
  5. Connect LH front seat track motor connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  6. Connect LH front seat height adjuster motor connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  7. Connect LH front seat tilt motor connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  8. Secure seat harness clip to LH front seat cushion suspension
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip
  9. Connect LH front seat cushion heater connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  10. Connect LH front seat back heater connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  11. Install seat belt pretensioner harness bracket
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, Slide front of bracket under frame then pull rearwards to secure tabs
  12. Connect LH lap pretensioner connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Ensure locking tabs are fully engaged
  13. Rotate seat to upright position
  14. Secure seat back section of LH seat harness
    Informational PurposesAn informational icon, calling your attention
    Note
    5x clips
  15. Connect LH front seat back lumbar pump connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  16. Connect LH front seat back recliner motor connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector
  17. Connect outboard air bag connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Ensure locking tabs are fully engaged
  18. Connect inboard air bag connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Ensure locking tabs are fully engaged
  19. Rotate seat to gain access to underside of seat
    Informational PurposesAn informational icon, calling your attention
    Note
    Protect seat cushion from damage
  20. Secure rear section of seat back trim
    Informational PurposesAn informational icon, calling your attention
    Note
    2x zippers, 2x tabs, 1x hook, Use pick tool to move zipper, Move flap section into position then secure elastic strap to hooks, Ensure zipper tails are tucked inside seat trim
  21. Install LH front seat into vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    Recommend assistance, Install seat from front LH door opening, Assistant should be ready to support seat back once it is in the vehicle, Caution not to damage any trim
  22. Secure LH front seat harness under LH front cabin carpet
  23. Install clips securing LH seat harness to sill trim
    Informational PurposesAn informational icon, calling your attention
    Note
    4x clips, Tuck excess harness between harness bracket and body
  24. Connect LH front seat harness connector to LH controller
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, Engage locking tab
  25. Install LH lower A pillar trim
    Informational PurposesAn informational icon, calling your attention
    Note
    7x clips, 4x guide tabs, 1x push clip, Align guide tabs with body and harness bracket then push downwards to secure
  26. Install LH IP end cap
    Informational PurposesAn informational icon, calling your attention
    Note
    5x clips, 2x guide tabs
  27. Partially install LH front primary door seal
    Informational PurposesAn informational icon, calling your attention
    Note
    Verify seal is seated properly on all trim panels
  28. Connect first responder loop and LV battery
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage green locking tab when fully seated
  29. Install HEPA filter or big basin
    Informational PurposesAn informational icon, calling your attention
    Note
    Vehicle configuration may vary, W/ HEPA: 2x bolts, 10mm, 10 Nm, Pivot forward edge down past frunk assembly, Then carefully move rear edge past brake reservoir and into position, Gently press on RH side of filter to seat seal onto duct, W/O HEPA: 2x bolts, 10mm, 10 Nm, 14x clips, Secure basin fasteners then install basin cowl, Fold rear flap of base frunk back to access front row of clips to cowl, Replace any missing or damaged clips, Do not pinch washer line in between big basin and body
  30. Close hood
  31. Move LH front seat forward
    Informational PurposesAn informational icon, calling your attention
    Note
    Via UI > Seat Controls, Use steering wheel scroll wheel as needed
  32. Install LH front seat rear bolts
    Informational PurposesAn informational icon, calling your attention
    Note
    2x patch bolts, TP45, 33.5 Nm, Install new patch bolts
  33. Move LH front seat backward
    Informational PurposesAn informational icon, calling your attention
    Note
    Via UI > Seat Controls, Use steering wheel scroll wheel as needed
  34. Install LH front seat front bolts
    Informational PurposesAn informational icon, calling your attention
    Note
    2x patch bolts, TP45, 33.5 Nm, Install new patch bolts
  35. Install seat belt retractor to LH front seat pre tensioner
    Informational PurposesAn informational icon, calling your attention
    Note
    Insert retractor into seat pre tensioner, Make sure it locks into position with push-pull-push test
  36. Move LH front seat to original position
    Informational PurposesAn informational icon, calling your attention
    Note
    Via UI > Seat Controls, Use steering wheel scroll wheel as needed
  37. Raise LH rear window
  38. Close LH rear door
  39. Raise LH front window
  40. Close LH front door
