Cup Holder - Center Console (Model Y Standard) (Remove and Replace)

Correction code TBD FRT 0.42 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.

Remove

  1. Remove the center console rear end panel. See Rear End Panel - Center Console (Model Y Standard) (Remove and Replace).
  2. Remove the center console middle panel. See Middle Panel - Center Console (Model Y Standard) (Remove and Replace).
  3. Open the armrest.

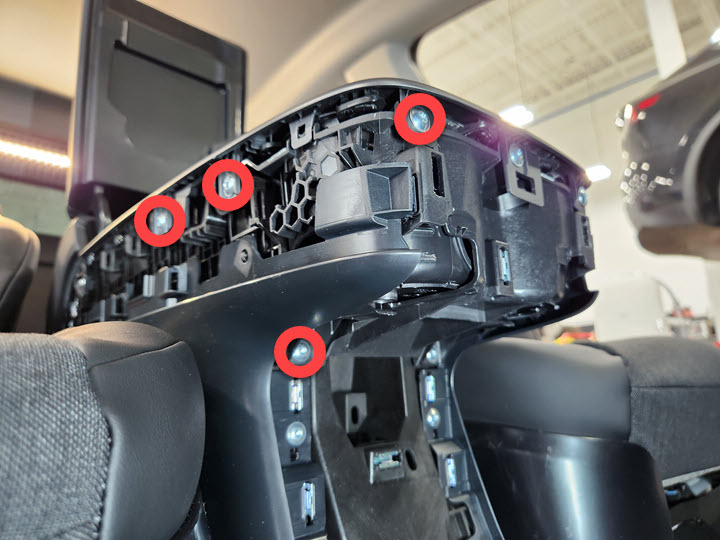

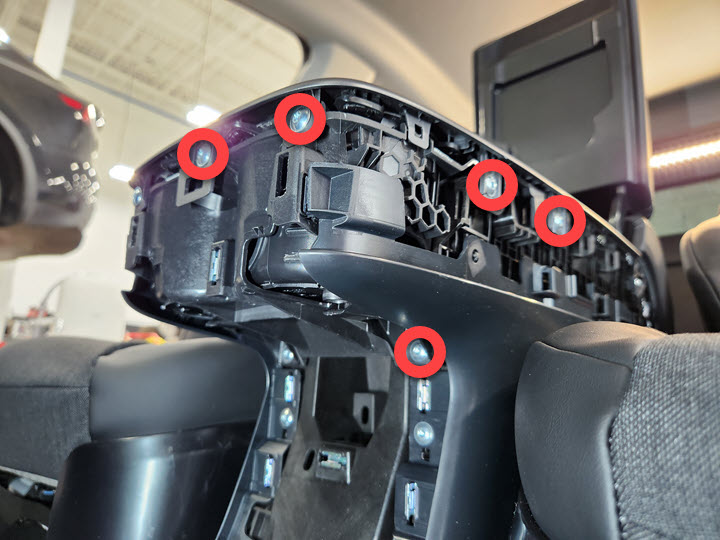

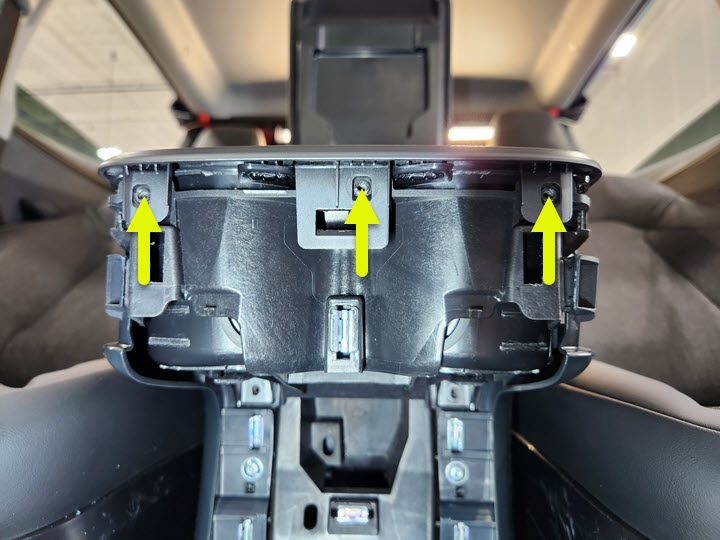

  4. Remove the screws (x9) that secure the cup holder assembly.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm

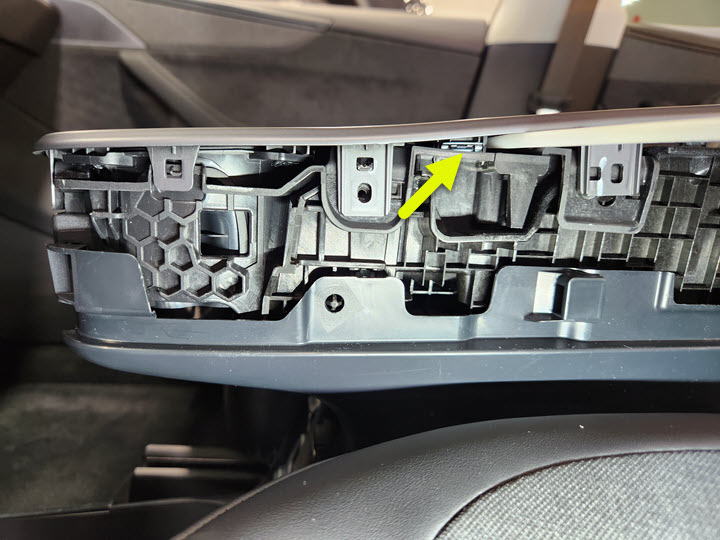

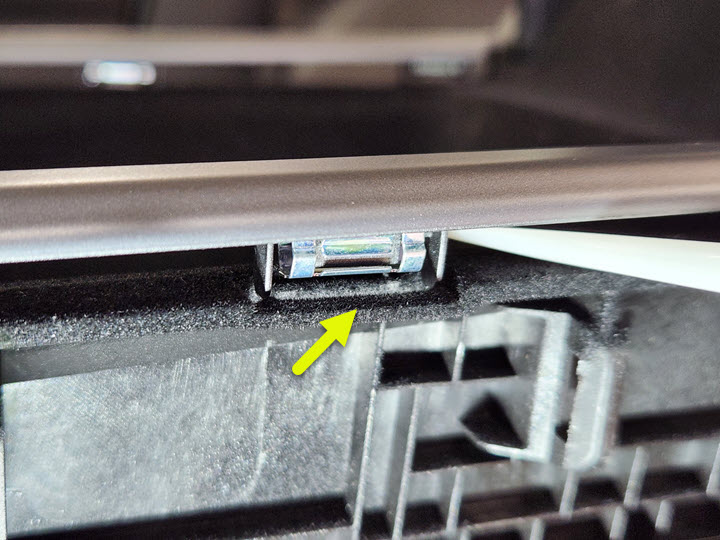

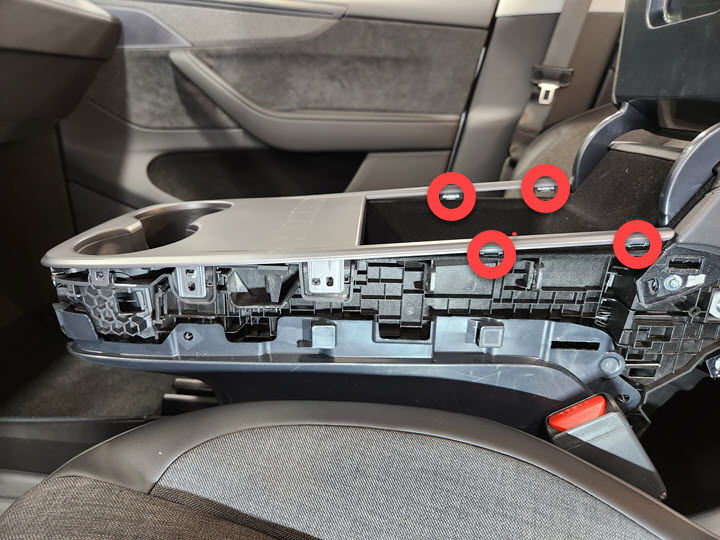

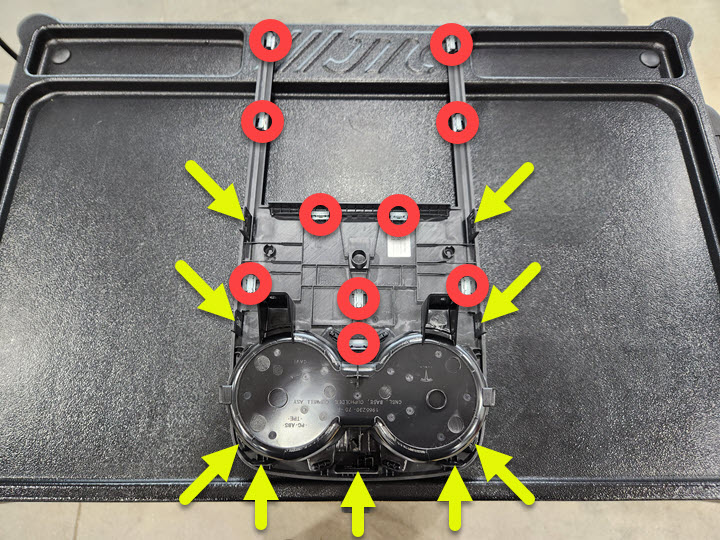

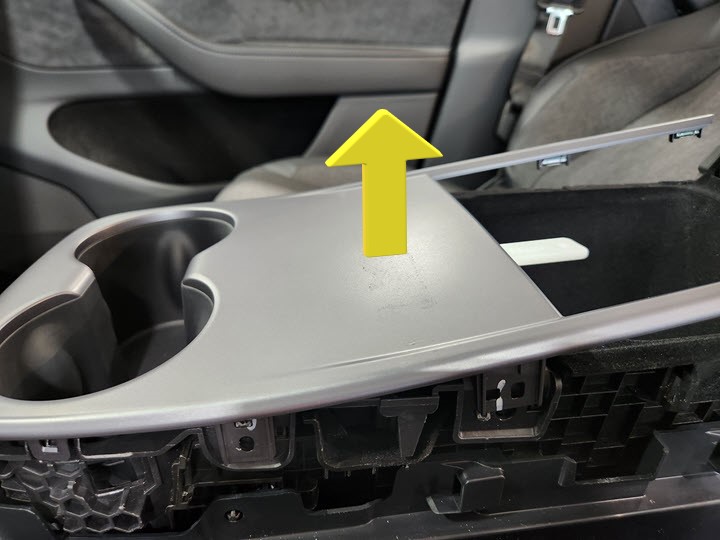

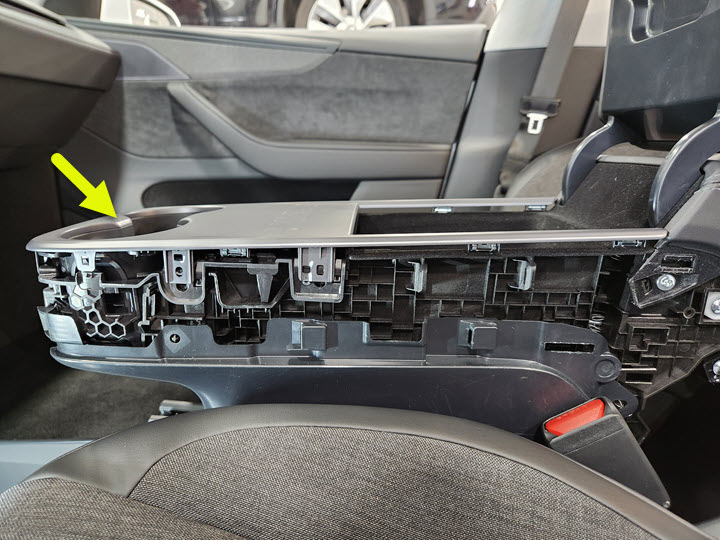

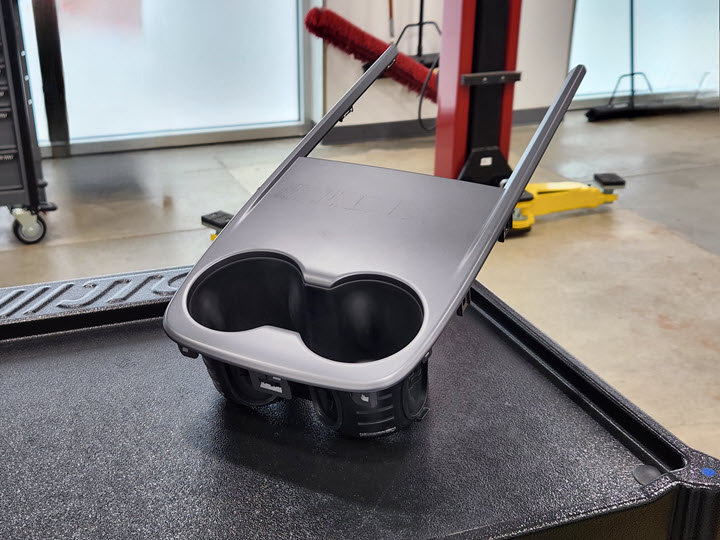

  5. Release the clips to remove the cup holder assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Release the rear clips first, then middle clips, and then front clips. The LH and RH sides must be released simultaneously.

Install

  1. Release the clips to remove the cup holder assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Release the rear clips first, then middle clips, and then front clips. The LH and RH sides must be released simultaneously.
  2. Install the screws (x9) that secure the cup holder assembly.
    1.2 Nm (.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm
  3. Close the armrest.
  4. Install the center console middle panel. See Middle Panel - Center Console (Model Y Standard) (Remove and Replace).
  5. Install the center console rear end panel. See Rear End Panel - Center Console (Model Y Standard) (Remove and Replace).
