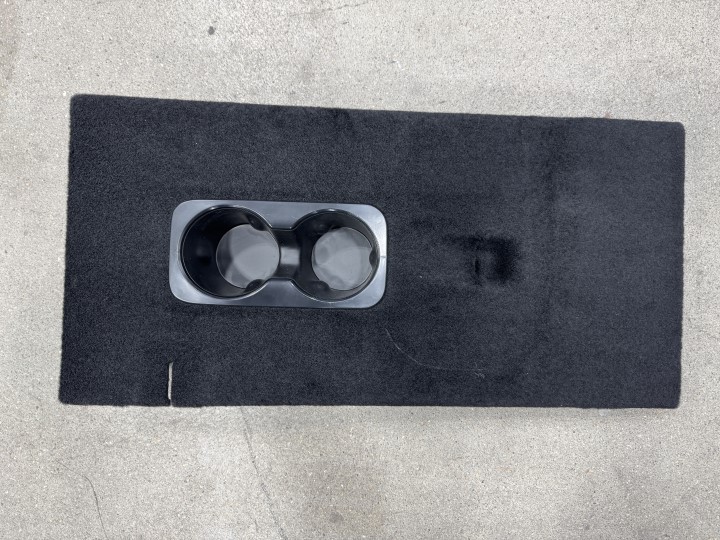

Backpanel - Center - 2nd Row (Model Y Standard) (Remove and Install)

Correction code 13080203201 13080203202 FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Open the LH front door and lower the LH front window.

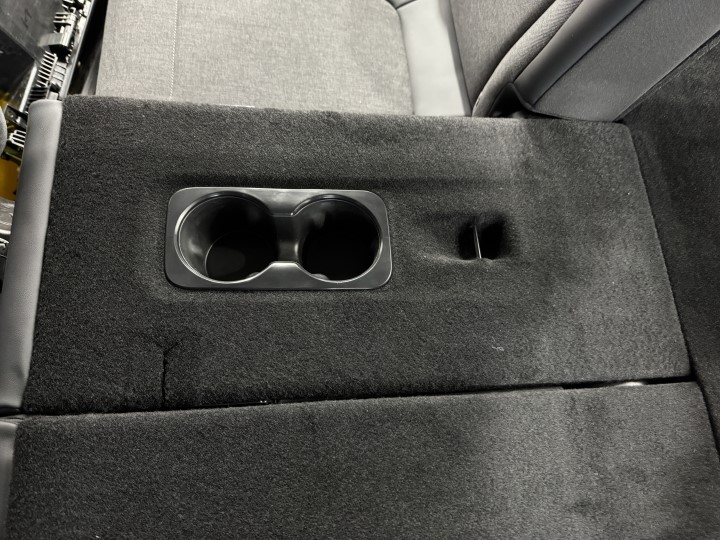

  2. Fold down the 2nd row armrest.

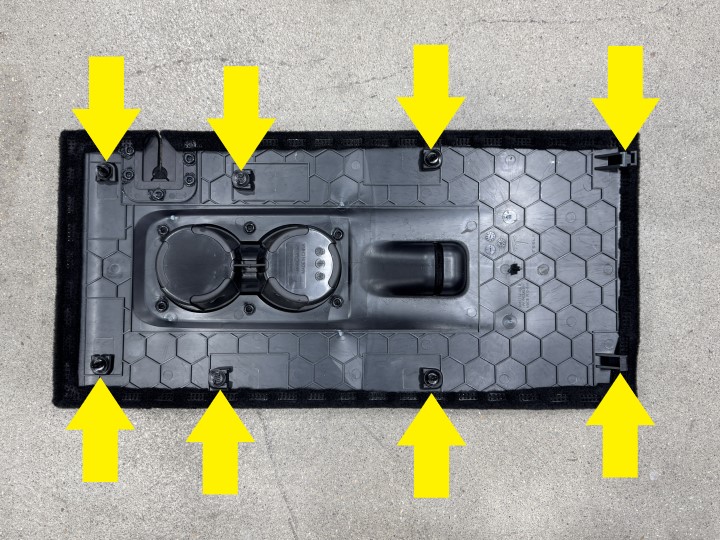

  3. Release the clips (x6) and hooks (x2) to remove the 2nd row center backpanel.
    Note
    Rotate rearwards then pull upwards to release the hooks.

Install

  1. Secure the clips (x6) and hooks (x2) to install the 2nd row center backpanel.
    Note
    Engage the hooks then rotate the panel into position. Replace any missing or damaged clips.
  2. Return the 2nd row armrest to vertical position.
  3. Raise the LH front window and close the LH front door.
