Trim - C-Pillar - Upper - LH (Model Y Standard) (Remove and Replace)

Correction code TBD FRT 0.24 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.

Remove

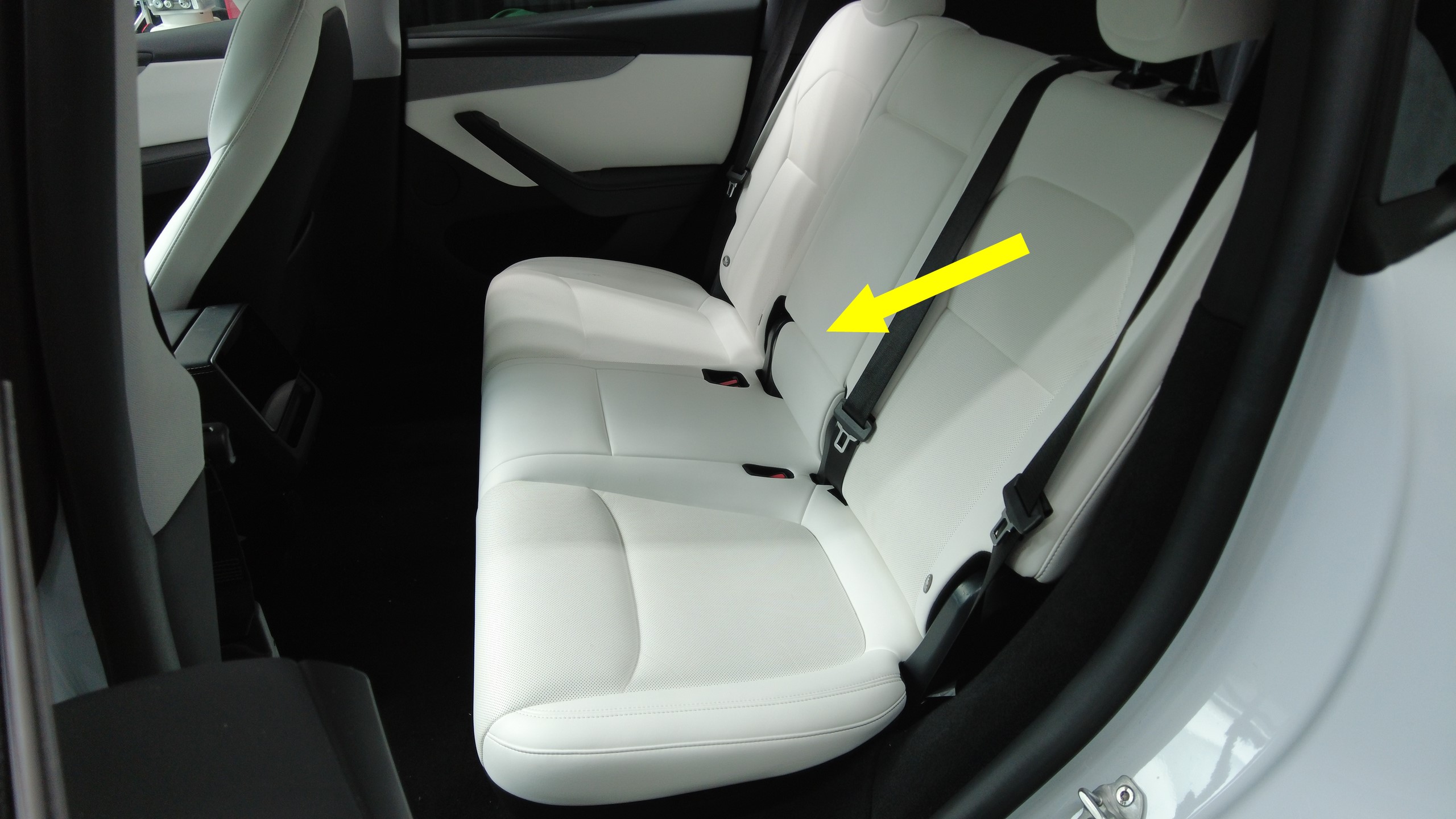

  1. Remove the 2nd row lower seat cushion. See Seat Cushion - 2nd Row (Remove and Replace).
  2. Remove the LH lower C-pillar trim. See Trim - C-Pillar - Lower - LH (5-Seat) (Remove and Replace).

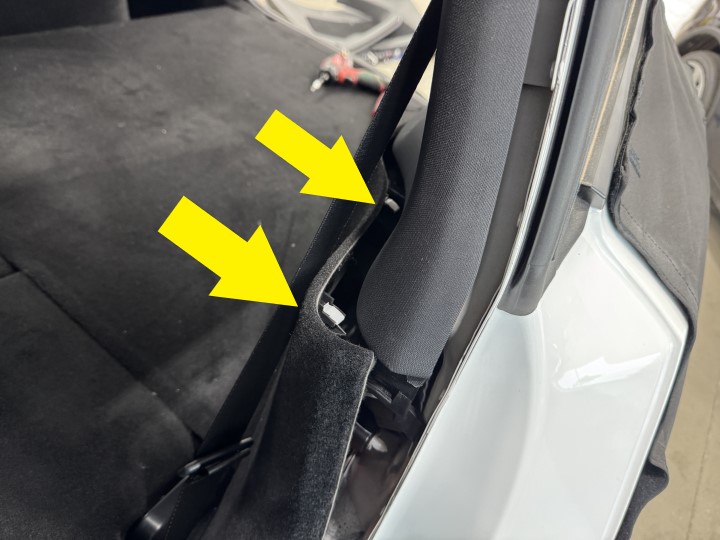

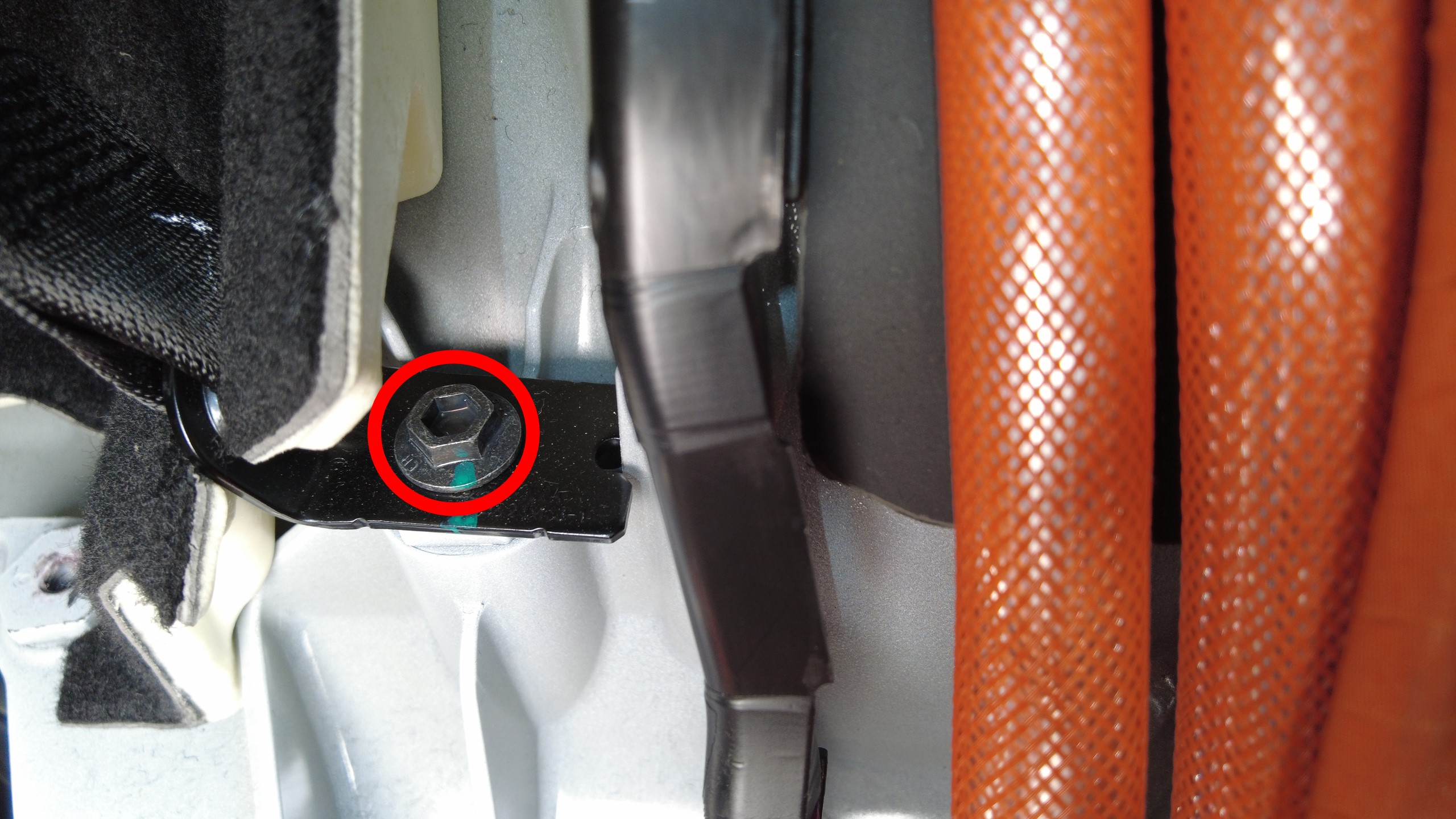

  3. Remove and discard the bolt that attaches the lower 2nd row retractor anchor to the body.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Socket 3/8in Dr. 6pt. Std. x 13mm
  4. Open the liftgate.

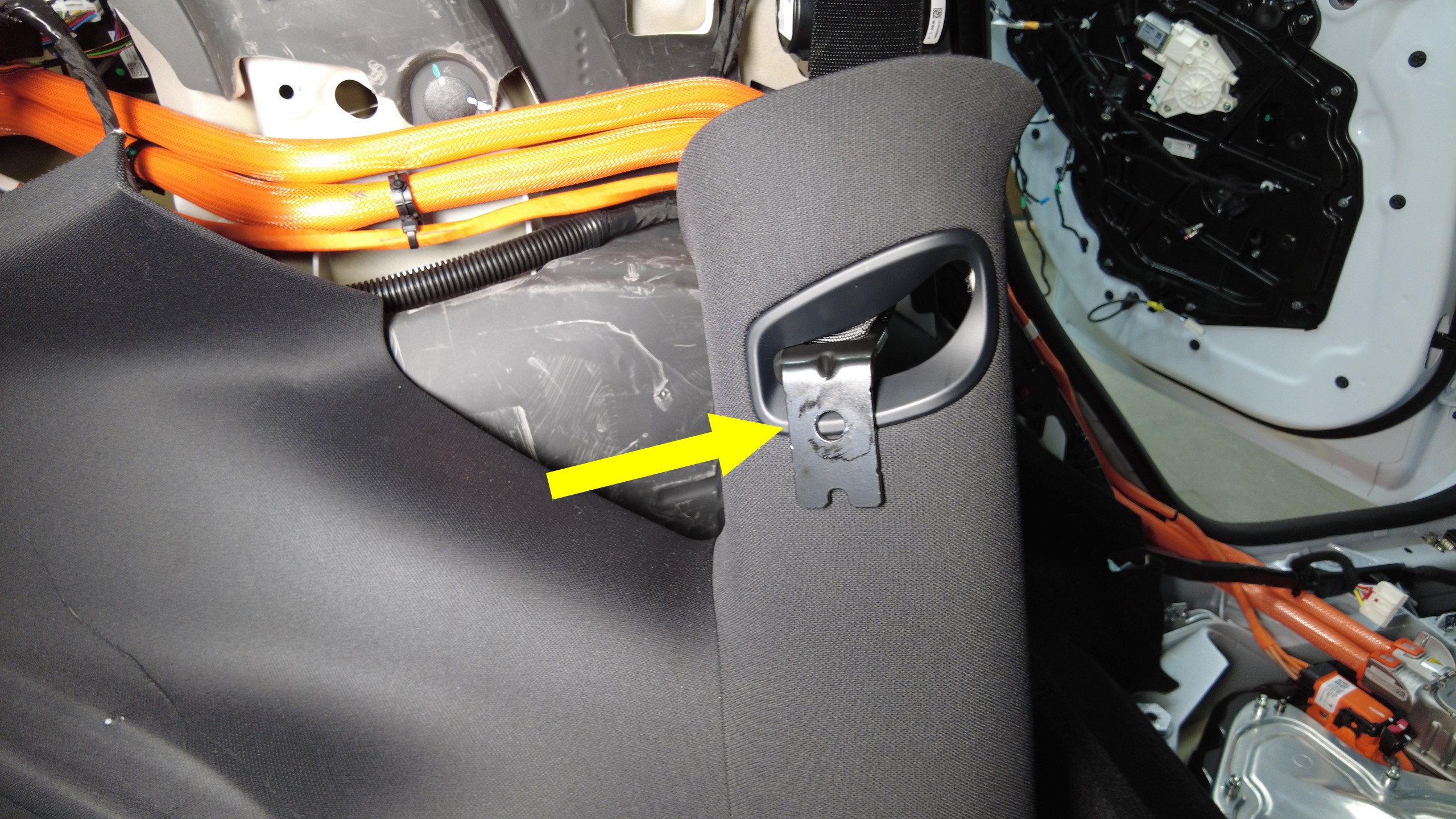

  5. Fold down the 2nd row 60 seat back using the seat switch or manual tether.
    Informational PurposesAn informational icon, calling your attention
    Note
    Protect the seat back upholstery if necessary.

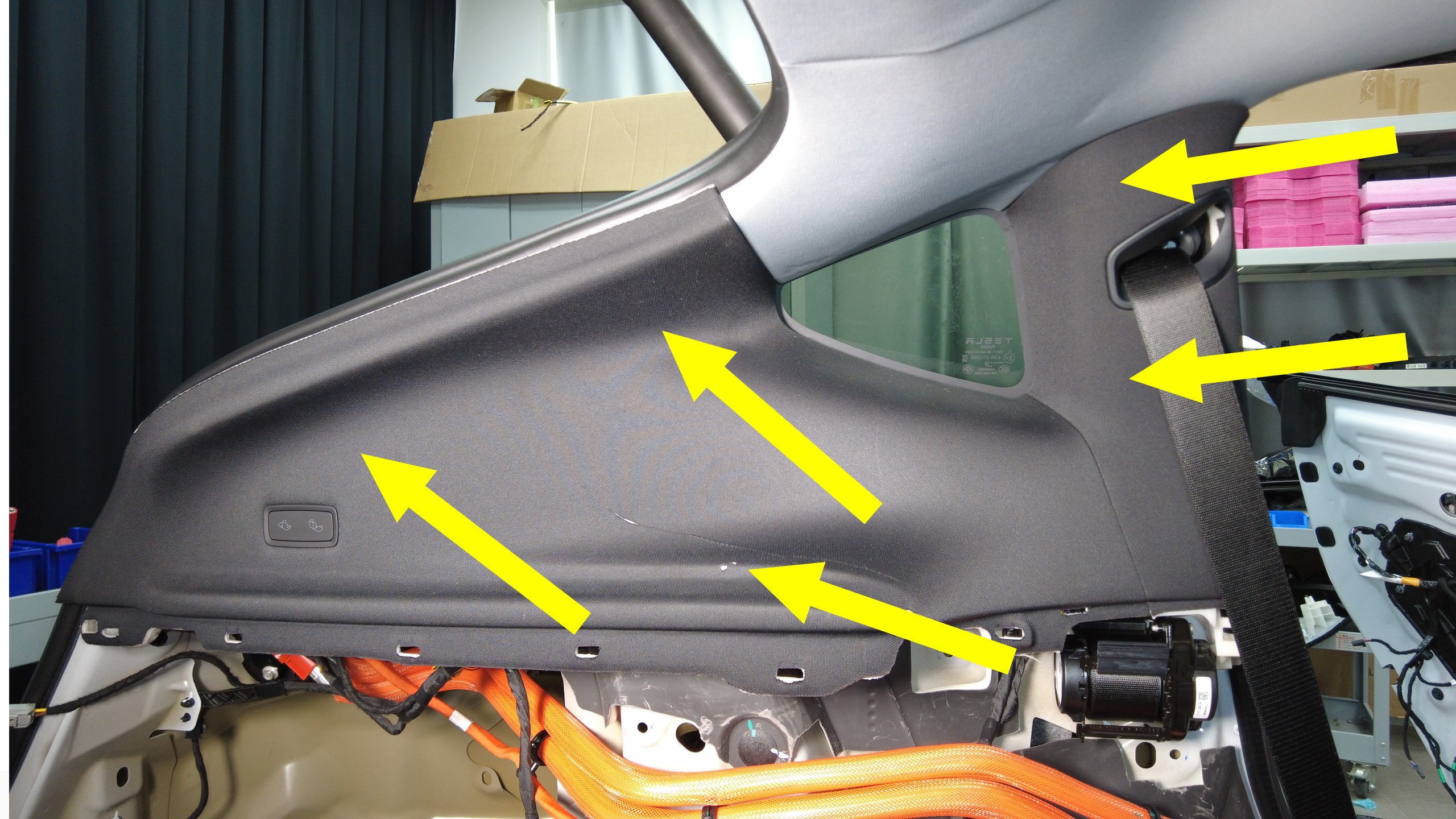

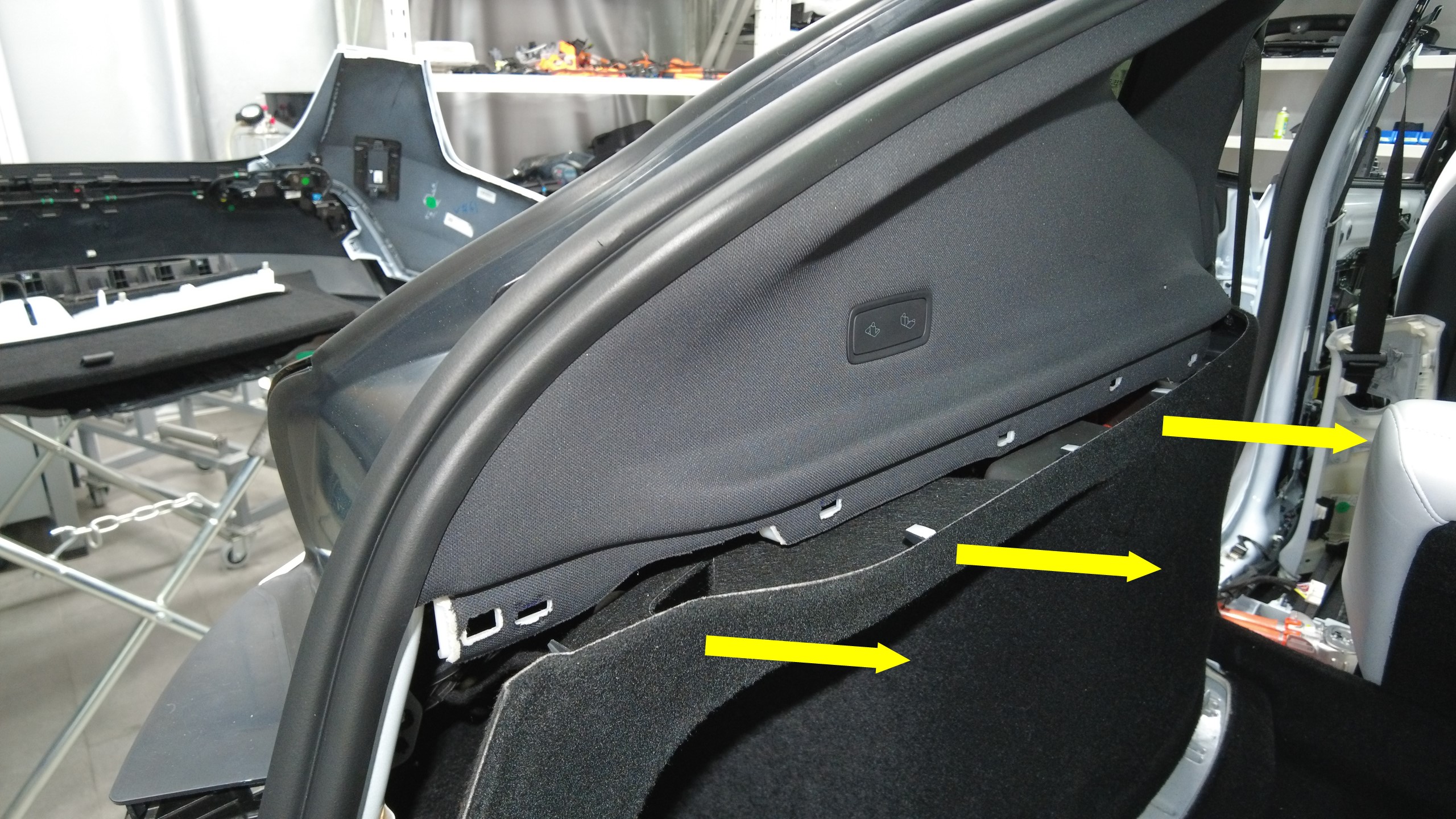

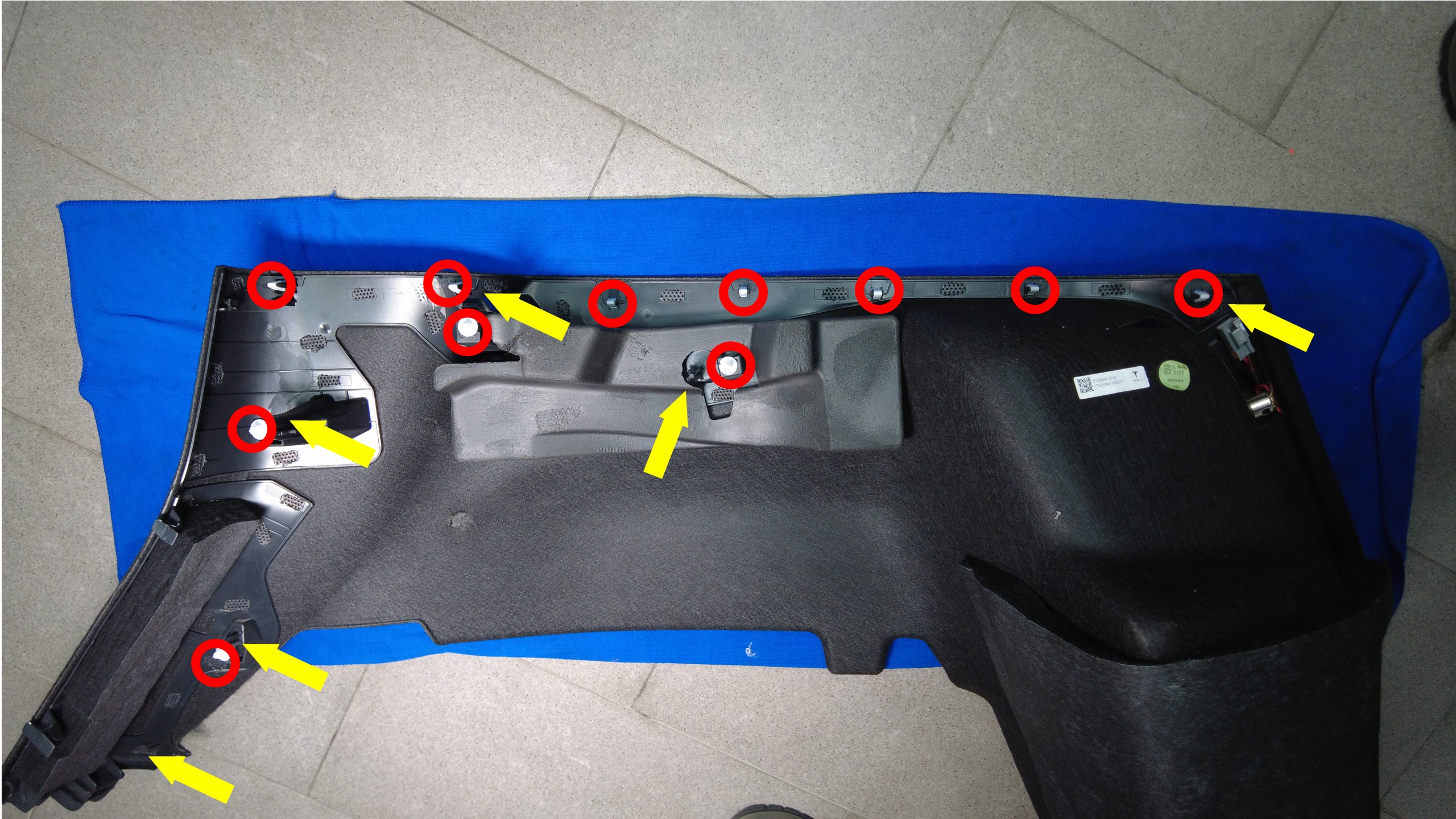

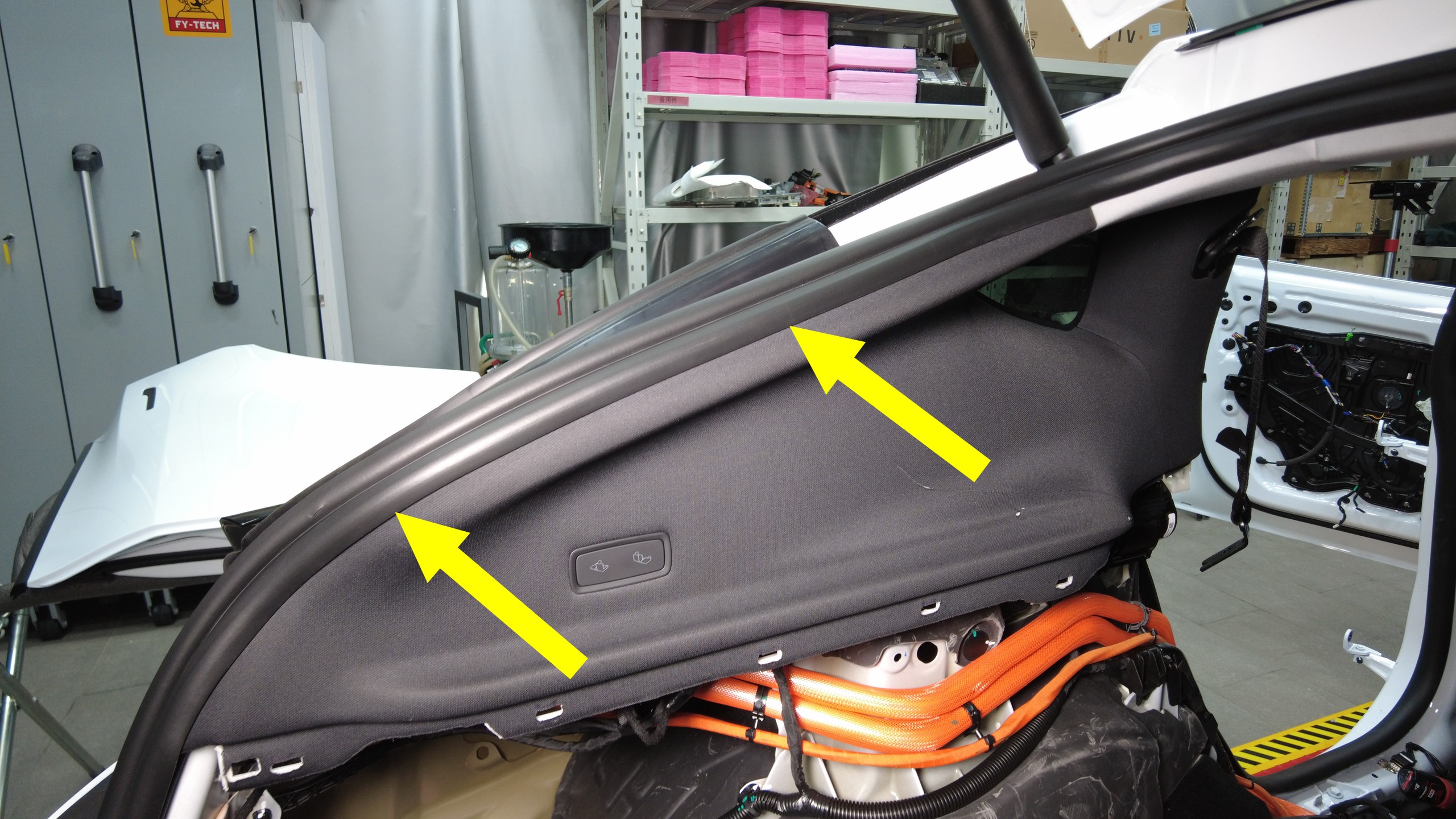

  6. Partially remove the LH trunk side trim by releasing the clips (x9) on the upper section only.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use caution to avoid straining the 12V socket harness at the rear of the trim.

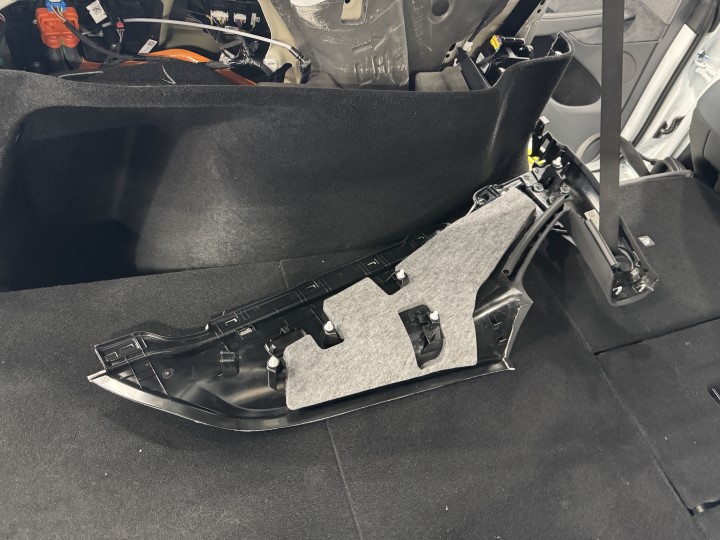

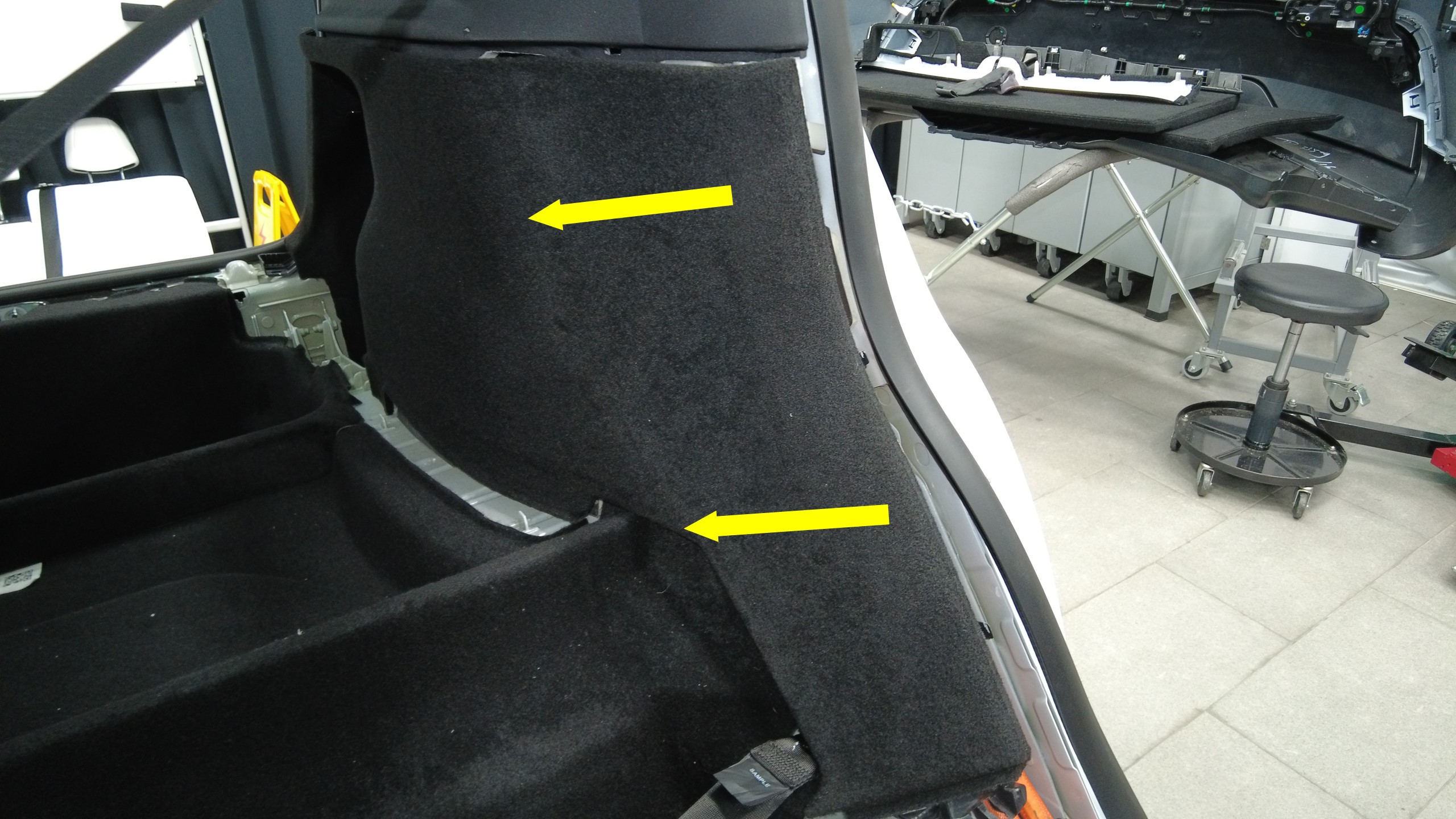

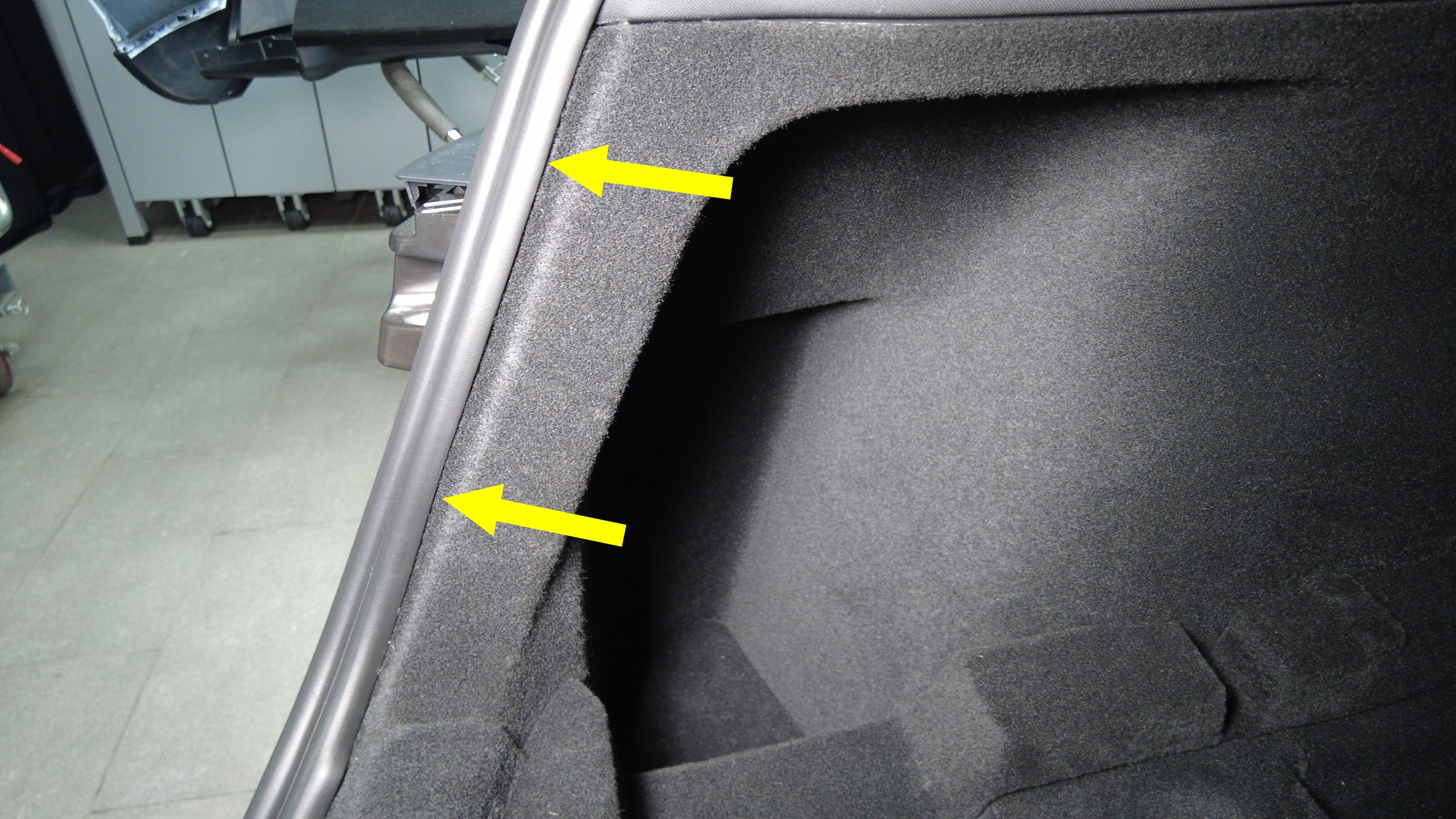

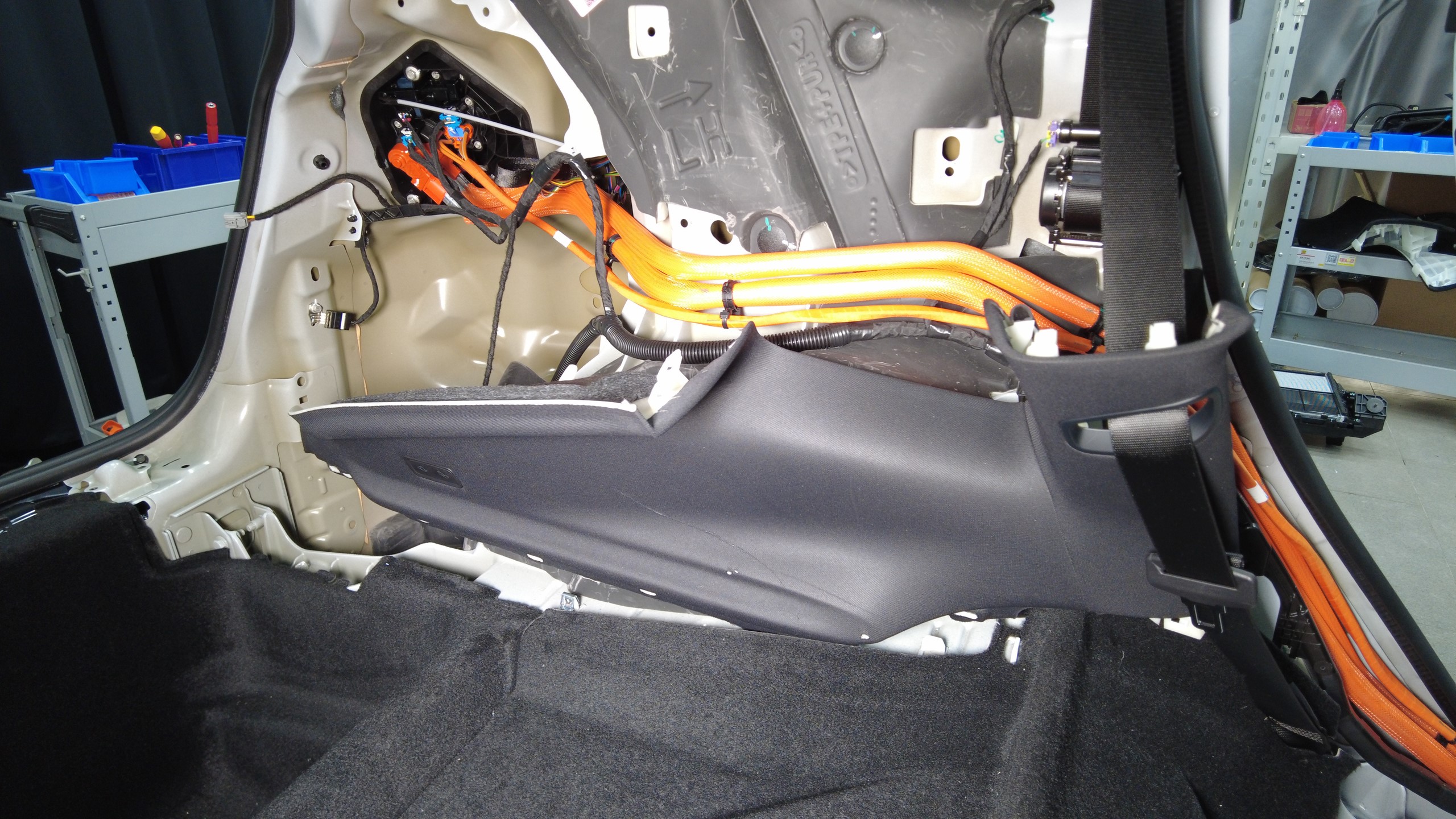

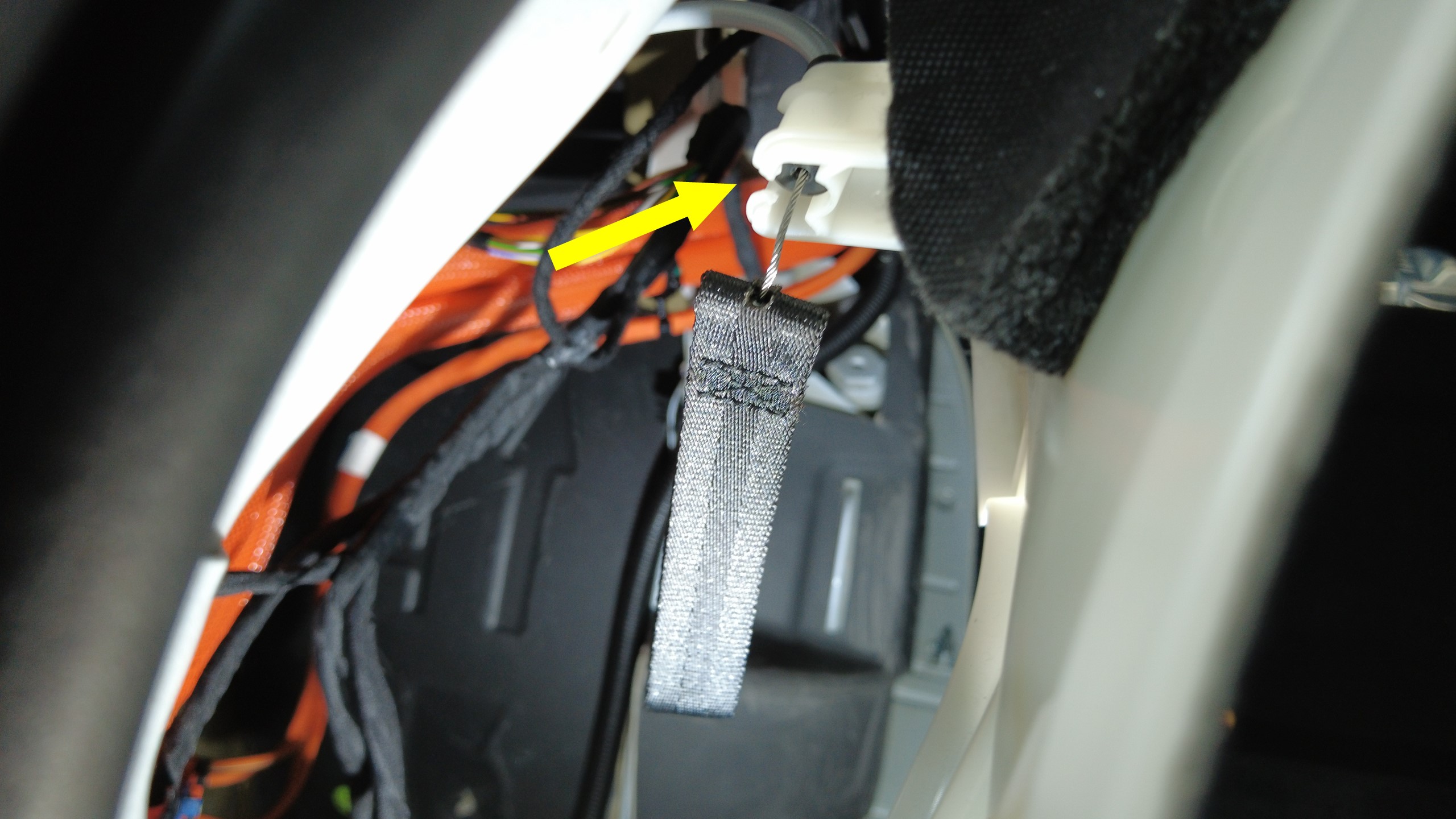

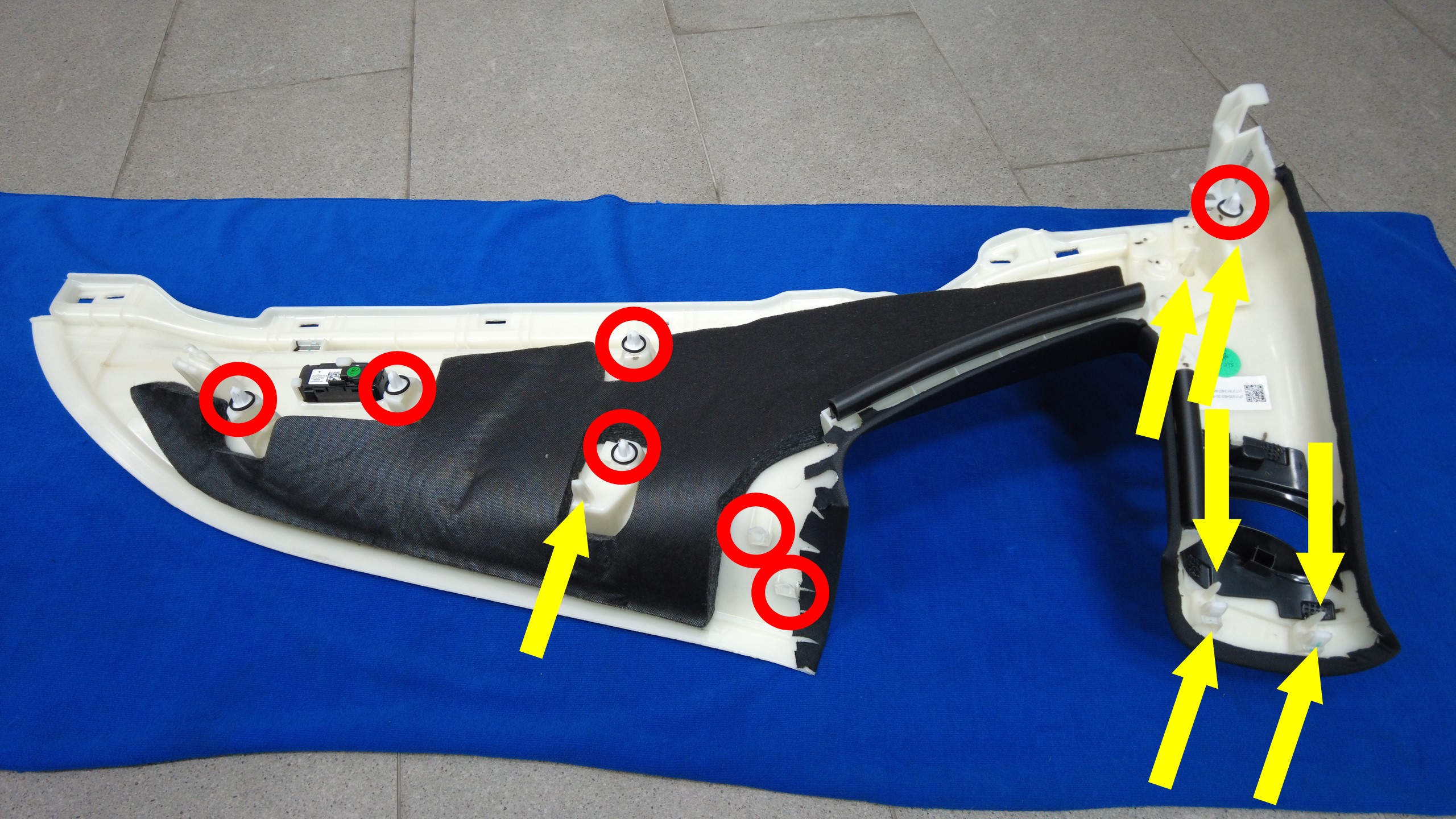

  7. Remove the LH upper C-pillar trim by releasing the clips (x7), datums (x5), tabs (x2), disconnecting the chargeport manual release cable, then allow the trim to rest on the trunk floor.

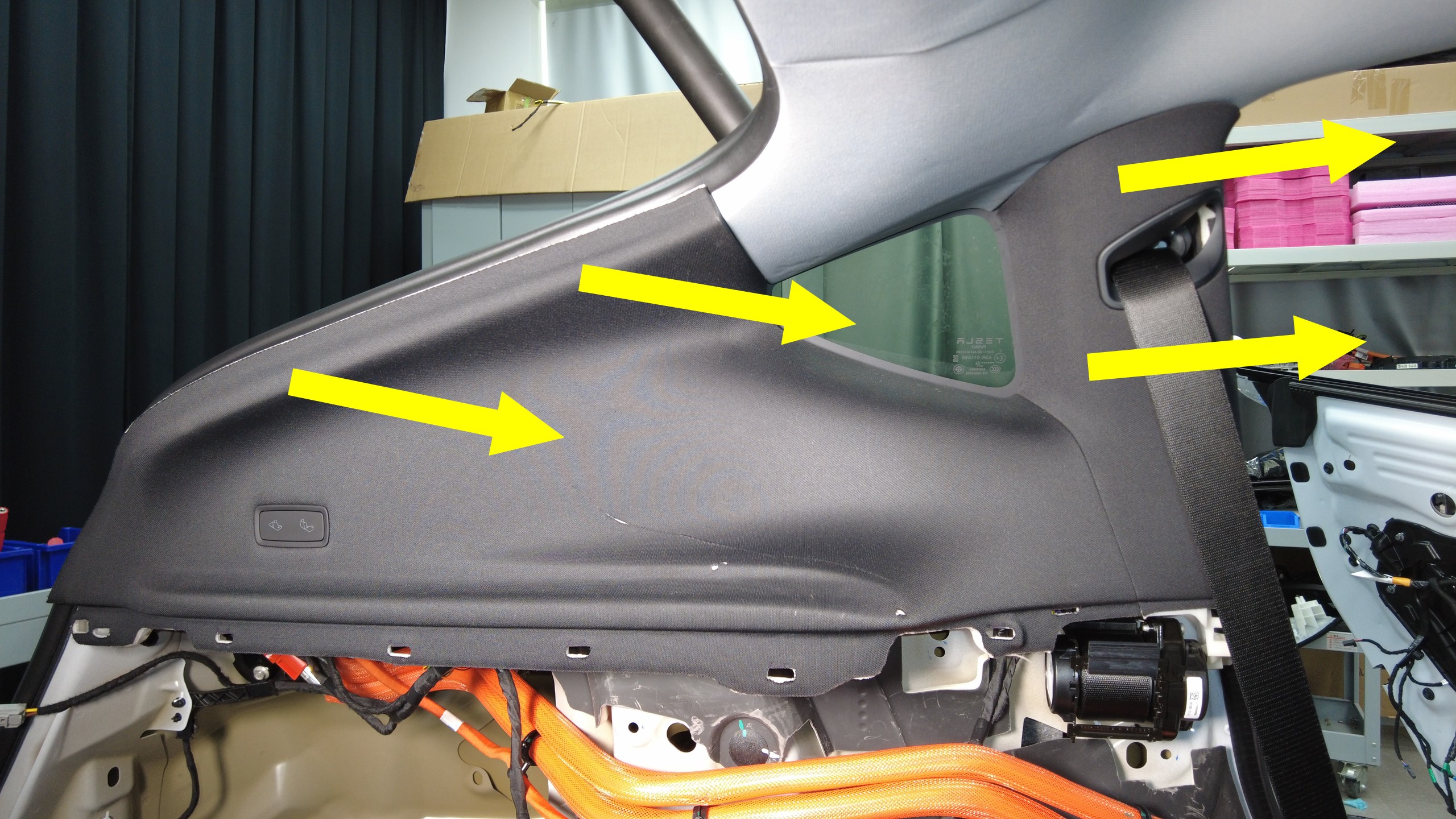

  8. Feed the seat belt out through the LH upper C-pillar trim, and remove the trim.

Install

  1. Feed the seat belt back through the LH upper C-pillar trim.
  2. Install the LH upper C-pillar trim by aligning the datums (x5), securing the clips (x7) and tabs (x2), connecting the fastening chargeport manual release cable, then seating the trunk seal to the trim edge.
  3. Secure the clips (x9) that attach the upper section of the LH trunk side trim to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Ensure that the trim is fully seated.
  4. Return the 2nd row 60 seat back to vertical position using seat switch or manual tether.
    Informational PurposesAn informational icon, calling your attention
    Note
    Remove the seat back protection if necessary.
  5. Close the liftgate.
  6. Install a new bolt that attaches the lower 2nd row retractor anchor to the body.
    35 Nm (25.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Socket 3/8in Dr. 6pt. Std. x 13mm
  7. Install the LH lower C-pillar trim. See Trim - C-Pillar - Lower - LH (5-Seat) (Remove and Replace).
  8. Install the 2nd row lower seat cushion. See Seat Cushion - 2nd Row (Remove and Replace).
