Cowl Assembly (Model Y Standard) (Remove and Replace)

Correction code TBD FRT 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: Cowl Assembly (Model Y Standard) (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolts (x2) that attach the big basin assembly to the body
10 Nm (7.4 lbs-ft)
  • 10 mm socket
 Reuse

Remove

  1. Open the LH front door and lower the LH front window.
  2. Open the hood.

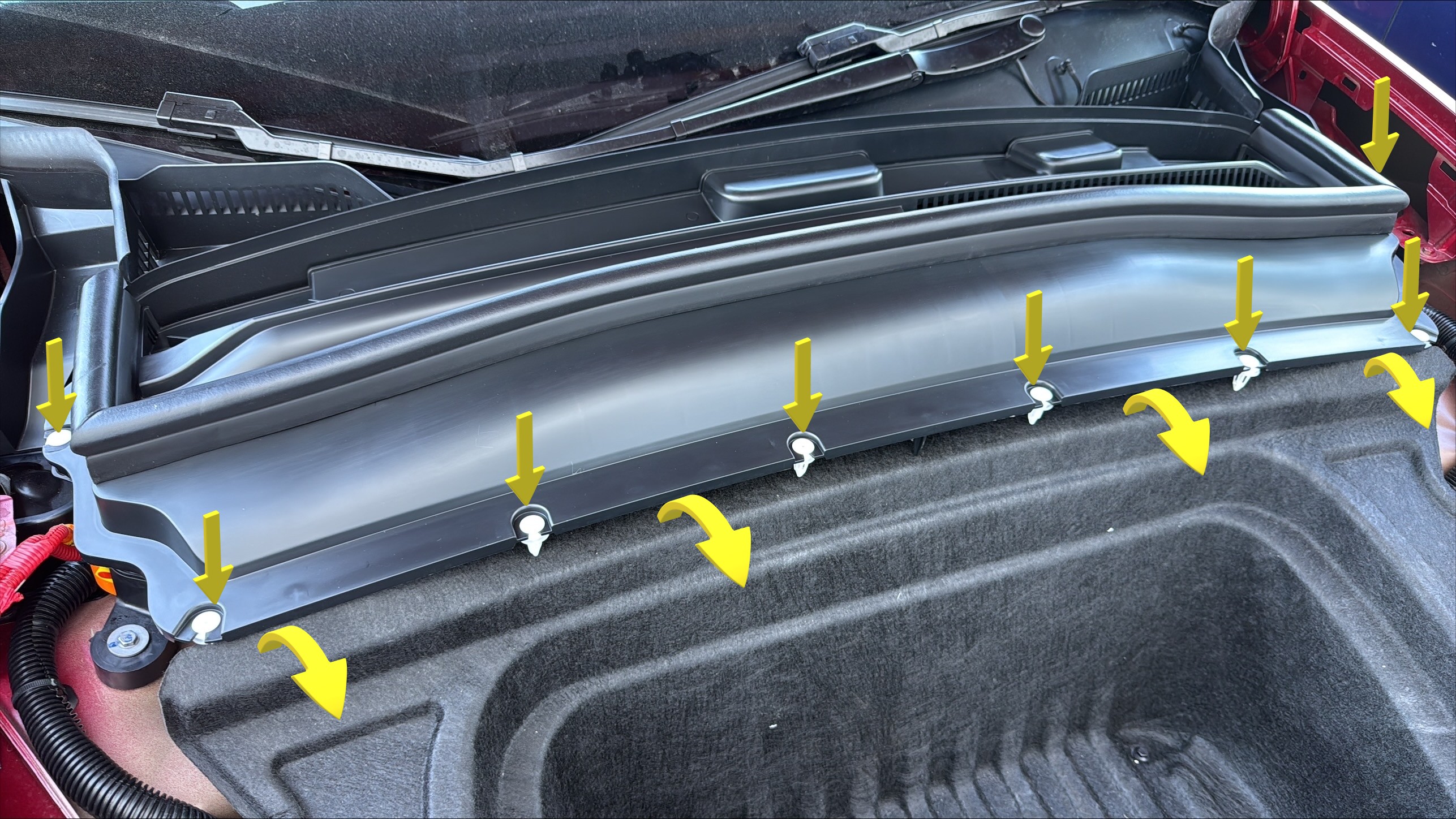

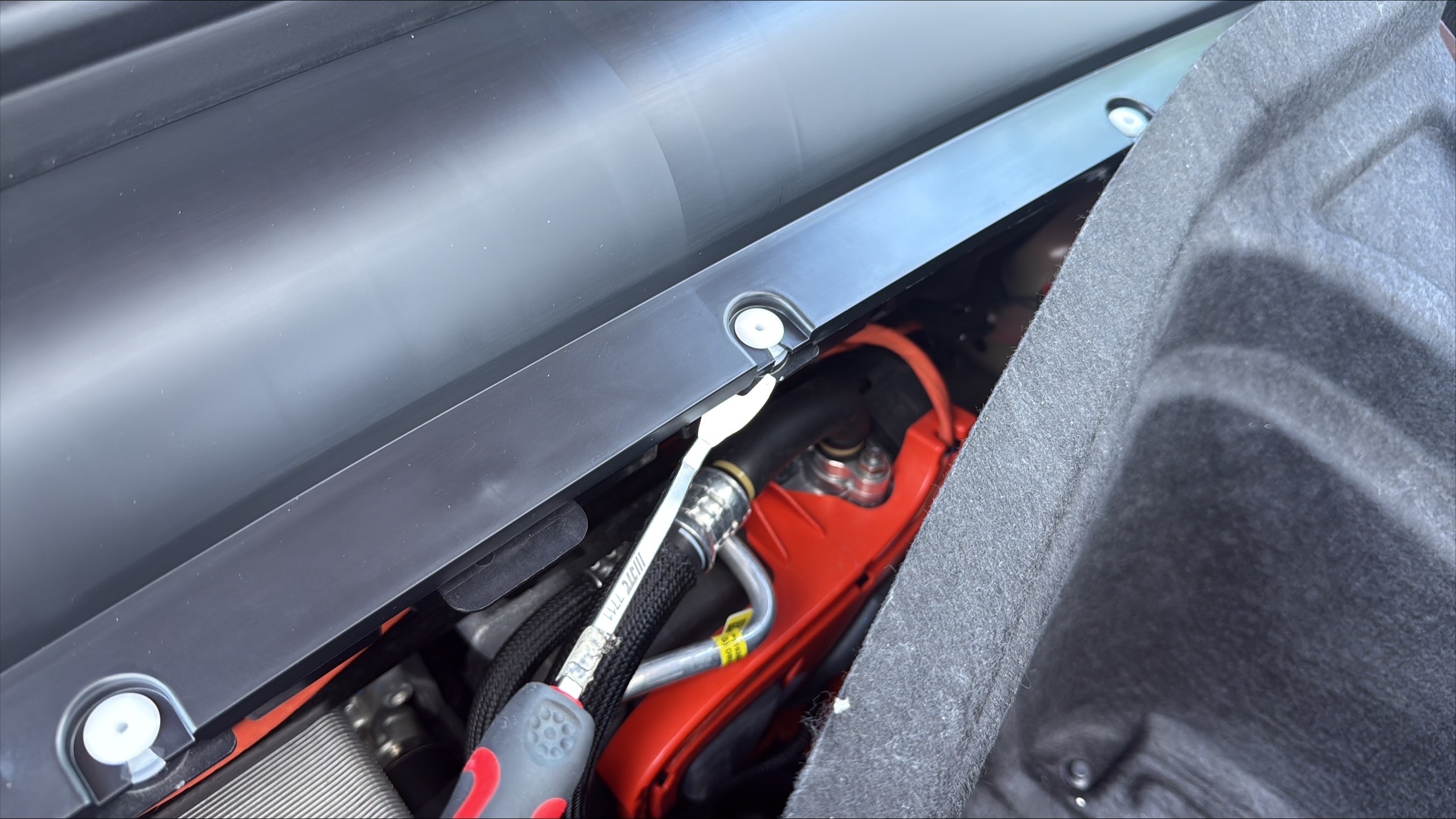

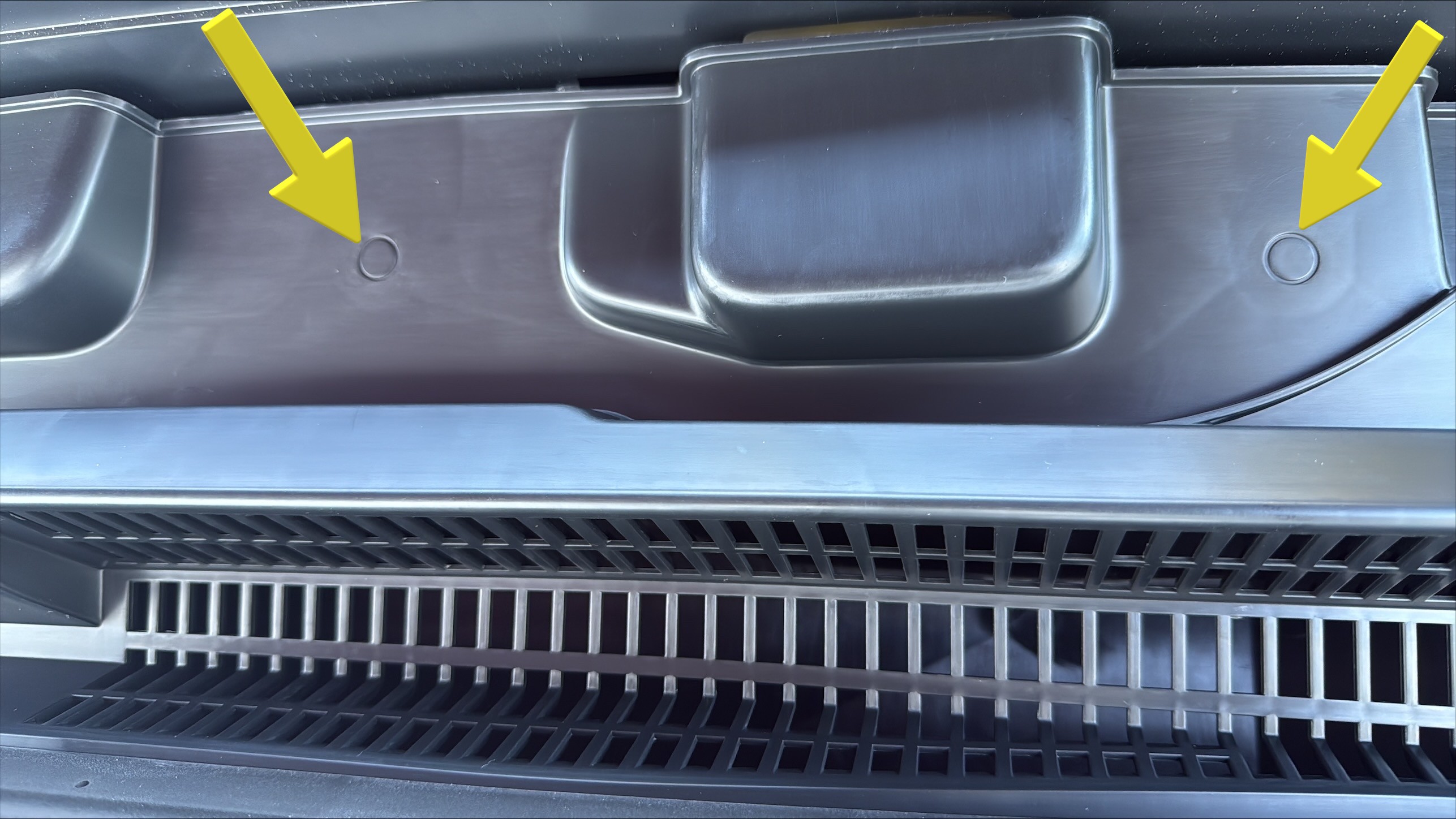

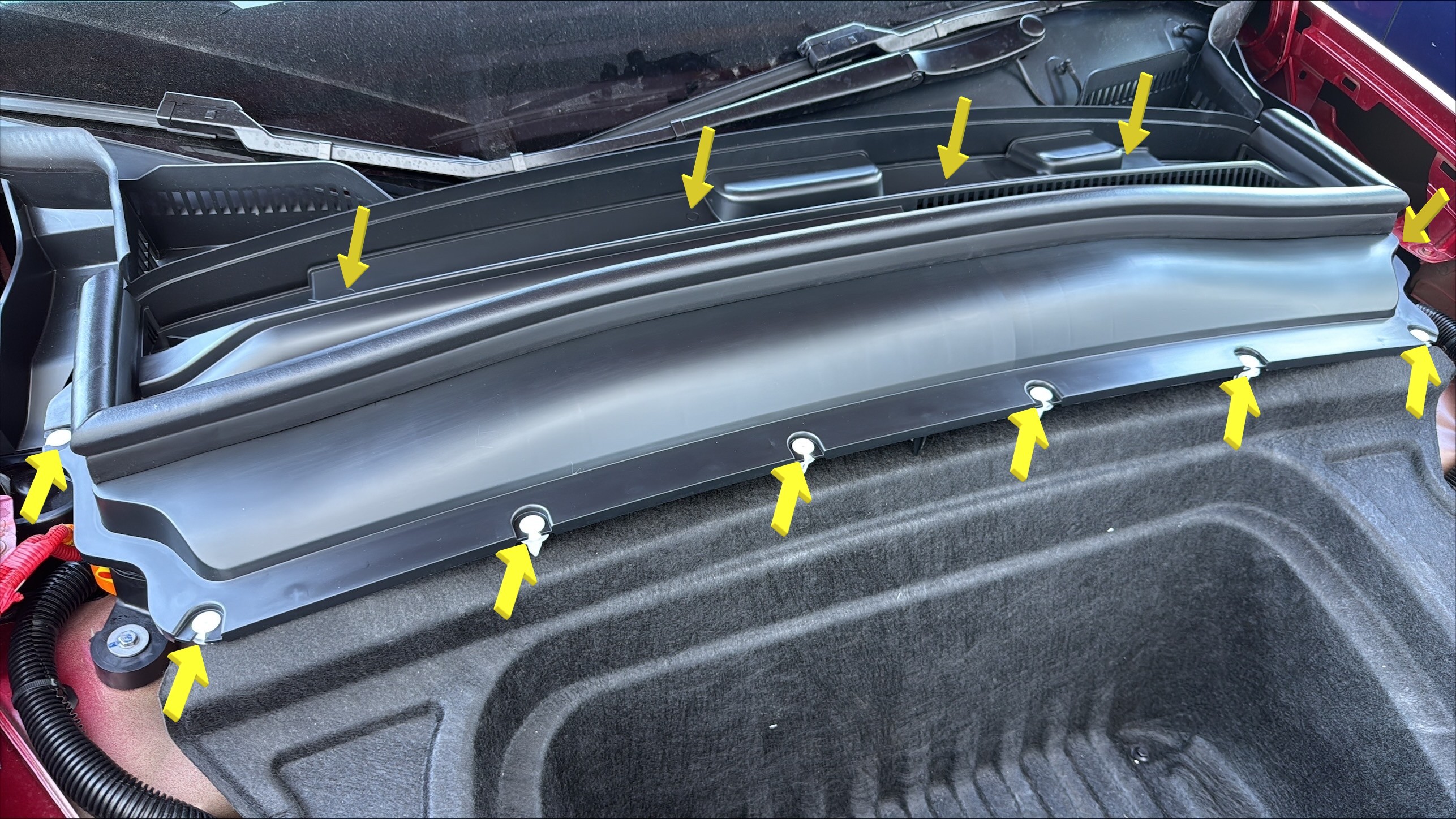

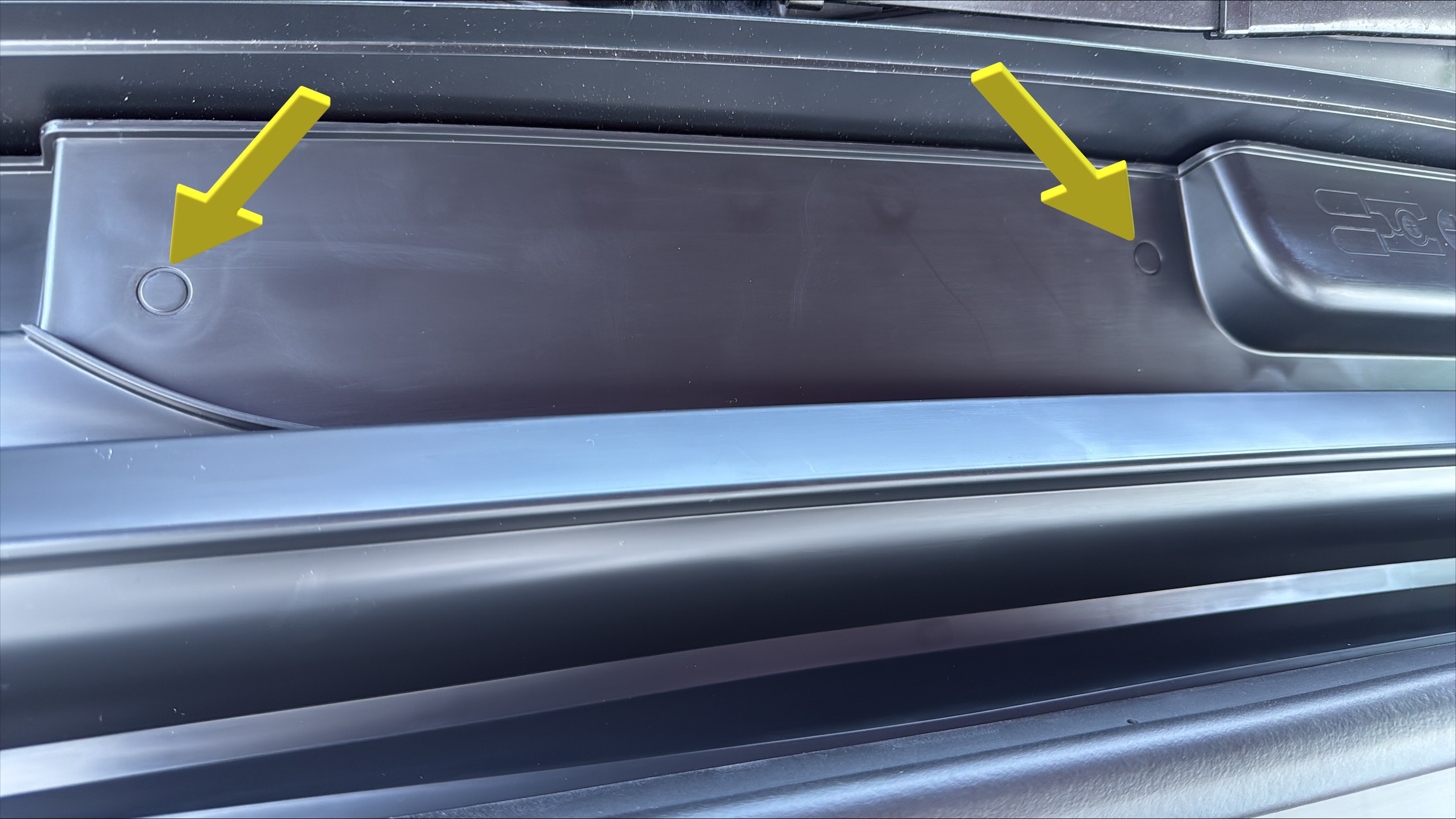

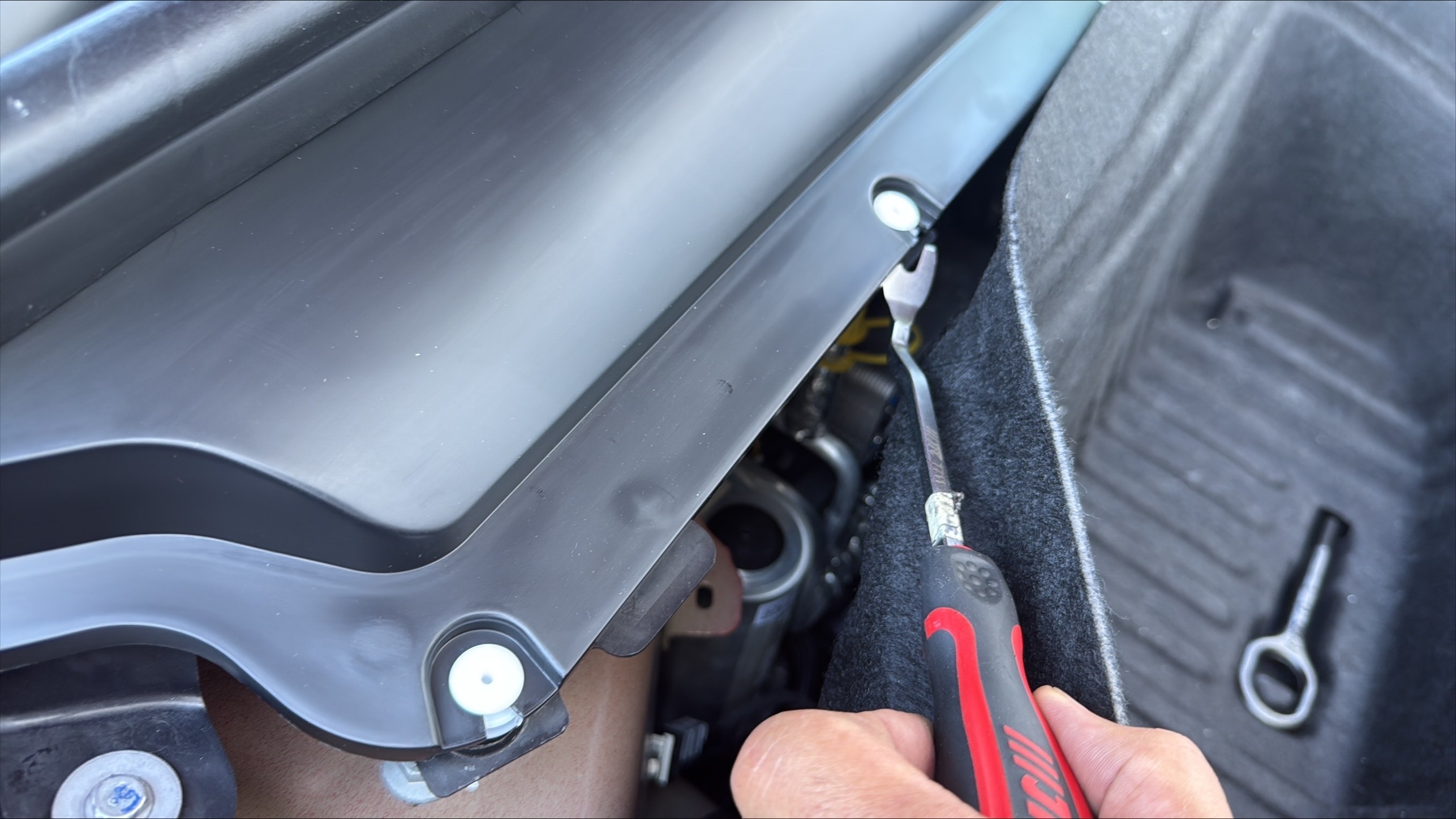

  3. Release the clips (x14) that attach the cowl assembly to the body.
    Informational PurposesAn informational icon, calling your attention
    Note

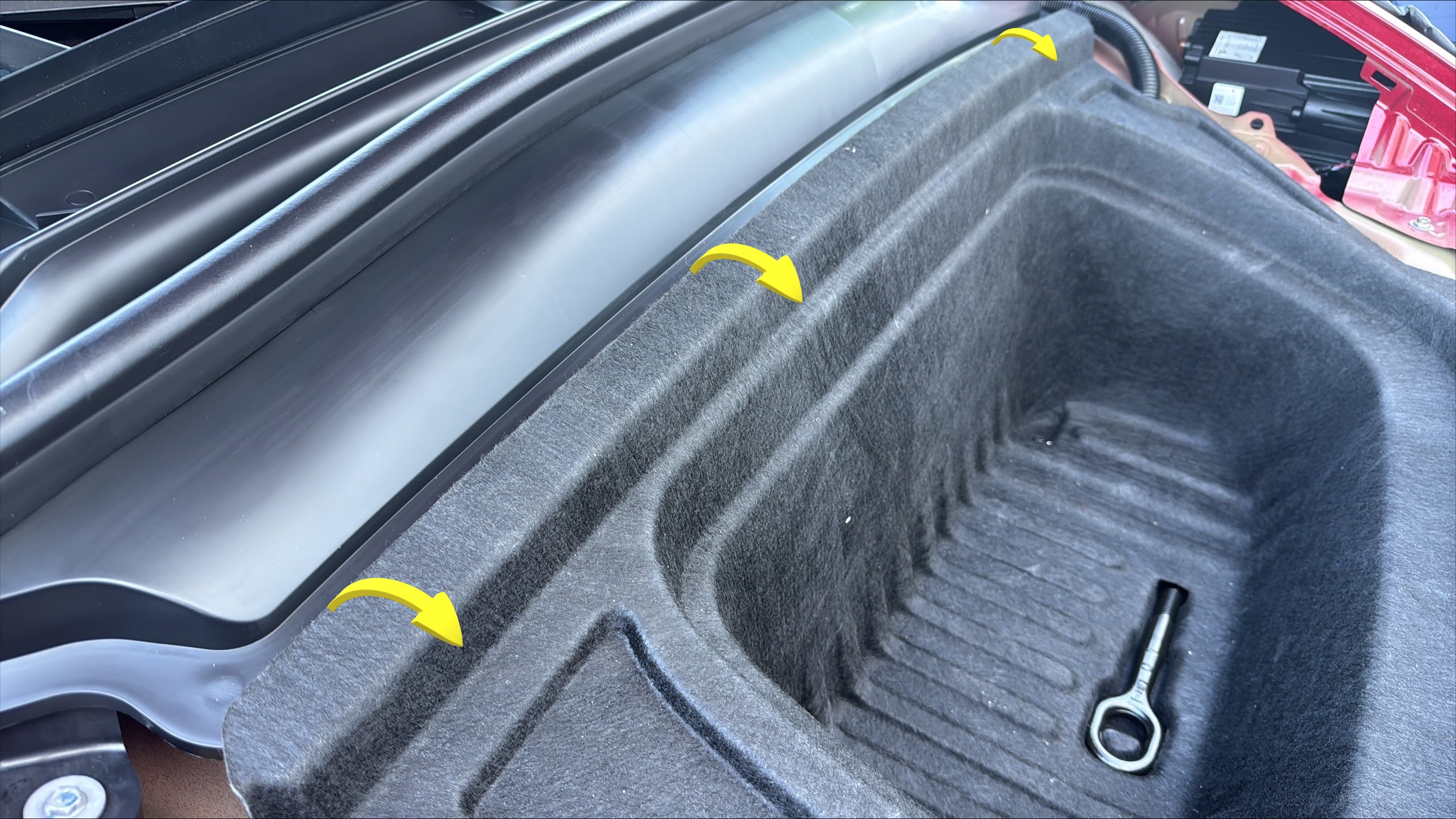

    Fold the rear flap of the frunk forward to gain access to the clips.
    Informational PurposesAn informational icon, calling your attention
    Note

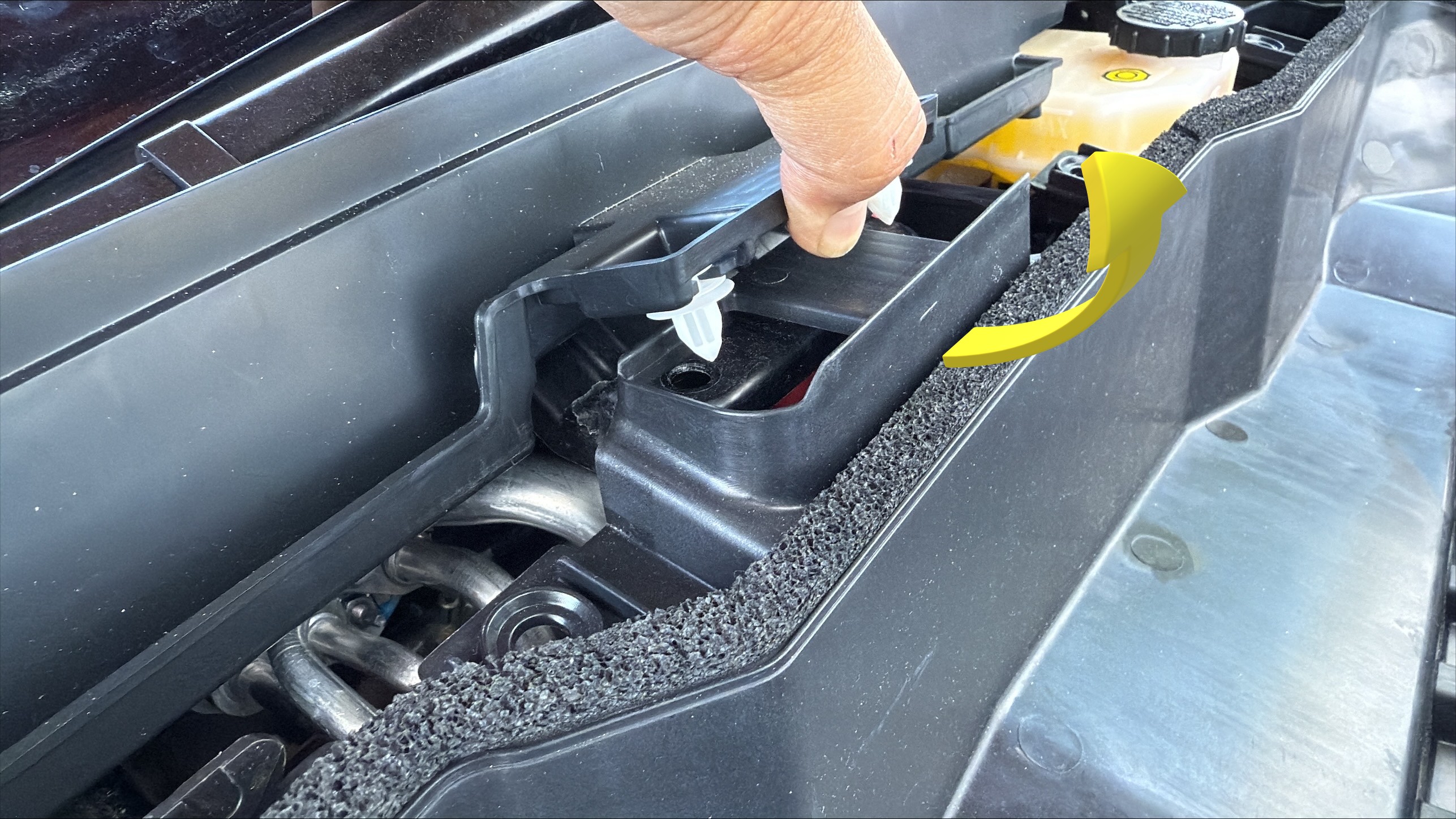

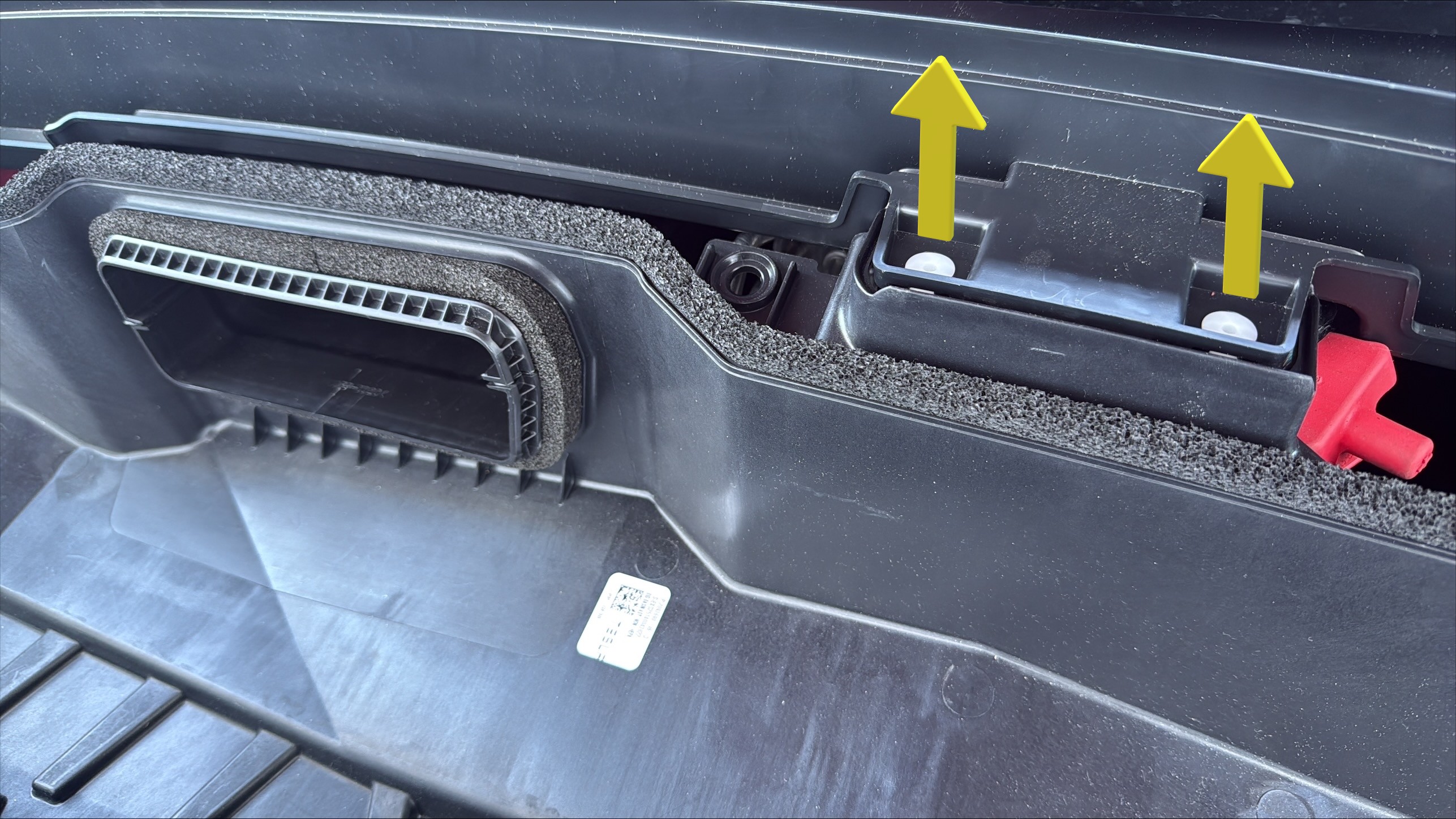

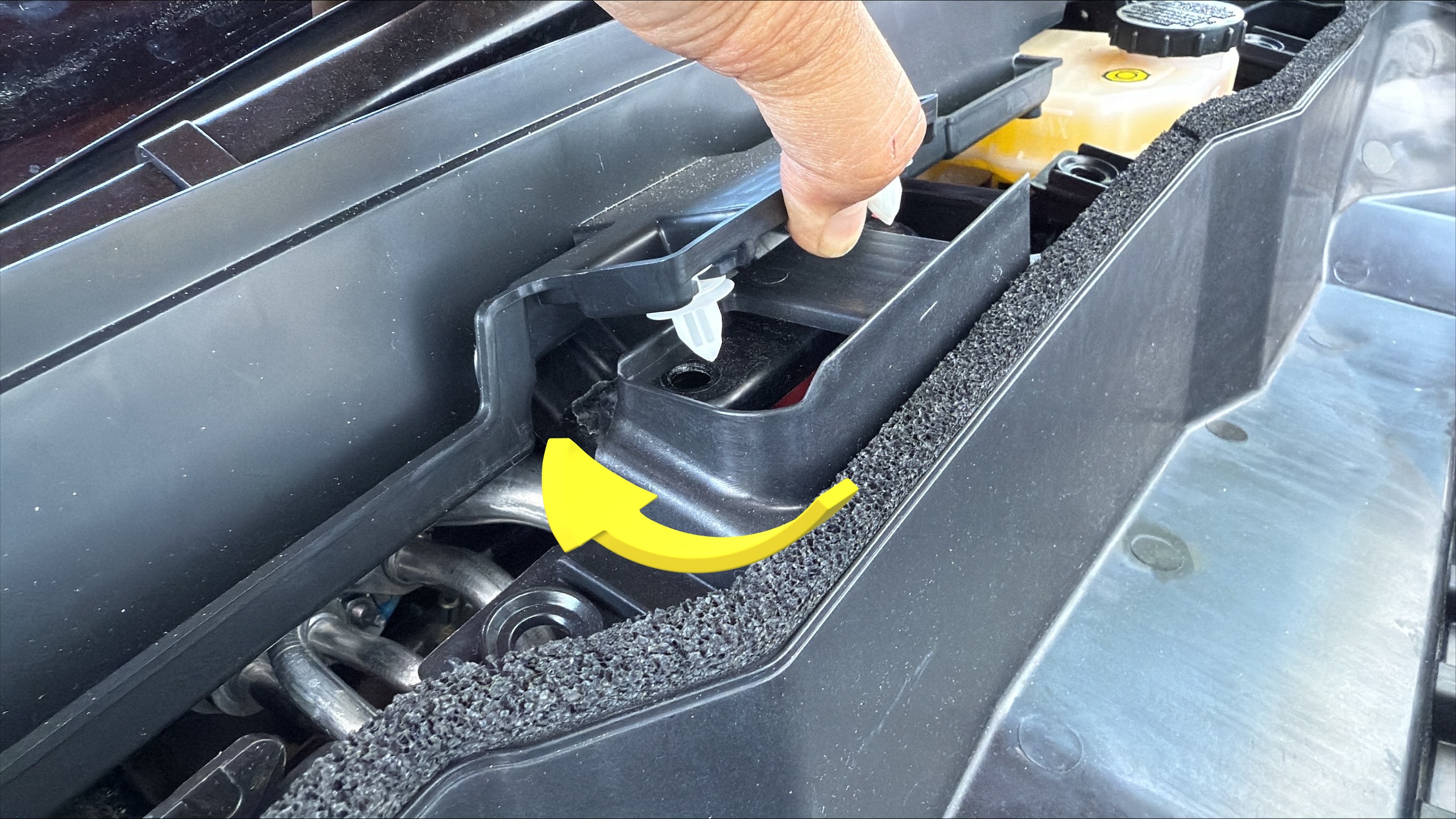

    Lift the cowl clips (x2) up to release the cowl bracket.

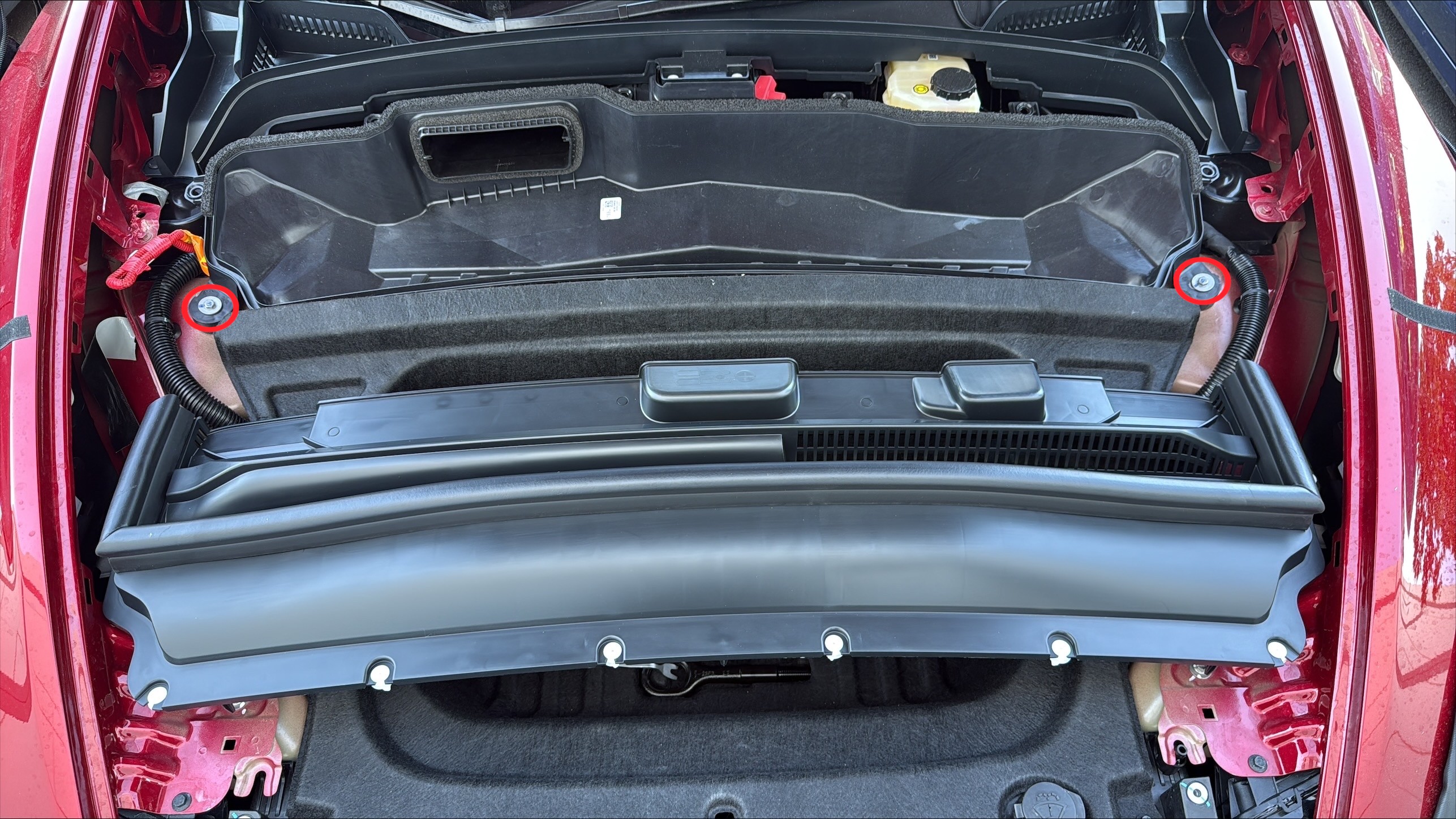

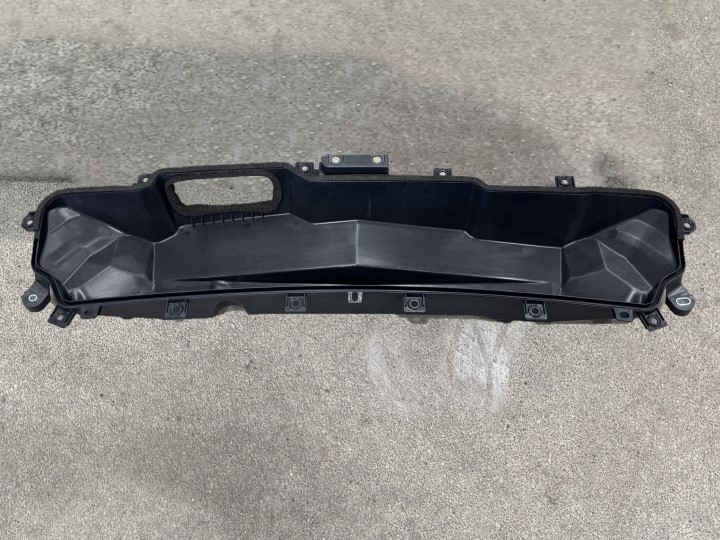

  4. Remove the bolts (x2) that attach the cowl assembly to the body, and then remove it from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket

Install

  1. Install the bolts (x2) that attach the cowl assembly to the body.
    10 Nm (7.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  2. Install the clips (x14) that attach the cowl assembly to the body.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION

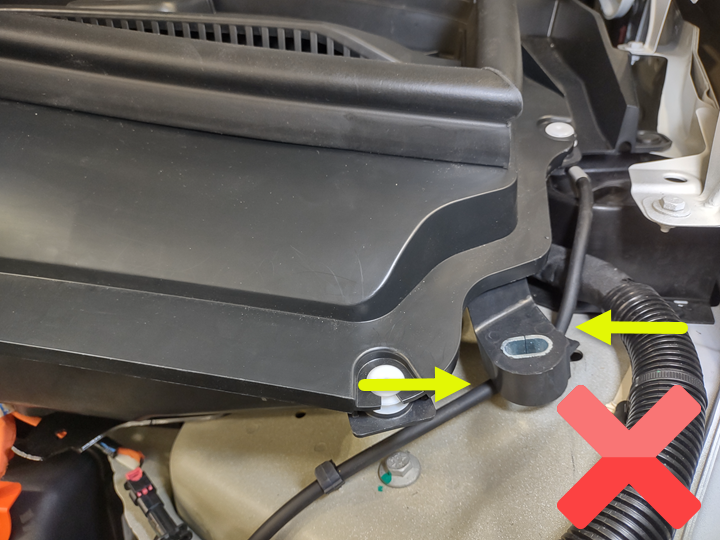

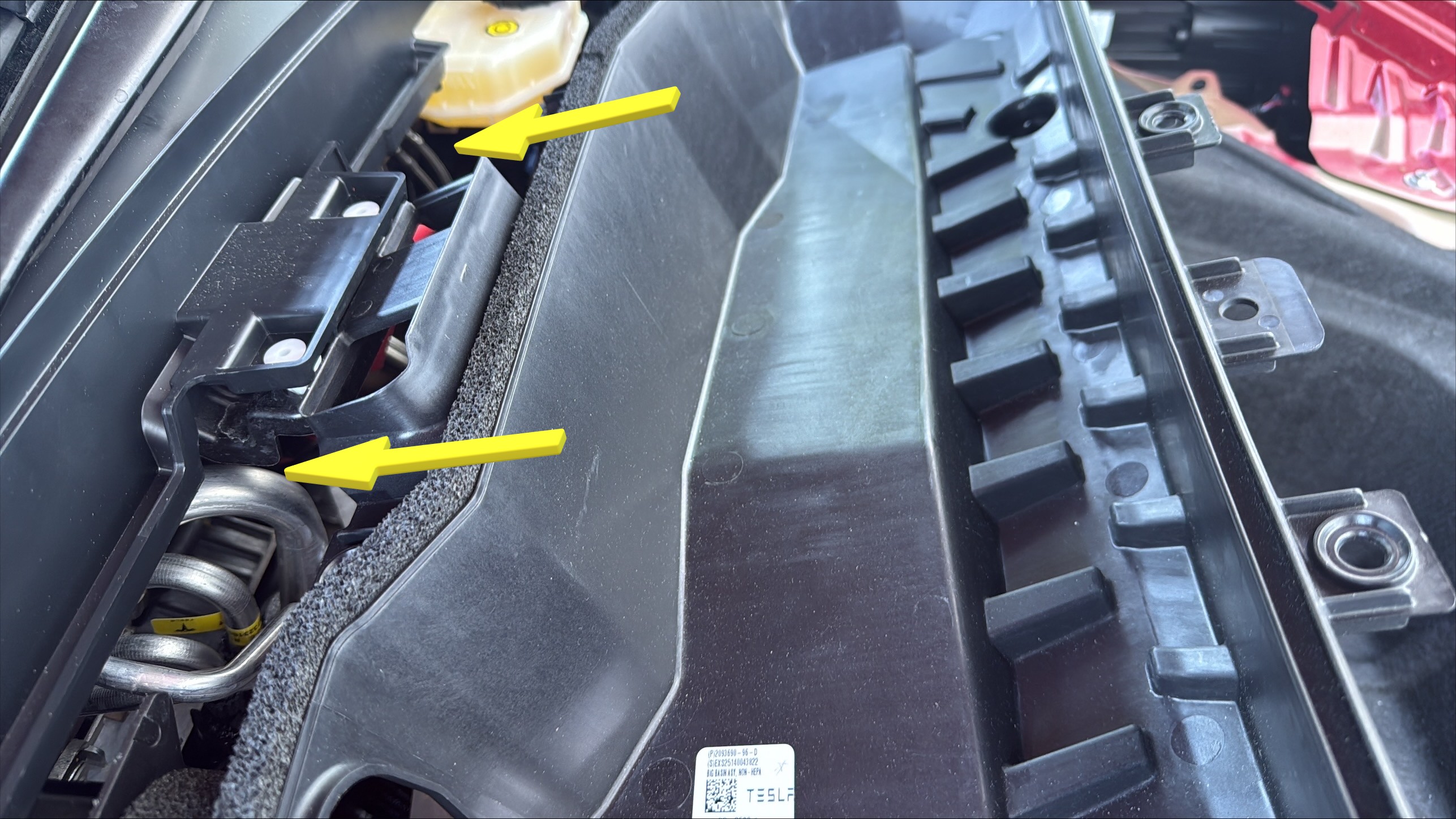

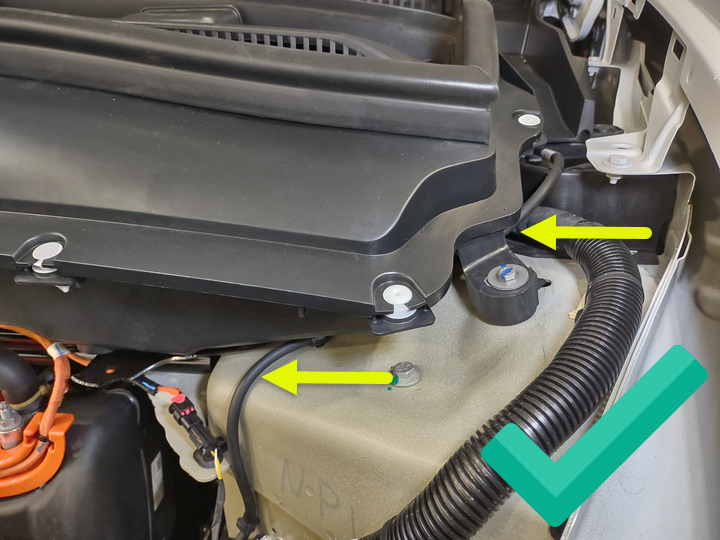

    Make sure that the washer line are not pinched between the cowl assembly and the body.
    Informational PurposesAn informational icon, calling your attention
    Note
    Fold the rear flap of the frunk back to access the front row of cowl clips.
    Informational PurposesAn informational icon, calling your attention
    Note
    Replace any missing or damaged clips.
  3. Close the hood.
  4. Raise the LH front window and close the LH front door.
