Frame - Seat Back - 2nd Row - LH (Remove and Replace)

Correction code 1305030102 FRT 0.30 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: Frame - Seat Back - 2nd Row - LH (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Screw that attaches the armrest detent to the 2nd row closeout assembly
3.8 Nm (2.8 lbs-ft)
  • SKT, 1/4" DR, HEX BIT, T20 TORX
Reuse

Remove

  1. Remove the 2nd row center headrest. See 2nd Row - Center Headrest (Remove and Replace).

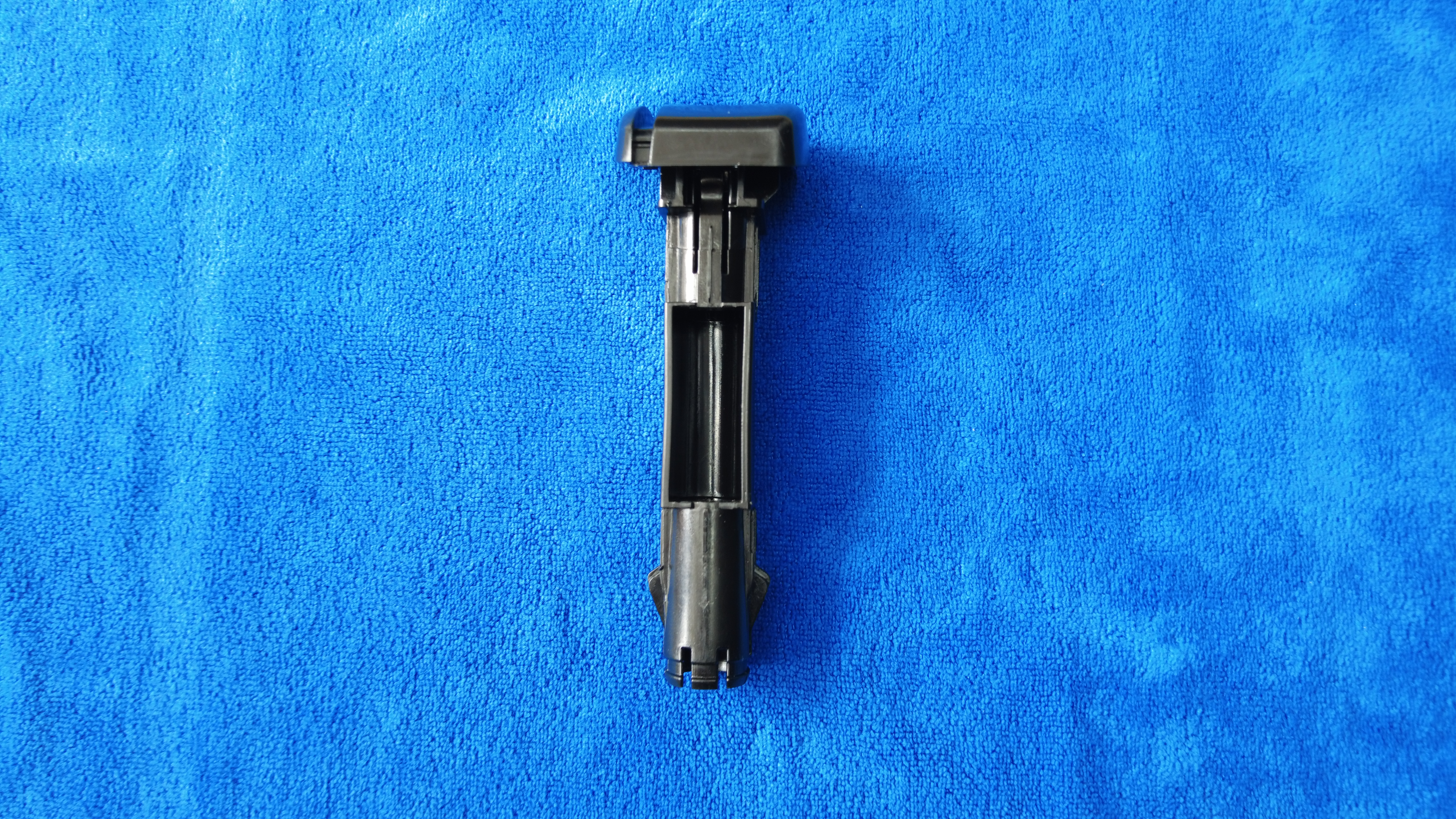

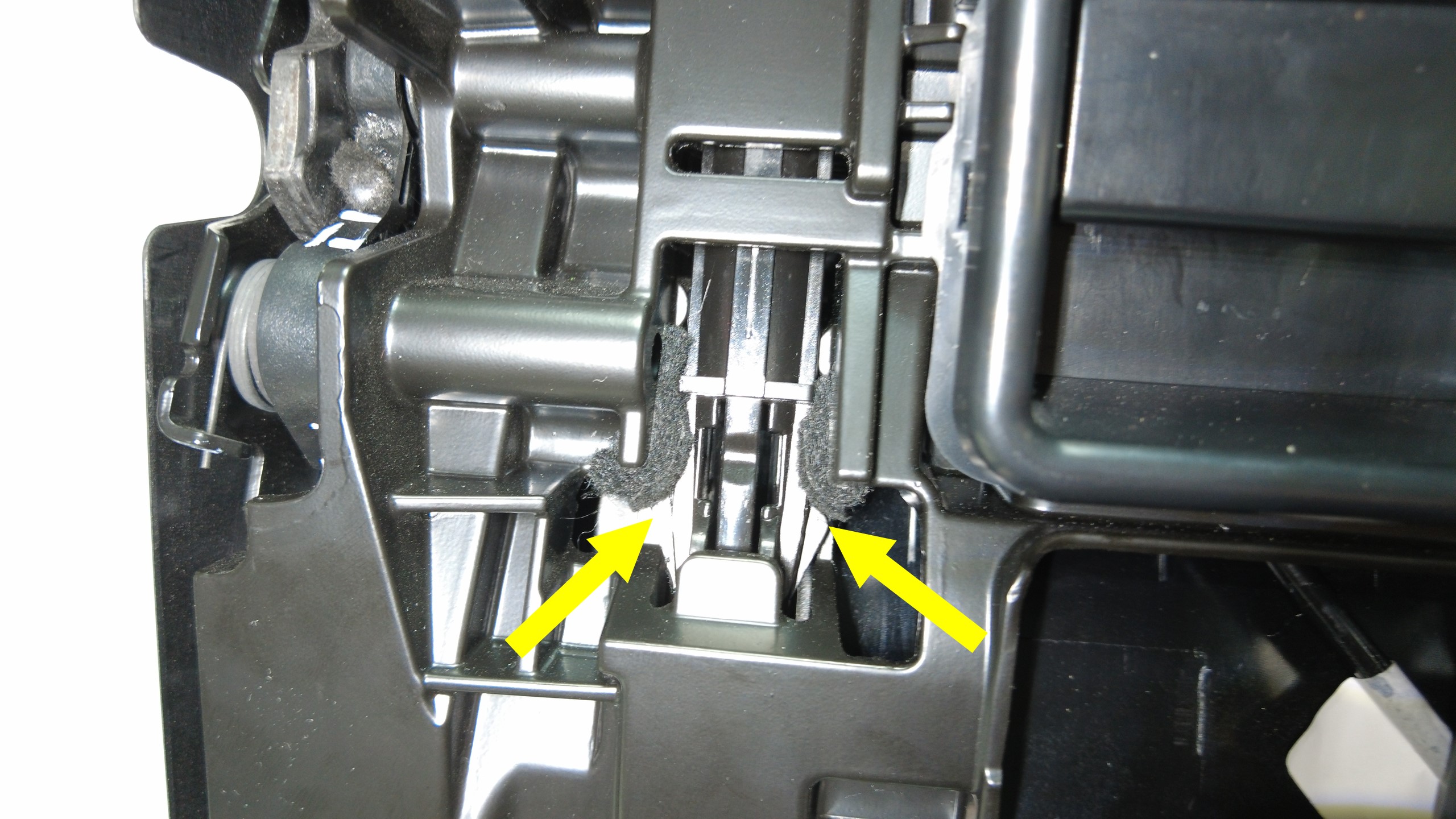

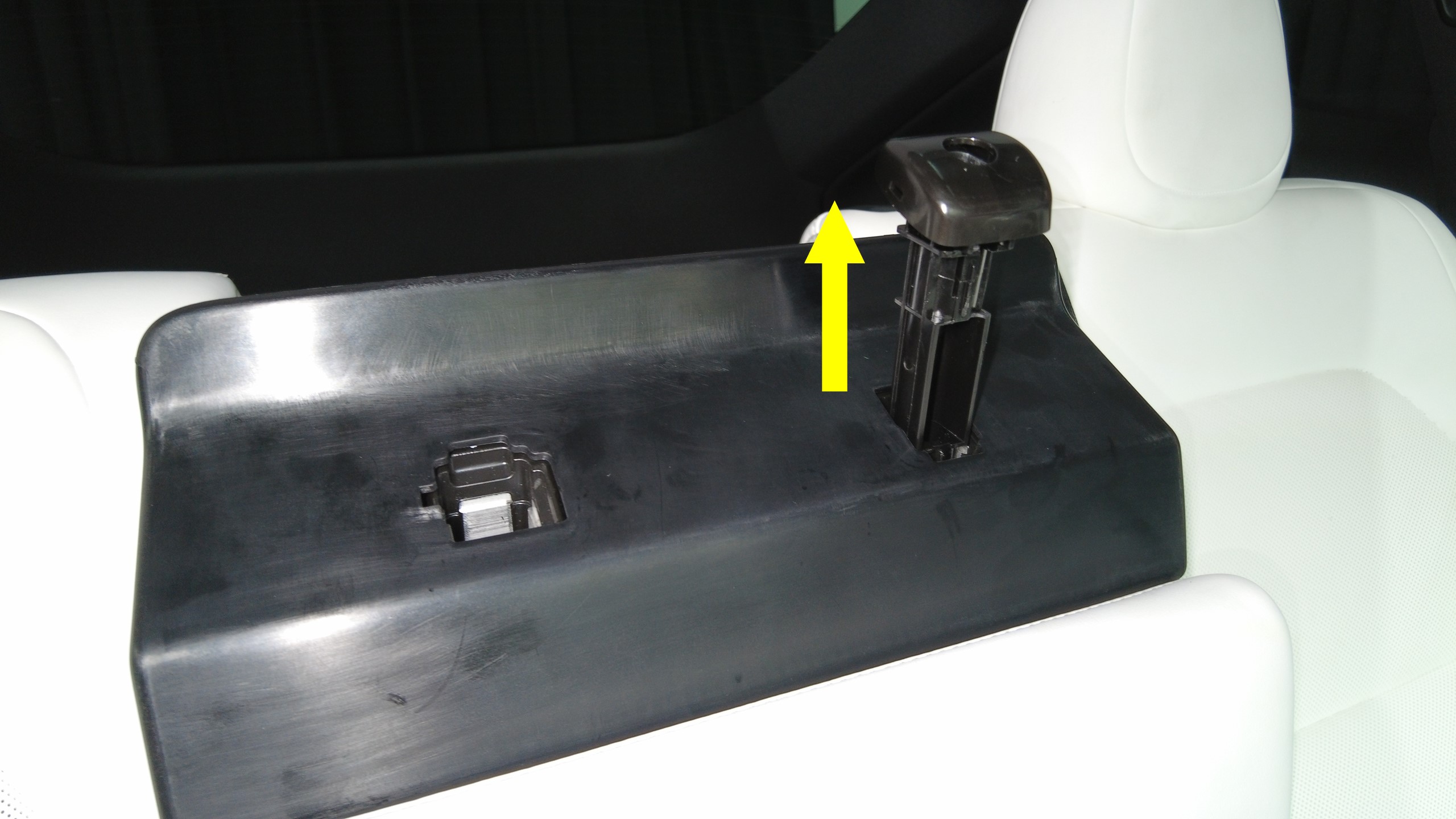

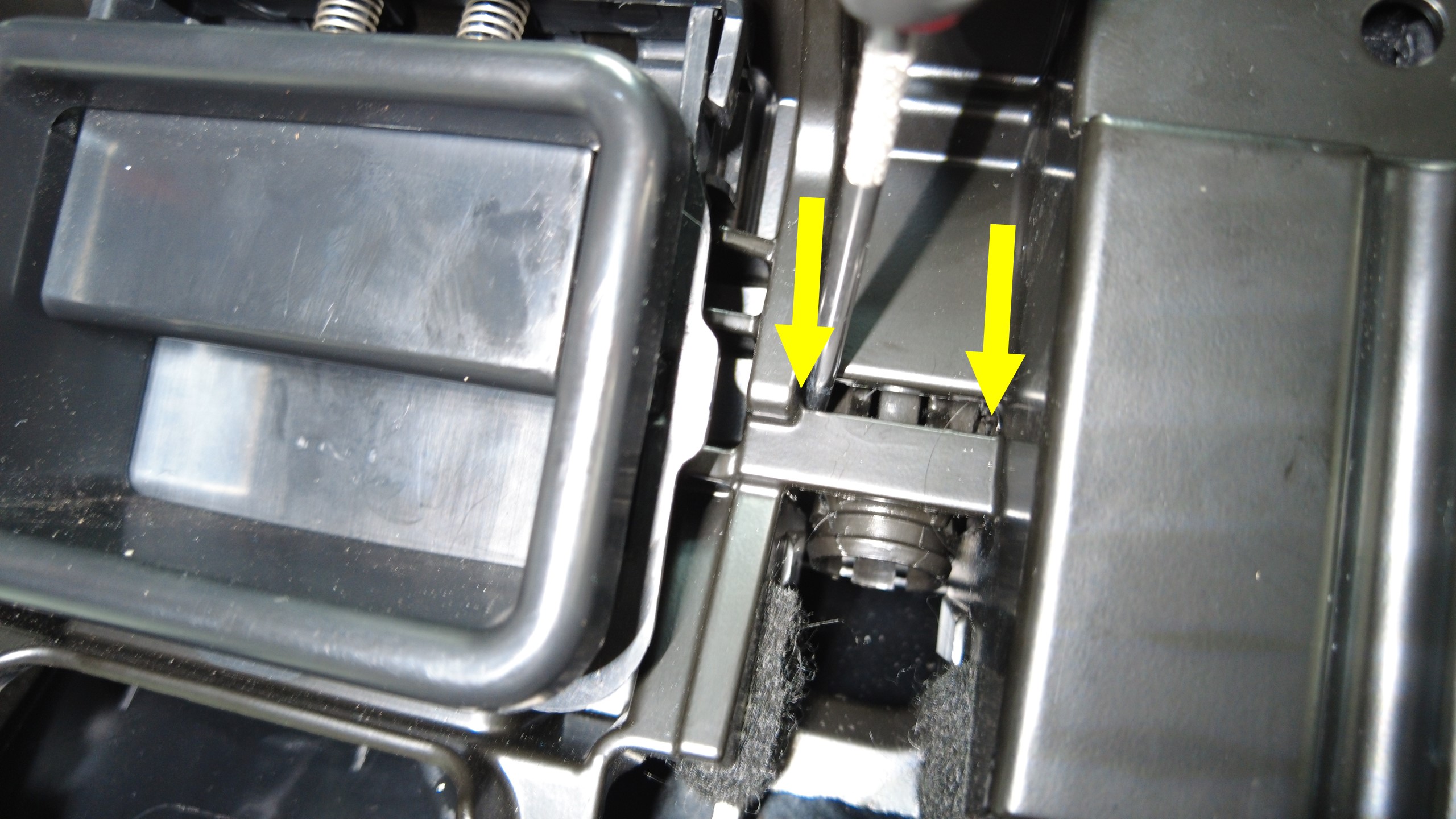

  2. Release the tabs (x2) securing the LH 20 seat back headrest guide lock, and then pry the lock post away from the center seat back.

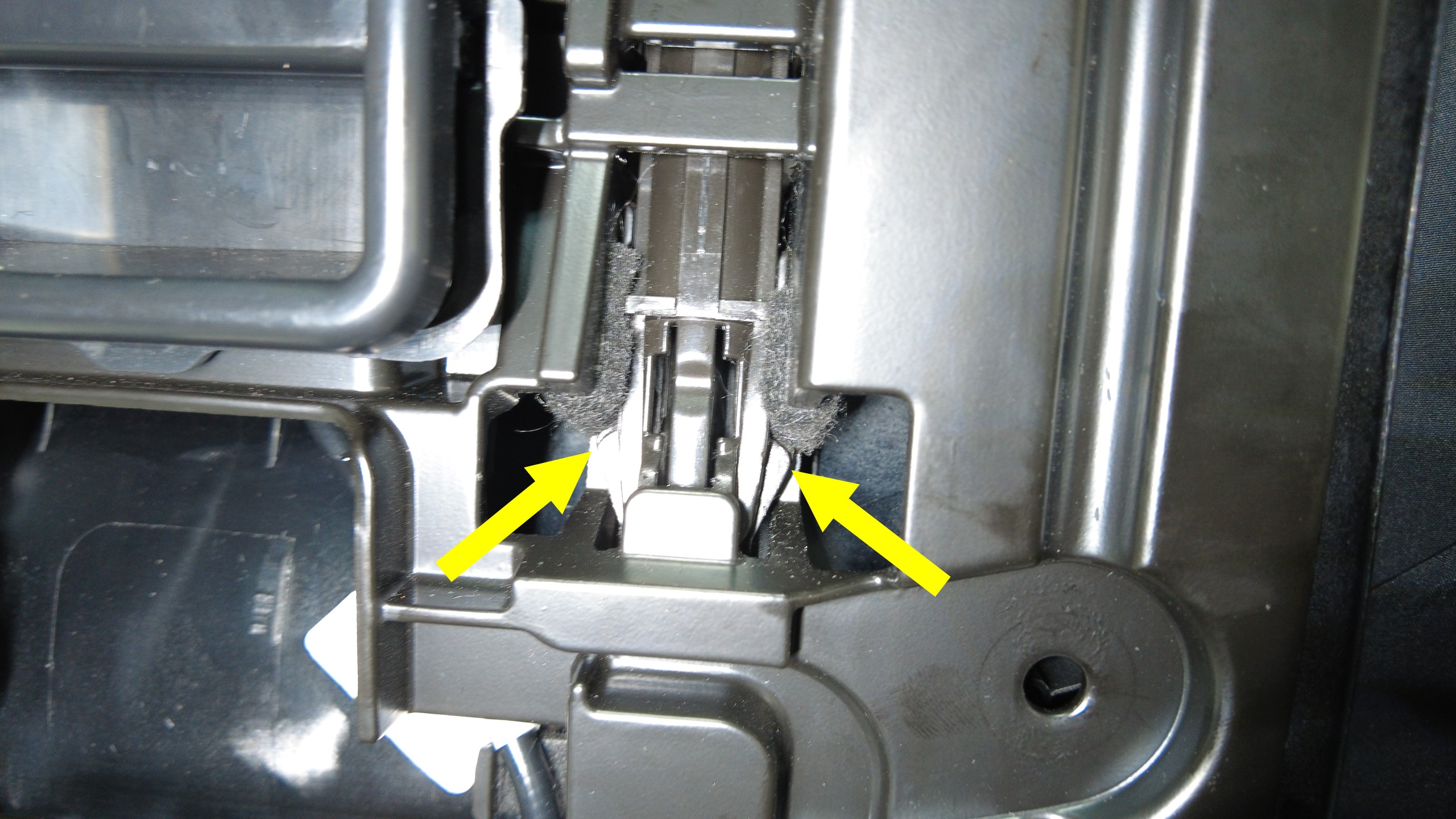

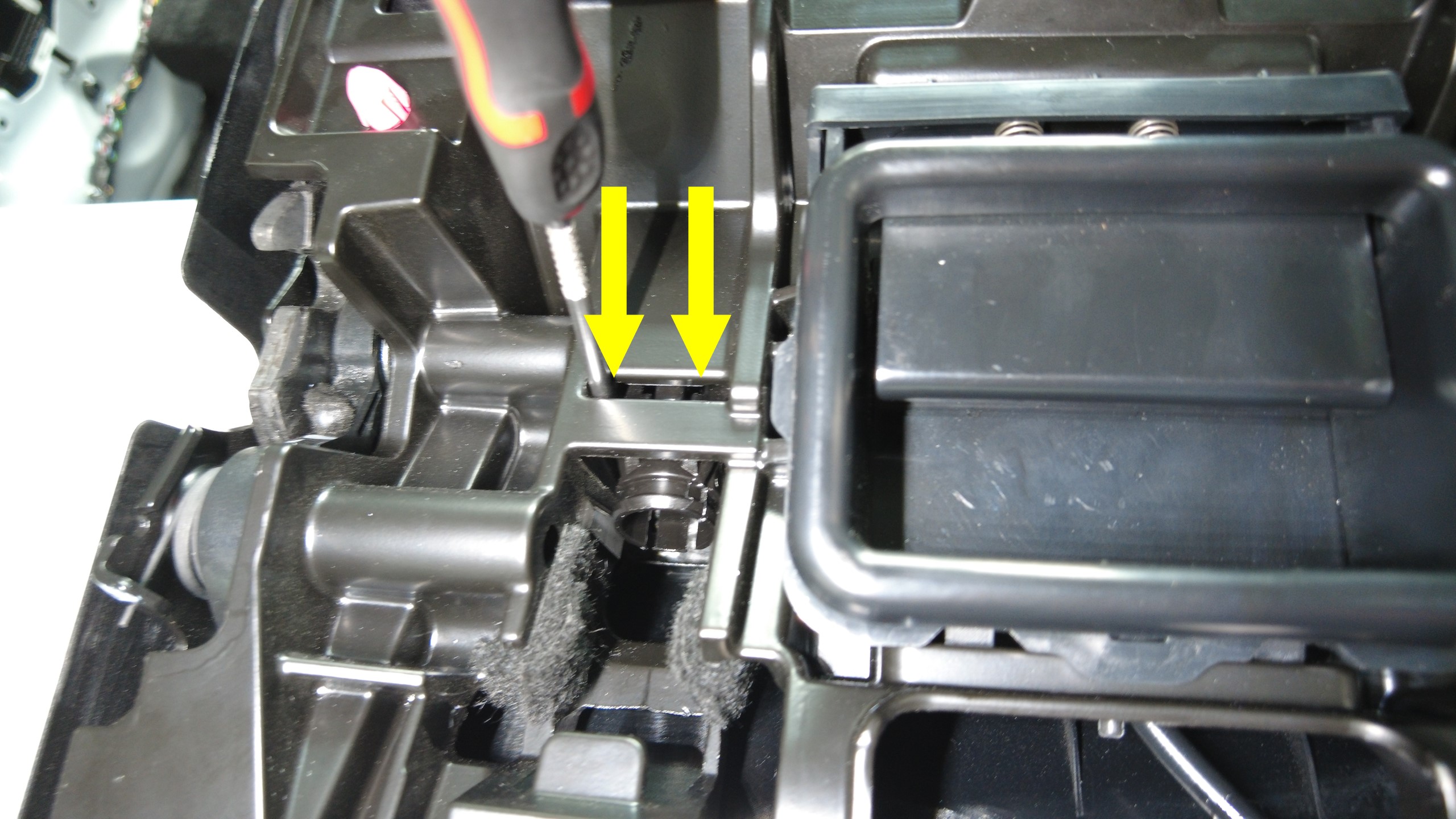

  3. Release the tabs (x2) securing the RH 20 seat back headrest guide lock, and then pry the lock post away from the center seat back.
  4. Remove the 2nd row armrest. See 2nd Row Armrest - 5-Seater (Remove and Replace).

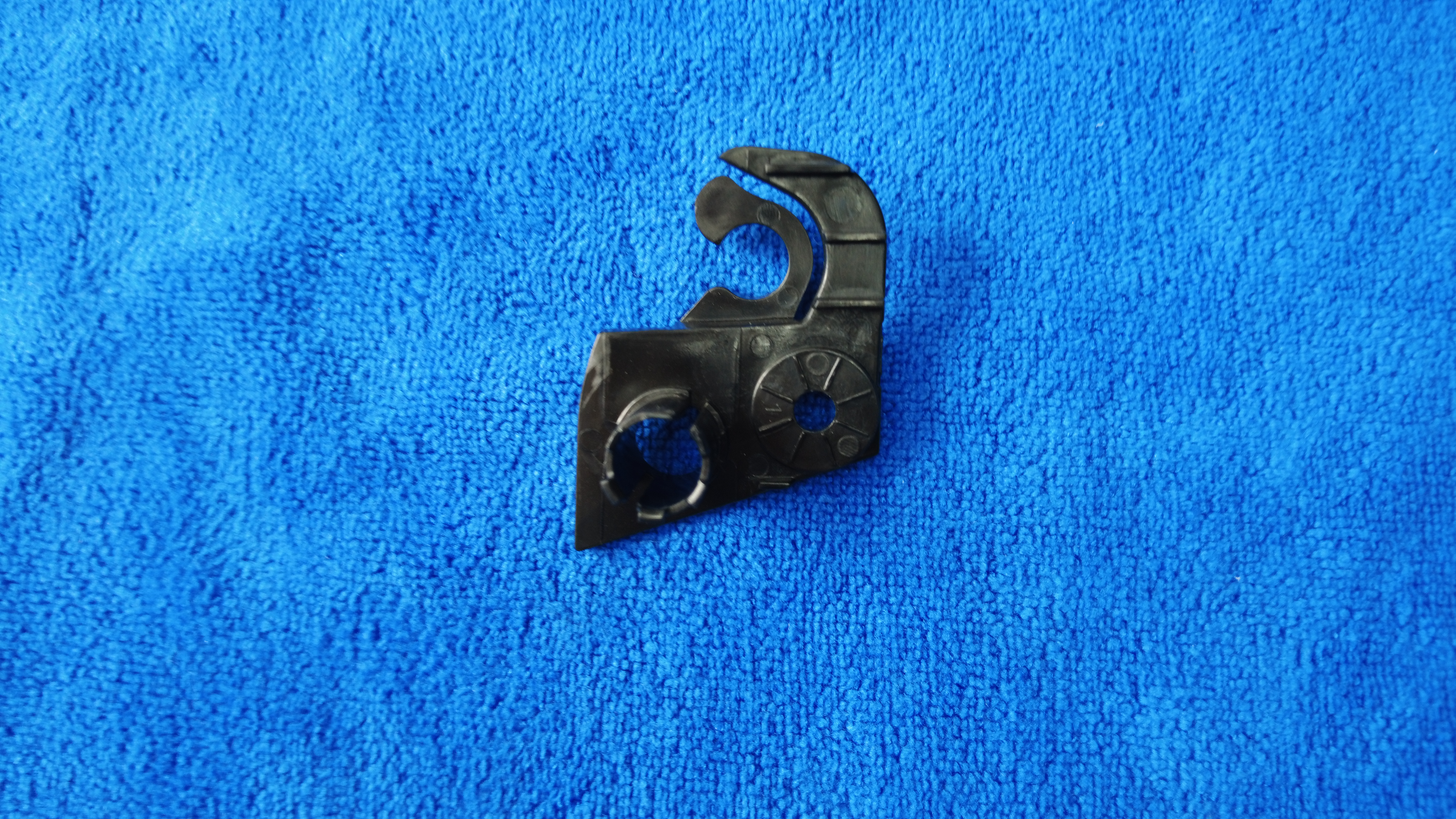

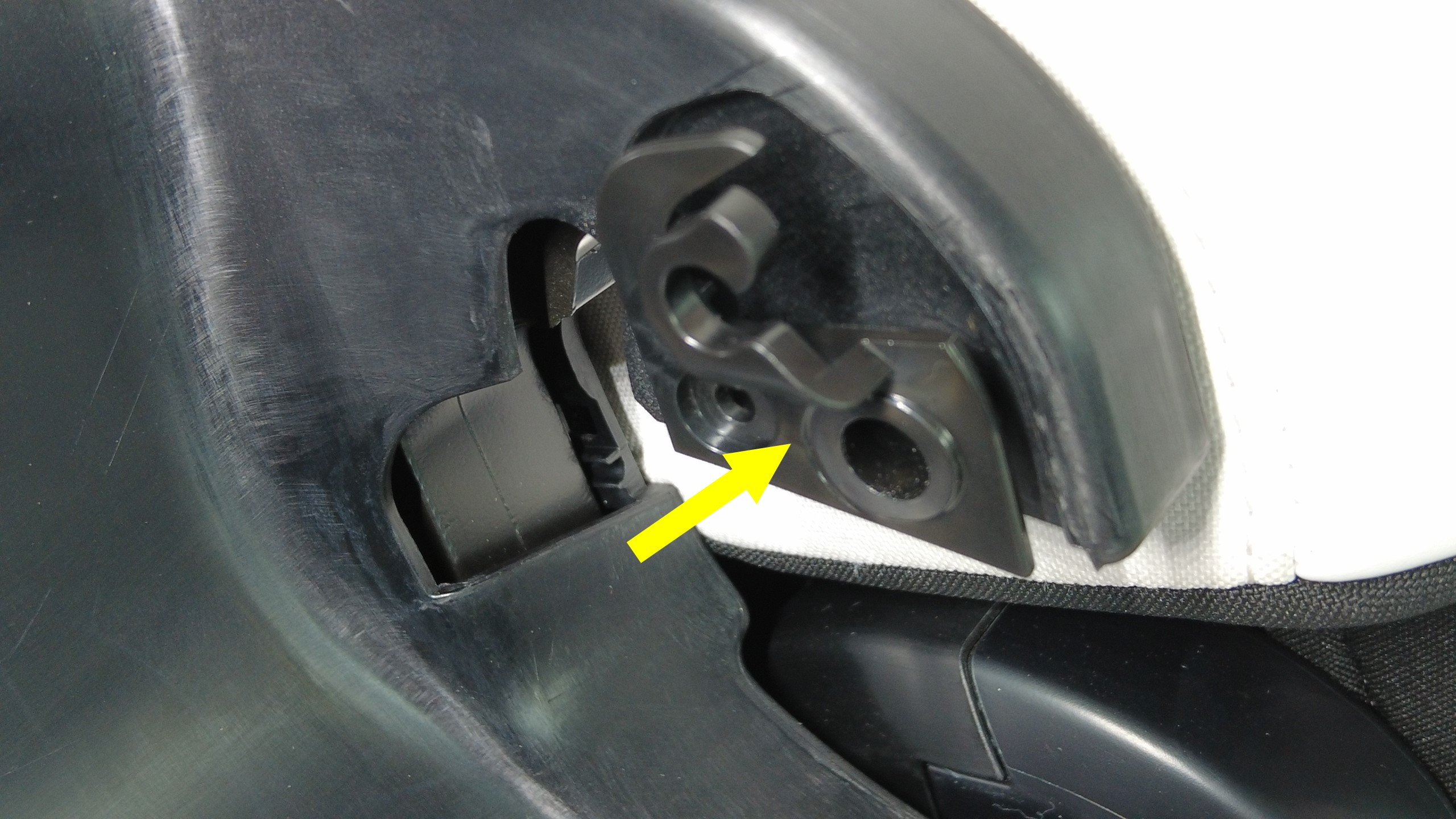

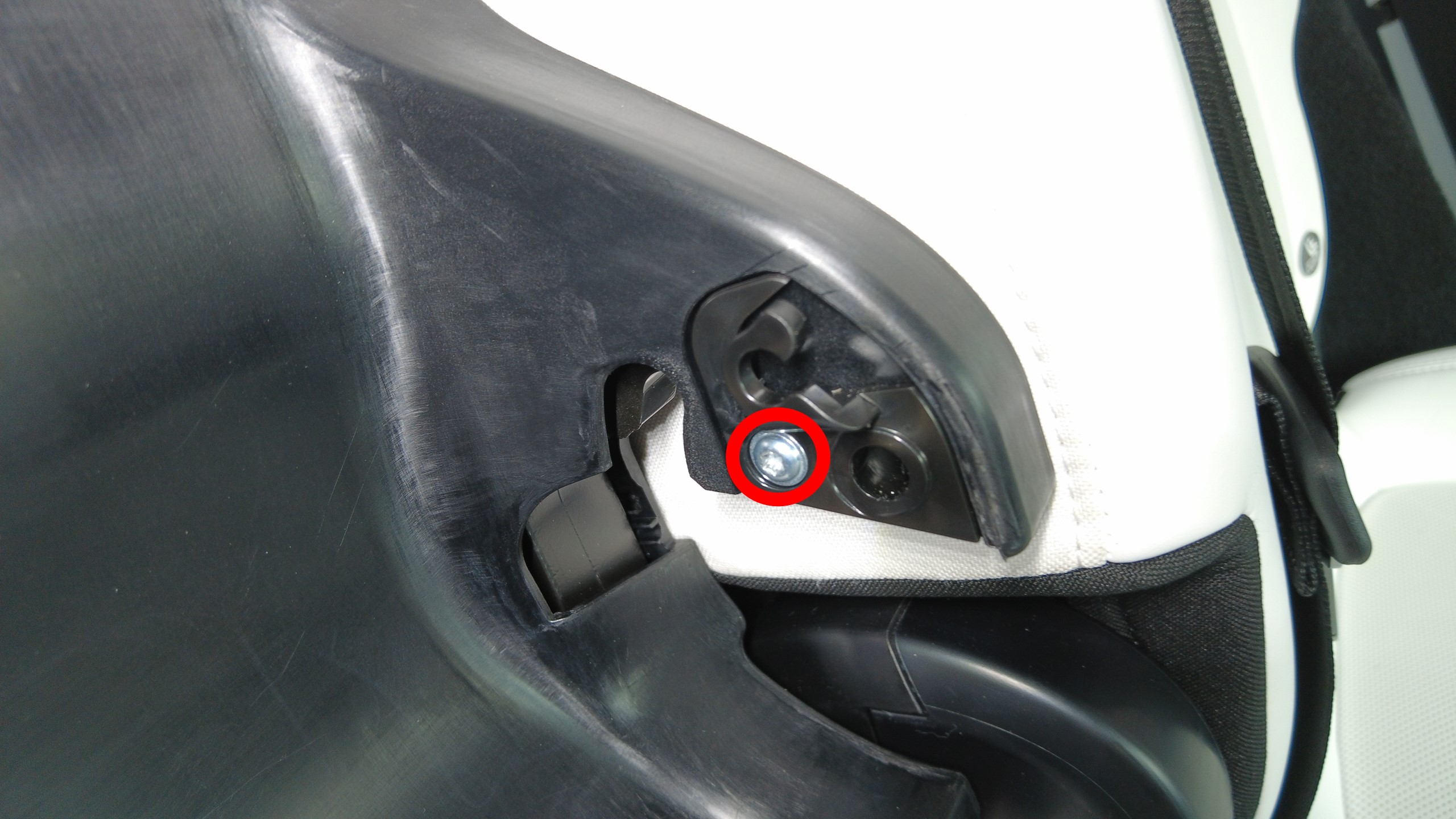

  5. Remove the screw that attaches the LH armrest detent to the 2nd row closeout assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Discard the armrest detent after removal.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • SKT, 1/4" DR, HEX BIT, T20 TORX

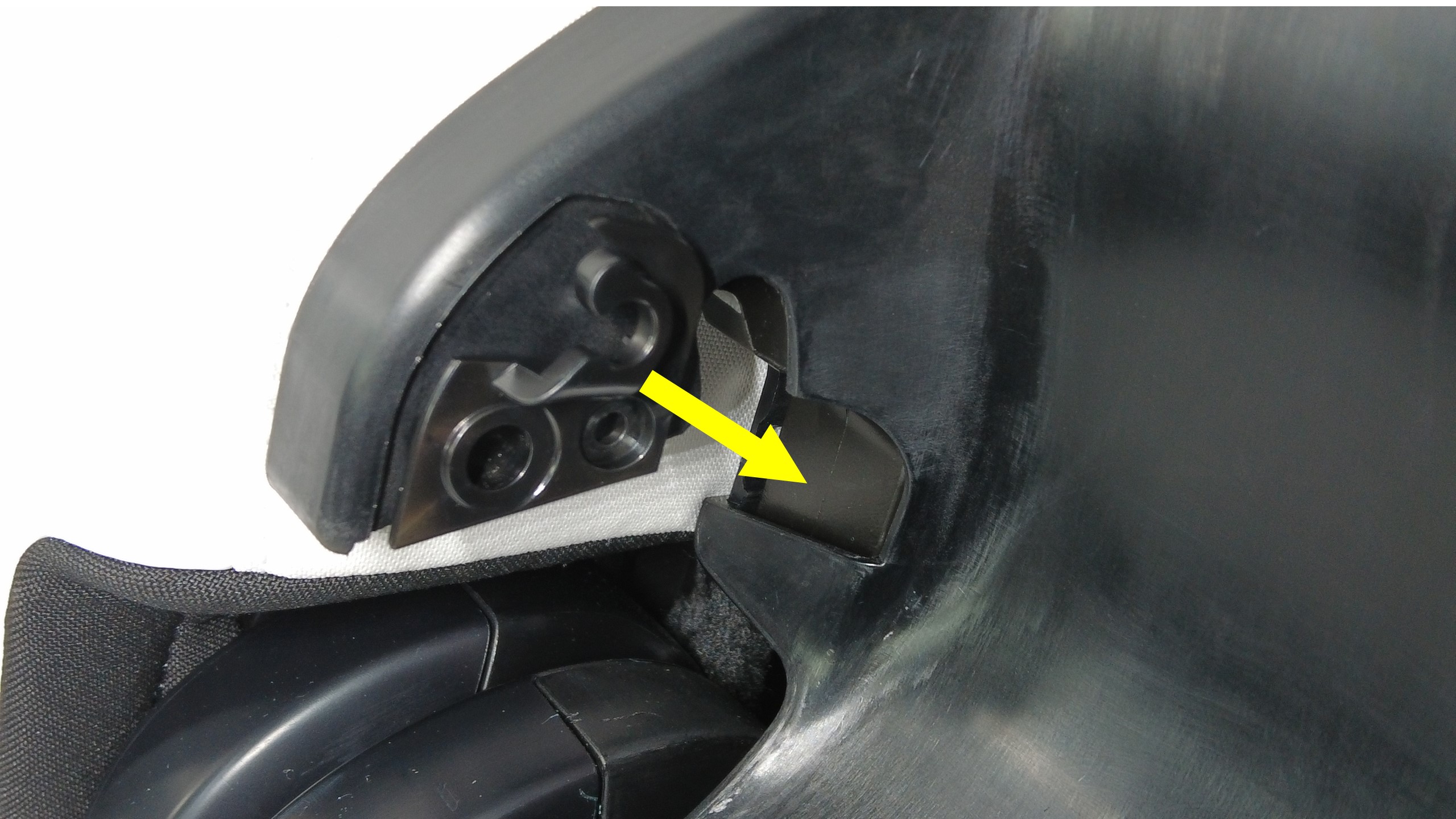

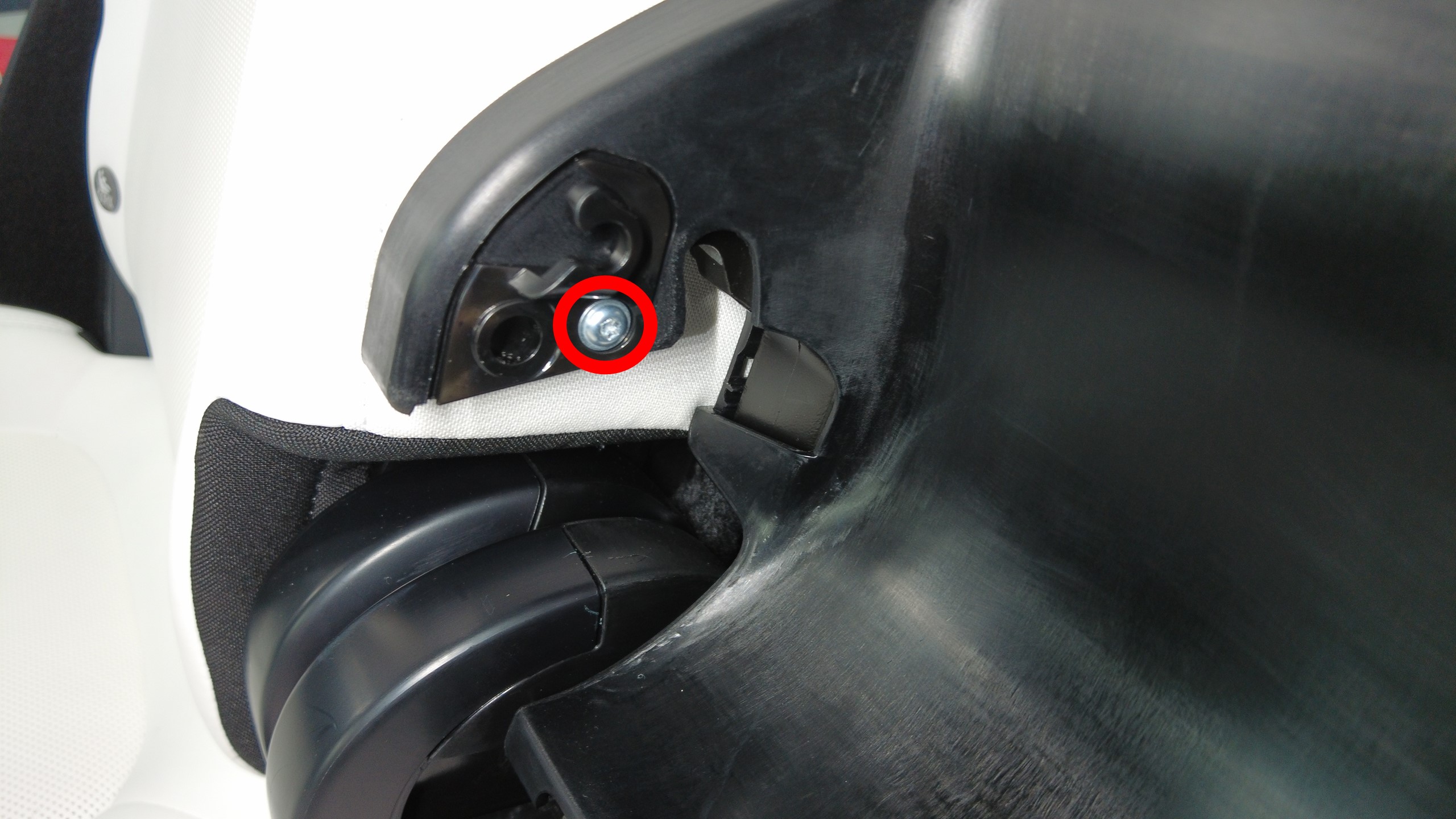

  6. Remove the screw that attaches the RH armrest detent to the 2nd row closeout assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Discard the armrest detent after removal.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • SKT, 1/4" DR, HEX BIT, T20 TORX
  7. Remove the center seatback pivot clamps. See 2nd Row - 5 - Seater Center Pivot Bracket Clamp (Remove and Replace).
  8. Remove the 2nd row closeout assembly from the 2nd row 20 seat frame.
  9. Release the clips (x5) that attach the 2nd row center seat back frame to the 2nd row center closeout.
    Informational PurposesAn informational icon, calling your attention
    Note
    Discard the clips after removal.

Install

  1. Install new clips (x5) that attach the 2nd row center closeout to the 2nd row center seat back frame.
  2. Install the 2nd row closeout assembly to the 2nd row 20 seat frame.
  3. Install the center seatback pivot clamps. See 2nd Row - 5 - Seater Center Pivot Bracket Clamp (Remove and Replace).

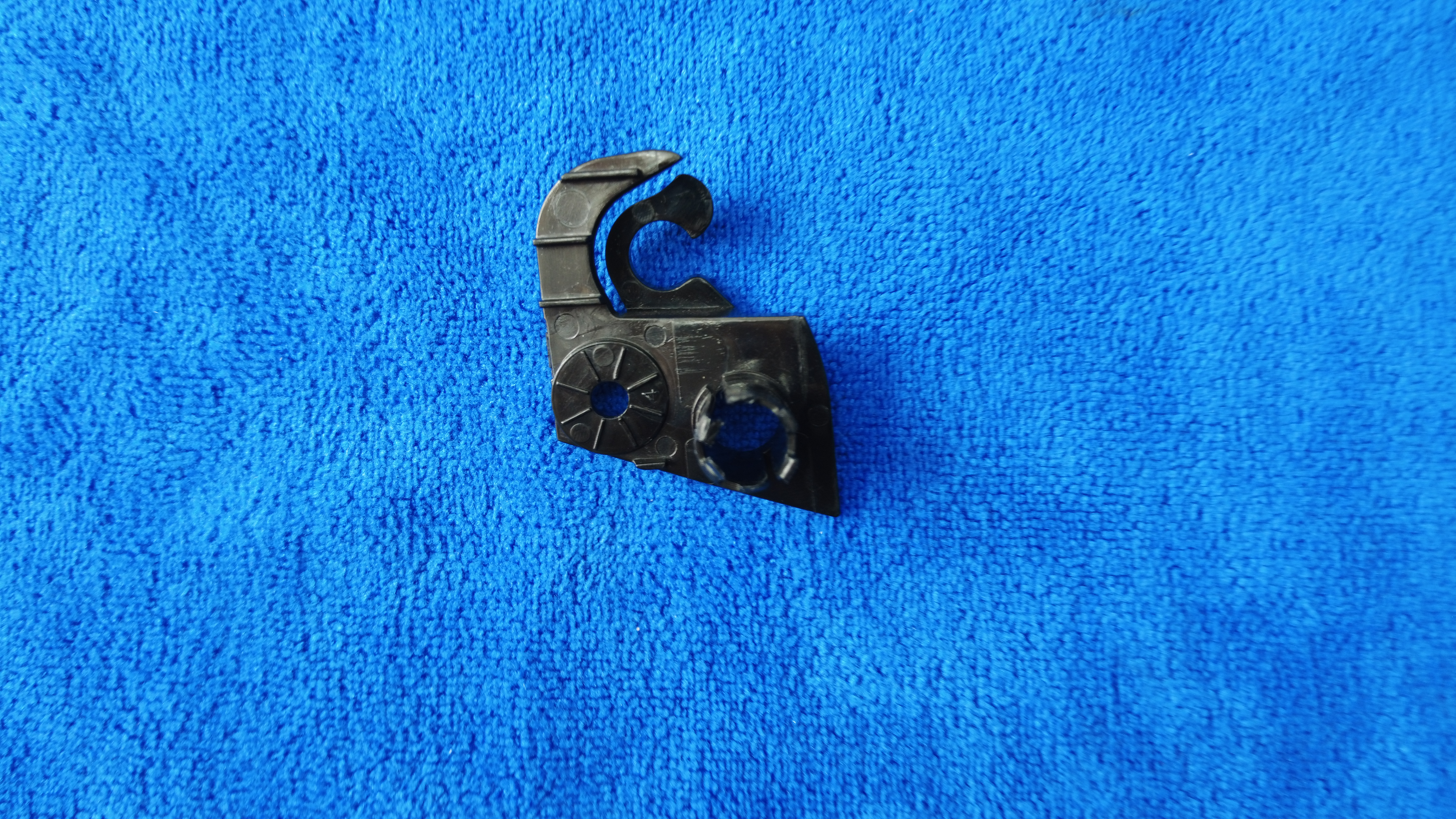

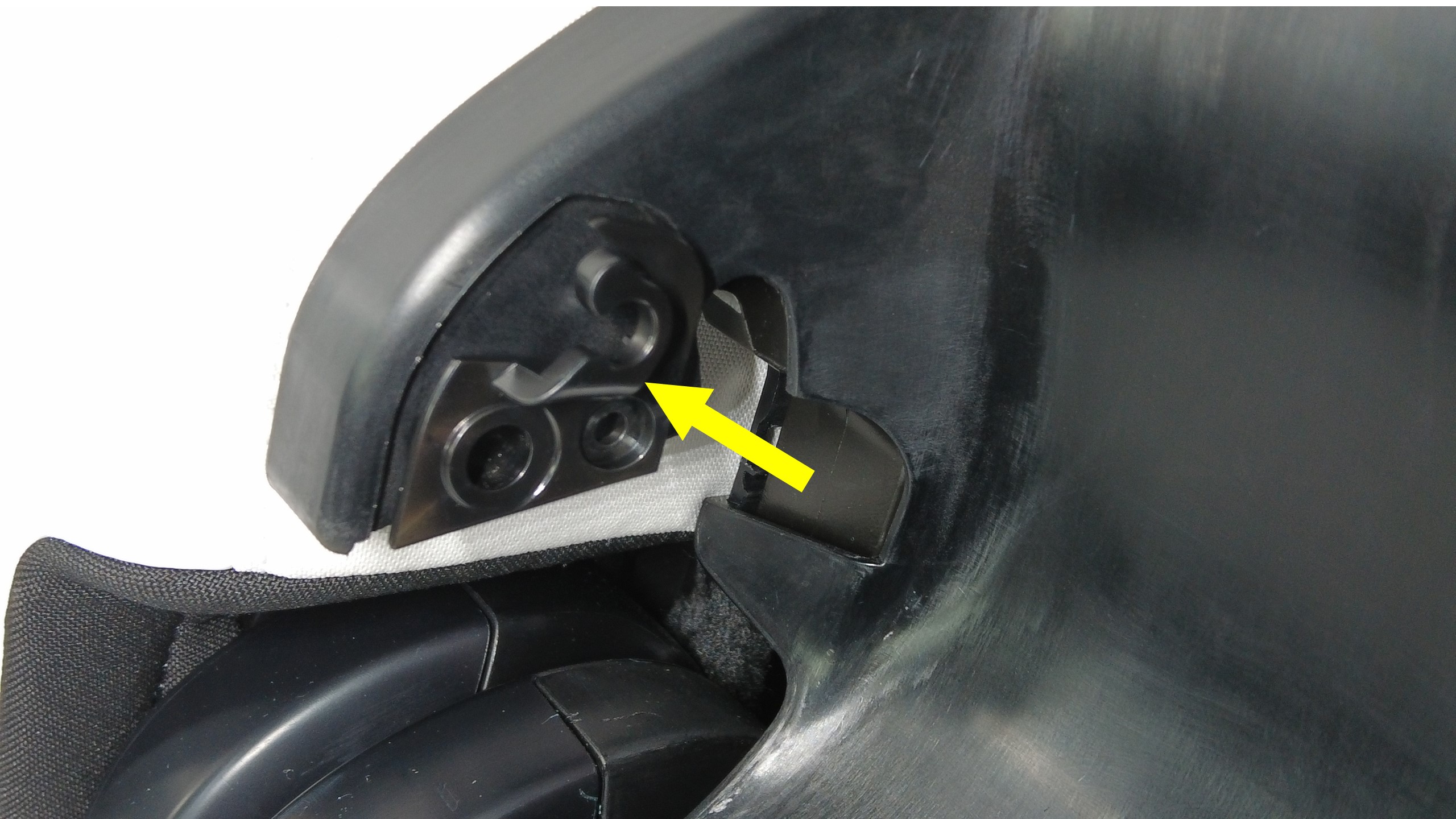

  4. Position a new armrest detent (1518739-00-B) onto the 2nd row closeout assembly, and then install the screw that attaches the RH armrest detent to the 2nd row closeout assembly.
    3.8 Nm (2.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • SKT, 1/4" DR, HEX BIT, T20 TORX
  5. Position a new armrest detent (1518740-00-B) onto the 2nd row closeout assembly, and then install the screw that attaches the LH armrest detent to the 2nd row closeout assembly.
    3.8 Nm (2.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • SKT, 1/4" DR, HEX BIT, T20 TORX
  6. Install the 2nd row armrest. See 2nd Row Armrest - 5-Seater (Remove and Replace).

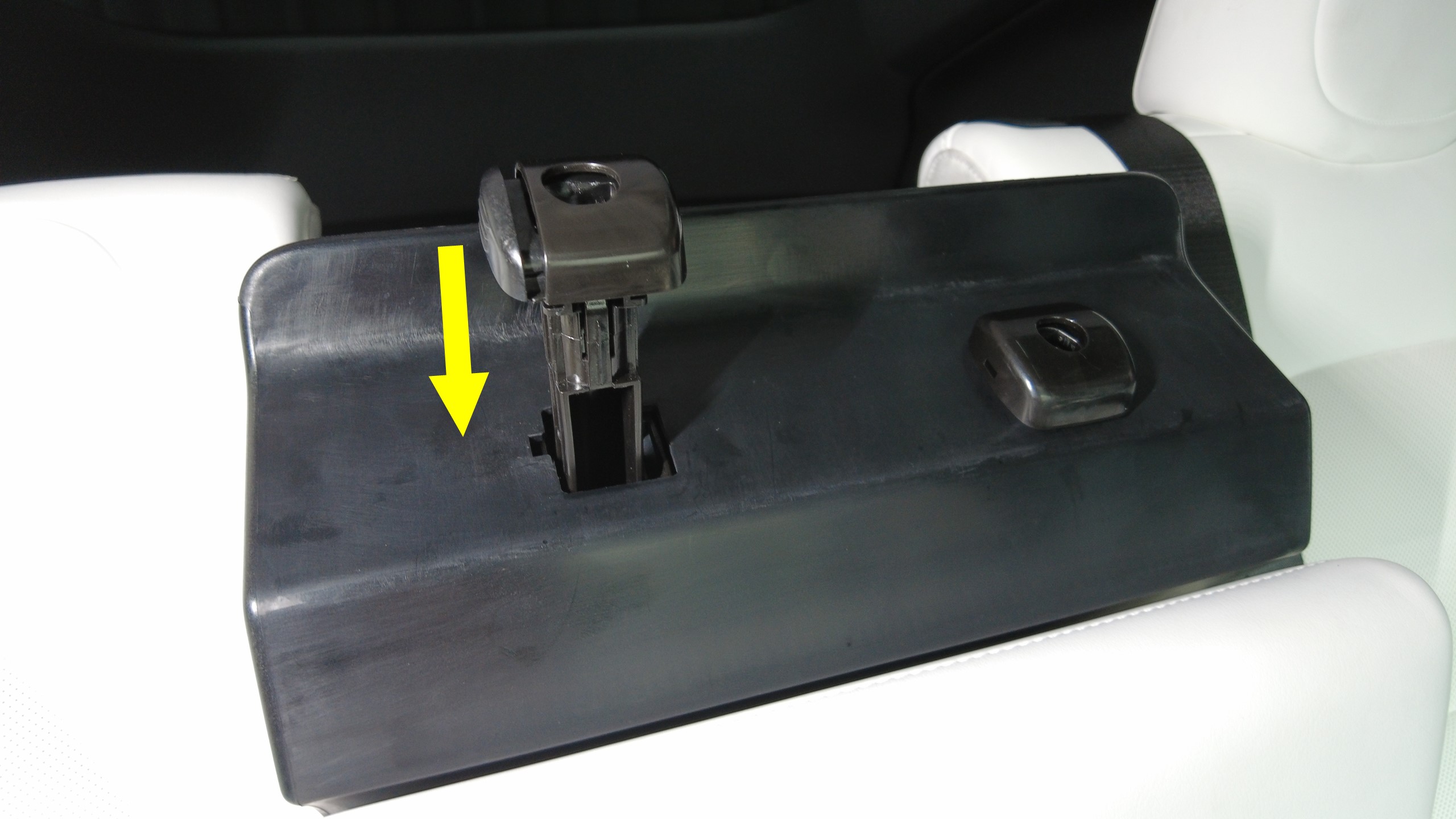

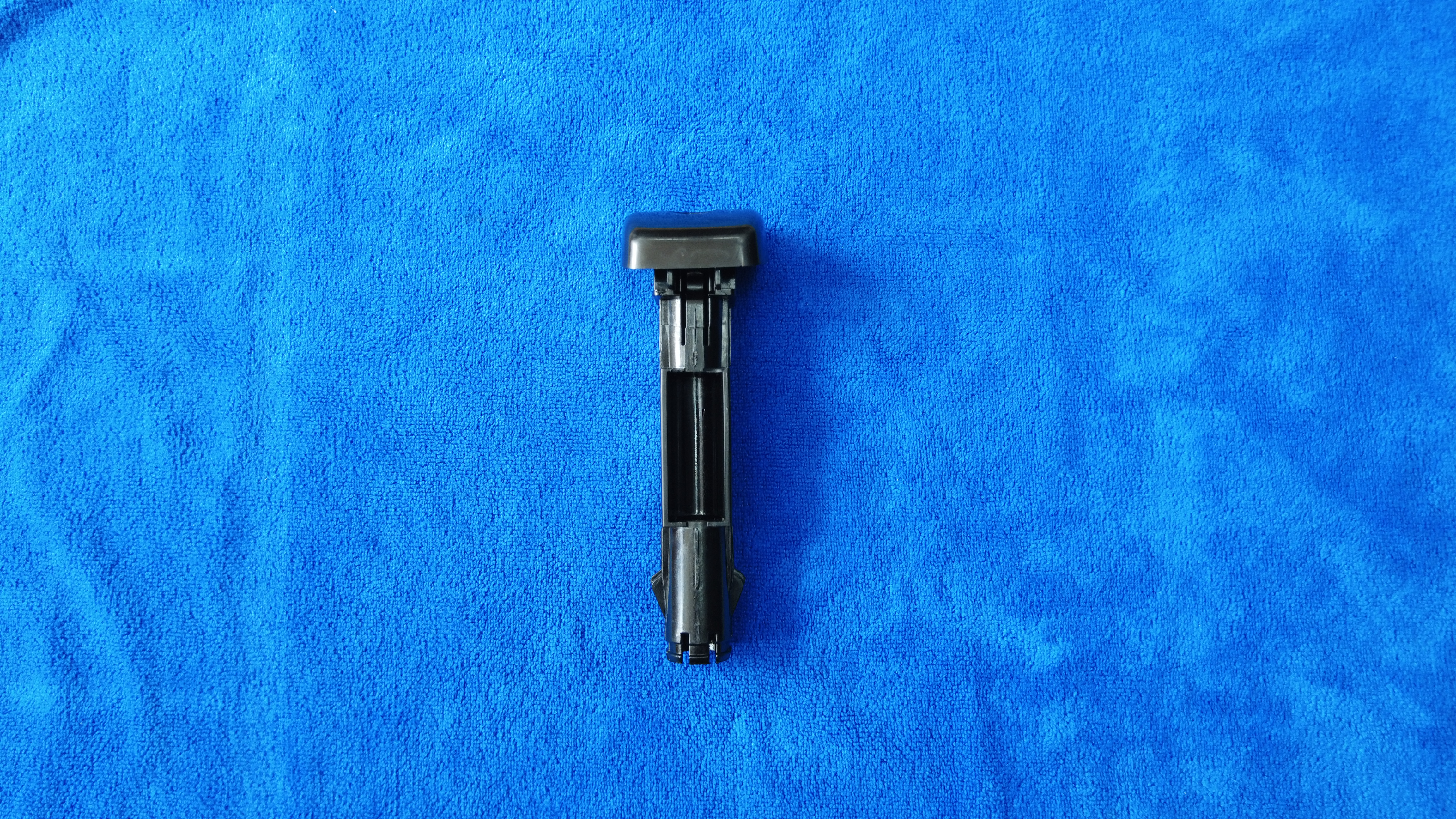

  7. Install the LH headrest guide lock to the 2nd row LH 20 seat back.
  8. Install the RH headrest guide lock to the 2nd row LH 20 seat back.
  9. Install the 2nd row center headrest. See 2nd Row - Center Headrest (Remove and Replace).
