Harness - Instrument Panel Trim - RH (LHD) (Remove and Replace)
Correction code
1710010302
FRT
1.44
NOTE: Unless
otherwise explicitly stated in the procedure, the correction code and its
associated FRT reflect all of the work required to perform this procedure,
including the linked procedures. Do not stack correction
codes unless explicitly told to do so.
NOTE: See Flat Rate Times to
learn more about FRTs and how they are created.
NOTE: See Personal Protection to make
sure you are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy
working practices.
Remove
- Remove the instrument panel upper assembly. See Assembly - Instrument Panel - Upper (Remove and Replace).
-

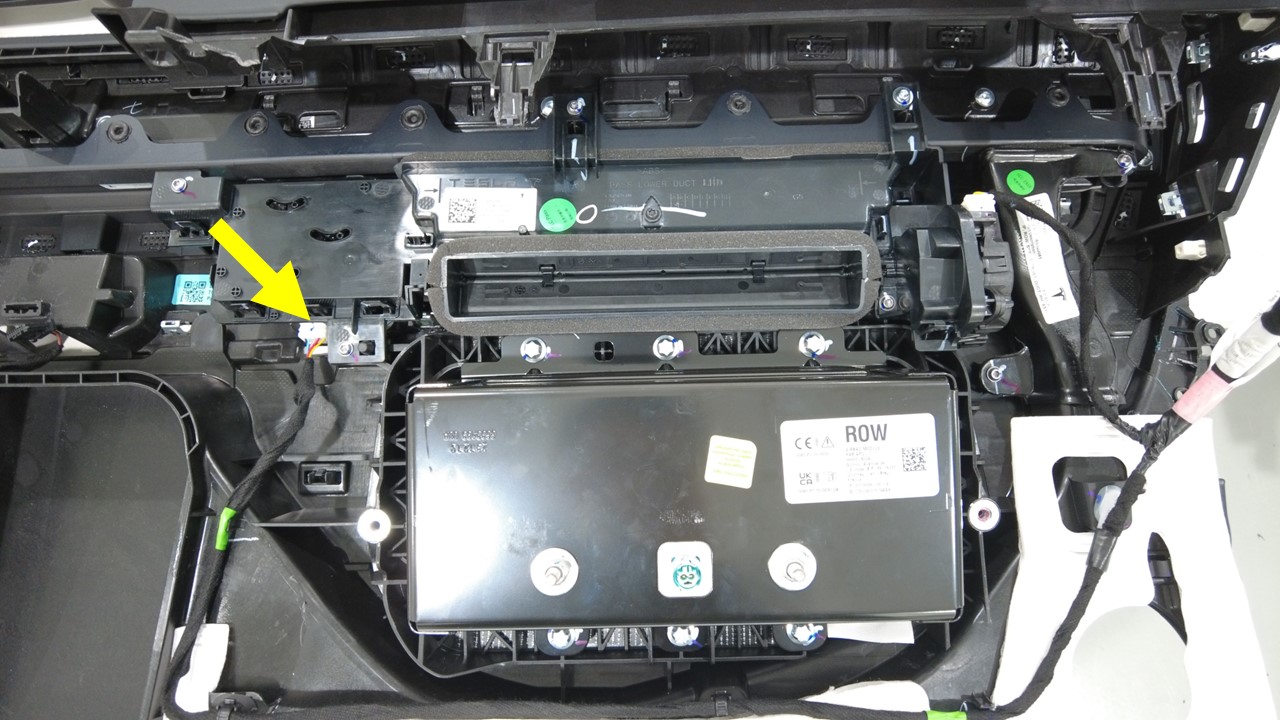

Disconnect the RH air duct height adjustment actuator connector.
-

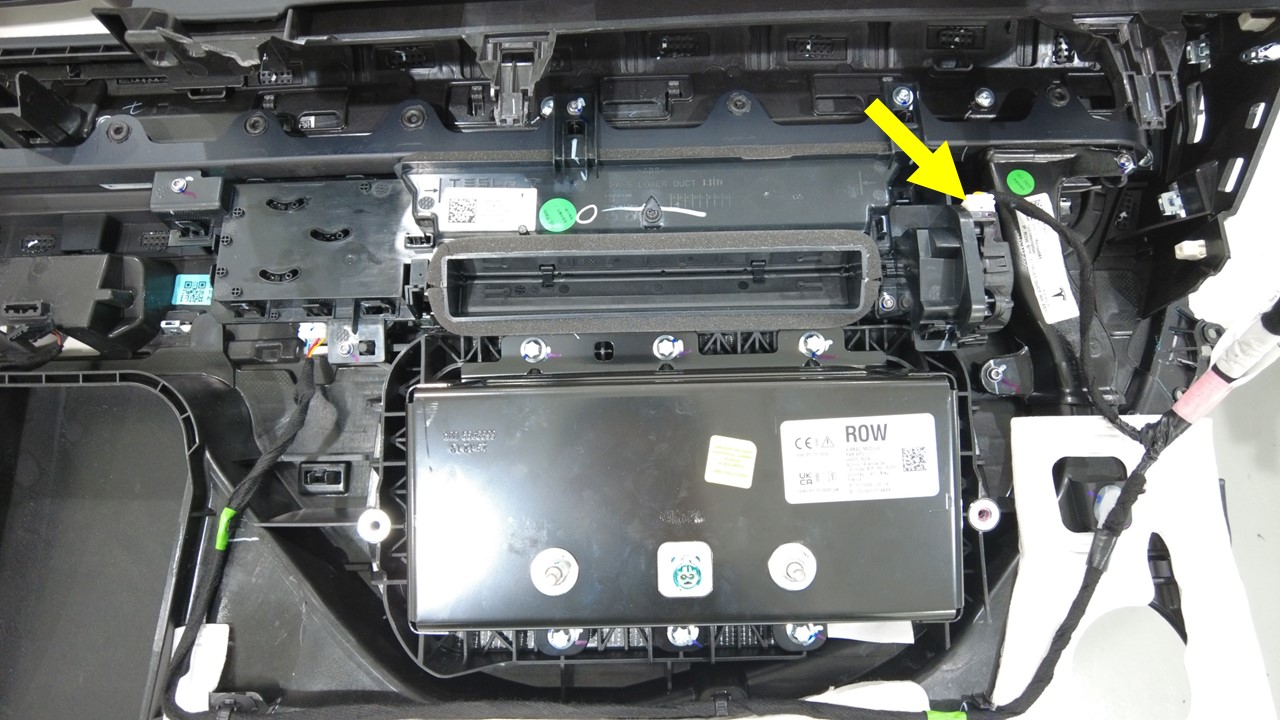

Disconnect the RH air duct horizontal adjustment actuator connector.
-

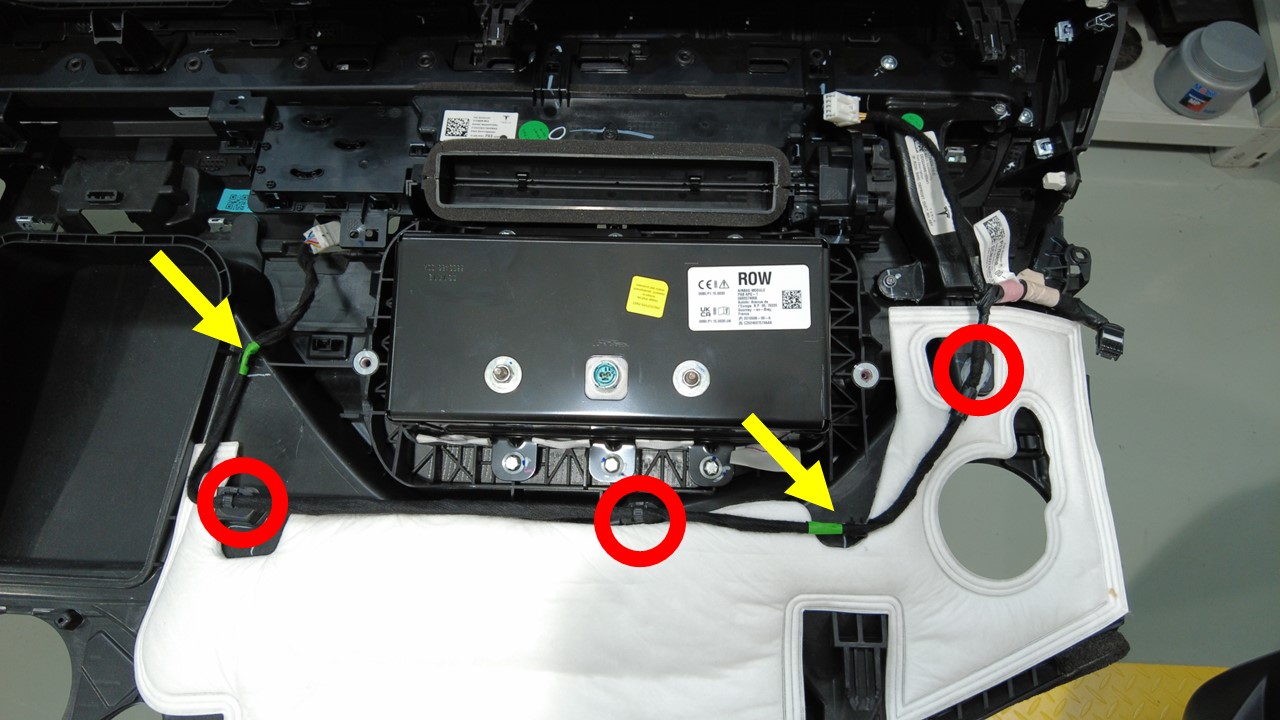

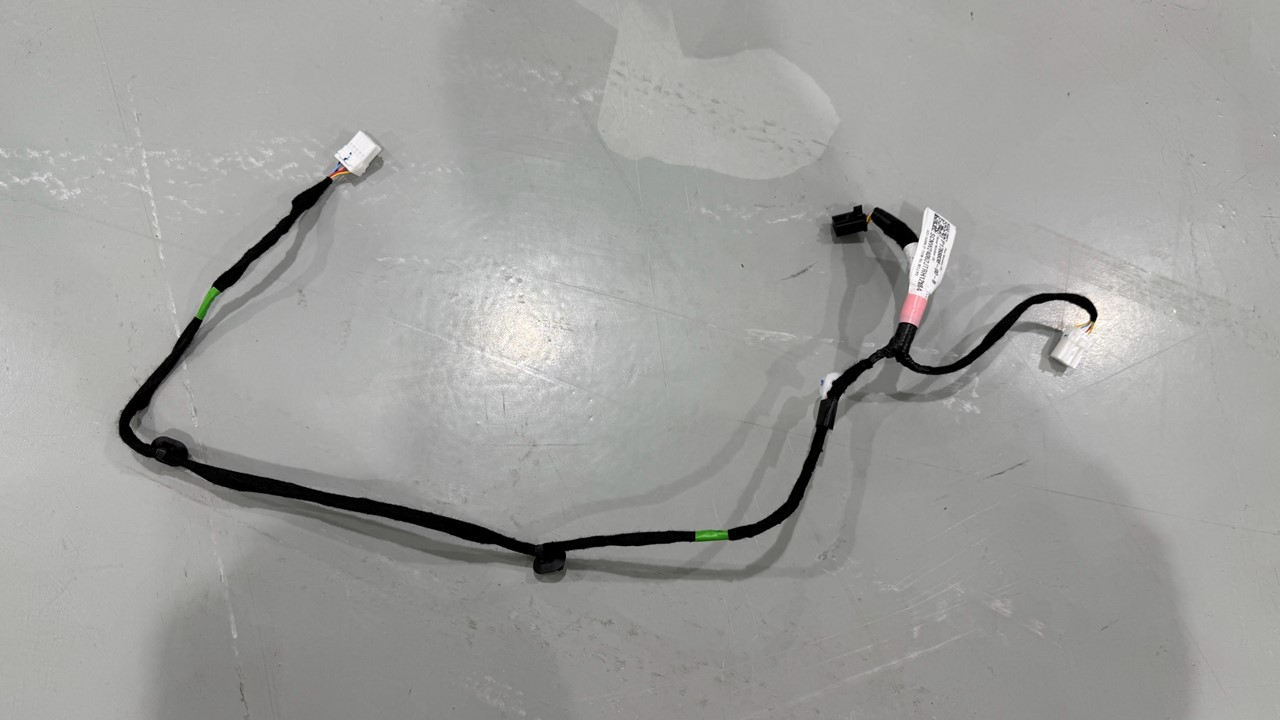

Remove the clips (x3) and tabs (x2) to remove the RH instrument panel trim
harness.
Install
-
Install the clips (x3) and tabs (x2) to secure the RH instrument panel trim
harness.
-
Connect the RH air duct horizontal adjustment actuator connector.
-
Connect the RH air duct height adjustment actuator connector.
- Install the instrument panel upper assembly. See Assembly - Instrument Panel - Upper (Remove and Replace).
