Ball Stud Bracket - Liftgate - LH (Model Y Standard) (Remove and Replace)

Correction code TBD FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.

Remove

  1. Open the liftgate.

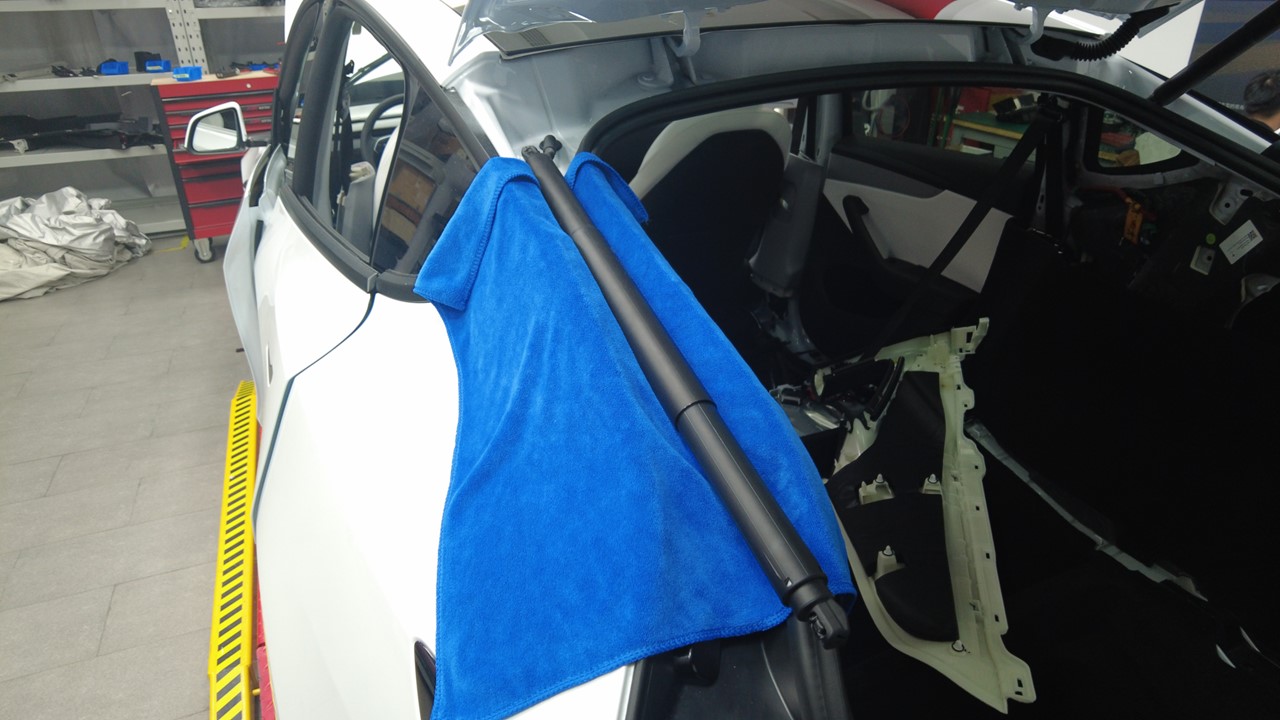

  2. Use a prop to support the liftgate.

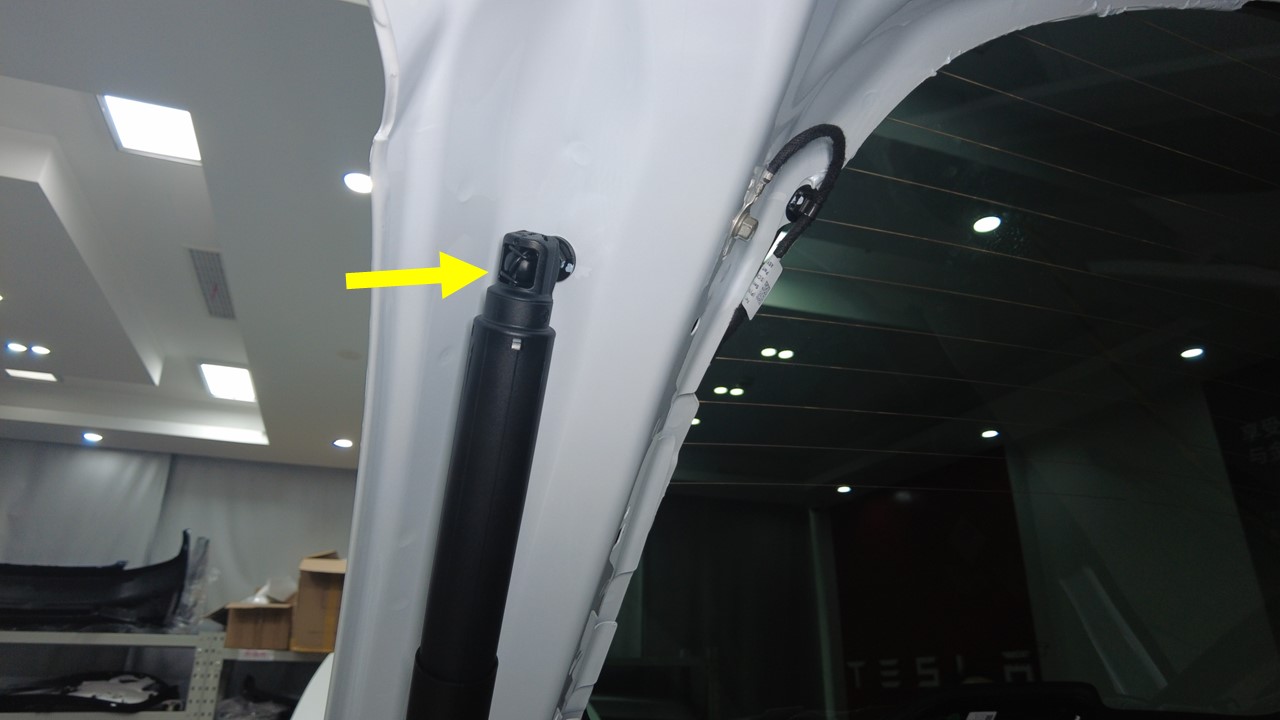

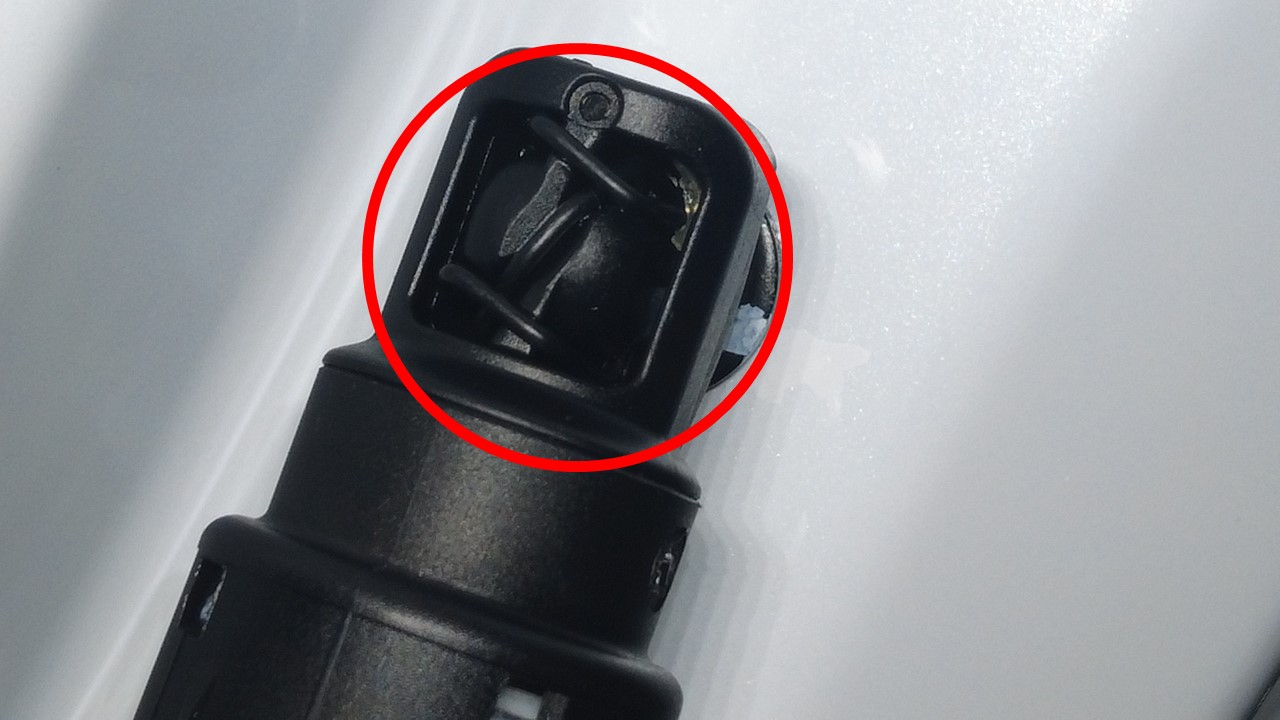

  3. Release the LH liftgate power strut clip, separate the LH liftgate power strut from the ball stud, and then move the power strut aside.

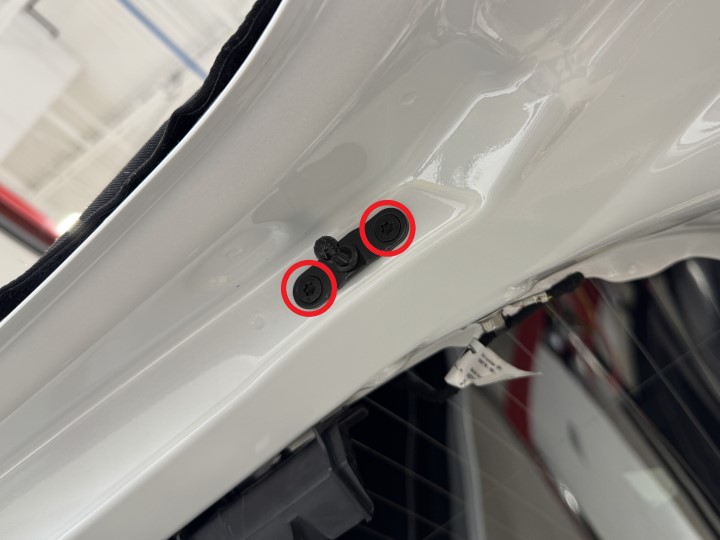

  4. Remove the bolts (x2) that attach the LH ball strut bracket to the body, and then remove the bracket from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T30 socket

Install

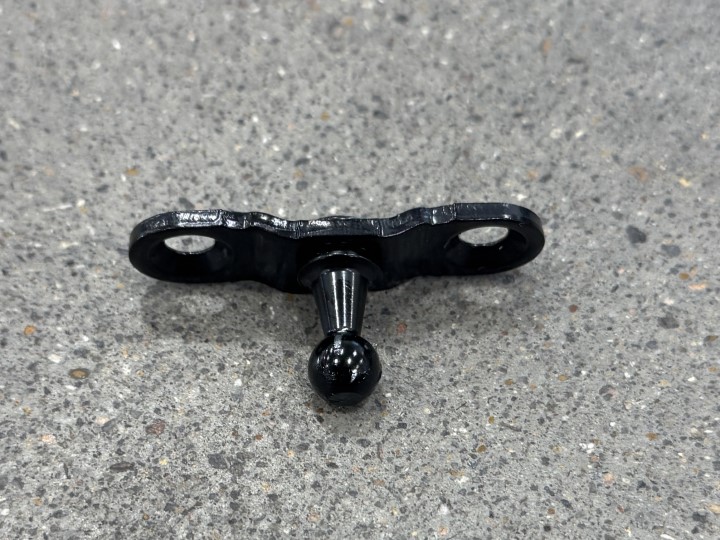

  1. Position the LH liftgate ball stud bracket into the vehicle and then install the bolts (x2) that attach the ball stud bracket to the vehicle.
    NaN Nm (NaN lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T30 socket

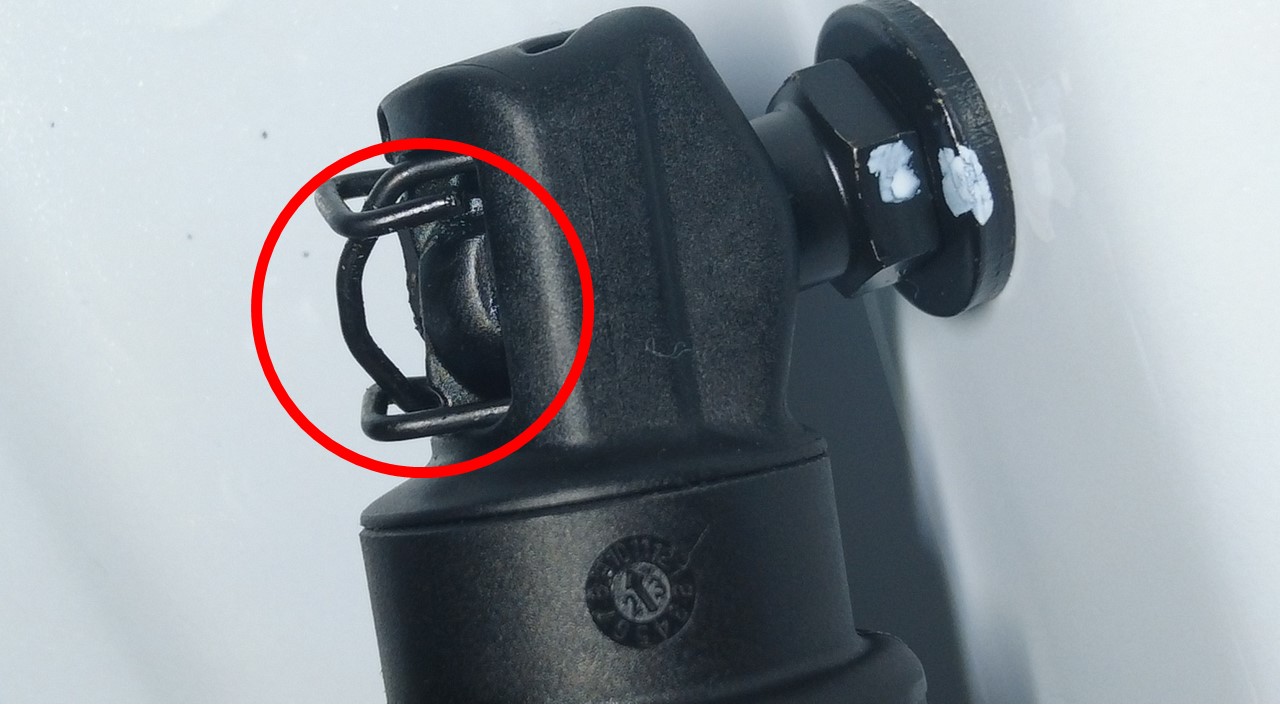

  2. Install the clip that attaches the LH upper power strut to the ball stud.
    Informational PurposesAn informational icon, calling your attention
    Note
    Ensure that the clip has been reset before securing.
  3. Remove the liftgate support.
  4. Close the liftgate.
