Air Vent - Rear - Center Console (Model Y Standard) (Remove and Replace)

Correction code TBD FRT 0.42 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Remove the rear end module. See Module - Rear End - Center Console (Model Y Standard) (Remove and Replace).
  2. Remove the USB panel assembly. See USB Panel - Center Console (Model Y Standard) (Remove and Replace).

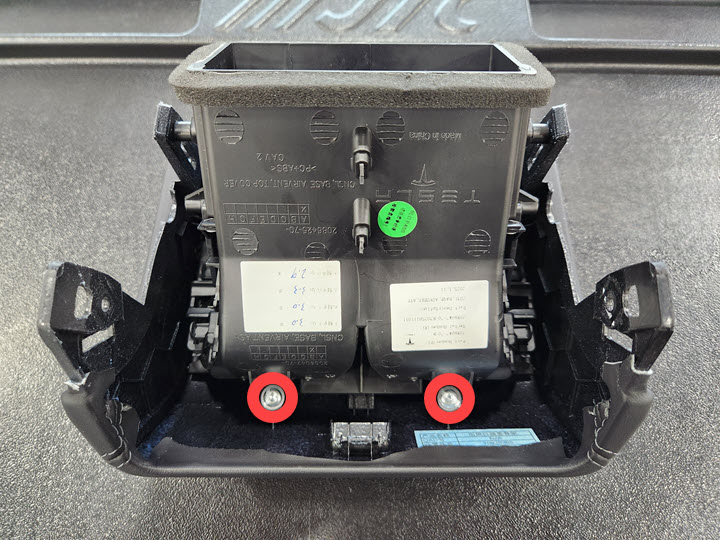

  3. Remove the screws (x2) that attach the air vent to the rear cover assembly.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 bit
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm

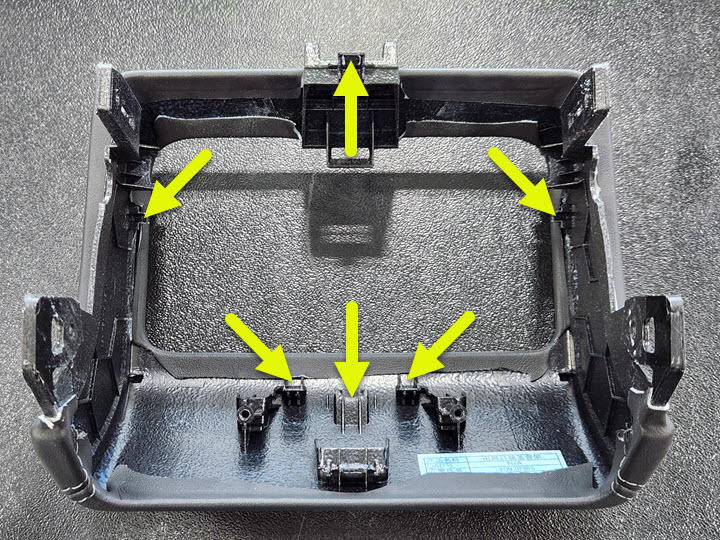

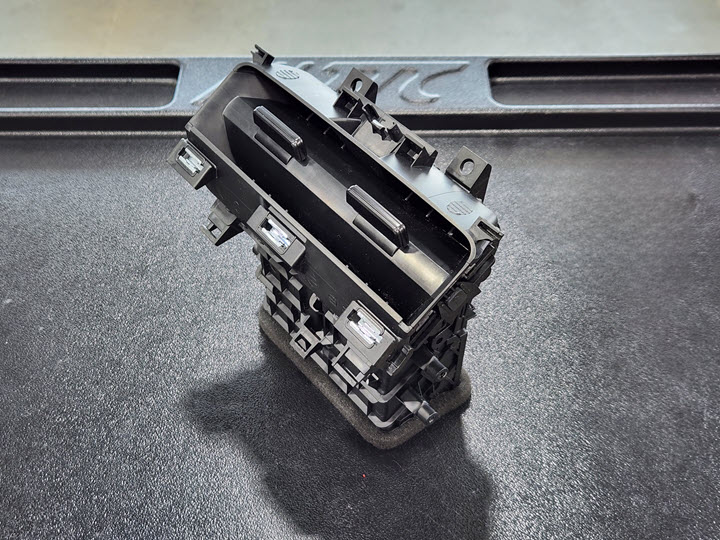

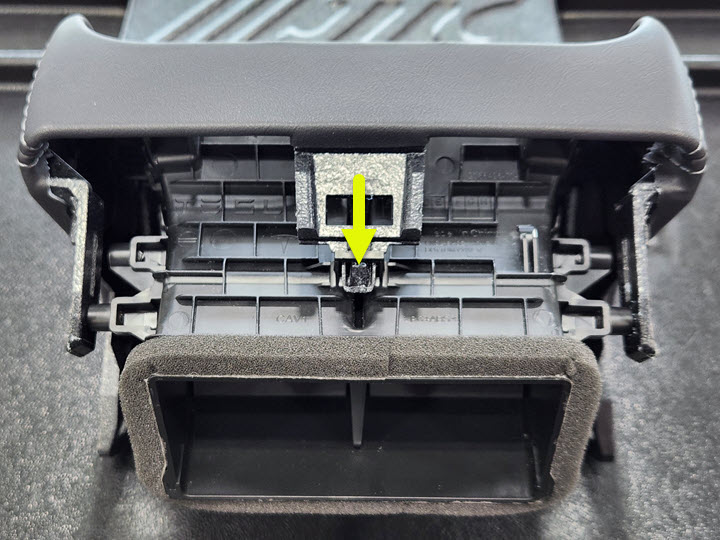

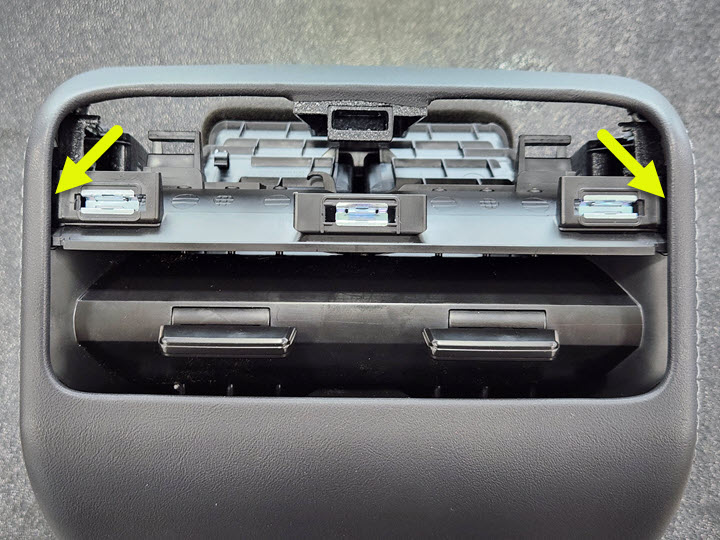

  4. Release the tabs (x3) and location guides (x3) that attach the air vent to the rear cover assembly, and then remove the air vent from the assembly.

Install

  1. Align the air vent location guides (x3), and then install the tabs (x3) that attach the air vent to the rear cover assembly.
  2. Install the screws (x2) that attach the air vent to the rear cover assembly.
    1.2 Nm (.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 bit
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm
  3. Install the USB panel assembly. See USB Panel - Center Console (Model Y Standard) (Remove and Replace).
  4. Install the rear end module. See Module - Rear End - Center Console (Model Y Standard) (Remove and Replace).
