Duct - Center Console (Remove and Replace)
Correction code
1810010312
FRT
0.36
NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so.
NOTE: See Flat Rate Times to learn more about FRTs and how they are created.
NOTE: See Personal Protection to make sure you
are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy working practices.
Remove
- Remove the center console. See Center Console (Remove and Install).
-

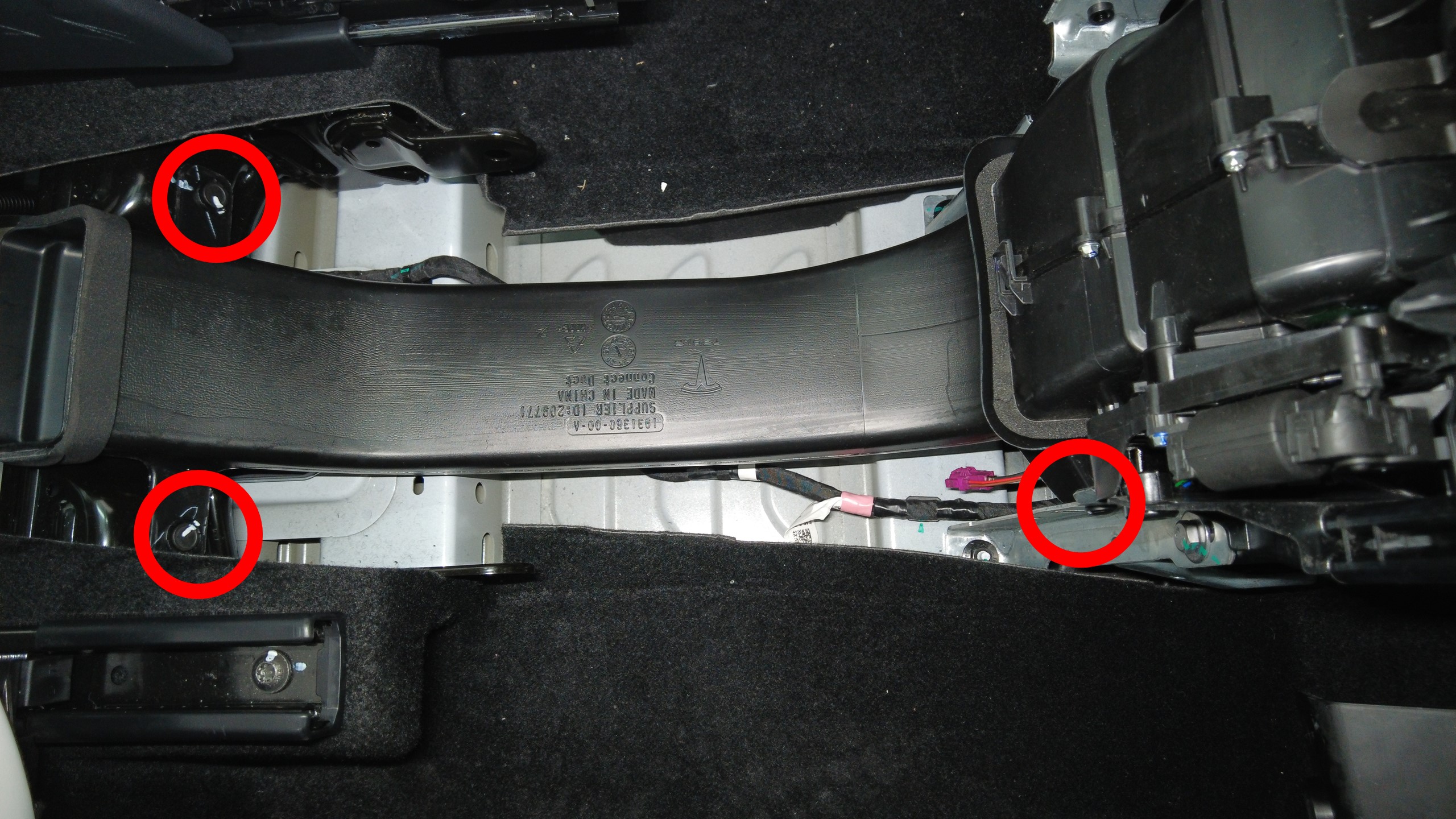

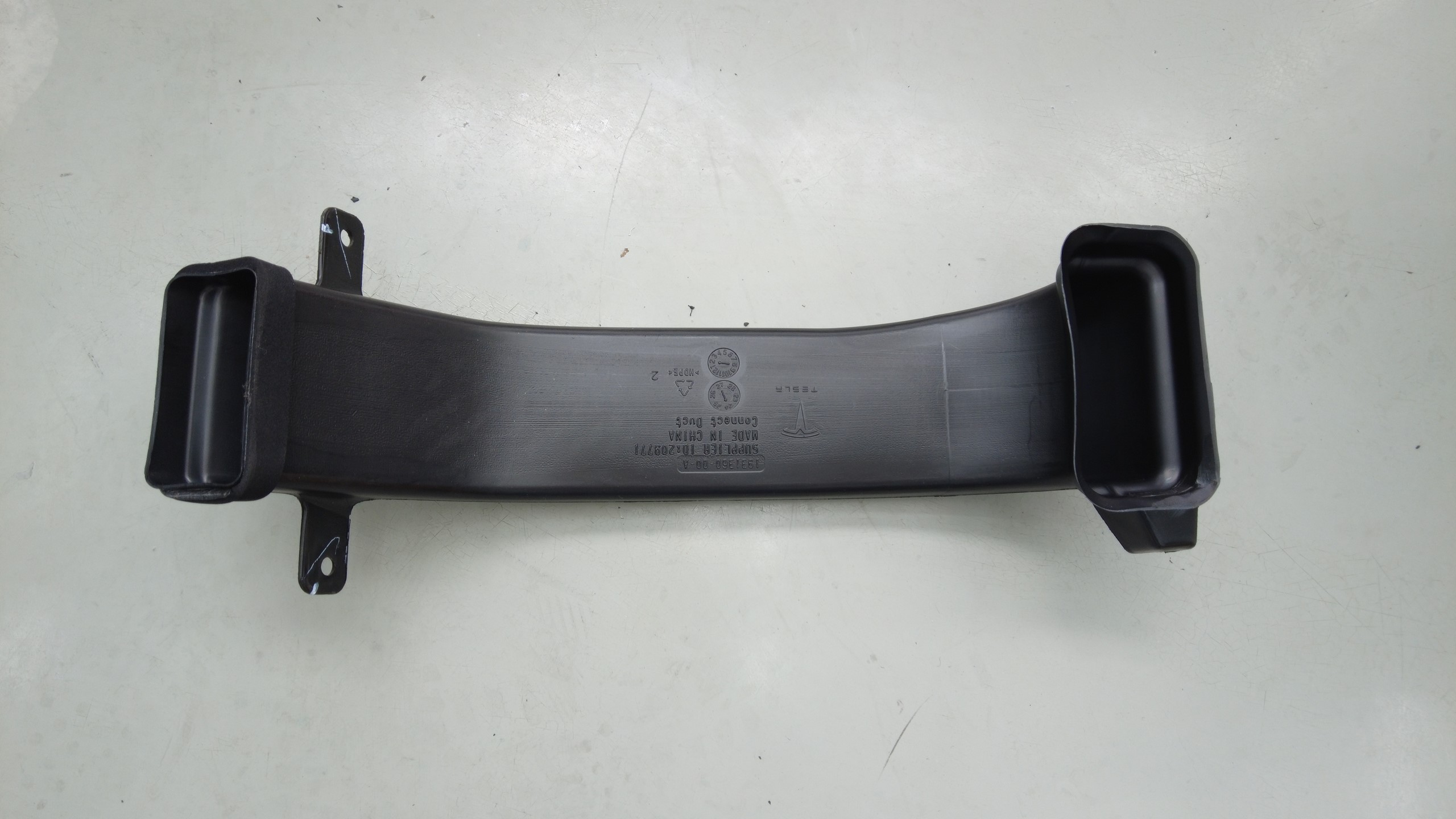

Remove the clips (x3) that secure the console duct, and then remove the duct from the
vehicle.
Install
-
Install the clips (x3) that secure the console duct.

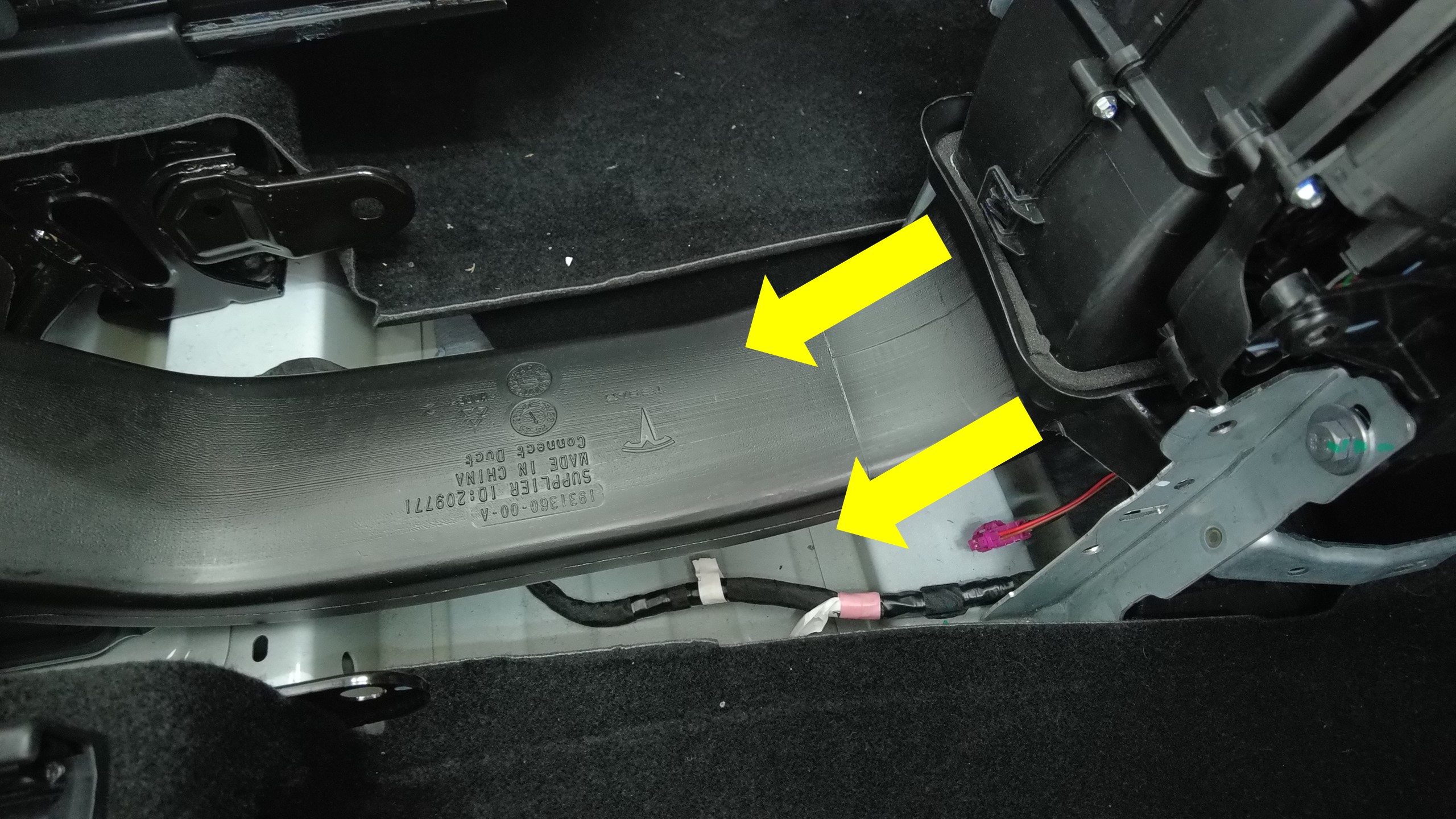

NoteEnsure the center console duct is properly installed to the HVAC assembly.
- Install the center console. See Center Console (Remove and Install).
