Harness - Liftgate Extension (Model Y Standard) (Remove and Replace)
Correction code
TBD
FRT
0.24
NOTE: Unless
otherwise explicitly stated in the procedure, the above correction code and
FRT reflect all of the work required to perform this procedure, including
the linked procedures. Do
not stack correction codes unless explicitly told to do so.
NOTE: See Flat Rate Times to learn more about FRTs and how they are
created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make
sure wearing proper PPE when performing the below procedure.NOTE:
See Ergonomic Precautionsfor safe
and healthy working practices.
Remove
- Remove the liftgate applique carrier. See Carrier - Applique - Liftgate (Model Y Standard) (Remove and Replace).
-

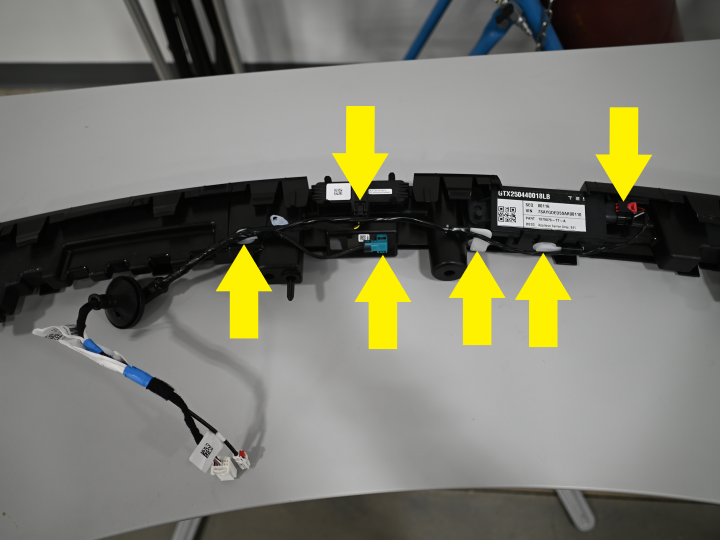

Disconnect the liftgate extension
connectors (x3), release the clips (x3) that attach the harness to the liftgate applique

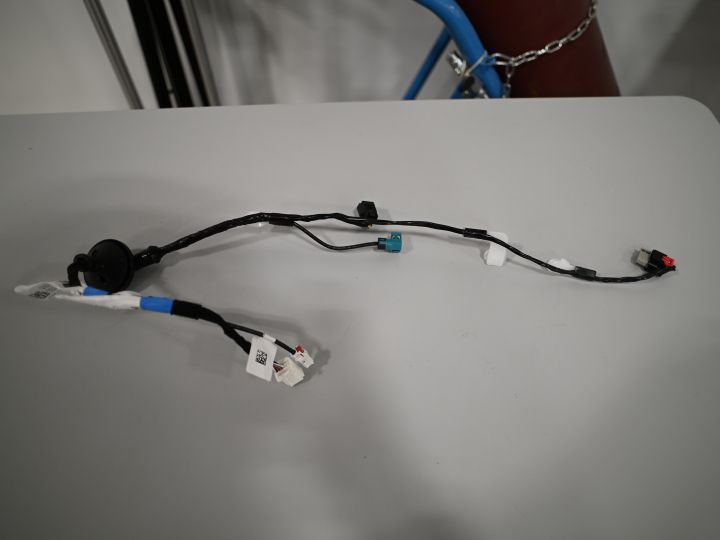

carrier, and then remove the harness from the carrier.
Install
-
Connect the liftgate extension
connectors (x3), and then install the clips (x3) that attach the harness to the liftgate
applique carrier.
- Install the liftgate applique carrier. See Carrier - Applique - Liftgate (Model Y Standard) (Remove and Replace).
