Bolt Cover - Door Trim - Front - LH (Model Y Standard) (Remove and Replace)

Correction code TBD FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

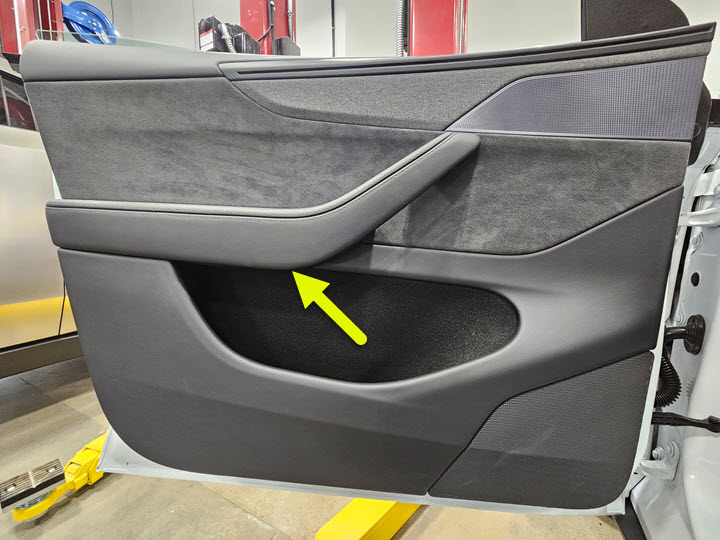

  1. Open the LH front door and lower the LH front window.

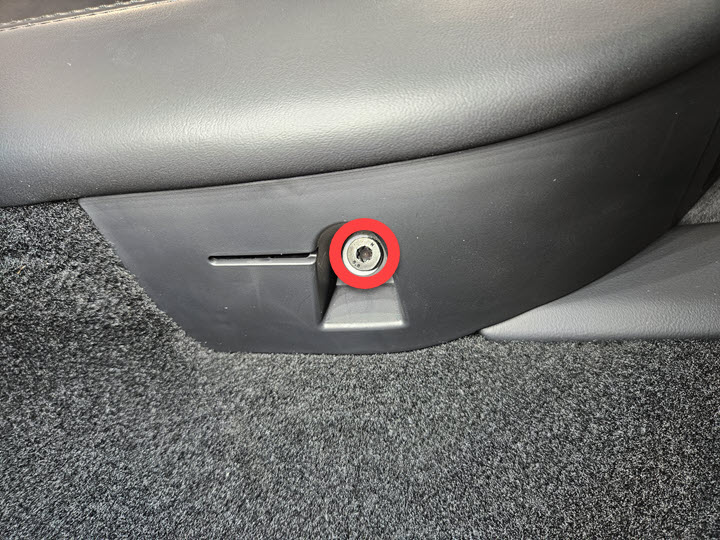

  2. Remove the lower bolt from the LH front door trim.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T30 socket

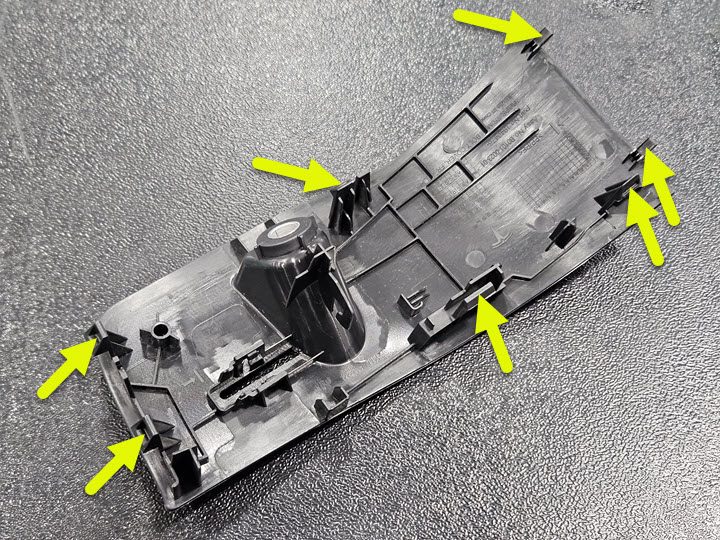

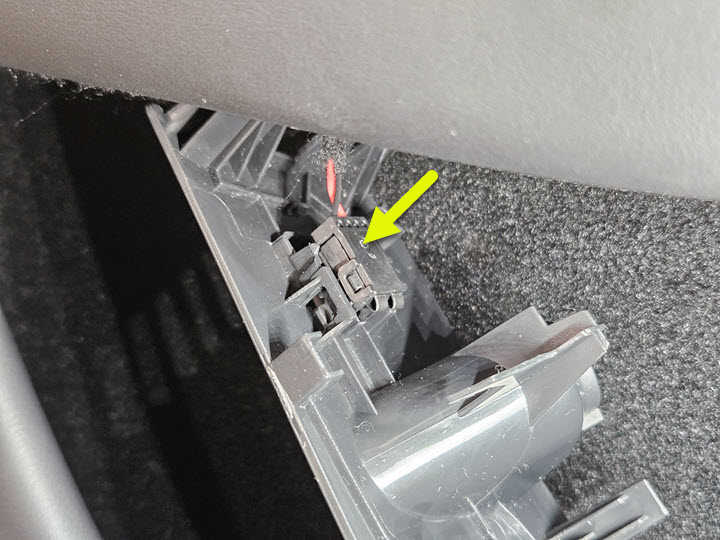

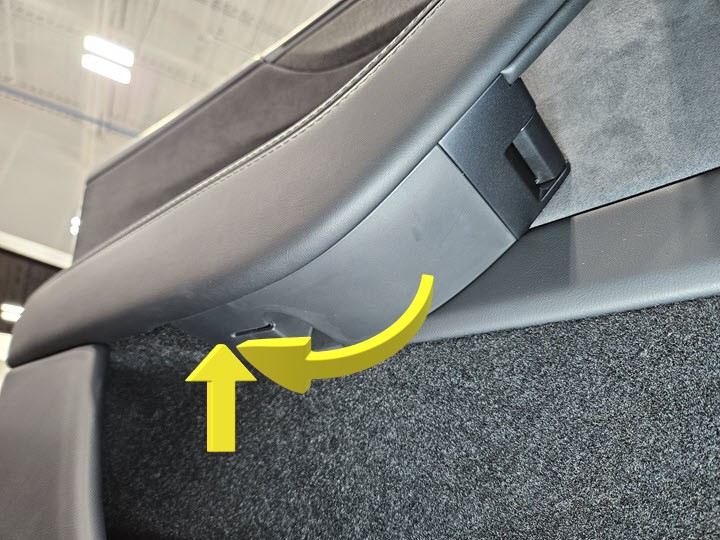

  3. Release the clips (x5) and tabs (x2) that attach the bolt cover to the LH front door trim.
    Informational PurposesAn informational icon, calling your attention
    Note
    • Release clips from rear to front.
    • Do not pull the cover away from the trim to prevent damage to the lamp harness.

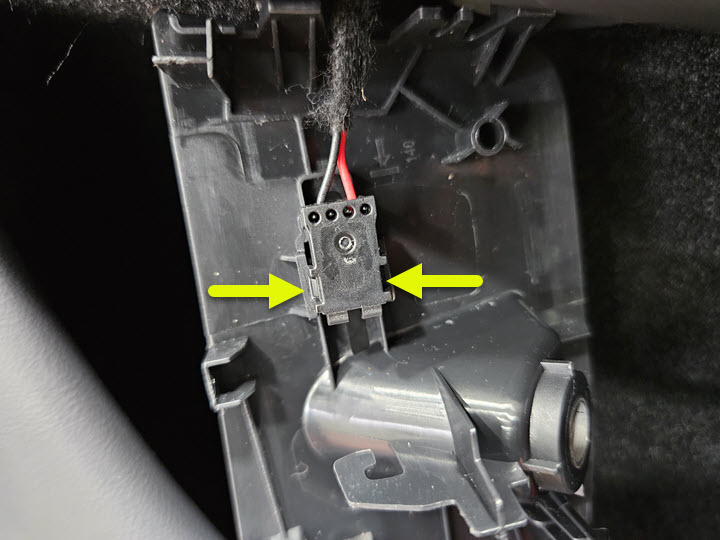

  4. Release the tabs (x2) that attach the lamp to the LH front door trim bolt cover.

Install

  1. Secure the tabs (x2) that attach the lamp to the LH front door trim bolt cover.

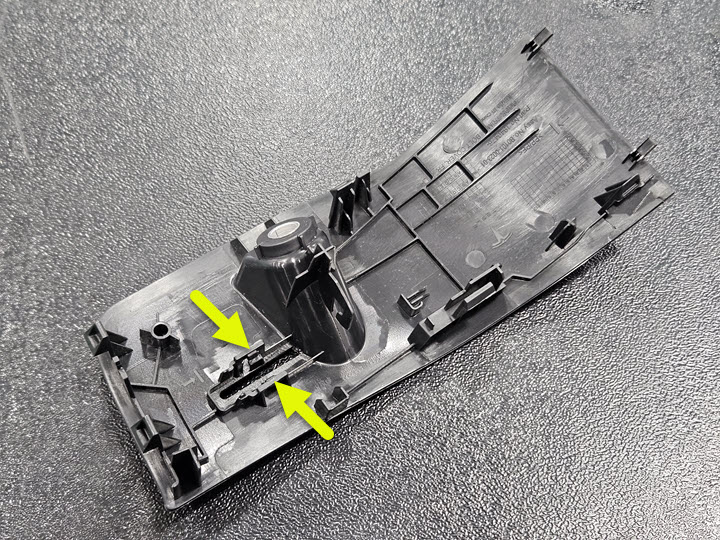

  2. Align the tabs (x2), then secure the clips (x5) that attach the bolt cover to the LH front door trim.
    Informational PurposesAn informational icon, calling your attention
    Note
    • Secure clips from front to rear.
  3. Install the lower bolt to the LH front door trim.
    6 Nm (4.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T30 socket
  4. Raise the LH front window and close the LH front door.
