Headliner Assembly (Remove and Replace)
Correction code
15203102
FRT
1.08
NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so.
NOTE: See Flat Rate Times to learn more about FRTs and how they are created.
NOTE: See Personal Protection to make sure you
are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy working practices.
Remove
- Remove the front and rear headliners. See Front Headliner (Remove and Install).
Install
-

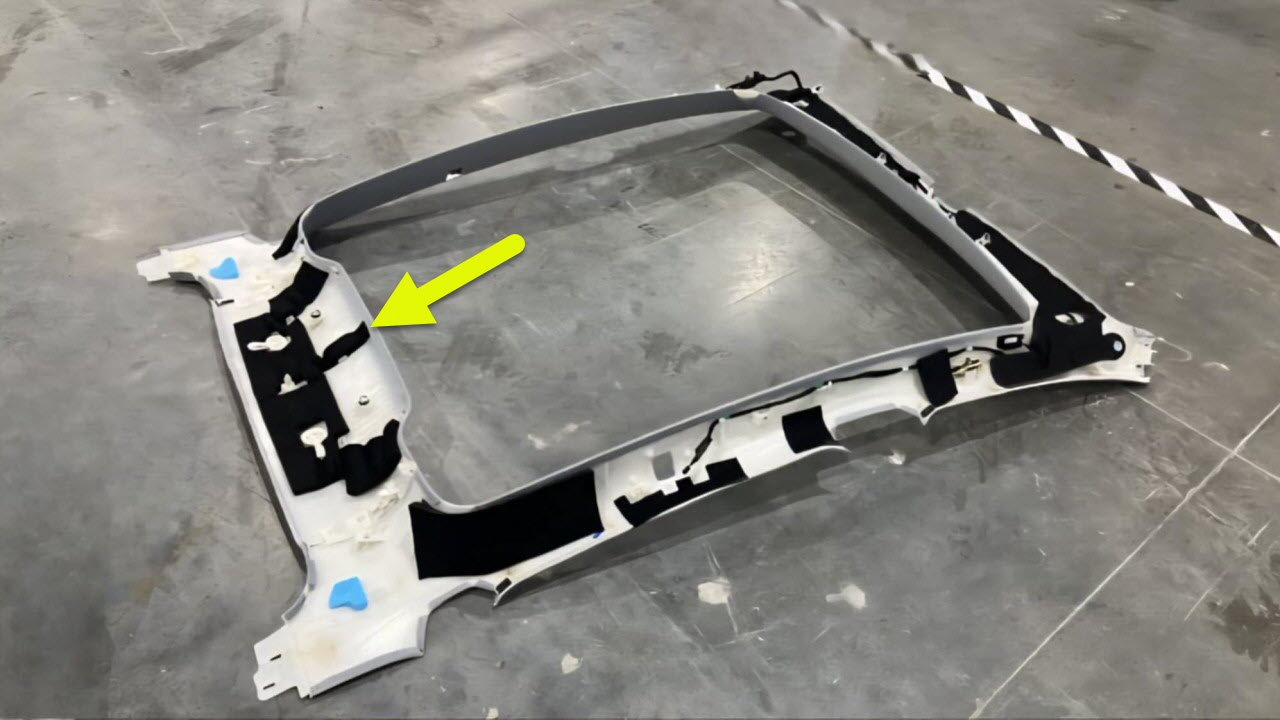

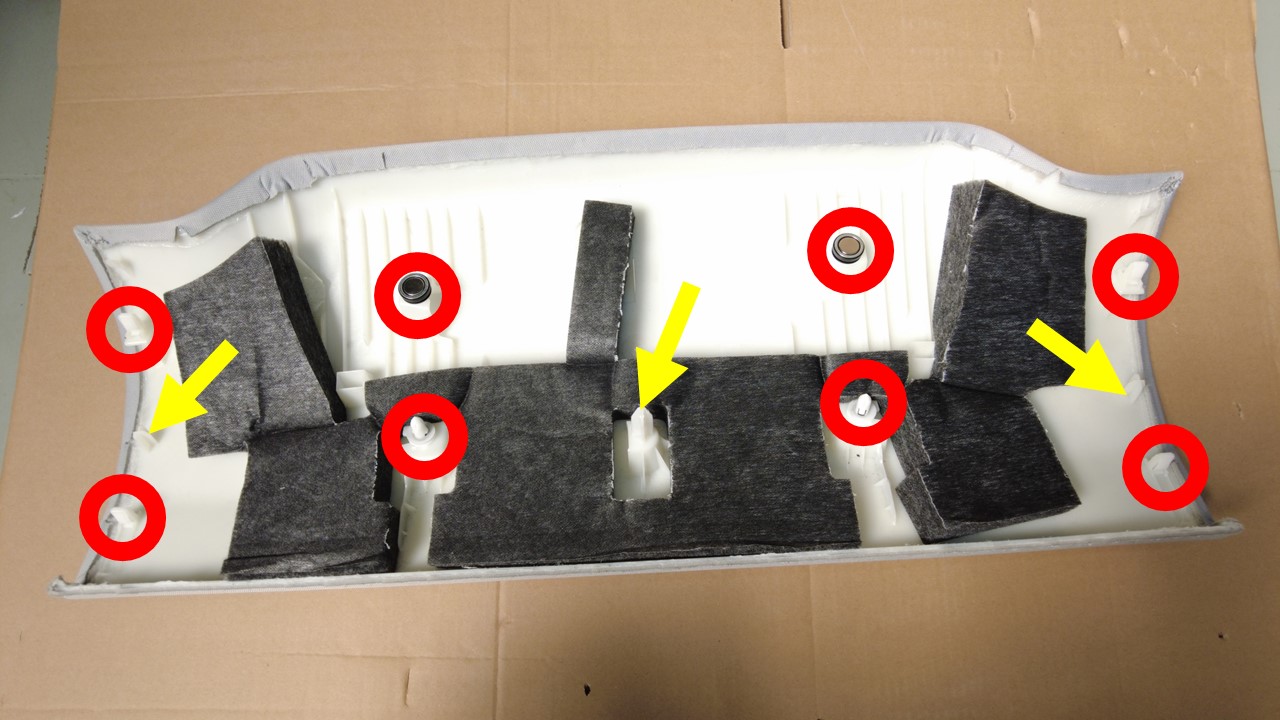

Release the clips (x6), location pins (x3) and magnets (x2) to separate the new rear
headliner and the new front headliner.
- Install the front and rear headliners. See Front Headliner (Remove and Install).
- Reinstall the vehicle firmware. See Software Reinstall - Touchscreen.
