Homelink Module (Retrofit)

Correction code 1715010406 FRT 0.54 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-02-24: Added steps to partially release front fascia. Full removal is not necessary.
  • 2025-07-23: Updated Service Mode steps.

Torque Specifications

Table 1. Torque Specifications: Homelink Module (Retrofit)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolt that attaches the homelink assembly to the front end carrier
5 Nm (3.7 lbs-ft)
  • External Torx Plus EP10
 Reuse

Retrofit

  1. Disconnect the LV battery. See LV Power (Disconnect and Connect) (Modify).
  2. Remove the underhood storage unit. See Underhood Storage Unit (Remove and Replace)
  3. Release the clip that attaches the front camera hose to the washer reservoir.
  4. Remove the bolts (x3) that attach the washer reservoir to the front end carrier, and then move the reservoir aside.
    Informational PurposesAn informational icon, calling your attention
    TIp

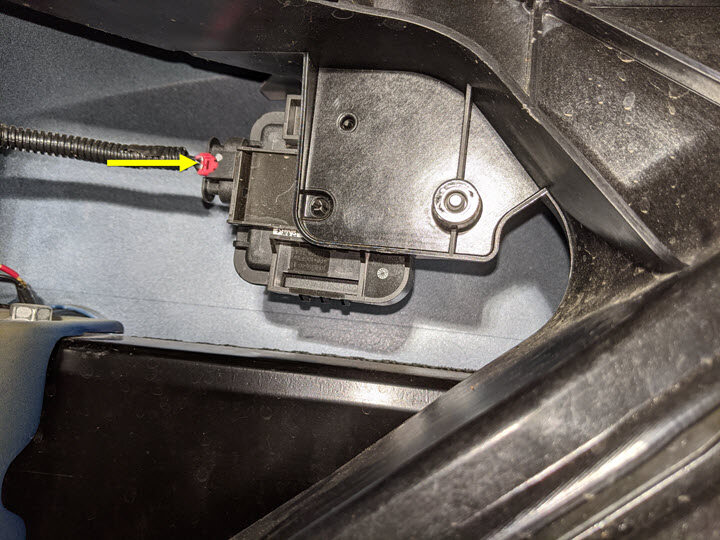

    Use of the following tool(s) is recommended:
    • 10 mm socket
  5. Partially release the LH side of the front fascia. See Front Fascia (Remove and Install).
  6. Remove the center headlamp. See Lightbar - Front (Remove and Replace).
  7. Remove the bolts (x4) that attach the upper portion of the front fascia to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  8. Remove the LH front fender garnishes. See Fender Garnish - Front - LH (Remove and Replace).
  9. Release the clips (x2) that attach the LH front wheel arch liner to the front fascia assembly.
  10. Remove the bolt thates attaches the LH front fascia to the LH front fender.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
    Figure 1. LH shown, RH similar
  11. Apply masking tape around the LH headlamps and front fender to protect the paint on the vehicle.
  12. With assistance, release the clips (x10) that attach the front fascia assembly to the vehicle.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Take care not damage the headlamps and front fender.
  13. Use an inflatable air bag between the fascia and the front end module to access the location for the HomeLink Transmitter.

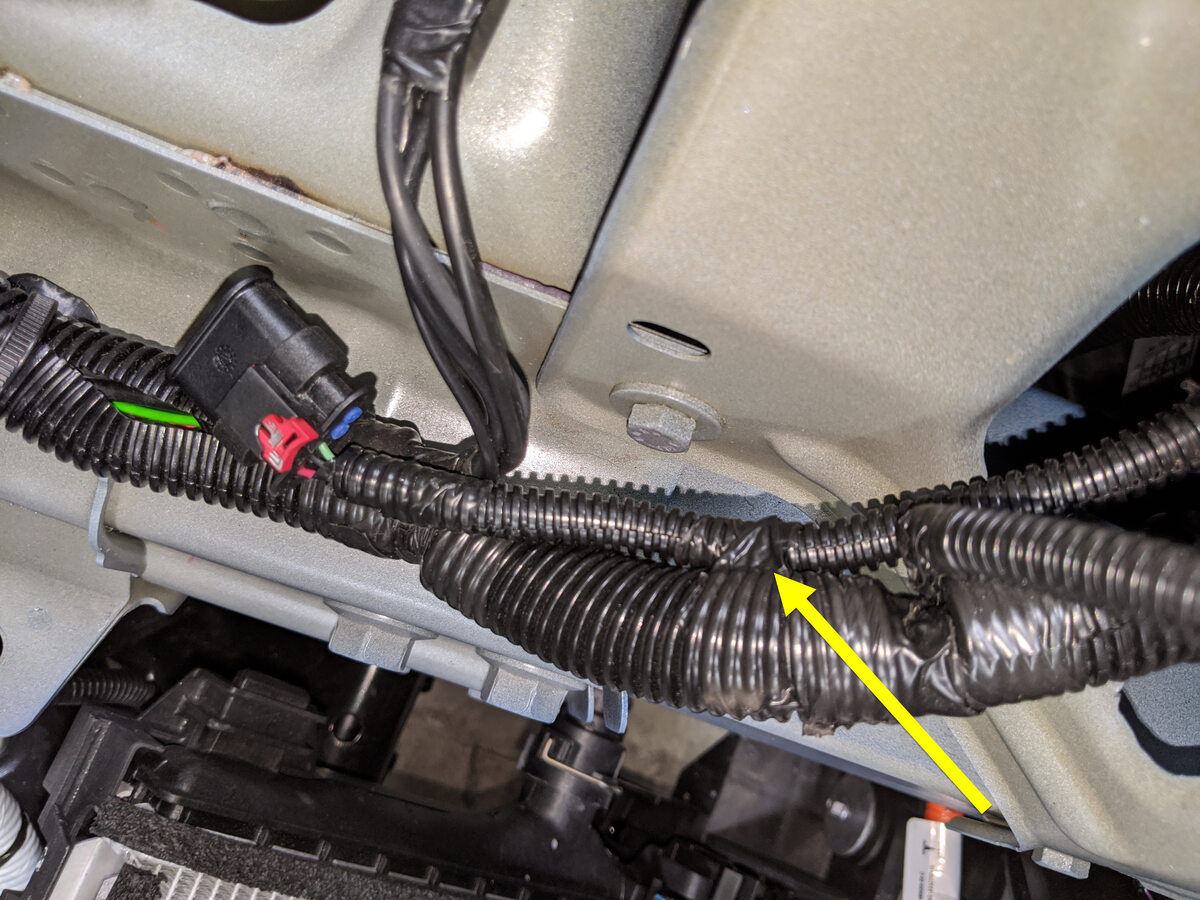

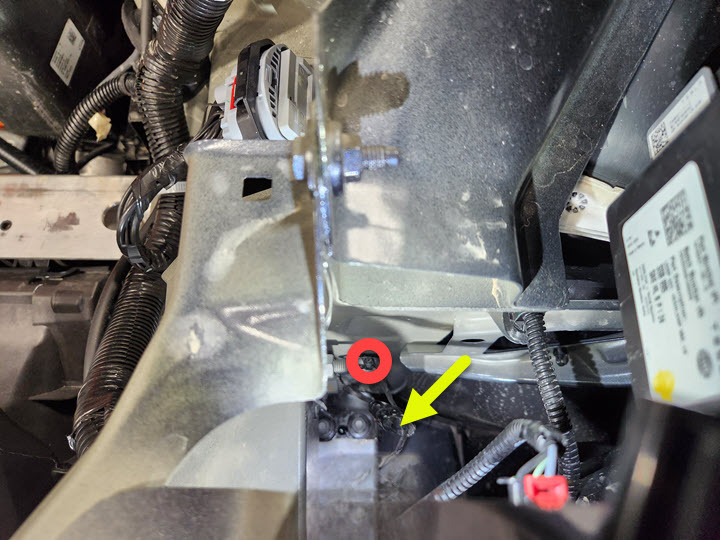

  14. Release the clip that attaches the homelink branch to the front body harness.
    Informational PurposesAn informational icon, calling your attention
    Note
    • The homelink branch will be secured with the electrical tape along the LH crush can.
    • Some vehicles have the clip attached to the body.

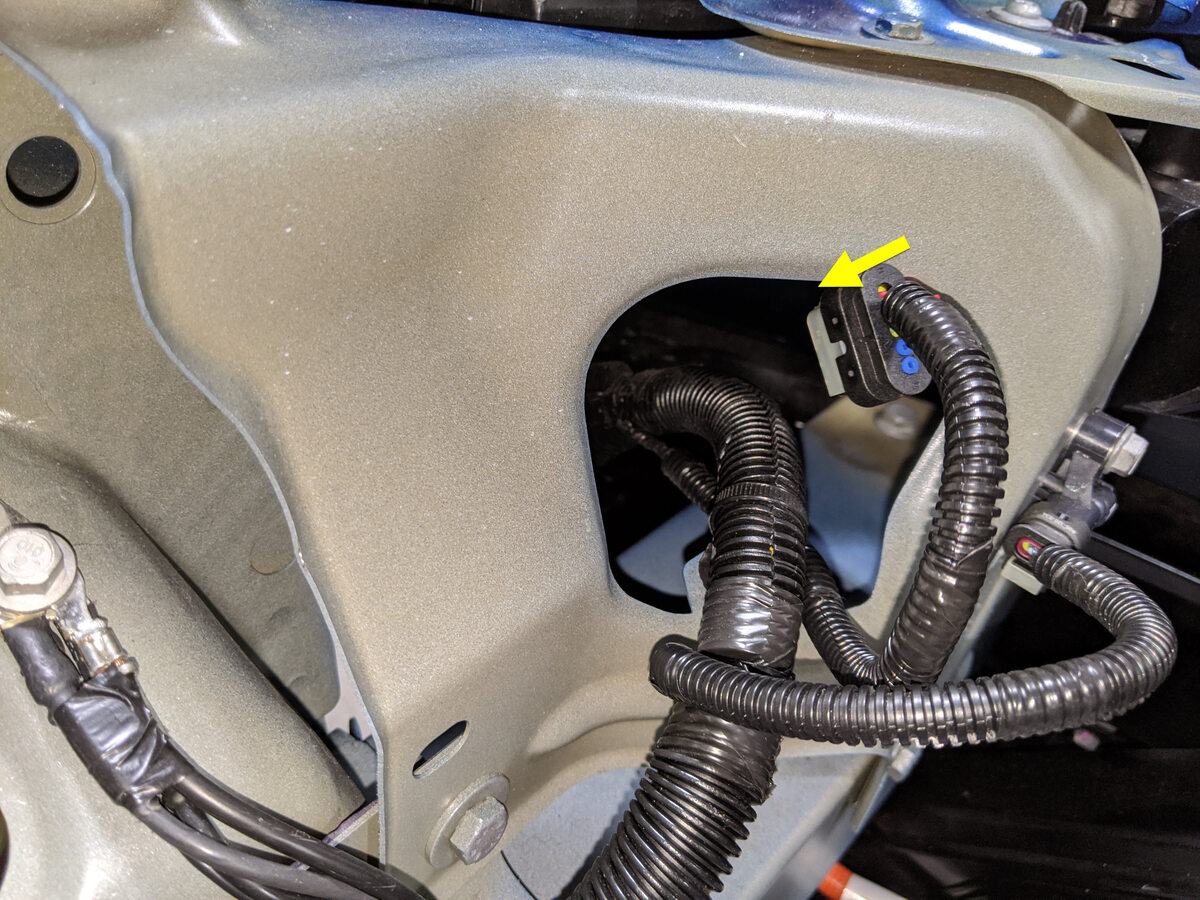

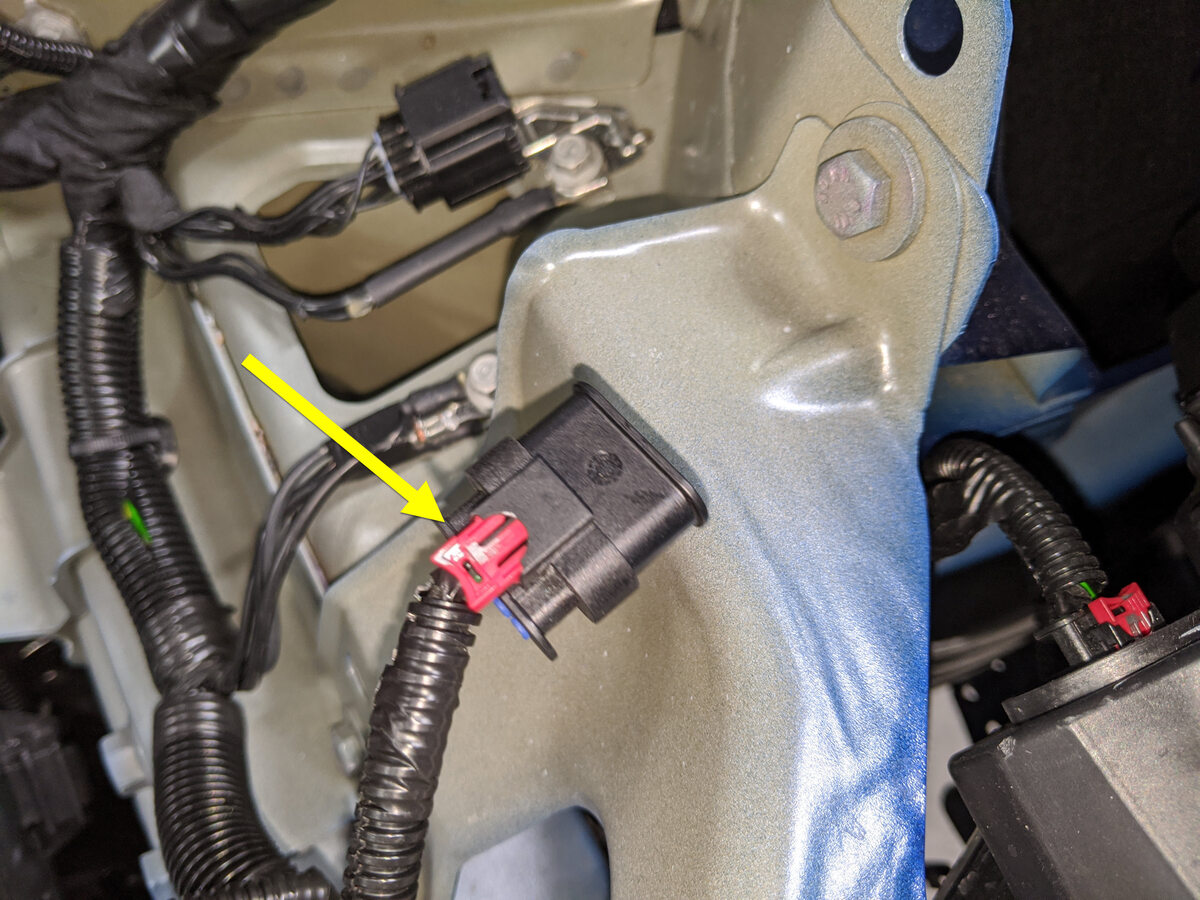

  15. Remove the connector cap from the homelink connector.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.

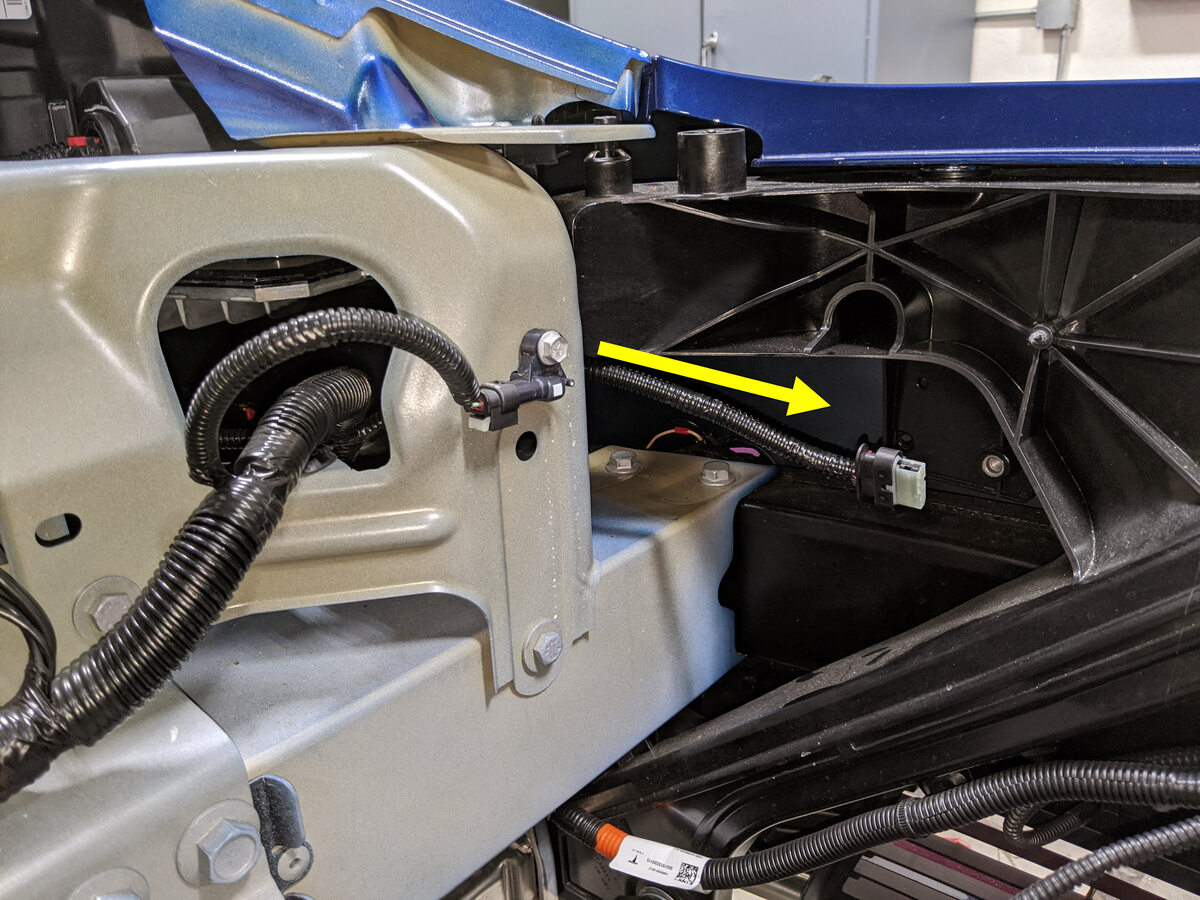

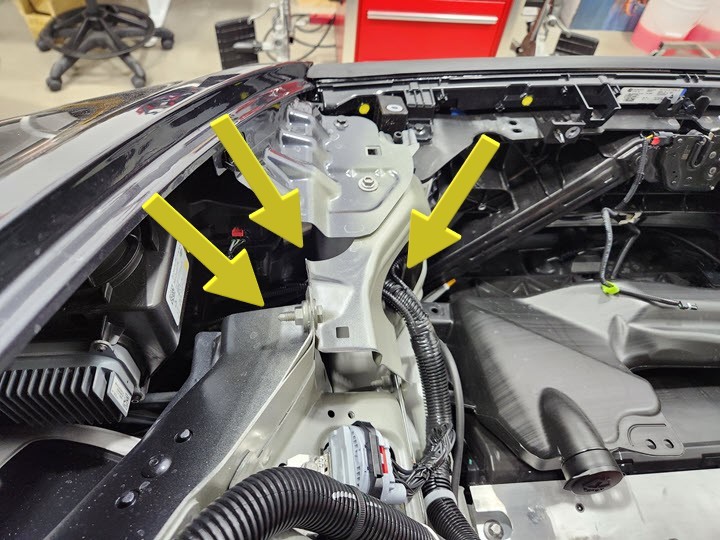

  16. Route the homelink branch through the body to the front end carrier mount.

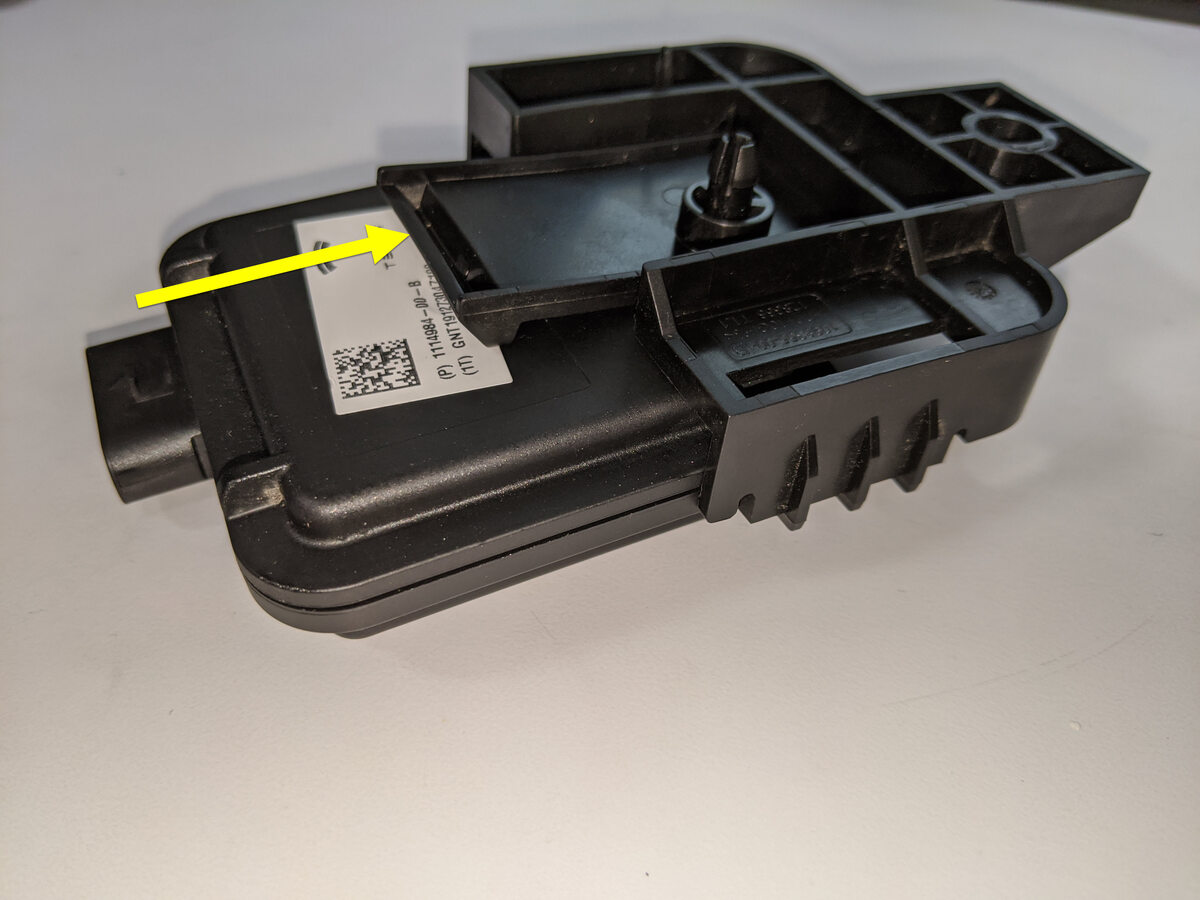

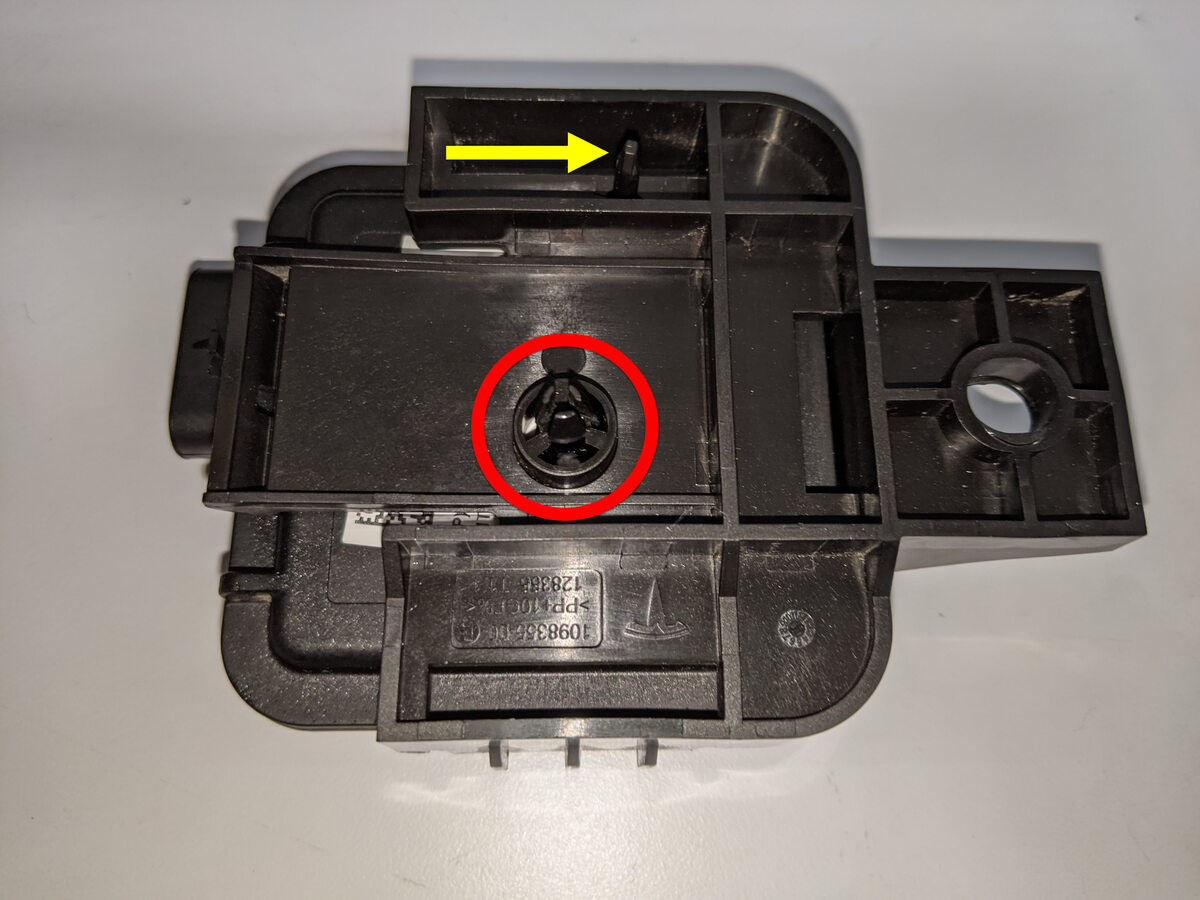

  17. Install the homelink module to the bracket.

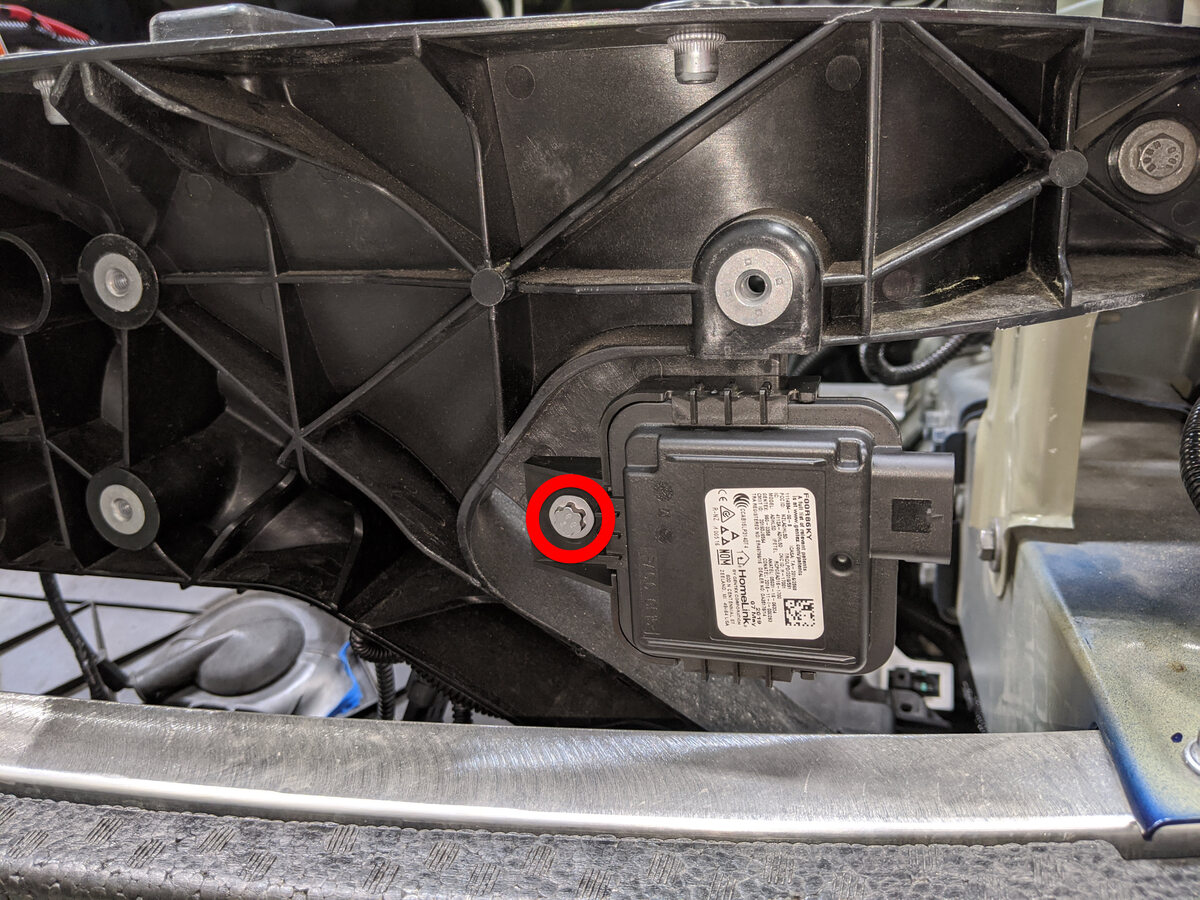

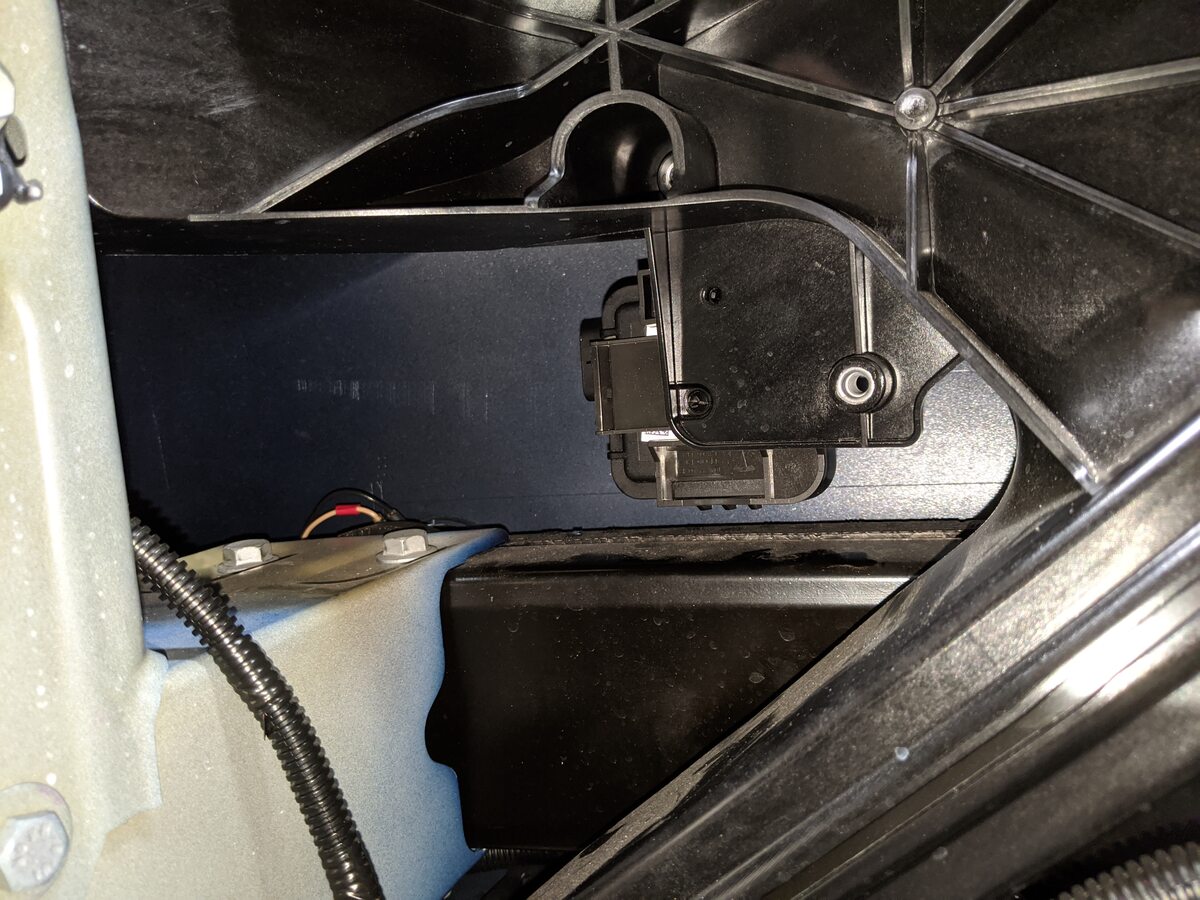

  18. Position the homelink assembly onto the front end carrier mount.

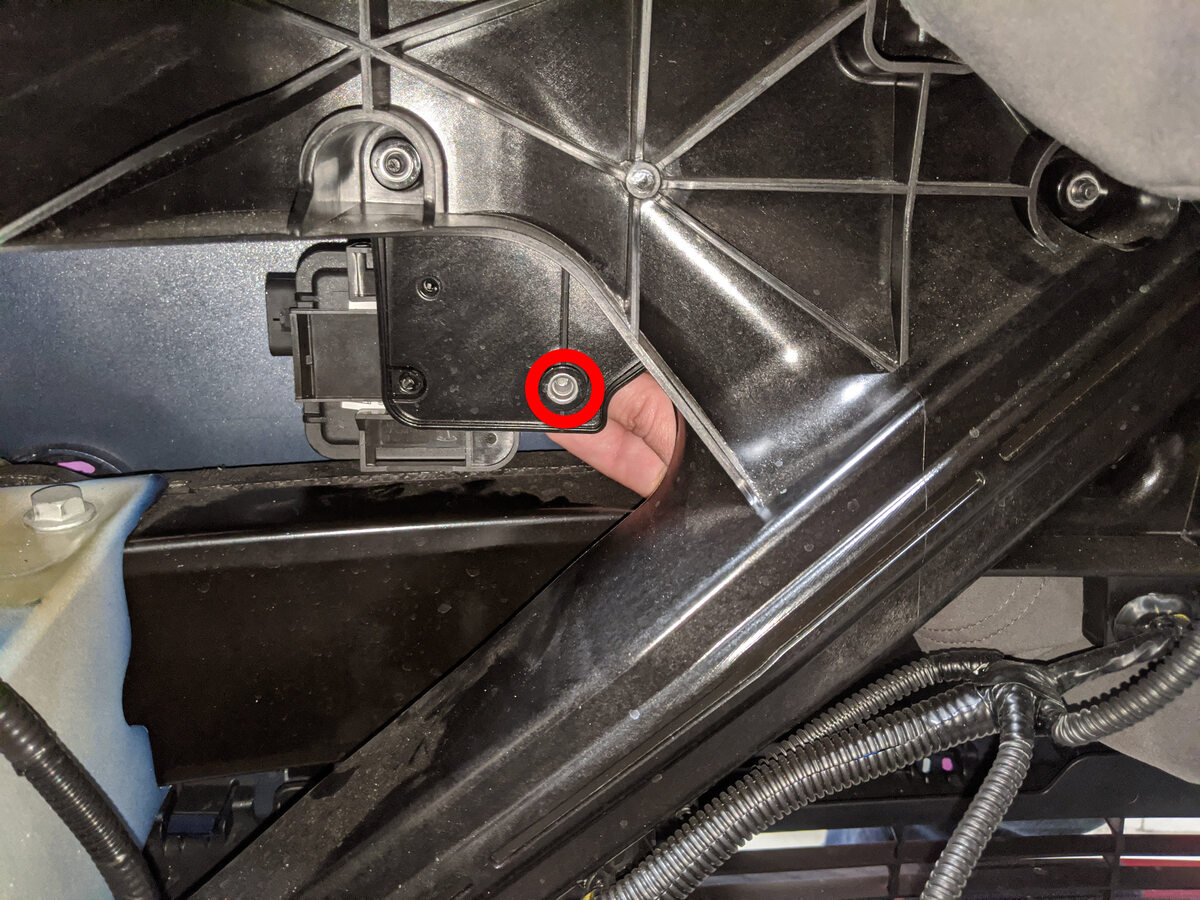

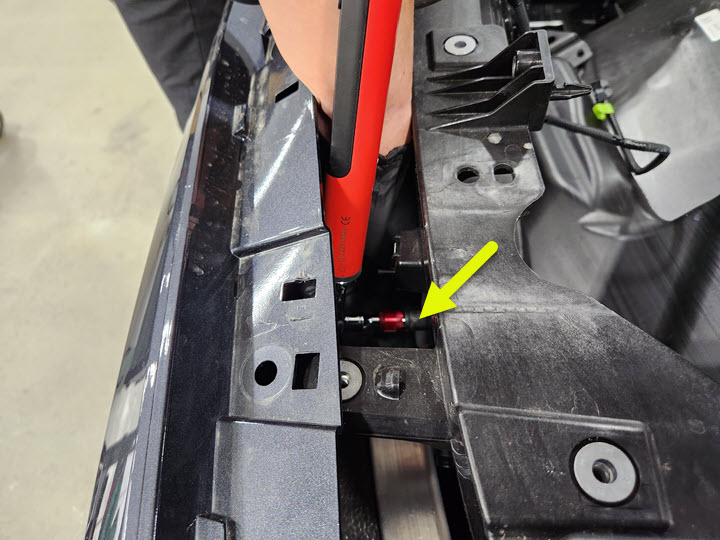

  19. Install the bolt that attaches the homelink assembly to the front end carrier.
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • External Torx Plus EP10
    Informational PurposesAn informational icon, calling your attention
    Note
    Hand start the bolt by reaching around the carrier.

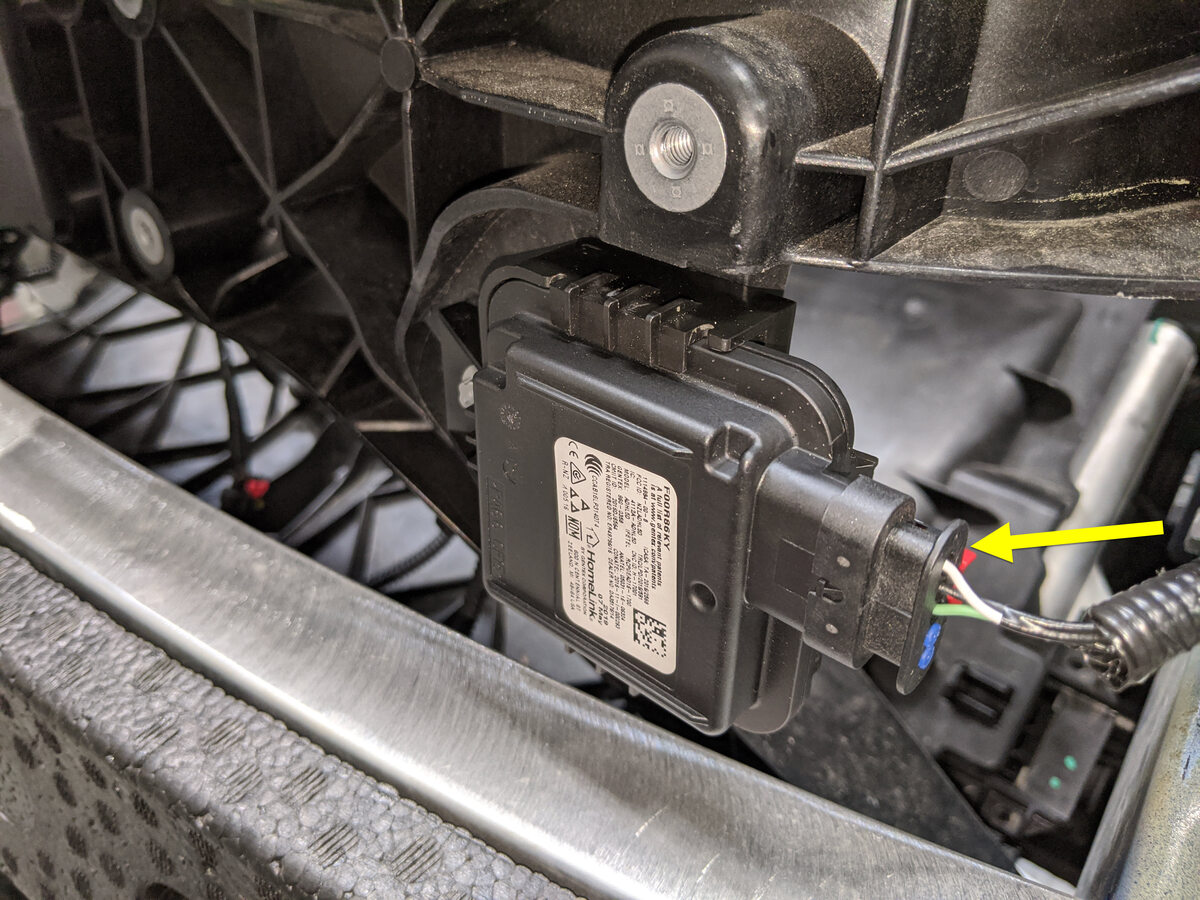

  20. Connect the homelink module connector.
  21. Secure the LH side of the front fascia. See Front Fascia (Remove and Install).
  22. Install the washer reservoir to the front end carrier, and then install the bolts (x3) that attach the washer reservoir to the front end carrier.
    4 Nm (2.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  23. Install the underhood storage unit. See Underhood Storage Unit (Remove and Replace)
  24. Connect the LV battery. See LV Power (Disconnect and Connect) (Modify).
  25. Use the touchscreen to enable Service Mode. See Service Mode.
  26. Unlock the vehicle gateway. See Gateway (Unlock)

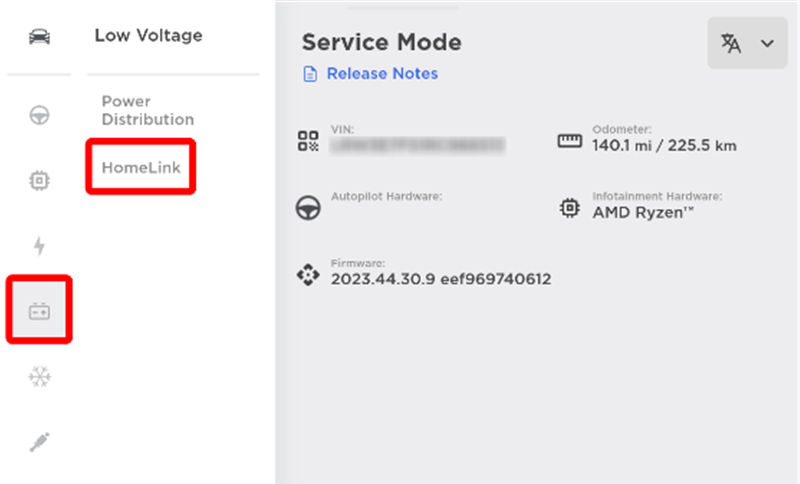

  27. In the Service Mode touchscreen menu, touch the LV battery icon and select HomeLink.

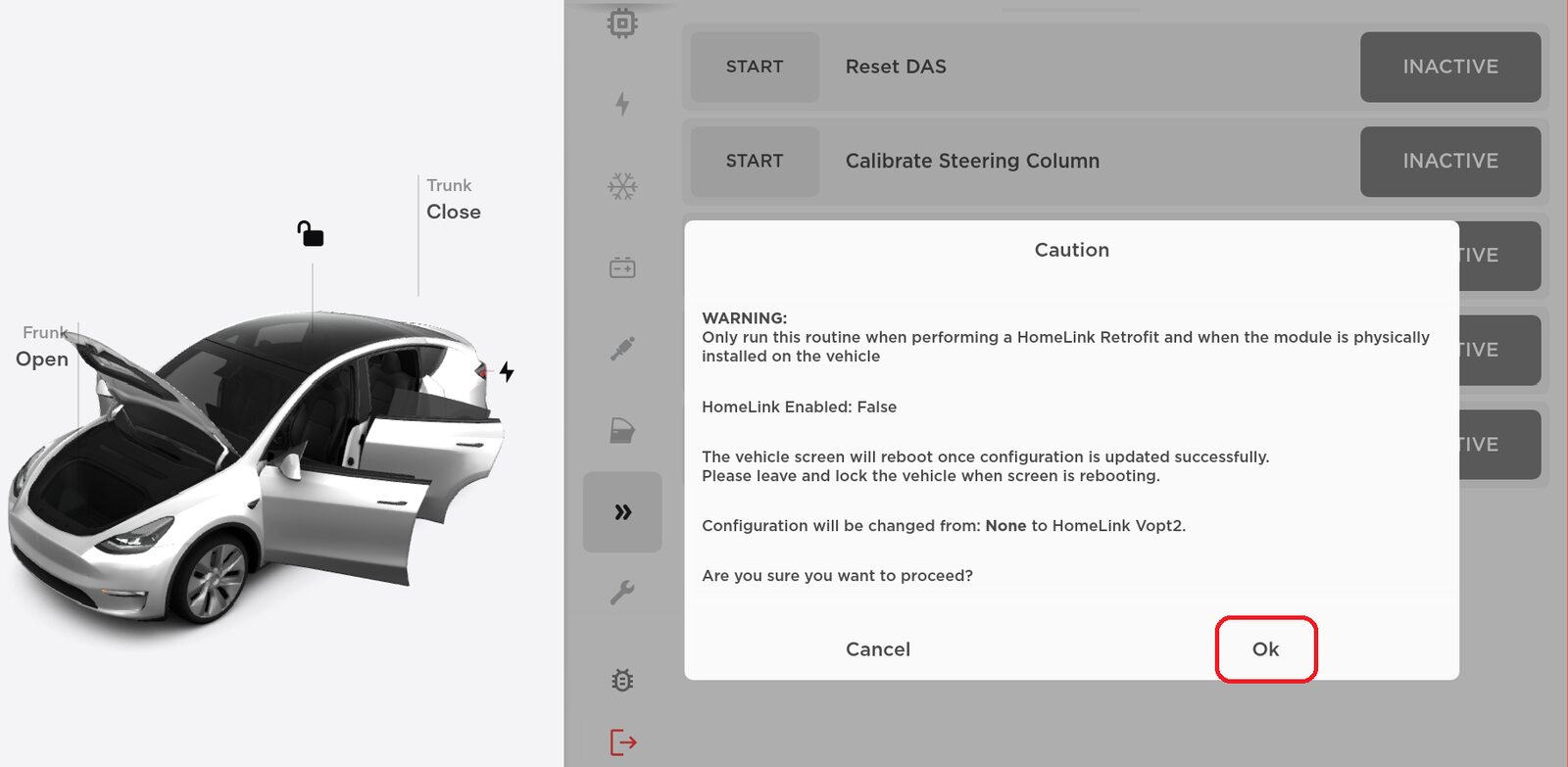

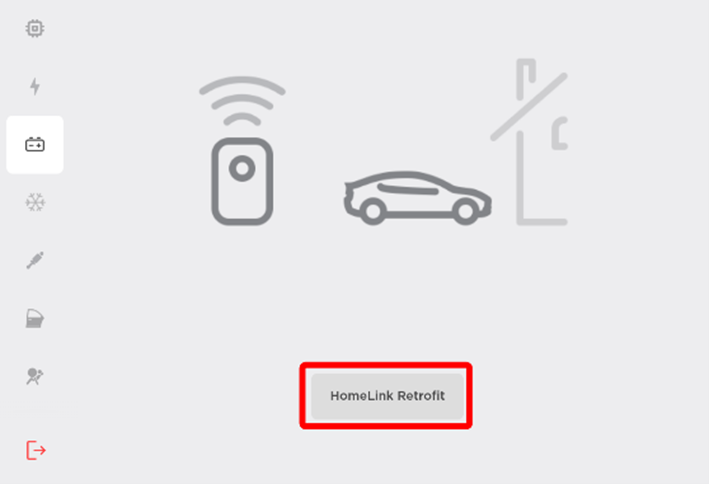

  28. Touch the HomeLink Retrofit button, and then touch Run and allow the routine to complete.

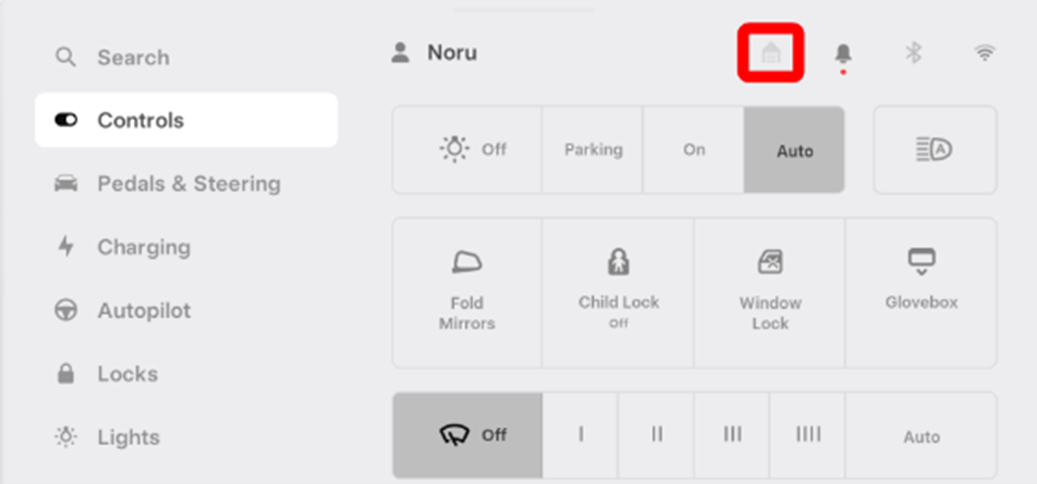

  29. Wait for the touchscreen to reboot, and then touch the controls icon to confirm the HomeLink icon appears on the touchscreen
    Informational PurposesAn informational icon, calling your attention
    Note
    If the HomeLink icon does not appear, exit and lock the vehicle to initiate a reboot.
  30. In the Service Mode touchscreen menu, touch the LV battery icon and select HomeLink.

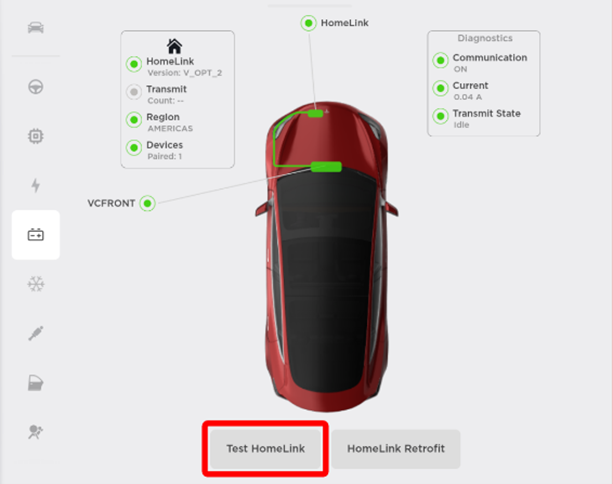

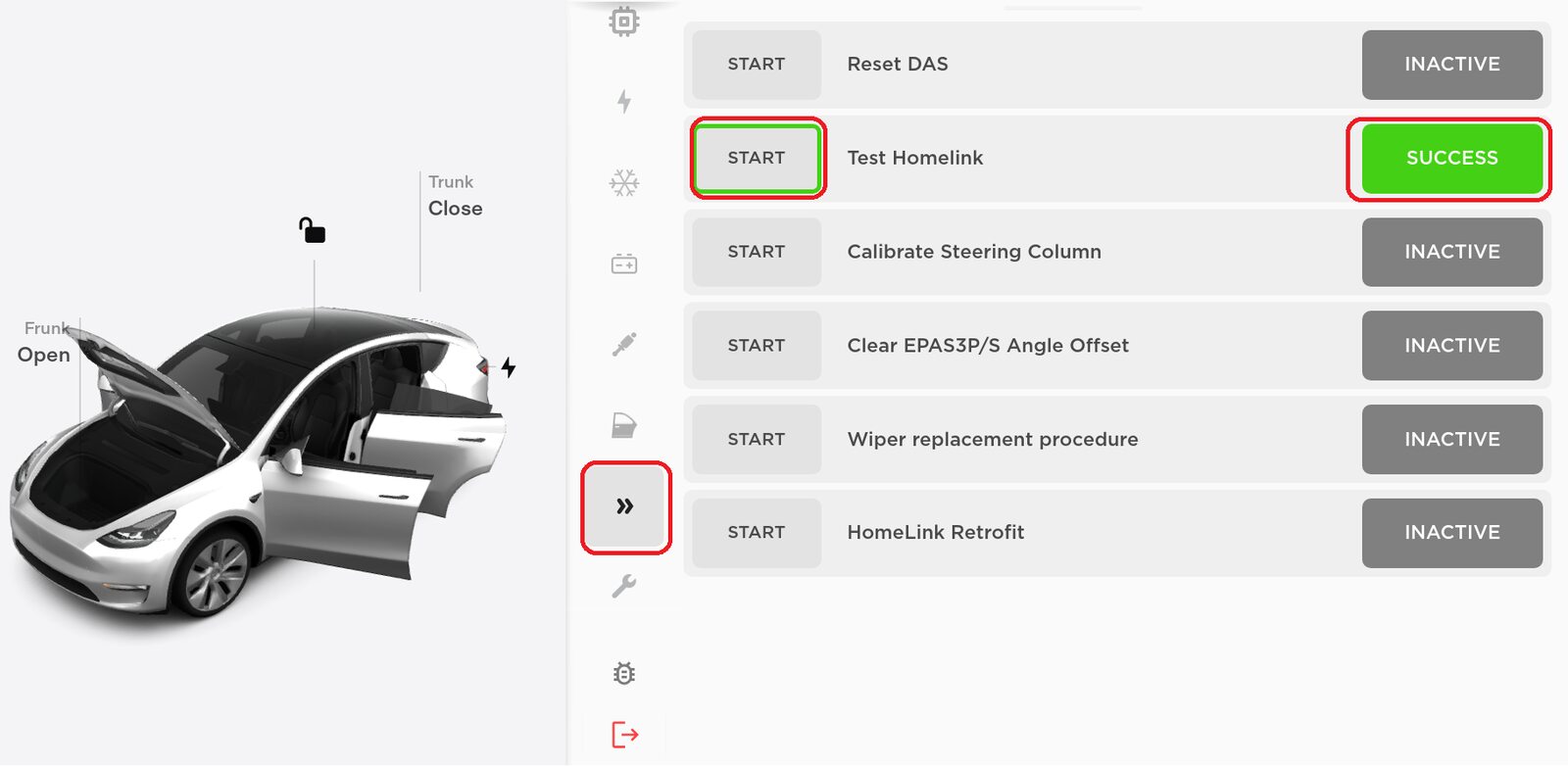

  31. Touch the Test HomeLink button, and then touch Run and allow the routine to complete.
  32. Exit Service Mode. See Service Mode.
