Cowl Assembly - non-HEPA (Model Y Standard) (Remove and Install)

Correction code NEW NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.
  • 2025-10-02: Released new procedure.

Remove

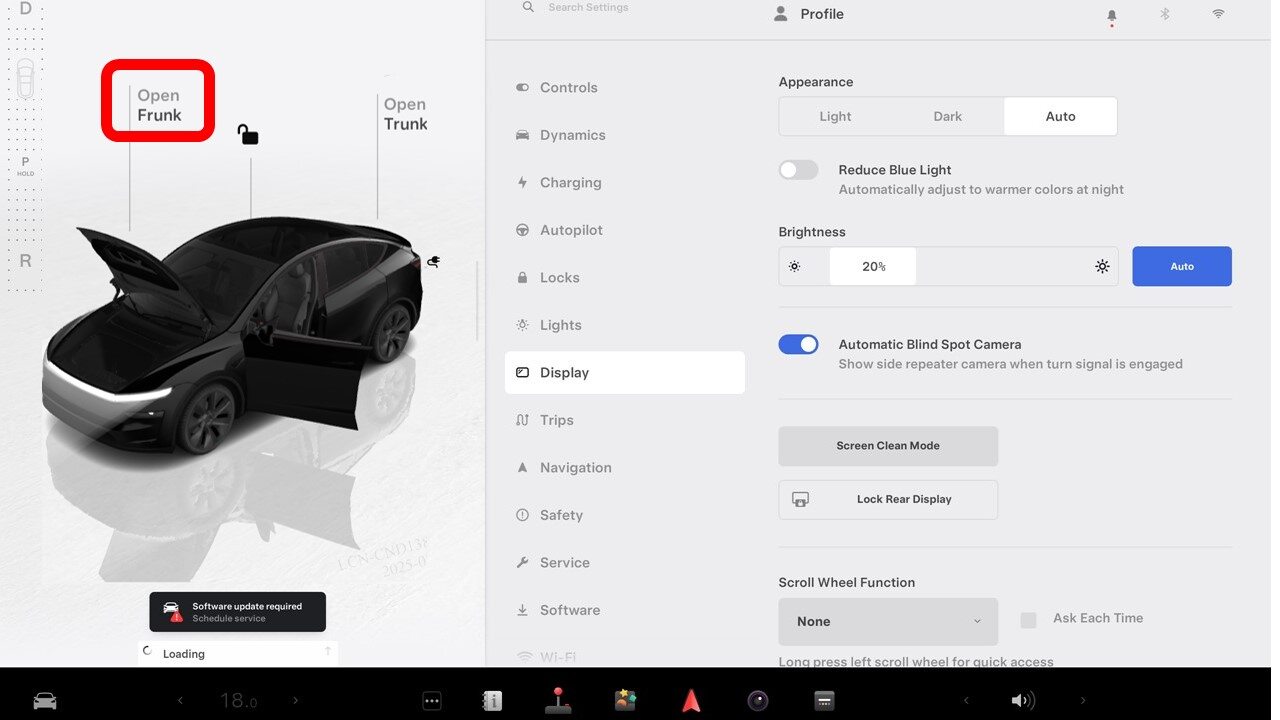

  1. Open hood

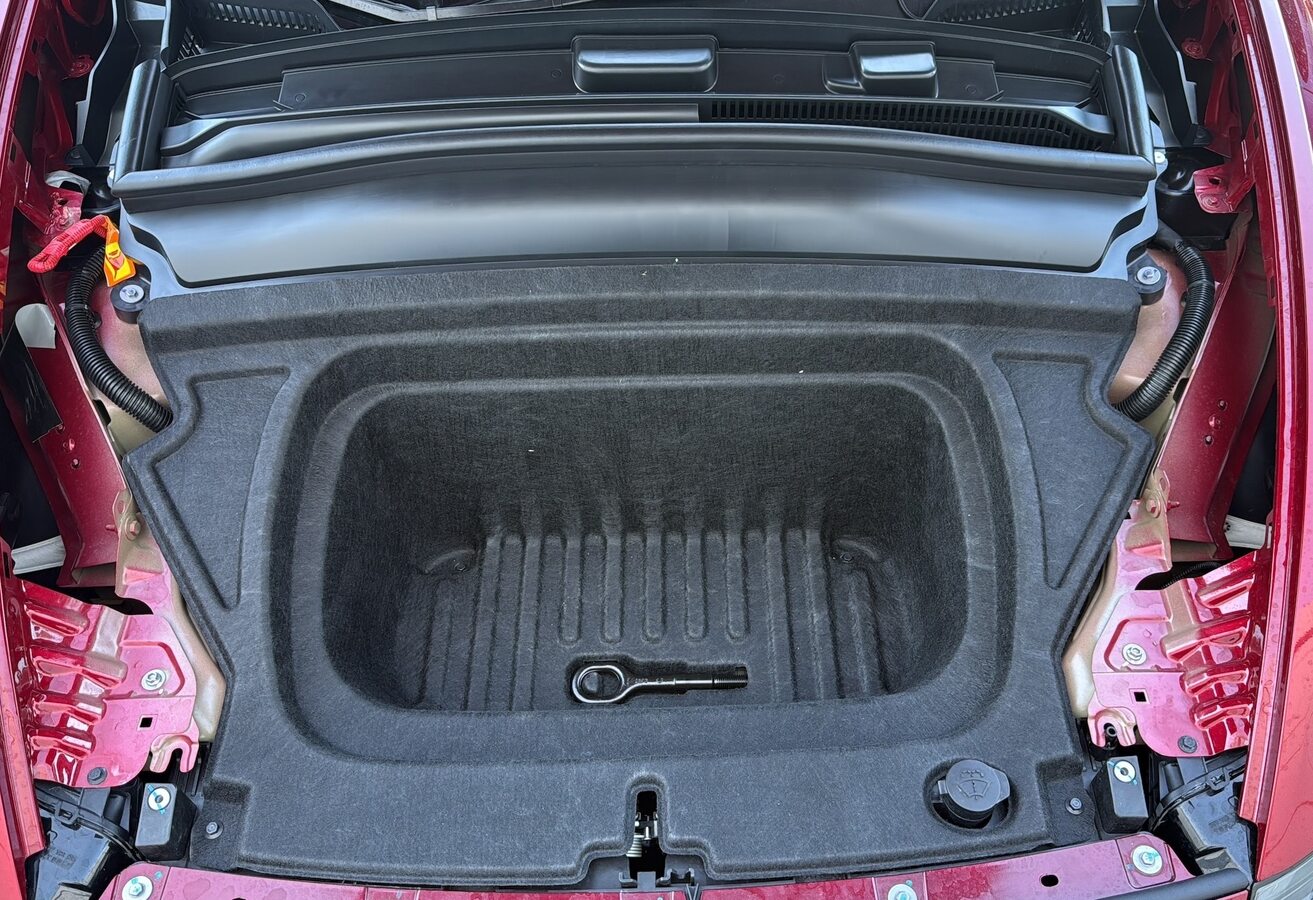

  2. Remove cowl assembly
    Informational PurposesAn informational icon, calling your attention
    Note

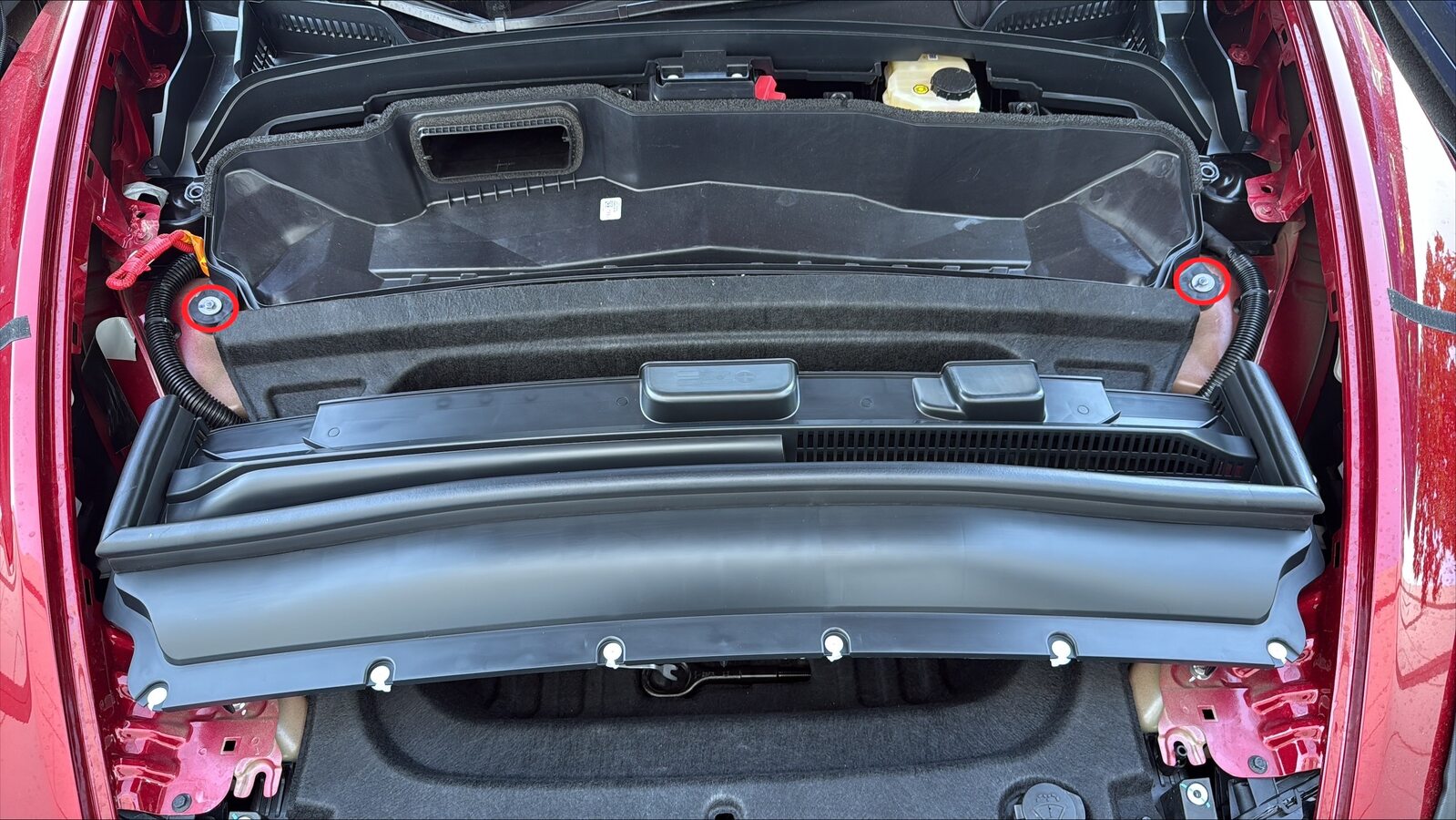

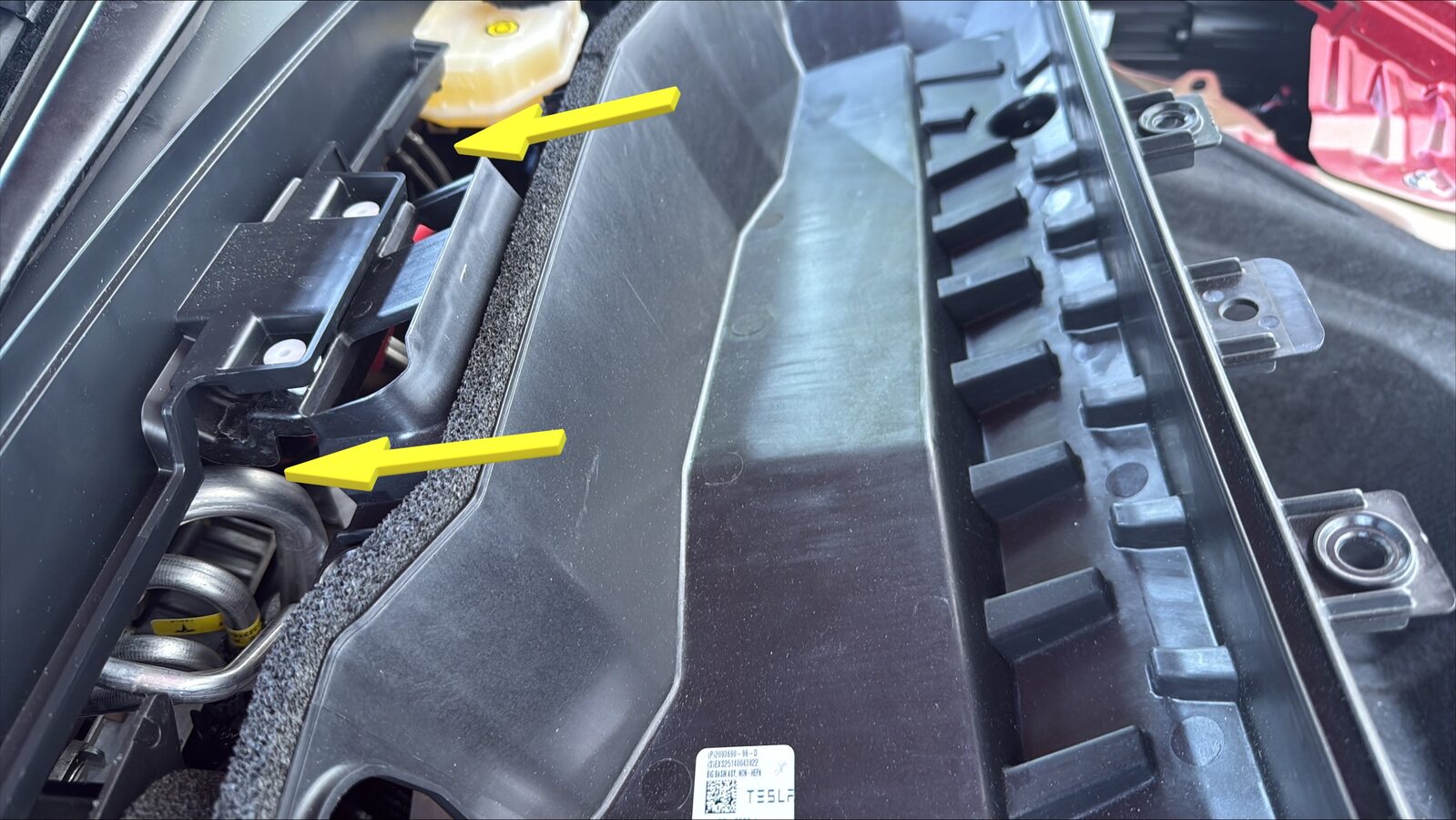

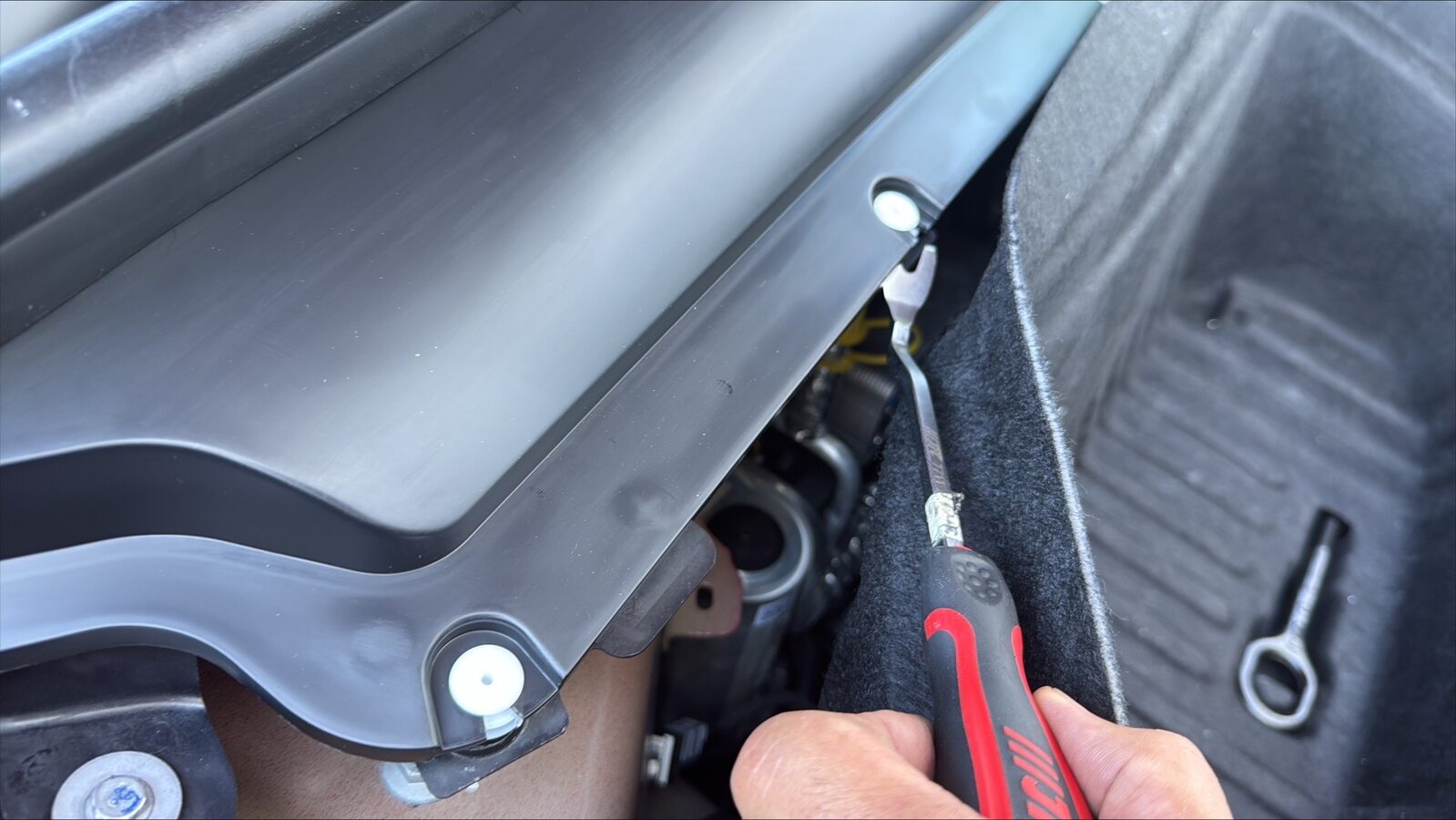

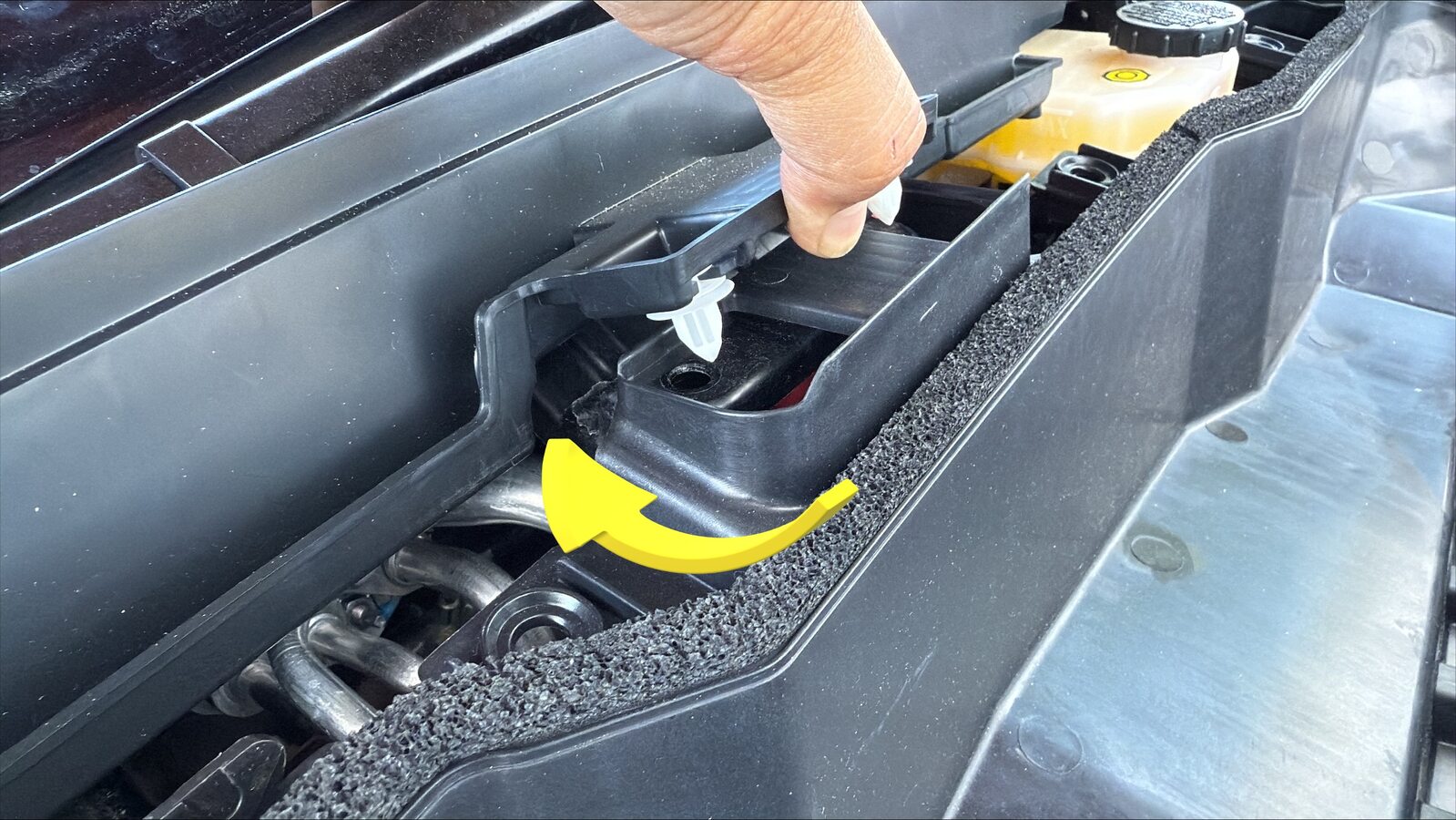

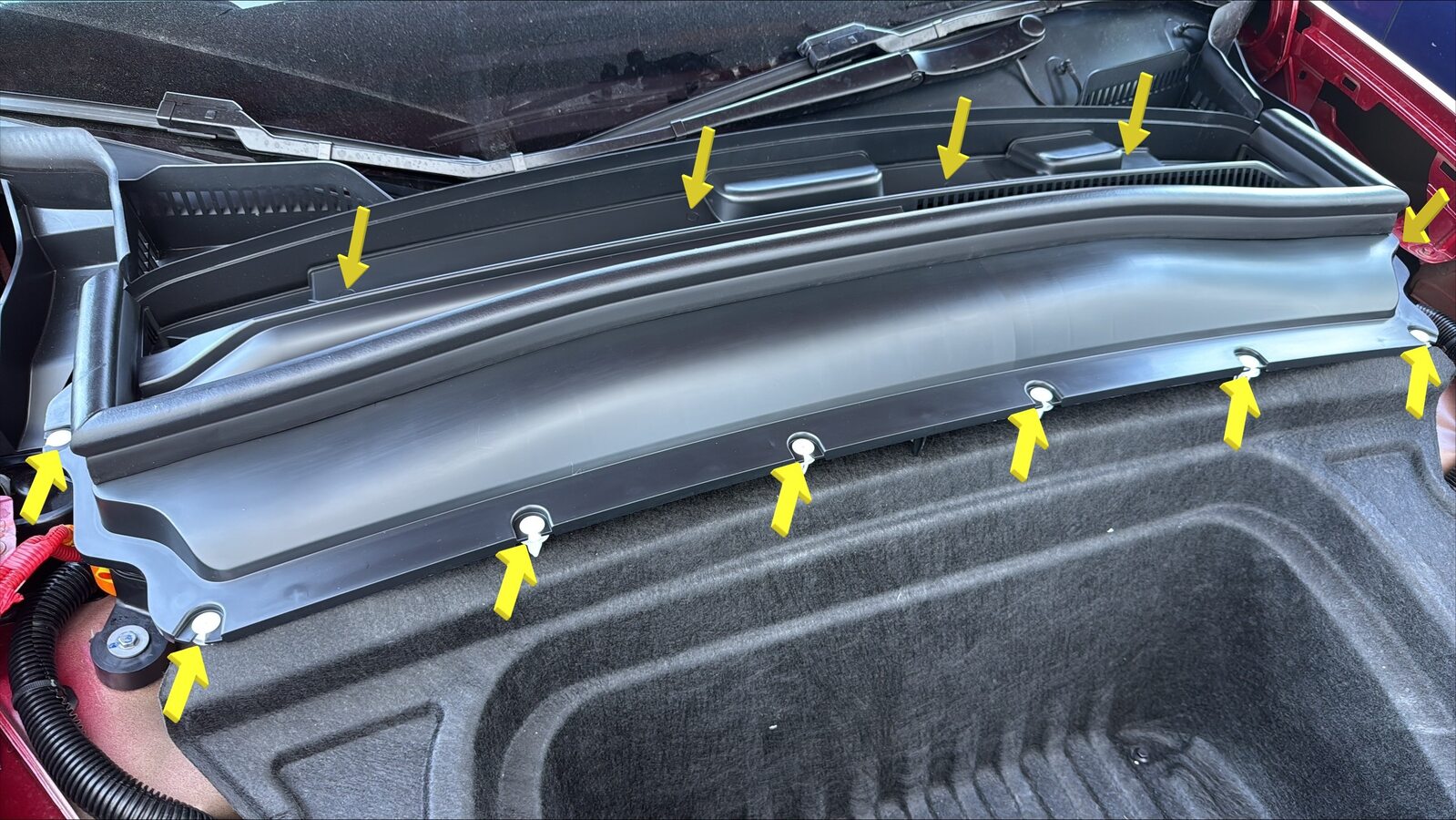

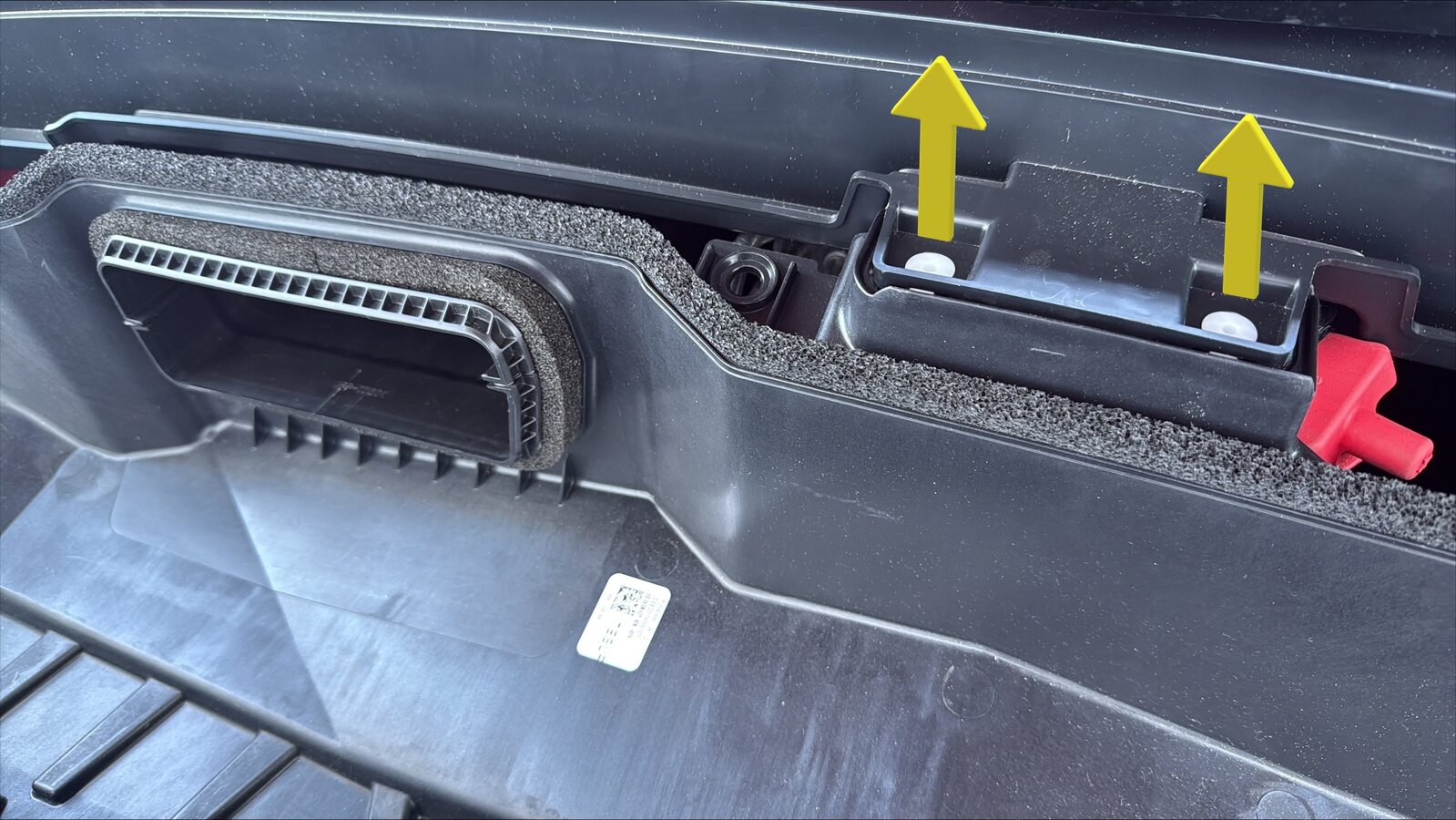

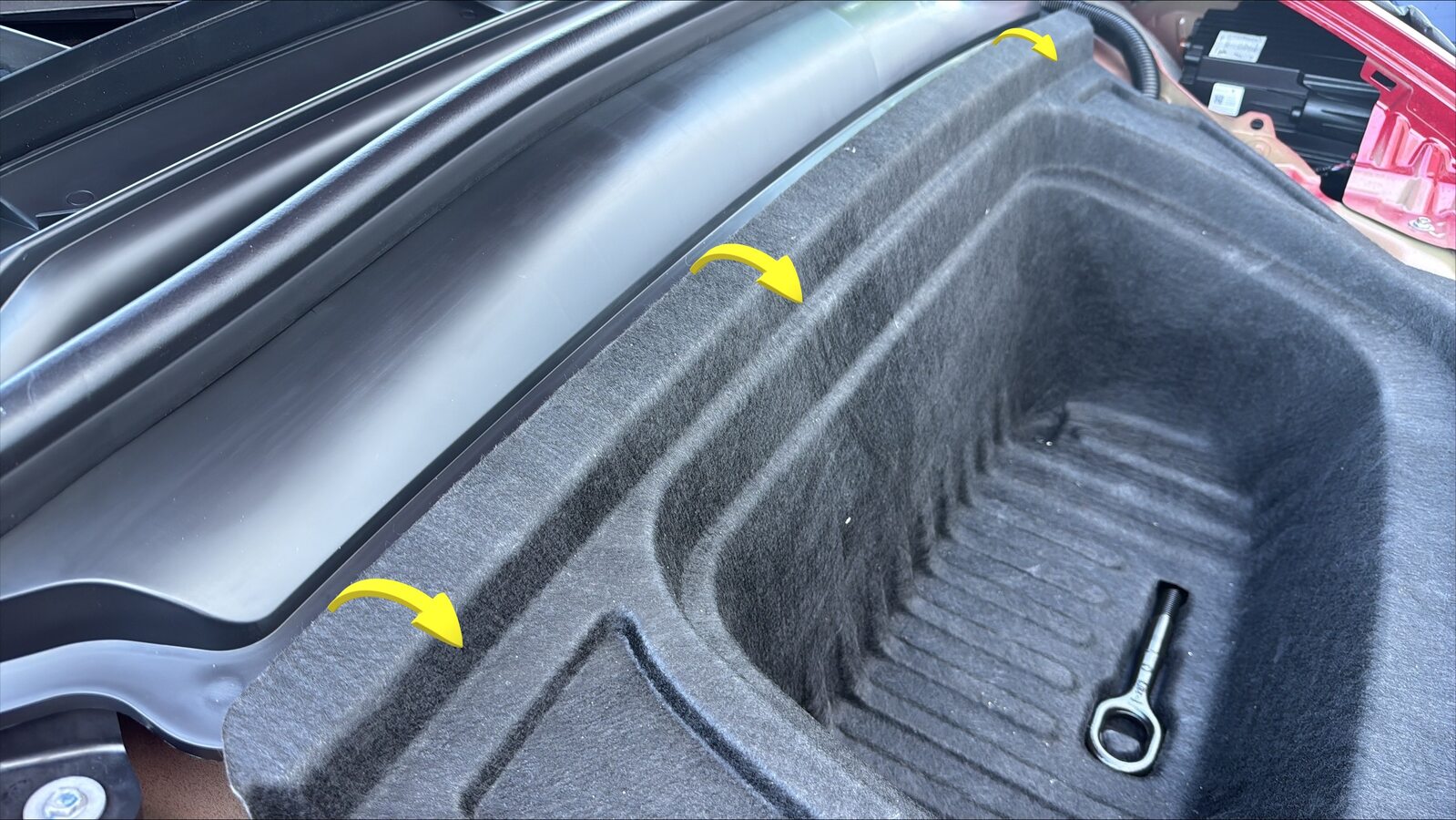

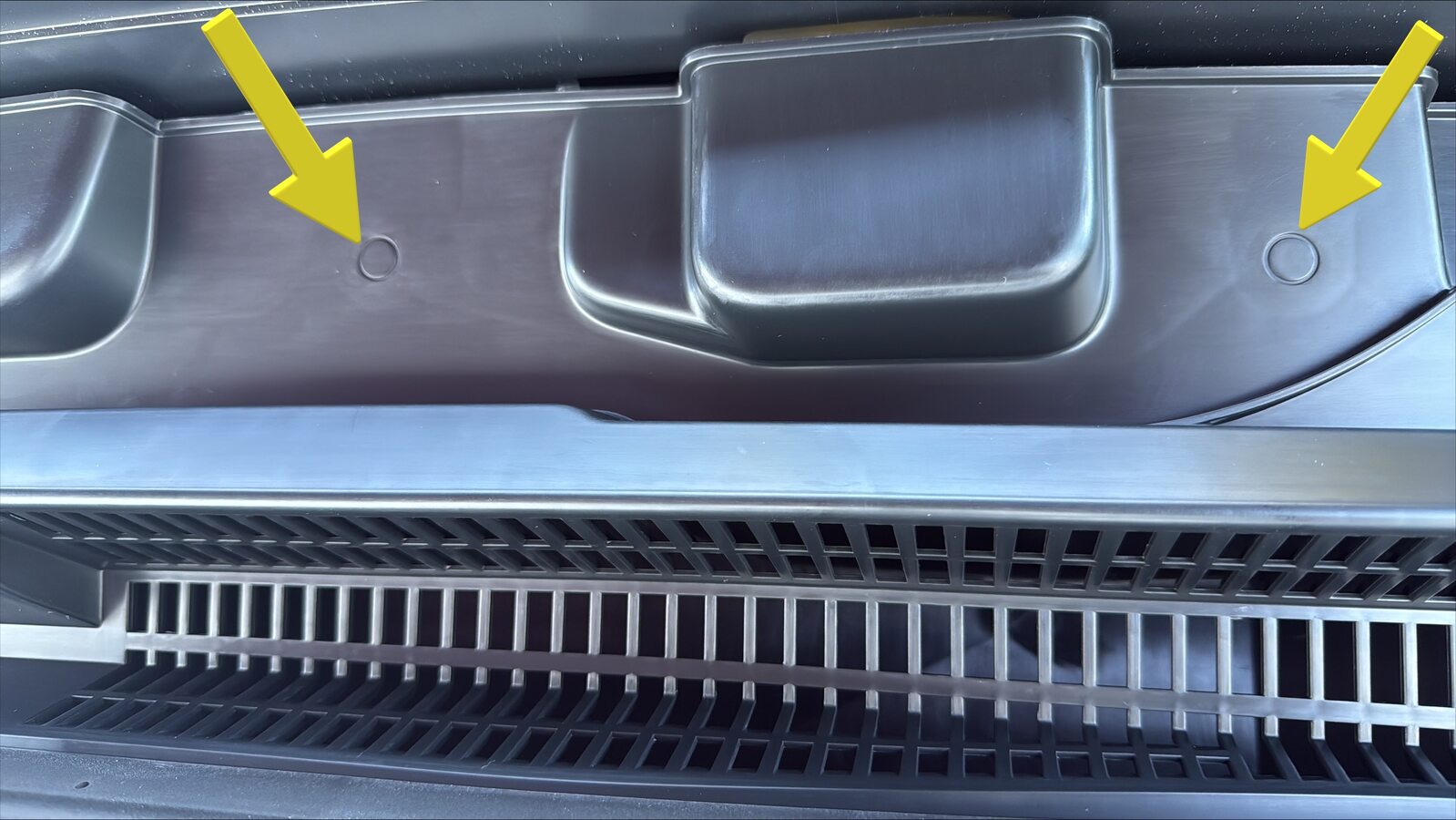

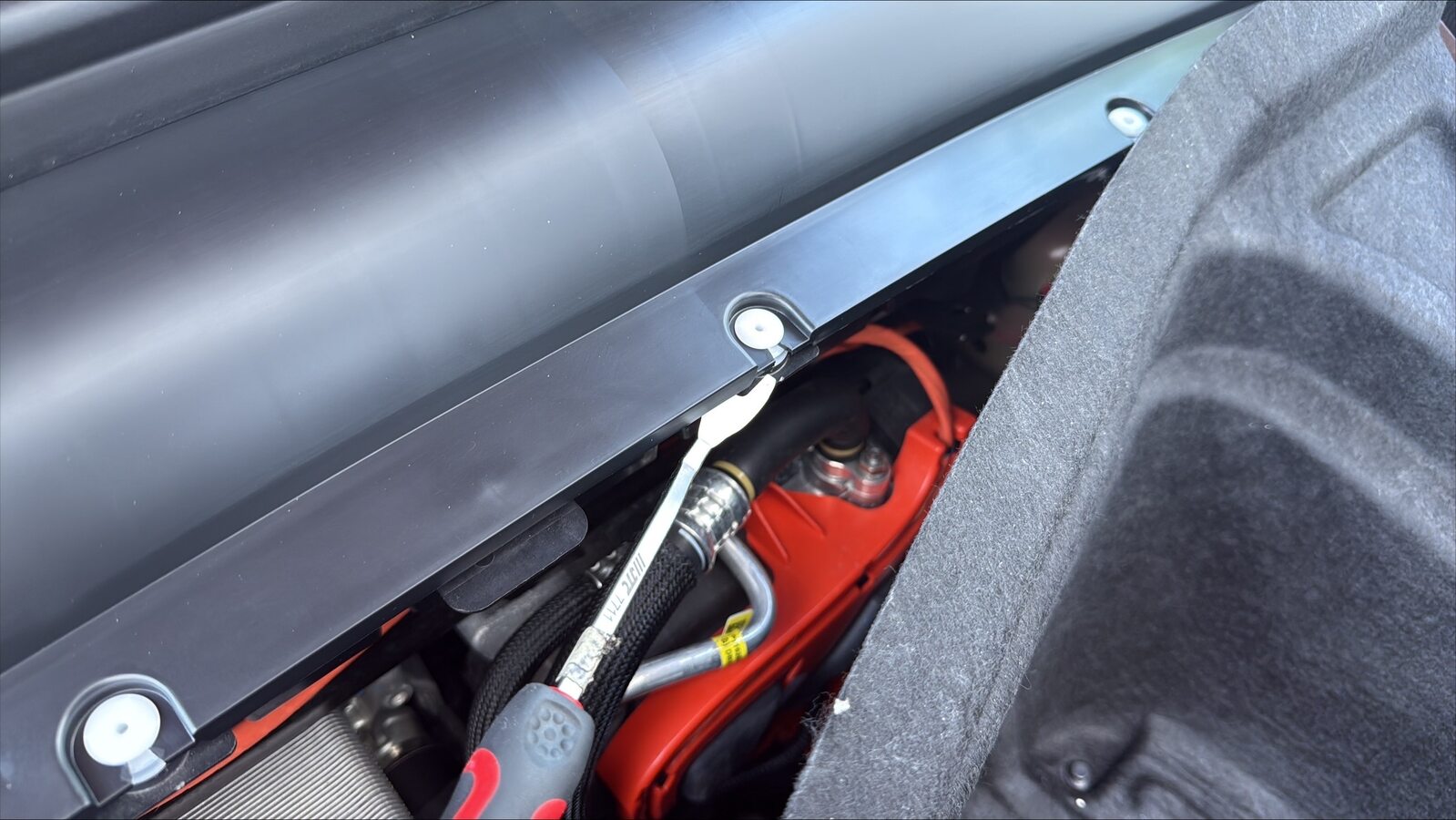

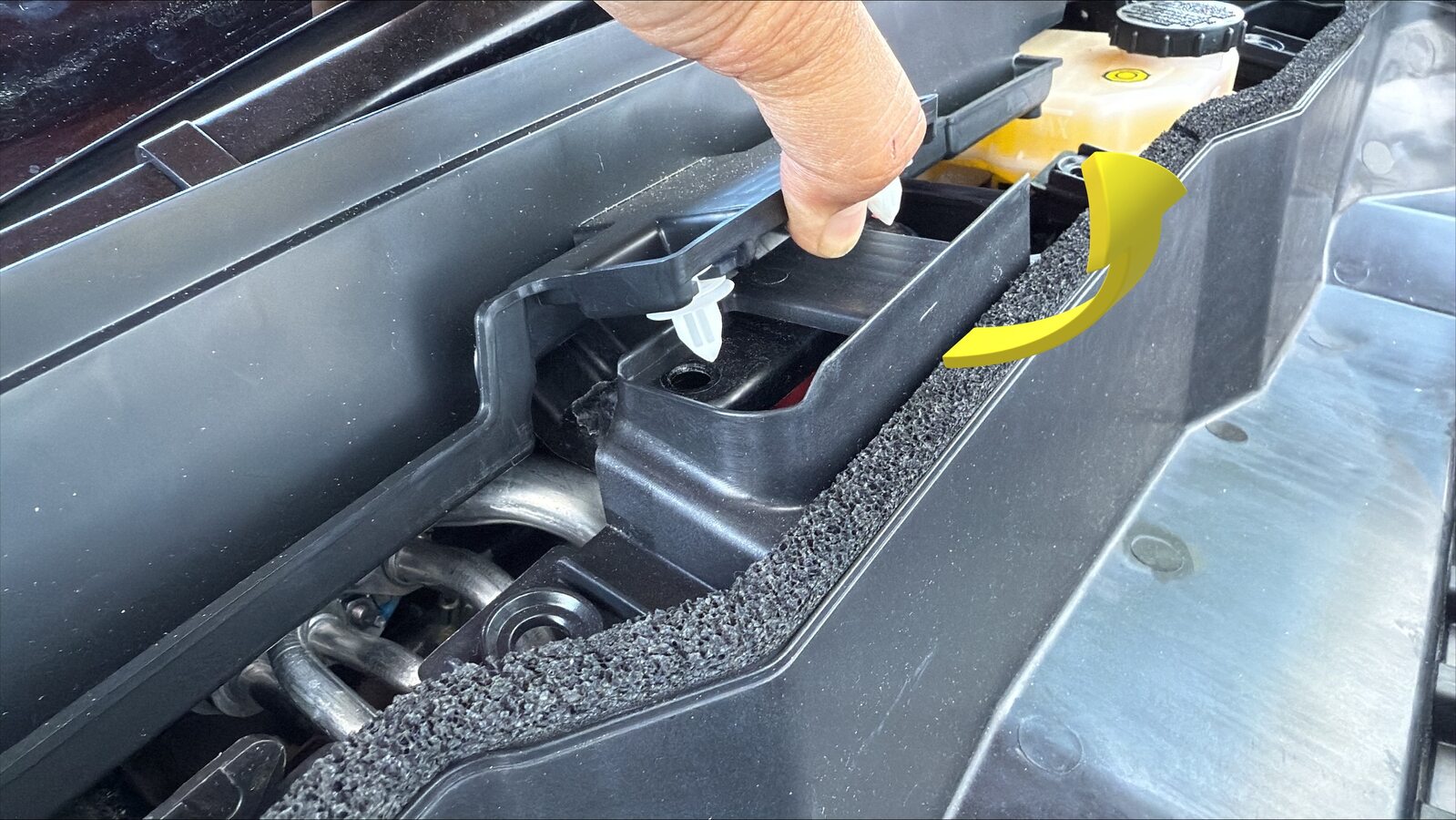

    2x bolts, 10mm, 10 Nm, 14x clips, Fold rear lip of base frunk forward to access forward cowl clips, Lift cowl clips to release bracket

Install

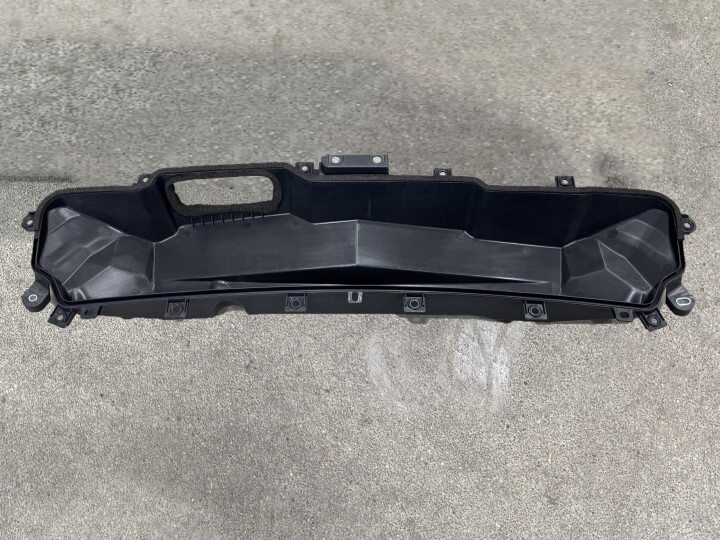

  1. Install cowl assembly
    Informational PurposesAn informational icon, calling your attention
    Note

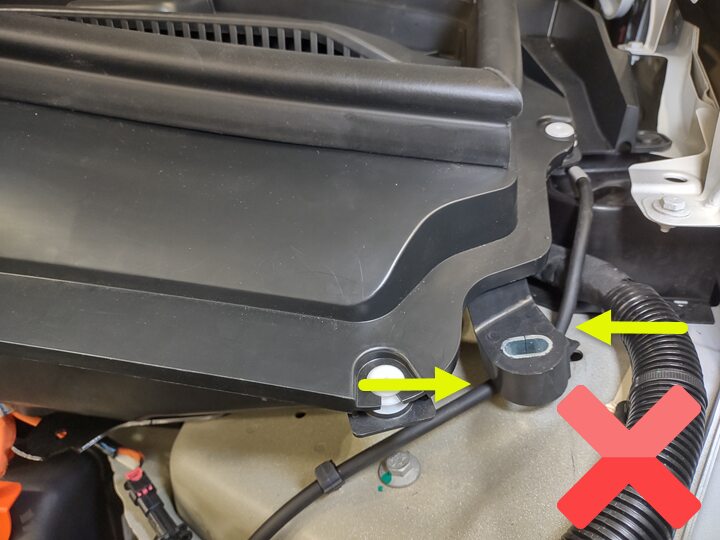

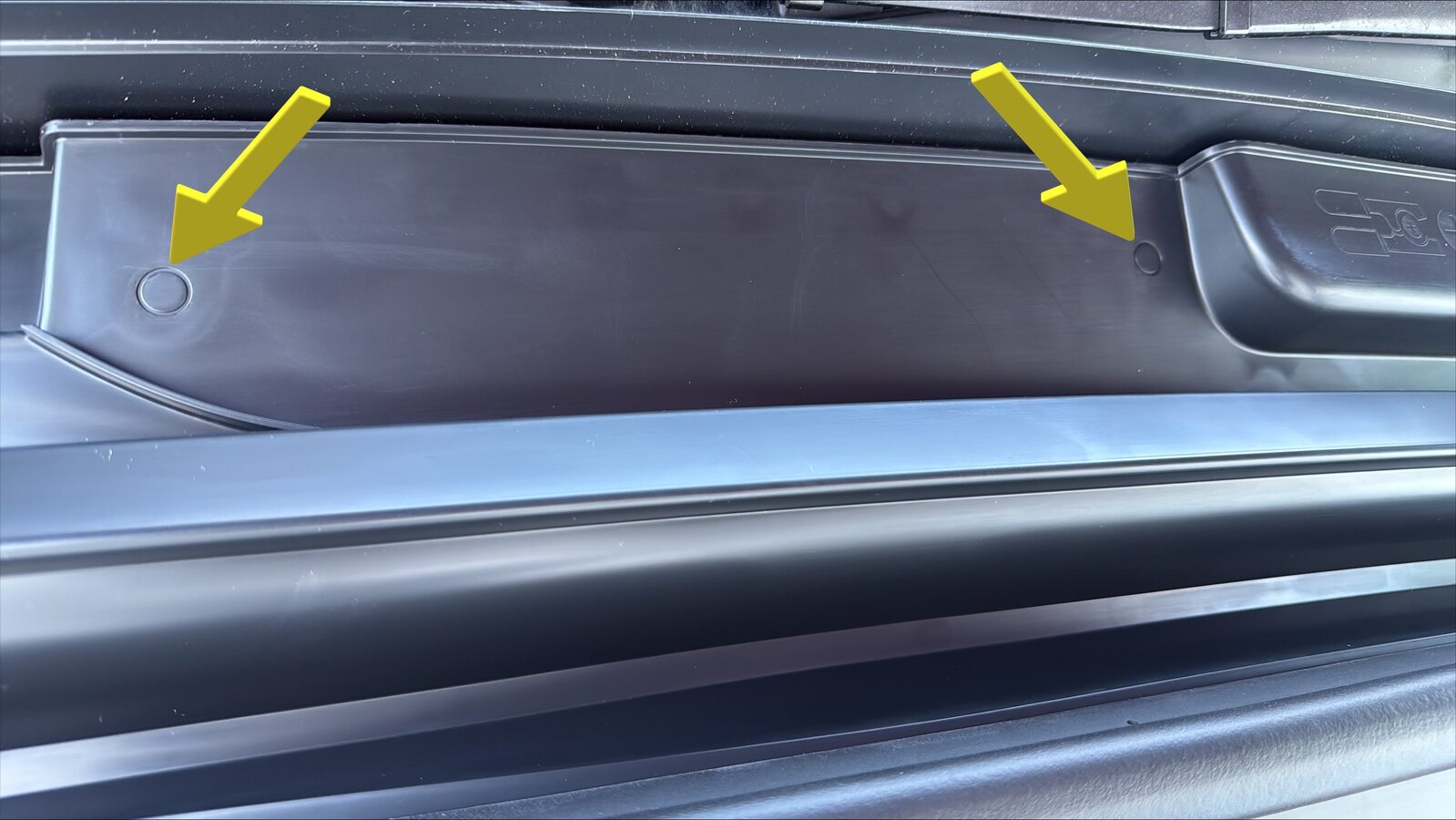

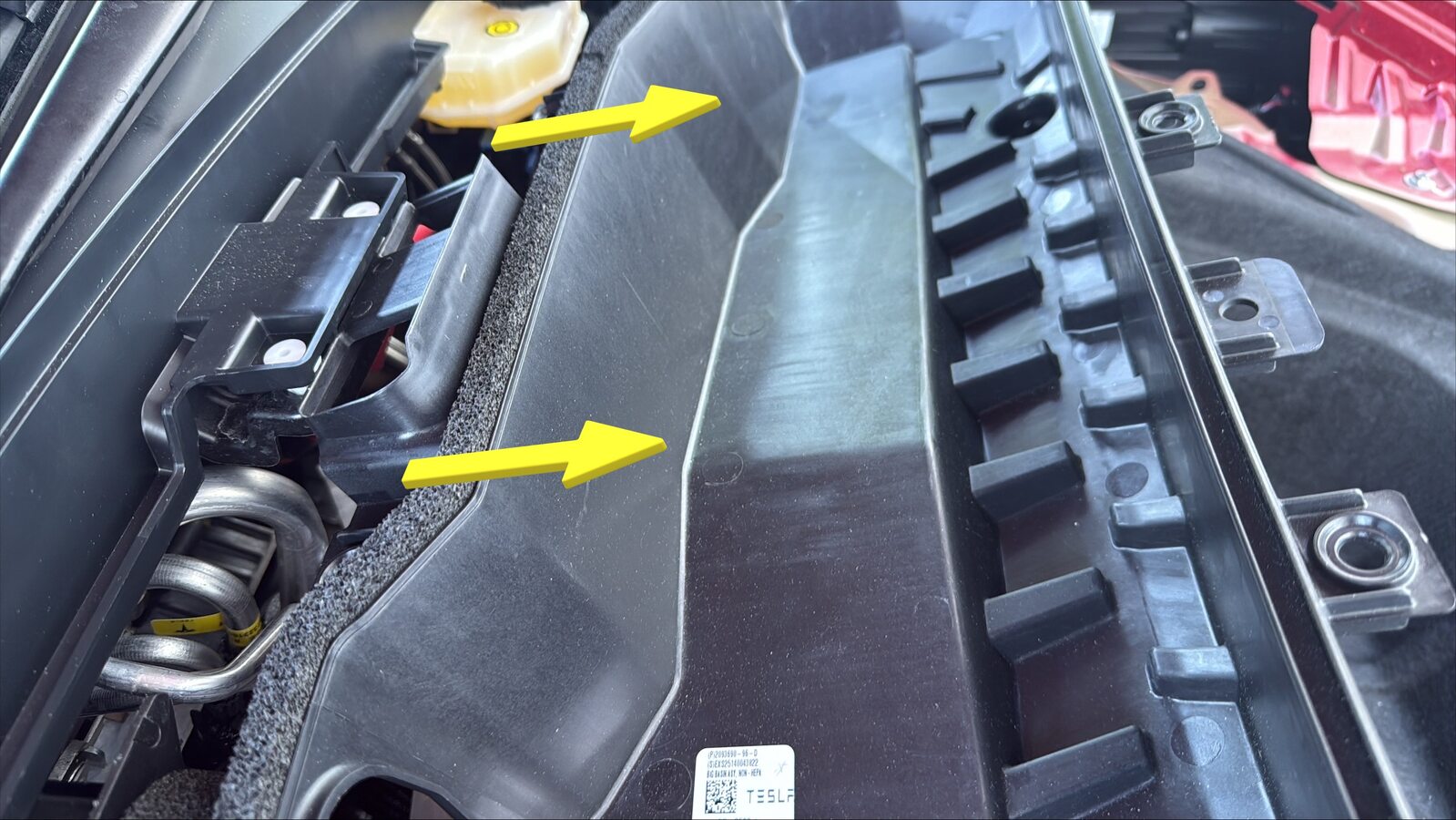

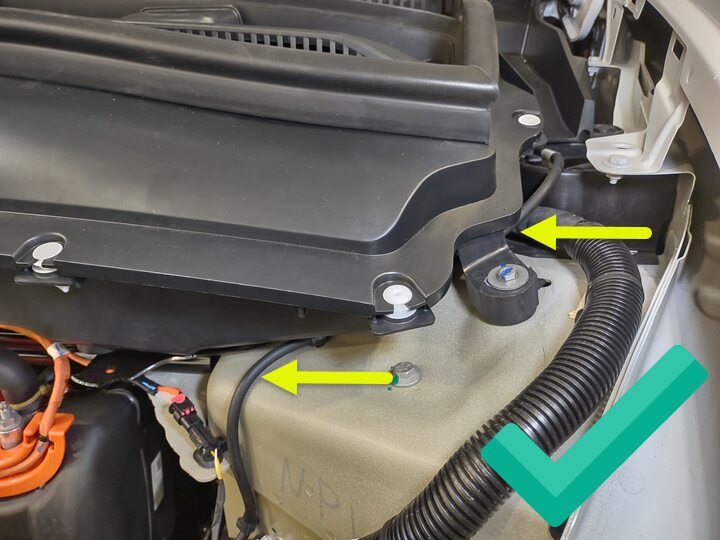

    2x bolts, 10mm, 10 Nm, 14x clips, Secure fasteners then install cowl assembly , Fold rear flap of base frunk back to access front row of clips to cowl, Replace any missing or damaged clips, Do not pinch washer line in between cowl assembly and body
  2. Close hood
