Badge - Long Range (Remove and Replace)

Correction code 1205011602 0.24 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

  • 1453028-00-A - KIT, BADGE REMOVAL
  • 1049517-00-A - SEAM ROLLER, SILICONE, 5"
  • 2213227-00-A - 2025+ MY LONG RANGE BADGE JIG
Informational PurposesAn informational icon, calling your attention
Note
The badge is not reusable due to the required positioning accuracy. If the badge is removed for any reason, it must be replaced with a new one.

Remove

  1. Cut a piece of fishing line approx. 60 cm (24 in) in length.
  2. Tie slip knots at both ends of the fishing line and attach each of them to the center groove of the handle.

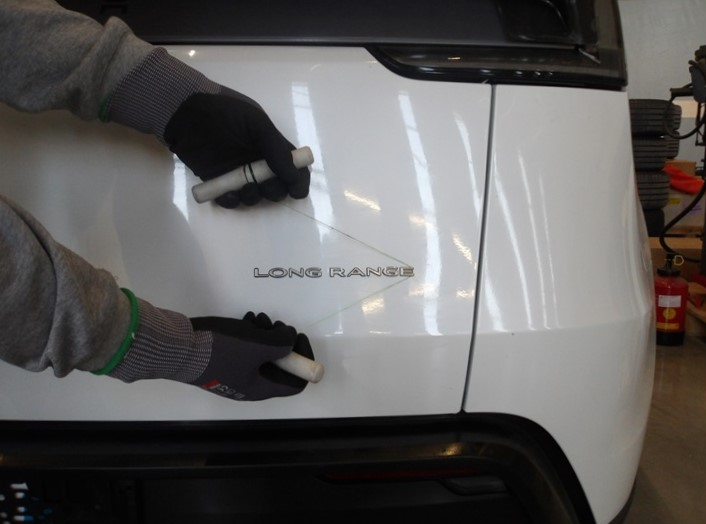

  3. Move the badge removal tool in a sawing motion to separate the "Long Range" badge from the liftgate.
  4. Use IPA wipes to clean all adhesive residue and debris from the lower RH liftgate surface.

Install

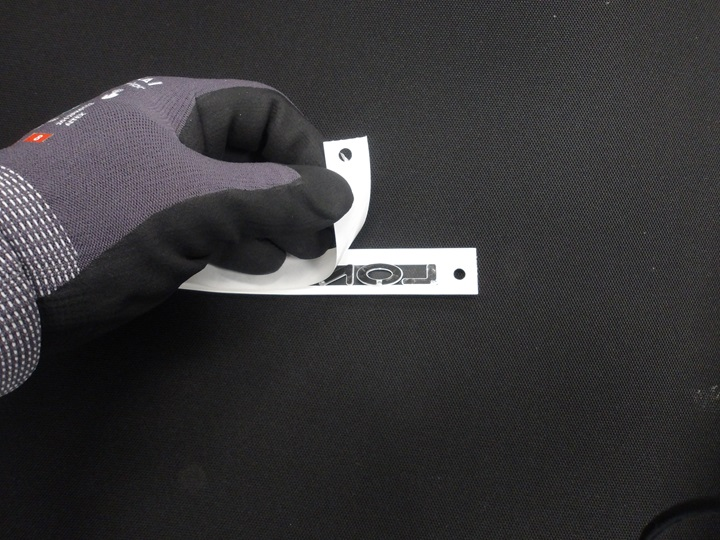

  1. Slowly peel the backing of the "LONG RANGE" badge.

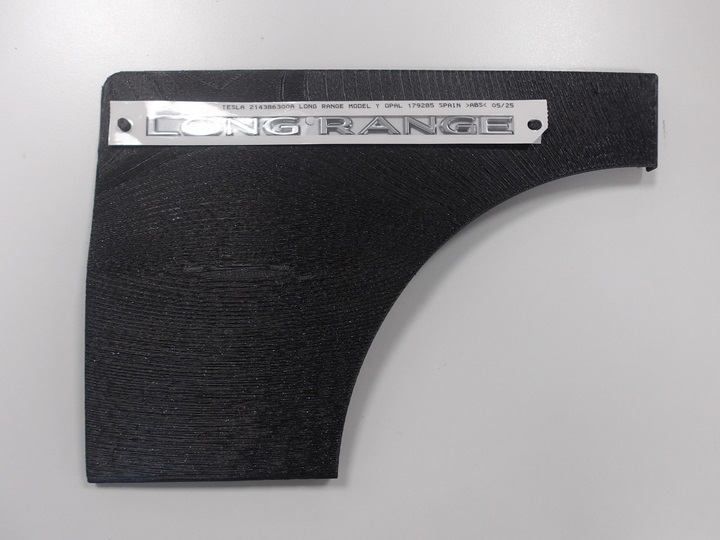

  2. Install the "LONG RANGE" badge on the jig (2213227-00-A). Align the holes of the protective film with the location pins on the jig.

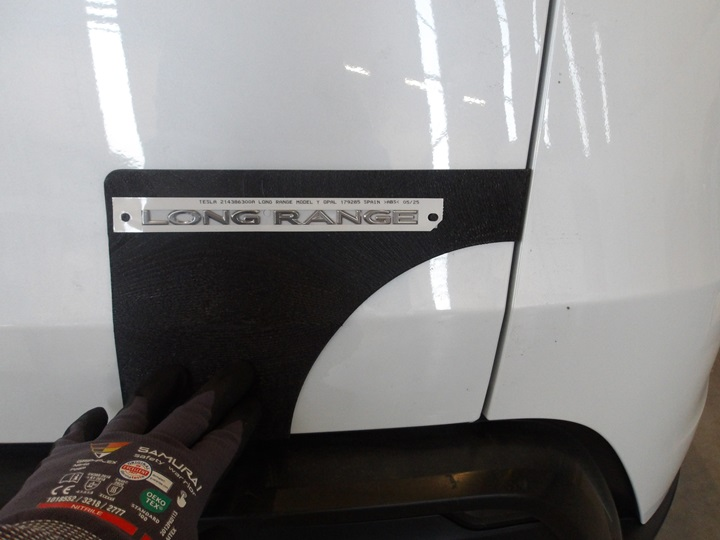

  3. Close the liftgate, and then position the jig with the badge on the liftgate.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use a seam roller to firmly affix the badge to the liftgate.
  4. Carefully peel off the protective film from the badge, and then remove the jig from the liftgate.

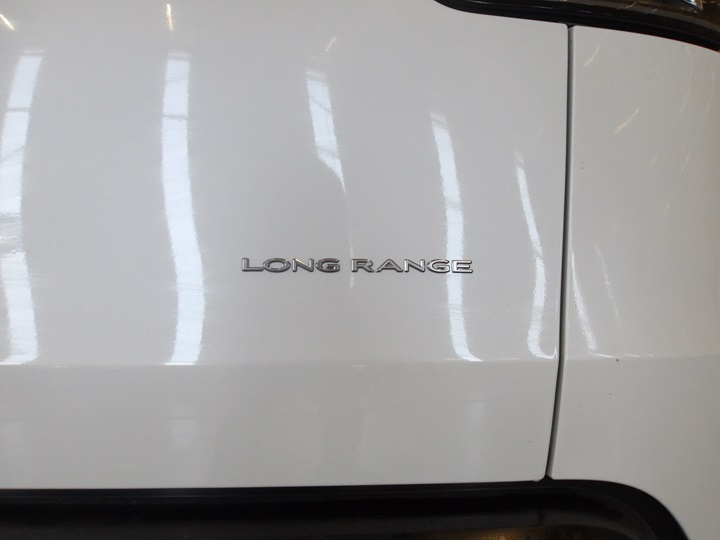

  5. Use an IPA wipe to clean the badge and the area around the badge.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure that all edges of the badge are securely affixed to the liftgate surface.
