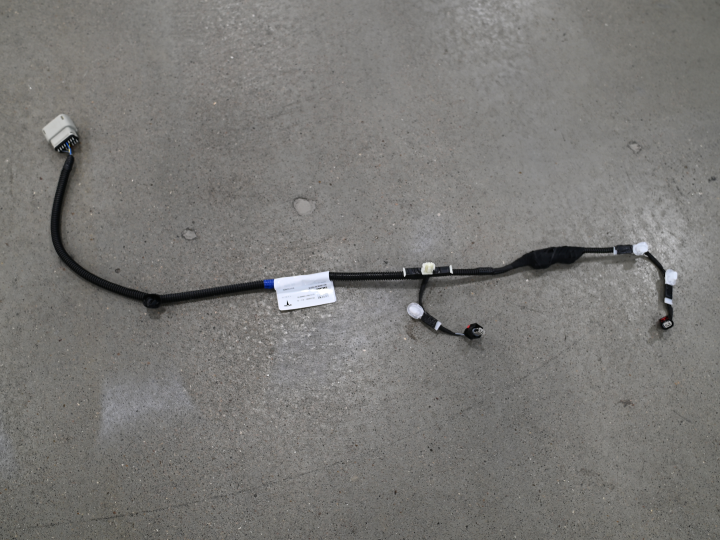

Harness - Fascia - Rear (Model Y Standard) (Remove and Replace)

Correction code TBD FRT 0.54 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications: Rear Fascia Assembly (Model Y Standard) (Remove and Replace)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Bolt that attaches the LH rear fascia to the body	2 Nm (1.5 lbs-ft)	8 mm socket	Reuse
Bolt that attaches the LH corner of the rear fascia to the body	3.5 Nm (2.6 lbs-ft)	10 mm socket	Reuse
Bolts (x2) that attach the mid aero shield to the rear diffuser	5 Nm (3.7 lbs-ft)	10 mm deep socket	Reuse
Rear diffuser bolts	5 Nm (3.7 lbs-ft)	10 mm deep socket	Reuse
