TRUNK SIDE TRIM LEFT HAND - REAR UNDER BODY (Remove and Replace)
Correction code
1530051402
FRT
0.00
NOTE: Unless
otherwise explicitly stated in the procedure, the above correction code and
FRT reflect all of the work required to perform this procedure, including
the linked procedures. Do
not stack correction codes unless explicitly told to do so.
NOTE: See Flat Rate Times to learn more about FRTs and how they are
created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com.
NOTE: See Personal Protection to make
sure wearing proper PPE when performing the below procedure.
Remove
- Remove the 2nd row lower seat cushion. See 2ND ROW SEAT CUSHION (Remove and Replace).
- Remove the LH lower C-pillar trim. See Trim - C-Pillar - Lower - LH (5-Seat) (Remove and Replace).
- Remove the rear trunk load floor. See TRUNK LOAD FLOOR - REAR (Remove and Replace).
- Remove the trunk sill trim. See TRUNK SILL LOWER TRIM (Remove and Replace).
- Remove the LH trunk load floor bracket. See Bracket - Load Floor - LH (Remove and Replace).
-

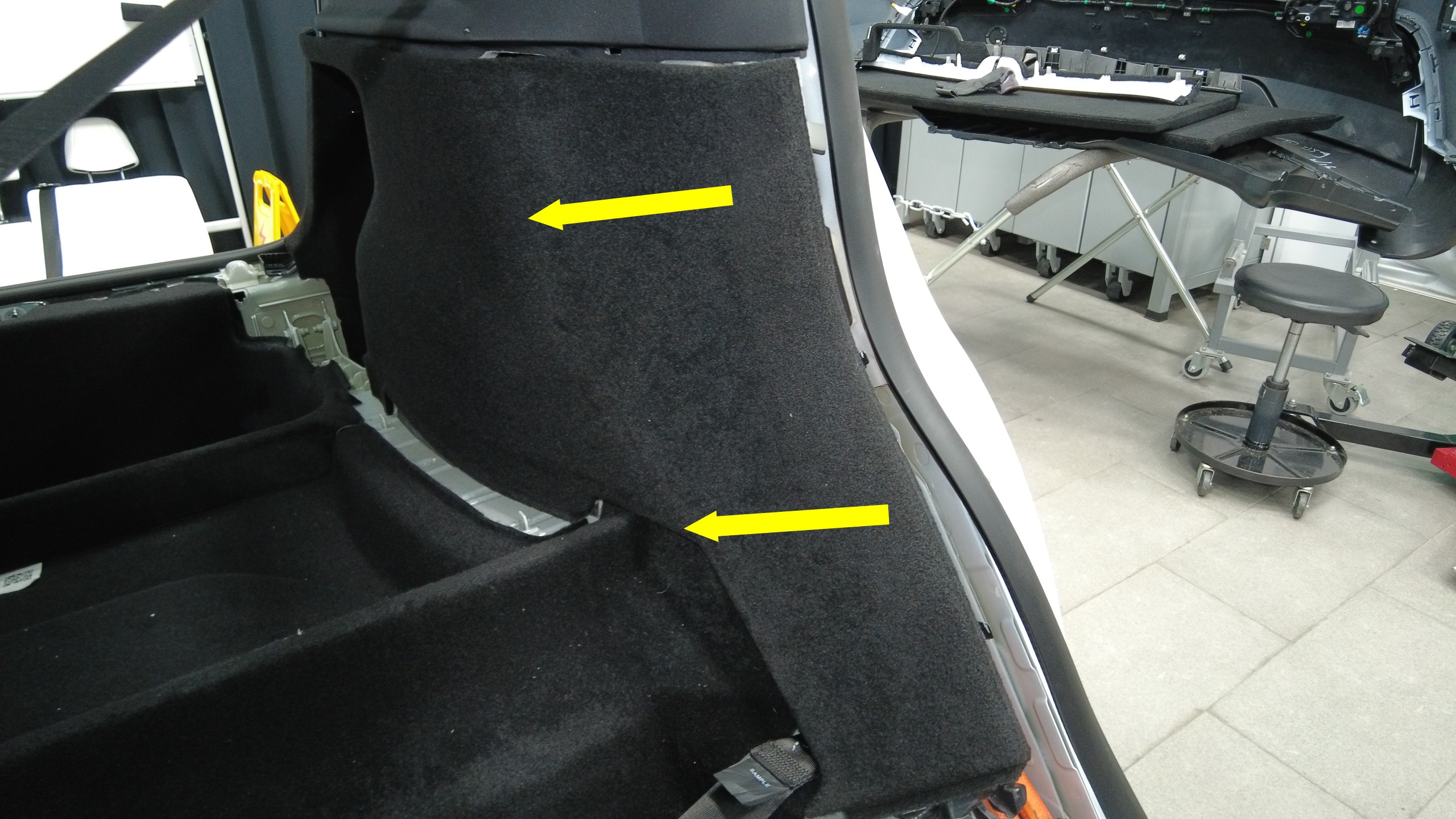

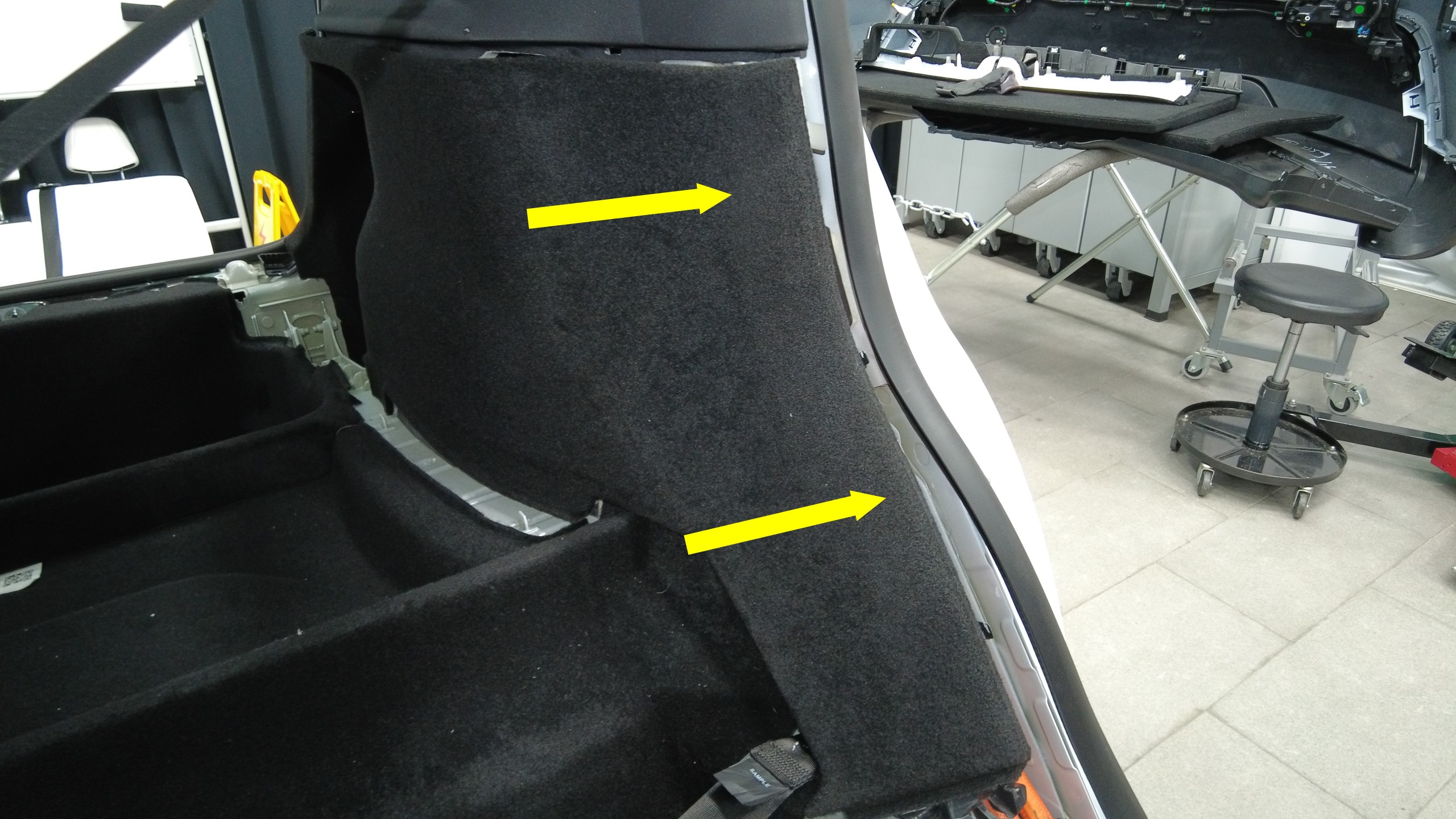

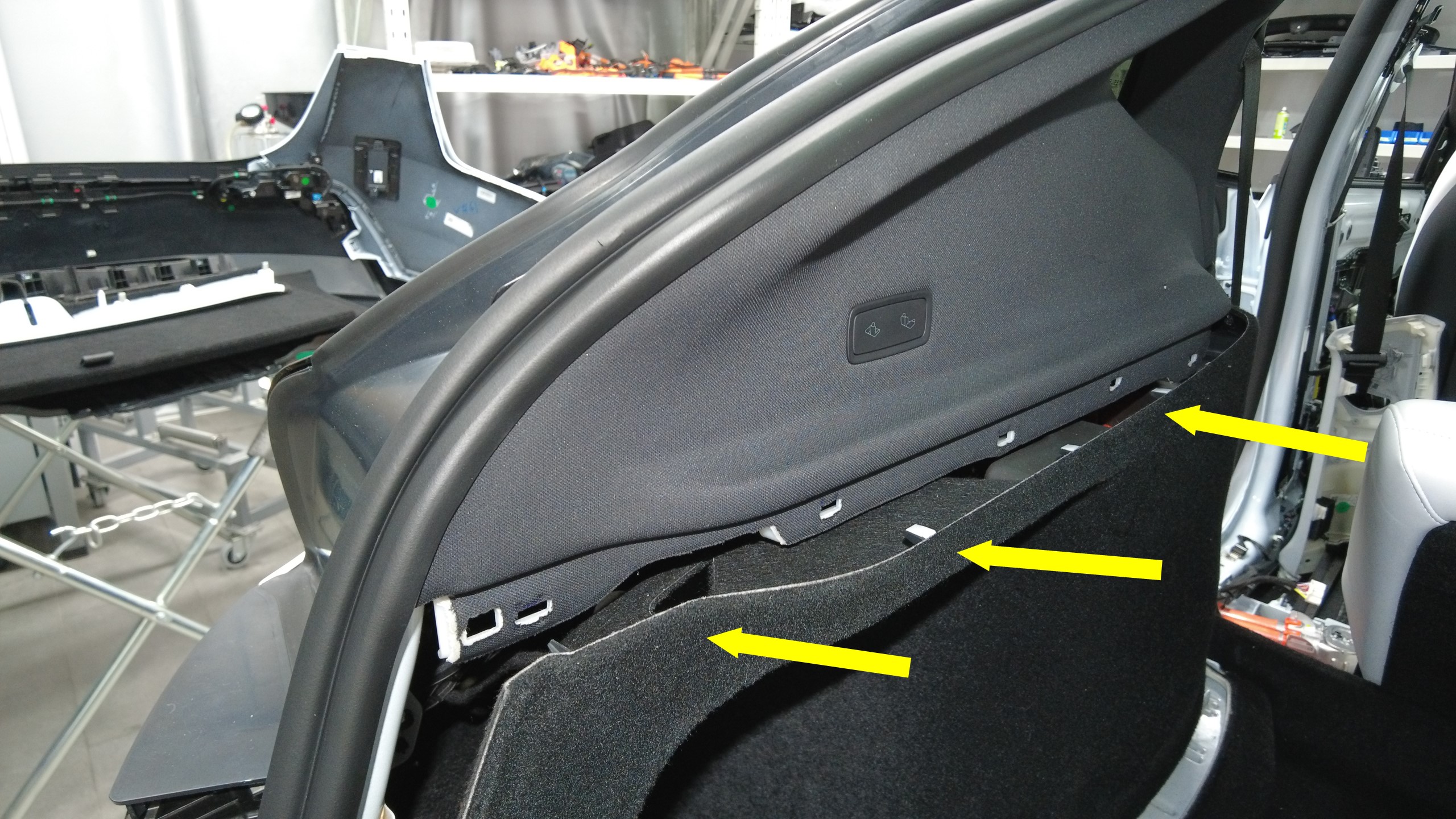

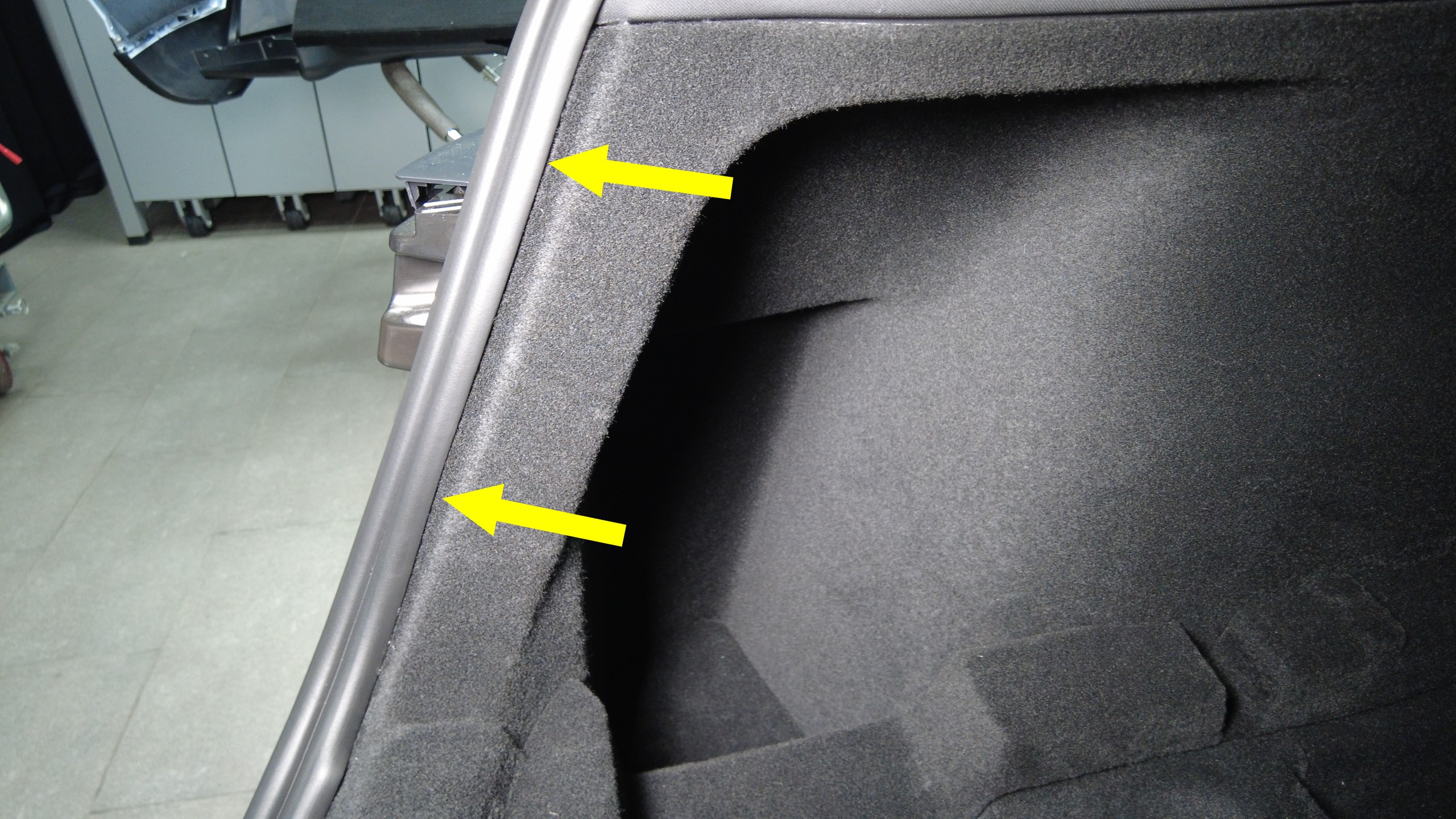

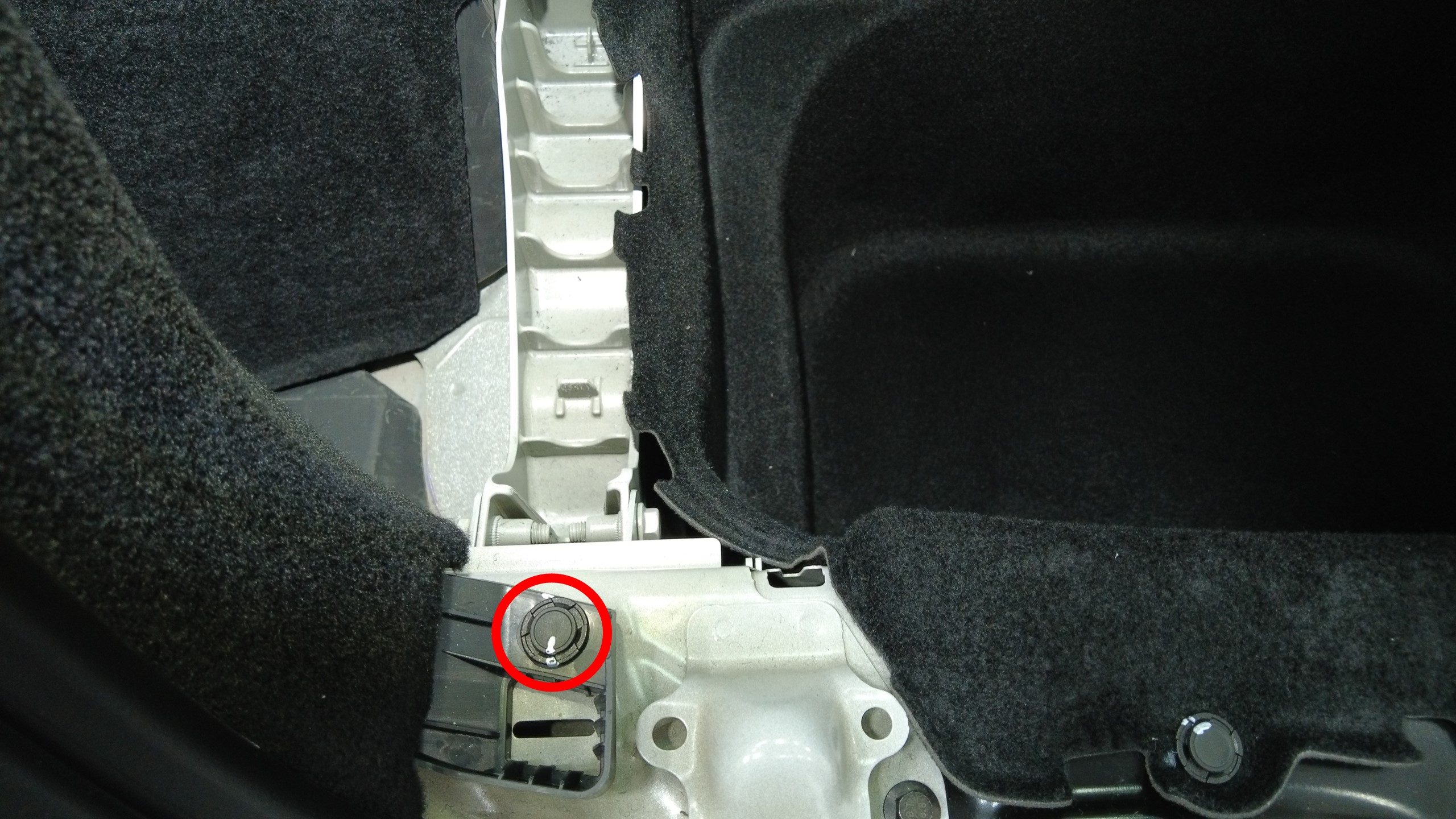

Remove LH trunk side trim.

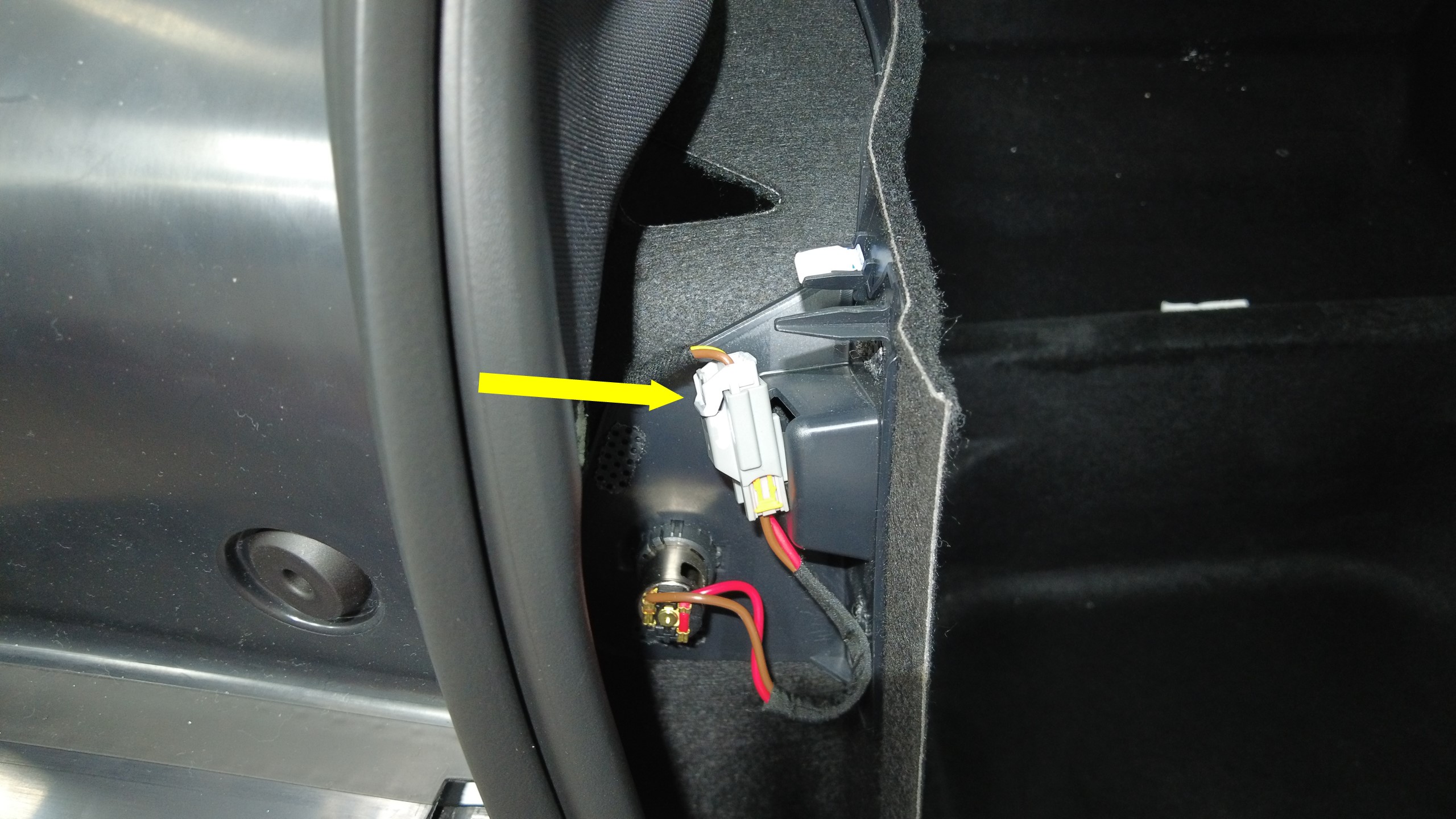

NoteThe trim part and the number of clips in the following steps may slightly differ by vehicle build date and location.NoteDo not pull the trim too far from the body, as harnesses are still connected to the trim.
Install
- Install the LH trunk side trim.
- Install the LH trunk load floor bracket. See Bracket - Load Floor - LH (Remove and Replace).
- Install the trunk sill trim. See TRUNK SILL LOWER TRIM (Remove and Replace).
- Install the rear trunk load floor. See TRUNK LOAD FLOOR - REAR (Remove and Replace).
- Install the LH lower C-pillar trim. See Trim - C-Pillar - Lower - LH (5-Seat) (Remove and Replace).
- Install the 2nd row lower seat cushion. See 2ND ROW SEAT CUSHION (Remove and Replace).
