Foam - Cushion - Driver Seat (Model YL / Model Y Performance) (Remove and Replace)

Correction code 13010702402 FRT 1.08 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
Seat base edges are sharp and can cause personal injury. Wear cut resistant gloves when removing the seat from the vehicle, and while performing procedures that involve work on or near the seat base.
Informational PurposesAn informational icon, calling your attention
Note
The driver seat cushion foam and heat pad cannot be replaced separately. They need to be replaced together.

Install

  1. Route the connector of the new occupancy sensor through the notch, and then stick the new sensor onto the new seat cushion foam.

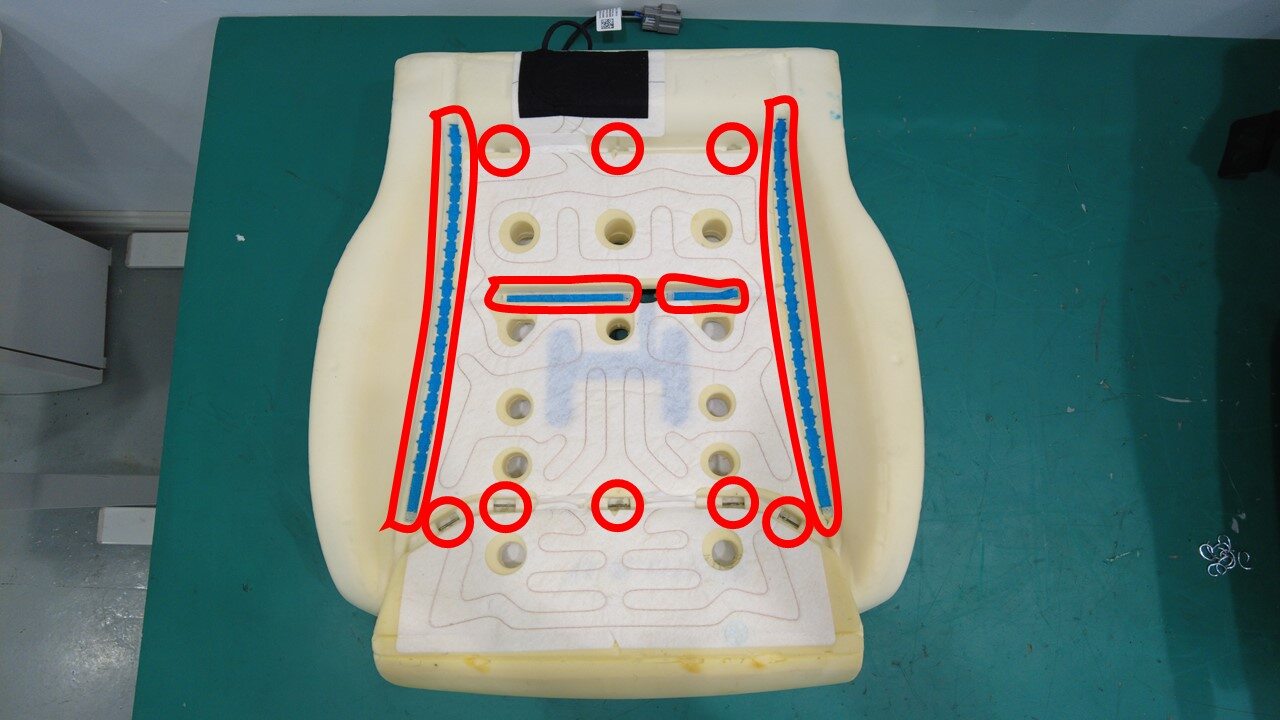

  2. Install a new driver seat cushion heat pad onto the new seat cushion foam.
  3. Install the driver seat cushion foam to the seat cushion cover, and then install seat cushion assembly to the vehicle. See Cover - Cushion - Driver Seat (Model YL / Model Y Performance) (Remove and Replace).
