Global Headlights - Adjust (Wall Method) (Test/Adjust)

Correction code 17400160 FRT 0.15 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Adjust Headlights Using a Wall

Special tools required for this procedure:
  • 1114934-00-A: Laser Measure
  • 1115239-00-A: Tape Measure, 5m-16ft
  1. Position the vehicle for adjusting the headlights. The vehicle should be:
    • Located in a darker work area with low ambient lighting.
    • Parked on a level surface.
    • Perpendicular to a wall that has a matte surface. The wall must be at least 1.83 m (6 ft) high and 3.76 m (12 ft) wide.
  2. Make sure there are no low tire pressure alerts on the touchscreen. If present, adjust tire pressures to specification.
  3. Apply tape to the wall at 61 cm (24 in) from the floor.
  4. Measure 7.6 m (25 ft) away from the wall and put a piece of tape on the ground to indicate where the vehicle should be parked.
  5. Park the vehicle perpendicular to the wall so that the front fascia is aligned with the tape that was put on the floor in the previous step.
    Informational PurposesAn informational icon, calling your attention
    Note
    Choose a dark working area with low ambient lighting for best results, ensure tire pressure is set to specification.
  6. Confirm that the vehicle is positioned perpendicular to the wall by measuring the distance from the center of each front wheel to the wall. If necessary, reposition the vehicle until the distance between each front wheel to the wall is equal.
    Informational PurposesAn informational icon, calling your attention
    Note
    Maximum difference in distance between left and right is 3 mm (0.12 in).
  7. Project a laser beam perpendicular to the wall onto the center point of the vehicle, and then mark a center-line on the wall.
  8. Apply tape to the wall at 77 cm (30 in) to the left and to the right of the center line.
    Informational PurposesAn informational icon, calling your attention
    Note
    These reference marks will be the targets for horizontal adjustment.
  9. Enable Service Mode through the touchscreen. See Service Mode.
  10. On the touchscreen, touch Controls > Service > Adjust Headlights to enable Headlight Adjustment Mode.
  11. Enable test drive override through the touchscreen.
    Informational PurposesAn informational icon, calling your attention
    Note
    Ignore the text "Enable if using certain headlight aiming machines".
  12. Completely cover the RH headlight.

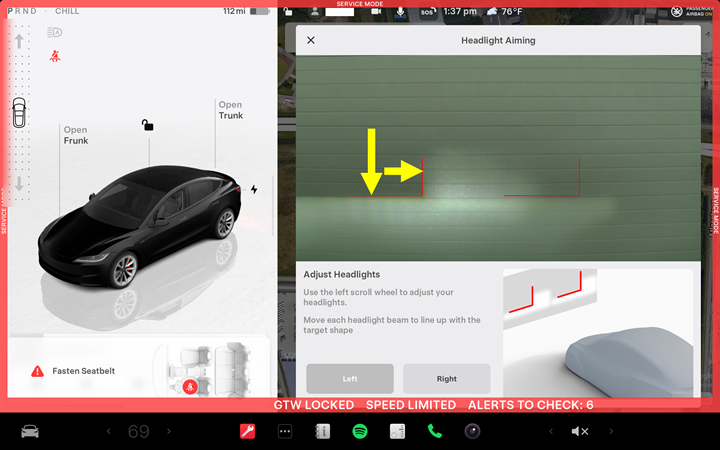

  13. Adjust LH headlight: touch Left on the touchscreen, and then use the left scroll wheel on the steering wheel to adjust the beam level. Adjust the LH headlight so that the top of the horizontal beam aligns with the horizontal tape mark on the wall, and the left edge of the L-shaped beam aligns with the LH vertical reference tape mark.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Do not sit in the vehicle during headlight aiming since this will affect the height of the headlight beam.
  14. Remove the cover from the RH headlight.

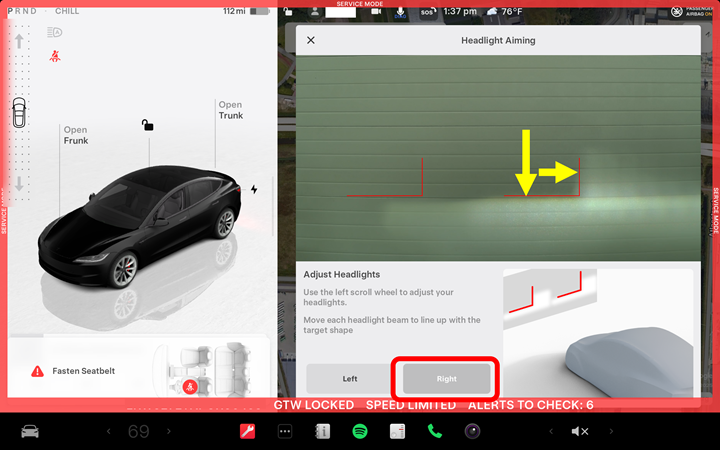

  15. Repeat steps 12 through 14, covering the LH headlight, and adjusting the RH headlight.
  16. Exit the headlight adjustment mode through the touchscreen.
  17. Exit Service Mode through the touchscreen. See Service Mode.
