Reflex Lens - Rear - LH (Model Y Standard) (Remove and Replace)

Correction code TBD FRT 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.

Remove

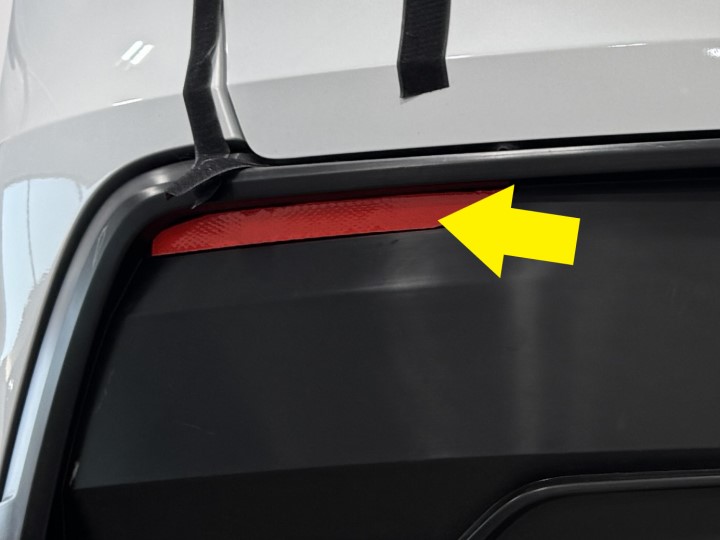

  1. Using a trim pry tool, gently pry from the inner edge to release the clips (x2), and then remove the reflex lens from the vehicle.

Install

  1. Push firmly the LH rear reflex lens inwards to secure the clips (x2).
