Inductive Charger Module (Model Y Standard) (Remove and Replace)

Correction code TBD FRT 0.3 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.

Remove

  1. Remove the phone dock assembly from the center console. See Phone Dock Assembly - Center Console (Model Y Standard) (Remove and Replace).

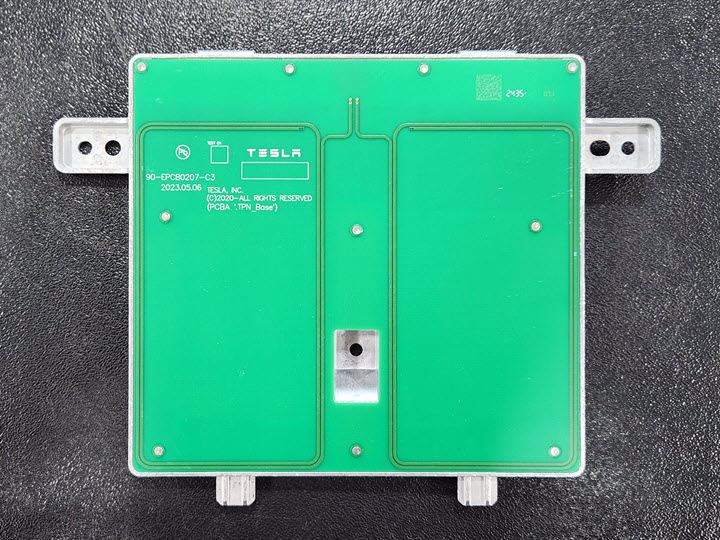

  2. Remove the inductive charger module from the phone dock.

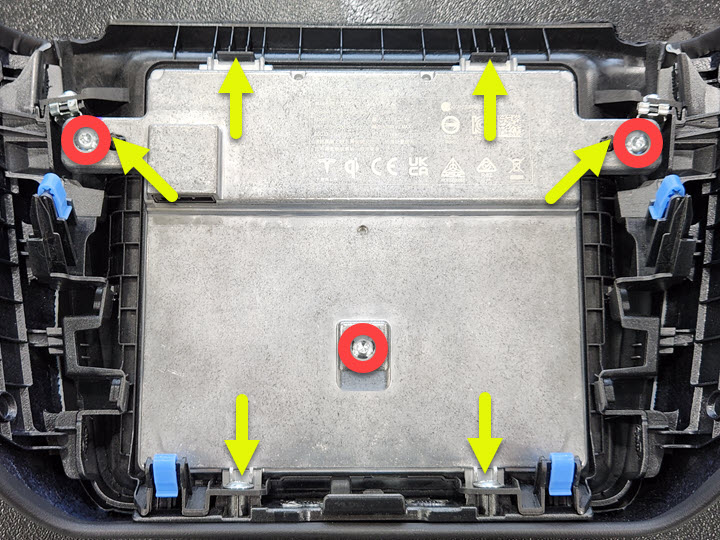

    1. Remove the screws (x3) that attach the inductive charger module to the phone dock.
      Informational PurposesAn informational icon, calling your attention
      TIp
      Use of the following tool(s) is recommended:
      • 1/4in Dr T20 Socket
    2. Release the guides (x2) and datums (x2) that attach the inductive charger module to the phone dock.
    3. Release the tabs (x2) at the top of the inductive charger module, and then angle the module up and remove it from the phone dock.

Install

  1. Install the inductive charger module to the phone dock.
    1. Slide the inductive charger module into the phone dock datums (x2) and guides (x2), and then fully engage the tabs (x2) at the top of the module.
    2. Install the screws (x3) that attach the inductive charger module to the phone dock.
      1.2 Nm (.9 lbs-ft)
      Informational PurposesAn informational icon, calling your attention
      TIp
      Use of the following tool(s) is recommended:
      • 1/4in Dr T20 Socket
  2. Install the phone dock assembly to the center console. See Phone Dock Assembly - Center Console (Model Y Standard) (Remove and Replace).
