Microphone - Telephony Audio - Headliner (Remove and Replace)

Correction code 1520010072 FRT 0.36 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Torque Specifications

Table 1. Torque Specifications: Microphone - Telephony Audio - Headliner (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes

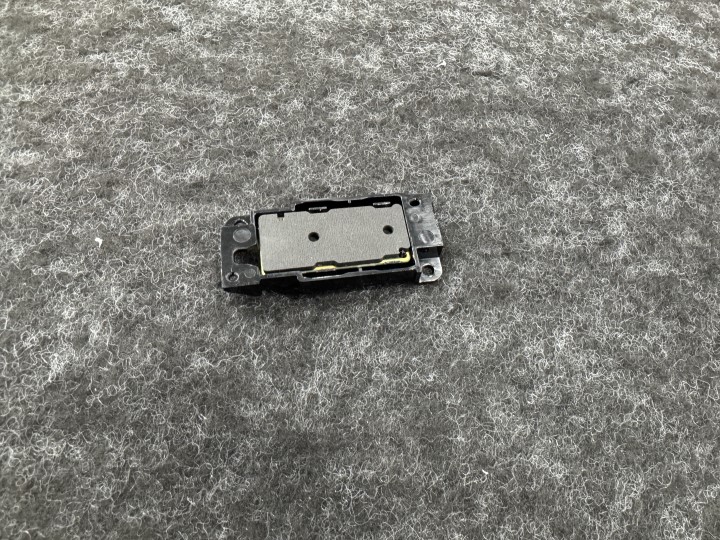

Screws (x2) that secure the LH telephony audio microphone
0.65 Nm (6 lbs-in)
  • Torx T10 bit
  • Digital Torque Screwdriver 0.10Nm - 2.0Nm
 Reuse

Remove

  1. Remove the LH upper A-pillar trim. See Trim - A-Pillar - Upper - LH (Remove and Replace).
  2. Remove the LH sun visor. See Sun Visor - LH (Remove and Replace).
  3. Remove the LH upper B-pillar trim. See Trim - B-Pillar - Upper - LH (Remove and Replace).

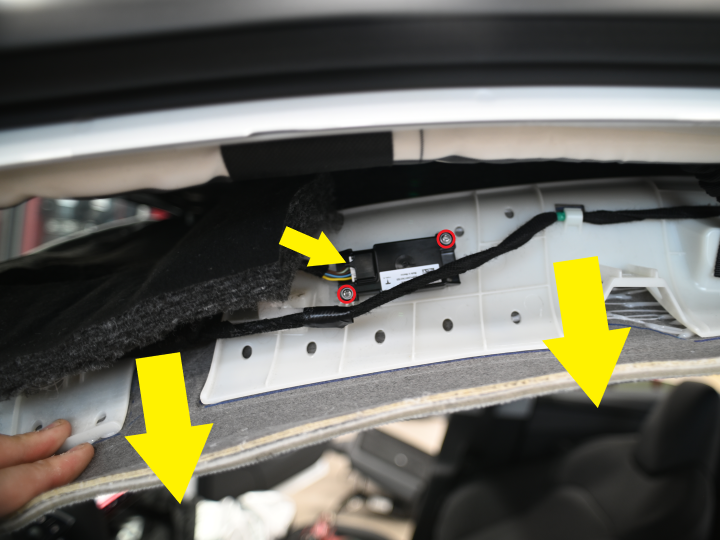

  4. Slightly pull the headliner down, and then disconnect the connector and remove the screws (x2) that secure the LH telephony audio microphone.
    Informational PurposesAn informational icon, calling your attention
    Note
    Release the locking tab to disconnect the connector.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T10 bit
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm

Install

  1. Install the screws (x2) that secure the LH telephony audio microphone, and then connect the connector and restore the headliner.
    0.65 Nm (6 lbs-in)
    Informational PurposesAn informational icon, calling your attention
    Note
    Engage the locking tab after connecting the connector.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T10 bit
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm
  2. Install the LH upper B-pillar trim. See Trim - B-Pillar - Upper - LH (Remove and Replace).
  3. Install the LH sun visor. See Sun Visor - LH (Remove and Replace).
  4. Install the LH upper A-pillar trim. See Trim - A-Pillar - Upper - LH (Remove and Replace).
