Harness - Center Console (Model Y Standard) (Remove and Install)

Correction code NEW NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.
  • 2025-10-01: Released new procedure.

Remove

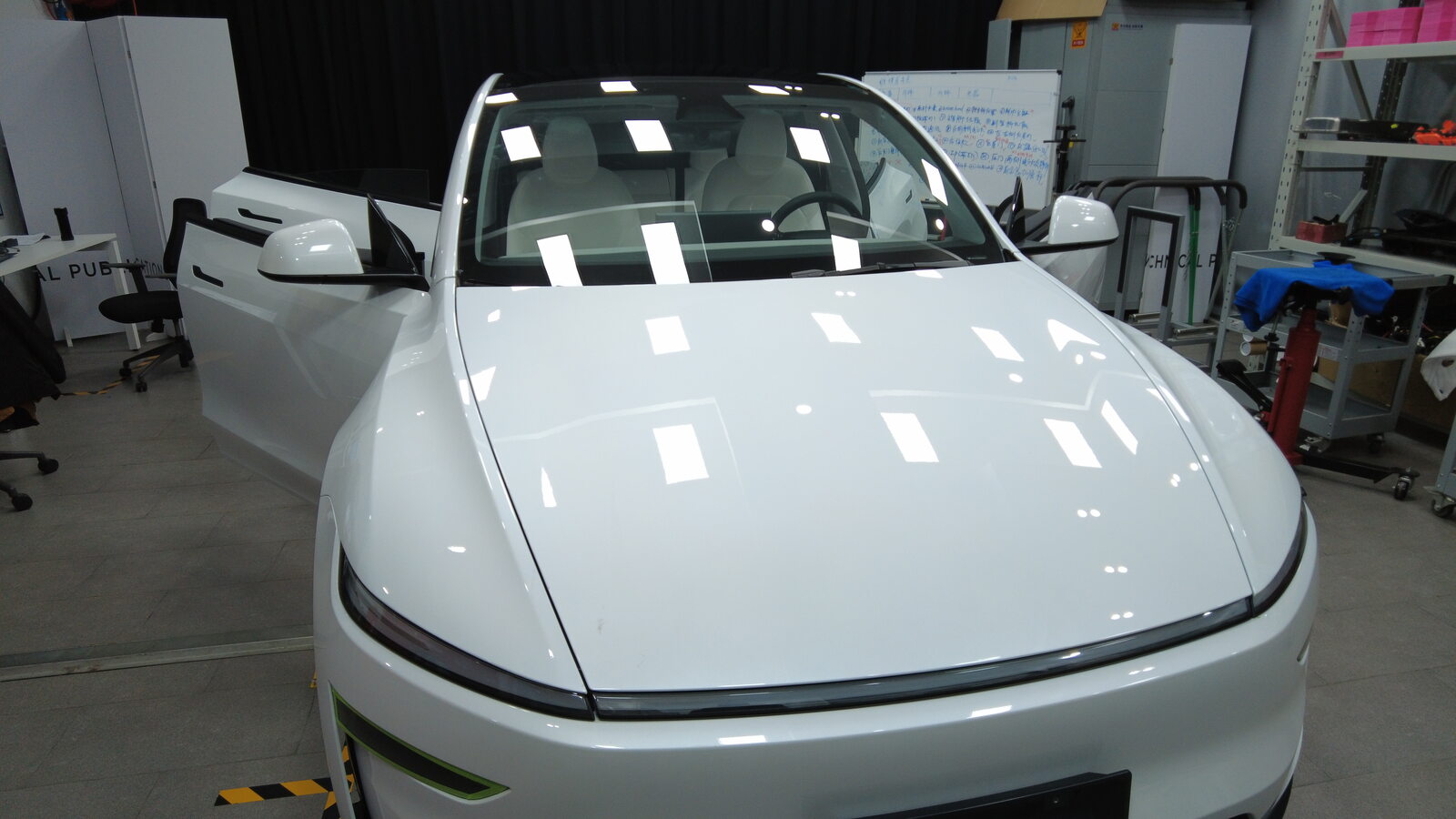

  1. Open all four doors

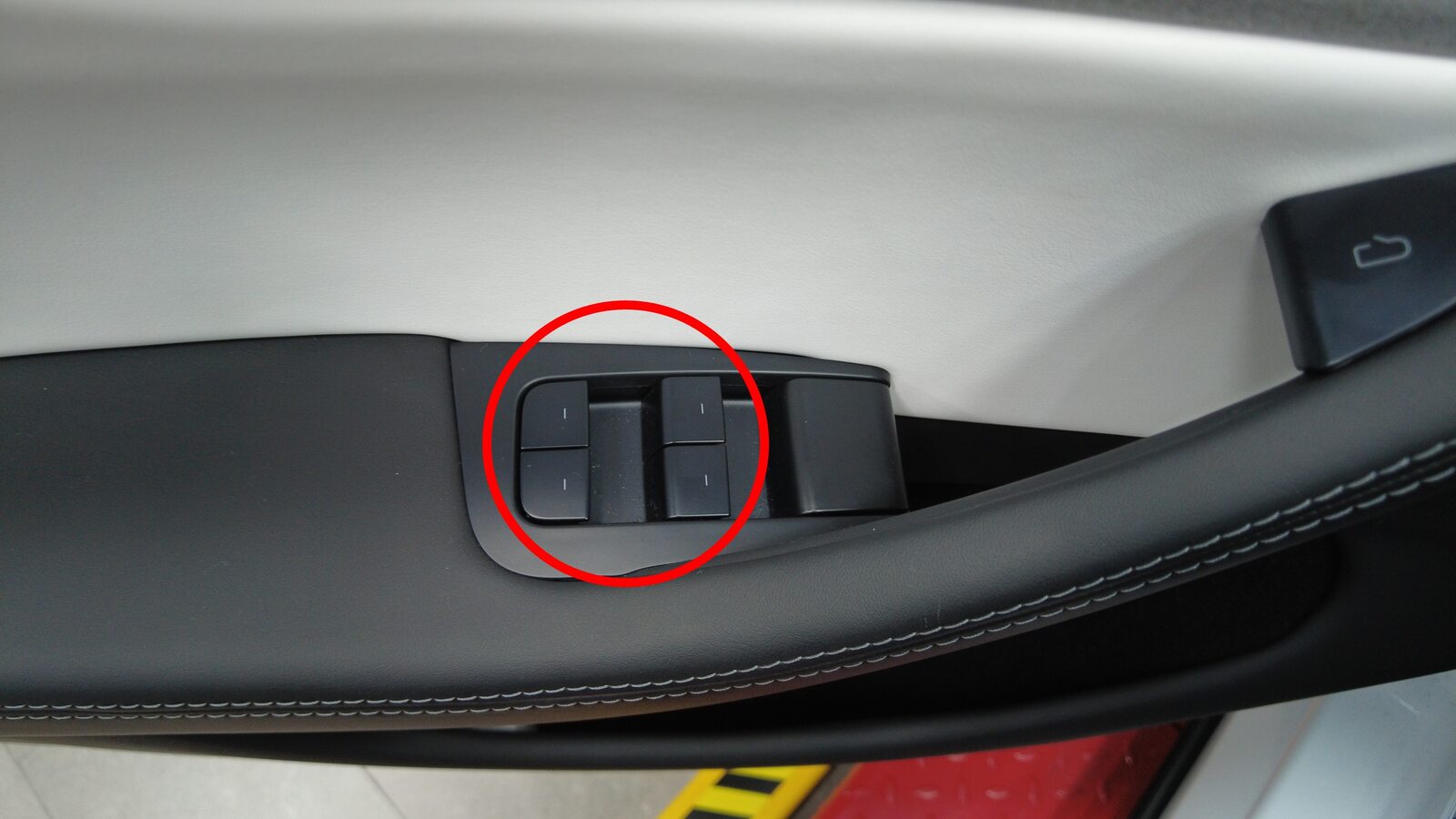

  2. Lower all four windows

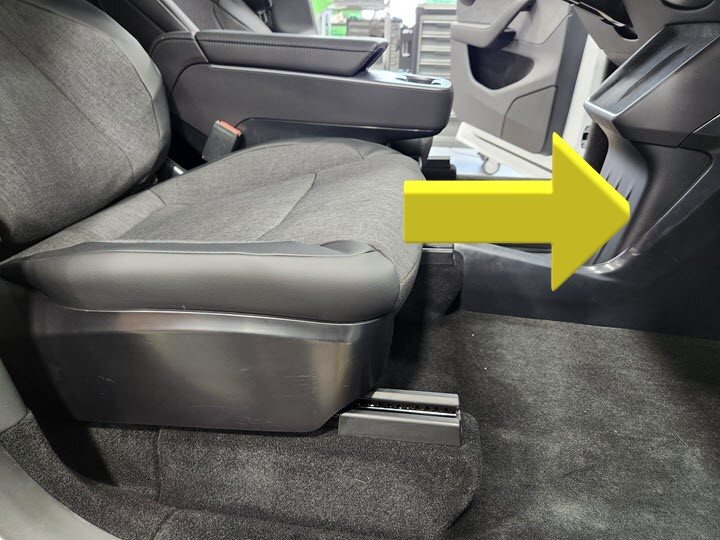

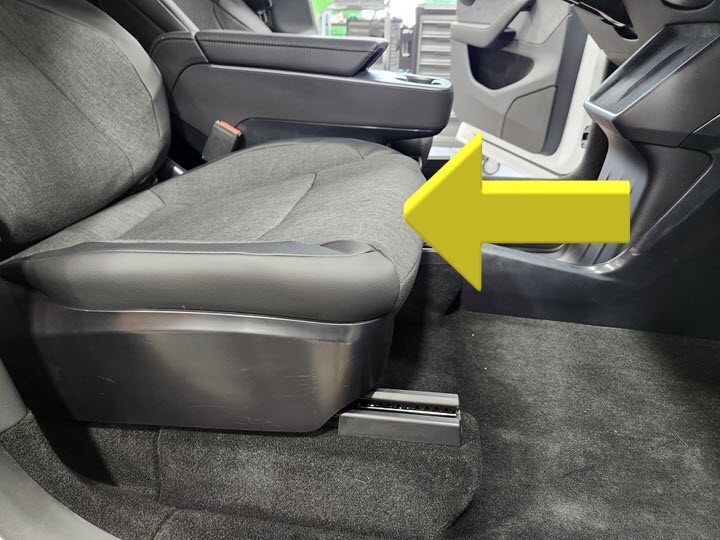

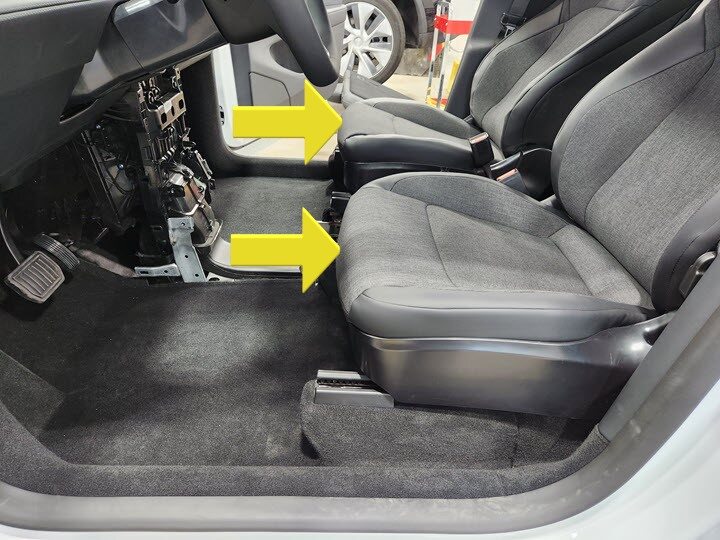

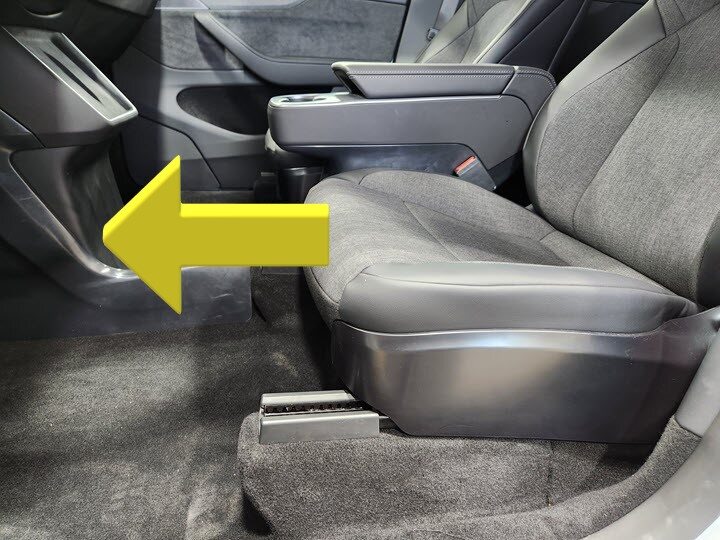

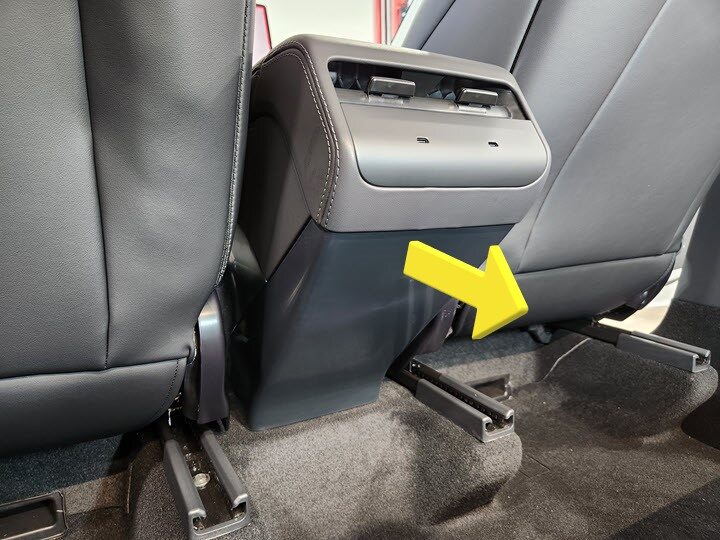

  3. Move RH front seat forward
    Informational PurposesAn informational icon, calling your attention
    Note

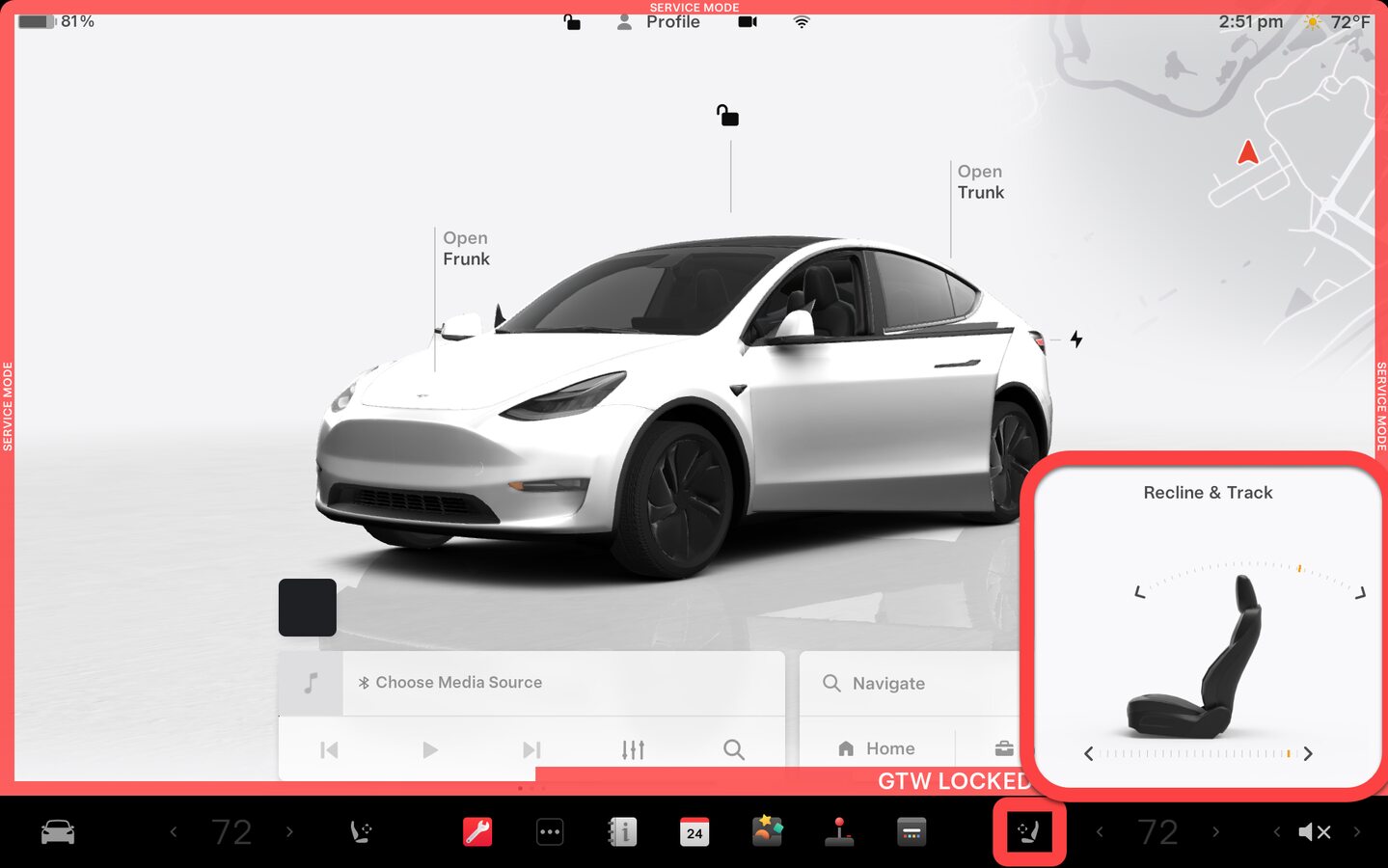

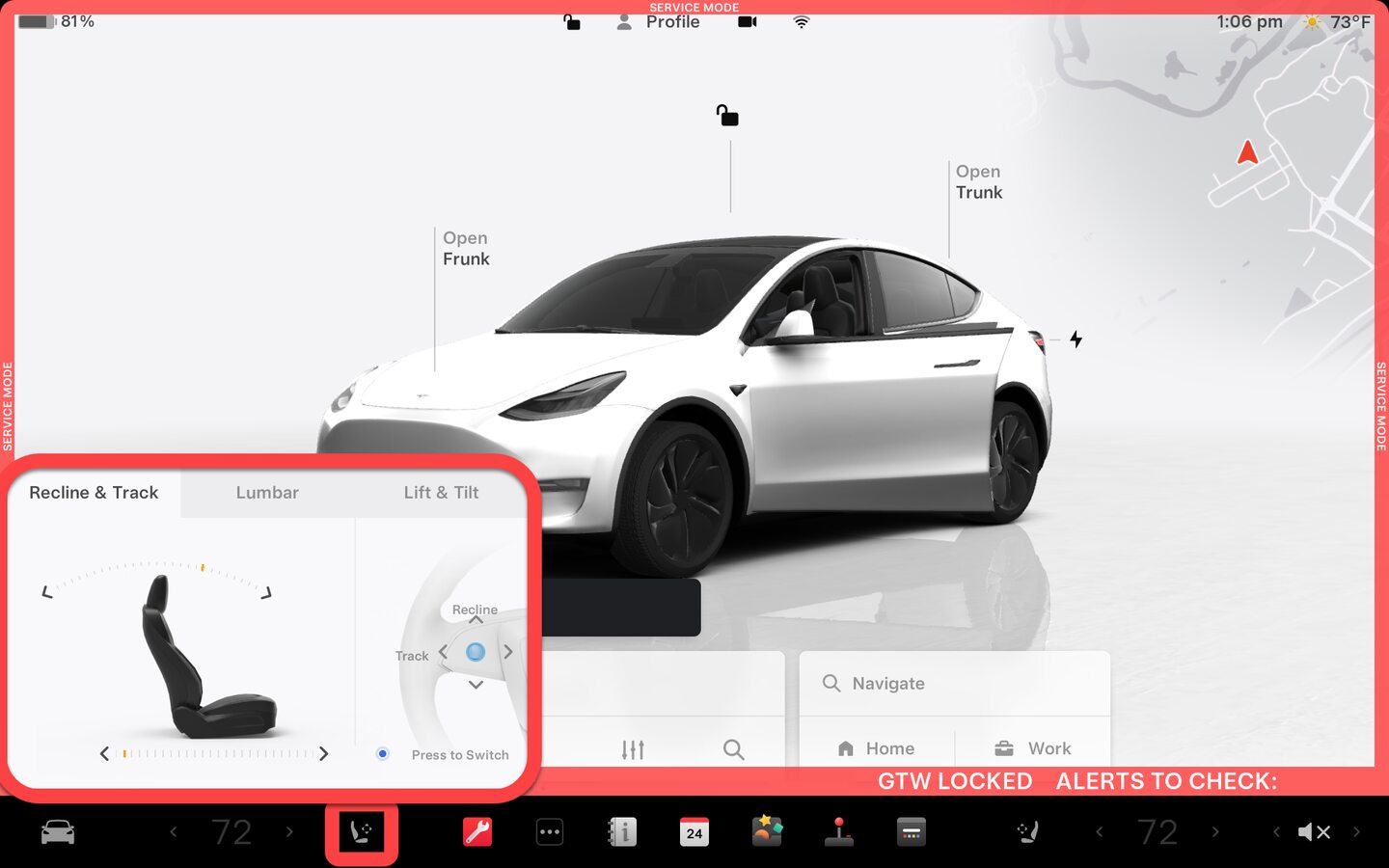

    Via UI > Seat Controls
  4. Move LH front seat forward
    Informational PurposesAn informational icon, calling your attention
    Note
    Via UI > Seat Controls, Use steering wheel scroll wheel as needed

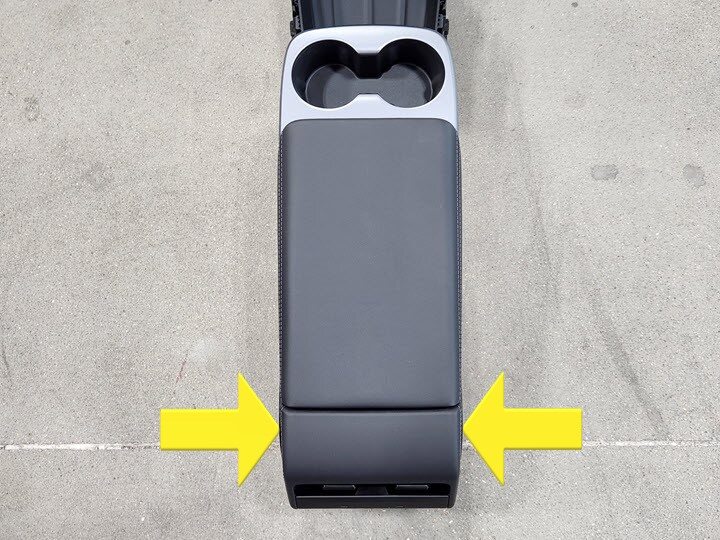

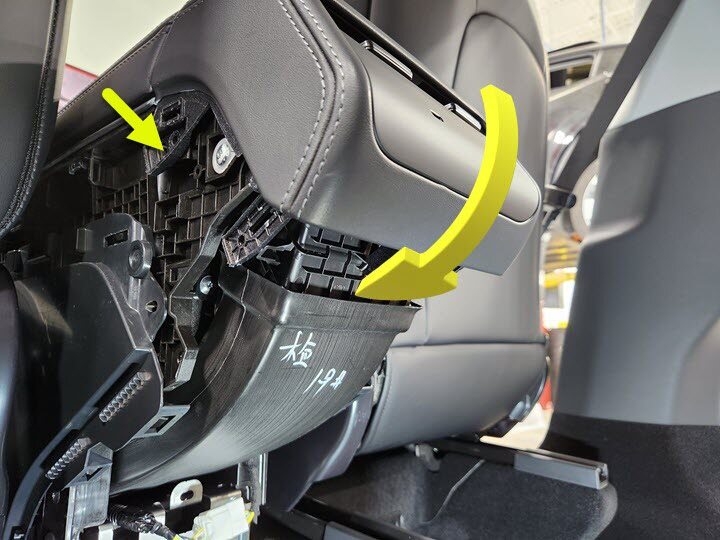

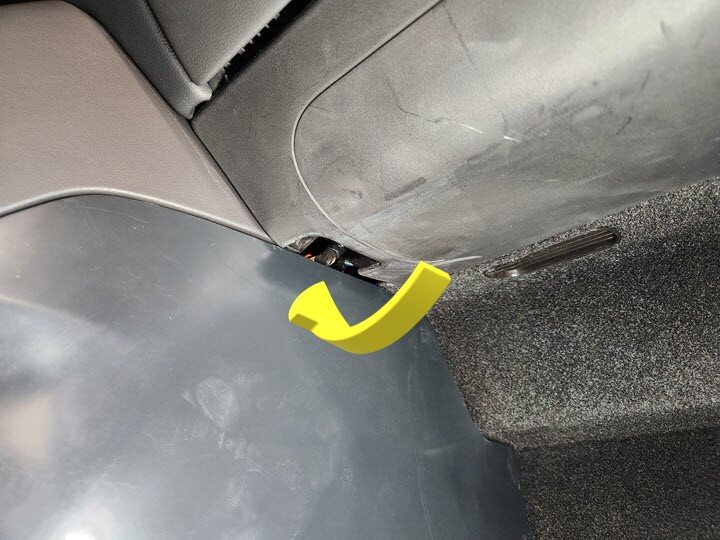

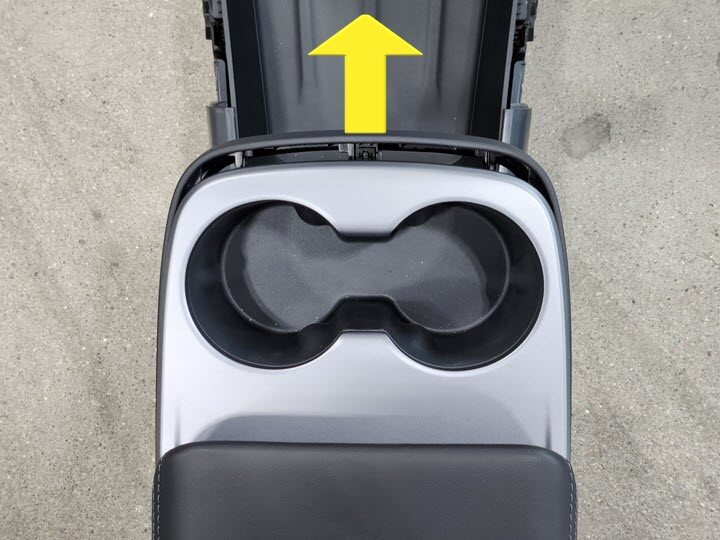

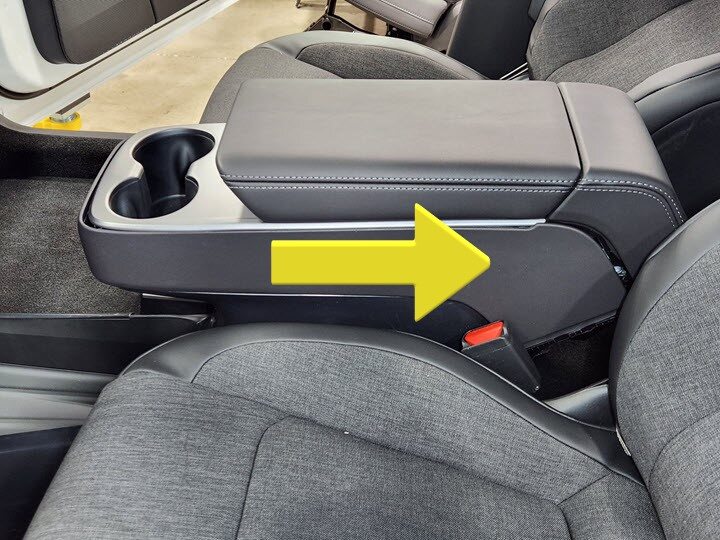

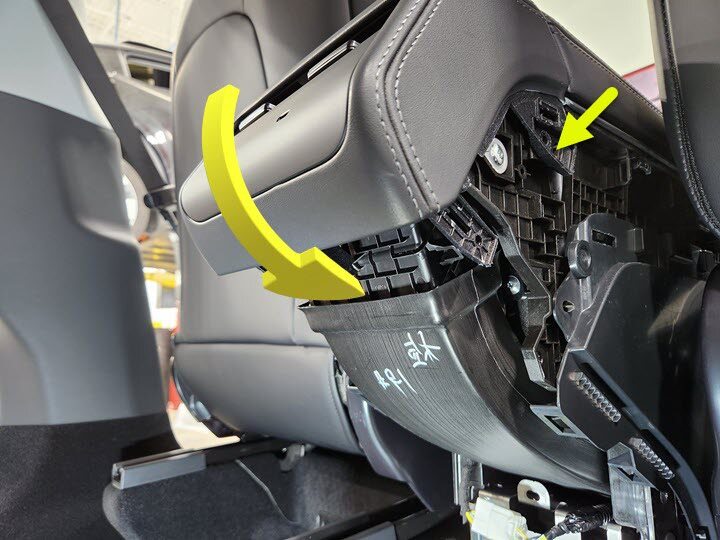

  5. Remove center console rear end panel
    Informational PurposesAn informational icon, calling your attention
    Note
    7x clips, 6x guides, Release upper clips then lower guides

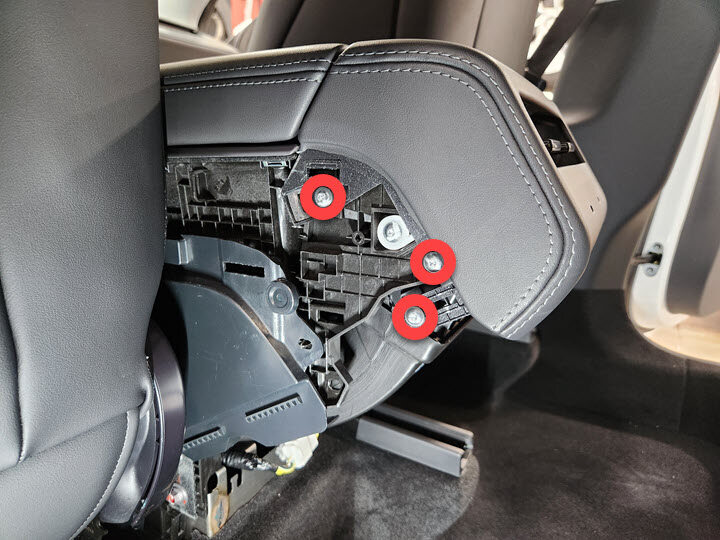

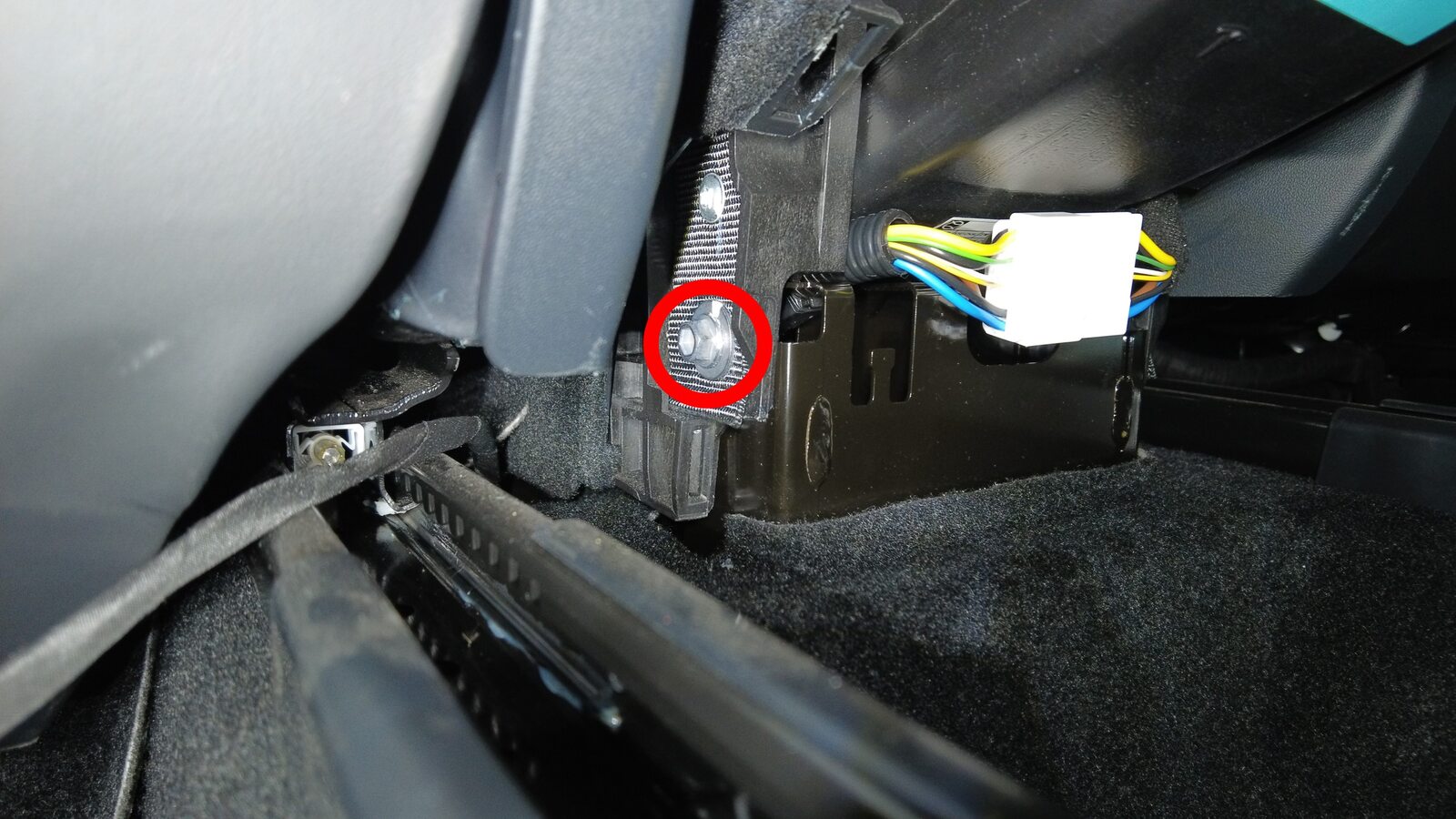

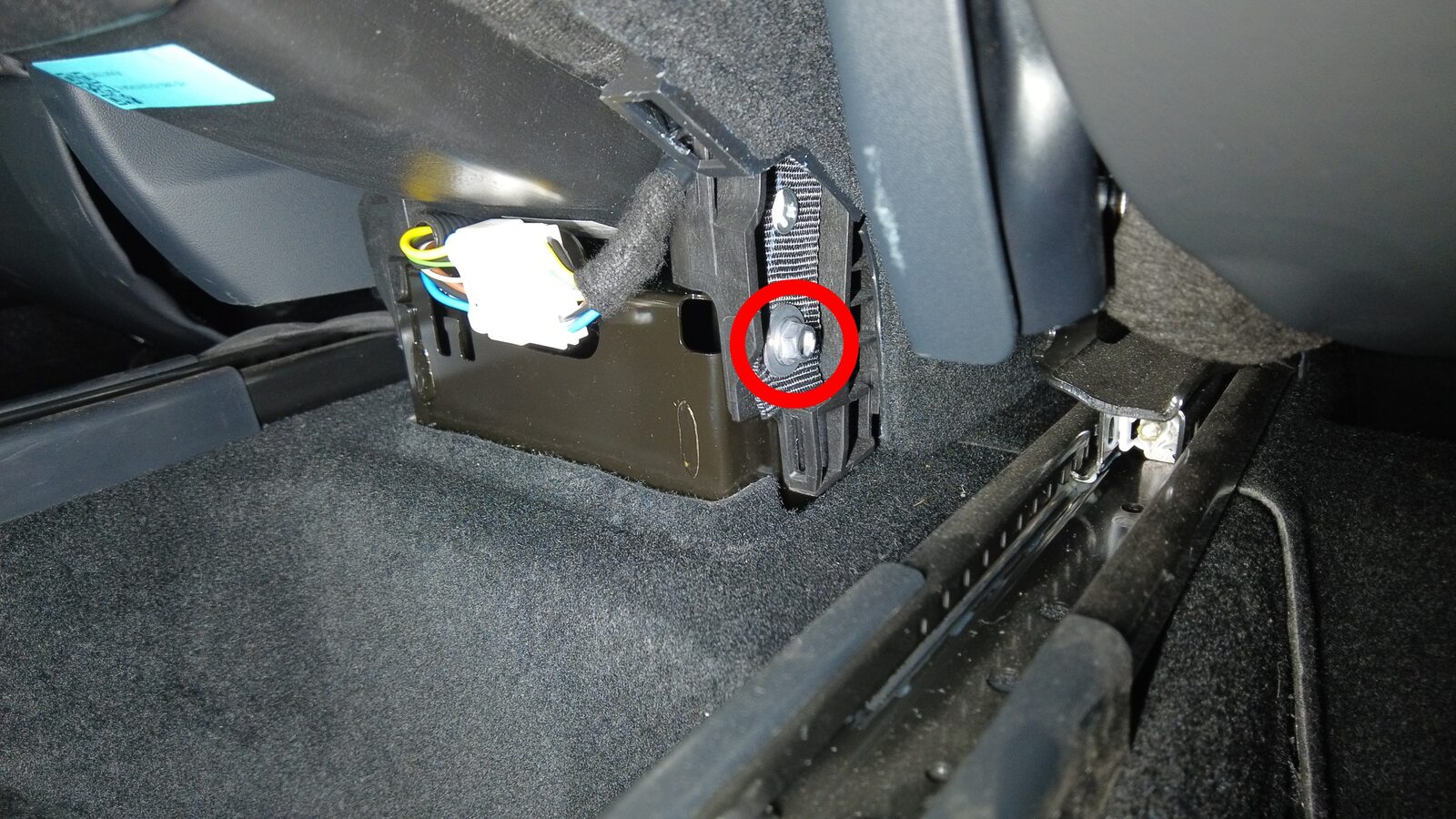

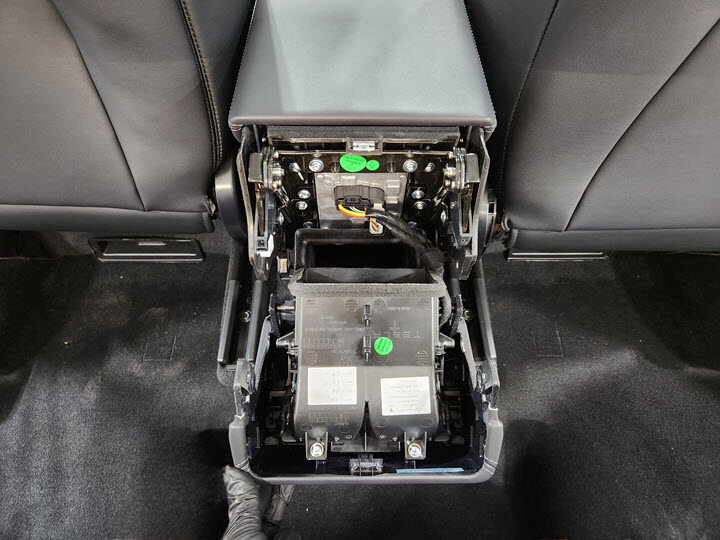

  6. Remove rear bolts securing center console to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 7 Nm

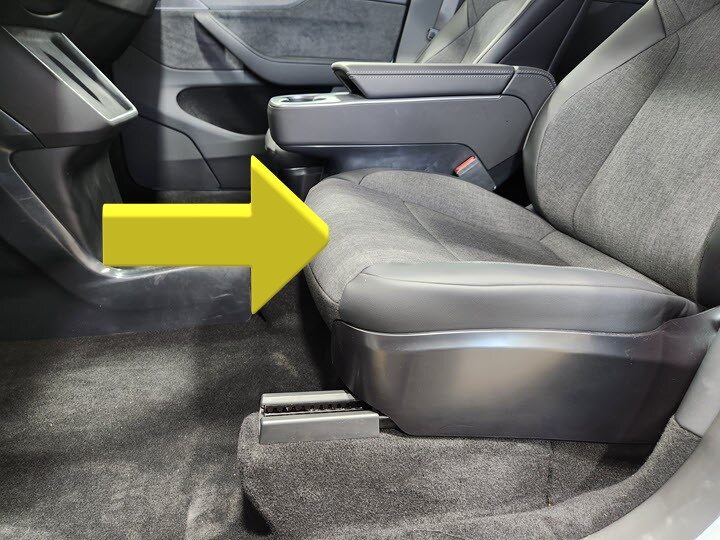

  7. Move LH front seat backward
    Informational PurposesAn informational icon, calling your attention
    Note
    Via UI > Seat Controls, Use steering wheel scroll wheel as needed

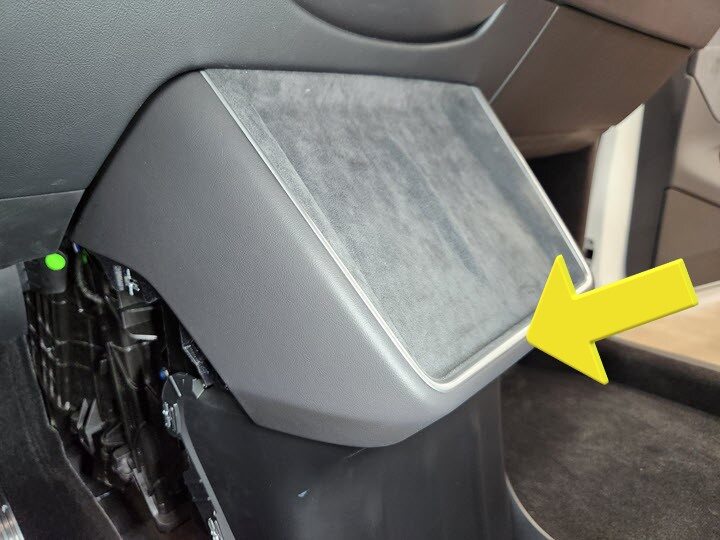

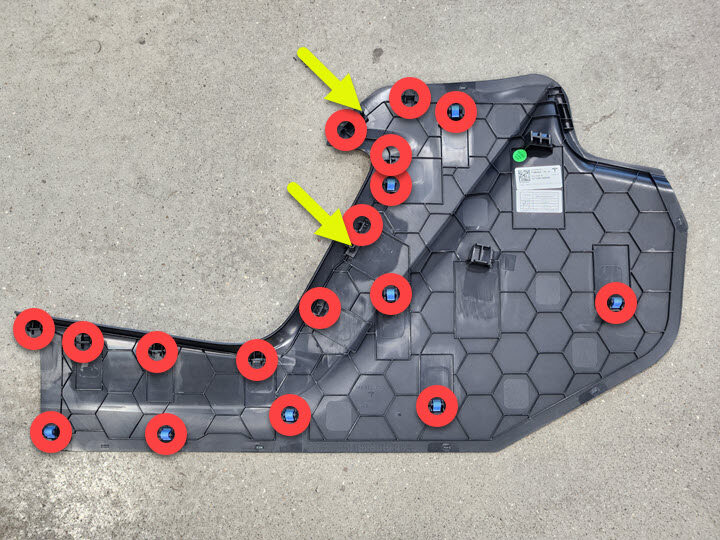

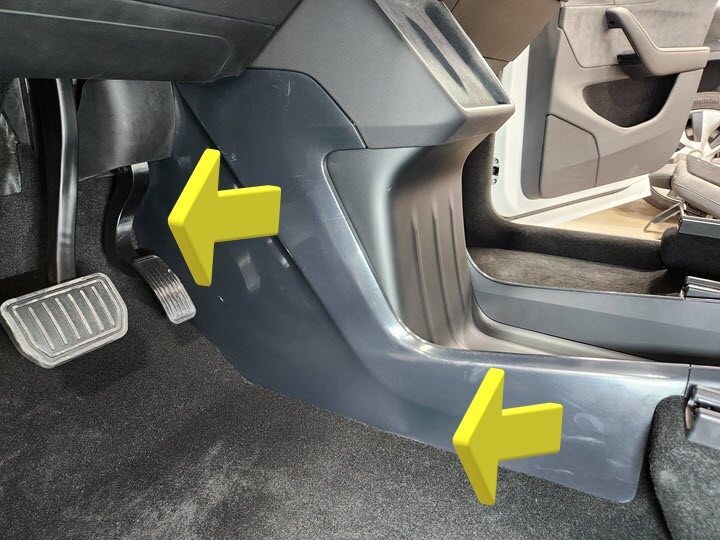

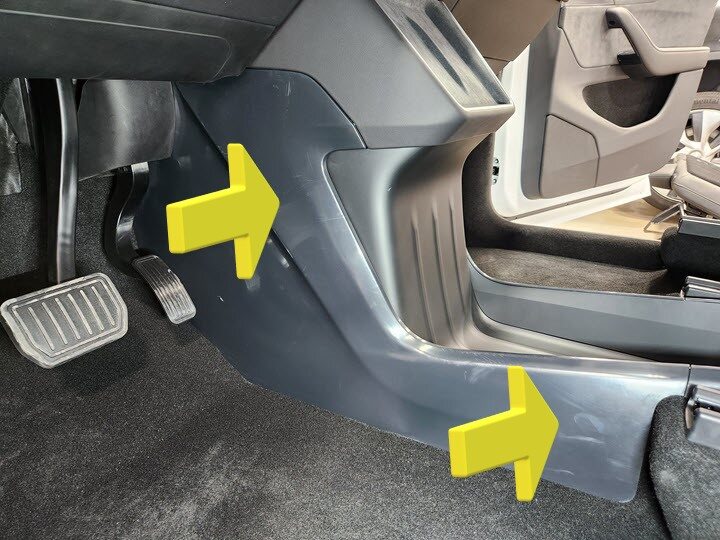

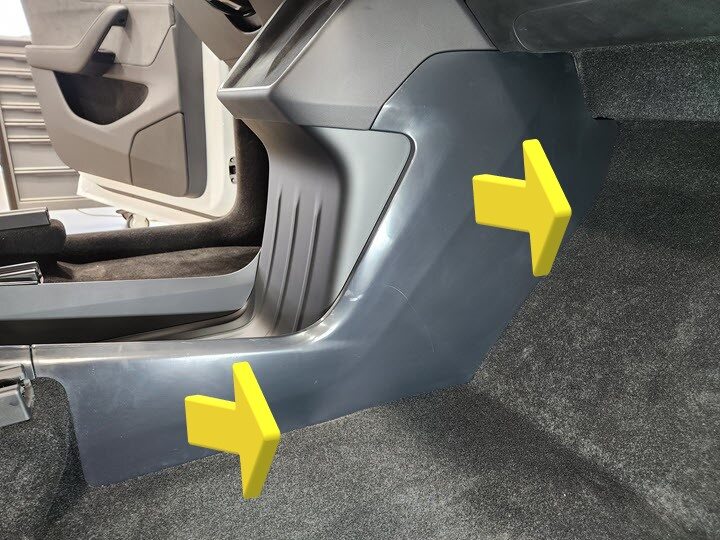

  8. Remove center console LH front side panel
    Informational PurposesAn informational icon, calling your attention
    Note
    17x clips, 2x datums, Maneuver around KAB cover to prevent damage

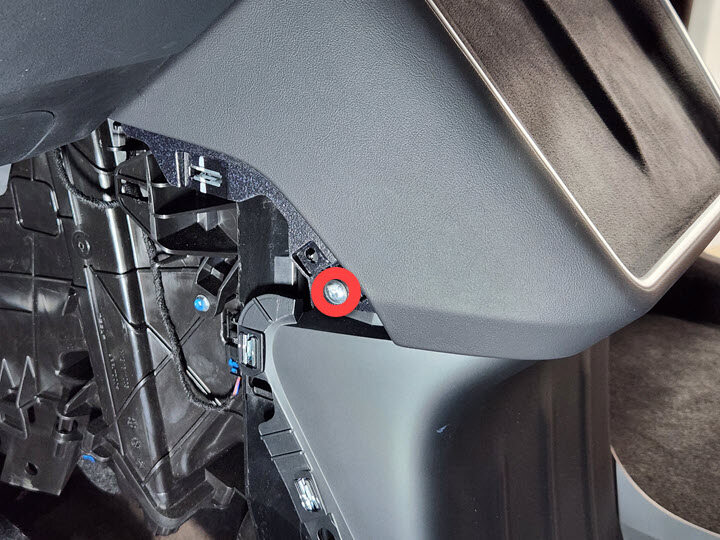

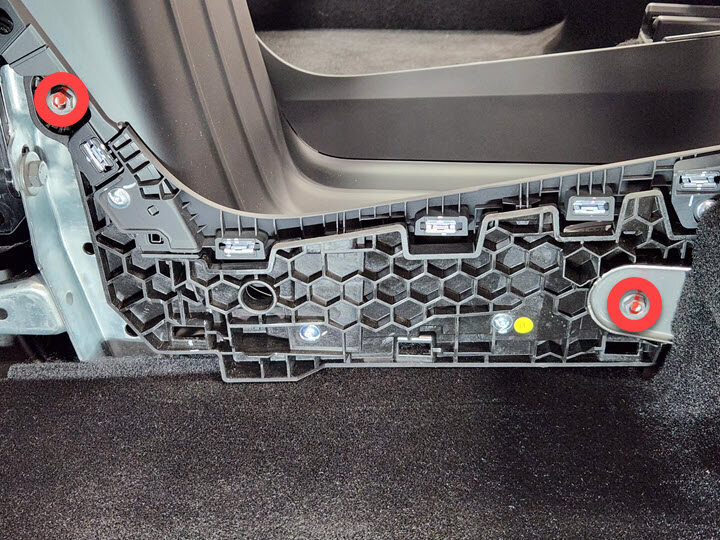

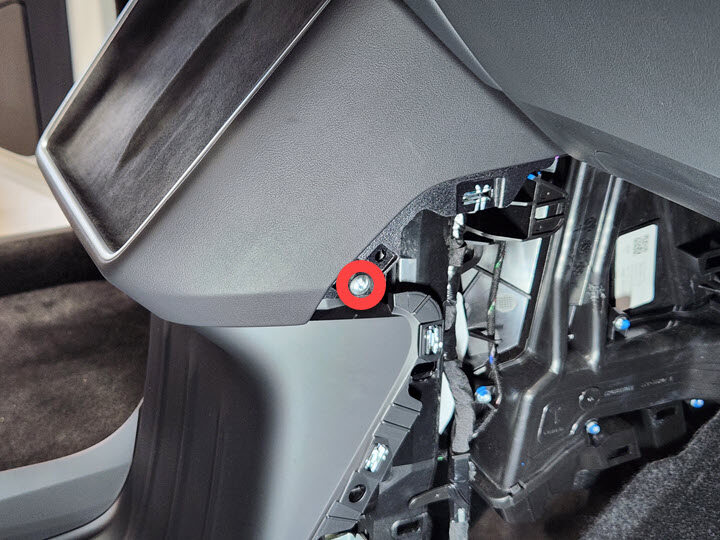

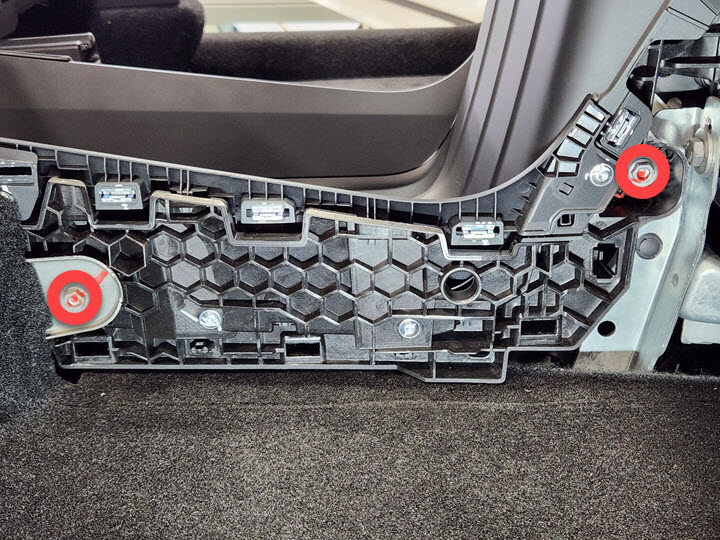

  9. Remove LH bolts securing center console to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 7 Nm
  10. Move RH front seat backward
    Informational PurposesAn informational icon, calling your attention
    Note
    Via UI > Seat Controls

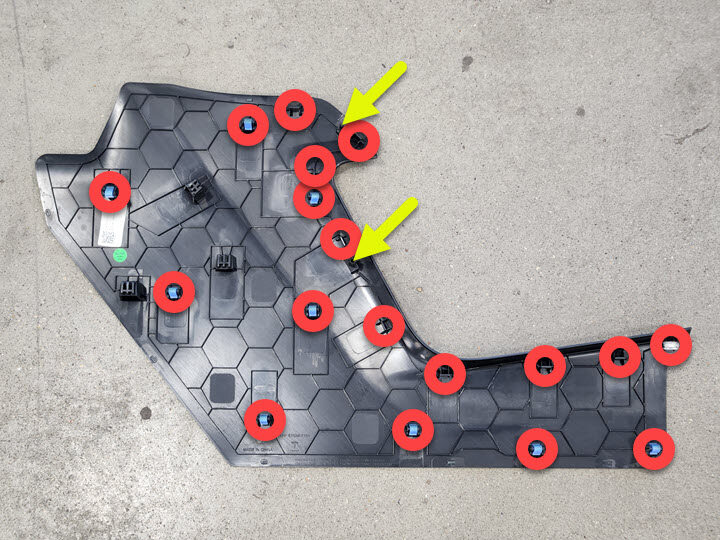

  11. Remove center console RH front side panel
    Informational PurposesAn informational icon, calling your attention
    Note
    18x clips, 2x datums
  12. Remove RH bolts securing center console to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 7 Nm

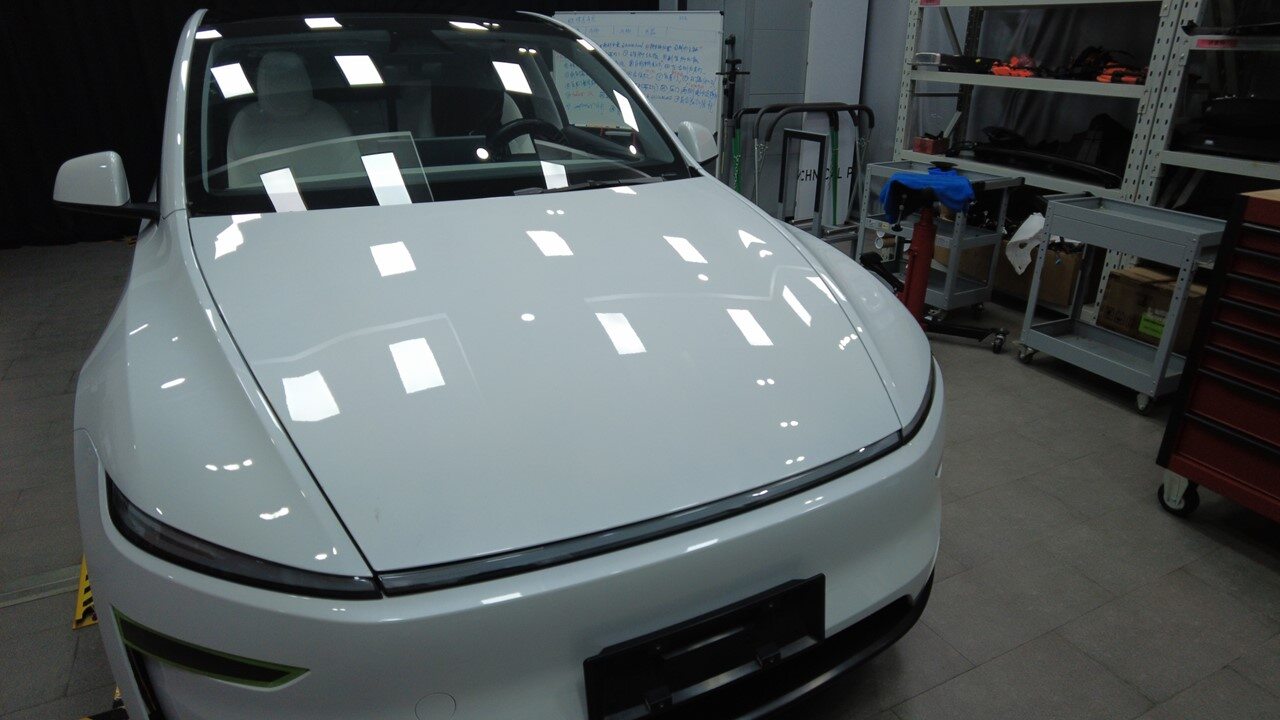

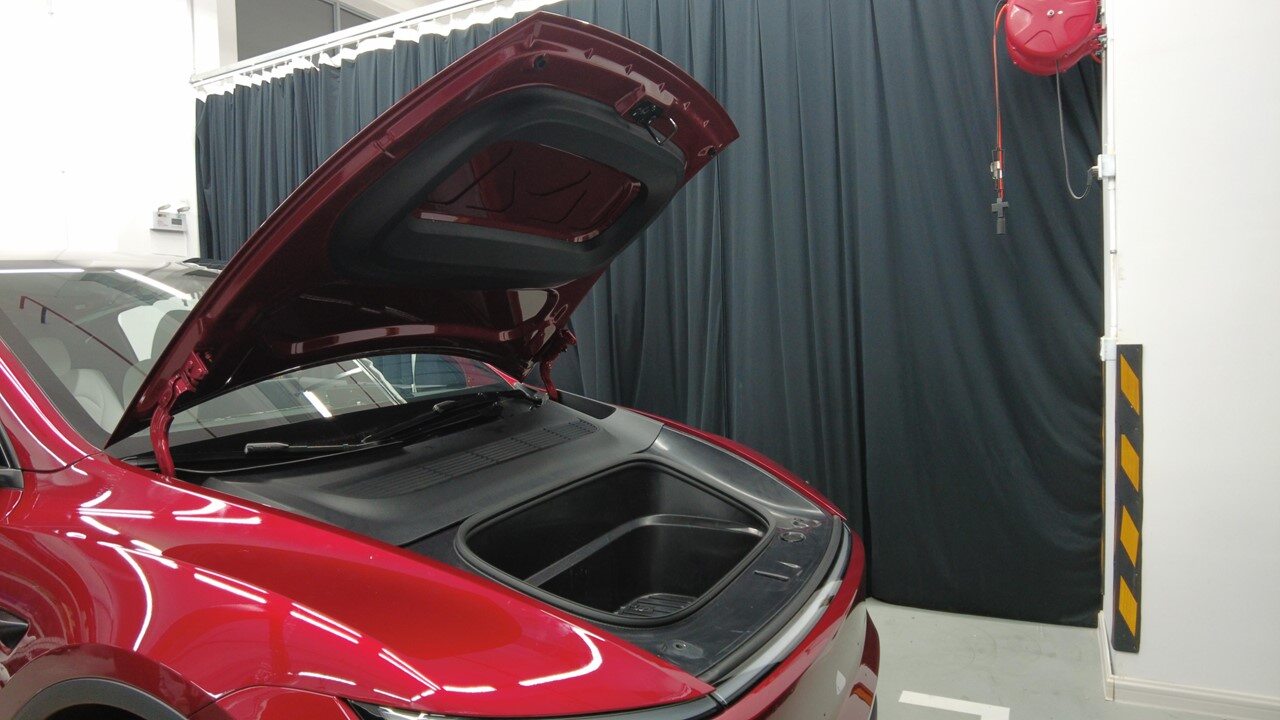

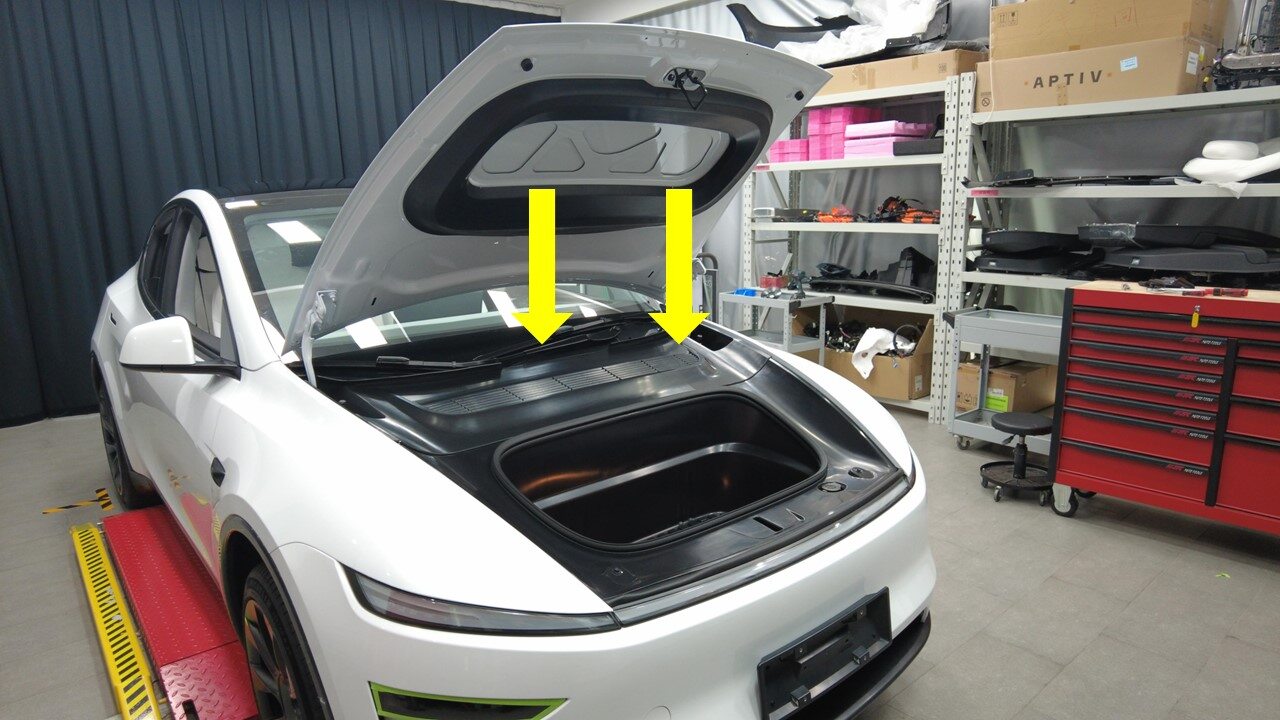

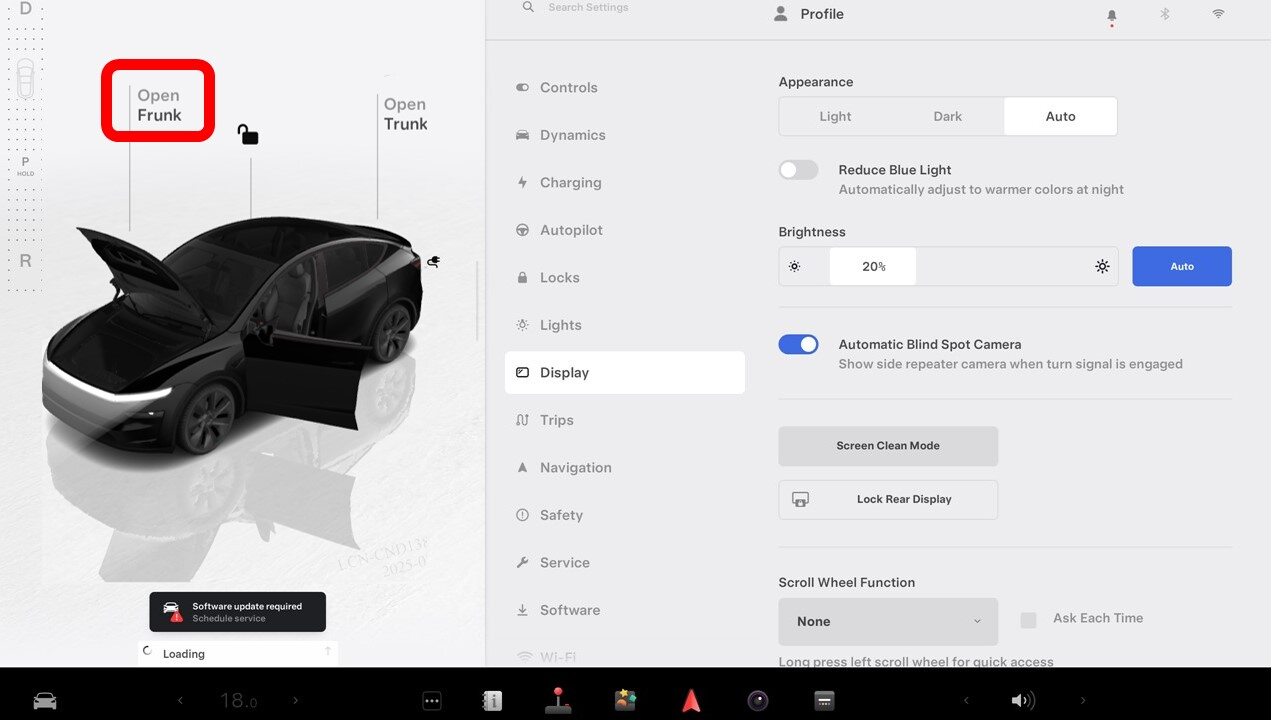

  13. Open hood

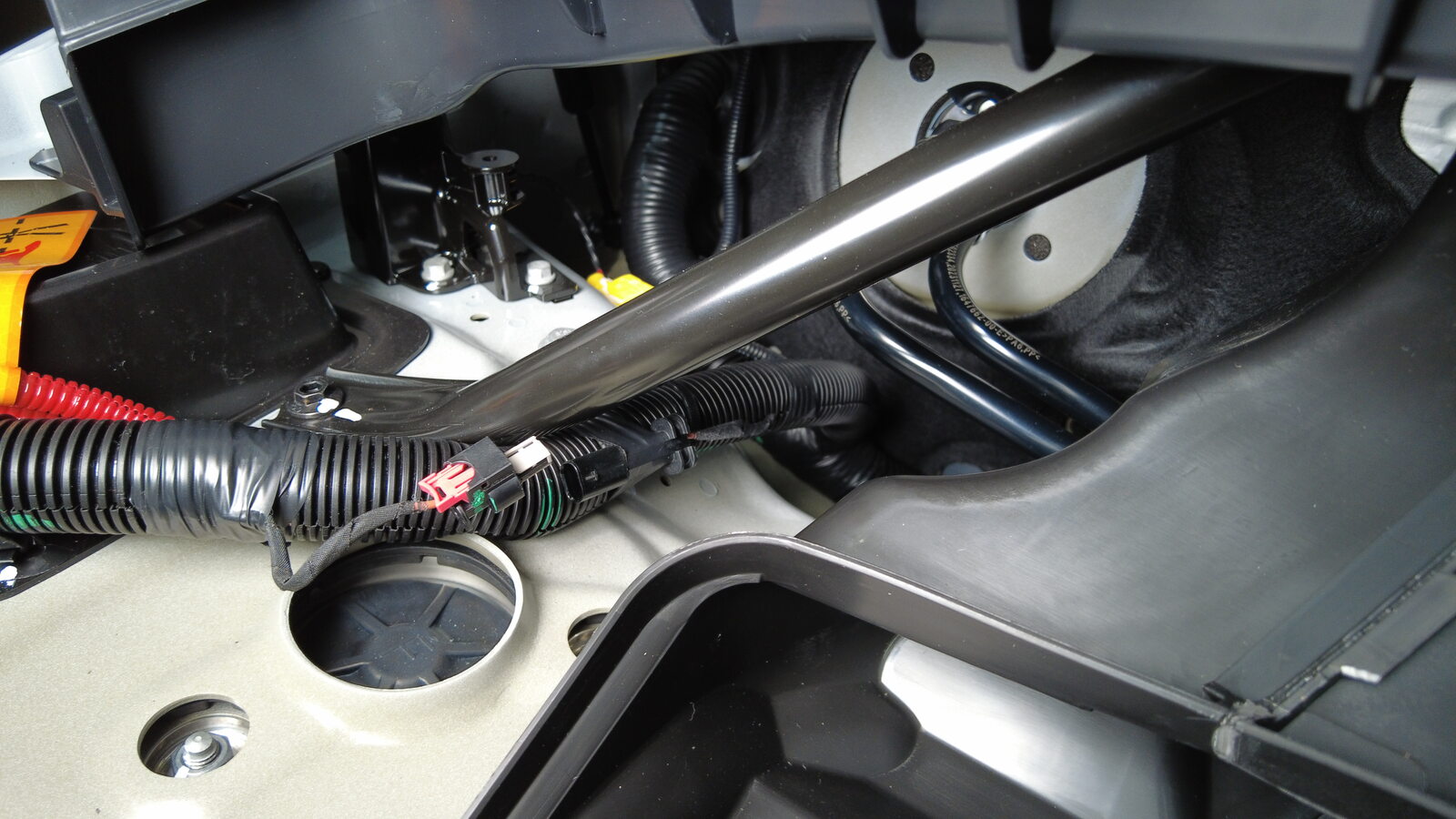

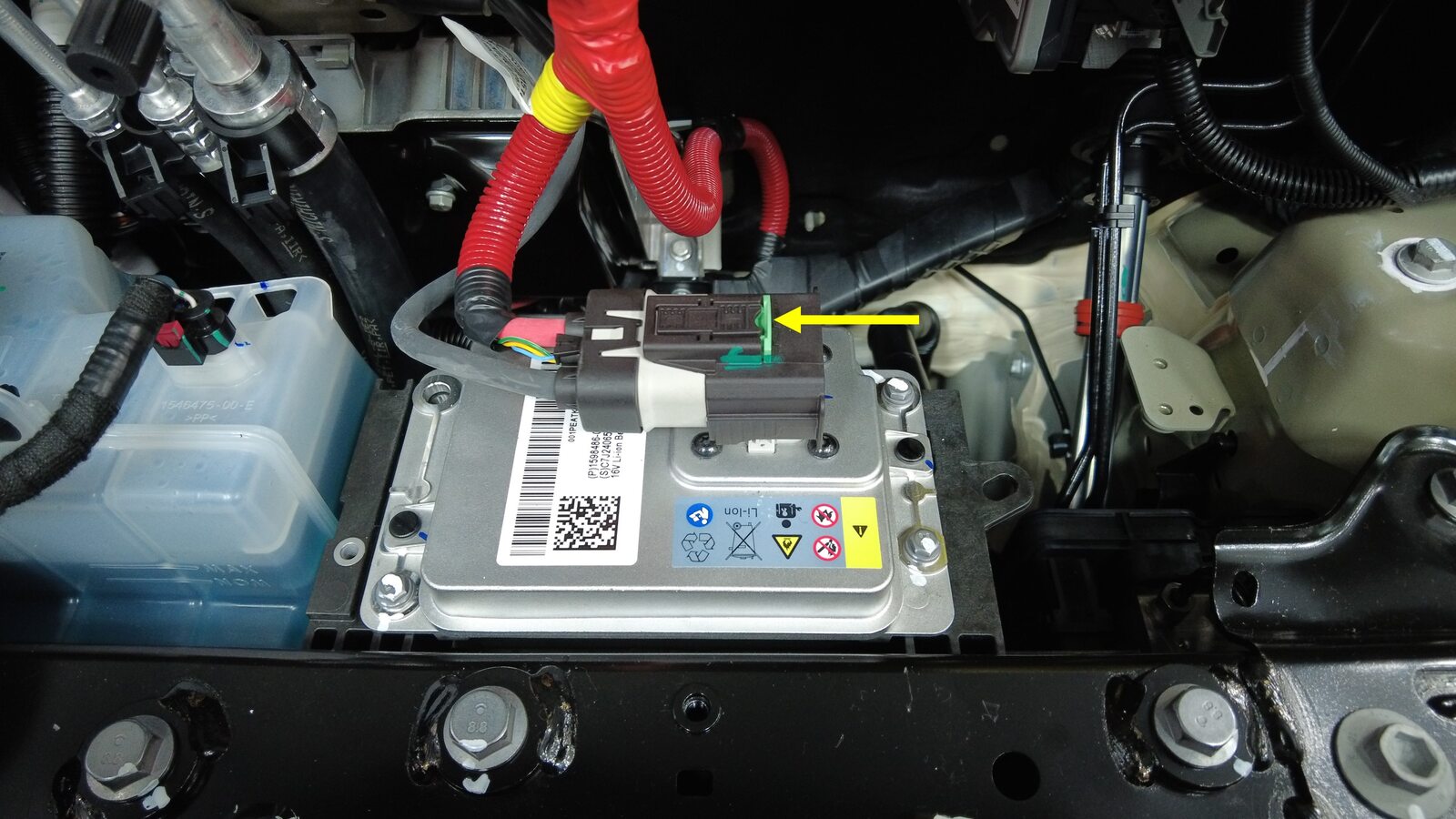

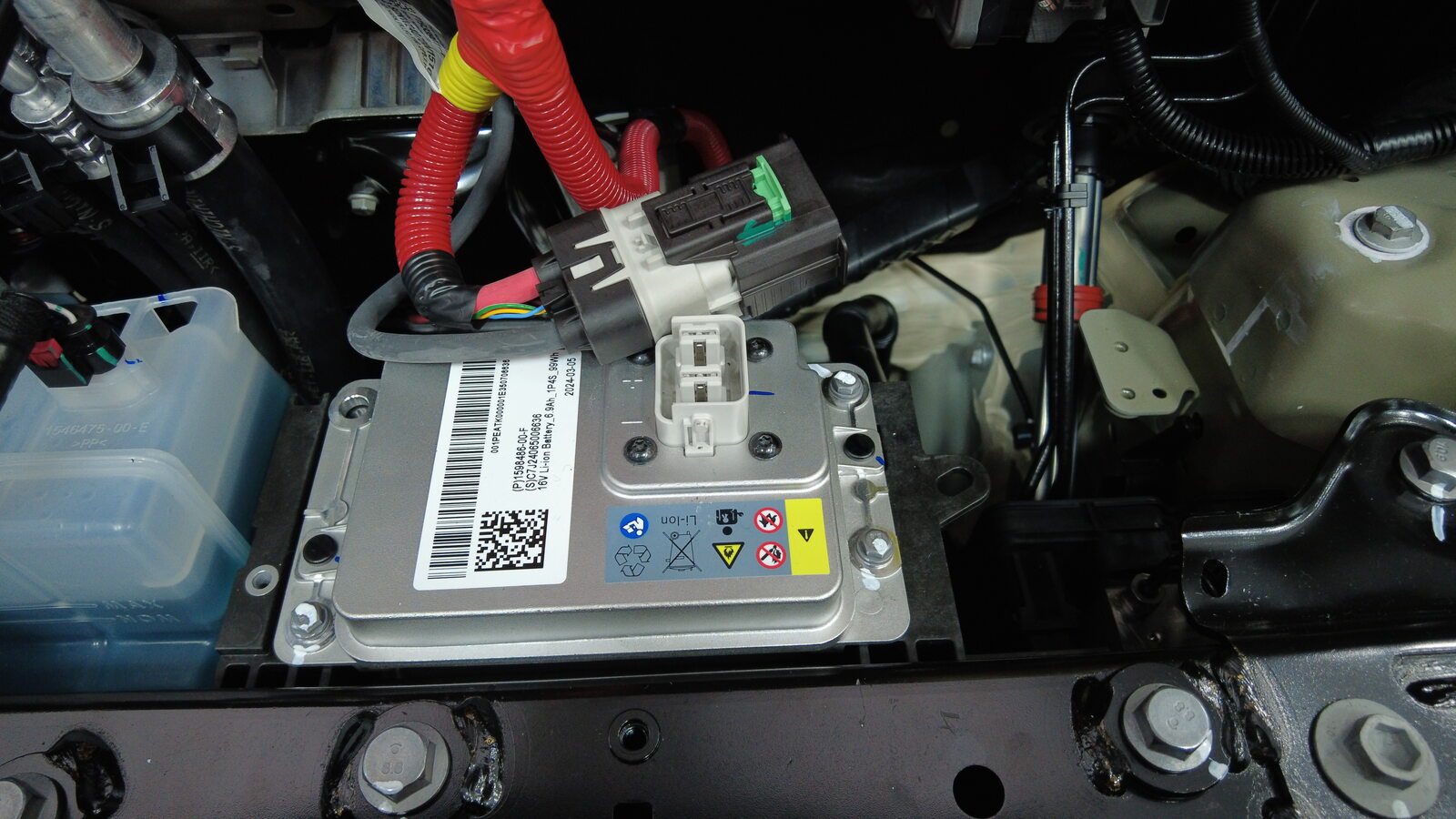

  14. Disconnect LV battery and first responder loop
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, Release green locking tab, Press black tab then pull black connector lock outwards to release connection, Release red lock tab on FRL, Allow 2 minutes for all electrical circuits to fully discharge

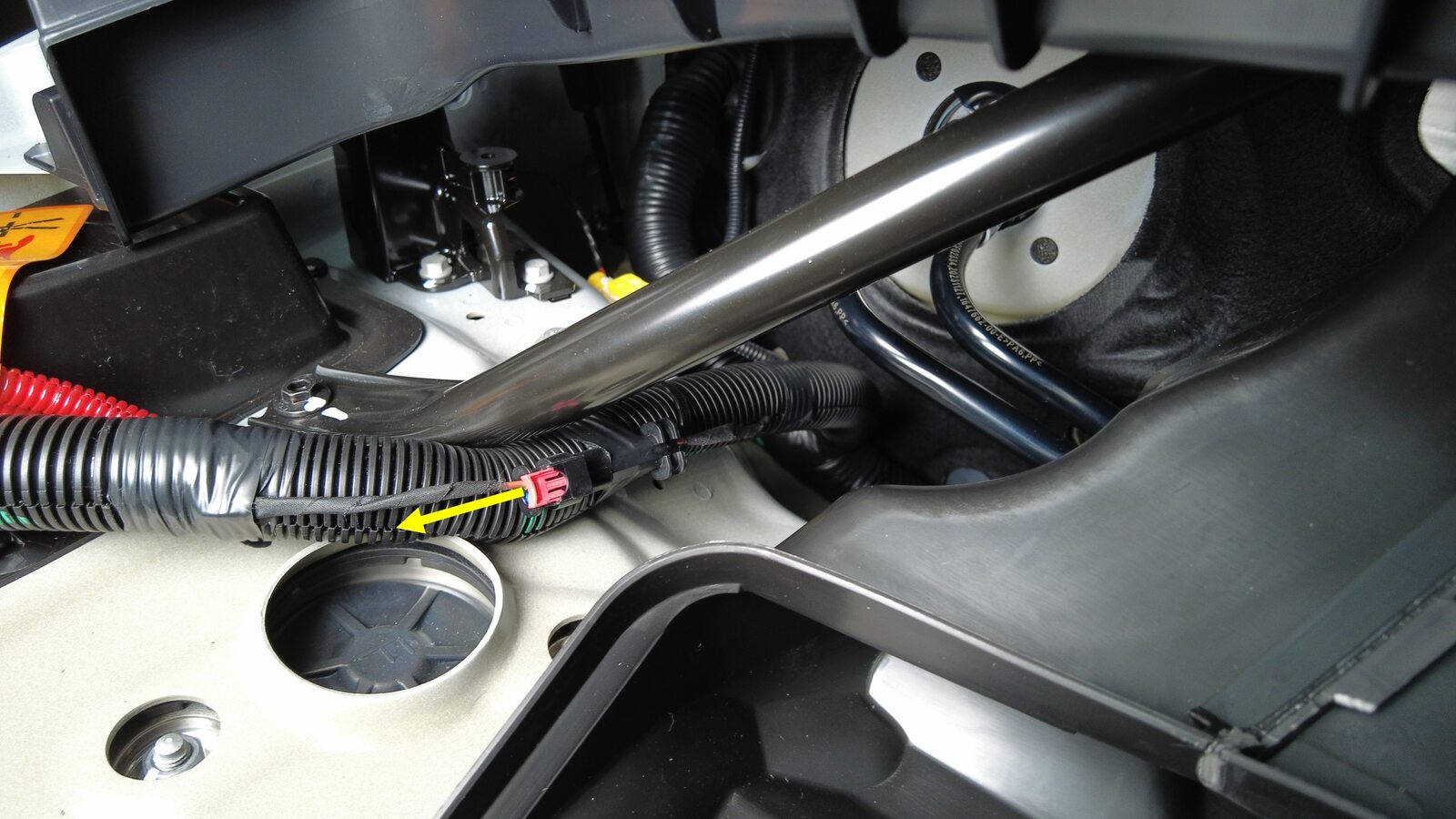

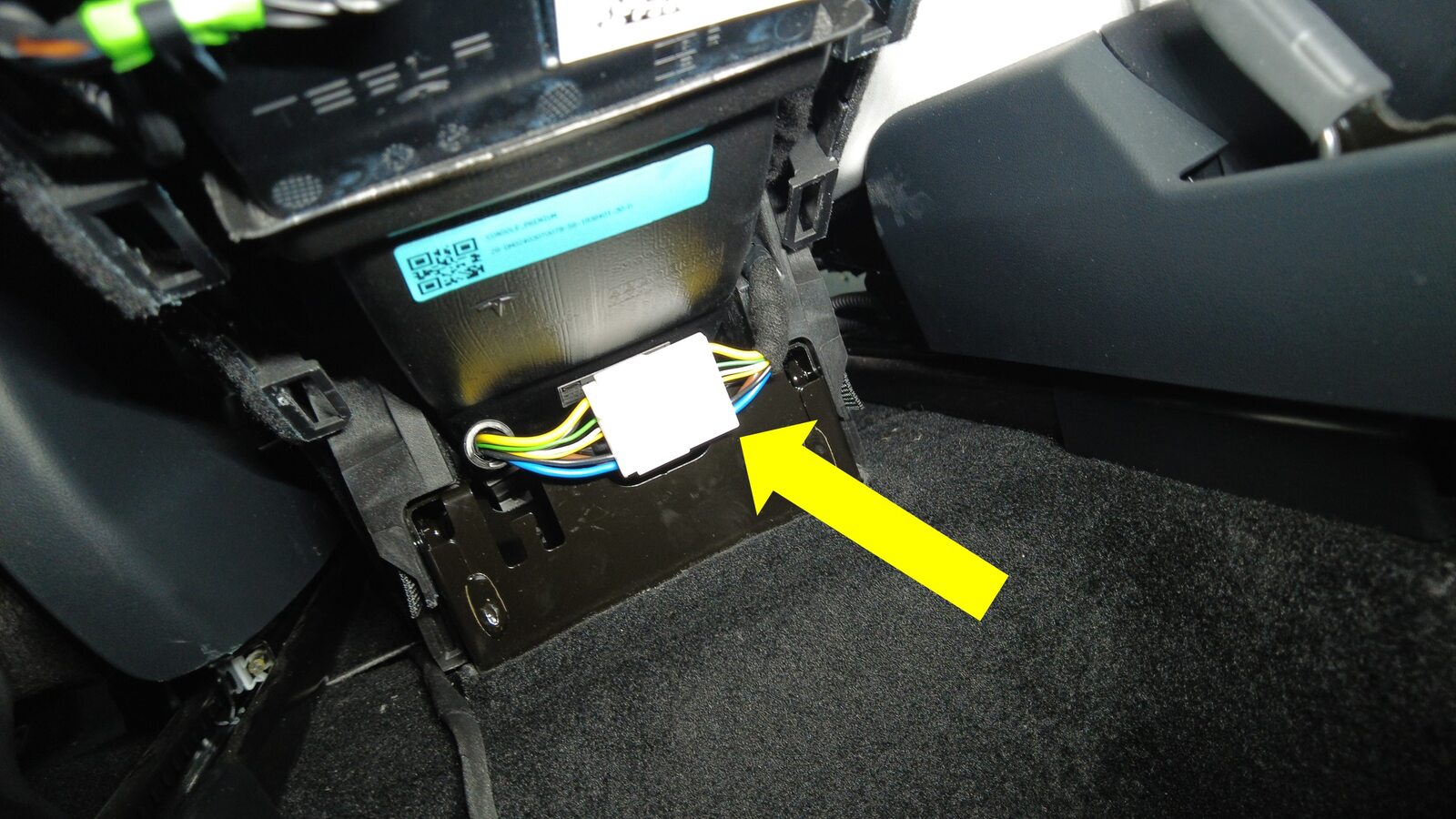

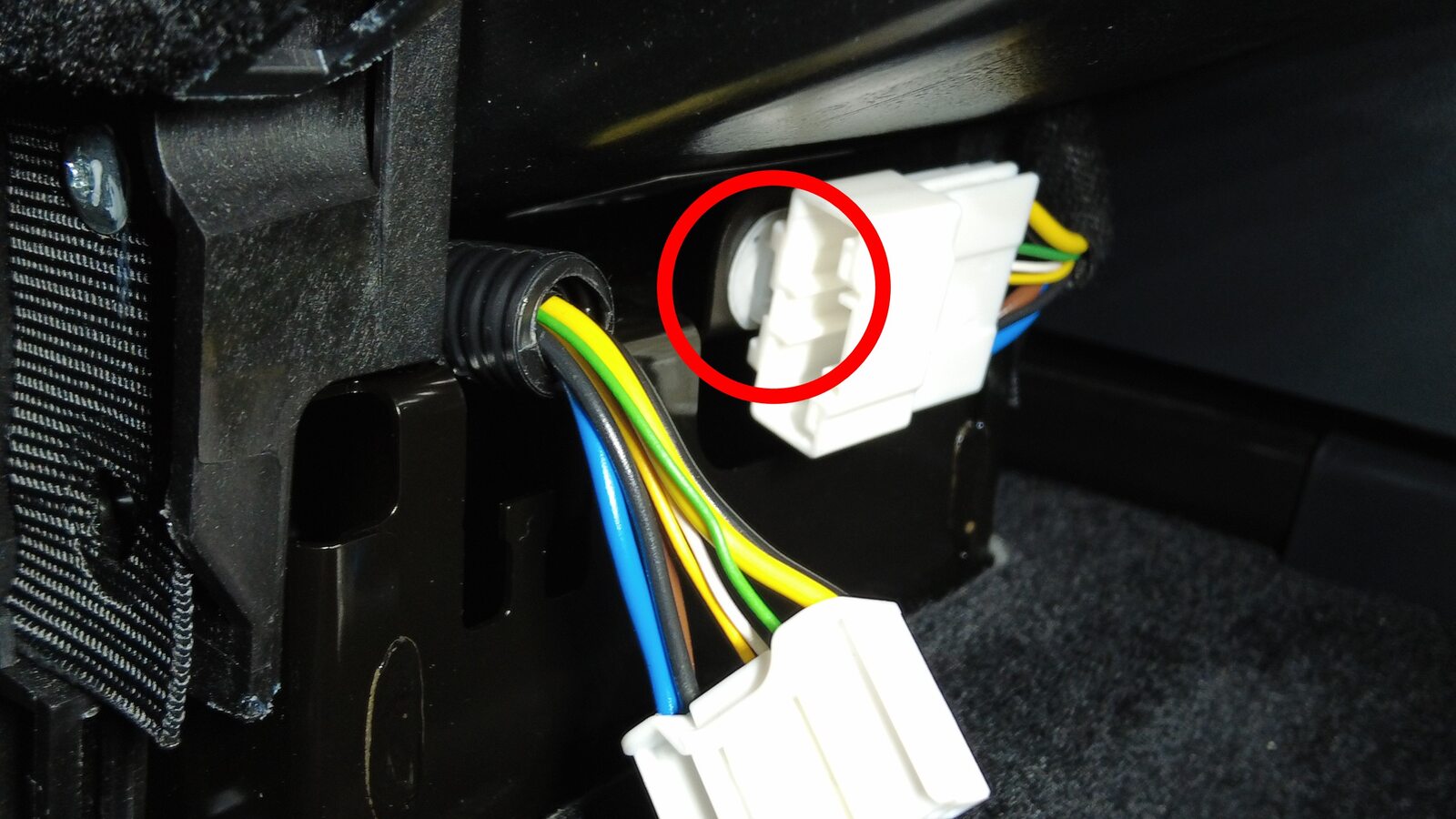

  15. Release center console connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, 1x clip

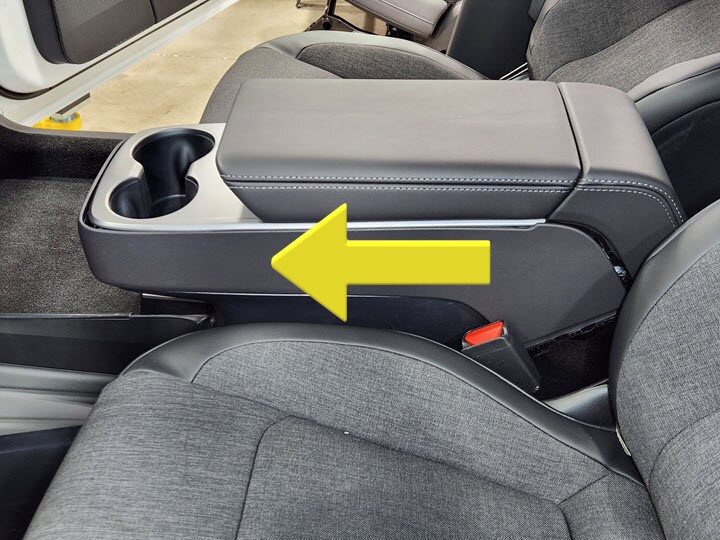

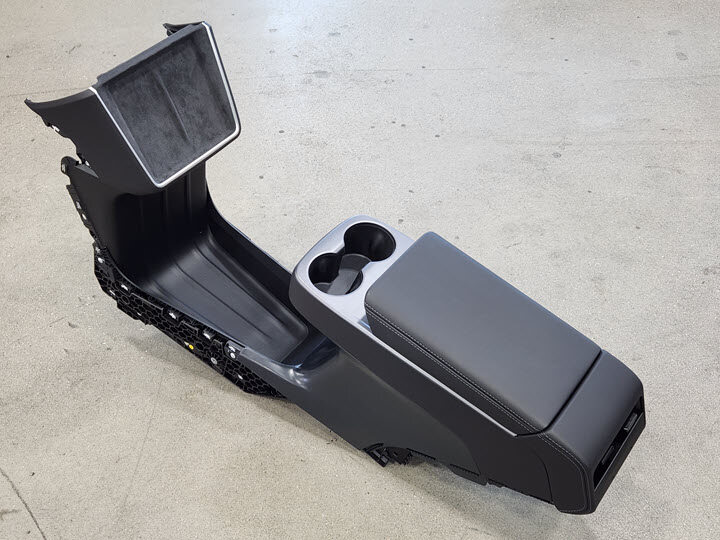

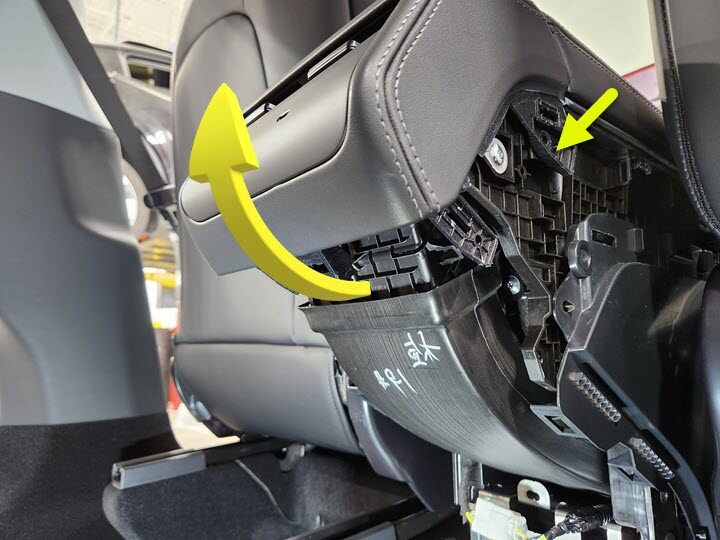

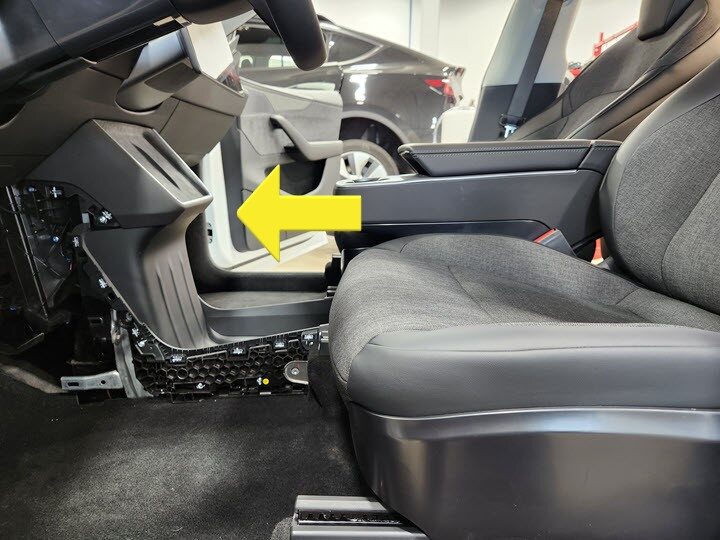

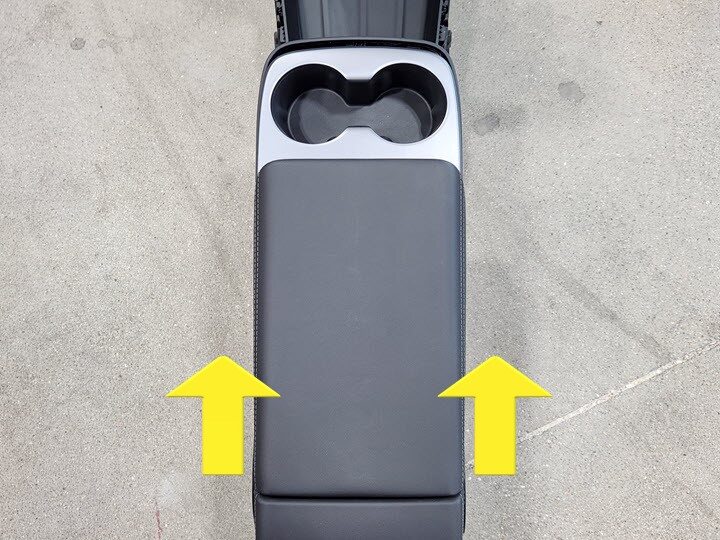

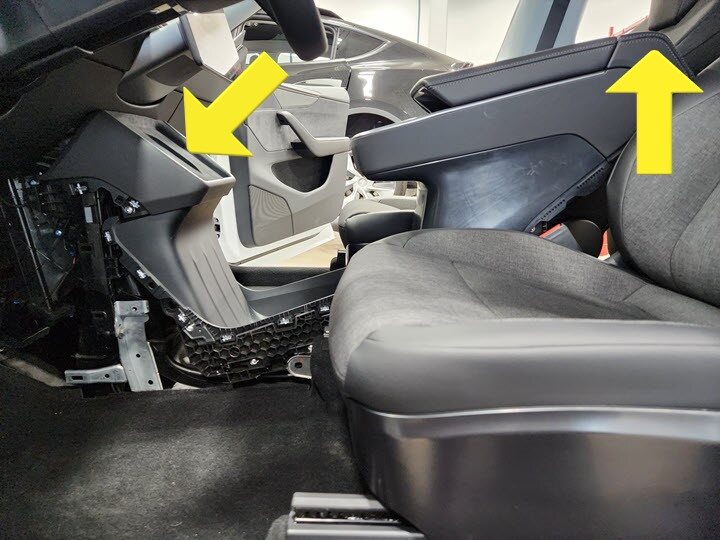

  16. Remove center console
    Informational PurposesAn informational icon, calling your attention
    Note
    Tilt rear of console upward, Pull assembly toward rear of vehicle then tilt front of console upward, Both front seats must fully rearward

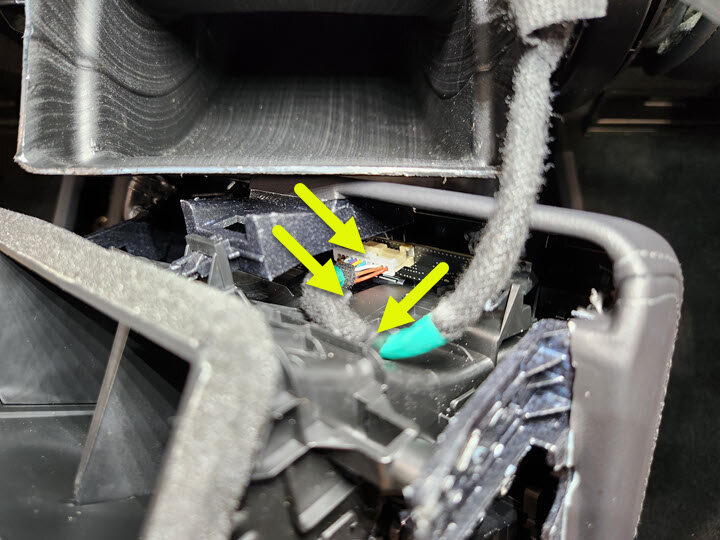

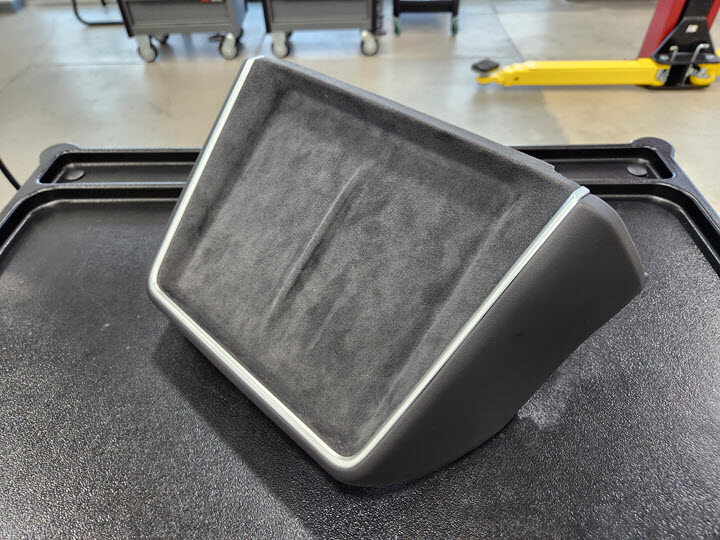

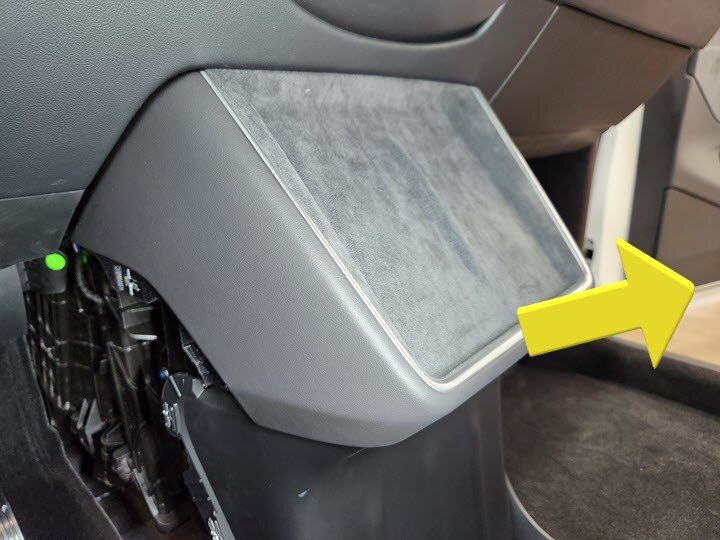

  17. Remove phone dock assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    2x screws, T20, 1.2 Nm, 4x clips, 2x datums, 1x connector, Release dock then disconnect connector before removing

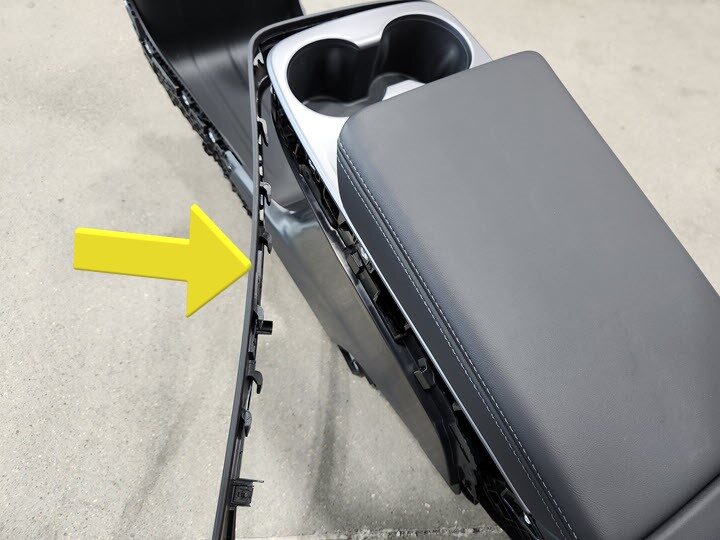

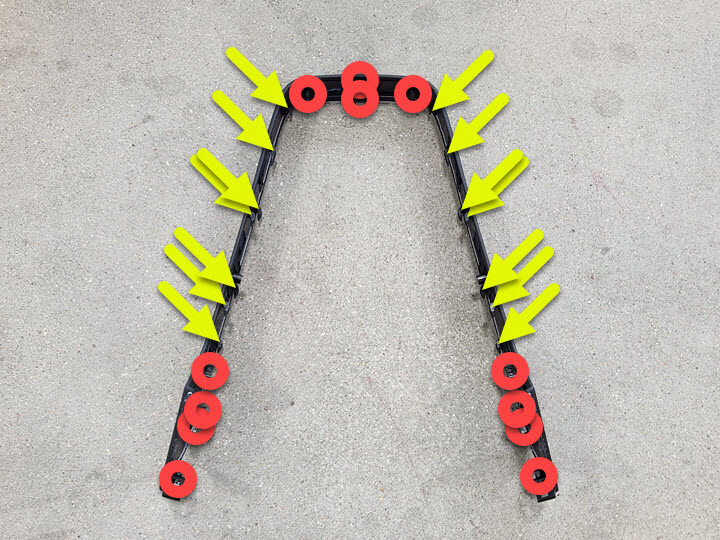

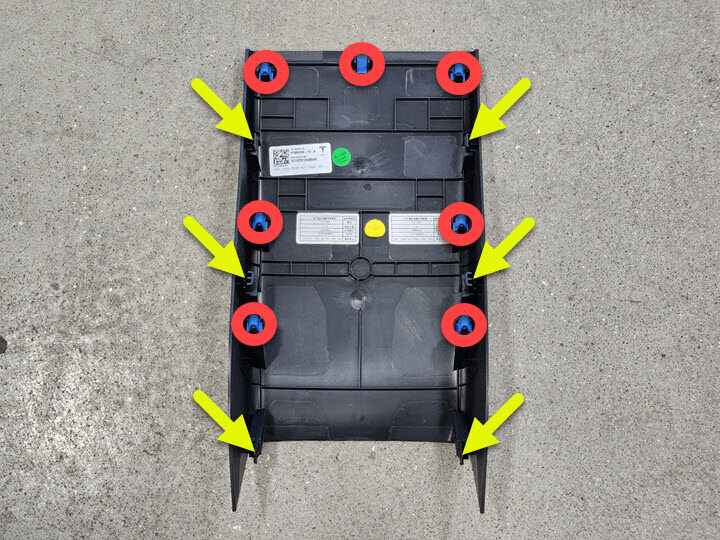

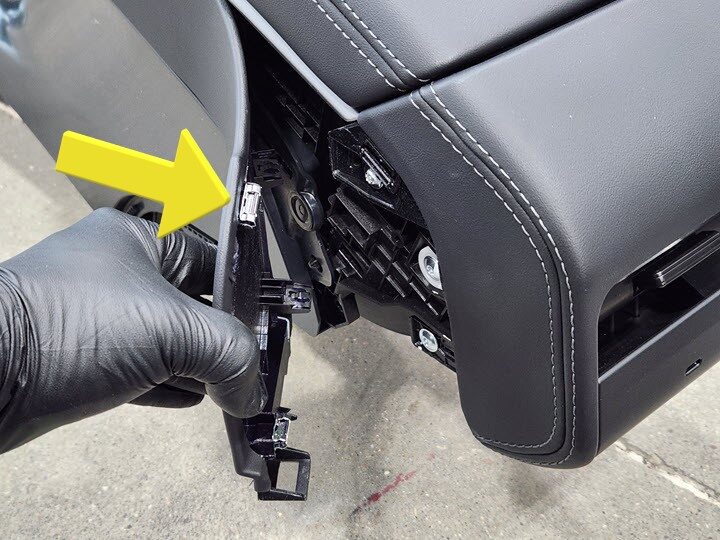

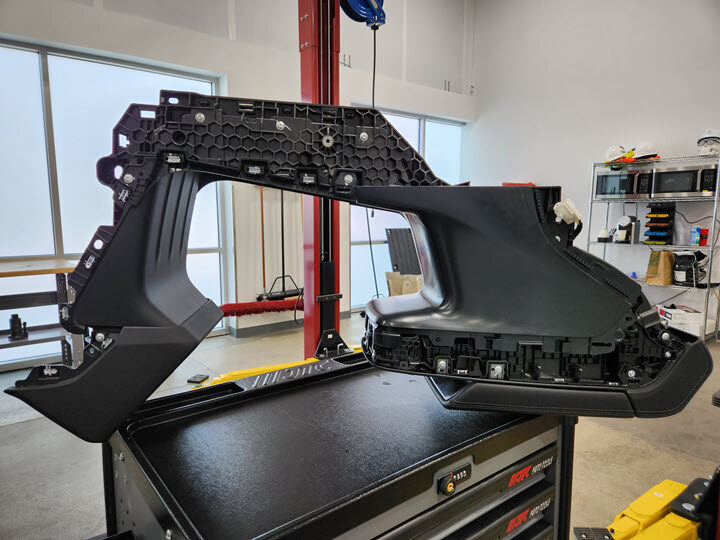

  18. Remove center console U panel
    Informational PurposesAn informational icon, calling your attention
    Note

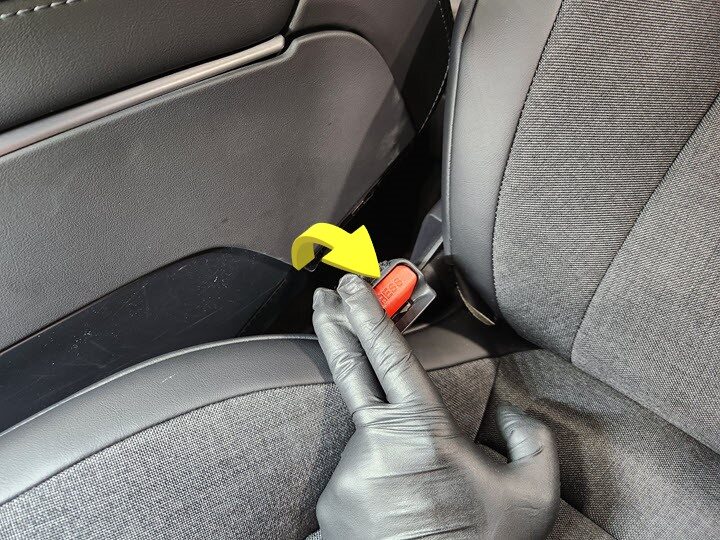

    12x clips, 12x tabs, 2x guides, Release rear then push sides forward, Release sides then front, Pictures out of vehicle for demonstration purposes only, Move seatbelt buckle aside as needed, Make sure seatbacks are tilted back

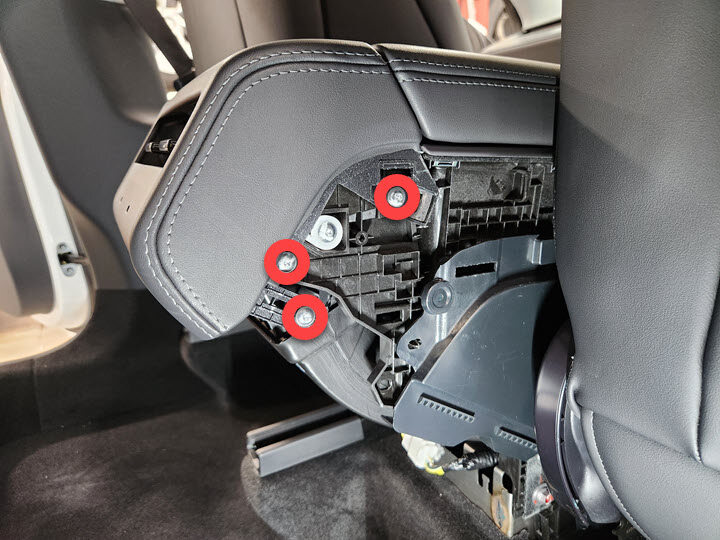

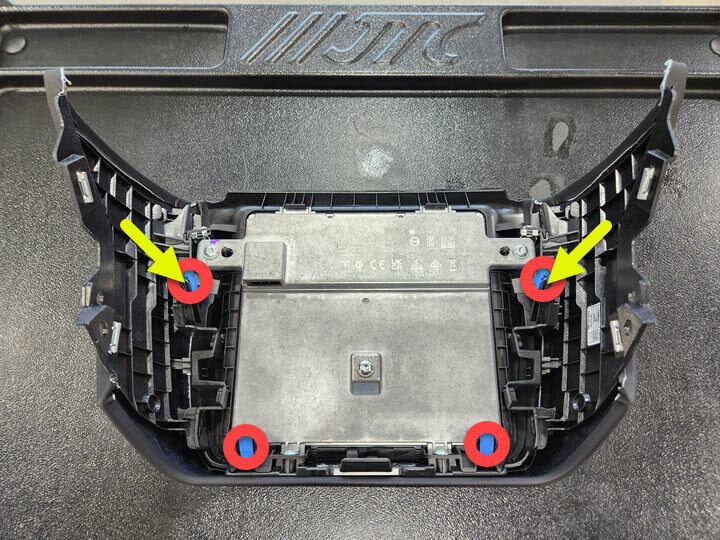

  19. Remove screws securing rear end module to center console
    Informational PurposesAn informational icon, calling your attention
    Note
    6x screws, T20, 1.2 Nm

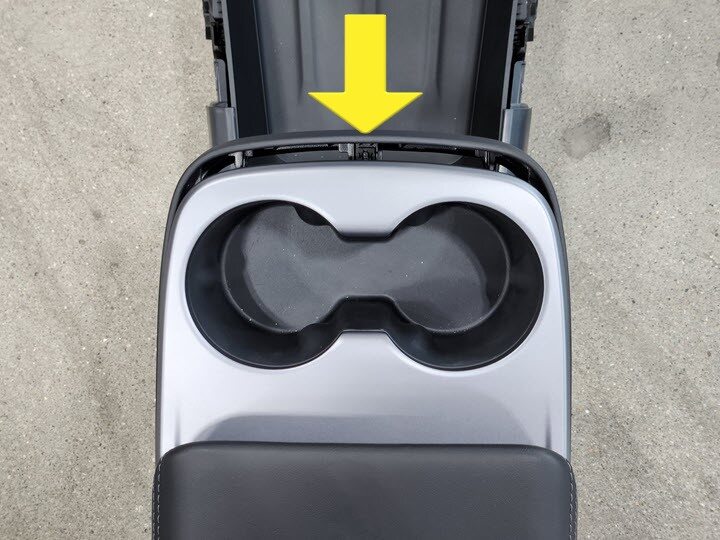

  20. Release rear end module from center console
    Informational PurposesAn informational icon, calling your attention
    Note
    2x tabs

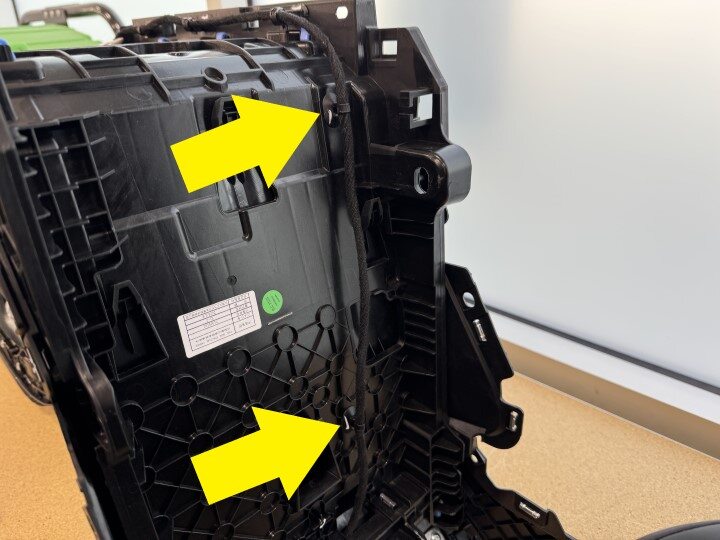

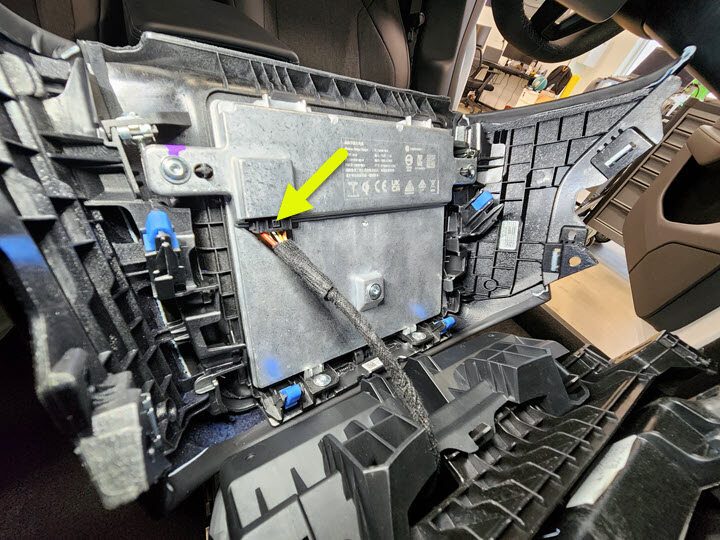

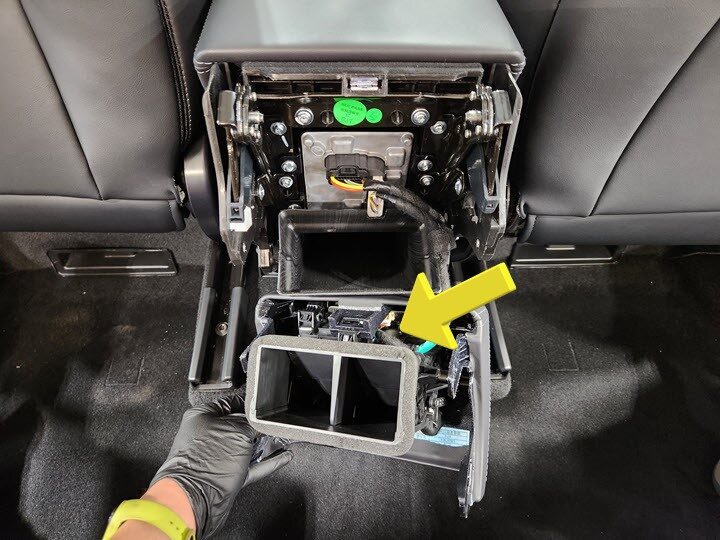

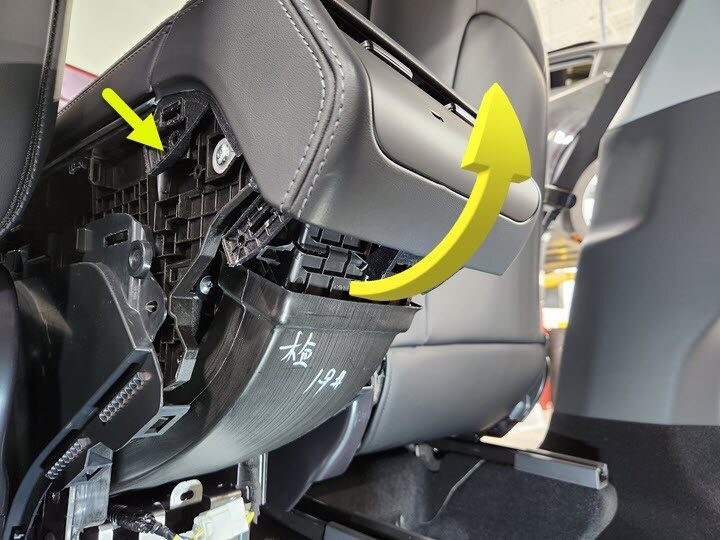

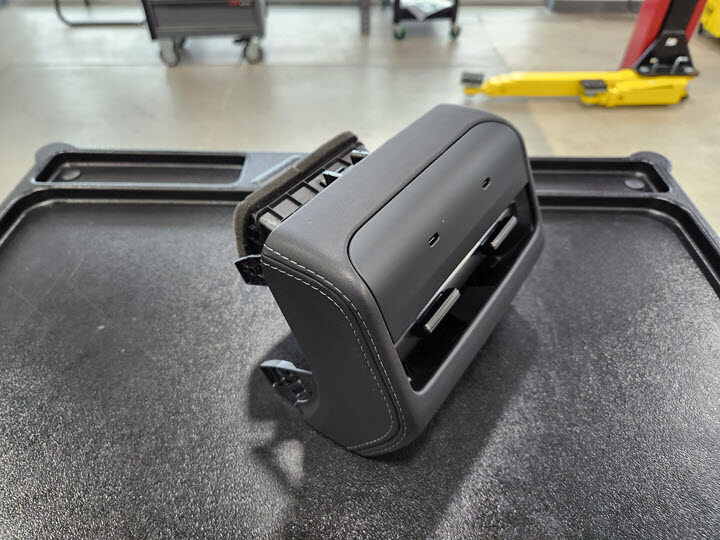

  21. Remove rear end module
    Informational PurposesAn informational icon, calling your attention
    Note

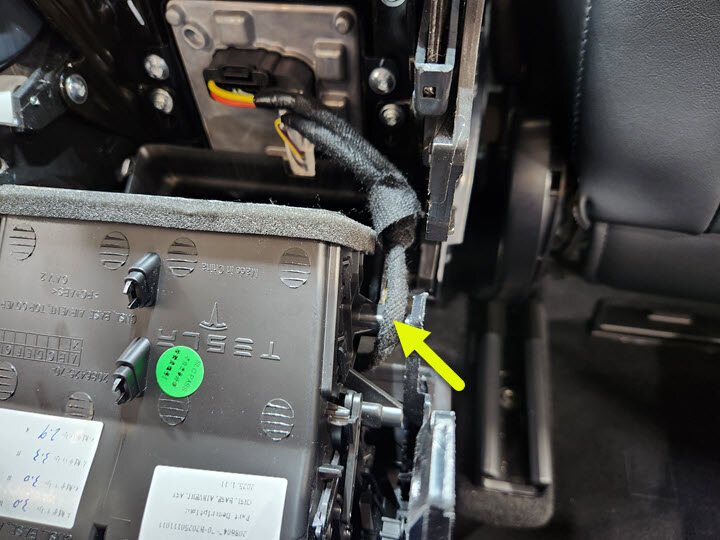

    1x connector, 2x tabs, Rotate to access center console harness, Route harness around fastener mount

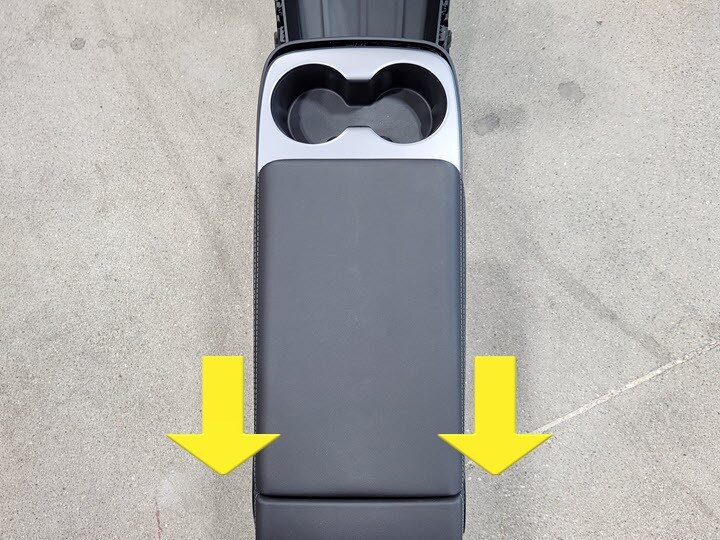

  22. Position center console upside down
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure work area is clean to prevent damage

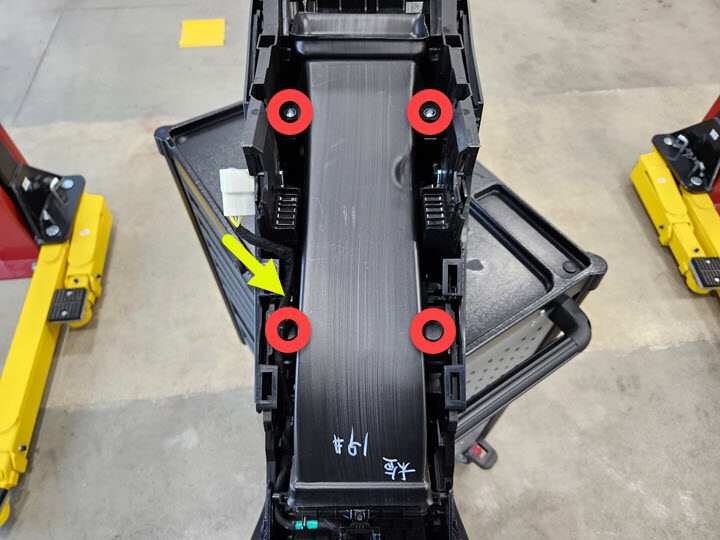

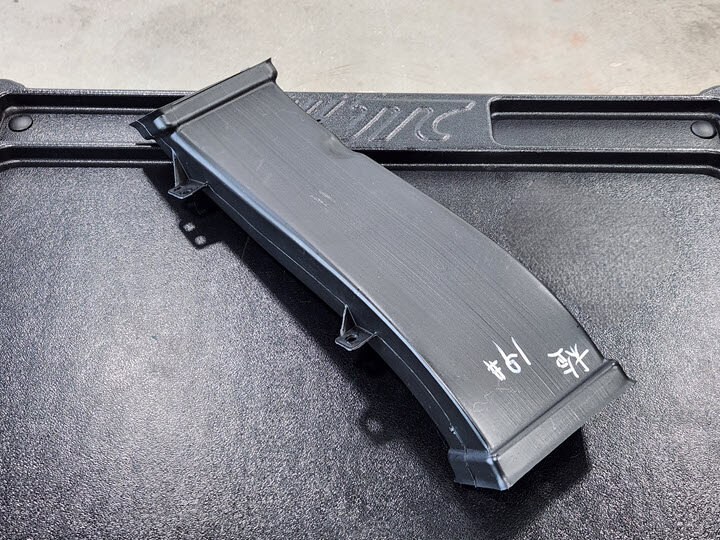

  23. Remove center console air duct
    Informational PurposesAn informational icon, calling your attention
    Note
    2x screws, T20, 1.2 Nm, 2x clips, Move harness aside as needed

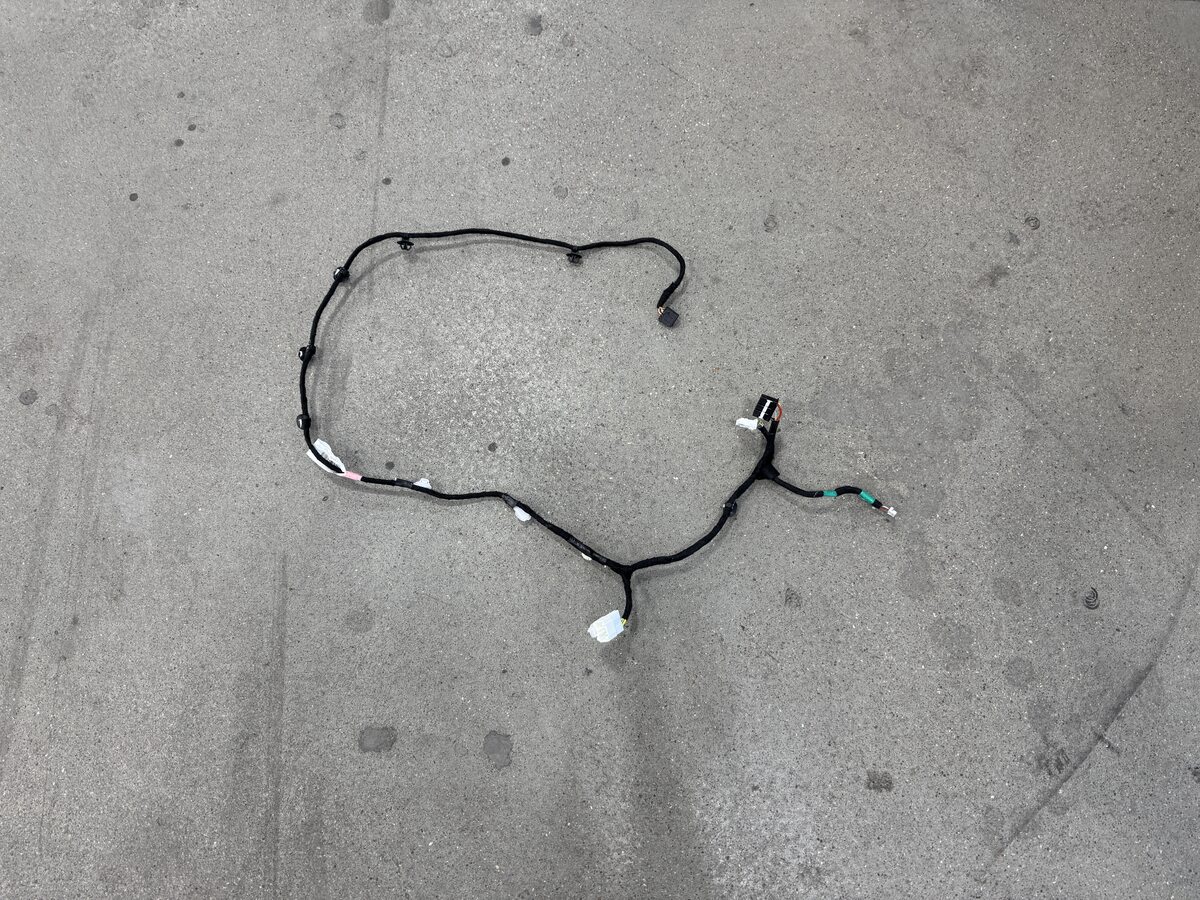

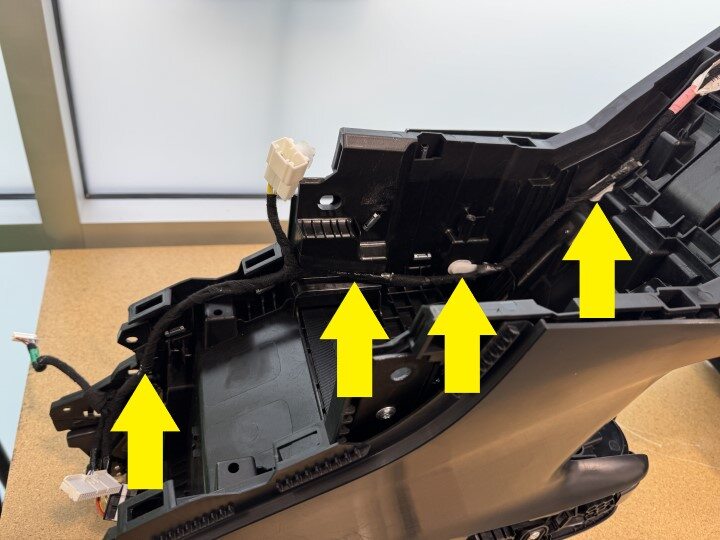

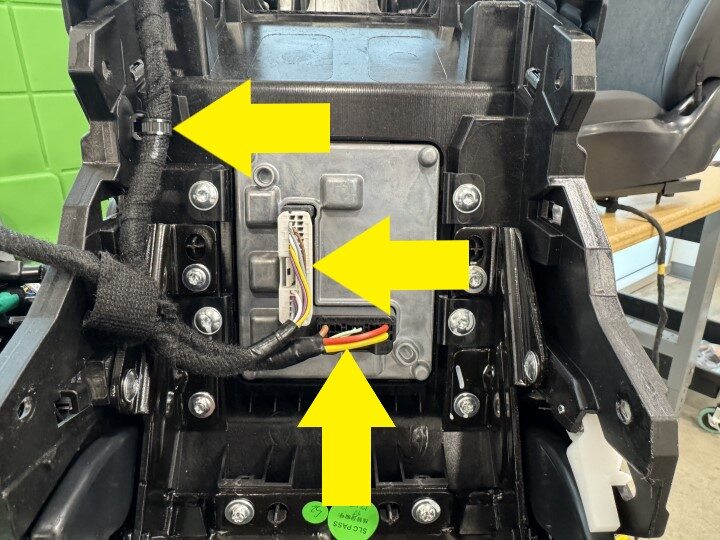

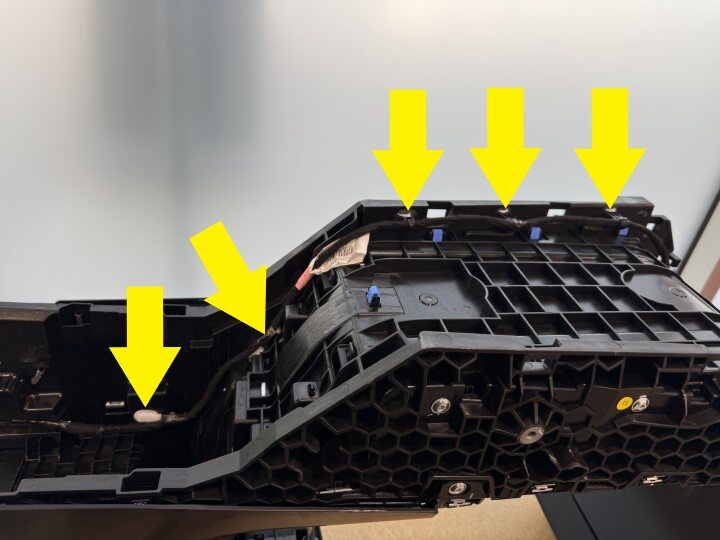

  24. Remove center console harness
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, 10x clips

Install

  1. Install center console harness
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, 10x clips
  2. Install center console air duct
    Informational PurposesAn informational icon, calling your attention
    Note
    2x screws, T20, 1.2 Nm, 2x clips, Move harness aside as needed
  3. Position rear end module
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, 2x tabs, Rotate to access center console harness, Route harness around fastener mount
  4. Secure rear end module onto center console
    Informational PurposesAn informational icon, calling your attention
    Note
    2x tabs
  5. Install screws securing rear end module to center console
    Informational PurposesAn informational icon, calling your attention
    Note
    6x screws, T20, 1.2 Nm
  6. Install center console U panel
    Informational PurposesAn informational icon, calling your attention
    Note
    12x clips, 12x tabs, 2x guides, Position front and sides then push front and sides rearward, Secure sides then rear, Pictures out of vehicle for demonstration purposes only, Move seatbelt buckle aside as needed, Make sure seatbacks are tilted back
  7. Install phone dock assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    2x screws, T20, 1.2 Nm, 4x clips, 2x datums, 1x connector, Connect connector then secure dock
  8. Position center console
    Informational PurposesAn informational icon, calling your attention
    Note
    Tilt front of console downward, Slide assembly toward front of vehicle then tilt rear of console downward, Both front seats must fully rearward
  9. Secure center console connector
    Informational PurposesAn informational icon, calling your attention
    Note
    1x connector, 1x clip

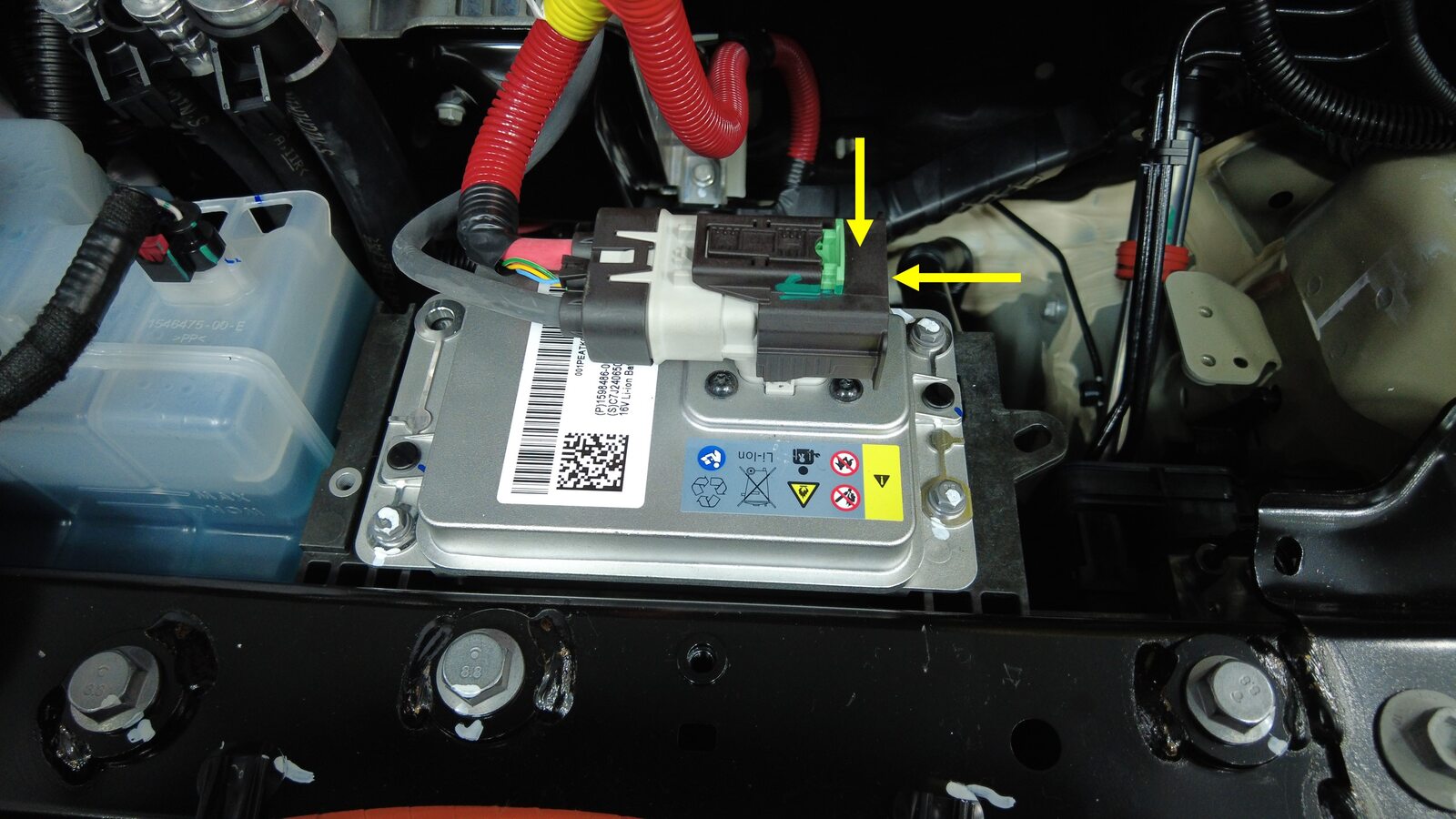

  10. Connect first responder loop and LV battery
    Informational PurposesAn informational icon, calling your attention
    Note
    2x connectors, Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage green locking tab when fully seated
  11. Close hood
  12. Install RH bolts securing center console to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 7 Nm
  13. Install center console RH front side panel
    Informational PurposesAn informational icon, calling your attention
    Note
    18x clips, 2x datums

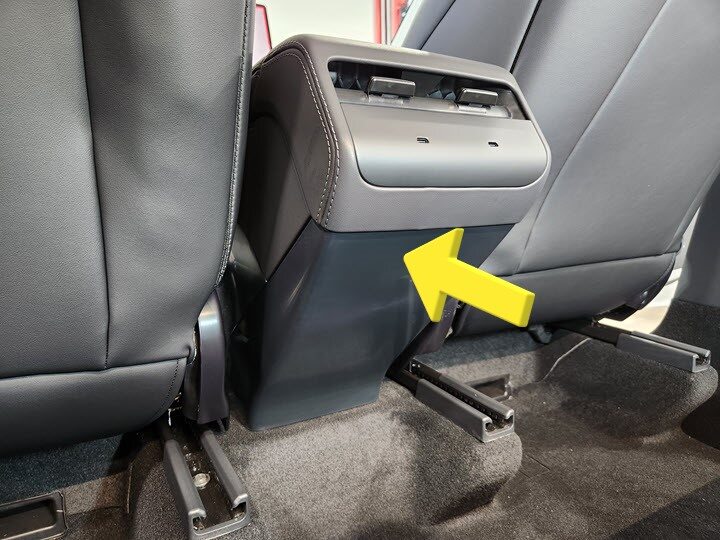

  14. Move RH front seat to original position
    Informational PurposesAn informational icon, calling your attention
    Note
    Via UI > Seat Controls
  15. Install LH bolts securing center console to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 7 Nm
  16. Install center console LH front side panel
    Informational PurposesAn informational icon, calling your attention
    Note

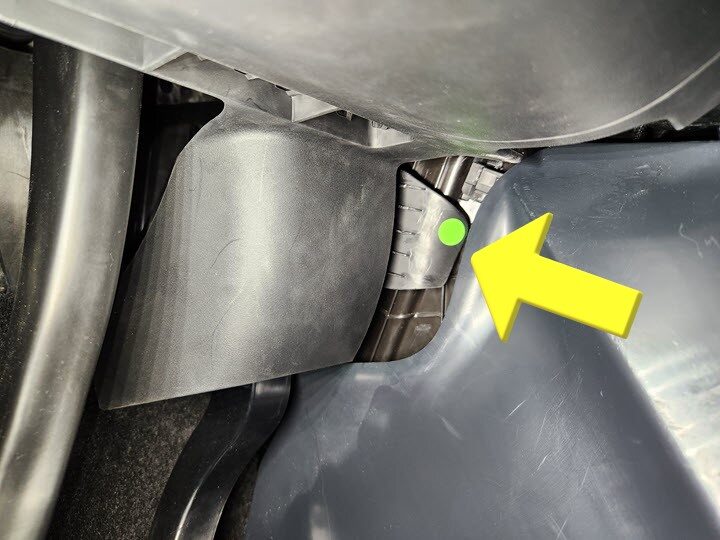

    17x clips, 2x datums, Align with pedal cover, Maneuver around KAB cover to prevent damage
  17. Move LH front seat to original position
    Informational PurposesAn informational icon, calling your attention
    Note
    Via UI > Seat Controls, Use steering wheel scroll wheel as needed
  18. Install rear bolts securing center console to vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    2x bolts, 10mm, 7 Nm
  19. Install center console rear end panel
    Informational PurposesAn informational icon, calling your attention
    Note
    7x clips, 6x guides, Position lower guides then secure upper clips
  20. Raise all four window
  21. Close all four doors
    Informational PurposesAn informational icon, calling your attention
    Note
    Unlatch doors before closing if necessary
