Headrest Guide - Center - 2nd Row - RH (Model Y Standard) (Remove and Install)
Correction code
13050401101
13050401102
FRT
0.06
NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so.
NOTE: See Flat Rate Times to learn more about FRTs and how they are created.
NOTE: See Personal Protection to make sure you
are wearing proper PPE when performing the procedure below.
NOTE: See Ergonomic Precautions for safe and healthy working practices.
Remove
- Remove the 2nd row headrest. See Headrest - 2nd Row - Center (Remove and Replace).
- Remove the 2nd row center back panel. See Backpanel - Center - 2nd Row (Model Y Standard) (Remove and Install).
-

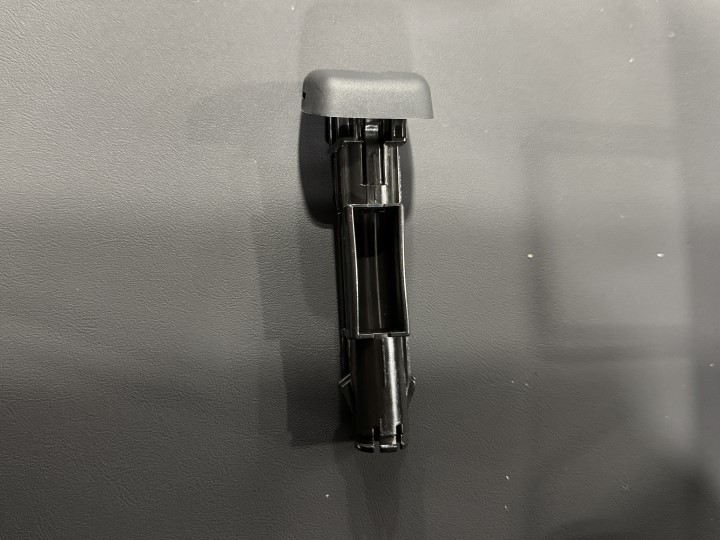

Remove the LH 2nd row center headrest guide.

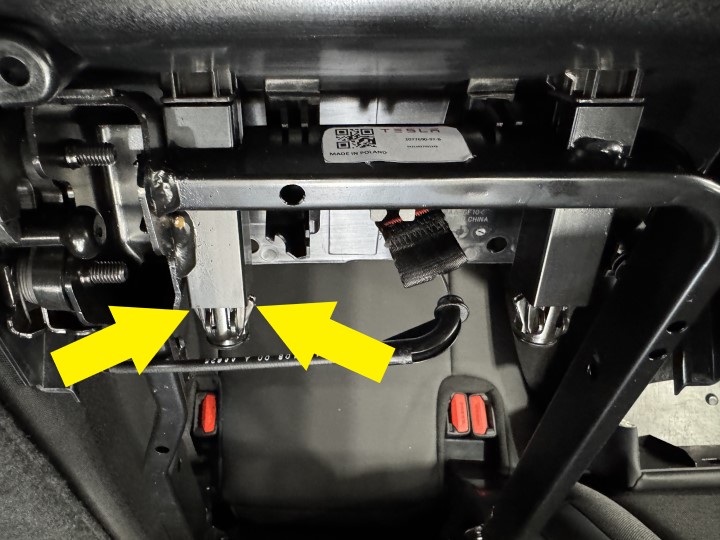

NoteDepress the tabs then slide upwards to release the guide from the square tube.
Install
-
Install the LH 2nd row center headrest guide.

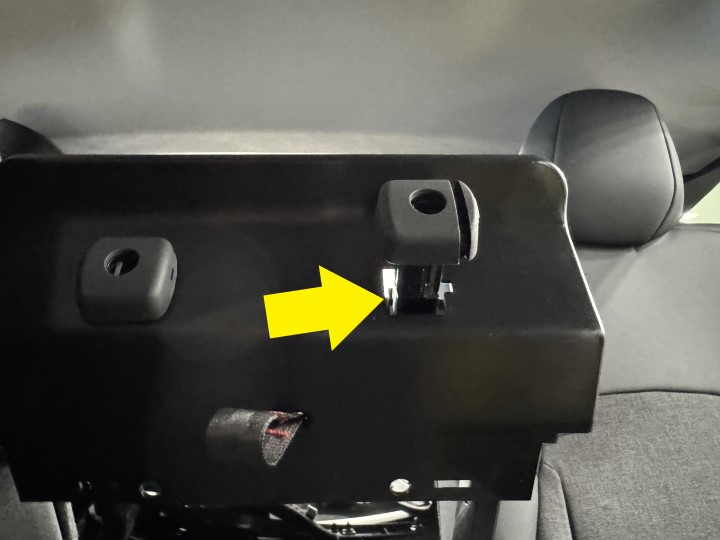

NotePush down the square tube to secure. Ensure the tabs are engaged.
- Install the 2nd row center back panel. See Backpanel - Center - 2nd Row (Model Y Standard) (Remove and Install).
- Install the 2nd row headrest. See Headrest - 2nd Row - Center (Remove and Replace).
