HV Battery (7-Seat) (Remove and Replace)

Correction code 16010106902 FRT 5.16 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Warning

This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.

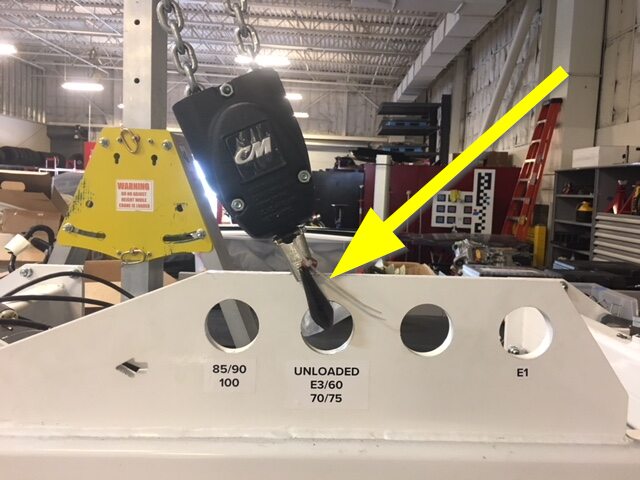

2026-05-21: Added warnings to never move the gantry with a suspended load or put any part of the body underneath a suspended load. Changed wording to clarify that crates are positioned under gantries rather than gantries moved over crates.
2026-02-11: Released new procedure.

Remove

Open all four doors
Lower all four windows
Run ODIN routine PROC_ICE_X_ENTER-SERVICE-MODEvia Toolbox:(link)
Remove clips securing LH rocker cover and rocker carrier to LH front wheel liner

Note
2x clips
Remove clips securing LH rocker cover and rocker carrier to LH rear wheel liner

Note
2x clips
Remove LH rocker cover from rocker carrier

Note
11x clips, 11x tabs, 1x location pin, Work a plastic trim tool between door panel and rocker cover to release tabs
Remove bolts securing LH rocker carrier to body

Note
2x bolts, 10mm, 9 Nm
Remove LH rocker carrier from body

Note
10x clips, 1x location pin
Remove clips securing RH rocker cover and rocker carrier to RH front wheel liner

Note
2x clips
Remove clips securing RH rocker cover and rocker carrier to RH rear wheel liner

Note
2x clips
Remove RH rocker cover from rocker carrier

Note
11x clips, 11x tabs, 1x location pin, Work a plastic trim tool between door panel and rocker cover to release tabs
Remove bolts securing RH rocker carrier to body

Note
2x bolts, 10mm, 9 Nm
Remove RH rocker carrier from body

Note
10x clips, 1x location pin
Remove butyl patches covering LH rocker access holes

Note
2x butyl patches, Clean excess butyl from area, Discard after removal
Install Universal Lift Pad Adapters onto LH lift arms

Note
2x Universal Lift Pad Adapters, Remove original lift pads from lift arms then install respective adapter, Align pins with lift point holes on body
Remove butyl patches covering RH rocker access holes

Note
2x butyl patches, Clean excess butyl from area, Discard after removal
Install Universal Lift Pad Adapters onto RH lift arms

Note
2x Universal Lift Pad Adapters, Remove original lift pads from lift arms then install respective adapter, Align pins with lift point holes on body
Unlock the vehicle gateway. See Gateway (Unlock).
Access thermal system routines via UI

Note
Select Service mode > Thermal
Perform "Start Thermal Fill/Drain (Coolant Only)" through Service UI

Note
Select Thermal > Coolant System > Coolant Fill/Drain, click Run, close once routine is completed, Thermal Fill Drain routine has a 5 hour time limit, After 5 hours routine must be performed again
Move LH front seat forward

Note
Adjust seat back if needed to avoid contacting headliner
Move RH front seat forward

Note
Adjust seatback if needed to avoid contacting headliner
Move 60 seat to easy entry position

Note
Press shoulder switch then push seat forward
Partially remove lower portion of LH rear door seal
Remove LH 7s lower C-pillar trim

Note
8x clips, Rear edge secures onto trunk side trim, Release front clips then rear clips
Move 60 seat to original position

Note
Press shoulder switch then pull seat backward
Fold 2nd row 60 seatback down

Note
Via seat switch or manual tether, Protect seat back upholstery if necessary
Disconnect 2nd row 60 seat connector

Note
1x connector,
Move 60 seat forward using towel bar

Note
With one hand on towel bar pull up and slide the seat forward with your other hand
Remove 60 seat rear outboard track fastener

Note
1x patch bolt, 11mm, 37 Nm, Discard after removal
Remove 60 seat rear inboard track fasteners

Note
2x patch bolts, 11mm, 37 Nm, Discard after removal
Move 60 seat fully rearward using towel bar

Note
pull up bar, slide seat forward
Remove 60 seat outboard track cover

Note
1x clip, Slide covers forward to release from 60 seat tracks
Remove center track cover from 2nd row seats

Note
2x clips, Slide covers forward to release from 2nd row seat tracks
Release cabin carpet from 60 seat

Note
Pull cabin carpet towards front of vehicle
Remove 60 seat front inboard track fasteners

Note
1x bolts, 11mm, 37 Nm, Discard after removal
Remove 2nd row 60 seat frame front outboard track fasteners

Note
1x bolts, 11mm, 37 Nm, Discard after removal
Remove 2nd row 60 seat assembly from vehicle

Note
Recommend assistance, Note: If seat that is not being replaced does not have ISOFIX flag for child locks, the seat cover will also require replacement
Move RH front seat forward

Note
Adjust seatback if needed to avoid contacting headliner
Move 60 seat to easy entry position

Note
Press shoulder switch then push seat forward
Partially remove RH rear door seal

Note
Pillar and sill trim have tabs seated underneath seal
Remove RH C-pillar lower trim

Note
5x clips, Rear edge is mated with groove in trunk side trim, Release clips at front of LH Lower C-Pillar trim working your way back towards rear of sill trim, trim part may slightly differ by vehicle build location, and the number of clips may also varyt, by vehicle build location, Confirm each installation with push-pull test, Clip position should not be adjusted after bracket is removed or will result in bracket not seating properly, if clip position is changed or push-pull action shows bracket not secure, remove clip from tab and seat clip into doghouse on bracket and reinstall
Move 40 seat to original position

Note
Press shoulder switch then pull seat backward
Fold 2nd row 40 seatback down

Note
Via seat switch or manual tether, Protect seat back upholstery if necessary
Remove 40 seat outboard track cover

Note
1x clip, Slide cover forward to release from 40 seat track
Remove bolts securing 40 seat podium to vehicle

Note
2x patch bolts, 11mm, 37 Nm, Discard bolts after removal
Move 40 seat forward using towel bar

Note
With one hand on towel bar pull up and slide the seat forward with your other hand
Remove bolts securing 40 seat inner and outer tracks to vehicle

Note
2x patch bolts, 11mm, 37 Nm, Discard bolts after removal
Move 40 seat fully rearward using towel bar

Note
pull bar, slide seat forward
Disconnect 2nd row 40 seat connector

Note
1x connector, Newer models may have red locking tab
Remove 40 seat from vehicle

Note
Recommend assistance, Do not support 40 seat by cushion pan, Support 40 seat by podium, Note: If seat that is not being replaced does not have ISOFIX flag for child locks, the seat cover will also require replacement
Remove 3rd row seat cushion

Note
2x clips, 1x connector, 2x circular hooks, Press tabs backward then pull front edge up, Press rear seat cushion and lift the front seat cushion
Remove 3rd row LH seat cushion bolster

Note
1x bolt, 11mm, 37 Nm, 1x location pin, 1x tab, Slide LH seat cushion bolster towards front of vehicle to remove
Remove 3rd row RH seat cushion bolster

Note
1x bolt, 11mm, 37 Nm, 1x location pin, 1x tab, Slide RH seat cushion bolster towards front of vehicle to remove
Release LH side of 3rd row rear carpet

Note
2x clips, 2x location pins, 1x bolt, H11, Lift trim to access bolt, Remove bolt then release carpet
Release RH side of 3rd row rear carpet

Note
2x clips, 2x location pins, 1x bolt, H11, Lift trim to access bolt, Remove bolt then release carpet
Remove 3rd row rear cabin carpet
Separate carpet perforation below LH front seat to access LH middle inner HV battery bolt

Note
Located below rear of LH front seat, Expand the hole if necessary
Remove LH middle inner HV battery bolt

Note
1x bolt, 16mm, 66 Nm
Separate carpet perforation below RH front seat to access RH middle inner HV battery bolt

Note
Located below rear of RH front seat, Expand the hole if necessary
Remove RH middle inner HV battery bolt

Note
1x bolt, 16mm, 66 Nm
Position air bag beneath rear cabin carpet to raise and allow access to rear inner HV battery bolts
Remove LH rear inner HV battery bolt

Note
1x bolt, 16mm, 66 Nm, Located below LH rear main carpet
Remove RH rear inner HV battery bolt

Note
1x bolt, 16mm, 66 Nm, Located below RH rear main carpet
Partially remove LH front primary door seal from body
Remove LH IP end cap

Note
5x clips, 2x guide tabs
Remove LH lower A pillar trim from body

Note
7x clips,4x guide tabs, 1x push clip, Pull rear of lower A-pillar upward to release clip then pull rearward to release front tabs from carpet
Move LH front seat backward
Release LH footwell cover

Note
2x magnets, 2x datums, Cover is attached to carpet
Release OBD port from footwell cover

Note
2x tabs, Press black tabs to unlock then push upwards out of footwell cover
Remove LH knee air bag cover

Note
1x connector, 8x tabs, 2x datums
Remove console LH front side panel

Note
14x clips, 2x datums, Use trim tool starting at top edge to release upper clips, Pull bottom to release remaining clips, Use caution and pull panel straight away from console, if panel is peeled off it could be damaged
Fold LH front cabin carpet rearward

Note
Maneuver carpet below brake pedal and accelerator pedal, Different regions may stick the carpet and foam together and tear them apart
Remove foam plugs to access LH front inner HV battery bolts

Note
1x foam plug
Remove both LH front inner HV battery bolts

Note
2x bolts, EP20, 136 Nm
Partially release RH front primary door seal

Note
For remove RH IP end cap, RH lower A pillar trim, RH front B pillar trim
Remove RH IP end cap

Note
5x clips, 2x guide tabs
Remove RH lower A pillar trim

Note
7x clips, 4x guide tabs, 1x push clip, Pull rear of lower A-pillar upward to release clip then pull rearward to release front tabs from carpet
Move RH front seat backward
Release front RH cabin carpet cover from RH knee air bag cover

Note
1x connector, 2x magnets, 2x datums
Remove RH knee air bag cover from IP carrier

Note
2x connector, 5x tabs, 1x datum, 4x bolts, E10, 8 Nm, Discard bolts after removal, Remove 4x fasteners before unlatching airbag cover assembly, carefully remove connector for light by pressing tab and pulling, for airbag use pick tool to unlock tabs and release connector.
Remove console RH front side panel

Note
14x clips, 2x datums, Use finger hole to release panel located at top edge of front side panel, Pull bottom to release remaining clips, Use caution and pull panel straight away from console to avoid damage
Fold RH front cabin carpet rearward

Note
Different regions may stick the carpet and foam together and tear them apart
Remove foam plug to access RH front inner HV battery bolts

Note
1x foam plug
Remove both RH front inner HV battery bolts

Note
2x bolts, EP20, 136 Nm
Open hood
Power off vehicle from center display

Note
Via Controls > Safety > Power Off, Select Power Off button at warning dialogue box
Remove rear apron

Note
16x trim clips, 3x datums, 2x clips
Remove HEPA filter assembly

Note
2x bolts, 10mm, 10 Nm, Pivot rear edge up past brake reservoir then lift up to clear frunk assembly
Disconnect LV battery and first responder loop

Note
2x connectors, Ensure that one minute has passed after window movement before performing the power-off, Release green locking tab, Press black tab then pull black connector lock outwards to release connection, Release red lock tab on FRL, Allow 2 minutes for all electrical circuits to fully discharge
Verify operation of multimeter

Note
Set multimeter to DC voltage, Confirm multimeter is properly measuring voltage by testing the 16v battery
Release LH body harness from rear body and move aside

Note
1x clip
Partially remove LH B-pillar lower trim

Note
1x push clip
Partially pull out LH rear body harness
Remove 3rd row NVH insulator

Note
1x connector, Disconnect connector then remove insulator
Remove all items from pockets and ensure not wearing metal items
Inspect HV insulating gloves

Note
Check gloves for damage prior to use, Refer to service document TN-15-92-003, for information on inspecting HV gloves. https://service.teslamotors.com/documents?model=&keys=TN-15-92-003&vehicle_system=&sort_by=field_date_submitted&sort_order=DESC
Put on HV insulating gloves and leather over gloves

Note
Use HV cut resistant insulated gloves or HV insulating gloves and leather over gloves, HV Insulating gloves must be worn any time a Hioki Tester or Hi-Pot Tester is used, Refer to service document TN-15-92-003 R5 for PPE requirements depending on vehicle configuration.
Remove bolts securing ancillary bay probe lid cover

Note
2x bolts, EP10 5-Lobe, 6 Nm, Discard after removal
Remove ancillary bay probe lid cover
Verify no high voltage

Note
Make sure to wear PPE (HV gloves, Safety glasses) when working on high voltage component, Measure B+ to Ground, B- to Ground, B+ to B-, If voltage is greater than 10V, Pack contactors are not open or welded, Stop work and reach out to Service Engineering
Wipe ancillary bay cover with IPA to clean surface

Note
Allow to 1 minute dry time
Inspect ancillary bay probe lid cover gasket then position onto ancillary bay cover

Note
Confirm no visual damage present, Wipe ancillary bay with IPA to clean surface, Allow to 1 minute dry time
Install bolts securing ancillary bay probe lid cover to ancillary bay cover

Note
2x bolts, EP10 5-Lobe, 6 Nm, Install new bolts
Remove fastener securing busbar cover access door

Note
1x bolt, 10mm, 9 Nm
Remove bolts securing charge port busbar kit to HV header

Note
2x bolts, 10mm, 9 Nm
Lift busbar kit connector to remove from HV header

Note
Use inflatable air bag to suspend busbar away from HV header during removal and installation, hold busbar firmly as there is tension on, Avoid damaging the harness bracket
Remove leather over gloves and HV insulating gloves
Install HVC logic cap

Note
1x logic cap
Release positive LV output cover from PCS cable

Note
1x cover
Remove PCS cable from LV passthrough output

Note
1x nut, 13mm, 9 Nm, Discard nut after removal
Remove nut securing DCDC ground busbar to HV battery

Note
1x nut, 13mm, 9 Nm, Discard nut after removal
Close all four doors

Note
If necessary, Fake lock block
Raise and support vehicle

Note
Recommended assistance, Before lifting, Ensure that the vehicle is not connected to a charging device, The positioning pin must be inserted into the car body holes
Raise vehicle fully and lower lift onto locks

Note
Set vehicle to comfortable working height, Ensure an audible click of locks on both sides is heard before lowering, Vehicle may tilt to the side if both locks are not engaged
Remove bolts securing front aero shield

Note
7x bolts, 10mm, 5 Nm
Remove front aero shield

Note
2x nuts, 15mm, 5 Nm
Remove bolt securing LH front wheel liner to skid plate

Note
1x bolt, 10mm, 5 Nm
Remove clip securing LH wheel liner to body

Note
1x push clip
Remove bolt securing RH front wheel liner to skid plate

Note
1x bolt, 10mm, 5 Nm
Remove clip securing RH wheel liner to body

Note
1x push clip
Secure LH front wheel liner aside

Note
1x bungee strap, Secure to subframe
Secure RH front wheel liner aside

Note
1x bungee strap, Secure to subframe
Remove front skid plate

Note
4x bolts, EP10, 13 Nm, 2x tabs, Move foward to remove
Inspect HV insulating gloves

Note
Check gloves for damage prior to use, Refer to service document TN-15-92-003, For information on inspecting HV gloves. https://service.teslamotors.com/documents?model=&keys=TN-15-92-003&vehicle_system=&sort_by=field_date_submitted&sort_order=DESC
Put on HV insulating gloves and leather over gloves

Note
Use HV cut resistant insulated gloves or HV insulating gloves and leather over gloves, HV Insulating gloves must be worn any time a Hioki Tester or Hi-Pot Tester is used, Refer to service document TN-15-92-003 R5 for PPE requirements depending on vehicle configuration.
Disconnect AC compressor HV harness connector from HV Ancillary harness

Note
1x locking connector, 3 stage locking connectors, Disengage the red locking tab by pulling it away from the connector, Depress yellow tab and pull the connector backward then depress the green tab to release
Release FDU HV harness from FDU

Note
1x bolt,10mm, 10 Nm
Release FDU HV harness connector

Note
1x connector. Release red locking tab and rotate the release lever up to disengage the connector, Do not force the release lever up, Ensure the alignment tabs on the FDU header are not damaged
Release FDU HV harness from casting and move aside

Note
1x casting datum
Remove leather over gloves and HV insulating gloves
Remove FDU ground strap bolt from HV battery

Note
1x bolt, 10mm, 10 Nm
Position coolant drain container underneath LH front of HV battery
Disconnect HV battery return hose

Note
1x spring clip, Plug coolant connections as needed, Loss of coolant greater than 1L requires coolant vacuum fill
Attach battery drain fitting adapter to female side of HV battery return tube

Note
1x spring clip, Make sure valve is set to closed, Perform push-pull test to verify adapter is fully engaged
Attach hose extension to coolant drain hose for extra length
Connect battery flush fitting adapter to coolant cart drain hose
Release chiller to battery hose from body

Note
1x clip
Disconnect HV battery front manifold hose from chiller to battery hose

Note
1x spring clip, Plug coolant connections as needed, Loss of coolant greater than 1L requires coolant vacuum fill
Attach Battery flush fitting adapter to male side of HV battery supply hose
Attach battery flush fitting adapter to coolant cart pressure hose
Attach battery drain fitting adapter to coolant cart pressure hose
Open valve on battery drain fitting adapter

Note
Turn valve knob to vertical position
Slowly open valve on pressure regulator and allow coolant to drain out of HV battery return tube

Note
Close valve on pressure regulator once no coolant is draining from HV battery return hose
Close valve on pressure regulator once no coolant is draining from battery return hose
Disconnect compressed air from coolant cart
Remove battery drain fitting adapter from female side of HV battery return tube

Note
1x spring clip, Set valve knob to closed position, And plug the hose, If the battery is returned to Reman, please remove the special tool plugs
Remove battery flush fitting adapter from male side of HV battery supply tube

Note
1x spring clip, Plug hose once adapter has been removed, If the battery is returned to Reman, please remove the special tool plugs
Position coolant drain container underneath RH front of HV battery
Disconnect FDU inverter inlet hose to rear powertrain return hose and plug hoses

Note
1x spring clip, If the battery is returned to Reman, please remove the special tool plugs
Disconnect PT supply hose

Note
1x spring clip, Plug coolant connections as needed, Loss of coolant greater than 1L requires coolant vacuum fill
Position coolant drain container underneath front of HV battery
Remove manifold tube from front of HV battery and plug HV battery

Note
4x spring clips, If the battery is returned to Reman, Please remove the special tool plugs
Remove coolant drain container from underneath vehicle
Remove LH and RH push clips securing mid aero shield to wheel house liner

Note
2x clips
Remove mid aero shield

Note
11x bolts, 2x tabs, 10mm, 5 Nm
Remove nut securing LH rear stabilizer bar end link to stabilizer bar

Note
1x nyloc nut, 15mm, 55 Nm, Break nut loose then counter-hold ball joint with 5mm hex, Discard after removal
Remove stabilizer bar from LH rear end link

Note
May need to move the stabilizer bar up/down to get the correct angle to remove end link
Remove nut securing RH rear stabilizer bar end link to stabilizer bar

Note
1x nyloc nut, 15mm, 55 Nm, Break nut loose then counter-hold ball joint with 5mm hex, Discard after removal
Remove stabilizer bar from RH rear end link

Note
May need to move the stabilizer bar up/down to get the correct angle to remove end link
Position support stand to support front portion of rear subframe

Note
Prevent the stabilizer bar from falling off
Remove bolts securing rear stabilizer bar to subframe and remove assembly

Note
4x patch bolts, 11mm, 30 Nm, Discard after removal
Remove support stand from front portion of rear subframe
Release clips securing coolant hoses to LH shear plate

Note
2x fir tree clips
Release LH side hose clip from rear battery skid plate

Note
1x fir tree clip
Release RH side hose clips from rear battery skid plate

Note
2x fir tree clips
Remove lower bolts securing HV battery rear skid plate enclosure

Note
2x bolts, EP10, 13 Nm
Remove upper bolts securing HV battery rear skid plate enclosure

Note
4x bolts, 13mm, 64 Nm
Remove HV battery rear skid plate enclosure
Put on HV insulating gloves and leather over gloves

Note
Use HV cut resistant insulated gloves or HV insulating gloves and leather over gloves, HV Insulating gloves must be worn any time a Hioki Tester or Hi-Pot Tester is used, Refer to service document TN-15-92-003 R5 for PPE requirements depending on vehicle configuration.
Remove nut securing RDU HV cable bracket to HV battery

Note
1x nut, 10mm, 10 Nm
Disconnect RDU HV cable from HV battery

Note
1x connector, Release locking tab and rotate the release lever up to disengage the connector, Do not force the release lever up, Ensure the alignment tabs on the RDU header are not damaged
Remove leather over gloves and HV insulating gloves
Position coolant drain container under LH rear of vehicle
Disconnect LH coolant hose from rear of HV battery

Note
1x spring clip, 2x plugs, Plug both the coolant hose and passthrough, If the battery is returned to Reman, please remove the special tool plug
Disconnect RDU inverter inlet hose from PCS outlet hose coupling

Note
1x spring clip, 2x plugs, Connection is located at the LH rear of the HV Battery, Install plugs once disconnected, Coolant loss greater than 1 L will require vacuum fill, If the battery is returned to Reman, Please remove the special tool plug
Connect coolant Drain and Fill Adapter to PCS outlet hose coupling

Note
Use adapter with 90 degree angle, Make sure locking clip is fully seated, Make sure valve is open, Valve is inline with the adaptor when open, Connection is at LH rear of HV Battery
Connect coolant hose extension to Drain and Fill adaptor

Note
Press hose end onto adaptor until clicked into place
Connect coolant hose extension to coolant drain hose

Note
Use caution as coolant may spill, Make sure to wear safety glasses
Position coolant drain container underneath RH rear of HV battery
Disconnect rear powertrain supply hose from PCS inlet hose coupling

Note
1x spring clip, Plug hose connections as needed, Connection is located at RH rear of HV Battery, Coolant loss greater than 1 L will require vacuum fill, If the battery is returned to Reman, Please remove the special tool plugs
Connect coolant Leak Test Adaptor to PCS inlet hose coupling

Note
Remove rubber plug from coupler if installed, Make sure the locking clip is fully seated, Connection is at RH rear of HV Battery
Connect coolant Leak Test Fixture inlet hose to Leak Test Adapter

Note
Hand tighten hose connection, No tool required to tighten
Remove coolant drain container from underneath vehicle
Connect compressed air to coolant pressure tester

Note
Make sure valves are closed on pressure regulator
Open regulator valve then slowly adjust regulator to 50 psi

Note
Use caution as coolant may spill, Make sure to wear safety glasses
Open 2nd valve slowly

Note
Use caution as coolant may spill, Make sure to wear safety glasses
Set timer for 1 minutes and select start

Note
Once timer is complete, select Stop Reset
Close regulator valve
Set timer for 1 minutes and select start

Note
Once timer is complete, select Stop Reset
Open regulator valve slowly
Set timer for 1 minutes and select start

Note
Once timer is complete, select Stop Reset
Close regulator valve
Disconnect compressed air from coolant pressure tester
Disconnect coolant Leak Test Adaptor with hose from PCS inlet hose coupling

Note
1x spring clip, Leave the Leak Test Fixture hose connected to Leak Test Adaptor, Connection is at RH rear of HV Battery
Disconnect coolant Drain and Fill Adapter with extension hose from PCS outlet hose coupling

Note
1x spring clip, leave extension hose attached to drain and fill adaptor, Connection is at LH rear of HV battery
Connect coolant Leak Test Adaptor with hose to PCS outlet hose coupling

Note
1x spring clip, Make sure the locking tab is fully seated, Leave the coolant Leak Test Fixture hose attached to the Leak Test Adaptor, Connection is at LH rear of HV Battery
Connect coolant Drain and Fill Adapter with extension hose to PCS inlet hose coupling

Note
1x spring clip, Make sure the locking tab is fully seated, Connection is at RH rear of HV battery
Connect compressed air to coolant pressure tester
Open regulator valve then slowly adjust regulator to 50 psi

Note
Use caution as coolant may spill, Make sure to wear safety glasses
Open 2nd valve slowly

Note
Use caution as coolant may spill, Make sure to wear safety glasses
Set timer for 1 minutes and select start

Note
Once timer is complete, select Stop Reset
Close regulator valve
Set timer for 1 minutes and select start

Note
Once timer is complete, select Stop Reset
Open regulator valve slowly
Set timer for 1 minutes and select start

Note
Once timer is complete, select Stop Reset
Close regulator valve
Disconnect compressed air from Leak Test Fixture tool
Disconnect coolant hose extension from coolant drain hose

Note
Press grey button to release hose fitting
Disconnect coolant hose extension from coolant Drain and Fill adaptor

Note
Press grey button to release hose fitting
Disconnect coolant drain hose adapter from PCS inlet hose coupling

Note
1x spring clip, Install plug to inlet hose coupling, If the battery is returned to Reman, please remove the special tool plugs
Disconnect coolant Leak Test Fixture outlet hose from Leak Test Adapter

Note
1x hose connection
Disconnect coolant Leak Test Adaptor from PCS outlet hose coupling

Note
1x spring clip, Install plug to outlet hose coupling, If the battery is returned to Reman, please remove the special tool plugs
Position coolant drain container underneath RH rear of HV battery
Disconnect coolant outlet hose to rear return hose and plug hoses

Note
1x spring clip, 2x plugs, Use shop towel to clean any residue coolant inside RH rocker panel if necessary, Coolant loss greater than 1 L will require vacuum fill, If the battery is returned to Reman, Please remove the special tool plugs
Release clip securing coolant hoses to RH shear plate

Note
1x fir tree clip
Position support stand to support front portion of rear subframe
Remove smaller fasteners for LH shear plate

Note
2x bolts, 13mm, 64 Nm
Remove large bolt securing LH shear plate and subframe to body and remove shear plate

Note
1x bolt, 21mm, 125 Nm, Discard after removal
Hand tighten bolt securing LH side of subframe to body

Note
1x bolt, 21mm, 125 Nm
Remove smaller fasteners for RH shear plate

Note
2x bolts, 13mm, 64 Nm
Remove large bolt securing RH shear plate and subframe to body and remove shear plate

Note
1x bolt, 21mm, 125 Nm, Discard after removal
Hand tighten bolt securing RH side of subframe to body

Note
1x bolt, 21mm, 125 Nm
Remove support stand from under vehicle
Place HV battery table into position and lower vehicle to support HV battery

Note
Recommend assistance, Line up table so center 4 bolts are accessible through opening in table, Adjust final battery table position using adjustable caster jacks on table
Remove central bolts securing HV battery center ski cover

Note
4x bolts, EP14, 35 Nm
Remove bolts securing LH front support bracket to vehicle

Note
4x bolts, 16mm, 110 Nm
Remove bolts securing RH front support bracket to vehicle

Note
4x bolts, 16mm, 110 Nm
Remove LH bolts securing HV battery to vehicle

Note
8x bolts, 13mm, 35 Nm
Remove RH bolts securing HV battery to vehicle

Note
8x bolts, 13mm, 35 Nm
Raise vehicle free of HV battery

Note
Recommend assistance
Remove battery from under vehicle

Note
Recommend assistance
Remove ancillary bay engagement seal from HV battery pack

Note
Discard anytime HV battery is removed from vehicle
Remove bolts securing ancillary bay cover to HVC

Note
3x bolts, E10, 5 Nm + 30 degrees
Remove bolts securing ancillary bay cover to HV battery

Note
18x bolts, E10 5-Lobe, 8 Nm, Use E10 5-Lobe socket without magnet, The fasteners are captive and will stay attached to the ancillary bay cover
Remove HVC logic cap

Note
1x logic cap
Inspect HV insulating gloves

Note
Check gloves for damage prior to use, Refer to service document TN-15-92-003, For information on inspecting HV gloves. https://service.teslamotors.com/documents?model=&keys=TN-15-92-003&vehicle_system=&sort_by=field_date_submitted&sort_order=DESC
Put on HV insulating gloves and leather over gloves
Remove ancillary bay cover from HV battery
Install HVC logic cap

Note
1x logic cap
Inspect ancillary bay for any missing insulators

Note
Install service insulator kit before continuing to next step
Remove bolts securing pyro disconnect to ancillary bay

Note
1x insulator, 2x patch bolts, 13mm, 9 Nm, Discard after removal
Remove pyro disconnect from ancillary bay

Note
1x connector, From the bottom, Lift pyro disconnect straight up and out of the ancillary bay
Remove service insulator kit
Remove HVC logic cap

Note
1x logic cap
Position ancillary bay cover to HV battery for installation

Note
Ensure all accessible insulators are present, Wearing Electrical Protective Gloves is not necessary once all HV components are covered.
Remove HV insulating gloves
Install bolts securing ancillary bay cover to HV battery

Note
18x bolts, EP10 5-Lobe, 8 Nm, Fasteners are captive, Follow torque sequence per image
Install bolts securing ancillary bay cover to HVC

Note
3x bolts, E10, 5 Nm + 30 degrees
Install old Pyro Disconnect onto old HV battery

Note
Attach pyro to ancillary bay cover volcano brackets with zip ties, If ancillary bay cover is not equipped with volcano brackets then attach pyro to RH rear corner of HV Battery with zip ties and add tape as notification as shown in illustration, Install a piece of paper roll under pyro
Attach HV battery H-frame to gantry and raise into position

Warning
Never stand or place any part of your body underneath a suspended load.

Warning
Never attempt to move a gantry while a load is suspended.

Warning
Refer to the gantry manufacturer's instructions for safety and operational information.
Position HV battery under gantry

Note
Recommend assistance, If original pack is RWD and supplied pack is DM, Center ski transfer will be needed
Lower H-frame onto HV battery and secure H-frame to battery

Note
6x bolts, 8mm Allen, Hand tight
Raise HV battery off of battery table
Position pallet under gantry
Lower HV battery onto pallet
Remove H-frame from old HV battery

Note
6x bolts, 8mm Allen, Hand tight
Raise gantry and H-frame from old HV battery
Open crate top housing new HV battery pack

Note
Recommend assistance, Confirm part number specific to vehicles configuration https://epcadmin.teslamotors.com/epcadmin
Remove nuts securing new HV battery to crate

Note
4x nuts, 15mm

Install

Position gantry over new HV battery crate and secure H-frame to battery

Note
6x bolts, 8mm Allen, Hand tight
Lift new HV battery out of crate
Move gantry away from HV battery crate and over HV battery table

Note
Recommend assistance
Lower HV battery onto battery table

Note
Recommend assistance, Make sure to align HV battery onto center ski
Release H-frame from HV battery and raise gantry

Note
Perform a visual inspection of the bolt holes and HV headers to make sure that terminals are aligned and threads are not damaged before installing a bolt or mating a connector.

Note
6x bolts, 8mm Allen, Hand tight
Remove HV battery from under gantry

Note
Recommend assistance
Position gantry over old HV battery
Lower H-frame onto old HV battery and secure H-frame to battery

Note
6x bolts, 8mm Allen, Hand tight
Raise old HV battery above height of HV battery crate

Note
Remove the pallet
Position HV battery crate underneath old HV battery
Lower old HV battery into crate

Note
Use caution to align the 4 studs and not damage the battery
Remove H-frame from old HV battery

Note
6x bolts, 8mm Allen, Hand tight
Raise gantry and H-frame from old HV battery
Lower gantry and remove HV battery H-frame from gantry
Install nuts securing HV battery to crate hand tight

Note
4x nuts, 15mm
Close crate top housing old HV battery

Note
Recommend assistance
Install HVC logic cap onto new HV battery

Note
1x logic cap
Install HV battery alignment rods

Note
2x rods, To body at front of vehicle, 2x rods, To battery near ancillary bay
Position HV battery under vehicle

Note
Recommend assistance
Lower vehicle onto HV battery and align holes

Note
Recommend assistance, Use alignment rods, Be sure coolant hoses do not get caught on alignment rods, Caution not to damage HV cable, Do not fully lower vehicle onto battery (this will help with installing battery bolts)
Loosely install RH bolts securing HV battery to vehicle hand tight

Note
8x bolts, 13mm, 35 Nm, Ensure smooth thread engagement and bolts are not cross threaded into casting, Flush down bolts, Do not over tighten bolts, Fully torque at later step
Loosely install LH bolts securing HV battery to vehicle hand tight

Note
8x bolts, 13mm, 35 Nm, Ensure smooth thread engagement and bolts are not cross threaded into casting, Flush down bolts, Do not over tighten bolts, Fully torque at later step
Remove HV battery alignment rods

Note
2x rods, To body at front of vehicle, 2x rods, To battery near ancillary bay
Set up ladder
Install LH rear inner HV battery bolt hand tight

Note
1x bolt, 16mm, 66 Nm, Torque at later step
Install LH middle inner HV battery bolt hand tight

Note
1x bolt, 16mm, 66 Nm, Torque at later step
Install RH rear inner battery bolt hand tight

Note
1x bolt, 16mm, 66 Nm, Torque at later step
Install RH inner HV battery bolt hand tight

Note
1x bolt, 16mm, 66 Nm, Torque at later step
Install both LH front inner HV battery bolts hand tight

Note
2x bolts, EP20, 136 Nm, Torque at later step
Install both RH front inner HV battery bolts hand tight

Note
2x bolts, EP20, 136 Nm, Torque at later step
Remove ladder
Set bolts securing RH front support bracket to vehicle with cordless impact

Note
4x bolts, 16mm, 110 Nm, Torque at later step
Set bolts securing LH front support bracket to vehicle with cordless impact

Note
4x bolts, 16mm, 110 Nm, Torque at later step
Lower vehicle onto pack completely

Note
Recommend assistance
Torque RH bolts securing HV battery to vehicle

Note
8x bolts, 13mm, 35 Nm
Torque LH bolts securing HV battery to vehicle

Note
8x bolts, 13mm, 35 Nm
Torque bolts securing RH front support bracket to vehicle

Note
4x bolts, 16mm, 110 Nm
Torque bolts securing LH front support bracket to vehicle

Note
4x bolts, 16mm, 110 Nm
Raise vehicle and lower onto locks, then remove battery table from under vehicle

Note
Recommend assistance, Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
Set central bolts securing HV battery center ski cover with cordless impact

Note
4x bolts, EP14, 35 Nm, Ensure smooth thread engagement and bolts are not cross threaded into casting, Flush down bolts, Do not over tighten bolts, Fully torque at later step
Torque central bolts securing HV battery through center ski cover

Note
4x bolts, EP14, 35 Nm
Position support stand to support front section of rear subframe
Remove bolt securing LH side of rear subframe to body

Note
1x bolt, 21mm, 125 Nm
Install bolts securing LH shear plate to HV battery hand tight

Note
2x bolts, 13mm, 64 Nm, Torque at later step
Install bolt and shear plate to LH side of rear subframe hand tight

Note
1x bolt, 21mm, 125 Nm, Install new bolt, Torque at later step
Torque bolt securing subframe and LH shear plate to body

Note
1x front bolt, 21mm, 125 Nm, Mark bolt after torque
Torque bolts securing LH shear plates to vehicle

Note
2x bolts, 13mm, 64 Nm
Remove bolt securing RH side of rear subframe to body

Note
1x bolt, 21mm, 125 Nm
Install bolts securing RH shear plate to HV battery hand tight

Note
2x bolts, 13mm, 65 Nm, Torque at later step
Install bolt and shear plate to RH side of rear subframe hand tight

Note
1x bolt, 21mm, 125 Nm, Install new bolt, Torque at later step
Torque bolt securing subframe and RH rear shear plate to body

Note
1x bolt, 21mm, 125 Nm
Torque bolts securing RH shear plates to vehicle

Note
2x bolts, 13mm, 64 Nm
Remove support stand from under vehicle
Install clips securing coolant hoses to LH shear plate

Note
2x fir tree clips
Position coolant drain container underneath RH rear of HV battery
Install clip securing coolant hoses to RH shear plate

Note
1x fir tree clip
Remove hose plugs and connect coolant outlet hose to rear return hose

Note
Perform a push-pull-push test to make sure the hose is fully seated. Do not wiggle the hose at the connection.
Position coolant drain container under LH rear of vehicle
Remove plugs and connect RDU inverter inlet hose to rear of HV battery

Note
Perform a push-pull-push test to make sure the hose is fully seated. Do not wiggle the hose at the connection.
Connect LH coolant hose to rear of HV battery

Note
Perform a push-pull-push test to make sure the hose is fully seated. Do not wiggle the hose at the connection.
Remove coolant drain container from underneath vehicle
Put on HV insulating gloves and leather over gloves
Connect RDU HV cable to HV battery

Note
1x connector, Make sure the connector lock is 90 degrees from the connector before beginning to secure the connector, Use one hand to support the connector while other latching locking tab. Once installed, Verify that the latch is not damaged and fully secured in the latched position
Install nut securing RDU HV cable bracket to HV battery

Note
1x nut, 10mm, 10 Nm
Remove HV insulating gloves
Position HV battery rear skid plate enclosure

Note
Recommend assistance if needed
Install upper bolts securing HV battery rear skid plate enclosure hand tight

Note
4x bolts, 13mm, 64 Nm
Install lower bolts securing HV battery rear skid plate enclosure

Note
2x bolts, EP10, 13 Nm
Torque bolts securing HV battery rear skid plate enclosure to vehicle

Note
4x bolts, 13mm, 64 Nm
Install RH side hose clips to rear battery skid plate

Note
2x fir tree clips
Install LH side hose clip to rear battery skid plate

Note
1x fir tree clip
Install stabilizer bar onto vehicle
Place stabilizer bar into position for installation and raise stand to support stabilizer bar

Note
Prevent the real stabilizer bar from falling off
Install stabilizer bar fastening bolts

Note
4x patch bolts, 11mm, 30 Nm, Thread in fasteners and torque down evenly, Install new patch bolts
Remove support stand from front portion of rear subframe
Position LH rear end link into stabilizer bar

Note
Adjust the end link to align with stabilizer bar, Also may need to move the stabilizer bar up/down to get the correct angle to install end link
Install nut securing LH rear end link to stabilizer bar

Note
1x nyloc nut, 15mm, 55 Nm, Install new nut, Counter-hold ball joint with 5mm hex, Mark bolt after torque
Position RH rear end link into stabilizer bar

Note
Adjust the end link to align with stabilizer bar, Also may need to move the stabilizer bar up/down to get the correct angle to install end link
Install nut securing RH rear end link to stabilizer bar

Note
1x nyloc nut, 15mm, 55 Nm, Install new nut, Counter-hold ball joint with 5mm hex, Mark bolt after torque
lnstall mid aero shield

Note
2x tabs, 11x bolts, 10mm, 5 Nm, Position rear datums first, Apply Loctite 222 onto rear aero shield bolts
Install LH and RH push clips securing mid aero shield to wheel house liner

Note
2x clips
Position coolant drain container underneath front of HV battery
Install manifold tube of front of HV battery

Note
4x spring clips, Remove plugs, Perform push-pull test to verify hoses are fully engaged. Loss of coolant greater than 1L requires coolant vacuum fill
Position coolant drain container underneath LH front of HV battery
Connect HV battery front manifold hose onto chiller to battery hose

Note
1x spring clip, Remove plugs as needed, Perform push-pull test, Loss of coolant greater than 1L requires coolant vacuum fill
Secure chiller to battery hose onto body

Note
1x clip
Connect HV battery return hose

Note
1x spring clip, Remove plugs as needed, Perform push-pull test, Loss of coolant greater than 1L requires coolant vacuum fill
Position coolant drain container underneath RH front of HV battery
Connect FDU inverter inlet hose to rear powertrain return hose

Note
1x spring clip, Remove plugs, Perform push-pull test to verify hoses are fully engaged. Loss of coolant greater than 1L requires coolant vacuum fill
Connect PT supply hose

Note
1x spring clip, Remove plugs as needed, Perform push-pull test, Loss of coolant greater than 1L requires coolant vacuum fill
Remove coolant drain container from underneath vehicle
Put on HV insulating gloves and leather over gloves
Connect A/C compressor HV harness connector to HV Ancillary harness

Note
1x locking connector, 3 stage locking connector, After the connector is seated and there is an audible click, Engage the second lock by pressing towards the connector, Engage locking tab
lnstall FDU HV harness to casting

Note
Install HV connector lever lock to FDU HV cable connector
Install FDU HV harness connector to FDU

Note
1x connector, Align connector to FDU then remove HV connector lever lock before fully latching connector, Use one hand to support the connector while other latching locking tab, Once installed, verify that the latch is not damaged and fully secured in the latched position
Install FDU HV harness to FDU

Note
1x bolt, 10mm, 10 Nm
Remove HV insulating gloves
Install FDU ground strap and bolt to HV battery

Note
1x bolt, 10mm, 10 Nm
Install front skid plate

Note
4x bolts, EP10, 13 Nm, 2x tabs, Position and move backward to installation
Release LH front wheel liner

Note
1x bungee strap, Remove bungee strap as needed
Install bolt securing LH front wheel liner to skid plate

Note
1x bolt, 10mm, 5 Nm
Install clip securing LH wheel liner to body

Note
1x push clip
Release RH front wheel liner

Note
1x bungee strap, Remove bungee strap as needed
Install bolt securing RH front wheel liner to skid plate

Note
1x bolt, 10mm, 5 Nm
Install clip securing RH wheel liner to body

Note
1x push clip
Position front aero shield onto vehicle

Note
2x datums, 2x nuts, 15mm, 5 Nm, Hand-tighten the nuts to temporarily hold the panel in place
Install front aero shield onto vehicle

Note
7x bolts, 10mm, 5 Nm, Apply Loctite 222 onto front aero shield bolts and install fasteners to front aero shield
Torque front aero shield nuts

Note
2x nuts, 15mm, 5 Nm
Lower vehicle fully

Note
Raise lift off locks, Then hold lock release lever to keep locks free while vehicle is lowered
Move rack arms away from vehicle
Install butyl patches onto LH rocker access holes

Note
2x butyl patches, Apply pressure along patch to verify fully secured to body, Replace with new patch, Cut to the required size, Roughly 2" x 2 1/2"
Install LH rocker carrier onto body

Note
10x clips, 1x location pin
Install bolts securing LH rocker carrier to body

Note
2x bolts, 10mm, 9 Nm
Install LH rocker cover onto rocker carrier

Note
11x clips, 11x tabs, 1x location pin, Tabs go into cavities on rocker carrier and cannot be accessed from outer side of cover, Ensure that all tabs are installed properly
Install clips securing LH rocker cover and rocker carrier to LH front wheel liner

Note
2x clips
Install clips securing LH rocker cover and rocker carrier to LH rear wheel liner

Note
2x clips
Install butyl patches onto RH rocker access holes

Note
2x butyl patches, Apply pressure along patch to verify fully secured to body, Replace with new patch, Cut to the required size, Roughly 2" x 2 1/2"
Install RH rocker carrier onto body

Note
10x clips, 1x location pin
Install bolts securing RH rocker carrier to body

Note
2x bolts, 10mm, 9 Nm
Install RH rocker cover onto rocker carrier

Note
11x clips, 11x tabs, 1x location pin, Tabs go into cavities on rocker carrier and cannot be accessed from outer side of cover, Ensure that all tabs are installed properly
Install clips securing RH rocker cover and rocker carrier to RH front wheel liner

Note
2x clips
Install clips securing RH rocker cover and rocker carrier to RH rear wheel liner

Note
2x clips
Install DCDC ground busbar to HV battery

Note
Gently press down
Install nut securing DCDC ground busbar to HV battery

Note
1x nut, 13mm, 9 Nm, Install new nut
Install positive LV output from PCS cable and torque nut securing it

Note
1x nut, 13mm, 9 Nm, Install new nut, Mark the nut after torque
Install positive LV output cover to PCS cable

Note
1x cover
Put on HV insulating gloves and leather over gloves
Clean HV connector contact surface of residual Penetrox

Note
Allow 1 minute dry time, New busbar comes with penetrox applied to HV connector
Clean busbar HV connector contact surface of residual Penetrox

Note
Allow 1 minute dry time after removing Penetrox, It is necessary to clean HV connector during re-use of busbar
Apply Penetrox onto HV connector joints

Note
Apply 2 drops of Penetrox A-13 about 5mm in diameter to either side of the hole on both leads, Spread evenly to verify the contact surface is fully covered
Remove inflatable air bag from under HV header
Position busbar kit connector and lower onto HV header

Note
Shift rear end of busbar assembly upward to help ease installation, If excessive force is required to seat busbars, they may have been bent. Inspect for damage and replace if necessary
Install bolts securing charge port busbar kit to HV header

Note
2x bolts, 10mm, 9 Nm, Mark after torque
Perform Hioki resistance test at each HV joint from HV busbar lead to bolt head

Note
2x HV joints, The acceptable resistance is between 0.050 mΩ (50 μΩ) and 0.195 mΩ (195 μΩ). If the resistance is greater than 0.195 mΩ (195 μΩ), stop work and escalate the Toolbox session. If the resistance is lower than 0.050 mΩ (50 μΩ), reposition the probes and measure again. If the resistance is repeatedly between 0.00 mΩ and 0.050 mΩ (50 μΩ), Hioki test passed, proceed to next step
Install fastener securing busbar cover access door

Note
1x bolt, 10mm, 9 Nm
Remove HVC logic cap

Note
1x logic cap
Install 3rd row NVH insulator

Note
1x connector, Install insulator then connect connector
Position 3rd row rear cabin carpet
Secure RH side of 3rd row rear carpet

Note
2x clips, 2x location pins, 1x bolt, H11, Lift trim to access bolt, Secure carpet then install bolt
Secure LH side of 3rd row rear carpet

Note
2x clips, 2x location pins, 1x bolt, H11, Lift trim to access bolt, Secure carpet then install bolt
Install 3rd row LH seat cushion bolster

Note
1x bolt, 11mm, 37 Nm, 1x location pin, 1x tab, Slide LH seat cushion bolster into seat frame complete
Install 3rd row RH seat cushion bolster

Note
1x bolt, 11mm, 37 Nm, 1x location pin, 1x tab, Slide RH seat cushion bolster into seat frame complete
Install 3rd row seat cushion and connect harness

Note
1x connector, Secure 3rd row seat cushion into RH and LH latches
Remove coolant bottle cap

Note
(*Use this step for Model Y vehicles with heat pump)
Place empty coolant container into front storage area
Fill container with coolant

Note
Do not draw in air during fill process, For RWD, The entire system requires coolant is 15L, for AWD, The entire system requires coolant is 18L
Place filled coolant container into front storage area
Install coolant reservoir adaptor cap onto coolant bottle assembly

Note
(*Use step for Model Y & NV36 coolant procedures)1x adaptor cap, Adaptor found in Vacuum Refill kit, turn clockwise to tighten cap onto coolant bottle
Setup vacuum refill tool

Note
Verify all valves on refill tool are in the closed position, See image for clarity
Connect vacuum refill hose to refill cap on coolant bottle

Note
Perform push-pull-push test to verify hose is fully engaged
Position overflow hose into empty container
Place refill hose inside filled coolant container

Note
Make sure hose end is fully submerged into coolant
Connect shop air supply to coolant refill tool
Open air inlet valve to draw a vacuum, Once gauge stabilizes, Fully close valve

Note
Gauge stabilizes roughly (60-70 cmHg), Vacuum should not drop after the valves are closed
Monitor gauge for 30 seconds to verify a vacuum is maintained in cooling system
Slowly open refill valve to allow coolant to be drawn into system

Note
Make sure hose end of refill hose is fully submerged during entire process
Once gauge reads zero, close refill valve
Disconnect shop air supply from coolant refill tool
Remove coolant refill hose from coolant container
Remove coolant overflow hose from coolant container
Disconnect vacuum refill hose from refill cap on coolant bottle
Remove refill tool cap from coolant bottle assembly
Remove coolant refill tool from vehicle
Remove both coolant containers from inside underhood area
Connect first responder loop and leave LV battery disconnected

Note
1x connector, Engage locking tab, Connect FRL but leave LV battery disconnected
Connect LV battery maintenance-charger

Note
Release positive terminal cover, Secure positive terminal to jump post, Secure negative terminal to ground terminal located above the VCfront, Connect maintainer to power supply, To avoid damaging the vehicle DO NOT allow positive cable to make contact with other metal components, Never have a float charger and the LV battery simultaneously connected for any extended period of time (apart from during a SW reinstall/CAN redeploy)
Run ODIN routine PROC_ICE_X_ENTER-SERVICE-MODE-PLUSvia Toolbox:(link)
Access High Voltage System routines using UI

Note
Select Service mode plus > High Voltage
Select "Procedures" through UI
Select "High Voltage Battery Replacement" through UI

Note
Procedures > High Voltage Battery Replacement
Select "Software Reinstall" through UI

Note
Software Reinstall > CAN ECU > Reinstall, Allow routine to complete, ensure routine is successful
Run ODIN routine
PROC_HVC_X_PACK-REPLACEMENT
via Service Mode Plus:
High Voltage Battery ➜ High Voltage Battery Replacement ➜ High Voltage Battery Replacement Routine
High Voltage ➜ HV Battery ➜ HV Battery Replacement Routine
via Toolbox:(link)
On the touchscreen, tap the Service Mode "wrench" (at the bottom of the touchscreen UI), and then tap Thermal > Actions > Stop Thermal Fill/Drain > Run, and allow the routine to complete.
Tap Thermal > Coolant System > Coolant Purge Start > Run, and allow the routine to complete.
Remove diagnostic cable from port to disconnect toolbox from vehicle
Torque both RH forward HV battery bolts

Note
2x bolts, EP20, 136 Nm
Install RH front cabin carpet support access plug

Note
1x plug
Fold RH front main cabin carpet back to original position
Install console RH front side panel

Note
14x clips, 2x locating pins, Ensure all clips and pins seat propely
Install RH knee air bag cover to IP carrier

Note
2x connector, 5x tabs, 1x location pin, 4x bolts, E10, 8 Nm, Install new bolts, After reconnecting 2x harness assure 5x datum's and location pin align prior to re-attaching air bag cover assembly, insert 4x e10 bolts to secure air bag assembly after re-attachment
Secure front RH cabin carpet cover to RH knee air bag cover

Note
1x connector, 2x magnets, 2x datums
Install RH lower A pillar trim

Note
7x clips, 4x guide tabs, 1x push clip, Align front guide tabs then align slot with harness bracket and then push rear clip to secure, Make sure all clips and tabs fully seated
Install RH IP end cap

Note
5x clips, 2x guide tabs, Pull the seal over end cap
Install RH front primary door seal

Note
Verify seal is seated properly on all trim panels
Move RH front seat forward

Note
Adjust seatback if needed to avoid contacting headliner
Torque both LH front inner HV battery bolts

Note
2x bolts, EP20, 136 Nm
Install LH front cabin carpet support access plugs

Note
1x plug
Fold LH front main cabin carpet back to original position
Secure OBD port to LH footwell cover

Note
2x tabs, Ensure black tabs in lock position
Install console LH front side panel

Note
14x clips, 2x locating pins, Ensure all clips and pins seat propely
Install LH knee air bag cover

Note
1x connector, 8x tabs, 2x datums
Secure LH footwell cover

Note
2x magnets, 2x datums
Install LH lower A pillar trim

Note
7x clips, 4x guide tabs, 1x push clip, Align guide tabs with body and harness bracket then push downwards to secure
Install LH lower A pillar trim

Note
7x clips, 4x guide tabs, 1x push clip, Align guide tabs with body and harness bracket then push downwards to secure
Install LH IP end cap

Note
5x clips, 2x guide tabs
Partially install LH front primary door seal

Note
Verify seal is seated properly on all trim panels
Move LH front seat forward

Note
Adjust seat back if needed to avoid contacting headliner
Torque LH rear inner HV battery bolt

Note
1x bolt, 16mm, 66 Nm, Located below LH rear main carpet
Torque RH rear inner battery bolt

Note
1x bolt, 16mm, 66 Nm, Located below RH rear main carpet
Remove air bag from between rear cabin carpet and body
Torque LH middle inner HV battery bolt

Note
1x bolt, 16mm, 66 Nm
Fold LH side of rear main carpet to its original position
Torque RH middle inner HV battery bolt

Note
1x bolt, 16mm, 66 Nm
Fold RH side of rear main carpet to its original position
Install 40 seat into vehicle

Note
Recommend assistance, Do not support 40 seat by cushion pan, Support 40 seat by podium
Connect 2nd row 40 seat connector

Note
1x connector,
Install bolts securing 40 seat podium to vehicle hand tight

Note
2x patch bolts, 11mm, 37 Nm, Install new bolts, Torque at later step
Move 40 seat forward using towel bar

Note
pull up bar, slide seat forward
Install bolts securing 40 seat inner and outer tracks to vehicle

Note
2x patch bolts, 11mm, 37 Nm, Install new bolts
Move 40 seat to original position

Note
Press shoulder switch then pull seat backward
Install cabin carpet to 40 seat
Torque bolts securing 40 seat podium to vehicle

Note
2x patch bolts, 11mm, 37 Nm
Install center track cover to 2nd row seats

Note
2x clip, Slide cover straight on to clip to 2nd row seat tracks
Install 40 seat outboard track cover

Note
1x clip
Position 40 seat into easy entry mode

Note
Press shoulder switch and push 40 seat forward
Install RH rear sill trim

Note
4x tabs, 3x clips, 5x location pins, Install rear edge of RH rear sill trim into trunk side trim and work your way forward securing clips
Reseat RH rear door seal

Note
Seat pillar and sill trim tabs underneath seal
Move 40 seat to original position

Note
Press shoulder switch then pull seat backward
Move RH front seat to original position
Install 2nd row 60 seat assembly

Note
Recommend assistance
Connect 2nd row 60 seat connector

Note
1x connector,
Install fasteners securing 60 seat frame to body

Note
5x patch bolts, 11mm, 37 Nm, Install new patch bolts, bottom seat bolts located in rear
Secure cabin carpet to 60 seat

Note
Strap velcro on
Return 2nd row 60 seatback to vertical position

Note
Via trunk seat switch, Remove seatback protection if necessary
Install 60 seat outboard track cover

Note
1x clip
Position 60 seat into easy entry mode

Note
Press shoulder switch and push 60 seat forward to position into easy entry mode
Install LH 7s lower C-pillar trim

Note
8x clips, Rear edge is secures onto trunk side trim, Secure rear clips then front clips
Reseat LH rear door seal

Note
Seat pillar and sill trim tabs underneath seal
Move 60 seat to original position
Move RH front seat to original position
Move LH front seat to original position
Inspect coolant level and top off as necessary

Note
Ensure that fluid level is at Max line, Vacuum fill required if greater than 1L lost during repair
Install coolant bottle cap
Run ODIN routine PROC_ICE_X_EXIT-SERVICE-MODEvia Toolbox:(link)
Coolant air purge run time

Note
Run time: 00:10:00, Subtract overlap time spent on other operations while waiting for coolant purge run
Install HEPA filter assembly

Note
2x bolts, 10mm, 10 Nm, Pivot forward edge down past frunk assembly, Then carefully move rear edge past brake reservoir and into position, Gently press on RH side of filter to seat seal onto duct, Do not pinch washer hose inbetween HEPA filter assembly and body
Install rear apron

Note
16x trim clips, 3x locator pins, 2x clips, Replace any missing or damaged clips, Ensure pyrotechnic hood actuators are aligned with openings in apron
Close hood
Raise all four windows

Note
Via LH front door switch
Run ODIN routine PROC_ICE_X_ENTER-SERVICE-MODEvia Toolbox:(link)
Unlock the vehicle gateway. See Gateway (Unlock).
Run ODIN routine PROC_VCLEFT_X_2R-SEAT-RECLINE-CALIBRATIONvia Service Mode:Low Voltage ➜ Second Row Seats ➜ Calibratevia Toolbox:(link)
Run ODIN routine PROC_ICE_X_EXIT-SERVICE-MODEvia Toolbox:(link)
Close all four doors

Note
If LV is powered up then unlatch rear doors before closing

HV Battery (7-Seat) (Remove and Replace)

Remove

Install

Figure 1

Figure 2

Figure 3
