Vehicle and Wheel Paint Codes
Provides paint color and code information for Tesla vehicles and wheels.
Vehicle Paint Codes
The vehicle paint code is printed in the lower left hand corner of the
manufacturing certification label. This label is affixed to the driver’s side door
jamb.
|
Paint Code |
Paint Color |
Finish |
|---|---|---|
| PX02 | Diamond Black | Metallic |
| PB01 | Glacier Blue | Metallic |
| PPSW | Pearl White Multi-Coat | Tricoat Metallic |
| PN00 | Quicksilver | Tricoat Metallic |
| PN01 | Stealth Gray | Metallic |
| PR01 | Ultra Red | Tricoat Metallic |

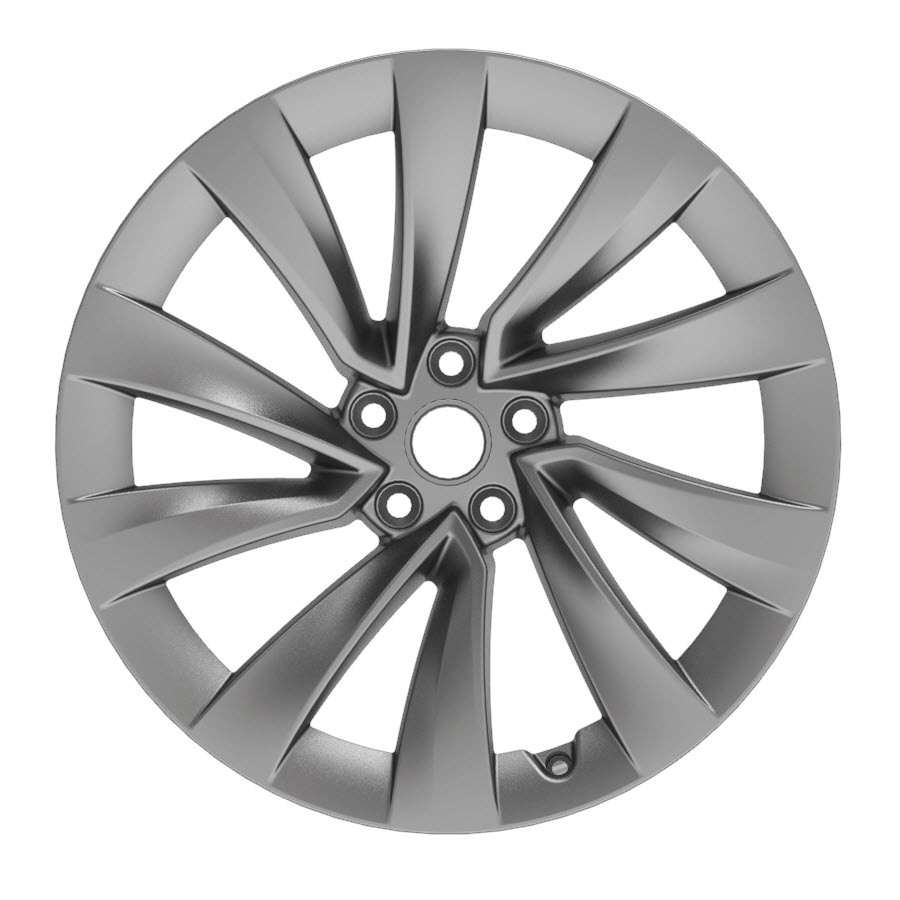

2025+ Model Y Wheel Paint Codes
| Wheel/Cover Name | Image | Wheel Size | Color Name | Paint Code |
|---|---|---|---|---|

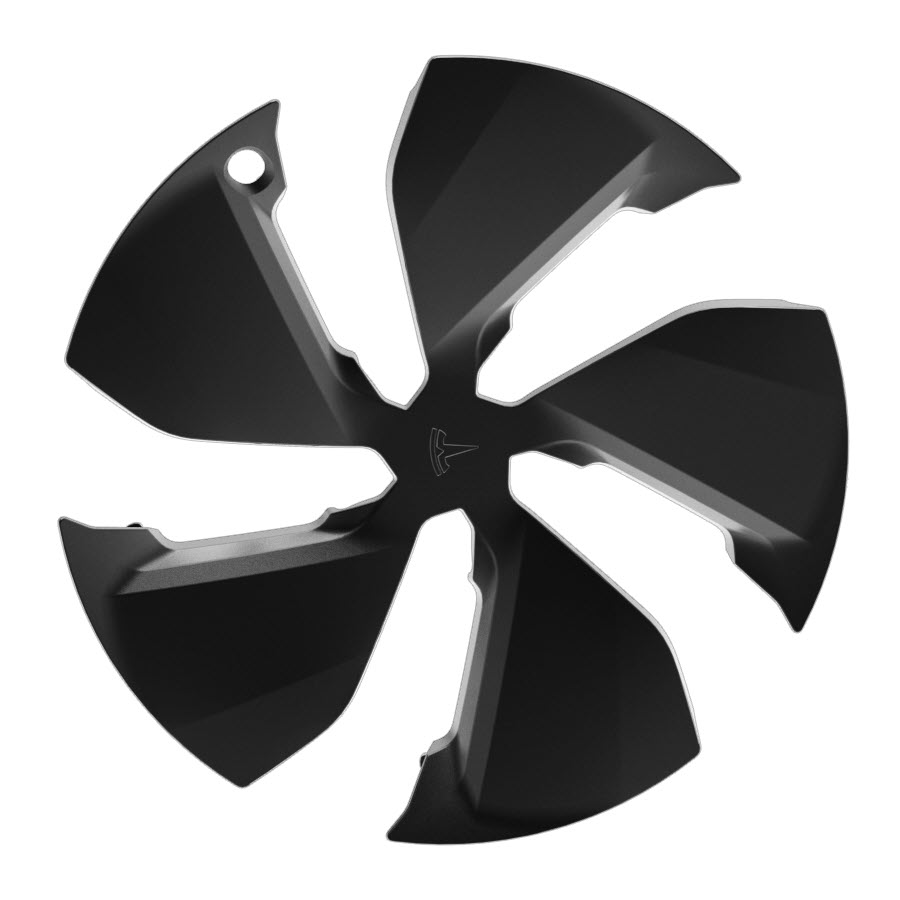

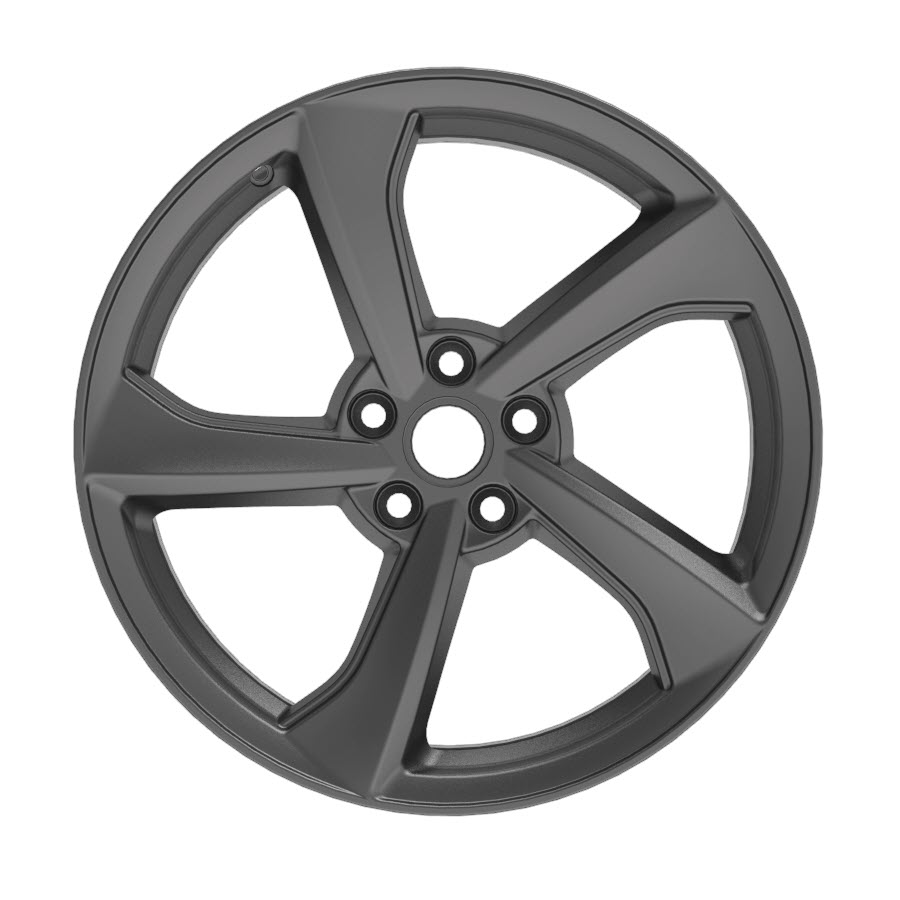

| Crossflow (Wheel and Wheel Trim) |
|
19" | Armor Black | WPB-4239 |
|
19" | Phantom Metallic | NEU-301E | |

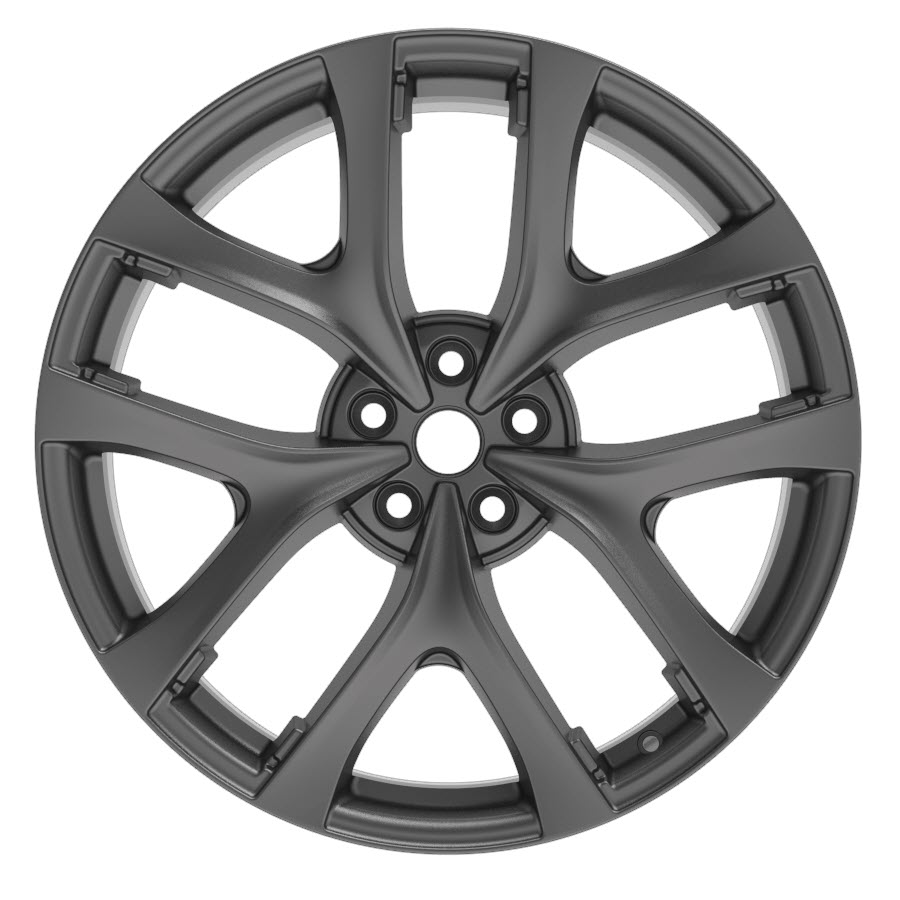

| Helix 2.0 |
|
20" | Liquid Vapor | NEU-300E |
