Fascia Assembly - Rear - Partially Remove (Mobile Only) (Remove and Install)

Correction code 10010501701 0.30 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

2025-06-11: Released new procedure.

Remove

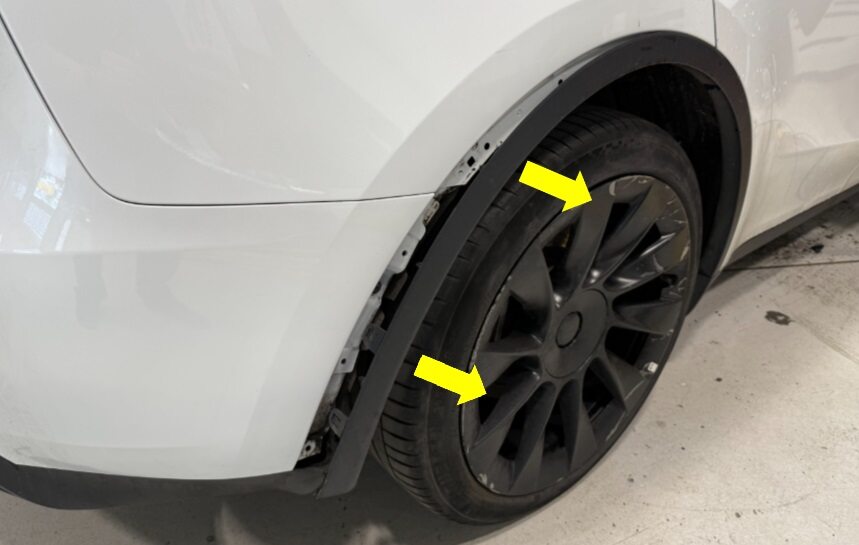

Release the rear half of the LH and RH rear fender garnish from the vehicle.

Note
6x clips, 2x tabs. Release from center of garnish and work your way outward towards the rear. Use a clip prytool to release the clips at the rear of the fascia to avoid damage to the garnish.
Open the liftgate.

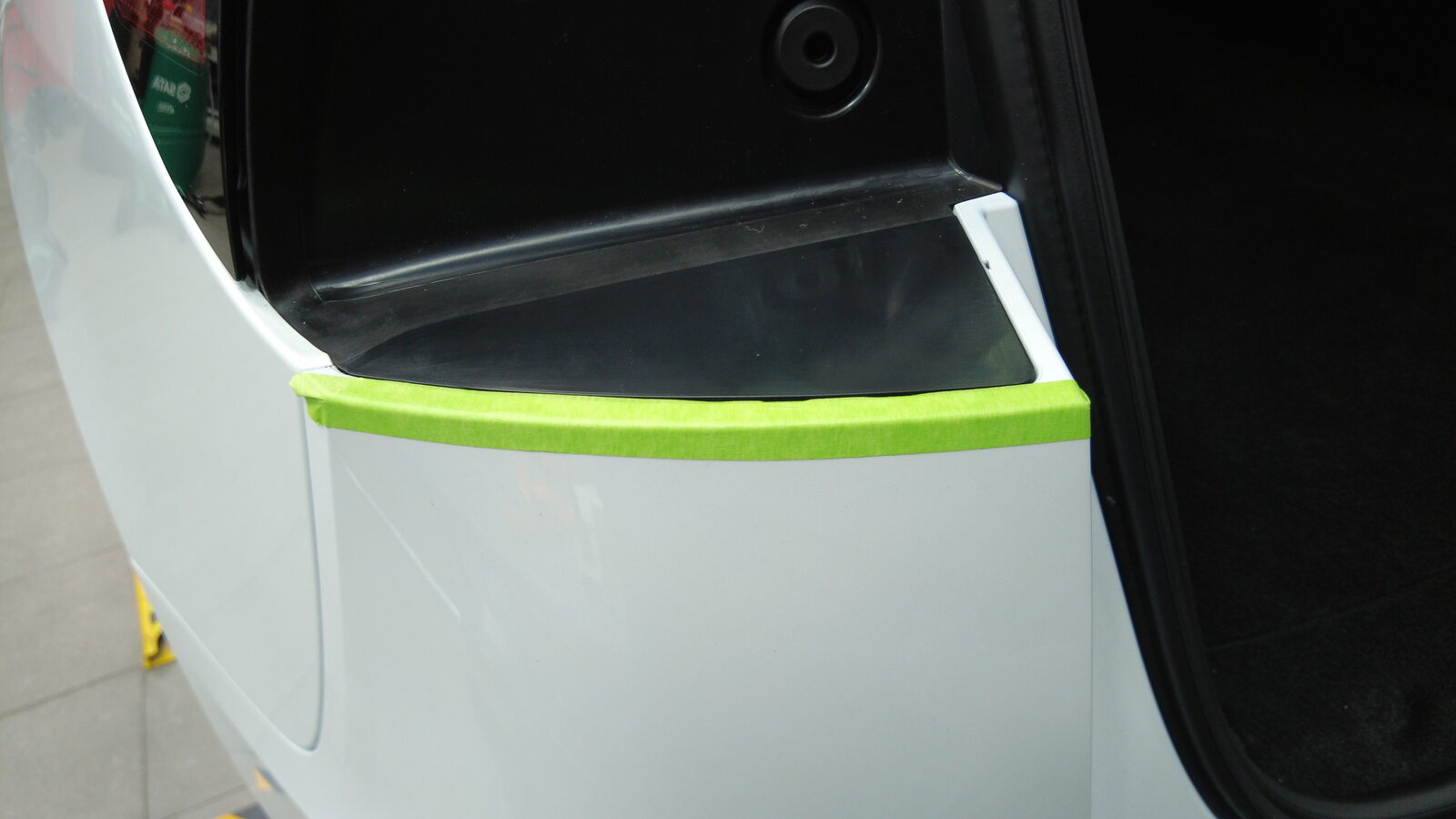

Apply masking tape around the LH corner of the rear upper fascia.
Partially release the LH rear trough trim.

Note
3x clips

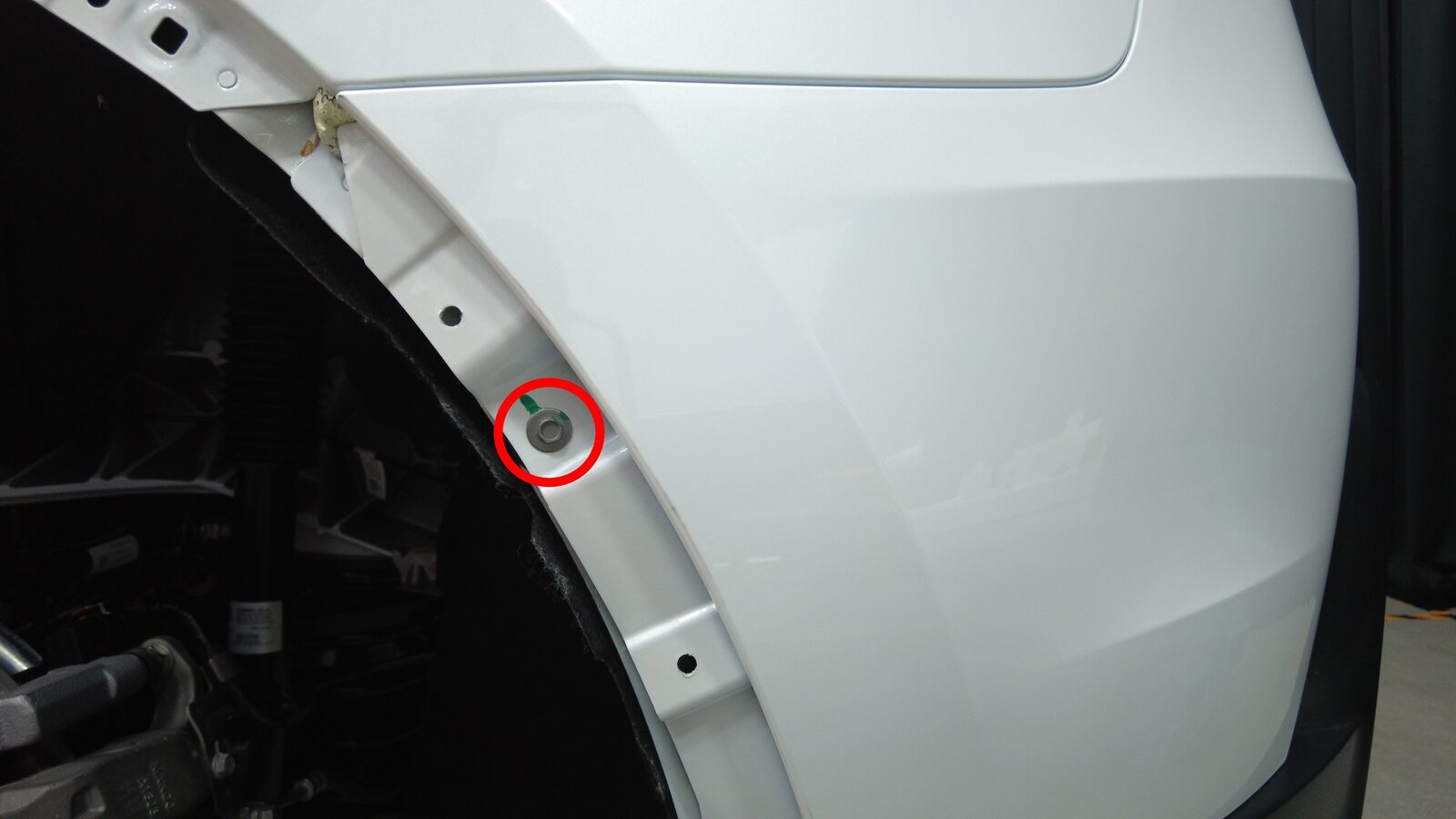

Remove the bolt that attaches the LH corner of the rear fascia to the body.

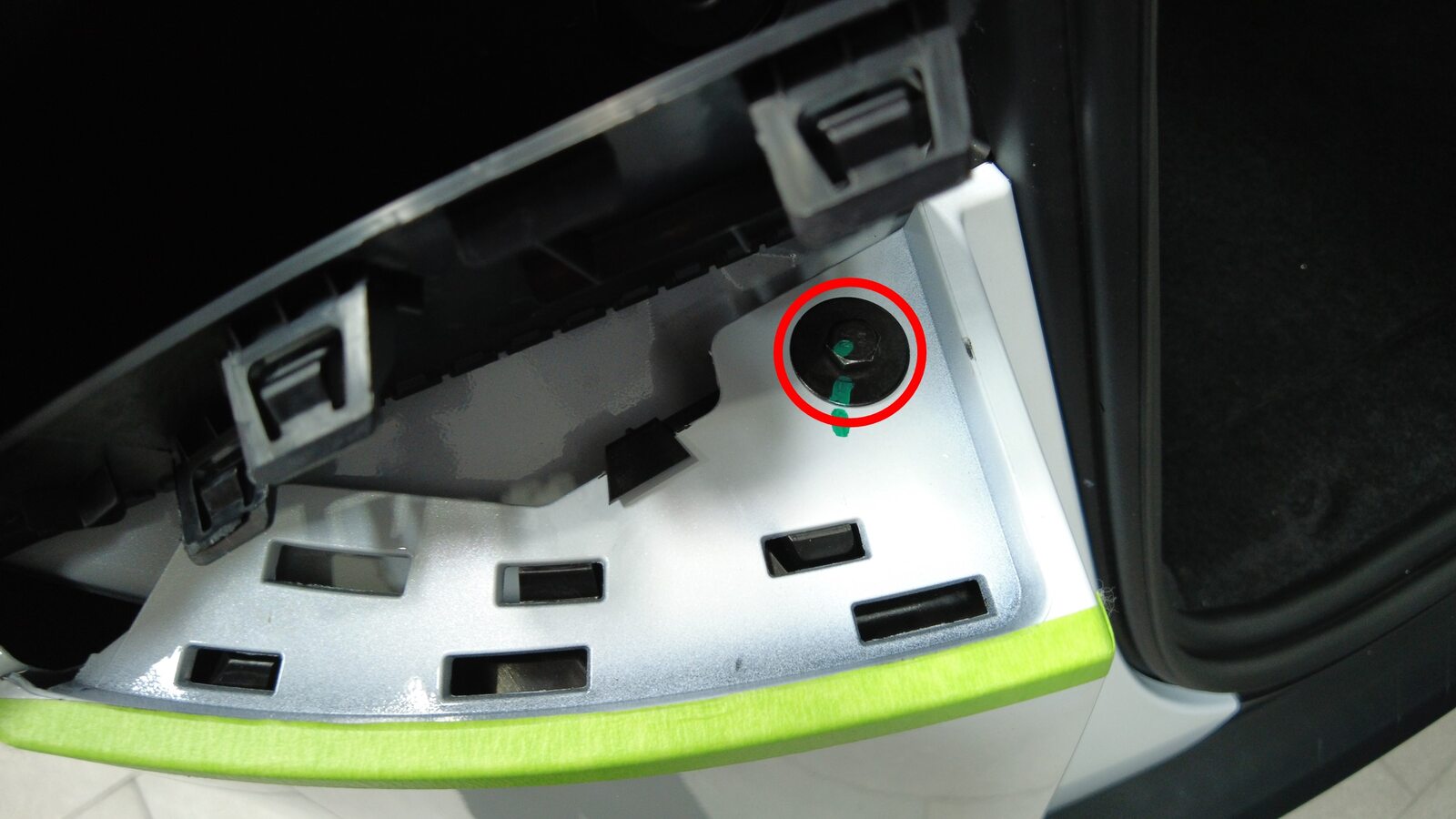

Remove the screw that attaches the LH rear fascia to the body.
Repeat steps 3 through 6 at the RH side of the vehicle.

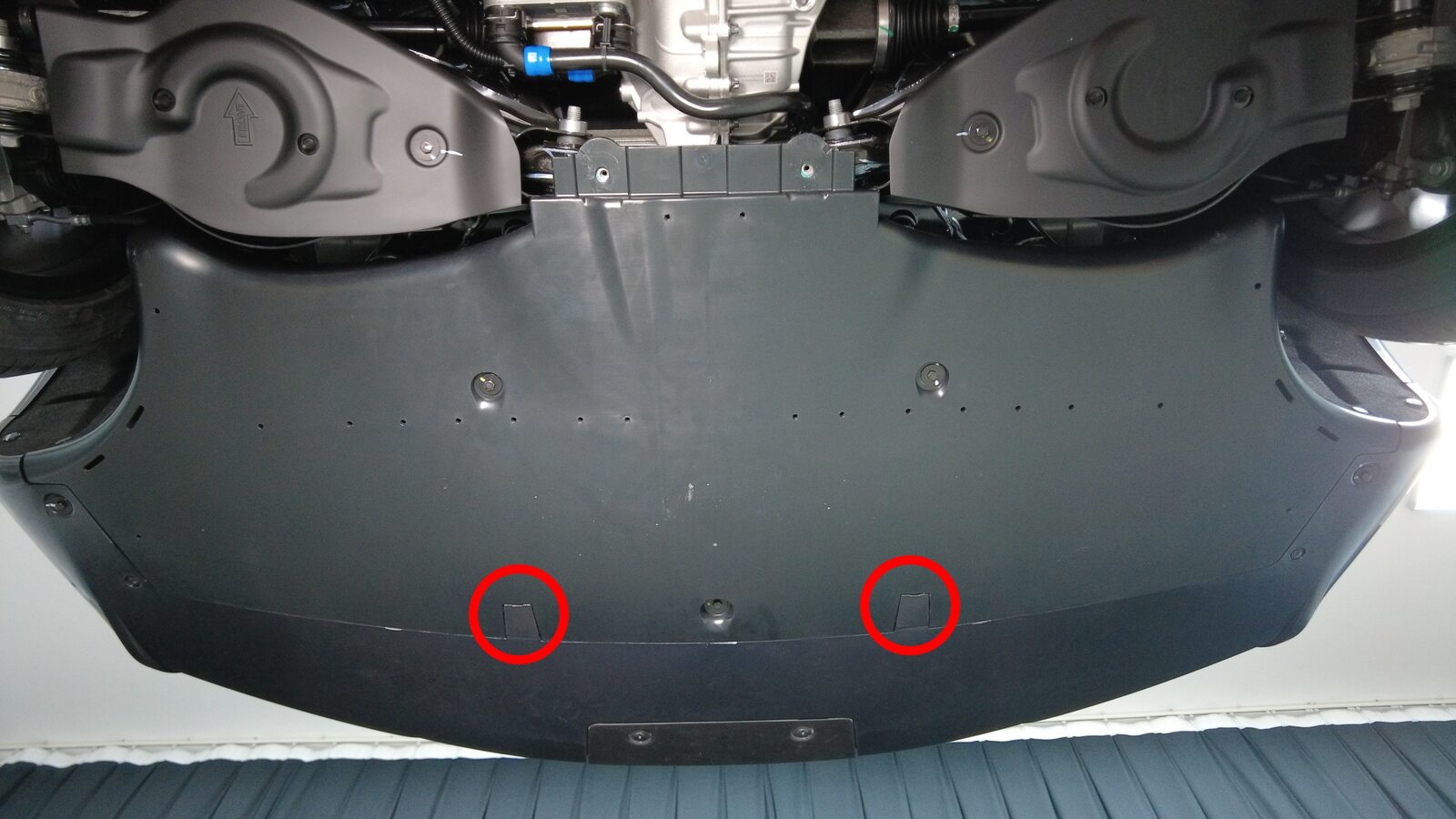

Release rear fascia diffuser

Note

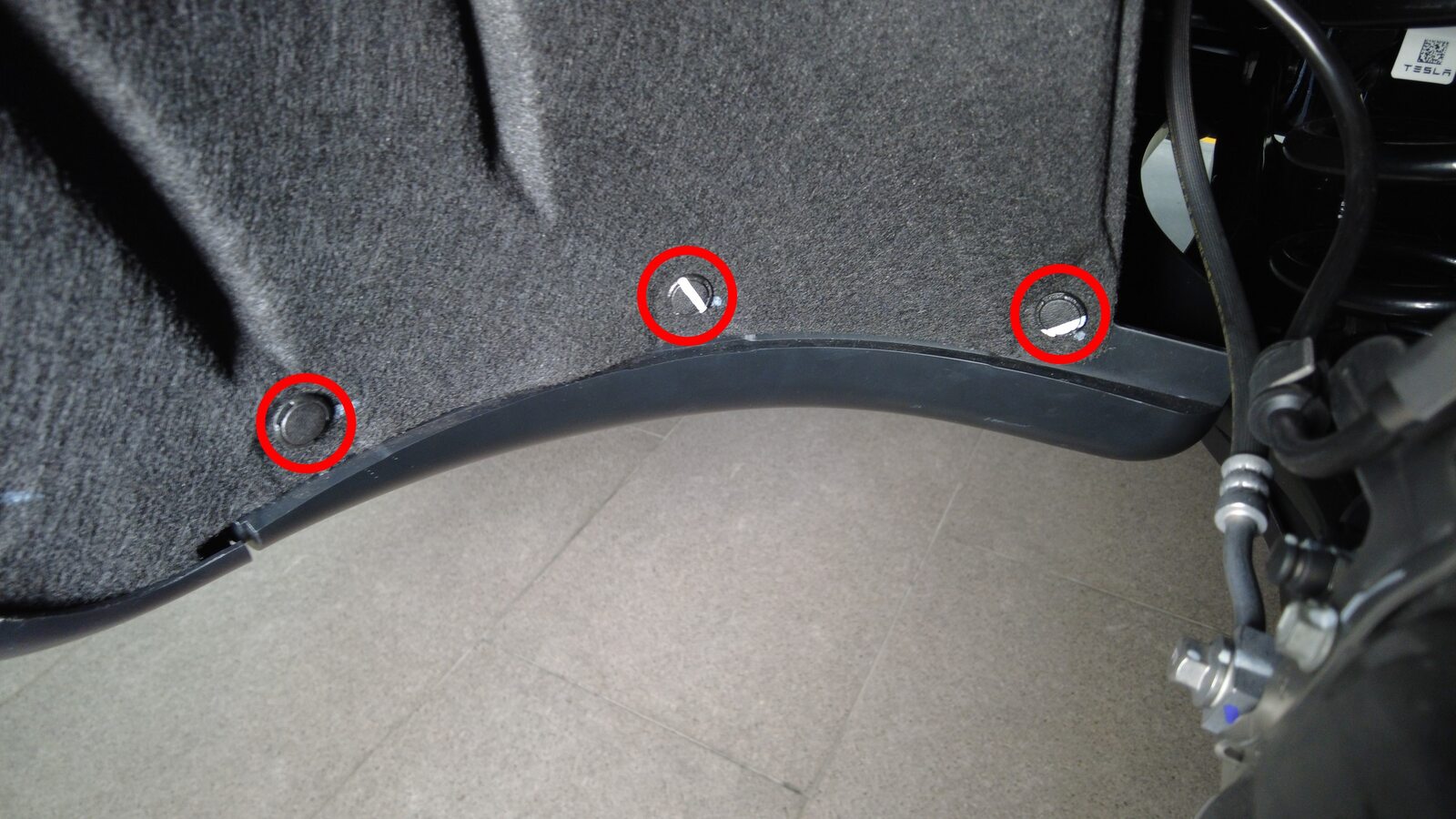

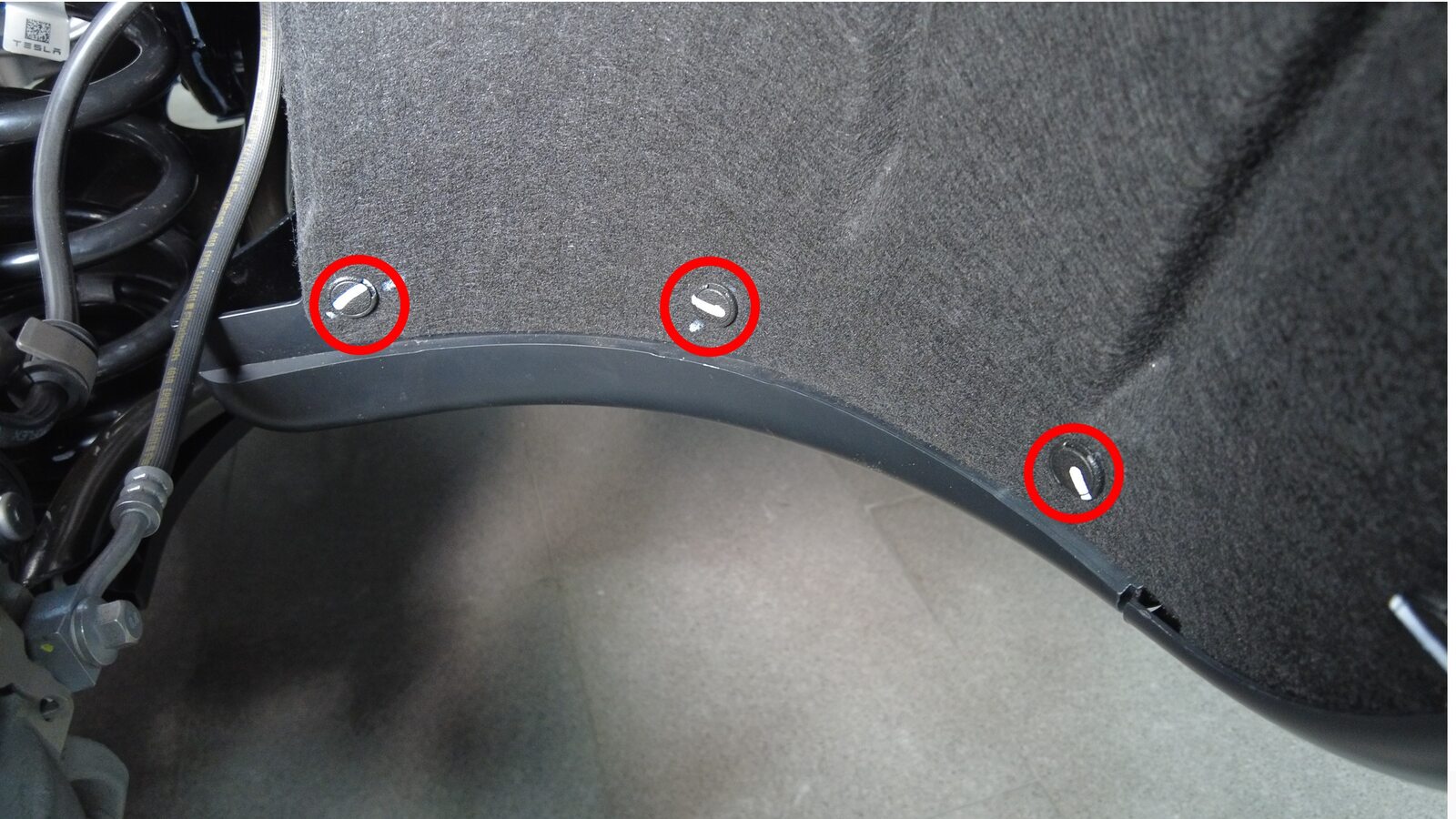

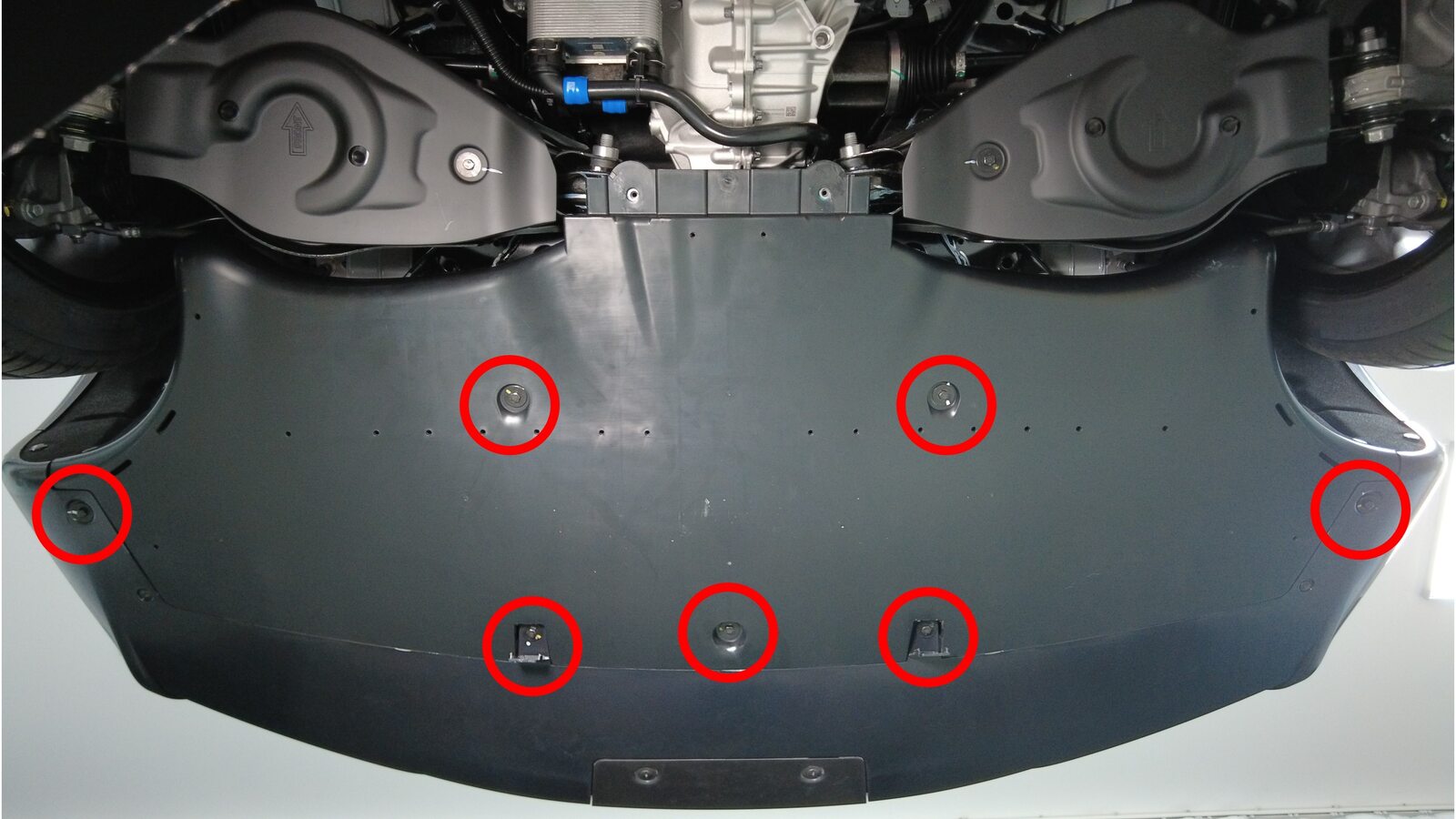

2x fastener covers, 7x bolts, 6x push clips.

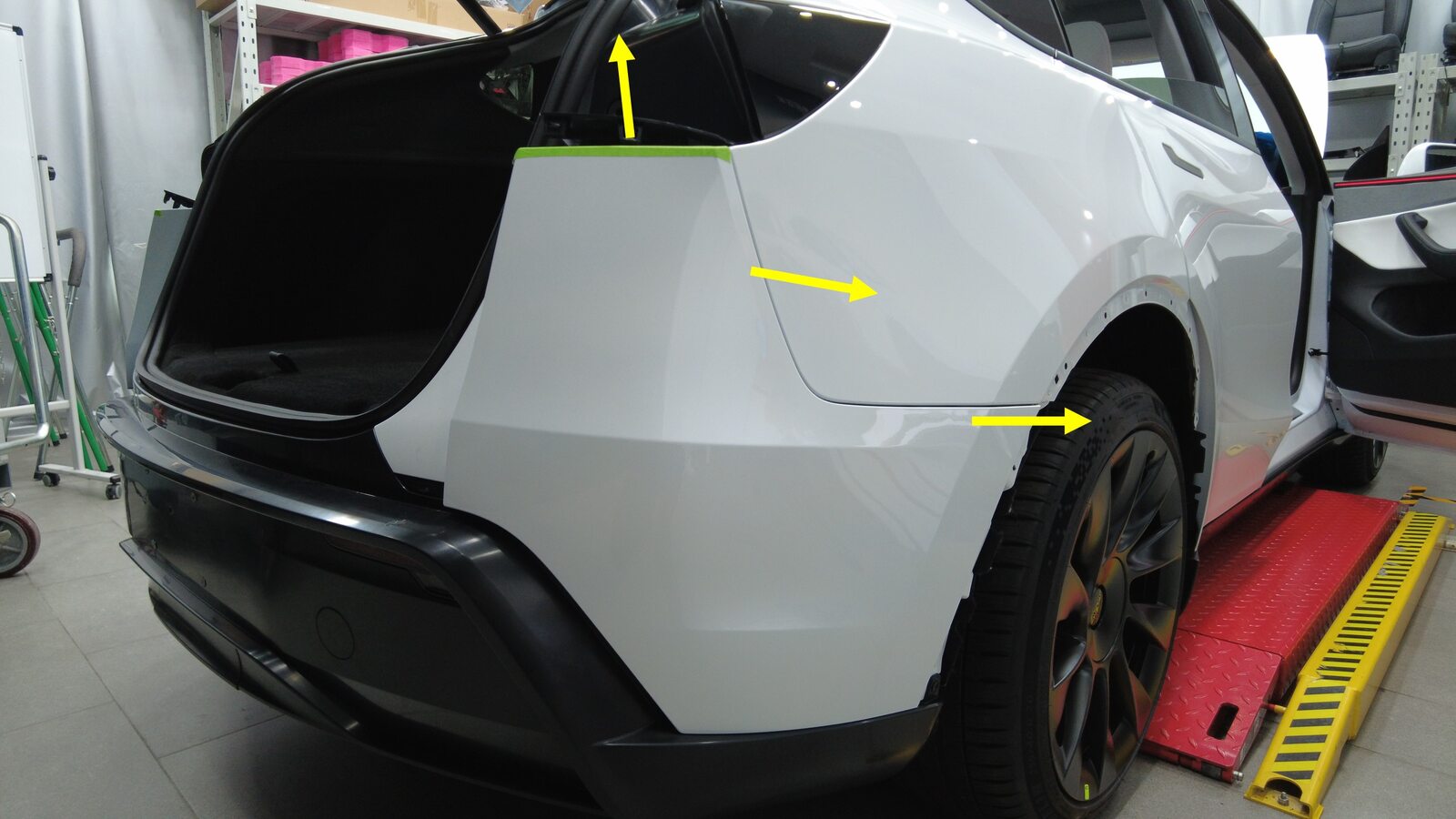

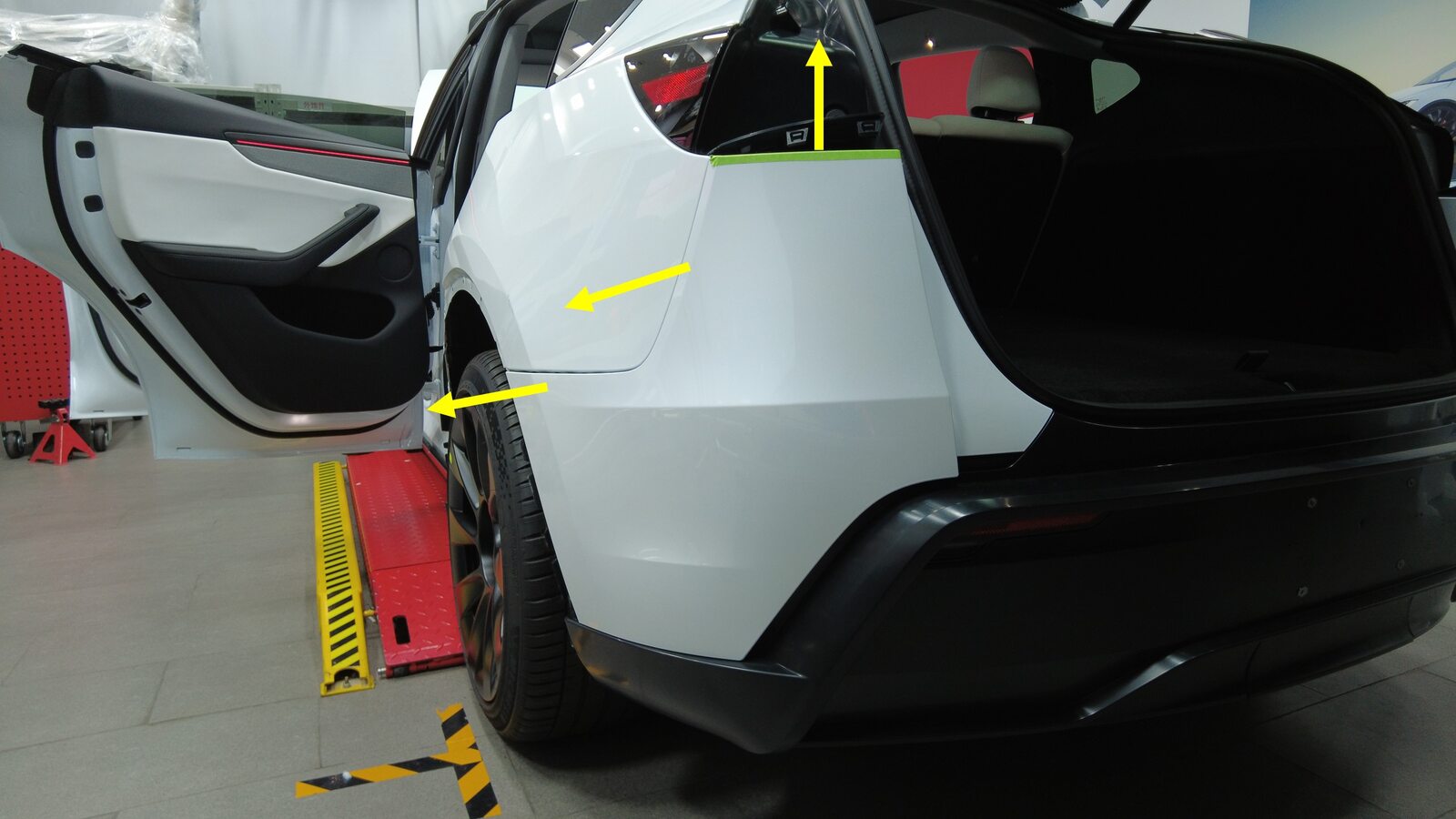

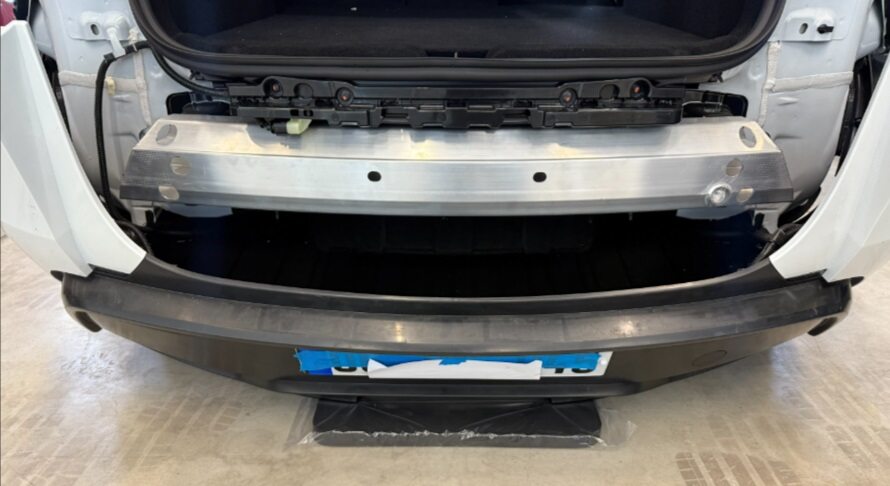

Release the rear fascia assembly from the body and tilt it down onto a foam pad.

Note

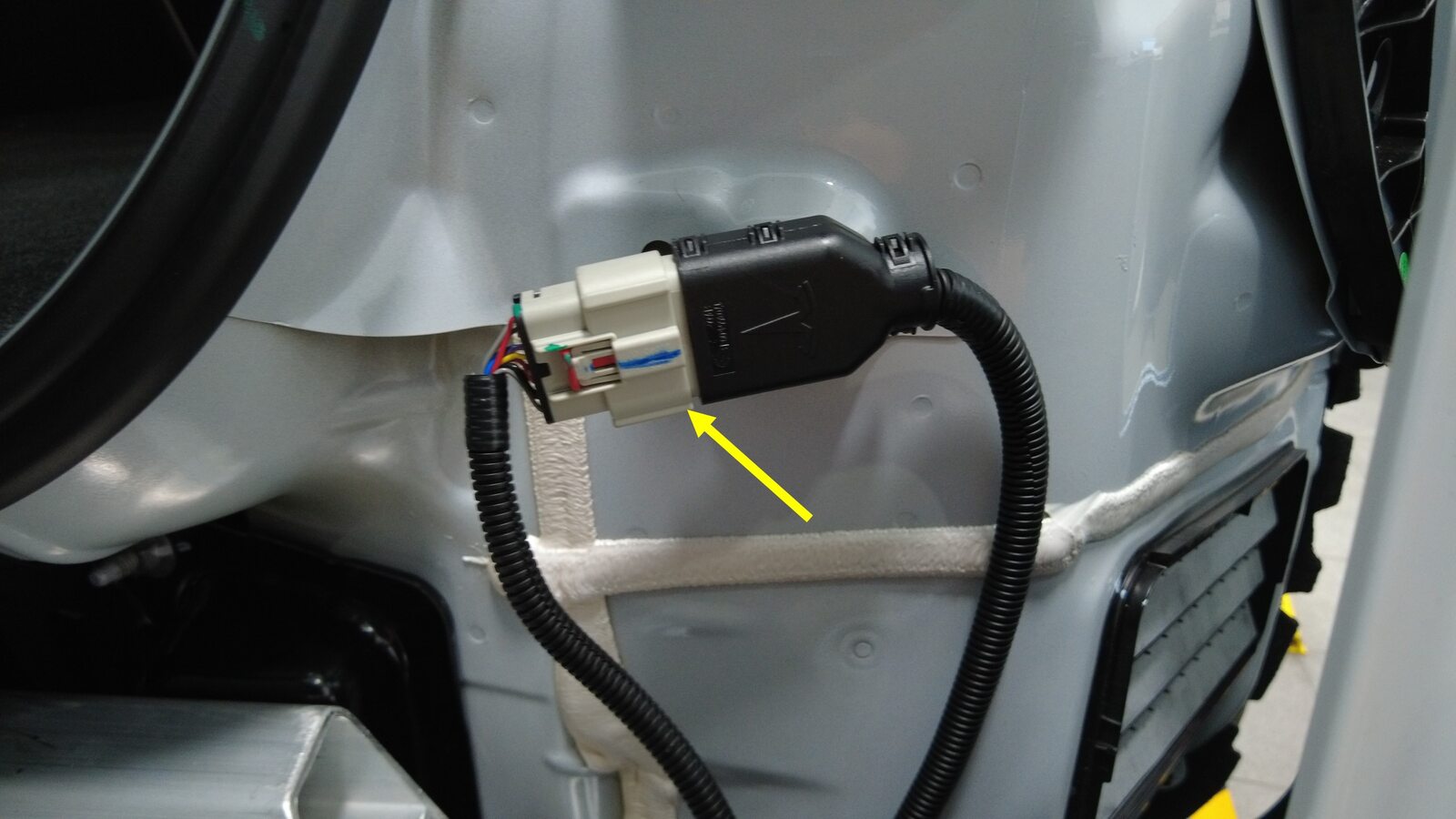

1x connector. Place the rear fascia on a padded surface to avoid damage.
