Robust 12V Power Outlet Assembly (Remove and Replace)

Correction code 1519021702 FRT 0.00 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Remove

  1. Remove the center console. See Center Console (Remove and Install).
  2. Disconnect the LV power outlet connector from the center console.
  3. Remove the LV power outlet electrical harness from the center console.
    Informational PurposesAn informational icon, calling your attention
    Note
    Slide the LV power outlet connector upward to remove it from the center console.

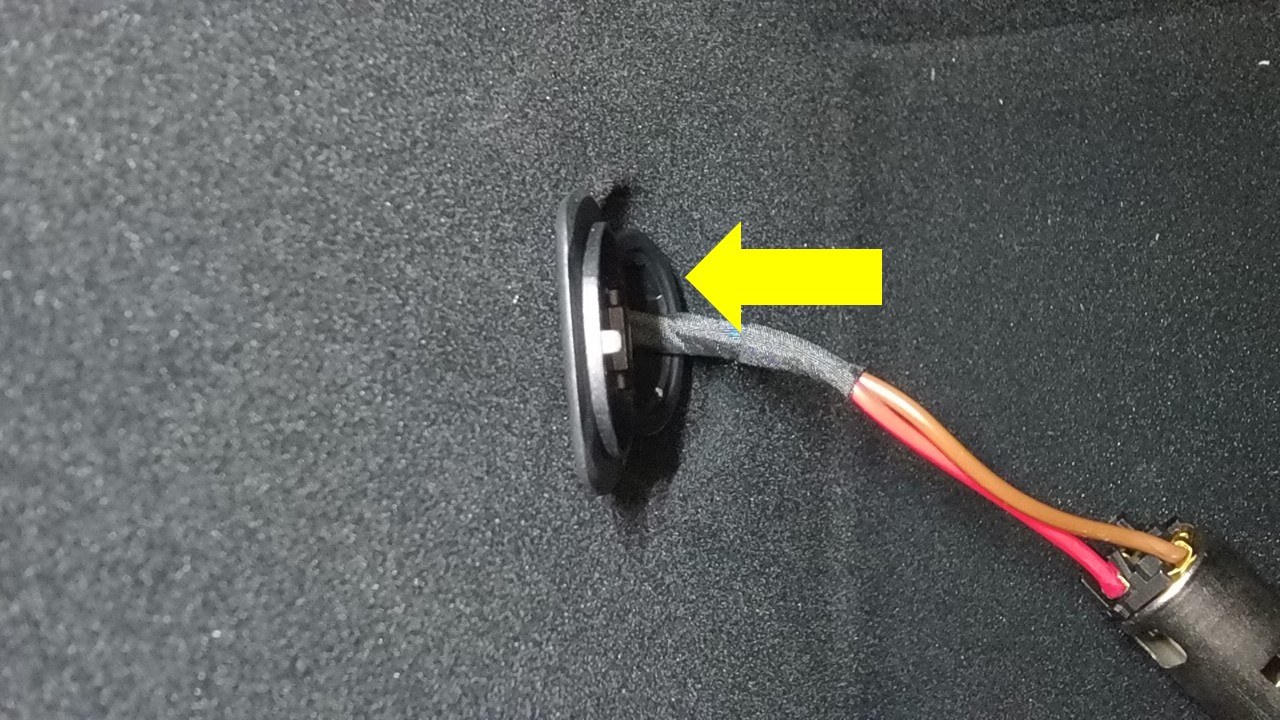

  4. Release the locking tabs (x2) with a small flat head screwdriver, push the LV power outlet out.
    Informational PurposesAn informational icon, calling your attention
    Note
    Flip the center console as needed during the operation.

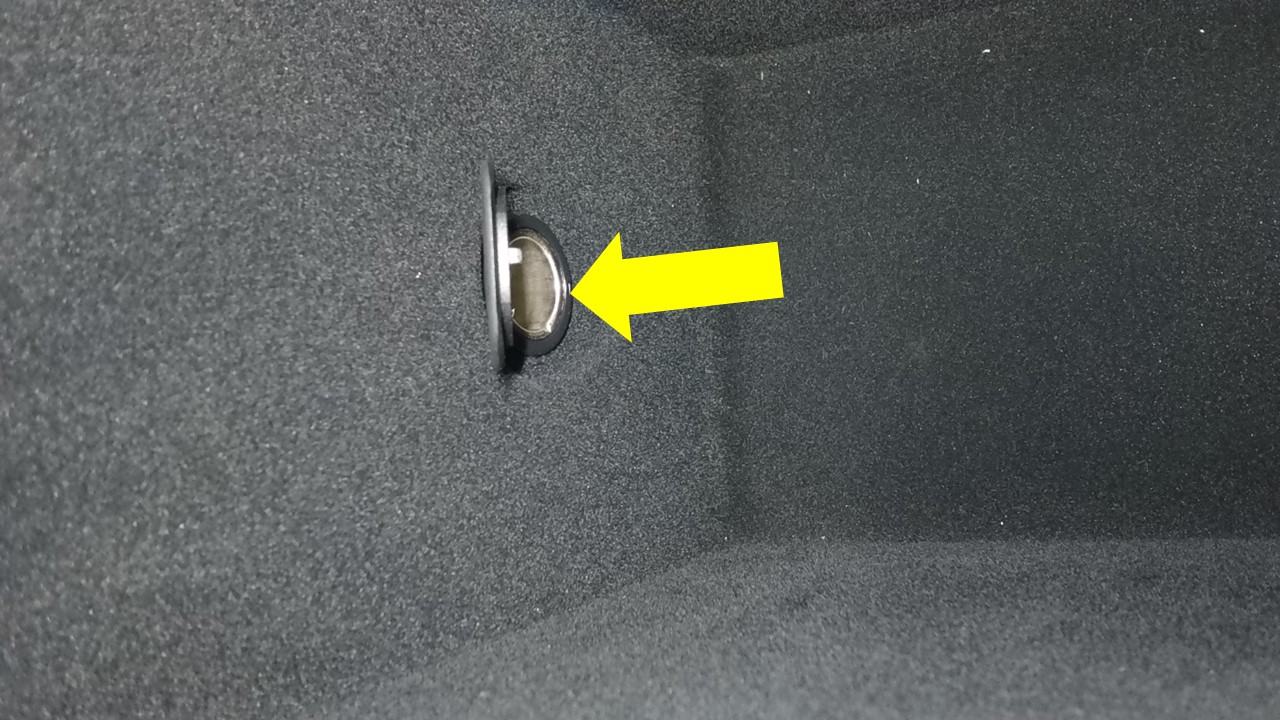

  5. Release the locking tabs (x2) with a small flat head screwdriver, and then push the LV power outlet cap out from the slot to remove it from the center console.
    Informational PurposesAn informational icon, calling your attention
    Note
    Flip the center console as needed during the operation.

Install

  1. Remove the LV power outlet cap from the new LV power outlet assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Release the locking tabs (x2) with a small flat head screwdriver.
  2. Install the LV power outlet cap to the center console.
    Informational PurposesAn informational icon, calling your attention
    Note
    Push the LV power outlet cap along the positioning slot until the locking tabs are secured. Flip the center console as needed.
  3. Install the LV power outlet to the LV power outlet cap.
    Informational PurposesAn informational icon, calling your attention
    Note
    Push the LV power outlet along the upper positioning slot until the locking tabs are installed in place. Flip the center console as needed.
  4. Install the LV power outlet electrical harness to the center console.
    Informational PurposesAn informational icon, calling your attention
    Note
    Slide the LV power outlet connector downward to install it to the proper position.
  5. Connect the LV power outlet connector to the center console.
  6. Install the center console. See Center Console (Remove and Install).
