Fascia - Rear - Upper - RH (Model Y Standard) (Remove and Install)

Correction code 10011400701 10011400702 FRT 0.54 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Remove the rear fascia assembly. See Fascia - Rear - Upper - LH (Model Y Standard) (Remove and Install).

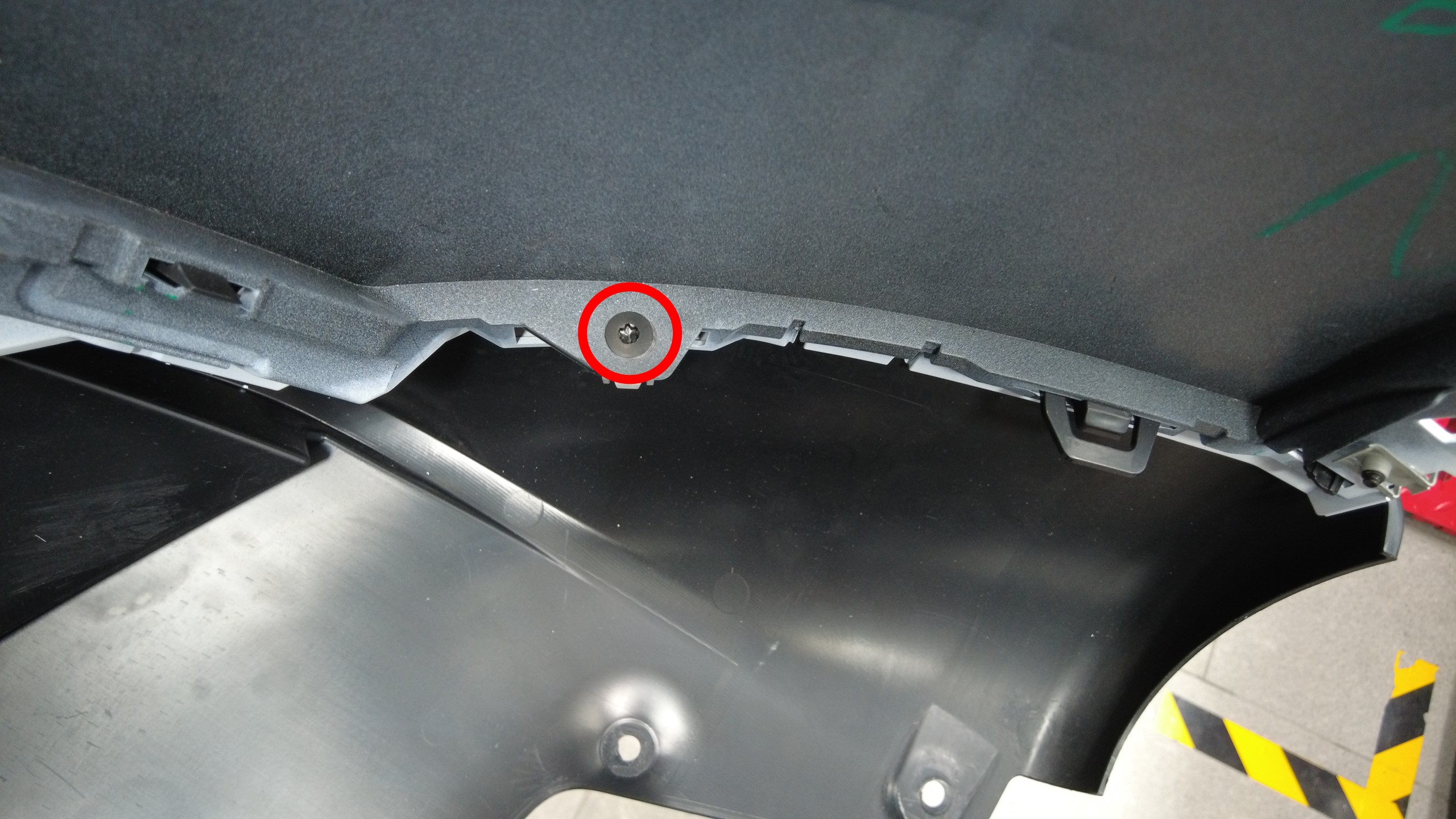

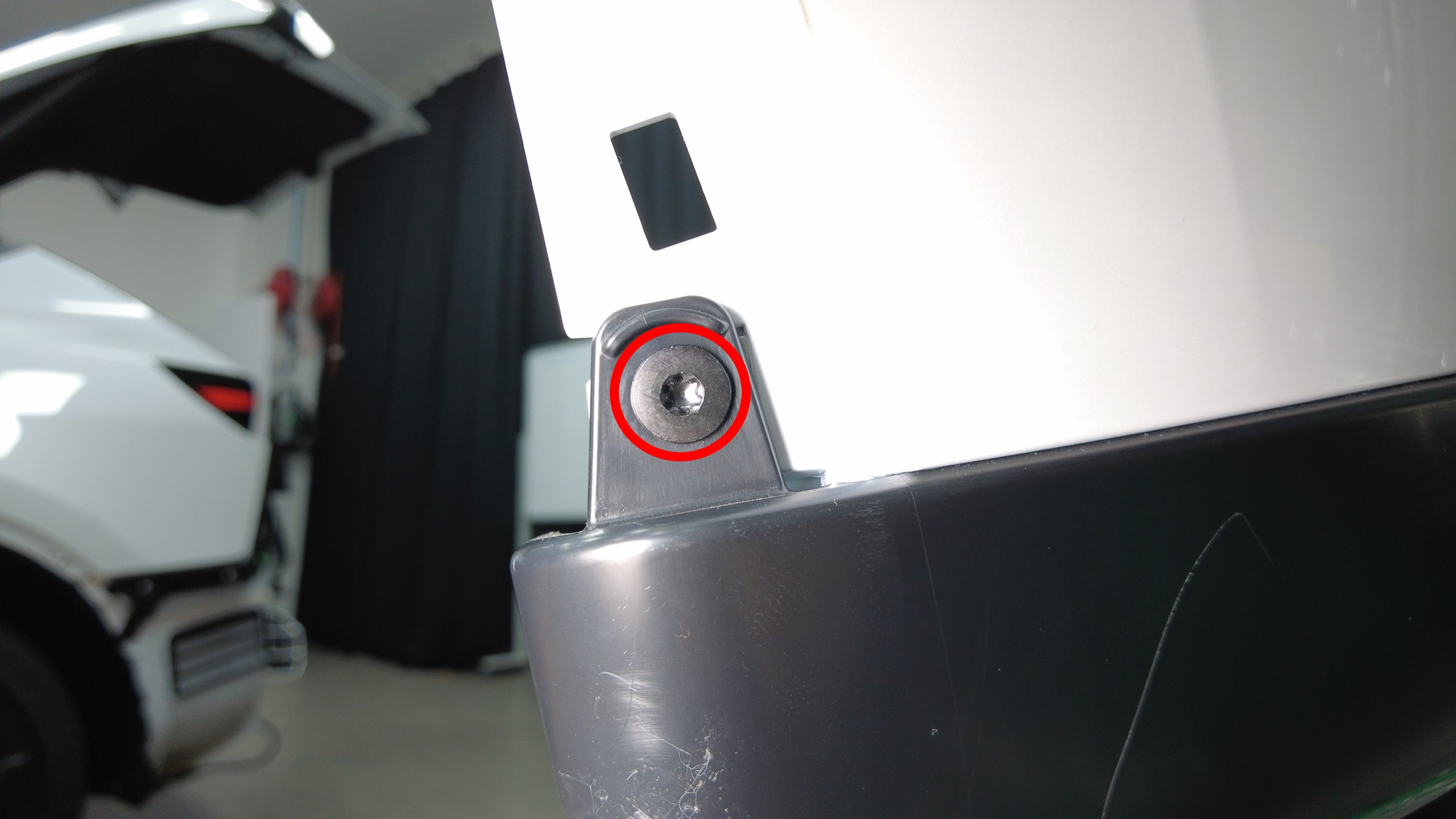

  2. Remove the bolts (x2) that attach the LH rear upper fascia to the rear lower fascia.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T30 socket

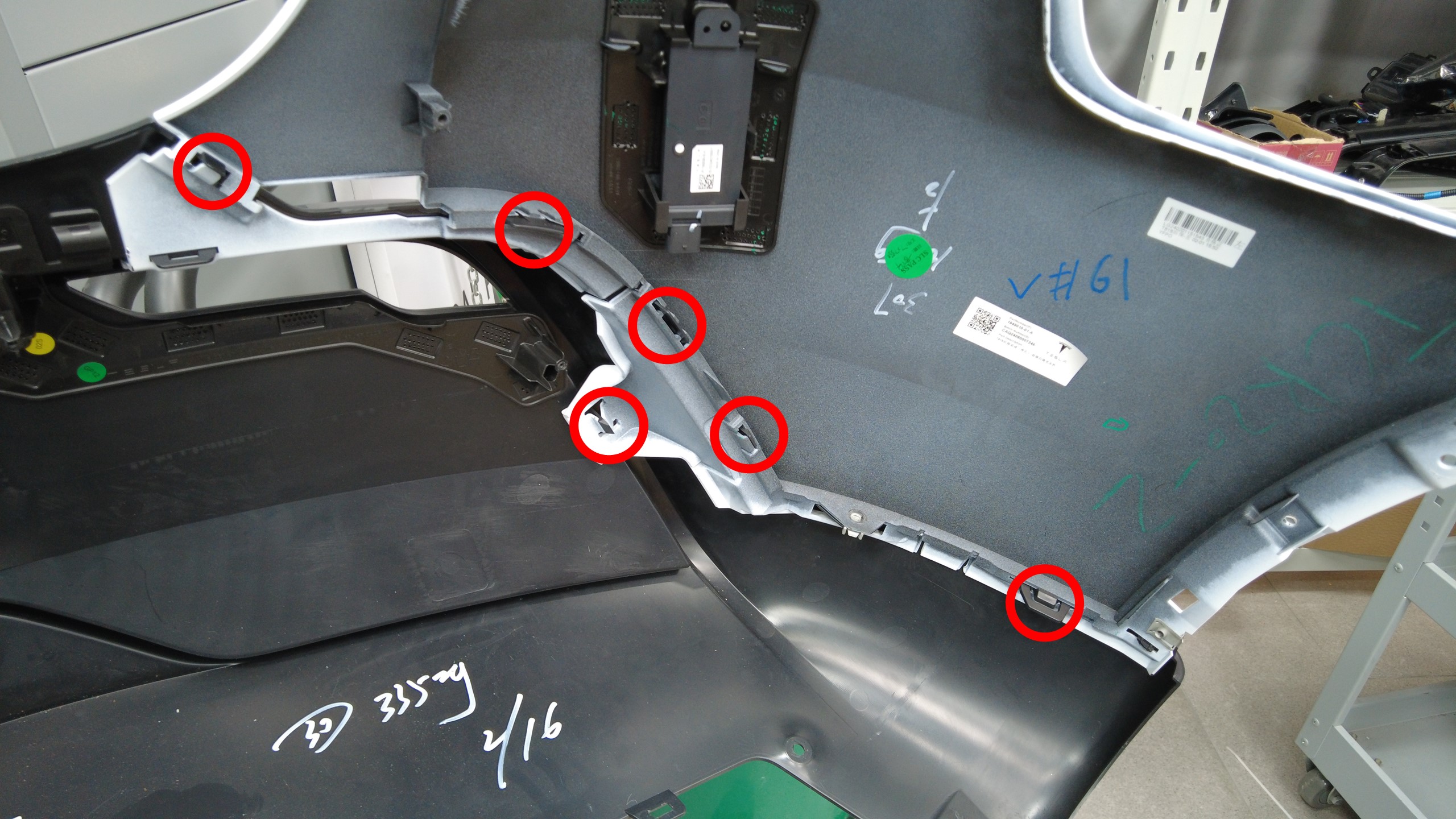

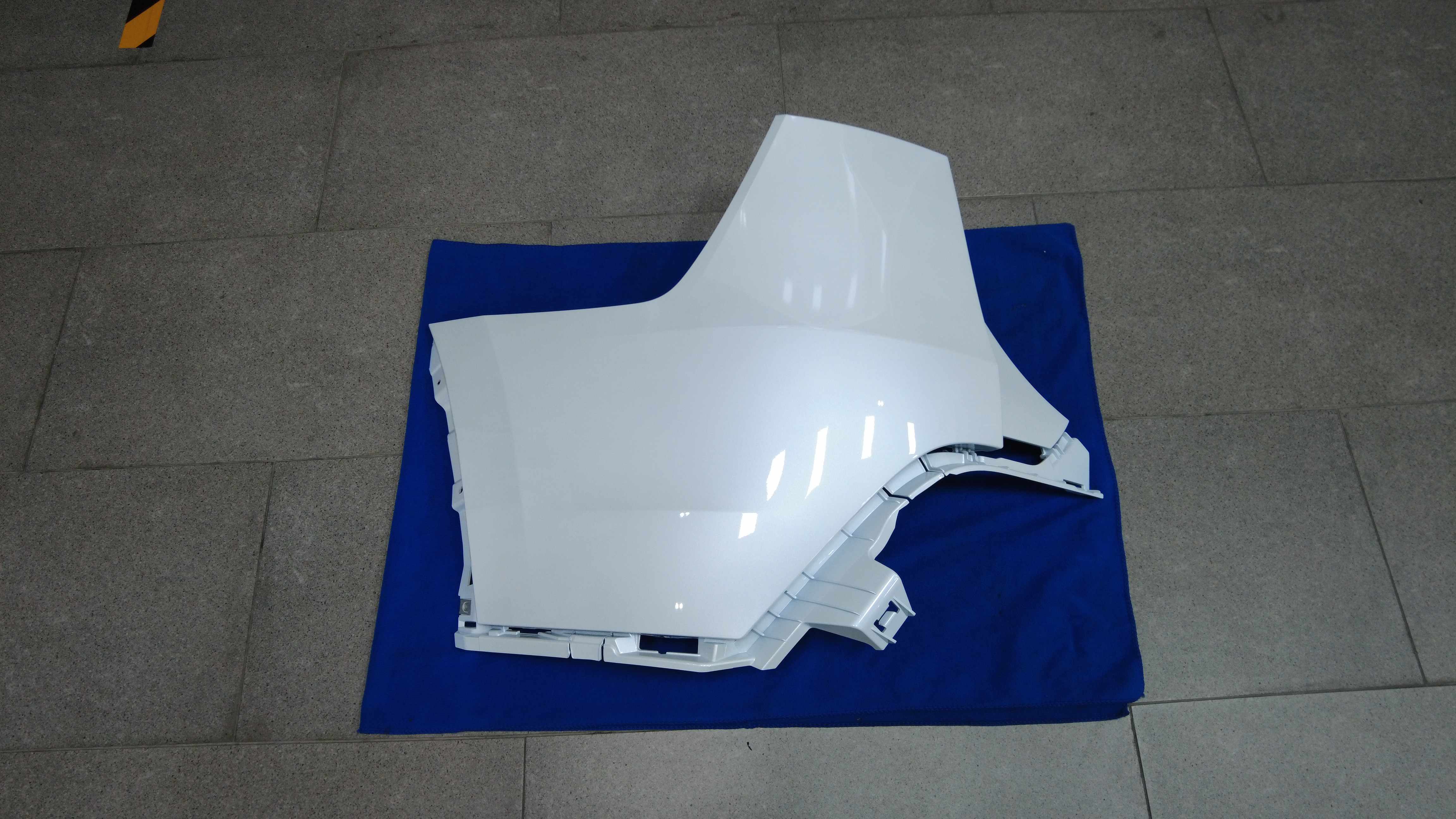

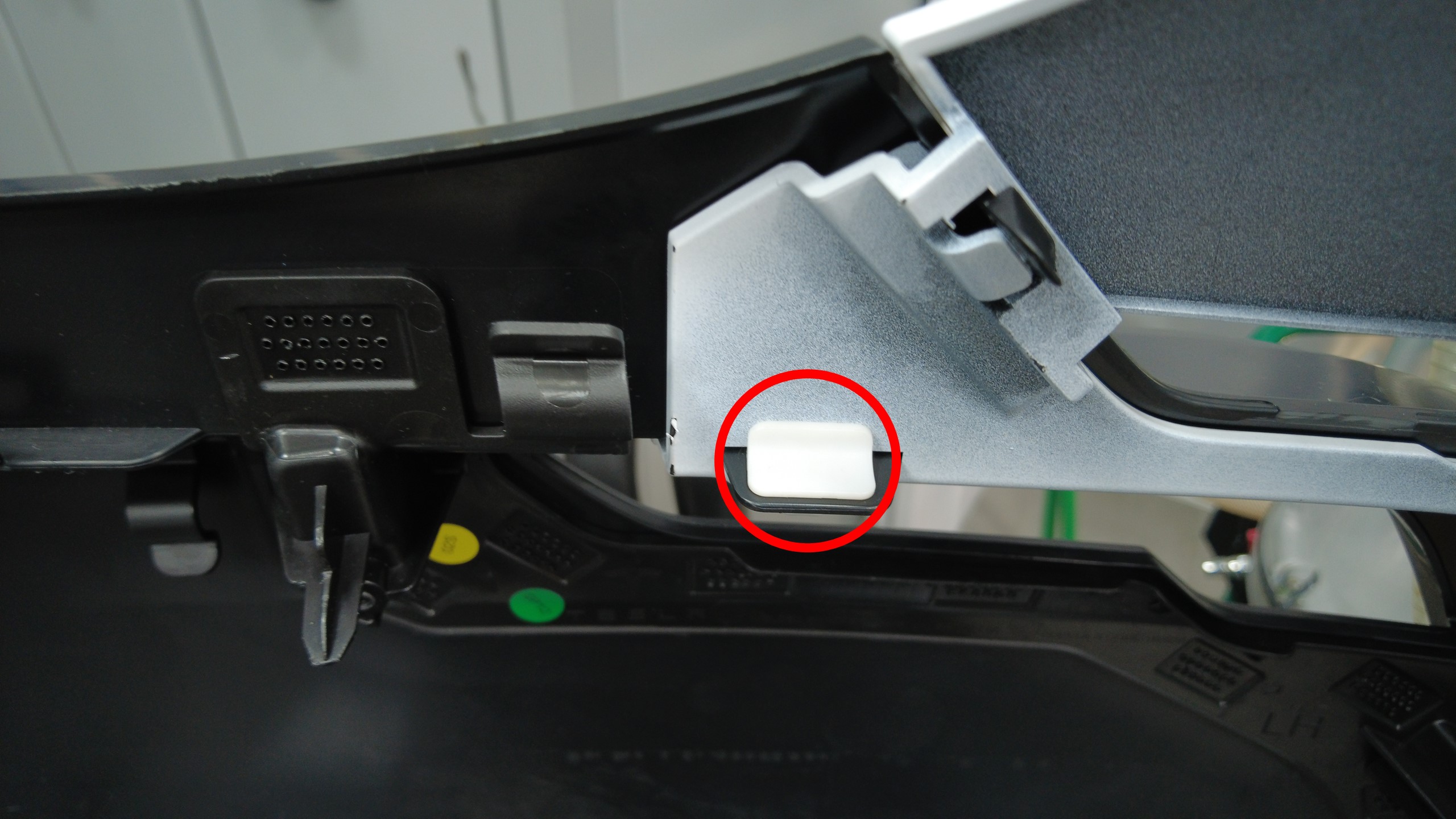

  3. Release the clips (x7) to remove the LH rear upper fascia from the lower rear fascia.

Install

  1. Secure the clips (x7) to install the LH rear upper fascia from the lower rear fascia.
  2. Install the bolts (x2) that attach the LH rear upper fascia to the rear lower fascia.
    3 Nm (2.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T30 socket
  3. Install the rear fascia assembly. See Fascia - Rear - Upper - LH (Model Y Standard) (Remove and Install).
