Glass - Door - LH - Front (Adjust)

Correction code 11010004 Adjustable FRT NOTE: This procedure uses an adjustable correction code. Use the correction code listed above and manually enter the actual amount of time spent performing this procedure. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

  • 1588904-00-A - GLASS GAP GAUGE, MODEL Y
  • 1454796-00-B - Window Switch Tool
  • 2025-04-23: Added substeps and location for angle adjustment jack screw.
Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
The side impact airbag deployment depends on the front door sensor's ability to detect a side impact from air pressure. Make sure that there are no uncovered holes in the front door shells. Additionally, always reinstall plugs or tape when servicing or inspecting the front doors and their components.
Informational PurposesAn informational icon, calling your attention
Note
Gap and flush specifications can be found in the "Inspection Standards" section of the Theory of Operations.

Torque Specifications

Table 1. Torque Specifications:
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolts (x2) that attaches the regulator guide block
12 Nm (8.8 lbs-ft)
  • 10 mm socket
 Reuse

Procedure

  1. Check the LH front window glass fitment with a gap and flush tool.
    Informational PurposesAn informational icon, calling your attention
    Note
    The gap should be within 6-11mm. The flush should be within 2-3.5mm.
  2. Place two pieces of masking tape over the window glass and LH front door outer belt seal, and then carefully cut across the tape where the glass meets the seal, as illustrated.
    Informational PurposesAn informational icon, calling your attention
    TIp
    This step will help you remember the original position of the glass while you are adjusting it.
  3. Remove the LH front door trim panel. See Door Trim - Front - LH - LHD (Remove and Install).
  4. Remove the door plugs (x2) that cover the regulator guide blocks.
  5. Connect the window switch special tool to the door electrical harness.
  6. Loosen the bolts (x2) that attach the LH front window glass to the regulator guide blocks.
    Informational PurposesAn informational icon, calling your attention
    Note
    No need to fully remove the bolt.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  7. Close the LH front door with one person sitting in the driver seat.
    Informational PurposesAn informational icon, calling your attention
    Note
    Do not pinch the door harness when closing the door.
  8. Use the window switch special tool to raise the LH front window fully.
  9. Check the LH front window glass fitment with a gap and flush tool and readjust the window glass if necessary.
    1. Shift the glass as needed for adjustments.

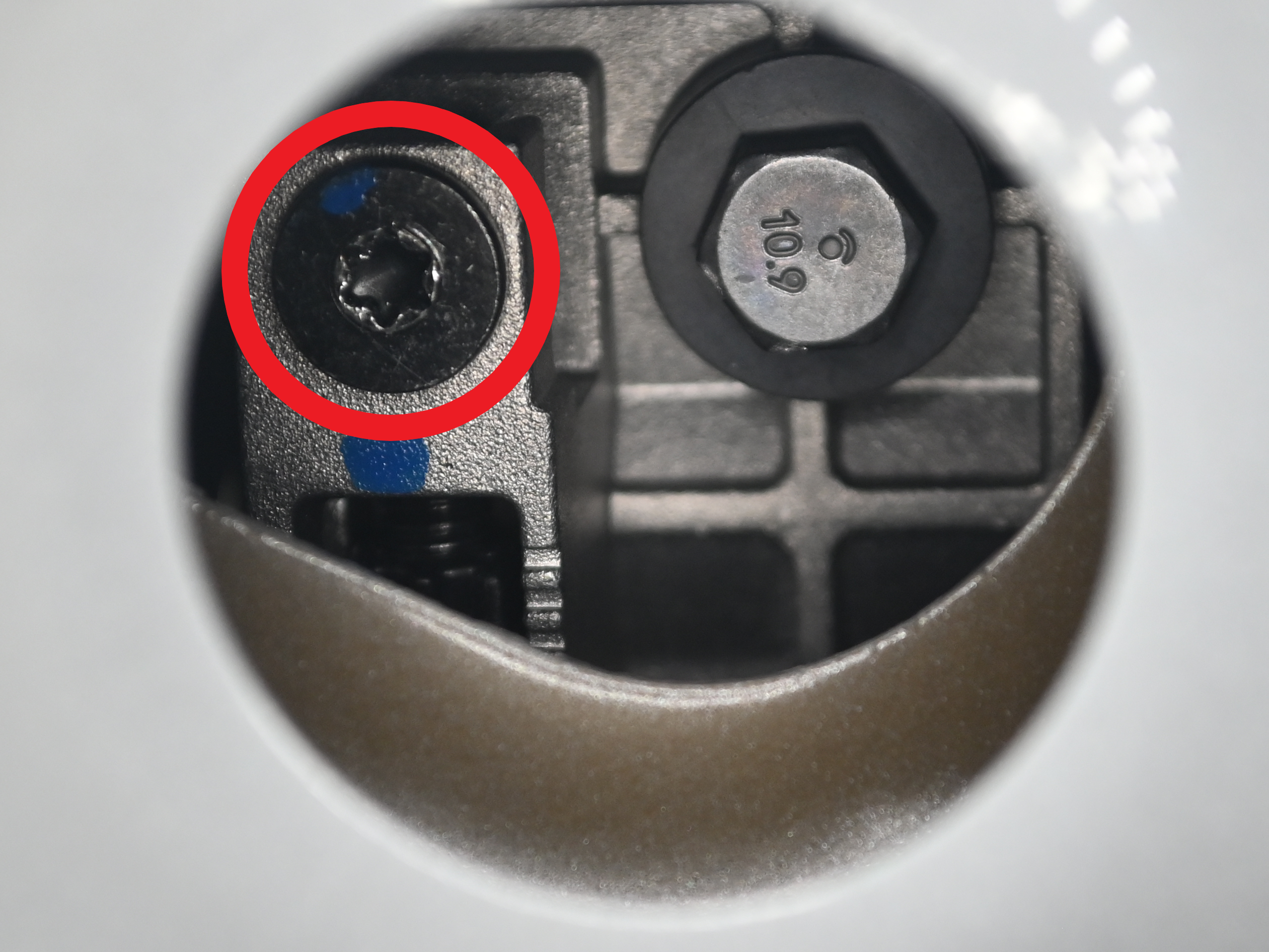

    2. Adjust angle alignment via the jack screw (T20) at the rearmost guide block access hole.
  10. Torque the bolts (x2) that attach the LH front window glass to the regulator guide blocks by the person sitting in the driver seat.
    12 Nm (8.8 lbs-ft)
  11. Lower the LH front window and open the LH front door, and then disconnect the window switch special tool.
  12. Install the door plugs (x2) that cover the regulator guide blocks.
  13. Install the front LH door trim panel. See Door Trim - Front - LH - LHD (Remove and Install).
