Button - Cushion Adjust - Driver Seat (Remove and Replace)

Correction code 1301010062 FRT Button - Cushion Adjust - Driver Seat (Remove and Replace) NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Remove

  1. Open the LH front door and lower the LH front window.

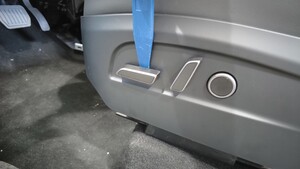

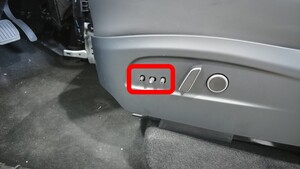

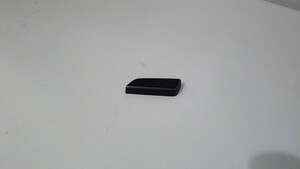

  2. Use a trim tool to carefully release the clips that attach the driver seat cushion switch button to the seat assembly, and then remove the button from the assembly.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Be careful not to damage the button and seat trim.

Install

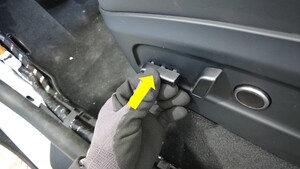

  1. Install the driver seat cushion switch button to the seat assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure that the button is fully seated. When the button is properly installed, there is an audible click.
  2. Raise the LH front window and close the LH front door.
