iTPMS to TPMS (Model Y Standard) (Retrofit)

Correction code NEW FRT 0.54 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2025-12-10: Released new procedure.

Torque Specifications

Table 1. Torque Specifications: Sensor - TPMS - Front - LH (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Nut that attaches the TPMS sensor to the wheel
8 Nm (5.9 lbs-ft)
  • 11 mm deep socket
 Reuse
Informational PurposesAn informational icon, calling your attention
Note

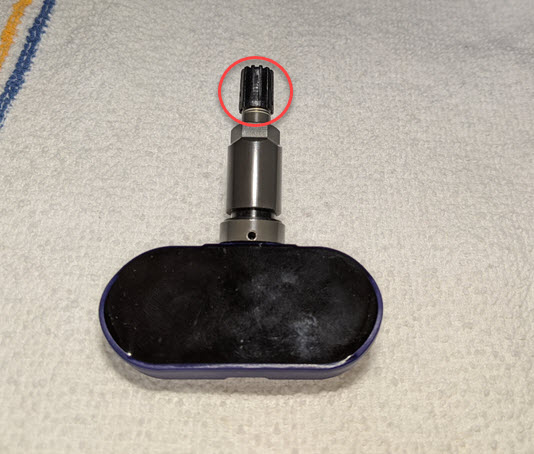

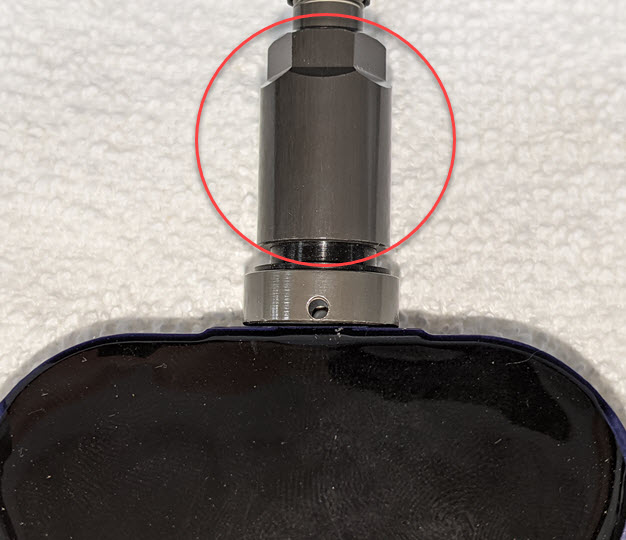

An updated TPMS sensor is available (pictured, black). It performs and is serviced identically to the original sensor (pictured, purple).
  • Both sensor types can be installed on different wheels on the same vehicle.
  • The mounting nuts on both sensor types are cross-compatible, but it is recommended to install the nut that is in newest condition.

Retrofit

  1. Remove the LH front wheel. See Wheel Assembly (Remove and Install).
  2. Install the wheel onto the tire machine.
    1. Place the wheel on the tire machine, with the front of the wheel facing up.
    2. Position the center clamp in the wheel.
    3. Position the wheel cone on the center clamp and wheel, and then tighten the cone on the center clamp.
  3. Remove the valve stem cap, remove the valve core, and allow the tire to deflate.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    The tire will rapidly deflate. Wear proper PPE, such as safety glasses and gloves.
  4. Prepare and loosen the upper tire bead.
    1. Position the upper bead roller at the edge of the upper rim.
    2. Rotate the wheel to loosen the upper tire bead while lubricating the bead during rotation.
    3. Break the top tire bead.
    4. Use the upper roller to press the upper bead down until the valve stem becomes accessible.
  5. Remove and discard the rubber valve stem.
    1. Cut the base of the rubber valve stem flush with the underside of the wheel.
    2. Attach the valve stem puller to the valve stem and pull upwards to remove it; discard after removal.
    3. Inspect and clear any debris from the removal process.
  6. Install a Tire Pressure Monitoring System (TPMS) sensor.
    1. Remove the valve stem cap from the TPMS sensor.
    2. Remove the nut from the TPMS sensor.
      Informational PurposesAn informational icon, calling your attention
      TIp
      Use of the following tool(s) is recommended:
      • 11 mm deep socket
    3. Install the TPMS sensor so that it fits closely to the wheel.
      Informational PurposesAn informational icon, calling your attention
      Note

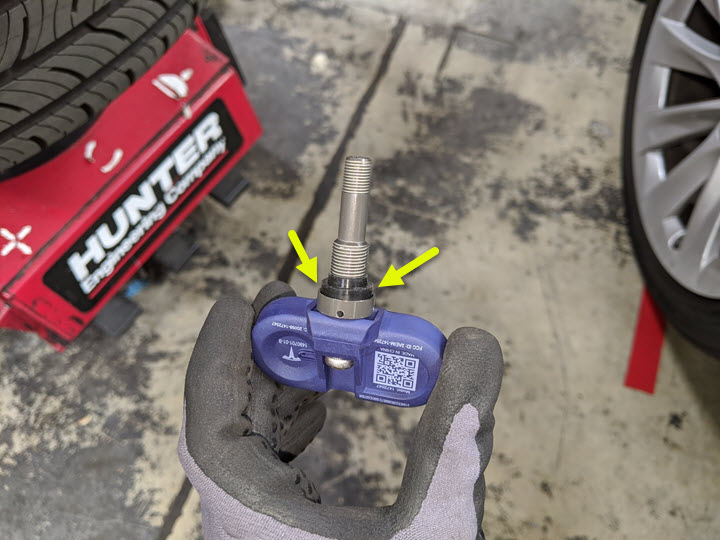

      Verify that the TPMS seal is fully seated against the base; failure to do so could cause damage to the seal during installation.
    4. Install the nut that attaches the TPMS sensor to the wheel.
      8 Nm (5.9 lbs-ft)
      Informational PurposesAn informational icon, calling your attention
      TIp
      Use of the following tool(s) is recommended:
      • 11 mm deep socket
  7. Release the upper roller to allow the top bead to seat properly against the wheel.
  8. Remove the valve stem core, inflate the tire to seat the bead, then reinstall the valve stem core and secure the cap.
    Informational PurposesAn informational icon, calling your attention
    Note
    Do not exceed the pressure indicated on the tire sidewall and wear PPE.
  9. Remove the wheel from the tire machine.
  10. Install the LH front wheel. See Wheel Assembly (Remove and Install).
  11. Repeat step 1 through 10 for the TPMS retrofit on the RH front, LH rear, and RH rear wheels.
  12. Place the vehicle in Service Mode by using the touchscreen. See Service Mode.
  13. Unlock the vehicle gateway. See Gateway (Unlock).
  14. On the touchscreen, tap the Service Mode "wrench" (at the bottom of the touchscreen UI), and then tap Chassis > TPMS > Change to BLE, and click Run, and allow the routine to complete.
  15. Exit Service Mode. See Service Mode.
  16. Perform a road test, ensuring to drive over 20 MPH to complete the TPMS learning process.
    Informational PurposesAn informational icon, calling your attention
    Note
    Add test drive correction code (00040100) as a separate activity.
