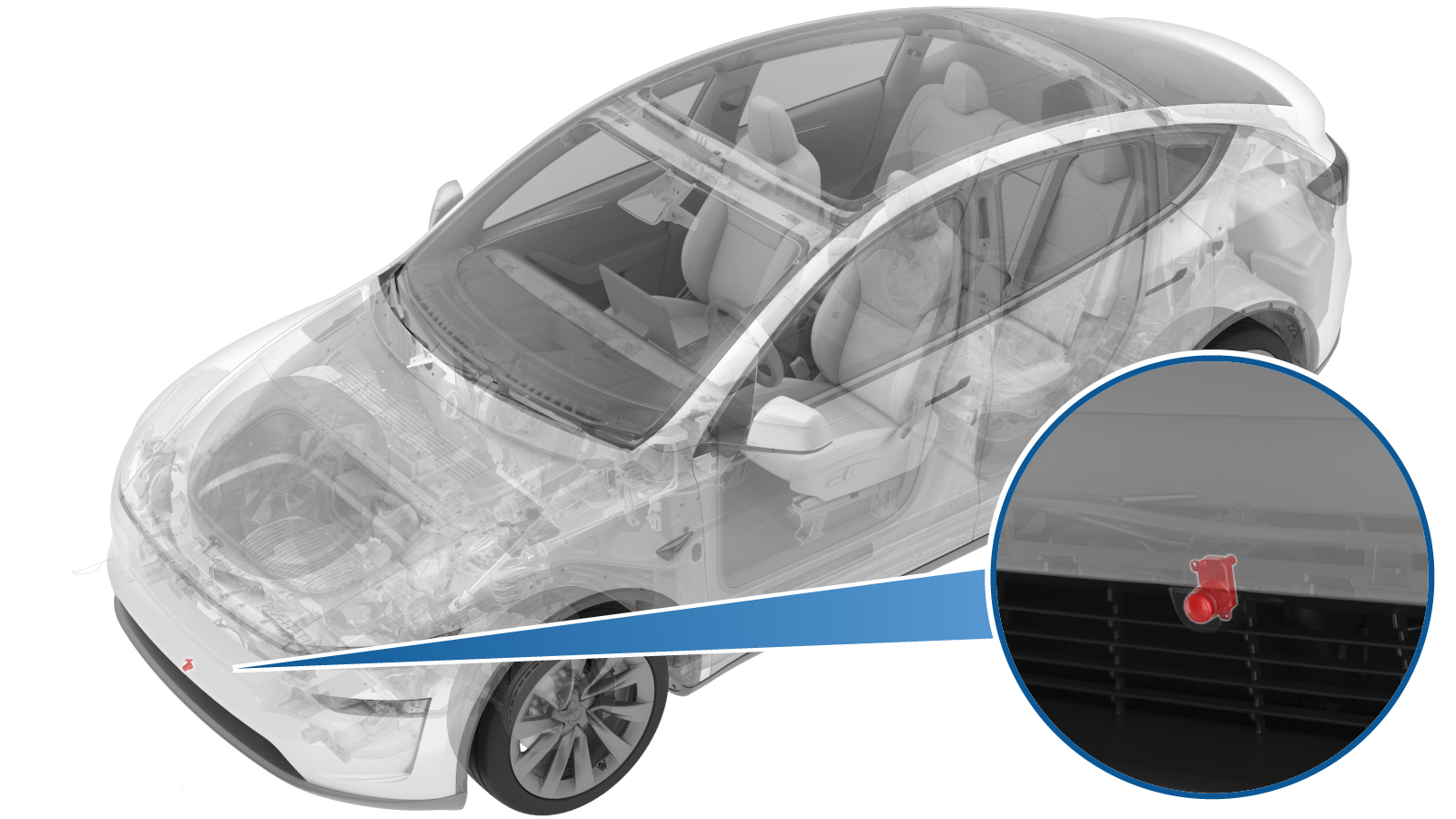

Camera - Front Fascia (Remove and Install)

Correction code 1722010011 FRT 0.10 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Torque Specifications

Table 1. Torque Specifications: Camera - Front Fascia (Remove and Install)
Description Torque Value Recommended Tools Reuse/Replace Notes
Front fascia camera cover screws (x2)
4 Nm (2.9 lbs-ft)
  • Torx T20 socket
  • Ratchet/torque wrench
 Reuse
Screws (x2) that attach the front fascia camera to its housing
2 Nm (1.5 lbs-ft)
  • PH1 STUBBY PHILLIPS SCREWDRIVER
  • Digital Torque Screwdriver 0.10Nm - 2.0Nm
 Reuse

Remove

  1. Open the LH front door and lower the LH front window.
  2. Place the vehicle in Service Mode by using the touchscreen. See Service Mode.
  3. Remove the front fascia camera cover screws (x2).
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket
    • Ratchet/torque wrench
  4. Disconnect the front fascia camera electrical connector and nano nozzle.
  5. Remove the screws (x2) that attach the front fascia camera to its housing, and then remove the camera.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • PH1 STUBBY PHILLIPS SCREWDRIVER
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm

Install

  1. Install the front fascia camera onto the housing, and then install the screws (x2).
    2 Nm (1.5 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • PH1 STUBBY PHILLIPS SCREWDRIVER
    • Digital Torque Screwdriver 0.10Nm - 2.0Nm
  2. Connect the front fascia camera electrical connector and nano nozzle.
  3. Install the front fascia camera cover screws (x2).
    4 Nm (2.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket
    • Ratchet/torque wrench
  4. Unlock the vehicle gateway. See Gateway (Unlock).
  5. Clean the camera calibration.
    1. Tap Driver Assist > Cameras > Clear Camera Calibration.
    2. Select Fascia in the Camera Selection dropping list.
    3. Tap Run, and then allow the routine to complete.
      Informational PurposesAn informational icon, calling your attention
      Note
      This will be available on a later firmware version.
  6. Exit Service Mode. See Service Mode.
  7. Raise the LH front window and close the LH front door.
