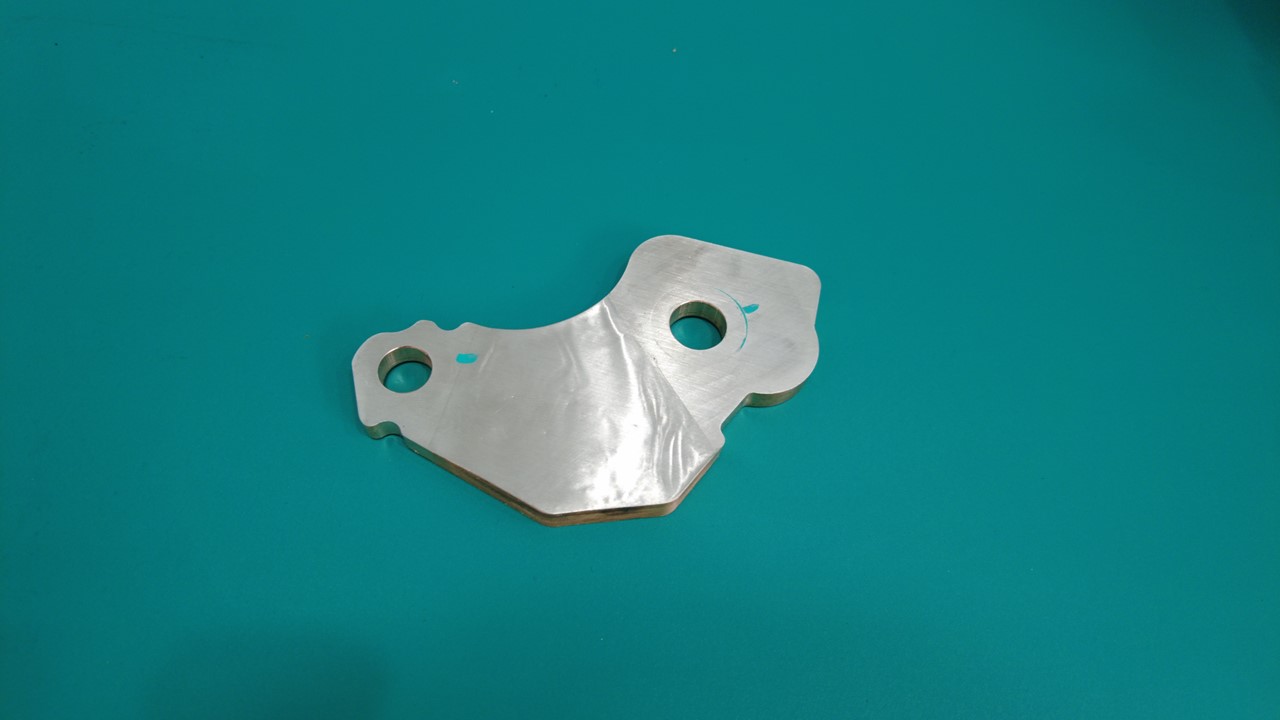

Busbar - Fast Charge Contactor to DC Bus - Positive - PN Prefixed with 2xx (Remove and Replace)

Correction code 1630021802 FRT 1.50 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and FRT listed above reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure you are wearing proper PPE when performing the procedure below. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications:Busbar Fast Charge - Input - Negative - PN Prefixed with 2xx (Remove and Replace) / Busbar Fast Charge - Input - Positive - PN Prefixed with 2xx (Remove and Replace) / Busbar - Fast Charge Contactor to DC Bus - Positive - PN Prefixed with 2xx (Remove and Replace) / Busbar - Fast Charge Contactor to DC Bus - Negative - PN Prefixed with 2xx (Remove and Replace)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes

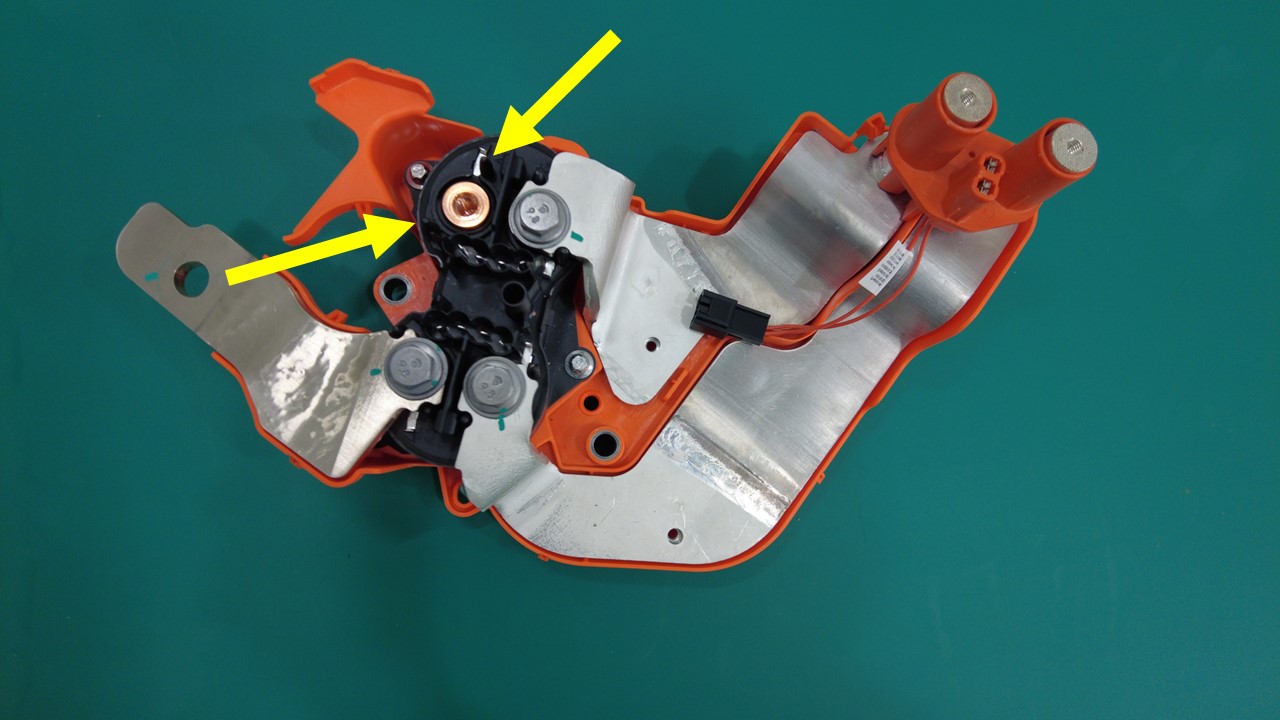

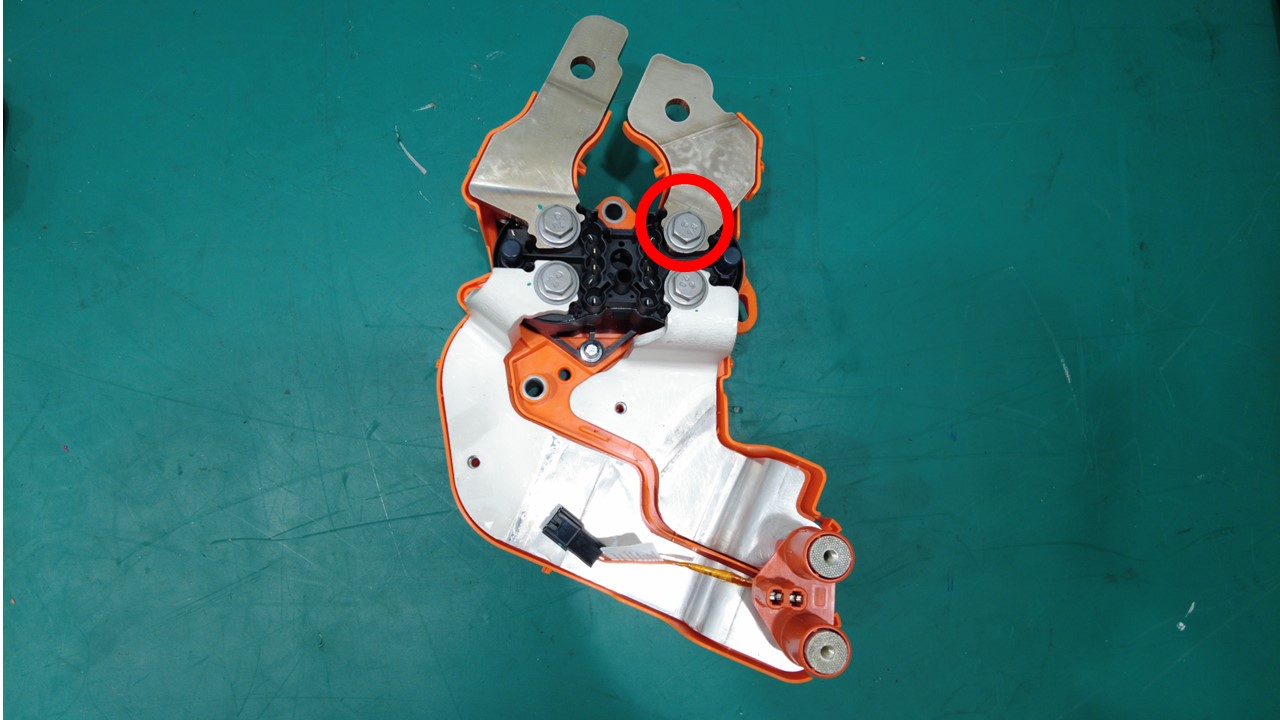

Patch bolt that attaches the input fast charge busbar / DC link busbar to the fast charge contactor	10 Nm (7.4 lbs-ft) - 180 degrees	SKT, 1/4" SQ DR, 13MM, HV INSULATED	Replace	1104475-00-F Note Tighten the bolt to 10 Nm, back off 180 degrees, then torque to 10 Nm.
