Carrier - Applique - Liftgate (Model Y Standard) (Remove and Replace)

Correction code TBD FRT 0.24 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
Whenever a camera has been moved out of its original position (for example, a camera or windshield replacement), camera calibration data must be cleared using the vehicle touchscreen: Controls > Service > Camera Calibration > Clear Calibration.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Enter Service Mode. See Service Mode.
  3. Remove the liftgate applique. See Applique - Liftgate (Model Y Standard) (Remove and Replace).
  4. Remove the liftgate lower trim. See Liftgate Lower Trim (Remove and Replace).

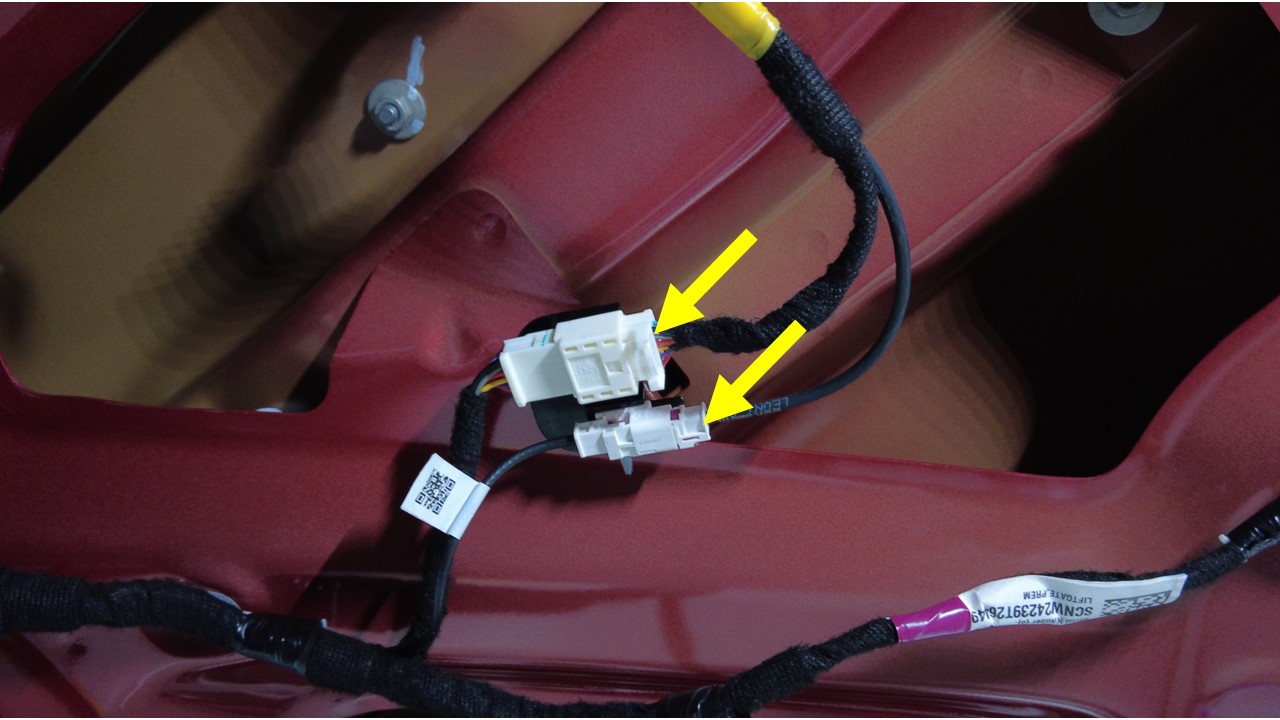

  5. Disconnect the liftgate extension connectors (x2).

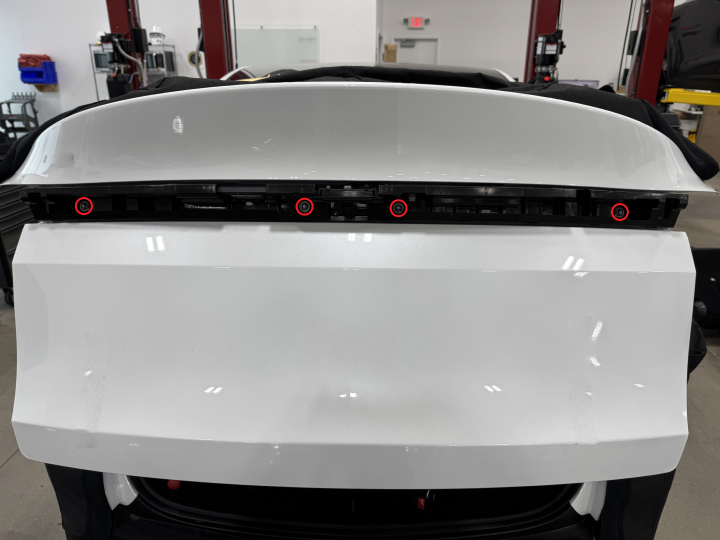

  6. Remove the bolts (x4) that attach the liftgate applique carrier to the liftgate assembly.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm deep socket

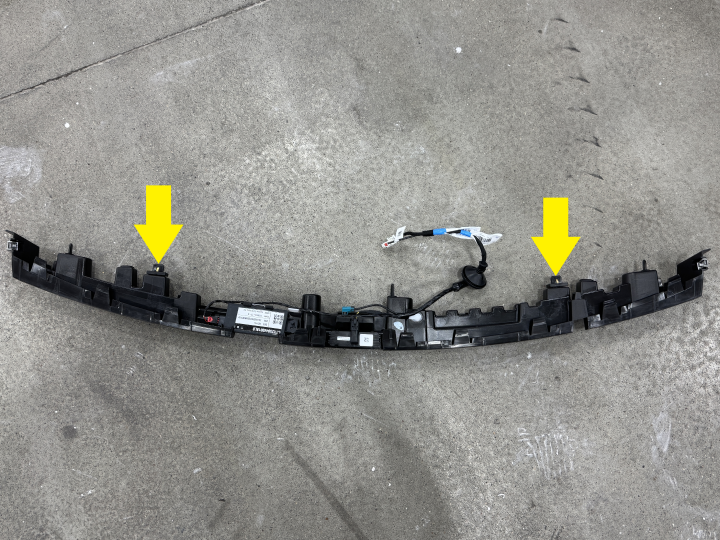

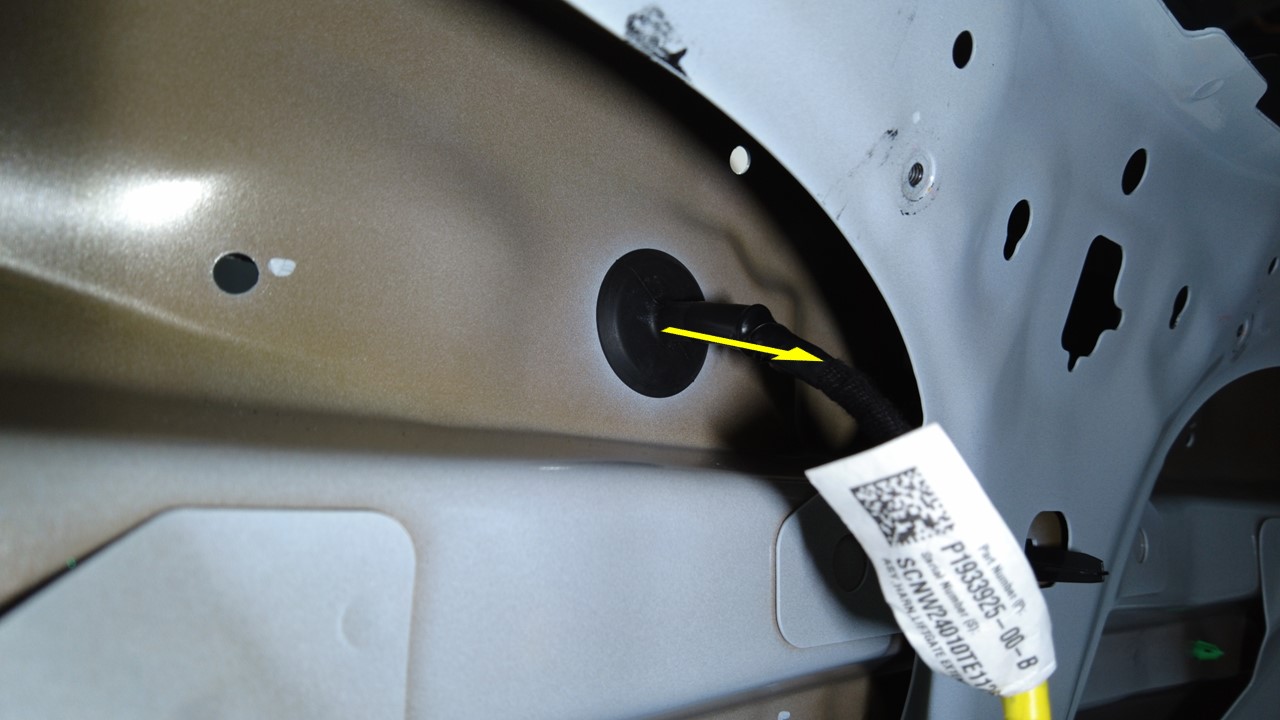

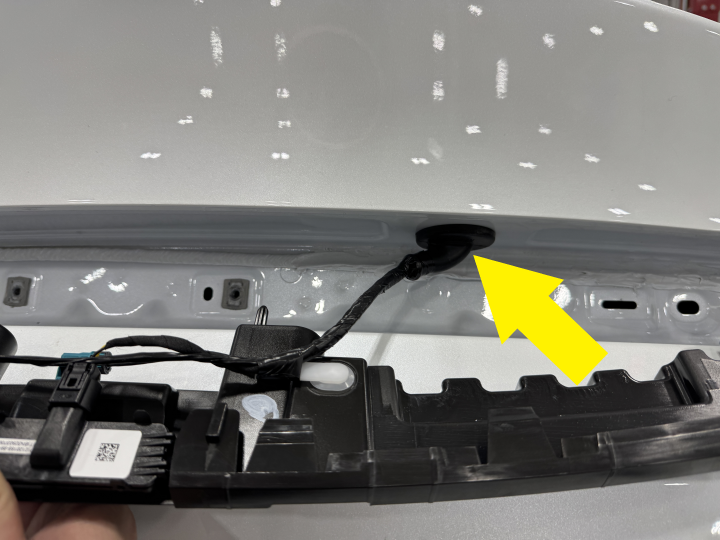

  7. Pull the carrier away to release the clips (x2), and pull the grommet outwards to release it, and then remove the carrier from the vehicle.

Install

  1. Push the grommet inwards to secure it, and then install the clips (x2) that attach the liftgate applique carrier to the liftgate assembly.
    Informational PurposesAn informational icon, calling your attention
    Note

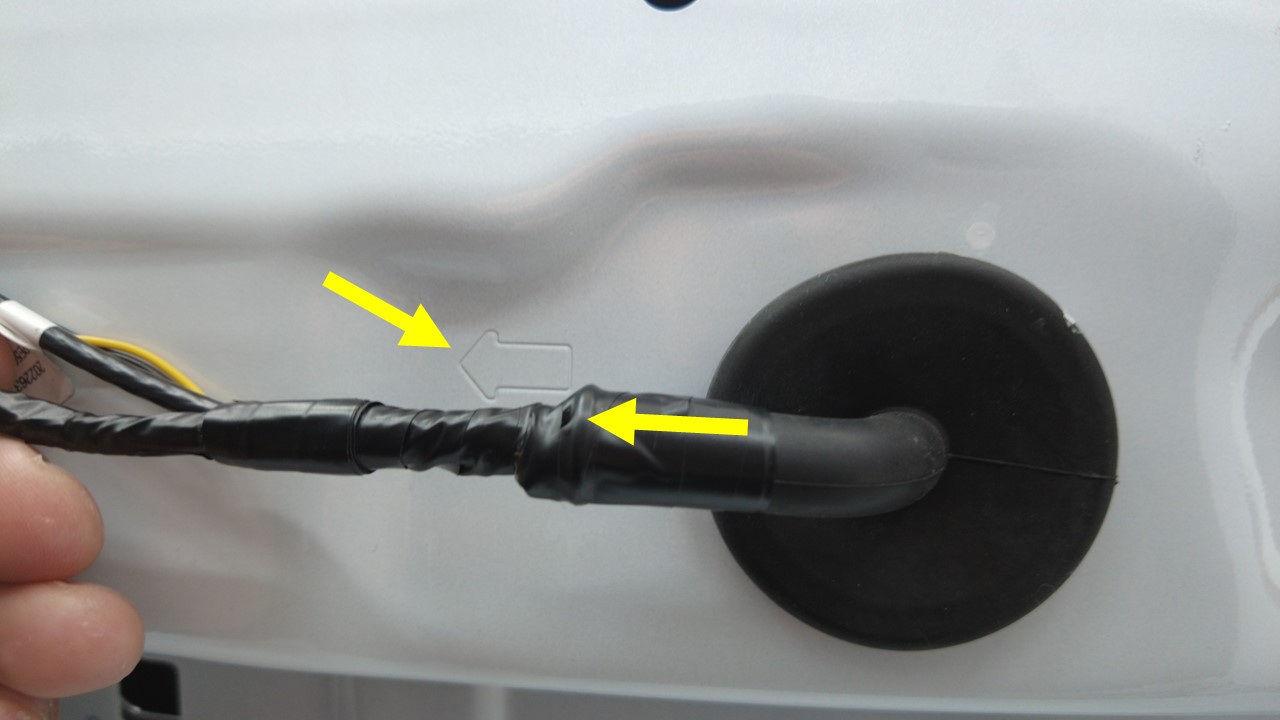

    Take note of the orientation of the harness.
  2. Install the bolts (x4) that attach the liftgate applique carrier to the liftgate assembly.
    4 Nm (2.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm deep socket
  3. Connect the liftgate extension connectors (x2).
  4. Install the liftgate lower trim. See Liftgate Lower Trim (Remove and Replace).
  5. Install the liftgate applique. See Applique - Liftgate (Model Y Standard) (Remove and Replace).
  6. Unlock the vehicle gateway, See Gateway (Unlock).
  7. On the touchscreen, tap Driver Assist > Cameras > Clear Camera Calibration, select RearView from the Camera Selection drop-down menu, and click Run.
  8. Exit Service Mode. See Service Mode.
  9. Raise the LH front window and close the LH front door.
