Armrest Closeout - 2nd Row (Model Y Standard) (Remove and Install)

Correction code NEW NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.
  • 2025-10-02: Released new procedure.

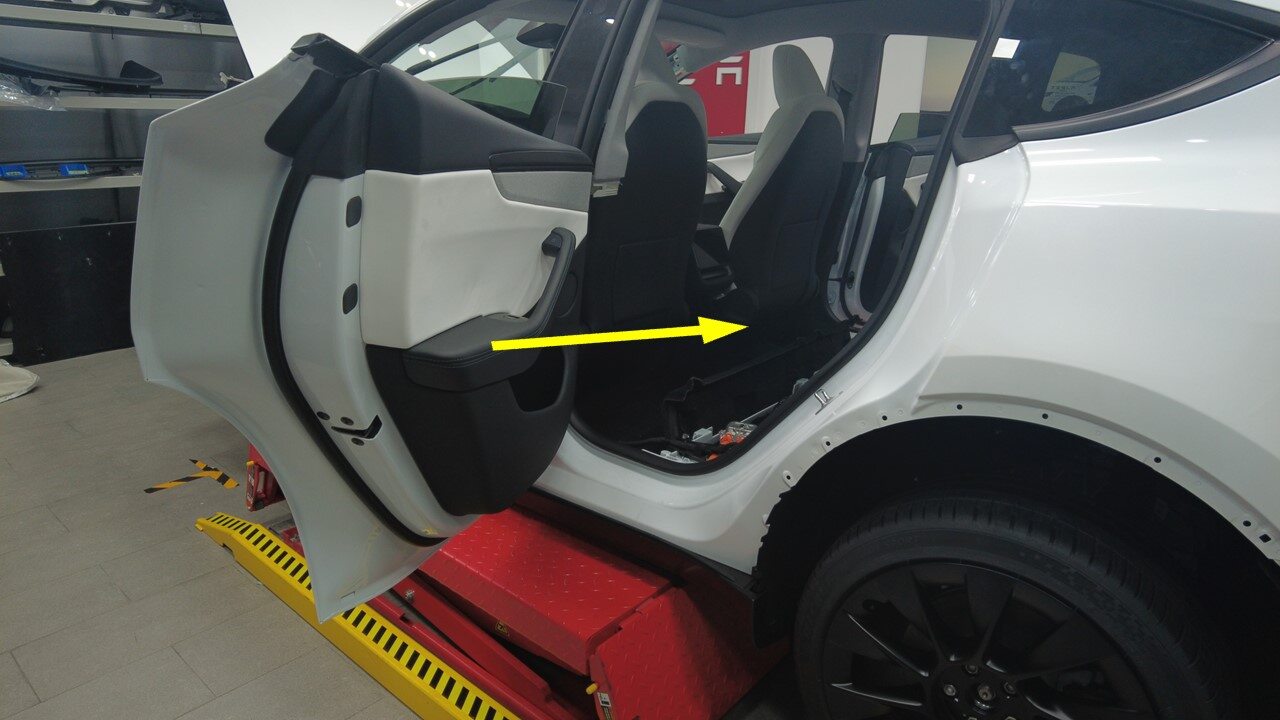

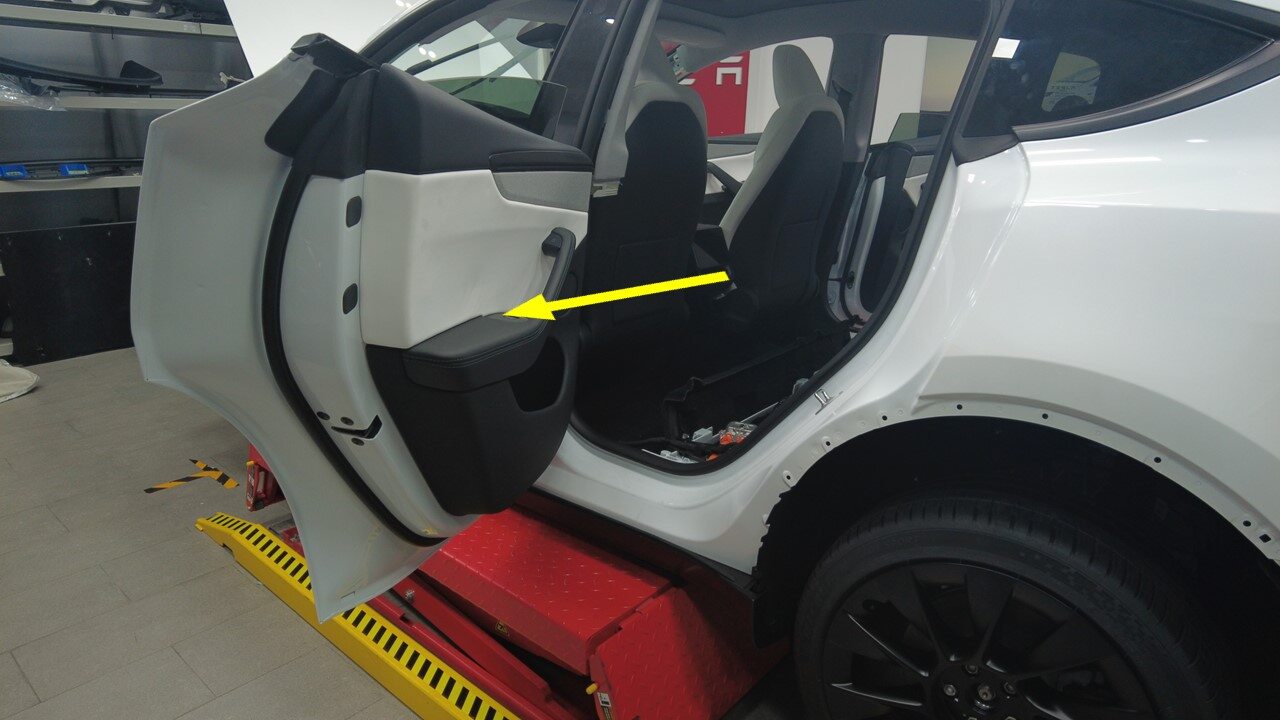

  1. Open LH rear door
  2. Lower LH rear window

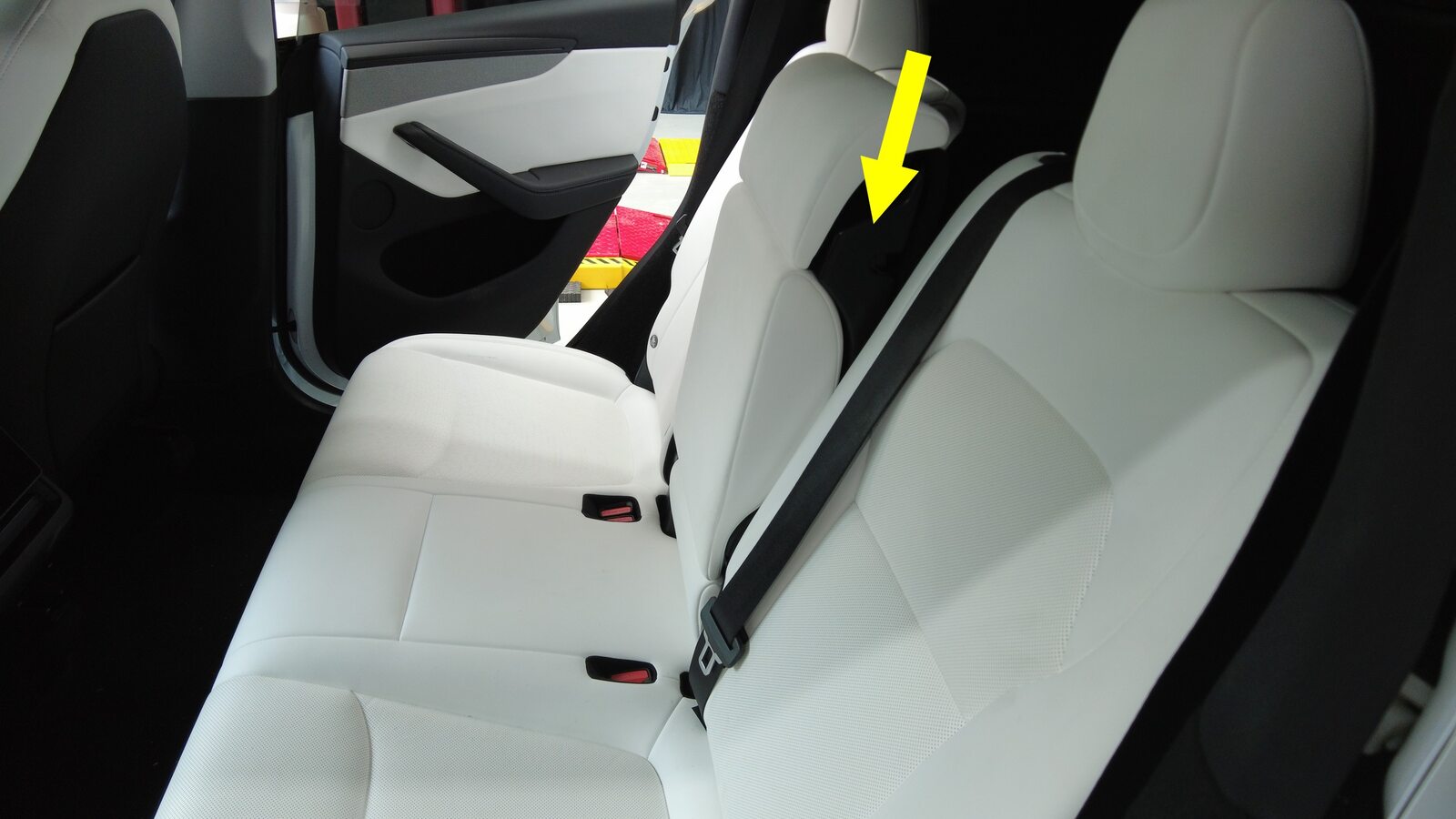

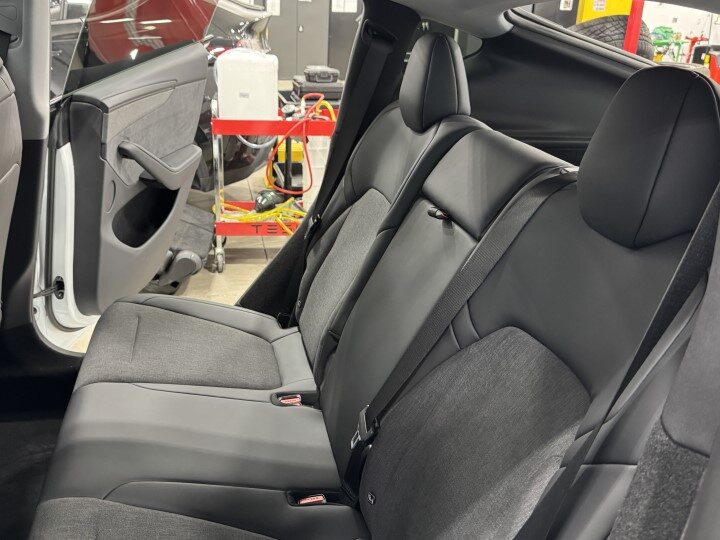

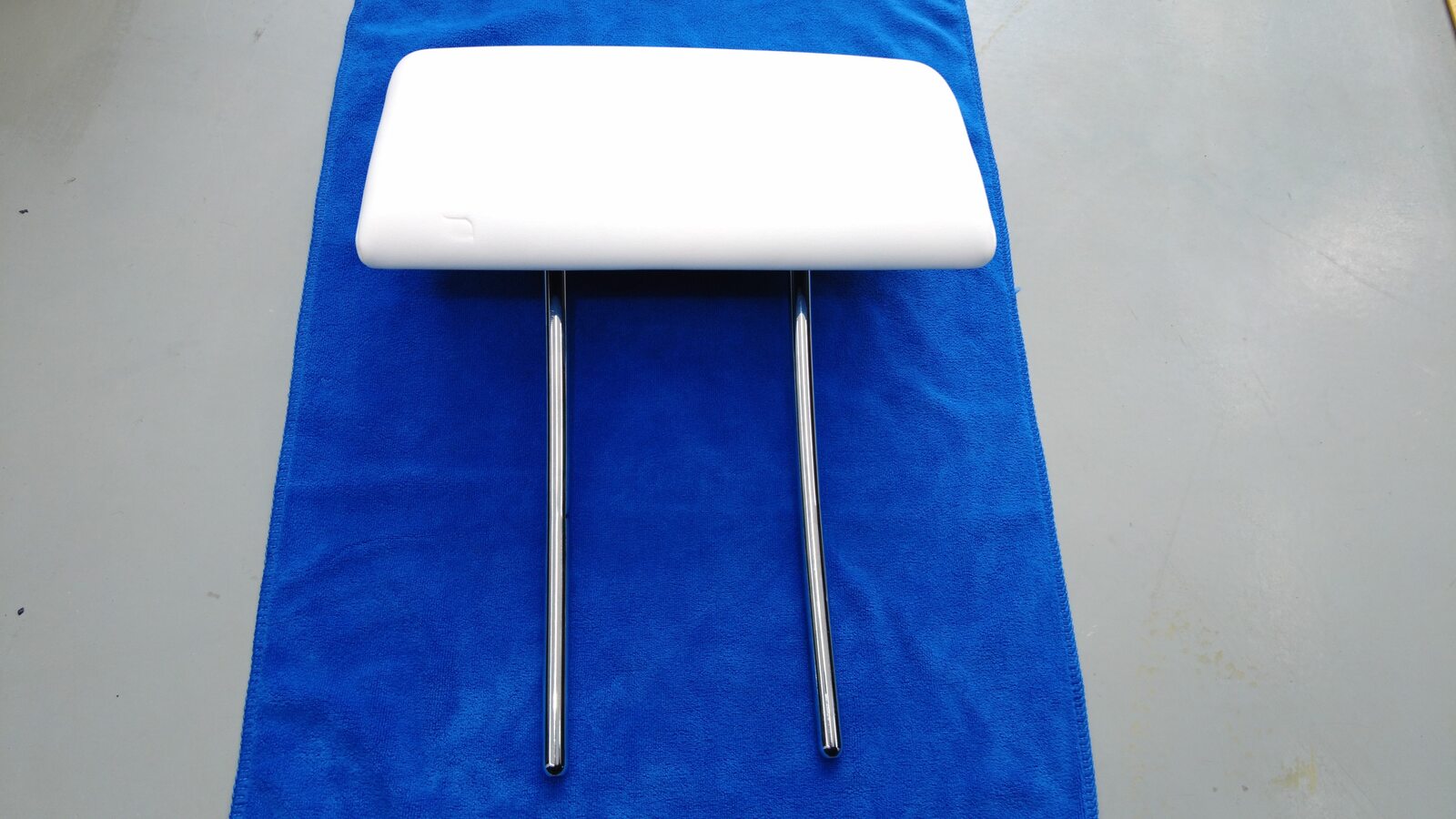

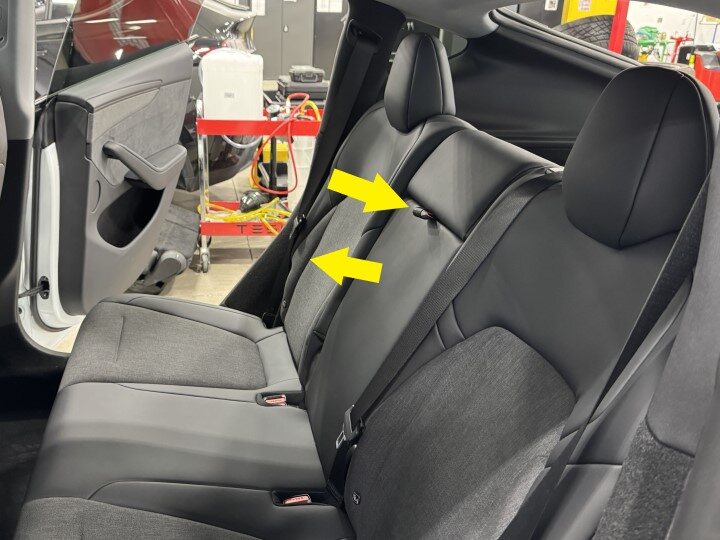

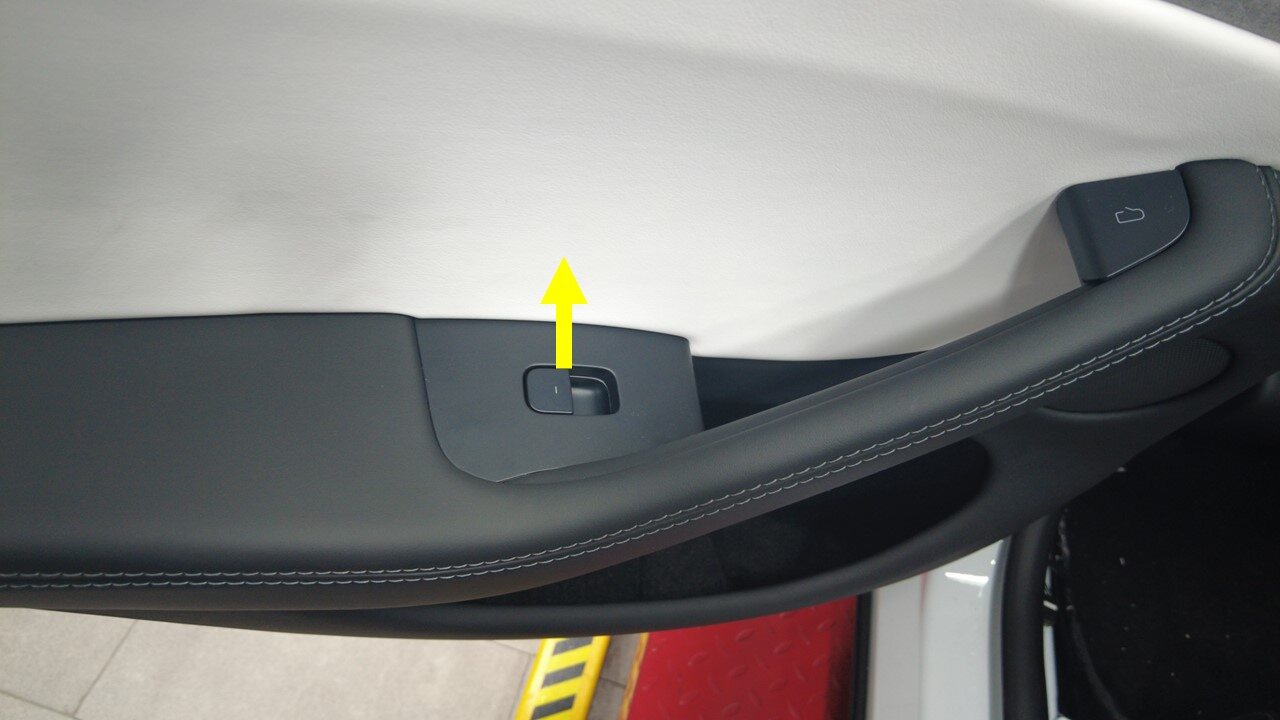

  3. Remove 2nd row center headrest
    Informational PurposesAn informational icon, calling your attention
    Note

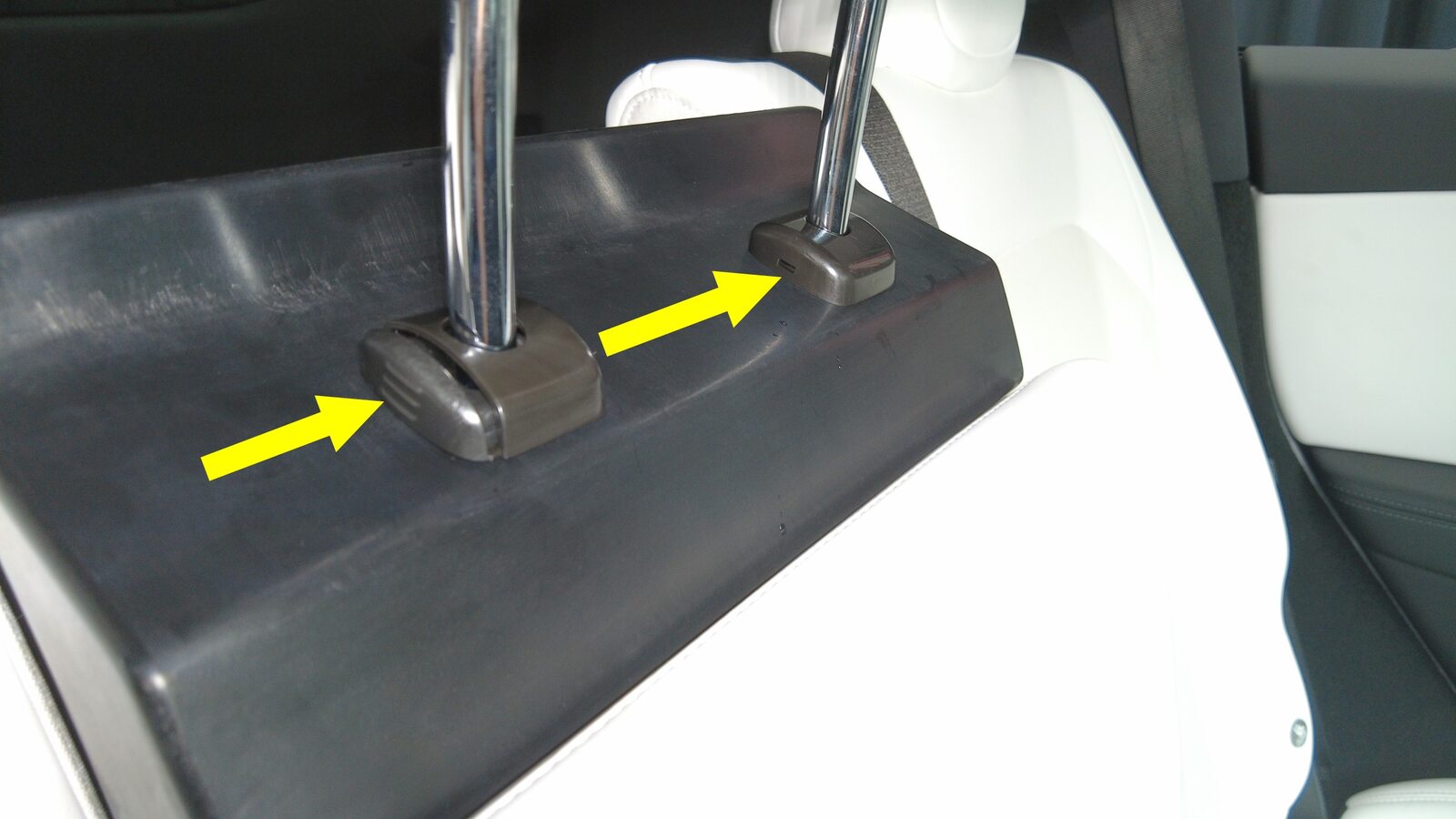

    Depress button and tab while pulling upwards to release

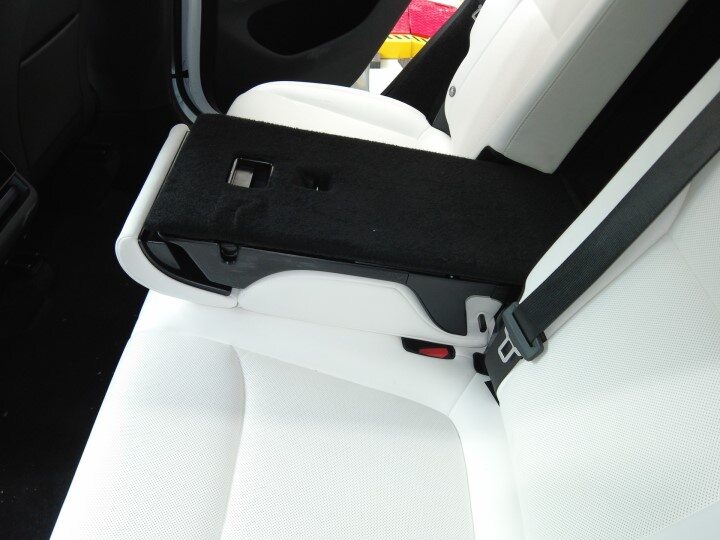

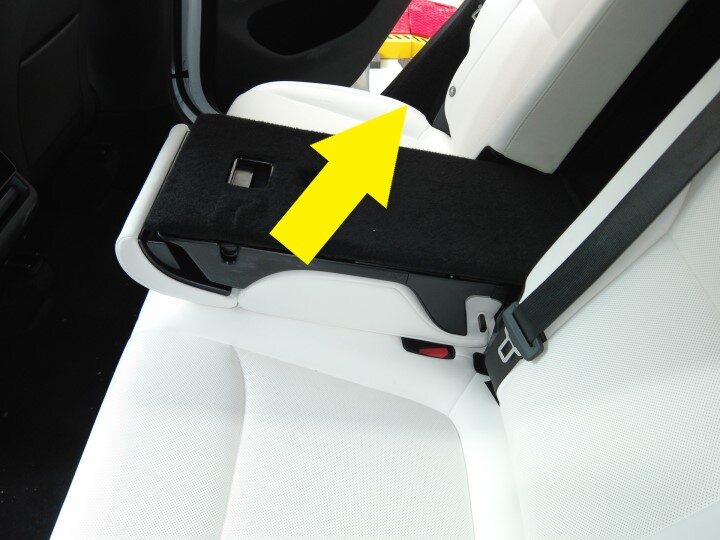

  4. Fold down 2nd row armrest
    Informational PurposesAn informational icon, calling your attention
    Note
    Via release strap

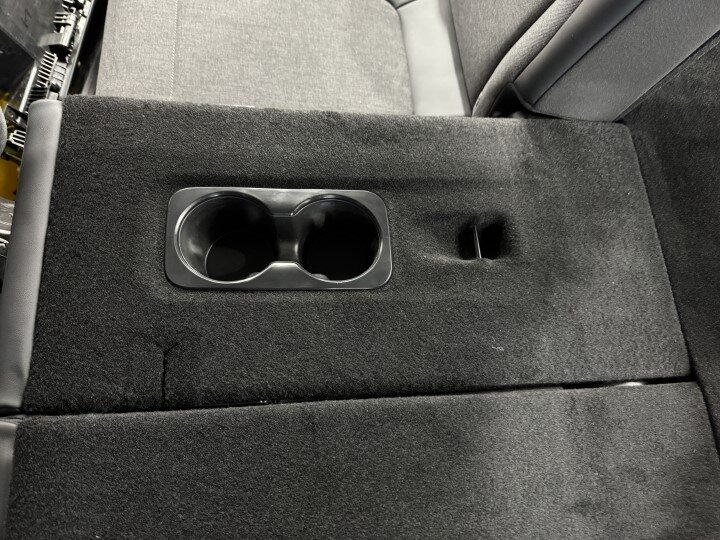

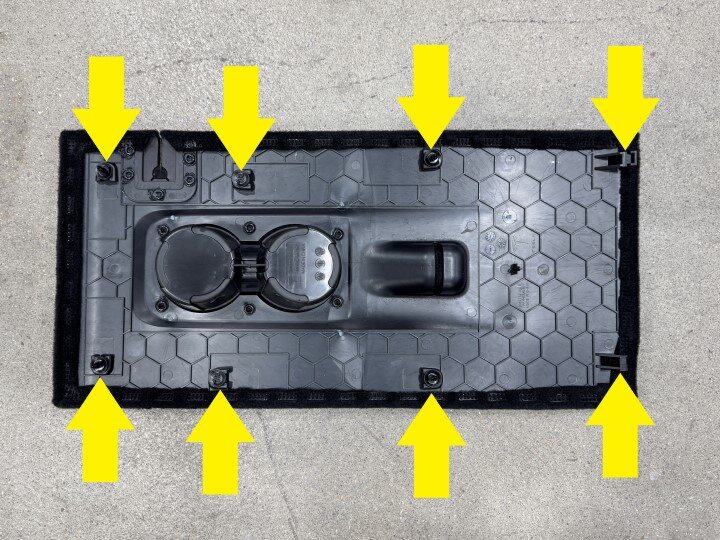

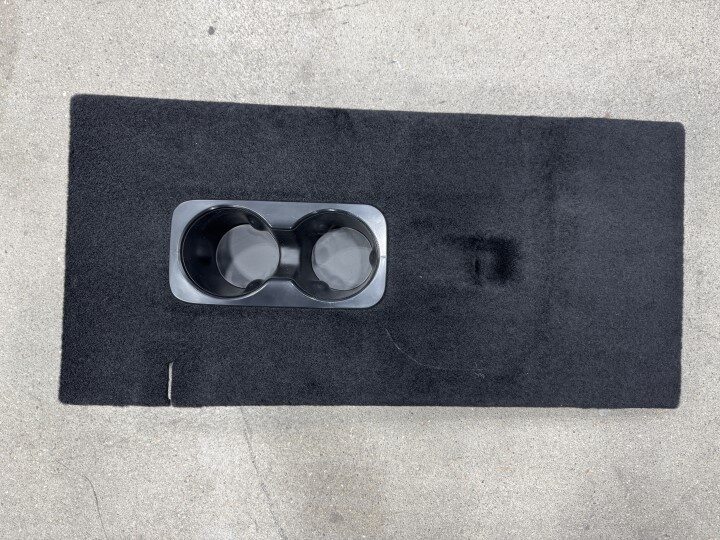

  5. Remove 2nd row center back panel
    Informational PurposesAn informational icon, calling your attention
    Note
    6x clips, 2x hooks, Rotate rearwards then pull upwards to release hooks

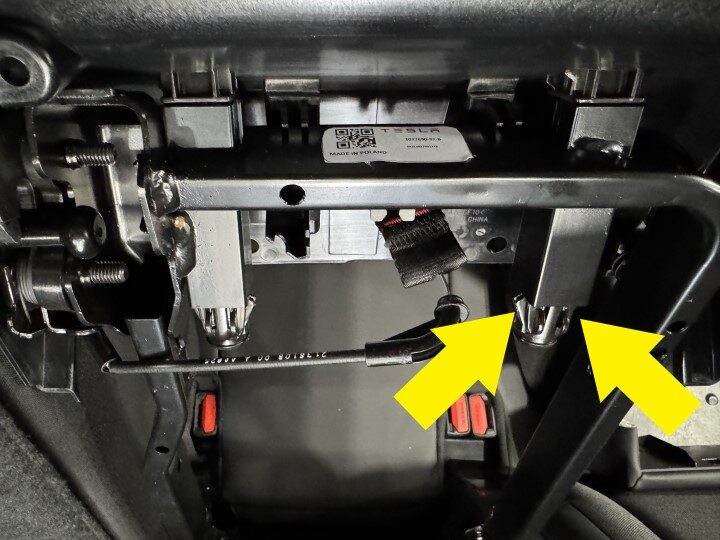

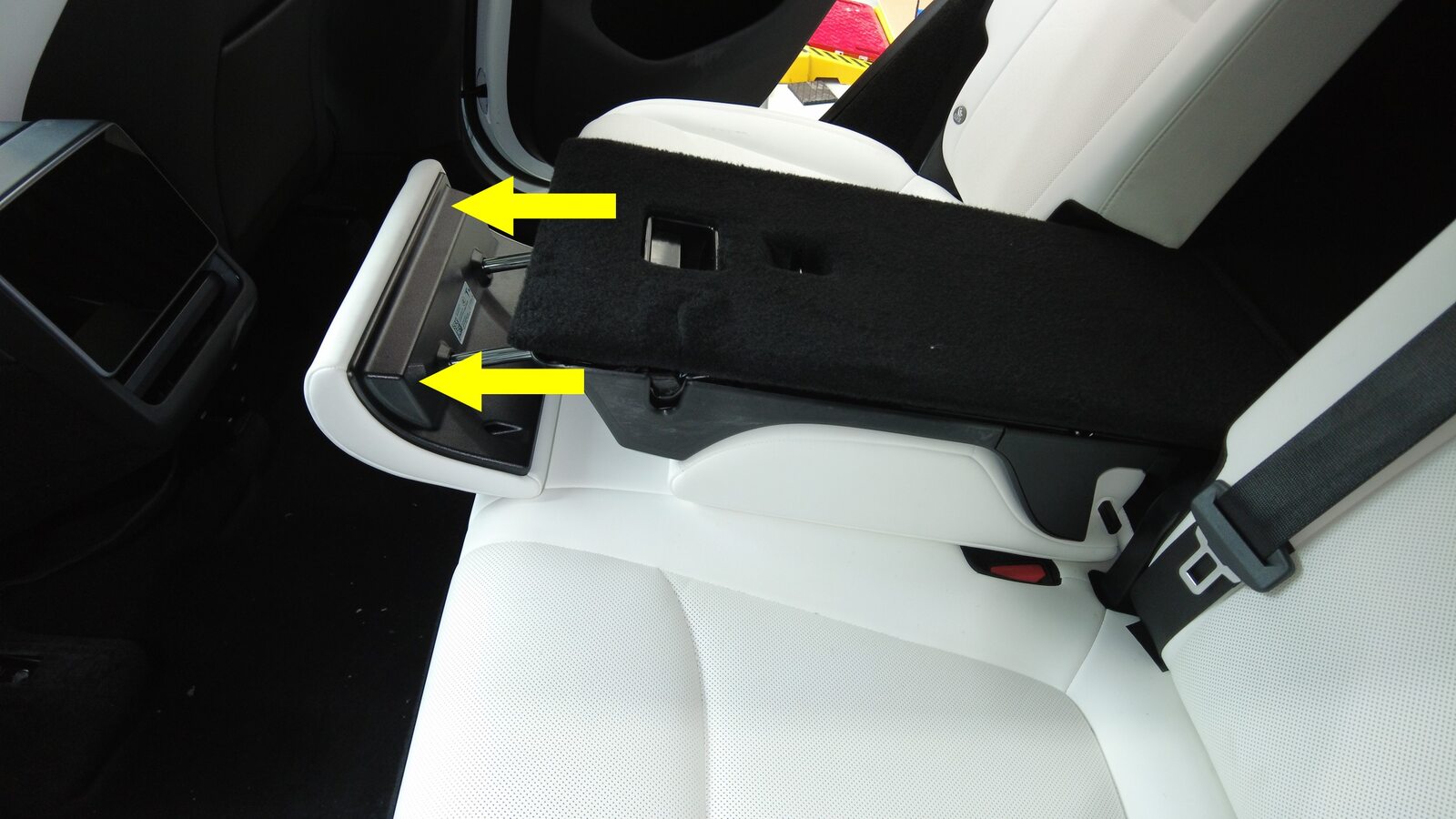

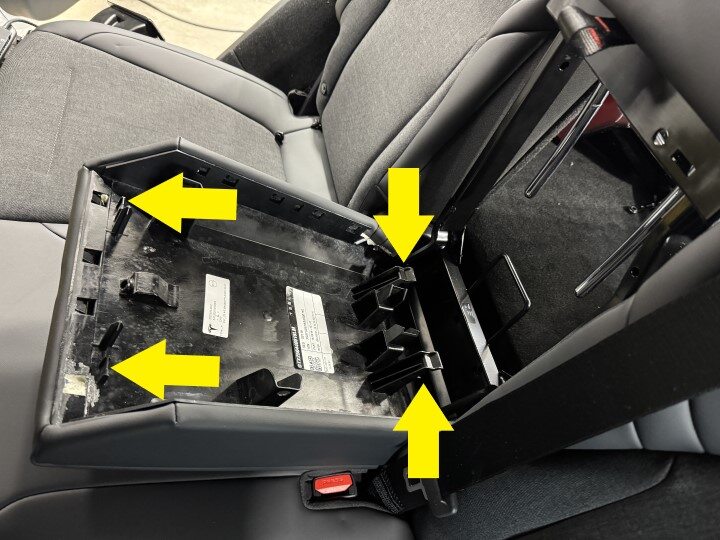

  6. Partially remove 2nd row armrest trim
    Informational PurposesAn informational icon, calling your attention
    Note
    2x push clips, 2x clips, 2x hooks, Rotate armrest frame away from trim

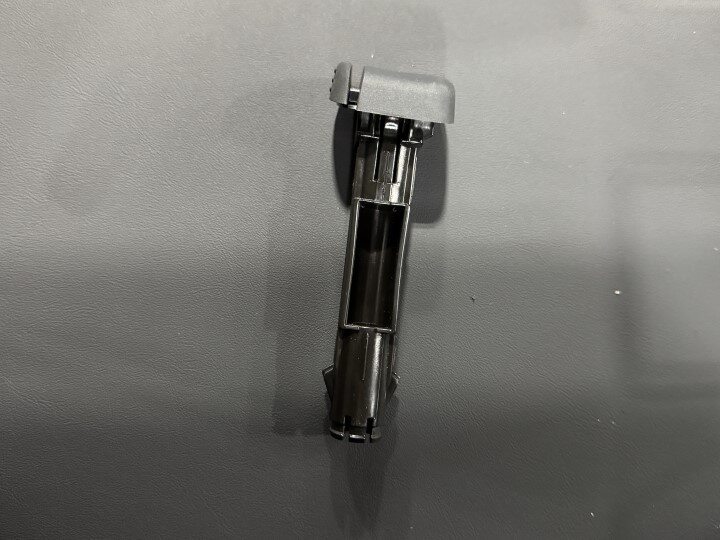

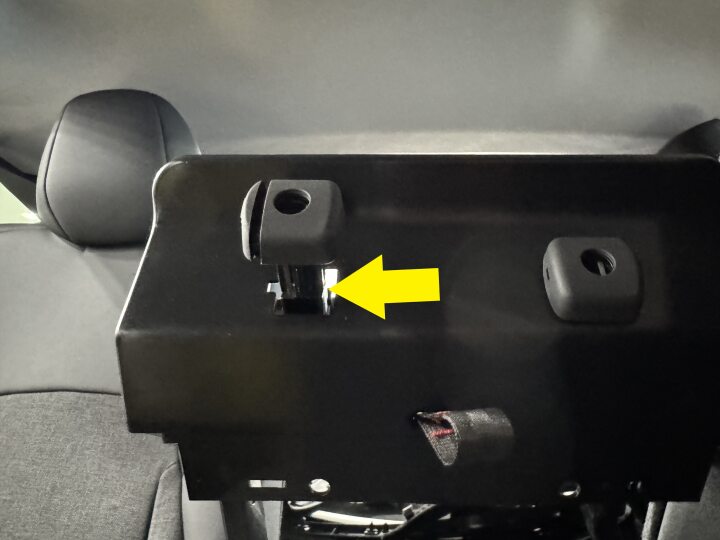

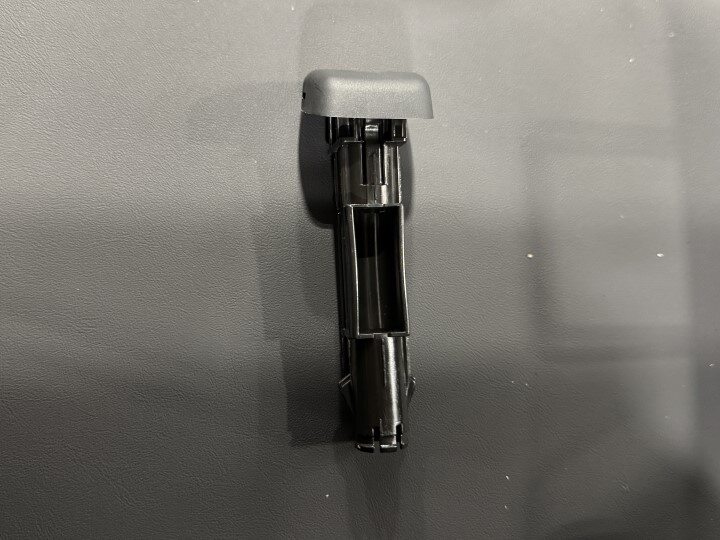

  7. Remove LH 2nd row center headrest guide
    Informational PurposesAn informational icon, calling your attention
    Note
    Depress tabs then slide upwards to release from square tube

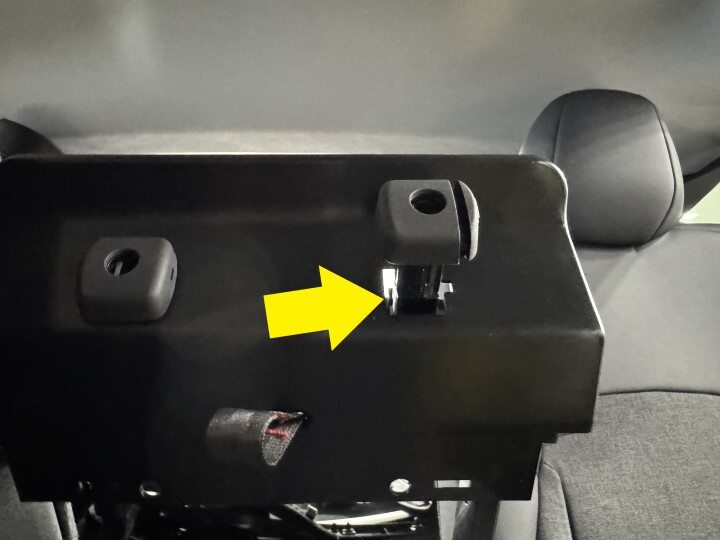

  8. Remove RH 2nd row center headrest guide
    Informational PurposesAn informational icon, calling your attention
    Note
    Depress tabs then slide upwards to release from square tube

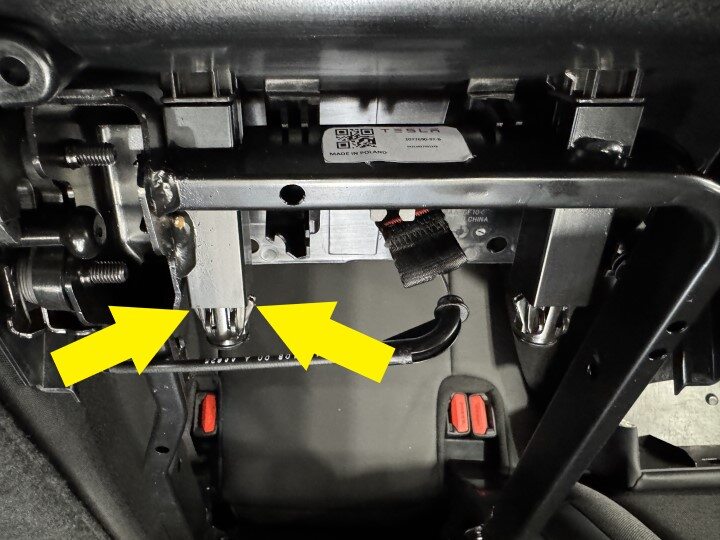

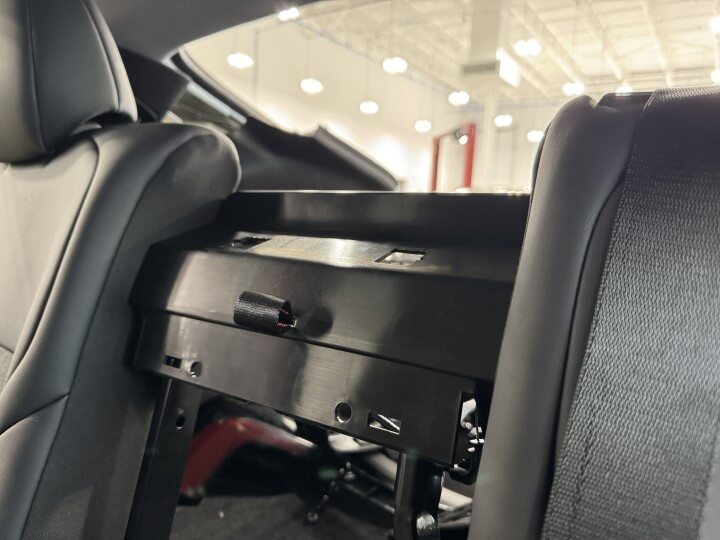

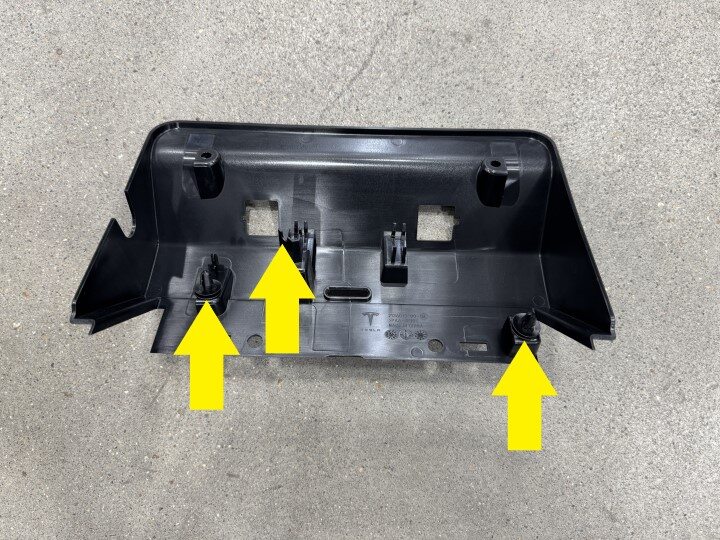

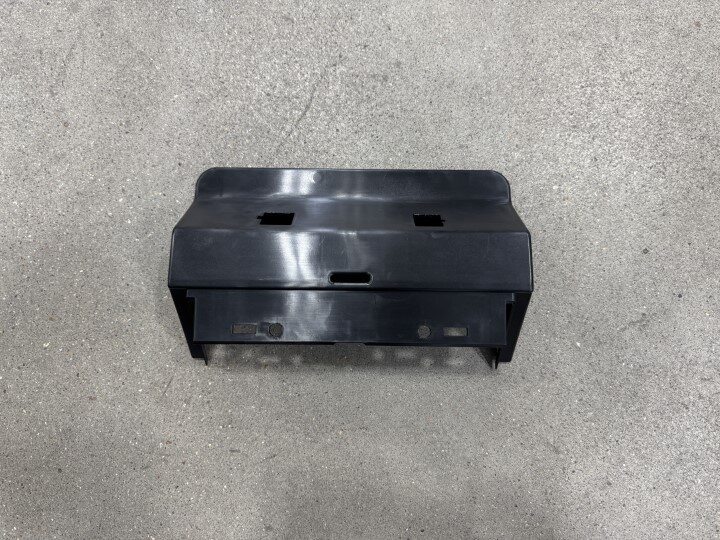

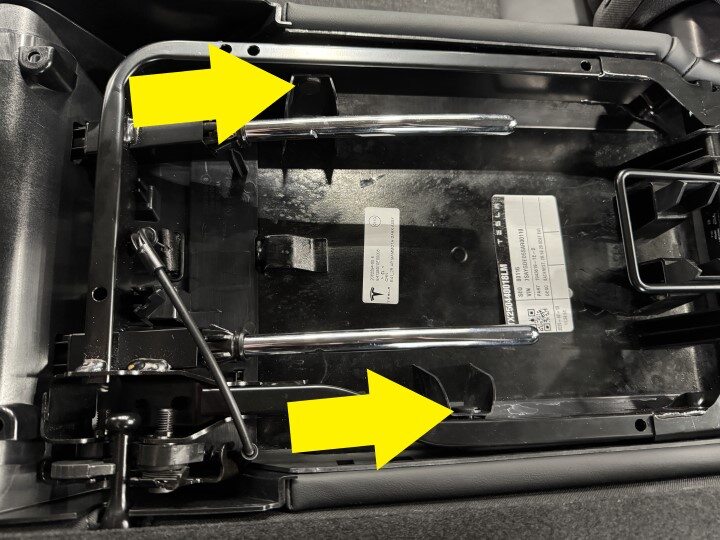

  9. Remove 2nd row armrest closeout
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, 1x cable clip
  10. Install 2nd row armrest closeout
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, 1x cable clip
  11. Install RH 2nd row center headrest guide
    Informational PurposesAn informational icon, calling your attention
    Note
    Push down square tube to secure, Ensure tabs are engaged
  12. Install LH 2nd row center headrest guide
    Informational PurposesAn informational icon, calling your attention
    Note
    Push down square tube to secure, Ensure tabs are engaged
  13. Secure 2nd row armrest trim
    Informational PurposesAn informational icon, calling your attention
    Note
    2x push clips, 2x clips, 2x hooks, Rotate trim upwards to engage hooks, Secure clips then rotate frame down
  14. Install 2nd row center back panel
    Informational PurposesAn informational icon, calling your attention
    Note
    6x clips, 2x hooks, Engage hooks then rotate into position, Replace any missing or damaged clips
  15. Return 2nd row armrest to vertical position
    Informational PurposesAn informational icon, calling your attention
    Note
    Ensure latch engages
  16. Install 2nd row center headrest
    Informational PurposesAn informational icon, calling your attention
    Note
    Push down to secure
  17. Raise LH rear window
  18. Close LH rear door
