Steering Column Assembly (Model Y Standard) (Remove and Install)

Correction code New NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.
  • 2025-10-02: Released new procedure.

Remove

  1. Open LH front door
  2. Lower LH front window
  3. Move LH front seat backward
    Informational PurposesAn informational icon, calling your attention
    Note
    Via UI > Seat Controls, Use steering wheel scroll wheel as needed
  4. Set steering wheel
    Informational PurposesAn informational icon, calling your attention
    Note
    Pull the lever down, move the steering wheel to lowest position and fully extend it outward and lift the lever back up until it locks
  5. Open hood

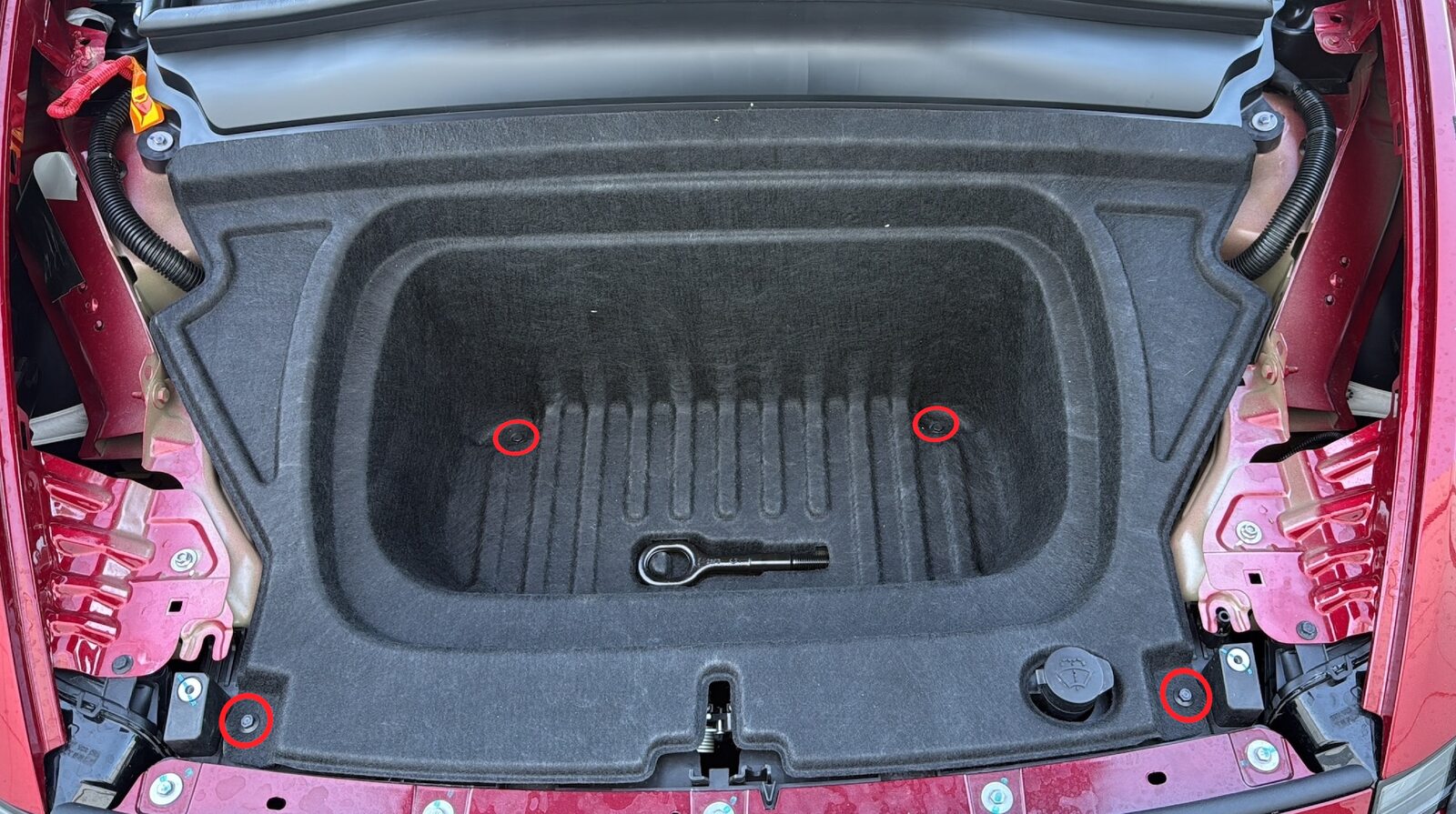

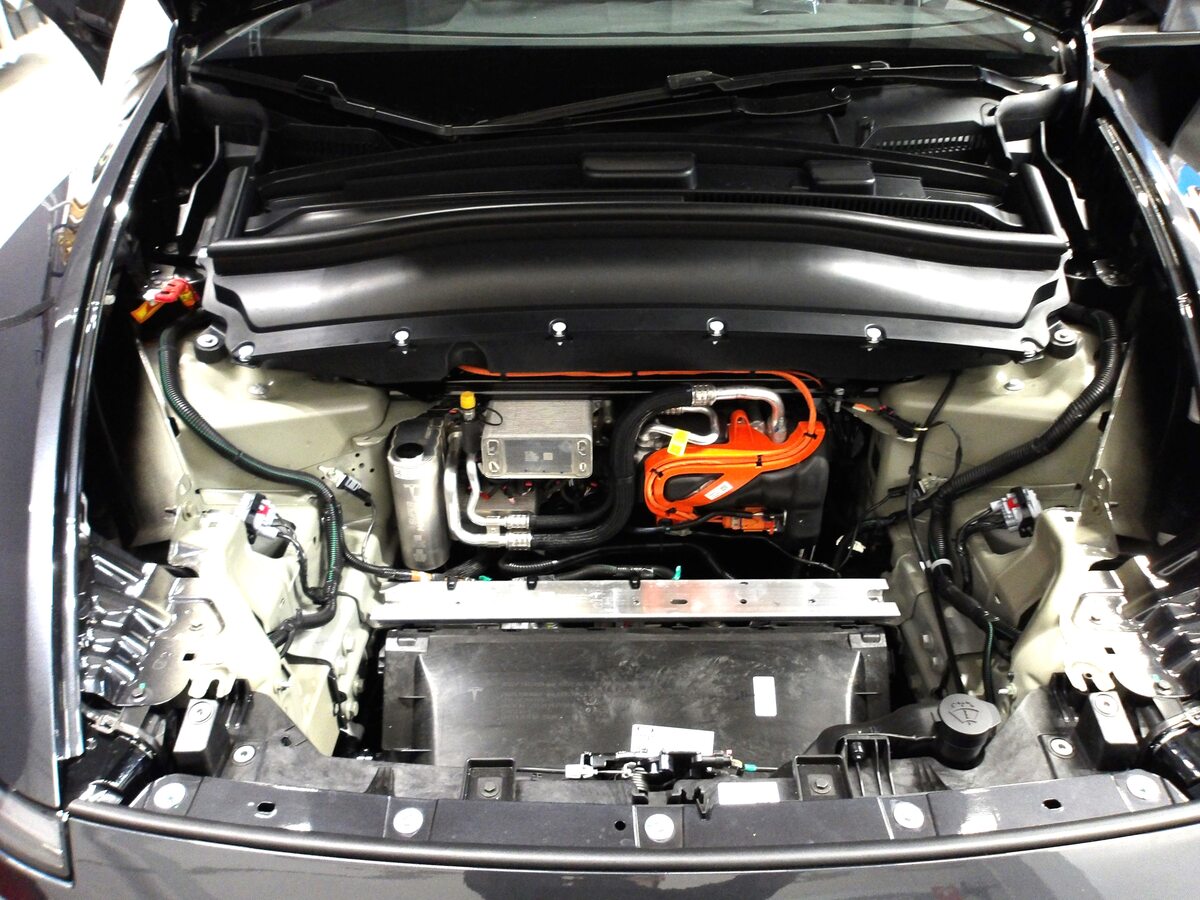

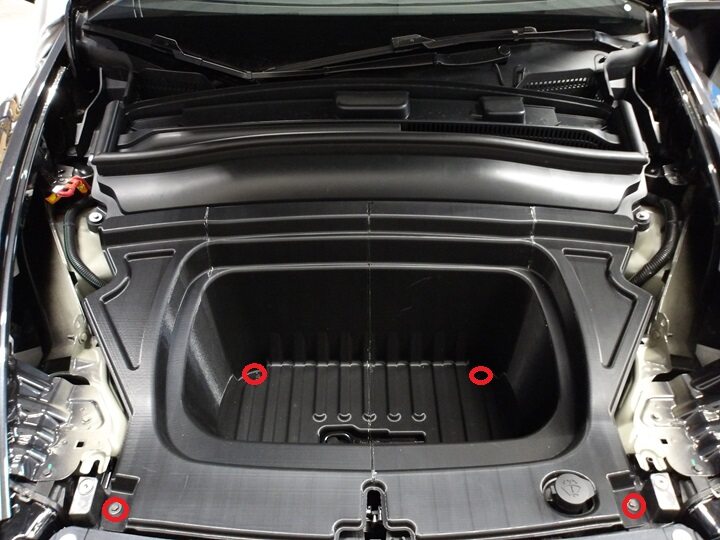

  6. Remove fasteners securing frunk assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    4x bolts, 10mm, 5 Nm
  7. Disconnect the LV battery power. See LV Power (Disconnect and Connect) (Modify).
  8. Remove the driver airbag. See Airbag - Driver (Remove and Replace).
  9. Remove the steering wheel. See Steering Wheel (Remove and Install).
  10. Remove the steering column lower shroud. See Steering Column Shroud Lower (Model Y Standard) (Remove and Install).
  11. Remove the steering column upper shroud. See Steering Column Shroud Upper (Model Y Standard) (Remove and Install).
  12. Remove the steering column control module. See Steering Column Control Module (Model Y Standard) (Remove and Install).
  13. Remove the steering column lower gap hider. See Steering Column Gap Hider Lower (Model Y Standard) (Remove and Install).
  14. Remove the steering column upper gap hider. See Steering Column Gap Hider Upper (Model Y Standard) (Remove and Install).

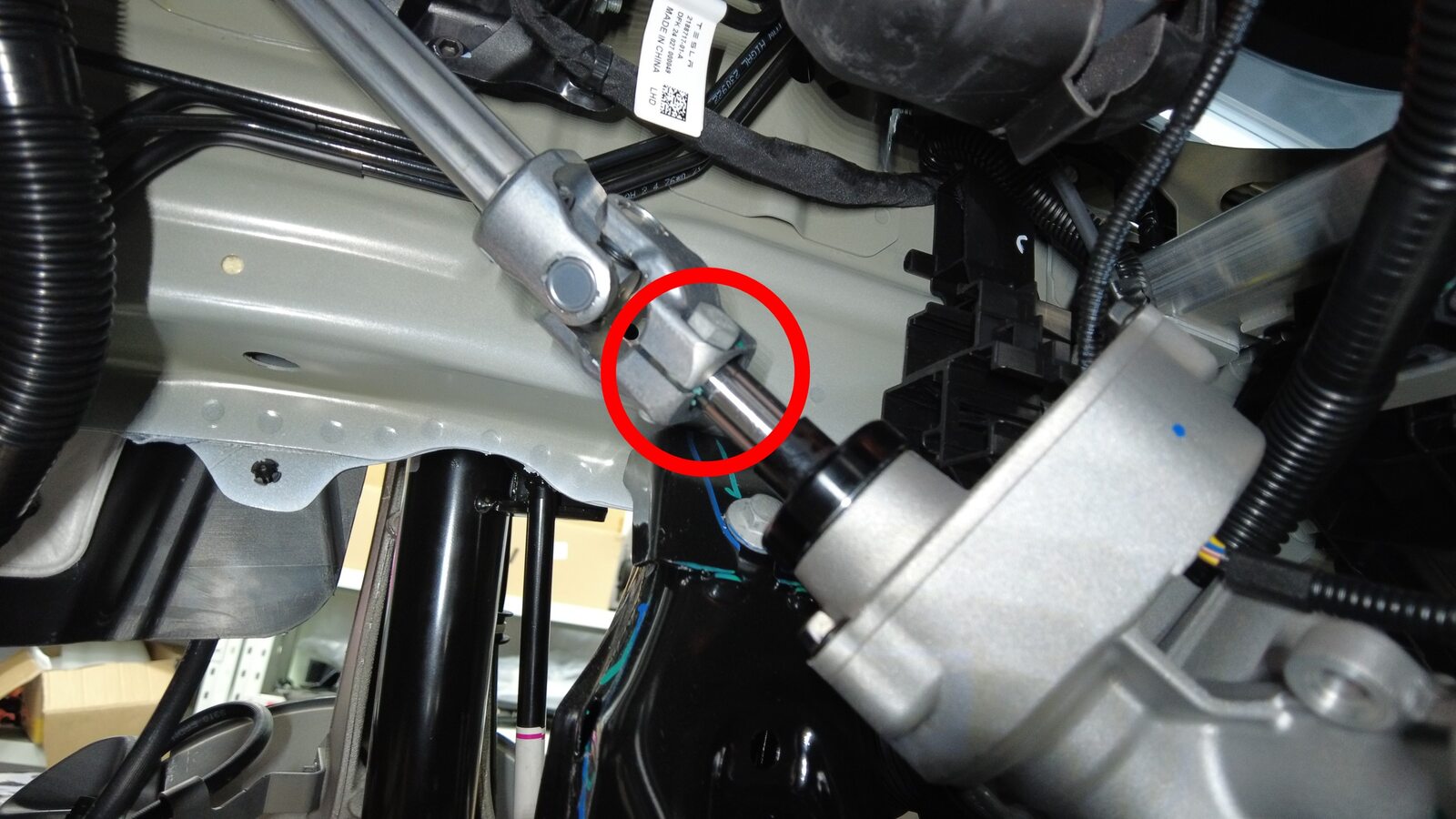

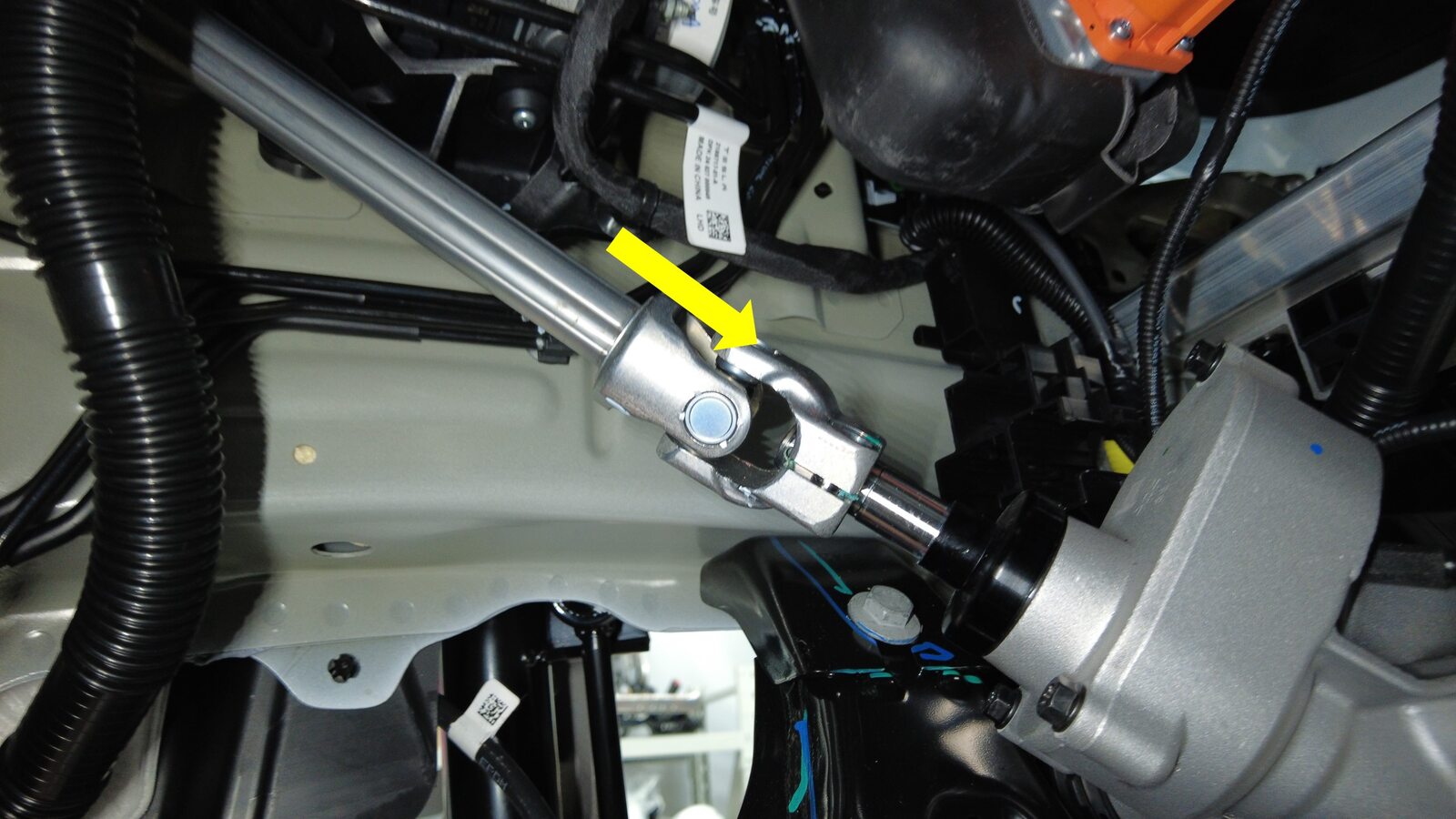

  15. Remove bolt securing steering column to steering gear assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 13mm, 18 Nm, Discard fastener after removal

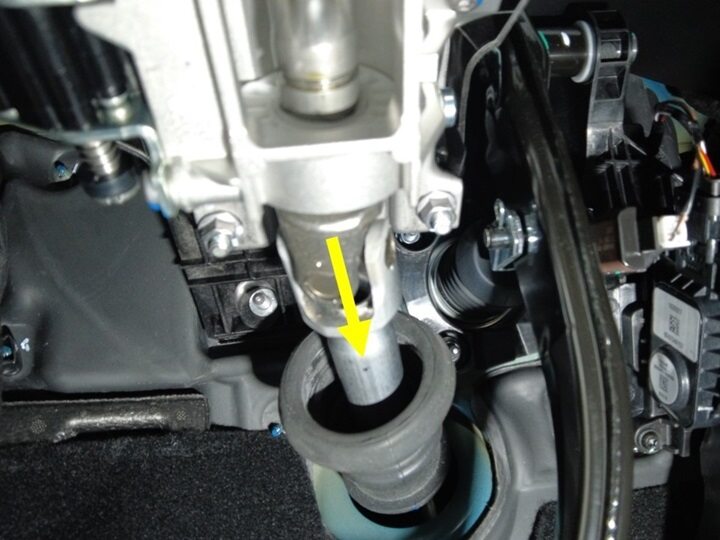

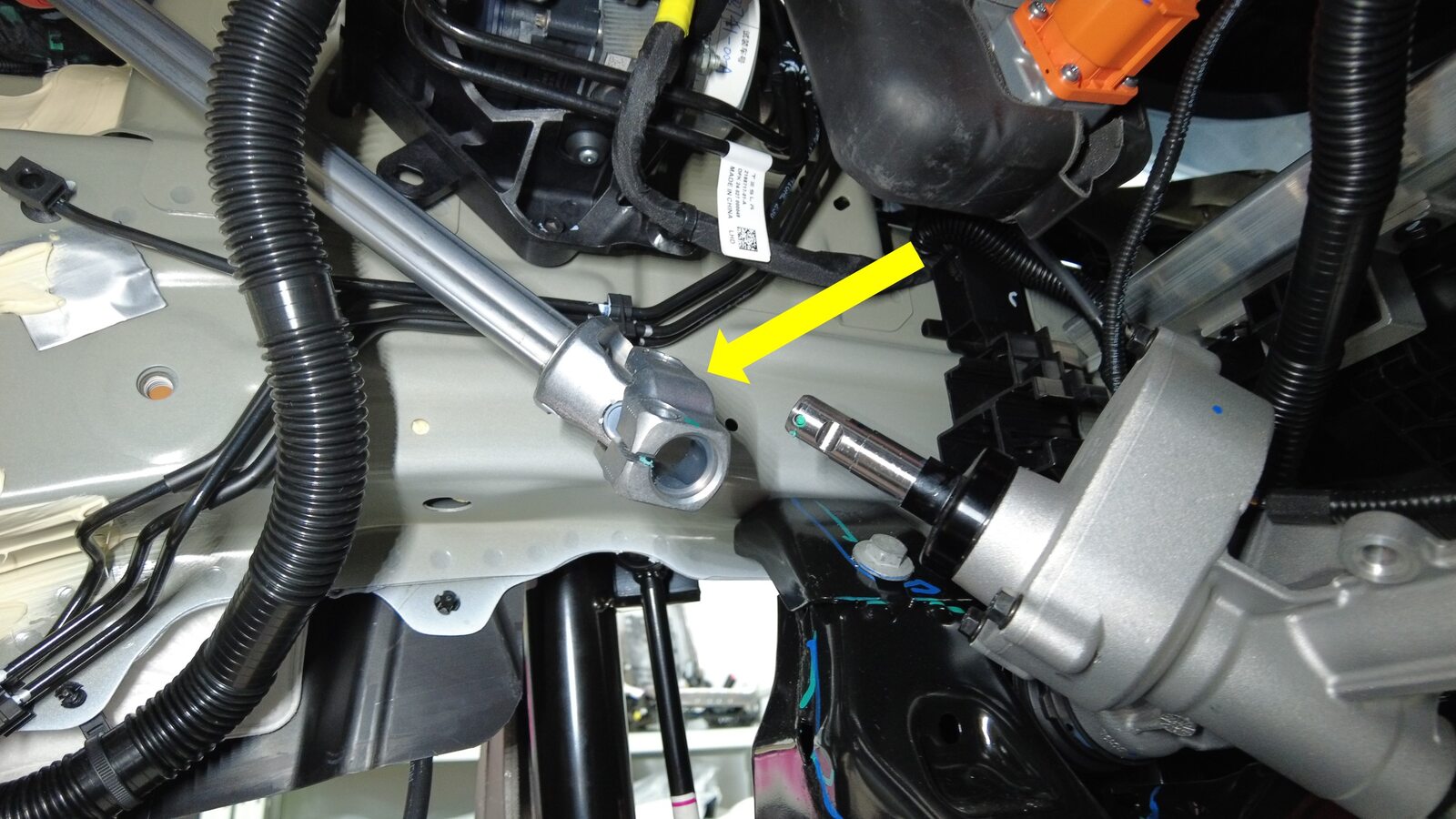

  16. Disconnect steering column from steering gear assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    Slide steering column upward from steering gear assembly to disconnect

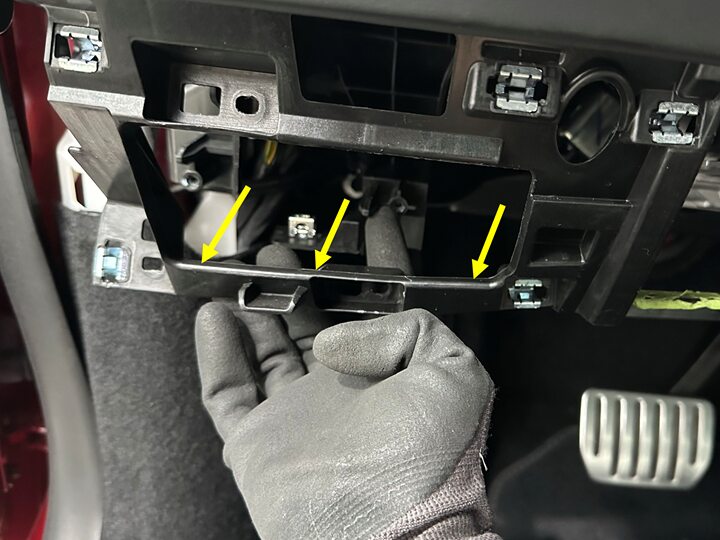

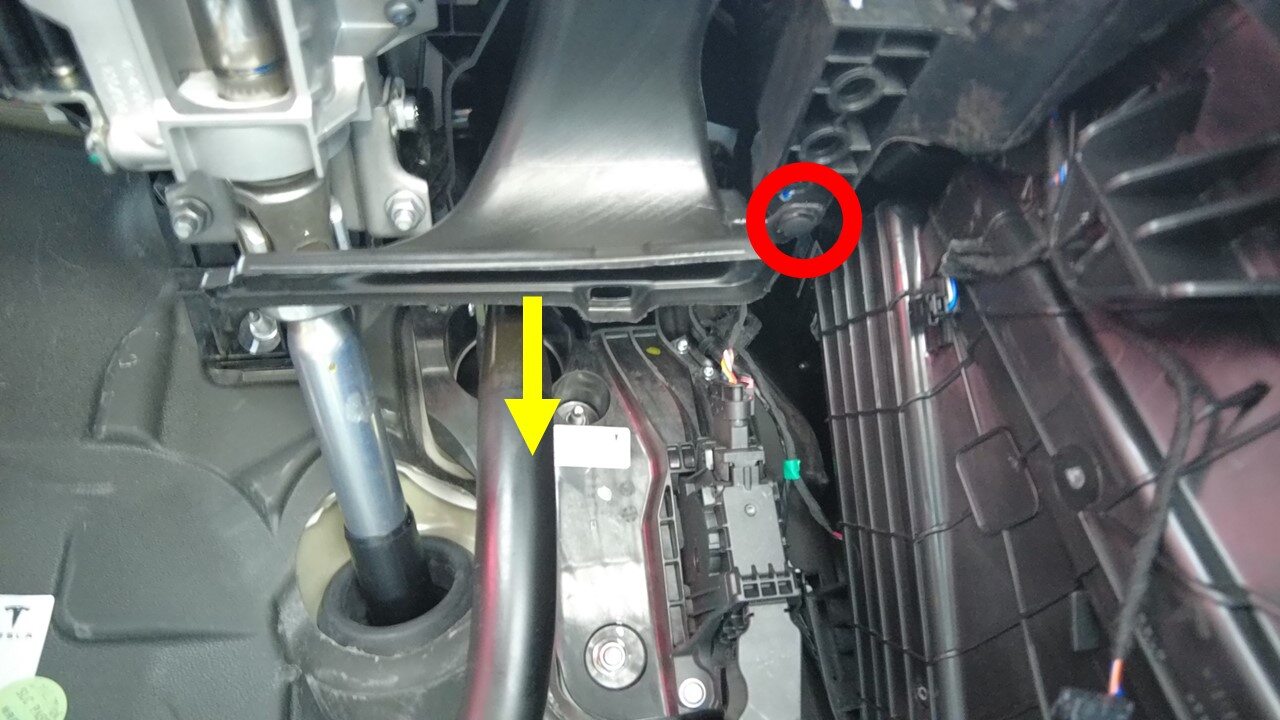

  17. Remove LH footwell duct from HVAC module
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip, Pull LH footwell duct towards LH side of vehicle to remove

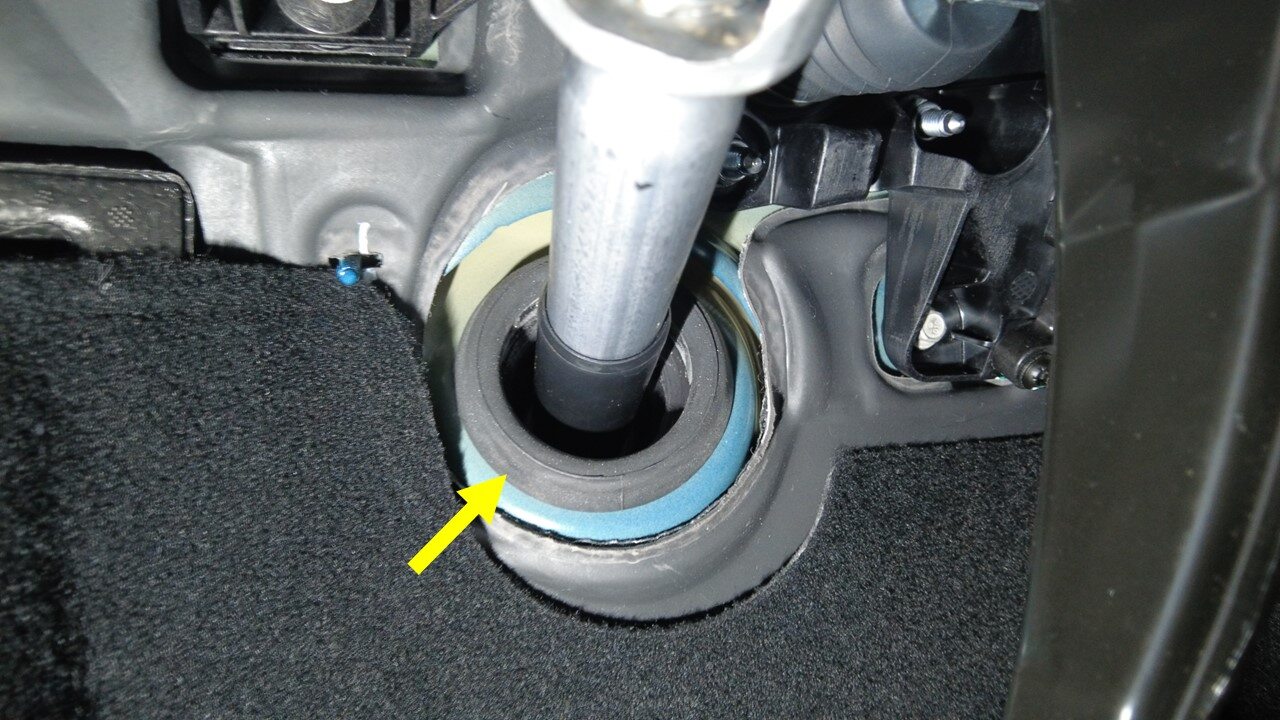

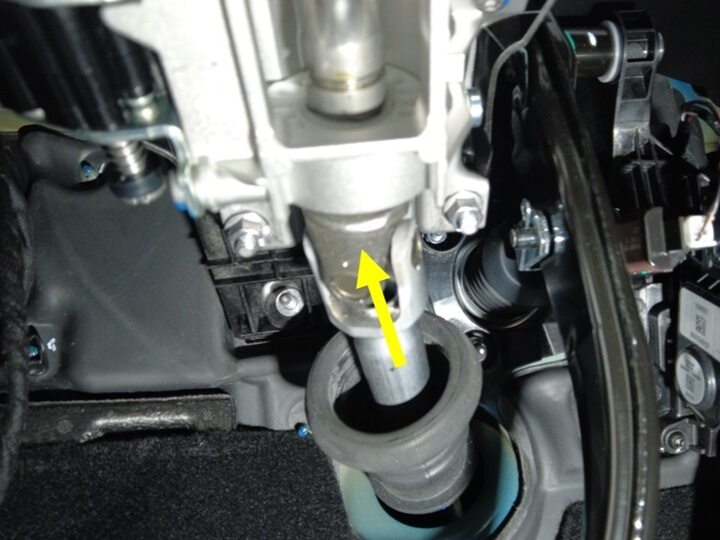

  18. Release steering shaft boot from bulkhead and pull into vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    Release from one point and work your way around

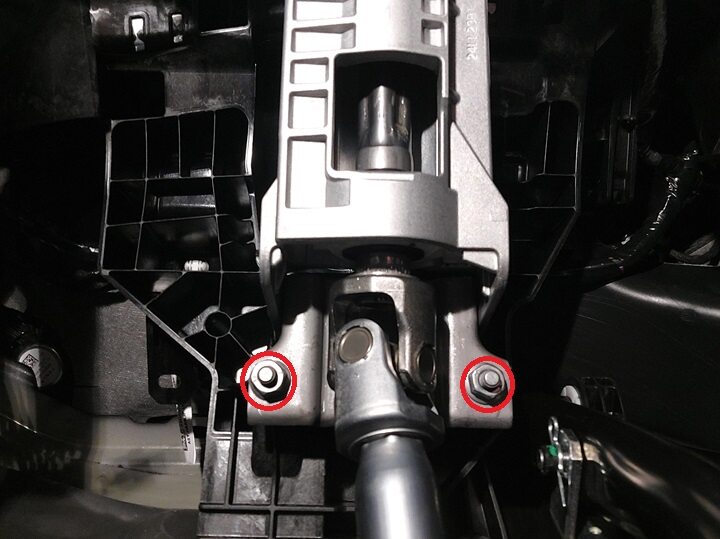

  19. Remove lower nuts securing steering column to cross car beam
    Informational PurposesAn informational icon, calling your attention
    Note
    2x nuts, 13mm, 15 Nm

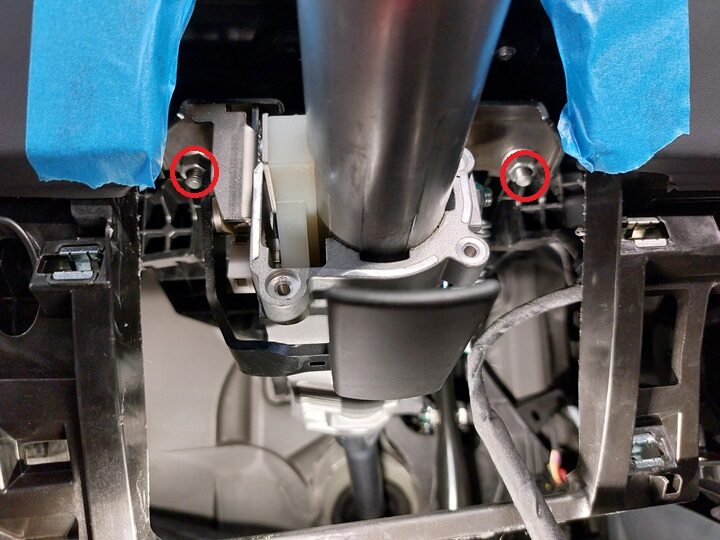

  20. Remove upper nuts securing steering column to cross car beam
    Informational PurposesAn informational icon, calling your attention
    Note
    2x nuts, 13mm, 15 Nm

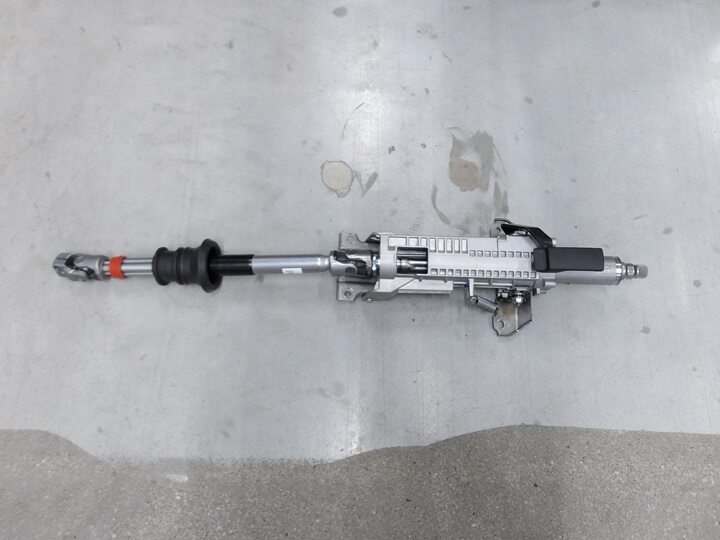

  21. Remove steering column from vehicle
    Informational PurposesAn informational icon, calling your attention
    Note
    Push the steering column slightly rearward, lower it fully, then pull it outward. Ensure it moves freely and is not Blocked by the instrument panel trim

Install

  1. Position steering column into place for installation
    Informational PurposesAn informational icon, calling your attention
    Note
    Insert the steering shaft through the bulkhead and align it properly for installation
  2. Install lower nuts securing steering column to cross car beam
    Informational PurposesAn informational icon, calling your attention
    Note
    2x nuts, 13mm, 15 Nm
  3. Install upper nuts securing steering column to cross car beam
    Informational PurposesAn informational icon, calling your attention
    Note
    2x nuts, 13mm, 15 Nm

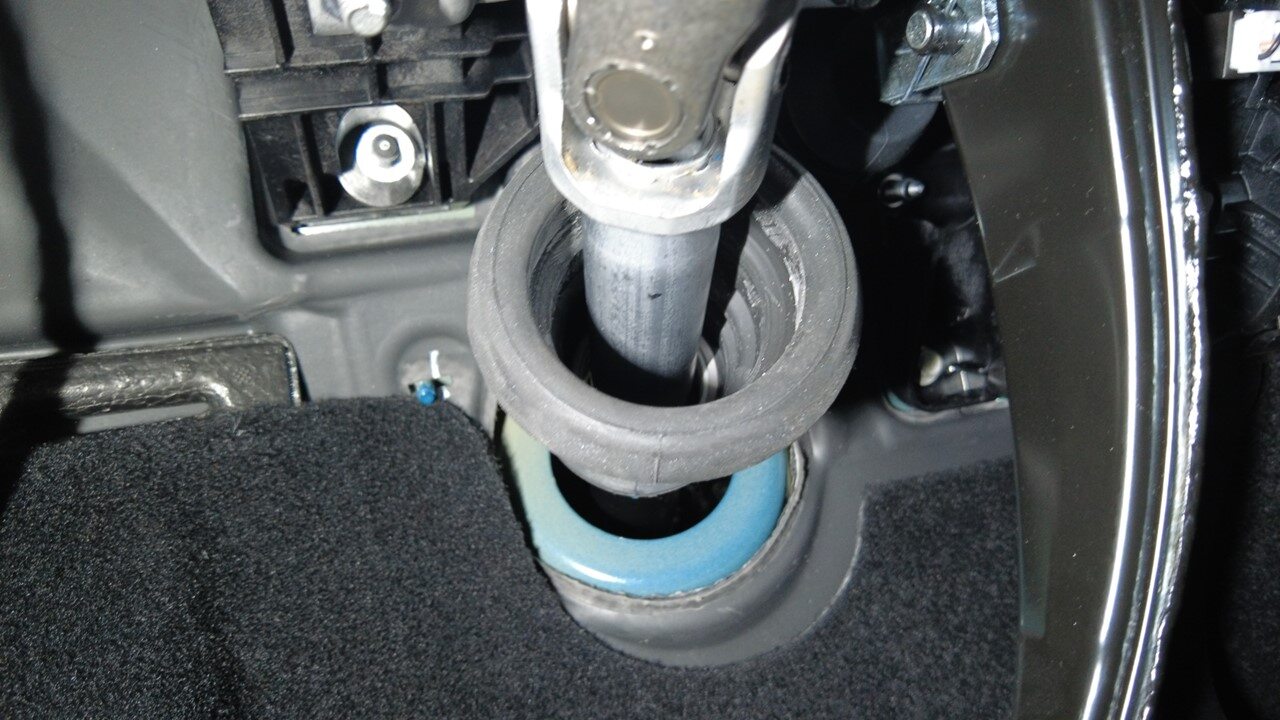

  4. Secure steering shaft boot into position on bulkhead
    Informational PurposesAn informational icon, calling your attention
    Note
    Apply pressure along seal to verify it is fully seated
  5. Install LH footwell duct to HVAC module
    Informational PurposesAn informational icon, calling your attention
    Note
    1x push clip
  6. Connect steering column to steering gear assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    Slide steering column downward to install steering gear assembly, Ensure the intermediate shaft is aligned and fully seated
  7. Install bolt securing steering column to steering gear assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    1x bolt, 13mm, 18 Nm, Install new bolt
  8. Install the steering column upper gap hider. See Steering Column Gap Hider Upper (Model Y Standard) (Remove and Install).
  9. Install the steering column lower gap hider. See Steering Column Gap Hider Lower (Model Y Standard) (Remove and Install).
  10. Install the steering column control module. See Steering Column Control Module (Model Y Standard) (Remove and Install).
  11. Install the steering column upper shroud. See Steering Column Shroud Upper (Model Y Standard) (Remove and Install).
  12. Install the steering column lower shroud. See Steering Column Shroud Lower (Model Y Standard) (Remove and Install).
  13. Install the steering wheel. See Steering Wheel (Remove and Install).
  14. Install the driver airbag. See Airbag - Driver (Remove and Replace).
  15. Reconnect LV battery power. See LV Power (Disconnect and Connect) (Modify).
  16. Install fasteners securing base frunk assembly
    Informational PurposesAn informational icon, calling your attention
    Note
    4x bolts, 10mm, 5 Nm
  17. Move LH front seat to original position
    Informational PurposesAn informational icon, calling your attention
    Note
    Via UI > Seat Controls, Use steering wheel scroll wheel as needed
  18. Set steering wheel to original position
    Informational PurposesAn informational icon, calling your attention
    Note
    Pull the lever down, move the steering wheel to Original , lift the lever back up until it locks
  19. Raise LH front window
  20. Close LH front door
