Diffuser - Rear Fascia (Remove and Replace)

Correction code 1203020302 0.36 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2025-11-27: Updated the torque for the outside bolts (x2) securing the rear fascia diffuser to the body from 5 Nm to 4 Nm.

Torque Specifications

Table 1. Torque Specifications: Diffuser - Rear Fascia (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Center bolts (x5) that attach the rear fascia diffuser to the body
5 Nm (3.7 lbs-ft)
  • Socket 1/4in Dr. 6pt. Deep x 10mm
Reuse
Outside bolts (x2) that attach the rear fascia diffuser to the body
4 Nm (2.9 lbs-ft)
  • Socket 1/4in Dr. 6pt. Deep x 10mm
Reuse
Bolts (x2) that attach the rear fascia diffuser to the rear fascia
3 Nm (2.2 lbs-ft)
  • Torx T30 socket
  • Ratchet/torque wrench
Reuse

Remove

  1. Remove the mid aero shield panel. See Aero Shield - Rear (Remove and Replace).
  2. Release the clips (x6) that attach the diffuser to the LH and RH rear wheel arch liners.
    Figure 1. LH shown, RH similar
  3. Use a small flat head screwdriver to open the fastener covers (x2).

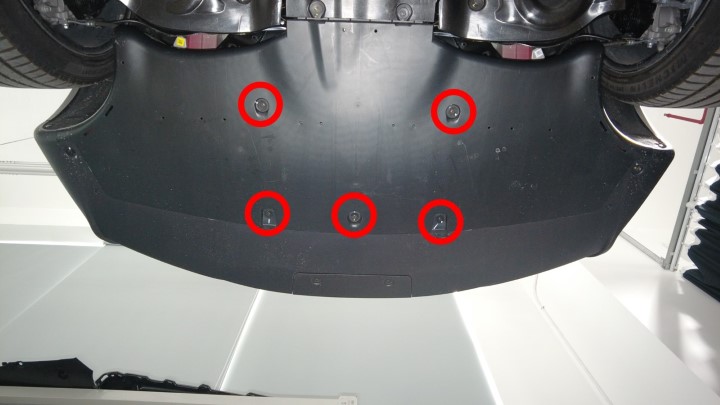

  4. Remove the center bolts (x5) that attach the rear fascia diffuser to the body.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Socket 1/4in Dr. 6pt. Deep x 10mm
  5. Remove the outside bolts (x2) that attach the rear fascia diffuser to the body.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Socket 1/4in Dr. 6pt. Deep x 10mm
  6. Remove the bolts (x2) that attach the rear fascia diffuser to the rear fascia.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T30 socket
    • Ratchet/torque wrench
    Figure 2. LH shown, RH similar
  7. Release the tabs (x9) that attach the rear fascia diffuser to the rear fascia, and then remove the diffuser from the vehicle.

Install

  1. Install the tabs (x9) that attach the rear fascia diffuser to the rear fascia.
  2. Install the bolts (x2) that attach the rear fascia diffuser to the rear fascia.
    3 Nm (2.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T30 socket
    • Ratchet/torque wrench
    Figure 3. LH shown, RH similar
  3. Apply a thin bead of Loctite 222 to the threads of the bolts that attach the rear fascia diffuser to the vehicle.
  4. Install the outside bolts (x2) that attach the rear fascia diffuser to the body.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
  5. Install the center bolts (x5) that attach the rear fascia diffuser to the body.
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Socket 1/4in Dr. 6pt. Deep x 10mm
  6. Install the fastener covers (x2).
  7. Install the clips (x6) that attach the diffuser to the LH and RH rear wheel arch liners.
    Figure 4. LH shown, RH similar
  8. Install the mid aero shield panel. See Aero Shield - Rear (Remove and Replace).
