Front Bumper Beam (Model Y Standard) (Remove and Install)

Correction code TBD FRT 0.55 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.

Torque Specifications

Table 1. Torque Specifications:Front Bumper Beam (Model Y Standard) (Remove and Install)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolts (X4) securing front bumper beam to crush cans
40 Nm (29.5 lbs-ft)
  • Socket 3/8in Dr. 6pt. Std. x 15mm
  • Cordless 3/8in Dr Ratchet
  • TORQUE WRENCH, DIGITAL+ANGLE, 3/8" DR, FLEX HEAD, 13.5~135Nm
 Replace 1536481-00-A

Remove

  1. Remove the HEPA or big basin assembly. See HEPA Filter Assembly (Remove and Replace) or Cowl Assembly (Model Y Standard) (Remove and Replace).
  2. Remove front fascia assembly from vehicle. See Front Fascia (Remove and Install).
  3. Disconnect LV Battery. See LV Power (Modify).
  4. Remove LH accelerometer sensor from bumper beam. See Bumper Beam Accelerometer Sensor - LH (Remove and Replace).

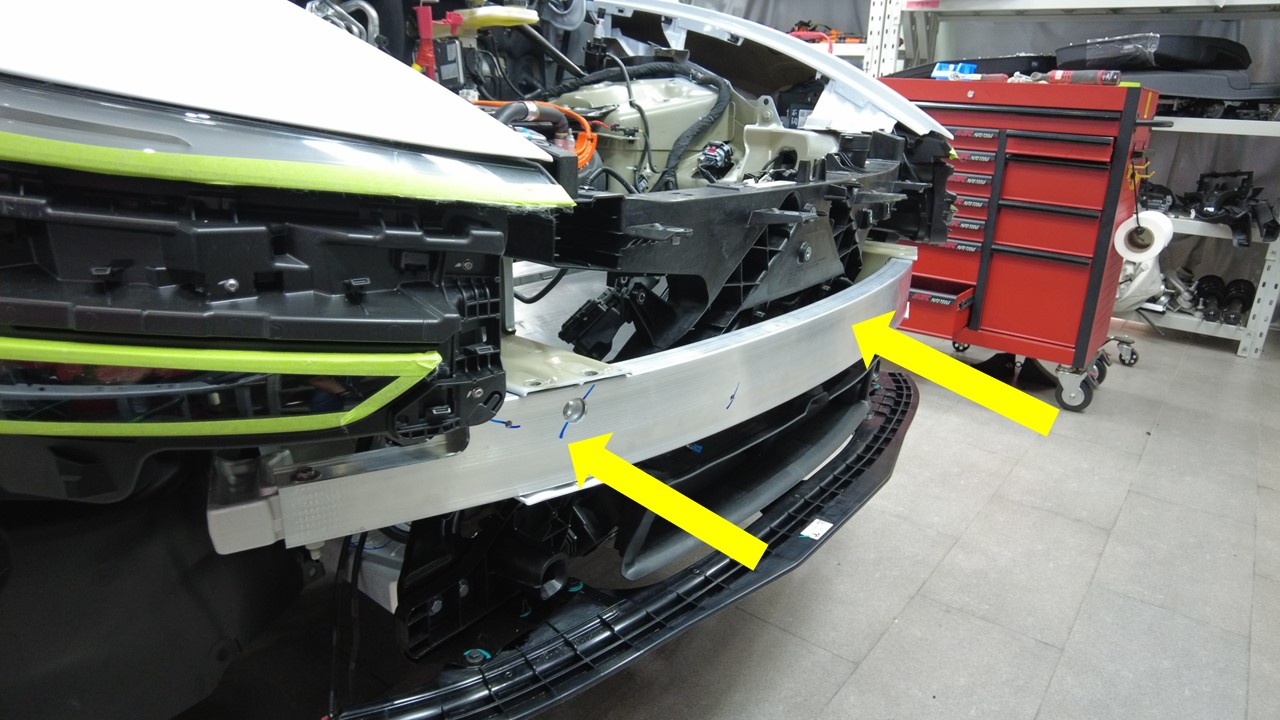

  5. Remove and discard the bolts (x4) that attach the front bumper beam to the LH and RH crush cans.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Socket 3/8in Dr. 6pt. Std. x 15mm
    • Cordless 3/8in Dr Ratchet
    • TORQUE WRENCH, DIGITAL+ANGLE, 3/8" DR, FLEX HEAD, 13.5~135Nm
  6. Use a pry bar to release the front bumper beam from the LH and RH crush cans.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Do not damage the body when prying the front bumper.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Slightly tap the front bumper beam with a dead blow hammer to assist with removal of the front bumper.
  7. Remove the front bumper beam from the vehicle.

Install

  1. Position the front bumper beam to the vehicle.
  2. Use a dead blow hammer to install the front bumper beam to the LH and RH crush cans.
  3. Install bolts securing front bumper beam to crush cans.
    40 Nm (29.5 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Socket 3/8in Dr. 6pt. Std. x 15mm
    • Cordless 3/8in Dr Ratchet
    • TORQUE WRENCH, DIGITAL+ANGLE, 3/8" DR, FLEX HEAD, 13.5~135Nm
  4. Install LH accelerometer sensors to bumper beam. See Bumper Beam Accelerometer Sensor - LH (Remove and Replace).
  5. Connect LV Battery. See LV Power (Modify).
  6. Install front fascia assembly to vehicle. See Front Fascia (Remove and Install).
  7. Install the HEPA or big basin assembly. See HEPA Filter Assembly (Remove and Replace) or Cowl Assembly (Model Y Standard) (Remove and Replace).
  8. Unlock vehicle gateway. See Gateway (Unlock).
  9. On the touchscreen, tap Driver Assist > Cameras > Clear Camera Calibration > Camera Input > Repeaters > Run, and close once the routine is passed.
  10. Exit Service Mode. See Service Mode.
  11. Turn steering wheel to center position.
  12. Raise LH front window and Close LH front door.
