Instrument Panel - Upper Assembly - LH (Model Y Standard) (Remove and Install)

Correction code NEW NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.NOTE: See Ergonomic Precautionsfor safe and healthy working practices.

Warning

This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.

2025-10-01: Released new procedure.

Remove

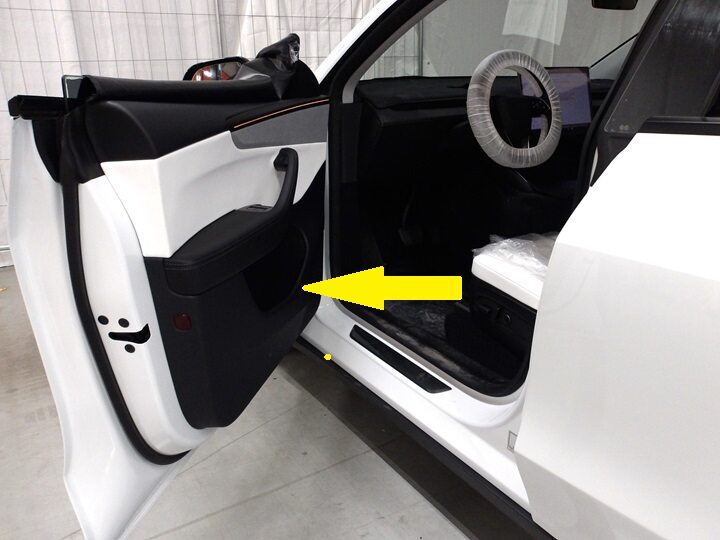

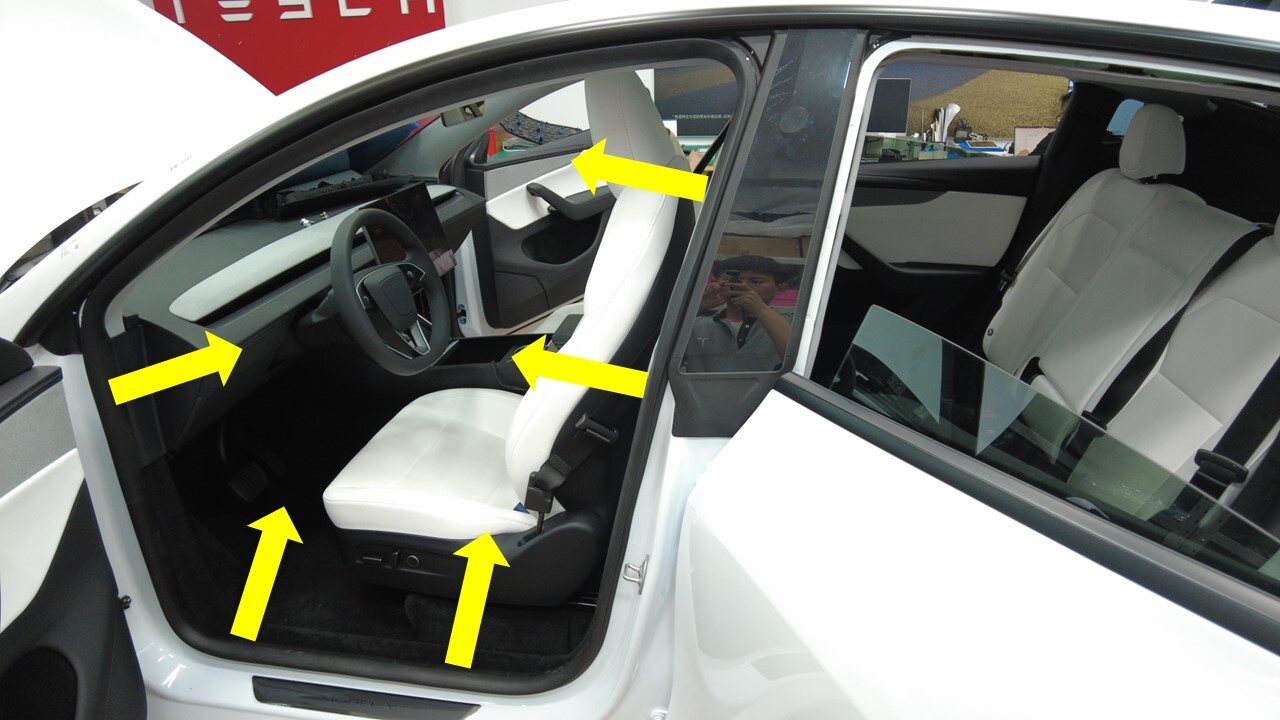

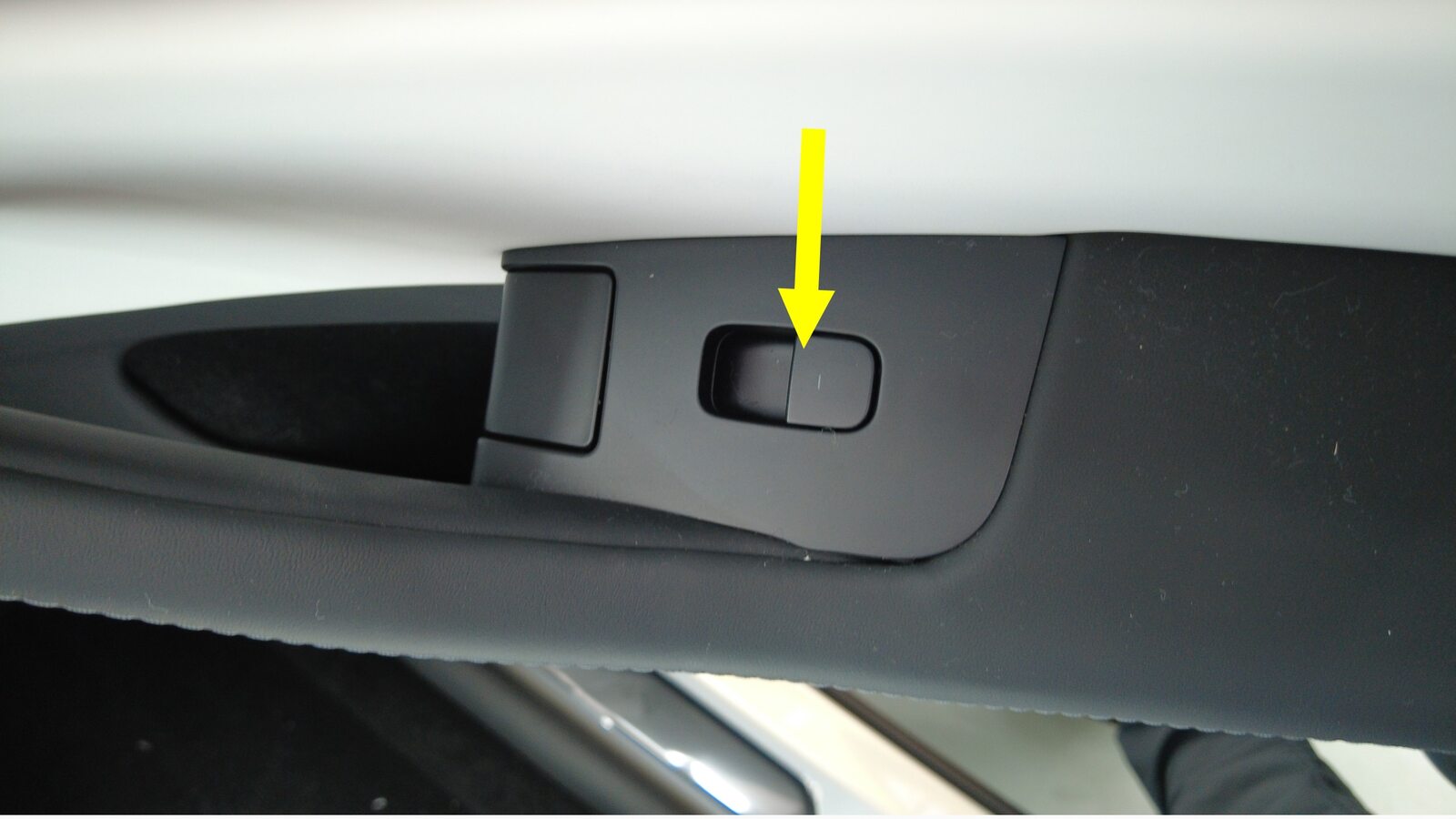

Open LH front door

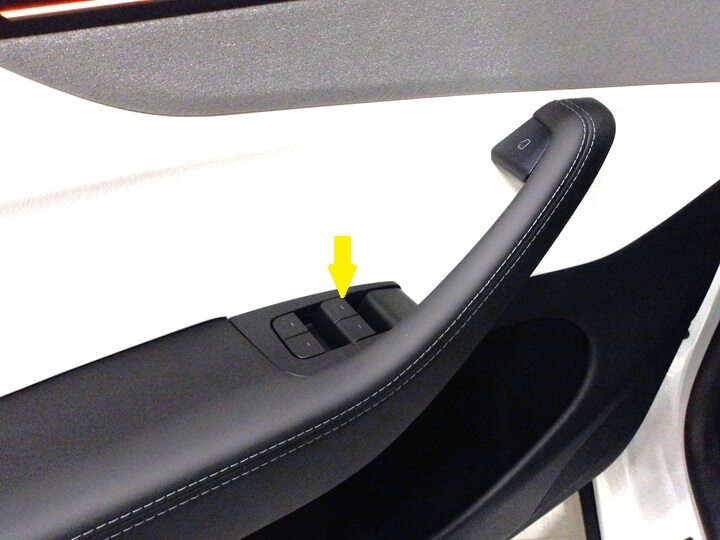

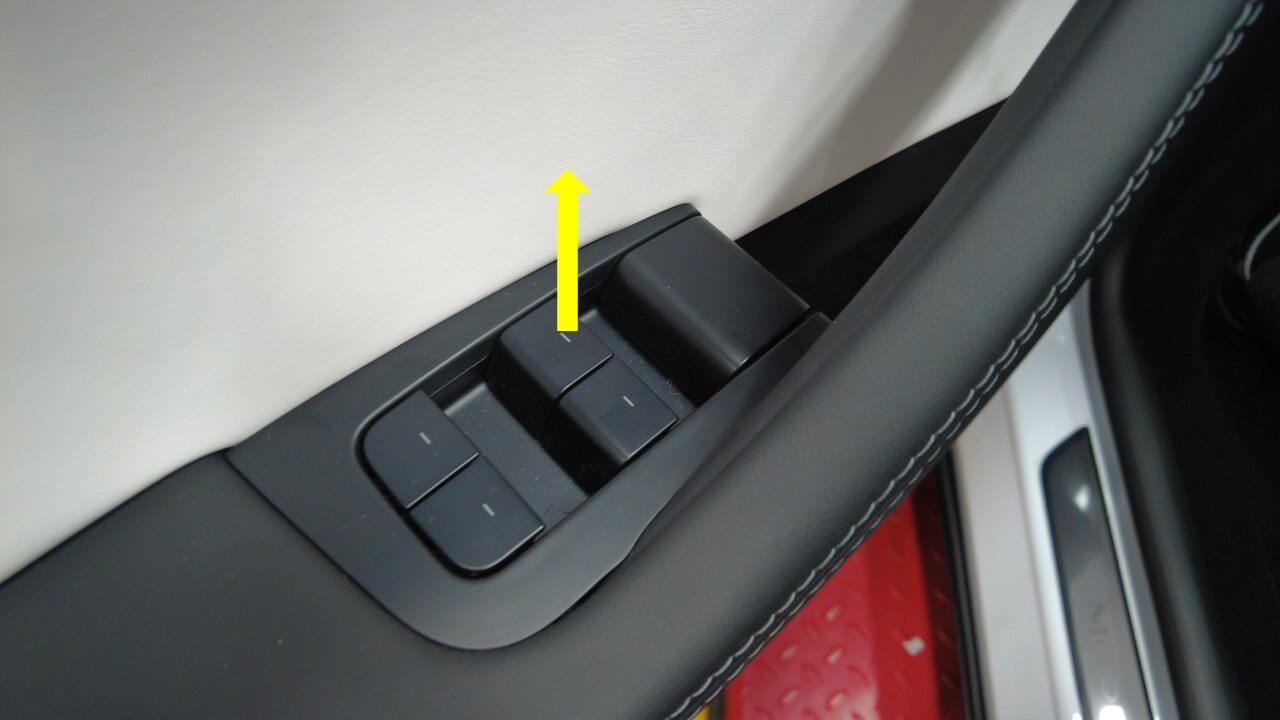

Lower LH front window

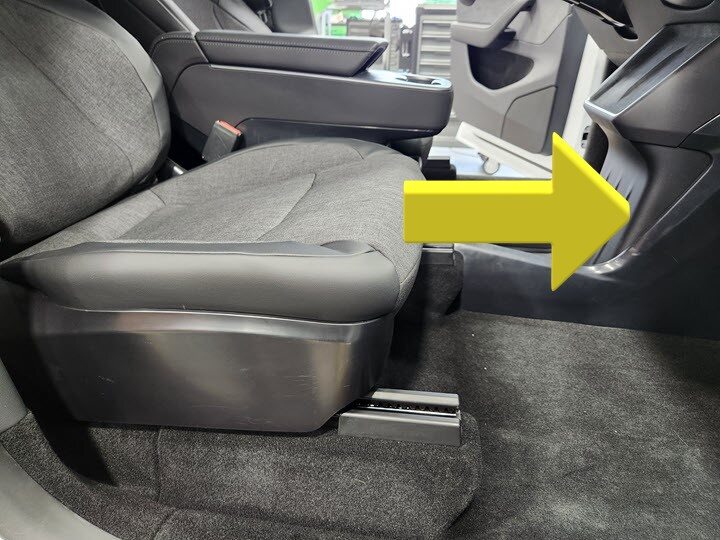

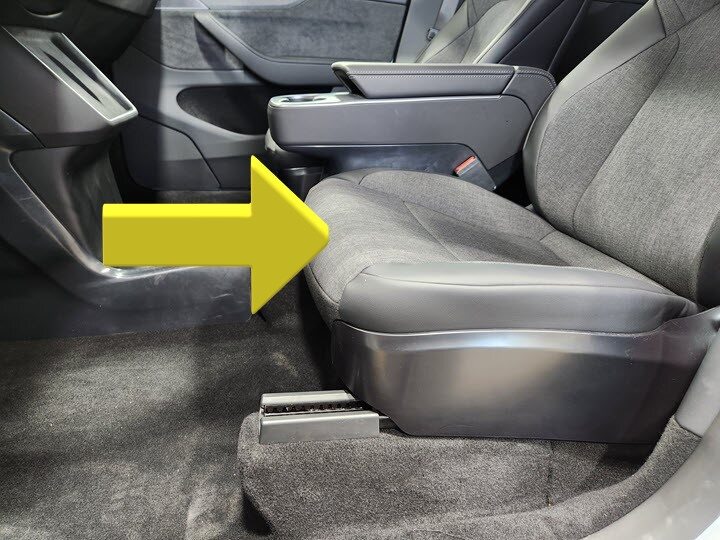

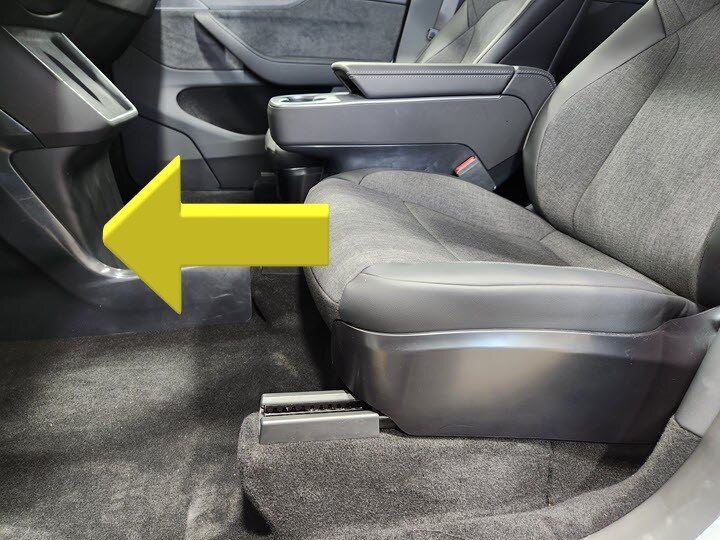

Move LH front seat backward

Note

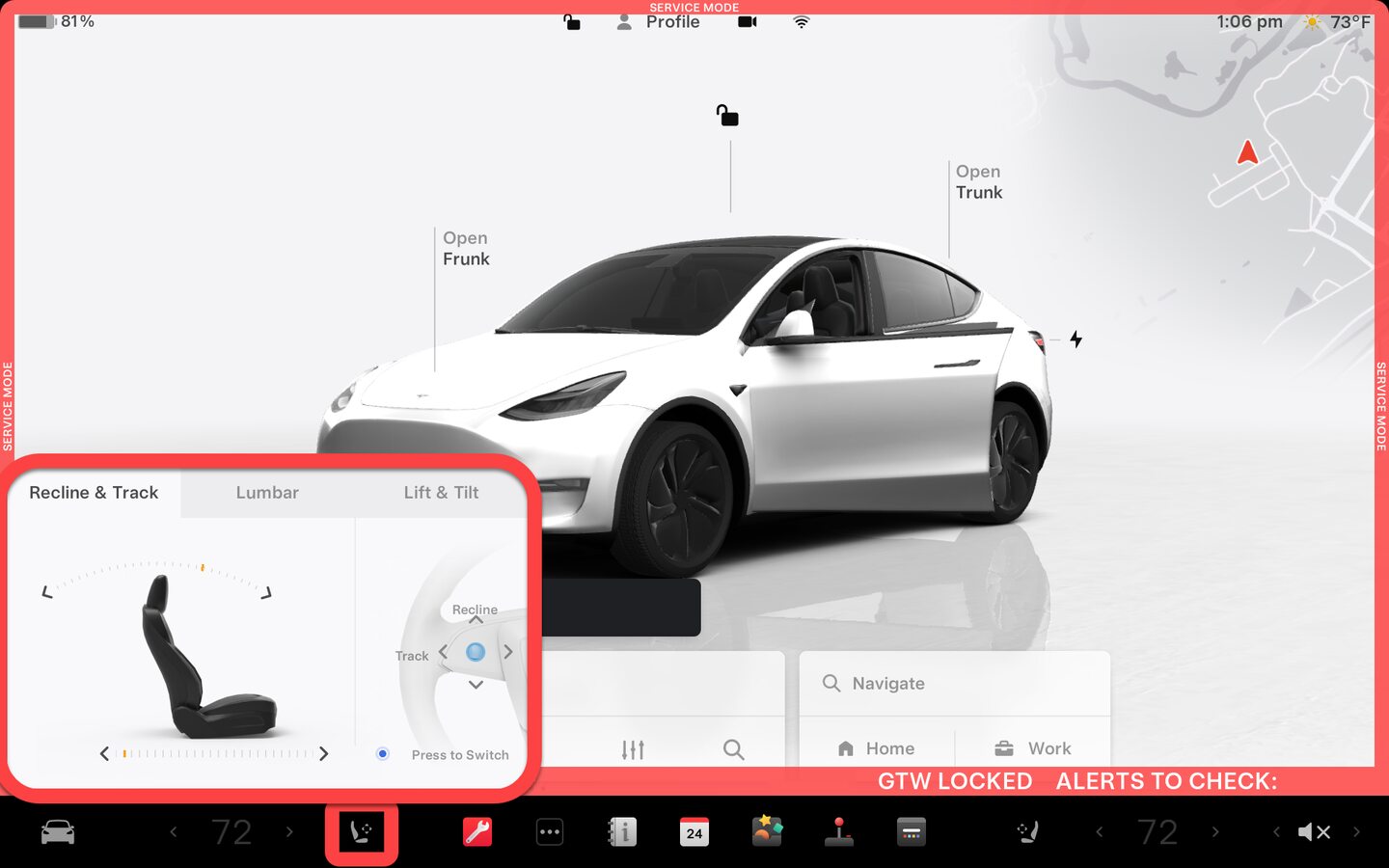

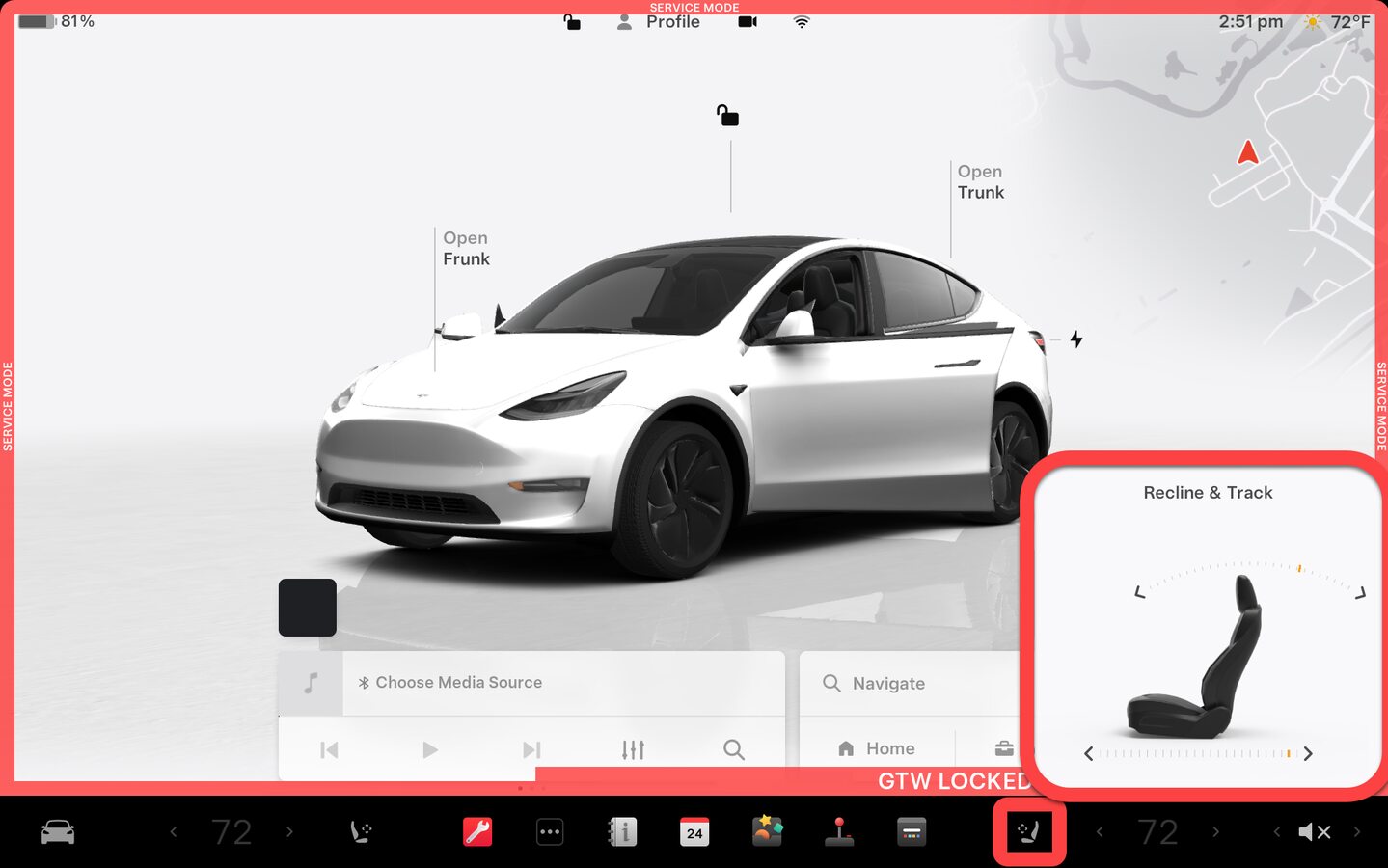

Via UI > Seat Controls, Use steering wheel scroll wheel as needed
Open RH front door

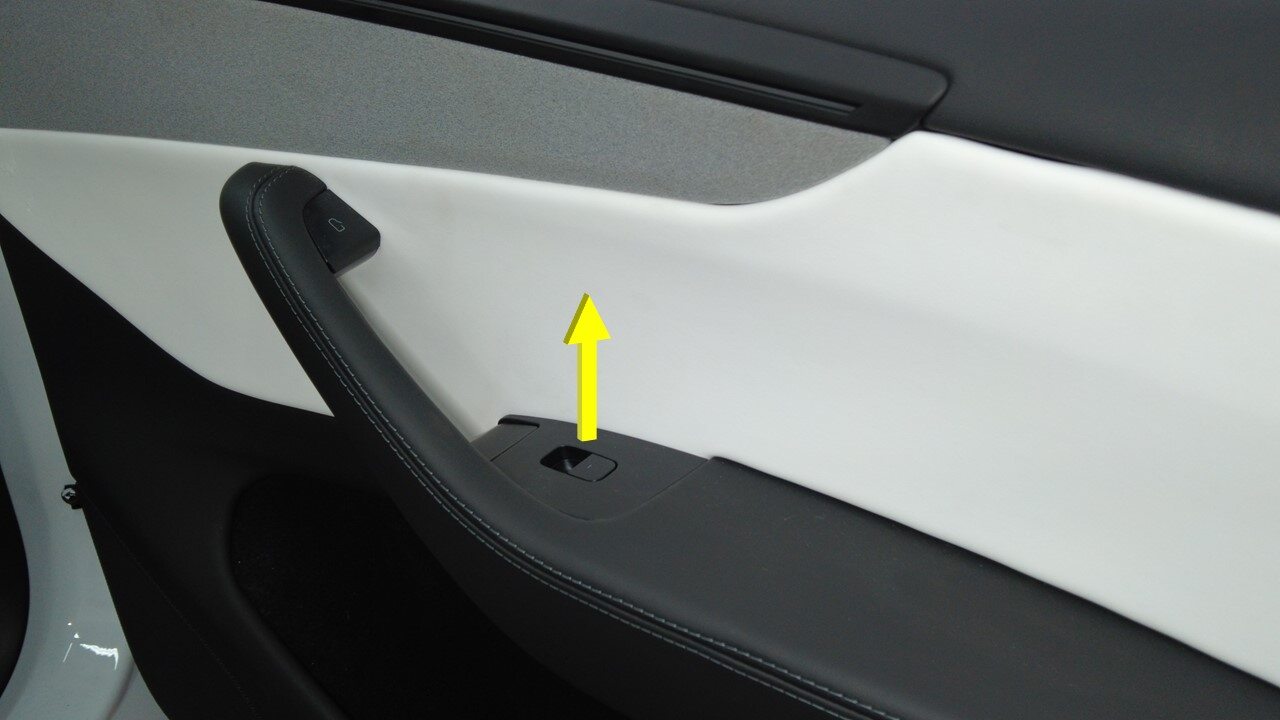

Lower RH front window

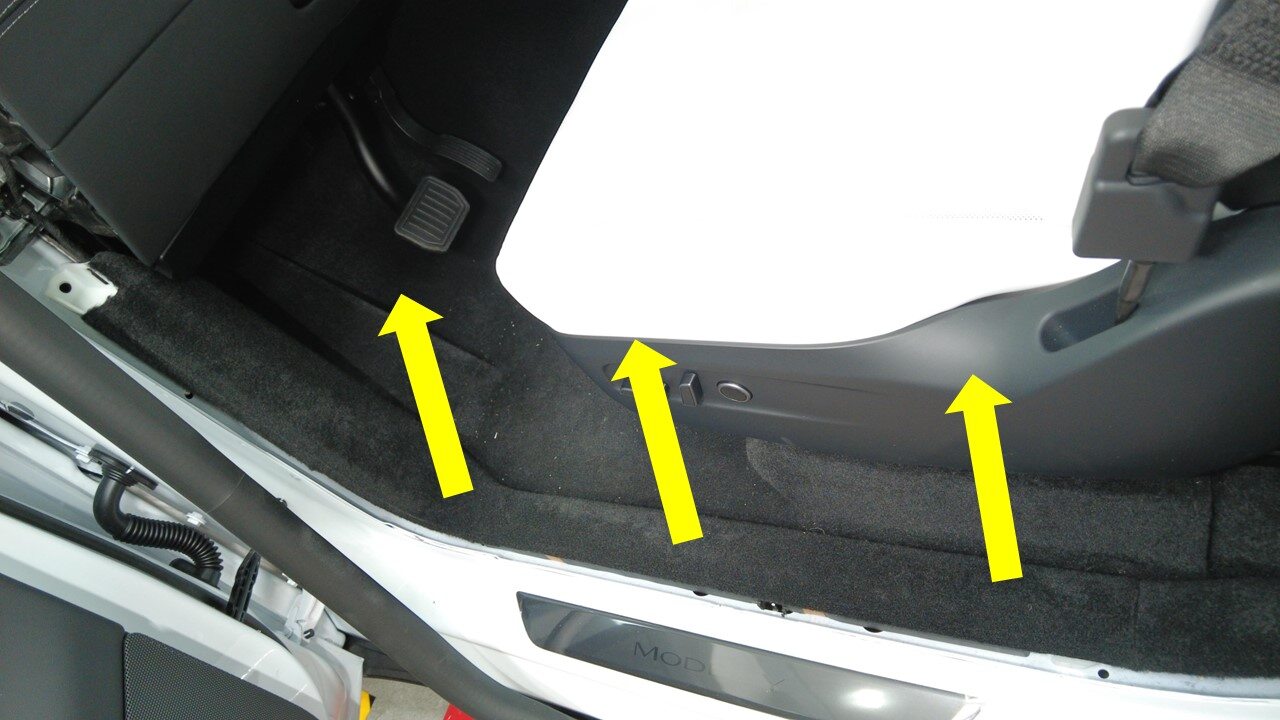

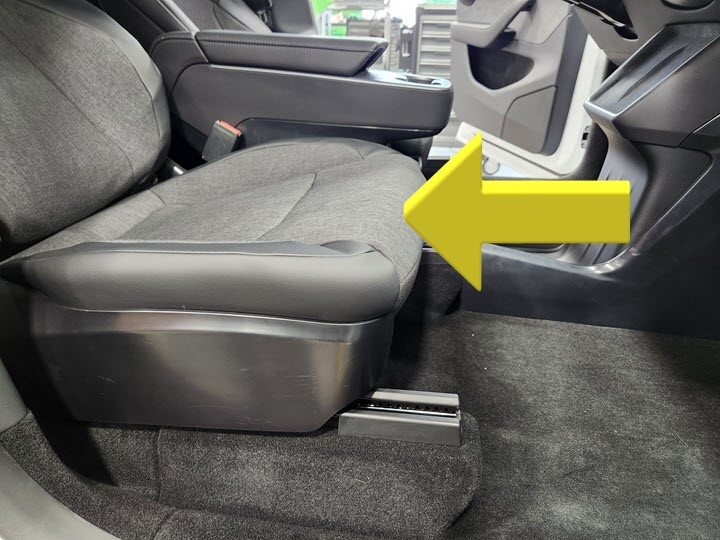

Move RH front seat backward

Note
Via UI > Seat Controls

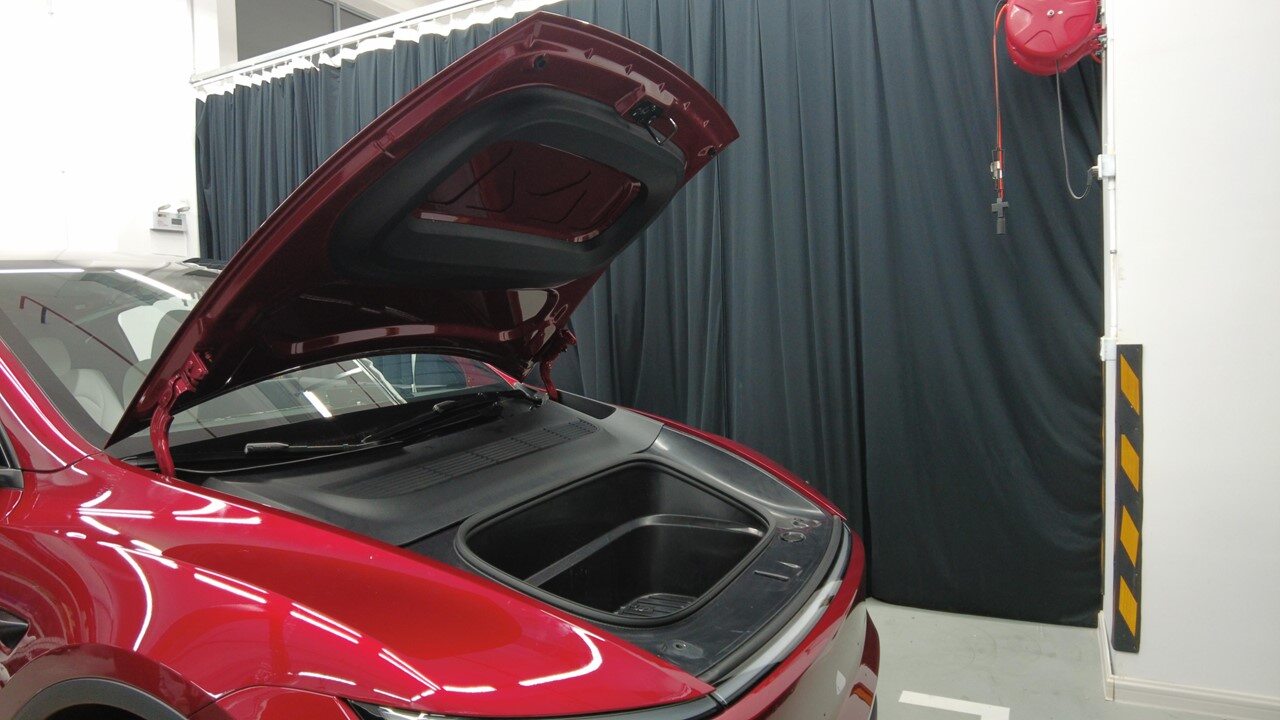

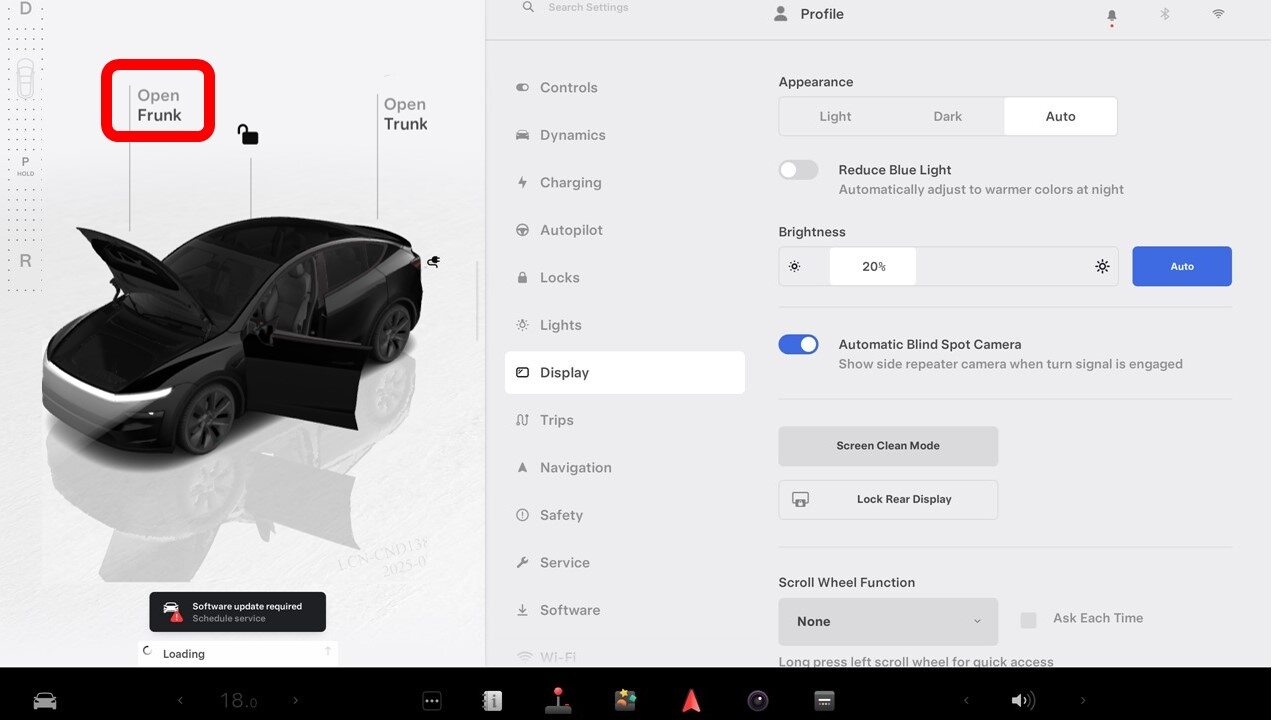

Open hood
Power off vehicle from center display

Note

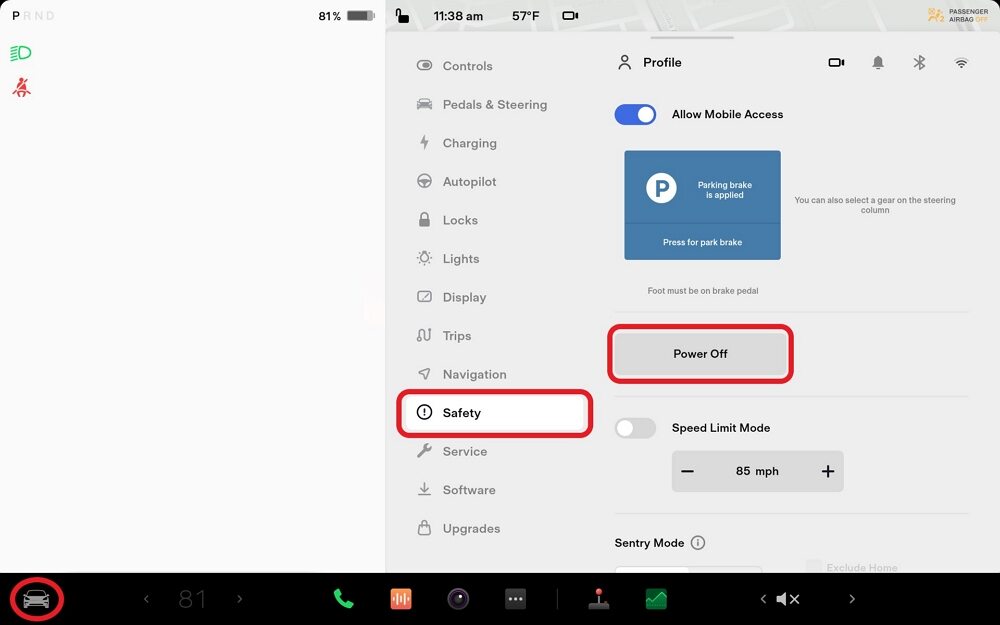

Via Controls > Safety > Power Off, Select Power Off button at warning dialogue box

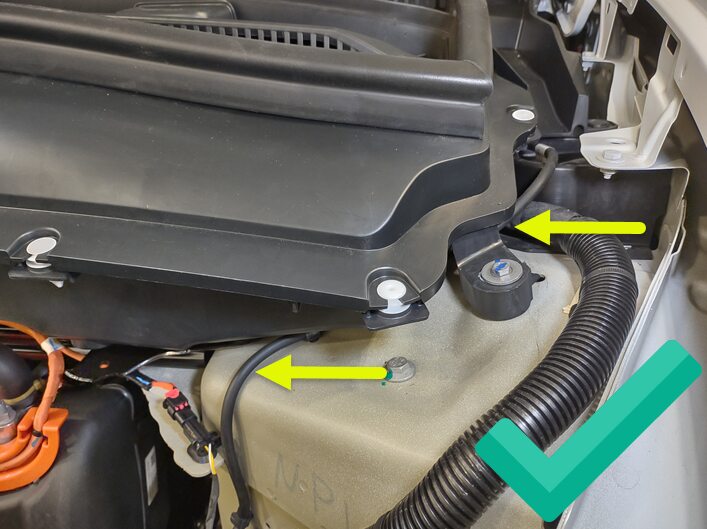

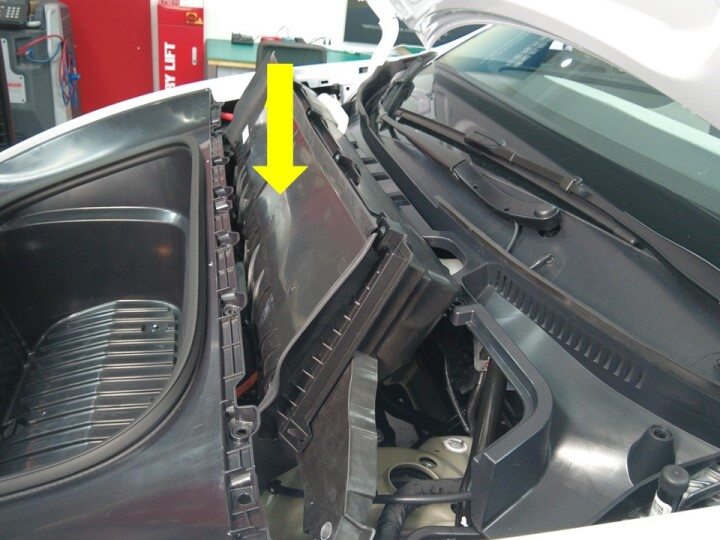

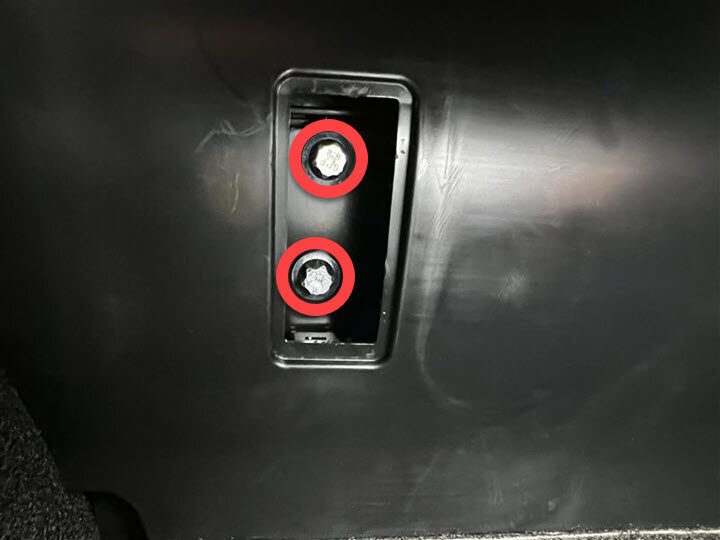

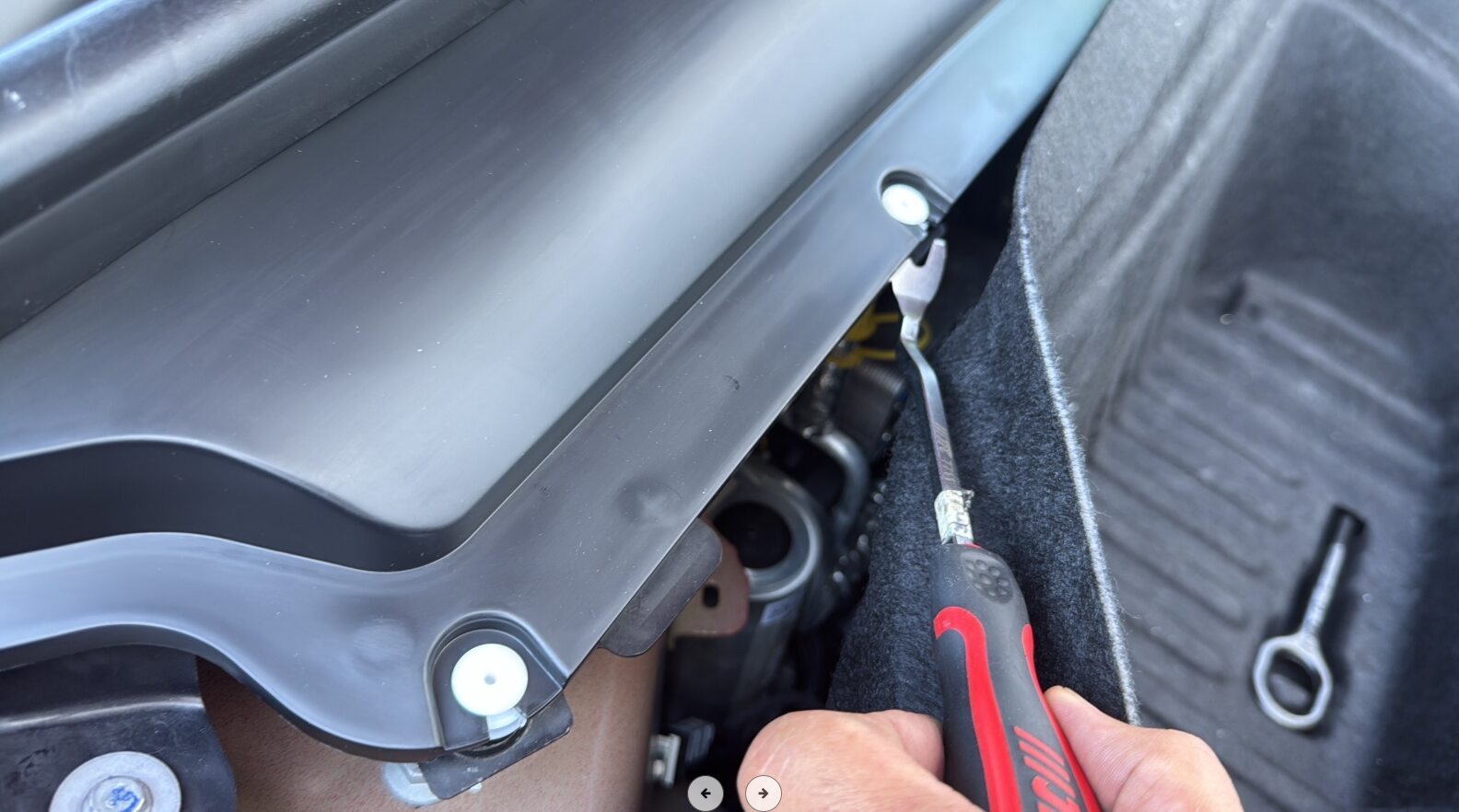

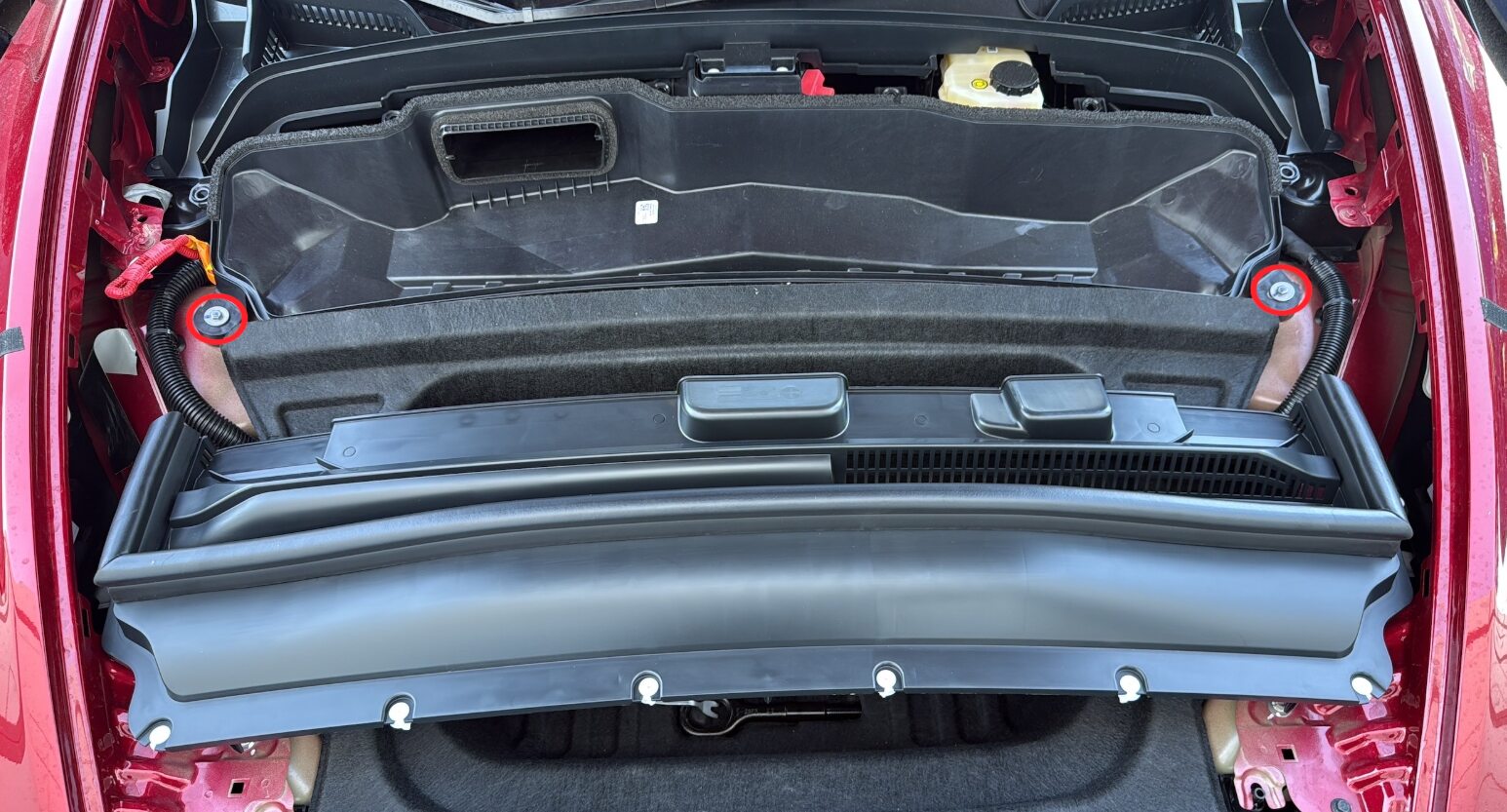

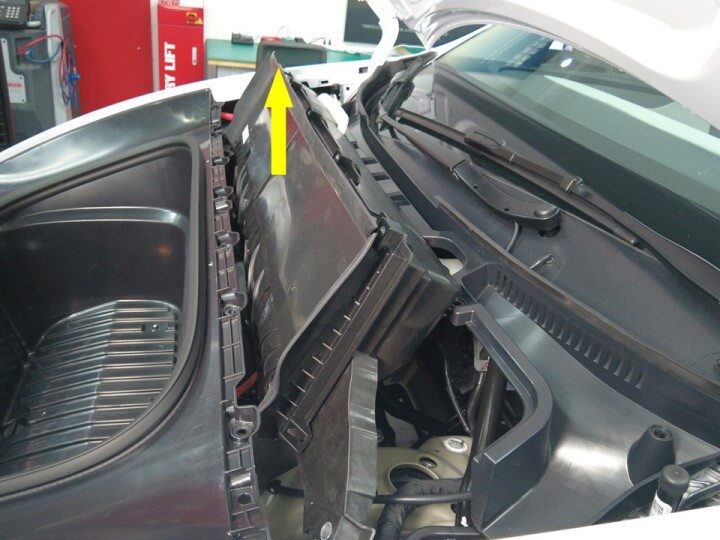

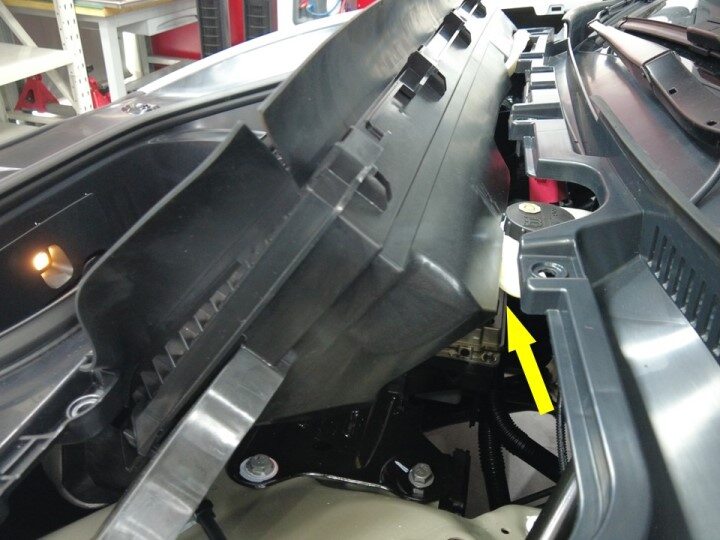

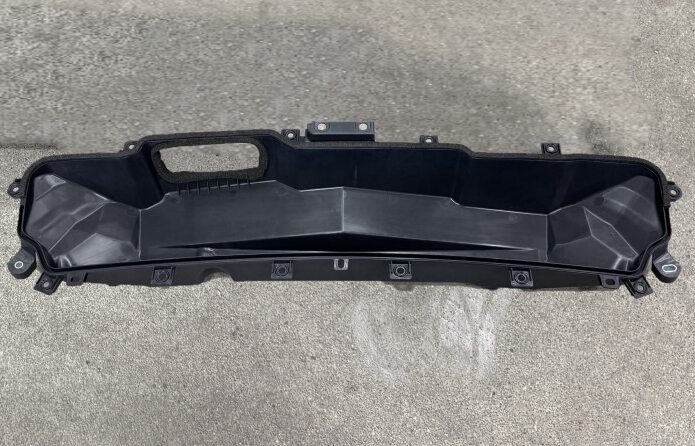

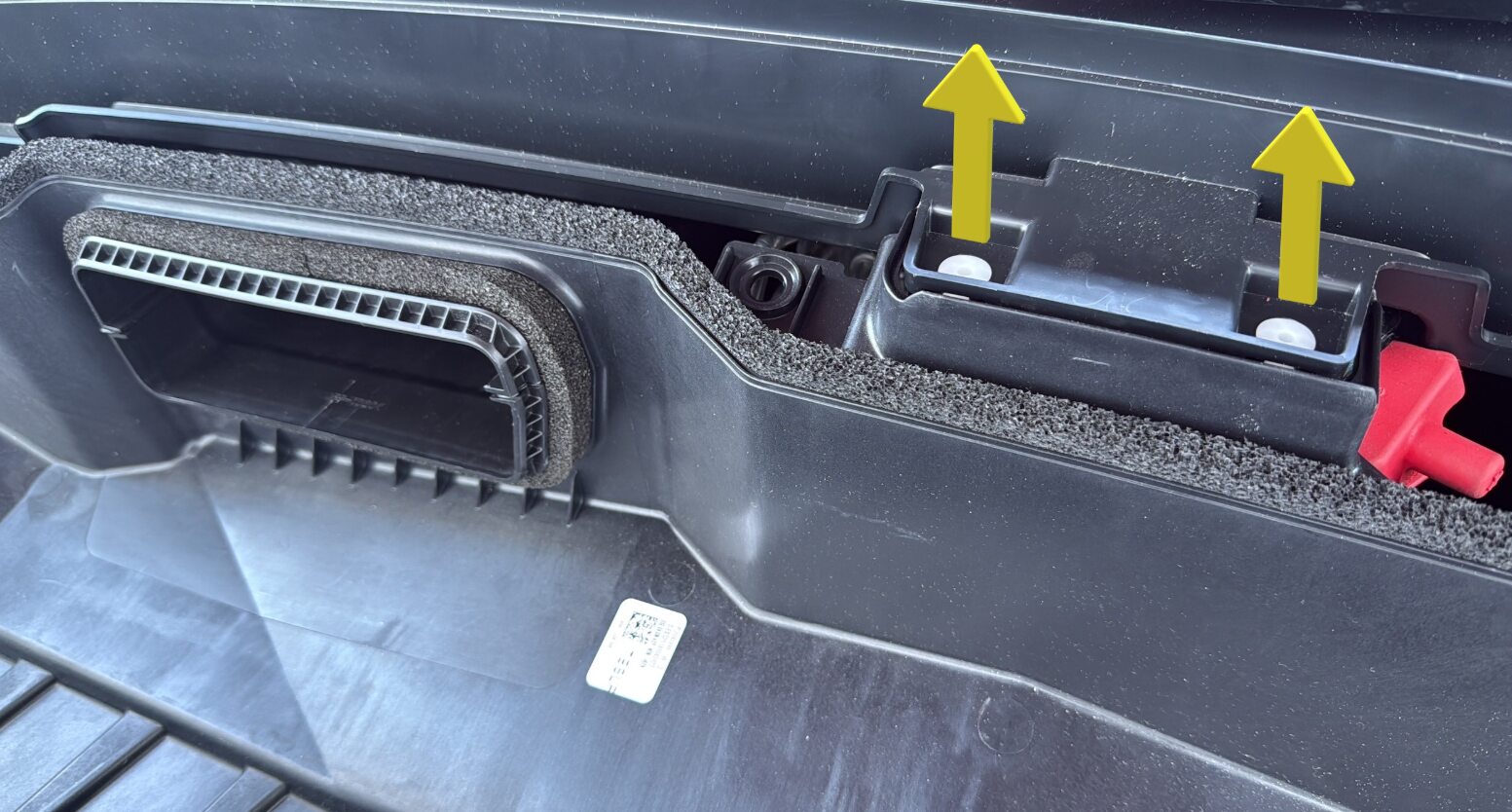

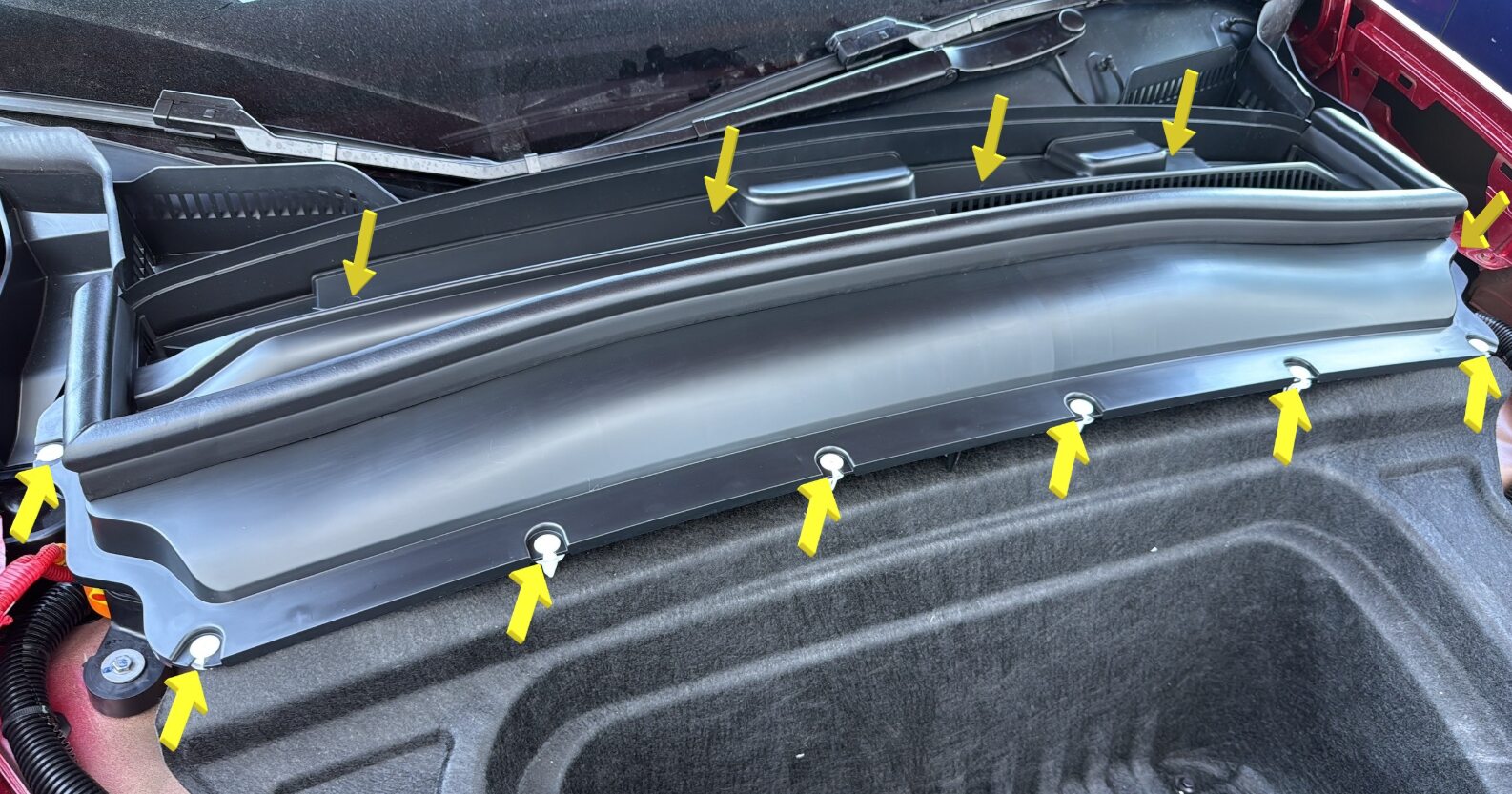

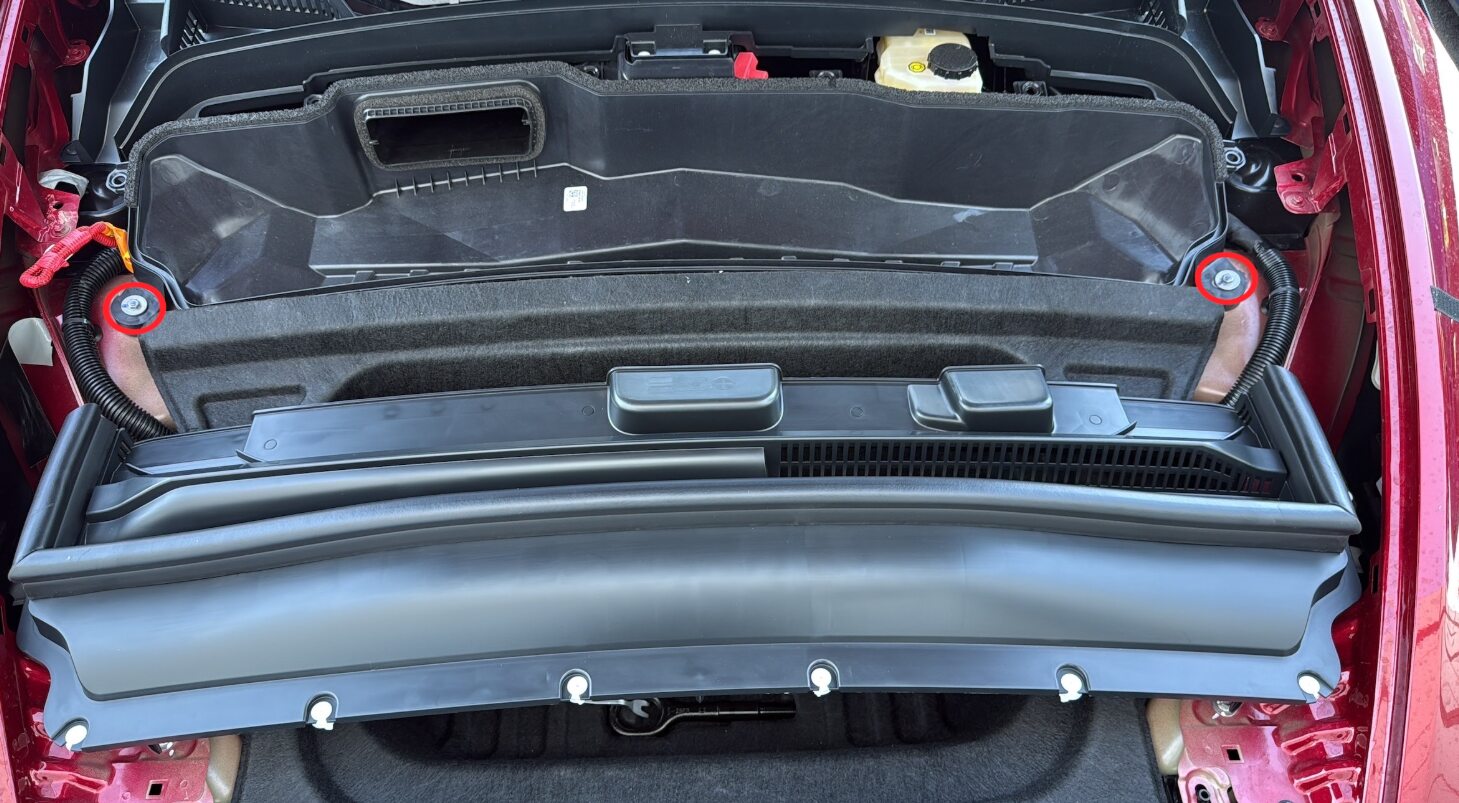

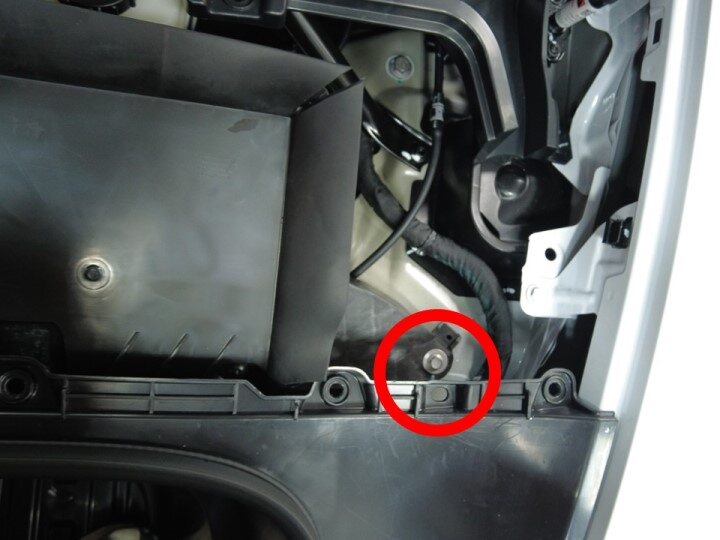

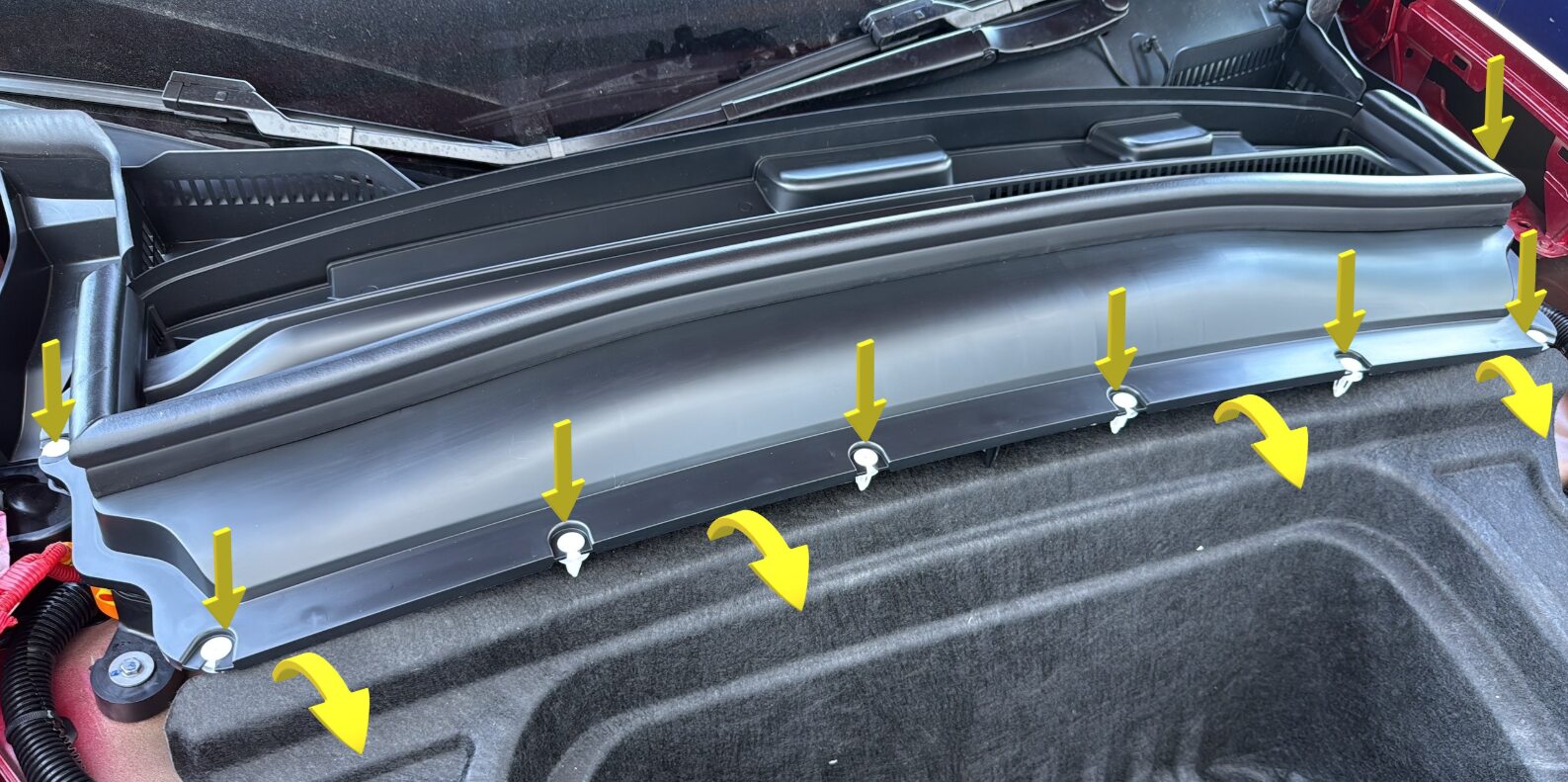

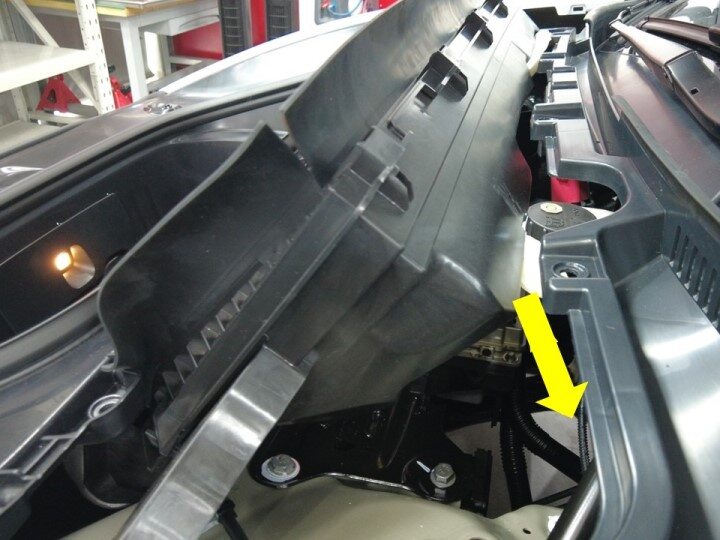

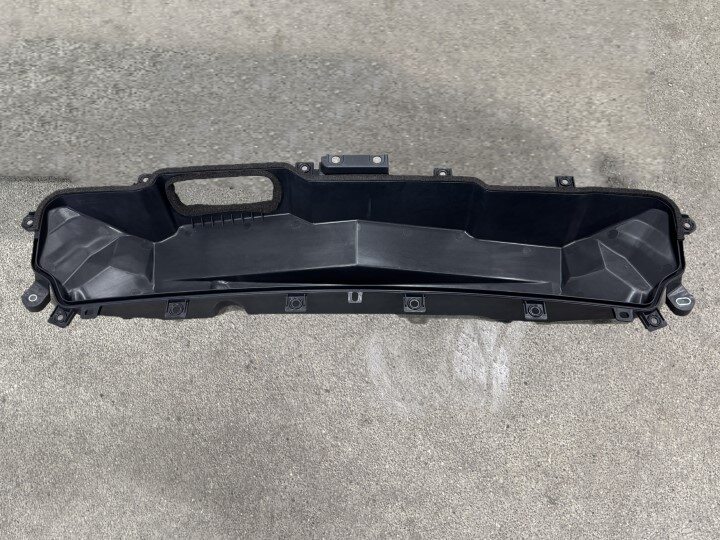

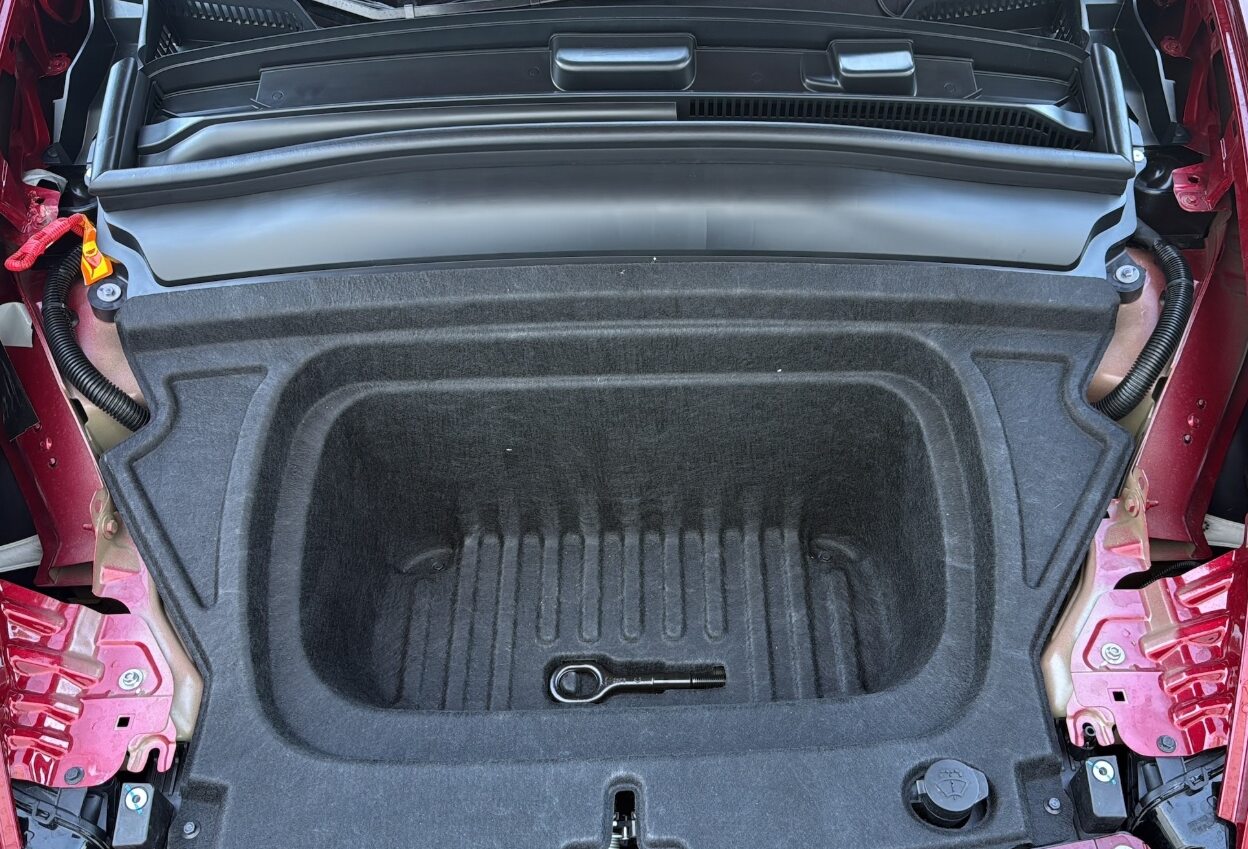

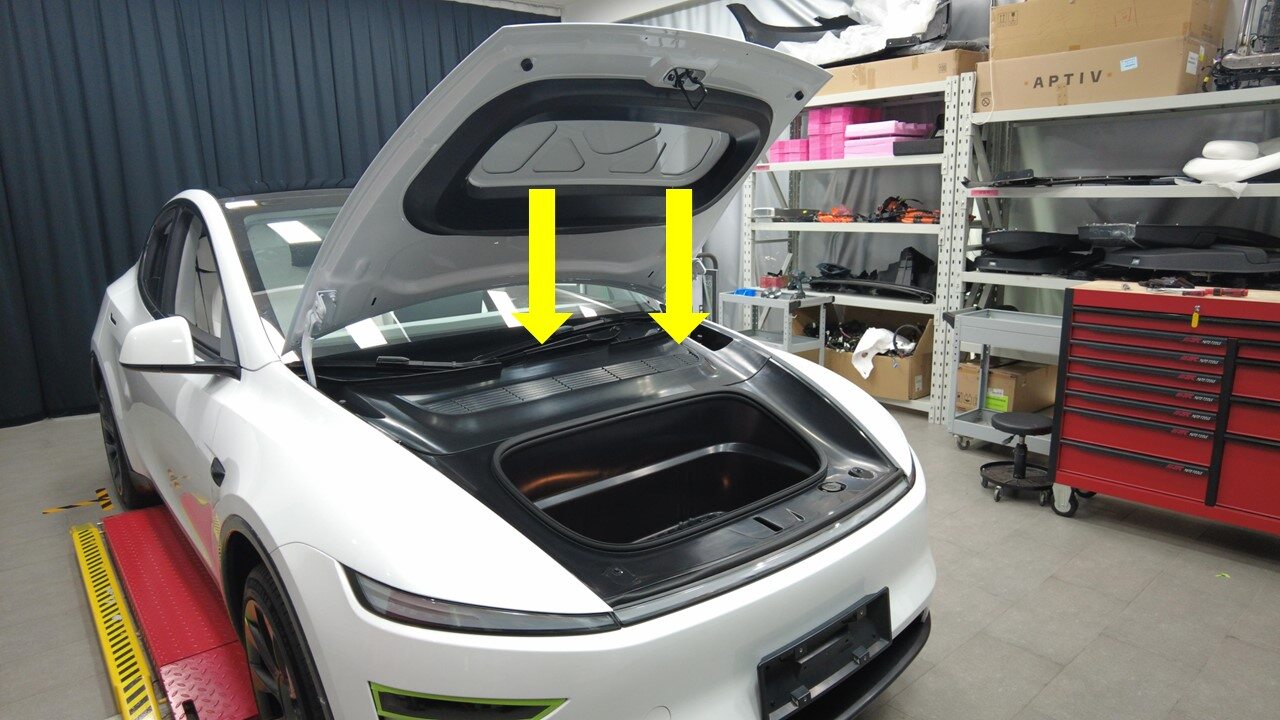

Remove HEPA filter or big basin

Note

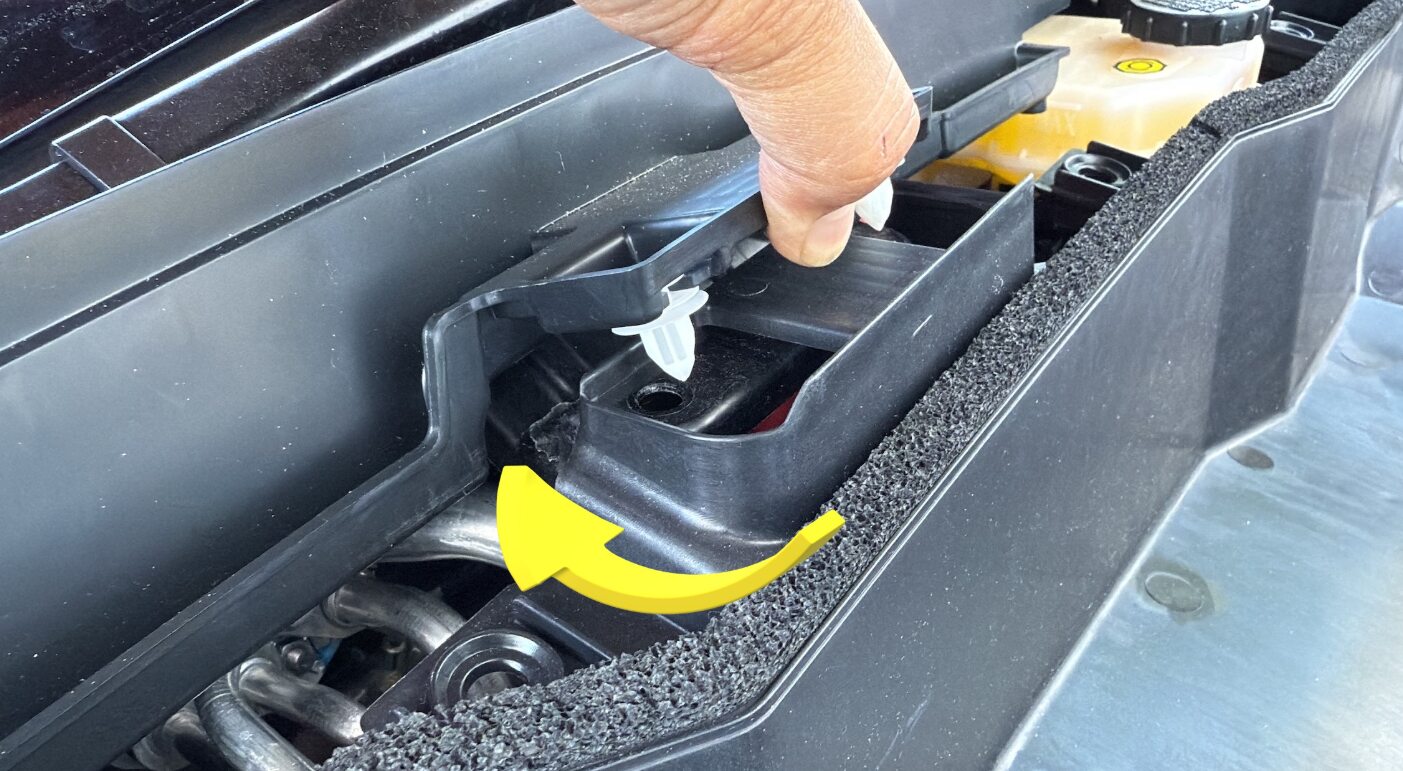

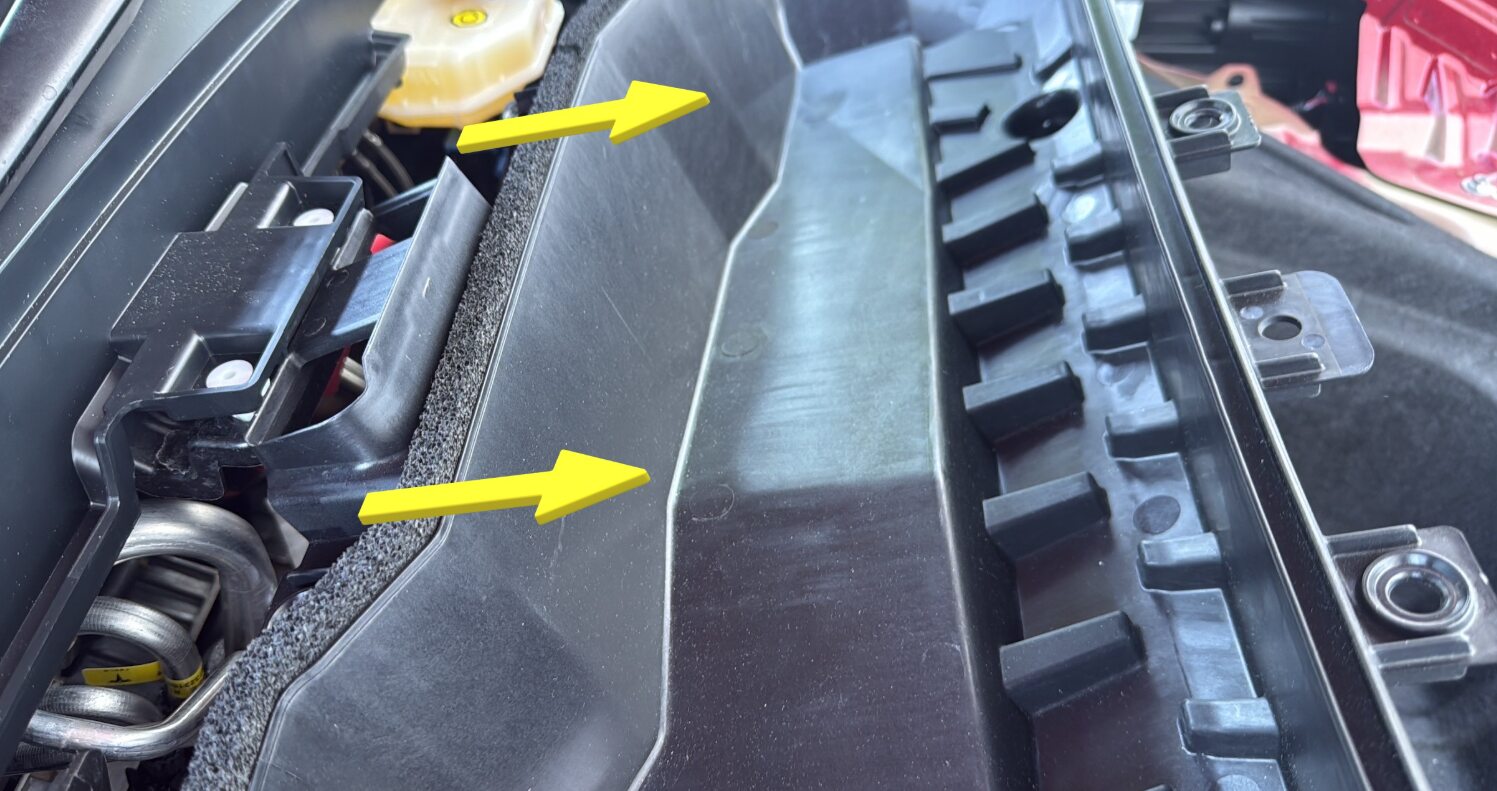

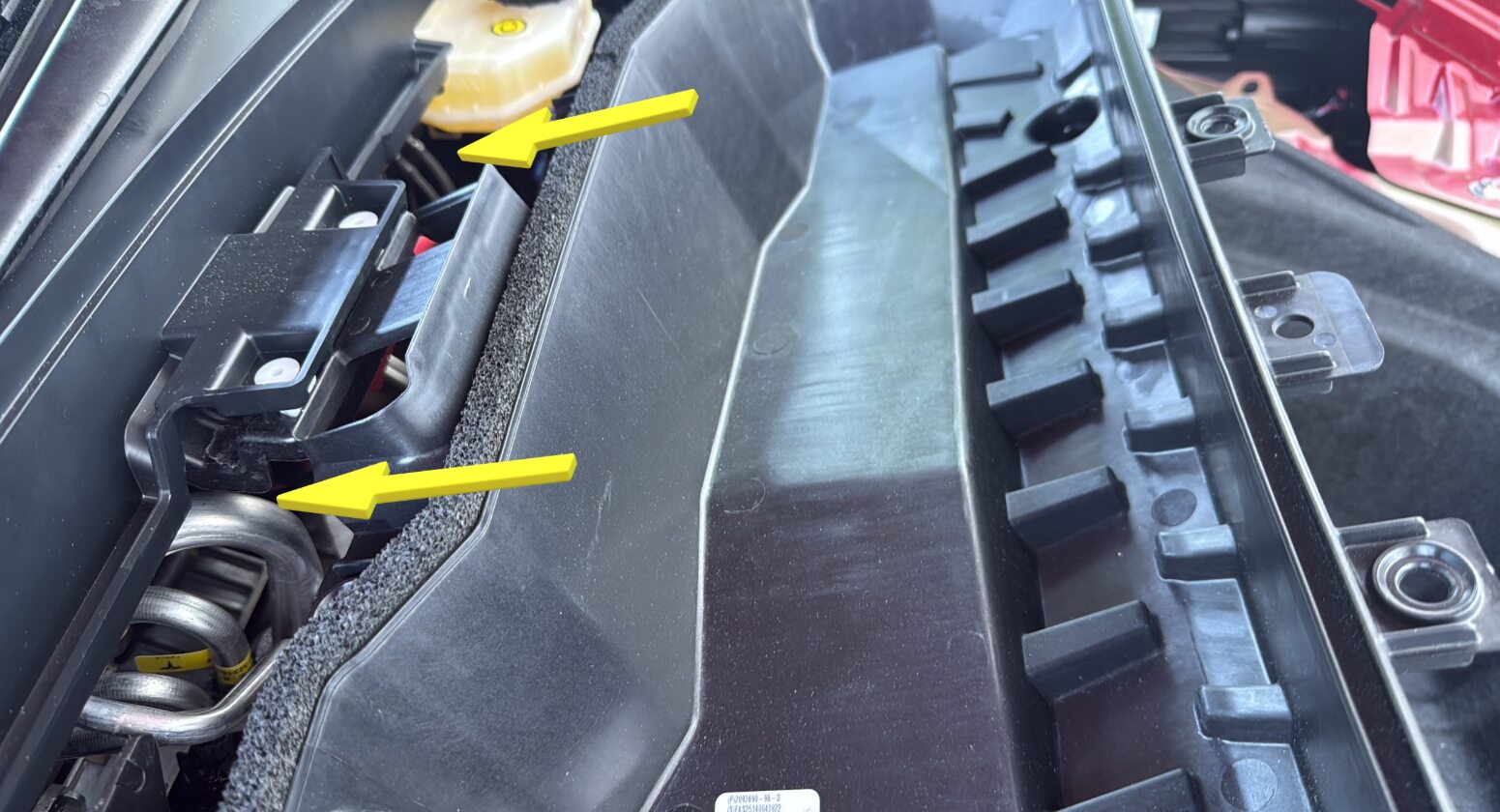

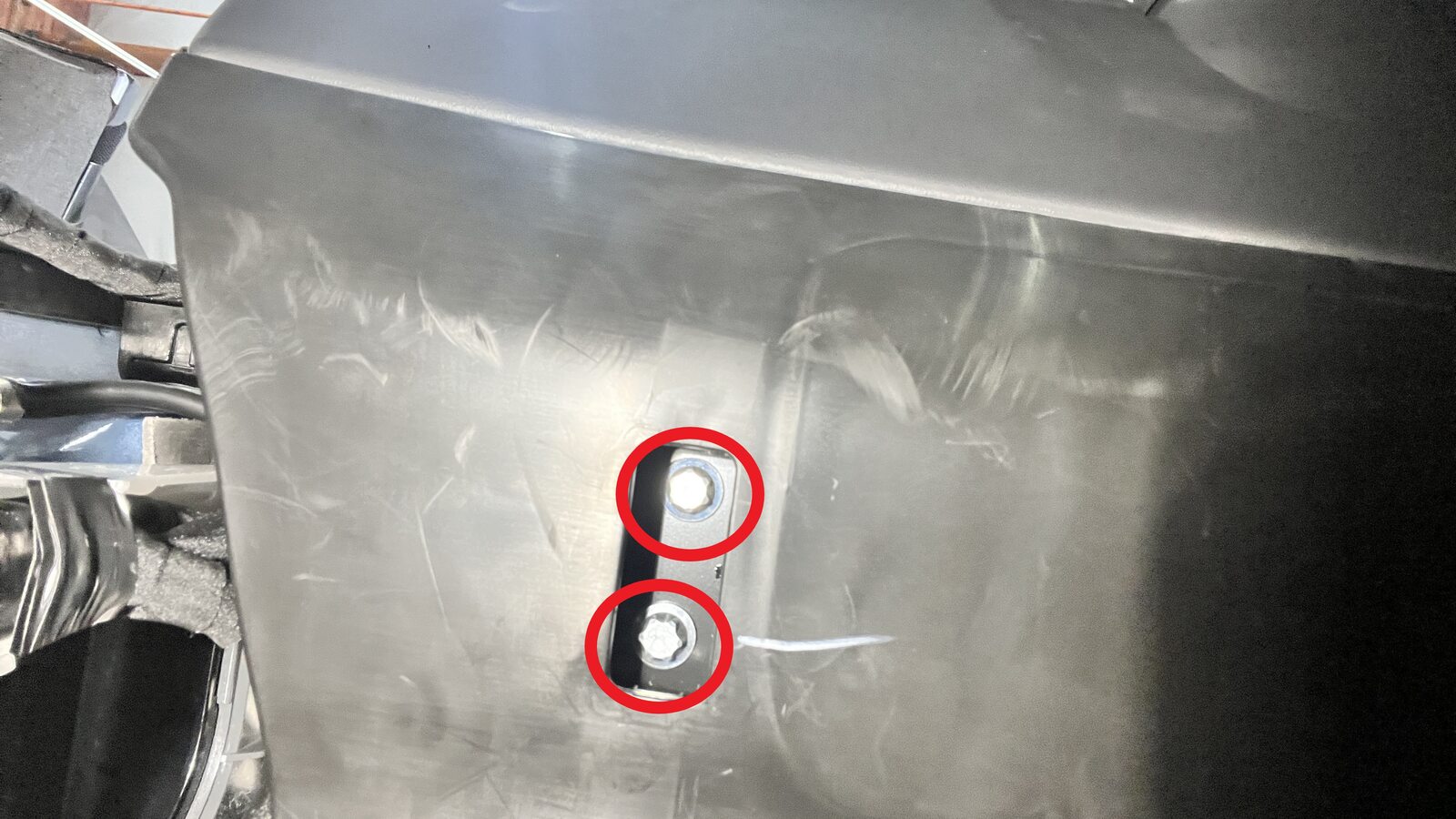

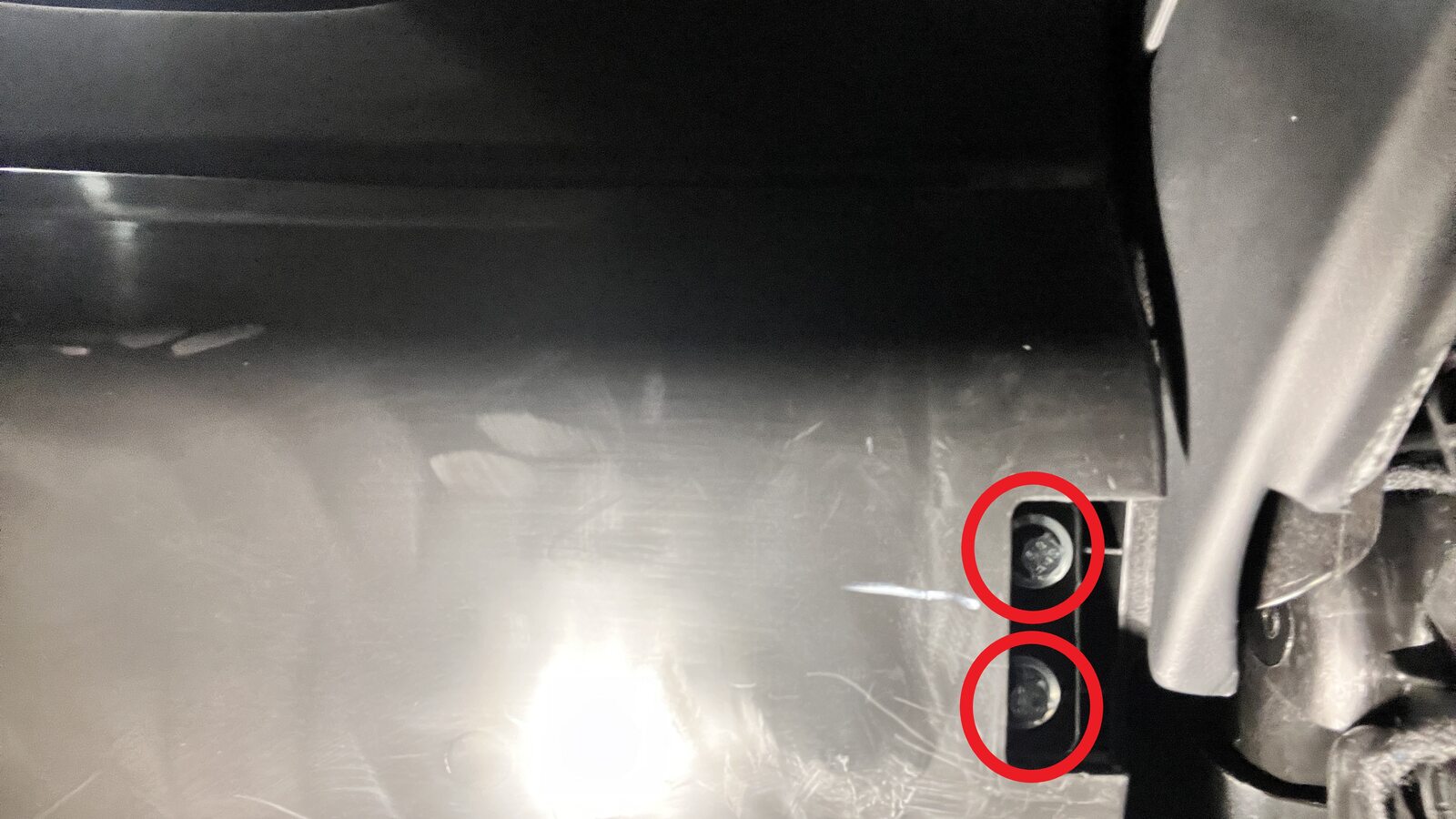

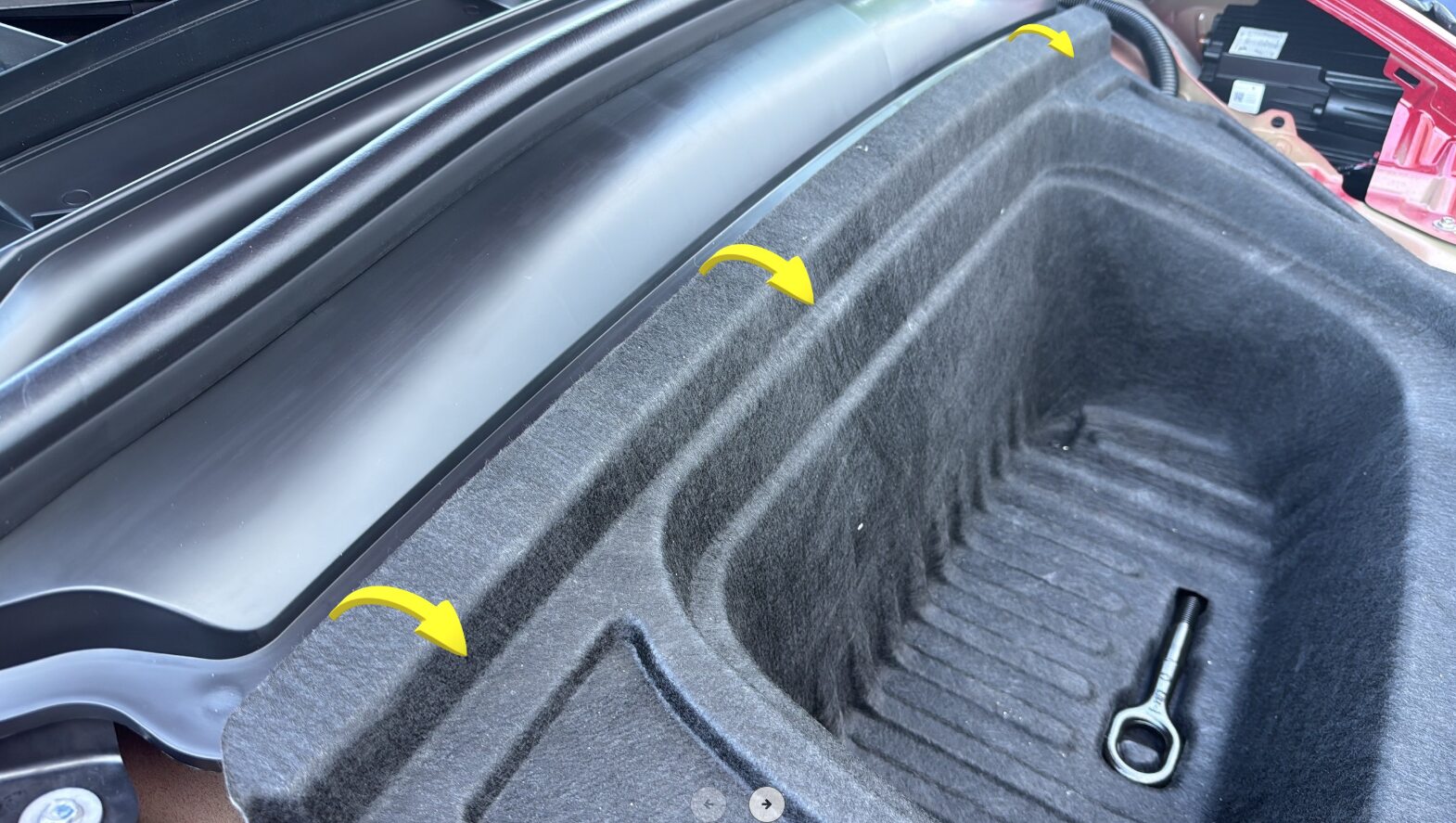

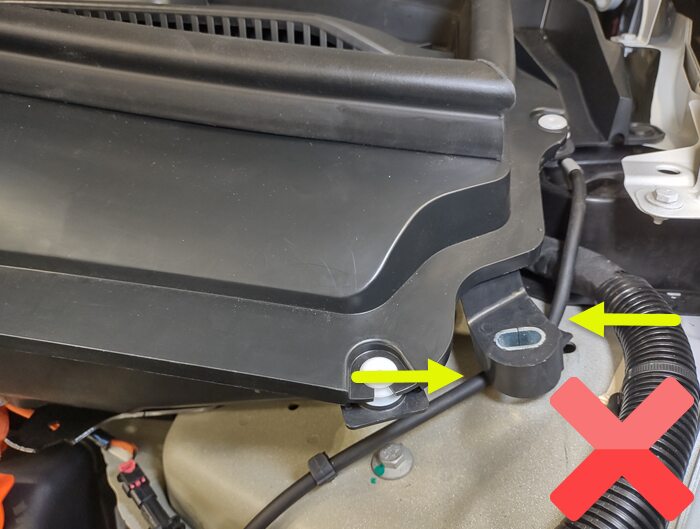

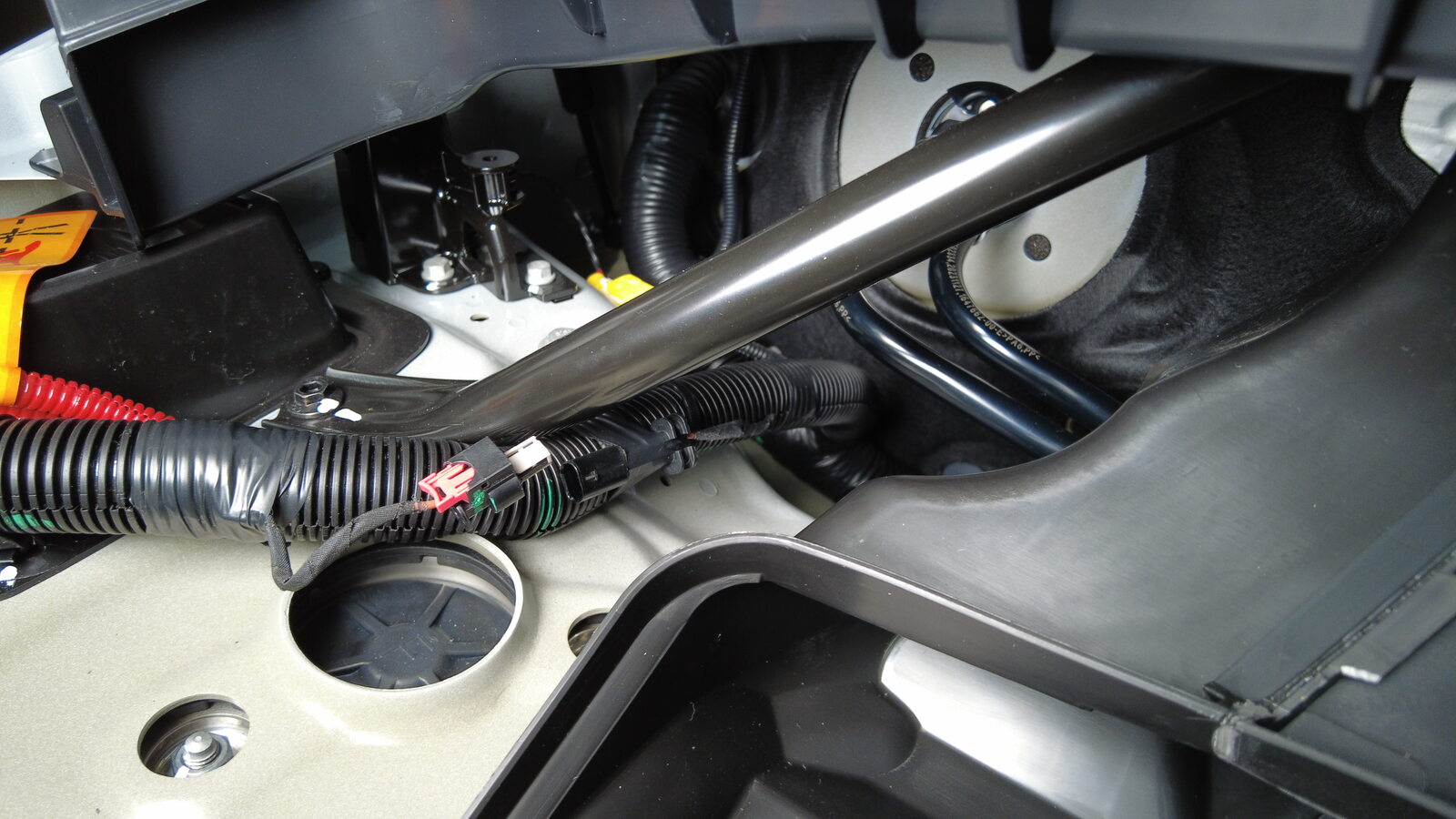

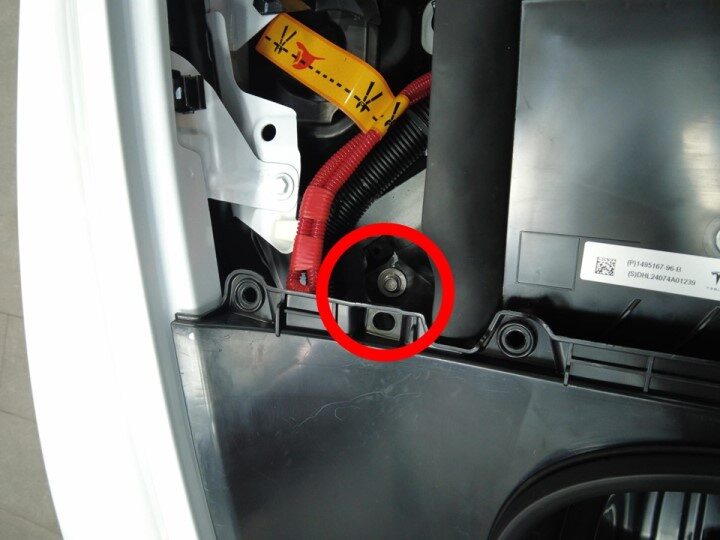

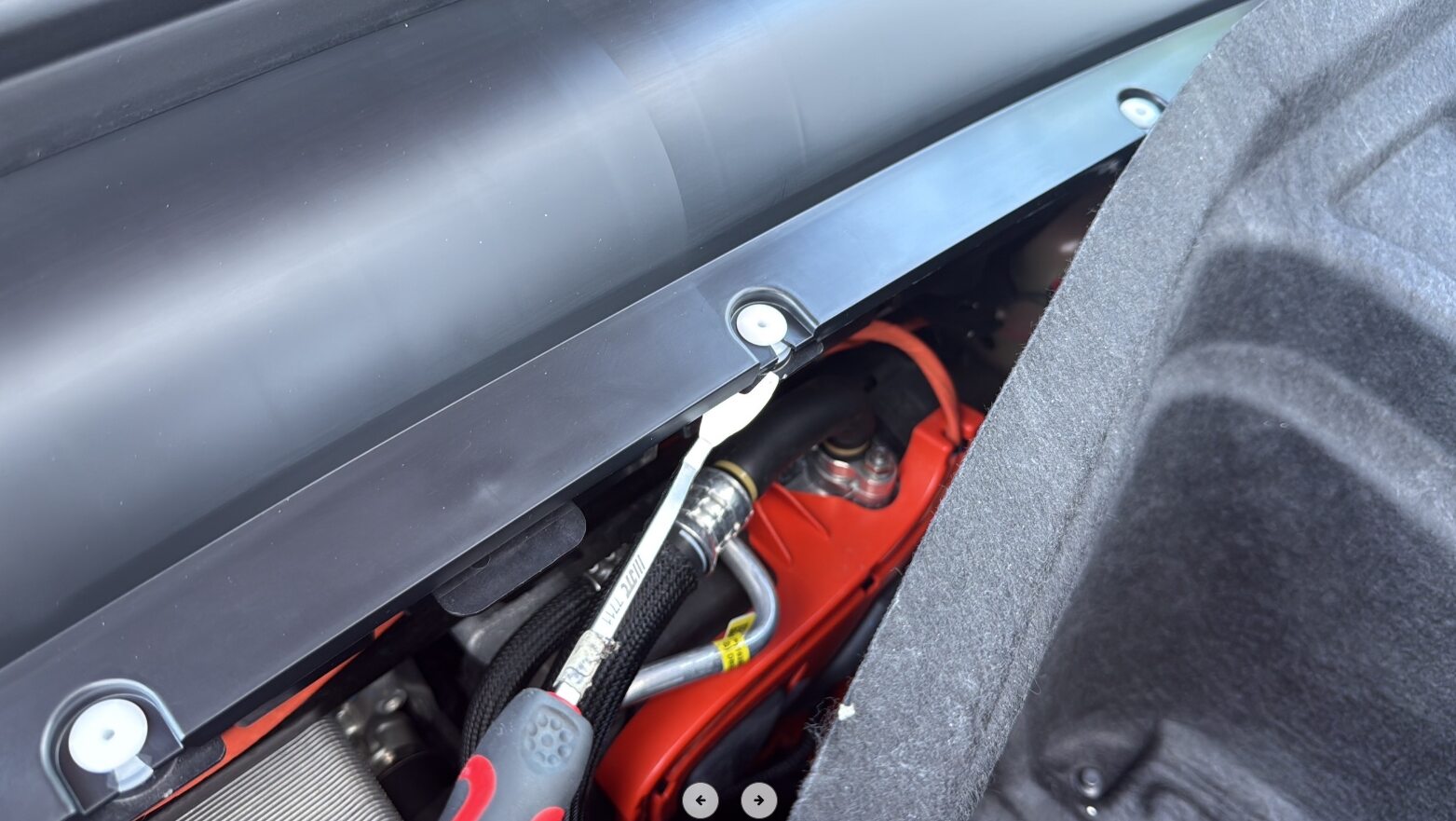

Vehicle configuration may vary, W/ HEPA: 2x bolts, 10mm, 10 Nm, Pivot rear edge up past brake reservoir then lift up to clear frunk assembly, W/O HEPA: 2x bolts, 10mm, 10 Nm, 14x clips, Fold rear lip of base frunk forward to access forward cowl clips, Lift cowl clips to release basin bracket

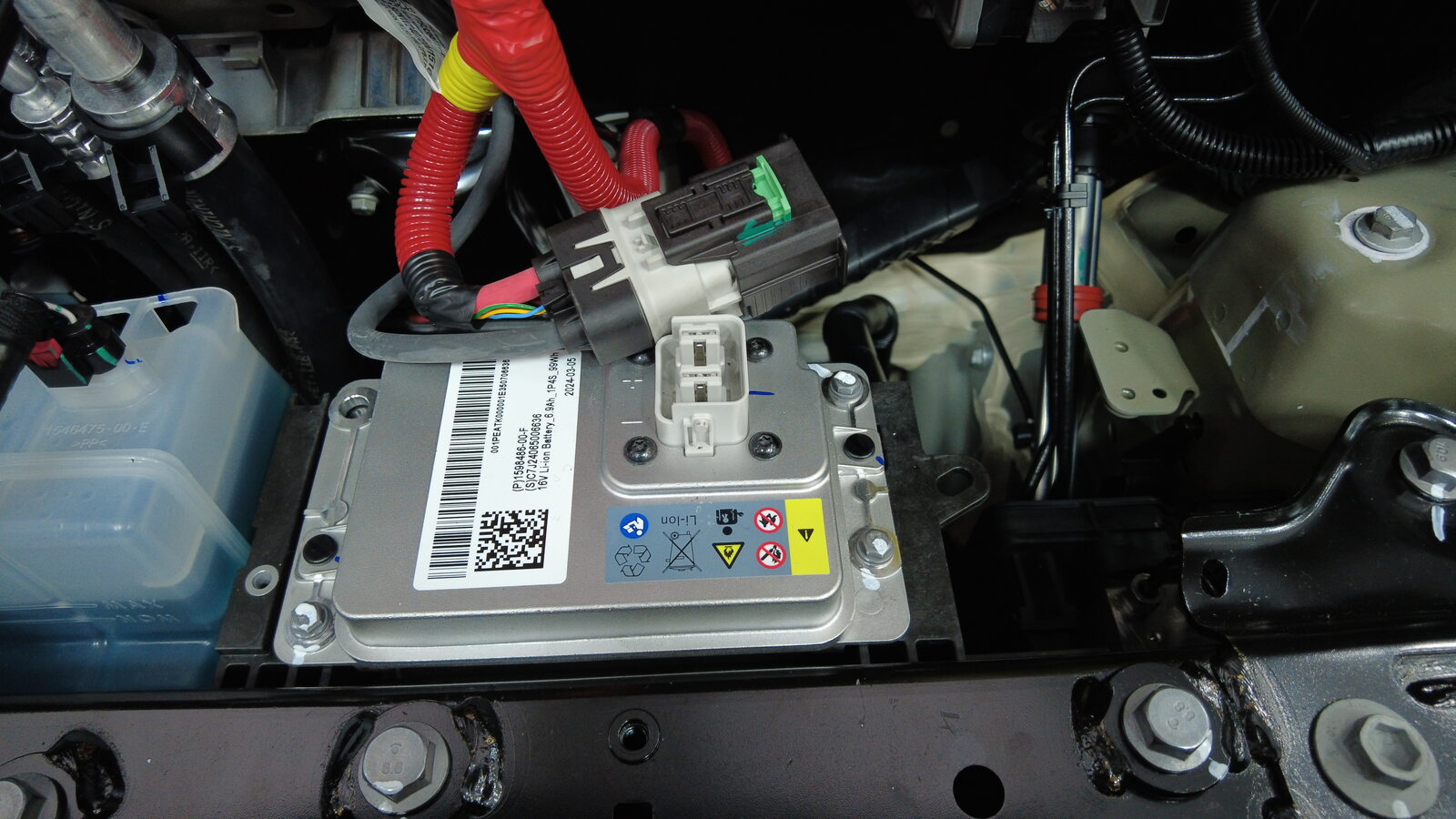

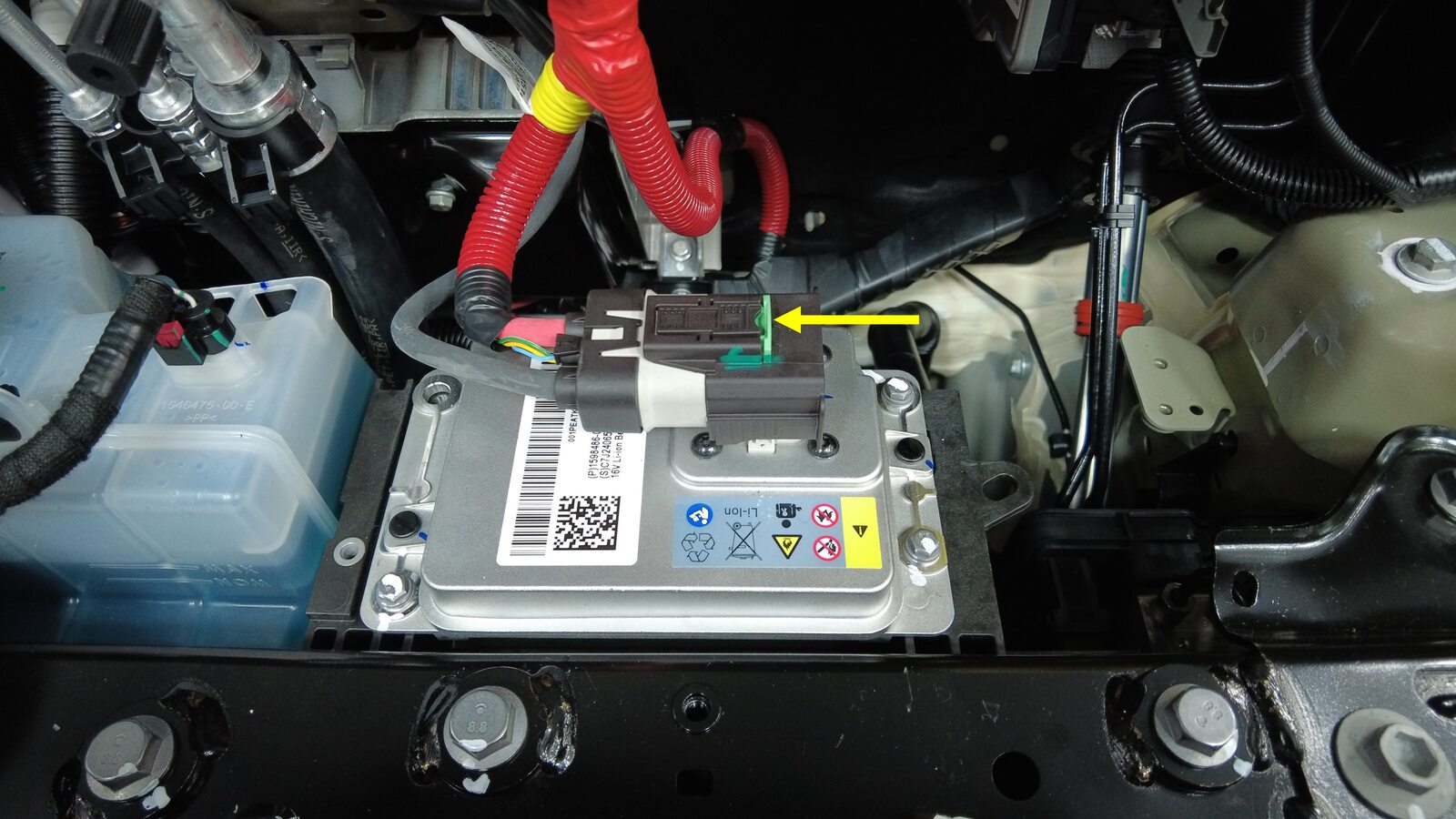

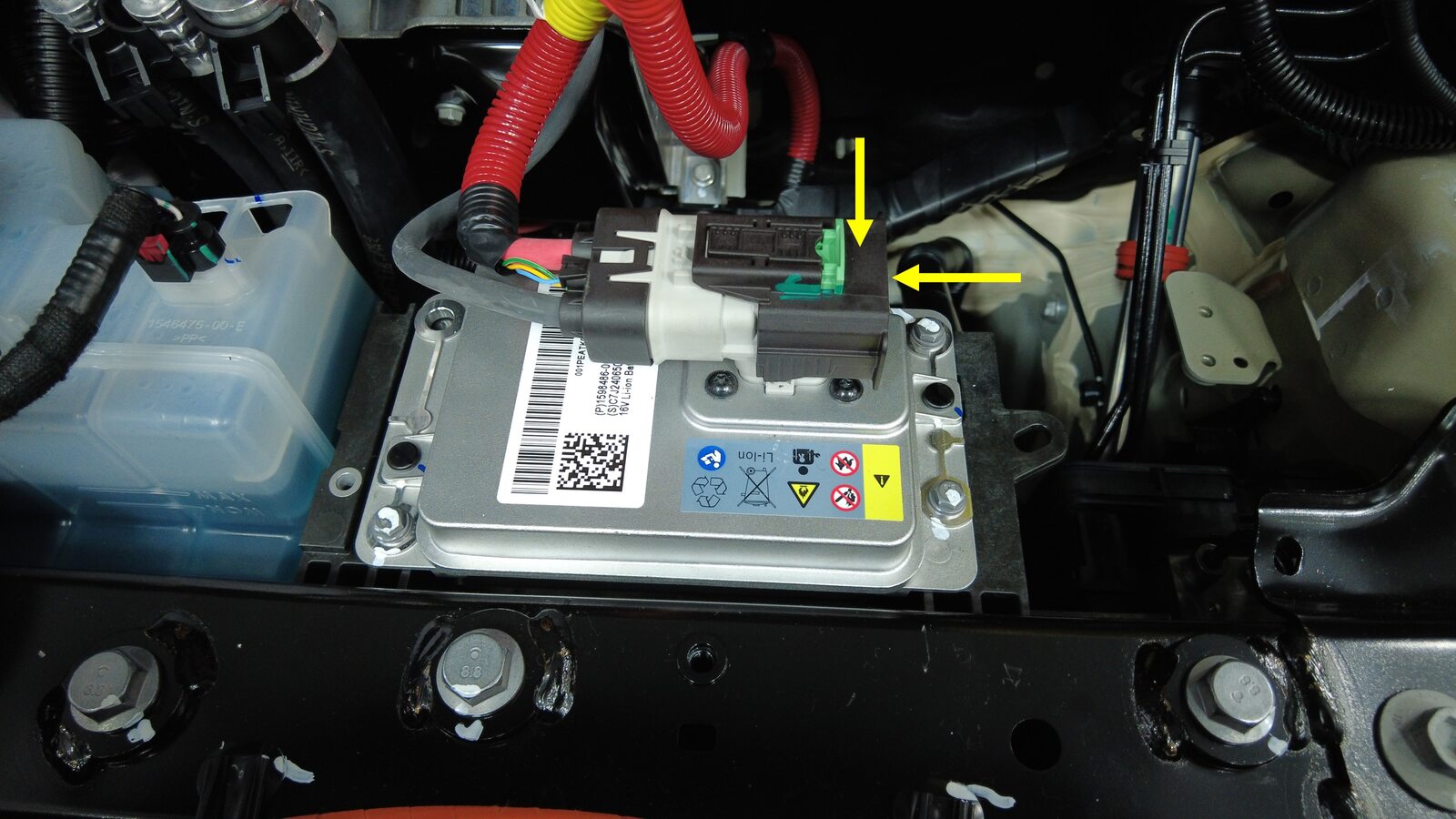

Disconnect LV battery and first responder loop

Note

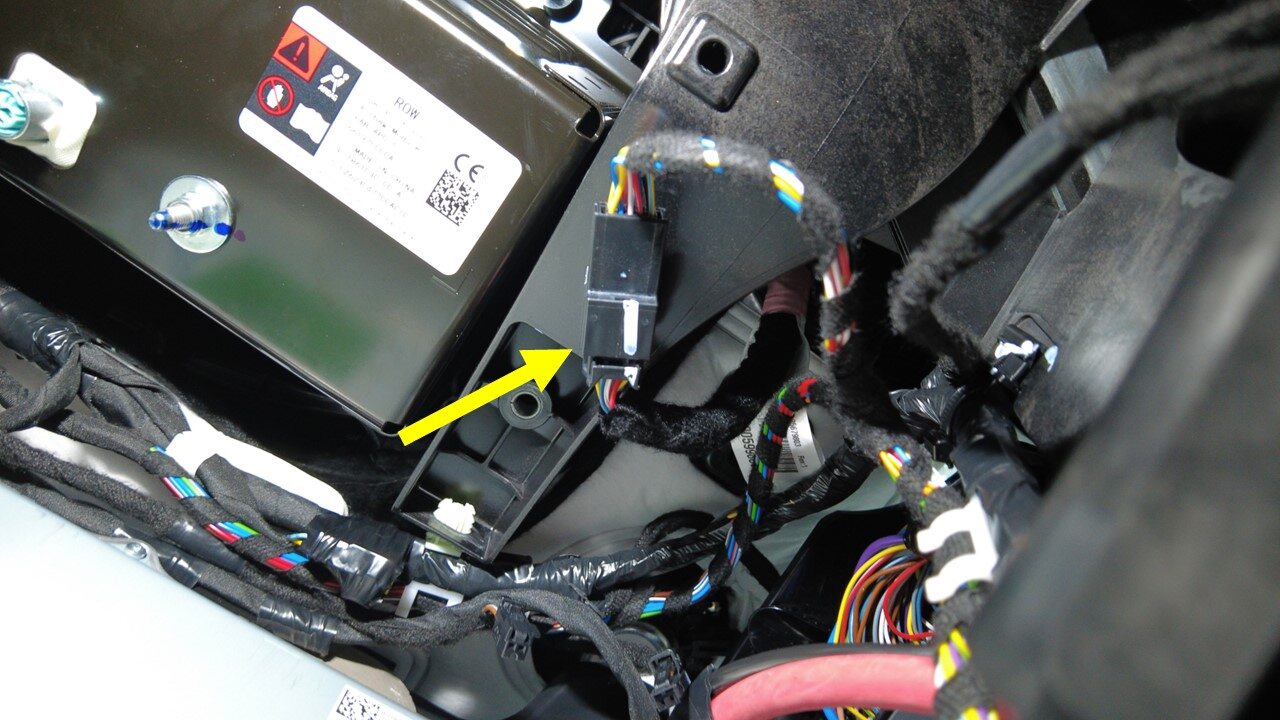

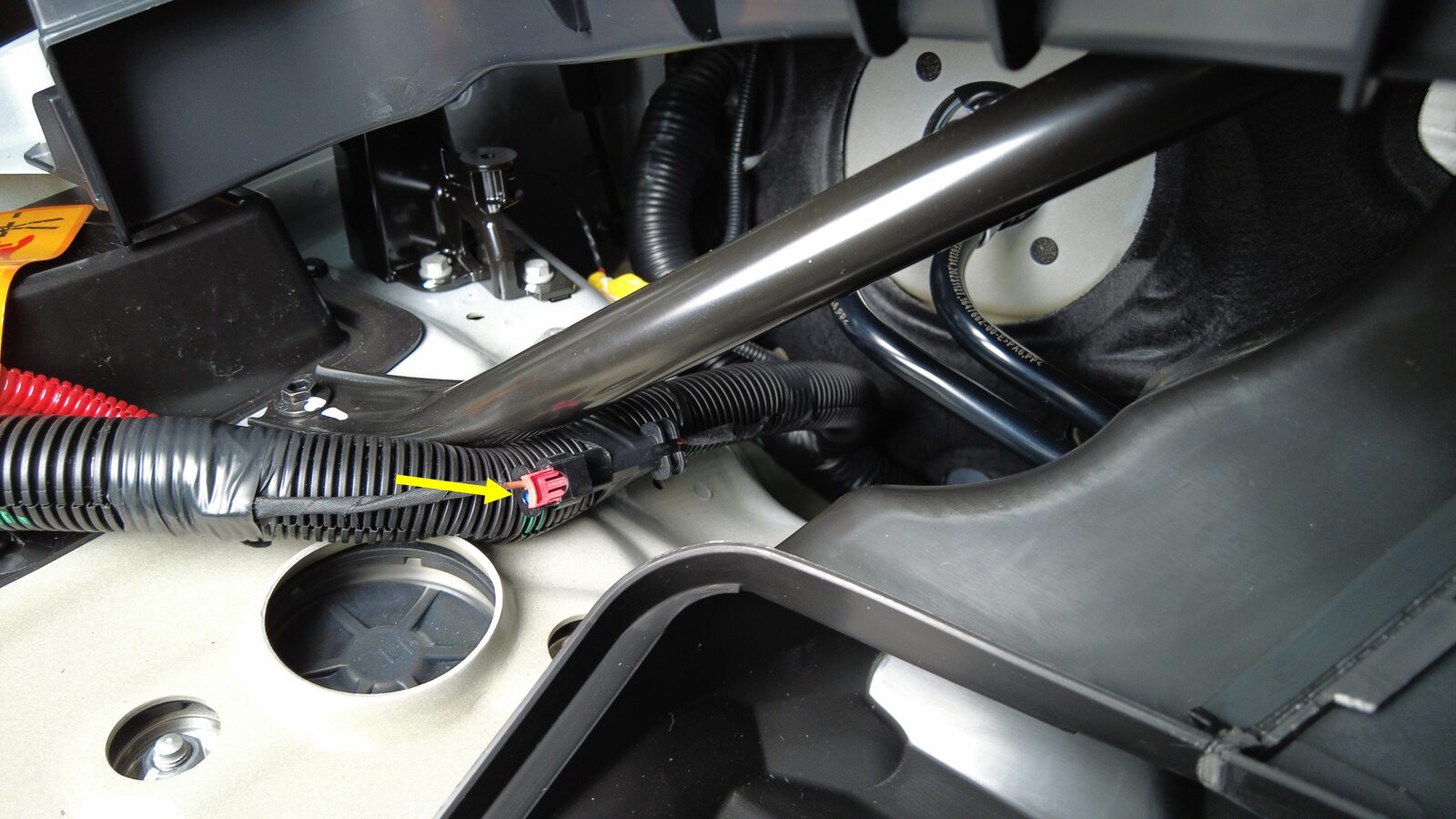

2x connectors, Release green locking tab, Press black tab then pull black connector lock outwards to release connection, Release red lock tab on FRL, Allow 2 minutes for all electrical circuits to fully discharge

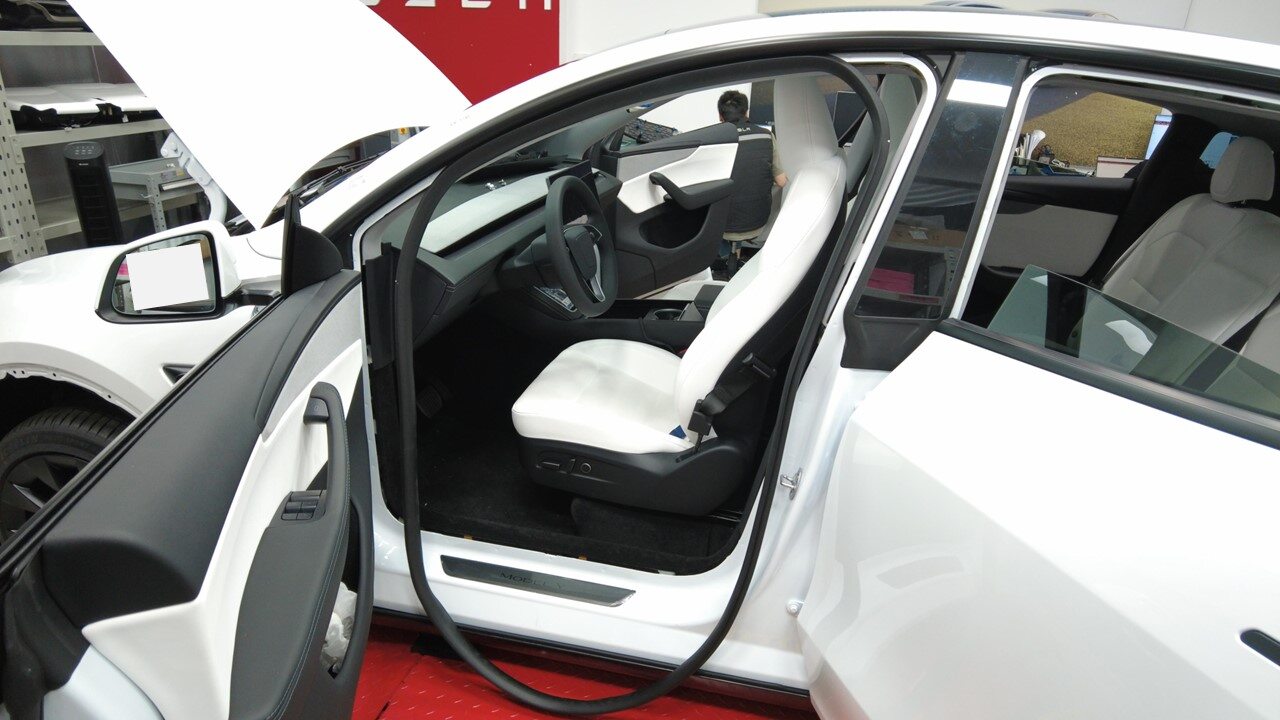

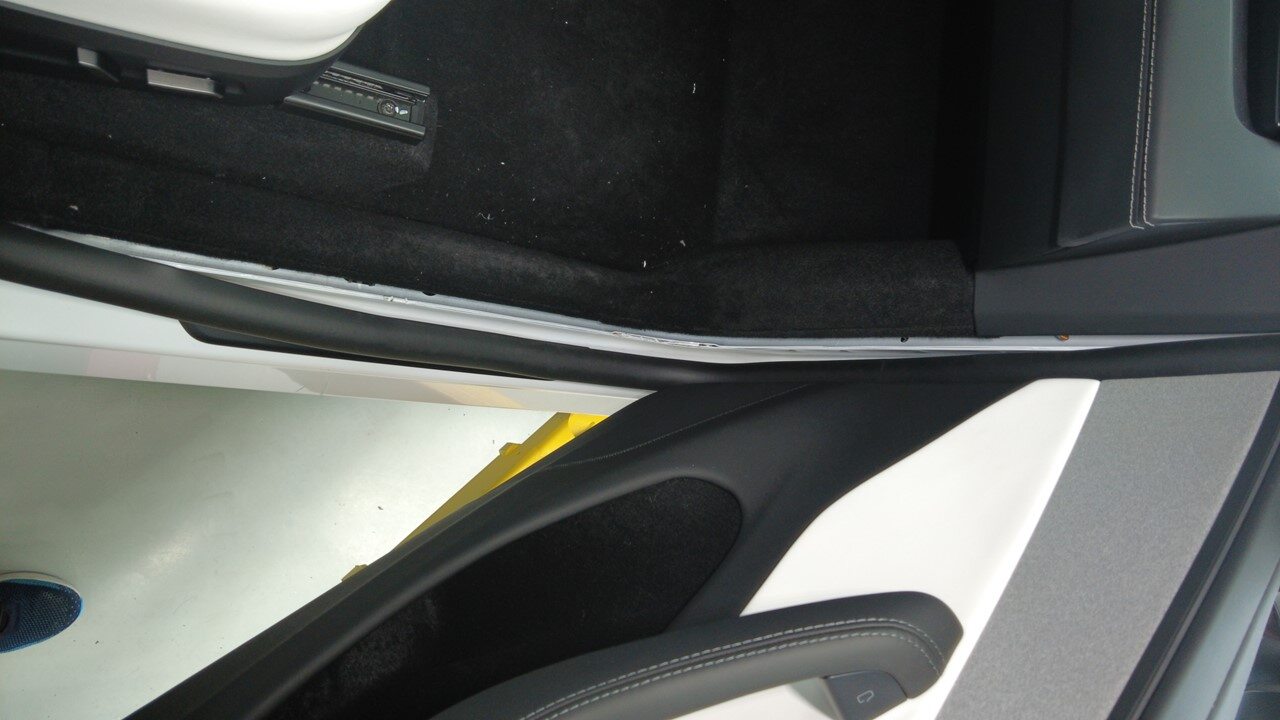

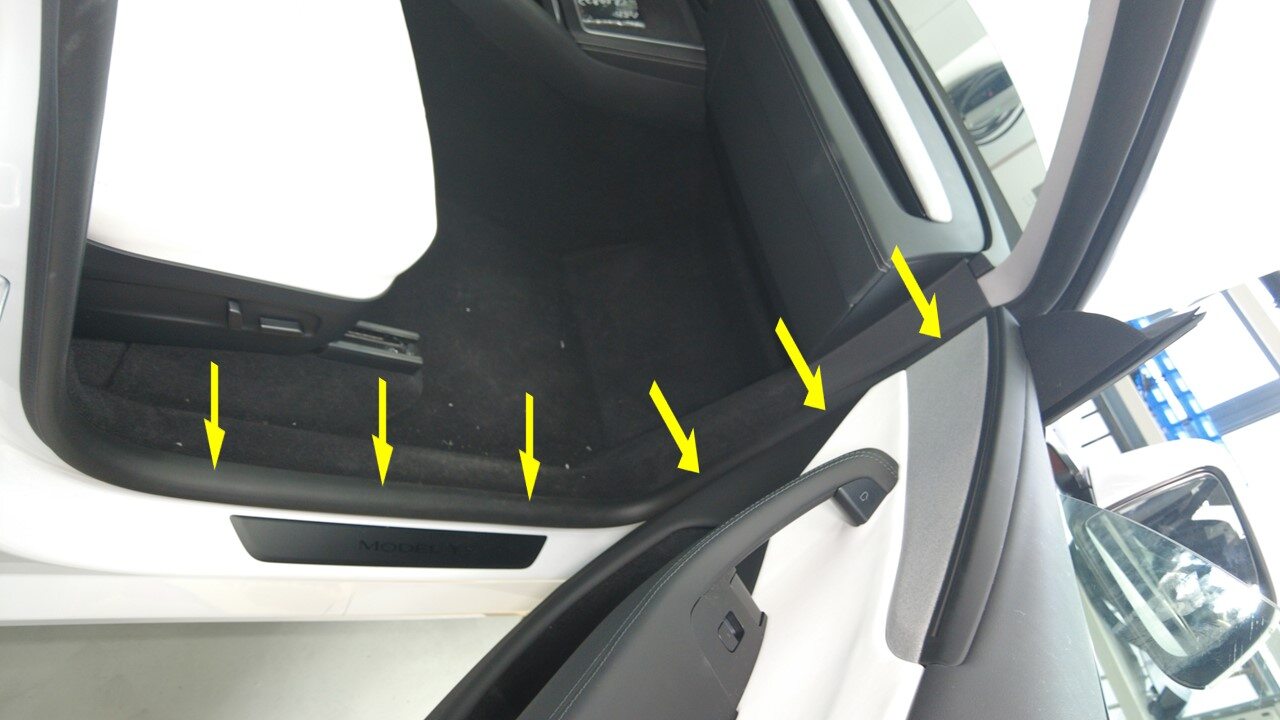

Partially remove LH front primary door seal from body

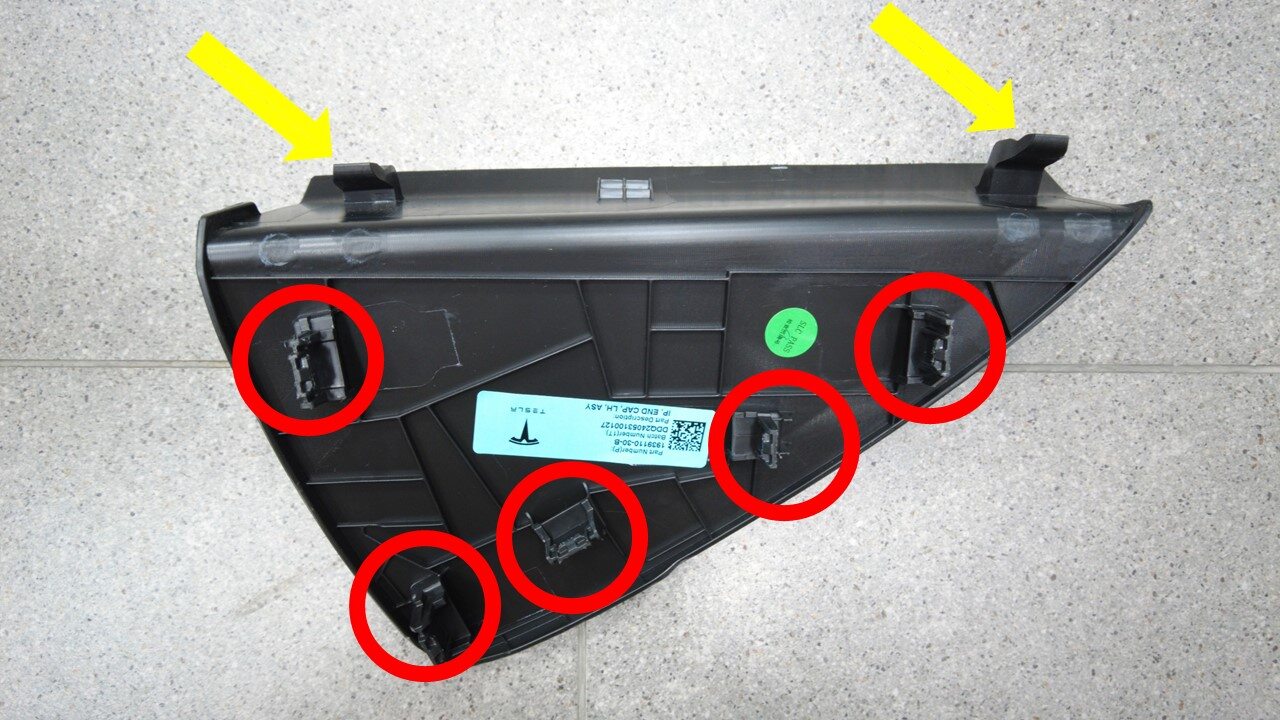

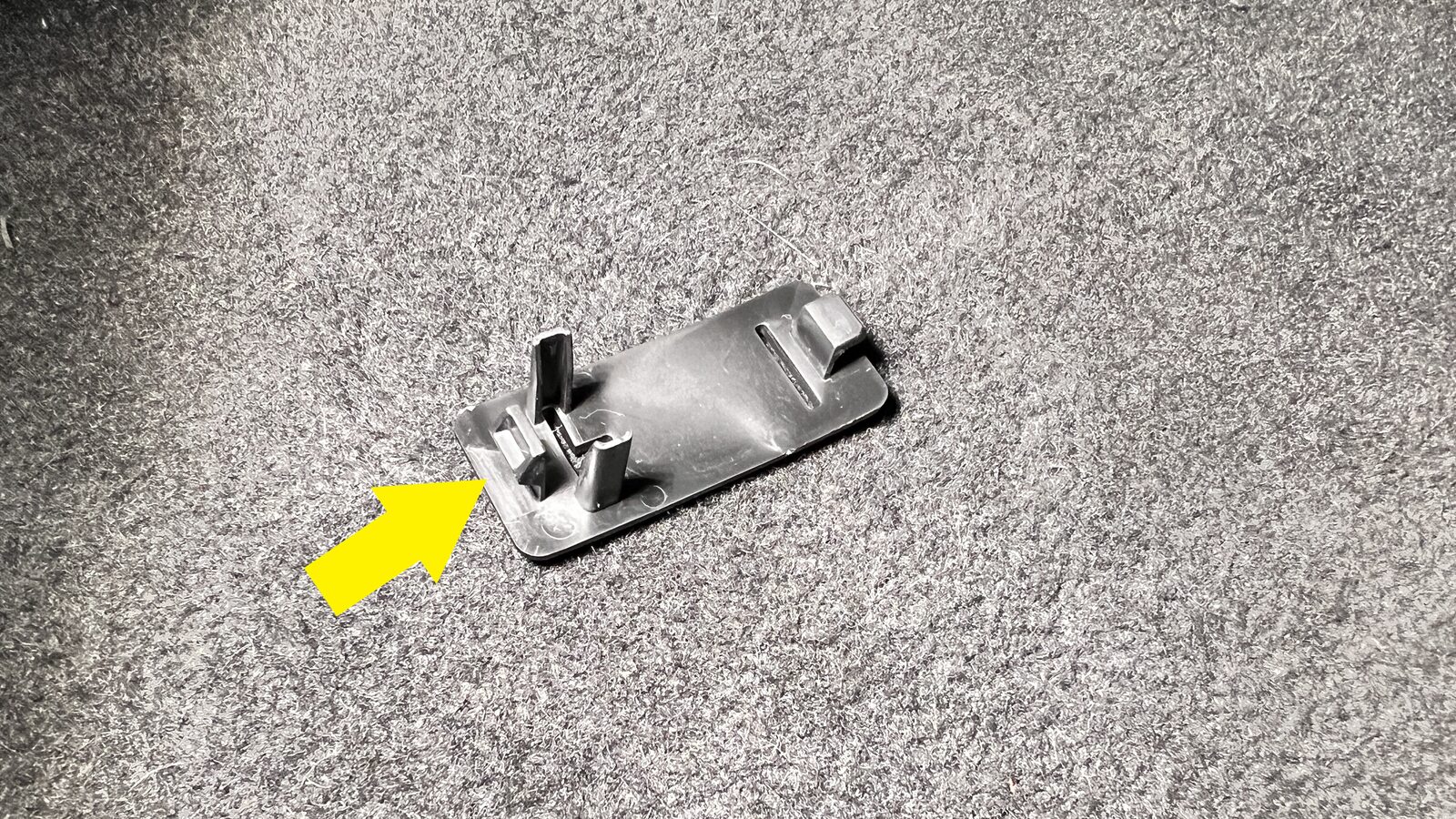

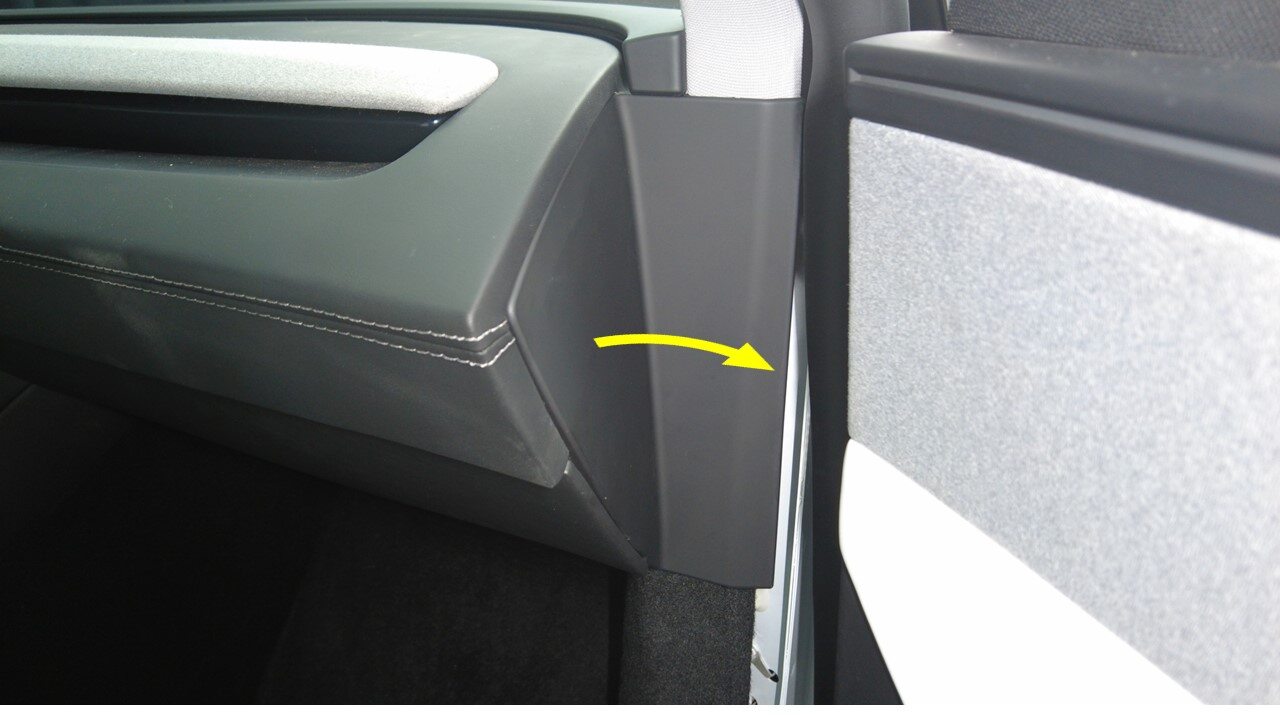

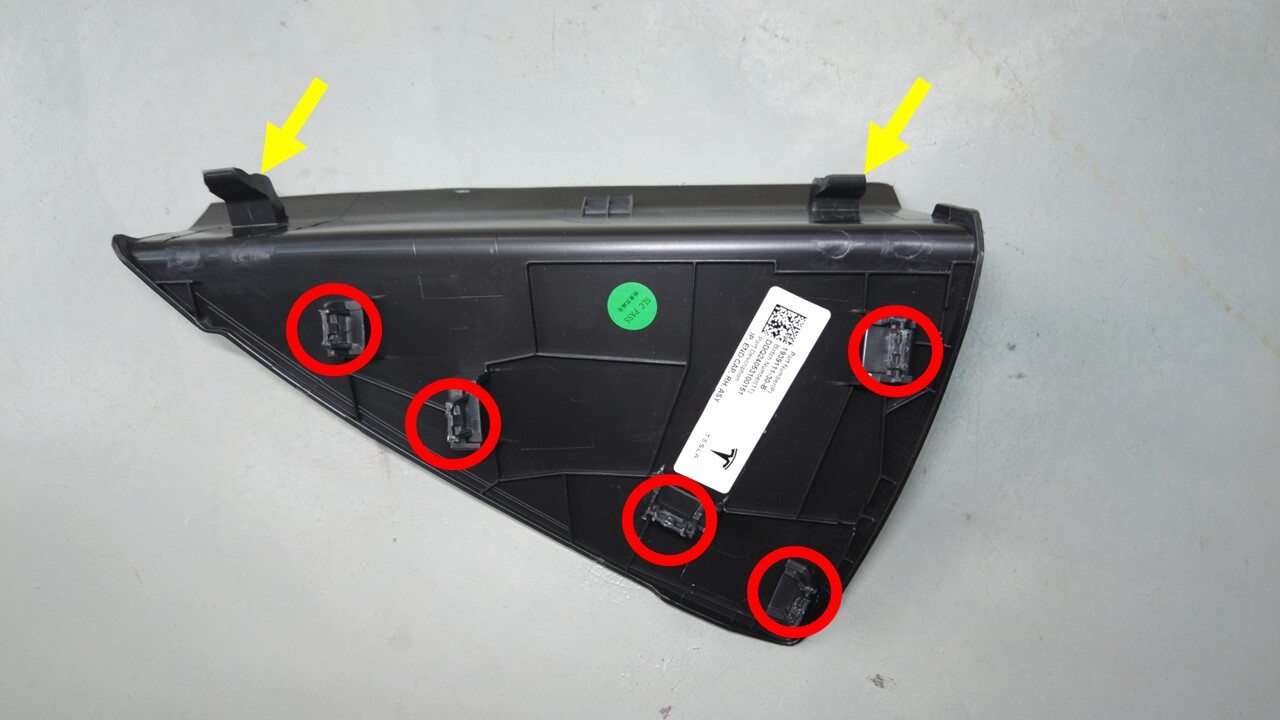

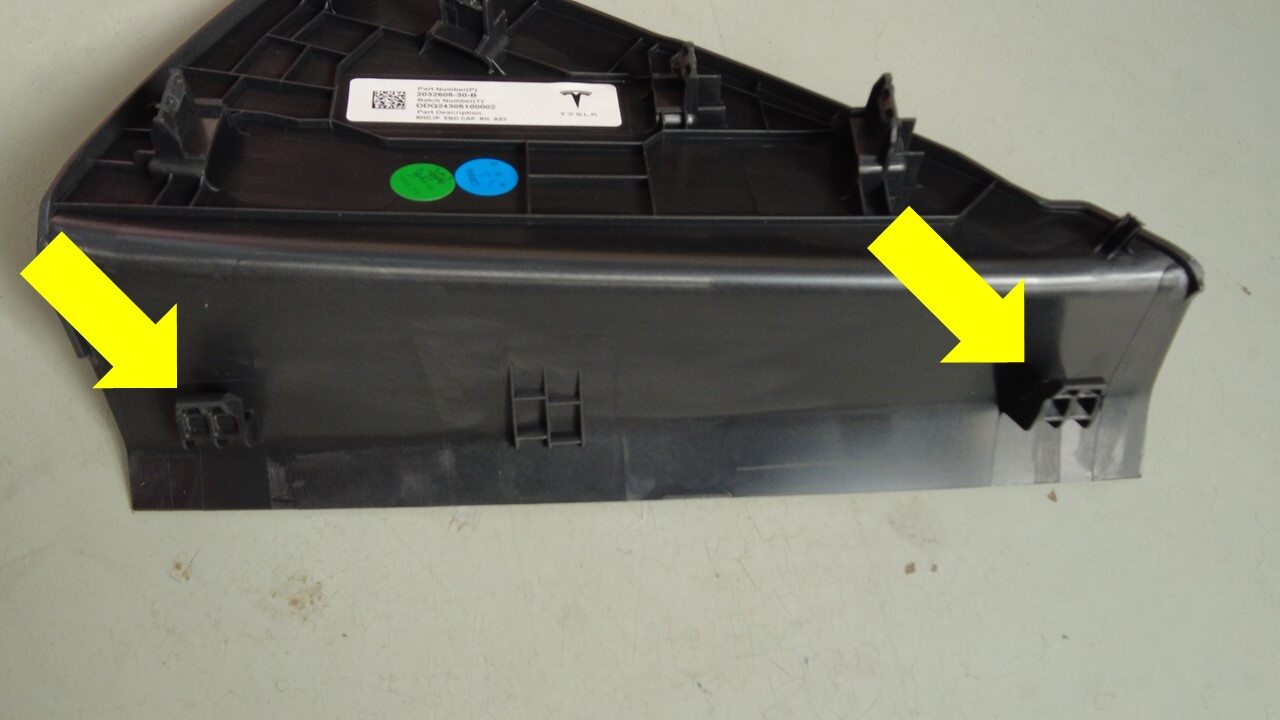

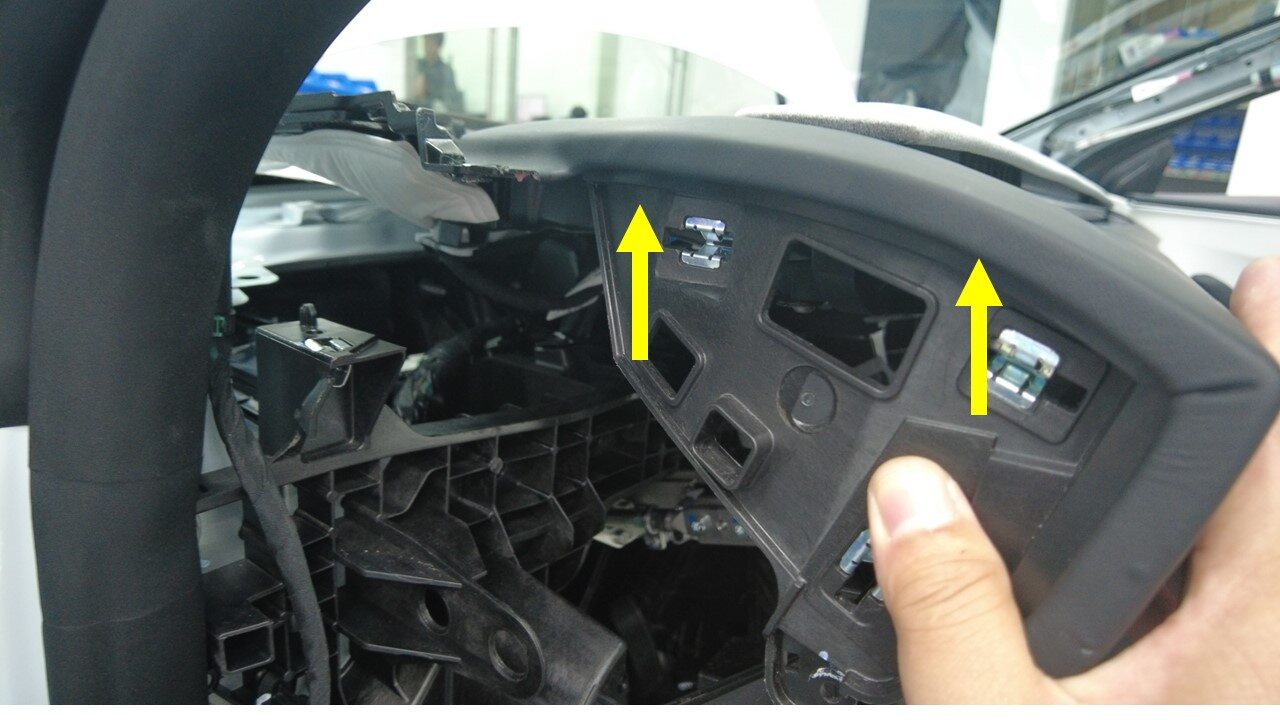

Remove LH IP end cap

Note

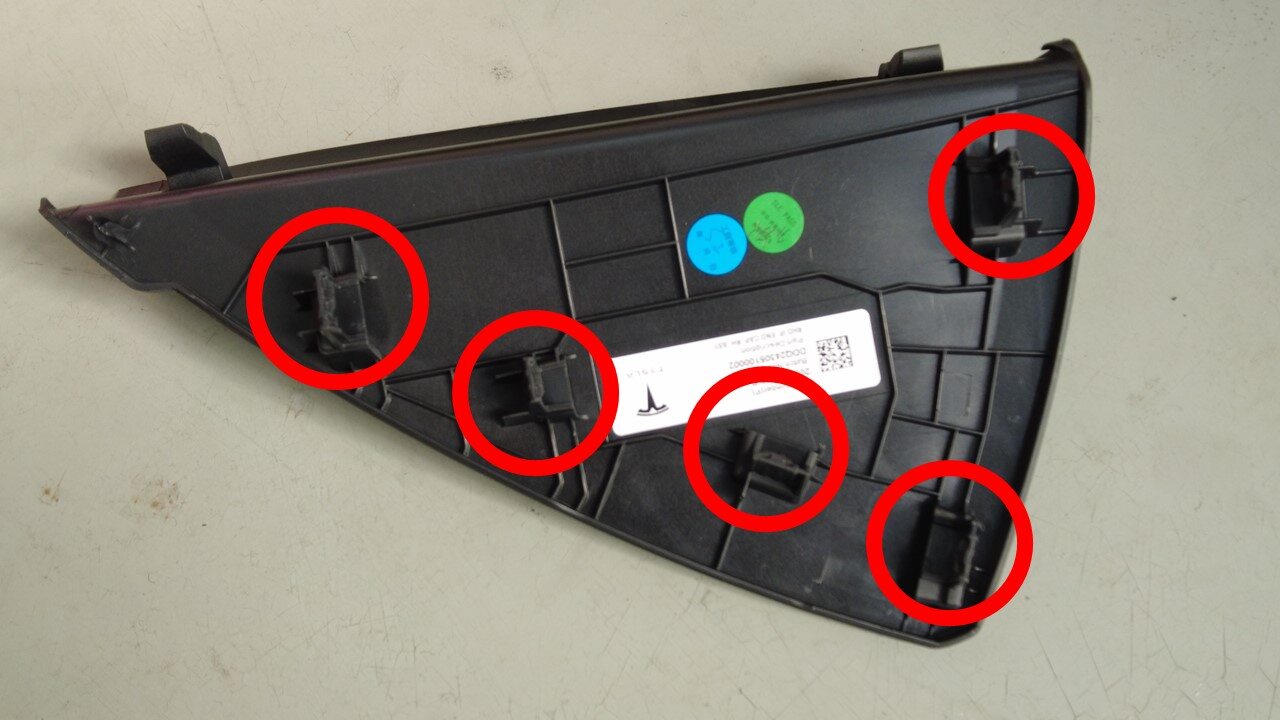

5x clips, 2x guide tabs

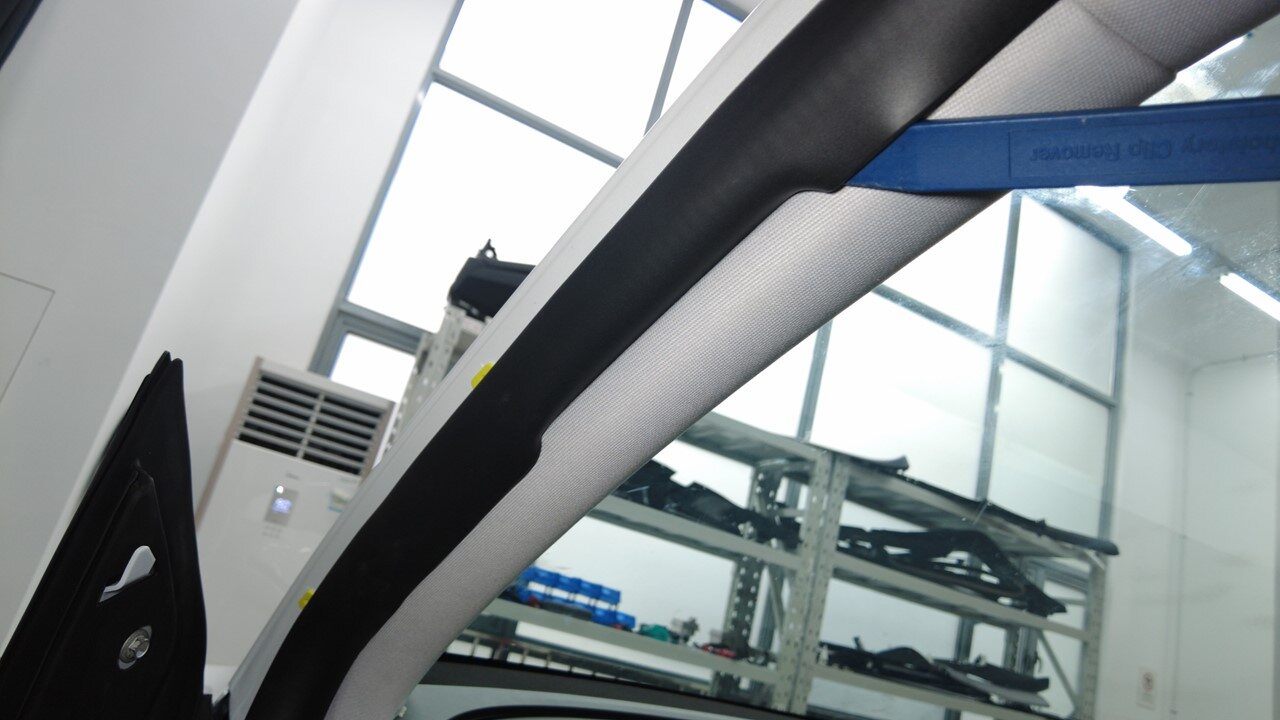

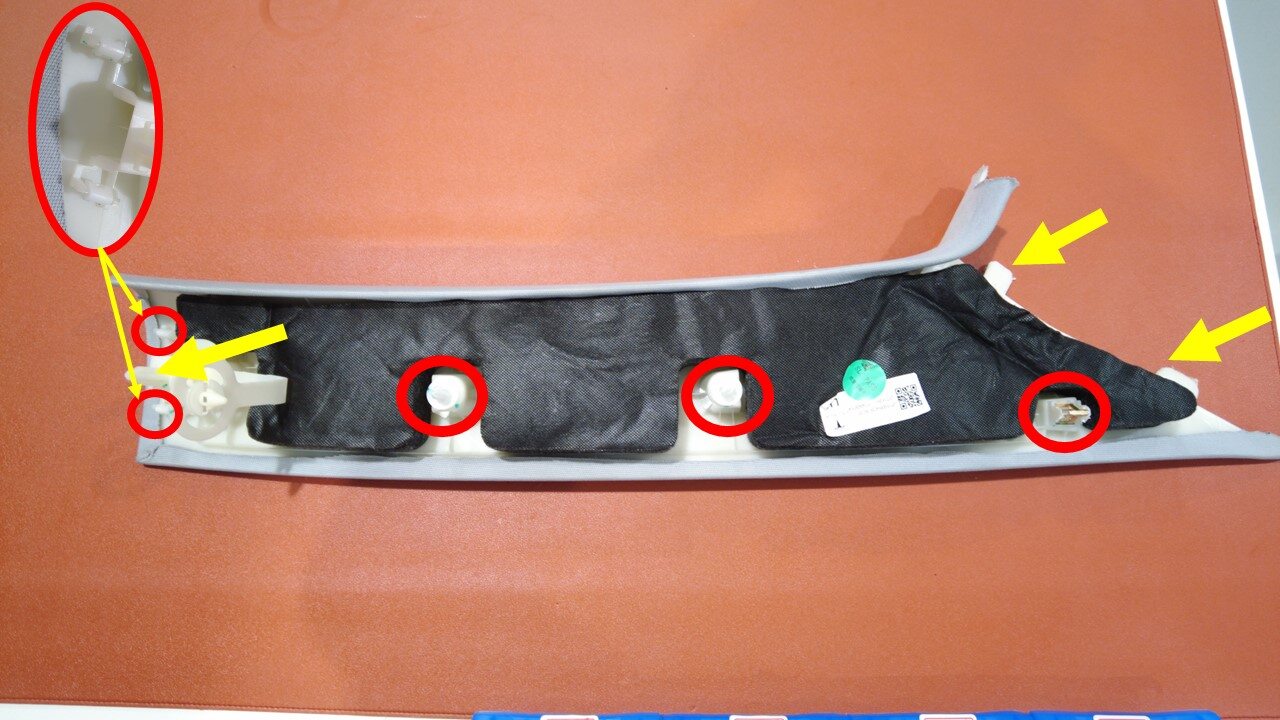

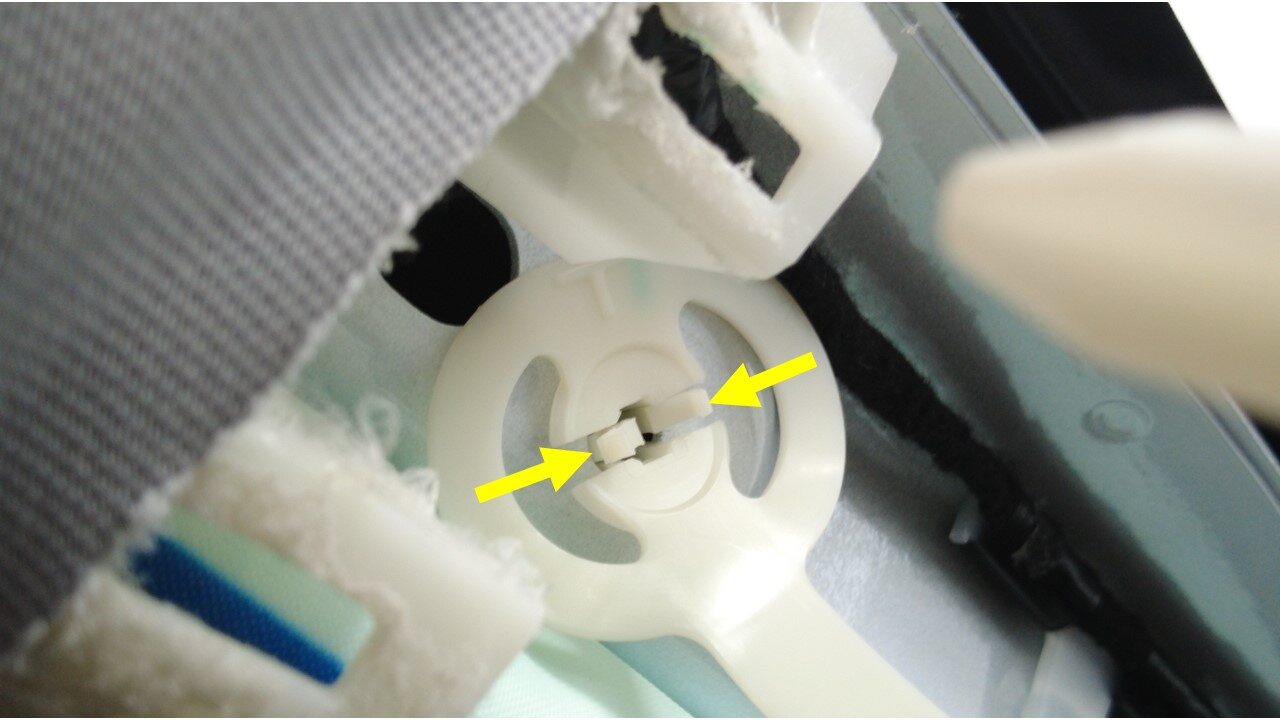

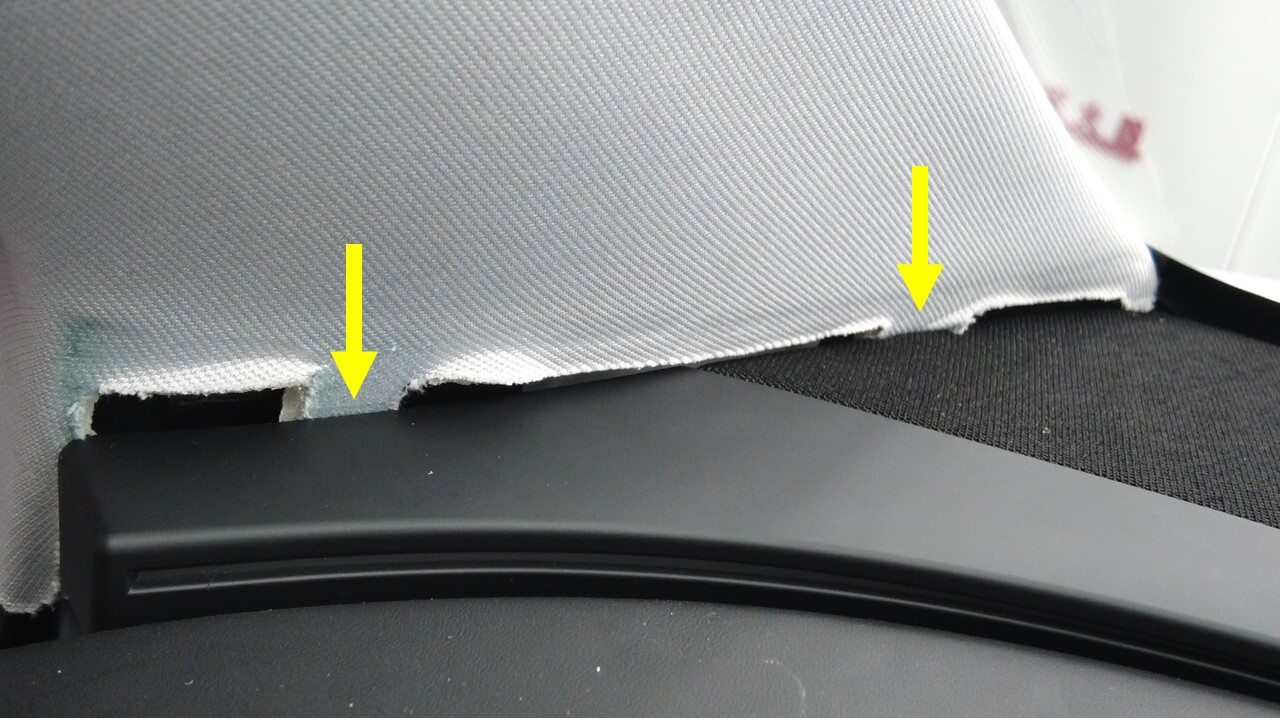

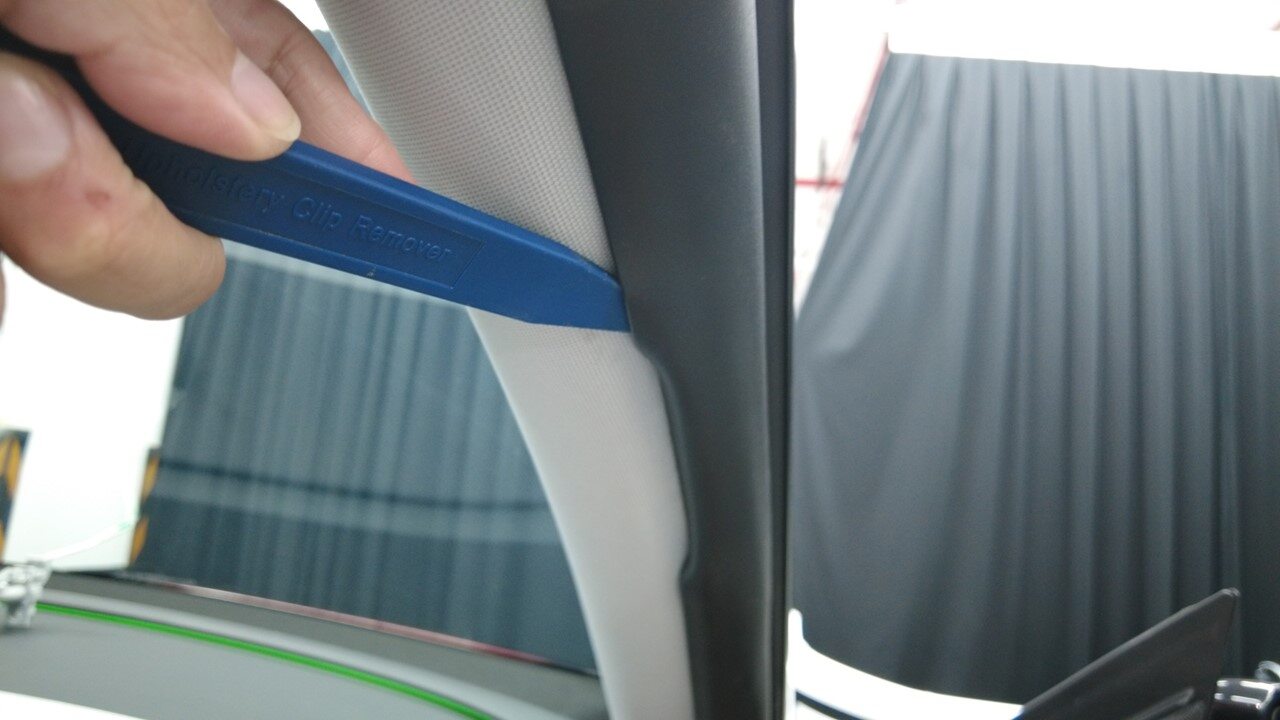

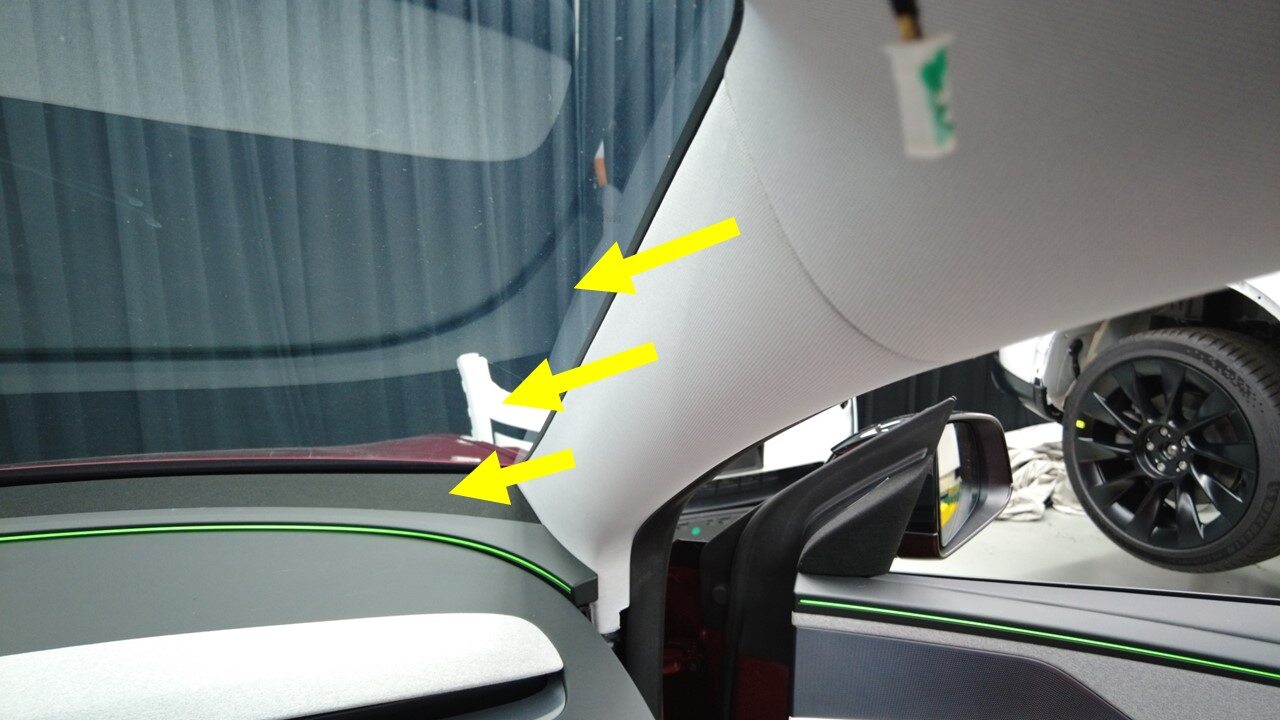

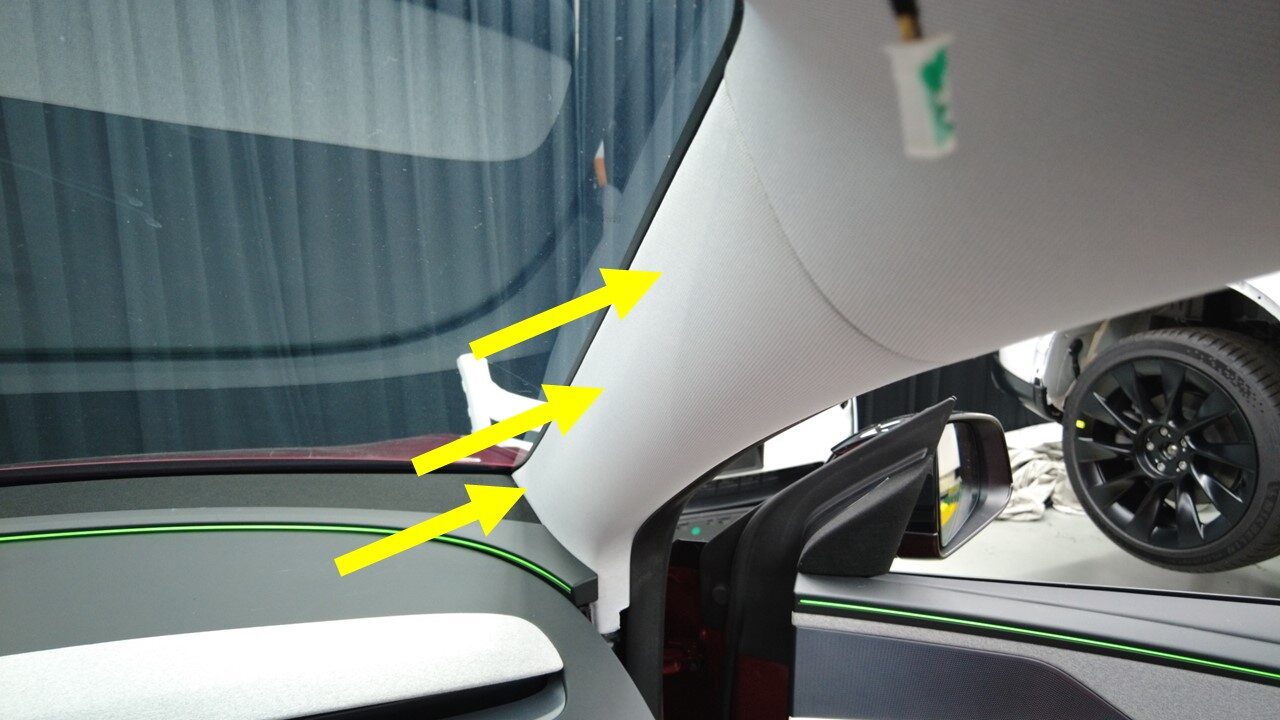

Remove LH upper A-pillar trim

Note

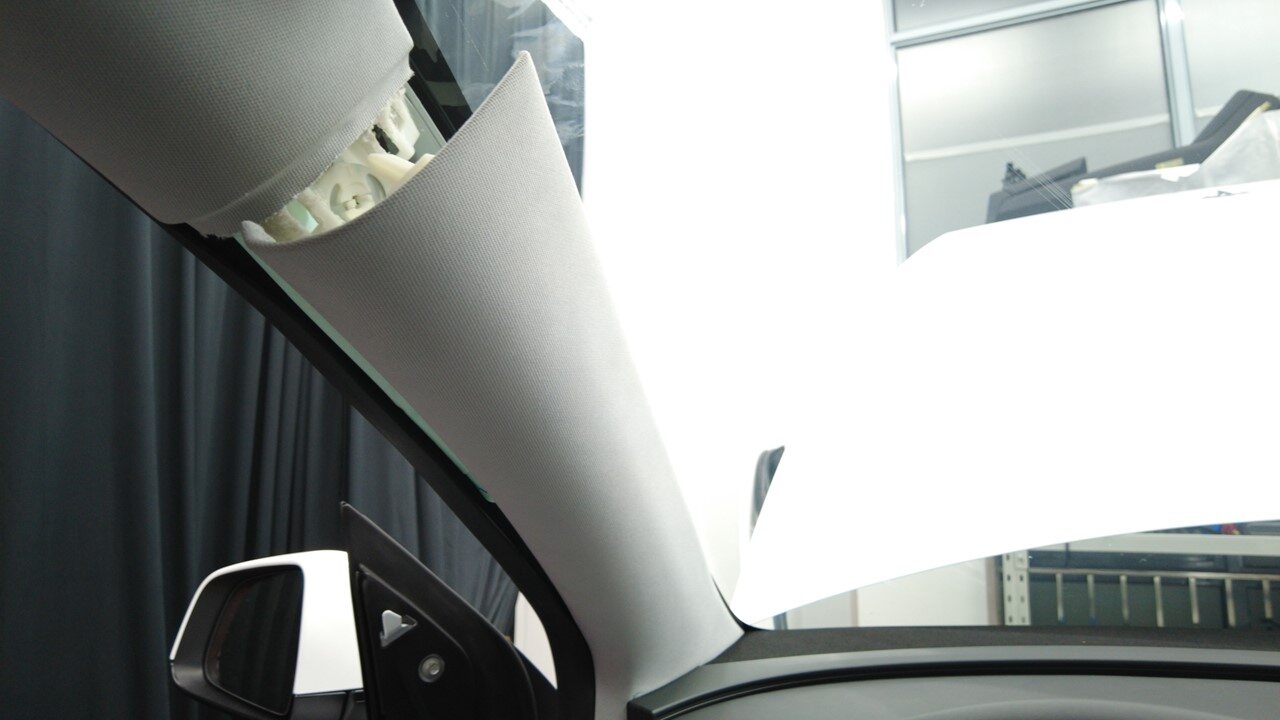

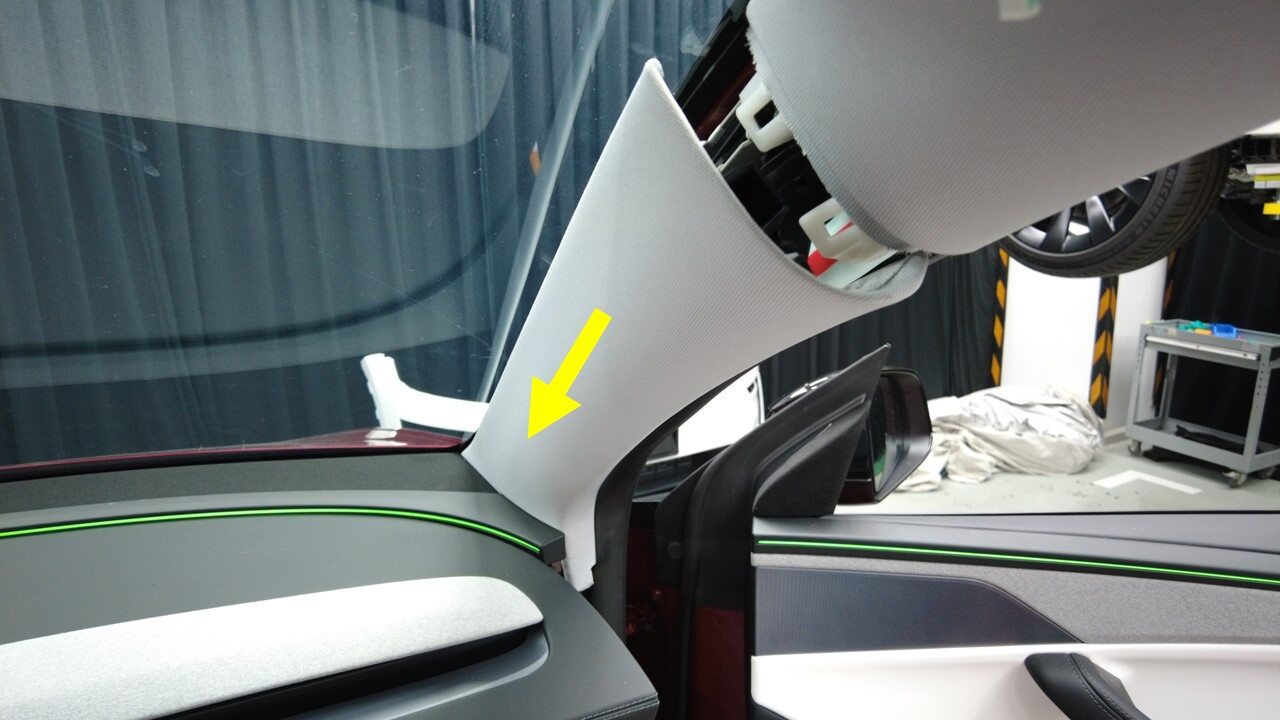

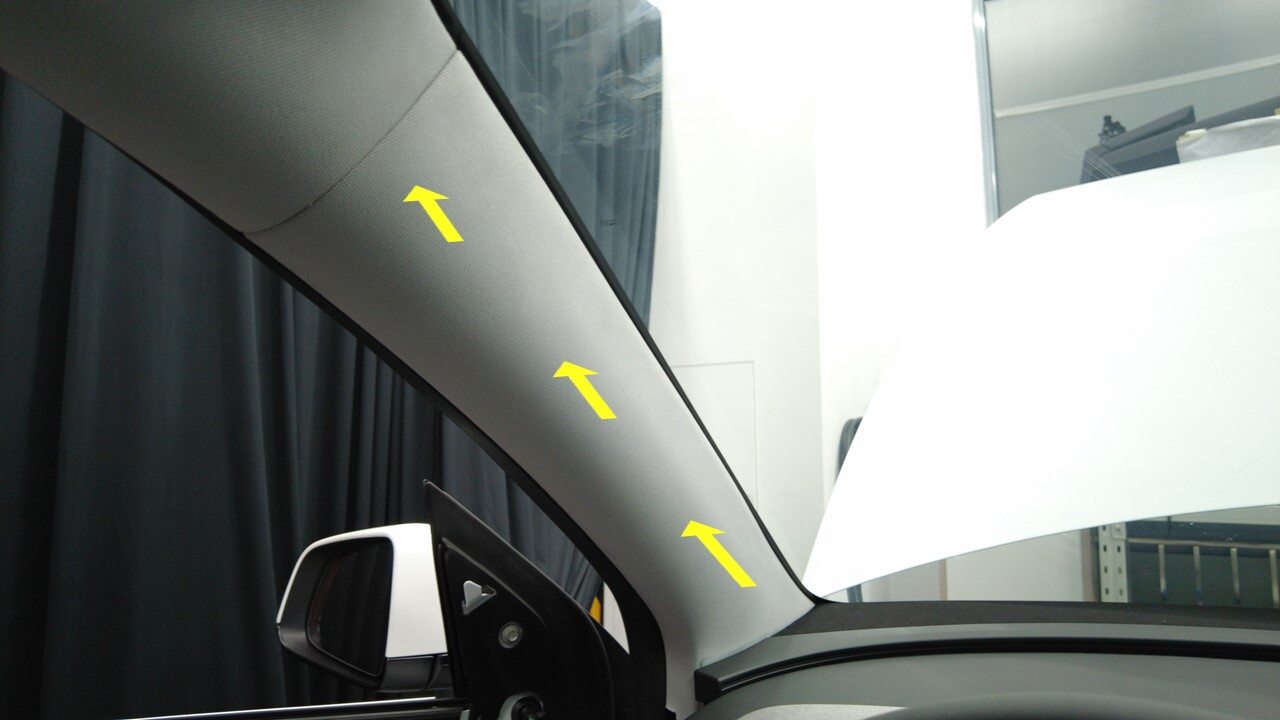

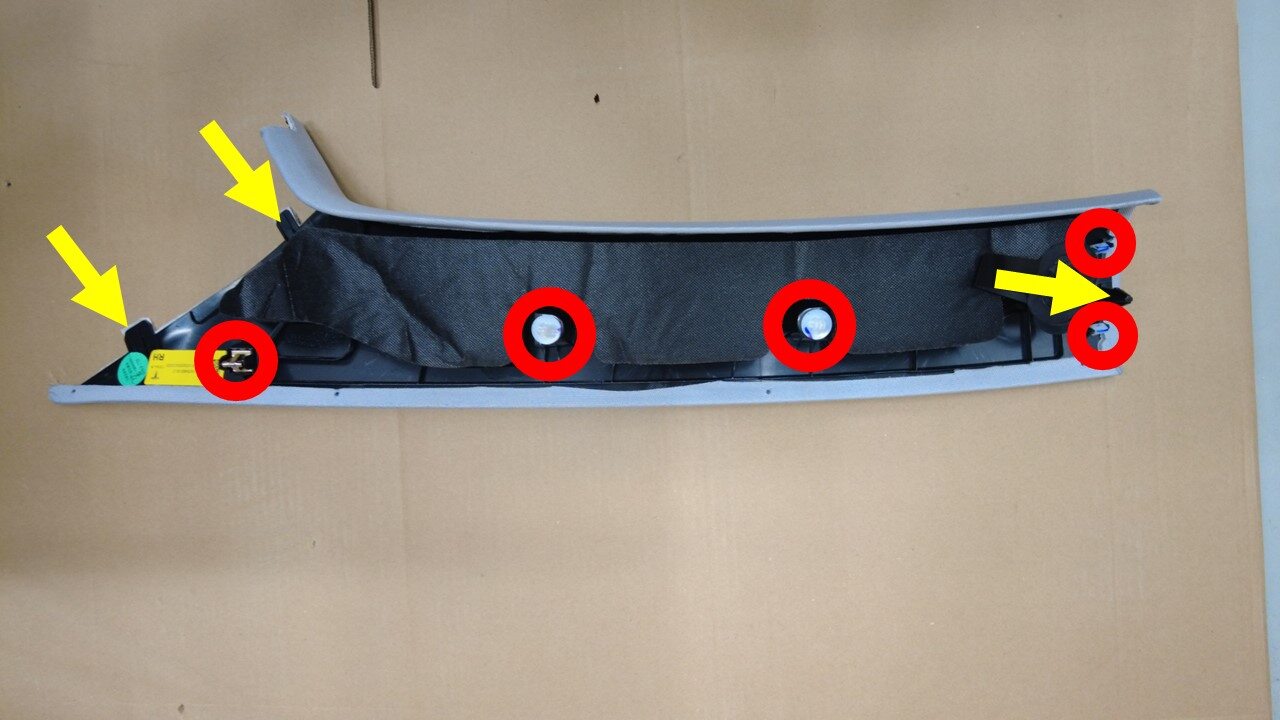

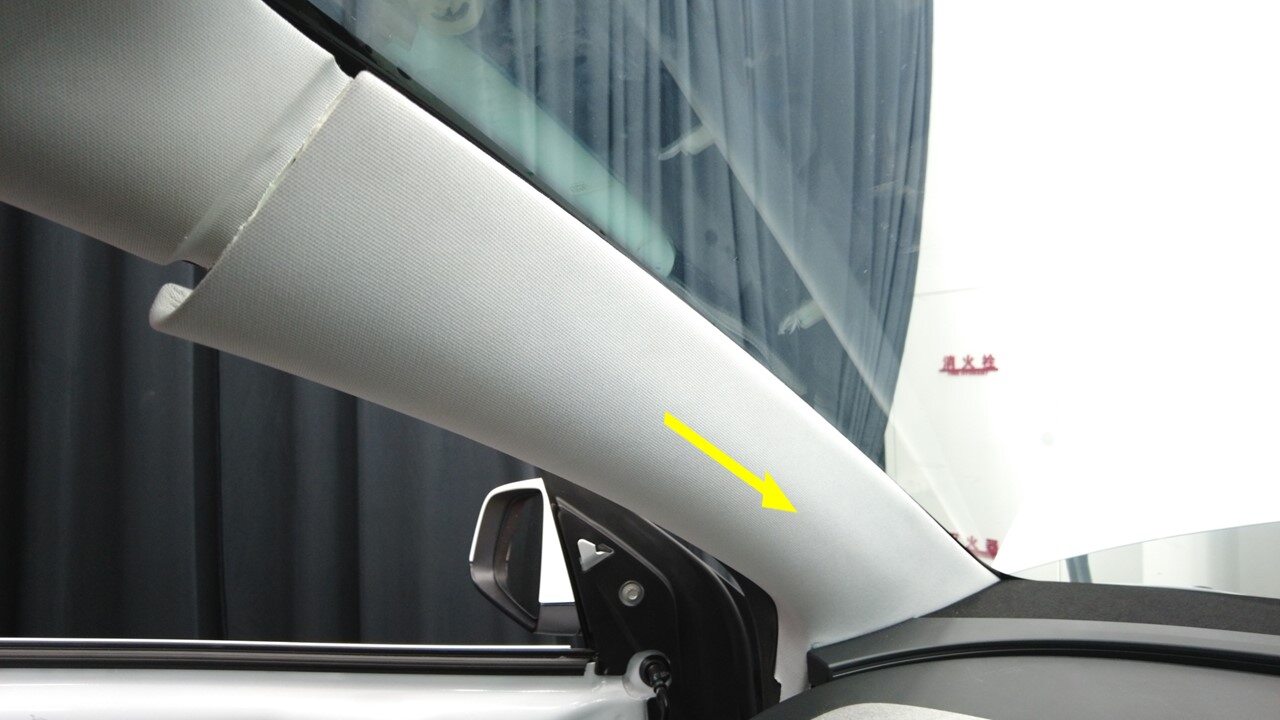

5x clips, 2x guide tabs, 1x datum, 1x tether, Partially release trim at top edge then release tether, Pull trim inwards then rotate rearwards to release from IP, Tether may vary by revision

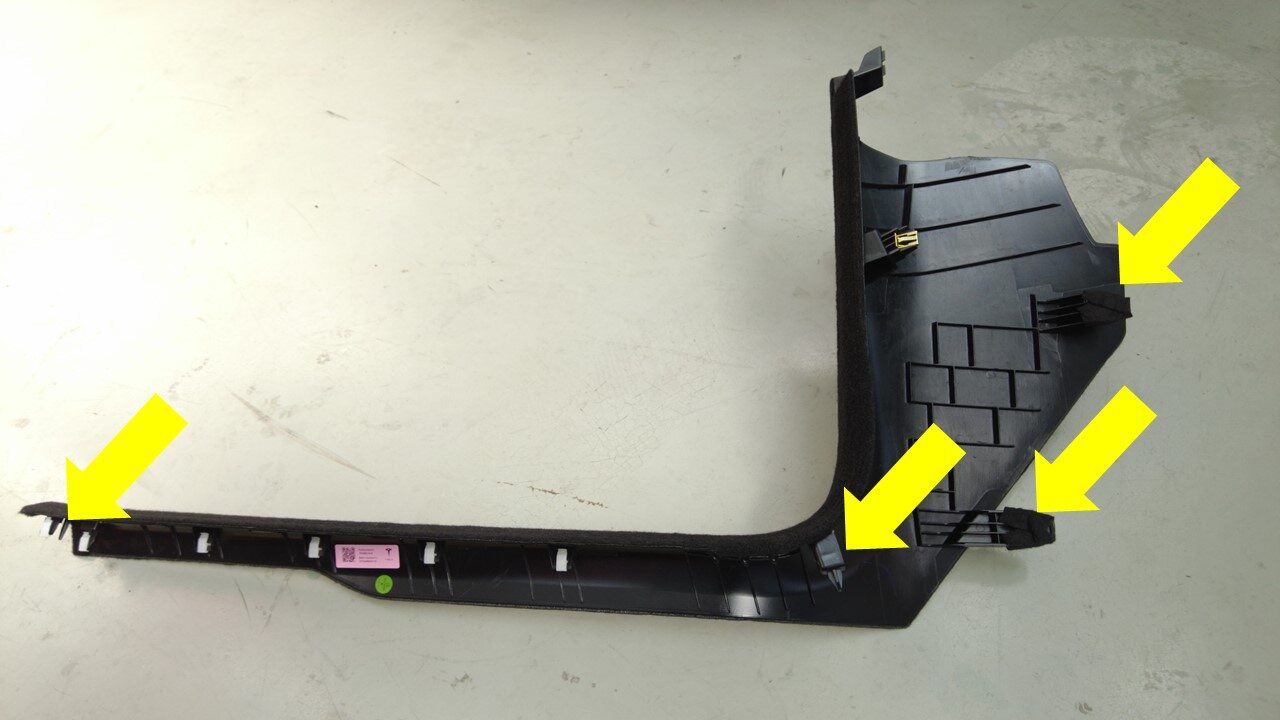

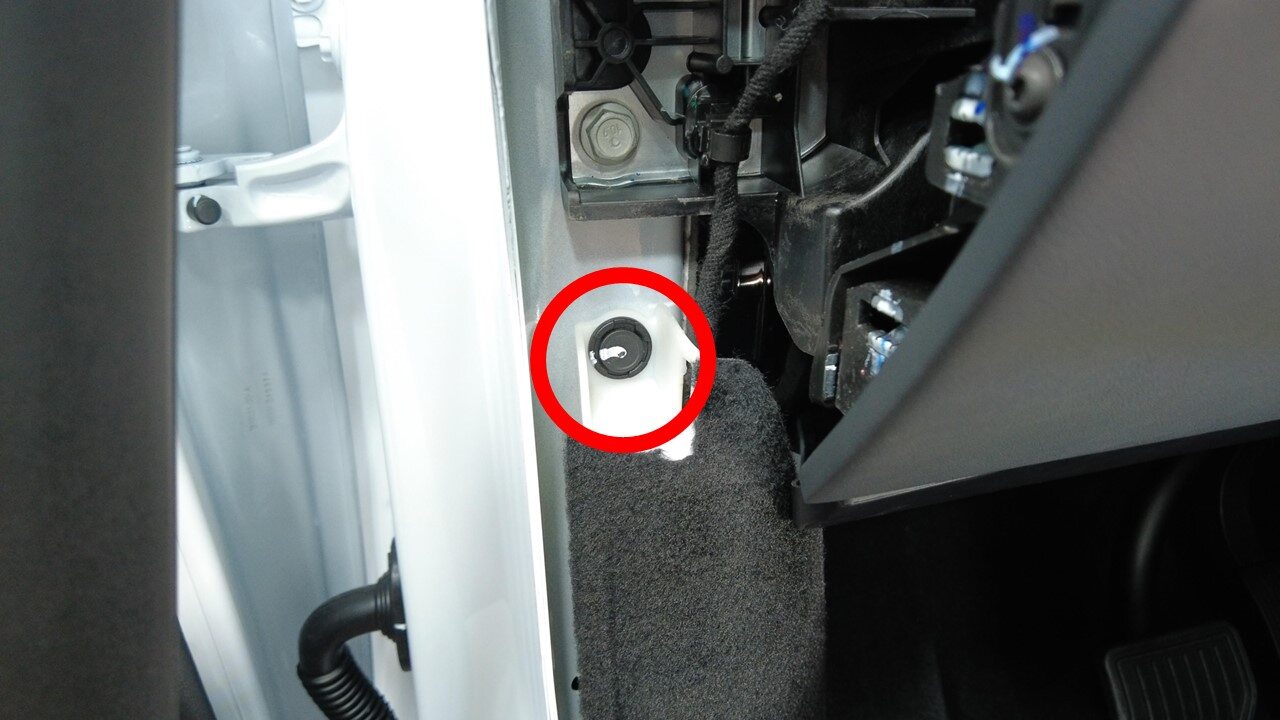

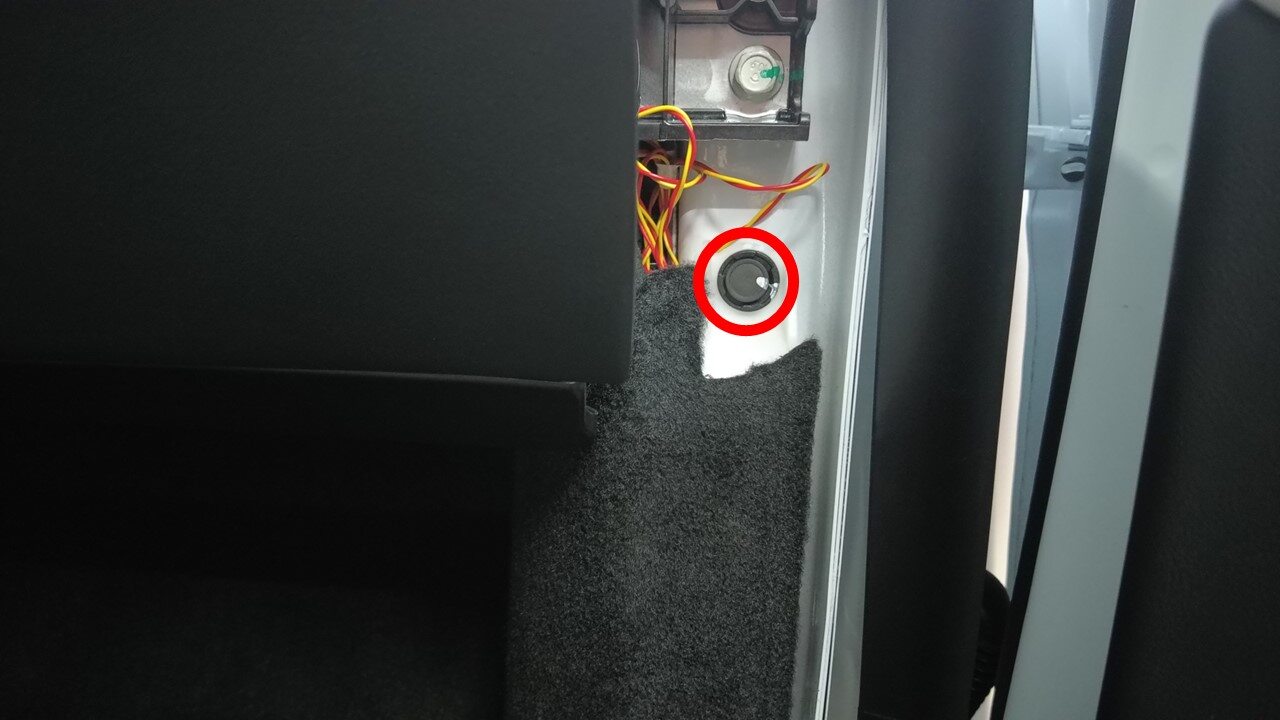

Remove LH lower A pillar trim from body

Note

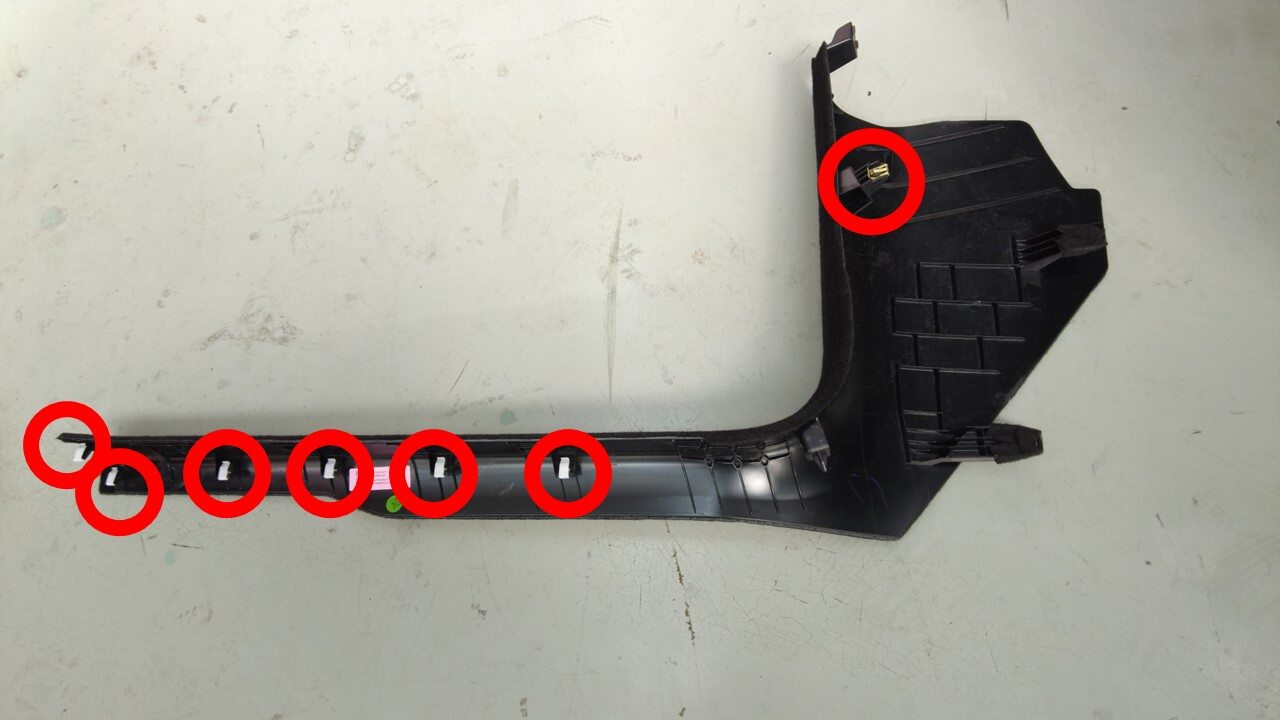

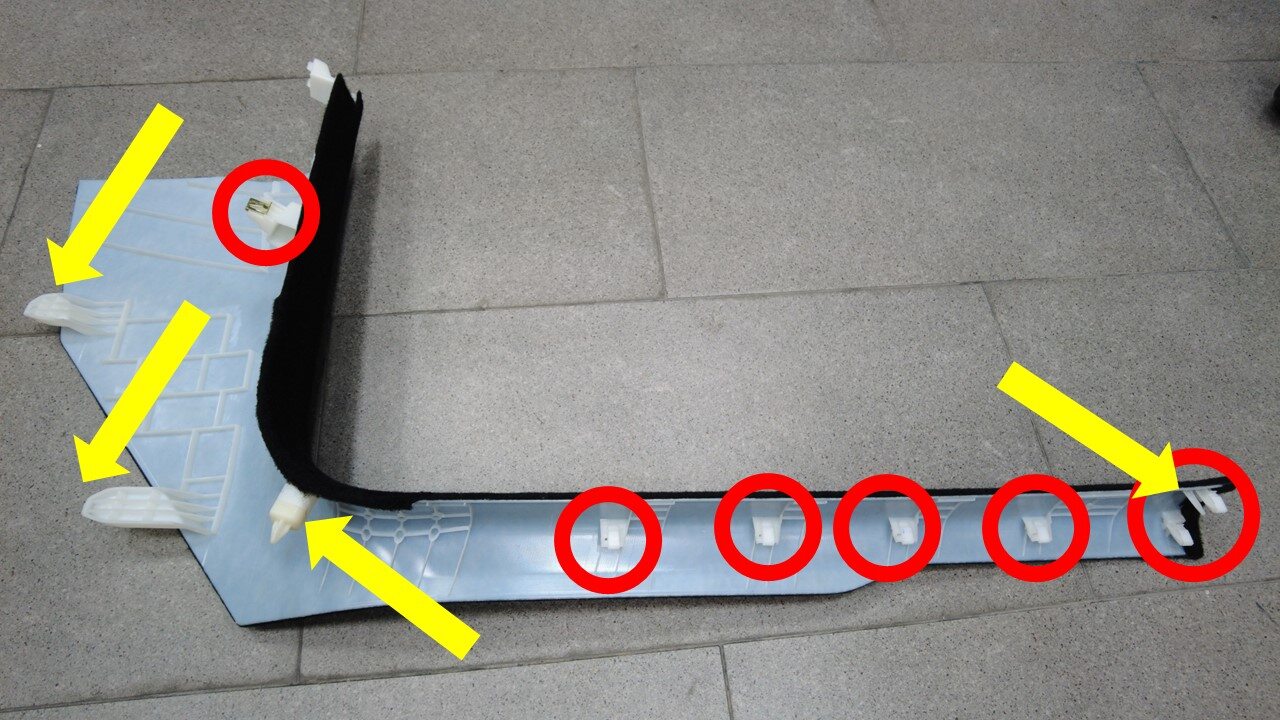

7x clips,4x guide tabs, 1x push clip, Pull rear of lower A-pillar upward to release clip then pull rearward to release front tabs from carpet

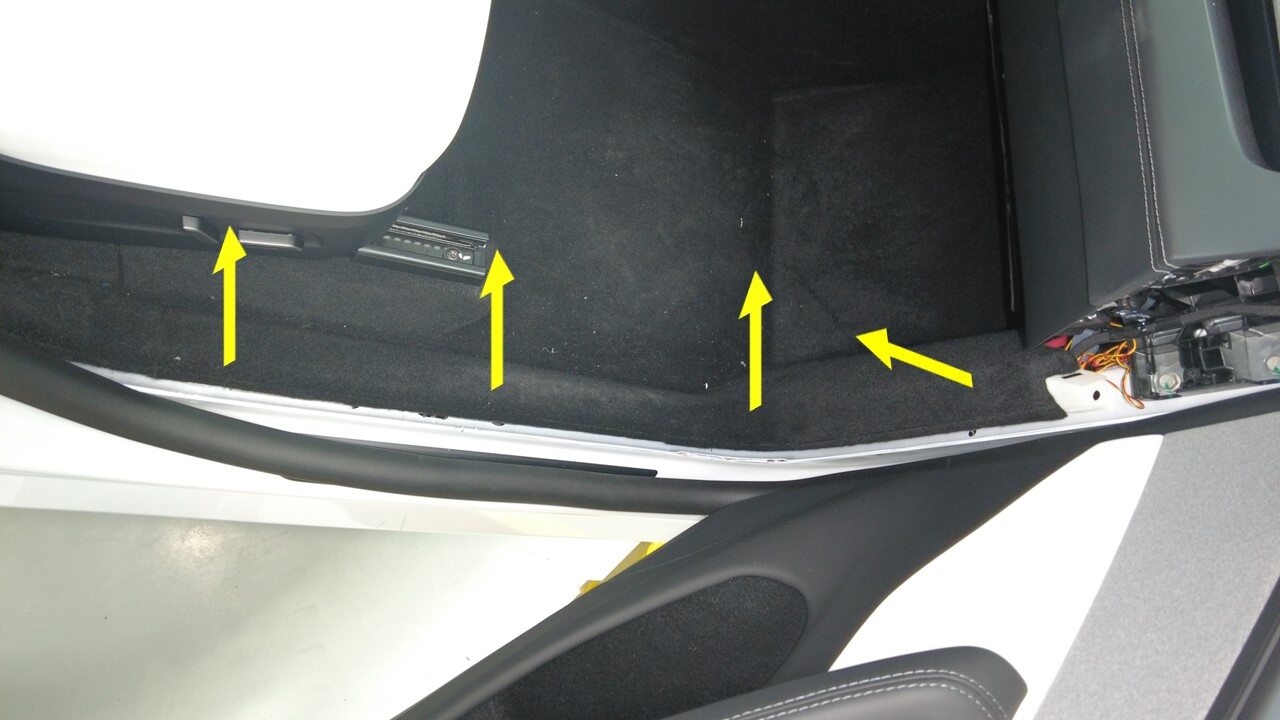

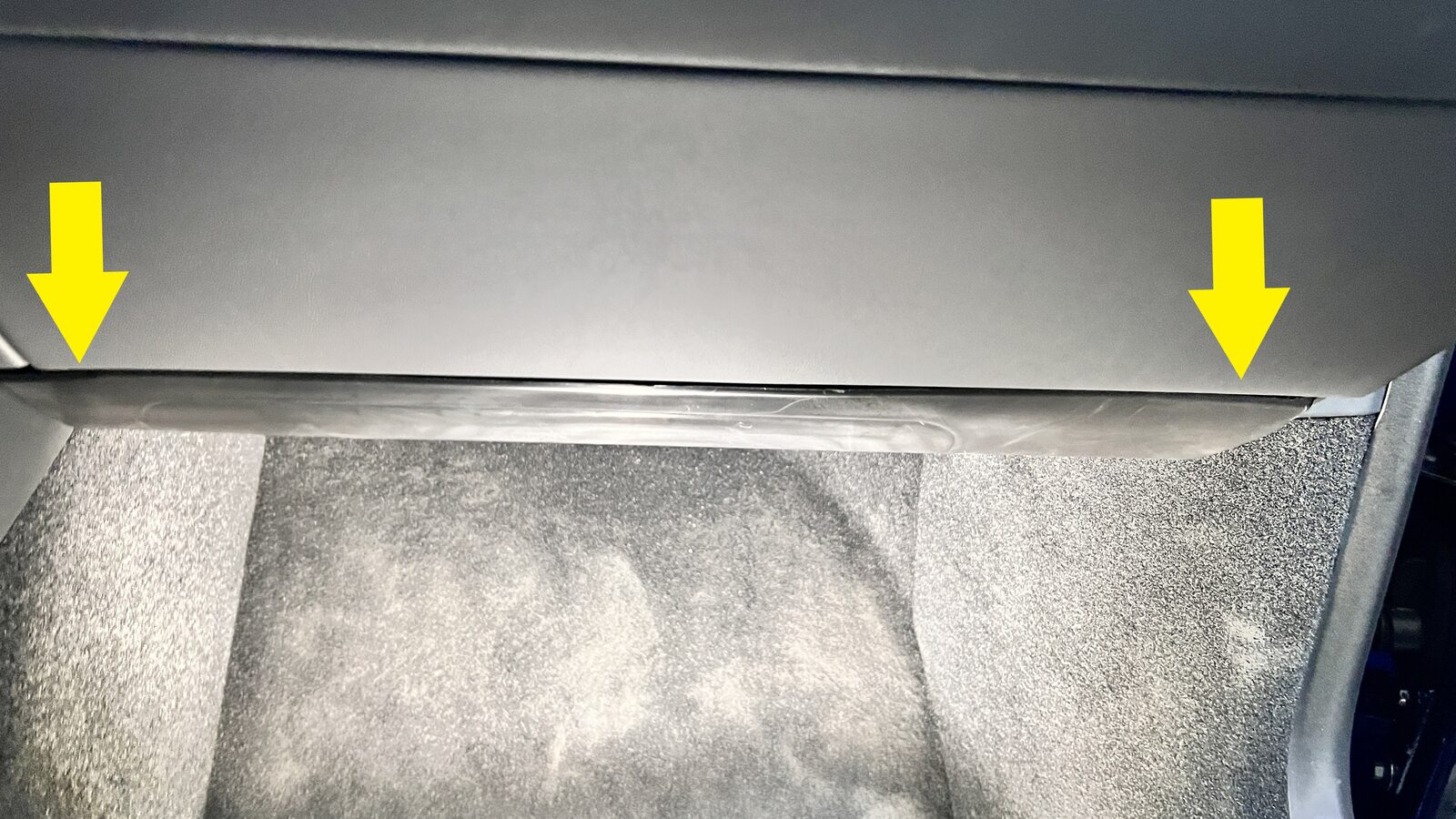

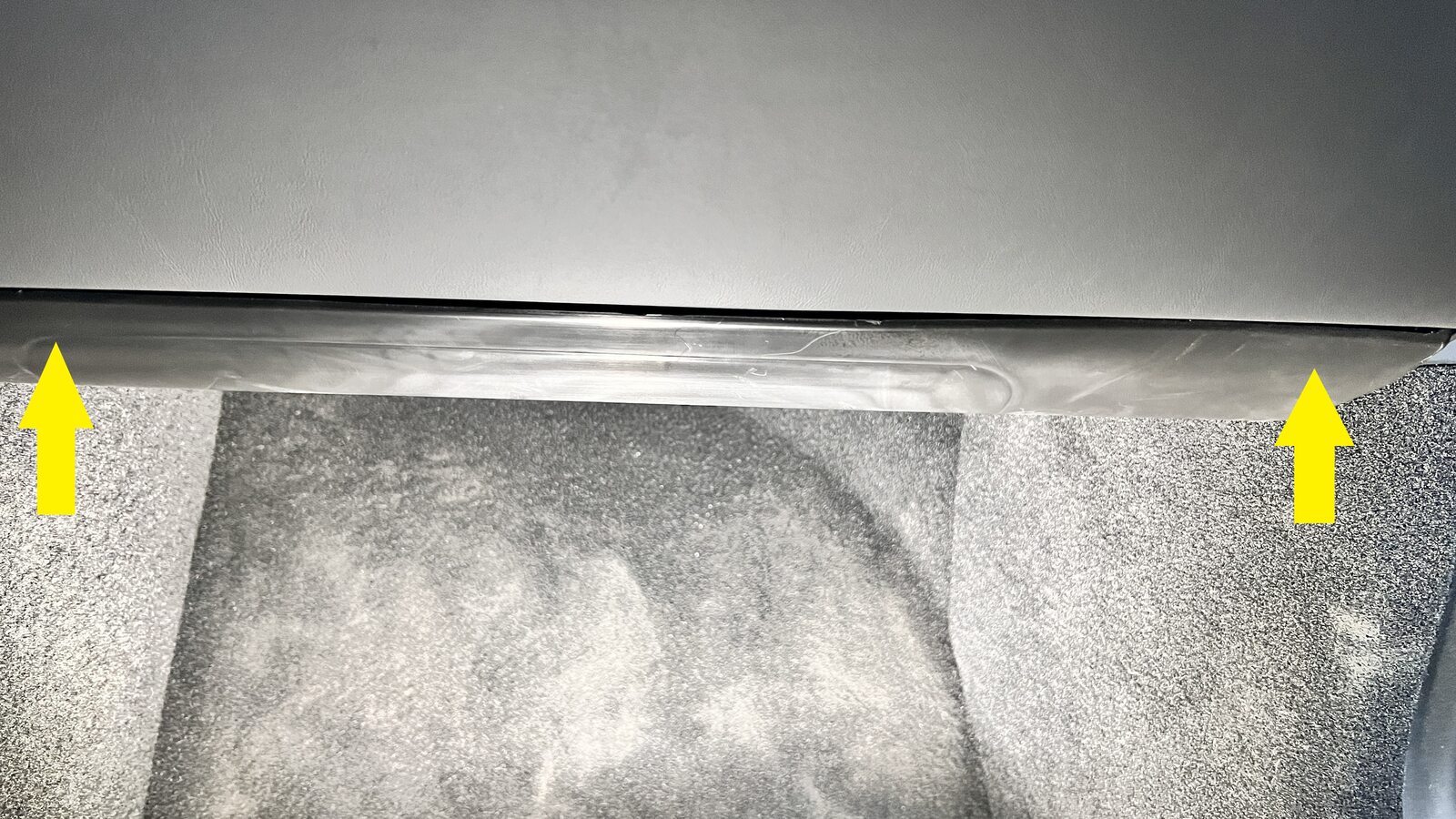

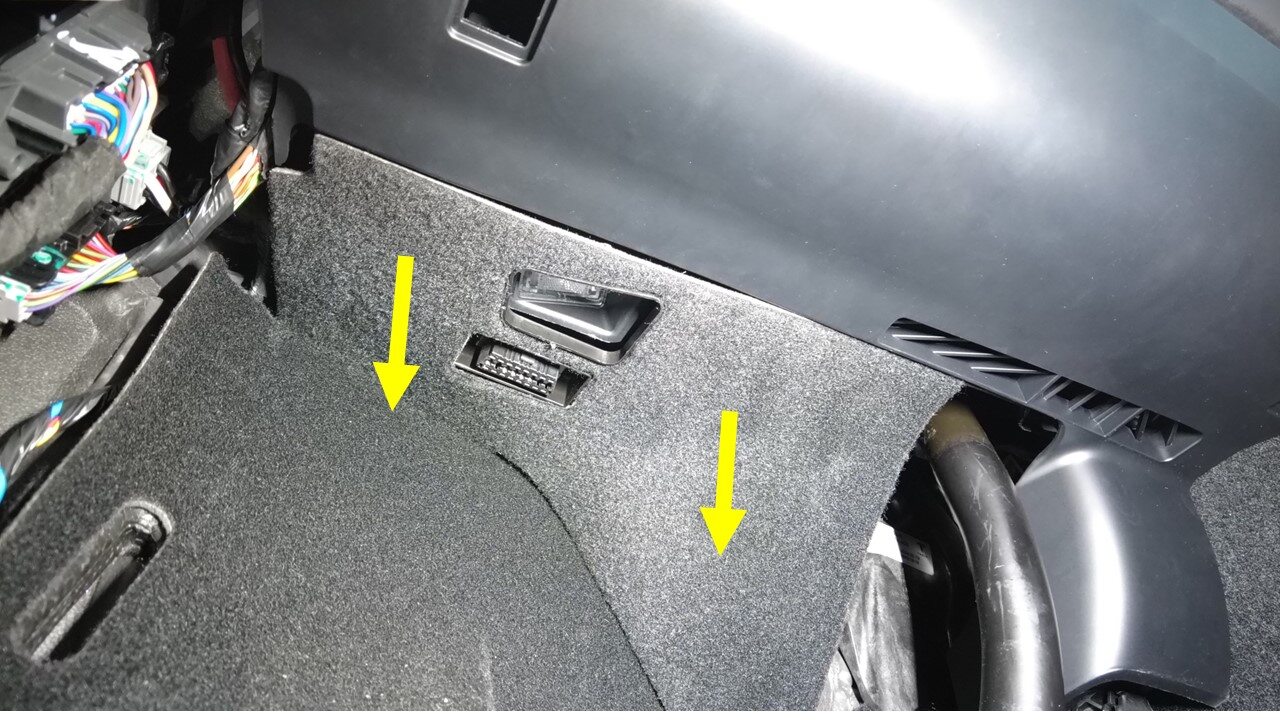

Release LH footwell cover

Note

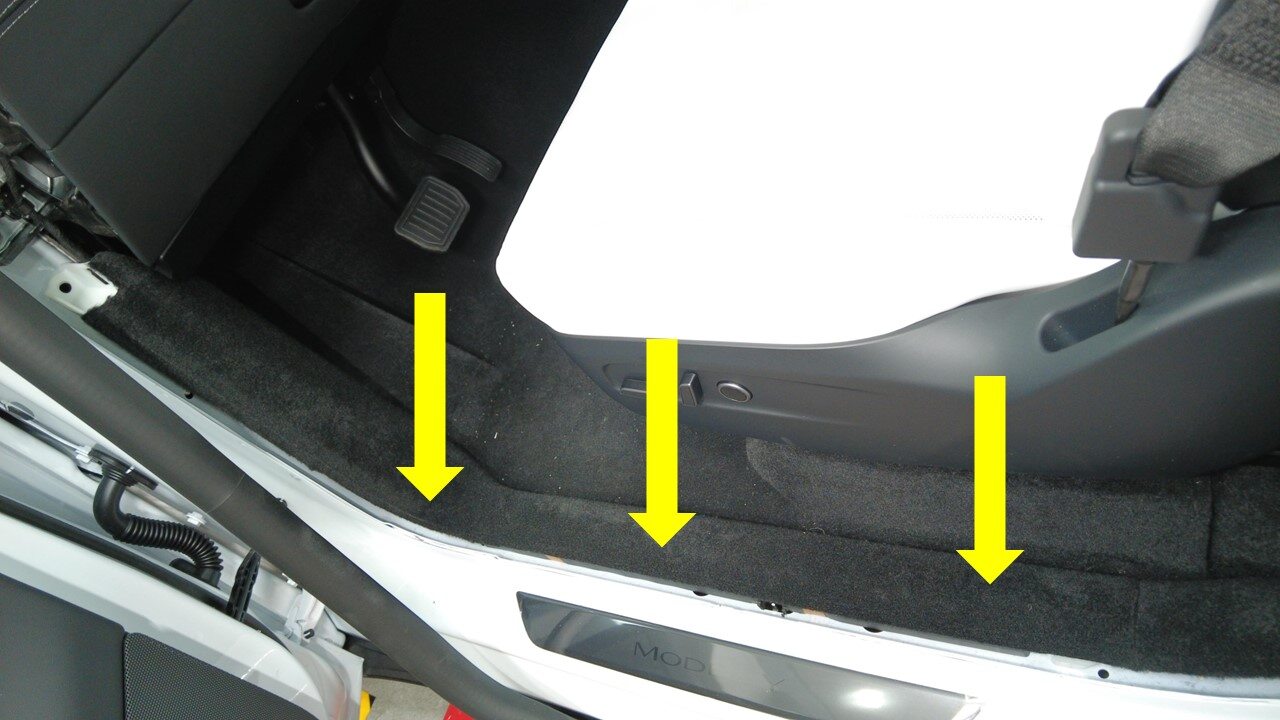

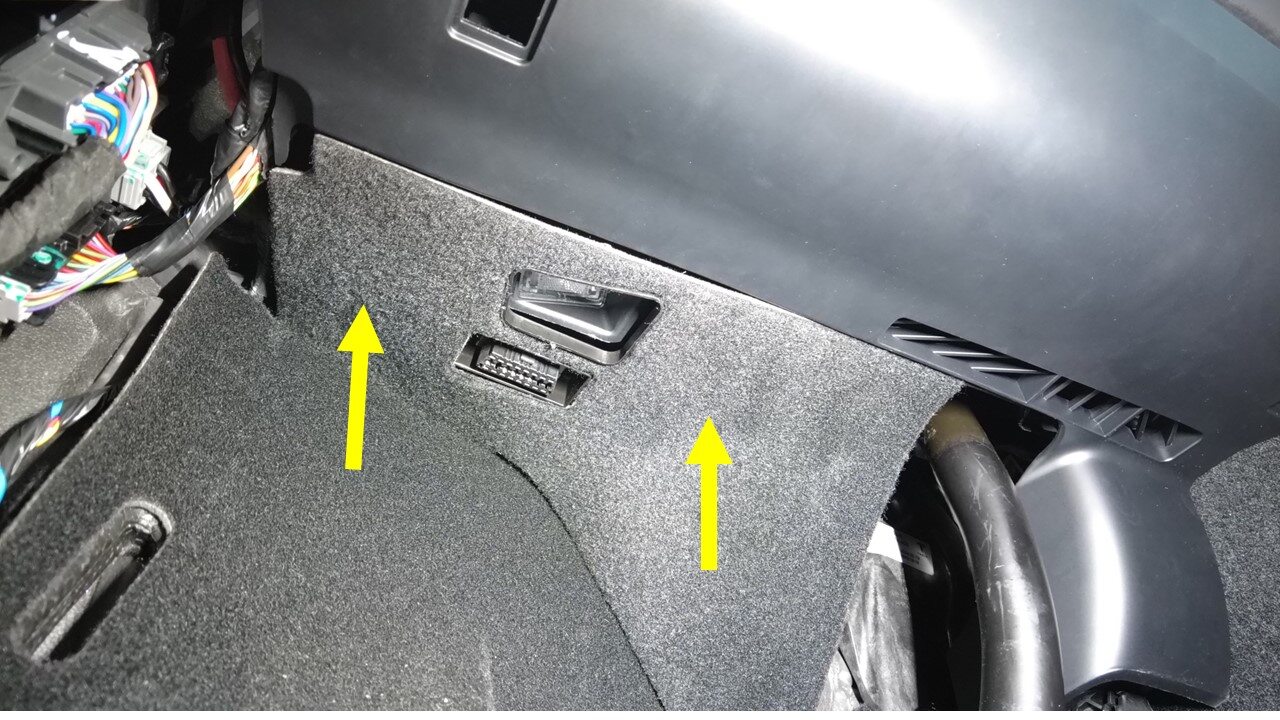

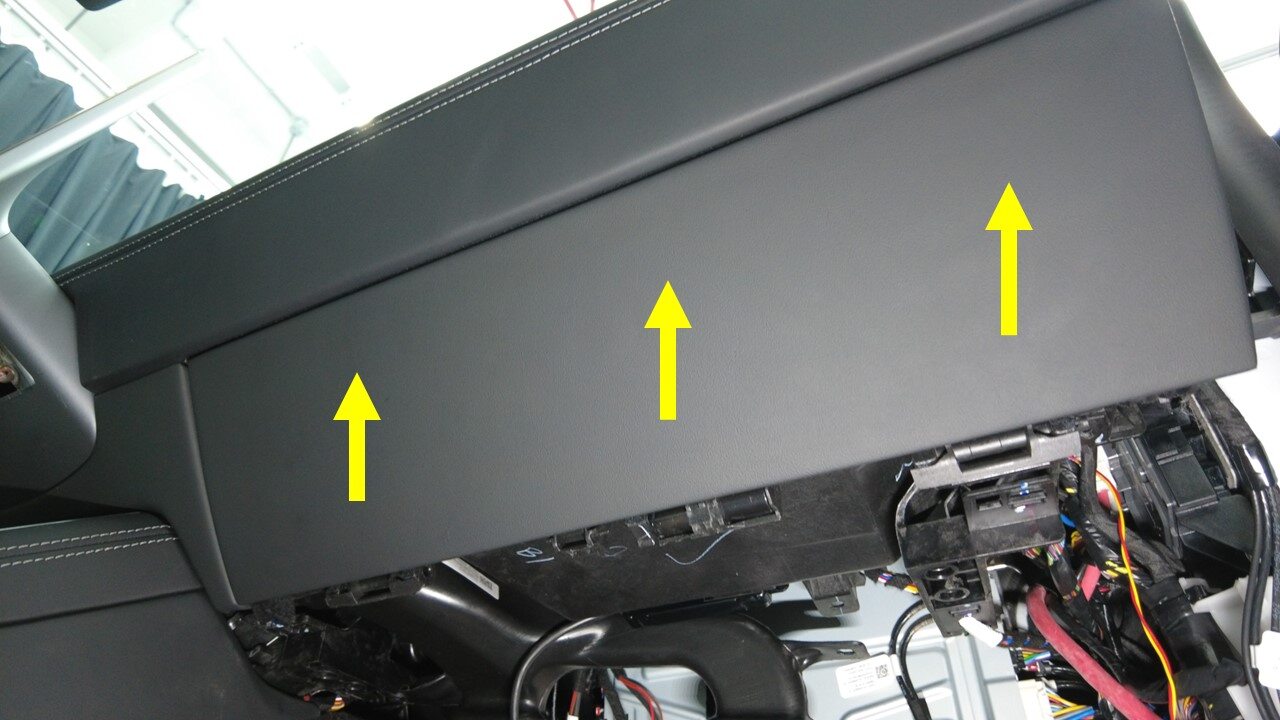

2x magnets, 2x datums, Cover is attached to carpet

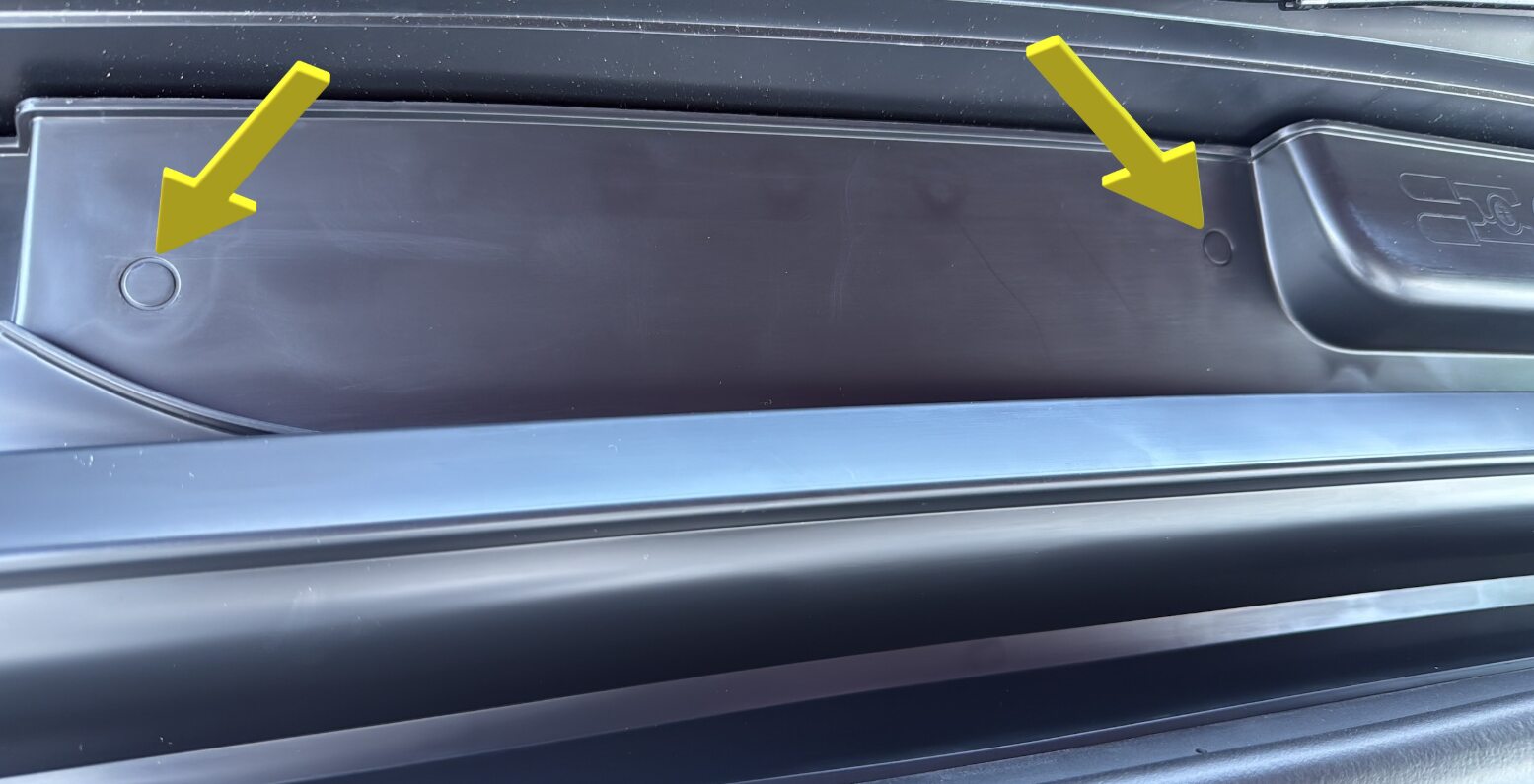

Remove LH knee air bag bolt covers

Note
2x covers

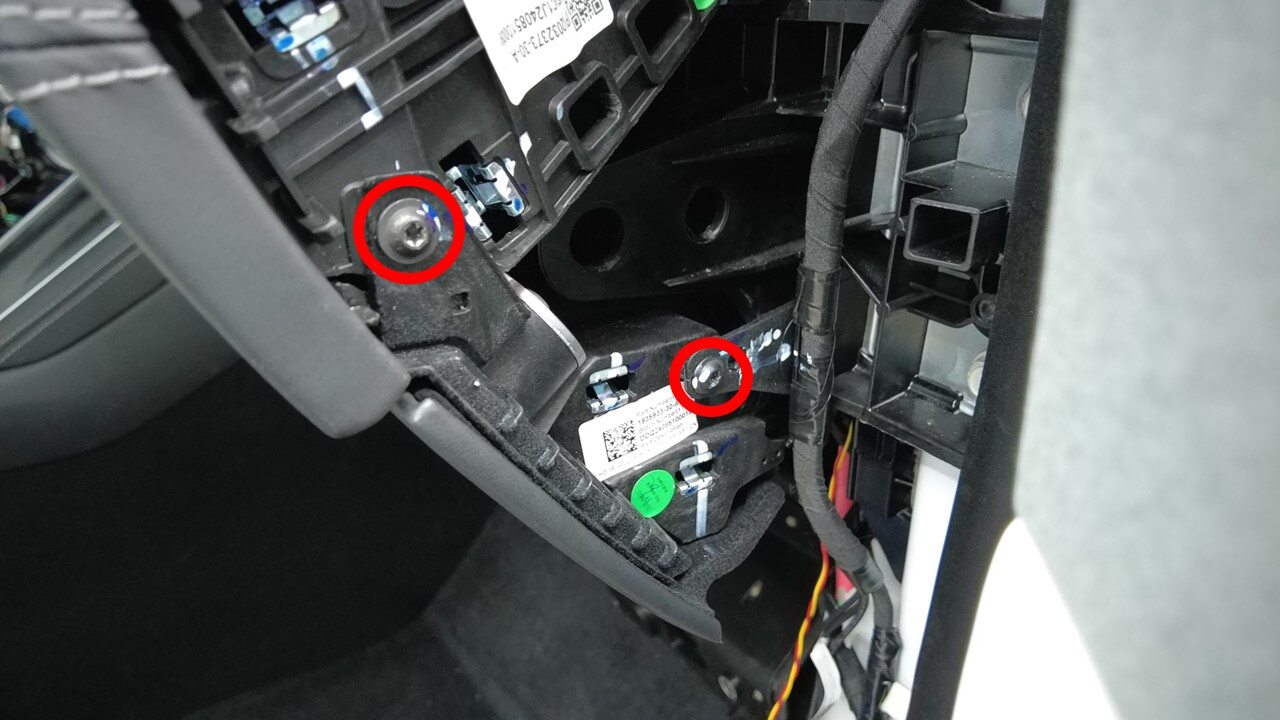

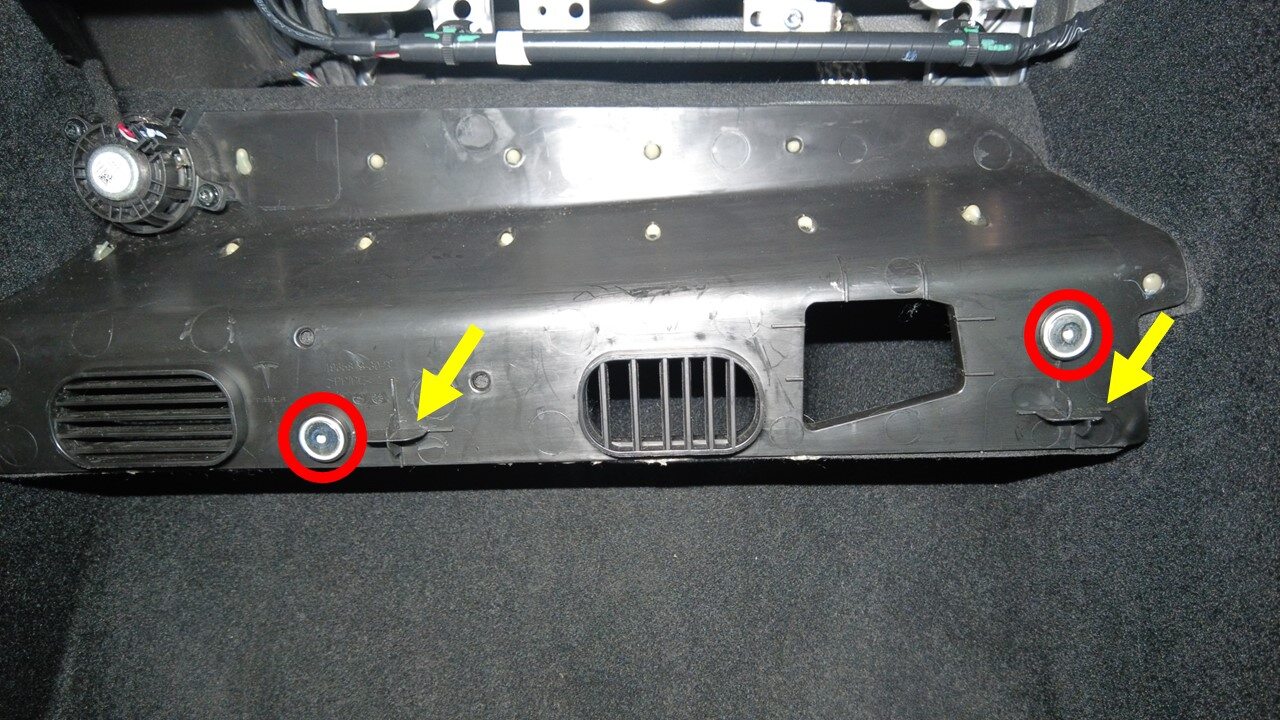

Remove bolts securing LH knee air bag

Note
4x bolts, EP10, 8.5 Nm, Discard after removal

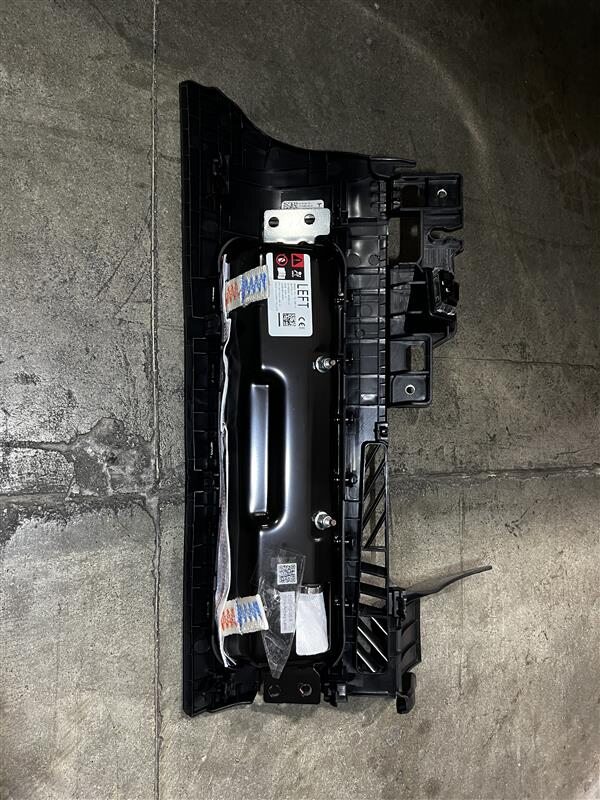

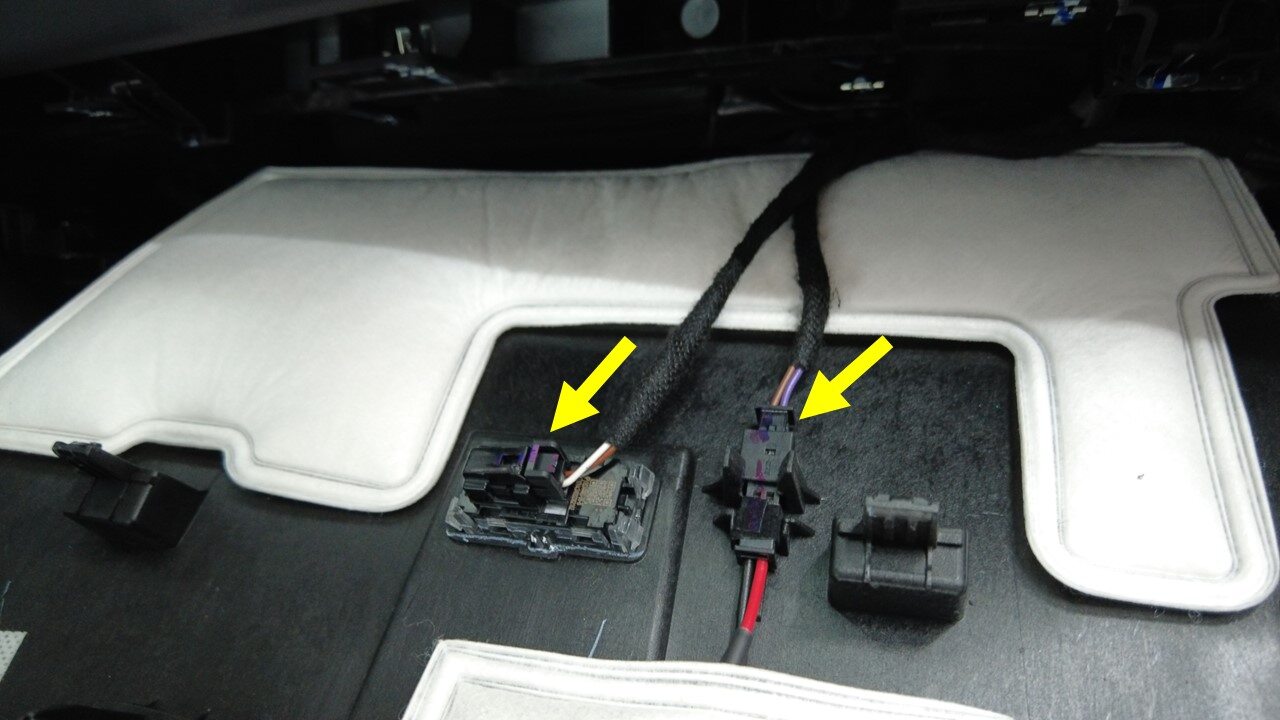

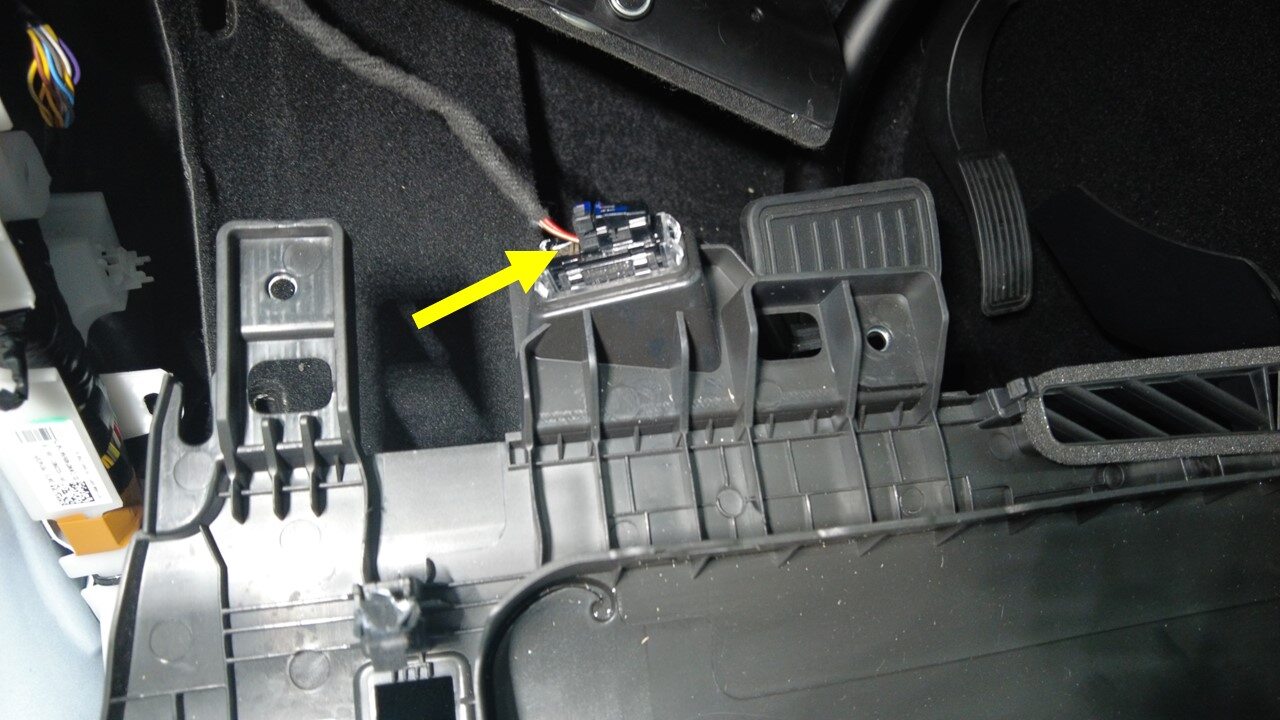

Remove LH knee air bag assembly from IP carrier

Note

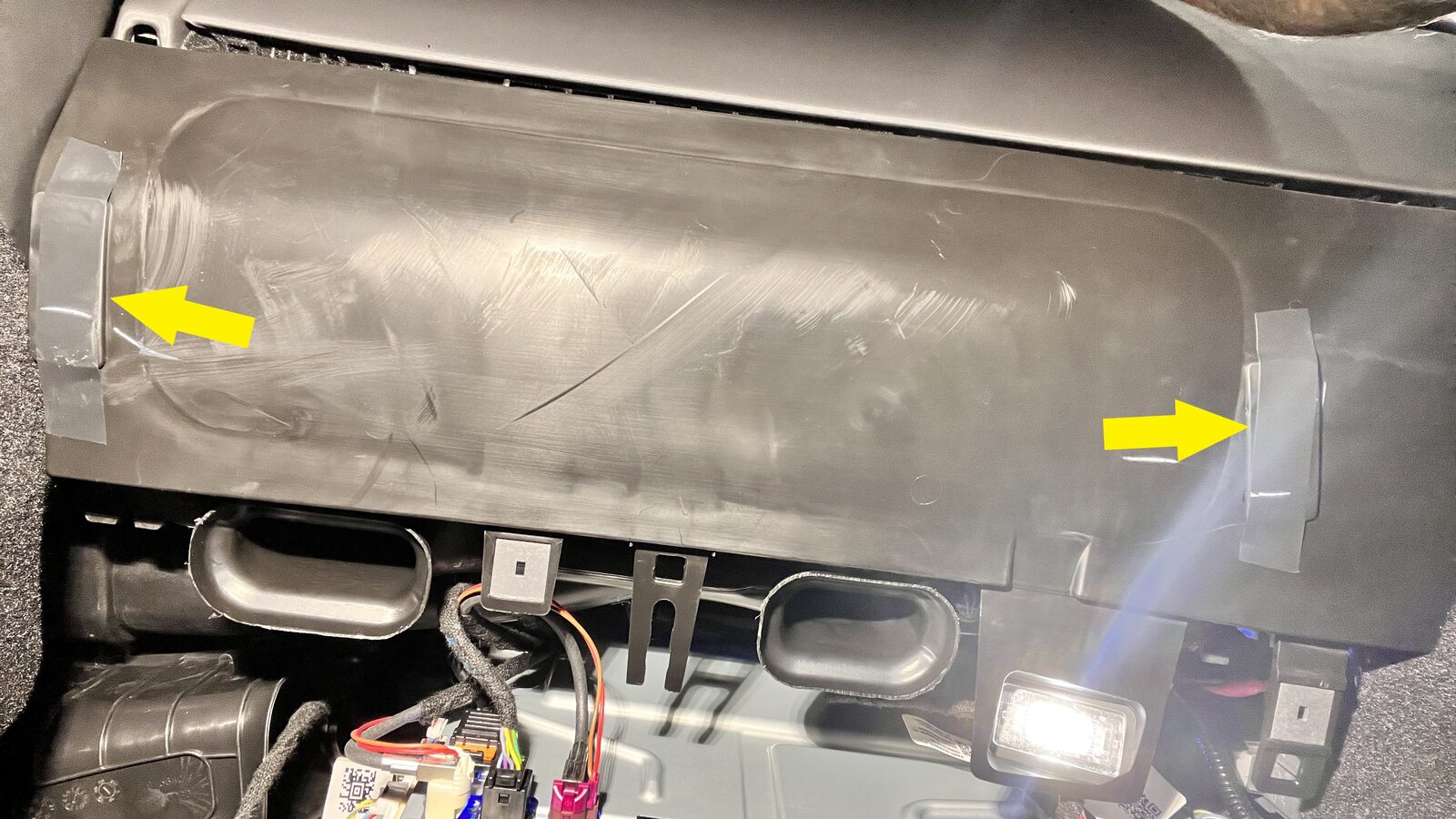

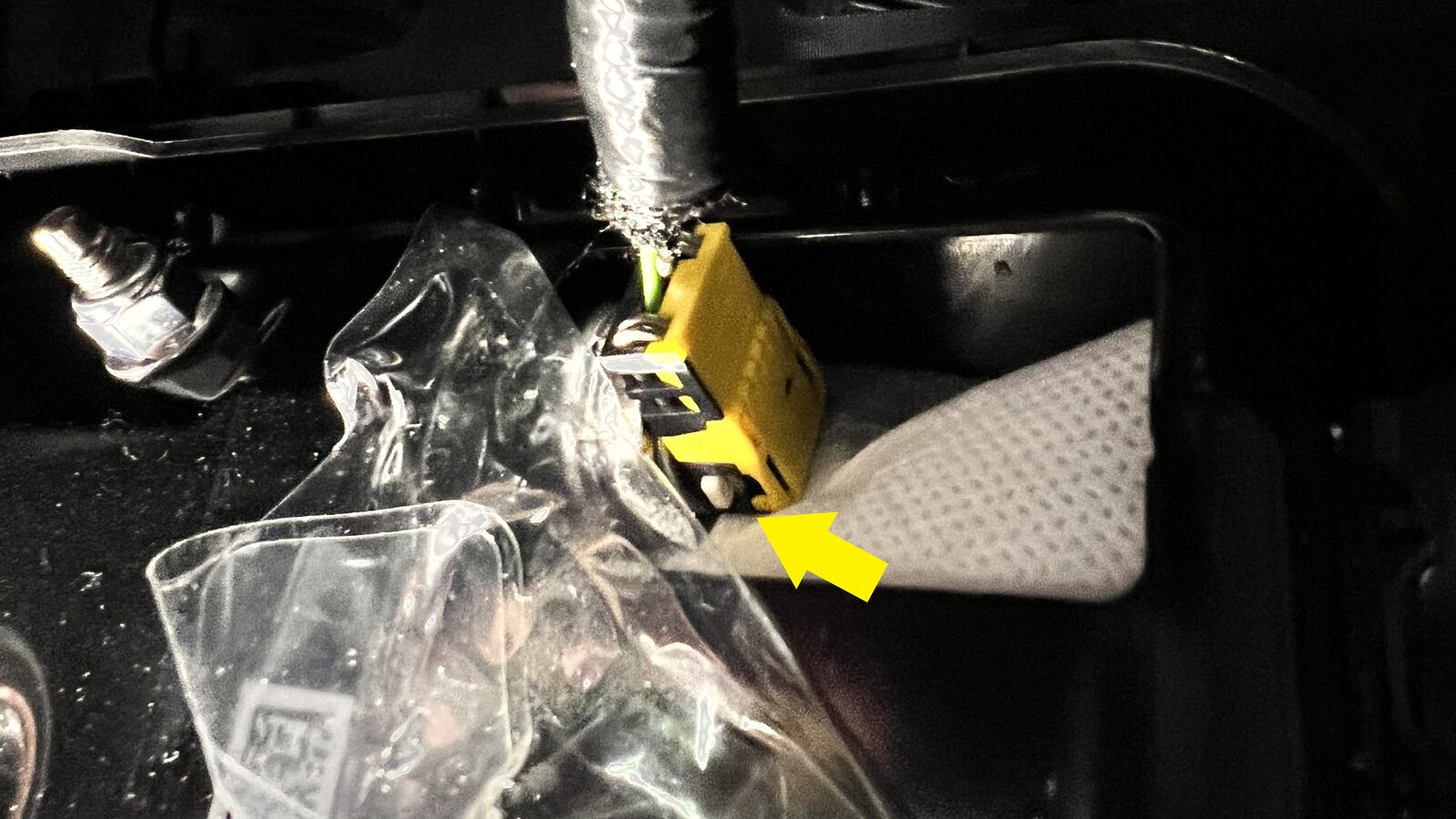

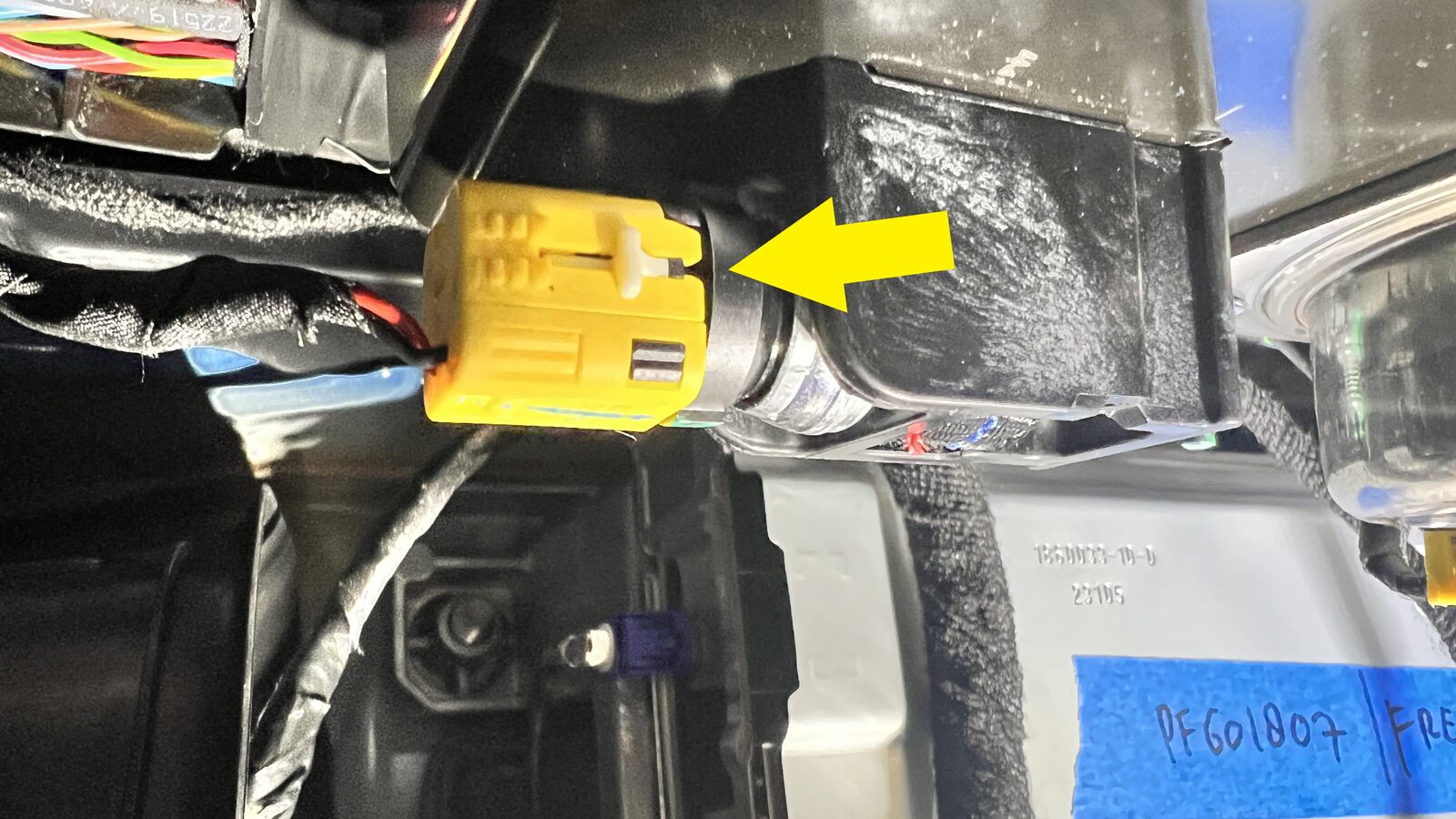

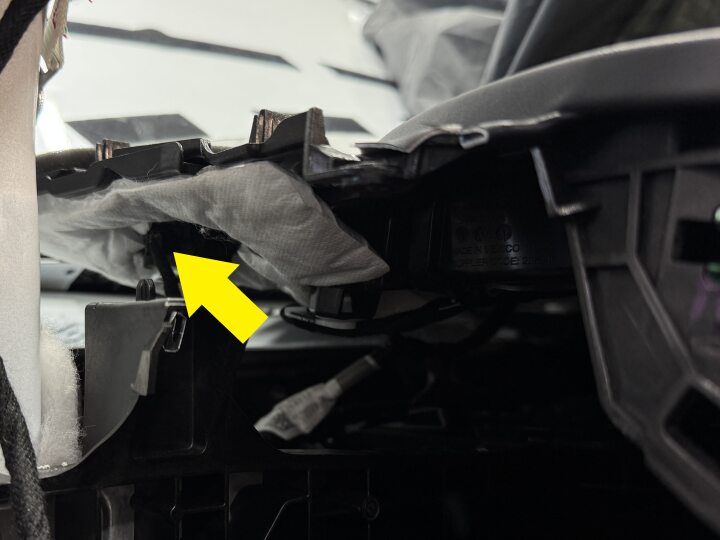

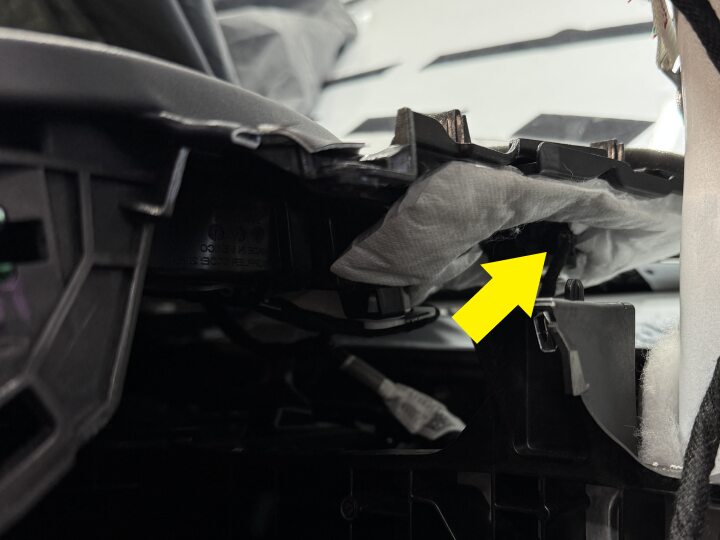

2x connectors, Peel back plastic film, Release airbag connector by pulling back both white tabs simultaneously, Avoid straining harness, Only one tab visible in image matching tab is on opposite side

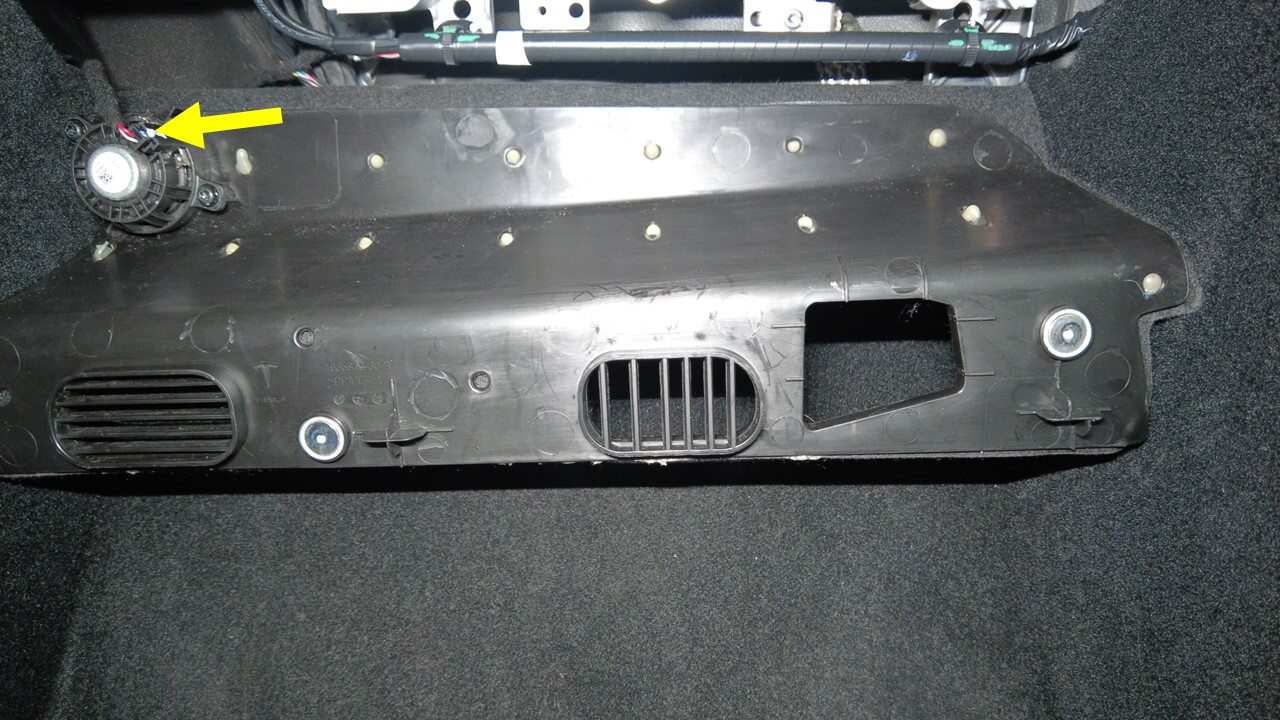

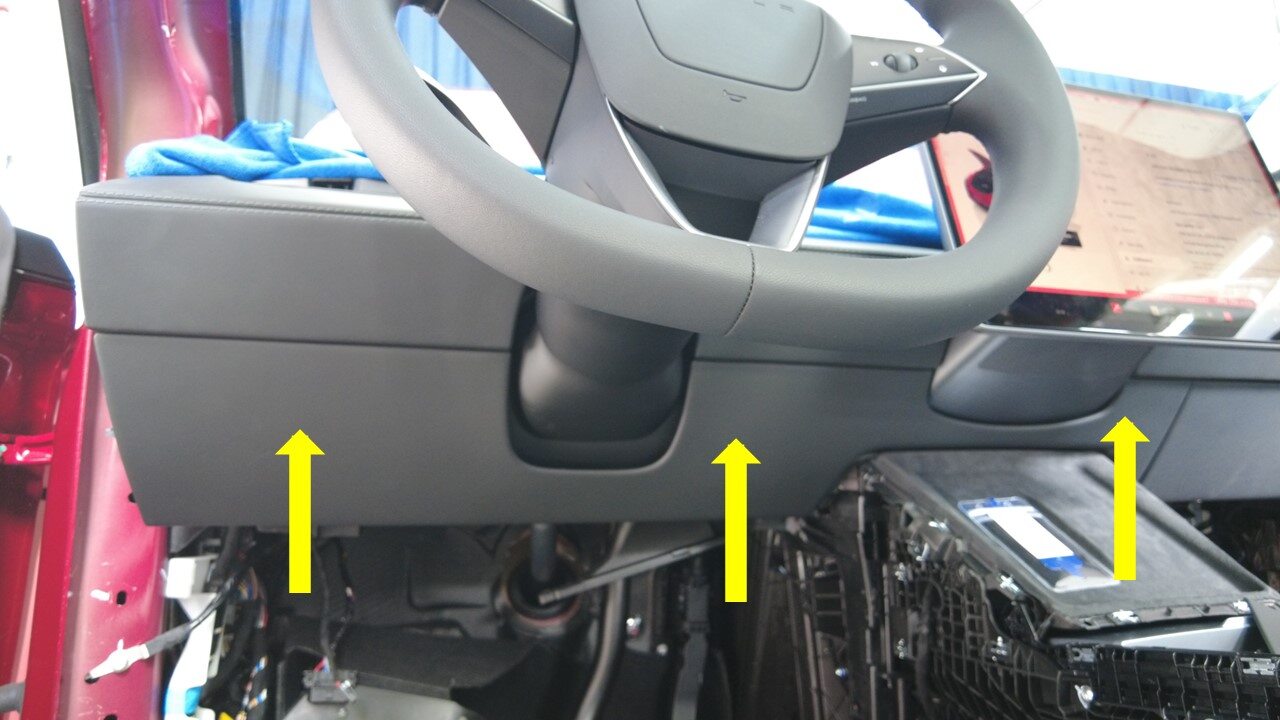

Remove IP lower assembly from IP carrier

Note
13x clips, 1x screw, T20, 2.3 Nm

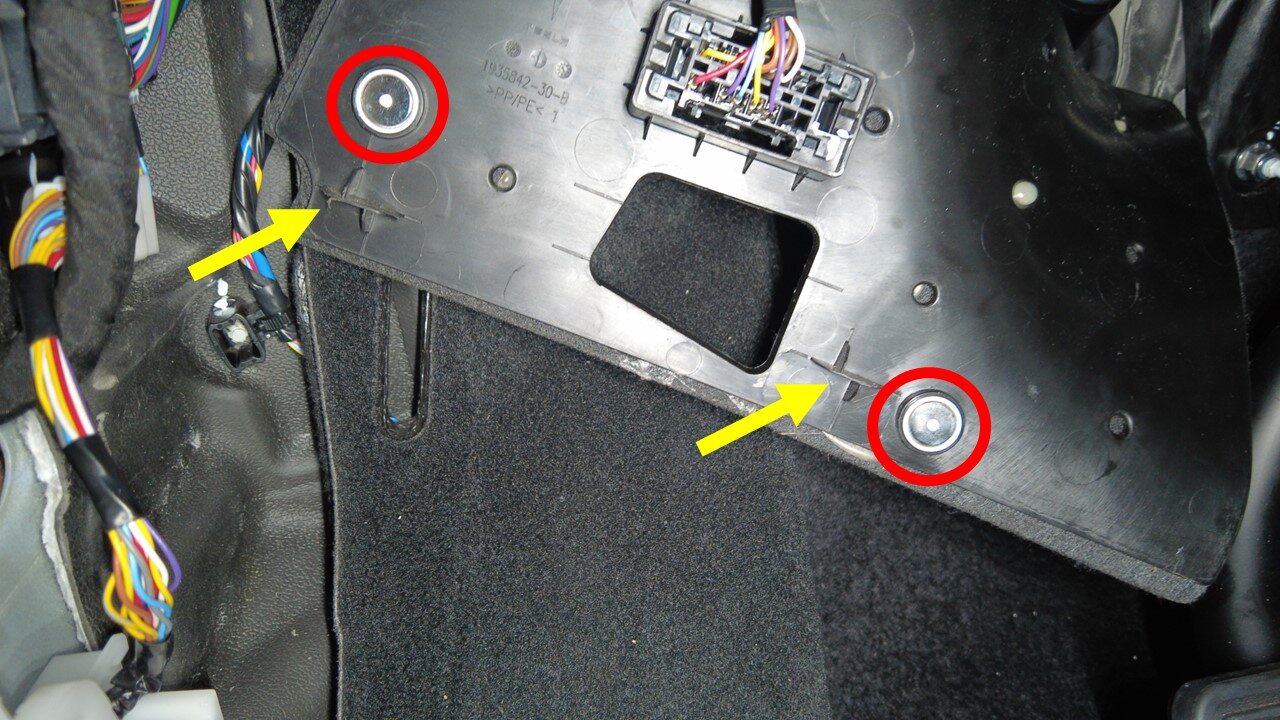

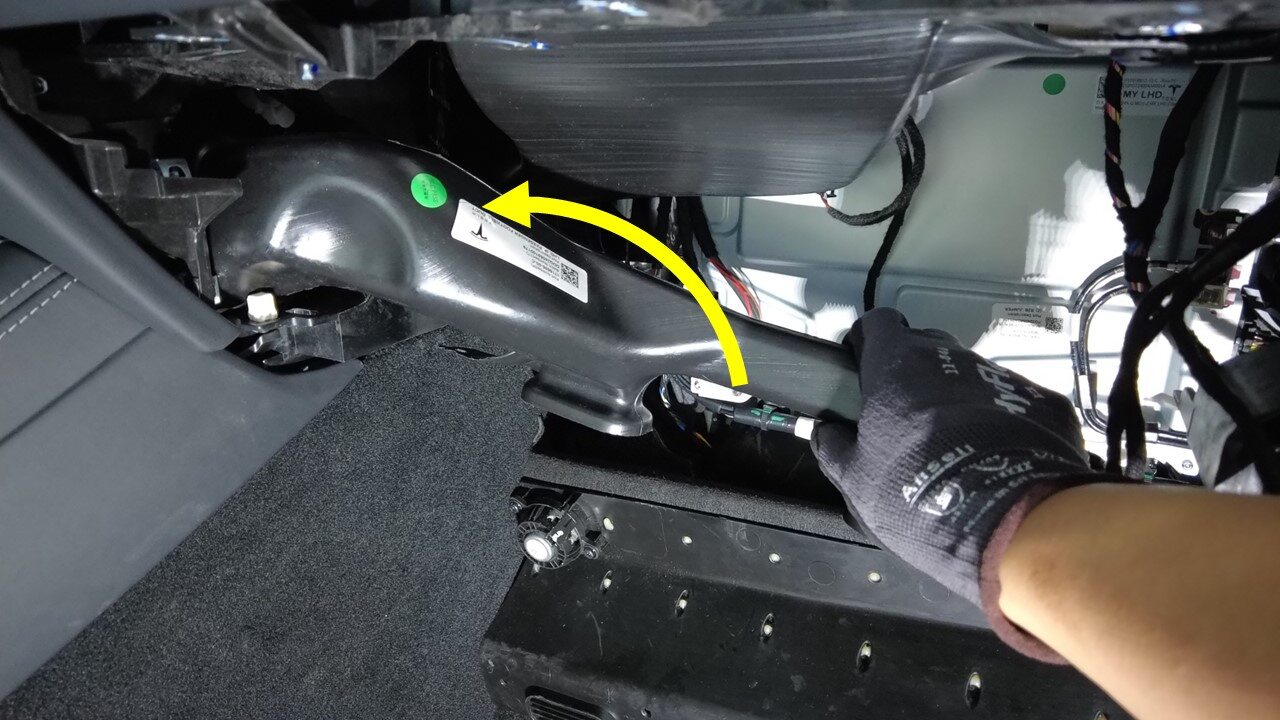

Remove LH footwell duct from HVAC module

Note
1x clip, Pull LH footwell duct towards LH side of vehicle to remove

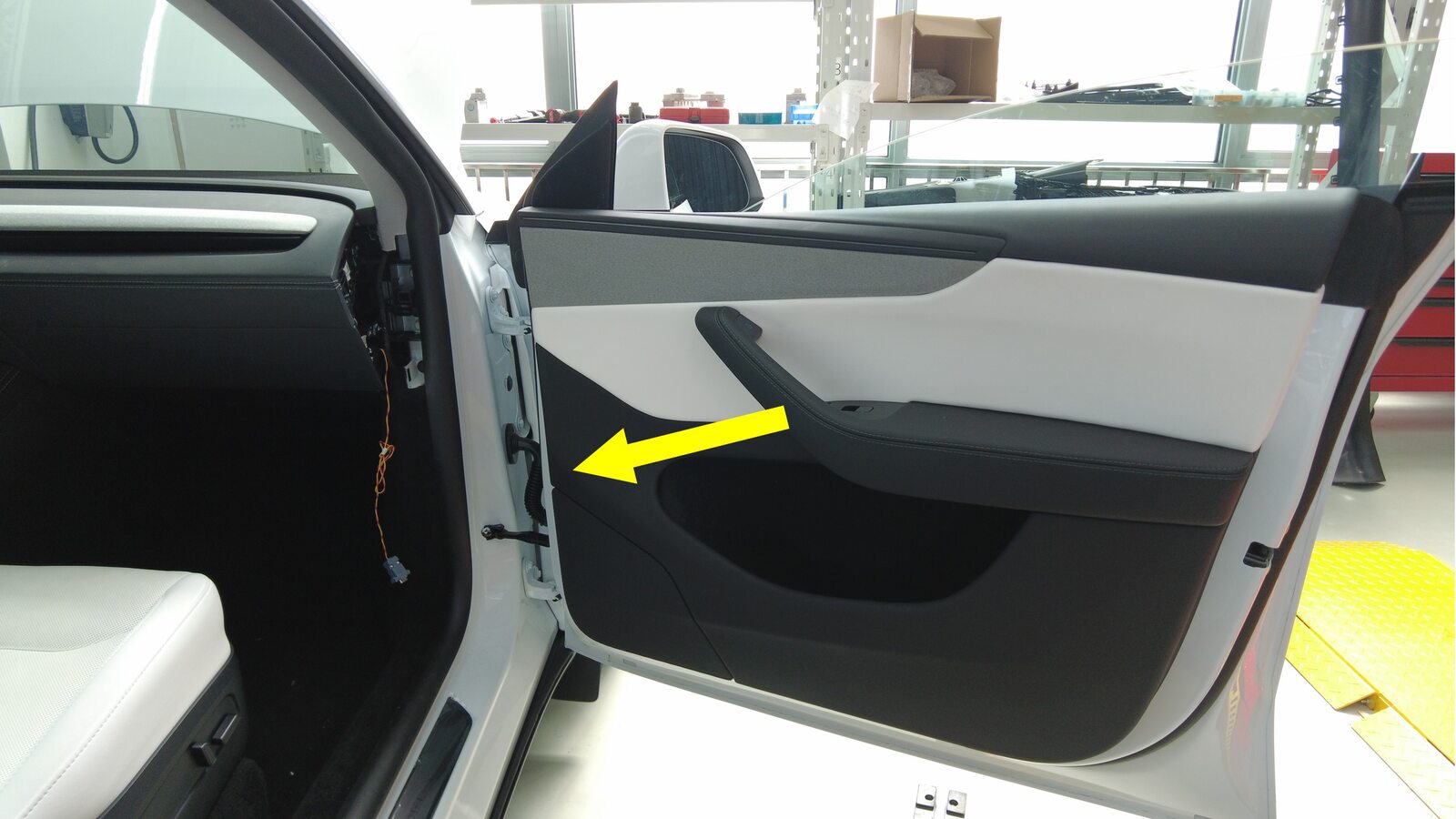

Partially release RH front primary door seal

Note

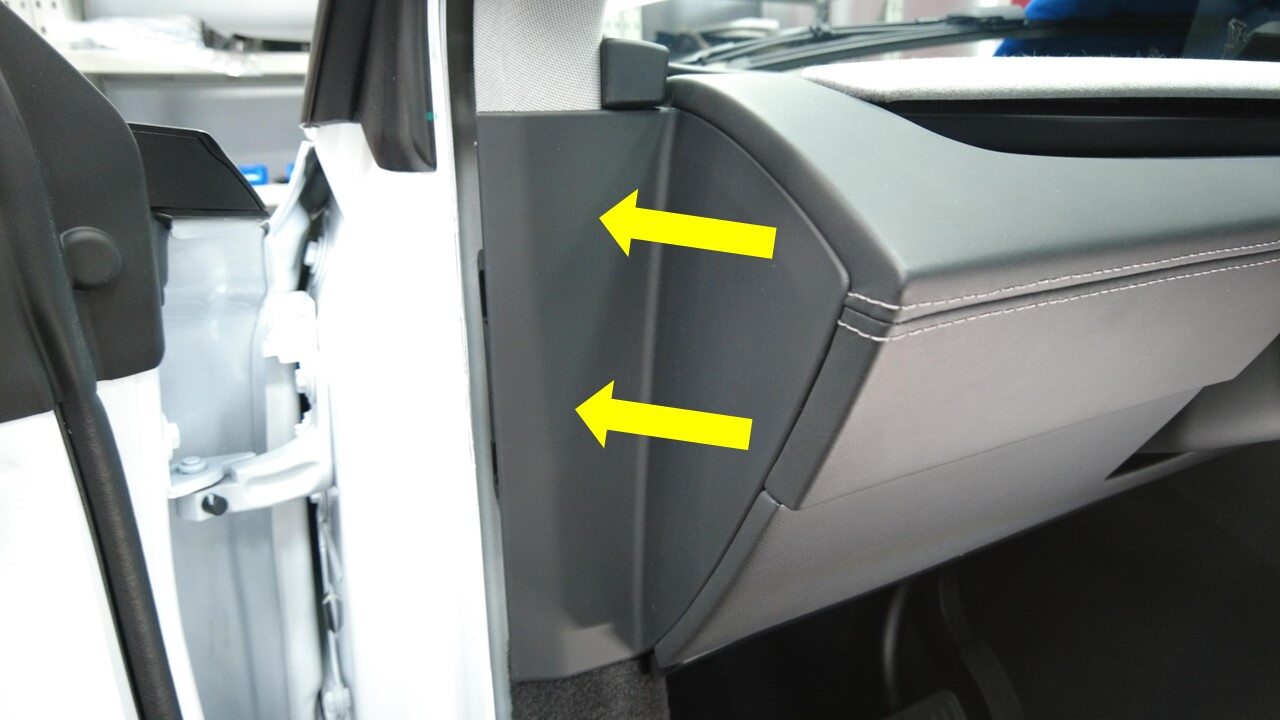

For remove RH IP end cap, RH lower A pillar trim, RH front B pillar trim

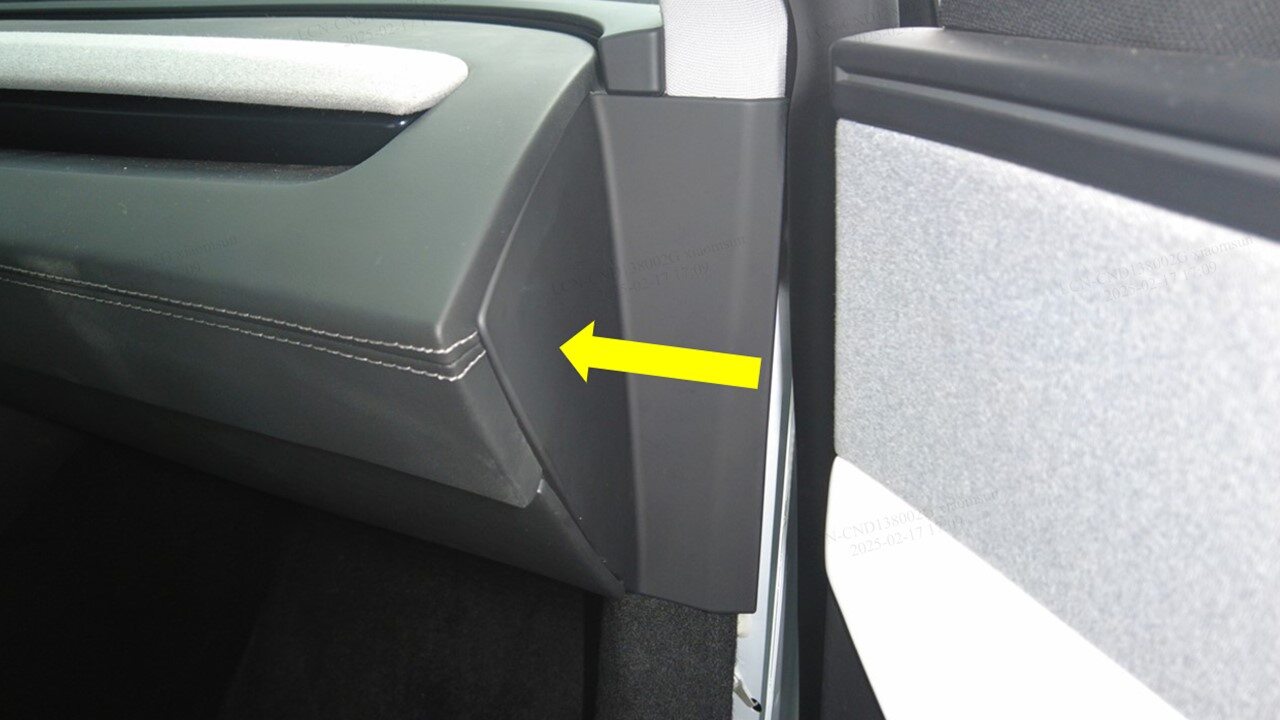

Remove RH IP end cap

Note
5x clips, 2x guide tabs
Remove RH upper A-pillar trim

Note
5x clips, 2x guide tabs, 1x datum, 1x tether, Partially release trim at top edge then release tether, Pull trim inwards then rotate rearwards to release from IP, Tether may vary by revision
Remove RH lower A pillar trim

Note
7x clips, 4x guide tabs, 1x push clip, Pull rear of lower A-pillar upward to release clip then pull rearward to release front tabs from carpet

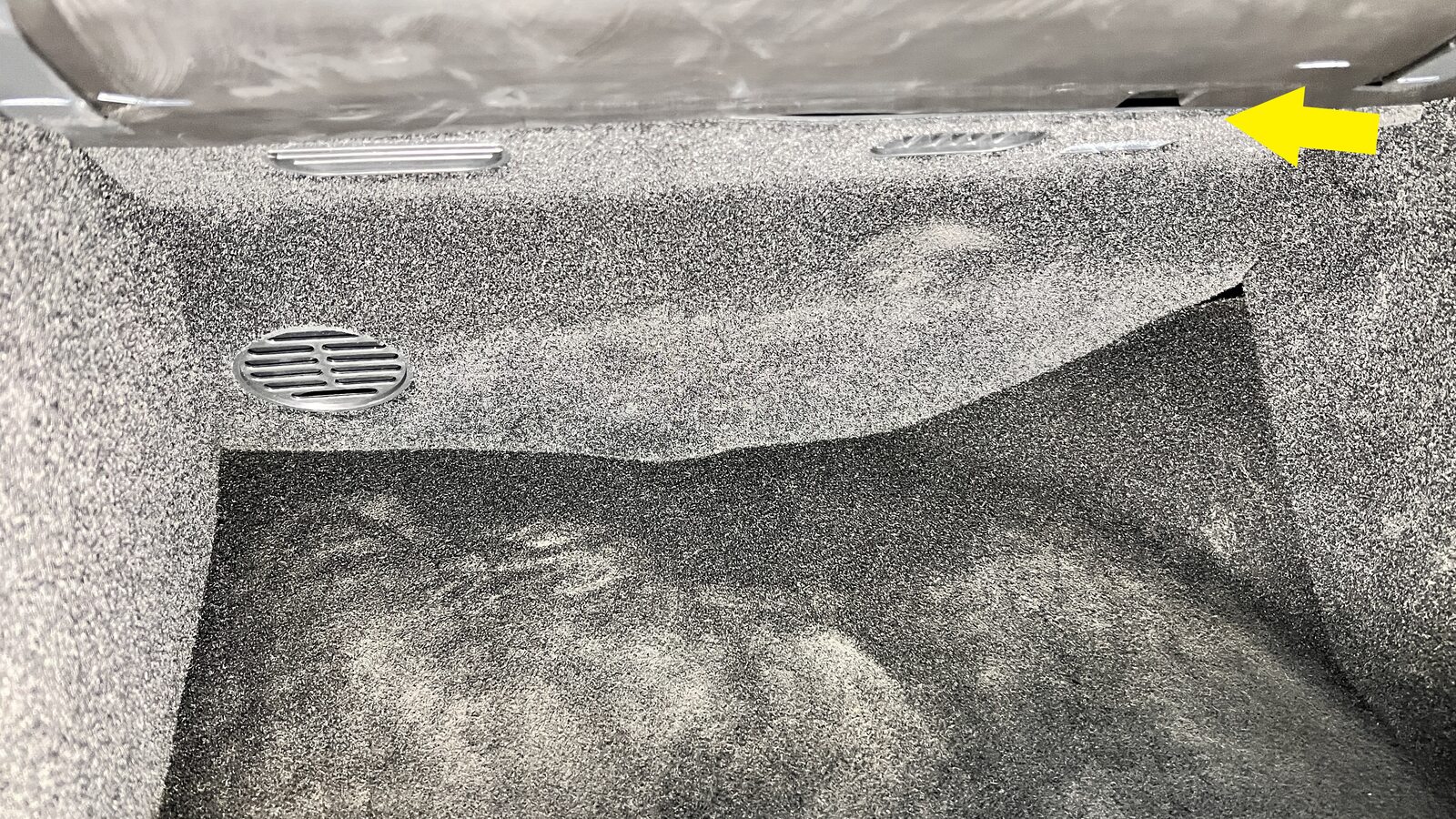

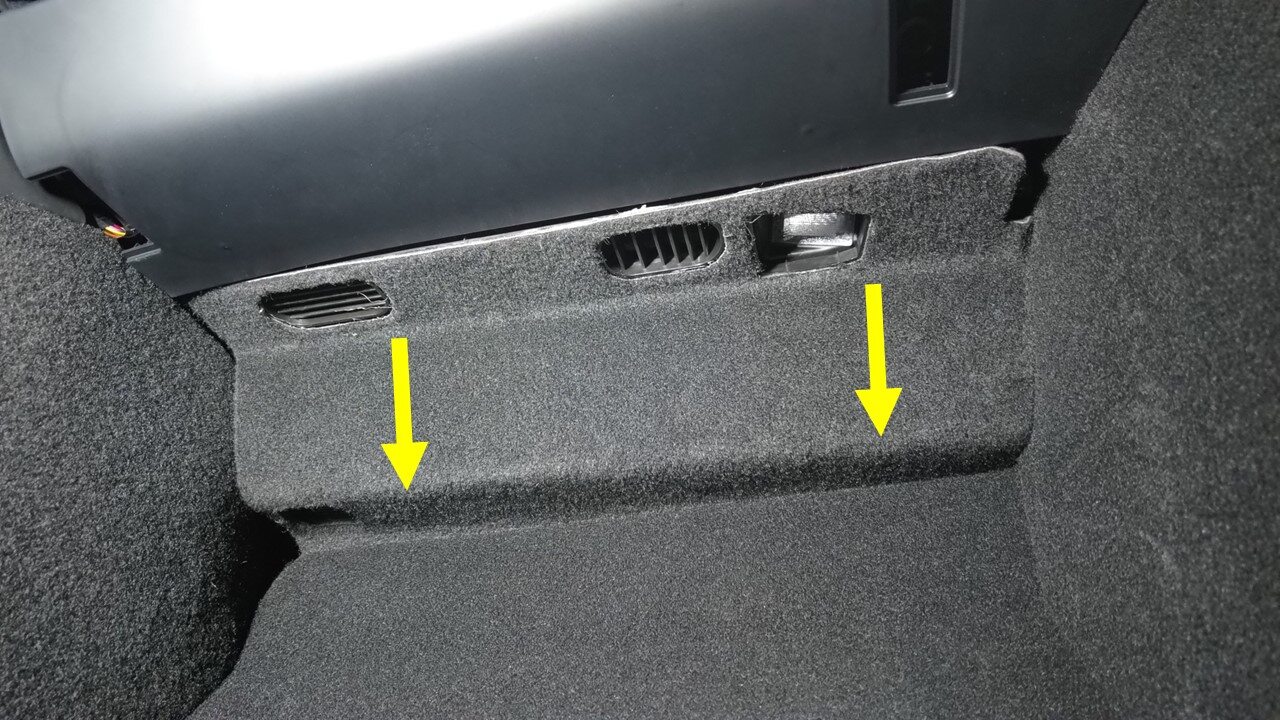

Release front RH cabin carpet cover from RH knee air bag cover

Note
1x connector, 2x magnets, 2x datums
Remove RH knee air bag bolt covers

Note
2x covers
Remove RH knee air bag bolts

Note
4x bolts, EP10, 8.5 Nm, Discard bolts after removal

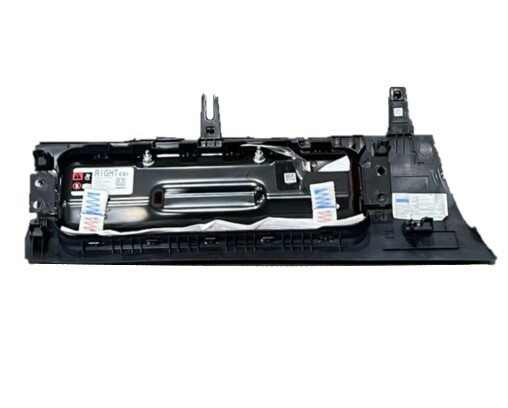

Remove RH knee air bag assembly

Note
1x air bag connector, 1x connector, Peel back plastic film, Release by pulling back both white tabs simutaneously, Avoid straining harness, Only one tab visible in image matching tab is on opposite side

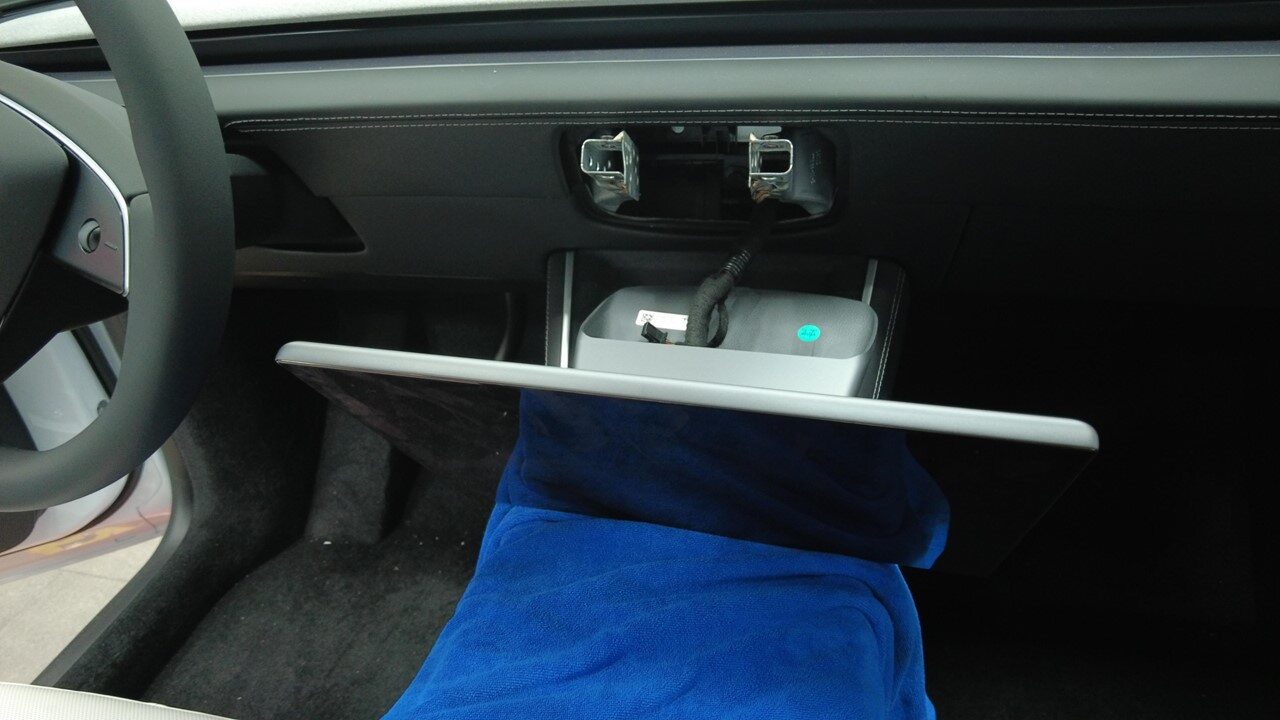

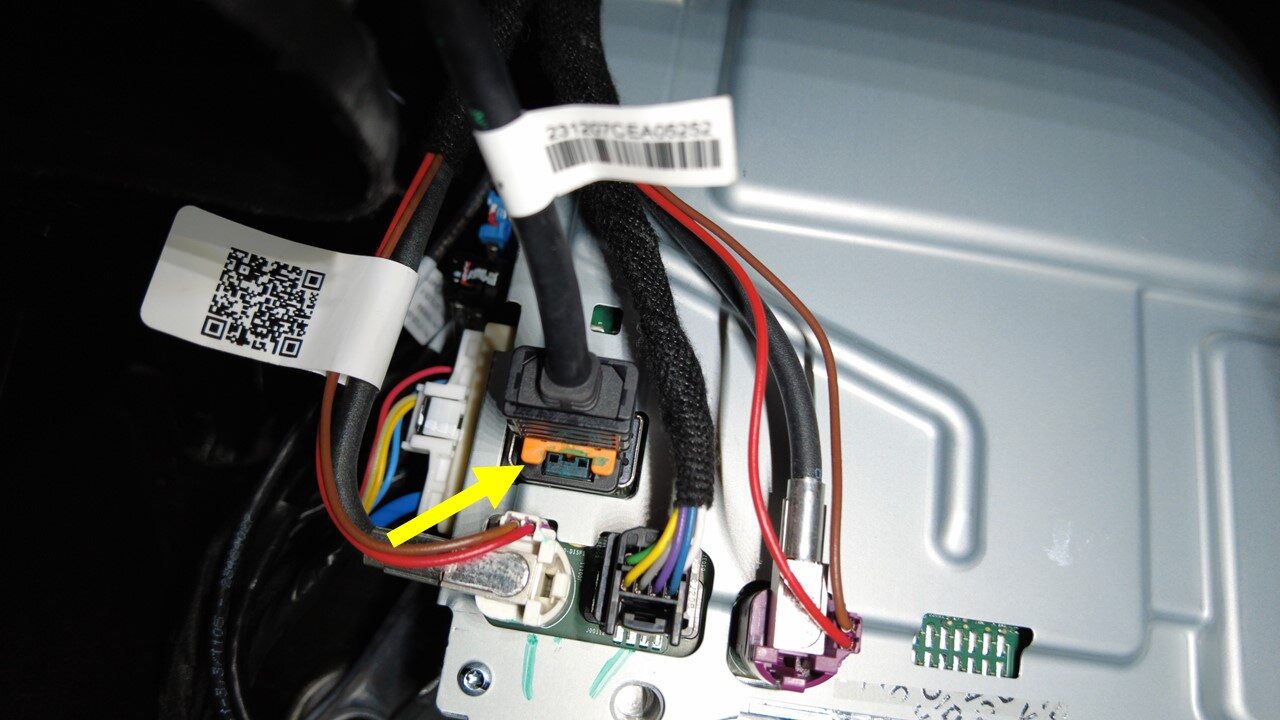

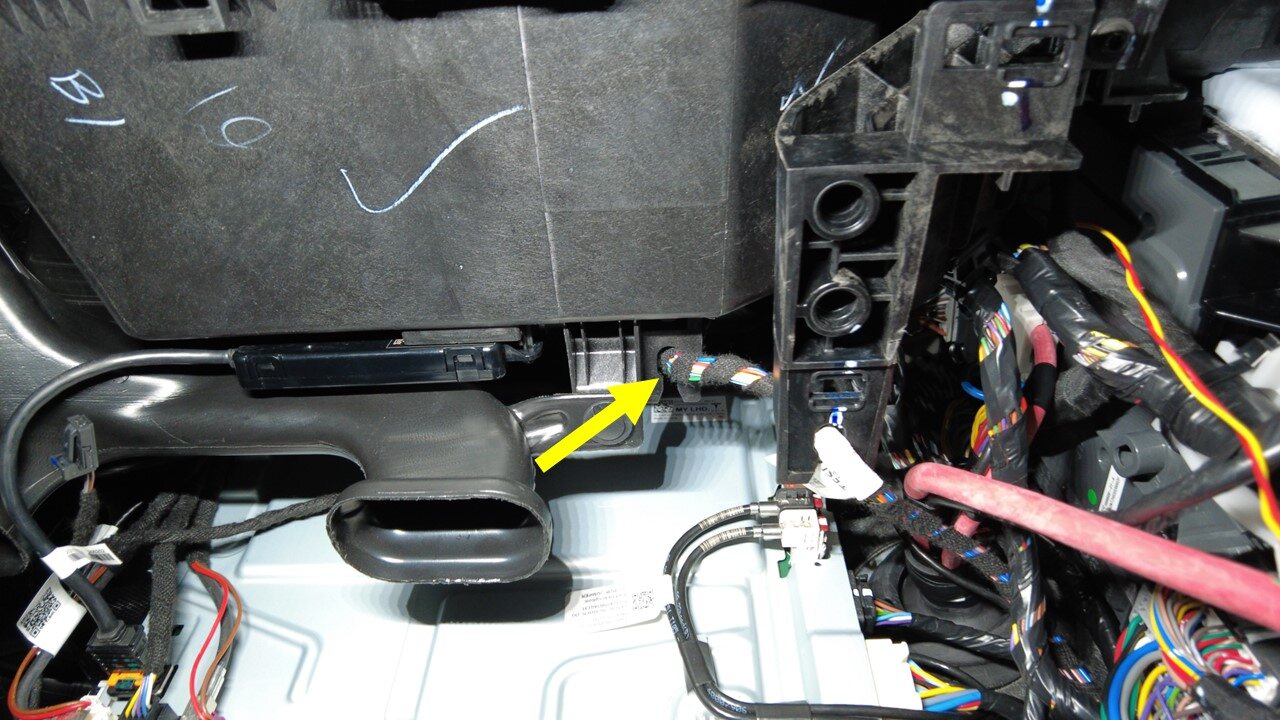

Disconnect glove box USB cable from car computer

Note
1x connector, Release locking tab then release connector

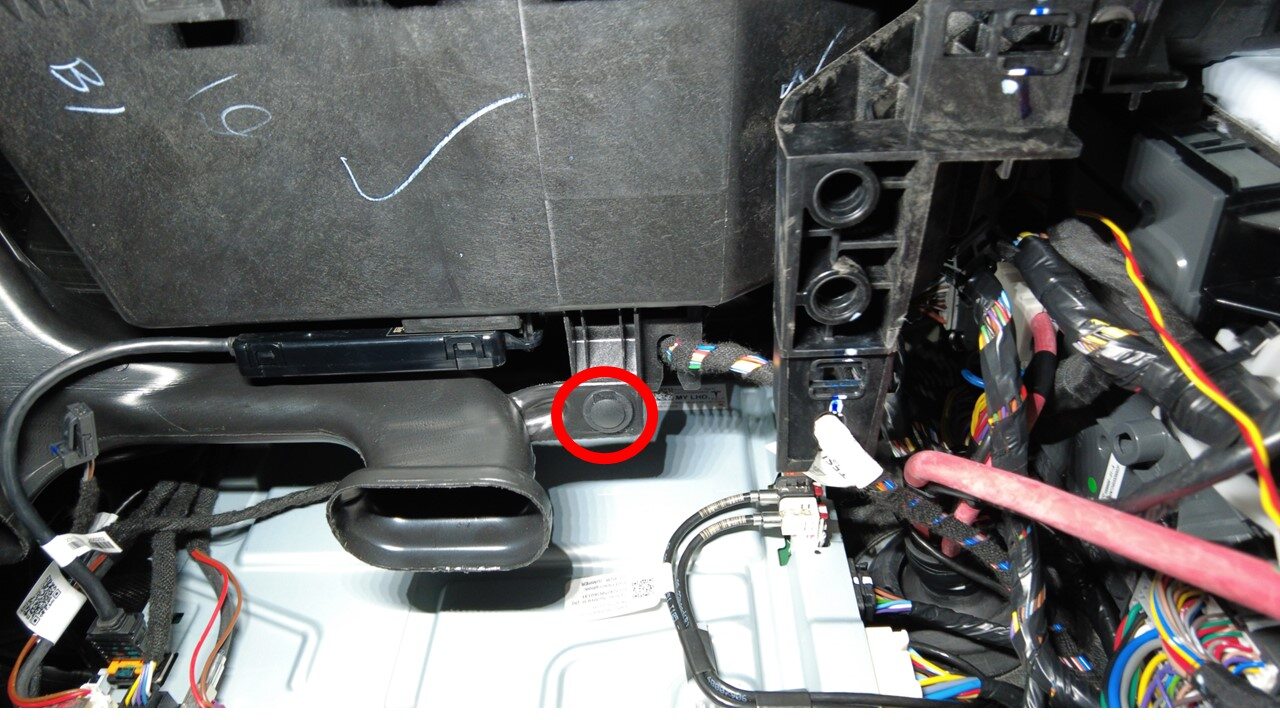

Remove clip securing passenger footwell duct to glove box

Note
1x push clip
Release IP harness from glove box

Note
1x harness guide

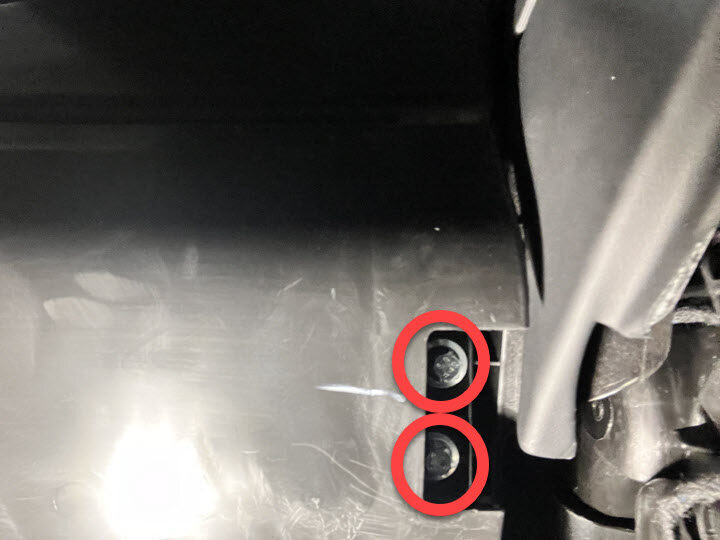

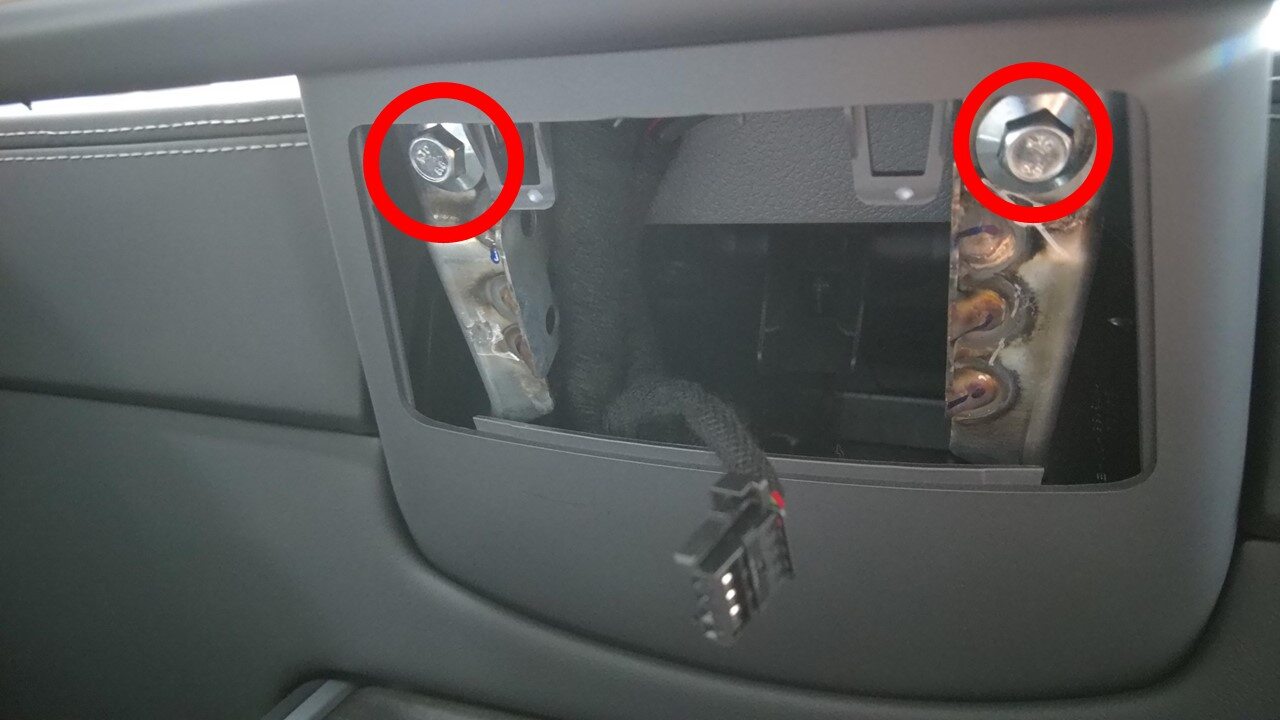

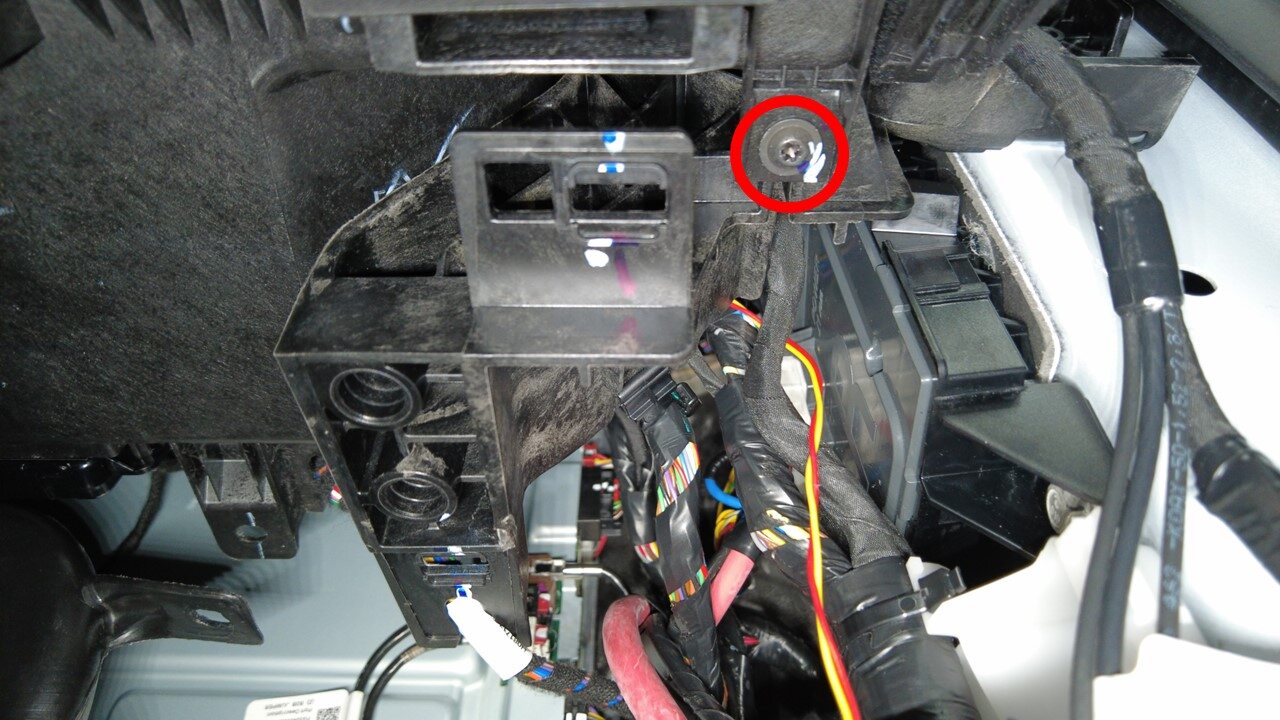

Remove screws securing glove box assembly from IP carrier

Note
4x screws, T20, 2.3 Nm

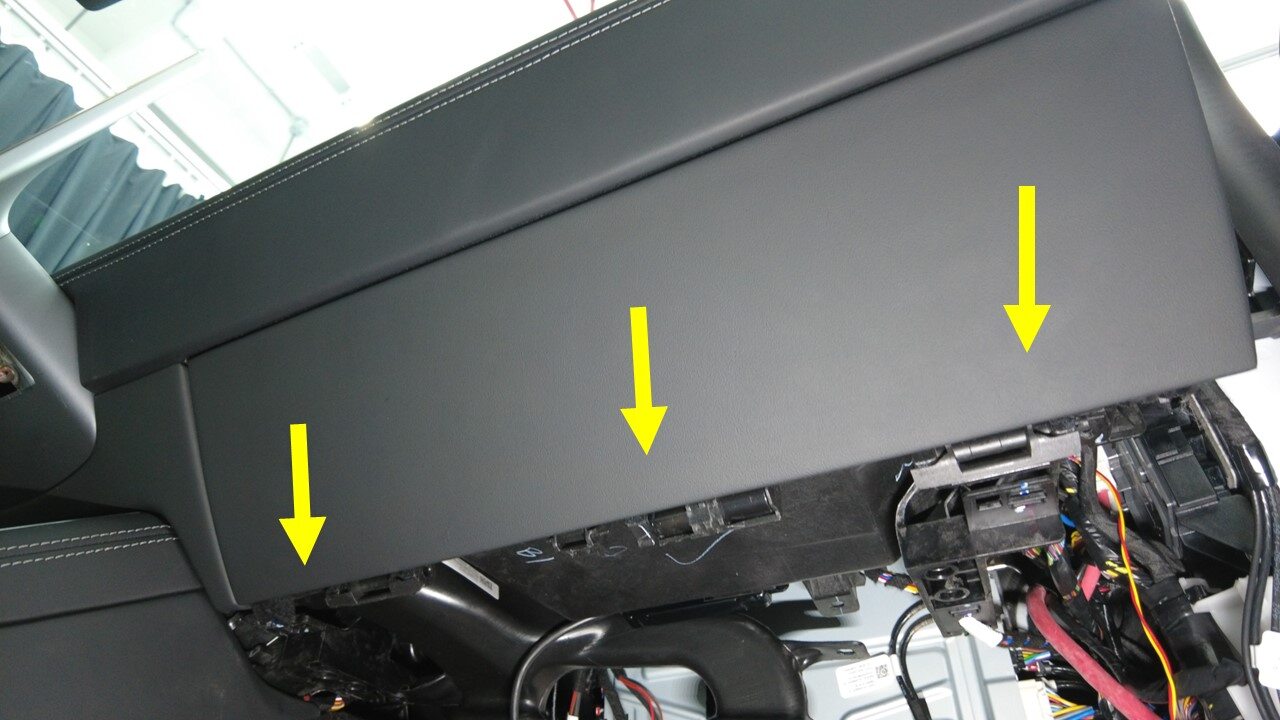

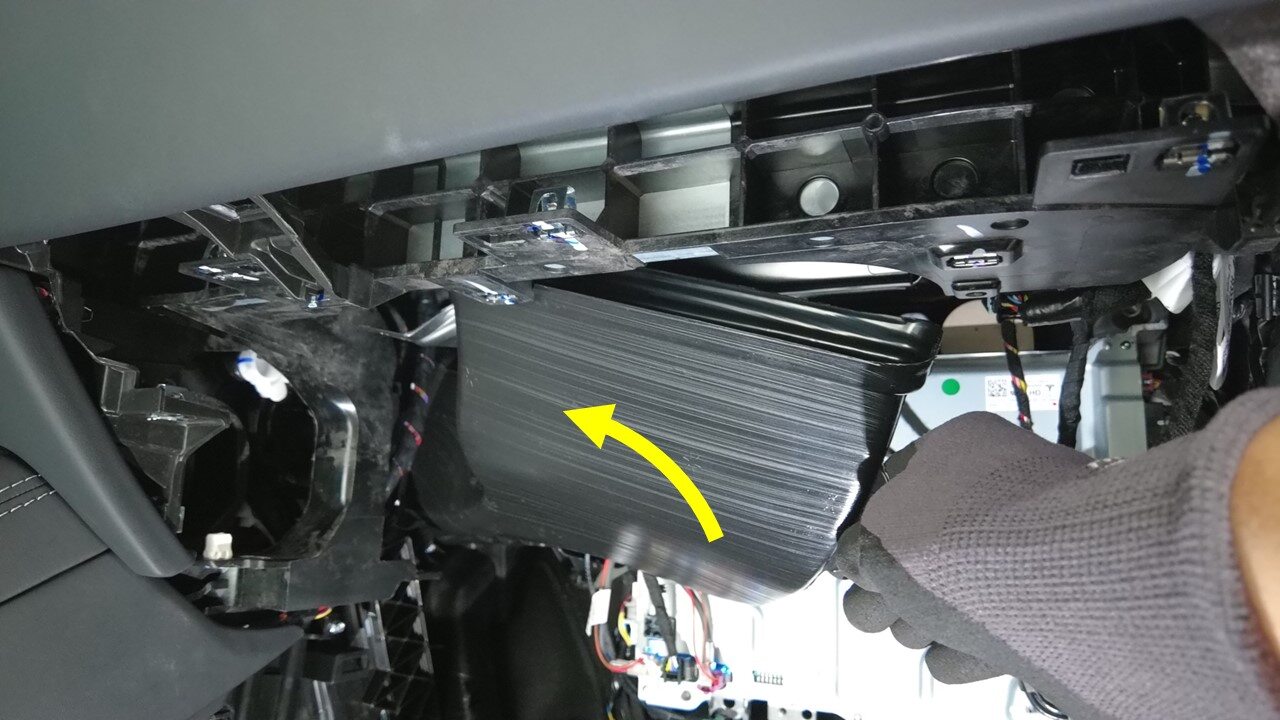

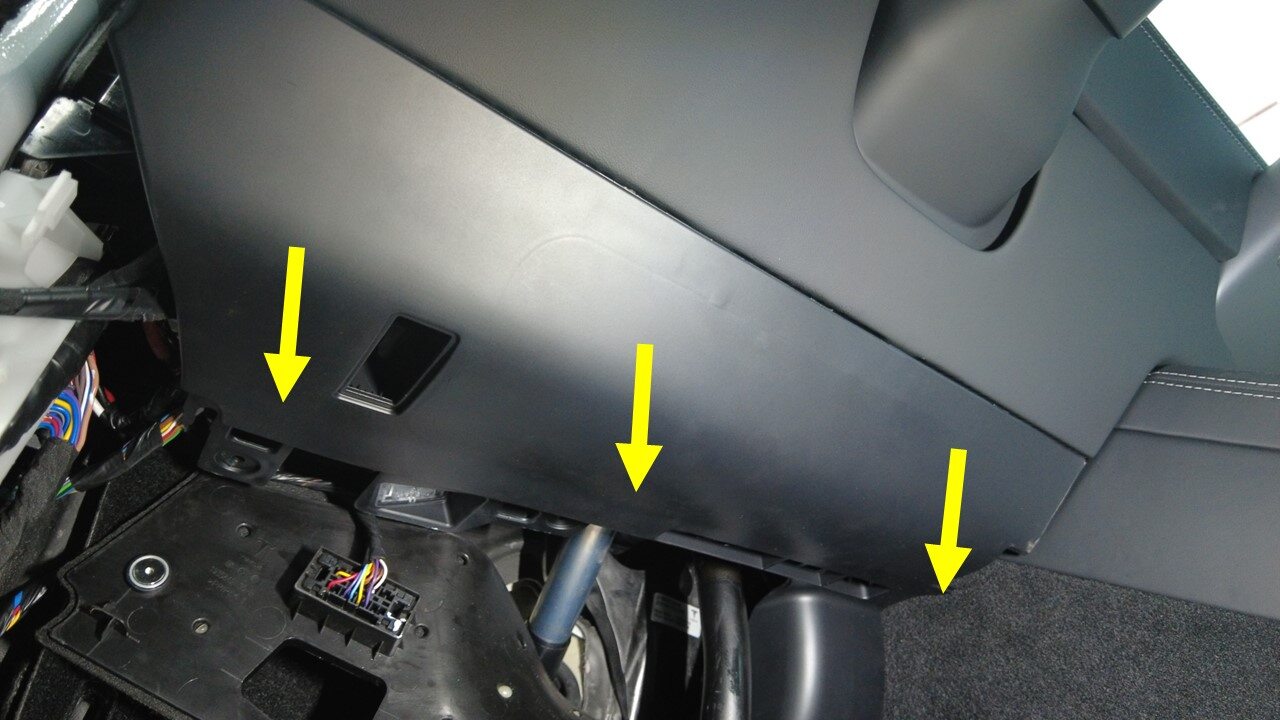

Remove glove box assembly from IP carrier

Note

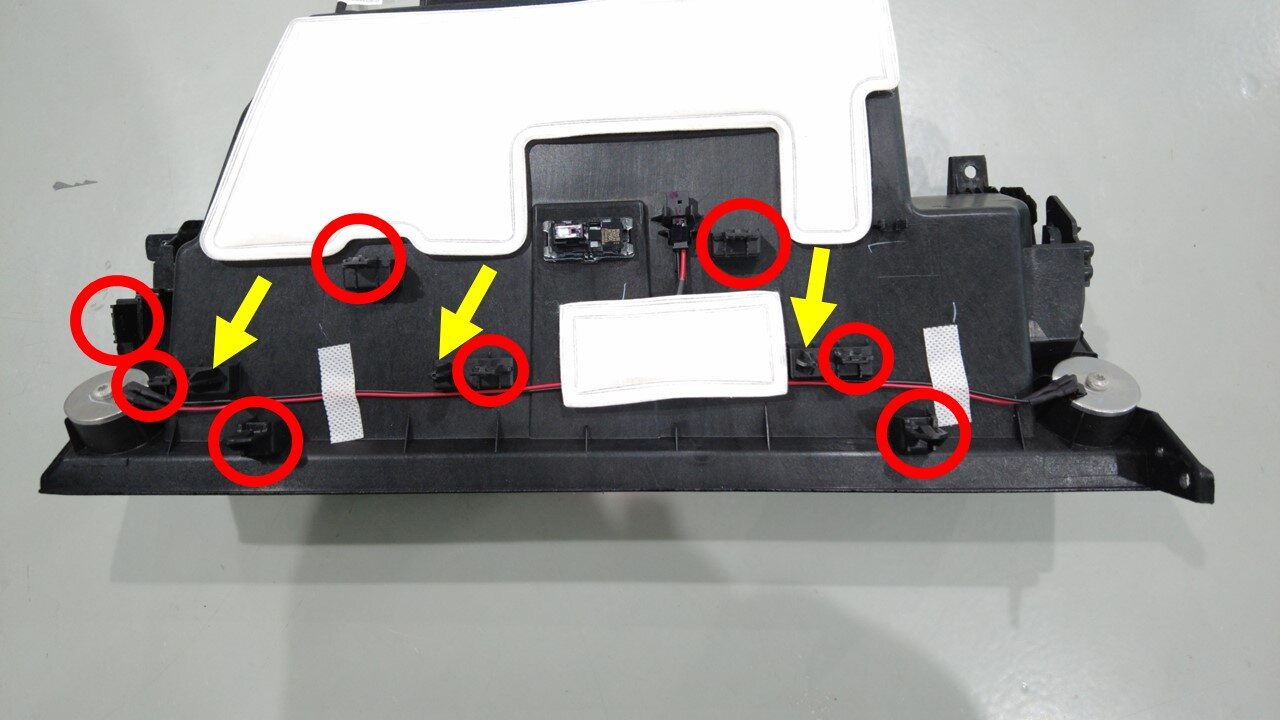

8x clips, 3x datums

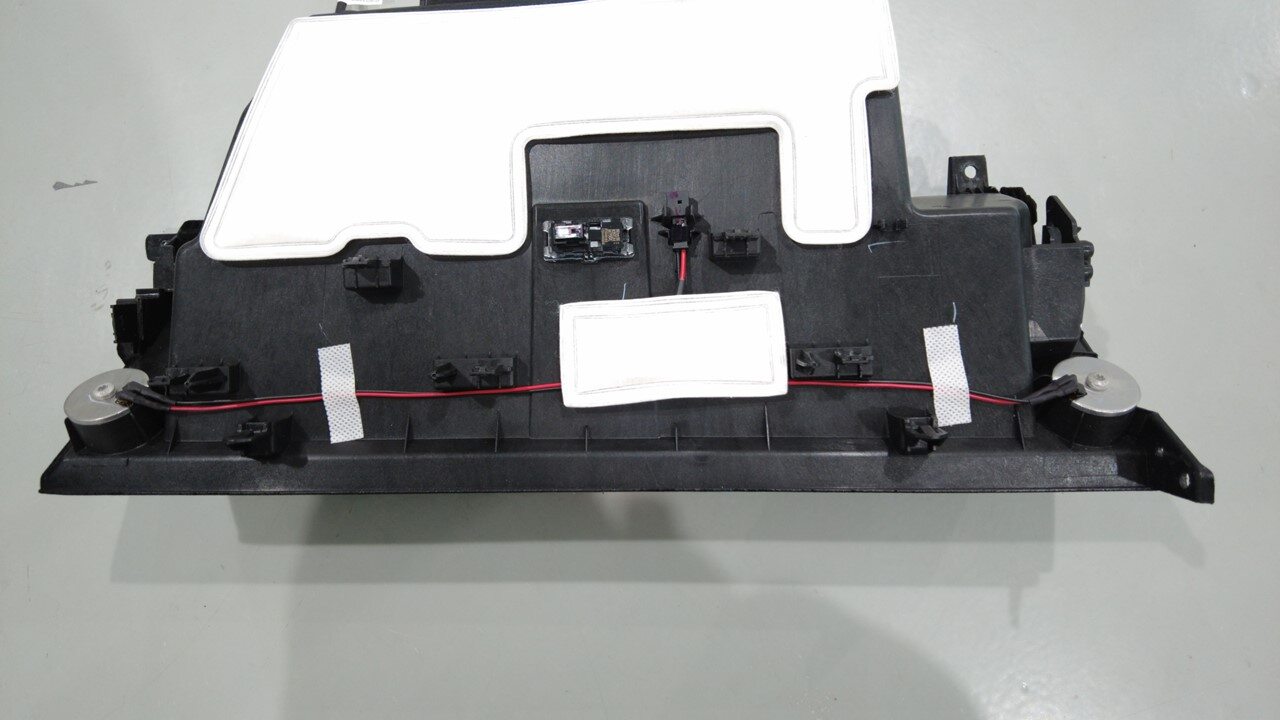

Disconnect glove box assembly connectors

Note

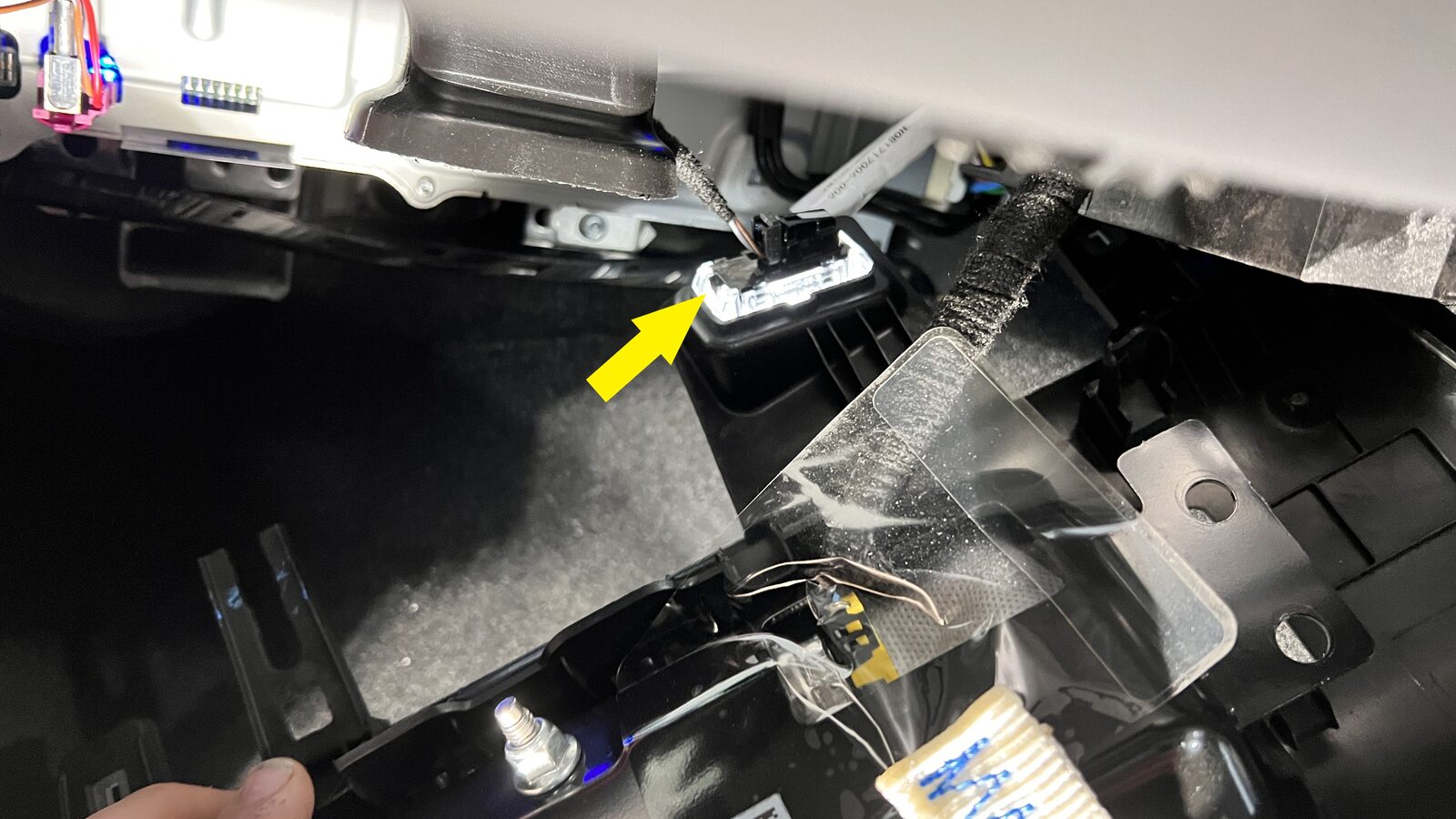

2x connectors, Some vehicles may not be equipped with glove box lamp
Remove clip securing passenger footwell duct from IP carrier

Note
1x push clip

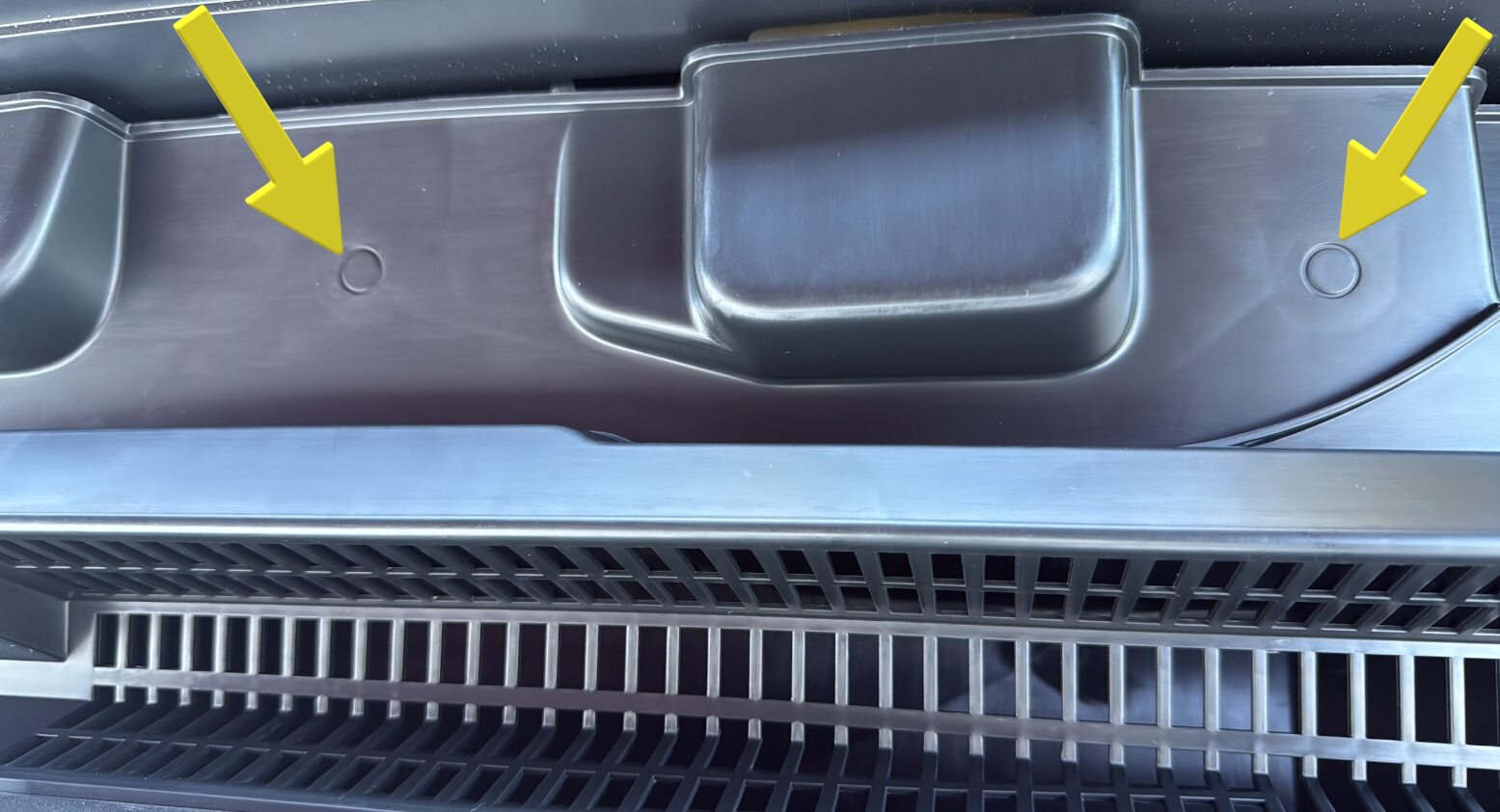

Remove clips securing RH air wave duct from IP carrier

Note
2x push clips

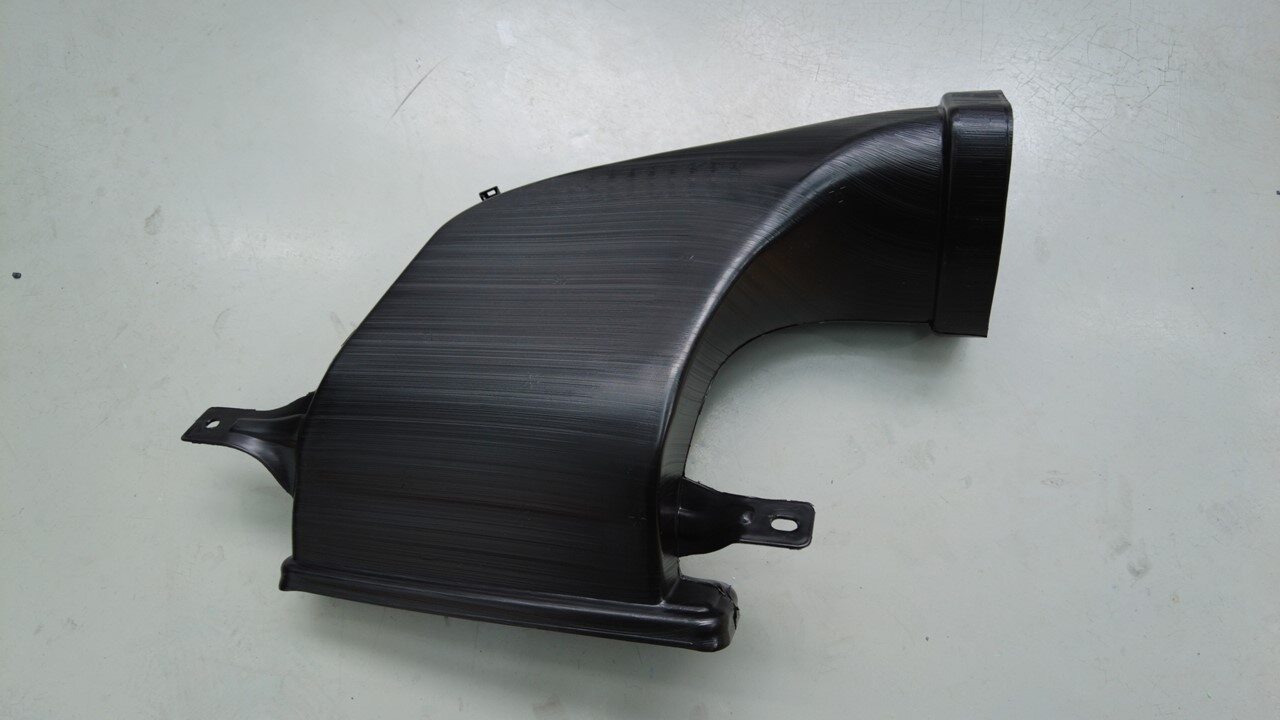

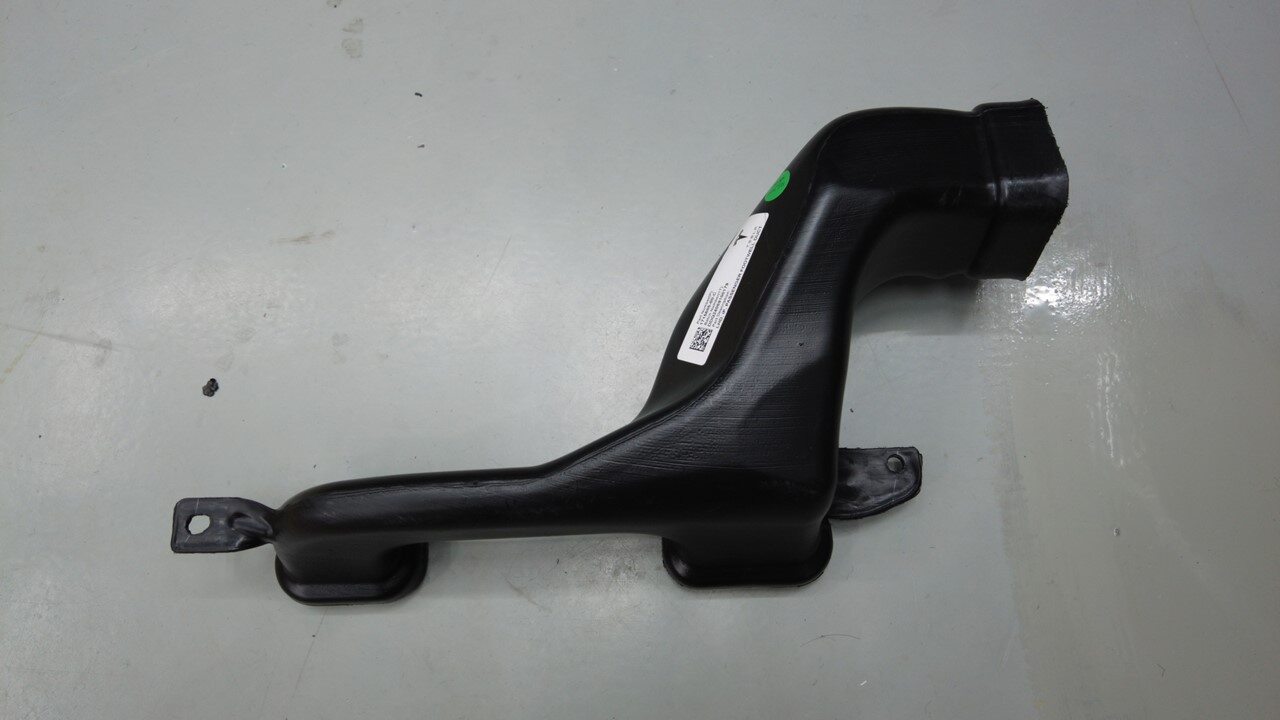

Remove RH IP air wave duct from HVAC module

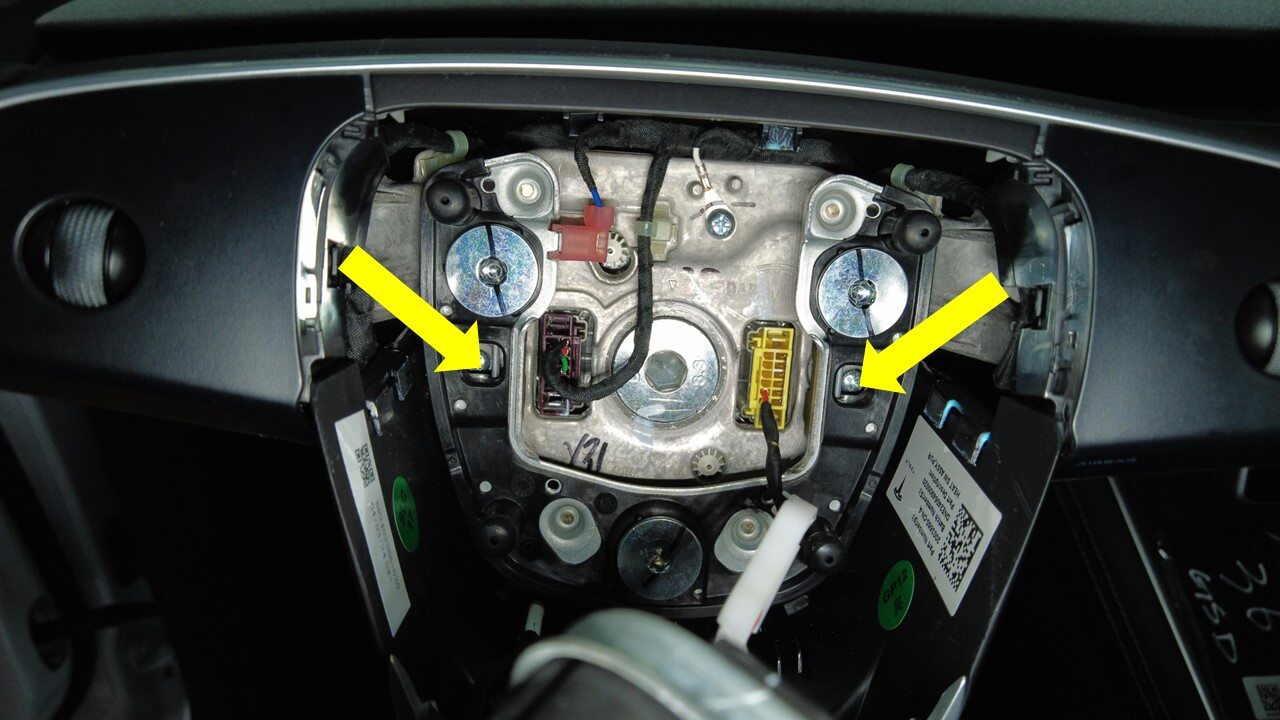

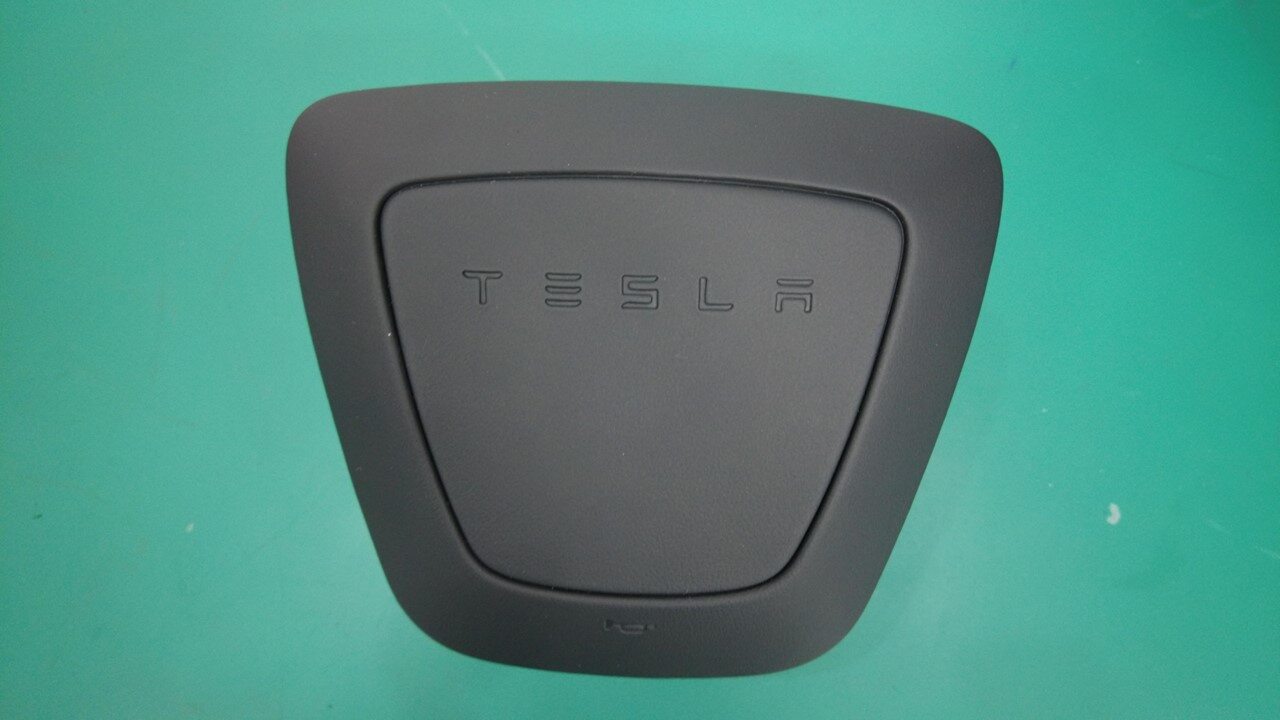

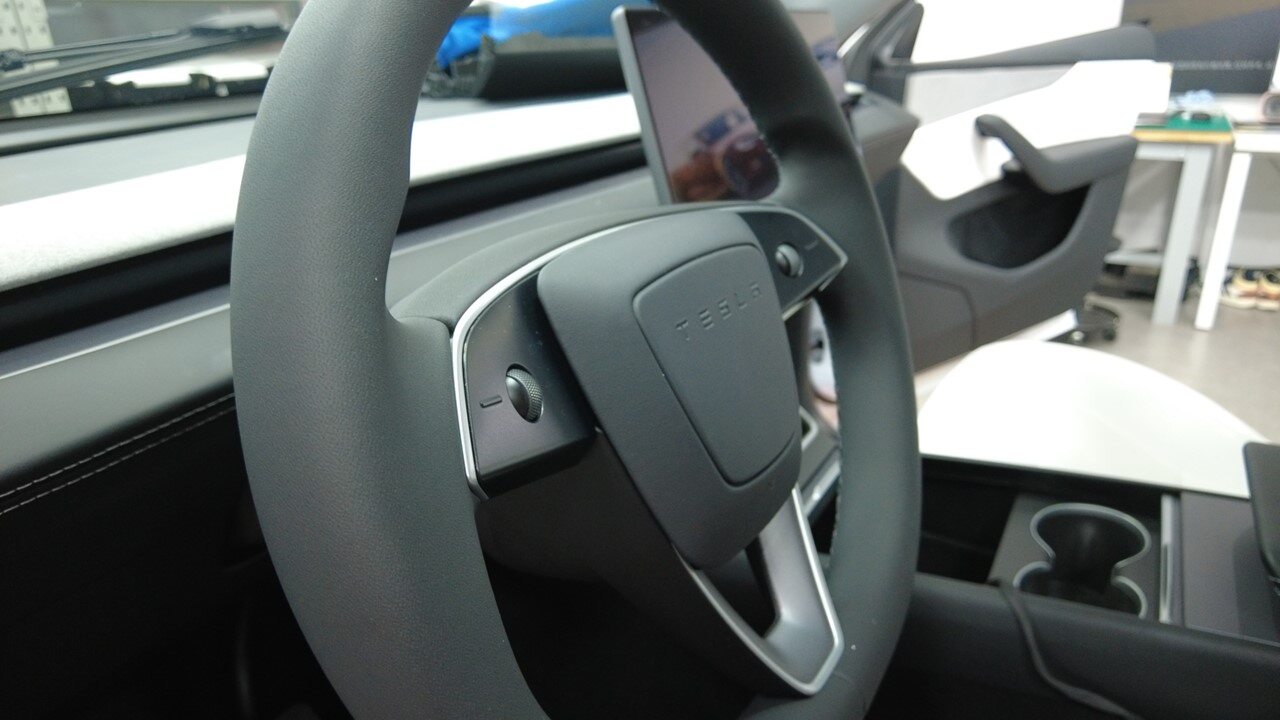

Release driver air bag assembly away from steering wheel

Note

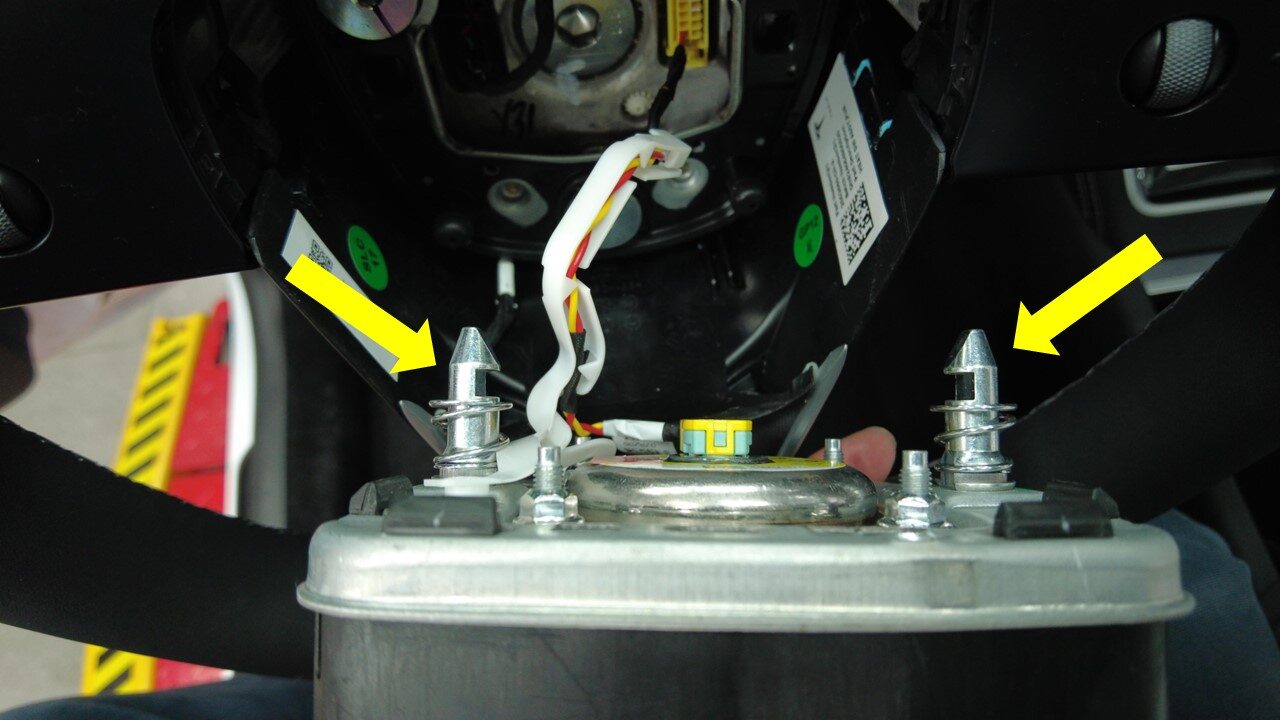

2x spring clips, 2x datums, Press the spring from two access holes to release, Access holes located at 4 and 8 o’clock position, Do not insert tool too far as air bag connector could be damaged
Remove driver air bag

Note

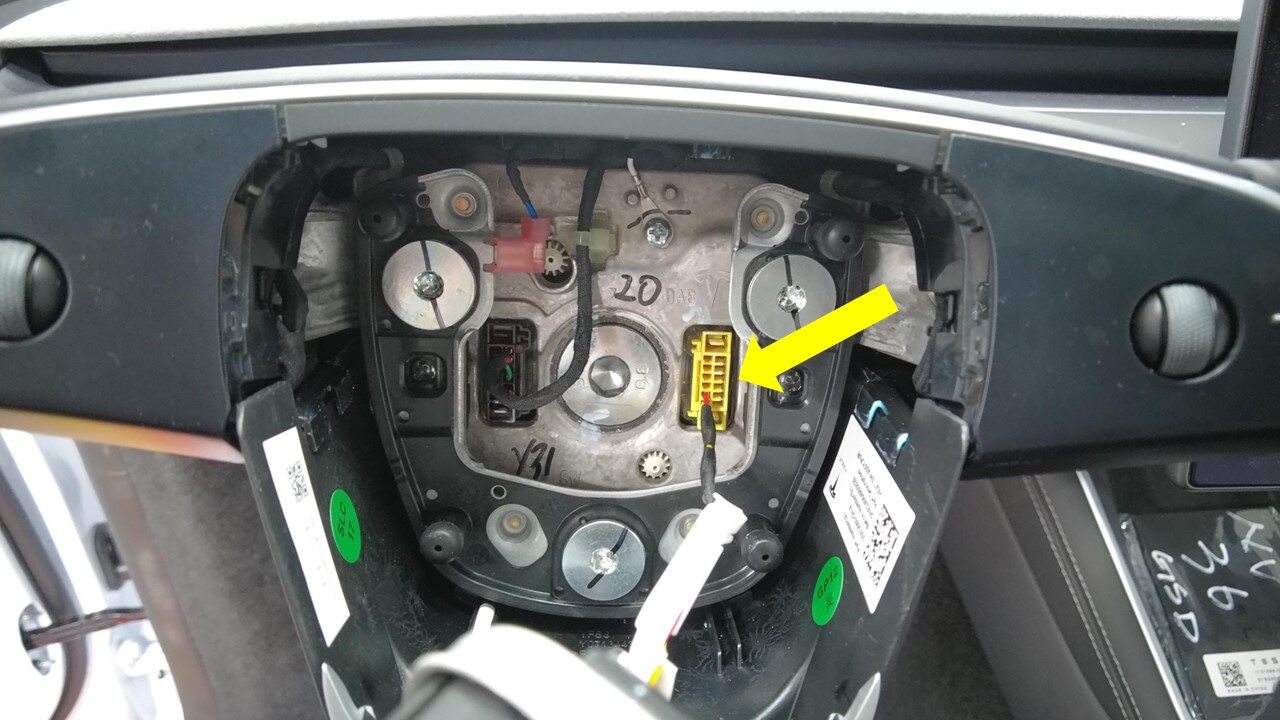

1x connector

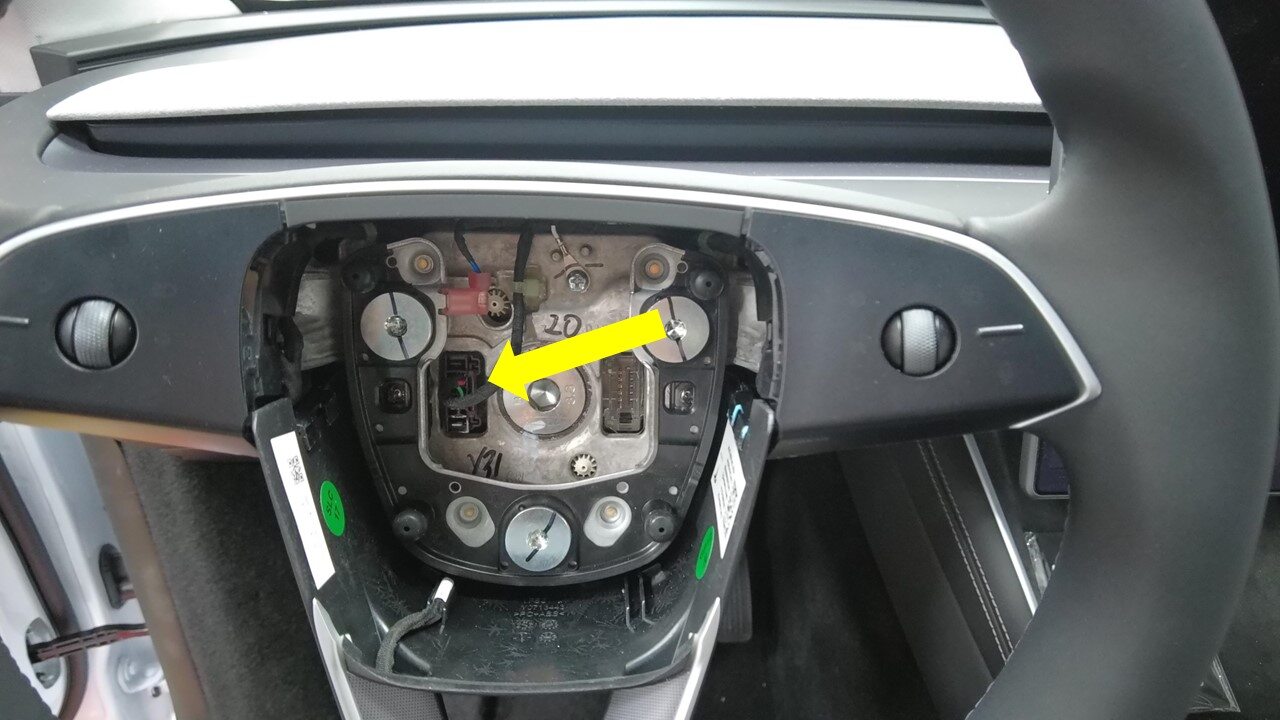

Disconnect steering wheel connector

Note
1x connector

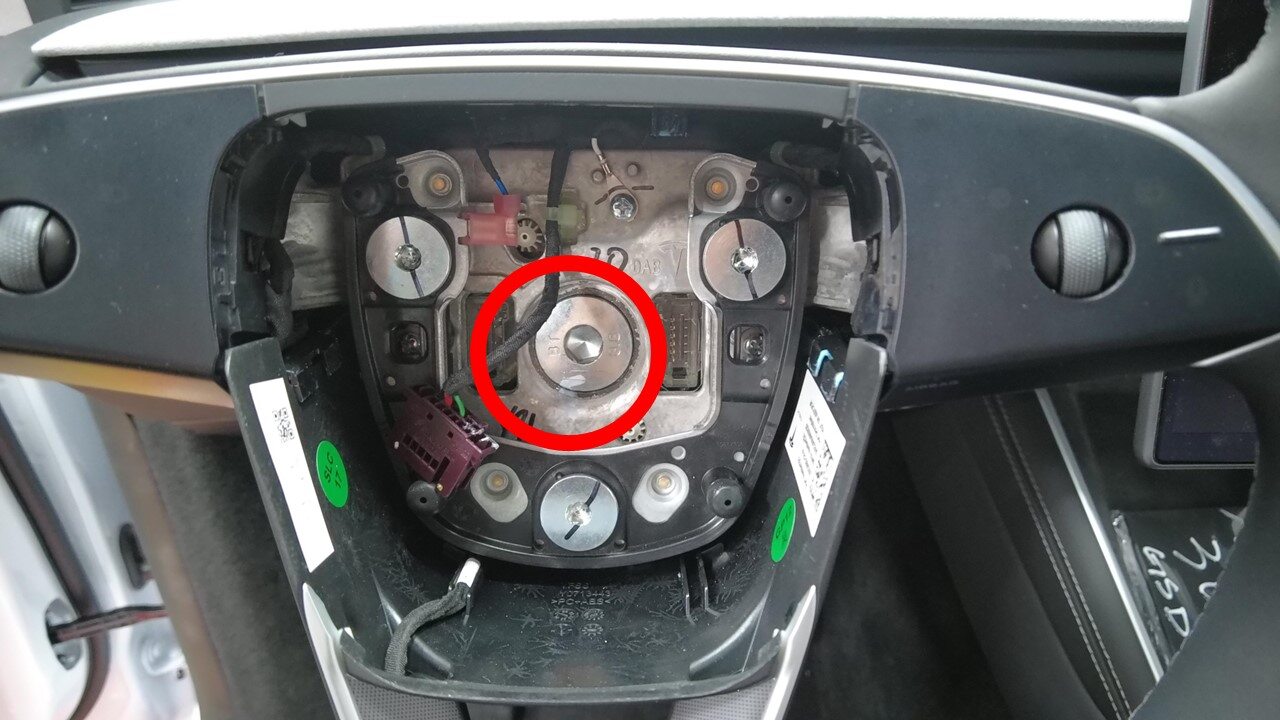

Remove bolt securing steering wheel to steering column

Note

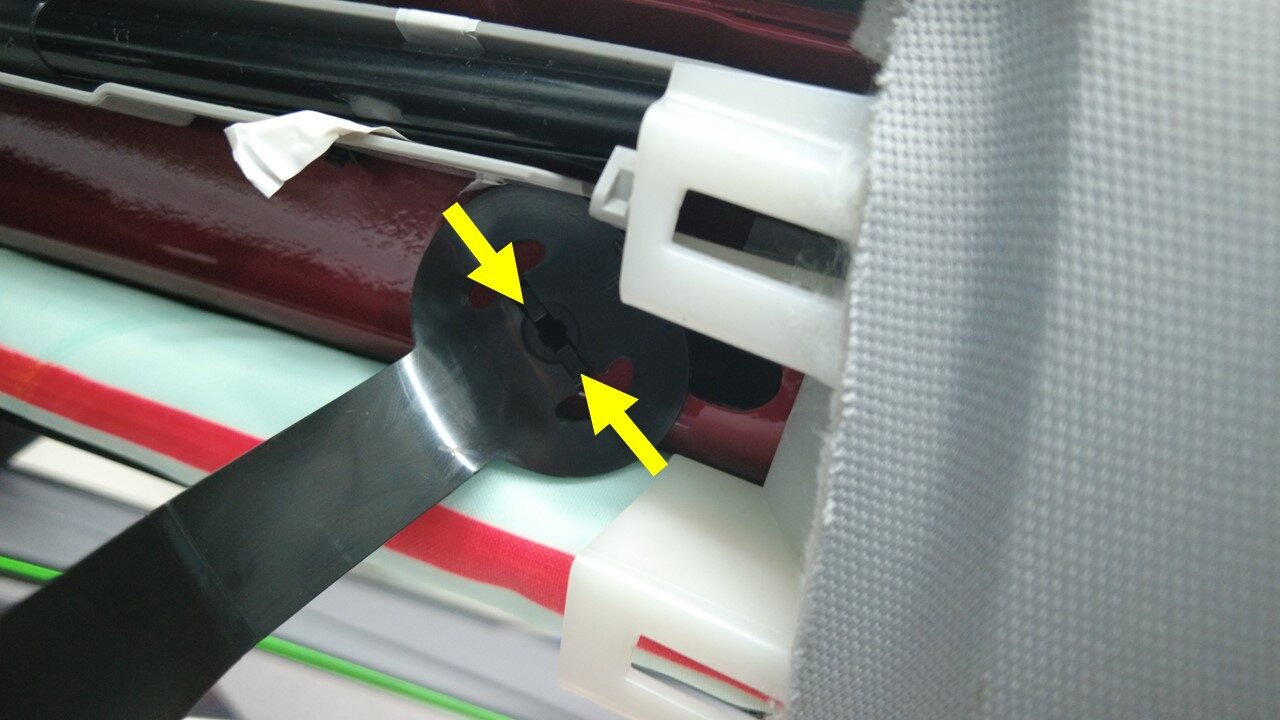

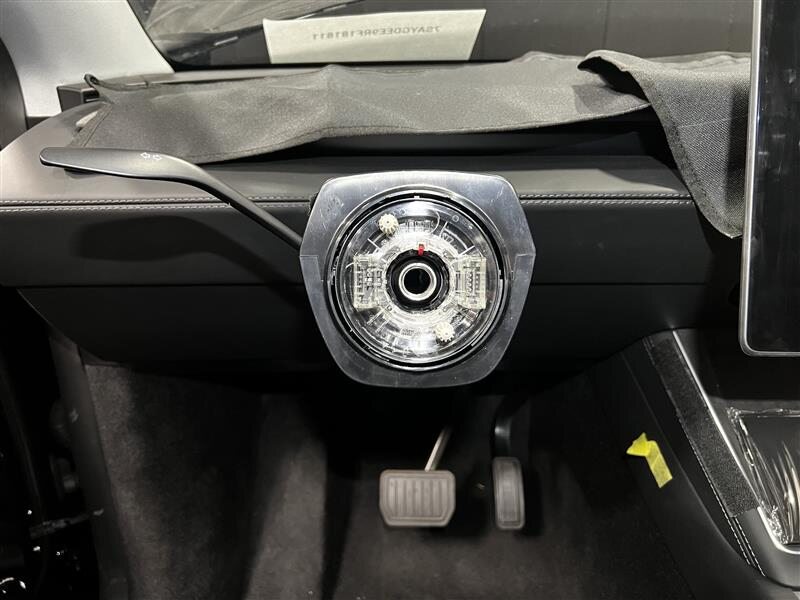

1x patch bolt, 10mm hex, 80 Nm, Discard after removal, Counter hold the steering wheel when breaking bolt loose, need assist
Remove steering wheel

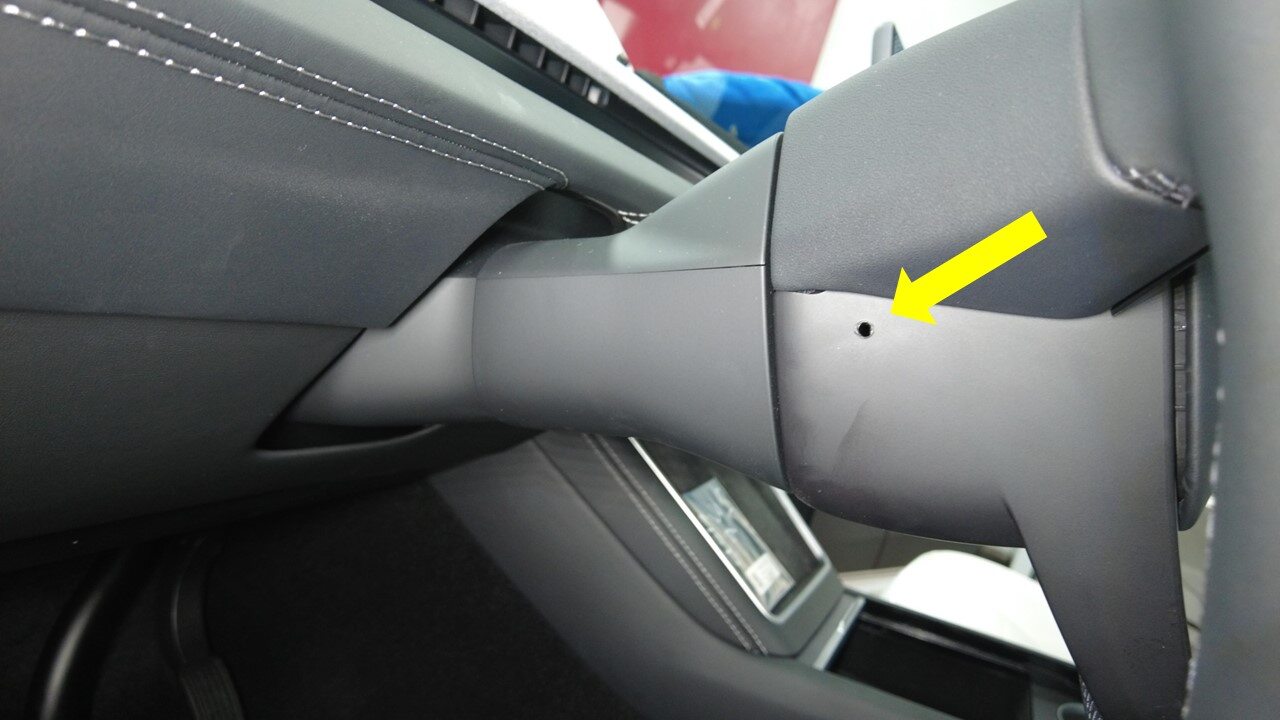

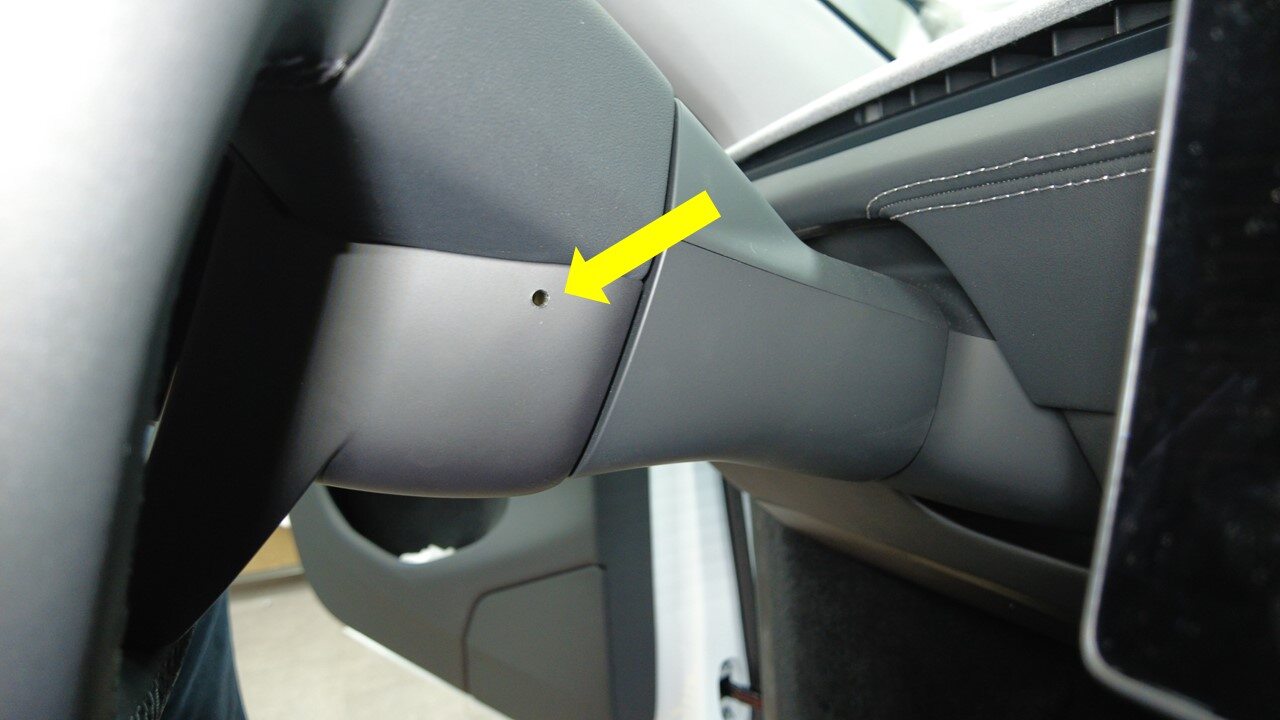

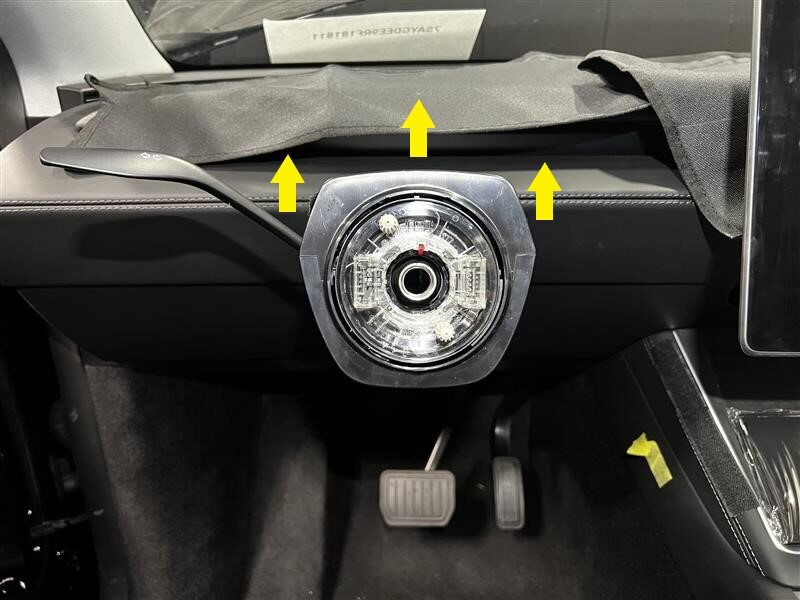

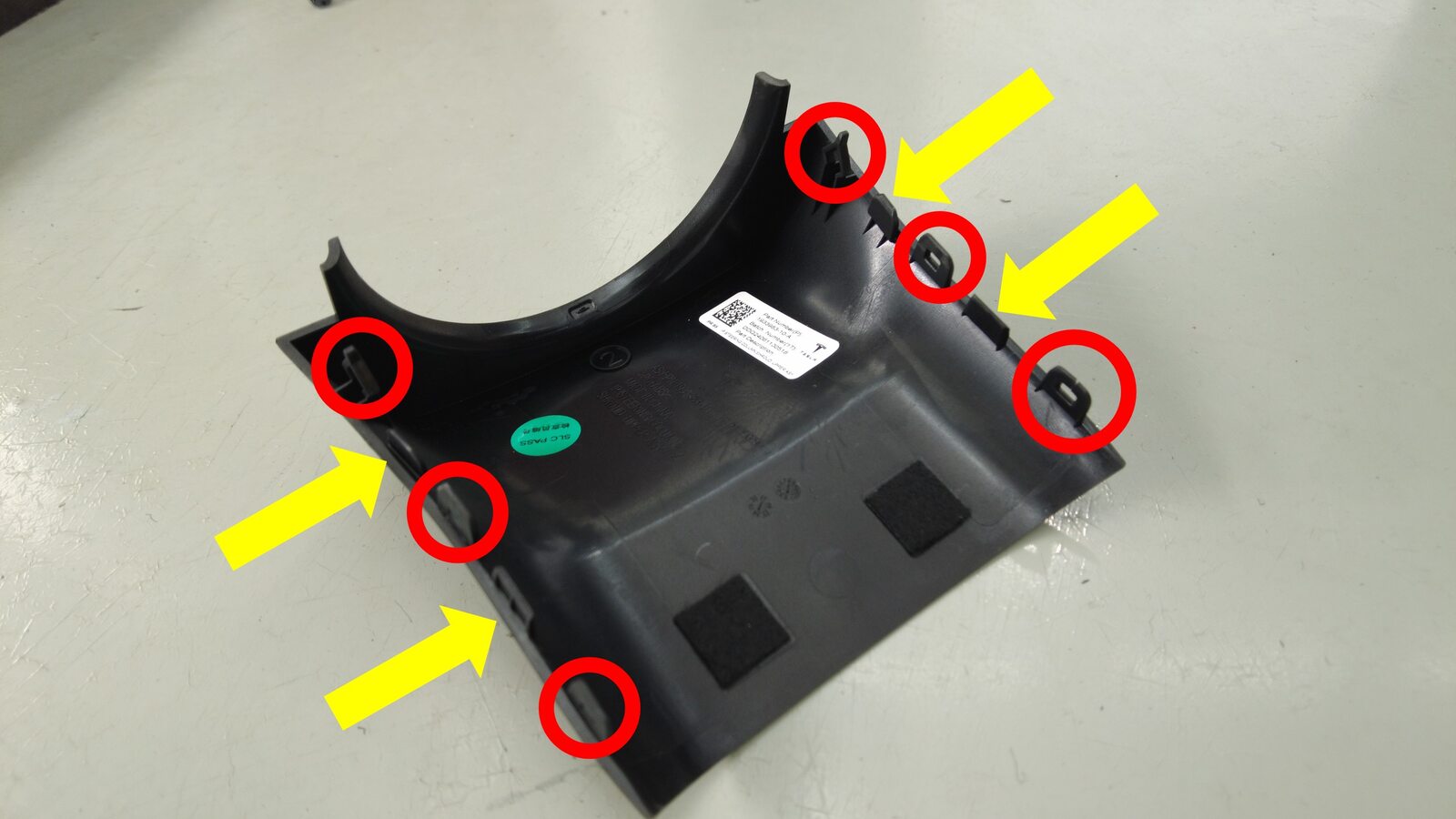

Remove steering column upper shroud

Note

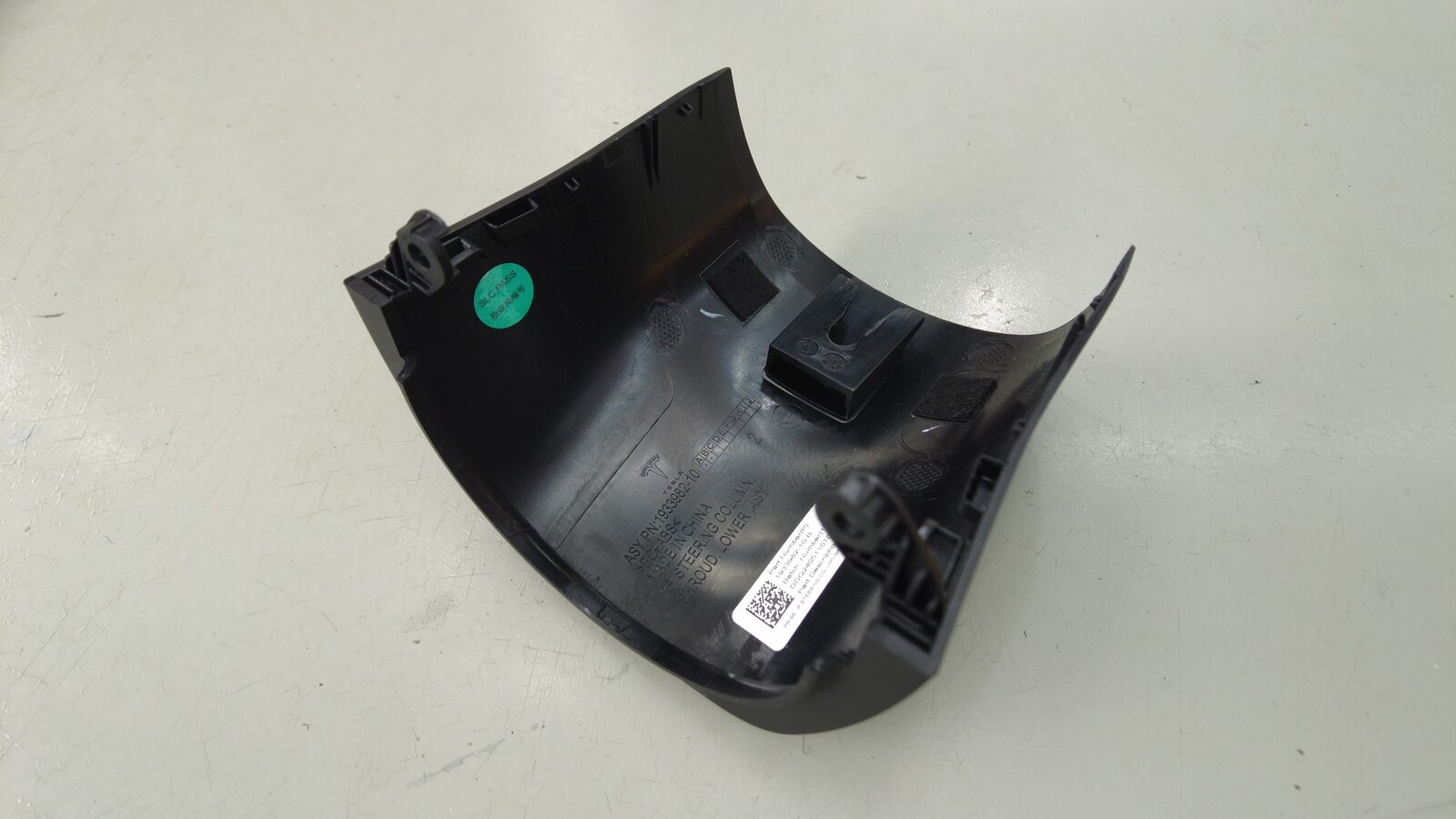

6x clips, 4x tabs, Pull upward to release upper shroud from lower shroud

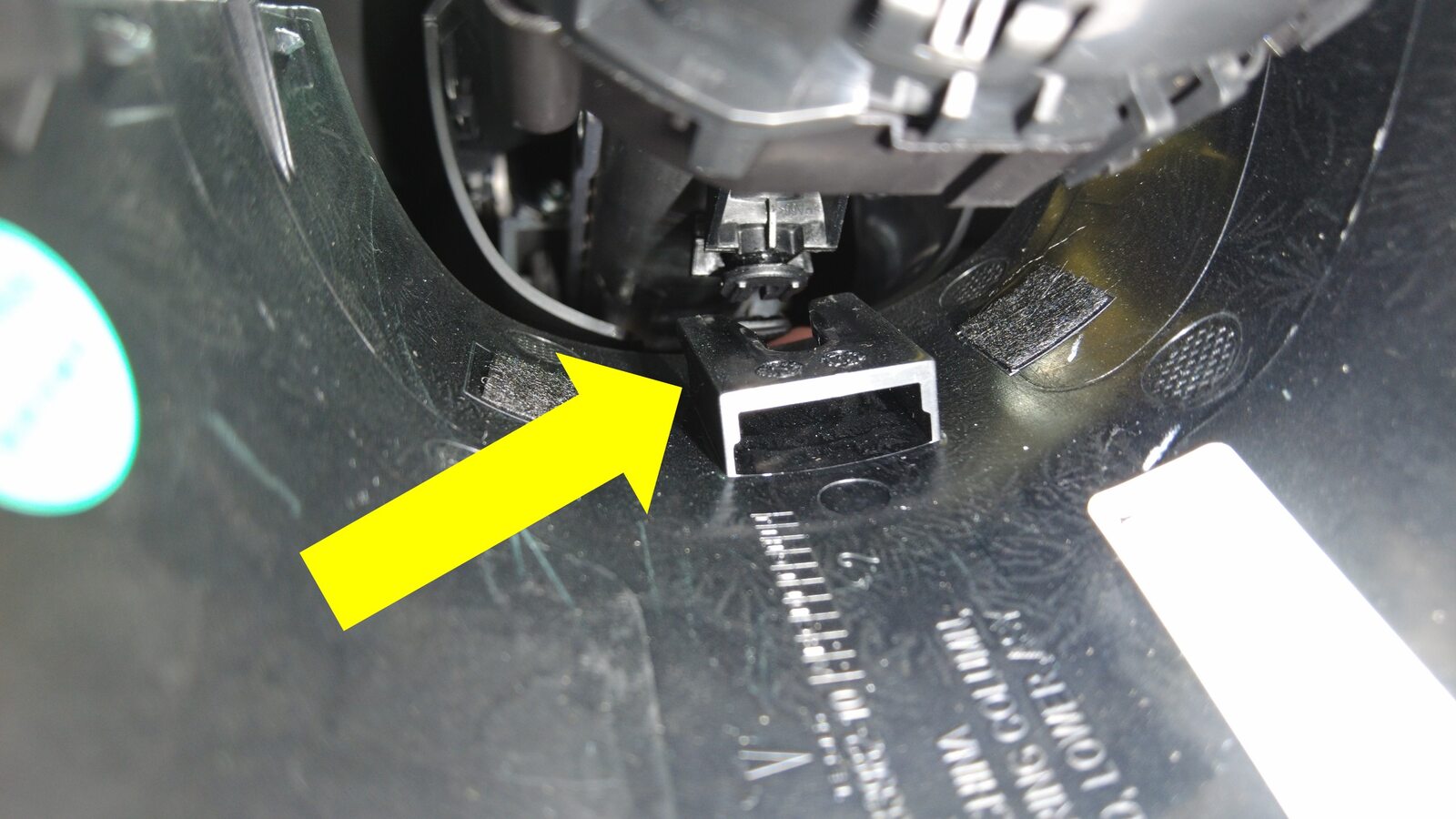

Remove steering column lower shroud

Note
2x screws, T20, 1.35 Nm, 1x clip, Slide rearward to release

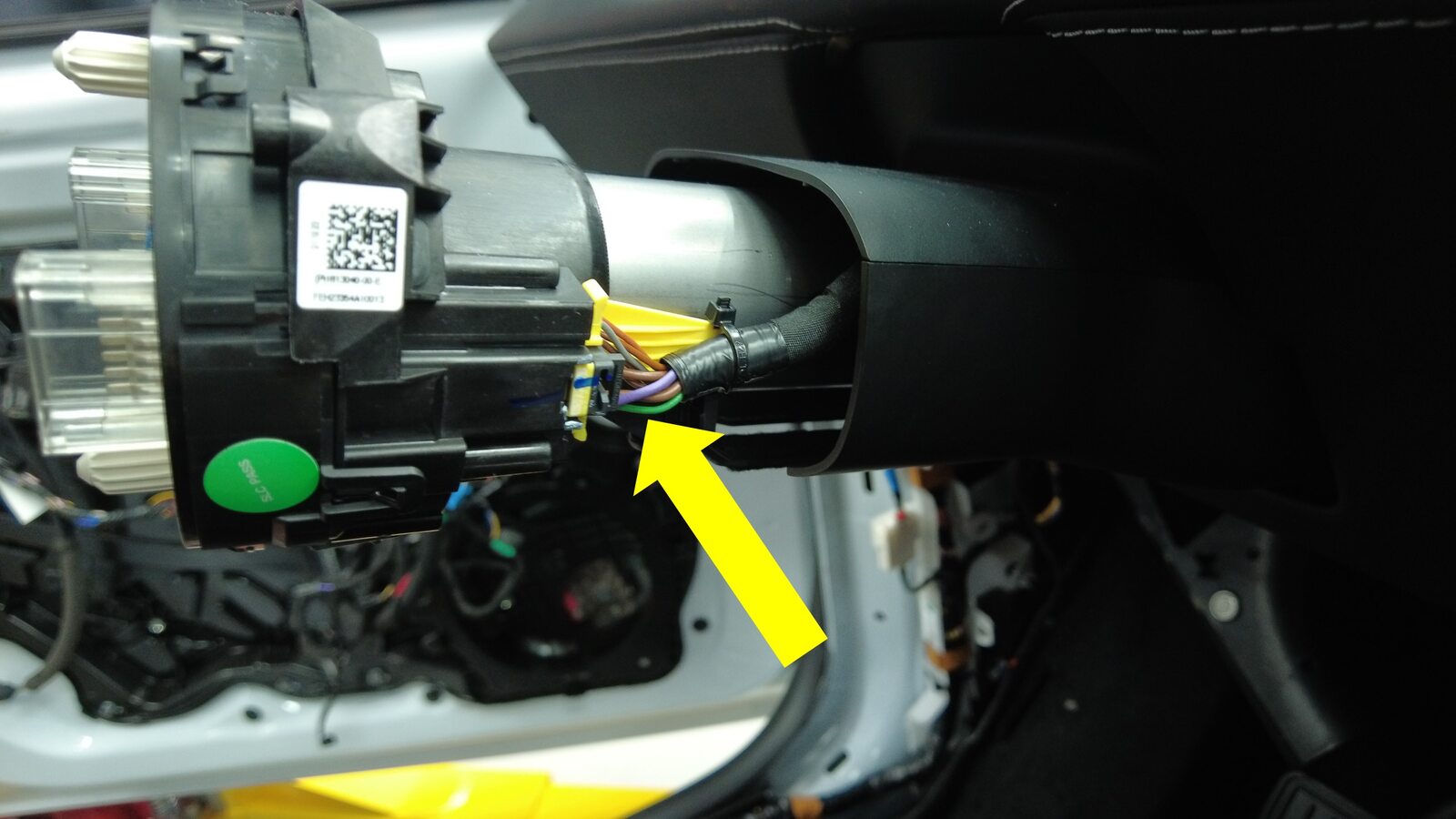

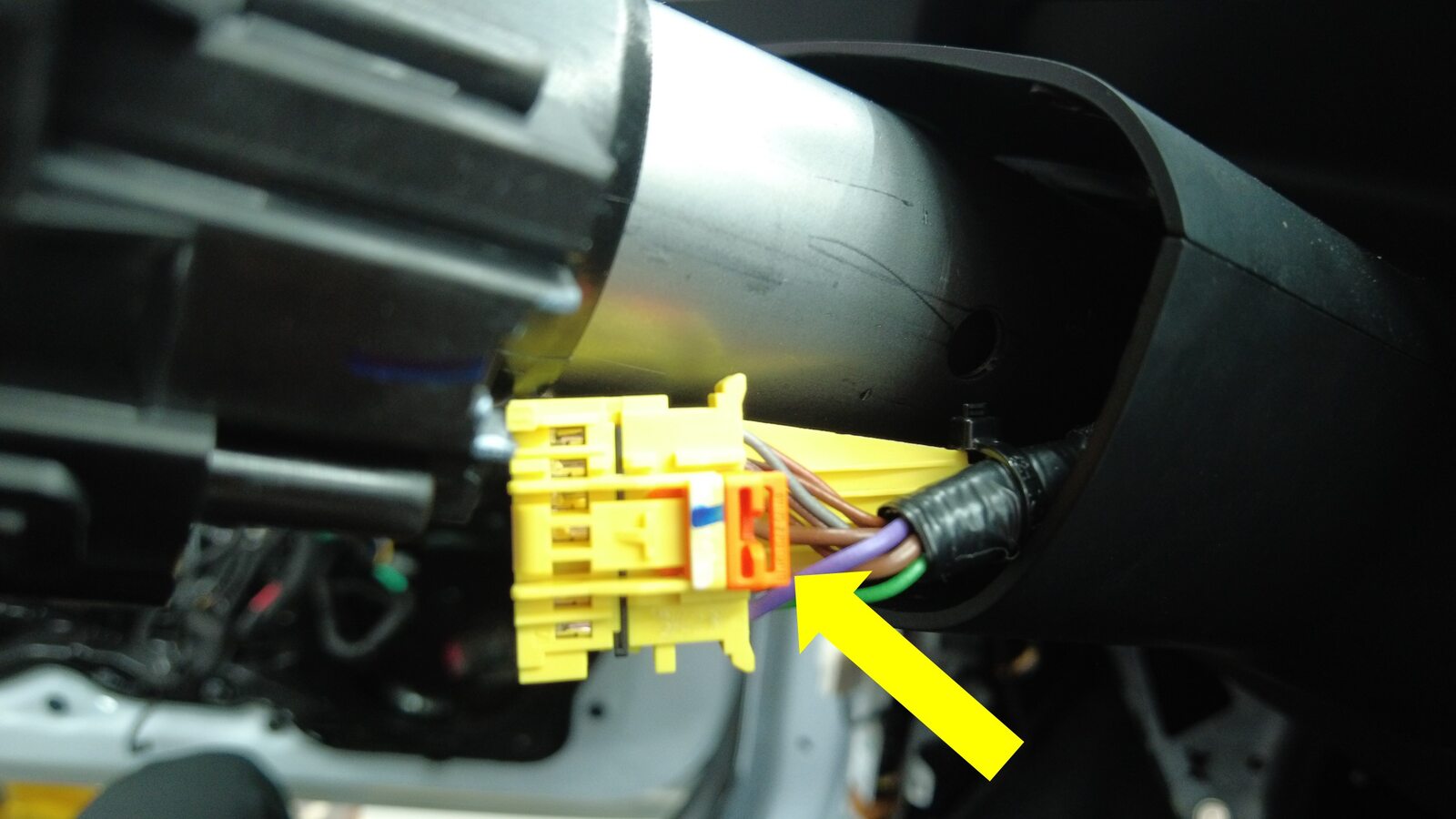

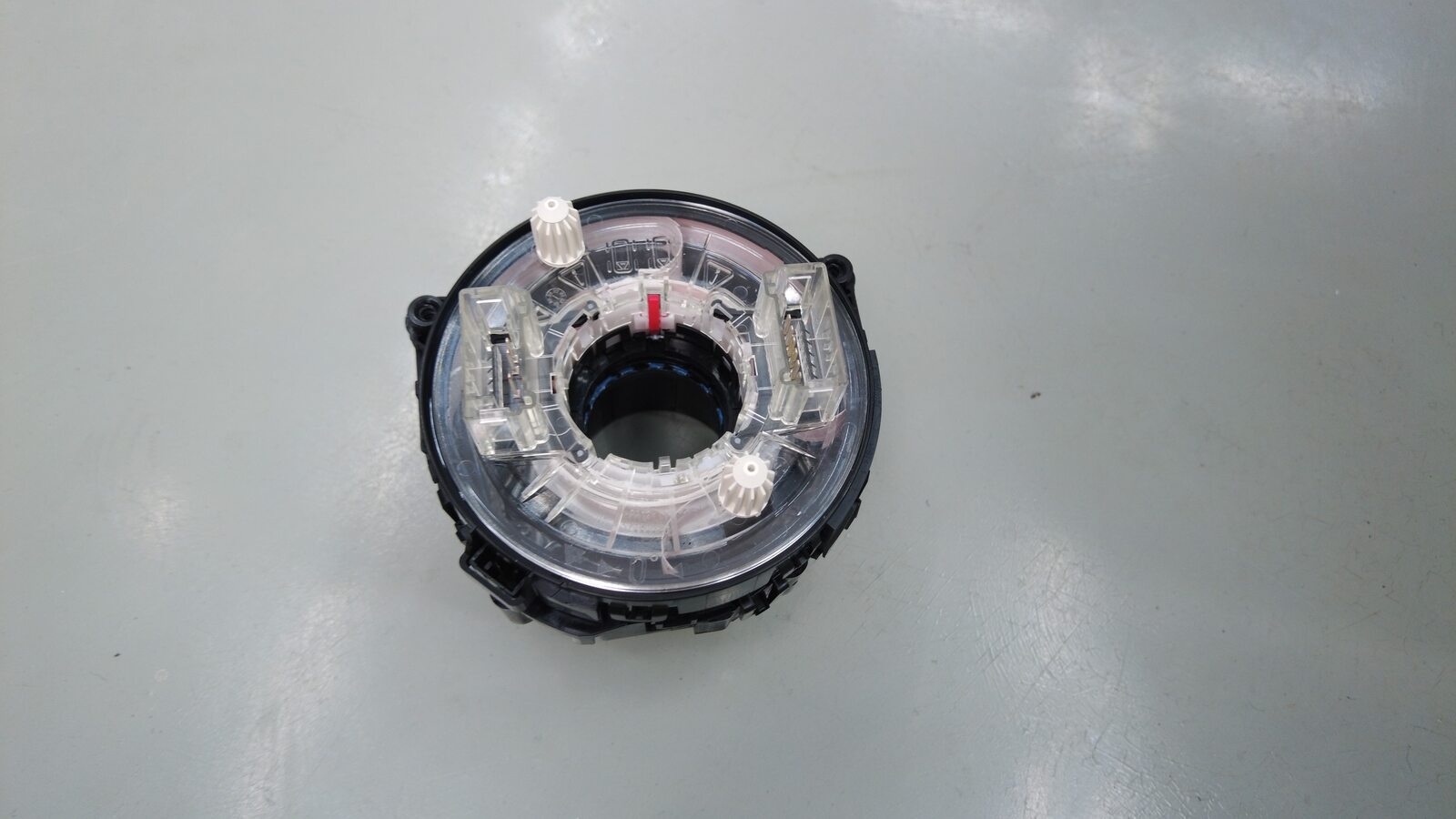

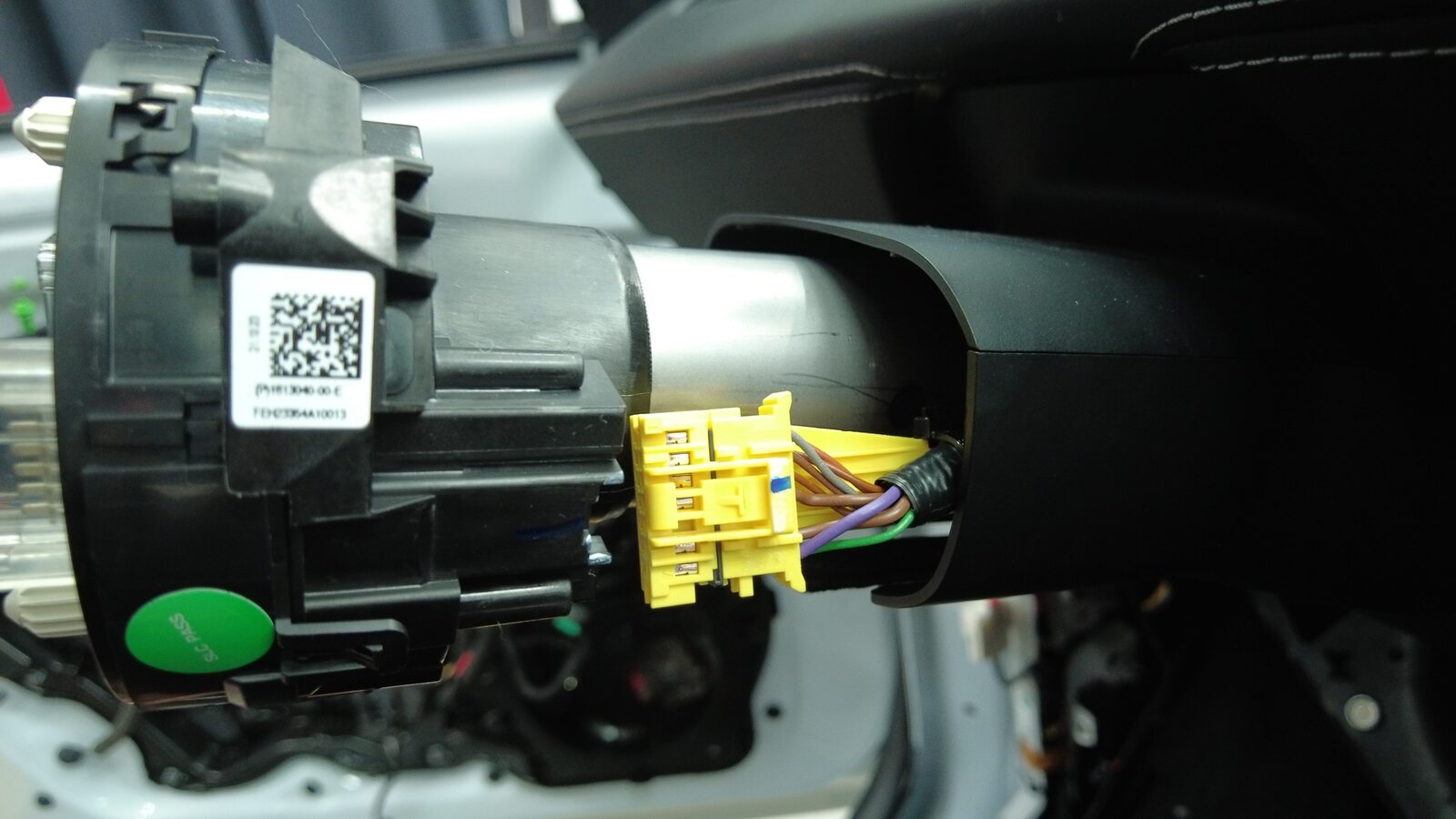

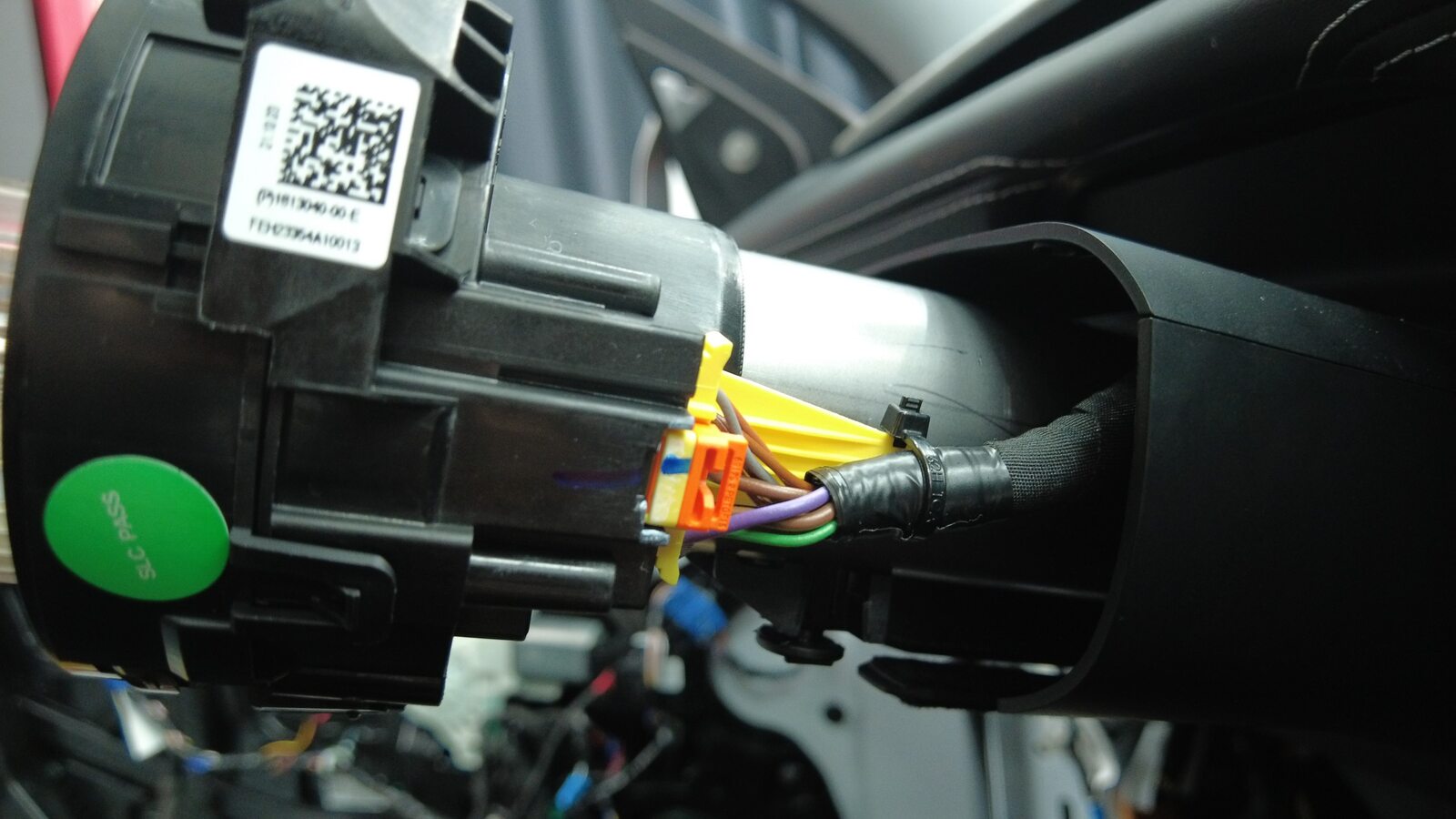

Disconnect steering column control module connector

Note

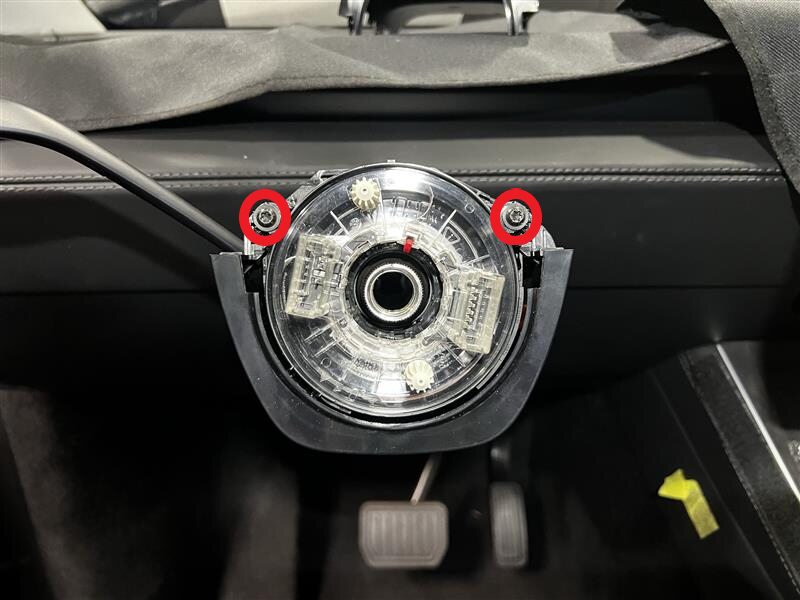

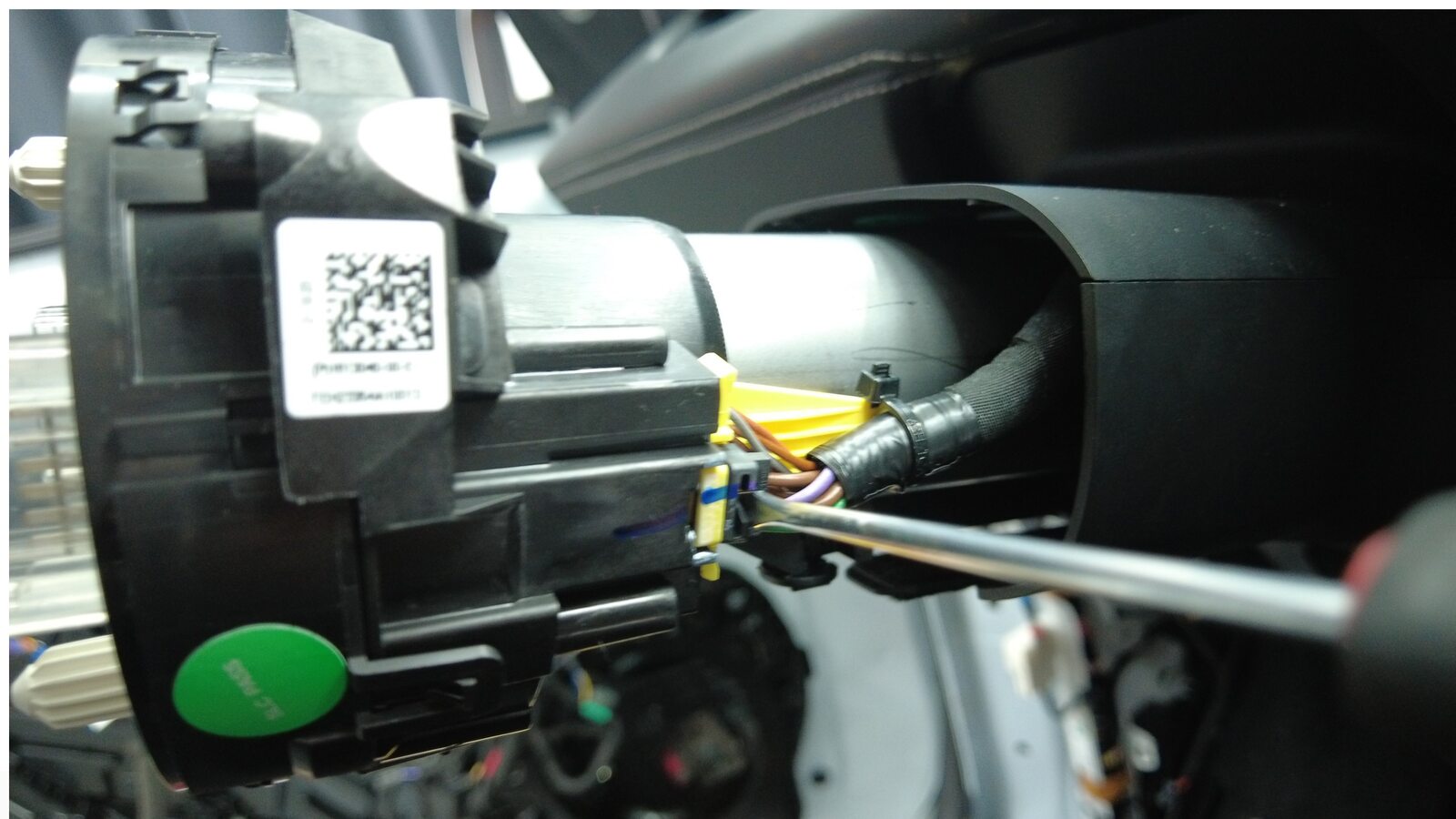

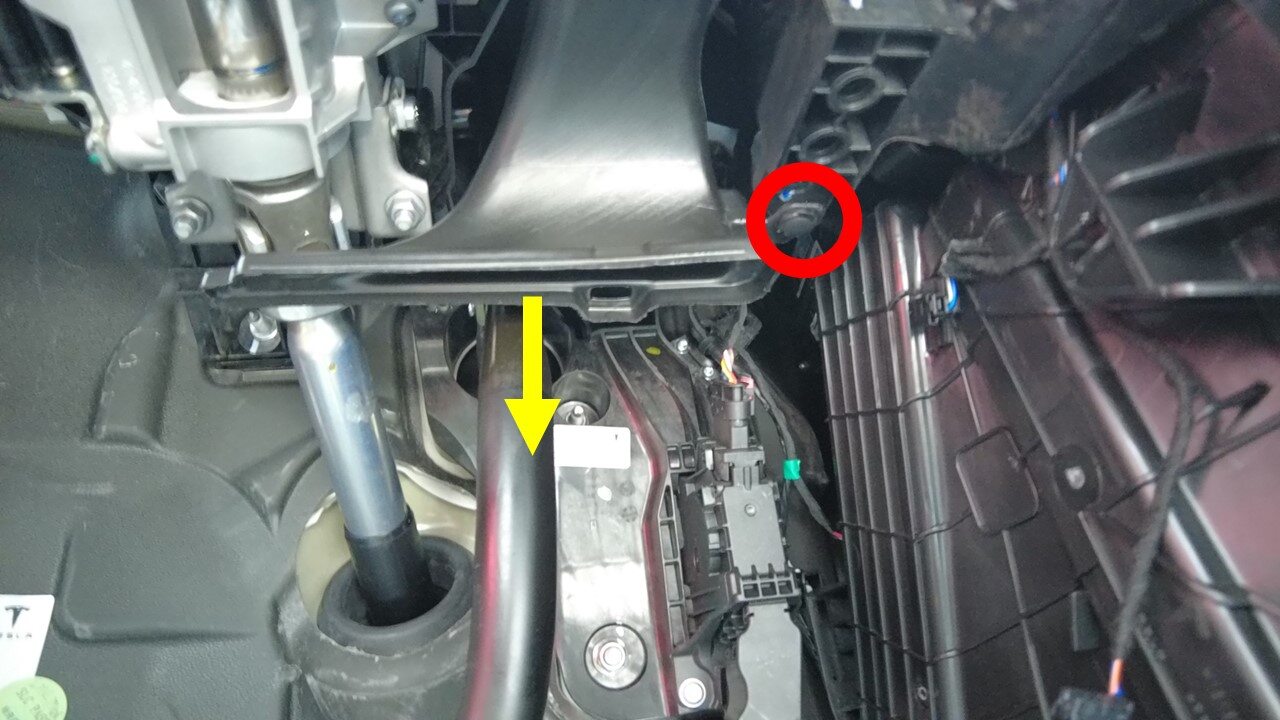

1x connector, Remove and discard retaining clip, Clip designed to break upon removal, Ensure no debris remains in connector, Original clip is black, Replacement clip is orange

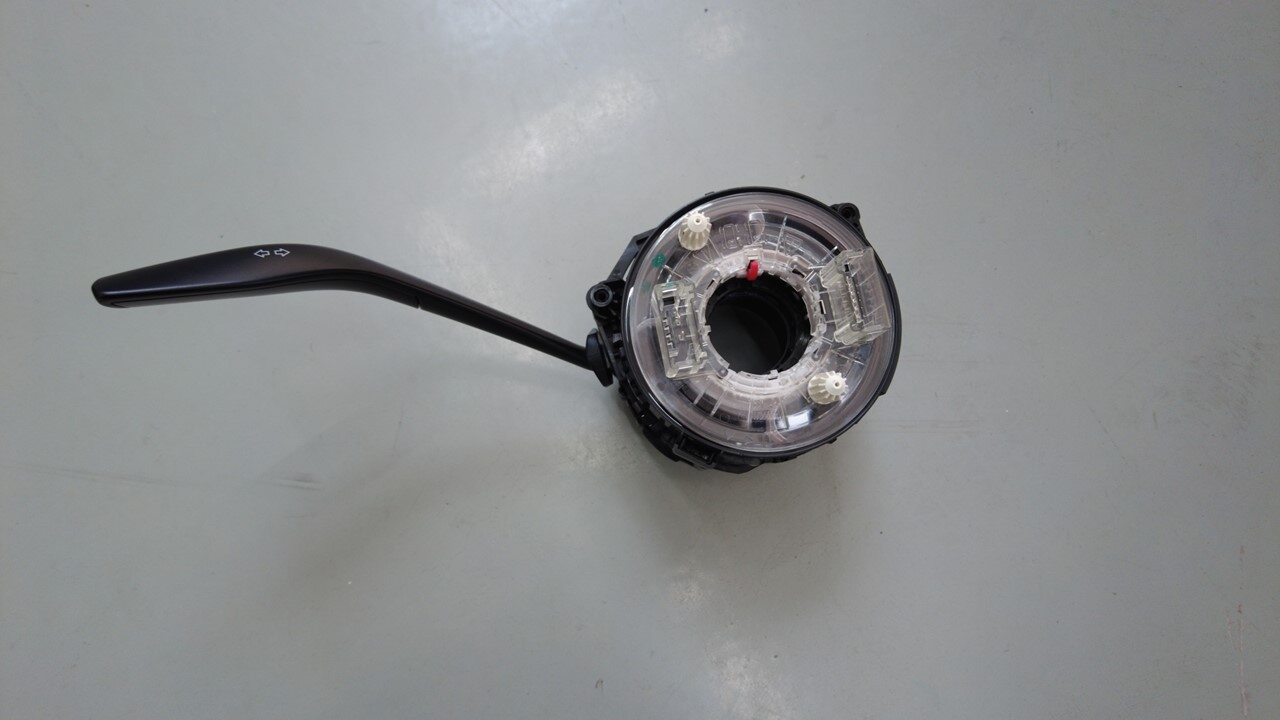

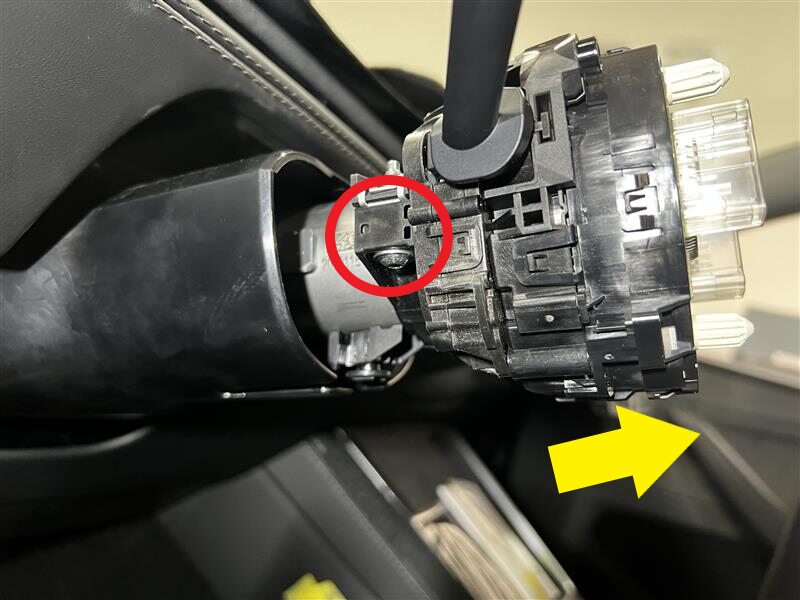

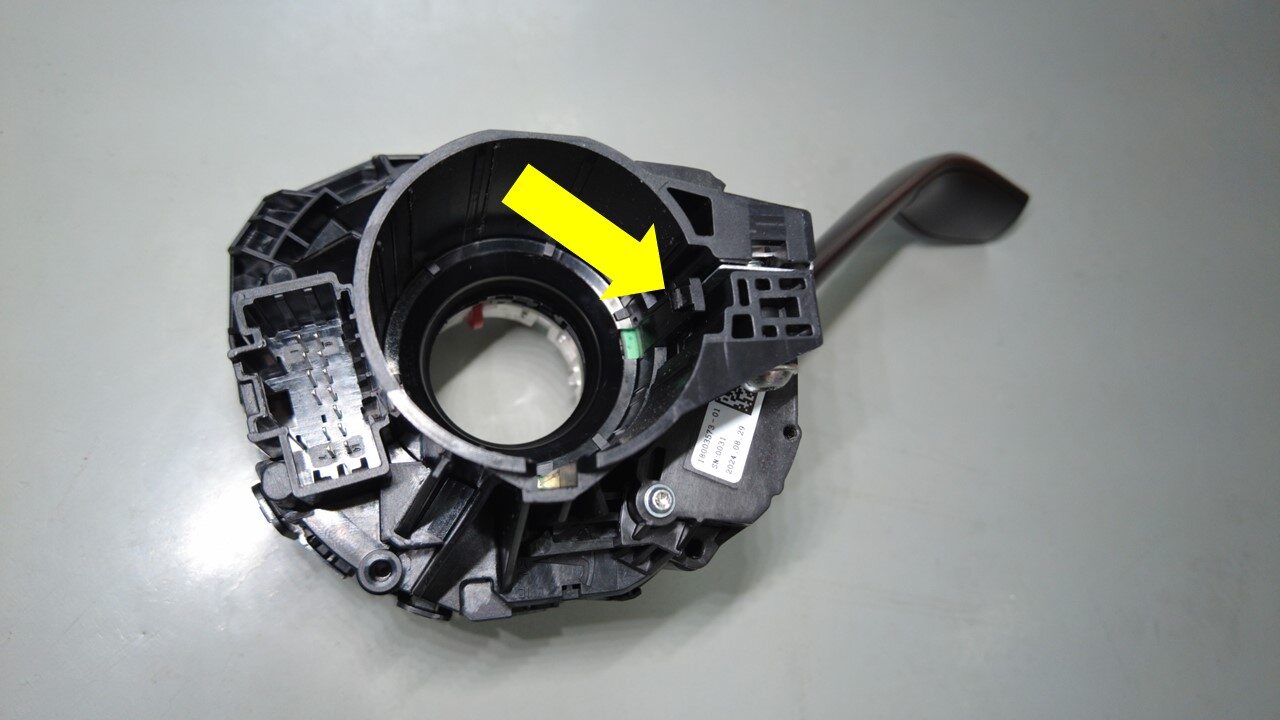

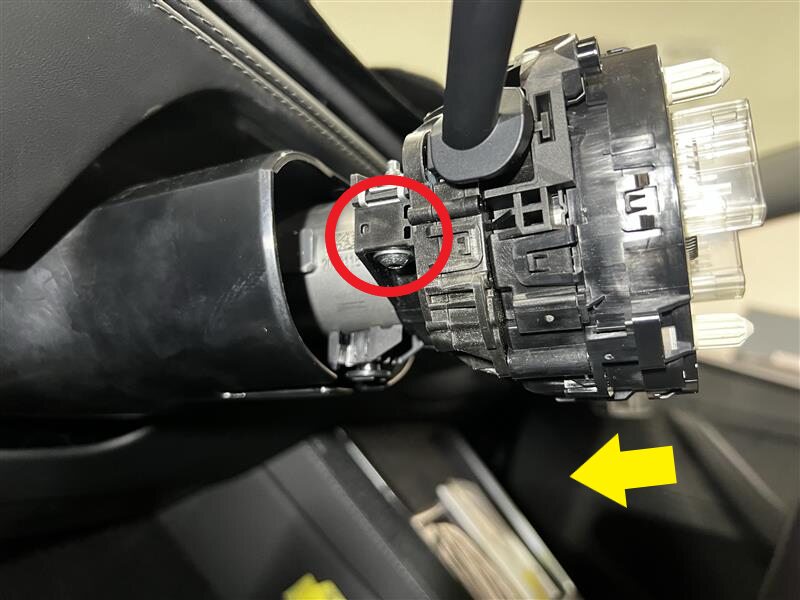

Remove steering column control module

Note
1x bolt, T20, 2.4 Nm, 1x clip, Loosen the bolt, not need remove

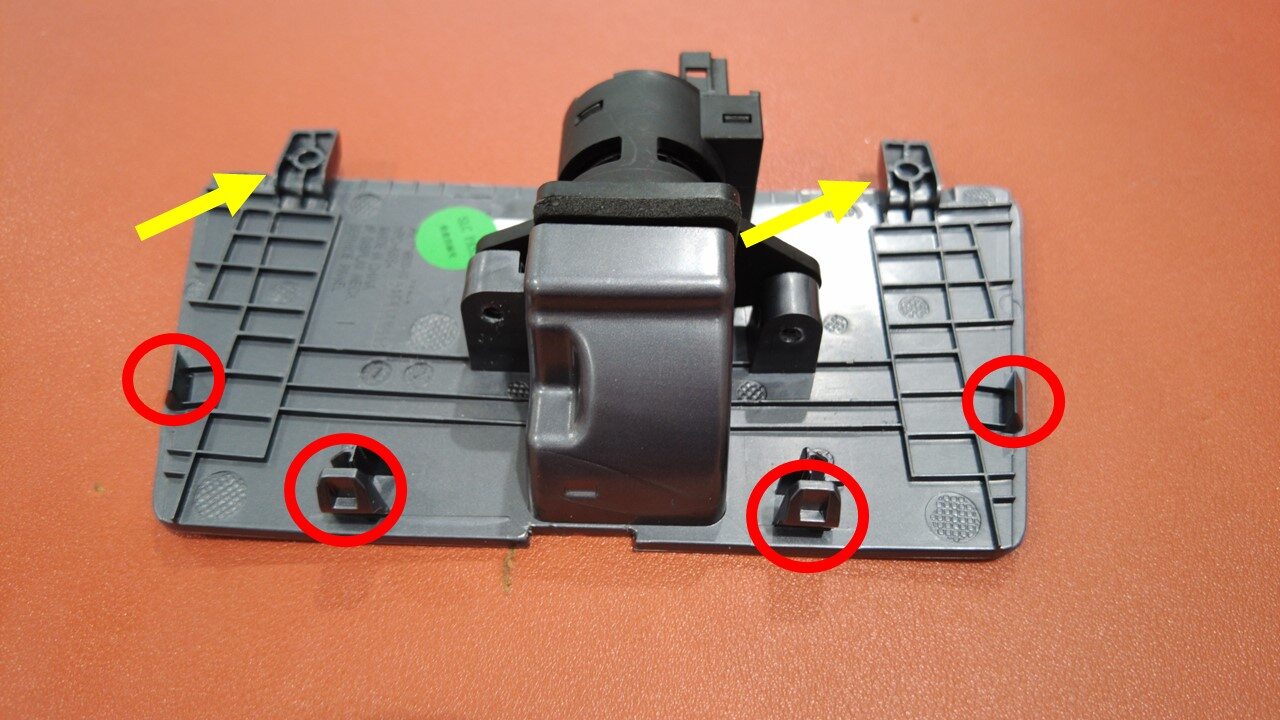

Remove IP service panel from IP

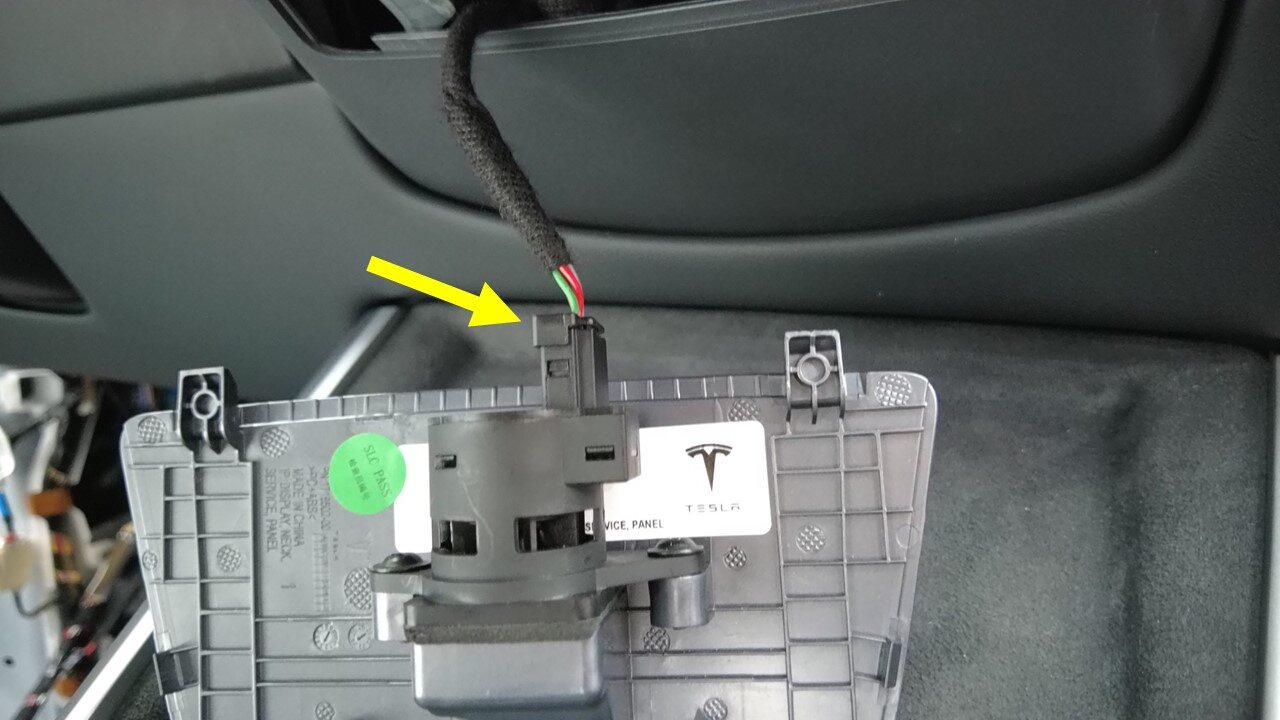

Note

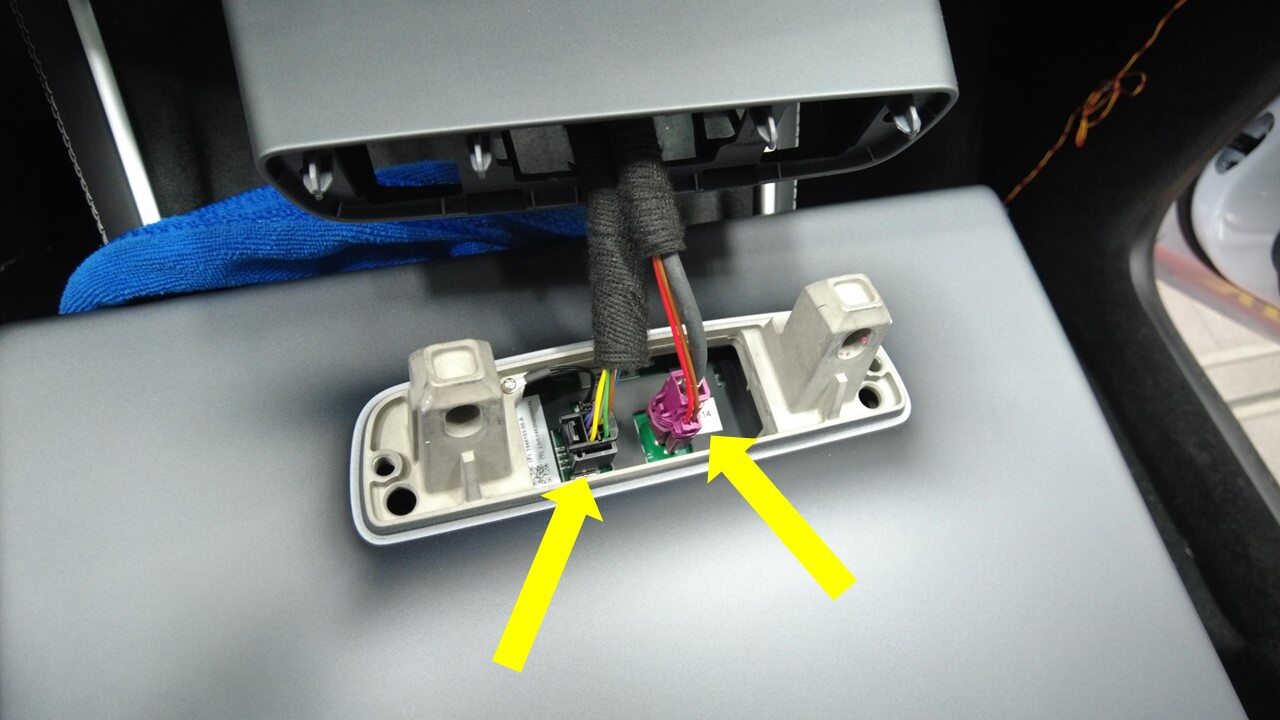

4x tabs, 2x guide tabs, 1x connector

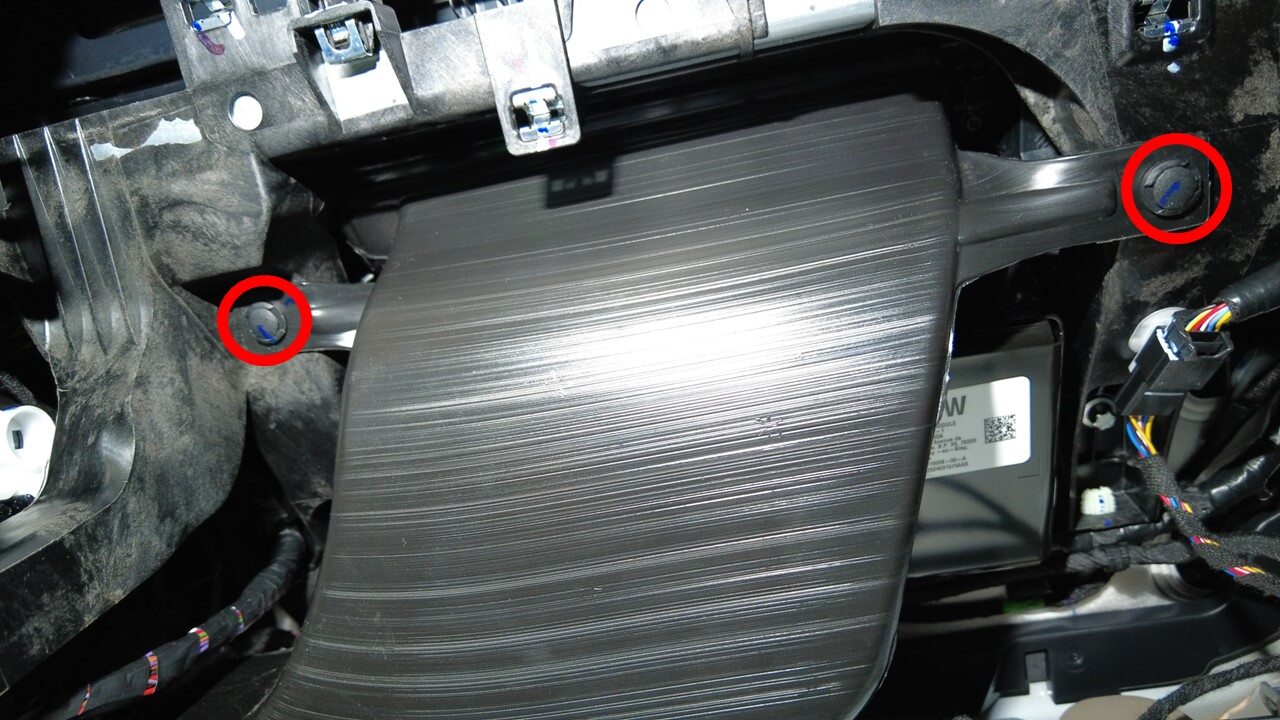

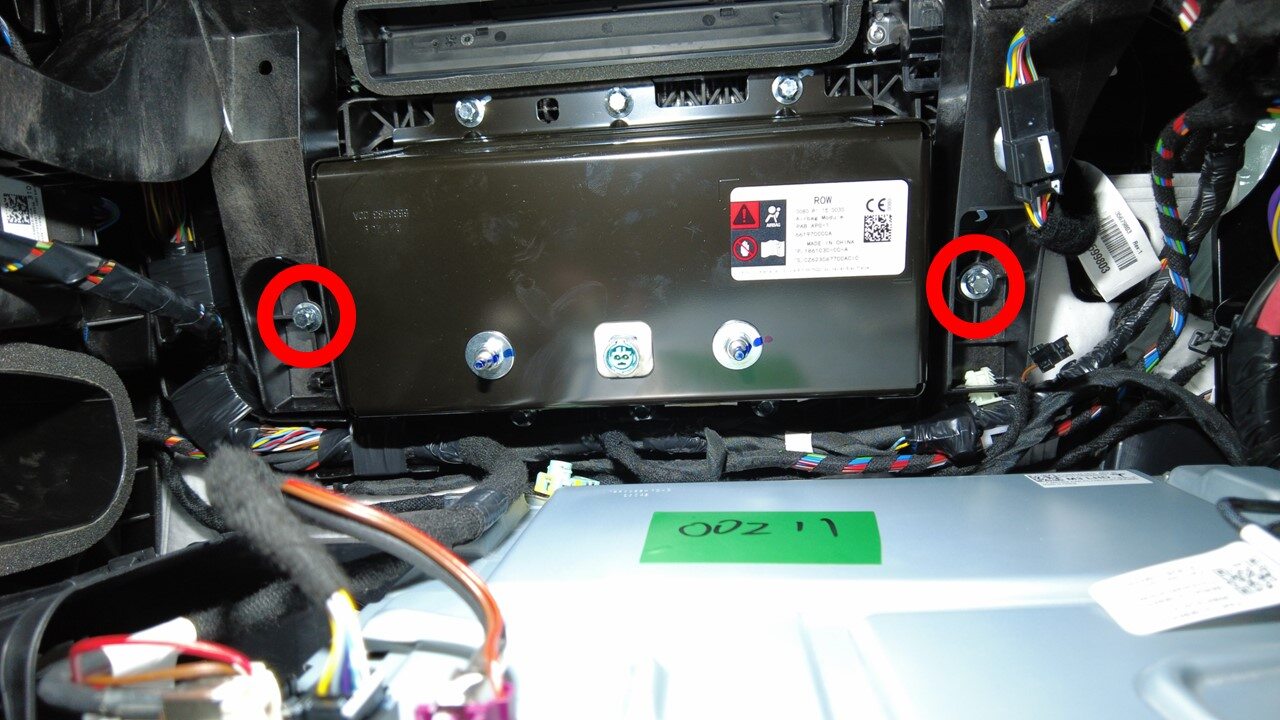

Remove bolts securing center display to IP bracket

Note
2x bolts, 10mm, 16 Nm, Discard after removal
Remove center display from IP

Note

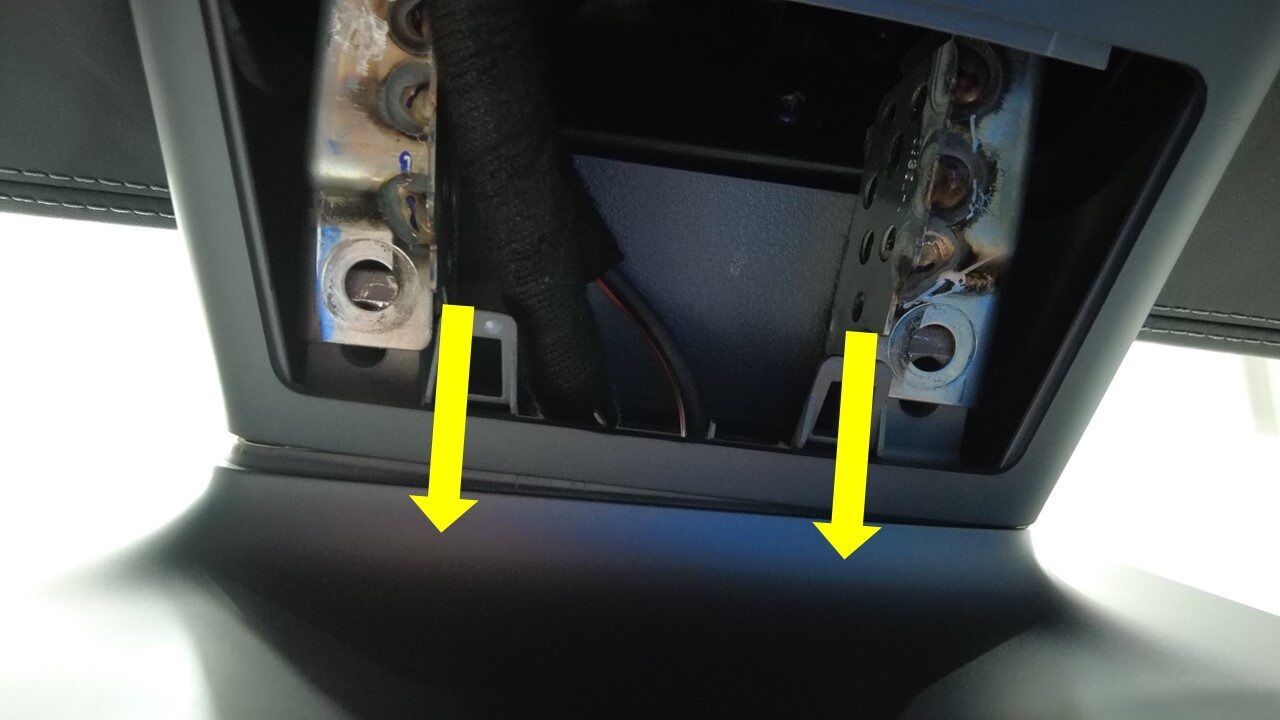

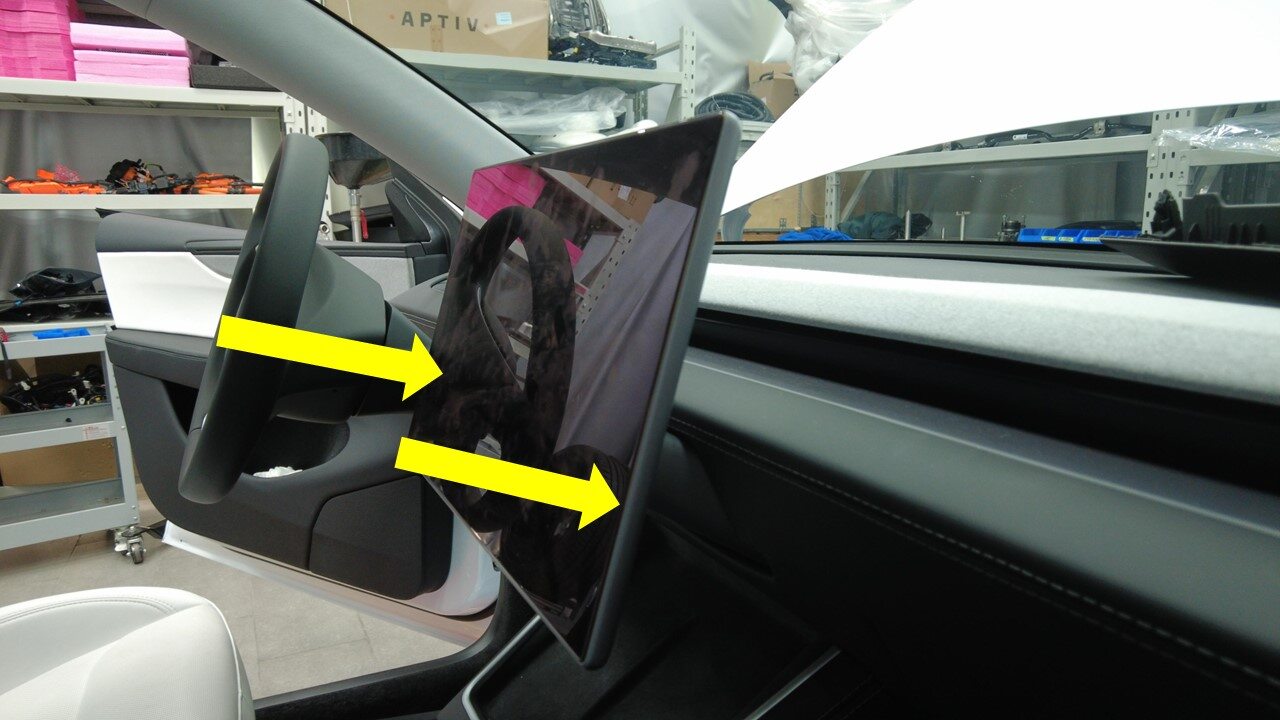

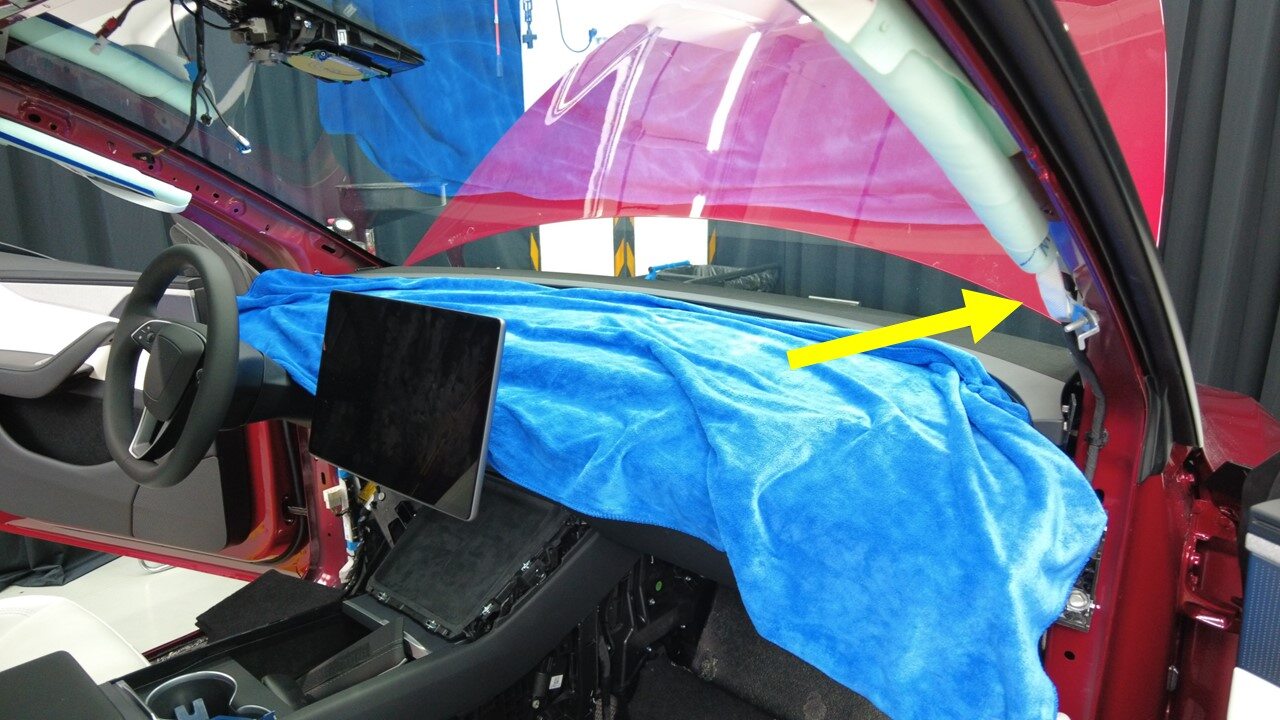

Slide towards rear of vehicle to remove, Place towel onto center console to protect display
Remove center display

Note
2x connectors

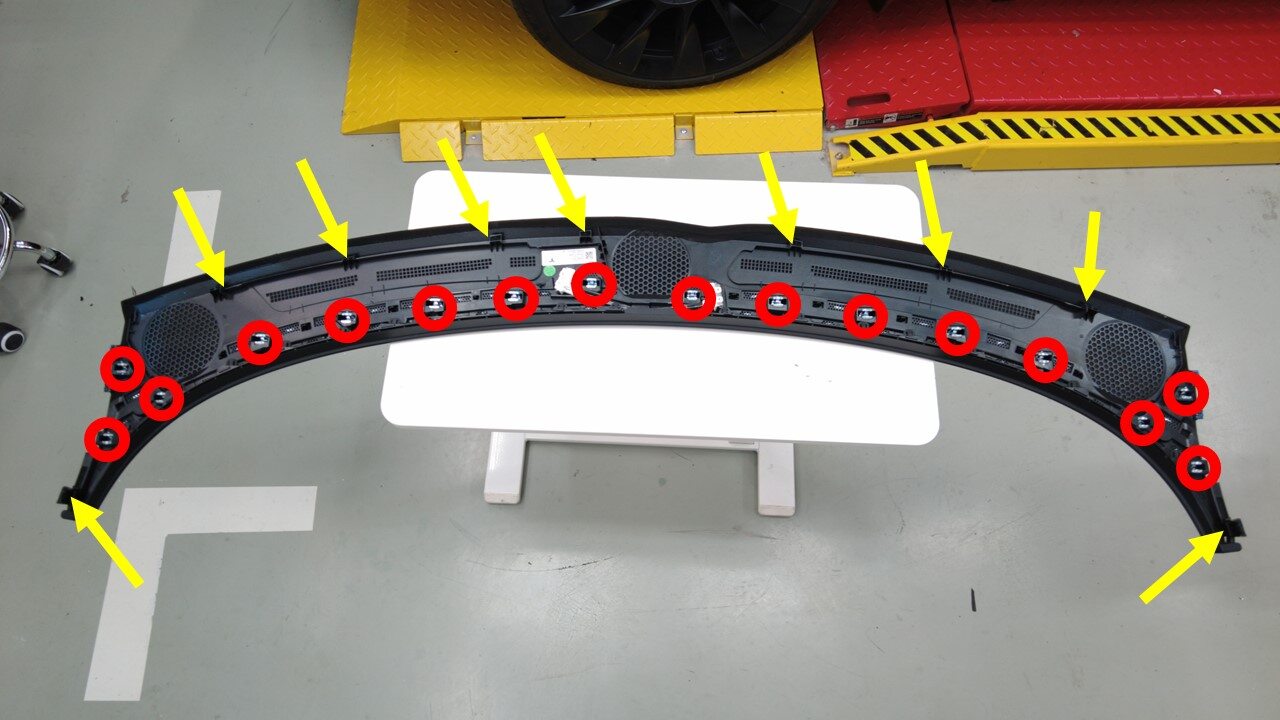

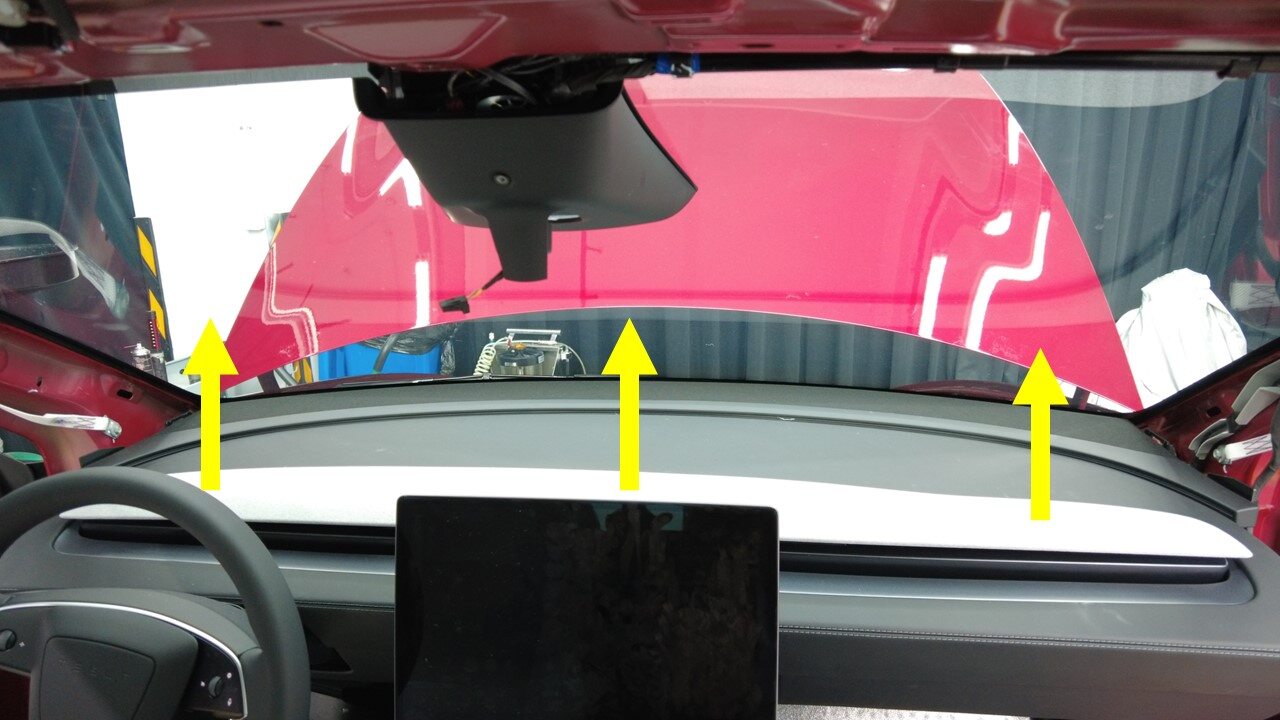

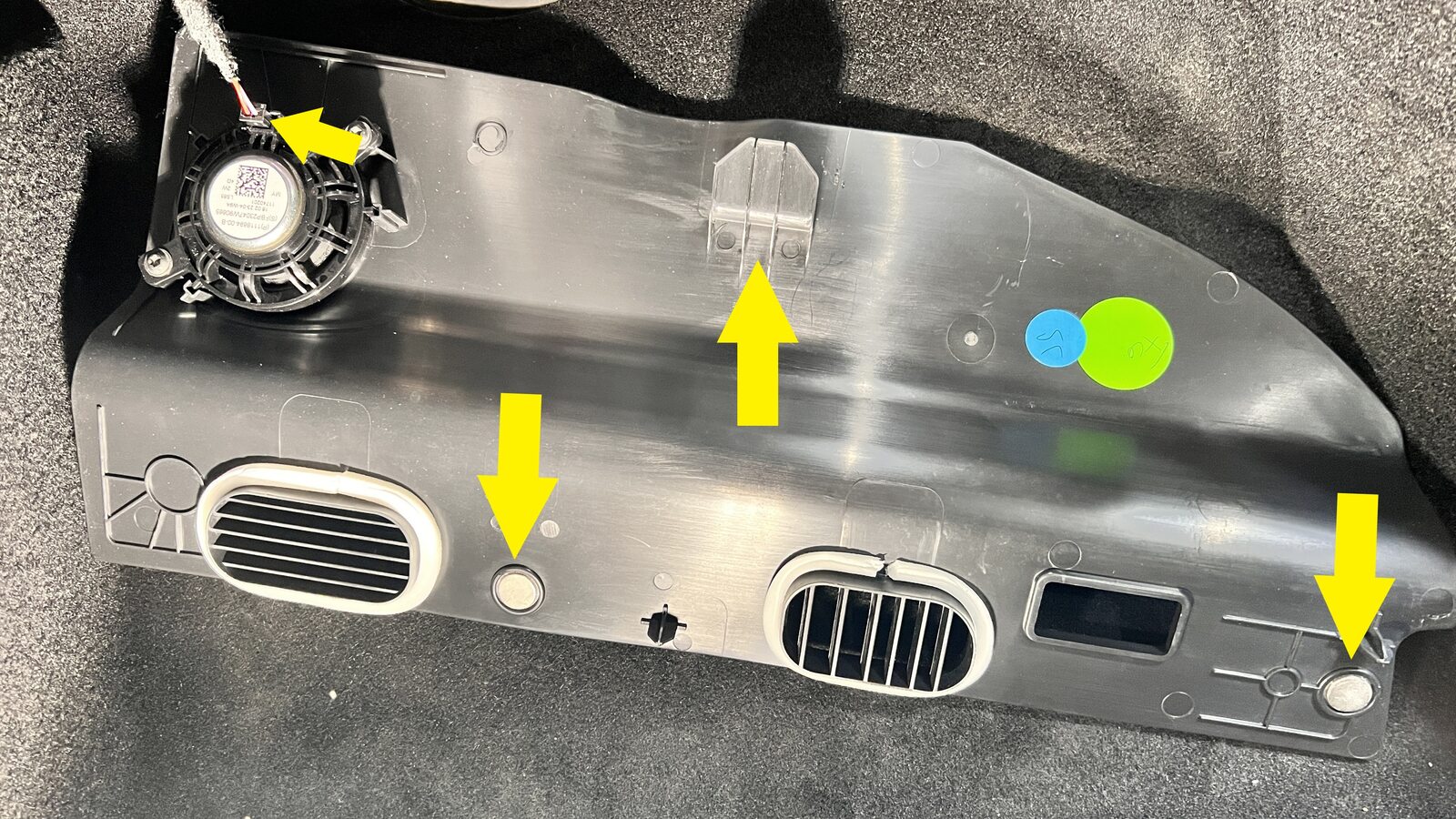

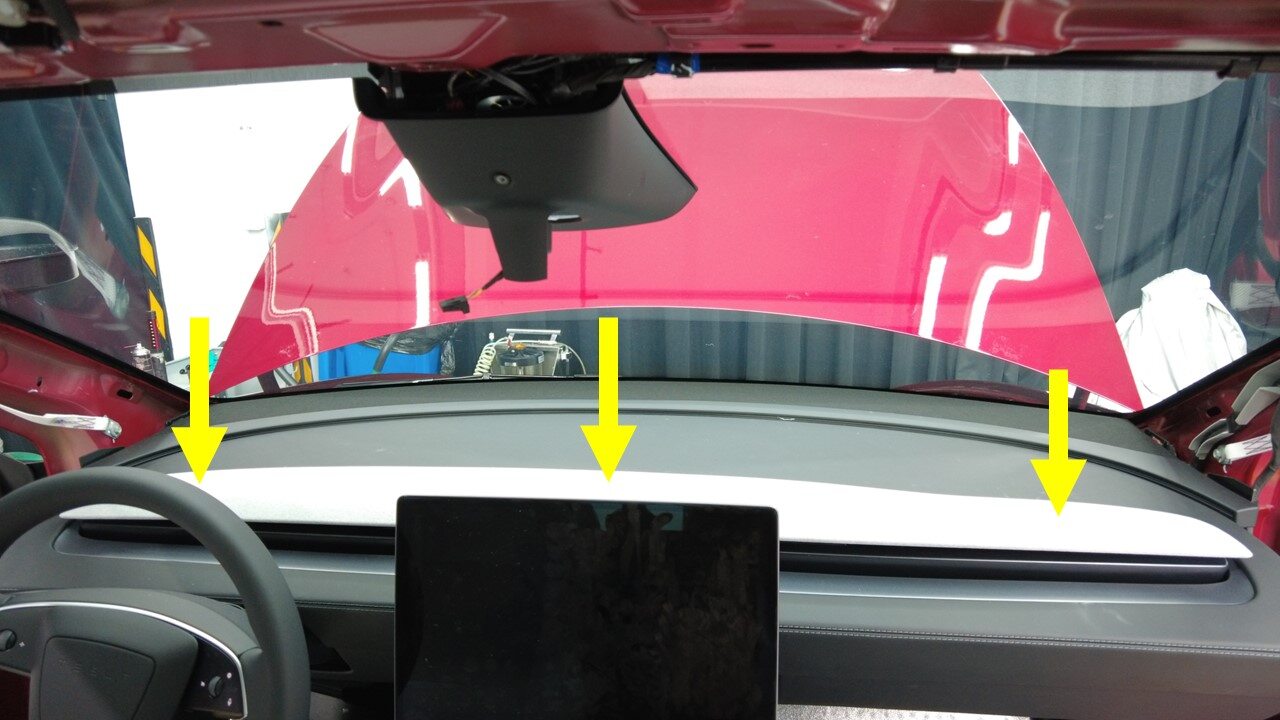

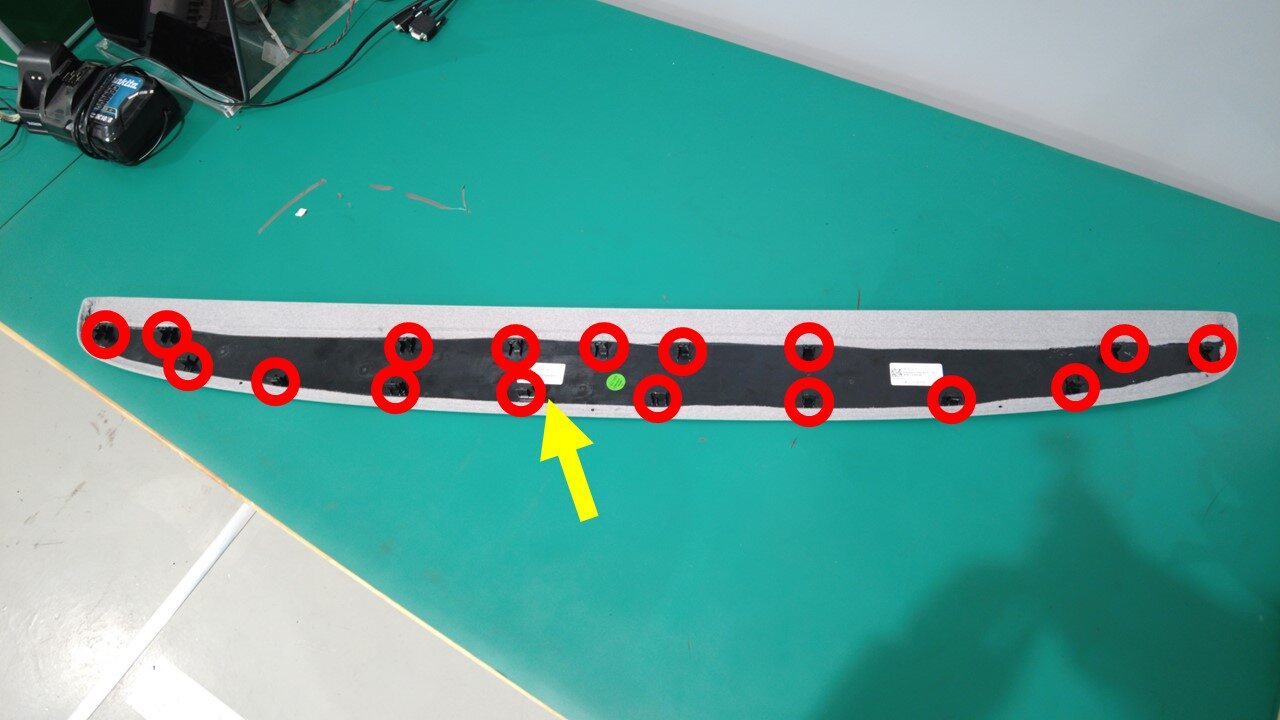

Remove float wing assembly

Note

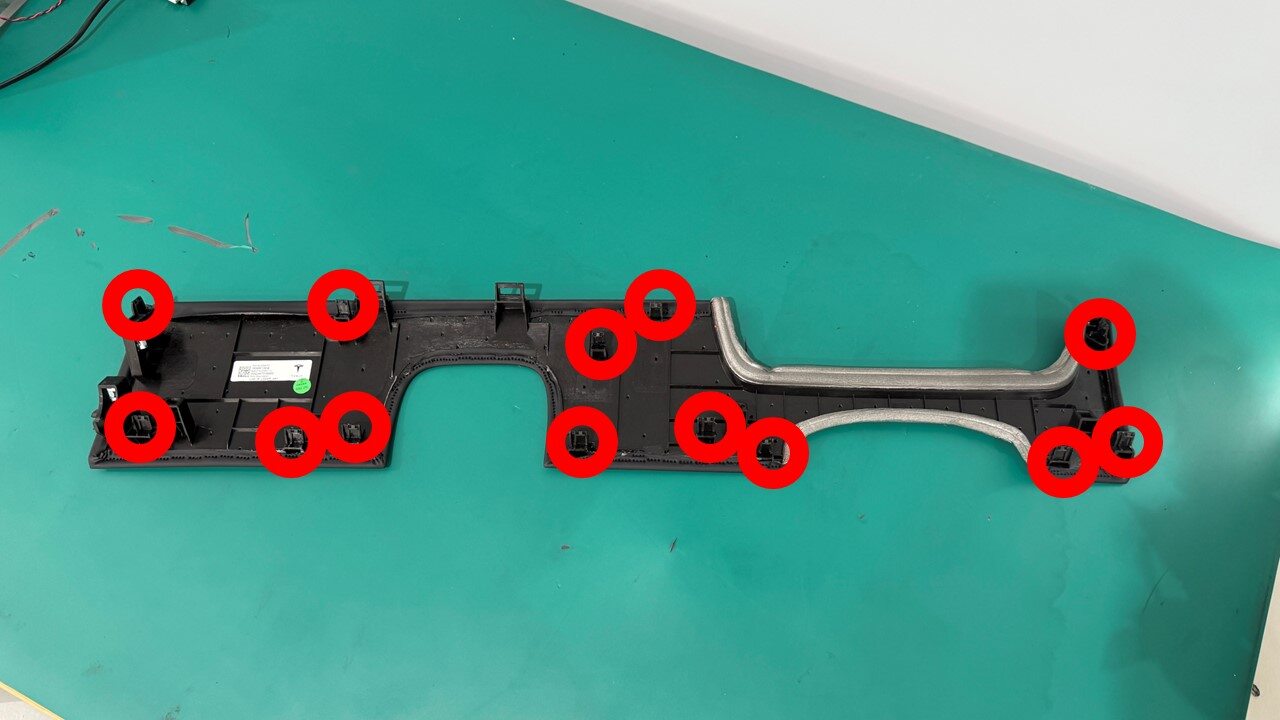

17 clips, 1x datum, Replace damaged U-clips if necessary

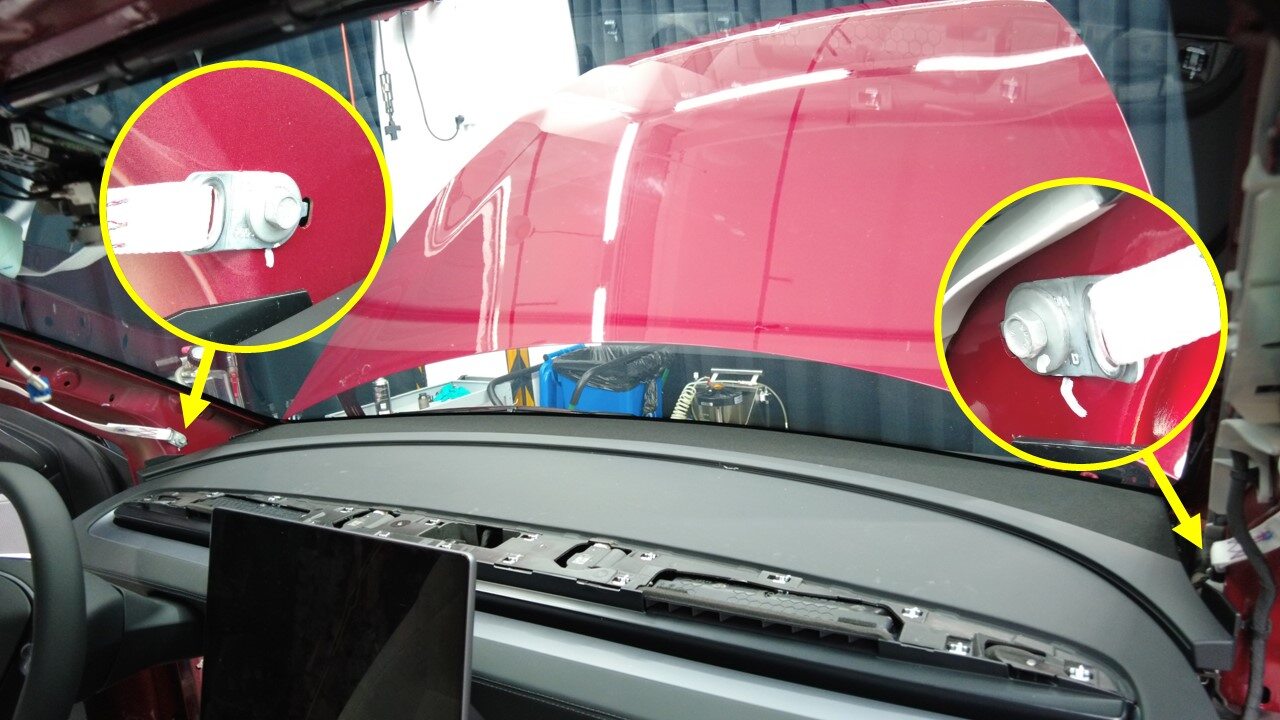

Release bolts securing both sides curtain air bag to body

Note
2x bolts, 10mm, 8 Nm

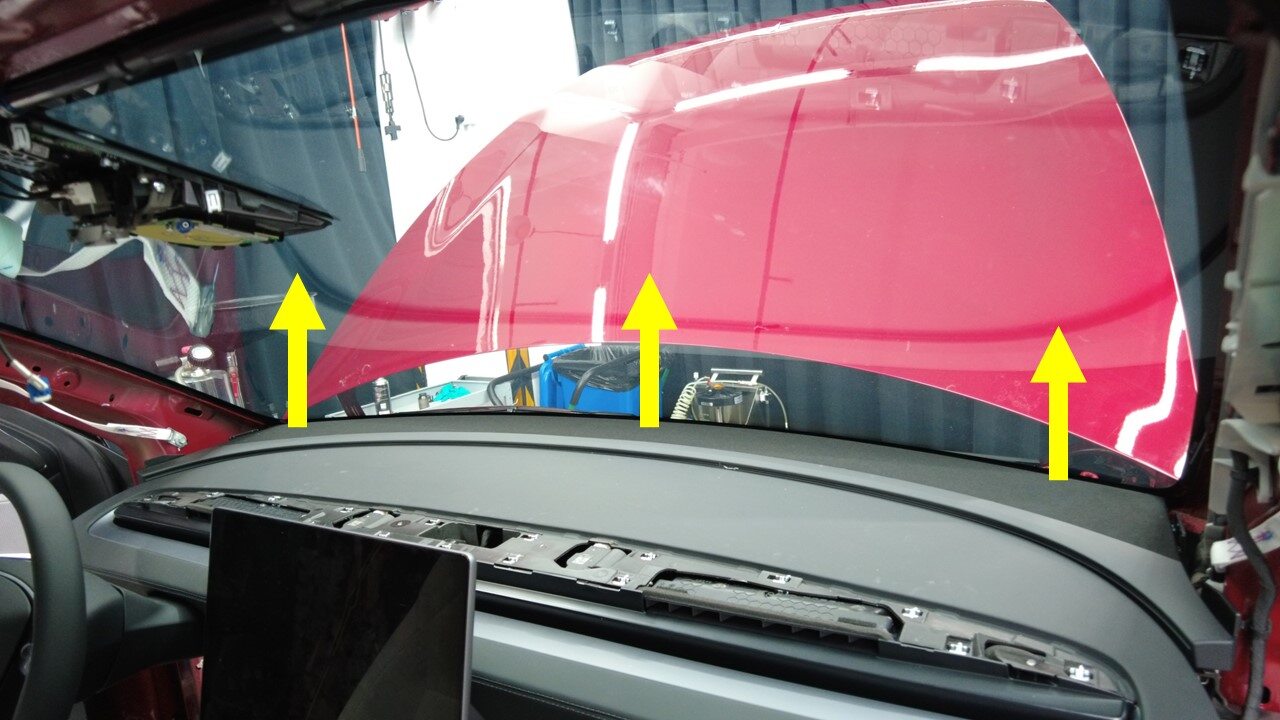

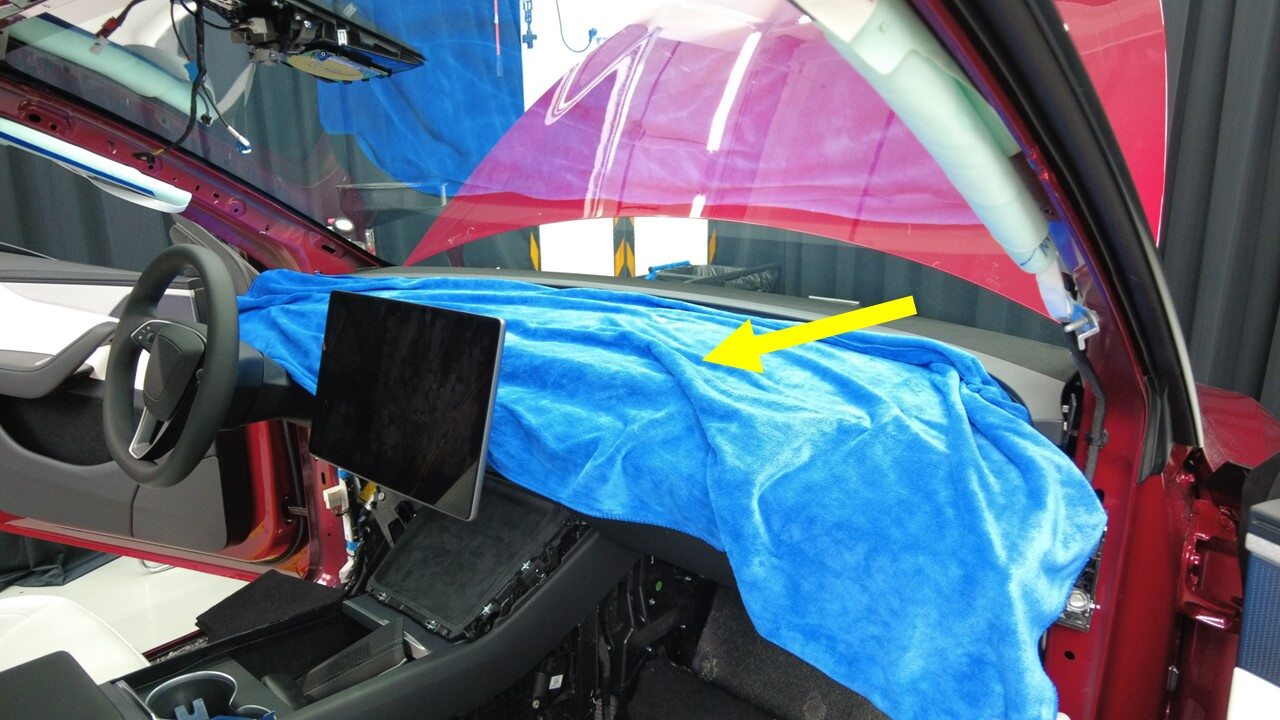

Position protective pad on IP

Note
Prepare for removing wrap around assembly

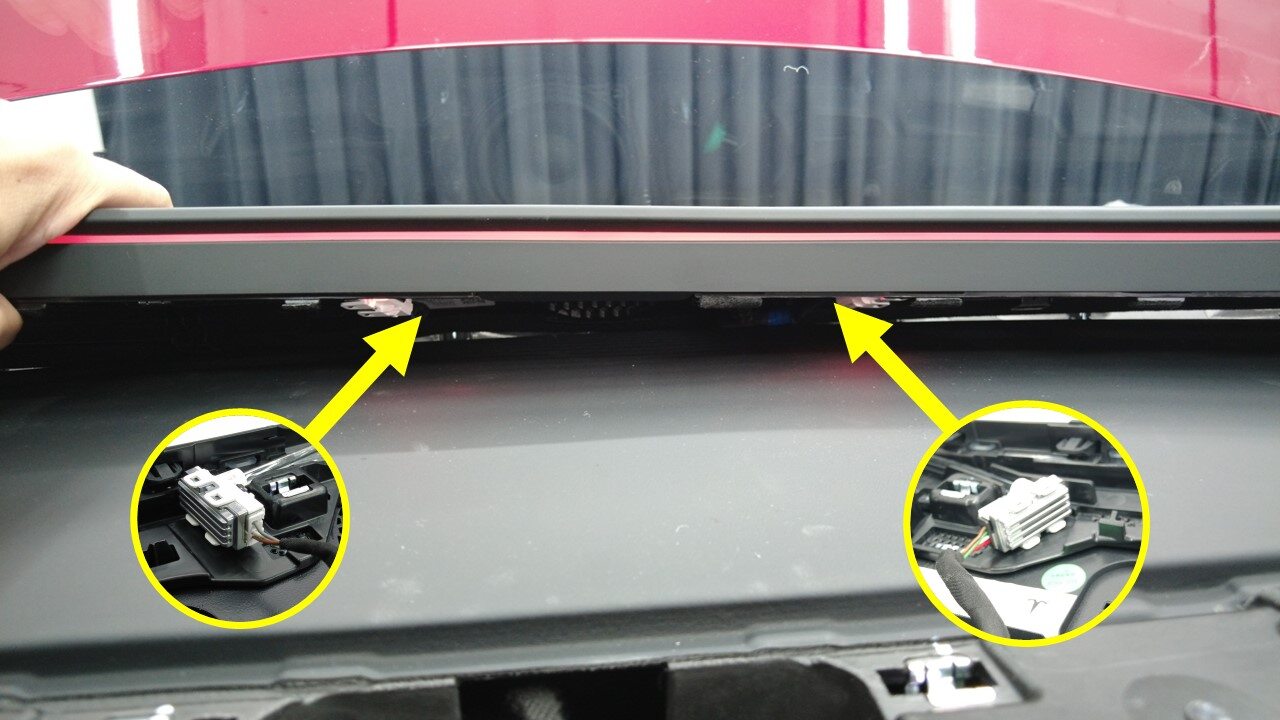

Remove wrap around assembly

Note
2x connectors, 16x clips, 9x tabs, Use caution to avoid damaging IP and windshield

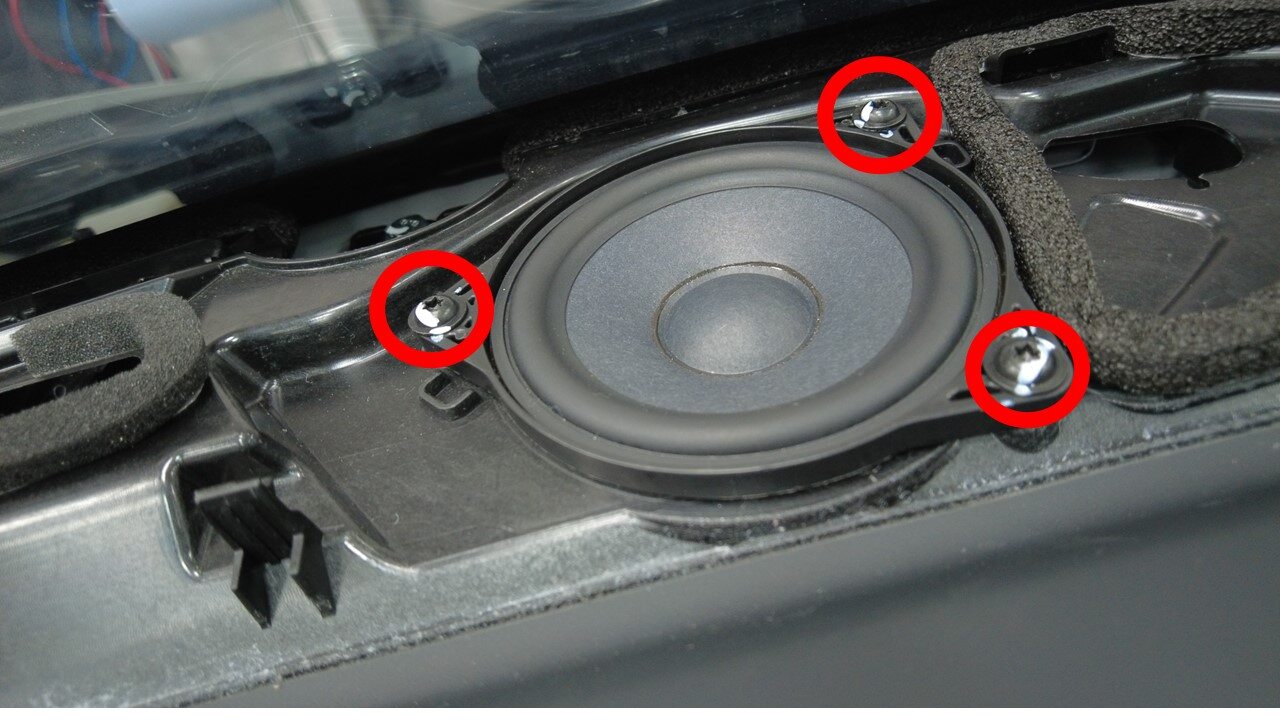

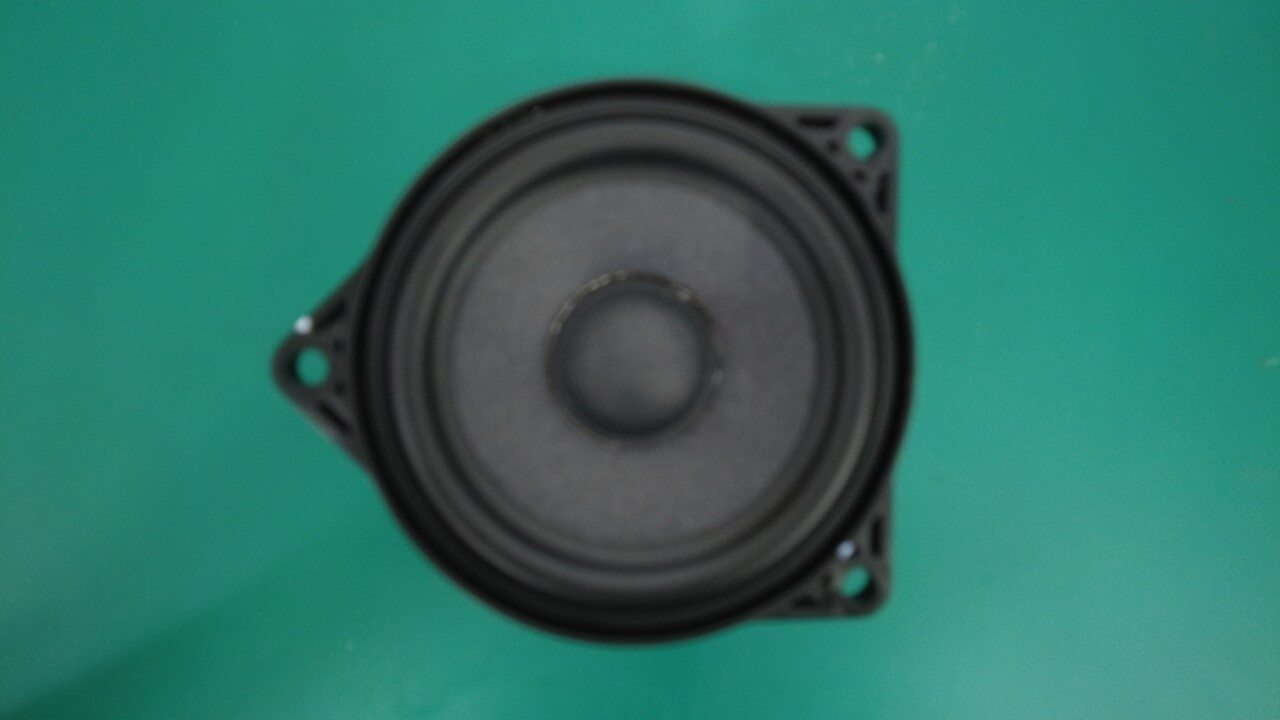

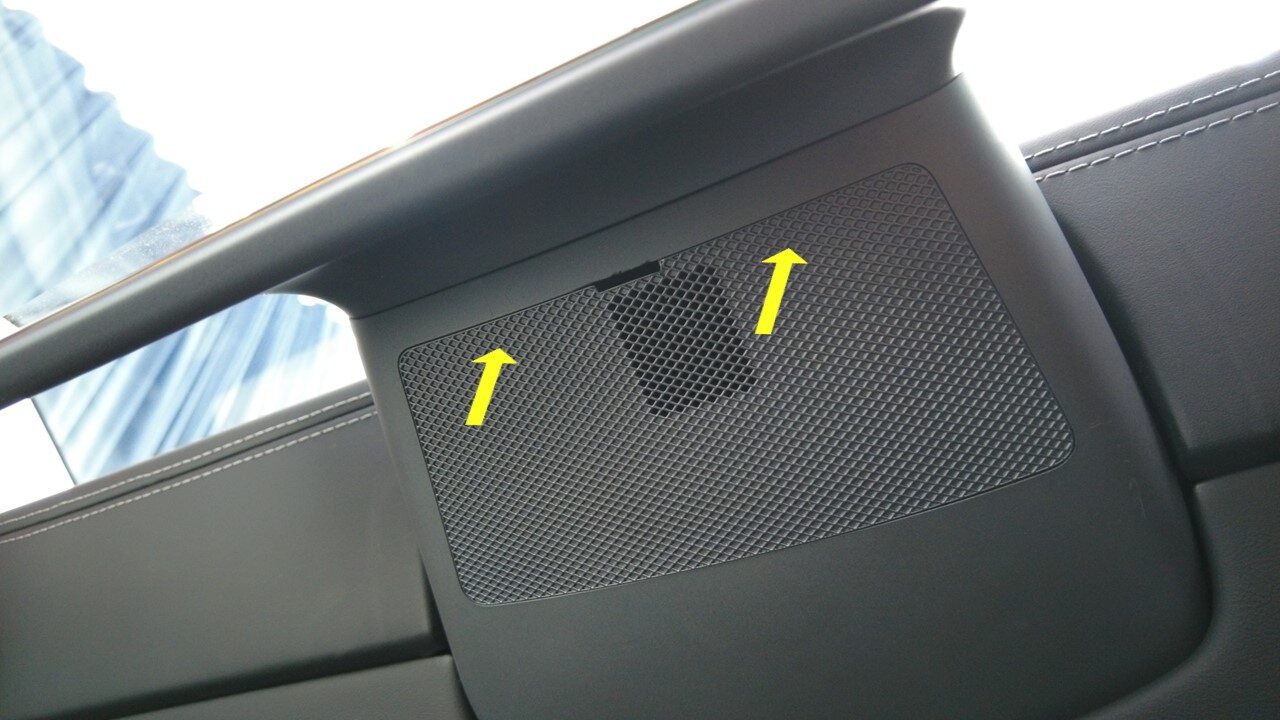

Remove center IP speaker

Note
3x screws, T20, 2.3 Nm, 1x connector
Remove protective pad

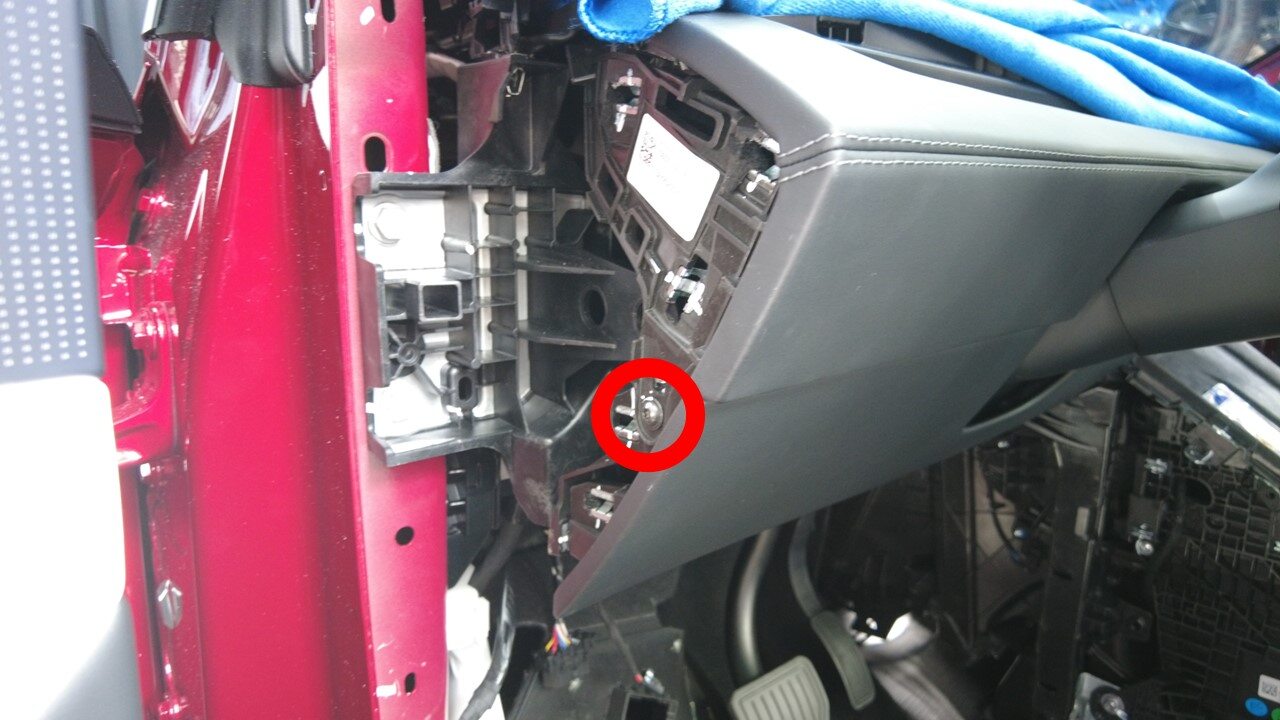

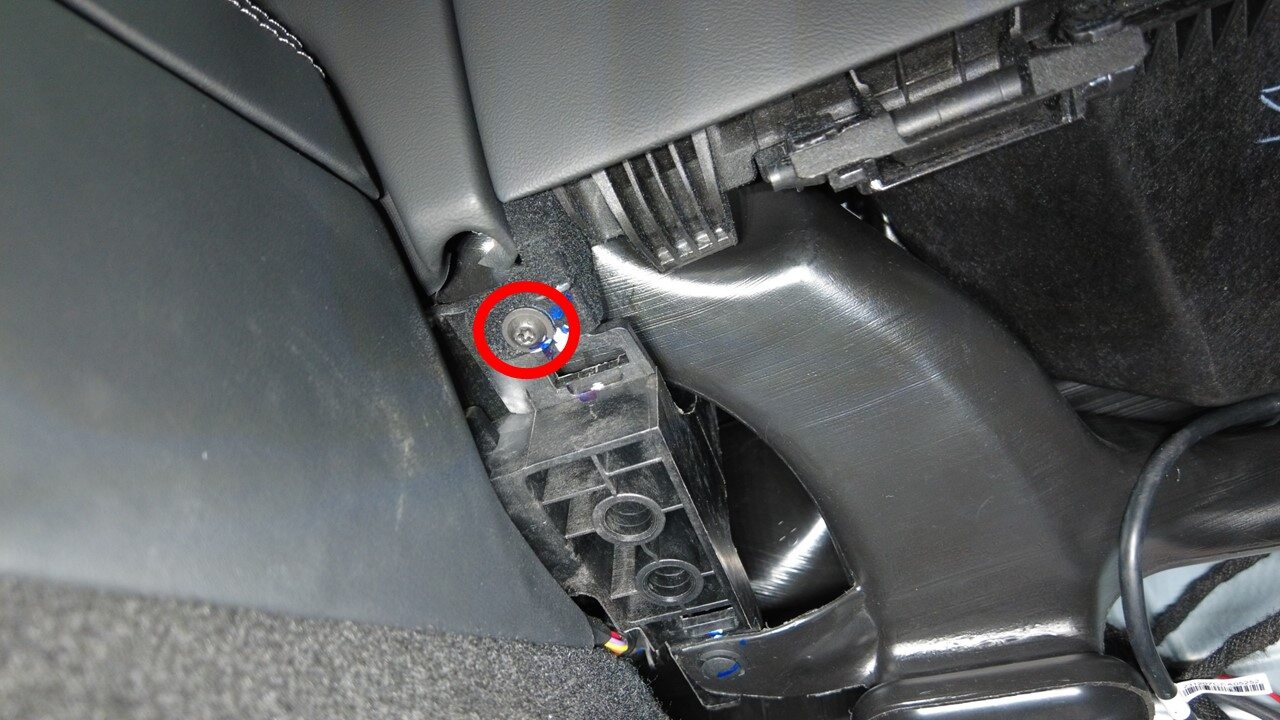

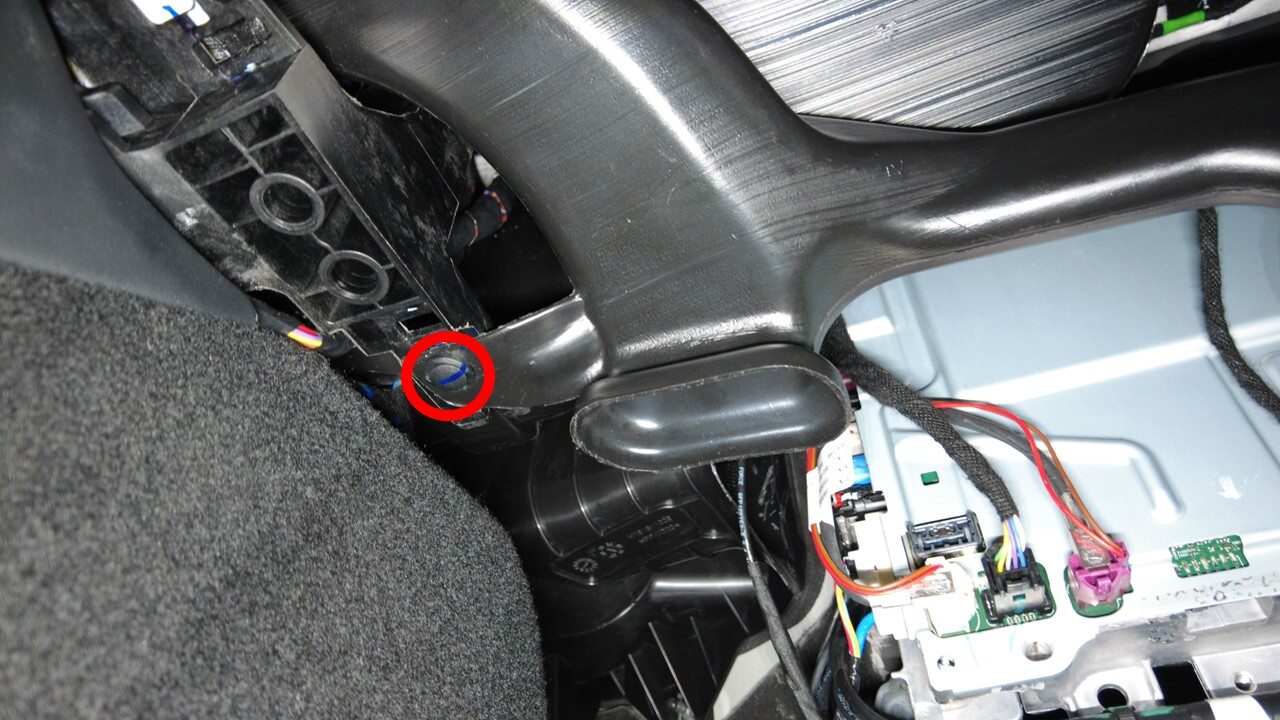

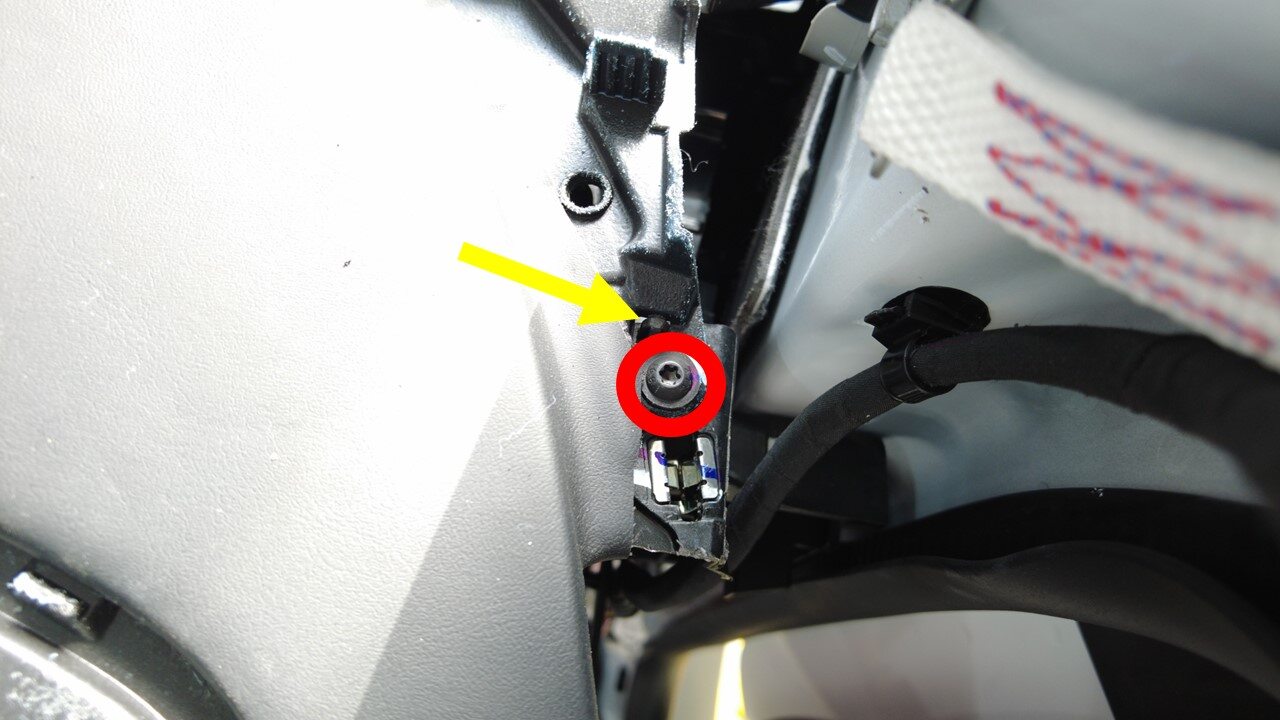

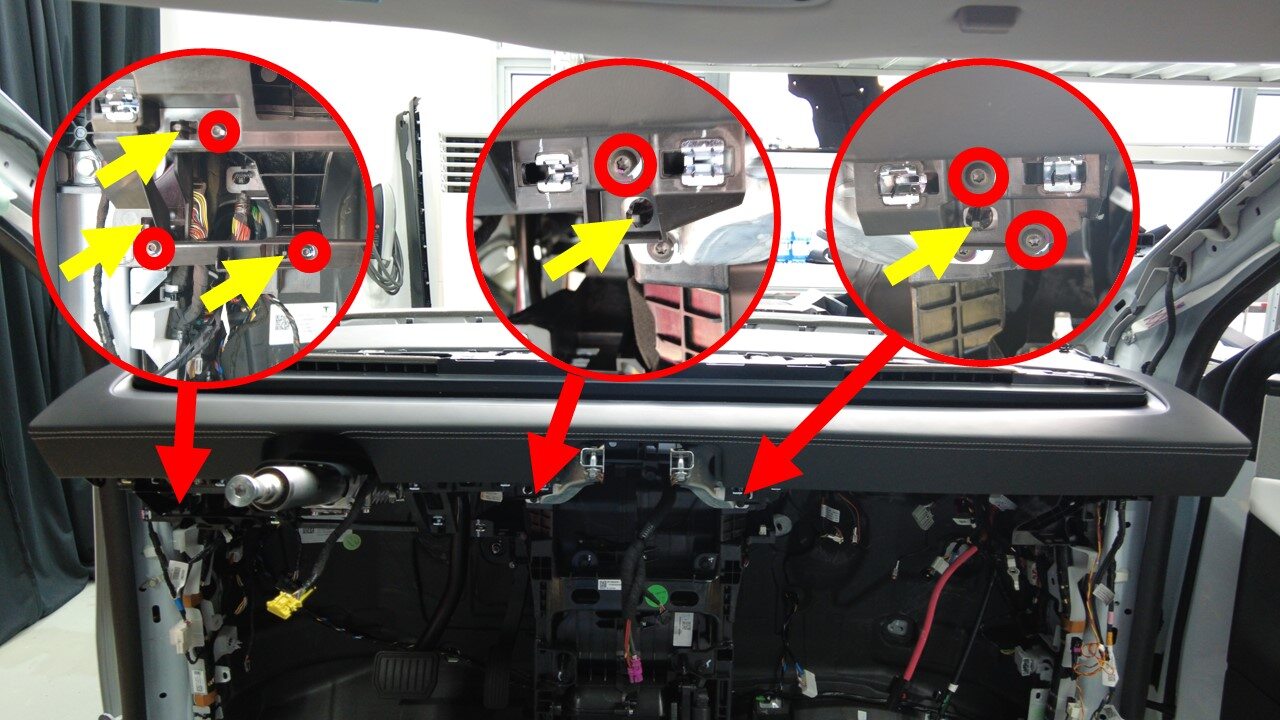

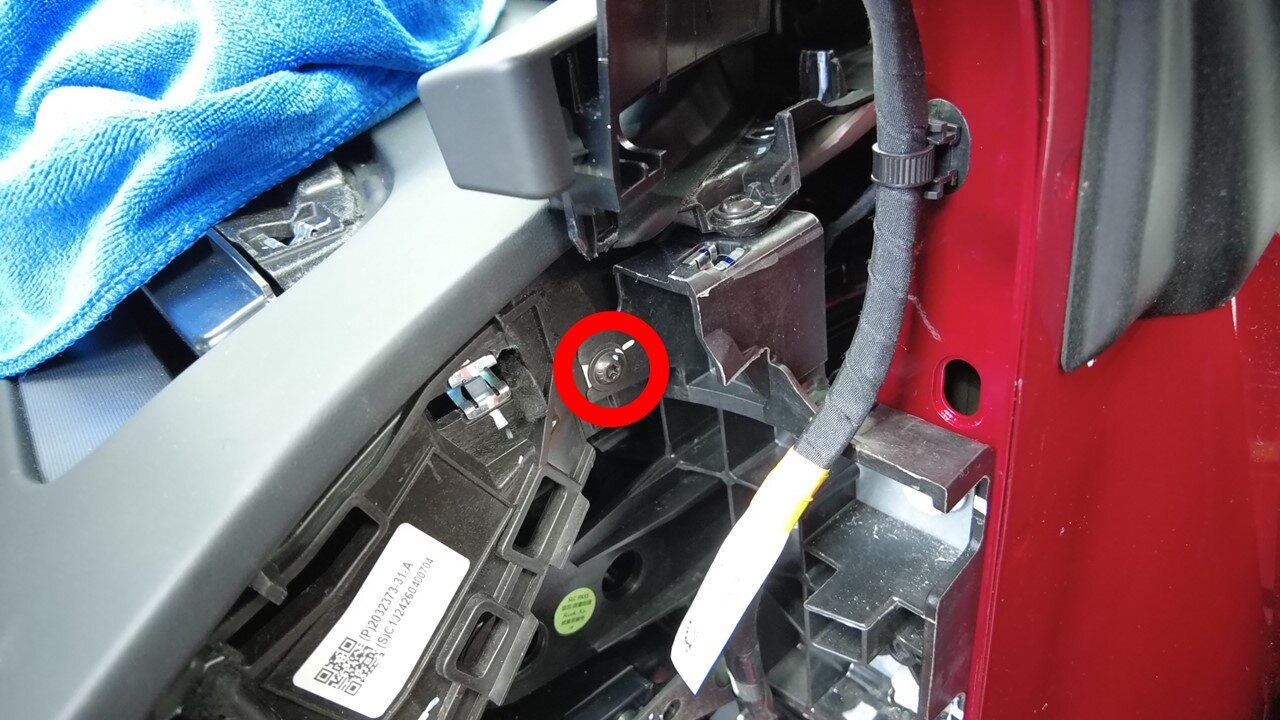

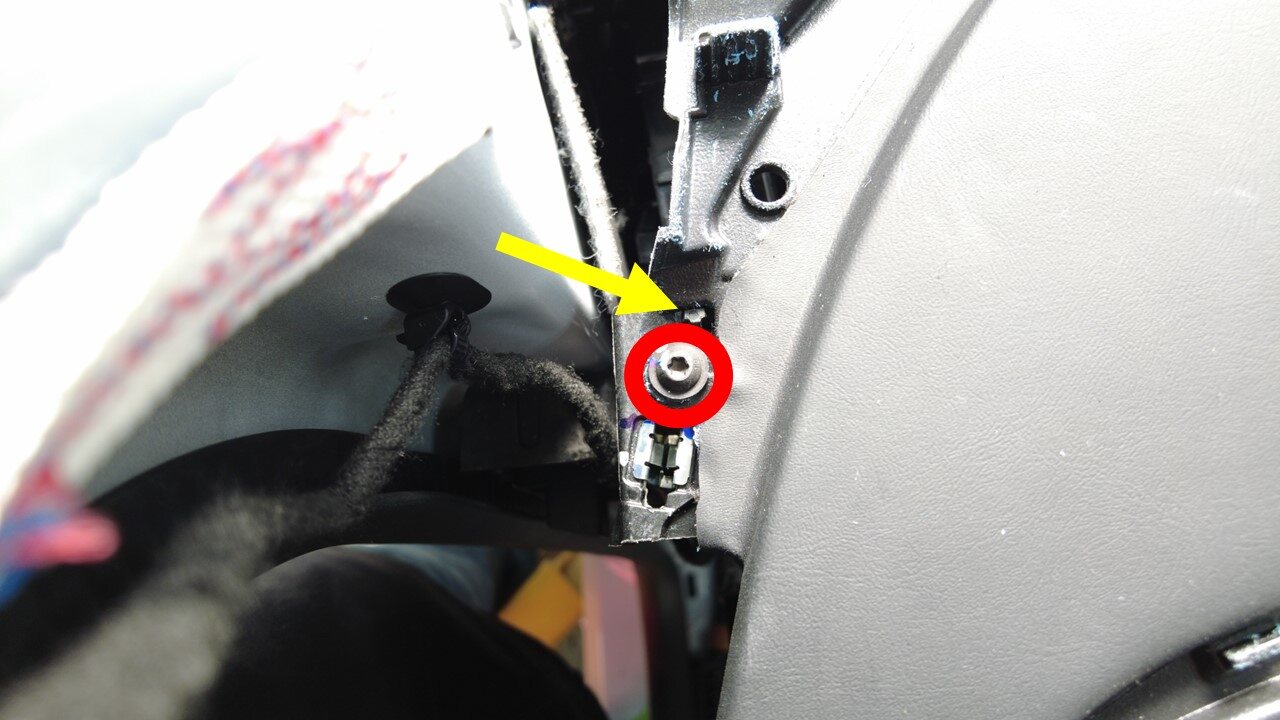

Remove screw securing IP carrier to cross car beam on upper LH side

Note
1x screw, T20, 2.3 Nm, 1x datum
Remove screws securing IP carrier to cross car beam

Note
7x screws, T20, 2.3 Nm, 5x datums

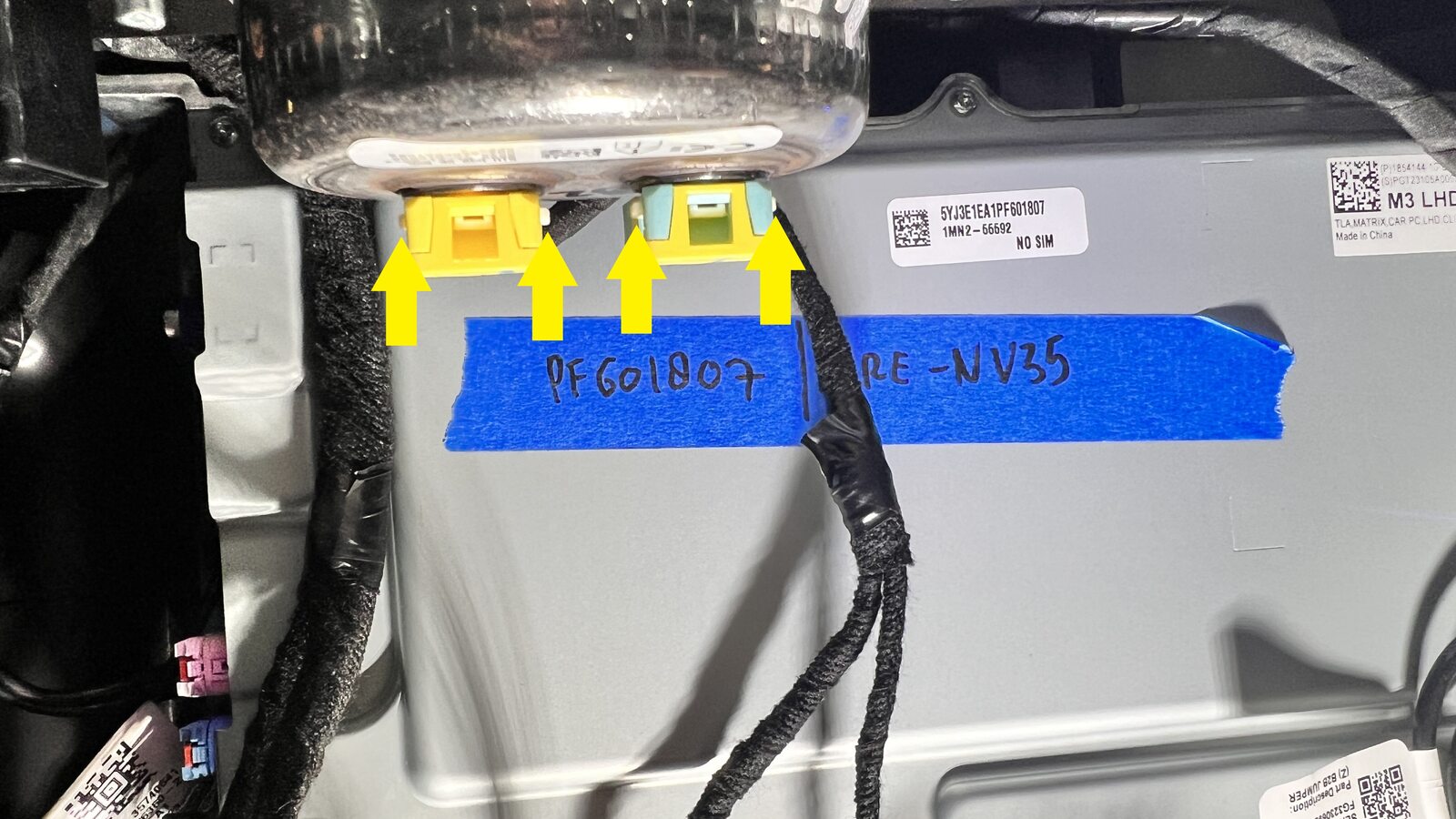

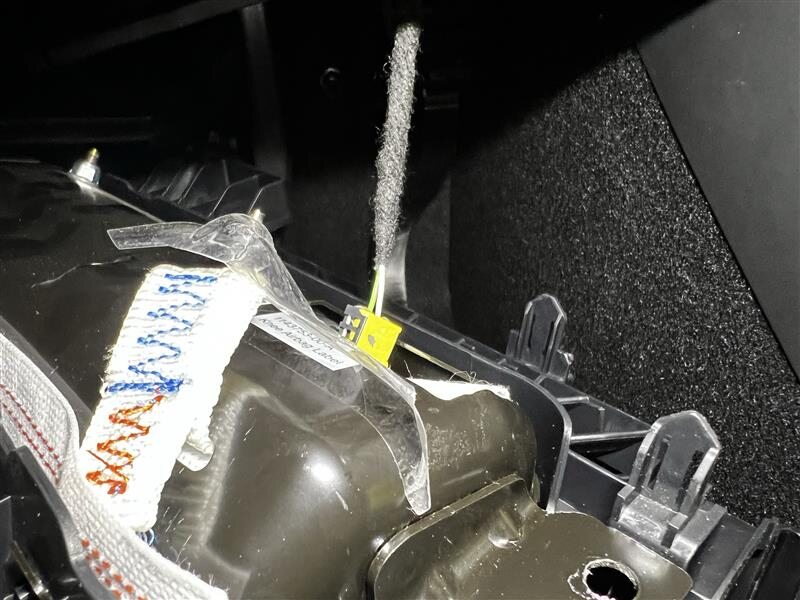

Disconnect passenger airbag squib connectors

Note
3x connectors, Release each white tab at the same time to disconnect
Remove fasteners securing IP carrier at passenger air bag

Note
2x patch bolts, E10, 8 Nm, Discard after removal
Disconnect RH IP top pad harness connector

Note
1x connector
Remove screw securing IP carrier to cross car beam on upper RH side

Note
1x screw, T20, 2.3 Nm, 1x datum

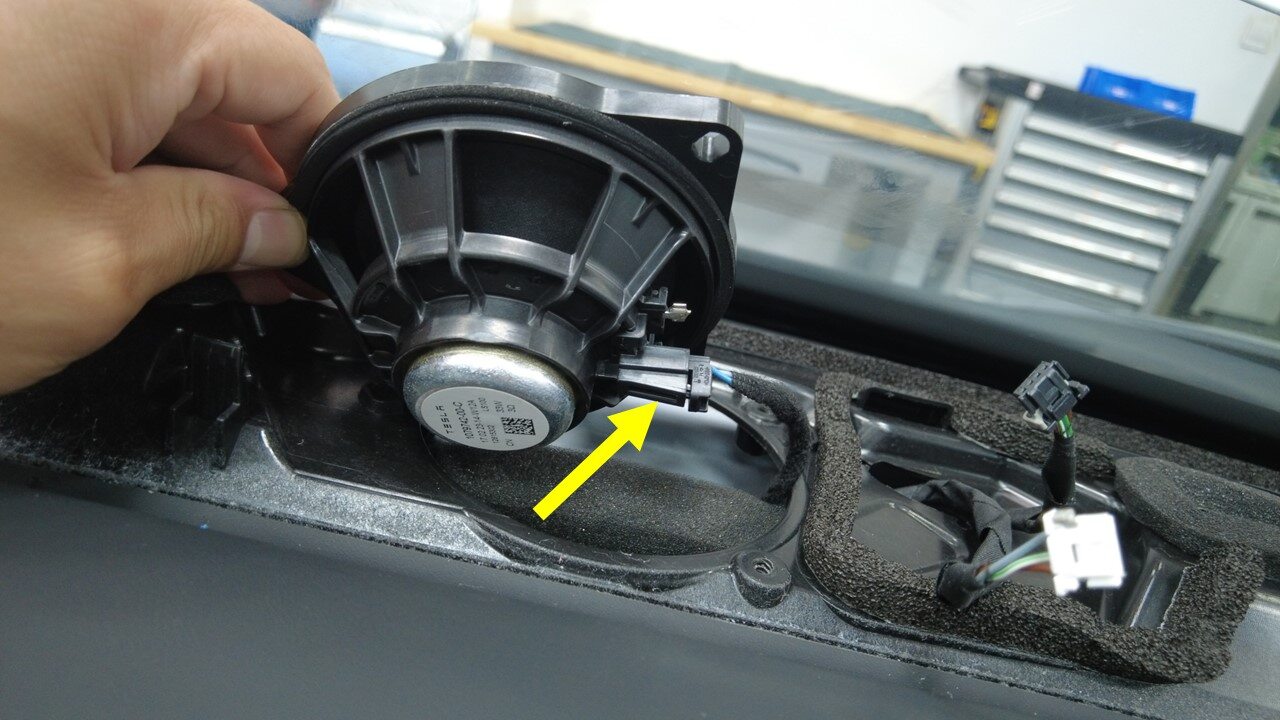

Disconnect RH IP speaker

Note
1x connector, Lift IP top pad to access
Disconnect LH IP speaker

Note
1x connector, Lift IP top pad to access
Disconnect LH IP top pad harness connector

Note
1x connector, Lift IP top pad to access

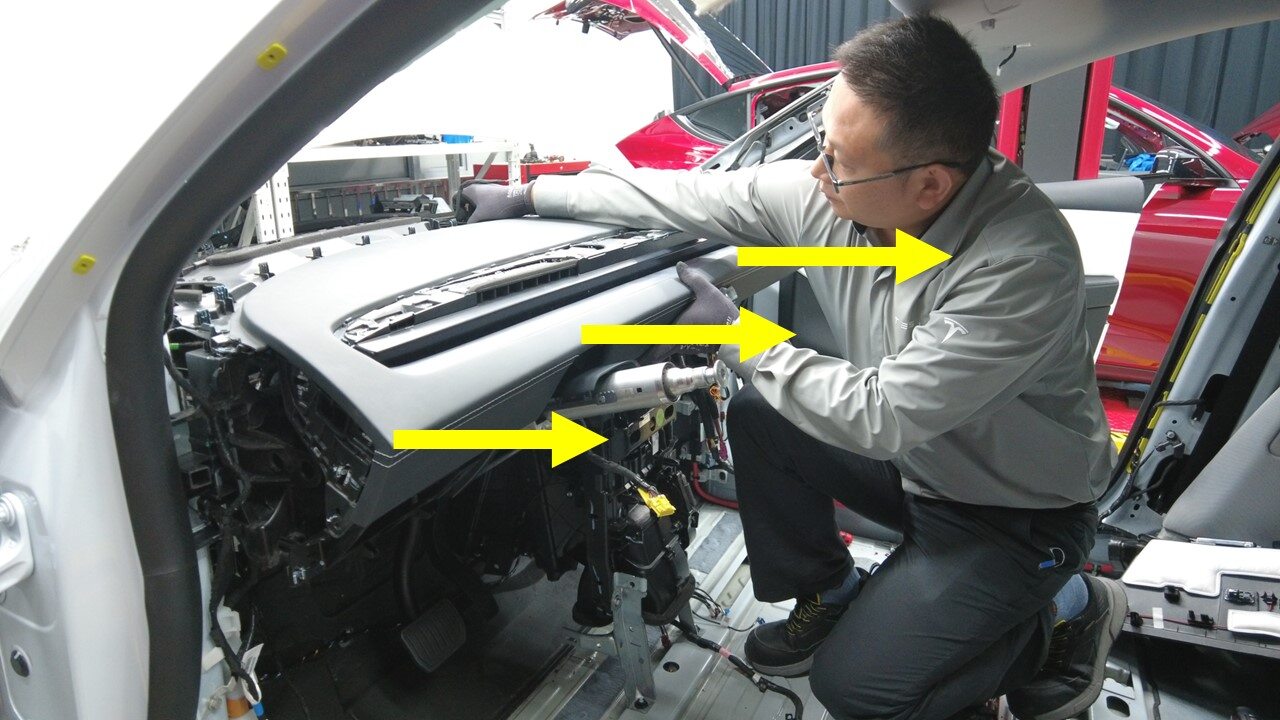

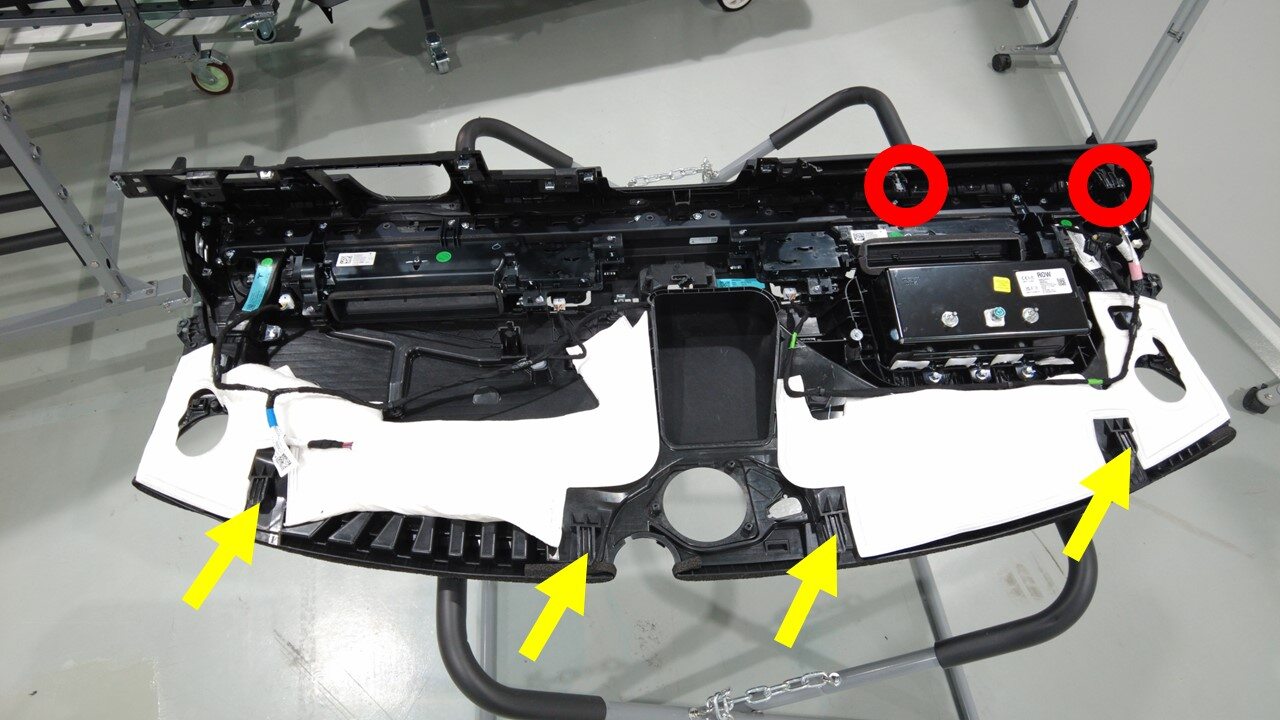

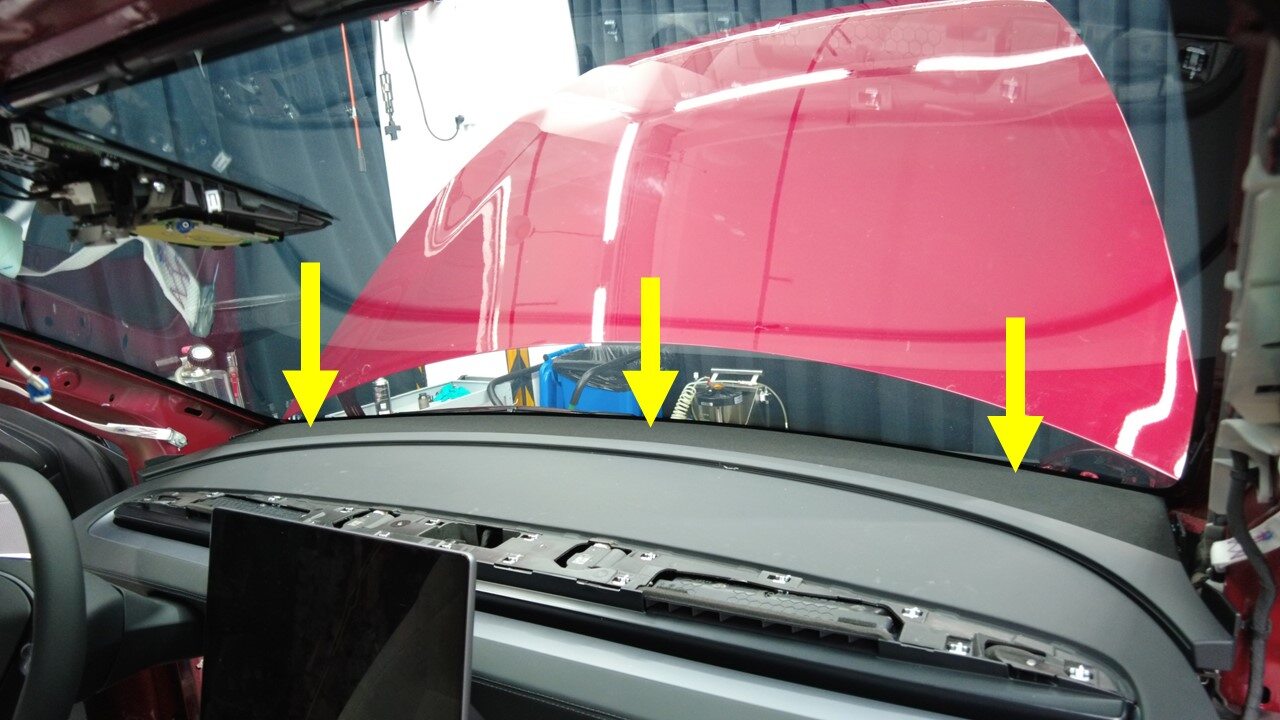

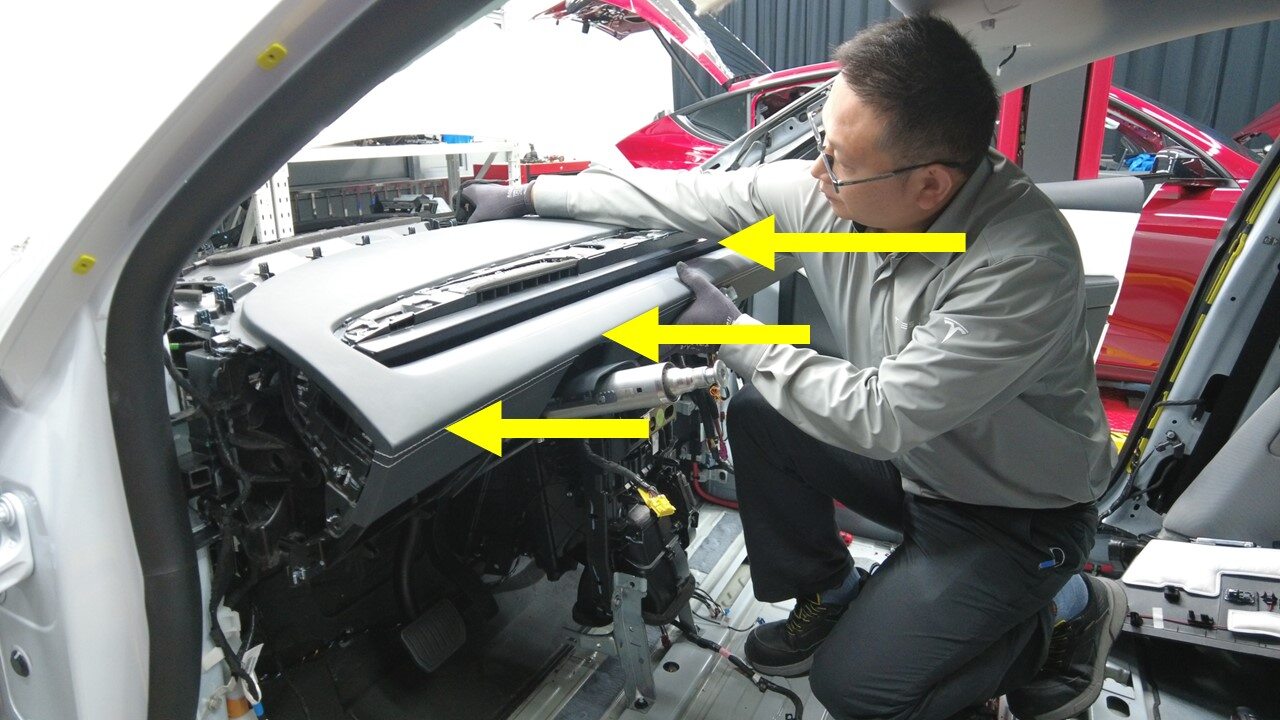

Remove IP upper carrier from vehicle

Note
4x guide tabs, 2x tabs, Recommend assistance

Install

Install IP upper carrier to vehicle

Note
4x guide tabs, 2x tabs, Recommend assistance

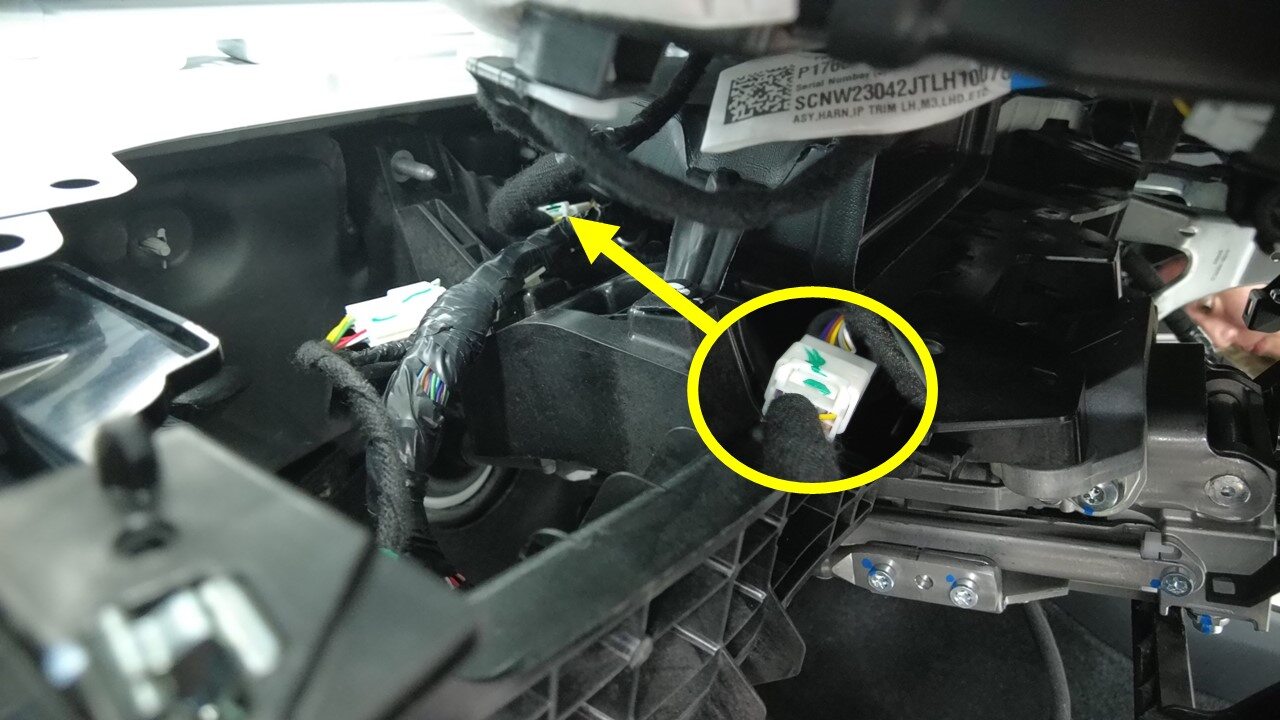

Connect IP harness connector to IP LH side

Note
1x connector, Gently lift the LH IP to connect the connector
Connect LH IP speaker

Note
1x connector, Lift IP top pad to access
Connect RH IP speaker

Note
1x connector, Lift IP top pad to access
Connect RH IP top pad harness connector

Note
1x connector
Install fastener securing IP assembly to cross car beam on upper RH side

Note
1x screw, T20, 2.3 Nm, 1x datum
Install screws securing IP carrier to cross car beam

Note
7x screws, T20, 2.3 Nm, 5x datums
Install fasteners securing IP carrier at passenger air bag

Note
2x patch bolts, E10, 8 Nm, Install new bolts
Connect passenger airbag squib connectors

Note
3x connectors, Ensure all connectors fully engage
Install center IP speaker

Note
3x screws, T20, 2.3 Nm, 1x connector
Install fastener securing IP assembly to cross car beam on upper LH side

Note
1x screw, T20, 2.3 Nm, 1x datum
Position protective pad on IP

Note
Prepare for installation wrap around assembly
Install wrap around assembly

Note
2x connectors, 16x clips, 9x tabs, Be careful not to damage the IP and windshield
Remove protective pad
Install float wing assembly

Note
17 clips, 1x datum, Replace damaged U-clips if necessary, Float wing may vary depending on the vehicle's build, Which could feature either Cosmos or Mineral textile
Connect center display to IP harness connectors

Note
2x connectors
Install center display to IP

Note
Slide towards front of vehicle, Remove towel from center console
Install fasteners securing center display to IP bracket

Note
2x bolts, 10mm, 16 Nm, Install new bolts
lnstall IP service panel into IP

Note
1x connector, 4x tabs, 2x guide tabs

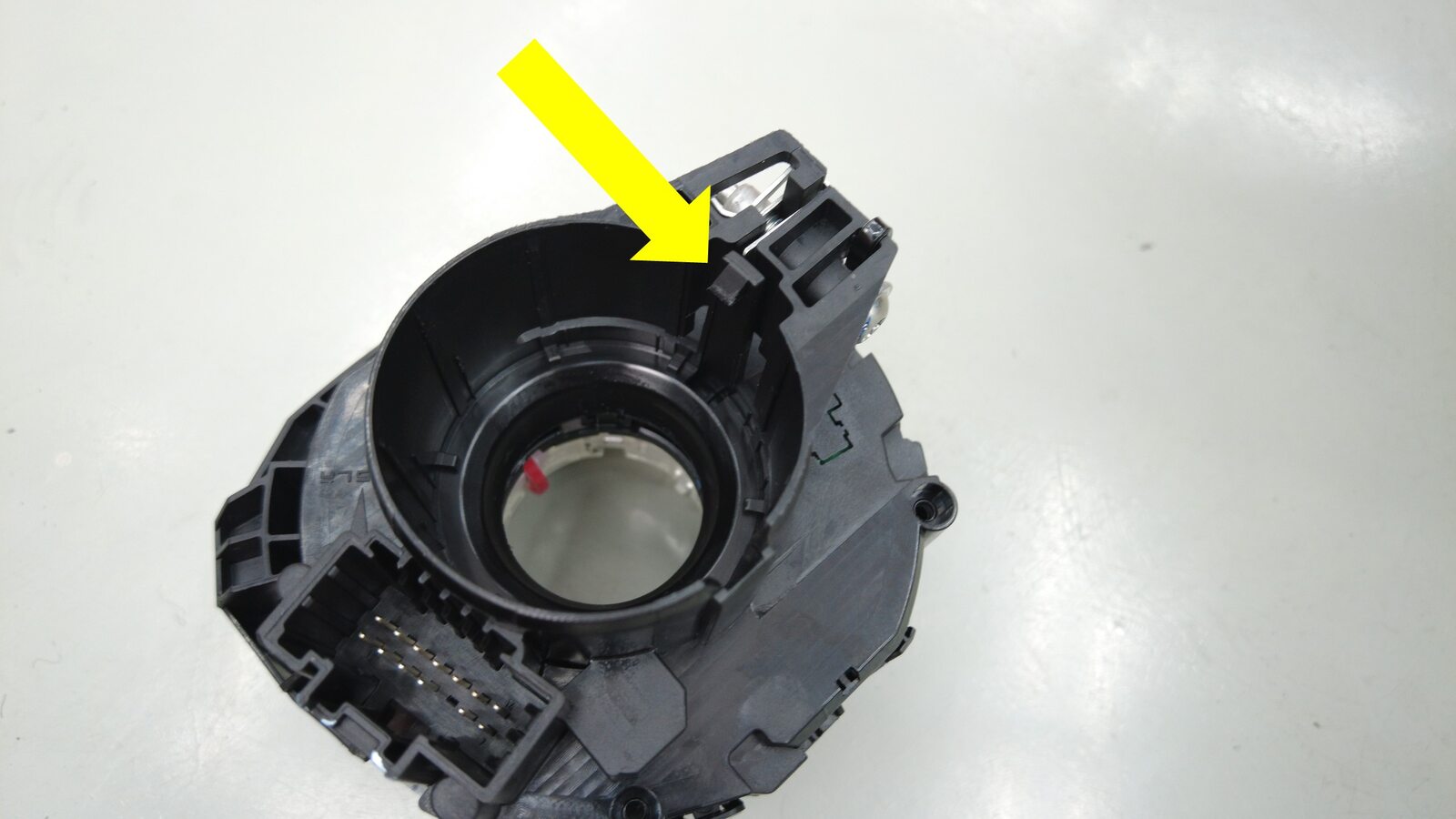

Install steering column control module

Note
1x bolt, T20, 2.4 Nm, 1x clip, Ensure SCCM is fully seated

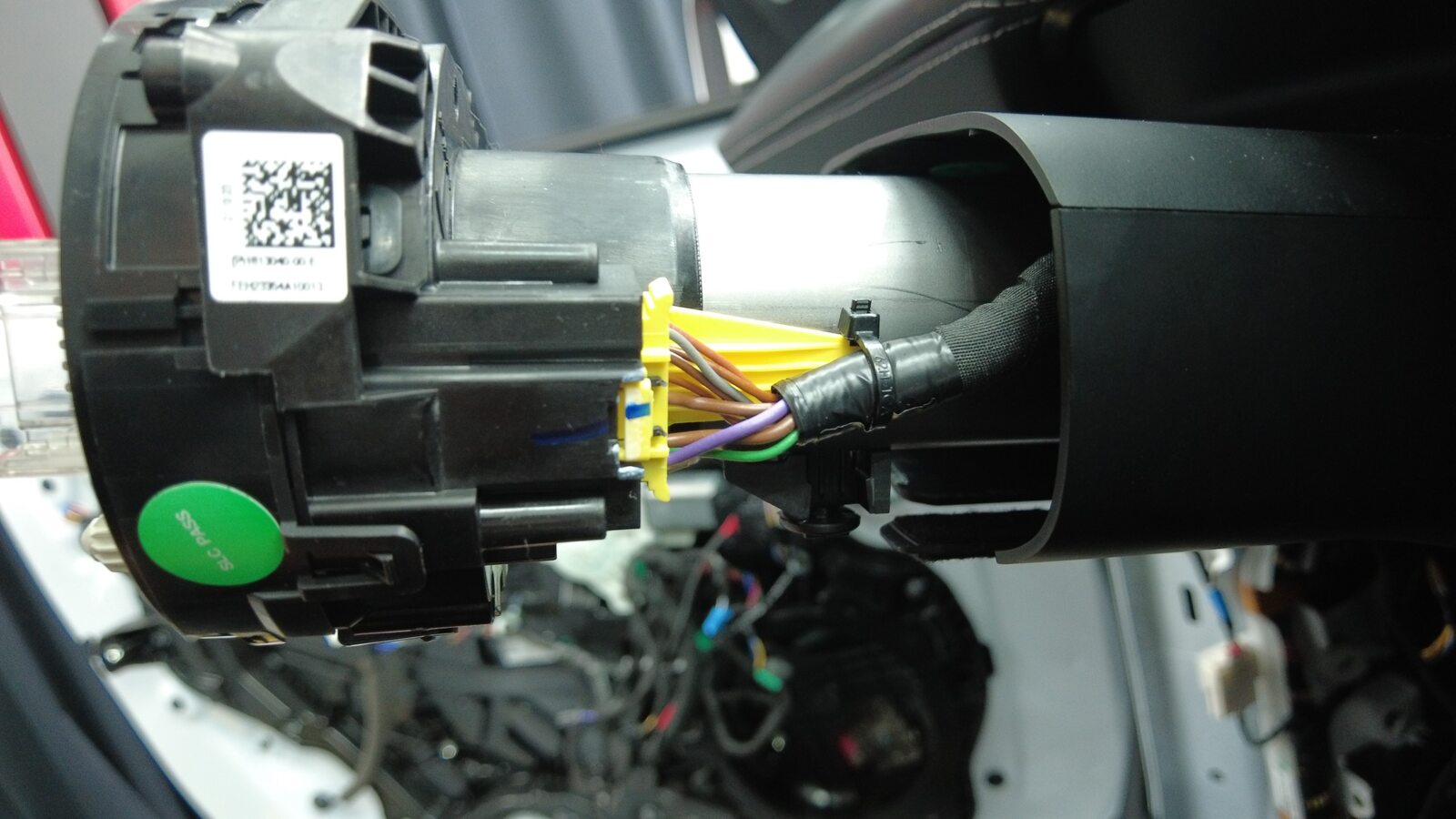

Connect steering column control module connector

Note
1x connector, Install new orange retaining clip to connector then install SCCM connector, Perform push-pull-push to make sure connector is seated properly
Install steering column lower shroud

Note
2x screws, T20, 1.35 Nm, 1x clip, Slide forward to engage clip
Install steering column upper shroud

Note
6x clips, 4x tabs, Ensure upper shroud is fully seated to lower shroud

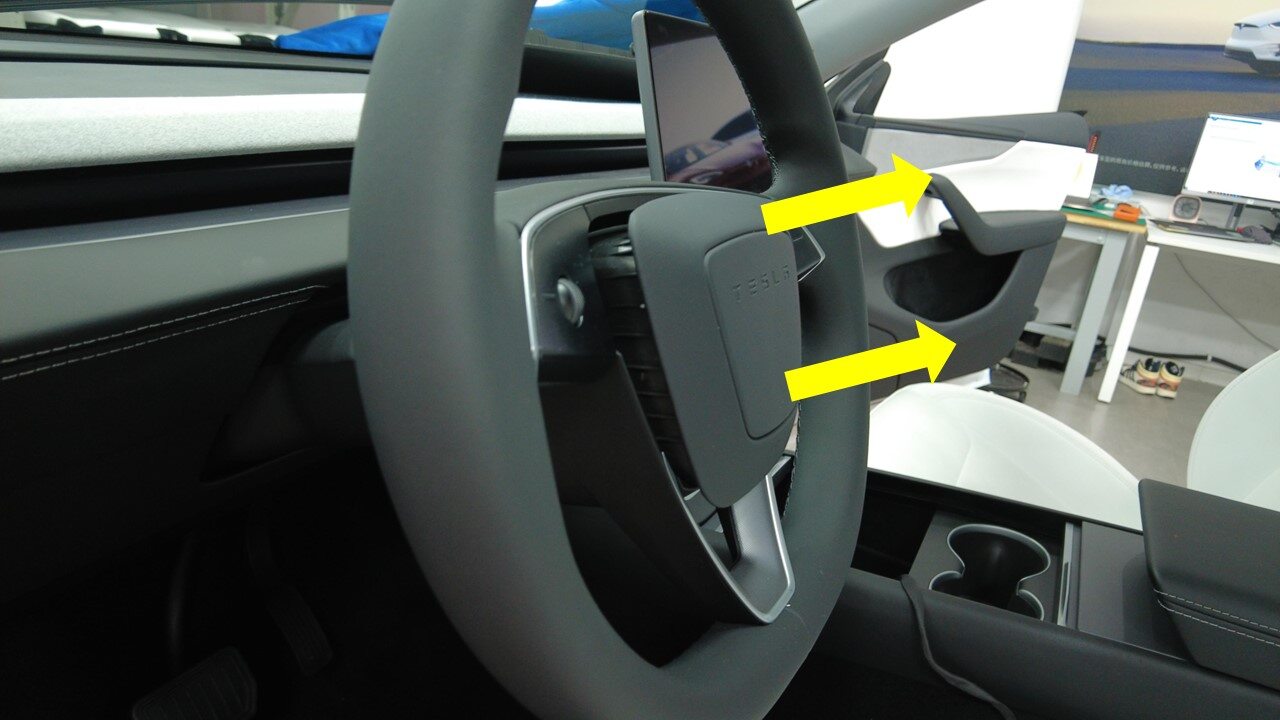

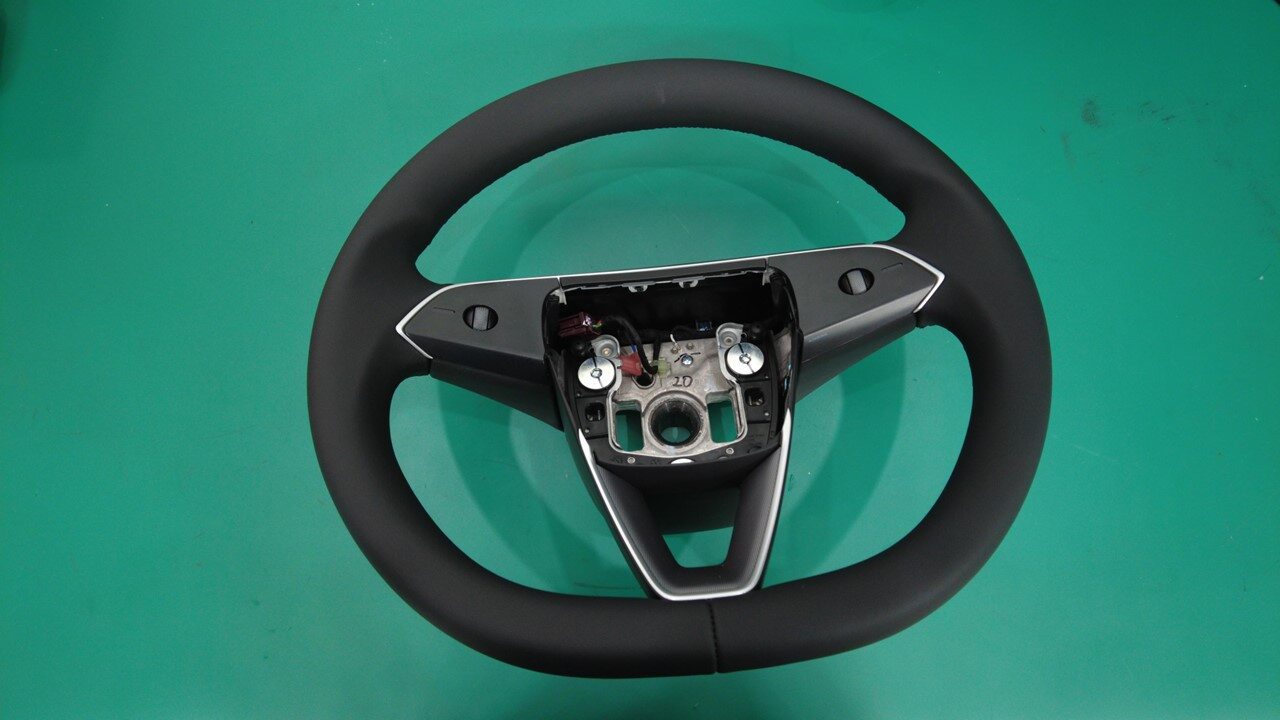

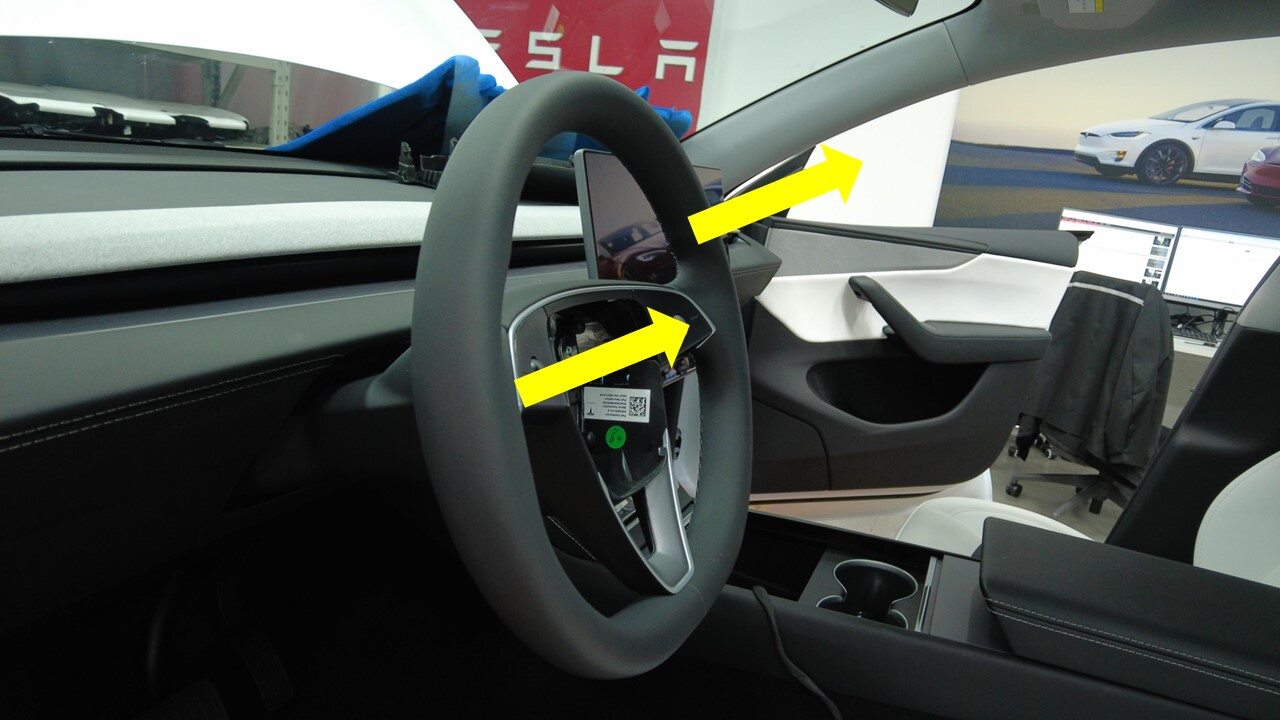

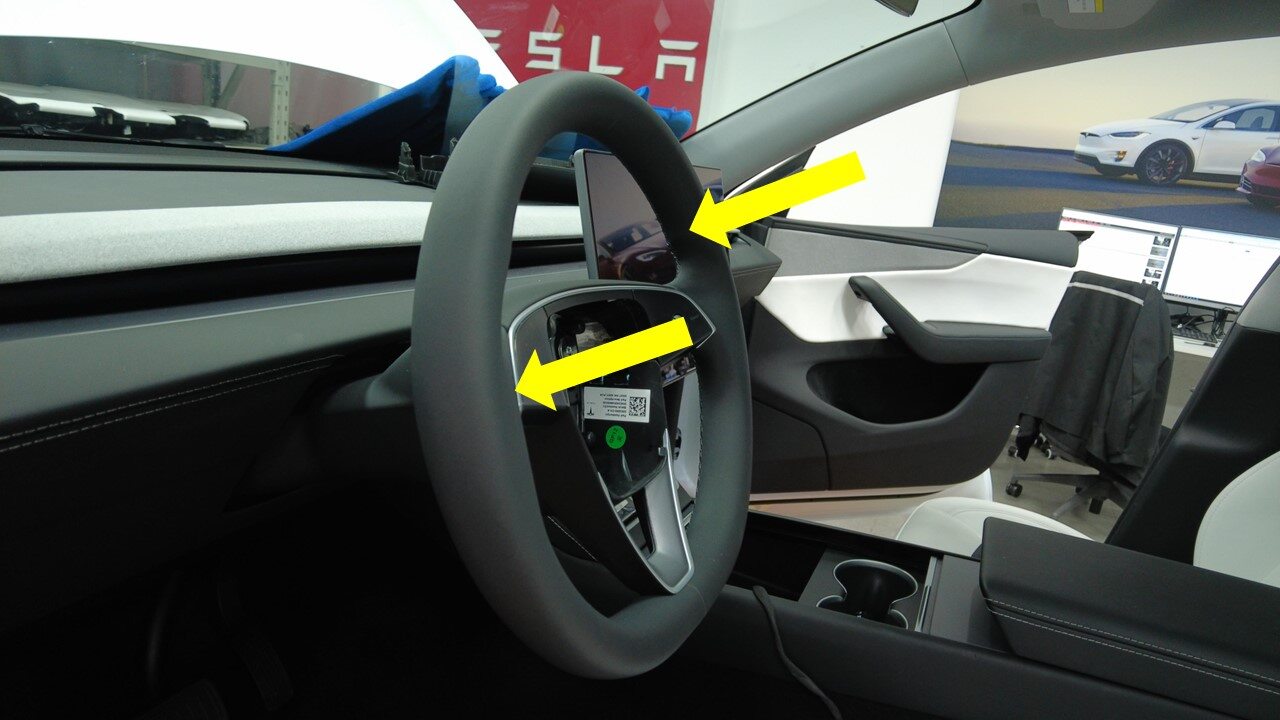

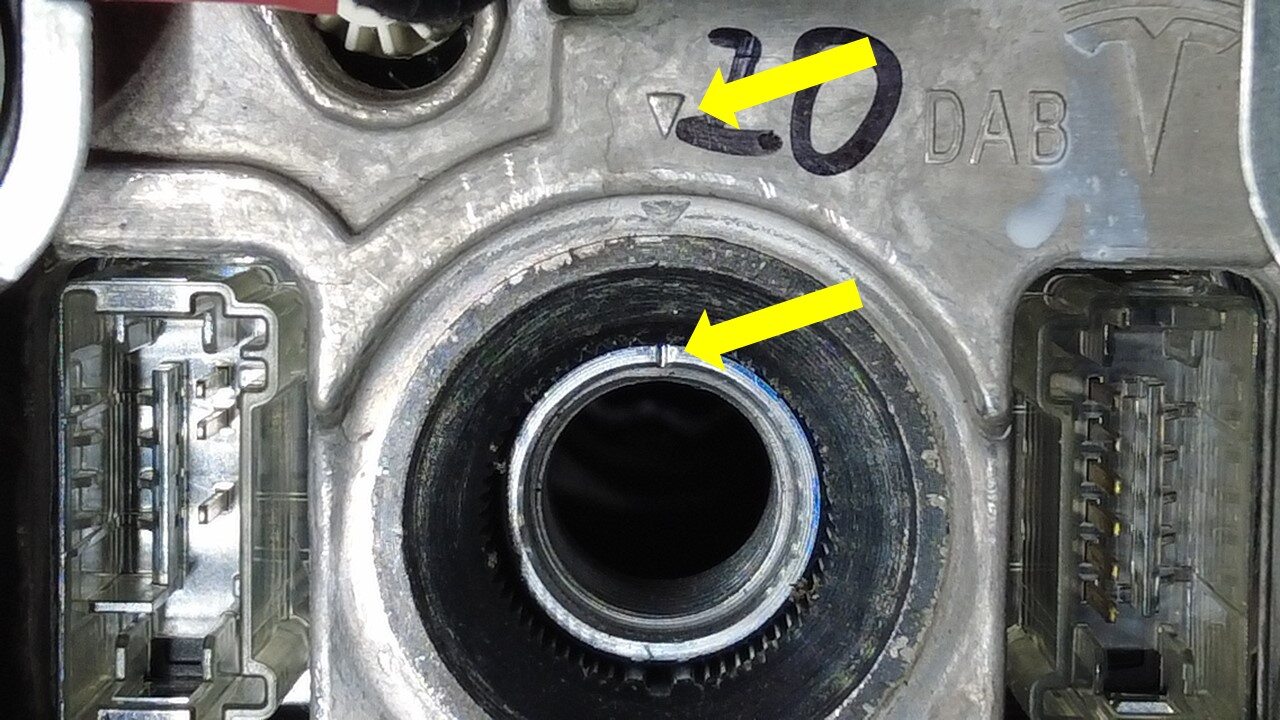

Position steering wheel

Note
Align the triangle mark on the steering wheel with the mark on the steering column
Install steering wheel to steering column

Note
1x patch bolt, 10mm hex, 80 Nm, Install new patch bolt, assistants may be required
Connect steering wheel connector

Note
1x connector
Position driver air bag

Note
1x connector
Install driver air bag assembly to steering wheel

Note
2x spring clips, 2x datums, Position driver air bag onto steering wheel, Make sure that the driver air bag harness doesn’t get caught between the driver air bag and the horn mechanism, Align datums onto clips, Press down on one side of air bag until clip is fully seated, then repeat on other side, You should hear an audible click, Perform pull test on each side of driver air bag assembly, Confirm the gap and space between driver air bag assembly to steering wheel is symmetrical
Install LH footwell duct to HVAC module

Note
1x push clip
Install IP lower assembly onto IP carrier

Note
13x tabs, 1x screw, T20, 2.3 Nm
Install LH knee air bag assembly onto IP carrier

Note
2x connectors, Ensure air bag connector is fully engaged, Apply knee airbag label over squib assembly
Install bolts securing LH knee air bag

Note
4x bolts, EP10, 8.5 Nm, Install new bolts
Install LH knee air bag bolt covers

Note
2x covers
Secure LH footwell cover

Note
2x magnets, 2x datums
Install LH lower A pillar trim

Note
7x clips, 4x guide tabs, 1x push clip, Align guide tabs with body and harness bracket then push downwards to secure
Install LH upper A pillar trim

Note
5x clips, 2x guide tabs, 1x datum, 1x tether, Slide lower section of trim into slot on IP, Secure tether to body, Engage clips working bottom to top, Ensure primary seal rests over trim, Tether may vary by revision
Install LH IP end cap

Note
5x clips, 2x guide tabs
Partially install LH front primary door seal

Note
Verify seal is seated properly on all trim panels
Install RH IP air wave duct to HVAC module
Install clips securing RH IP air wave duct

Note
2x push clips

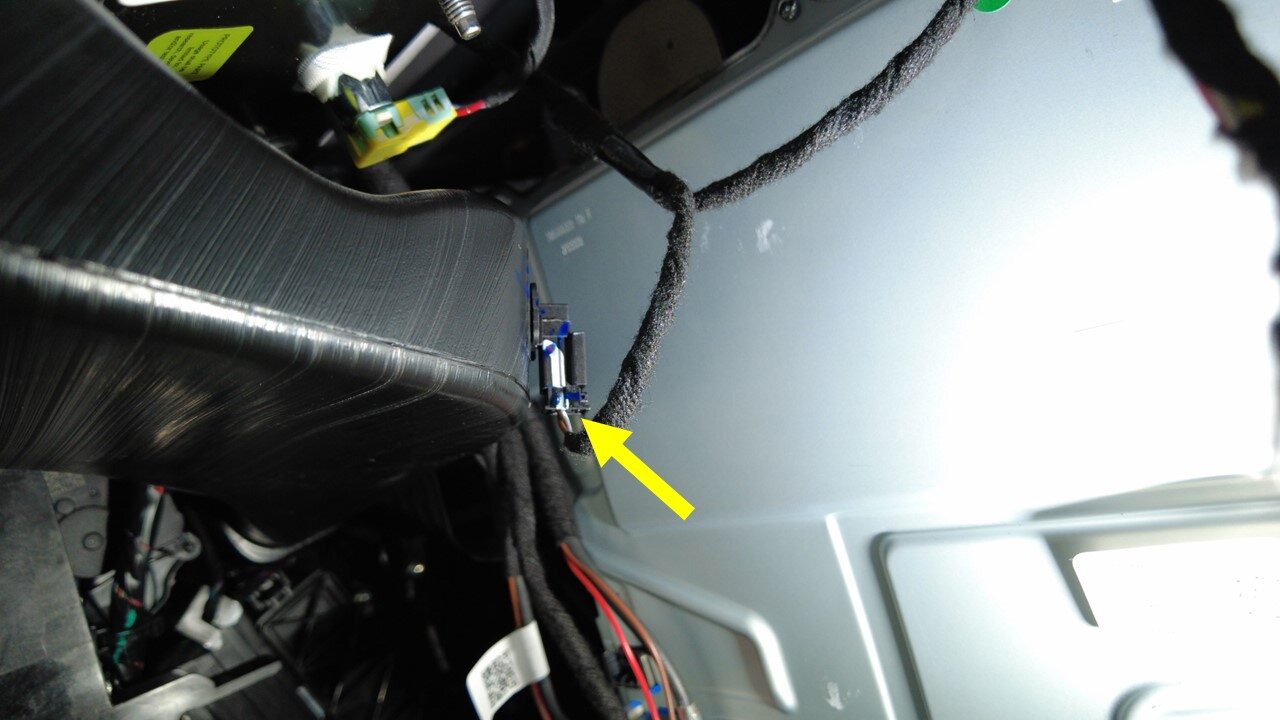

Connect RH IP air wave duct thermistor connector

Note
1x connector
Install passenger footwell duct to HVAC module
Install clip securing passenger footwell duct to IP carrier

Note
1x push clip
Connect glove box assembly connectors

Note
2x connectors, Some vehicles may not be equipped with glovebox lamp
Install glovebox to IP carrier

Note
8x clips, 3x datums
Install screws securing glove box assembly to IP carrier

Note
4x screws, T20, 2.3 Nm
Install clip securing passenger footwell duct to glove box

Note
1x push clip
Secure IP harness to glove box

Note
1x harness guide
Connect glove box USB cable to car computer

Note
1x connector, Engage locking tab
Install RH knee air bag assembly

Note
1x air bag connector, 1x connector, Ensure air bag connector is fully engaged, Place plastic film back over squib assembly
Install RH knee air bag bolts

Note
4x bolts, EP10, 8.5 Nm, Install new bolts
Install RH knee air bag bolt covers

Note
2x covers
Install RH footwell cover

Note
2x magnets, 1x guide tab, 1x connector
Install RH lower A pillar trim

Note
7x clips, 3x guide tabs, 1x push clip, Align front guide tabs then align slot with harness bracket and then push rear clip to secure to lower B-pillar
Install RH upper A pillar trim

Note
5x clips, 2x guide tabs, 1x datum, 1x tether, Slide lower section of trim into slot on IP, Secure tether to body, Engage clips working bottom to top, Ensure primary seal rests over trim, Tether may vary by revision
Install RH IP end cap

Note
5x clips, 2x guide tabs, Pull the seal over end cap
Install RH front primary door seal

Note
Verify seal is seated properly on all trim panels
Connect first responder loop and LV battery

Note
2x connectors, Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage green locking tab when fully seated
Install HEPA filter or big basin

Note
Vehicle configuration may vary, W/ HEPA: 2x bolts, 10mm, 10 Nm, Pivot forward edge down past frunk assembly, Then carefully move rear edge past brake reservoir and into position, Gently press on RH side of filter to seat seal onto duct, W/O HEPA: 2x bolts, 10mm, 10 Nm, 14x clips, Secure basin fasteners then install basin cowl, Fold rear flap of base frunk back to access front row of clips to cowl, Replace any missing or damaged clips, Do not pinch washer line in between big basin and body
Close hood
Move RH front seat to original position

Note
Via UI > Seat Controls
Raise RH front window
Close RH front door
Move LH front seat to original position

Note
Via UI > Seat Controls, Use steering wheel scroll wheel as needed
Raise LH front window

Instrument Panel - Upper Assembly - LH (Model Y Standard) (Remove and Install)

Remove

Install

Figure 1

Figure 2

Figure 3
