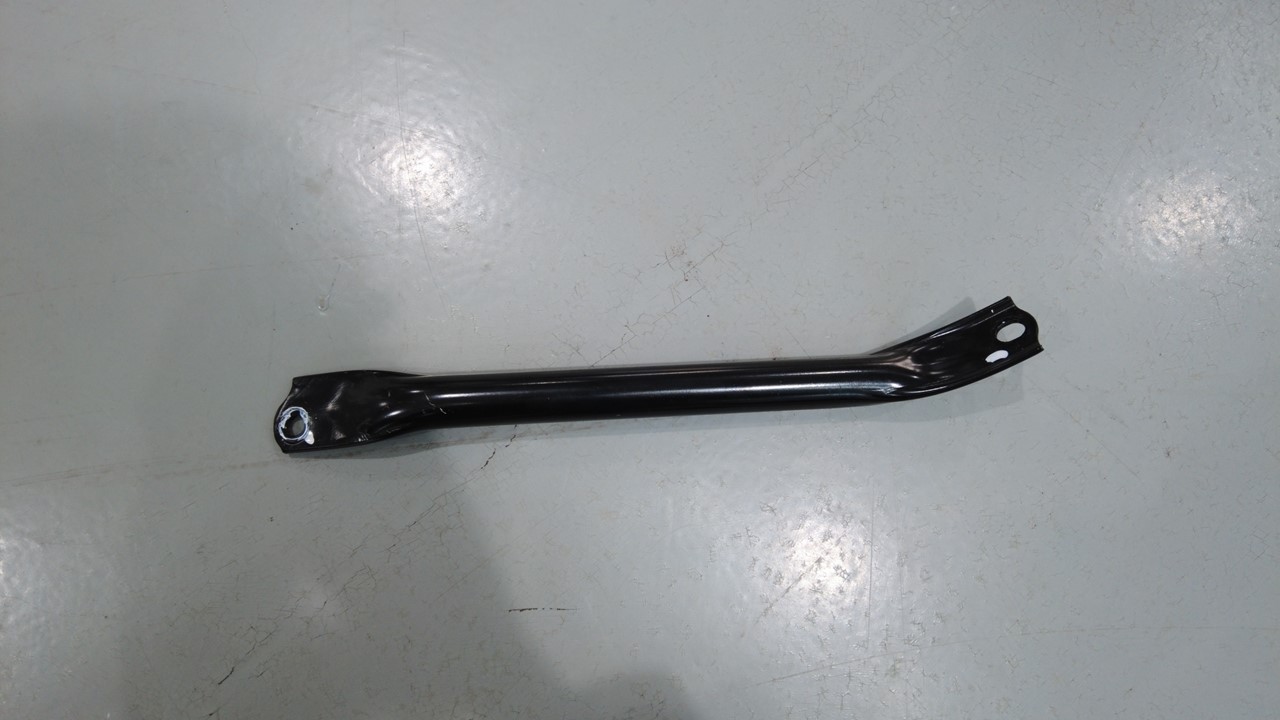

Pencil Brace - Wiper Bracket - LH (Remove and Replace)

Correction code 1010055202 FRT 0.24 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Torque Specifications

Table 1. Torque Specifications: Pencil Brace - Wiper Bracket - LH (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolts (x2) that attaches the LH wiper bracket pencil brace to the body
18.8 Nm (13.9 lbs-ft)
  • 13 mm deep socket
 Reuse

Remove

  1. Remove the cowl screen. See Cowl Screen (Remove and Replace).

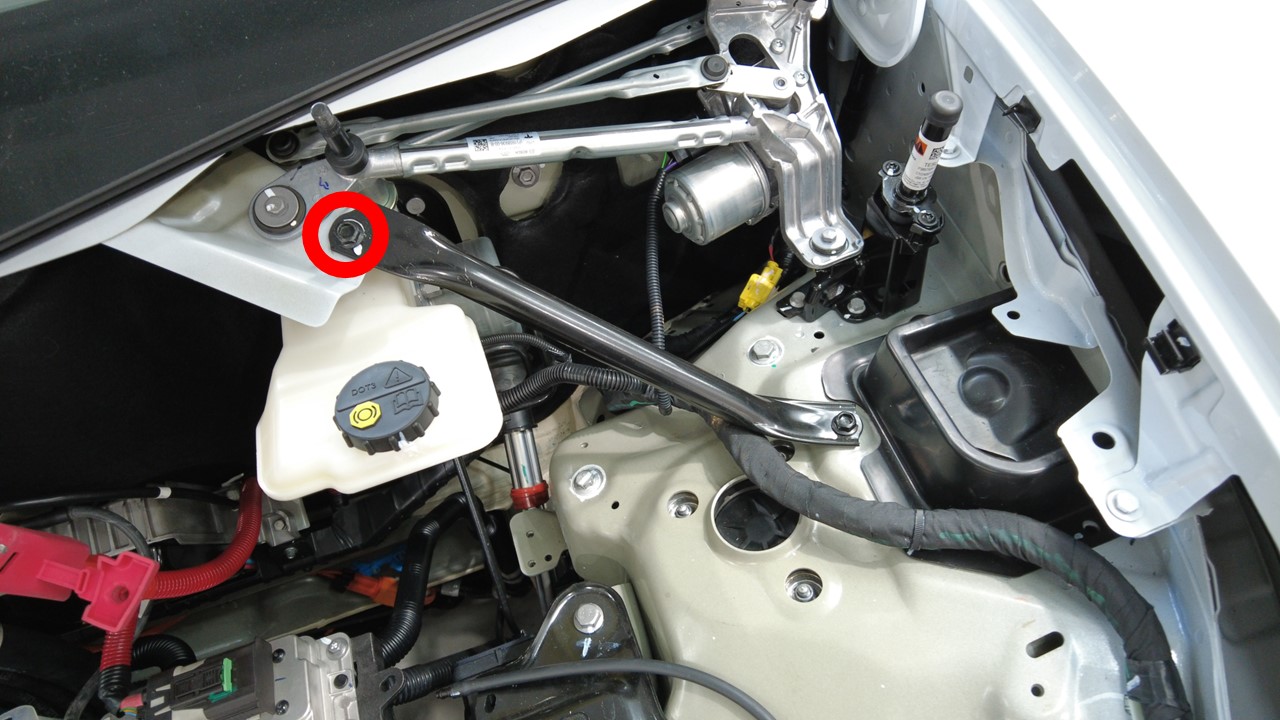

  2. Remove the bolts (x2) that attaches the LH wiper bracket pencil brace to the body, and then remove the brace from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • 13 mm deep socket

Install

  1. Hand-tighten the bolts (x2) that attaches the LH wiper bracket pencil brace to the body, and then torque them.
    18.8 Nm (13.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • 13 mm deep socket
  2. Install the cowl screen. See Cowl Screen (Remove and Replace).
