Brake Caliper Logo Plate - Rear - LH (Performance Brakes) (Remove and Install)
Correction code
33010700601
33010700602
33010700701
33010700702
FRT
0.18
NOTE: Unless
otherwise explicitly stated in the procedure, the above correction code and
FRT reflect all of the work required to perform this procedure, including
the linked procedures. Do
not stack correction codes unless explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how
they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection
to make sure wearing proper PPE when performing the below procedure.
NOTE: See Ergonomic Precautions for safe and
healthy working practices.
- 2025-09-11: Released new procedure
Remove
- Remove the LH rear wheel. See Wheel Assembly (Remove and Install).
-

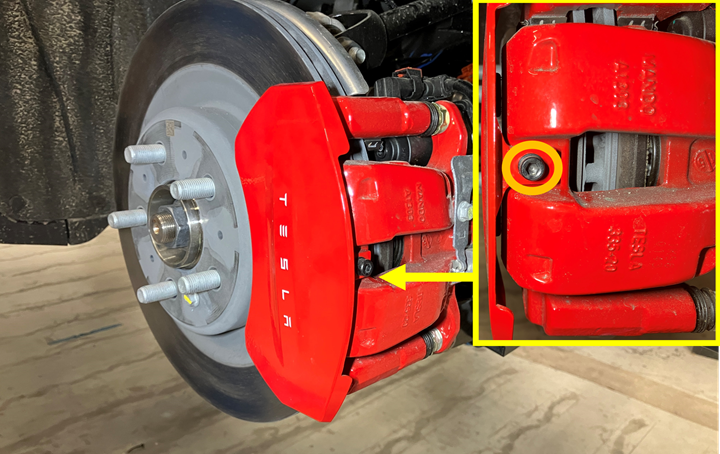

Remove the bolt that
attaches the rear brake caliper logo plate to the brake caliper, and then
remove the logo plate from the vehicle.
Install
-
Position the rear brake caliper logo plate to the brake caliper, and then
install the bolt that attaches the brake caliper logo plate to the brake
caliper.
9 Nm (6.6 lbs-ft) - Install the LH rear wheel. See Wheel Assembly (Remove and Install).
