LHD Mount - 3DU (Remove and Replace)

Correction code 3901021002 FRT 2.64 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Table 1. Description: LHD Mount - 3DU (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolt securing steering gear assembly to electric steering column
18 Nm (13.3 lbs-ft)
  • 13 mm socket
  • Cordless Ratchet/Impact Driver
Replace
Bolts (X4) securing front end carrier to front subframe crash can
16 Nm (11.8 lbs-ft)
  • 13 mm socket
  • Cordless Ratchet/Impact Driver
  • Flex head ratchet/flex head torque wrench
Reuse
Bolt securing RH front brake hose bracket to knuckle
5 Nm (3.7 lbs-ft)
  • Cordless Ratchet/Impact Driver
  • 10 mm socket
  • 4 in extension
Reuse
Bolts (X2) that secure RH front brake caliper to RH front knuckle
94 Nm (69.3 lbs-ft)
  • Cordless Ratchet/Impact Driver
  • External Torx E18
  • Flex head ratchet/flex head torque wrench
  • S-HOOK, BRAKE CALIPER (SET OF 2)
Replace 2188622-00-B
Bolt securing RH front speed sensor to knuckle
5 Nm (3.7 lbs-ft)
  • Torx T30 socket
  • Cordless Ratchet/Impact Driver
  • 4 in extension
Reuse
Bolt securing RH front upper control arm to knuckle
56 Nm (41.3 lbs-ft)
  • Cordless Ratchet/Impact Driver
  • 15 mm deep socket
  • Torx T50 socket
  • 1/2 TON ECONOMY TRANSMISSION JACK
Reuse
Nut that secures RH front stabar link end to front stabilizer bar
98 Nm (72.3 lbs-ft)
  • Flex head ratchet/flex head torque wrench
  • Ratchet/torque wrench
  • Torx T50 socket
Replace
Nut and bolt securing RH strut to RH front lower lateral link
106 Nm (78.2 lbs-ft)
  • Flex head ratchet/flex head torque wrench
  • SKT, 1/2" DR, SHALLOW, 21MM - 1115108-00-B
  • Breaker Bar 1/2in Dr. x Long - 1082458-00-A
  • 1/2 TON ECONOMY TRANSMISSION JACK
Reuse
Bolt securing RH front wheel liner to skid plate
5 Nm (3.7 lbs-ft)
  • 10 mm deep socket
  • Ratchet/torque wrench
Reuse
Bolt securing FDU ground strap to FDU
10 Nm (7.4 lbs-ft)
  • 10 mm deep socket
  • Ratchet/torque wrench
Reuse
Bolt securing FDU HV harness to FDU
10 Nm (7.4 lbs-ft)
  • 10 mm deep socket
  • Ratchet/torque wrench
  • Electrical Protective Gloves
  • Class 00 Electrical Protective Gloves
Reuse
Larger bolts (X2) securing rear portion of front subframe to body
125 Nm (92.2 lbs-ft)
  • Breaker Bar 1/2in Dr. x Long - 1082458-00-A
  • SKT, 1/2" DR, SHALLOW, 21MM - 1115108-00-B
  • EXTENSION, IMPACT, 1/2" DR, 3
Replace
Bolt securing LH motor mount to LH motor mount isolator
105 Nm (77.4 lbs-ft)
  • E18 Torx Low Profile Socket; Extension 3/8in Dr. x 3in
  • Cordless Ratchet/Impact Driver
Reuse
Bolt securing front motor mount to front subframe
80 Nm (59.0 lbs-ft)
  • 18 mm socket
  • Ratchet/torque wrench
Reuse
Smaller bolts (X2) securing the rear portion of the front subframe to body
50 Nm (36.9 lbs-ft)
  • Cordless Ratchet/Impact Driver
  • Flex head ratchet/flex head torque wrench
Replace
Both sides bolts securing front portion of front subframe to body
72 Nm (53.1 lbs-ft)
  • Flex head ratchet/flex head torque wrench
  • Cordless Ratchet/Impact Driver
  • 3 in extension
Replace
Both sides bolts securing mid portion of front frame to body
50 Nm (36.9 lbs-ft)
  • Flex head ratchet/flex head torque wrench
  • Cordless Ratchet/Impact Driver
  • 3 in extension
Replace
Bolts (X3) attach left hand mount assembly to drive unit
35 Nm (25.8 lbs-ft) + 55 degrees
  • 3 in extension
  • Flex head ratchet/flex head torque wrench
  • Cordless Ratchet/Impact Driver
Replace 1111864-00-B

Remove

  1. Move the vehicle to a 2 post lift. See Raise Vehicle - 2 Stands.
  2. Unlock the gateway. See Gateway (Unlock).
  3. On the touchscreen, tap the Service Mode "wrench" (at the bottom of the touchscreen UI), and then tap Thermal > Coolant System > Start Thermal Fill/Drain > Run, and allow the routine to complete.
  4. Disconnect the LV battery. See LV Power (Disconnect and Connect).
  5. Using the steering wheel holder, lock the steering wheel into position.
  6. Perform high voltage disablement procedure. See Vehicle HV Disablement Procedure.
  7. Remove the underhood storage unit from vehicle. See Underhood Storage Unit (Remove and Replace).
  8. Remove the air intake duct from vehicle. See Duct - Air Intake (Remove and Replace).
  9. Remove bolt securing steering gear assembly to electric steering column.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 13 mm socket
    • Cordless Ratchet/Impact Driver

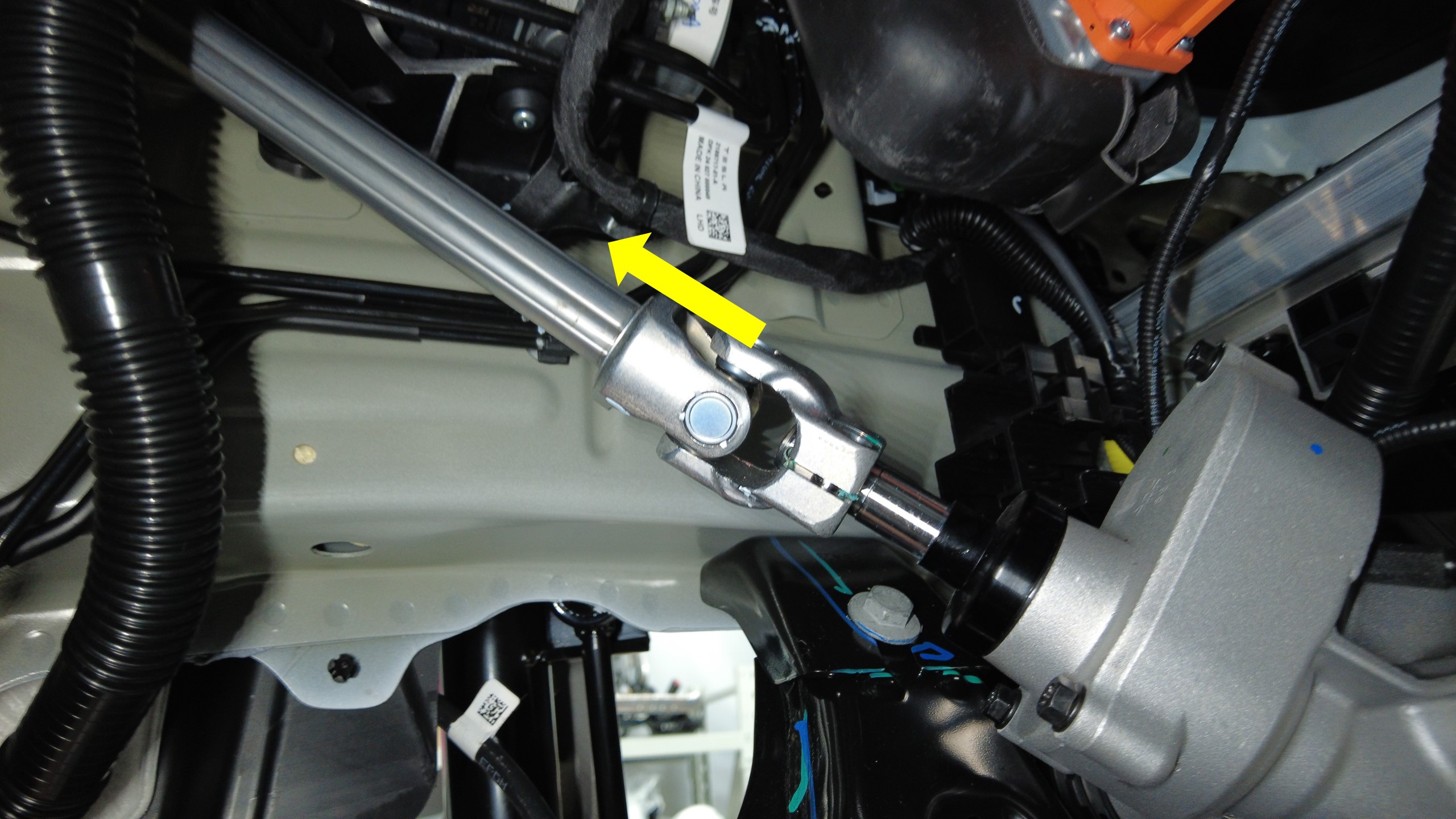

  10. Disconnect steering column to steering gear assembly.
  11. Disconnect front drive unit front subframe harness connector.

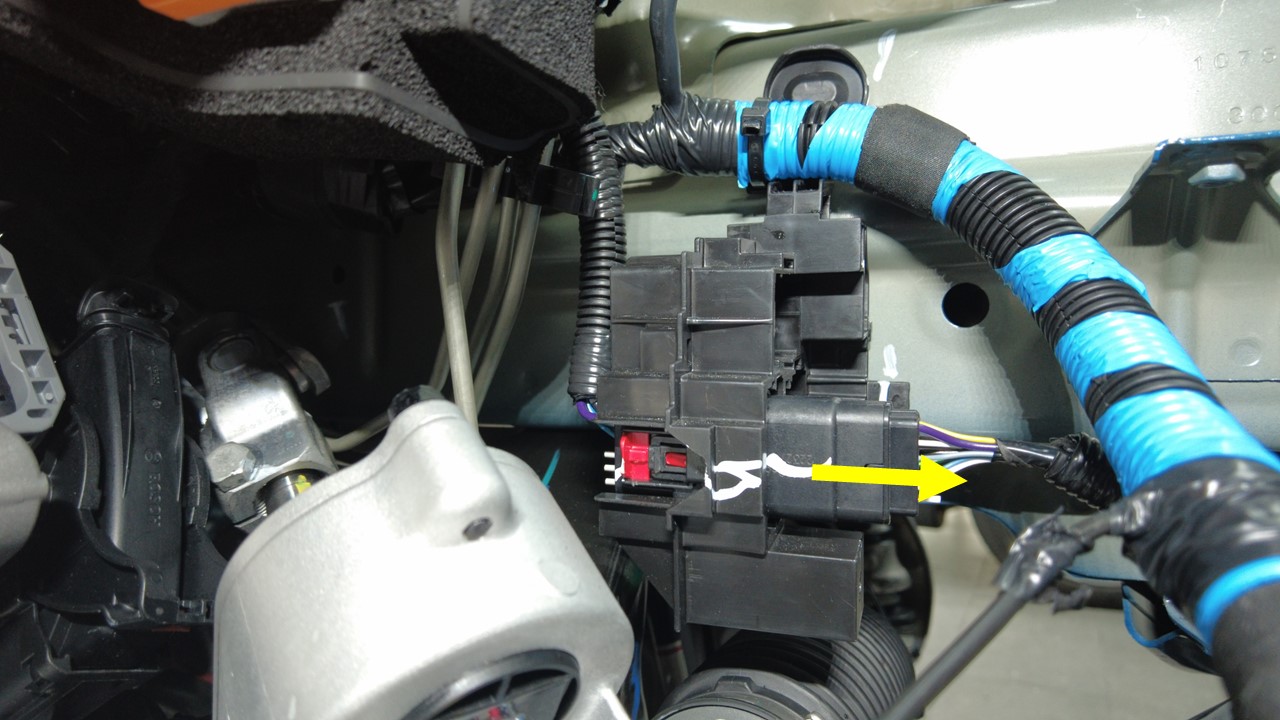

  12. Disconnect steering gear motor upper-half connectors.
  13. Remove the front fascia assembly. See Front Fascia (Remove and Replace).
  14. Remove bolts securing front end carrier to LH and RH front subframe crash cans.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 13 mm socket
    • Cordless Ratchet/Impact Driver
    • Flex head ratchet/flex head torque wrench
  15. Raise vehicle partially and lower lift onto locks.
  16. Remove bolt securing RH front brake hose bracket to knuckle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Cordless Ratchet/Impact Driver
    • 10 mm socket
    • 4 in extension
  17. Remove RH front brake caliper from RH front knuckle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Cordless Ratchet/Impact Driver
    • External Torx E18
    • Flex head ratchet/flex head torque wrench
    • S-HOOK, BRAKE CALIPER (SET OF 2)
  18. Remove clips securing RH front speed sensor harness to knuckle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T30 socket
    • Cordless Ratchet/Impact Driver
    • 4 in extension
  19. Remove bolt securing RH front speed sensor to knuckle and move a side.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T30 socket
    • Cordless Ratchet/Impact Driver
    • 4 in extension
  20. Release nut and bolt securing RH front upper control arm to knuckle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Cordless Ratchet/Impact Driver
    • 15 mm deep socket
    • Torx T50 socket
    • 1/2 TON ECONOMY TRANSMISSION JACK
  21. Repeat step 16 through step 20 on the LH side of the vehicle.
  22. Raise vehicle fully and lower lift onto locks.
  23. Remove RH front stabar link end from front stabilizer bar.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Flex head ratchet/flex head torque wrench
    • Ratchet/torque wrench
    • Torx T50 socket
  24. Remove nut and bolt securing RH strut to RH front lower lateral link.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Flex head ratchet/flex head torque wrench
    • SKT, 1/2" DR, SHALLOW, 21MM - 1115108-00-B
    • Breaker Bar 1/2in Dr. x Long - 1082458-00-A
    • 1/2 TON ECONOMY TRANSMISSION JACK
  25. Perform steps 23 - 24 for the LH side.
  26. Remove clip securing steering gear harness to harness bracket.
  27. Disconnect steering gear motor lower-half connectors.
  28. Remove bolt securing RH front wheel liner to skid plate.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm deep socket
    • Ratchet/torque wrench
  29. Remove clip securing RH wheel liner to body.
  30. Use bungee strap to pull back RH front wheel liner.
  31. Position coolant drain container underneath RH front of HV battery.
  32. Disconnect front drive unit inverter inlet hose to rear powertrain return hose and plug hoses.
  33. Position coolant drain container underneath front drive unit.
  34. Disconnect front drive unit powertrain return hose from the front drive unit heat exchanger.
  35. Remove coolant drain container from underneath vehicle.
  36. Remove bolt securing LH front wheel liner to skid plate.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm deep socket
    • Ratchet/torque wrench
  37. Remove front skid plate. See High Voltage Battery Assembly - Front Skid Plate Assembly (Remove and Replace).
  38. Remove bolt securing front drive unit ground strap to front drive unit.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm deep socket
    • Ratchet/torque wrench
  39. Remove front drive unit ground strap harness clip from front drive unit.
  40. Put on HV insulating gloves and leather over gloves.
  41. Remove bolt securing front drive unit HV harness to front drive unit.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm deep socket
    • Ratchet/torque wrench
    • Electrical Protective Gloves
    • Class 00 Electrical Protective Gloves
  42. Release front drive unit HV harness connector.
    Informational PurposesAn informational icon, calling your attention
    Note
    Release red locking tab and rotate the release lever up to disengage the connector.
  43. Release front drive unit HV harness from casting and move aside.
  44. Remove HV insulating gloves.
  45. Remove both sides larger bolts securing rear portion of front subframe to body.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Breaker Bar 1/2in Dr. x Long - 1082458-00-A
    • SKT, 1/2" DR, SHALLOW, 21MM - 1115108-00-B
    • EXTENSION, IMPACT, 1/2" DR, 3
  46. Position powertrain subframe lift underneath front of vehicle
  47. Connect air supply to subframe lifting tool.
  48. Raise powertrain table and subframe fixture into position.
    Informational PurposesAn informational icon, calling your attention
    Note
    Latch the subframe to subframe lifting tool, make sure the subframe and front drive unit align to the subframe fixture.
  49. Remove bolts securing LH and RH motor mounts to LH and RH motor mount isolators.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • E18 Torx Low Profile Socket; Extension 3/8in Dr. x 3in
    • Cordless Ratchet/Impact Driver
  50. Remove both sides smaller bolts securing the rear portion of the front subframe to body.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Cordless Ratchet/Impact Driver
    • Flex head ratchet/flex head torque wrench
  51. Remove both sides bolts securing front portion of front subframe to body.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Flex head ratchet/flex head torque wrench
    • Cordless Ratchet/Impact Driver
    • 3 in extension
  52. Remove both sides bolts securing mid portion of front frame to body.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Flex head ratchet/flex head torque wrench
    • Cordless Ratchet/Impact Driver
    • 3 in extension
  53. Lower subframe and front drive unit assembly from vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Recommend assistance, slowly downward to avoid damage during downward process.
  54. Remove harness clip from left hand mount assembly.
  55. Remove and discard the bolts (x3) that attach the LH mount to the body, and then remove left hand mount assembly.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 3 in extension
    • Flex head ratchet/flex head torque wrench
    • Cordless Ratchet/Impact Driver

Install

  1. Position the left hand mount assembly to the vehicle, and then install new bolts (x3) that attach the LH mount to the body.
    35 Nm (25.8 lbs-ft) + 55 degrees
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 3 in extension
    • Flex head ratchet/flex head torque wrench
    • Cordless Ratchet/Impact Driver
  2. Install harness clip to left hand mount assembly.
  3. Position lifting tool and subframe and front drive unit assembly to under vehicle for installation.
  4. Loosely intall both sides bolts securing mid portion of the front frame to body.
    50 Nm (36.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Flex head ratchet/flex head torque wrench
    • Cordless Ratchet/Impact Driver
    • 3 in extension
  5. Loosely install bolts securing front portion of front subframe to body.
    72 Nm (53.1 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Flex head ratchet/flex head torque wrench
    • Cordless Ratchet/Impact Driver
    • 3 in extension
  6. Loosely install both sides smaller bolts securing rear portion of the front subframe to body.
    50 Nm (36.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Cordless Ratchet/Impact Driver
    • Flex head ratchet/flex head torque wrench
  7. Loosely install both sides larger bolts securing rear portion of front subframe to body.
    125 Nm (92.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Breaker Bar 1/2in Dr. x Long - 1082458-00-A
    • SKT, 1/2" DR, SHALLOW, 21MM - 1115108-00-B
    • EXTENSION, IMPACT, 1/2" DR, 3
  8. Loosely install bolt securing RH and LH motor mounts to RH and LH motor mount isolators.
    105 Nm (77.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • E18 Torx Low Profile Socket; Extension 3/8in Dr. x 3in
    • Cordless Ratchet/Impact Driver
  9. Torque both sides bolts securing mid portion of front frame to body.
    50 Nm (36.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Cordless Ratchet/Impact Driver
    • Flex head ratchet/flex head torque wrench
  10. Torque bolts securing front portion of front subframe to body.
    72 Nm (53.1 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Flex head ratchet/flex head torque wrench
    • Cordless Ratchet/Impact Driver
    • 3 in extension
  11. Torque both sides smaller bolts securing rear portion of front subframe to body.
    50 Nm (36.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Cordless Ratchet/Impact Driver
    • Flex head ratchet/flex head torque wrench
  12. Torque both sides larger bolts securing rear portion of front subframe to body.
    125 Nm (92.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Breaker Bar 1/2in Dr. x Long - 1082458-00-A
    • SKT, 1/2" DR, SHALLOW, 21MM - 1115108-00-B
    • EXTENSION, IMPACT, 1/2" DR, 3
  13. Torque bolt securing RH and LH motor mounts to RH and LH motor mount isolators.
    105 Nm (77.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • E18 Torx Low Profile Socket; Extension 3/8in Dr. x 3in
    • Cordless Ratchet/Impact Driver
  14. Torque bolt securing front motor mount to front subframe.
    80 Nm (59.0 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 18 mm socket
    • Ratchet/torque wrench
  15. Install bolts securing front end carriers to LH and RH front subframe crash cans.
    16 Nm (11.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 13 mm socket
    • Cordless Ratchet/Impact Driver
    • Flex head ratchet/flex head torque wrench
  16. Lower powertrain table.
  17. Disconnect air supply from subframe lifting tool.
  18. Remove powertrain subframe lift from underneath front of vehicle.
  19. Put on HV insulating gloves and leather over gloves.
  20. lnstall front drive unit HV harness to casting.
  21. Install front drive unit HV harness connector to front drive unit.
    Informational PurposesAn informational icon, calling your attention
    Note
    Align connector to front drive unit then remove HV connector lever lock before fully latching connector. Once installed, verify that the latch is not damaged and fully secured in the latched position.
  22. Install bolt securing front drive unit HV harness to front drive unit.
    10 Nm (7.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm deep socket
    • Ratchet/torque wrench
    • Electrical Protective Gloves
    • Class 00 Electrical Protective Gloves
  23. Remove HV insulating gloves.
  24. Install bolt securing front drive unit ground strap to front drive unit.
    10 Nm (7.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm deep socket
    • Ratchet/torque wrench
  25. Install the front skid plate. See High Voltage Battery Assembly - Front Skid Plate Assembly (Remove and Replace).
  26. Position coolant drain container underneath RH front of HV battery.
  27. Connect front drive unit inverter inlet hose to rear powertrain return hose
    Informational PurposesAn informational icon, calling your attention
    Note
    Perform push-pull test to verify hoses are fully engaged. If the coolant loss is greater then 1L, vacuum fill will be required. See Cooling System - Vacuum Refill.
  28. Position coolant drain container underneath front drive unit.
  29. Install front drive unit powertrain return hose to front drive unit heat exchanger.
    Informational PurposesAn informational icon, calling your attention
    Note
    Perform push-pull-push test to make sure hose is fully engaged.
  30. Remove coolant drain container from underneath vehicle.
  31. Release RH front wheel liner from bungee strap.
  32. Install clip securing steering gear harness to harness bracket.
  33. Connect steering gear motor lower-half connectors.
  34. Loosely install bolt and nut securing LH strut to LH front lower lateral link.
    106 Nm (78.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Flex head ratchet/flex head torque wrench
    • SKT, 1/2" DR, SHALLOW, 21MM - 1115108-00-B
    • Breaker Bar 1/2in Dr. x Long - 1082458-00-A
    • 1/2 TON ECONOMY TRANSMISSION JACK
  35. Install LH front stabar link end to front stabilizer bar.
    98 Nm (72.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Flex head ratchet/flex head torque wrench
    • Ratchet/torque wrench
    • Torx T50 socket
  36. Loosely install bolt and nut securing RH strut to RH front lower lateral link.
    106 Nm (78.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Flex head ratchet/flex head torque wrench
    • SKT, 1/2" DR, SHALLOW, 21MM - 1115108-00-B
    • Breaker Bar 1/2in Dr. x Long - 1082458-00-A
    • 1/2 TON ECONOMY TRANSMISSION JACK
  37. Install RH front stabar link end to front stabilizer bar.
    98 Nm (72.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Flex head ratchet/flex head torque wrench
    • Ratchet/torque wrench
    • Torx T50 socket
  38. Lower vehicle partially and set onto locks.
  39. Position RH upper control arm to knuckle and install nut and bolt.
    56 Nm (41.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Cordless Ratchet/Impact Driver
    • 15 mm deep socket
    • Torx T50 socket
    • 1/2 TON ECONOMY TRANSMISSION JACK
  40. Install bolt securing RH front speed sensor to knuckle.
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T30 socket
    • Cordless Ratchet/Impact Driver
    • 4 in extension
  41. Install clips securing RH front speed sensor harness to knuckle.
  42. Install RH front brake caliper to RH front knuckle.
    94 Nm (69.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Cordless Ratchet/Impact Driver
    • External Torx E18
    • Flex head ratchet/flex head torque wrench
    • S-HOOK, BRAKE CALIPER (SET OF 2)
  43. Install bolt securing RH front brake hose bracket to knuckle.
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Cordless Ratchet/Impact Driver
    • 10 mm socket
    • 4 in extension
  44. Repeat step 39 through step43 on the LH side of the vehicle.
  45. Install hub jack adapter onto LH front hub.
  46. Position and raise support stand to simulate LH front suspension at ride height.
  47. Measure from bottom of fender to center of axle as a check to make sure LH suspension is set close to ride height.
  48. Torque bolt and nut securing LH strut to LH front lower lateral link.
    106 Nm (78.2 lbs-ft)
  49. Remove support stand from underneath LH front suspension.
  50. Remove hub jack adapter from LH front hub.
  51. Repeat step #TASK_SPG_2QC_XWB__GUID-8509BFB4-CDFB-423F-8BE5-F3B1C523CB1B through step#TASK_SPG_2QC_XWB__GUID-A6A38C5E-6A3F-4C95-A64C-4091C8808F26 on the RH side of the vehicle.
  52. Lower vehicle partially and set onto locks.
  53. Install the front fascia assembly. See Front Fascia (Remove and Replace).
  54. Connect steering gear motor upper-half connectors.
  55. Connect front drive unit front subframe harness connector.
  56. Connect steering column to steering gear assembly.
  57. Install new bolt securing intermediate shaft assembly to steering gear assembly.
    18 Nm (13.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 13 mm socket
    • Cordless Ratchet/Impact Driver
  58. Perform the cooling system (partial refill and bleed) procedure. See Cooling System (Partial Refill And Bleed) (Modify).
  59. Connect the LV battery. See LV Power (Disconnect and Connect).
  60. Unlock the gateway. See Gateway (Unlock).
  61. Select Stop Thermal Fill/Drain > Run, and allow the routine to complete.
  62. Select Coolant Purge Start > Run, and allow the routine to complete.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure vehicle is not in Drive, shifting the vehicle into Drive will stop this routine. The test will last approximately 10 mins. The test will vary speeds from 3500-6500 RPM (idle speed = ~1500 RPM) and actuate the valve between series and parallel. If speed hovers at 7000 RPM, it indicates the pump is air locked, perform the vacuum fill again. Continue to add coolant and purge until the coolant level reaches between the NOM and MAX Lines on the bottle.
  63. Exit Service Mode. See Service Mode.
  64. Inspect the coolant level, top off as necessary, and then install the coolant bottle cap.
    Informational PurposesAn informational icon, calling your attention
    Note
    Ensure that the coolant level is at the "Max" line.
  65. Install the underhood storage unit to vehicle. See Underhood Storage Unit (Remove and Replace).
  66. Install the HEPA filter assembly. See Service Kit - Hepa And Carbon Filters (Remove and Replace).
  67. Remove the vehicle from the 2 post lift. See Raise Vehicle - 2 Stands.
